AutomAtic Drum WAshing mAchine
USER MANUAL hW80-1401B-u hW70-1401B-u
hW70-1401s-u hW70-1401-u
hW70-1201B-u hW70-1201s-u
hW70-1201-u hW60-1401B-u
hW60-1401s-u hW60-1401-u
hW60-1201B-u hW60-1201s-u
hW60-1201-u
tABle of contents
IMPORTANT DISPOSAL INSTRUCTIONS
As a responsible retailer we care about the environment. As such we urge you to follow the correct
disposal procedure for your product and packaging materials.
This will help conserve natural recourses and ensure that it is recycled in a manner that protects health
and the environment.
You must dispose of this product and its packaging according to local laws and regulations. Because
this product contains electronic components, the product and its accessories must be disposed of separately from household
waste when the product reaches its end of life.
Contact your local authority to learn about disposal and recycling. The product and packaging should be taken to your local
collection point for recycling. Some collection points accept products free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a resultof
product improvement and development.
KESA ELECTRICALS U.K HU1 3AU 05/12/2010
LEGEND
For your safety, any instructions in this manual with this "Warning" sign must be followed strictly.
Yes
No
Optional
03 - 09
10 - 15
16- 20
COMPONENTS> ............................... 03
PREPARATION> ................................ 04
SAFETY INSTRUCTIONS> ................... 05
INSTALLATION> ................................ 06
CONTROL PANEL> ............................ 08
Before use using the AppliAnce MAINTENANCE
PROGRAM SELECTION> ..................... 10
CONSUMPTION AND TECHNICAL DATA> ..
11
WASHING METHODS> ...................... 12
CLEANING & CARE> .......................... 16
DISPLAY CODES> ............................. 18
TROUBLESHOOTING>........................ 19
IMPORTANT SAFETY INFORMATION...20
>
03
Before use
1x Inlet hose assembly 1x Drain hose bracket
1x User manual 4x Blanking plugs
Delay
components
THANKS FOR PURCHASING A HAIER PRODUCT
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you
get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the
new owner can become familiar with the appliance and safety warnings.

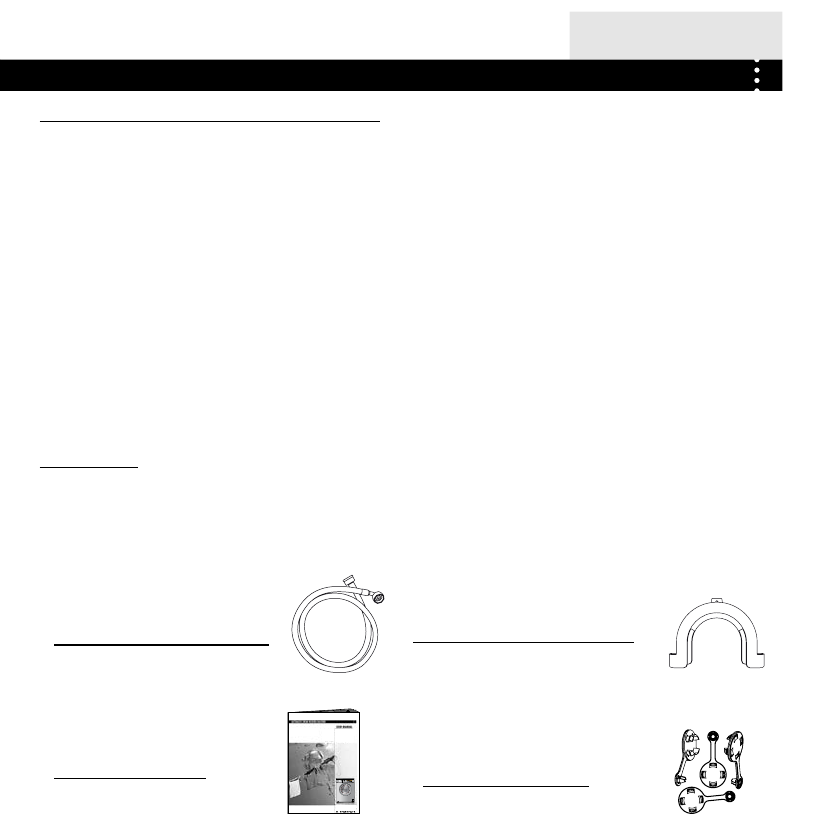

ACCESSORIES
Check the accessories and literature
in accordance with this list:
HW80-1401 HW80-1201 HW80-1001
HW80-1401S HW80-1201S HW80-1001S
HW80-1401B HW80-1201B HW80-1001B
HW70-1401 HW70-1201 HW70-1001
HW70-1401S HW70-1201S HW70-1001S
HW70-1401B HW70-1201B HW70-1001B
04
Before use
T1 T2
T3 S1
S2 S4
S3
T4
Control panel
Door handle
Work top
Washer door
Start/Pause
Detergent distribution drawer
Filter cover

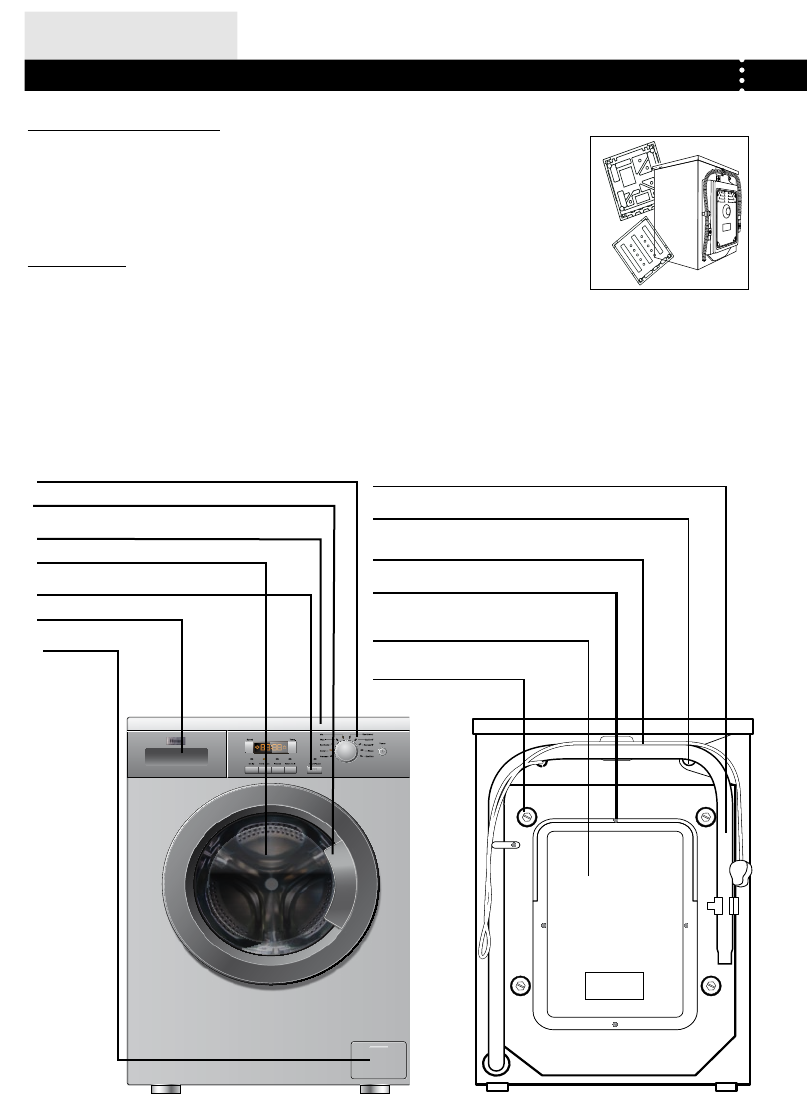

PREPARING THE MACHINE
Remove all the packing materials to prevent unsteadiness, including the polystyrene base. Upon
opening the package, water drops may be seen on the plastic bag and the porthole. This is normal
phenomenon resulting from water tests in the factory.
DESCRIPTION
This diagram may be slightly different from the layout of the washing machine you have just
purchased due to technical improvements.
prepArAtion
Drain hose
Water inlet valve
Power cord
Back cover screws
Back cover
Transportation bolts
05
Before use
sAfety instructions
DO ...
... Make sure that the transport bolt are removed.
... Use a separate earthed socket for the power supply.
... Make sure that the plug is accessible.
... Hold the plug and not the electric cable when
unplugging the power supply.
... Make sure that the fuses in the power circuit are rated
for 15A.
... Keep away from heat sources and direct sun light to
prevent plastic and rubber components from aging.
... Make sure that the power cord is not caught under or
in the appliance and avoid damage to the power cable.
... Check that hose joints and connections are firm and no
water can leak. If joints are loose or there is leakage, turn off the
water supply and refix. Do not use the washing machine until the
hoses are properly fixed.
DO ...
... Pull up zips and fix loose threads to prevent the items
from being entangled. If necessary, put small items into a net bag
or pillow.
... Turn off the machine after each wash program and
switch it off at the mains to save electricity and for safety. Wipe
clean the lower part of the porthole.
... Keep the door slightly open when the washing machine
is not in use to prevent formation of odours.
... Let the power cord be replaced by the manufacturer, his
service agent or other accordingly qualified persons, in case it is
damaged.
... Ensure that the appliance is not used by persons
with reduced physical, sensory or mental capabilities, lack of
experience and knowledge without supervision or instruction by a
person responsible for their safety.
... Supervise children to ensure that they do not play with
the appliance.
DO NOT ...
... Touch or use the appliance when barefoot or with wet
or damp hands or feet.
... Use flammable detergent or dry cleaning agent.
... Use any flammable sprays in close vicinity to the
appliance.
... Remove or insert the plug in the presence of flammable
gas.
... Allow children or infirm persons to play with the appliance
or packing materials.
... Install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak allow the machine to dry
naturally.
... Place the washing machine directly on a carpet, or close
to a wall or furniture.
DO NOT ...
... Touch the washer door during the washing process - it
gets hot!
...Place heavy objects or sources of heat or damp on top
of the appliance.
... Hot wash foam rubber or sponge-like materials.
... Open the detergent distribution drawer during the wash
cycle.
... Force the washer door open. The door is fitted with a
self-lock device and will open shortly after the washing procedure
is ended.
... Open the washer door if the water level is visibly
over the porthole.
... Cover the washing machine with plastic cover so that
inside dampness cannot be kept in.
BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME
DURING DAILY USE OF THE APPLIANCE
06
Before use
3.
1. 2.
4.

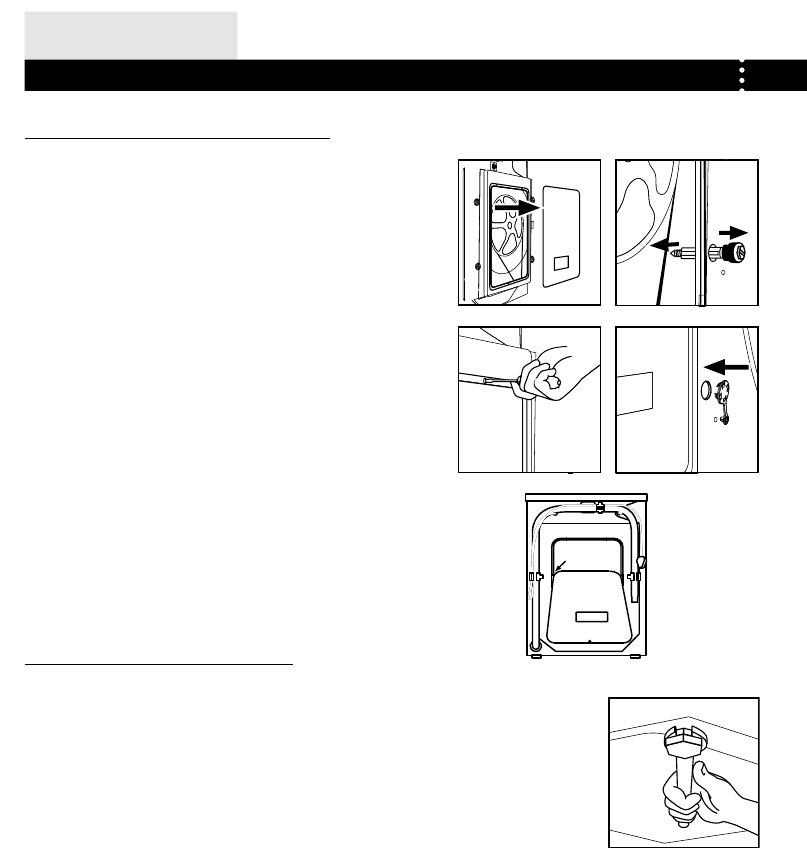

DISMANTLE THE TRANSPORTATION BOLTS
The transportation bolts are designed for clamping anti-vibration components
inside of the washing machine during the transportation process.
Remove the back cover.1.
Remove the four bolts on the rear side and take out the synthetic 2.
stabilisers from within the machine.
Replace the back cover.3.
Fill the holes left by the bolts with blanking plugs.4.
Note:
1.When you replace the back cover,the convexity must face
to outside, and you have to insert the back cover from the
two gaps as shown in fig.5.
2.Keep the transportation bolts and synthetic stabilisers
in a safe place for later use.
ADJUSTING THE WASHING MACHINE
There are adjustable feet under the bottom of the washing machine. Before use, they should be
adjusted so that the machine is level. This will minimise vibrations and thus noise during use. It will also
reduce wear and tear. We recommend using a spirit level to level the appliance.The floor should be as
stable and flat as possible.
instAllAtion
5.
07
Before use
1. 2.
1.
8 0 - 1 0 0cm
2.

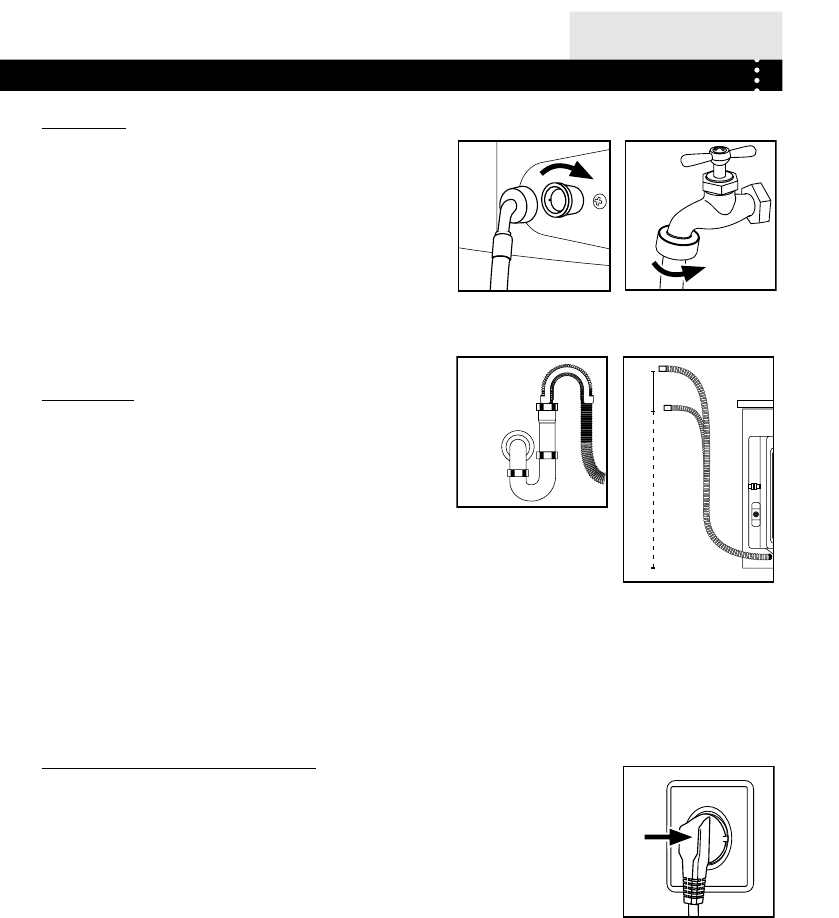

INLET HOSE
1. Connect the nut on the inlet hose to the connector on the water
valve.
2. Apply inlet hose to a water tap with cold, fresh water.
Note: Use the hose-set supplied with the appliance. Old
hose-sets should not be reused.
DRAIN HOSE
1. Use the drain hose bracket to keep the end of the drain hose retained
and prevent the outflow of water. Don't extend the length of the drain
hose; if an extended hose is required, please consult a serviceman.
2. The height of the drainage outlet must be 80-100 cm. Fix the drain
hose to the clip at the back of the washing machine to prevent it from
dropping off.
Note: The drain hose should not be submerged in water
and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a
height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).
CONNECTING TO THE POWER SUPPLY
Before connecting to the power supply, check:
¬ The socket is adequate for the maximum power of the washing machine
(For safety, fuses in the power circuit should be rated for no less than 15A).
¬ The voltage should meet the requirement.
¬ The power outlet should be capable of accepting the washing machine plug.
¬ Connect the machine to an earthed socket outlet.
08
Before use
AB
C
DE
F
GH
KL
J

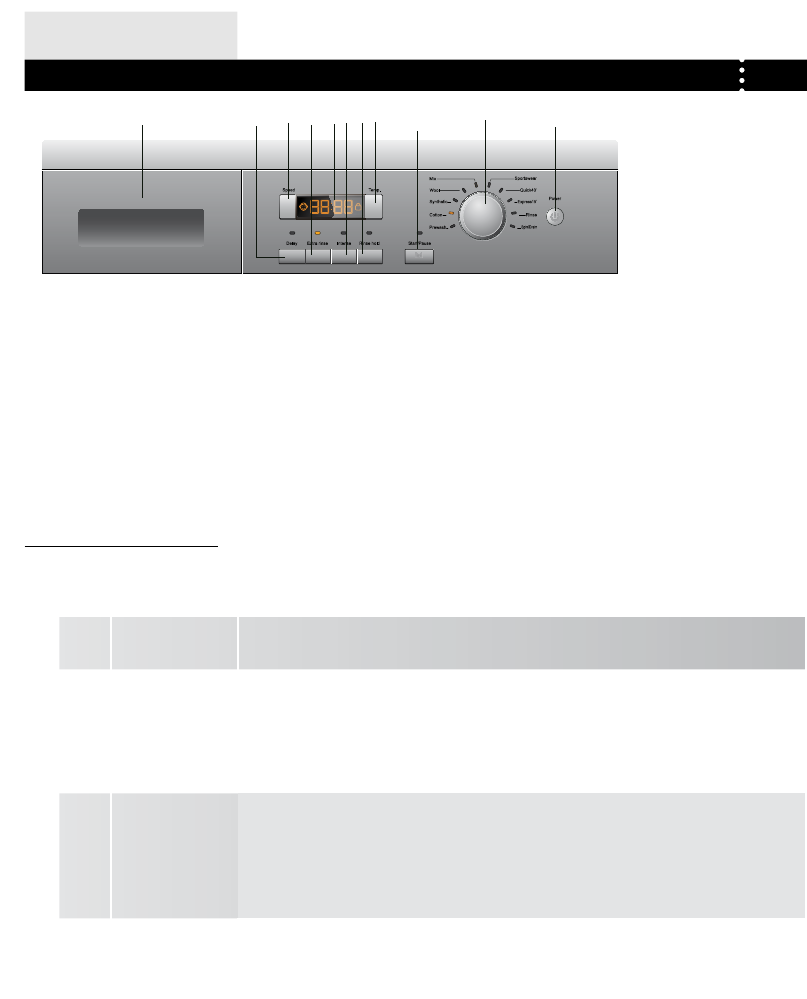

OPERATIONAL FUNCTIONS
control pAnel
A Program knob
B Power Switch
C Start/Pause button
D Spinning Speed Setting button
E Washing temperature button
F Delay Button
G Detergent distribution drawer
H Display
I Intense button
J Extra rinse button
K Rinse hold
A ¬ Program knob _By turning the knob clockwise/counterclockwise, the required program can be selected. There are
10 programs available. After a program is selected, the corresponding light will go on.
B ¬ Power Switch _ Press this button to switch on the washing machine. Press it again to switch it off.Press this button
gently for 2 seconds to switch off the machine as buttons are soft touch sensitive.
C ¬ Start/Pause
Button
_ When the washing machine is connected to the power socket and a program is selected, lightly
touch this button to start operation. During a wash cycle, touch it lightly ,operation will stop and
the digits on the screen start blinking. Touch it again to resume operation. To cancel a wash program
during a wash cycle, touch this button, when the digits on the screen start blinking, press the Power
switch, the program will be cancelled.
D ¬ Spinning Speed
Setting Button
_ Touch this button lightly to select the desired speed. When a speed is set, it will be displayed on the
display screen.
Note: Different water temperatures and spinning speeds can be set for different
laundries. Wash using the default settings if there is no special requirement.
E ¬ Washing
temperature button
_ Touch this button lightly, the washing temperature will be displayed on the display screen. Select a
temperature according to the type of laundry.
J
I I K
09
Before use
F ¬Delay Button Touch this button lightly, the washing machine will start operation after a period of time
and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this
button increases a half hour. After the button is set, press the Start/Pause button to start
countdown of the set time (the time is displayed on the screen until the program ends).
Note:The delay time must be longer than the program time;otherwise,the
washing machine will start the wash program directly.

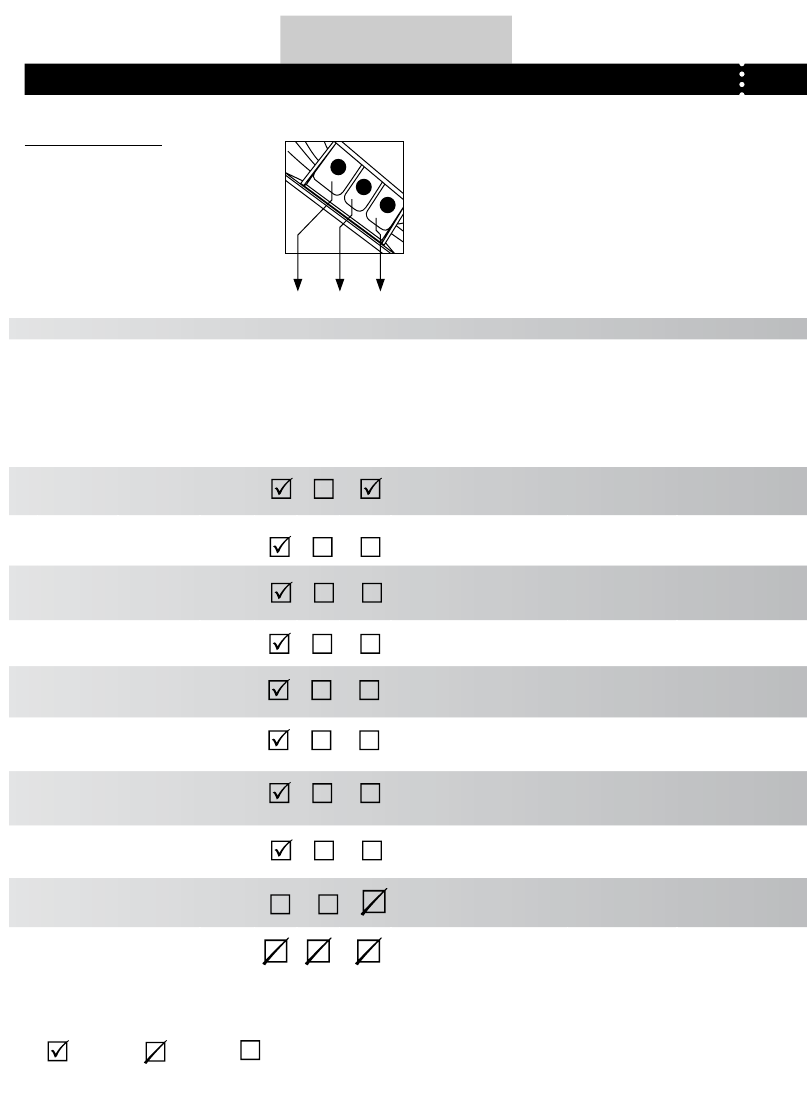

G ¬ Detergent
distribution drawer
_Open the drawer, three compartments can be
seen:
Compartment 1: Prewash detergent
Compartment 2: Detergent for programs 1 to 8.
Compartment 3: Softener, conditioning agent, perfume, etc.
H ¬Display _Information as remaining wash time and error messages will be shown here.
Note: After power is switched on, the display will go on and the remaining
wash time decreases. As the water pressure and temperature may differ, the
remaining time maybe adjusted accordingly. When the laundry is not balanced
during spinning, the time may be automatically prolonged. These are normal
phenomena.
I Intense button If the laundry is heavily soiled, press this button before starting the program. When the button is
pressed, the washing time increases.
J Extra rinse button Press this button, the washing machine will perform additional rinses. Press the button once to
select one additional rinse. The display will show"P-1". Press the button repeatedly and the screen
will display "P-2''or "P-3'', indicating two or three additional selected rinses. The "extra rinse
light" is activated and flashes during the performance. "P-1/2/3" is displayed alternating with
the remaining time. The light turns off and the display disappears when the extra rinse ends.
Note:Select this function when programe 1-9 is selected.
K Rinse hold
Touch this button lightly,the indicator will go on.When the washing machine is at the last rinsing
operation,it will not drain but to start a soaking cycle.If you want to spin the laundry,press this
button or the “start/pause”button again,the indicator will go off and operation will resume.
Note:Select this function when “Prewash,Cotton,Synthetic,Mix,Sport”Programmes are selected.
2
1
3
2
1
3

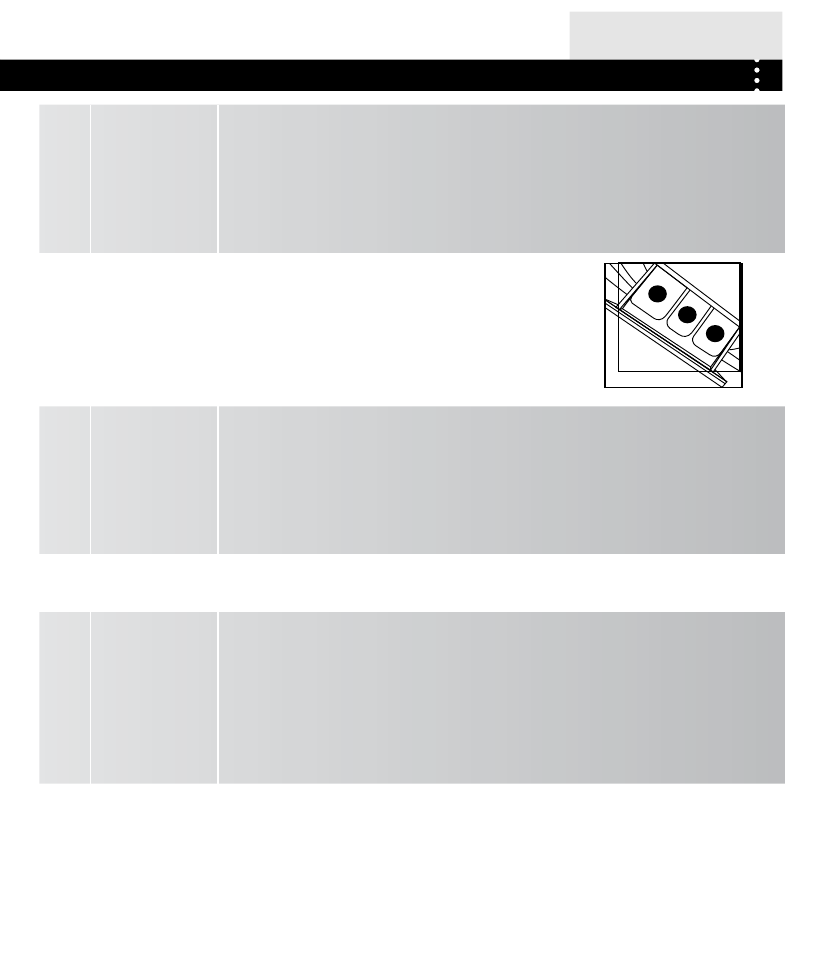

1 Detergent compartment for prewash mode
2 Detergent compartment
3 Compartment for softener and
other additives
10
using the APPLiAnCe
progrAm selection
PROGRAM MODES
Preset spin speed
Program Maximum Preset 2 3 1 Recommended Laundry
hW80-1401B-u hW70-1401B-u hW70-1401s-u
hW70-1401-u hW70-1201B-u hW70-1201s-u
hW70-1201-u hW60-1401B-u hW60-1401s-u
hW60-1401-u hW60-1201B-u hW60-1201s-u
hW60-1201-u
1 ¬ - - to 90 °C 40°C Heavy soiling 1000rpm 1000rpm
2 ¬ - - to 90 °C 40°C Cotton fabrics 1000rpm 1000rpm
3 ¬ - - to 60 °C 40°C Cotton or synthetic 1000rpm 1000rpm
4 ¬ Wool - - to 40 °C - -°C Woolen fabrics 600rpm 600rpm
5 ¬ - - to 60 °C 30°C Different materials 1000rpm 1000rpm
6 ¬ - - to 40 °C 30°C Sports wear 1000rpm 1000rpm
7 ¬ - - to 40 °C - -°C Slight-soil cotton, linen and
synthetic fabrics
1000rpm 1000rpm
8 ¬ - - to 30 °C - -°C Fast colour synthetic 800rpm 800rpm
9 ¬ - - - -°C / 1000rpm 1000rpm
10 ¬ - - - -°C / 1000rpm 1000rpm
Yes No Optional
Temperature
Prewash
Cotton
Synthetic
Mix
Sport
Quick
Express15
Rinse
Spin/Drain
11
using the APPLiAnCe
consumption AnD technicAl DAtA
TECHNICAL DATA
CONSUMPTION TABLE
The wash cycle times are intended as a guide only. The actual time used may vary due to different water pressure, initial water
temperature, etc.WARNING: Never overload the washing machine. See below for maximum loads.
PROGRAM
MAX.
LOAD
ENERGY
CONSUMPTION
WATER
CONSUMPTION
TEMPERATURE
WASHING
TIME
¬ Prewash 6kg/7kg/8kg 1.0kwh/0.945kwh/1.089kwh 74L/75L/78L 40°C 1:46
¬ 6kg/7kg/8kg 0.75kwh/0.75kwh/0.76kwh 60L/56L/63L 40°C 1:28
¬ 3kg/3.5kg/4kg 0.54kwh/0.485kwh/0.609kwh 38L/41L/44L 40°C 1:10
¬ Wool 1kg/1kg/2kg 0.035kwh/0.034kwh/0.044kwh 44L/46L/46L - -°C 0:50
¬ Mix 3kg/3.5kg/4kg 0.29kwh/0.251kwh/0.29kwh 44L/41L/52L 30°C 1:10
¬Sport 3kg/3kg/4kg 0.31kwh/0.282kwh/0.4kwh 35L/36.5L/43L 30°C 1:25
¬ Quick 1kg/2kg/2kg 0.06kwh/0.065kwh/0.075kwh 33L/37.5L/38L - -°C 0:40
¬ Express15 1kg/2kg/2kg 0.02kwh/0.02kwh/0.02kwh 20L/22L/23L - -°C 0:15
*)
EN 60456 test program / Energy label program with Standard 60°C and max. spin speed and
Intense
function
.NOTE: Check the rating label located on the front of the machine behind the door to see the maximum
load for your model.
Preset spin speed
Program Maximum Preset 2 3 1 Recommended Laundry
hW80-1401B-u hW70-1401B-u hW70-1401s-u
hW70-1401-u hW70-1201B-u hW70-1201s-u
hW70-1201-u hW60-1401B-u hW60-1401s-u
hW60-1401-u hW60-1201B-u hW60-1201s-u
hW60-1201-u
1 ¬ - - to 90 °C 40°C Heavy soiling 1000rpm 1000rpm
2 ¬ - - to 90 °C 40°C Cotton fabrics 1000rpm 1000rpm
3 ¬ - - to 60 °C 40°C Cotton or synthetic 1000rpm 1000rpm
4 ¬ Wool - - to 40 °C - -°C Woolen fabrics 600rpm 600rpm
5 ¬ - - to 60 °C 30°C Different materials 1000rpm 1000rpm
6 ¬ - - to 40 °C 30°C Sports wear 1000rpm 1000rpm
7 ¬ - - to 40 °C - -°C Slight-soil cotton, linen and
synthetic fabrics
1000rpm 1000rpm
8 ¬ - - to 30 °C - -°C Fast colour synthetic 800rpm 800rpm
9 ¬ - - - -°C / 1000rpm 1000rpm
10 ¬ - - - -°C / 1000rpm 1000rpm
Yes No Optional
HW80-1401B-U HW70-1401B-U HW70-1201B-U
HW70-1401S-U HW70-1201S-U
HW70-1401-U HW70-1201-U
HW60-1401B-U HW60-1201B-U
HW60-1401S-U HW60-1201S-U
HW60-1401-U HW60-1201-U
Power source
220 - 240V~/50Hz 220 - 240V~/50Hz 220 - 240V~/50Hz
Max. working current (A) 10 10 10
Water pressure (MPa) 0.03≤P ≤1 0.03≤P ≤1 0.03≤P ≤1
Nominal load (kg) 8 7 6
Spinning speed (r/min) 1400/1200/1000 1400/1200/1000 1400/1200/1000
Washing programs 10 10 10
Max power (W) 2000 2000 2000
Dimensions (HxDxW mm)
850 x 650 x 595 850 x 600 x 595 850X520X595
Net weight (kg) 72 70 65
Cotton
Synthetic
12
using the APPLiAnCe
WAshing methoDs

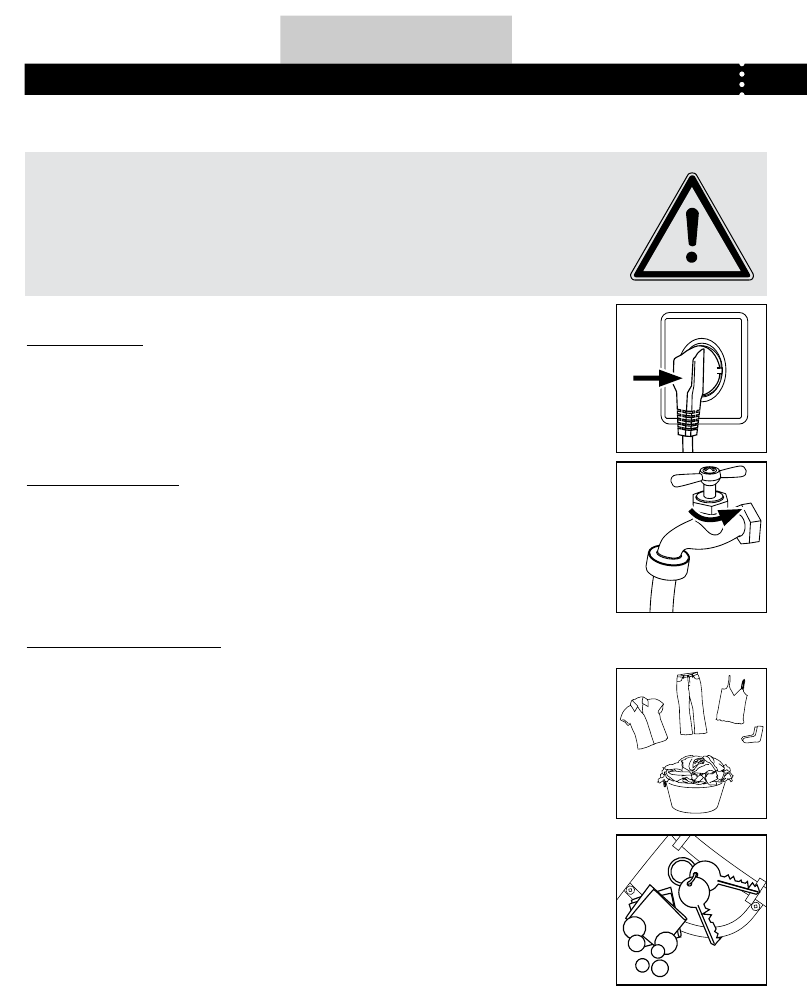

POWER SUPPLY
Connect the washing machine to the power supply (220V to 240V~/50Hz).
WATER CONNECTION
Turn on the tap. The water must be clean and clear.
Note: Before use, check for leakage in the joints between the tap and the inlet hose
by turning on the tap.
PREPARING THE LAUNDRY
¬ Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.
¬ Separate white clothes from coloured ones. Wash them first by hand to check if they fade or run.
¬ Empty pockets (keys, coins, etc.) and remove the harder decorative objects (e.g. brooches).
Attention: Small parts (like buttons, etc) may lead to repair work which user has to
pay by themselves and can cause damage in the machine.
¬ Garments without hems, underwear, finely woven textile such as fine curtains are to be put into wash
bag (it is better not to wash them in a washing machine).
¬ Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as
socks, belts, bras, etc. in the wash bag.
¬
Unfold large pieces of fabric such as bed sheets, bedspreads, etc.
¬ Turn shirts inside out.
This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee
will not be valid anymore.Do not use it for purposes other than that for which it was designed. Follow the
instructions given on the label of each garment and wash only machine-washable garments.
pleAse note
13
using the APPLiAnCe

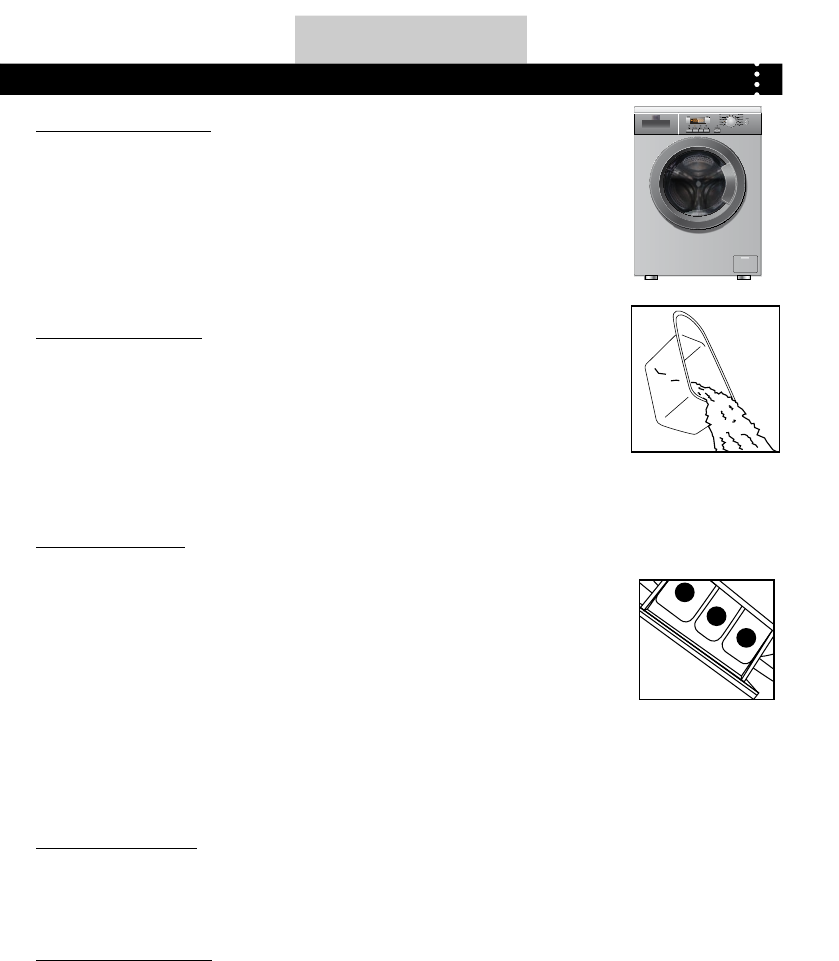

LOADING THE MACHINE
Open the washer door, put in the laundry piece by piece. Close the door tightly.
¬ When first using the washing machine, let it run unloaded for one program to prevent the laundry
from being tainted by oil or dirty water from the washing machine. Before washing you should run the
machine without laundry, but with detergent, with 60°C programm.
¬ Do not overload the washing machine.
SELECTING DETERGENT
The washing efficiency and the performance is determined by the quality of detergent used. Special non-
foaming detergent produces good washing results. Use specific detergents for synthetic and woollen goods.
Do not use dry cleaning agents such as trichloroethylene and similar products.
Note: Do not add more detergent than needed. Please follow the dosage
recommendation on the detergent package.
ADDING DETERGENT
Slide out the detergent drawer and put the required detergent and softening agent into the corresponding
compartments. Push back the drawer gently. (Refer to the instructions on the drawer)
Caution:
¬ For prewashing program, detergent should be added to both compartments 1 and 2.
For other programs, do not add detergent to compartment 1.
¬ Use liquid detergent according to the instructions on its package. Do not use liquid detergent if the
prewash mode or "Delay" is selected.
¬ Do not overuse softener; otherwise, it will damage the artificial fibers.
SELECTING PROGRAM
To get the best washing results, an appropriate washing program should be selected according to the laundry type. Please turn the
program knob to select the right program.
SELECTING FUNCTIONAL
Select the required options. (Refer to the "Control panel" pages 08 and 09)
2
1
3
14
using the APPLiAnCe
SETTING WASHING TEMPERATURE
Press and hold down the temperature button until the desired temperature is selected .
SETTING SPIN SPEED
Press and hold down the speed button until the desired speed is selected.See "Operational functions" on the "Control
panel" pages (08 and 09) for selecting temperature and spin speed. It is advisable to select the recommended value.
WASHING
Press the Start/Pause button. The washing machine will operate according to the preset programs. The washing machine
will stop operation automatically when a washing cycle ends. The "End" sign will appear on the display. Open the washer
door and take out the laundry.
AFTER WASHING
Turn off the water supply and unplug the power cord. Open the washer door to prevent formation of
moisture and odours. Let the door open while not used.
TIPS FOR SAVING ENERGY
Collect clothes for one full wash load.1.
Avoid overloading the washing machine.2.
Prewash only heavily soiled clothes.3.
Reduce the amount of detergent or choose4. Express 15 or Quick wash programs for slightly soiled clothes.
Choose a proper washing temperature. Modern detergents can wash with very good result already in lower 5.
temperature than 60°C. Only use higher temperature than 60°C for heavily soiled laundry.
Follow the dosage recommendation on the detergent package to avoid using too much detergent.6.
15
using the APPLiAnCe
Bed sheet (single) Cotton Approximately 800g
Blanket Wool Approximately 3000g
Blended fabric clothes / Approximately 800g
Jackets Cotton Approximately 800g
Jeans / Approximately 800g
Overalls Cotton Approximately 950g
Ladies Pyjamas / Approximately 200g
Shirts / Approximately 300g
Socks Blended fabrics Approximately 50g
T-Shirts Cotton Approximately 300g
Underwear Blended fabrics Approximately 70g

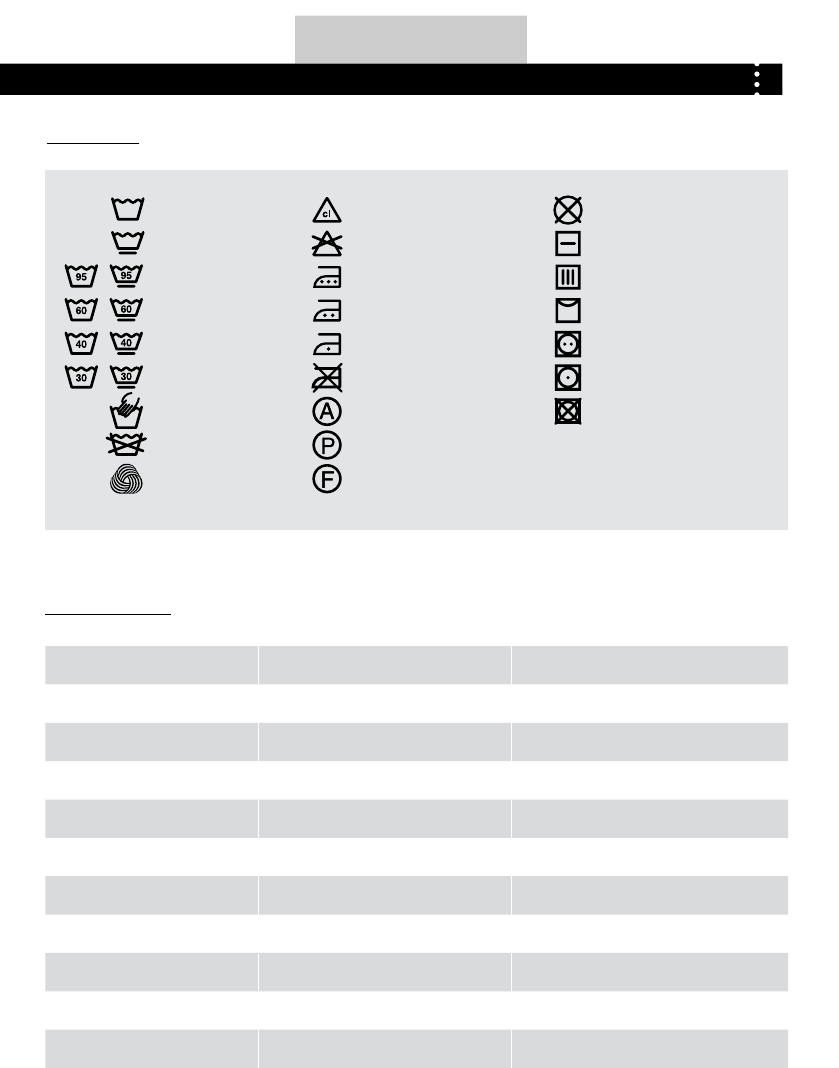

LOAD REFERENCE
CARE CHART
Resistant material
Delicate fabric
Washable at 95 °C
Washable at 60 °C
Washable at 40 °C
Washable at 30 °C
Hand wash
Dry clean only
Wool Seal
Bleachable in cold water
Do not bleach
Iron at 200 °C
Iron at 150 °C
Iron at 100 °C
Don't iron
Dry cleaning with any solvent
Dry cleaning with pericloride
Dry cleaning with aviation fuel
Don't dry clean
Dry flat
Hung to dry
Dry on clothes hanger
Tumble dry, normal heat
Tumble dry, reduced heat
Don't tumble dry
16
1. 2.
1
.
2.
maintenance
cleAning & cAre

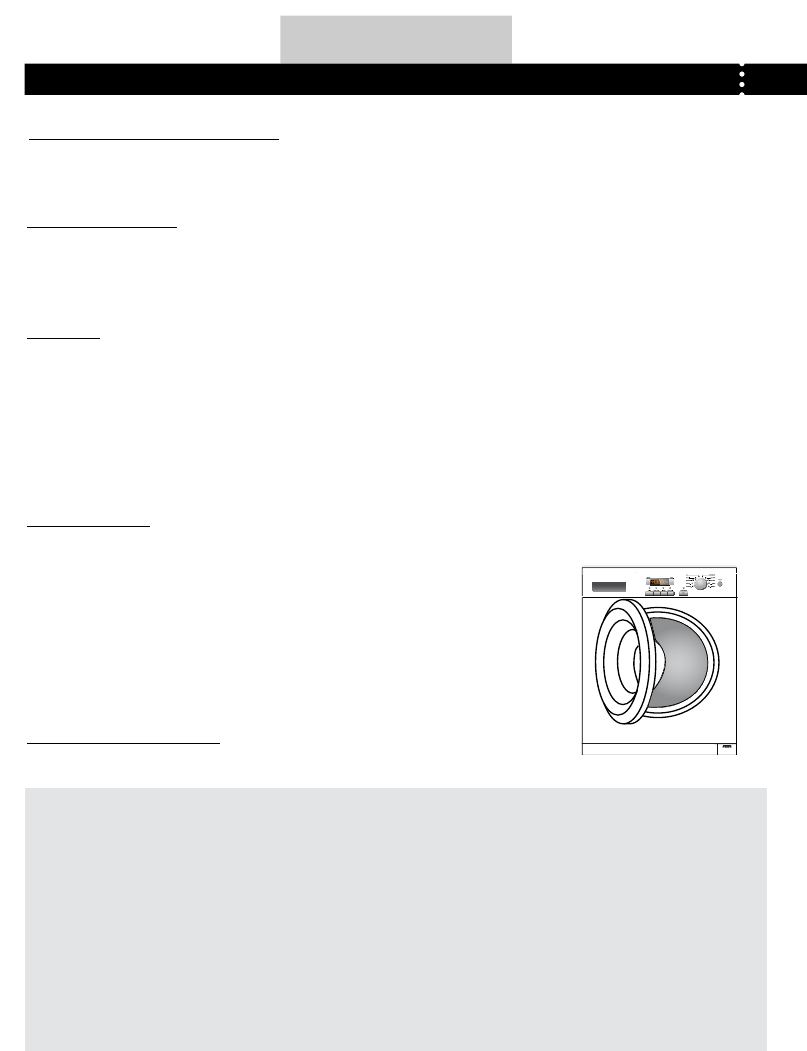

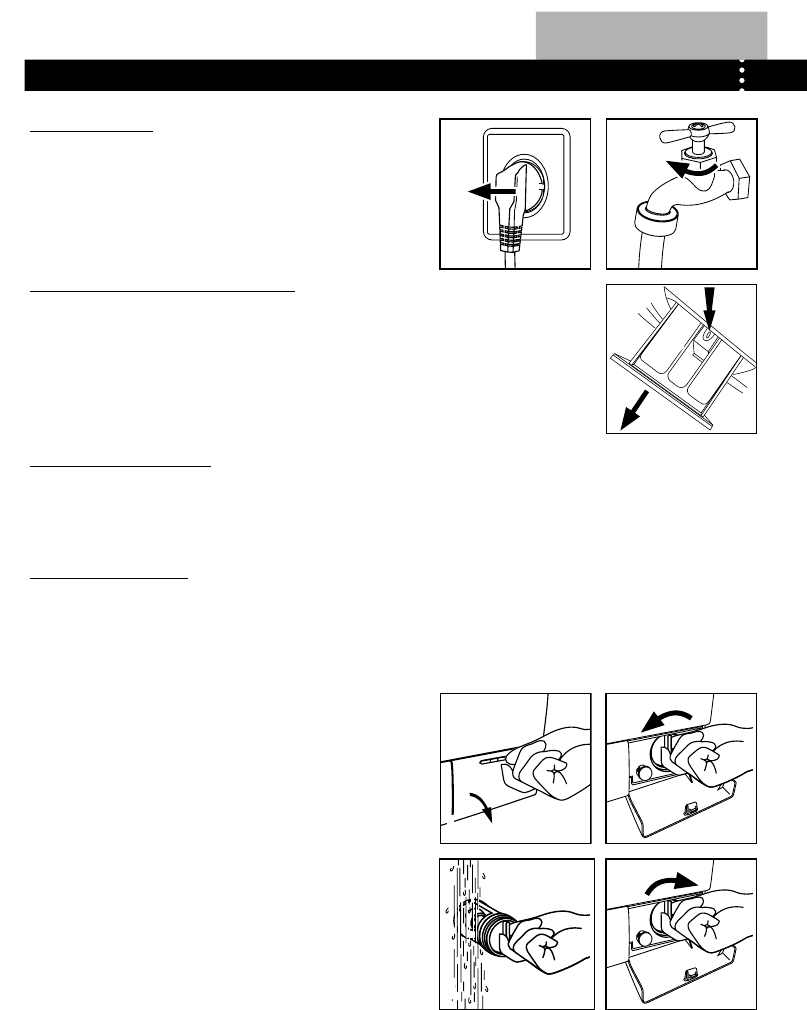

AFTER WASHING
Turn off the water supply and pull out electricity plug after each wash.
Open the washer door to prevent formation of moisture and odours. If
the washing machine is left idle for a long period, drain the water in
the machine and replace the drain hose.
CLEANING THE DETERGENT DRAWER
Clean the detergent distribution drawer regularly.
Swing out the drawer, flush it clean with water and then replace it.
CLEANING THE MACHINE
Unplug the machine during cleaning and maintenance. Use a soft cloth
dampened with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.
CLEANING THE FILTER
Clean the filter once a month:
1. Open the bottom cover.
2.Remove the filter by turning counterclockwise.
3.Flush the filter clean with running water.
4.Replace the filter by turning clockwise and
remount the cover.
Caution:
1.The filter must be in place, or it may lead to leakage.
2.Place a container under the drain pump filter, to collect
any excess water that may come out of the drain pump
when the filter is removed. 3.
2.
4.
1.
17
maintenance

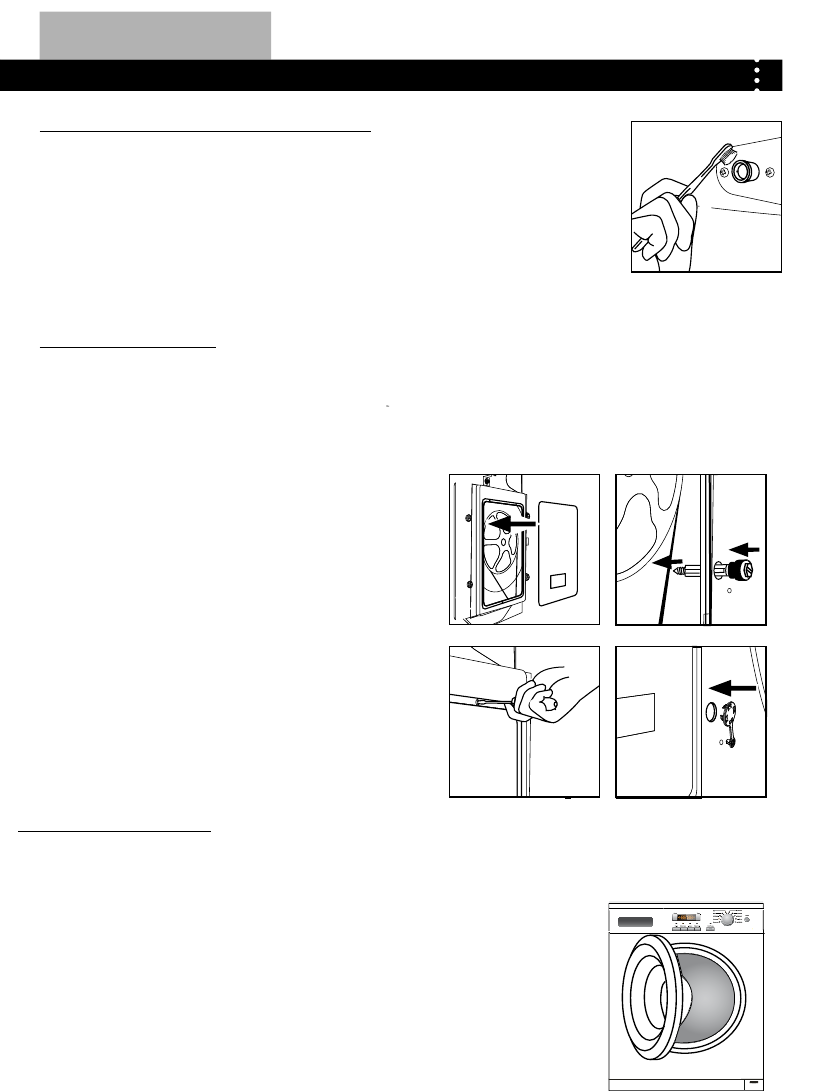

WATER INLET VALVE AND INLET VALVE FILTER
To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and
inlet valve filter regularly.
MOVING THE MACHINE
If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage as
shown below.
Remove the blanking plugs.1.
Remove the back cover2.
Insert the synthetic stabilisers and the transportation bolts.3.
Tighten the bolts with a spanner.4.
Replace the back cover.5.
LONG PERIODS OF DISUSE
If the washing machine is left idle for a long period, pull out the electrical plug and turn off the water supply. Open the washer door to
prevent formation of moisture and odours. Let the door open while not used.
3.
1. 2.
4.
18
maintenance
DisplAy coDes
DISPLAY CODES AND SPECIAL FUNCTIONS
¬ Control panel lock function: Press the "Delay" and the "Start/Pause" buttons simultaneously for 3 seconds after starting a program.
It can no longer be changed by operating buttons or knobs. To unlock press the "Delay" and "Start/Pause" buttons again for 3
seconds.
¬ Power-off memory function: In case of abrupt power failure or the need to cut off the power during a program cycle, the present
settings will be saved and the preset operation will resume when the power is on again.
¬ To cancel a program
Press the "Start/Pause" button, then switch off the power and the program is automatically cancelled. Turn the program selector
again to choose another program.
Alarm sound can be cancelled if it is needed.Please follow the instruction as below:
Switch on the washing machine and turn the program knob to spin cycle, then press the "Delay" and "Extra rinse" button, hold on for
3 seconds.The "bEEP OFF" will be displayed on the screen which indicates that alarm sound has been canceled. To operate the above
steps again so the alarm sound can be recovered and the display will show "bEEP ON".
CODES
CAUSES SOLUTIONS
Err1 ¬ Door is not properly shut. _ Shut the door properly.
Err2 ¬ Drainage error, water not emptied within 6
minutes.
_ Clean the filter and check the drain hose for blockage. If error
still exists, please contact the maintenance personnel.
Err3 ¬ Temperature sensor not properly connected or
damaged.
_ Contact the maintenance personnel.
Err4 ¬ Heater error (Appears at the end of a cycle). _ Reduce load and then start washing again. If problem still
exists, please contact the maintenance personnel.
Err5 ¬Water level not met in 8 minutes.
¬The height of the drain hose is below 80 cm.
¬ The drain hose is in water.
_ Make sure that tap is turned on, and water pressure is normal.
If problem still exists, please contact the maintenance personnel.
_ Install drain hose within 80-100 cm of height.
_ Make sure the drain hose is not in water.
Err6 ¬ Motor error. _ Contact the maintenance personnel.
Err7 ¬ Motor error. _ Contact the maintenance personnel.
Err8 ¬ Water exceeds protective level. _ Contact the maintenance personnel.
End ¬ End of wash cycle.
1:25 ¬The remaining time is 1 hour 25 minutes.
19:25 ¬Status information:Preset time for delayed operation.
UNb After the last rinsing cycle finishes,spinning fails completely due to unbalance of the laundry.
19
maintenance
trouBleshooting
TROUBLESHOOTING
The following circumstances do not constitute problems. Do not contact the Service Center until the problem has been confirmed.
PROBLEM CAUSES SOLUTIONS
Washing machine fails to
operate.
¬ Poor connection to the power supply.
¬ Power failure.
¬ The washer door is not properly closed.
¬ Machine has not been switched on.
_ Check connection to the power supply.
_ Check the power supply.
_ Close the washer door properly.
_ Make sure the machine is switched on.
Washing machine cannot be
filled with water.
¬ The "Start/Pause" button is not pressed.
¬ Water tap is not turned on.
¬ Water pressure is less than 0,03 MPa.
¬ The inlet hose is kinked.
¬ Water supply failure.
¬ The program knob is not properly set.
¬ The washer door is not properly closed.
¬ The inlet hose filter is blocked.
_ press the "Start/Pause" button.
_ Turn on the water tap.
_ Check water pressure.
_ Check the inlet hose.
_ Ensure the water supply.
_ Set the program knob properly.
_ Close the washer door properly.
_ Unblock the inlet hose filter.
Machine is draining while
being filled.
¬ The height of the drain hose is below 80 cm.
¬ The drain hose is in water.
_ Install drain hose within 80-100 cm of height.
_ Make sure the drain hose is not in water.
Drainage failure. ¬ Drain hose is blocked.
¬ Drain hose end is higher than 100 cm above
the floor level.
¬ The filter is blocked.
_ Unblock the drain hose.
_ Make sure the drain hose end is lower than
100 cm above floor level.
_ Unblock the filter.
Strong vibration while
spinning.
¬ Not all transportation bolts have been removed.
¬ Washing machine is located on an uneven
surface or is not level.
¬ Machine load is over 8(7)(6) kg.
_ Remove all transportation bolts.
_ Make sure the washing machine is on
an even surface and levelled.
_ Reduce amount of laundry in the drum.
Operation stops before
completing wash cycle.
¬ Water or electricity failure. _ Check the power supply or water supply.
Operation stops for a period
of time.
¬ Washing machine gives an error message.
¬ Washing machine is in soaking cycle?
_ Check display codes.
_ Press the rinse hood button or the Start/pause
button again to cancel it.
Excessive foam in the
drum, which is spilled to the
distribution drawer.
¬ The detergent is not a low-foaming type or for
manual wash.
¬ Excessive use of detergent.
_ Check if your detergent is appropriate.
_ Reduce amount of detergent in the distribution
drawer.
Automatic adjustment of the
washing time.
¬ The washing program duration will be adjusted _ This is normal and doesn't affect the
functionality.
Spinning fails ¬ Unbalance of the laundry _ Add clothes or run a spinning program again.
Important Safety InformatIon
20
Do not use a multiple socket extension cord. A separate earthed socket is required which shall be accessible at all times.
If the mains cord becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person with a
lead of the same type and rating to avoid a hazard.
Never remove the plug from the socket by pulling on the cord, always grasp the plug.
The door may get hot during use, do not touch it and keep children away whilst the machine is operating.
Never open the detergent drawer while the machine is running.Hot water and detergent might be ejected.
When installing the product, make sure the mains cord is not trapped or twisted.
WARNINGS:
THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY, COMMERCIAL OR ANY OTHER
USE MAY INVALIDATE THE WARRANTY AND MIGHT BE DANGEROUS.
Never touch or operate the machine with wet hands or when bare footed.
Do not put the machine on a carpet that can block the ventilation slots on the bottom of the unit.
Do not install this machine outdoors or in a damp place or expose it to rain.
Do not install this product near a heat source or in direct sunlight.
Do not place any object on the machine when it is operating.
This appliance must be earthed.
If you are disposing of an old appliance,disable the door lock to avoid entrapment of children when playing and cut off the mains
cord close to the machine.
The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should
be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse. Should the fuse require replacement, it must
be replaced with a fuse rated at 13 amps and approved to BS1362.
If the mains plug is unsuitable for the socket outlet in your home or is removed for any other reason,then the cut off plug should be
disposed of safely, do not insert the cut off plug into a mains outlet to prevent the hazard of electric shock. Remove the fuse before
disposal.
There is a danger of electric shock if the cut off plug is inserted into any 13-amp socket outlet.

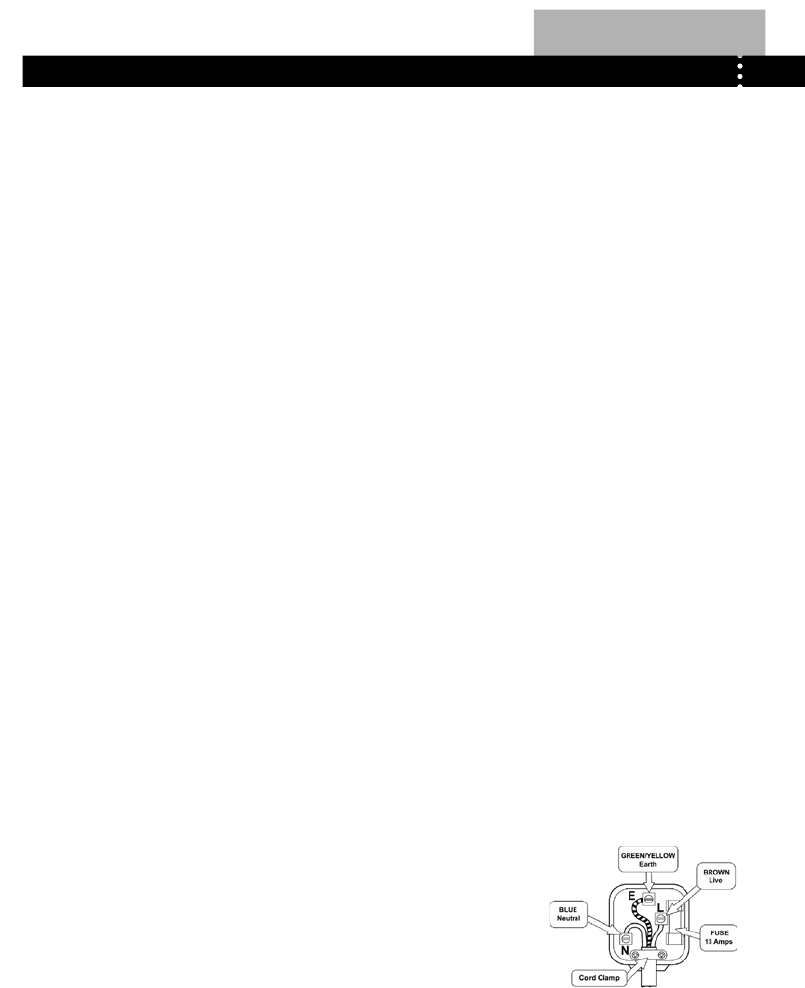

How to wire a 13 amp plug. (UK Only)
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth Blue – Neutral Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with the
letter E or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
WATER CONNECTION
The product should be connected to the water main using new hose sets, old hose sets should not be re used.
The water pressure must not be less than 0.03MPa.
Connect to the water main using a standard 3/4 inch threaded tap outlet.
