MODEL： HMS1000TVE

FRONT LOADING WASHING MACHINE

Service Manual

Features：

●300mm diameter porthole, door may be

open at a 180 degrees.

●Multi-gear speed controller

●Unique gasket design featuring no residual

water hidden inside

●Delay time adjustive

Haier Group

MANUAL CODE： No.1

●Washing Programs-11

●Selecting washing temperature according to

the type of fabrics

Front Load Washer HMS1000TVE

1、Contents----------------------------------------------------------------------------------------1

2、Product code illumination and series introduction-----------------------------------2

3、Features ---------------------------------------------------------------------------------------3

4、Specification ----------------------------------------------------------------------------------4

5、Safety caution --------------------------------------------------------------------------------6

6、Installation ------------------------------------------------------------------------------------9

7、Net dimention -------------------------------------------------------------------------------11

8、Names of the parts-------------------------------------------------------------------------12

9、Function --------------------------------------------------------------------------------------13

10、Functions schedule----------------------------------------------------------------------15

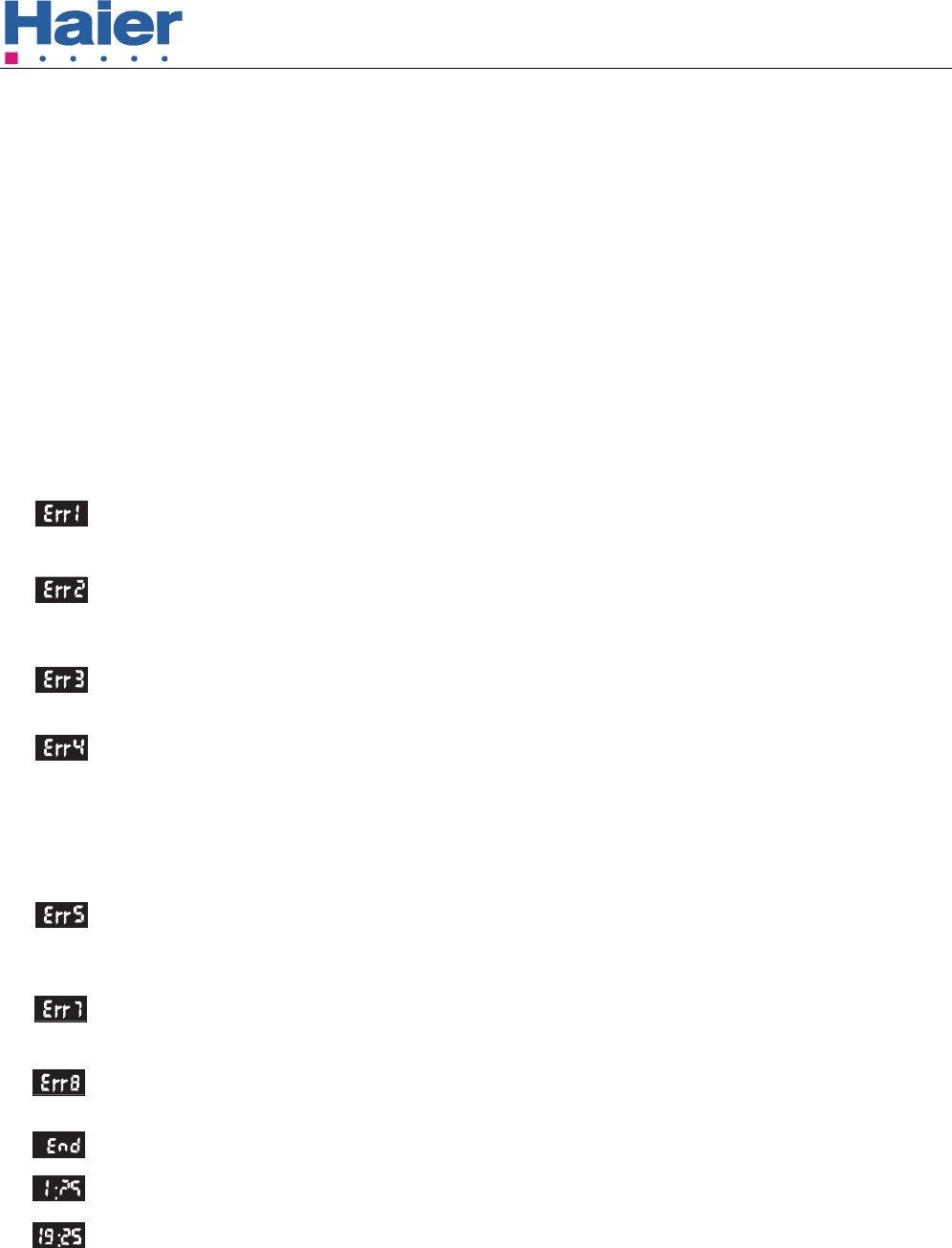

11、Trouble shooting--------------------------------------------------------------------------16

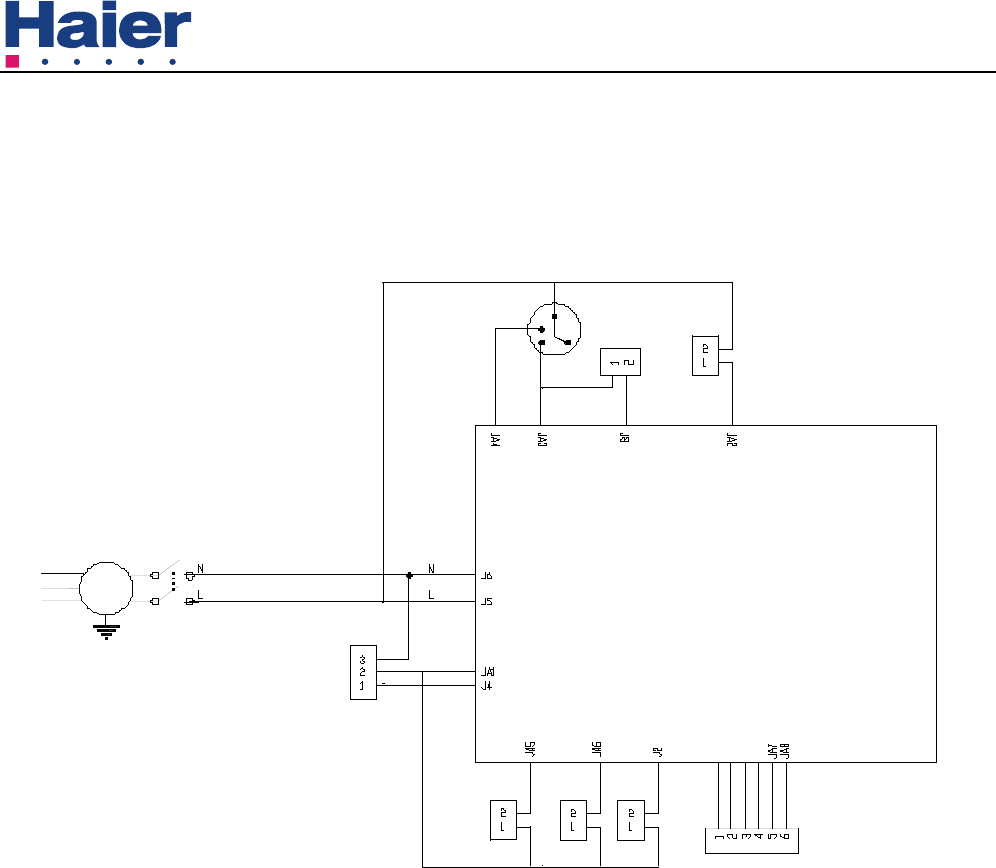

12、Wiring circuit ------------------------------------------------------------------------------22

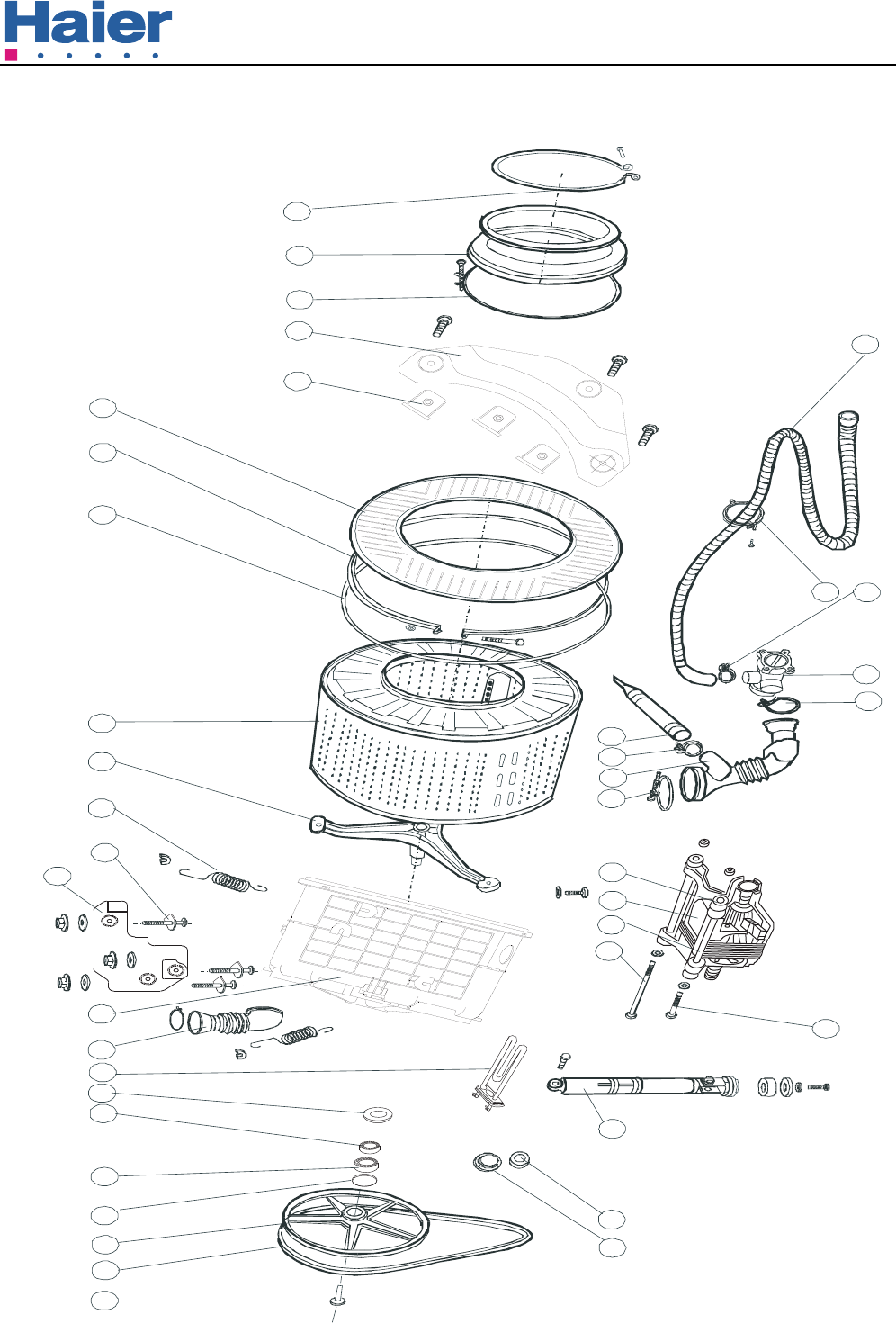

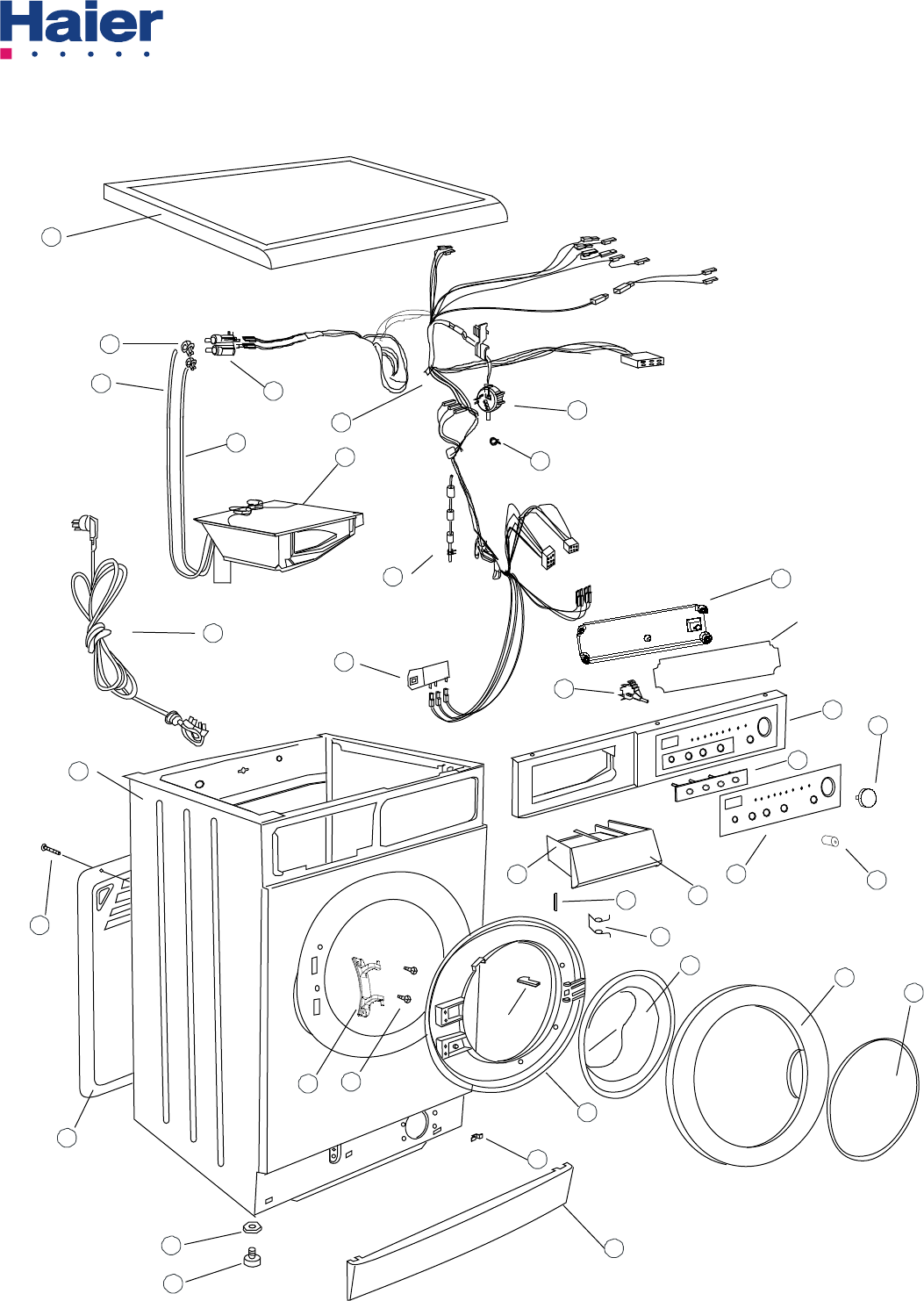

13、Exploded view and list of parts-------------------------------------------------------23

Front Load Washer HMS1000TVE

Model code rule description

Model identification：

HMS 1000 T V E

A B C D E

A：Serial code

B：Max spin speed

C：Temprature adjustive

D：

E：

Spin speed adjustive

Computer control

Examples：

HMS1000TVE

It represents HK series appearance，with big window、180°opening window、800rpm spin

speed.Spin speed is adjustive from 0 to 1000rpm，temprature is also adjustive. it’s controlled .

by computer.

Front Load Washer HMS1000TVE

●300mm diameter porthole, door may be open at a 180 degrees.

Facilitate view of wash process, facilitate unloading and easy to use with large port.

●Multi-gear speed controller

According to different costuming，you can slect corresponding spin speed，from 0 to 1000 rpm.

●Unique gasket design featuring no residual water hidden inside.

By the unique gasket，washing machine can left no residual water hidden between outer drum and

board.

●Delay time adjustive.

According to different costuming，you can slect delay time，from 0.5h to 24h.

Front Load Washer HMS1000TVE

４

Proposal 2004 New Sensor

Front loaders washing machines

HMS1000TVE

Brand position center upper frame of door / chromed sticker

Model number serigraphy right top corner control panel

On white: silver / On silver : black or dark grey

1. Product identification 　　

Description of appliance 　 Washing machine

Type of appliance (FS = standing, BI = built-in) 　 FS

Supplier own brand 　 Haier

Supplier bar code EAN TBC

Mares computer code 　

Commercial Brand / Model 　　

Commercial bar code EAN 　

2. Key-Features 　　

Energy efficiency class 　 A

Washing performance class 　 C

Spin efficiency class 　 C

Programs n° 11

Capacity Kg Max. 5

Spin speed (max. / optional) rpm 1000-0

Noise level dB(A) 72

Energy consumption per wash circle * kWh 0.95

Water consumption* l <65

Residual dampness (spin result) % 56%

Spin speed selector switch (steps) rpm 1000/800/600/400/0

Spin speed variator (stepless) rpm

Adjustable thermostat (water temp. adjust from -

to) °C 80 - 0

Drum capacity dry laundry / water kg / l 6 / 49

Auto water level adjust (depending on volume of filled in laundry) AWL

Washing time (max.) min 124(TBC)

Washing temperatures (program-controlled) °C 40 / 60 / 90

Certification's (CE / ISO 9001 / ISO 9002) 　 CE / ISO 9001

Approvals (VDE/GS / TÜV/GS / IMQ) 　 TÜV/GS (Rhl.)

* EN 60456 (60°C cycle, full load without pre-wash)



COLD 　　

3. Basics data 　　

Unit dimensions (H x W x D) cm 86 x 48.5 x 59.5

Net weight kg 63

Voltage/frequency V/Hz 220-230V~50Hz

Input power / main fuse (intensity) W / A 1800/10

Work top / removable 　 /

Control M = electromechanical, E= electronic,

F = fuzzy 　 F

Drum S = stainless steel / Z = zinc coated 　 S

Tub P = Polyprop./ S = stainless steel 　 P

Door: 　

aesthetic (R = round, Y = big eye, Q=

square) 　 R

Diameter cm 30

Outer door frame S= stainless steel / M

= metal / P = plastic 　 P

Inner door G= glass / P=

plastic 　 G

Detergent compartments n° 4

Removable compartment for liquid detergent 　 -

Front Load Washer HMS1000TVE

５

Delay timer (from - to) h 0.5-24

Self cleaning suds pump 　

Water inlet hose cold water / hot water 　

Water drain hose / -support 　 /

Adjustable feet n° 4

4. Safety systems 　

Auto door lock ADL

Motor overheating protection MOP

No heating without water NHW

Auto water cool-down (before drain 90°C boiled water) AWC

Water return protection WRP

Acqua Stop kit 　 -

Child protection

5. Programs 　　

1) Strong action /cotton cycles n°

2) Normal action / synthetics n°

3) Delicate action / wooll cycles n°

Pre-wash / wash 　

Quick wash / super quick wash 　

Rinse / soften 　

Delicate / hand wash 　

Wool / cashmere 　

Soak / spin 　

● /●

Drain 　

Easy ironing

Optional function keys (additional program settings) 　　

ON/OFF button 　

Half load 　 -

Fussy 　 -

Spin exclusion 　 -

Spin reduction rpm

High water level 　 -

No Soak 　 -

Rinse stop 　 -

Delicate 　 -

Cold wash

Delay Timer

Extre Rinse －

Load Select －

Easy Ironning －

Temperature reduction

6kg wash －

Prewash －

●

●／●

●

●／－

●／●

●／－

●

Front Load Washer HMS1000TVE

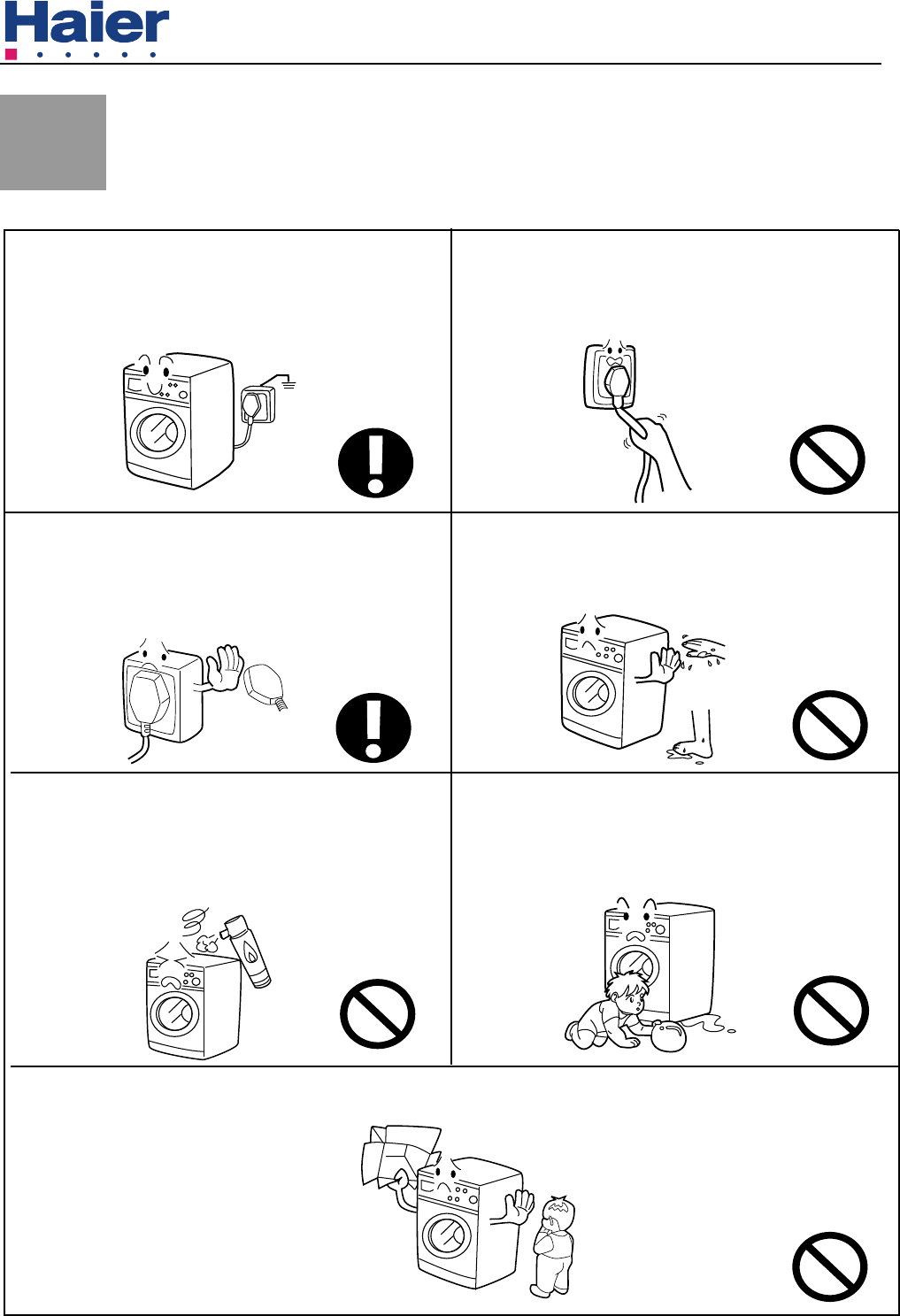

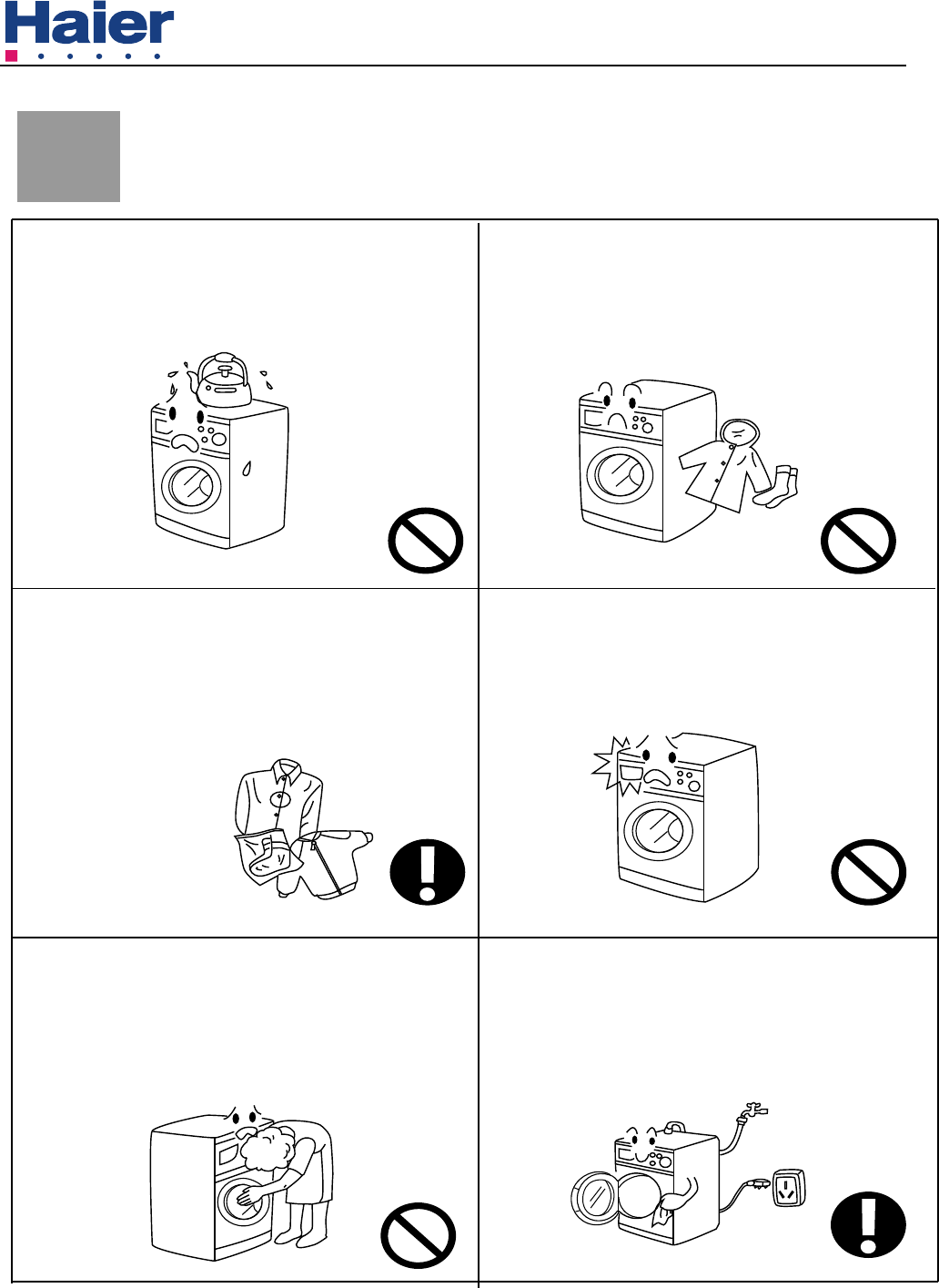

Matters Needing Attention

●　Ｓａｆｅｔｙ

１．

.A separate earthed socket is required for the

power supply. The washing machine must be

positioned so that the plug is accessible.

2. Hold the plug and not the electric cable

when unplugging the washing machine.

3.Fuses in the power circuit should be rated for 15A.

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

4. Do not touch or use the washing machine bare-

footed or when the hands or feet are wet.

5.Do not use flammable detergent or dry clean

ing agent; do not use flammable spray in

close vicinity to the washing machine; do not

remove or insert the plug in the presence of

flammable gas.

6. The door of the washing machine will become hot

during the heating process. Avoid contact with the

door during the heating process. For safety, keep

children away from the washing machine.

７．Ｋｅｅｐ　ｃｈｉｌｄｒｅｎ　ａｗａｙ　ｆｒｏｍ　ｔｈｅ　ｐａｃｋｉｎｇ　ｍａｔｅｒｉａｌｓ　ａｆｔｅｒ　ｕｎｐａｃｋｅｄ．　

Front Load Washer HMS1000TVE

9.The carpet must not obstruct the ventilation

openings in the base of the washing machine.

８.The washing machine should not be install-

ed outdoors or in a damp place. In the

event of water leakage or splashes allow

the machine to dry naturally.

10.Keep away from heat sources and direct sun-

light to prevent plastic and rubber components

from aging.

11.During installation, ensure that the electric

cable is not trapped by the washing machine

and avoid damage to the electric cable.

●During Use

1. Before use, check the joints of the filling hose, the

tap and the drainage hose for possible problems

from water pressure fluctuations. If joints are loose

or there is leakage, turn off the tap and repair. Do

not use the washing machine until the hoses are

properly fixed.

２．Keep the door slightly open when the washing

machine is not in use to prevent formation of

odors; do not cover the washing machine with

plastic cover so that inside dampness cannot

be kept in.

Matters Needing Attention

Front Load Washer HMS1000TVE

　3. Do not place heavy, heating source or wet

articles on the top of the washing machine.

4. Do not hot wash foam rubber or sponge-like

materials.

6. Do not open the detergent distribution drawer

during the wash cycle..

7. The door is fitted with a self-lock device and will not open until

2~3 minutes after the washing machine stops. Do not force

the door open. Do not open the door if water level can reach

the porthole.

8.After each wash program, turn off the tap to

prevent leakage; and unplug the washing

machine and wipe clean the lower part of

the porthole.

Steel wires in bras will pop

out during washing; never

wash bras containing steel

wires.

5. Before washing, do up zippers, buttons and

clothes straps and put small articles, such as

socks, laces or bras, into a washing bag or a

pillow.

Matters Needing Attention

Front Load Washer HMS1000TVE

●

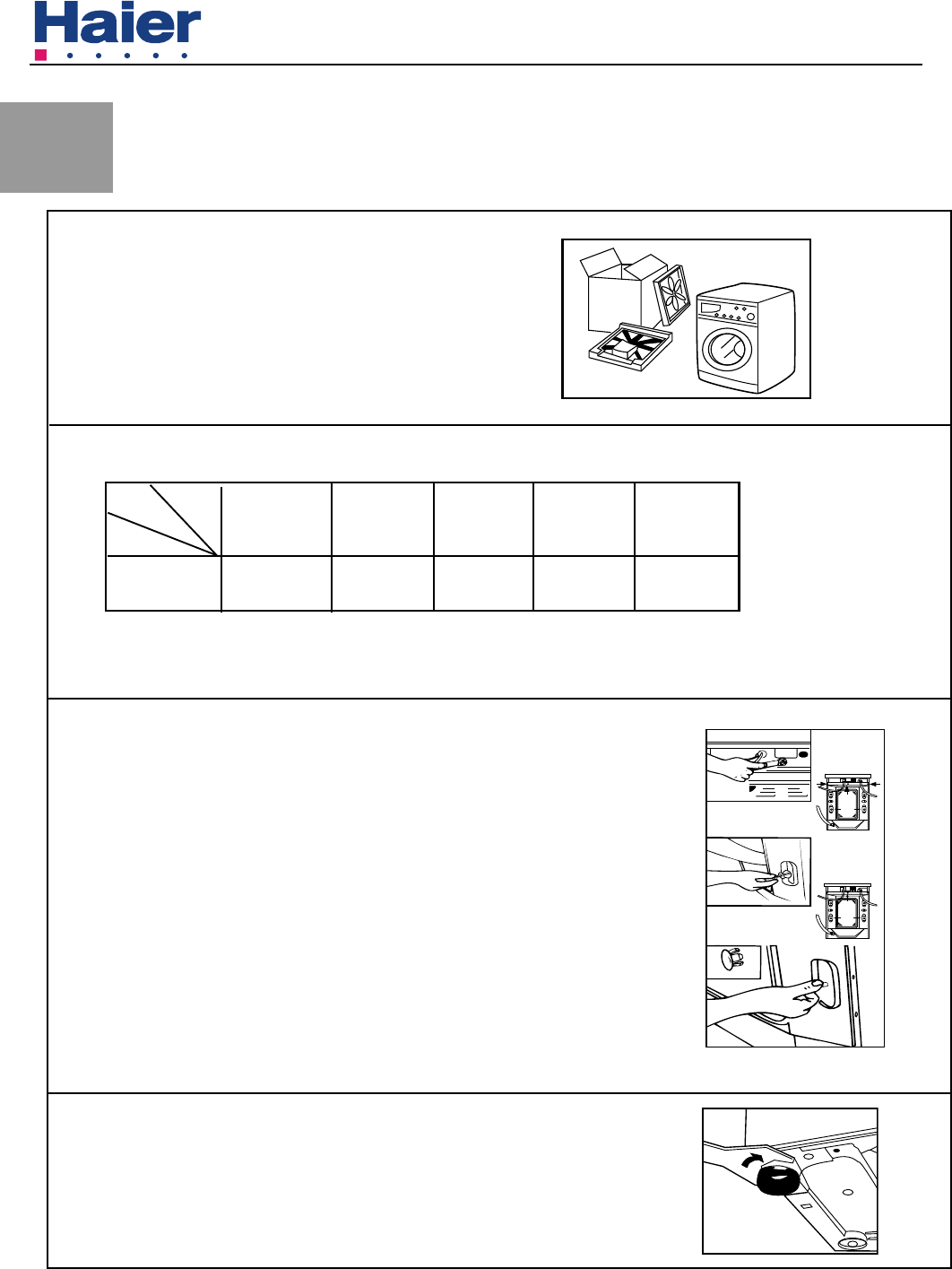

Ｒｅｍｏｖｅ　ａｌｌ　ｔｈｅ　ｐａｃｋｉｎｇ　ｍａｔｅｒｉａｌｓ　（ｉｎｃｌｕｄｉｎｇ　ｔｈｅ　ｆｏａｍ　ｂａｓｅ）　

　　ｔｏ　ｐｒｅｖｅｎｔ　ｖｉｂｒａｔｉｏｎ　ｄｕｒｉｎｇ　ｕｓｅ，　ａｓ　ｓｈｏｗｎ　ｉｎ　Ｆｉｇ．　１．　　　　　

　　Ｕｐｏｎ　ｏｐｅｎｉｎｇ　ｏｆ　ｔｈｅ　ｐａｃｋａｇｅ，　ｗａｔｅｒ　ｄｒｏｐｓ　ｍａｙ　ｂｅ　ｓｅｅｎ　ｏｎ　ｔｈｅ　

　　ｐｌａｓｔｉｃ　ｂａｇ　ａｎｄ　ｔｈｅ　ｐｏｒｔｈｏｌｅ．　Ｔｈｉｓ　ｉｓ　ｎｏｒｍａｌ　ｐｈｅｎｏｍｅｎｏｎ　

　　ｒｅｓｕｌｔｉｎｇ　ｆｒｏｍ　ｗａｔｅｒ　ｔｅｓｔ　ｉｎ　ｔｈｅ　ｆａｃｔｏｒｙ．

Fig. 1

●

Check attachments and materials with reference to the following

●

　　　Dismantle the packing bolts as shown in Fig. 2.

The packing bolts are designed for clamping anti-vibration components

inside of the washing machine during the transportation process.

Beforeuse:

1. Remove the back plate;

2. Remove the three packing bolts on the back plate and take out the

rubber hose;

3. Replace the back plate;

4. Fill the holes left by the packing bolts with plastic plugs.

(Attention: The packing bolts and rubber hose should be kept in a safe

place for later use)

Fig．　３

●

Adjusting the washing machine

There are adjustable feet under the bottom of the washing machine.

Before use, the washing machine should be adjusted, as shown in

Fig. 3, so that it is level.

Fig.

　２

Ｍｏｄｅｌ

ＨＭＳ１０００ＴＶＥ

ＱｕｔｙＮａｍｅＯｐｅｒａｔｉｏｎ

ｍａｎｕａｌ

１

１１１

３

Ｑｕａｌｉｔｙ

ｃｅｒｔｉｆｉｃａｔｅ

Ｗａｔｅｒ

ｈｏｓｅ

Ｄｒａｉｎａｇｅ

ｈｏｌｄｅｒ

Ｐｌａｓｔｉｃ

ｐｌｕｇｓ

Installation

Front Load Washer HMS1000TVE

１００ｃｍ

８０ｃｍ

　　　　The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off,

fix it to the drainage hose clip at the back of the washing machine.

Before connecting to the power supply, check: 　　　　　　　

Joining the Inlet Hose to the Washing Machine

Connect of water inlet valve

Ｗａｔｅｒ　ｉｎｌｅｔ　ｈｏｓｅ　ｏｕｔ

　1. Connect the nut on the inlet hose to the connector on the water valve.

２．　Ｔｉｇｈｔｅｎ　ｔｈｅ　ｎｕｔ　ｔｏ　ｓｅｃｕｒｅ　ｔｈｅ　ｈｏｓｅ

Installation

Ｄｒａｉｎａｇｅ　Ｈｏｓｅ

Use the drainage holder to keep the end of the drainage hose retained and to prevent the outflow

of water. It is recommended that drainage hose extensions not be used; if an extension is needed,

please consult a serviceman. The additional hose should be no more than 250cm (overextended

hoses could lead to siphonage). Note: The drainage hose should not be submerged in water and

should be securely fixed and leak-free.The appliance is to be connected to the waster mains using

new hose-sets and that old hose-sets should not be reused.

Connecting to the Power Supply

The socket is adequate for the maximum power of the washing machine (For safety, fuses in the power circuit should be rated

for no less than 15A).

The power outlet should be capable of accepting the washing machine plug. The washing machine must be earthed before

use.

Supplementary earth cable should not be necessary if the socket is connected to the earth

Supplementary earth cable shoulde be installed on the upper back of the washing machine andconnected to an earth if the

power supply socket has no earth connection

The voltage should meet the requirement.

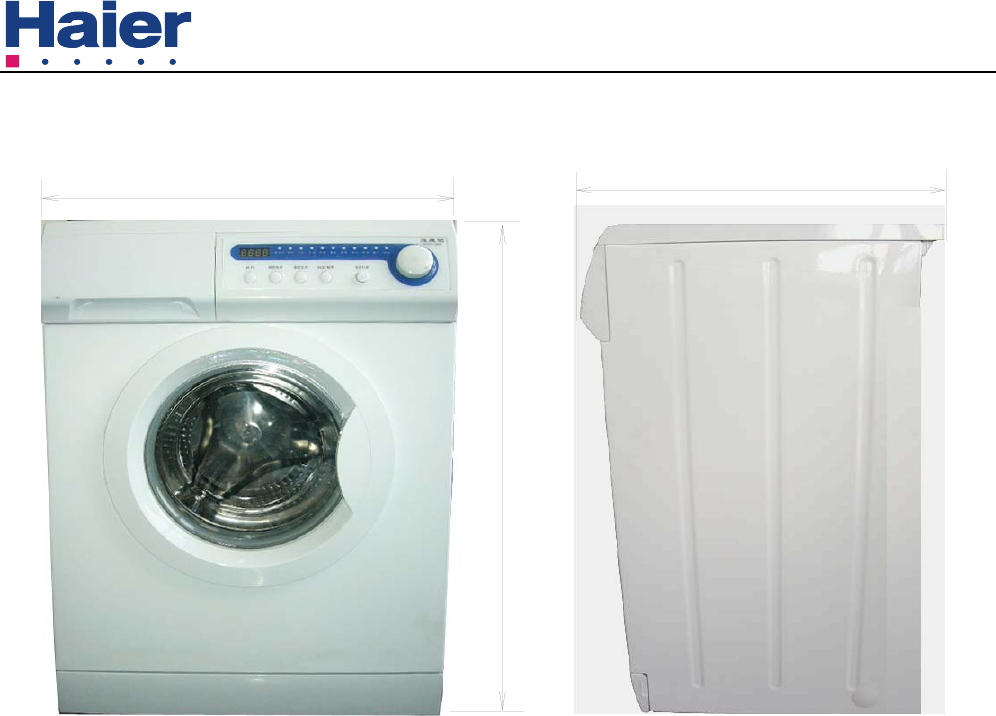

Front Load Washer HMS700TVE

height: 860mm / width: 595mm / depth: 485mm

595

860

485

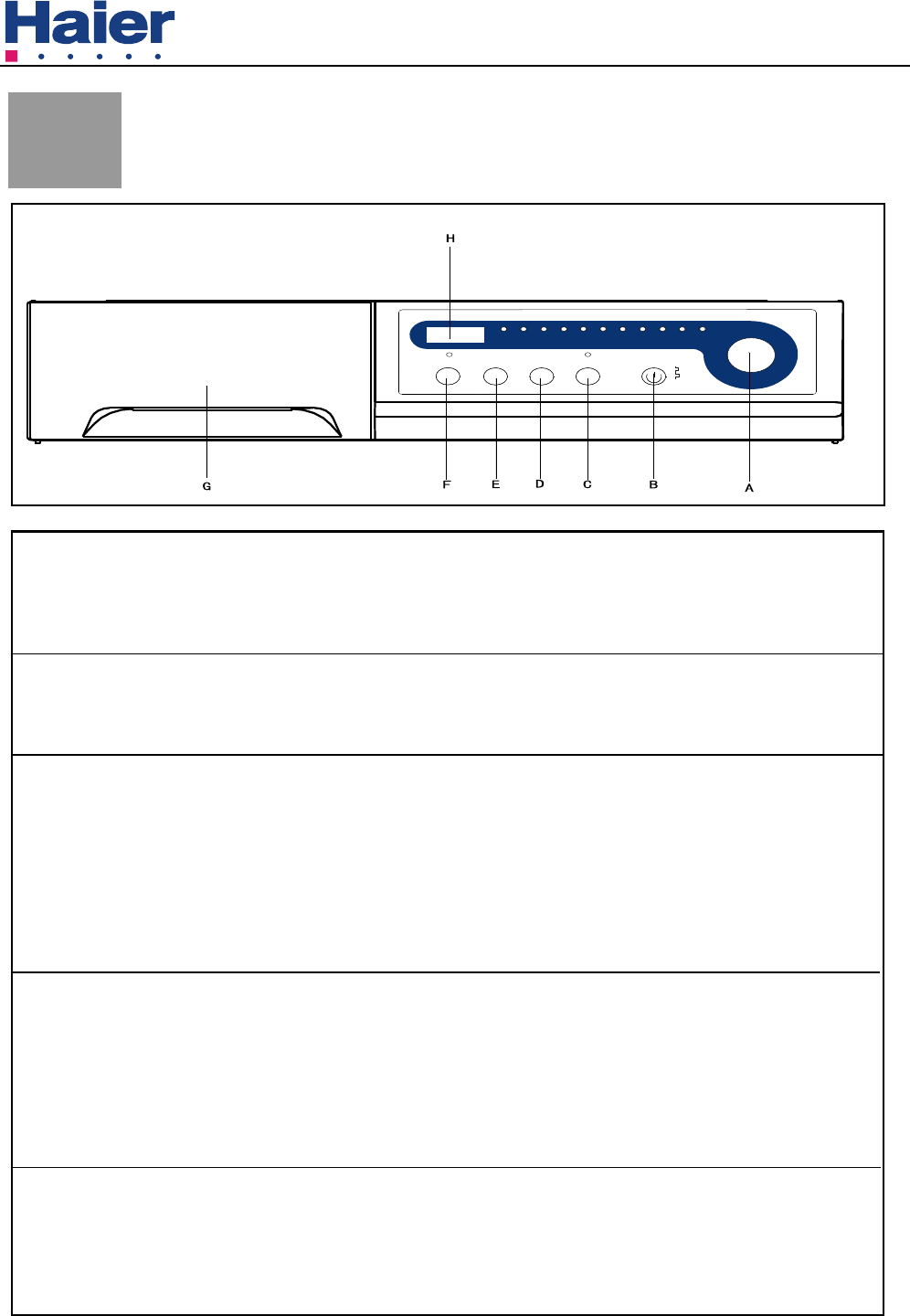

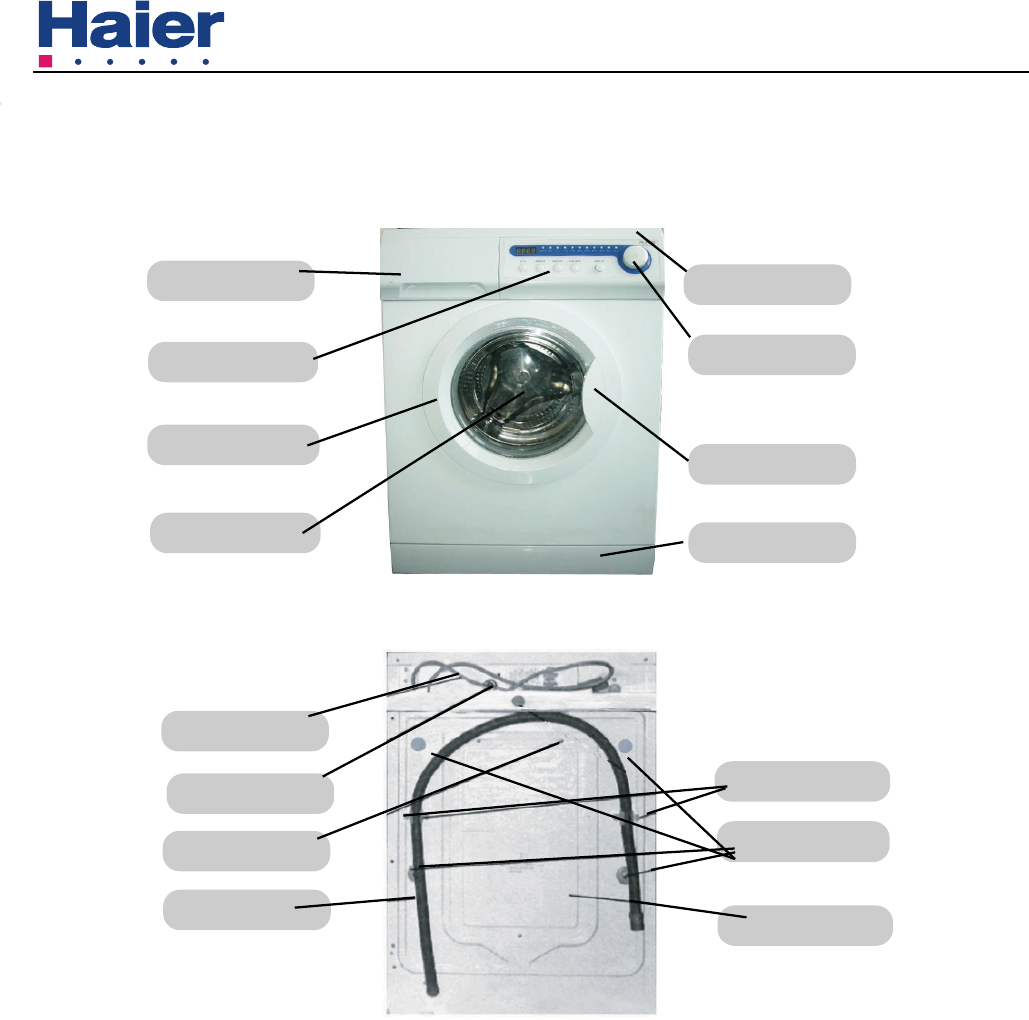

Top

handle

Progtam selector

Detergent dispenser

Door

Porthole

Button

Power supply cable

Earth terminal

Back plate screw(3)

Drain hose

Drain hose clip

Ｐａｃｋｉｎｇ　ｂｌｏｔ（４）

Back plate

Bottom plaque

Front Load Washer HMS1000TVE

Control Panel

E: Washing temperature button

Touch this button lightly, the washing temperature will be displayed on the

screen. Select a temperature according to the type of laundry.

Wash programming knob

By turning the knob clockwise/counterclockwise, the required program can be

selected. There are 11 programs available. After a program is selected, the cor-

responding light will go on. (Refer to Guide to Operational Program Selection).

　󰔥󰔥Start / Pause Button

When the washing machine is connected to the power socket and a program is

selected, washing operation will start. Lightly touch this button during a wash

cycle, operation will stop and the digits on the screen start blinking. Touch it

again to resume operation. To cancel a wash program during a wash cycle,

touch this button, when the digits on the screen start blinking, press the Power

switch, the program will be cancelled.

D: Spinning Speed Setting Button

Touch this button lightly to select the desired speed. When a speed is set, it will

be displayed on the screen.

Note: Different water temperatures and spinning speeds can be set for different

laundries. Refer to the operation instructions on pages 11 and 14. Wash using the

default settings if there is no special requirement.

　󰔥󰔥Power Switch

Press this button to switch on the washing machine. Press it again to switch it off.

Delay Temperature Spin Start/Pause

Pre-wash Cotton Synthetic Wool Cashmere Silk Quick Wash Rinse Spin Drain

Power

Ｏｎ

Ｏｆｆ

HMS1000TVE

Front Load Washer HMS1000TVE

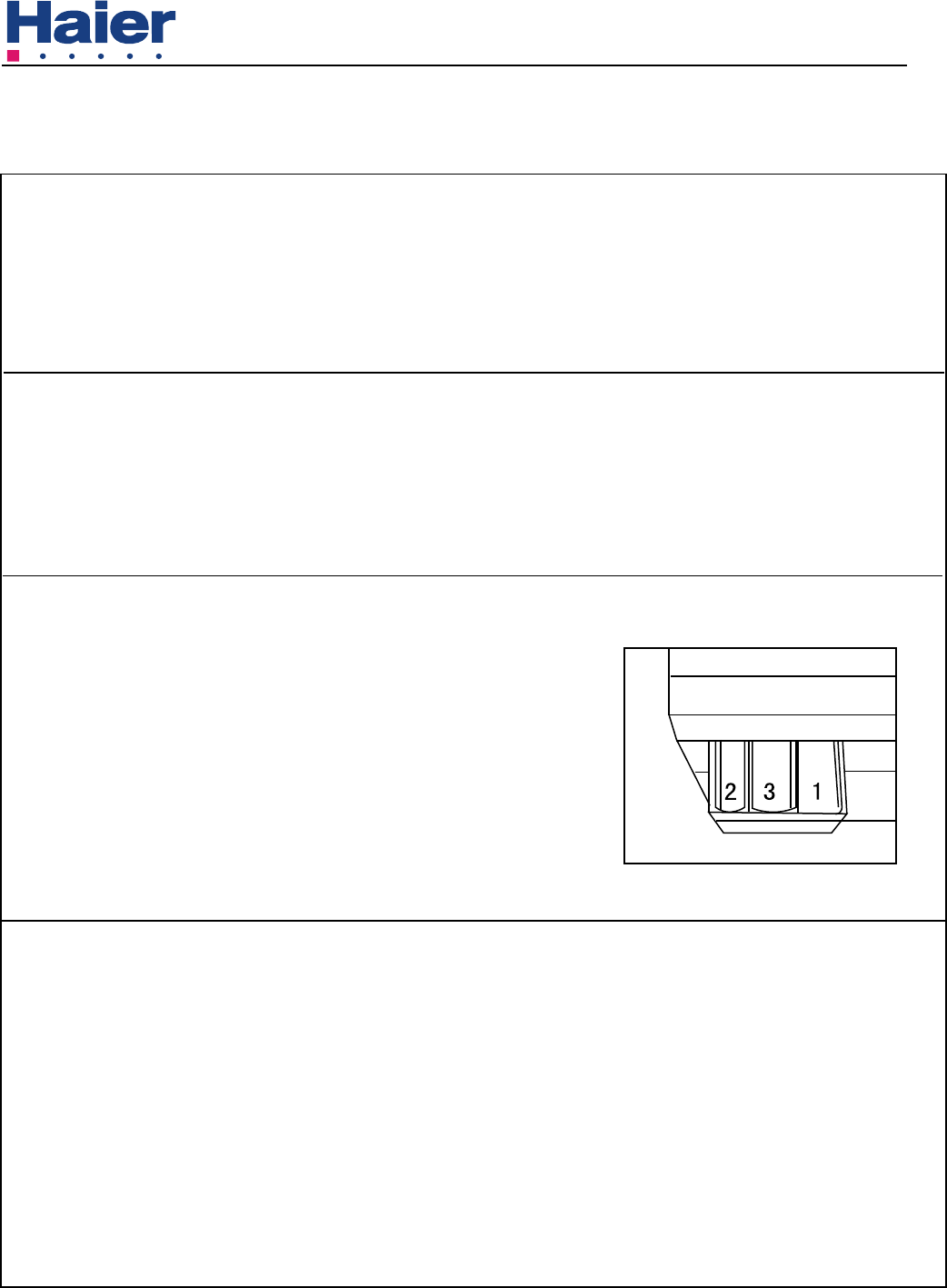

G: Detergent distribution drawer

Open the drawer, three compartments can be seen:

Compartment 1: Pre-wash detergent

Compartment 2: Normal - Quick wash detergent

Compartment 3: Softener, conditioning agent,

perfume, etc.



F: Delay Button

Touch this button lightly, the washing machine will start operation after a period of time

and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this

button increases a half hour. After the button is set, press the Start/Pause button to start

countdown of the set time (the time is displayed on the screen until the program ends).

E+F Key Combination

Press these two keys simultaneously, the sign "LOCK" and the remaining washing time

are displayed on the LED alternately. Now all the function keys except the Power switch

can be locked. Press the key combination again to cancel this function.

H: DisplayPress

Such information as remaining wash time, temperature and speed setting and error

messages will be shown.

Note: After power is switched on, the display will go on and the remaining wash time

decreases. As the water pressure and temperature may differ, the remaining time may

be adjusted accordingly. When the laundry is not balanced during spinning, the time

may be automatically prolonged. These are normal phenomena.

Front Load Washer HMS1000TVE

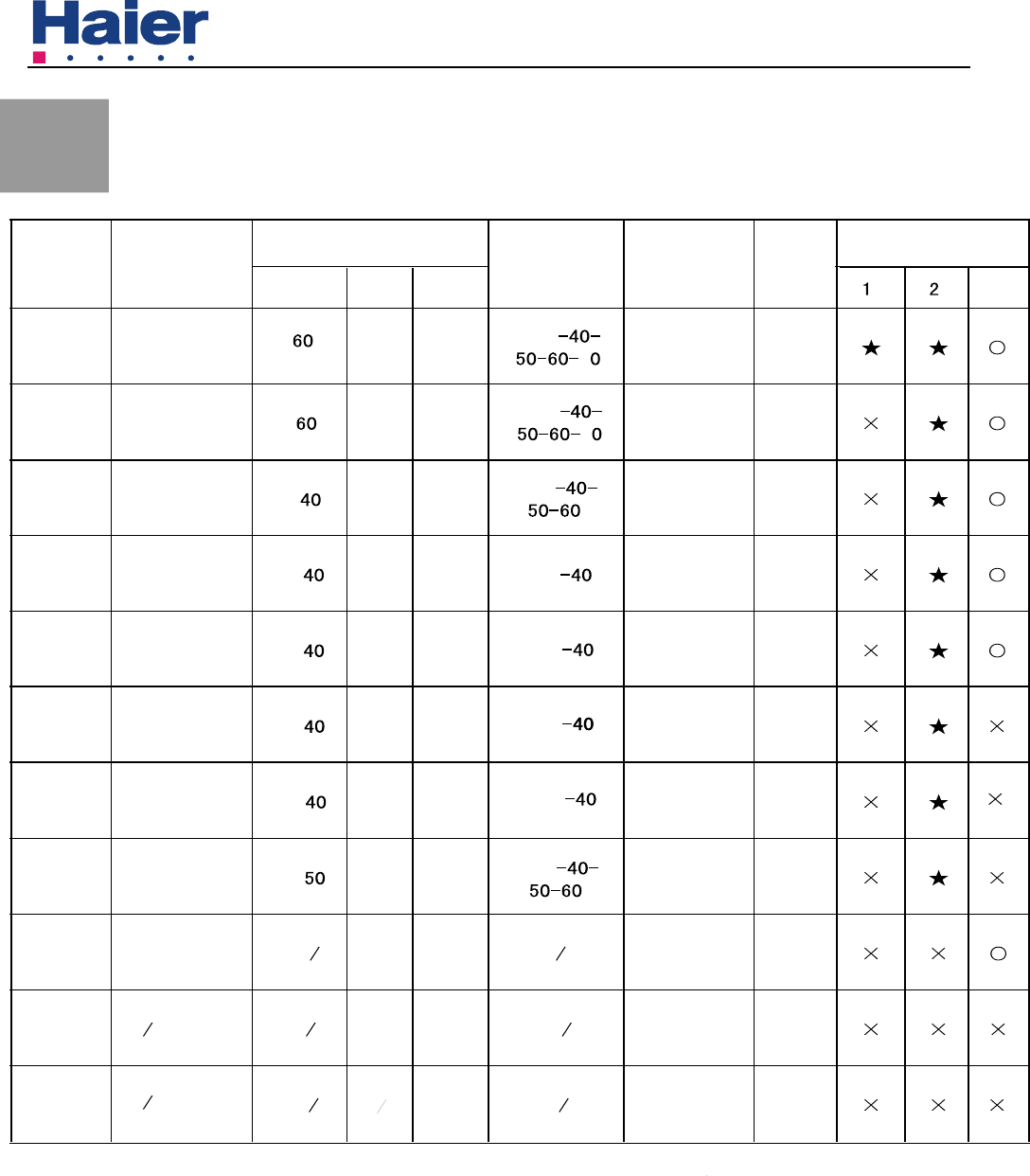

Guide to Operational Program Selection

８００

６００

８００２：４６

２：２８

３

１：３０

０：５８

０：５５

０：２９

０：５３

０：２７

０：１３

０：０３

Delay

８００

８

Program

Detergent Compartment

Yes

Ironing-free

(Working in

Washing Cycle)

Yes

Temperature

Cold

８

Cold

ColdCold

Cold

Total Time

Speed

６００

４００

０

Temperature

Default Setting

Recommended

Laundry

Heavy-soil laundry

Cotton fabrics

Fast-color synth-

etic

Woolen fabrics

Medium-soil

laundry

Silk fabrics

Cashmere fabrics

Medium-soil

laundry

Medium-soil

laundry

Quick

Silk

Cashmere

Wool

Synthetic

Cotton

Pre-wash

Spin

Rinse

Wash

Drain

Note: ○ indicates that softener can be added if needed; ★ indicates that detergent

must be added; X indicates that detergent must not be added. LED display "--"

indicates cold water; "0" indicates no spinning.

The wash temperature refers to the max temperature. The required time differs

according to different laundries, temperatures and functions. The total time is for

reference only (it may vary slightly for different water temperatures).

Front Load Washer HMS1000TVE

1. Control panel lock function: To prevent children from accidentally

starting the machine, the control panel can be locked by pressing the

"Temp" and "Delay" buttons at the same time. After the panel is locked,

the sign "LOCK" and the wash time are displayed alternately and all the

keys are inactivated. Press the two buttons again to cancel.

2. Power-off memory function: This machine has a power-off memory

function. In case of abrupt power failure or the power must be cut off

during a program cycle, the present settings will be saved, and operation

will resume when the power is switched on again.

3. Display messages:

Cause: Door not properly shut.

Correction: Shut the door properly.

Cause: Drainage error, water not emptied within 4 minutes.

Correction: Clean the filter and check the drain hose for blockage.

If error still exists, please contact the maintenance personnel.

Cause: Temperature sensor not properly connected or damaged

Correction: Contact the maintenance personnel.

Cause: Higher water level protection.

Correction: Contact the maintenance personnel.

Cause: Water level not met in 8 minutes.

Correction: Make sure that tap is turned on, and water pressure is normal.

If problem still exists, please contact the maintenance personnel.

Cause: Heating coil damage or overload of laundry that leads to

a failure to reach the set temperature within the specified time.

(this message is displayed at the end of a program).

Correction: Reduce load and then start washing again or contact

the maintenance personnel.

A program ends.

The machine will start in 19 hours 25 minutes. The time is renewed

every minute. After the program starts, the remaining time will be

displayed.

The remaining time is 1hour 25 minutes.

Cause: Motor overheat protection or damage.

Correction: Contact the maintenance personnel.

Front Load Washer HMS1000TVE

I .The appliance does not work.

Possible causes

1.The socket is not the required one or the connection is loose.

2.The door is not properly closed or the switch of micro delay is in poor contact.

3.The plug wire of motor is in poor contact or the motor is broken.

4.Malfunction of PCB

Troubleshooting

1.Check the socket and plug to make sure that they are properly connected.

2.Check whether the micro delay switch is in good contact in on-position. If yes, insert the

terminal firmly to provide a good connection.

3.The PCB controls the washing machine operation.In case of the failure, check the wiring

or replace the PCB.

II .Filling failur

Possible causes

1.The switch of water supply is not opened or the water pressure is too low.

2.The door is not properly closed or the micro delay switch is in poor contact

3.The water electromagnetic valve is broken.

4.The plug wire of drainage pump is in poor contact.

5.The pressure switch is broken.

Troubleshooting

1.Repeat the following steps.

1).Open the switch of water supply

2).Check whether the filling hose is twisted or blocked.

3).Check whether the water eletromagnetic valve is blocked.

4).Check whether program is properly selected.

5).Check whether the water supply pressure is too low.

2.Check the door catch and the door lock are in good contact. If not, make necessary

adjustment. Check whether the micro delay switch is in good contact in on-position.

3.Check whether the electromagnetic is good in on-position. Fasten it if necessary.

4.Blow on the pressure switch and "click, click" can be heard. Otherwise, replace the

pressure switch with a new one.

III .No drainage

Possible causes

1.Improper installation

2.The drainage pump is broken.

Troubleshooting

1.Repeat the following steps.

1).Check whether the drainage pipe is twisted or blocked. The appropriate height of the

Front Load Washer HMS1000TVE

water drainage outlet should be from 80 to100cm.

2).Check whether the program is properly selected.

3).Connect the power cable to the drainage pump to check whether the operation is normal.

If not, make necessary replacement.

IV .Unusual noise

Possible causes

1.The packing screws should be disassembled.

2.The washer is placed too near a wall.

3.The washer is loaded over the standard capacity (5Kg).

4.There is foreign object other than fabrics in the washer.

5.The washer does not stand level.

6.Bolts or screws are loose.

7.The belt is loose.

Troubleshooting

1.Disassemble the packing screws.

2.Move the washer away from the wall.

3.Do not load the appliance more than the standard capacity.

4.Remove the foreign object.

5.Adjust the washer until it is level.

6.Tighten the bolts and screws.

1) .Fastening bolts of vibration damper

2) .Fastening bolts of balances

3) .Screws of water heating pipe

7.Increase the tension of belt.

V.The drum doesn't rotate; the spin speed is too high or too low.

Possible causes

1.The belt tension is too low or the fastening bolts are loose.

2.The plug wire of motor is loose or the motor is broken.

3.The capacitor is broken.

4.The PCB is broken or is not properly plugged.

Troubleshooting

1.Adjust the tension of belt and tighten the screws.

2.Check whether the plug wire of motor is loose or whether the motor works normally. If not,

make necessary replacement.

3.Check whether the capacitor is good with a universal meter. If not, make necessary

replacement.

4.Replace the PCB with a new one.

VI .The water level is too high.

Front Load Washer HMS1000TVE

Possible causes

1.Gas leakage at pressure system of water supply.

2.The pressure switch is broken.

Troubleshooting

1.Check whether the pipeline of pressure system is blocked or there is gas leakage. The

pressure system includes:

(1) Gas-collecting valve

(2) Rubber pipe

(3) Pipe clip2.Blow on the pressure switch and "click, click" can be heard. Otherwise, replace

the pressure switch with a new one.

VII .No heating or automatic heating

Possible causes

1.NTC is breaken.

2.Effect of ambient temperature

3.The water-heating pipe is broken.

1.Check whether the setting of temperature at no heating(Diplay "--").If not, make

necessary replacement.

2.Check the water-heating pipe to see whether the resistance wire is normal. If not,

make necessary replacement.

VIII .Water leakage

Possible causes

1.Leakage at joints

2.The front flange of outer cylinder is poorly close.

3.There is foreign object on the cushion of sight window.

Troubleshooting

1.Check whether the joints are damaged or loose.

1).Filling pipe

2).Hose connecting electromagnetic valve to dispenser

3).Hose connecting dispenser to outer cylinder

4).Cushion of sight window

5).Hose connecting outer cylinder to pump

6).Drainage pump

7).Gas-collecting valve

Troubleshooting

Front Load Washer HMS1000TVE

8).Dispenser

9)Condenser

10) Hose connecting condenser to hose of outer cylinder

2.Fasting the U-bolt.

3.Wipe off the foreign object from the cushion of sight window.

IX .Improper distribution of dispenser

Possible causes

1.The plug wire of the water eletromagnetic valve is mistaked.

2.The PCB is broken.

3.Fault of assemblage of dispenser.

Troubleshooting

1.Reassemble the plug wire.

2.Replace the PCB with a new one.

3.Reassemble the assemblage of dispenser.

X.The door lock indicator does not light

XI.No function or malfunction of program controller

Possible causes

1.The door lock indicator is broken.

2.The wiring of micro delay switch is loose.

3.The indicator loses.

Troubleshooting

1.Replace the broken indicator.

2.Tighten the stub of micro delay switch.

3.Refasten the indicator.

Possible causes

1.The motor of program controller loses or the stub is sealing-off.

2.The knob of program controller is stuck.

3.Poor contact of wiring of program controller.

4.Poor contact at inner contacts of program controller (even after the all the plug wires are

tightened.)

Troubleshooting

1.Reassemble the motor of program controller and make spot welding of the stubs (the

operation of program controller and motor can be heard after the appliance is turned on.)

2.Adjust the position of knob of program controller.

3.Tighten the stubs of program controller one by one.

4.Replace the program controller with a new one.

Front Load Washer HMS1000TVE

XII.Control panel display Err message

Troubleshooting

1.Reference user manual,finding the cause of Err message.

2.Following the instructions of the user manual,chenk the washing machine .if not ,

replace relating element.

Front Load Washer HMS1000TVE

Wiring Circuit

Ｎ

Ｇ

ＬFA

Switch

Heat

NTC

PCB

Motor

EVP

PCB-Printed Circuit Board

FA-Interference Suppresser

Switch-Power Swittch

P-Pressure Switch

Heat-Heating element

NTC-Temperature Sensor

MR-Door Lock

EVP,EVF-Water Inlet Magnetic Valve

PS-Drainage Pump

Motor-Motor

EVF PS

Front Load Washer HMS1000TVE

Exploded view

37 27

31 30

１５

Front Load Washer HMS1000TVE

Number Special code Name of part QTY Unit Remark

１００２０２０２０５８ Top cover １ＥＡ ●

２００２１８２３０７００６１１ Able clamp ４ＥＡ

３００２１６０００４８６１０２ Water electromagnetic １ＥＡ ●

４００２０３００４１４

Filling pipe（Main- wash）１ＥＡ ●

５００２０３００４１５

Filling pipe（Pre-wash）１ＥＡ ●

６００２０８０２１０１ Water storage sink １ＥＡ

７００２１６００００４９４０４ Water level pressure switch １ＥＡ ●

８００２１１３２００１１３００ Pipe clip of gas-collecting valve １ＥＡ

９００２０４００５４９ Cable assembly １ＥＡ

１０００２１４４０００２８７０２ Hose of gas-collecting valve １ＥＡ

１１００２０４００５０５ Doorlock １ＥＡ ●

１２００２０４００１６２ Power cable １ＥＡ

１３００２０２０２０６３ Box of PCB １ＥＡ

１４００２０４００５４２ PCB １ＥＡ ●

１５００２１６００１２３１８０６ Key switch １ＥＡ

１６００２０２０２０５６ Control panel １ＥＡ ●

１７００２０２０２０５９ Buttons １ＥＡ ●

１８００２０２０２０６０ Ornamental bar １ＥＡ ●

１９００２０２０２１５２ Knob of program controller １ＥＡ ●

２０００２０２０２０６５ Button １ＥＡ ●

２１００２０２０２０５７ Handle of dispenser １ＥＡ ●

２２００２０８０１３０３ Dispenser １ＥＡ

２３００２０２００７１７ Door glass cover １ＥＡ

２４００２０２０２２２２ Outer frame of sight window １ＥＡ ●

２５００２１４００００９ Glass of sight window １ＥＡ

２６００２０２０２０２０ Inner frame of sight window １ＥＡ

２７００２０１０２７２３ Torsion of door catch １ＥＡ

２８００２０１０２５０８ Door catch １ＥＡ

２９００２１５２０００２４１０２ Axle of door catch １ＥＡ

３０００２０６０００２９ Bolt of flap ２ＥＡ

３１００２０１０２７３５ Flap of sight window １ＥＡ

３２００２１４８００７７７３０４ Lower plaque １ＥＡ ●

３３００２１５２０００２１５０４ clamp ５ＥＡ

３４００２２１１２０３００２１２ Foot ４ＥＡ

３５００２１５０００５１９０００ Foot nut ４ＥＡ

３６００２０１０２４９１ Back cover １ＥＡ ●

３７００２１６９１０３２０１１１ Self-tapping screw ３ＥＡ

３８００２０８０２１７４ Case １ＥＡ

Front Load Washer HMS1000TVE

４０

４１

４２

４３

４４

４５

４６

４７４８

４９

５１

５０

５２

５４５３

５５

５６

５７

５８

５９

６０

６１

６２６３６４

６５

６７

６６６８６９７０７１７２

７４７５７７７８

３９

７６

７３

Front Load Washer HMS Series

Front tightening ring of cushion of

sight window

１ＥＡ

４０００２０３００３９３ Cushion of sight window １ＥＡ ●

４１００２０６０００６３

Back tightening ring of cushion of

sight window

１ＥＡ

４２００２０３００４２２ Front balance １ＥＡ

４３００２０１０００７１ Bracket of front balance ３ＥＡ

４４００２０２０２０２５ Front flange of outer cylinder １ＥＡ ●

４５００２０１００２４５ U-lock １ＥＡ

４６００２０３０００７１ Seal ring of front flange １ＥＡ ●

４７００２０８０２１７３ Inner cylinder １ＥＡ

４８００２０１０２７２７ Triangle of inner cylinder １ＥＡ

４９００２０１０２３５１ Spring ２ＥＡ

５０００２１５１００００１３００ Screw ３ＥＡ

５１００２０３００１４７ Upper balance １ＥＡ

５２００２０２０１７５３ Outer cylinder １ＥＡ ●

５３００２１４５０００００６００ Filling pipe １ＥＡ

５４００２０４００５２４ Heater １ＥＡ ●

５５００２１４５００００１０００ Oil seal １ＥＡ

５６００２１８９１０５１０１１９

Bearing（6204）１ＥＡ

５７００２１８９１０６１０１１９

Bearing（6205）１ＥＡ

５８００２０６００１０６ Liner of belt pulley １ＥＡ

５９００２０１００３２６ Belt pulley １ＥＡ

６０００２１４４００００２２００ Belt １ＥＡ

６１００２１５０００００８８００ Screw １ＥＡ

６４００２０７００３６５ Vibration damper ２ＥＡ

６５００２０６０００３６ Fastening bolt of motor １ＥＡ

６６００２０６０００４８ Fastening long-bolt of motor １ＥＡ

６７００２１１５０００１３８００ Fastening bushing of motor １ＥＡ

６８００２０４００５１４ motor １ＥＡ ●

６９００２１４４０００４２９００ Fastening liner of motor ４ＥＡ

７０００２１５２００００４４０２ Clip １ＥＡ

７１００２０３０００７０

Hose connecting outer cylinder to

pump

１ＥＡ ●

７２００２１１３２００１５２００ Clip １ＥＡ

７３００２１７４０００４６９００ gas-collecting valve １ＥＡ

７４００２１５２００２９４４００ Clip １ＥＡ

７５００２２１５００３３６６０４０１ Pump １ＥＡ

７６００２０６０００５０ Clip １ＥＡ

７７００２２１１２０３６３０１４ Bracket of drain pipe １ＥＡ

７８００２０３００１４８ Drain pipe １ＥＡ ●

No. Special code Name of part QTY Unit Remark

３９００２０６０００６２

Front Load Washer HMS1000TVE

Sincere Forever

Haier Group

Tel:86-532-8939999

Web site:http://www.haier.com

Front Load Washer HMS1000TVE

HAIER Front Load Washer HMS1000TVE

Haier Front Loading Washing Machine Hms1000Tve Users Manual

HMS1000TVE to the manual 89c403e8-532f-45f6-9da8-a5ef6ddfd95f

Navigation menu

Versions of this User Manual:

Views

Navigation
