Thisusermanualhasbeenspeciallydesignedtoguideyouthroughthefunctionsandfeaturesofyourdevice.

• Pleasereadthismanualcarefullybeforeusingyourdevicetoensuresafeandcorrectuse.

• Thedescriptionsinthismanualarebasedonthedefaultsettingsofyourdevice.

• Pleasekeepthismanualforfuturereference.



1/23



MENU

ChapterOne(overview)

1.1Appearance 2

1.2Buttons2

1.3Openandshutdown2

1.4Openandshutdownstandbymode.3

1.5Lockandunlockthescreen.3

1.6Homepageinformationcolumn.4

1.7Textinput 4

1.8Reset.5

1.9USBConnect5

1.10Accessories..6

ChapterTwo(Internet)

2.1Browser.6

ChapterThree(Applications)

3.1Camera8

3.2Gallery9

3.3Video..10

3.4Music..11

3.5Calendar12

3.6Calculator.13

3.7Explorer13

3.8APKInstaller 14

3.9E‐mail.14

3.10Downloads16

3.11Soundrecorder 17

3.12Clock 18

ChapterFour(Systemsetting)

4.1Wirelessnetworkssetting19

4.2Soundsetting19

4.3Displaysetting 20

4.4Applicationsetting 20

4.5Date&Timesetting.20

4.6Languageandinputsetting20

ChapterFive(BluetoothKeyboardPairing)



5.1keys21

ChapterSix(Attentions)

6.1Attentions26

ChapterSeven(Hardwareconfiguration)

Hardwareconfiguration27



2/23



ChapterOne：Overview

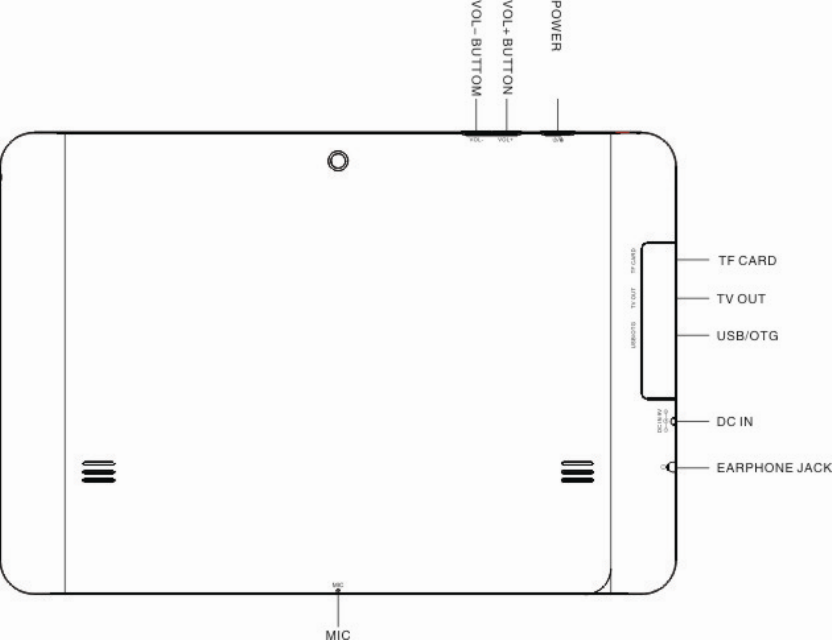

1.1Appearance





1.2Buttons

Powerbutton

Longpressthepowerbutton2‐3secondstoopenthescreen

Whenopenthetablet,shortpressthisbuttontoentertheoff‐screenstateandshort

pressagaintolightupthescreen





1.3Openandshutdown

Open

Longpressthepowerbutton(seetheappearance)2‐3seconds,pictureswillshow

upuntiltotheinterface

Shutdown

Longpressthepowerbutton,thenthescreenshows“POWEROFF”andClickit,then



3/23



inpoweroffdialogtoselect“OK”toshutdown



1.4Openandclosestandbymode

Openthestandbymode

Inbootmode,youcantapthepowerbutton,thesystemwillintothestandbymode

whichcansavepower

Closethestandbymode

Inthestandbymode,lighttapofthepowerbuttonofthedevice,enterthenormal

state



1.5Lockandunlockthescreen

Lock

Youcansetthesleeptimeinthesystemofdisplay

Thesystemwillsleepautomaticallyandlockthescreentothestandbymodeif

withoutanyinactivitywhenreachesthepresetofstandbytime.



Unlock

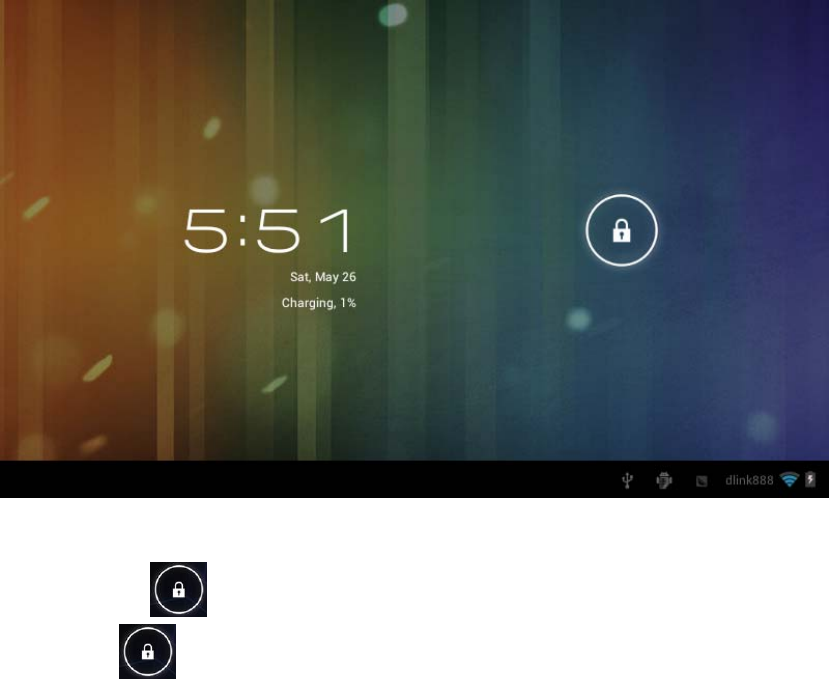

Movethesign  tounlock,showasbelow

Dragthistounlockthescreenandentertheapplicationinterface



4/23



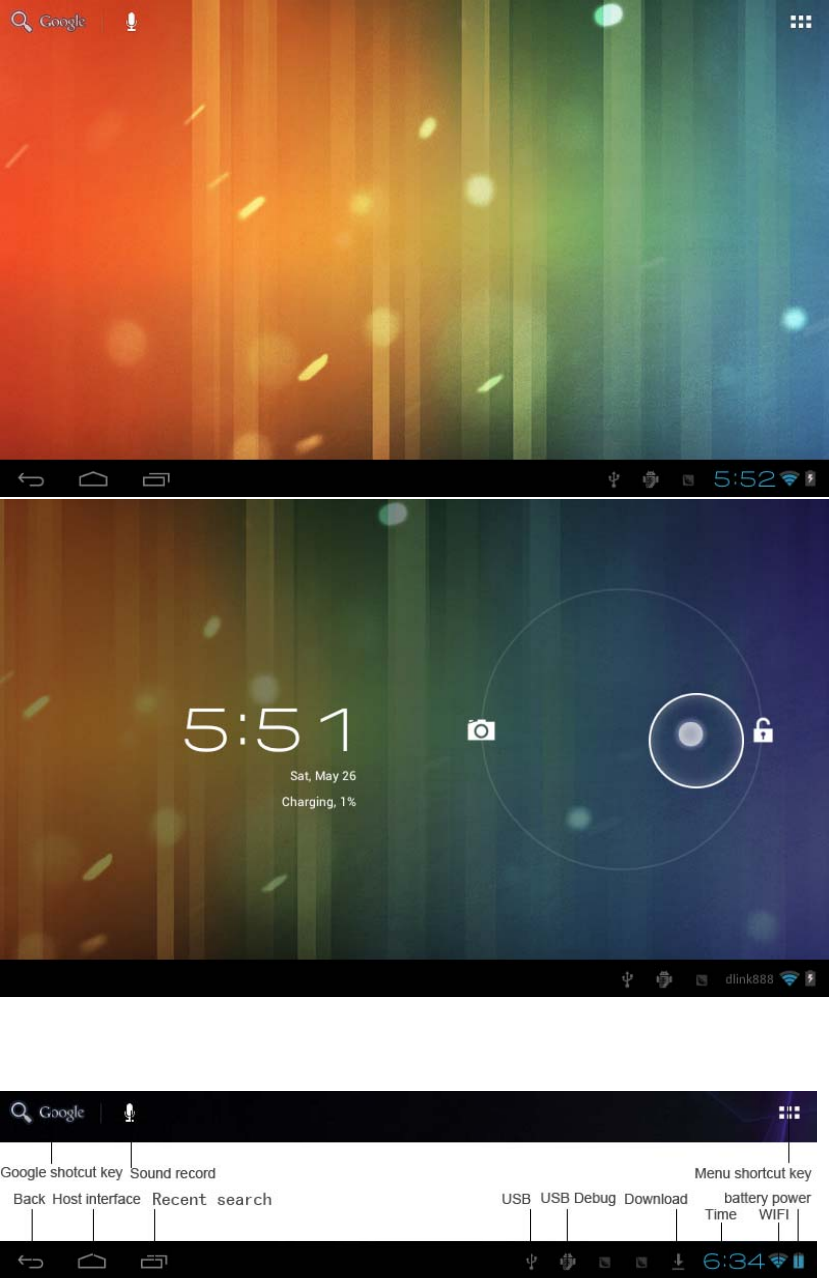

1.6Homepageinformationcolumns



1.7textinput



5/23



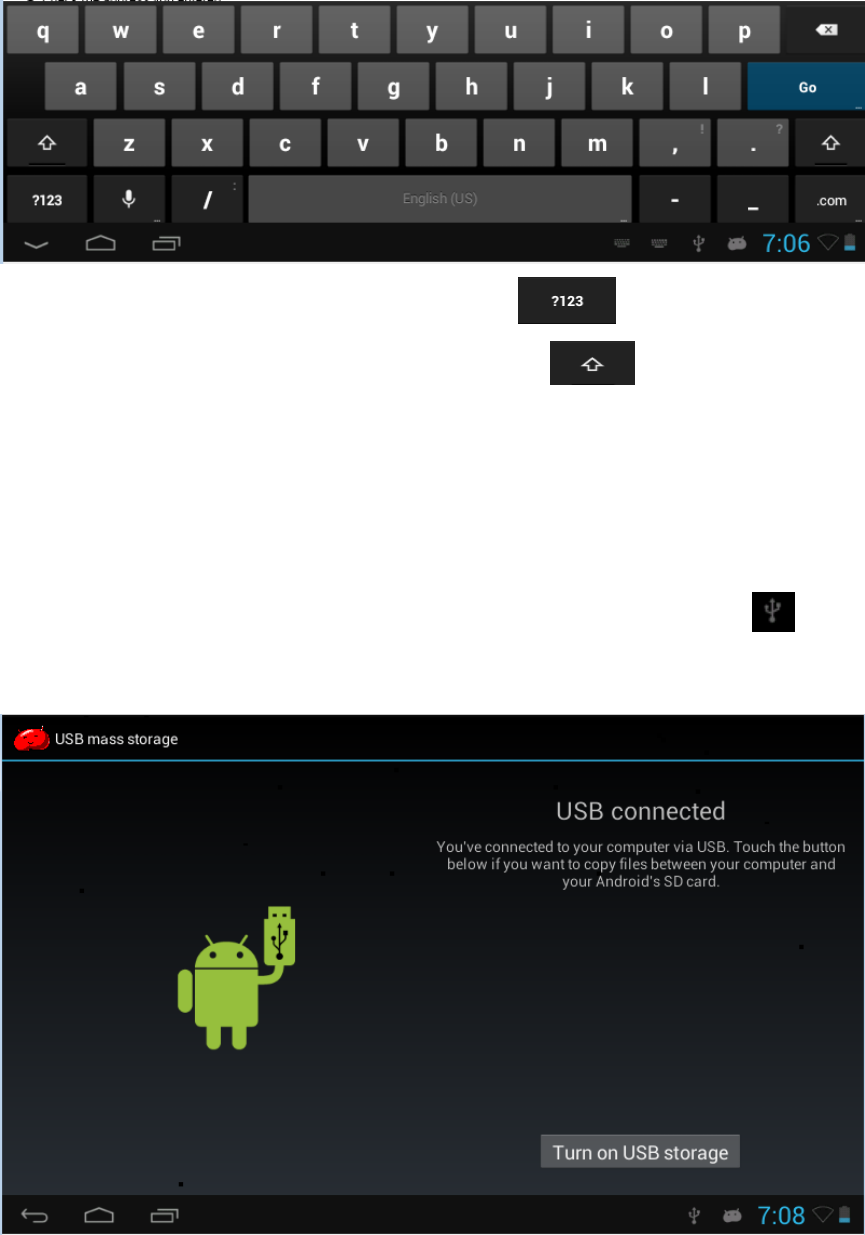

Whenusethetablet,youcanusethevirtualkeyboardtoentertext,number,

symbolsdirectlybytouchingscreen.AfterselectingtheAndroidinputmethod,the

defaultkeyboardshowasbelow:



Toswitchthenumbersandletters,pleasepressthis 

Toswitchthecapitalandlowercaseletter,pleasepress 

1.8Reset

Presstheresetbuttonontheleftsideofthedevicebackcover,thenyoudevicewillrestartand

reset

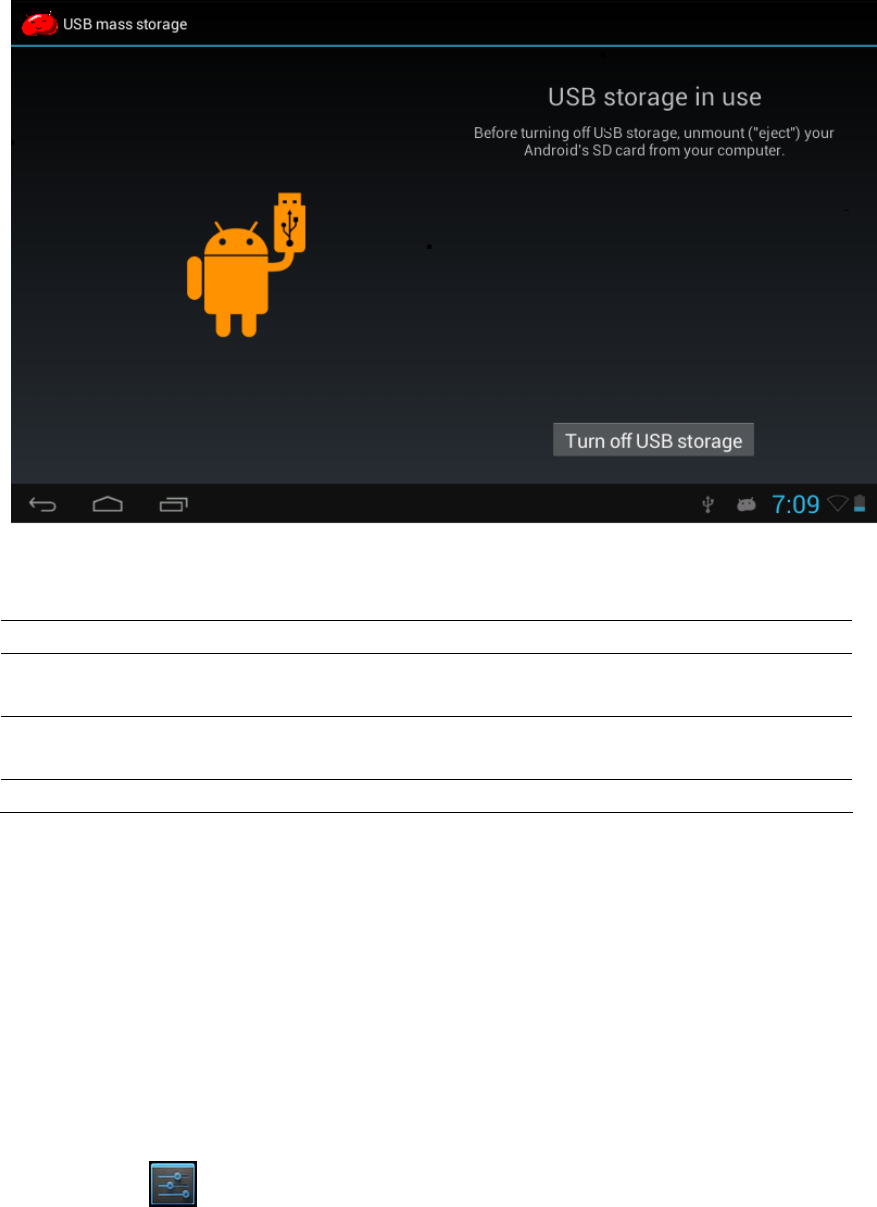

1.9USBconnect

PleaseconnectPCwithin‐boxUSBcableforyourtabletandyouwillsee  on

yourtablet,clickthissignandturnonUSBstoragetoconnectyour

device



6/23



TurnoffUSBstoragetodisconnectyourdevicewithPC



1.10Accessories

Item What you can do with it

Power Adapter Use power adapter to provide power and

charge the battery

USB Cable Use USB cable to connect device with USB

device

User manual Guide your use



Chaptertwo:Internet

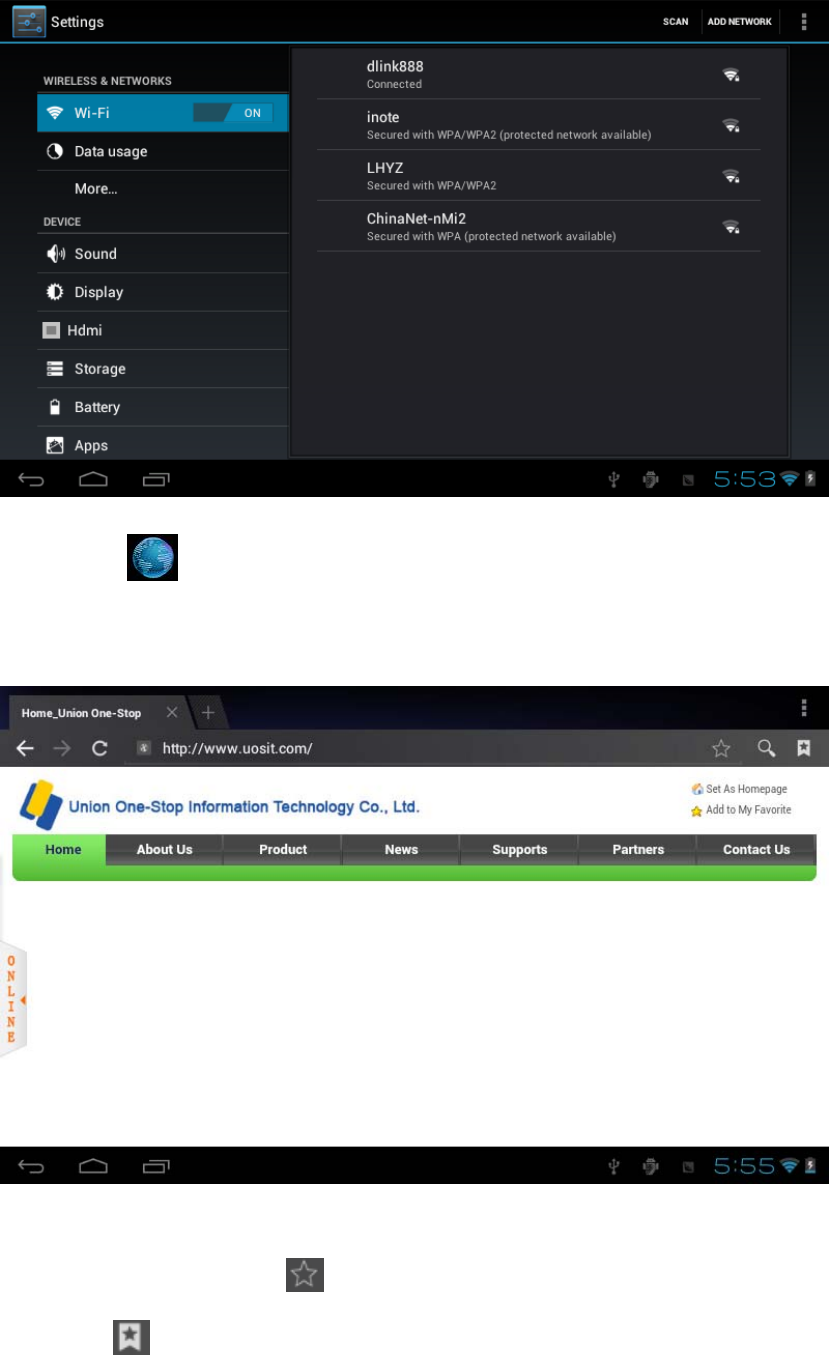

2.1Browser

Requirenetworksupportbeforeusingawebbrowser,iftherearenetwork

supportingproblems,pleasecontactyournetworkoperatorortheserviceprovider.



Tablet’swebbrowsercanconnecttotheInternetviaWIFItosatisfyyourbusiness

andindividualnetworkneeds



Pleasetouch  tosetuptheWIFIsothatcanusethebrowsernormally.Seeas

picture:



7/23



Touchhere  intheapplicationlisttoenterthebrowserpages;thedefault

homepageistheRecentlyViewedshowingrecentlyviewedpages.



Browsersupportsthefollowingfeatures



EntertheURL‐touchtheinputareatogetthesoftkeyboard,thentexttheUPL.

Bookmarksearch—clickthistoaddintothebookmark

Touchthistoreadthefavoritewebsitethatcollected



8/23



Touchthis  tosearchtheinternet

Touchthis  toaddnewbrowser

Touchthis  toclosethebrowser



Chapterthree:Application



3.1Camera

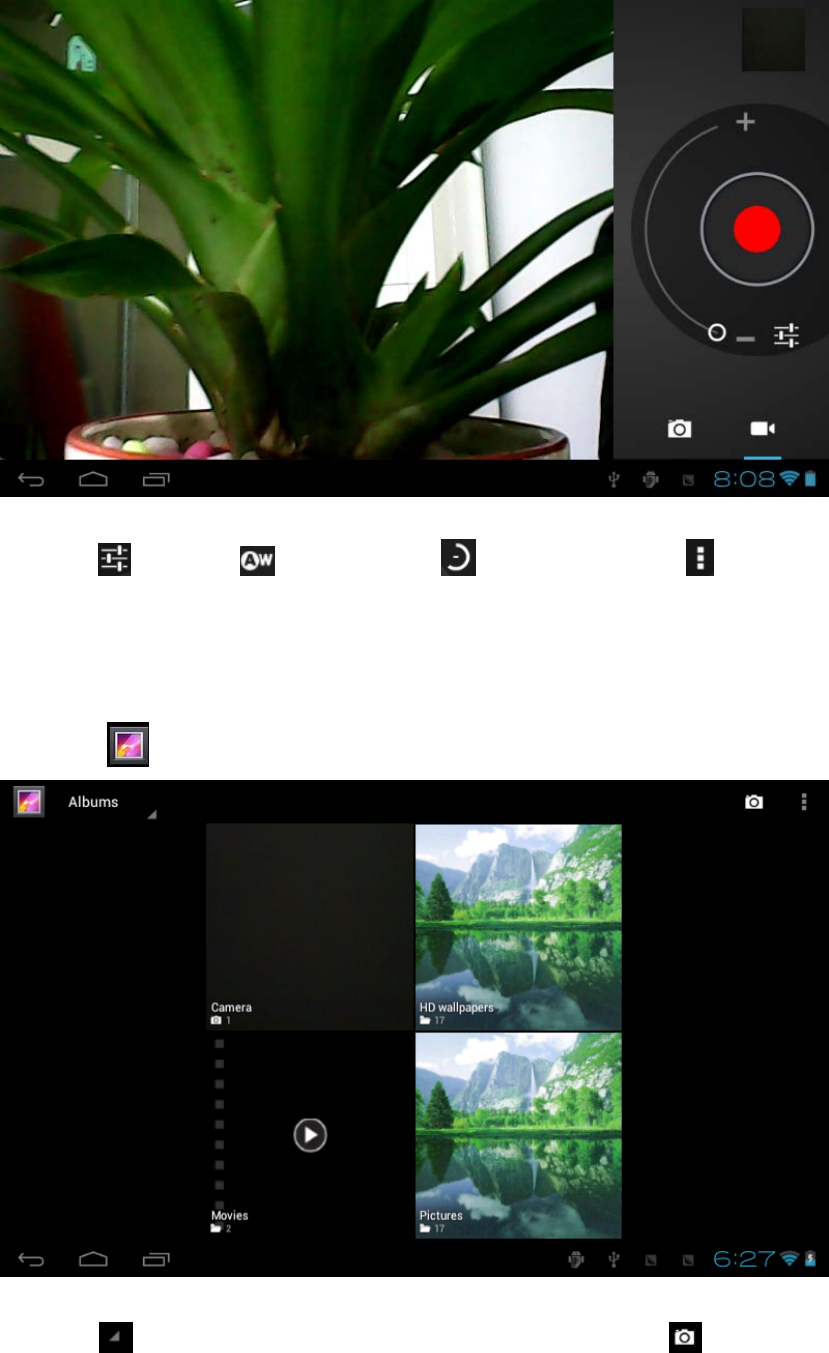

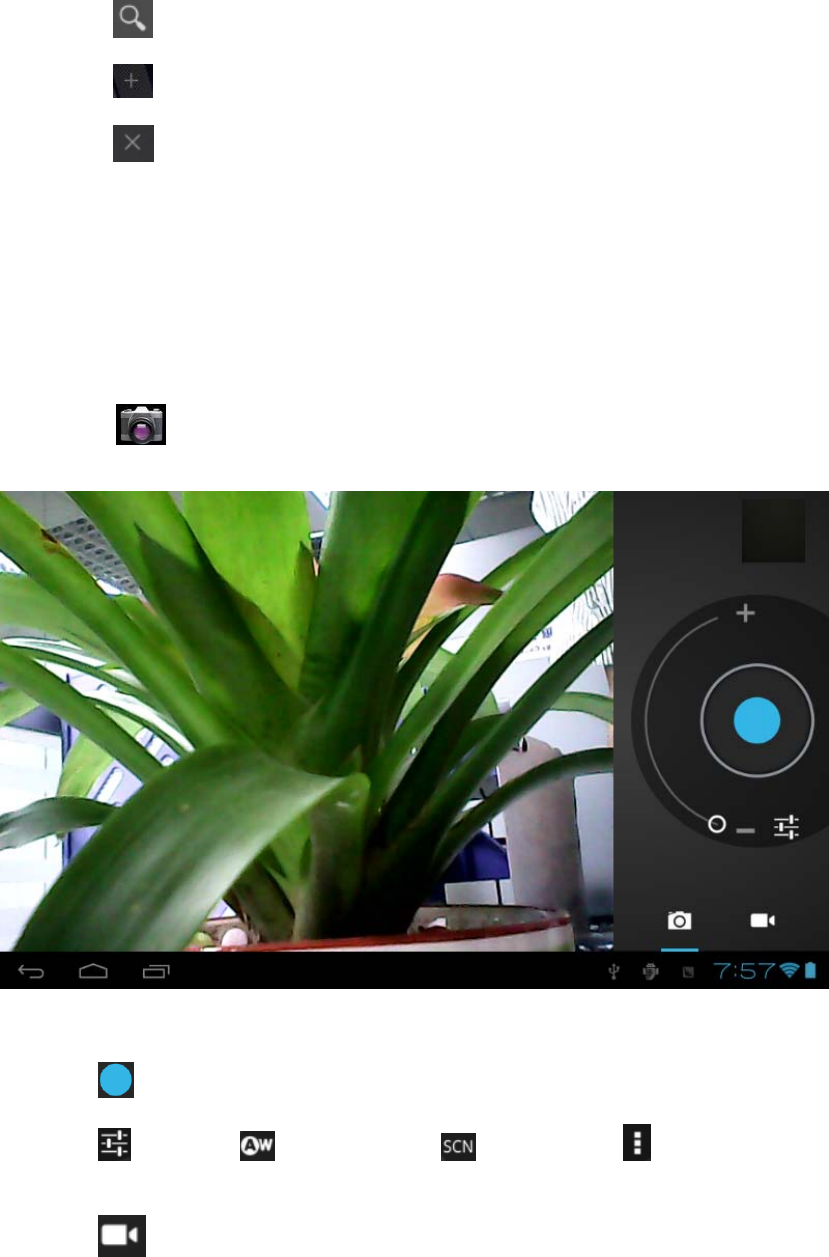

Touchthis  intheapplicationlisttoenterthecamera,theviewsshowedon

thescreenandyoucandothefollowingaspicture:



Camera

Clickthis  togetSnapshot

Clickthis  tosetup  whitebalance,  scenemode,  save

Video

Clickthis  tovideoanddotherelevantoperation.



9/23



Clickthis  tosetup  whitebalance,  timelapseinterval,  save



3.2Gallery



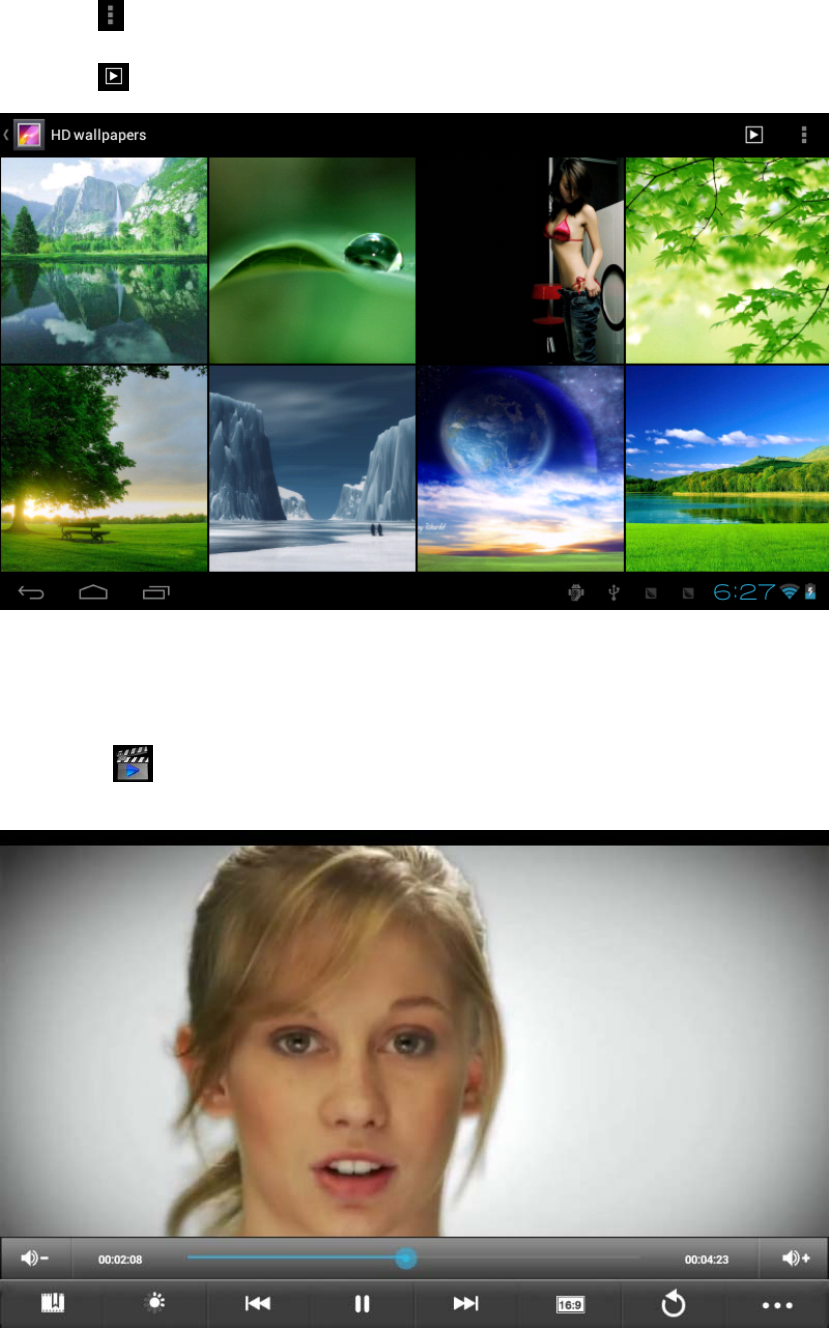

Clickhere  intheapplicationlistwhichincludingallthepictures



Clickthis  canclassifythepicturesbytimeandplace.Clickthis  toenterthe



10/23



camera.

Clickthis  tochoosethealbumtoeditordelete

Clickthis  toenterslidesshowwhenenterthealbum



3.3Video



Touchthis  tothevideoplay

Therearesomecontrolareasatthebottomafteryouenterthevideo



11/23



3.4Music

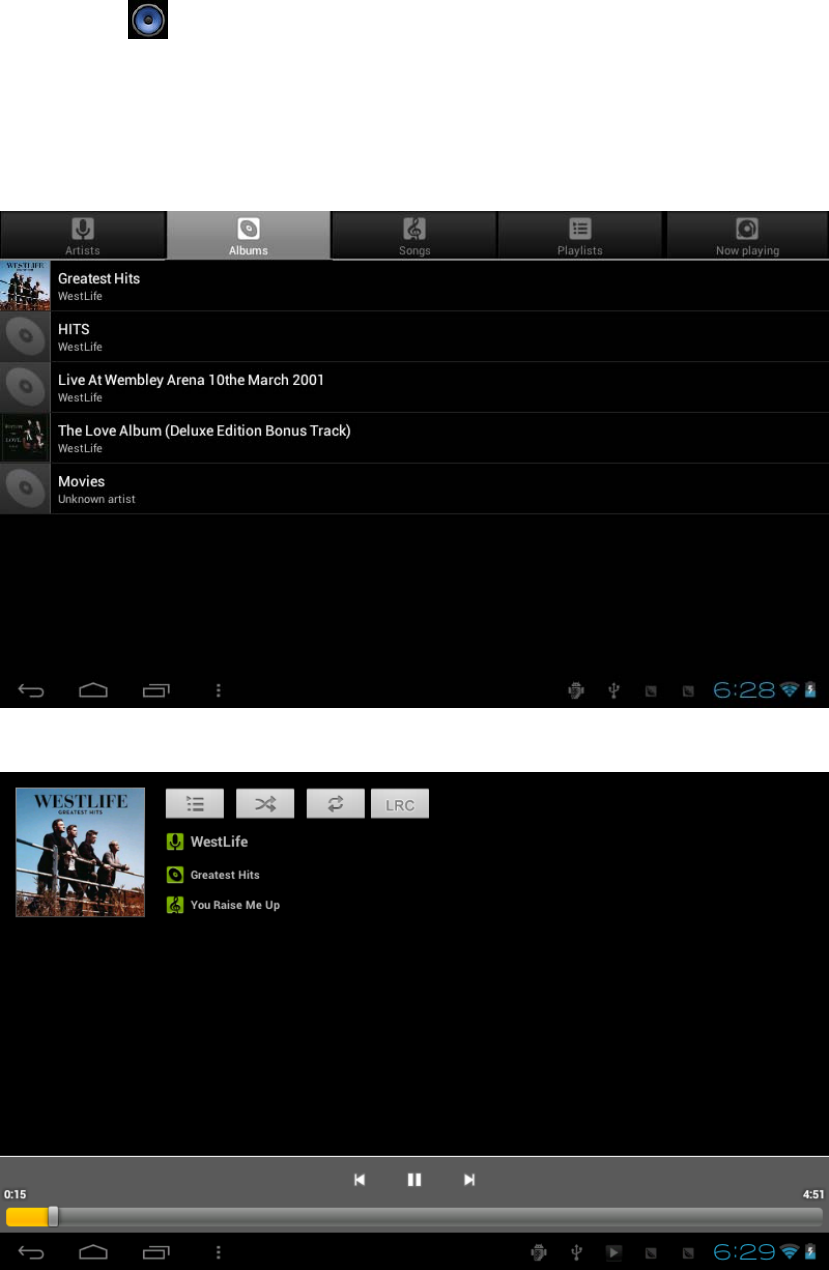

Touchhere  tothemusicplayer.Musiccanbeplayedbyartistsoralbum

classification.

Thispagedisplaysthesongsalphabetically.

Clickthesongsyouwanttolistenandgetintoselectedstatetoplay.

Clickonthenowplayingwillplayingbeingplayedalbumpage;therewillbelyrics

showsunderthepageright



Play

Clickonesongtoplay



12/23



list

randomplay

repeat

lyrics



3.5Calendar

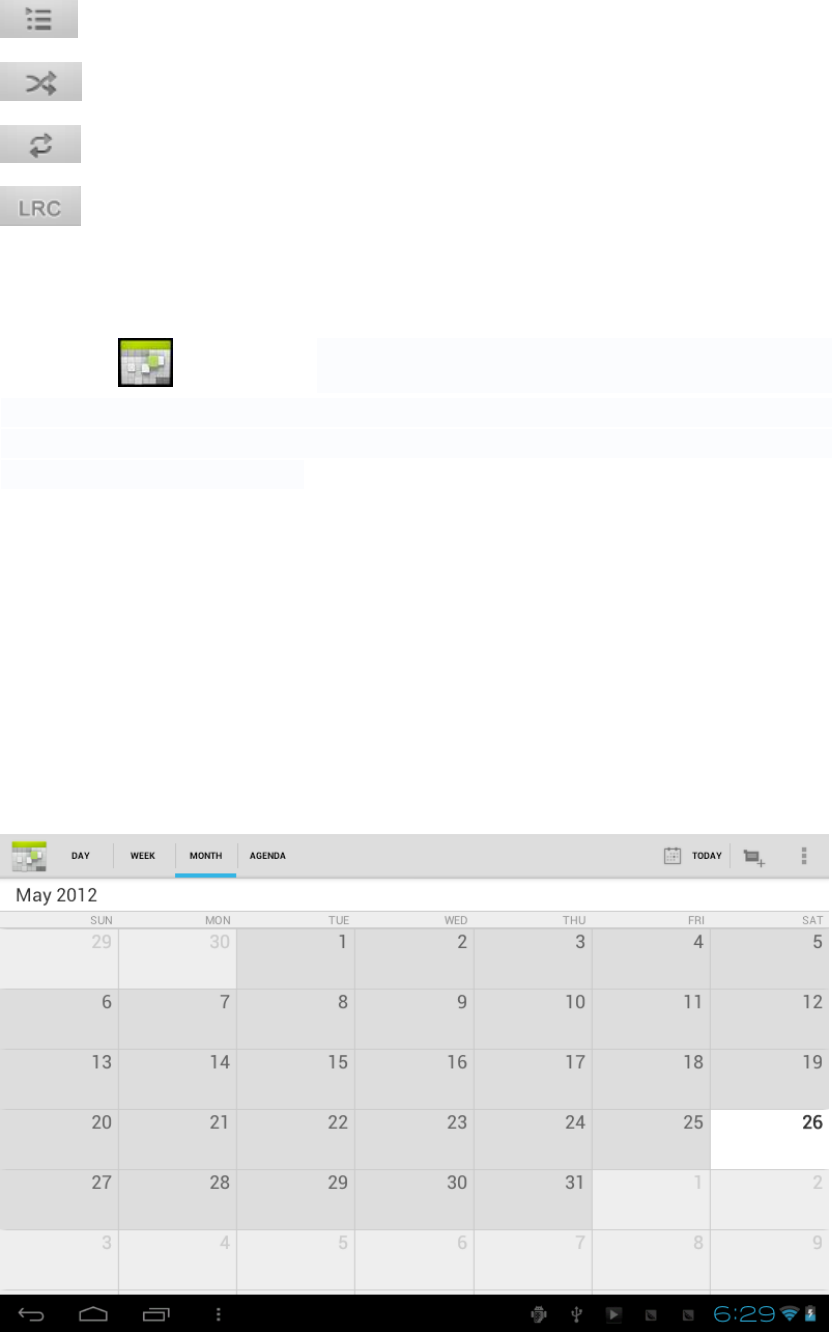

Touchthis  tocalendar,forthefirsttimeintothecalendarinterfacewill

remindtoaddtheGoogleaccount,whichfacilitatesmorecalendaroperation,ifdo

notneedtoset,clickonthenotnow,otherwisetosetupGoogleaccountsettings,

setintothecalendarinterface,thedefaultpageshowsthemonths.

Dayview:longpresstotheeventtorebuilt,view,edit,anddelete;Clickontheblank

areacansetupnewevents;longpresstheblankarea,youcanbuiltneweventsor

display/notdisplaythelunardayview.

Weekview:Longpressestheeventtorebuilt,view,edit,anddeleteevents;long

presstheblankareayoucanrebuilteventsordisplay/notdisplaythelunarweeks

view.

Monthview:Longpressdatetobuildnewcalendaritemsordisplay/notdisplaythe

lunarmonthview

Agenda:listalleventsclickorreadthedetails.

Inanyviews,whenyouswitchtootherdate,weekormonth,allcanbebacktotoday

orweekormonthnowytouching“today”button





13/23



3.6Calculator

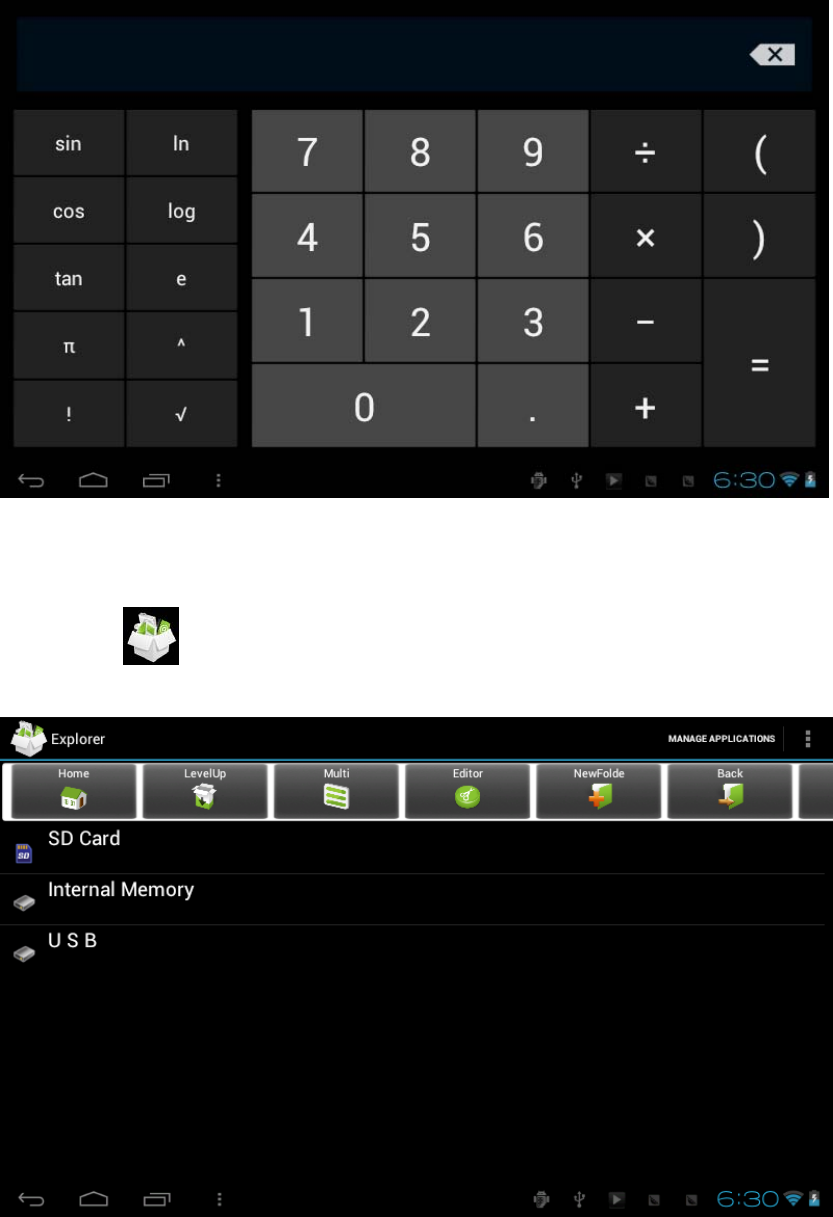

Touchhereintheapplicationlisttogetintothecalculator



3.7Explorer

Touchhere  intheapplicationlist,itsupportsthefilesmutualcopyinthistwo

placesSDCard,internalmemoryandUSB



14/23



Touchthebutton  todomultioperationandtheneditthefiles

Touchthis  toedittefileincludingcut/copy/paste/delete

ForCopy,inthefileslist,longpressthefilewhenitturntomultioperationoption,

clickCopy,click  tochoosewheretoputthefile,abdthenclickthis  to

paste



3.8APKInstaller

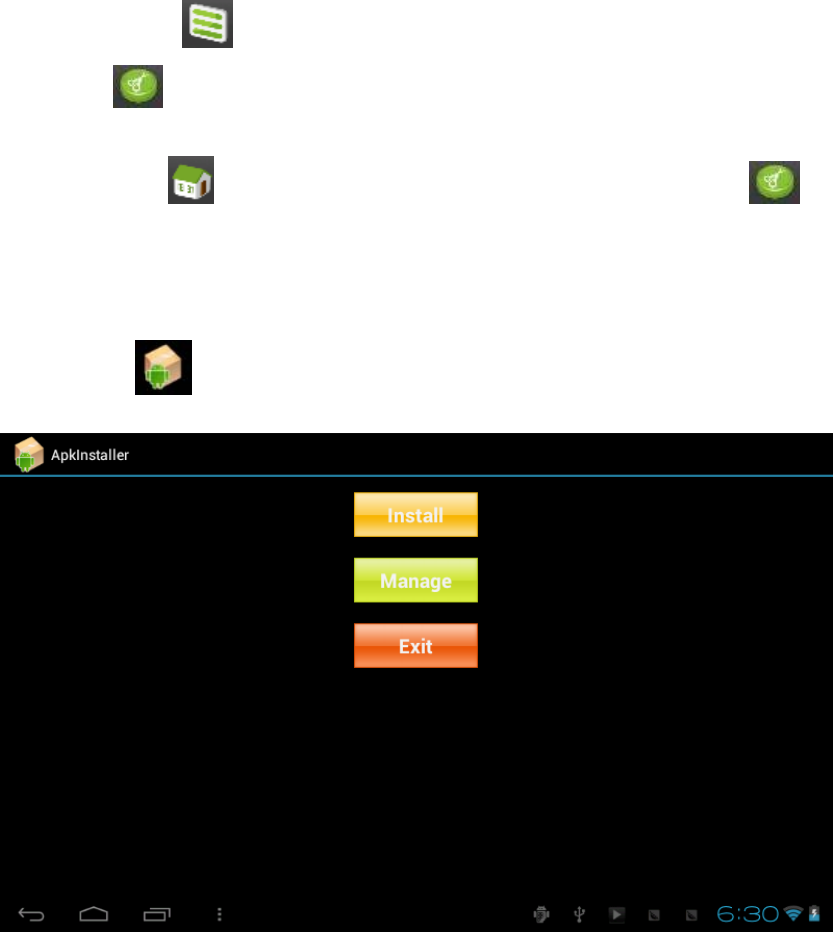

Touchhere  intheapplicationlist,itwillinstall,unloadtheAPKfile

automatically.ItsearchestheAPKfilefromSDCard,InternalMemory



Install

ClickInstalltoinstallapplicationinstoragepathfromInternalMemoryandSDcard

Manage

ClickManageintheAPKInstallerinterface,clicktheapplicationthatneedtobe

managedtodoLaunch,Export,Uninstall



3.9E‐mail



Requiretheinternetsupportbeforeusinge‐mail,ifthereareproblemsinnetwork

supporting;pleasecontactyournetworkoperator



Addaccount



15/23



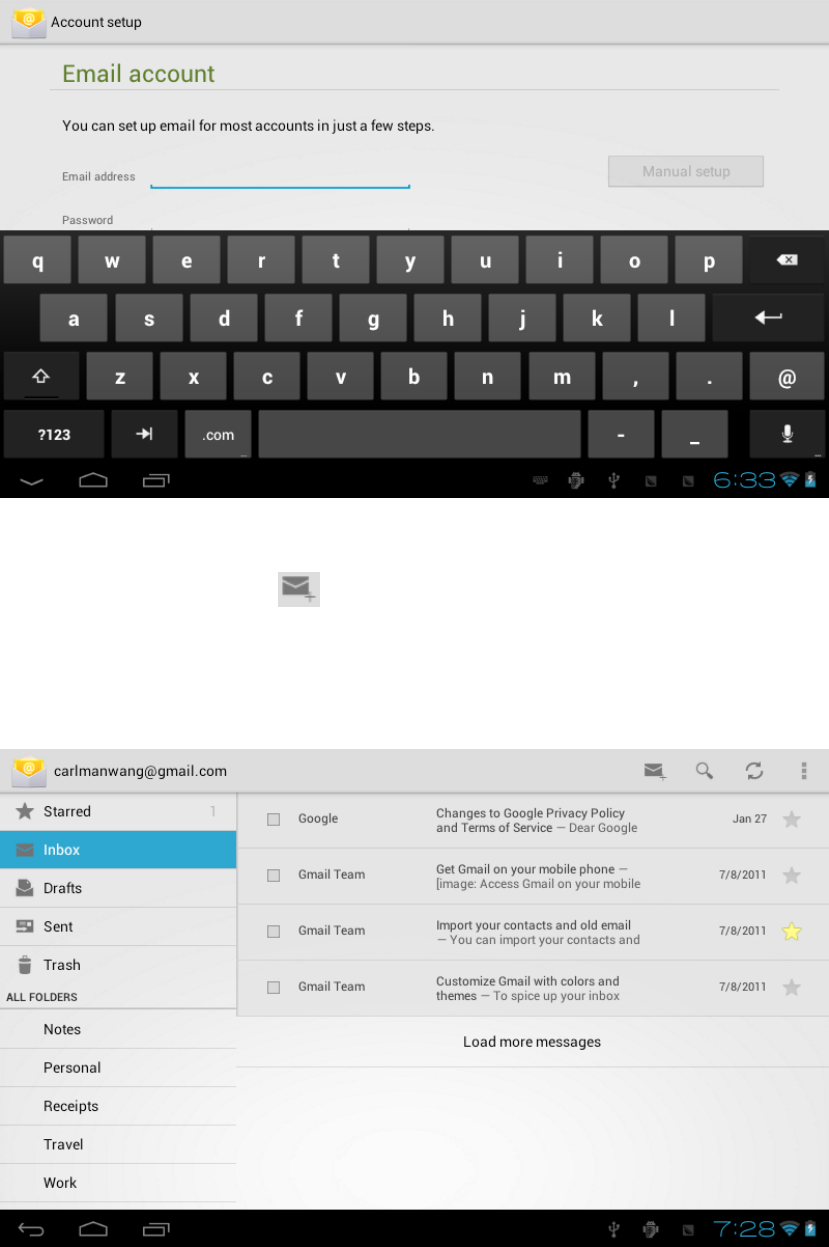

Ifyouarethefirsttimetouseemail,getintoamailboxinterfacedirectlyorsetupan

accountaccordingtoinstruction.

Ifyouwanttoaddmoremailboxes,clickSettingsonthetopofthepagetoaddmore

mailboxes,andthenselectAddaccount.



Drafte‐mail

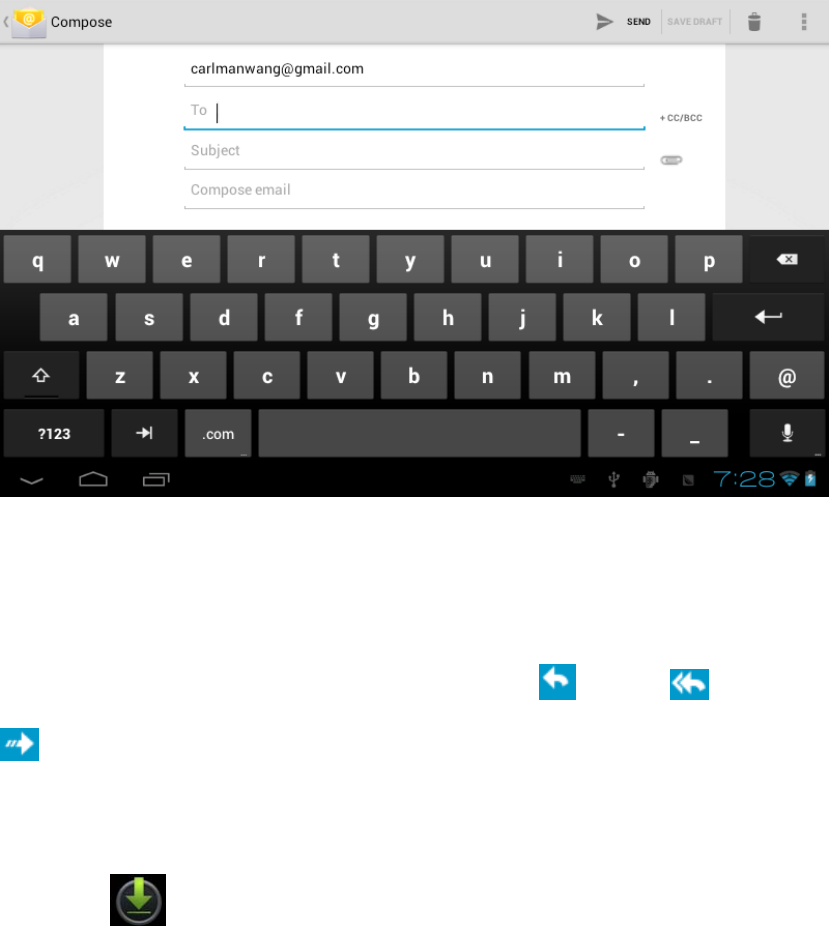

Ininboxpage,youcanclick  thisontherightpagetoptodraftmailquickly.

Inthedraftmailpage,youcan:

Addmailrecipientsquickly.



16/23



Entertherecipientaddressinrecipientinputboxorclickonthecontactinthe

contactlistofrecipientstochoosemailaddress;youcancopy/closetosentinput

address

Writeemailsubjectandtextcontent(thetextareasupportcopy,shareoperation)



Addattachment

Addattachmentsfromthedocumentmanagement,whenitsucceeds,thenamewill

showone“Newe‐mail”page;youcanclicktoselecttoopenorremovethem

Reply,forwardmail

Clicktherightpagepreviewareaofthetoolbarreply ,relayall ,forwarding

choices.Thebaseoperationissamewiththedrafte‐mail.



3.10Downloads

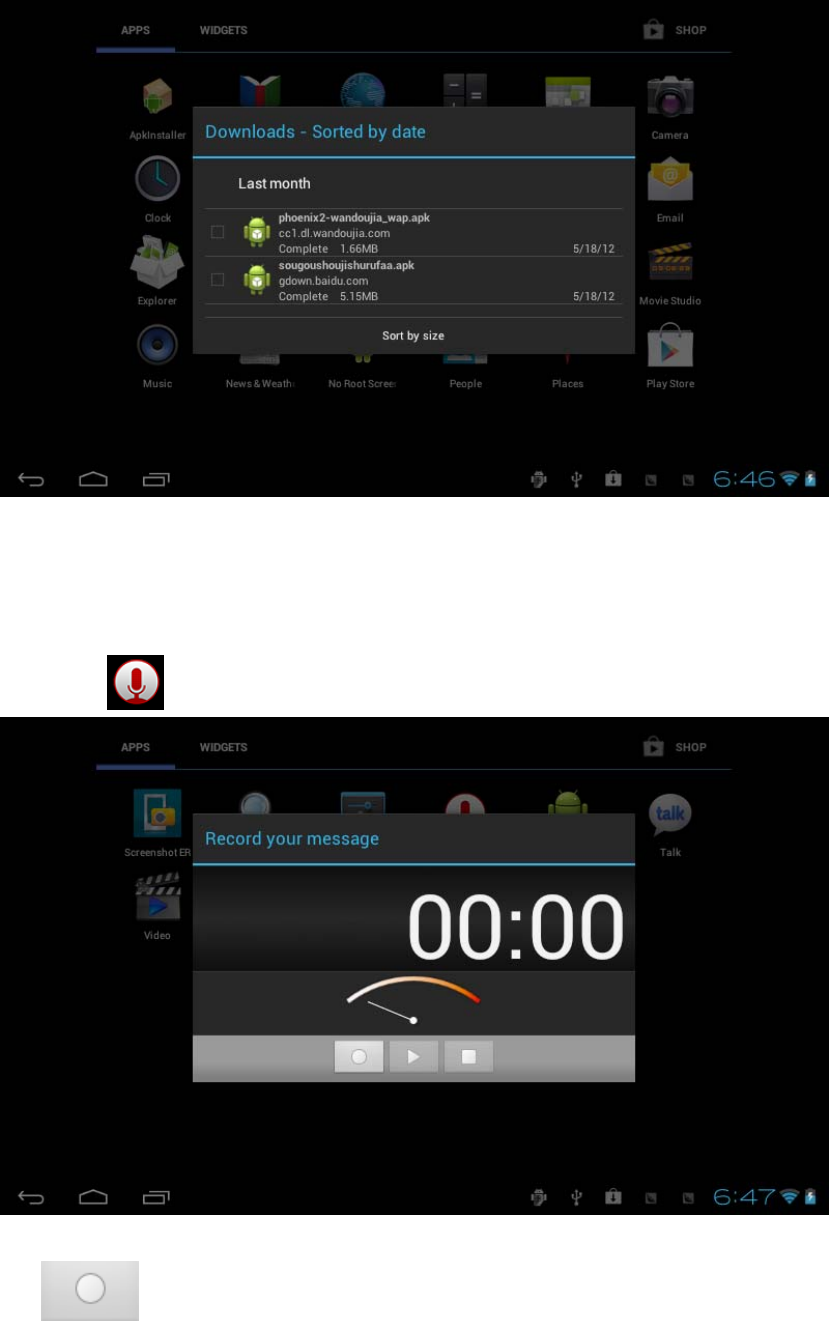

Clickhere  intheapplicationlist;youcanpreviewthedownloadingordone

documentcontents



17/23



Clickdownloadfiletostopordeletethedownloadcontents



3.11SoundRecorder

Clickhere  intheapplicationlisttorecordsound



Tap  tostartrecording



18/23



Tap  tostoprecording

Taptoplayrecording



3.12Clock

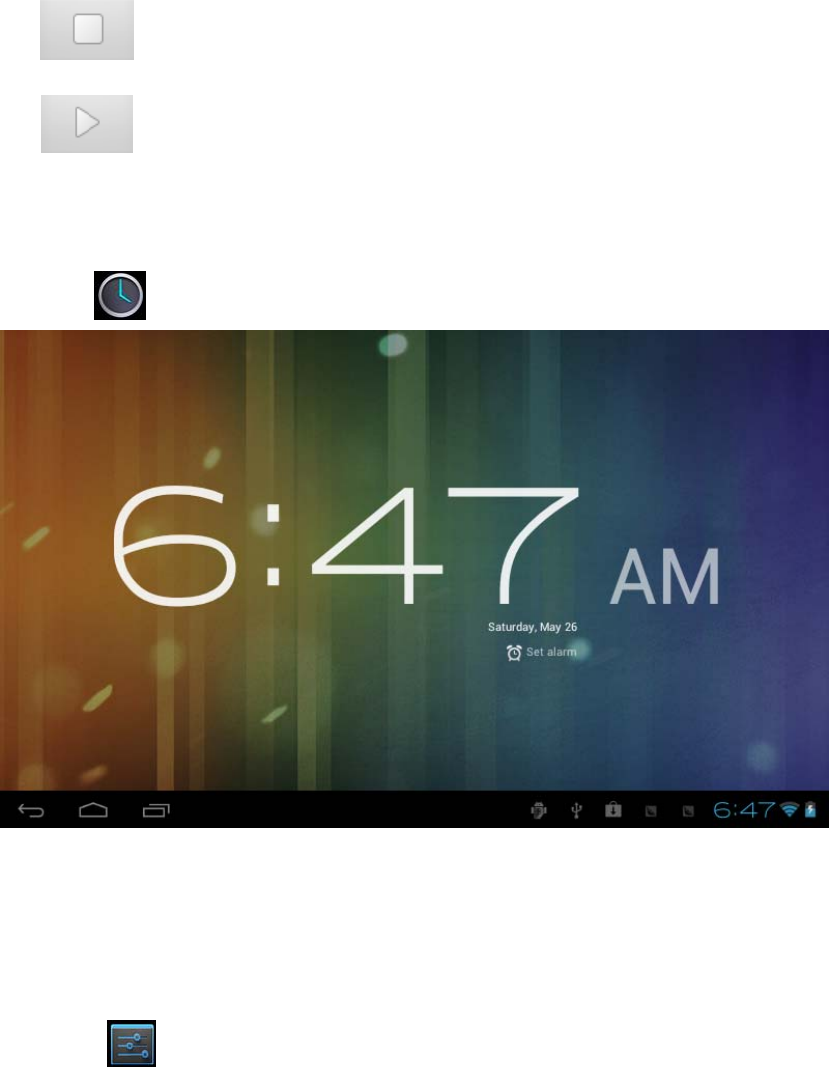

Clickhere  intheapplicationlisttoaccessclockinterface



Tapsetalarmtosetupclockalarm



ChapterFour:Systemsetting



Clickhere  toenterthesystemsettinginterface



19/23



4.1Internetsetting

Thissettingmoduleincludes:thewirelessandnetworkSettings

ThewirelesslocalareanetworkSettings

OpenwirelessLANswitches,thesystemwillscanavailablewirelessnetwork

automaticallyanddisplaythewirelesslocalareanetworkinthelist

Amongthem,ifthelocalareanetworkshavethesignbehindit,itrepresents

thenetworkhasbeenencryption,itneedstoenterthepasswordtoconnection.The

signrepresentsthenetworksdonotneedapasswordmcanbeconnected

directly.

Youcanchoosethenetworkfromthelistyouwantmclickittoconnectdirectly,also

youcanclicktheadvanced,thenclickconnectedtonetwork;youcanalsoselectadd

wirelesslocalareanetworktoaddbyhand

Networknotice:opentheswitch,itwillnoticeifthereanyopnenetworks

Thewirelesslocalareanetworkcertificate:thewirelesslocalareanetworkloading

andmanagement.



4.2Soundsetting

InSoundsetting,youcanchoosemuteswitchwhichcangetmoredetailedsettingsif

youneed.Clickthevolumesettingcansetupthenotice,themediaandthealarmof

volumeandchoosethepromptoperationsoundandthebellandsoftwarediskboot



20/23



switchvoice



4.3Displaysetting

Displaysettingscontains:Brightness,WallpapersSettings,Automaticrotating

Settings,DormancytimeandFontsize

Brightness

Theusercanadjustbrightnessmanuallytogetthelightnessyouwant.

WallpaperSettings

Inthewallpapersetting,youcansetupthewallpaperanddynamicwallpaper;the

wallpapercanbechosenfromgallery

Dormancytime

Whenthescreensinlightstateaperiodoftime,itwillautomaticallylocktosavethe

powerifwithoutanyoperations.

Fontsize

Youcansetupthefontsizeaccordingtoindividual’sfavorite,therewere

respectively:small,ordinary,big,huge.



4.4Applicationsetting

Intheapplicationsetting,youcanmanagetherunningservicesandaccessrights

managementanddevelopmentbutonlyfordeveloper



Applicationmanagement

Inthissetting,itiseasytomanageanddeletesomeapplicationsthathavebeen

installed.

First,getintotheapplicationlist,clicktheaccordingtonamesortbuttonstoorder

thealphabetandnumber;clicktheallmenutoscantherunningprogramor

programsthatprovidebyathirdpartysoftwaredevelopers.

Clickonanapplication,youcanseetheapplication’srelevantinformationtoclear

thecache,unloadprograms,clearthedefaultvalueorforcedtostopoperation,etc

Runningservices

Inthissetting,youcanendandsetupsomeprogramsthatarerunning

Accessmanagement

Inthissetting,byusingtheopeningorprohibitiontomanagetheapplicationsto

accesscontentpermissions



4.5Date&Timesetting

Inthissettinginterface,youcansetupyoursystemtimeandseriesoptions.

Timesetting

Youcanuseautomatictimefromthenetwork,tochoosethetimezone,toset

specificdateandtimeanddisplayformatintimesetting



21/23



4.6LanguageandinputSetting

Inthissettinginterface,youcanchoosethelanguageyouwant

Inputmethod

Inheretheinputmethodscanbesetbyusers,youcanaddthewordsinthe

dictionaryortodelete

Androidkeyboard

Youcansetupautomaticcapitalfunctionofopeningorclosing



ChapterFive:Attentions



5.1keys

Editingkeys



Cuttheselectedtext



Copytheselectedtext



Pastthecopledorcuttext

SystemFunctionKeys



Previoustrack



Play/Pause



Nexttrack



Mute



VolumeDown



VolumeUp

SystemFunctionKeys



HomeButton



SearchKey

BrightnessDecay



22/23



Brightnessenhancing



Chaptersix:Attentions



6.1Pleasedonotputyourdeviceinhightemperature,moistureordustplace;the

tabletisnotwaterproof

6.2Avoidfallingorviolentcollision,donotviolentlyshakethetouchscreen,

otherwise,itcouldleadtodamageordisplayunnormal.

6.3Ifsystemshutdownautomatically,bootableagainsoonaftertheshutdown.

6.4Pleasechargethetabletregularlyifnotuseitforlongtimetoavoidthedamage

causedbytheexcessiveconsumptionfrombattery.

6.5Donotdisassembleorusealcohol,thinnerorbenzeneclasstoswabproduct

surface

6.6Pleasedonotusethetabletwhendrivingorwalkinginthestreet,otherwiseit

mayleadanaccident

6.7Pleasechoosetheappropriatevolume,ifhadtinnitus,pleaselowerthevolume

orstopusing

6.8Memoryspaceavailabledishonestnominalfortheandroidsystemitselftakesup

partofthememoryspaceandtheoperationoftheprogramwillalsotakeupspaceif

youopenthem

6.9Storagecapacitythatdishonestnominalforandroidsystemoccupiesabout

hundredsofMBstoragecapacity,alsoinordertoinstallthesoftwareneeds,the

systemmustlayoffcertainstoragecapacity,sotheactualusablespaceandnominal

spacehavedeviation

6.10WhenCPUinhigh‐speedoperation,especiallyin3Dgamesorinlongtime

playbackhigh‐definitionvideo,thefuselagewillhavethephenomenonoffever



23/23



ChapterSeven ：Hardwareconfiguration

Tablet:

Size:(longxwidththick)：260*178.4*9.8mm

CPUprocessorspeed:Rockchip3066DualCore1.5GHz

GPU：Mali‐400,with3Daccelerator

Thismachinecapacity:8G

Memory:1GB

Storagecard:TF128M‐32G

Screen:10.1’’capacitivemulti‐touchscreen

Resolution:1280*800pixels

Batterytypeandcapacity:rechargeablepolymerbattery:6000mAh

USB:highspeedUSB2.0micro,OTGconnectingperipherals

Camera:front0.3MP+rear2.0MP

Gravitysensor:3D

Thetape:built‐inmicrophoneshead

Softwareconfiguration

Operatingsystem:Android4.1.1

Video:AVI,MPG,MKV,RM,RMVB,MP4,MOV,VOB,DAT,FLV,TS,3GP,WEBM（VP8）etc

Music:MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP

Pictures:JPG,BMP,PNGetc

E‐book:TXT,EPUB,PDF,WORD,EXCEL,POWERPOINTS



CAUTION

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass

Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffand

on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof

thefollowingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich

thereceiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp

Haier S102-R1A-2 MID User Manual S102 R1A 2 english manual 1

Haier international(hk) limited MID S102 R1A 2 english manual 1

User manual

Navigation menu

Namespaces

Views

Navigation
