Haisen Technology HDM02 5.8G microwave sensor module User Manual HD401S TUV
Shenzhen Haisen Technology Co.,Ltd 5.8G microwave sensor module HD401S TUV
Contents
- 1. User Manual
- 2. Host User Manual
Host User Manual
Specifications subject to change without notice.©All rights reserved. Haisen Technology | 01
Hold-time
Daylight threshold
Detection area
On/off control

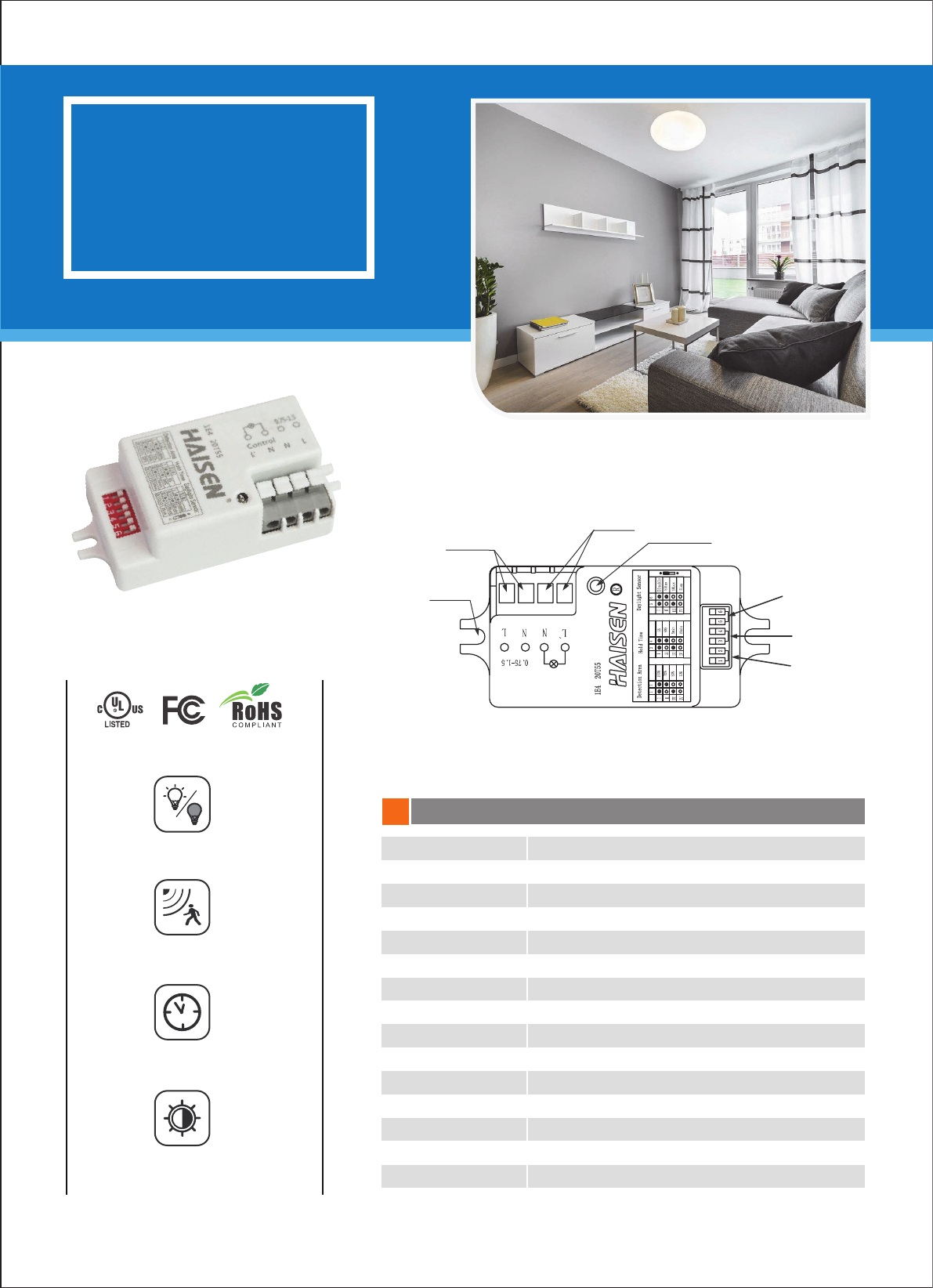

Technical data01
HD401S
On/off control
INPUT
OUTPUT
Daylight sensor
Daylight threshold
Hold Time
Detection Range
Installation hole
Detection area
IP20
120~277 VAC 50/60Hz
Max.200W(Control gear) Max.400W(Incandescent lamp)
<1W
10%/50%/75%/100%
5s/90s/5min/15min
2Lux/10Lux/50Lux/Disable
5.8GHz±75MHz
<0.3mW
4-pole pluggable clamp terminal(L,N,N,L’)for 1.5mm2cable
Max.6m(ceiling mounted),Max.3m(wall mounted)
Max.14m(ceiling mounted),Max.10m(wall mounted)
-20°C~+55°C
80.2X36.6X23mm
cULus listed,FCC
Operating voltage
Switching capacity
Standby power
Hold-time
Daylight threshold
Microwave frequency
Microwave power
Detection range
Operating termperature
IP rating
Certificate
Interfaces
Mounting height
Size
Haisen Technology | 02
Shenzhen Haisen Technology Co., Ltd., Tel: +86-755-82598105 丨Fax: +86-755-82598106丨Email: info@haisensz.com 丨www.haisensz.com
02
Application
03
Mechanical structure(mm)04
Application
05
Wiring diagram
Function Demo - On/off control
80.2
71.4
65
936.6
4
2
12
23
When motion detected, insufficient
daylight,light ON.
When motion detected, but sufficient
daylight,,light remains OFF.
Hold time
After the last detection and the present
Hold time elapsed,light OFF.
Disable
50lux
10lux
2lux
Detection area means detection
coverage. lt can be adjusted by
combining DIP swithches for
specific application.
Hold-time means the time
period the light will be ON after
the last detection.
Daylight sensor priors to motion
sensor.Set threshold for specific
needs. lf Disable, only motion
sensor works.
Detection area Hold-time Daylight threshold
5s
90s
5min
15min
100%
75%
50%
10%
Switch UP
Switch DOWN
We are responsible for additional testing to verify compliance as a composite system. When testing the host device for compliance with Part 15
Subpart B, we have verify that our product compliance with Part 15 Subpart B while the transmitter module(s) are installed and operating. The
modules should be transmitting and the evaluation should confirm that the module's intentional emissions are compliant (i.e. fundamental and out of
band emissions). We have verify that there are no additional unintentional emissions other than what is permitted in Part 15 Subpart B or emissions
are complaint with the transmitter(s) rule(s).
