1 Introduction
The WAP-001 Access Device revolutionizes the way wireless and wired IP-based services are
delivered to hospitality and residential properties. The WAP-001 integrates wired and wireless
connectivity into a small unit that can be quickly and discretely installed in a standard wall box. The
WAP-001 provides One Ethernet ports, a 2.4GHz 802.11b/g/n wireless access point. The WAP-001
requires a single powered cable drop to unlock its utility and, through the reduction in cabling, switch
ports, and power-sourcing equipment, the WAP-001 represents the best value for the delivery of next
generation entertainment services.
1-1 Package Contents
Please inspect your package. The following items should be included:
◎ WAP-001
z One In Wall Access Pointt
z One Telephone Cable (10cm)
z One UTP Ethernet/Fast Ethernet cable (Cat.5 Twisted-pair)
z One Wall Faceplate(Top and Bottom )
z Bracket (EU STD*2/Set JPN STD*1/Set)
z One Quick Installation Guide
If any of the above items are damaged or missing, please contact your dealer immediately.
In Wall Access Point 5
1-2 Features
z Wireless data rates up to 150Mbps
z Comprehensive security
64/128-bit WEP encryption
WPA encryption
WPA2 encryption
z Intelligent Management
1-3 Precautions
z Never remove or open the cover. You may suffer serious injury if you touch these parts.
z Never install the system in the wet locations.
1-4 Outlook
Figure 1 In Wall Box Access PointOutlook
1-4-1 Top Panel
The top panel of the In Wall Box Access Pointis shown below.
Figure 2 In Wall Box Access PointTop Panel
LEDs Indication
LED State Description
PWR Off The In Wall Box Access Pointis not receiving electrical power.
Green The In Wall Box Access Pointis receiving electrical power.
SYS Off The In Wall Box Access Pointstatus is defective.
Green The In Wall Box Access Pointstatus is complete.
Green (Blinking) During firmware upgrades, this system LED will blink.
LINK / WAN Off Port has not established any network connection.
Yellow A port has established a valid 10/100Mbps network connection.
Yellow (Blinking) 10/100Mbps traffic is traversing the port.
LAN
Off Port has not established any network connection.
Green A port has established a valid 10/100Mbps network connection.
Green (Blinking) 10/100Mbps traffic is traversing the port.
WLAN Off The Wireless is not ready.
Green The In Wall Box Access Pointhas established a valid wireless connection.
Green (Blinking) The Wireless connection is active.
In Wall Access Point
6
1-4-2 Rear Panel
The rear panel of the In Wall Access Pointt

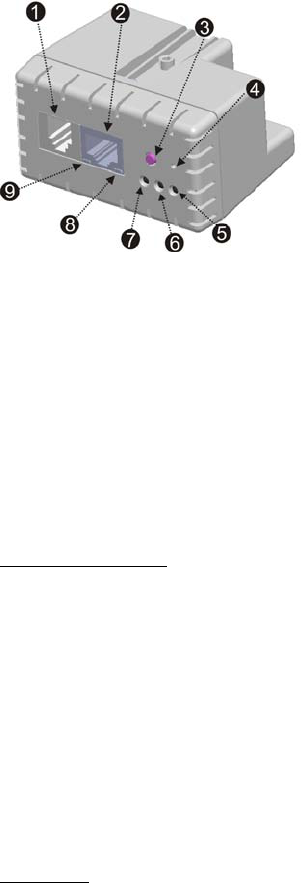

Figure 3 In Wall Box Access PointRear Panel
1-5 Technical Specifications
1-5-1 Hardware Specifications
Network Specification
IEEE802.3 10 Base TX Ethernet
IEEE802.3u 100 Base TX Fast Ethernet
IEEE802.3af Power over Ethernet
IEEE802.11b Wireless LAN
IEEE802.11g Wireless LAN
IEEE802.11n Wireless LAN
ANSI/IEEE 802.3 NWay auto-negotiation
Static IP Client
DHCP Client
Wi-Fi Compatible
Connectors
One LAN Ports (10BaseT/100BaseTX Auto cross-over)
1. RJ-11 Telephone Connector
2. RJ-45 Ethernet Connector
3. WPS Button
4. Reset Button
5. WLAN
6. SYSTEM
7. POWER
8. LAN Port
9. LINK Port
In Wall Access Point 7
One LINK Port (10BaseT/100BaseTX Auto cross-over)
Two Tel Port (Telephone Line transparent used)
Encryption
WEP (Wired Equivalent Privacy) 64/128-bit RC4
WPA (Wi-Fi Protected Access)
WPA2 (Wi-Fi Protected Access)
WPS (Wi-Fi Protected Setup)
LED Indicators
One POWER LED
One Link 10/100M Link/Activity LED
One LAN 10M/100M Link/Activity LEDs
One Wireless Link/Activity LED
One System LED
Environment Conditions
Operating Temperature: 0 to 50°C
Storage Temperature: -10 to 60°C
Operating Humidity: 10~80% non-condensing
Storage Humidity: 10% to 90% non-condensing
Certifications
FCC part 15 Class B, CE, NCC
Dimension
Size: 39.3(W) x 71.6(L)x 55(H)/ mm
Weight: About 85g (Net)
1-5-2 Software Specifications
Networking
• IEEE802.3 10BaseT Ethernet
• IEEE802.3u 100BaseTX Fast Ethernet
• IEEE802.3af Power over Ethernet
• IEEE802.11b Wireless LAN
In Wall Access Point
8
• IEEE802.11g Wireless LAN
• IEEE802.11n Wireless LAN
• Static IP WAN Client
• DHCP WAN Client
Security and Firewall
• WEP
• WPA
• WPA2
• WPS
Management
• Web-based Management Tool
• Firmware Upgrade via HTTP/TFTP
• Backup/Restore/Factory Default Setting
• Remote Authorized Management
• SNMP v1/v2 (MIB II, Private MIB)
• System Information Table
2 Installation
The followings are instructions for setting up the In Wall Access Point. Refer to the illustration and
follow the simple steps below to quickly install your In Wall Access Point.

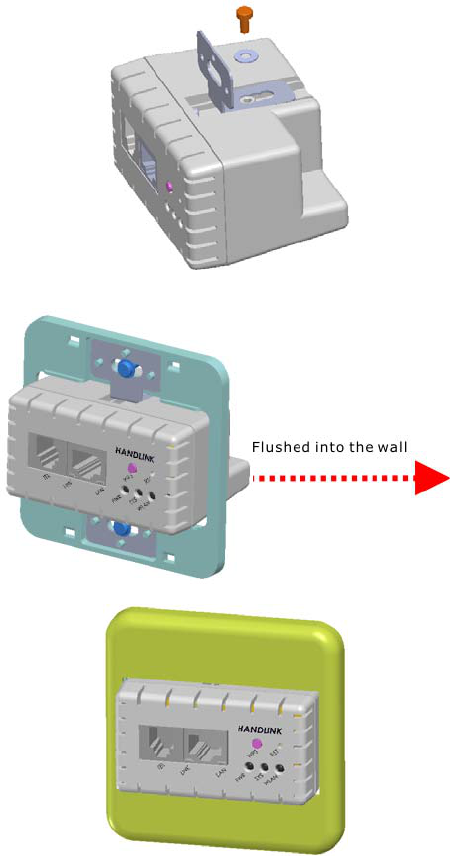

Step 1：Slide the Bracket to align with screw holes on the WAP-001, and fasten the Bracket tightly with
screws on the WAP-001.
In Wall Access Point 9
Step 2：Slide the WAP-001 into the Bottom Faceplate and fasten tightly into the Bottom Faceplate until
it’s flushed into the wall.
Step 3：Line-up and push the Top faceplate onto Bottom faceplate until snaps securely into place.
2-1 Installation Requirements
Before installing the In Wall Access Point, make sure your network meets the following
requirements.
System Requirements
In Wall Access Point
10
The In Wall Box Access Pointrequires one of the following types of software:
z Windows 98 Second Edition/NT/2000/XP
z Red Hat Linux 7.3 or later version
z MAC OS X 10.2.4 or later version
z Any TCP/IP-enabled systems like Mac OS and UNIX (TCP/IP protocol installed)
z Standard phone line for xDSL modem
Or
Coaxial cable for Cable modem
z Web Browser Software (Microsoft I.E 5.0 or later version or Netscape Navigator 5.0 or later
version)
z One computer with an installed 10Mbps, 100Mbps or 10/100Mbps Ethernet card
z UTP network Cable with a RJ-45 connection (Package contents)
Note: Prepare twisted-pair cables with RJ-45 plugs. Use Cat.5 cable for all connections. Make sure
each cable not exceed 328 feet (Approximately 100 meters).
In Wall Access Point 11
2-2 Getting Start
WAP-001 support web-based configuration. Upon the completion of hardware installation, can be
configured through PC/NB by web browser such as Internet Explorer, Firefox, and Opera.
¾ Default IP Address:10.59.1.254
¾ Default Subnet Mask:255.255.255.0
¾ Default Username and Password: admin/admin
Note
：
Set the IP segment of the administrator’s computer to be in the same range as WAP-001 for
accessing the system. Do not duplicate the IP address used here with IP address of WAP-001 or
any other device within the network.

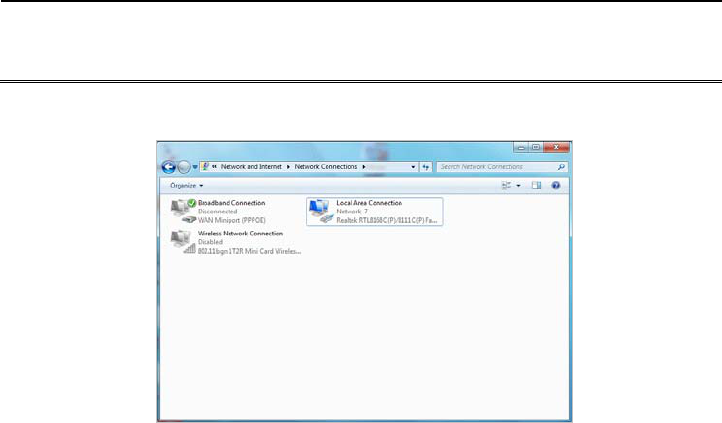

Step1：Click StartÆSettingÆControl Panel, and then “Control Panel” window appears, Click on
“Network connection” window appears.
Step2：In “Local Area Connection properties” window, select “Internet Protocol (TCP/IPv4)” and
click on “properties” button.
In Wall Access Point
12
Step 3：Launch your browser, and then enter the factory default IP address 10.59.1.254 in your
browser’s location box. Press Enter.

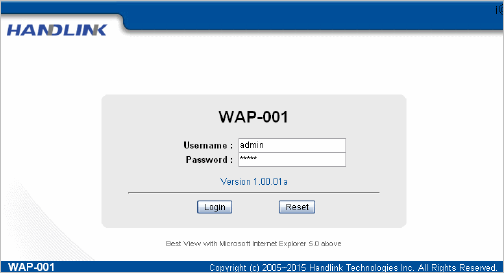

Step 4：.The WAP-001 login screen will appear. In the Username and Password field, type the factory
default user name admin and password admin and click Setup. The WAP-001 setup screen will
appear.
Example:
IP Address:10.59.1.109
Subnet Mask:255.255.255.0
In Wall Access Point 13
Note: It is important to remember your password. If for any reason you lose or forget your password, press the reset
button located on the top of the device. Reset action will re-initialize the settings. All configurations, including
username, password and IP address(s), will be reset, and requires re-entering.
POE (Power over Ethernet) Application
In Wall Access Point
14
Note: To use the WAP-001’s POE feature, follow the instructions for your specific POE device.
In Wall Access Point 15
3 Configuring the In Wall Access Point
Step 1: Start your browser, and then enter the factory default IP address 10.59.1.254 in your browser’s
location box. Press Enter.
Figure 4 Web Browser Location Field (Factory Default)
Step 2: The In Wall Box Access Pointconfiguration tools menu will appear. In the Username and
Password field, type the factory default user name admin and password admin and click
Login. If you are first time setting the system, the wizard setup screen will appear. You will be
guided, step-by-step, through a basic setup procedure.
Figure 5 Configuration Tools Menu
Note:
)
This Web agent is best viewed with IE 5.0 or Netscape 6.0 and above browsers.
)
Username and Password can consist of up to 20 alphanumeric characters and are case sensitive.
)
If for some reason your password is lost or you cannot gain access to the In Wall Box Access
PointConfiguration Program, please press the reset button to load the device to manufacturer
defaults.
)
If the In Wall Box Access Pointdoesn’t send packet in 5 minutes (default), the In Wall Box Access
Pointwills logout automatically.
) Proxy needs to set disable first when administrator accesses admin UI
Username: admin
Password: admin
In Wall Access Point
16
The Setting enables you to configure advanced settings related to accessing the Internet；display In
Wall Box Access Pointbasic status and process Firmware upgrade, change password and backup or
restore configuration. Including,
z Internet Setting
¾ Link
z Wireless
¾ Basic
¾ Advanced
¾ Security
¾ WPS
z Administration
¾ Management
¾ Firmware
¾ Configuration
¾ SNMP
¾ System Status
¾ Ping Command
z System Tool
¾ Restart

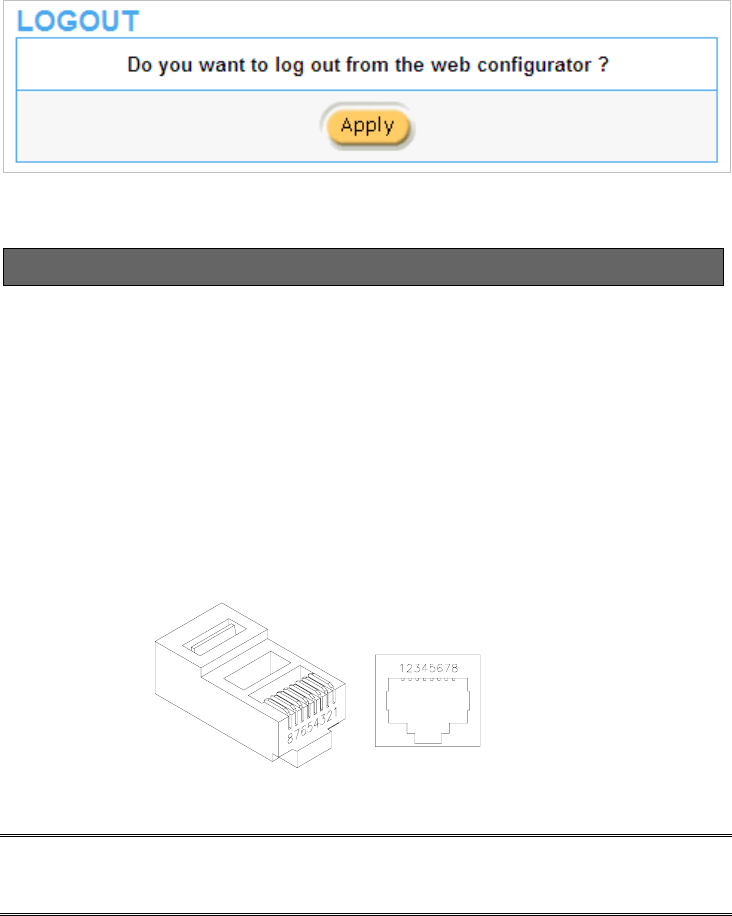

¾ Logout
Figure 6 Configuration Tools Menu
In Wall Access Point 17
3-1 Internet Setting
3-1-1 TCP/IP Setting
The IP address can be manually set or automatically assigned by a DHCP server on the LAN. If you are
manually setting the IP address, Subnet mask, and Gateway IP address settings, set them
appropriately, so that they comply with your LAN environment.

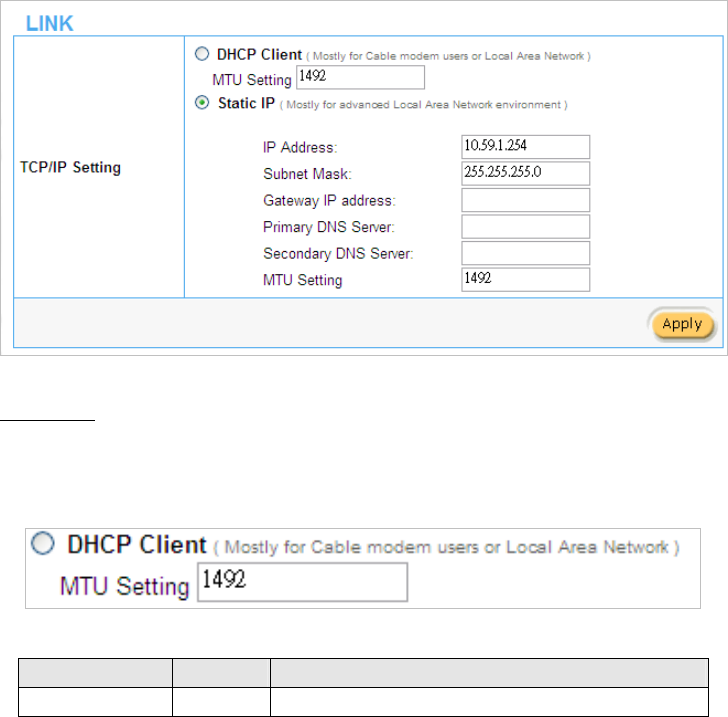

Figure 7 the TCP/IP Setting
DHCP Client
The device can work as a DHCP client. This allows the device to obtain the IP address and other
TCP/IP settings from your switch or IP router. If your device comes with this feature, please enable
Use DHCP Client.
Figure 8 DHCP Client Setting Screen
Item Default Description
MTU Setting 1492 MTU (Maximum Transfer Unit) specifies maximum
In Wall Access Point
18
transmission unit size.
Static IP

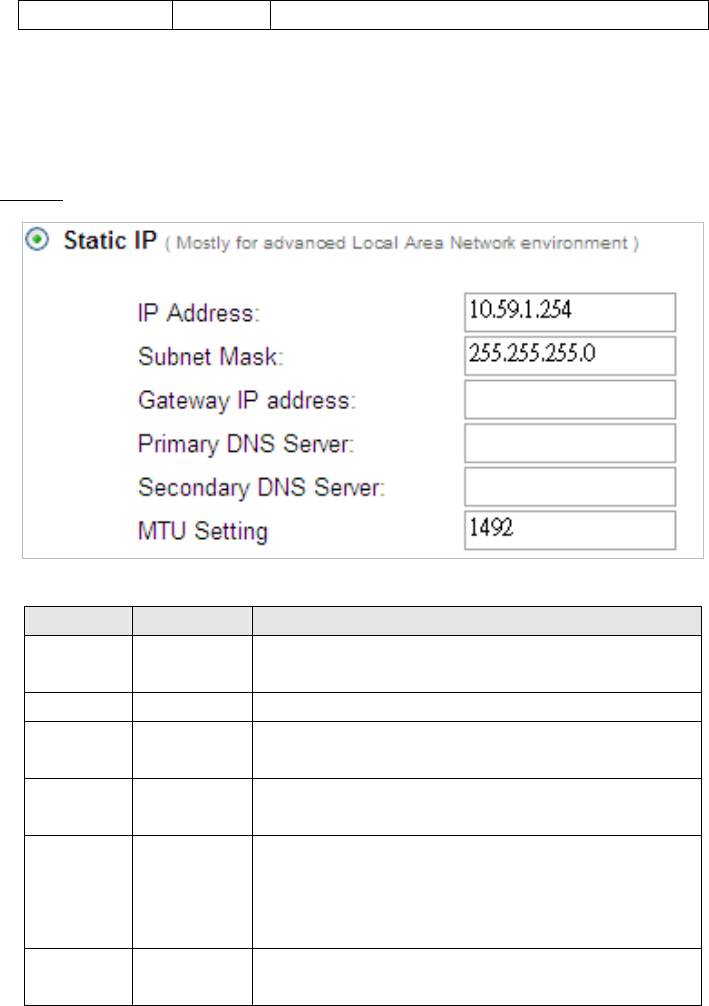

Figure 9 Static IP Setting Screen
Item Description
IP Address 10.59.1.254 Enter the IP address for the xDSL/Cable connection (provided
by your ISP).
Subnet Mask 255.255.255.0 Enter the subnet mask for the IP address.
Gateway IP
Gateway
Enter the Gateway IP address for the xDSL/Cable connection
Primary DNS
Server
A primary DNS server IP address for the xDSL/Cable
connection
Secondary
DNS Server
A secondary DNS server IP address for the xDSL/Cable
connection. If the primary DNS Server IP were not available,
meanwhile, Secondary DNS Server IP would start in the same
time.
MTU Setting 1492 MTU (Maximum Transfer Unit) specifies maximum
transmission unit size.
In Wall Access Point 19
In Wall Access Point
20
3-2 Wireless
3-2-1 Wireless Basic Setting
Figure 10 Wireless Basic Setting Screen
Item Default Description
General Settings
ESSID Wireless
The ESSID is the unique name that is shared among all
points in a wireless network. It is case sensitive and must not
exceed 32 characters.
Channel 6 Select the channel ID for wireless connection.
802.11 Mode 802.11g+802.11b
Select the 802.11 mode of following:：
-802.11n+802.11g+802.11b
-802.11n+802.11g
-802.11g+802.11n
-802.11n only
-802.11g only
-802.11b only
Channel Width Auto 20/40MHz Select of channel width of Auto 20/40 MHz or 20MHz
Transmit Power 10%
To Adjust the output power of the system to get the
appropriate coverage of your wireless network. Select the
10% to 100% that you needed for your environment.
In Wall Access Point 21
3-2-2 Wireless Advanced Setting

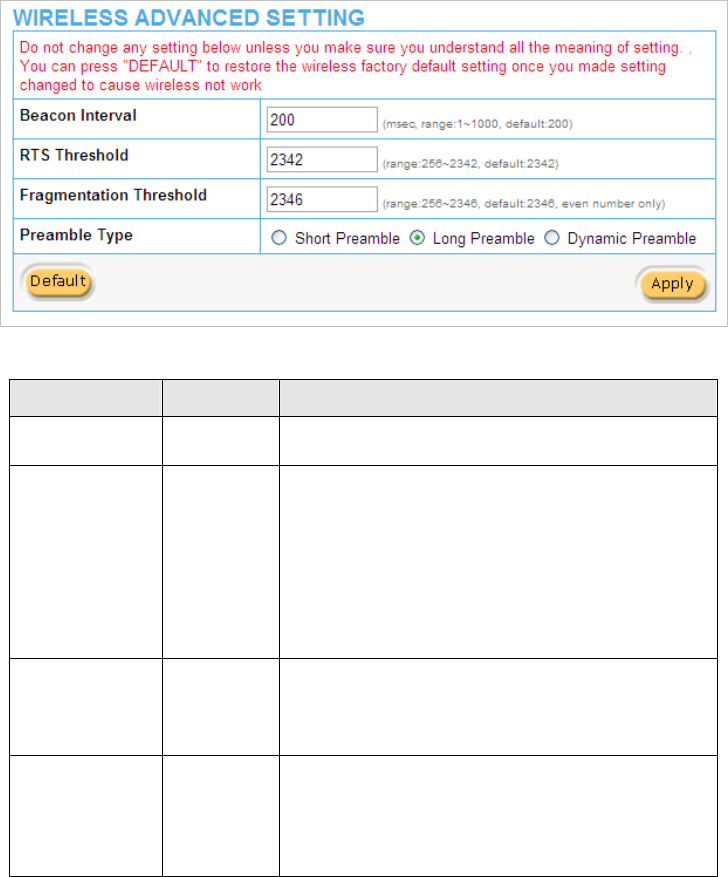

Figure 11 Wireless Advanced Setting Screen
Item Default Description
Beacon Interval 200 This value valid range is 1 to 1000 indicates the frequency
interval of the beacon.
RTS Threshold 2347
This value valid range is 256-2342. This setting determines
the packet size at which the Wireless Subscriber Gateway
issues a request to send (RTS) before sending the packet. A
low RTS Threshold setting can be useful in areas where
many client devices are associating with the Wireless
Subscriber Gateway, or in areas where the clients are far
apart and can detect only the Wireless Subscriber Gateway
and not each other.
Fragmentation
Threshold 2432
This setting determines the size at which packets are
fragmented. Enter a setting ranging from 256 to 2432 bytes.
Use a low setting in areas where communication is poor or
where there is a great deal of radio interference.
Preamble Type Long Preamble
The preamble type is a section of data at the head of a
packet that contains information the Wireless Subscriber
Gateway and client devices need when sending and
receiving packets. The setting menu allows you to select a
long, short or dynamic preamble type.
In Wall Access Point
22
Click Apply button to save the new settings.
3-2-3 Wireless Security Setting

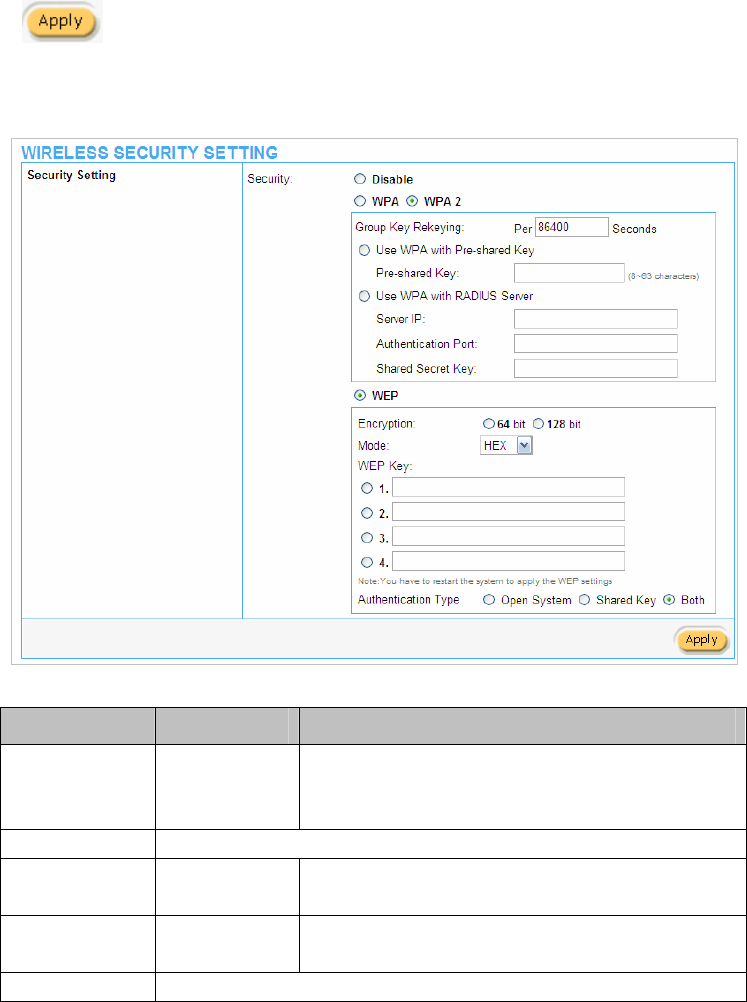

Figure 12 Wireless Security Setting Screen
Item Default Description
Security Disable
Select disable to allow wireless station to communicate with
the device without any data encryption. Select enable to
enable WPA or WEP data encryption.
WPA2 Encryption Wi-Fi Protected Access Encryption
Pre-shared Key Empty Enter a pre-shared key from 8 to 63 case sensitive ASCII
characters.
Group Key
Re-Keying
86400 Seconds Enter a number in the field to set the force re-keying interval.
WPA Encryption Wi-Fi Protected Access Encryption
In Wall Access Point 23
Pre-shared Key Empty Enter a pre-shared key from 8 to 63 case sensitive ASCII
characters.
Group Key
Re-Keying
86400 Seconds Enter a number in the field to set the force re-keying interval.
In Wall Access Point
24
Item Default Description
WEP Key 1
This selects which of the Keys the In Wall Box Access Pointuses
when it transmits. You can change the selected encryption key
every now and then to increase the security of your network.
Note: You have to configure all WEP keys (1~4), and select one
of the four WEP key.
Enter 5 characters (case sensitive) for ASCII 64-bit WEP Key.
Enter 10 characters (case sensitive) for Hex 64-bit WEP Key.
Enter 13 characters (case sensitive) for ASCII 128-bit WEP Key.
Enter 26 characters (case sensitive) for Hex 128-bit WEP Key.
Click Apply button to save the new settings.

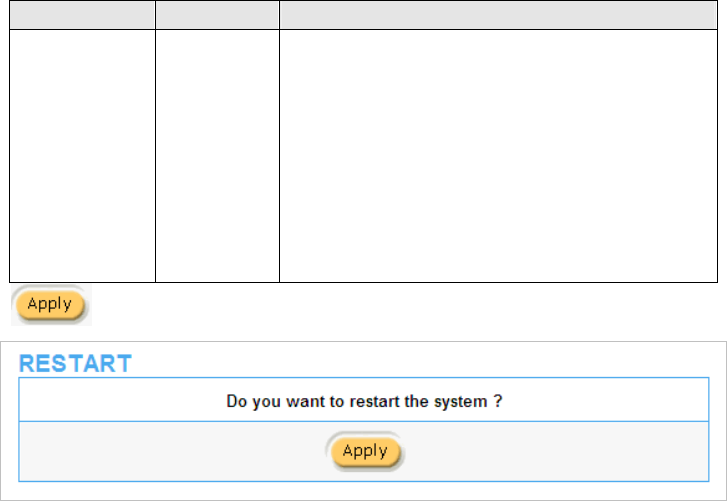

Figure 13 Restart Dialog Box
Click Apply button, the restart dialog box appears. Click on Apply to restart the system.
In Wall Access Point 25
3-3 Advanced
3-3-1 Management
Define the In Wall Box Access PointManagement configuration

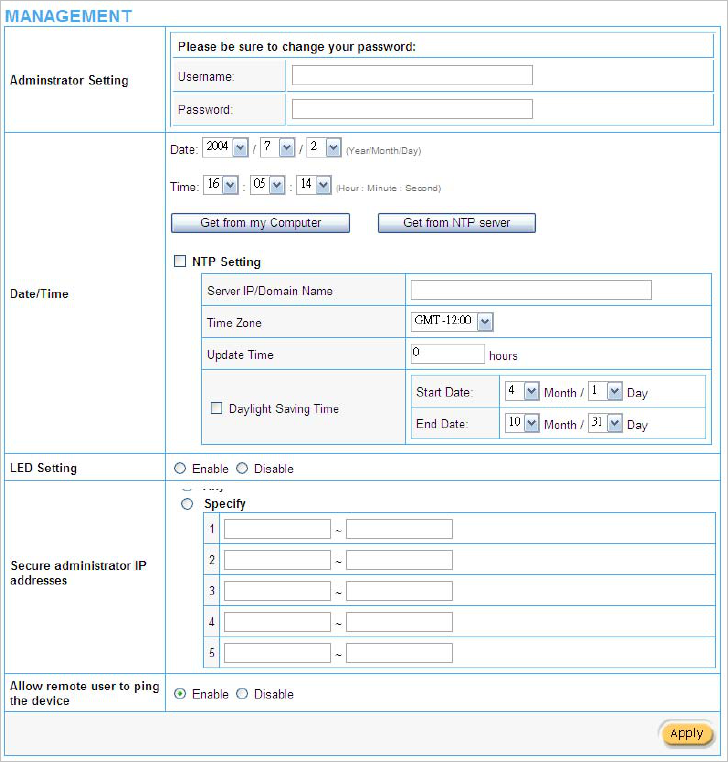

Figure 14 Management Setting Screen
In Wall Access Point
26

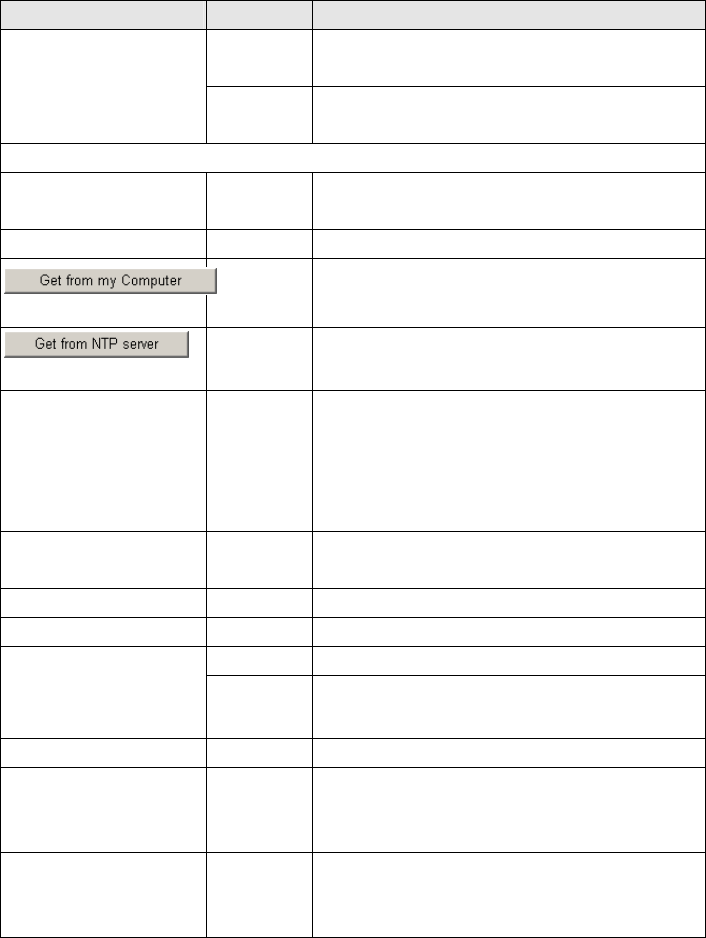

Item Default Description
Administrator Setting
Username The username can consist of up to 20 alphanumeric
characters and is sensitive.
Password The password can consist of up to 20 alphanumeric
characters and is sensitive.
Date/Time
Date (Year/Month/Day) System Date
The system date of the In Wall Access Point. The valid
setting of year is from 2002 to 2035.
Time (Hour:Minute:Second) System Time The system time of the In Wall Access Point.
- Click “Get from my Computer” button to correct the
system date and time.
- Click “Get from NTP server” button to correct the
system date and time.
NTP Setting Disable
Enables or disables NTP (Network Time Protocol)
Time Server. Network Time Protocol can be utilized to
synchronize the time on devices across a network. A
NTP Time Server is utilized to obtain the correct time
from a time source and adjust the local time.
Server IP/Domain Name Empty Enter the IP address/domain name of NTP server. The
maximum allowed characters length is 100.
Time Zone GMT-12:00 Select the appropriate time zone for your location.
Update Time 0 hours Enter the number of hours for update time.
Daylight Saving Time
Disable Enables or disables Daylight Saving Time (DST).
Month/Day Set the Daylight Saving Time (DST) on the In Wall
Access Point. Adjust the begin time and end time.
LED Setting Disable Enable or Disable Device LED lighting.
Secure administrator IP
Addresses Any
Options: Any and Specify. Administrator can specify 5
IP addresses or a range to allow remote control access
from network.
Allow remote user to ping
the device Enable
This function allows remote user to ping the In Wall
Box Access Pointthrough Internet. Ping is normally
used to test the physical connection between two
In Wall Access Point 27
devices, to ensure that everything is working correctly.
3-3-2 Firmware
The Firmware Upgrade menu loads updated firmware to be permanent in flash ROM. The download file
should be a binary file from factory; otherwise the agent will not accept it. After downloading the new
firmware, the agent will automatically restart it.
z Manual Firmware Upgrade

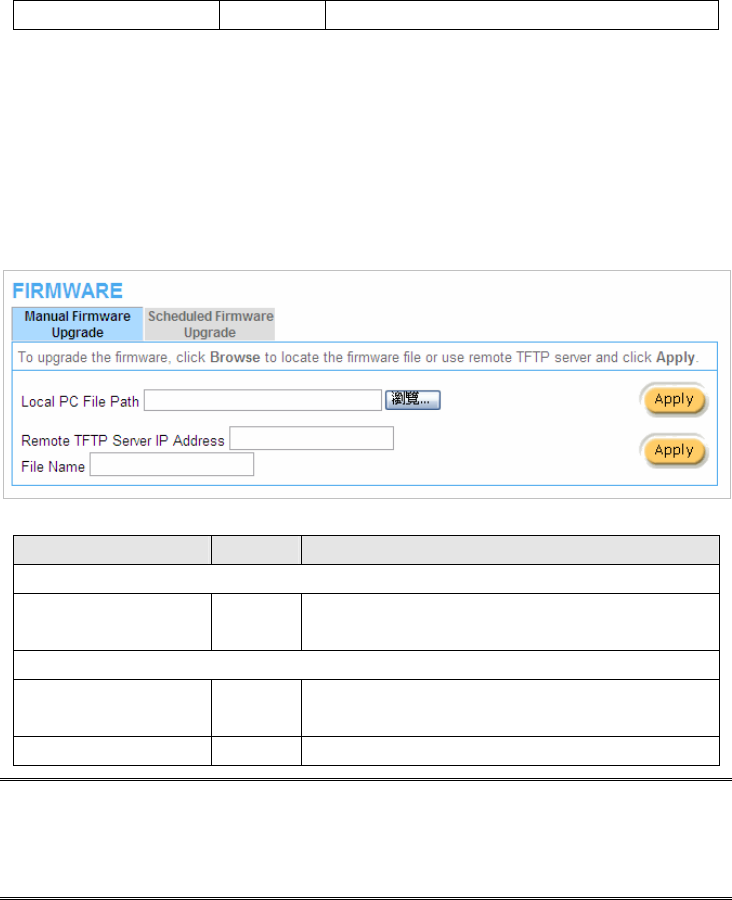

Figure 15 Manual Firmware Upgrade Setting Screen
Item Default Description
This allow administrator to upgrade the firmware via HTTP.
Local PC File Path Empty Enter the file name and location in the Local PC File Path
field.
This allows administrator use TFTP server to upgrade firmware.
Remote TFTP Server IP
Address
Empty Enter the IP address of TFTP Server.
File Name Empty Enter the file name in the File Name field.
Note:
1. Before downloading the new firmware, users must save the configuration file for restore
configuration parameters of the device.
2. Do not turn the power off during the upgrade process. This will damage the unit.
In Wall Access Point
28

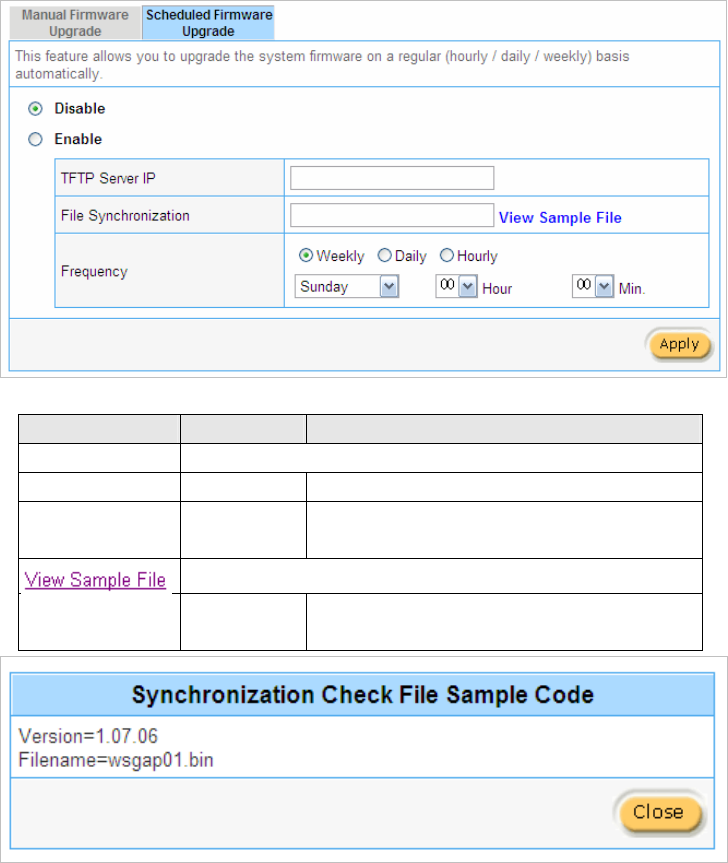

z Scheduled Firmware Upgrade
Scheduled Firmware Upgrade is a program that enables an automatic upgrade to the latest firmware
version through the TFTP server.
Figure 16 Scheduled Firmware Upgrade Setting Screen
Item Default Description
Disable/Enable Disables or enables the scheduled firmware upgrade function.
TFTP Server IP Empty Enter the IP address of TFTP Server.
File Synchronization Empty Enter the file name and location in the File
Synchronization field.
Click the button to display synchronization file example.
Frequency Weekly Set the firmware upgrade time. The default value is
“Weekly”.
Figure 17 Synchronization File Sample Code
In Wall Access Point 29
Note: Do not turn the power off during the upgrade process. This will damage the unit.
In Wall Access Point
30
3-3-3 Configuration
This feature can backup the system configuration from this device to your PC or restore your stored
system configuration to this device.
Figure 18 Configuration Setting Screen
Item Default Description
Backup Click it to save the system configuration to your computer. (export.cfg)
Remote TFTP Server IP
Address
Empty Enter the IP address of TFTP Server.
File Name Empty Enter the file name in the File Name field.
Restore Click it to restore your system configuration.
Local PC File Path Empty Enter the file pathname of the system configuration file in the
Local PC File Path field.
Remote TFTP Server IP
Address
Empty Enter the IP address of TFTP Server.
File Name Empty Enter the file name in the File Name field.
Reset the system back
to factory defaults
Erase all setting and back to factory setting.
Keep subscriber profile Disable Click the keep subscriber profile to change all the parameters
In Wall Access Point 31
into factory setting but still reserve the subscriber profiles.
In Wall Access Point
32
3-3-4 SNMP
The SNMP Agent Configuration screen enables you to access to your device via Simple Network
Management Protocol. If you are not familiar with SNMP, please consult your Network Administrator or
consult SNMP reference material. You must first enable SNMP on the SNMP Agent Configuration
screen.

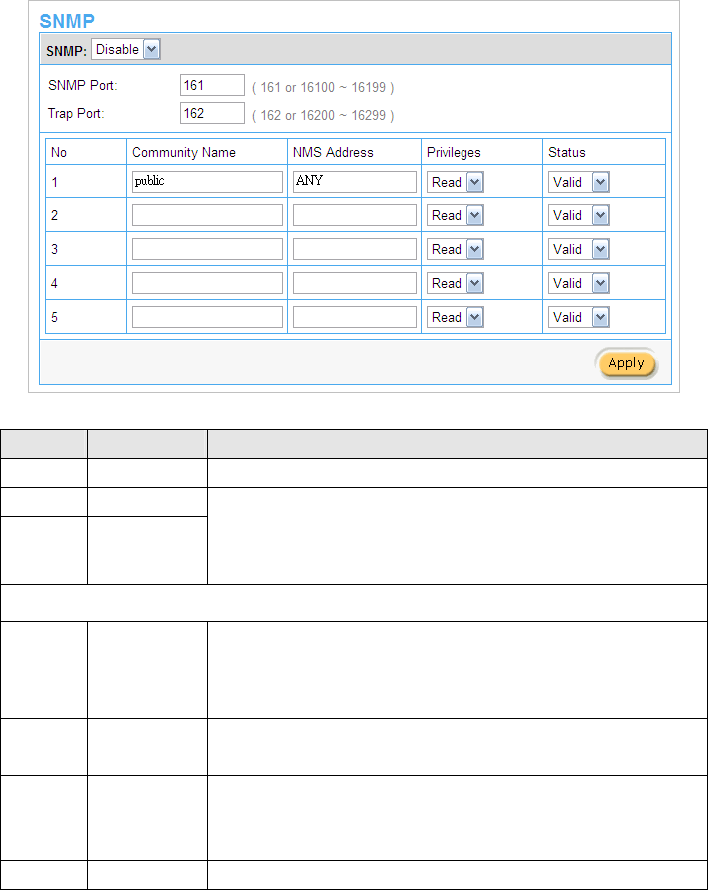

Figure 19 SNMP Setting Screen
Item Default Description
SNMP Disable Disables or enables the SNMP management.
SNMP Port 161 If the SNMP enables, also allowed to specific the SNMP port number
via NAT. The allowed SNMP port numbers are 161 (default),
16100-16199 and Trap port numbers are 162 (default), 16200-16299.
This Port setting is useful for remote control via NAT network.
Trap Port 162
Configuration
Community
Name
public/private Every unit with SNMP enable must be configured to recognize one or
more community names up to 20 characters. The default setting for
the community of entry 1 is “public” and for the entry 2 is “private” and
others are empty.
NMS
Address
ANY The address of the NMS. The default settings for the NMS Networking
are “ANY”.
Privileges Read/Write Choose “Read”, “Write”, “Trap Recipients” and “All” for different
privileges. The default setting of the entry 2 is “write” and others are
“read”.
Status Valid/Invalid Chosen “Valid” or “Invalid”. The default setting of entry 1, 2 are valid
In Wall Access Point 33
and others are invalid.
3-3-5 System
3-3-6 Ping Command
The Ping function can check the Wireless Subscriber Gateway networking connective or not.
Figure 20 Ping Command Screen
Item Description
IP or URL Enter the IP address or the URL link.
3-4 Advanced
3-4-1 Restart
If your In Wall Box Access Pointis not operating correctly, you can choose this option to display the
restart Wireless Subscriber Gateway screen. Clicking the apply button restart the In Wall Access Point,
with all of your settings remaining intact.
Figure 21 Restart Screen
In Wall Access Point
34
In Wall Access Point 35
3-4-2 Logout
If you would like to leave the configuration page, please click apply to exit.
Figure 22 Restart Screen
Appendix A Signal Connection Arrangements
RJ-45 Ethernet Port
The In Wall Box Access PointRJ-45 Ethernet port can connect to any networking devices that use a
standard LAN interface, such as a Hub/Switch Hub or Router. Use unshielded twisted-pair (UTP) or
shield twisted-pair (STP) cable to connect the networking device to the RJ-45 Ethernet port.
Depending on the type of connection, 10Mbps or 100Mbps, use the following Ethernet cable, as
prescribed.
10Mbps: Use EIA/TIA-568-100-Category 3, 4 or 5 cable.
100Mbps: Use EIA/TIA-568-100-Category 5 cable.
Figure 23 RJ-45 Connector and Cable Pins
Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not
exceed 100 meters.
In Wall Access Point
36
Appendix B Regulations/EMI Compliance
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body. For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
NCC警語:
(1)「經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能」警語以及(2)「低功率射頻電機之使用不得影響飛航安全及干擾合法通信；
經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定
作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾」
警語。
In Wall Access Point 37
LIMITED WARRANTY
In Wall Access Point
What the warranty covers:
We warrant its products to be free from defects in material and workmanship during the warranty period.
If a product proves to be defective in material or workmanship during the warranty period, we will at its
sole option repair or replace the product with a like product with a like product. Replacement product or
parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
The Easy Hotspot Kit is warranted for one year for all parts and one year for all labor from the date of
the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product, on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by us.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting our specifications.
g. Normal wears and tear.
h. Any other cause that does not relate to a product defect.
3. Removal, installation, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact our Customer Support.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your
name, (c) your address (d) a description of the problem and (e) the serial number of the product.
3. Take or ship the product prepaid in the original container to your dealer, and our service center.
4. For additional information, contact your dealer or our Customer Service Center.
Limitation of implied warranties:
THERE ARE NOWARRANTIED, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Exclusion of damages:
Our LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. We
SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES
BASED UPON INCONVENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBLITY OF SUCH DAMAGES.
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
In Wall Access Point
38
3. ANY CLAIM AGAINST THE CUSOMER BY ANY OTHER PARTY.
