Hangzhou Ezviz Network X5C Wireless NVR User Manual

Hangzhou Ezviz Network Co., Ltd Wireless NVR

User Manual

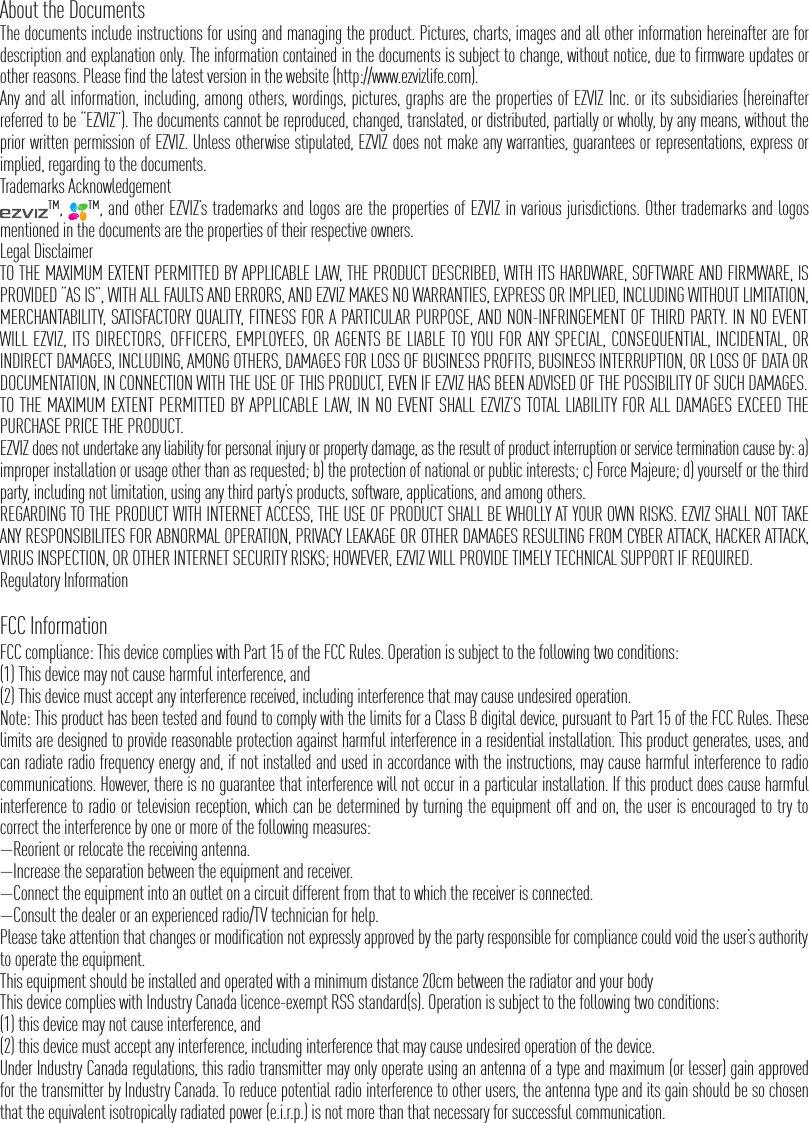

About the DocumentsThe documents include instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the documents is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the website (http://www.ezvizlife.com).Any and all information, including, among others, wordings, pictures, graphs are the properties of EZVIZ Inc. or its subsidiaries (hereinafter referred to be “EZVIZ”). The documents cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the documents.Trademarks Acknowledgement™,  ™, and other EZVIZ’s trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned in the documents are the properties of their respective owners.Legal DisclaimerTO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.EZVIZ does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party’s products, software, applications, and among others.REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.Regulatory InformationFCC InformationFCC compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

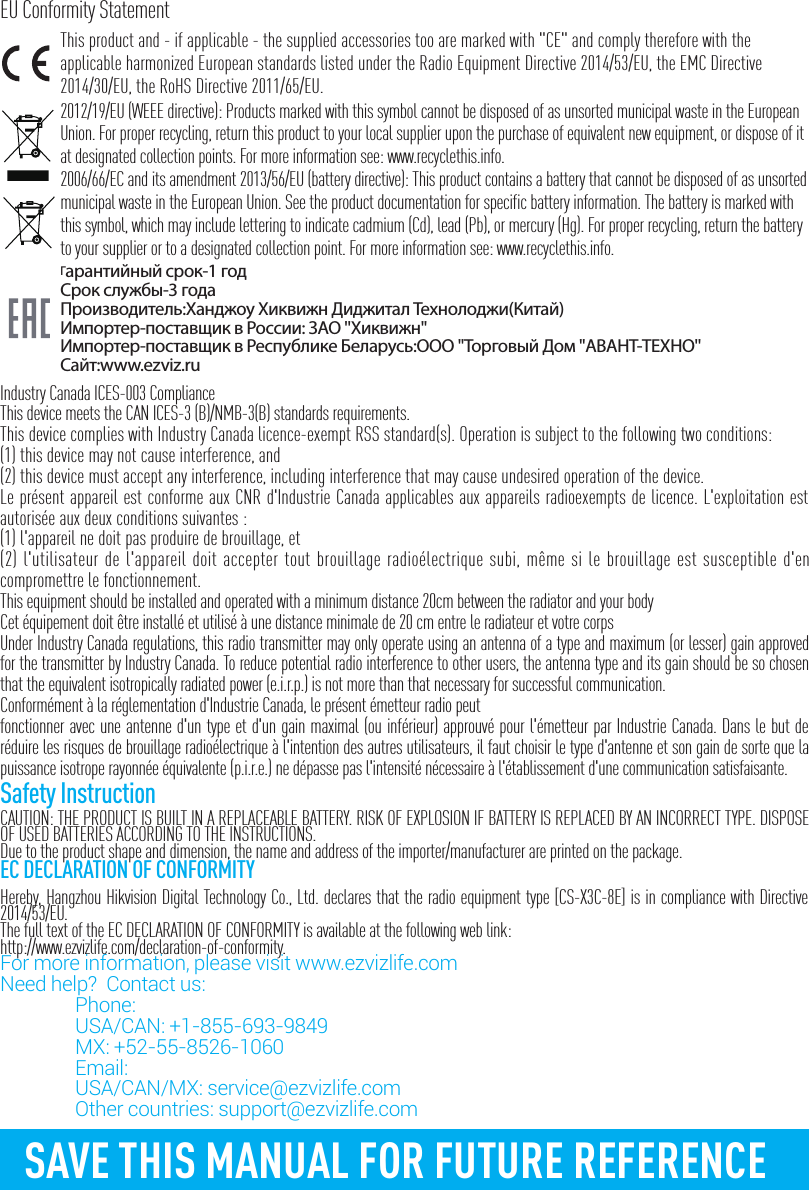

SAVE THIS MANUAL FOR FUTURE REFERENCEEU Conformity StatementThis product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.Гарантийный срок-1 годСрок службы-3 годаПроизводитель:Ханджоу Хиквижн Диджитал Технолоджи(Китай)Импортер-поставщик в России: ЗАО ''Хиквижн''Импортер-поставщик в Республике Беларусь:ООО ''Торговый Дом ''АВАНТ-ТЕХНО''Сайт:www.ezviz.ruIndustry Canada ICES-003 ComplianceThis device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corpsUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.Safety InstructionCAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.EC DECLARATION OF CONFORMITYHereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-X3C-8E] is in compliance with Directive 2014/53/EU.The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:http://www.ezvizlife.com/declaration-of-conformity.For more information, please visit www.ezvizlife.com     Need help?  Contact us: Phone:   USA/CAN: +1-855-693-9849  MX: +52-55-8526-1060 Email:  USA/CAN/MX: service@ezvizlife.com  Other countries: support@ezvizlife.com
1Basic InformationBox ContentsVault Live (x1) Power Adapter (x1)Accessories (x1) Mouse (x1) Quick Start Guide (x1)   For models equipped with HDDs, the accessories are not included in the box contents.Product View         Rear Panel OverviewVGA InterfaceFor Pickup For RouterFor MonitorPower Input Audio Input LAN InterfaceFor MonitorAudio OutputFor Louderspeaker (e.g.)HDMI InterfaceInsert a pin and hold for 8s till the indicator flickers in red.USB Inteface RESET HoleThe cables with dotted lines above are not included.
2 WiringIf you want to install the HDD by yourself, refer to the Appendix.Cable Connection1.  Connect the LAN interface of Vault Live to the LAN interface of router with network cable. 2.  Connect the mouse to the USB interace of Vault Live.3.  Connect Vault Live to the Monitor with VGA cable or HDMI cable.Choose the corresponding signal source of the Monitor.MonitorMonitorVGA Cable (Purchase Seperately )HDMI Cable (Purchase Seperately)LANLAN
3   SetupPowering on        (Before You Start) The camera should be within 10m from the Vault Live.1.  Connect Power Socket and Vault Live with power adaptor to power on the Vault Live.              Use stable power supply to avoid device exception or even damage. 2.  (Only for First Time Access) Wait untill the Wizard interface appears on the Monitor and change the password.  The defalut password is the verification code pasted on label of Vault Live.4.  Log in the Vault Live.5.  Power on the camera(s).   Linkage      Linking to Camera        Quick Linkage for Wi-Fi Camera       (Before You Start) Restore the camera if it has been connected to Wi-Fi before.        Option 1: 1.  Go to Camera Management by Menu>Camera.2.  When camera is ready to connect Wi-Fi, click Search. The camera will automatically connect to the Vault Live . 3.  Add the linked camera. Power SocketPower AdaptorWithin 10m

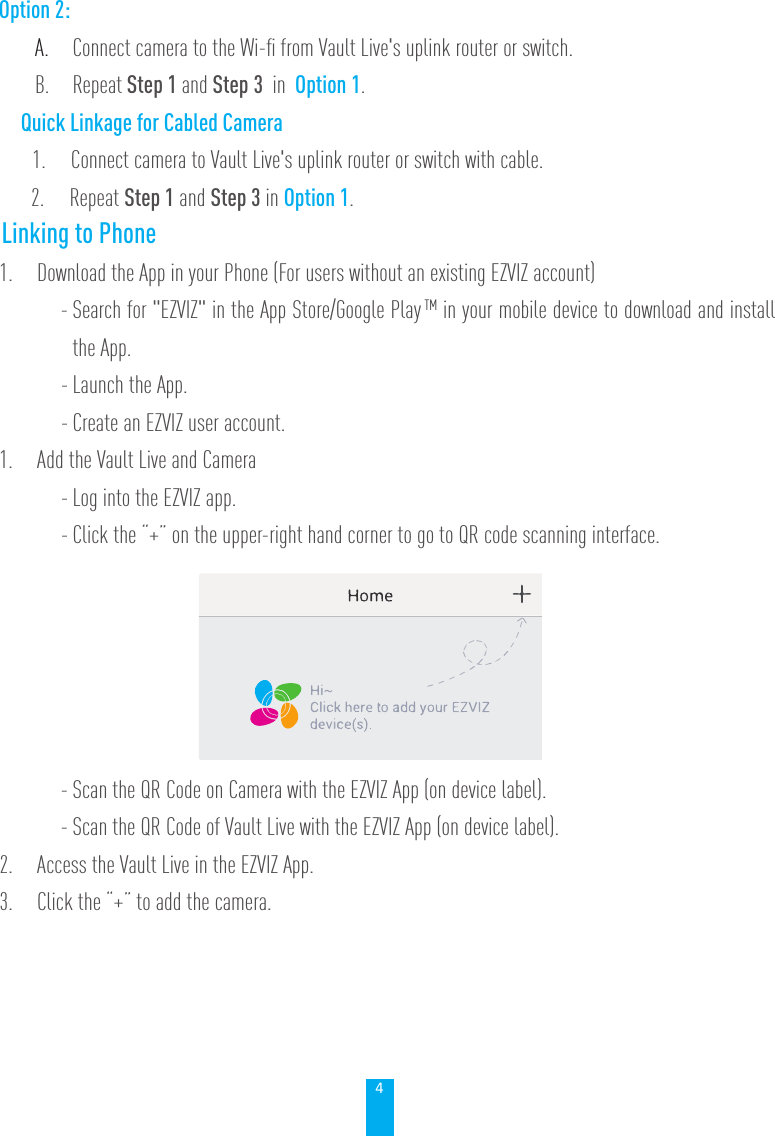

4       Option 2: A.  Connect camera to the Wi-fi from Vault Live's uplink router or switch.B. Repeat Step 1 and Step 3  in  Option 1.          Quick Linkage for Cabled Camera              1.     Connect camera to Vault Live's uplink router or switch with cable.             2.     Repeat Step 1 and Step 3 in Option 1.Linking to Phone1.  Download the App in your Phone (For users without an existing EZVIZ account) - Search for "EZVIZ" in the App Store/Google Play TM in your mobile device to download and install the App.- Launch the App.- Create an EZVIZ user account.1.  Add the Vault Live and Camera- Log into the EZVIZ app.- Click the “+” on the upper-right hand corner to go to QR code scanning interface.- Scan the QR Code on Camera with the EZVIZ App (on device label). - Scan the QR Code of Vault Live with the EZVIZ App (on device label).2.  Access the Vault Live in the EZVIZ App.3.  Click the “+” to add the camera.

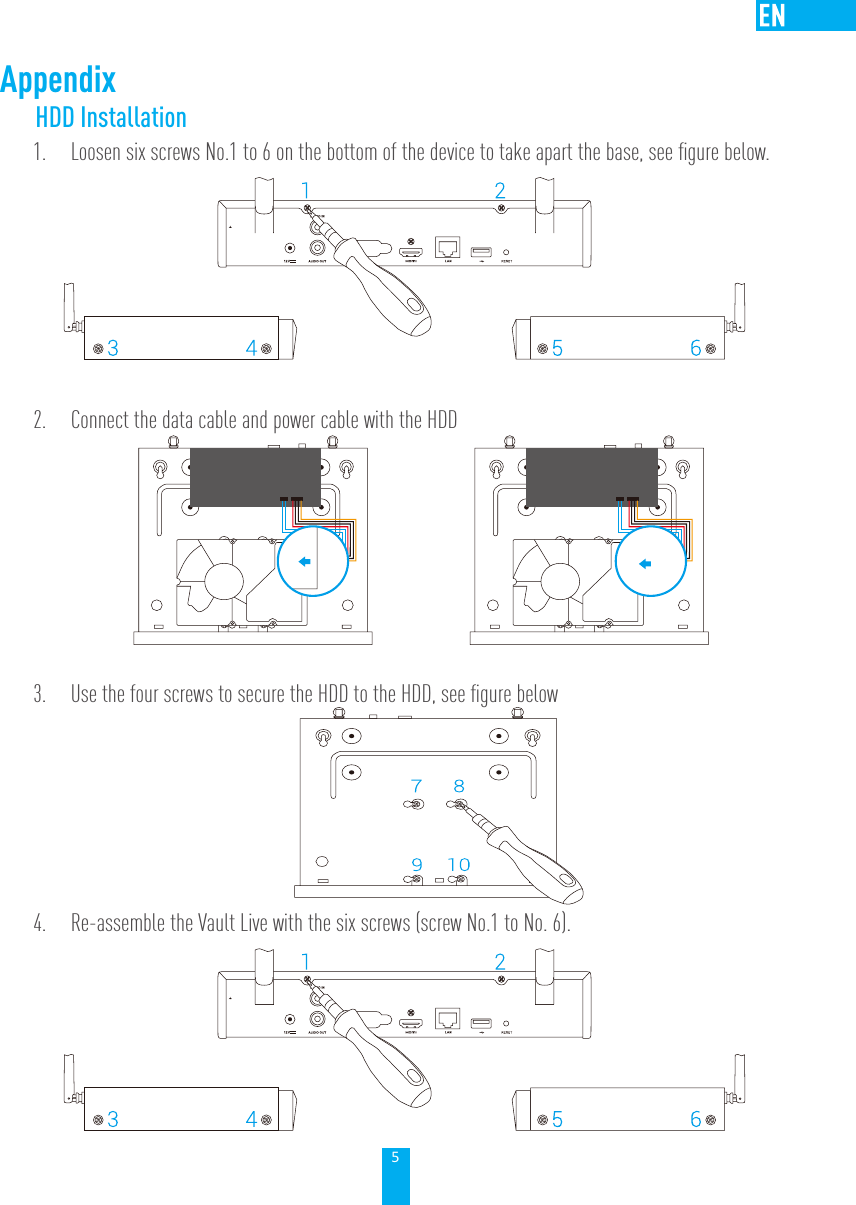

5AppendixHDD Installation 1.  Loosen six screws No.1 to 6 on the bottom of the device to take apart the base, see figure below.2.  Connect the data cable and power cable with the HDD      3.  Use the four screws to secure the HDD to the HDD, see figure below  4.  Re-assemble the Vault Live with the six screws (screw No.1 to No. 6).
