WT1HBS05 User Manual HTML Version

Users Manual

USERMANUAL_V1



Thedeviceisafullyself‐containedsmallform‐factor,singlestream,802.11b/g/nwifi

module,whichprovidesawirelessinterfacetoanyequipmentwithaUARTinterfacefordata

transfer.ItsupportsAPandSTAwirelessnetworkingandsupportWIFIDirectmode.Itintegrates

MAC,basebandprocessor,RFtransceiverwithpoweramplifierinhardwareandallwifiprotocol

andconfigurationfunctionalityandnetworkingstack,inembeddedfirmwaretomakeafully

self‐contained802.11b/g/nwifisolutionforavarietyofapplications.

DeviceFeatures

SinglestreamWIFI@2.4GwithsupportforWEPsecuritymodeaswellasWPA/WPA2

Fullyself‐containedserial‐to‐wirelessfunctionality

SupportIEEE802.11b/g/nwirelessstandards

SupportworkasSTA/AP

Supportsmartconfiguration

SupportPCB/Externalantennaoption

Smallsize:49.6mmx31mmx4mm



Deviceparemeters

ClassItemParameters

WirelessWirelessstandard802.11b/g/n

Frequencyrange2.412GHz~2.472GHzForCE

2.412GHz~2.462GHzForFCC

TransmitPower802.11b:16dBm

802.11g:14dBm

802.11n:13dBm

ReceiverSensitivity802.11b<‐78dBm

802.11g<‐68dBm

802.11n<‐66dBm

PCBantennagain2dB

HardwareOperatingvoltage5V

OperatingcurrentMax(tx):~240mA

OPERATINGtemp‐10~70℃

size49.6mmx31mmx4mm

VIL≤0.3VCC

VIH≥0.7VCC

ESD(HumanBodyModel)2kv@25℃

ESD(ChargedDeviceModel)500v@25℃

softwareNetworktypeSTA/AP

SecuritymechanismsWEP/WPA/WAP2

EncryptionWEP64/WEP128/TKIP/AES

Reservedresource

NetworkprotocolIPv4,TCP/UDP/DNS/DHCP



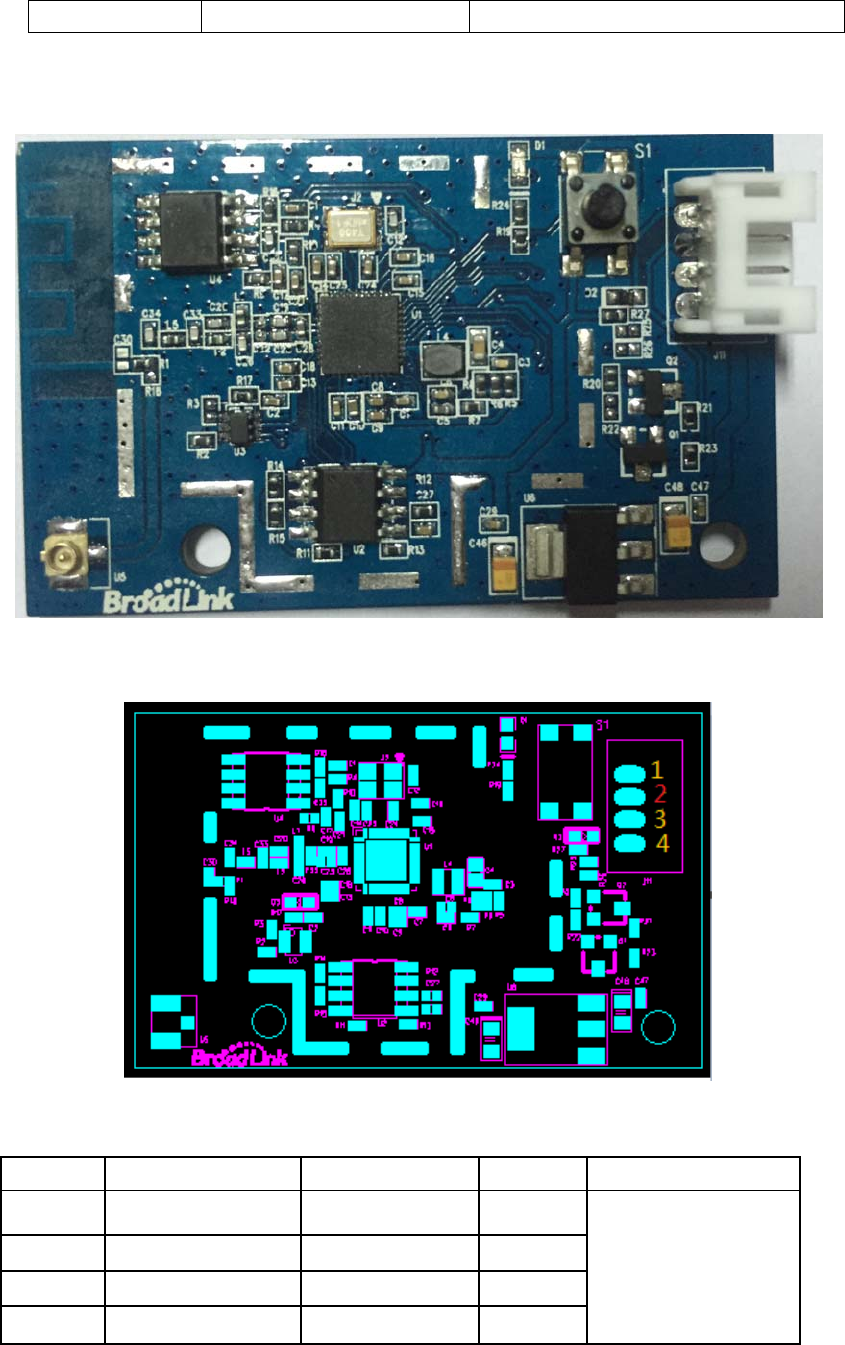

Hardware



(Unit:mm)

Pinassignment

Pin Pinname Description Type Note

Pin4 VDD VCC5V POWER

UART0

OnlyforPassthrough

Pin3 GND GND POWER

Pin2 UART0_TX UART0_TX O

Pin1 UART0_RX UART0_RX I



2.38 2.40 2.42 2.44 2.46 2.48 2.50 2.52

Freq [GHz]

-25.00

-22.50

-20.00

-17.50

-15.00

-12.50

-10.00

-7.50

dB(St(Box6_T1,Box6_T1))

HFSSModel1

XY Plot 3

ANSOFT

Curve Info

dB(St(Box6_T1,Box6_T1))

Setup1 : Sweep



Thedevicealsosupportsexternalantenna.Theparametersrequiredareasfollowed:

Frequencyrange2.4G~2.5G

Impedance50Ohm

VSWR<2

Returnloss<‐10dB

ConnectortypeIPEX



InformationtobesuppliedtotheenduserbytheOEMor

Integrator

Thefollowingregulatoryandsafetynoticesmustbepublishedindocumentationsuppliedto

theenduseroftheproductorsystemincorporatingtheInter®wirelessadapter,In

compliancewithlocalregulations.Hostsystemmustbelabeledwith“ContainsFCCID:

2ACDZ‐WT1HBS05”,FCCIDdisplayedonlabel.



Warning

1.Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

3.ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan

uncontrolledenvironment.Itmustbeusedatleast20cmawayfromthebodyoftheuser.


