Box Content
Quick Start GuideX1
Basics

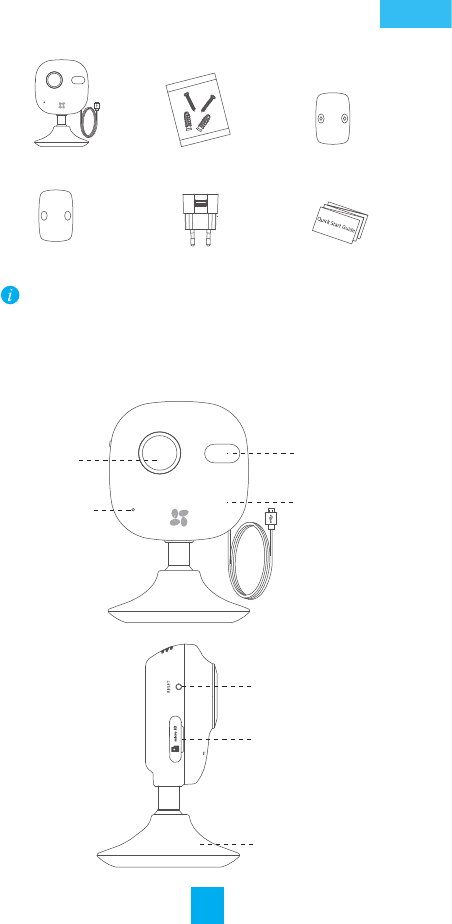

Cloud Camera X 1 Screw Kit Metal plate X 1
Foam Sticker X 1 Power Adaptor X 1
Lens
Microphone
IR Light
LED Indicator
Power Cable
RESET
microSD Card Slot
Magnetic Base
1
The figures in this manual are for reference only and may differ
from the actual product.
EN
Name Description
RESET ButtonPress and hold the RESET button for 3s while the
camera is running, the camera restarts and all
parameters are reset to default.
microSD Slot For microSD Card (not included with this product). You
can purchase separately. Recommended compatibility:
Class 10, maximum space 64GB.After inserting the SD
card, you can record the event inside the camera. You
need to initialize it on the EZVIZ International App.
USB Port
IR Light
LED
Indicator
Auto light source for dark environment. The camera
video has two modes: color (for daylight recording) and
black and white with IR illuminator (for night condition).
Blinking Red and Blue: The camera is on; you can
configure the Wi-Fi connection.
Steady Blue: The camera is being connected and
operated by user(s).
Slow Blue Flicker: The camera is running properly.
Steady Red: The camera is starting up.
Slow Red Flicker: The Wi-Fi connection has failed.
Fast Red Flicker: MicroSD card error.
5V±10%
Installation
2
1Installing the Metal Plate (Optional)
3
Completing Installation
Select a clean and flat wall, and secure the metal plate to the
desired position with the foam stickers or screws (not supplied.)

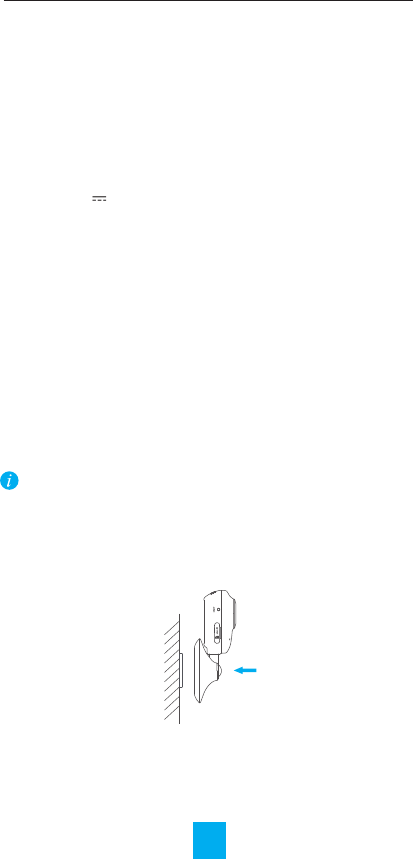

Secure the camera magnetically to the metal plate or metal
surface (see figure below).
Adjust the camera angle as required.
A piece of magnet is built in the camera, you can skip the step if
the installation place is metallic.
2Installing the Camera
Step 3
Quick Settings
1Registering an EZVIZ Account
2Adding Camera
- Connect your mobile phone to Wi-Fi.
- Download and install the EZVIZ International app by
searching the “EZVIZ” in App Store (iOS version) and Google
PlayTM (Android version).
- Start the app and register for an EZVIZ user account
following the start-up wizard.
- Log in the EZVIZ International app.
- Scan the QR Code on the bottom of the camera or on the
Quick Start Guide cover and follow the prompts to add the
camera and set the Wi-Fi. (Locate the camera within 3
meters from the router when setting the Wi-Fi.)
To connect to another Wi-Fi, press the RESET button on the
camera for 3 seconds to restart the camera, and reconnect the
Wi-Fi when the indicator flickers red and blue.
Operations
Step 2
Starting the Camera

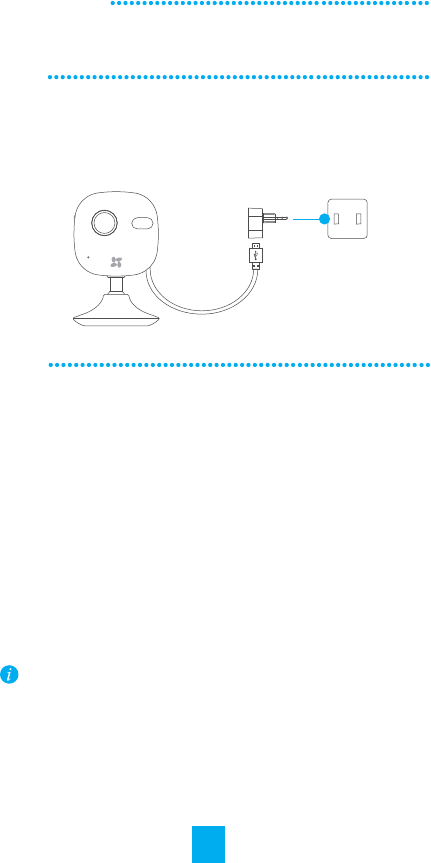

Connect the camera to the power adapter, and then connect the power
adapter to the power socket. When the indicator flickers red and blue, the
power is connected properly.
Power Socket
Power Cable (1.5m)
Step 1 (Optional)
Inserting the microSD Card into the Camera
Prepare a microSD card and insert it into the microSD card slot.
3Initializing the microSD Card
Initialize the microSD card of the camera and then you can
record the event triggered video inside the camera, like
motion detection.
3
Troubleshooting
EZVIZ Cloud
HD 720P Live Video
Wi-Fi Connection
Motion Detection: Send alarm notification to mobile phone
if motion detection is triggered.
Moon Detecon
Functions
130° diagonal view angle for more scenes.
Clear video and picture in day and night.
4
Certain functions of this product (including, but not limited to, live
view, recording, and remote playback) depend on available Internet
and telecom value-added services. To realize these functions, visit
the EZVIZ website (http://www.ezvizlife.com), register your account,
comply with the Terms of Agreement for EZVIZ Service, and add the
device for management.
Q:
A:
“The device is offline.” or “The device is not registered.” prompts
appear when adding the camera using the EZVIZ International App.
1. Make sure the network the camera is connected to is working
properly and the router’s DHCP is enabled.
2. Press and hold the RESET button for 3s to reset the settings if you
change the network parameters.
Q:
A:
Does the camera support power via USB devices or a portable battery.
It’s advised to use the EZVIZ standard power adapter to provide a
stable voltage supply.
Q:
A:
The mobile phone cannot receive alarm prompts when the camera is
online.
1. Make sure the EZVIZ International app is running on your mobile
phone.
2. For Android OS mobile phone, make sure the App is running in the
background; and for iOS mobile phones, enable the message push
function in “Settings > Notification”.
For more information, please visit http://www.ezvizlife.com.
