Hangzhou Hikvision Digital Technology I072900 NETWORK CAMERA User Manual
Hangzhou Hikvision Digital Technology Co., Ltd. NETWORK CAMERA
User manual
0
Network Fisheye Camera
Quick Start Guide
UD04395B
Network Fisheye Camera·Quick Start Guide
1
1
Quick Start Guide
COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures,
graphs are the properties of Hangzhou Hikvision Digital Technology
Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).
This user manual (hereinafter referred to be “the Manual”) cannot
be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of
Hikvision. Unless otherwise stipulated, Hikvision does not make any
warranties, guarantees or representations, express or implied,
regarding to the Manual.
About this Manual
This Manual is applicable to 29xx Network Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the
properties of Hikvision in various jurisdictions. Other trademarks and
logos mentioned below are the properties of their respective
owners.
Network Fisheye Camera·Quick Start Guide
2
2
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE
LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR
LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF
THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
Network Fisheye Camera·Quick Start Guide
3
3
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
For products that do NOT support Wi-Fi or cellular data:
(Marked with a “W”, “GLT”, “GLE”, “GLF”, “GE”, “GT” or “GW” in the
Part C of a product model.
Product Model Example: Part A-Part B-Part C. Part C is optional.)
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
Network Fisheye Camera·Quick Start Guide
6
6
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Radio Equipment Directive 2014/53/EU,
the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
Network Fisheye Camera·Quick Start Guide
7
7
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radioexempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Network Fisheye Camera·Quick Start Guide
8
8
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale
de 20 cm entre le radiateur et votre corps.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Network Fisheye Camera·Quick Start Guide
9
9
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Network Fisheye Camera·Quick Start Guide
10
10
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating
temperature shall be-10°C to +40°C ), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
Network Fisheye Camera·Quick Start Guide
11
11
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Keep the camera away from liquid while in use.
● While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
Network Fisheye Camera·Quick Start Guide
12
12
Table of Contents
1 Appearance Description ............................................................... 13
Overview of Fisheye Camera ......................................... 13 1.1
2 Installation .................................................................................... 15
Installing the Memory Card ........................................... 16 2.1
Ceiling Mounting ........................................................... 17 2.2
Wall Mounting with a Slant Mounting Base .................. 20 2.3
Wall Mounting with a Bracket ....................................... 24 2.4
Pendant Mounting with a Bracket ................................. 27 2.5
3 Setting the Network Camera over the LAN .................................. 29
Wiring ........................................................................... 29 3.1
Activating the Camera ................................................... 30 3.2
Activation via Web Browser ................................ 30 3.2.1

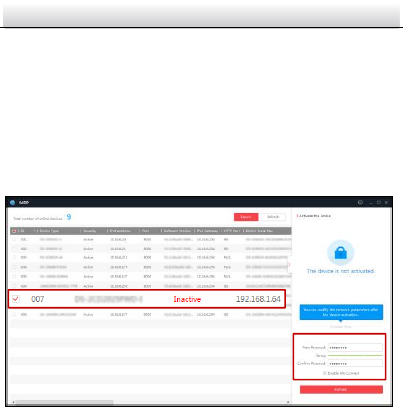

Activation via SADP Software ............................. 31 3.2.2

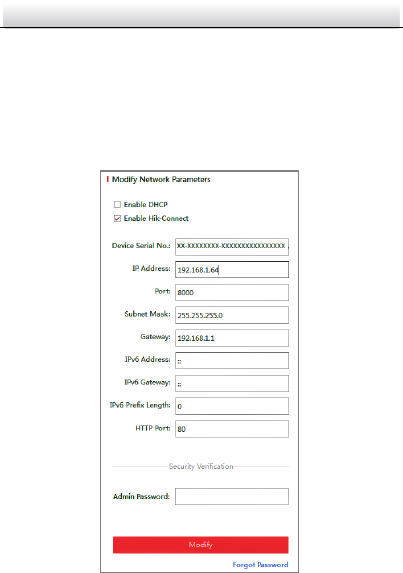

Modifying the IP Address .............................................. 33 3.3
4 Accessing via Web Browser .......................................................... 36
5 Operating via Hik-Connect App .................................................... 38
5.1 Enable Hik-Connect Service on Camera ......................... 38
Enable Hik-Connect Service via SADP Software .. 38 5.1.1
Enable Hik-Connect Service via Web Browser .... 39 5.1.2
5.2 Hik-Connect Setup ........................................................ 41
5.3 Adding Camera to Hik-Connect ..................................... 41
5.4 Initializing the Memory Card ......................................... 43
0504051070109
Network Fisheye Camera·Quick Start Guide
13
13
1 Appearance Description
Overview of Fisheye Camera 1.1
DC12
VIN
1
2
3
4
5
6
7
8
9

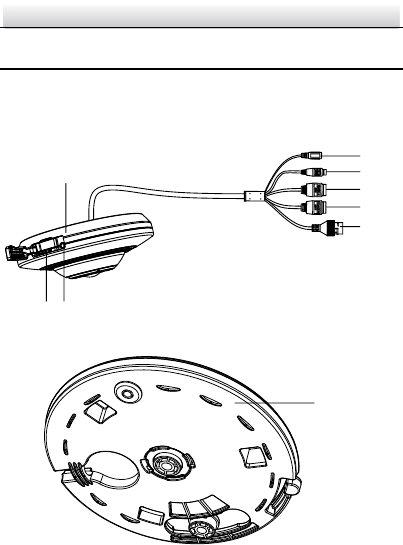

Overview of the Fisheye Camera Figure 1-1
Network Fisheye Camera·Quick Start Guide
14
14
Description of Overview Table 1-1
No.
Description
1
Camera Body
2
Power Interface
3
RS-485 Interface
4
Audio Interfaces: Audio In / Audio Out
(Certain models support.)
5
Alarm Interfaces: Alarm In / Alarm Out
(Certain models support.)
6
Ethernet Interface
7
Reset Button
8
Memory Card Slot
9
Base Plate
Notes:
● The figures shown in this manual are for reference only. The
appearance and interfaces of the camera are subject to the
actual model.
● Press RESET about 10s when the camera is powering on or
rebooting to restore the default settings, including the user
name, password, IP address, port No., etc.
Network Fisheye Camera·Quick Start Guide
15
15
2 Installation
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● The standard power supply is 12V DC or PoE (802.3af), please
make sure your power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
● Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
Network Fisheye Camera·Quick Start Guide
16
16

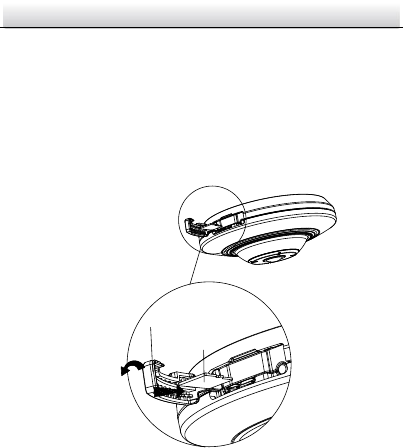

Installing the Memory Card 2.1
Steps:
1. Move the Memory Card/Reset Cover aside, and you can see the
reset button and the memory card slot.
2. Insert the memory card into the memory card slot.
3. Re-cover the reset button and memory card slot.
①
②
Memory Card/Reset Cover
Memory Card
Install the Memory Card Figure 2-1
Network Fisheye Camera·Quick Start Guide
17
17
Ceiling Mounting 2.2
Steps:
1. Drill two screw holes and the cable hole according to the supplied
drill template.

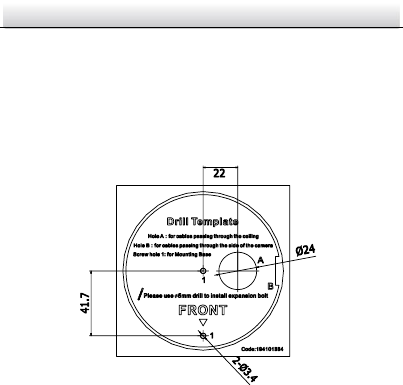

Drill Template Figure 2-2

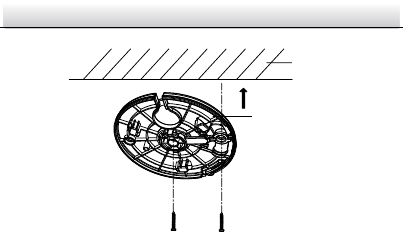

2. Align the screw holes and cable hole on the drill template and the
base plate, and then fix the base plate to the ceiling with the two
supplied screws.
Network Fisheye Camera·Quick Start Guide
18
18
Wall
Base Plate
Fix the Base Plate Figure 2-3
Notes:
● For cement wall, you need to use the expansion screw to fix the
mount.
● For wooden wall, you can just use the self-tapping screw to fix
the mount.
3. Route the cables through the cable hole or the side opening
according to the actual needs, and connect the corresponding
cables including power cable, network cable, audio and alarm
cables, etc.
4. Align the triangle mark on the camera and base plate, and then
rotate the camera clockwise until it is locked up by the three
bayonet joints on the base plate.
Network Fisheye Camera·Quick Start Guide
19
19
Wall
Base Plate
Camera
Bayonet Joint
Bayonet Joint
Bayonet Joint

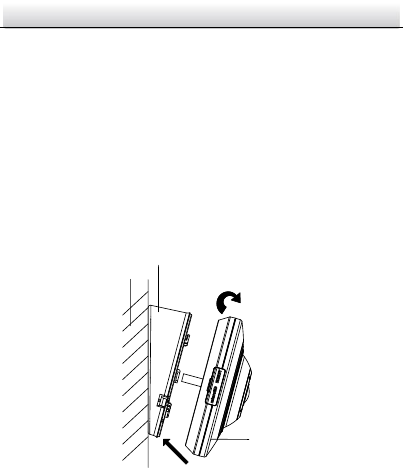

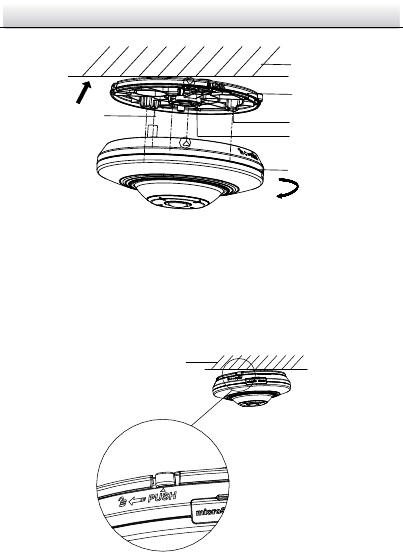

Install the Camera Figure 2-4
5. To disassemble the camera: Press the Push button on the base
plate, rotate the camera anticlockwise, and then you can remove
the camera from the base plate.
Wall
Disassemble the Camera Figure 2-5
Network Fisheye Camera·Quick Start Guide
20
20

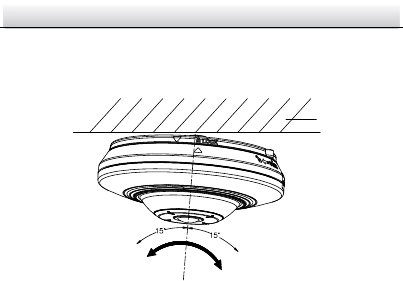

6. To adjust the view angle: Rotate the camera body clockwise or
anticlockwise with the base plate, and then you can adjust the
camera to the desired view angle.
Adjust View Angle Figure 2-6
Wall Mounting with a Slant Mounting Base 2.3
Before you start:
The wall mounting with a slant mounting base provides a wider
surveillance view compared to the wall mounting.
You need to purchase a slant mounting base separately if this
mounting method is selected.
Steps:
1. Drill two screw holes and the cable hole according to the supplied
drill template.
Network Fisheye Camera·Quick Start Guide
21
21

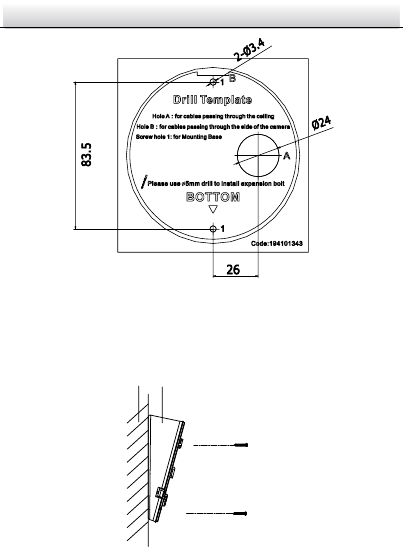

Drill Template Figure 2-7
2. Fix the slant mounting base to the wall with the screws.
Mounting Base
Wall
Fix the Slant Mounting Base Figure 2-8
Network Fisheye Camera·Quick Start Guide
22
22
3. Align the screw holes on the slant mounting base and the base
plate, and then secure the base plate on the slant mounting base
with the two supplied screws.
4. Route the cables through the cable hole or the side opening
according to the actual needs, and connect the corresponding
cables including power cable, network cable, audio and alarm
cables, etc.
5. Align the triangle mark on the camera and mounting base, and
then rotate the camera clockwise until it is locked up.
Mounting Base
Wall
Camera
①
②
Fix the Camera Figure 2-9
Network Fisheye Camera·Quick Start Guide
23
23

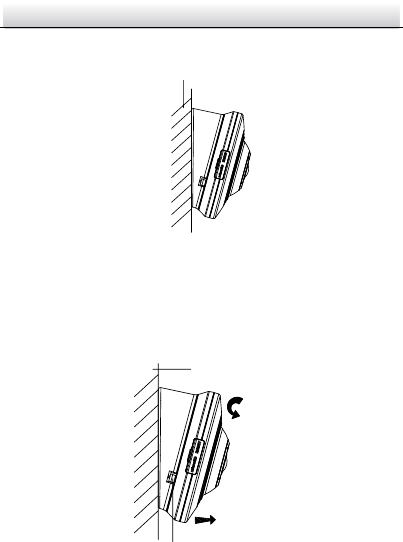

6. The installation is complete.
Wall
Complete the Installation Figure 2-10
7. To disassemble the camera: Press the Push button on the base
plate, rotate the camera anticlockwise, and then you can remove
the camera from the base plate.
Wall
①
②
PUSH
Disassemble the Camera Figure 2-11
Network Fisheye Camera·Quick Start Guide
24
24
Wall Mounting with a Bracket 2.4
Before you start:
You need to purchase the bracket separately if this mounting
method is selected.
Steps:

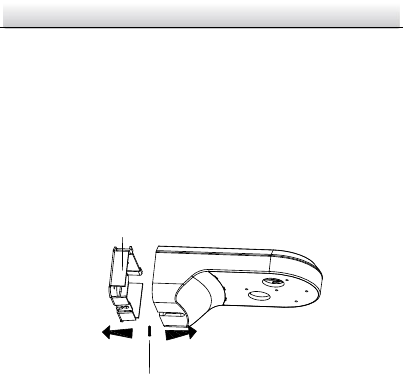

1. Unfasten and remove the screw marked in the figure, and then
disassemble the bracket.
Screw
Mounting Base
Disassemble the Bracket Figure 2-12
2. Align the screw holes on the bracket and the base plate, and then
secure the base plate on the bracket with the two supplied
screws.
Network Fisheye Camera·Quick Start Guide
25
25
Bracket
Base Plate
Cable Hole

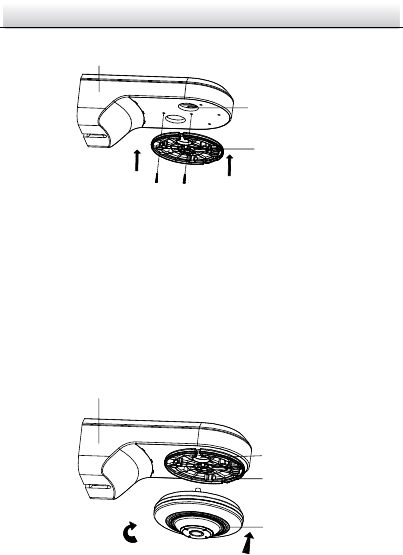

Secure the Base Plate Figure 2-13
3. Route the cables through the cable hole according to the actual
needs, and connect the corresponding cables including power
cable, network cable, audio and alarm cables, etc.
4. Align the triangle mark on the camera and base plate, and then
rotate the camera clockwise until it is locked up by the three
bayonet joints on the base plate.
Bracket
Base Plate
Camera
Cable Hole
Fix the Camera Figure 2-14
Network Fisheye Camera·Quick Start Guide
26
26
5. Fix the mounting base to the wall with the screws.
Wall

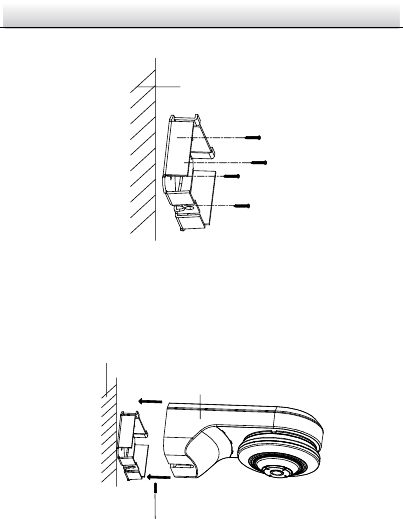

Fix the Mounting Base Figure 2-15
6. Re-install the main body of the bracket to the mounting base, and
fix it with the screw.
Wall
Bracket
Screw
Re-install the Bracket Figure 2-16
7. To disassemble the camera, refer to the Step 5 in Section 2.1.
Network Fisheye Camera·Quick Start Guide
27
27
8. To adjust the view angle, refer to the Step 6 in Section 2.1.
Pendant Mounting with a Bracket 2.5
Before you start:
You have to purchase the bracket separately if this mounting method
is selected.
Steps:

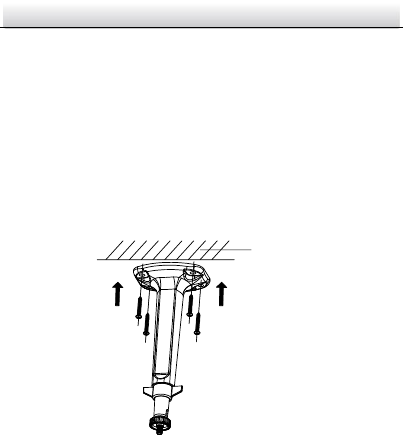

1. Fix the pendant bracket to the wall with the supplied screws.
Wall
Fix the Bracket Figure 2-17

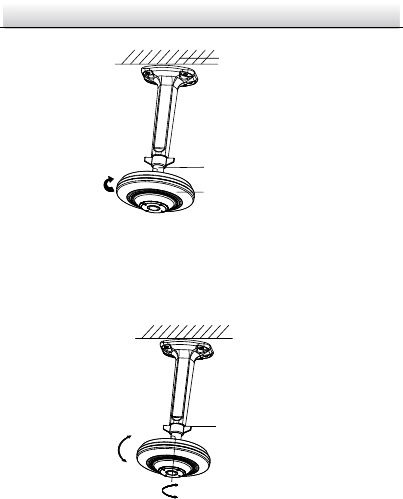

2. Aim the screwed hole on the camera at the top of the pendant
bracket, and then rotate the camera until it is secured tightly.
Network Fisheye Camera·Quick Start Guide
28
28
Top of Bracket
Camera
Wall
Secure the Camera Figure 2-18
3. Loosen the knob on the bracket and adjust the camera body to get
the desired surveillance angle. Tighten the knob on bracket to
secure the camera.
Tilt: 0° to 90° Knob on Bracket
Pan: 0° to 360°
Adjust the Angle Figure 2-19
Network Fisheye Camera·Quick Start Guide
29
29
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.

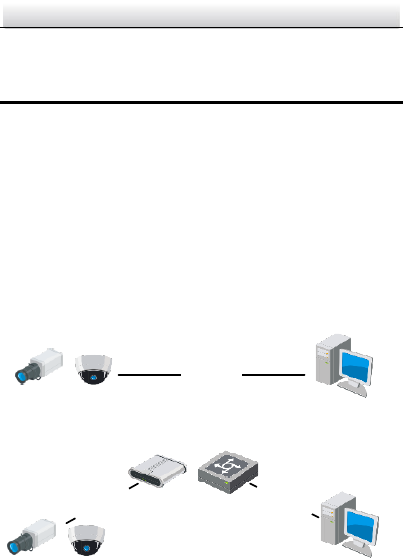

Wiring 3.1
Connect the camera to network according to the following figures.
半球
Network Cable
or
Network Camera
Computer
Connecting Directly Figure 3-1
网络交换机
半球
Network Cable
Network Cable
or
or
Network Camera Computer
Connecting via a Switch or a Router Figure 3-2
Network Fisheye Camera·Quick Start Guide
30
30
Activating the Camera 3.2
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via
Client Software are all supported. We will take activation via SADP
software and Activation via Web Browser as examples to introduce
the camera activation.
Note:
Refer to the User Manual of Network Camera for Activation via
Client Software.
Activation via Web Browser 3.2.1
Steps:
1. Power on the camera. Connect the camera to your computer or
the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and
press Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.
The computer and the camera should belong to the same
subnet.
For the camera enables the DHCP by default, you need to use
the SADP software to search the IP address.
Network Fisheye Camera·Quick Start Guide
31
31
Activation Interface(Web) Figure 3-3
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via SADP Software 3.2.2
SADP software is used for detecting the online device, activating the
camera, and resetting the password.
Network Fisheye Camera·Quick Start Guide
32
32
Get the SADP software from the supplied disk or the official website,
and install the SADP according to the prompts.
Follow the steps to activate the camera.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
Select inactive device.
Input and confirm
password.
SADP Interface Figure 3-4
Note:
The SADP software supports activating the camera in batch. Refer
to the user manual of SADP software for details.
3. Create and input the new password in the password field, and
confirm the password.
Network Fisheye Camera·Quick Start Guide
33
33
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
Note:
You can enable the Hik-Connect service for the device during
activation. Refer to Chapter 5.1 for detailed information.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup
window. If activation failed, make sure that the password meets
the requirement and try again.
Modifying the IP Address 3.3
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC.
Use the SADP software or client software to search and change the
IP address of the device. We take modifying the IP Address via SADP
software as an example to introduce the IP address modification.
For IP address modification via client software, refer to the user
manual of client software.
Network Fisheye Camera·Quick Start Guide
34
34
Steps:
1. Run the SADP software.
2. Select an active device.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Modify the IP Address Figure 3-5
Network Fisheye Camera·Quick Start Guide
35
35
Note:
You can enable the Hik-Connect service for the device during
activation. Refer to Chapter 5.1 for detailed information.
4. Input the admin password and click Modify to activate your IP
address modification.
The batch IP address modification is supported by the SADP. Refer to
the user manual of SADP for details.
Network Fisheye Camera·Quick Start Guide
36
36
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64. You are recommended
to change the IP address to the same subnet with your
computer.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
Network Fisheye Camera·Quick Start Guide
37
37
4. Click Login.

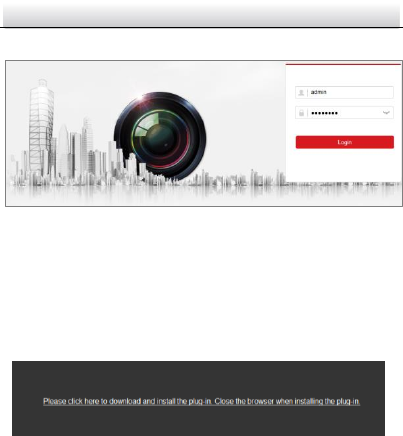

Login Interface Figure 4-1
5. Install the plug-in before viewing the live video and managing the
camera. Follow the installation prompts to install the plug-in.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Download Plug-in Figure 4-2
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual of network camera.
Network Fisheye Camera·Quick Start Guide
38
38
5 Operating via Hik-Connect App
Purpose:
Hik-Connect is an application for mobile devices. With the App, you
can view live image of the camera, receive alarm notification and so
on.
Note:
Hik-Connect service is not supported by certain camera models.
5.1 Enable Hik-Connect Service on Camera
Purpose:
Hik-Connect service should be enabled on your camera before using
the service.
You can enable the service through SADP software or web browser.
Enable Hik-Connect Service via SADP Software 5.1.1
Steps:
1. Check the checkbox of Enable Hik-Connect on:
1). "Activate the Device" page during camera activation, refer to
Chapter 3.2.2.
2). Or "Modify Network Parameters" page during modifying IP
address, refer to Chapter 3.3.
2. Create a verification code or change the verification code.
Network Fisheye Camera·Quick Start Guide
39
39

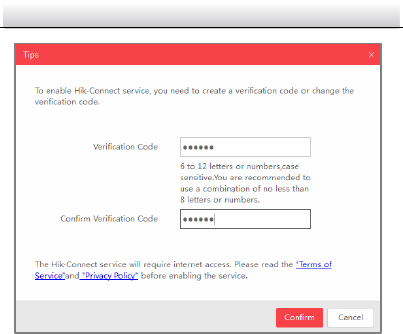

Verification Code Setting (SADP) Figure 5-1
Note:
The verification code is required when you add the camera to
Hik-Connect app.
3. Click and read "Terms of Service" and "Privacy Policy".
4. Confirm the settings.
Enable Hik-Connect Service via Web Browser 5.1.2
Before you start:
You need to activate the camera before enabling the service. Refer to
Chapter 3.2.
Network Fisheye Camera·Quick Start Guide
40
40
Steps:
1. Access the camera via web browser. Refer to Chapter 4.
2. Enter platform access configuration interface: Configuration >
Network > Advanced Settings > Platform Access

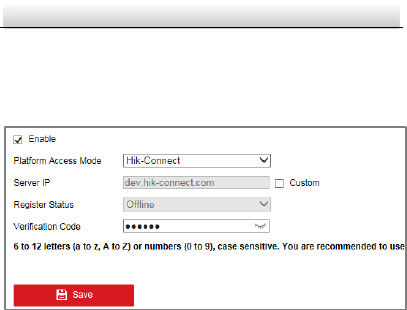

Platform Access Configuration (Web) Figure 5-2
3. Select Platform Access Mode as Hik-Connect.
4. Check the checkbox of Enable.
5. Click and read "Terms of Service" and "Privacy Policy" in pop-up
window.
6. Create a verification code or change the verification code for the
camera.
Note:
The verification code is required when you add the camera to
Hik-Connect app.
7. Save the settings.
Network Fisheye Camera·Quick Start Guide
41
41
5.2 Hik-Connect Setup
Steps:
1. Download and install the Hik-Connect app by searching
“Hik-Connect” in App Store or Google PlayTM.
2. Launch the app and register for a Hik-Connect user account.
3. Log in Hik-Connect app after registration.
5.3 Adding Camera to Hik-Connect
Before you start:
You need to enable the Hik-Connect service on camera before
adding it to your Hik-Connect account. Refer to Chapter 5.1.
Steps:
1. Use a network cable to connect the camera with a router if the
camera does not support Wi-Fi.

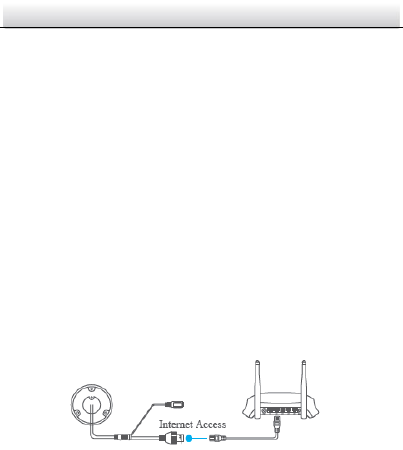

Figure 5-3 Connect a Router
Note:
After the camera connects to the network, please wait one minute
before any operation on the camera using Hik-Connect app.
2. In the Hik-Connect app, tap “+” on the upper-right corner and
then scan the QR code of the camera to add the camera.
Network Fisheye Camera·Quick Start Guide
42
42
You can find the QR code on the camera or on the cover of the
Quick Start Guide of the camera in the package.

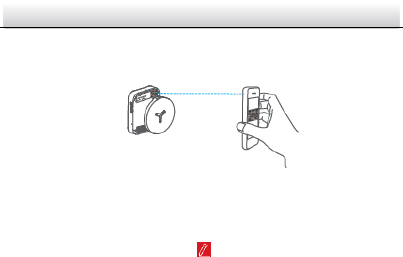

Figure 5-4 Scan QR Code
Note:
If the QR code is missing or too blur to be recognized, you can also
add the camera by tapping the icon and inputting the
camera's serial number.
3. Input the verification code of your camera.
Note:
● The required verification code is the code you create or
change when you enabling Hik-Connect service on camera.
● If you forget the verification code, you can check the current
verification code on Platform Access configuration page via
web browser.
4. Follow the prompts to set the network connection and add the
camera to your Hik-Connect account.
Note:
For detailed information, refer to the user manual of the
Hik-Connect app.
Network Fisheye Camera·Quick Start Guide
43
43
5.4 Initializing the Memory Card
Check the memory card status by tapping on the Storage Status in
the Device Settings interface.
If the memory card status displays as Uninitialized, tap to initialize
it. The status will then change to Normal. You can then start
recording any event triggered video in the camera such as motion
detection.
.
