Hangzhou Hikvision Digital Technology I092000 Network Camera User Manual
Hangzhou Hikvision Digital Technology Co., Ltd. Network Camera Users Manual
Users Manual
0
Camera
Network Bullet Camera
Quick Start Guide
UD
Network Bullet Camera·
··
·Quick Start Guide
1
Quick Start Guide
COPYRIGHT ©2016 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures,
graphs are the properties of Hangzhou Hikvision Digital Technology
Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).
This user manual (hereinafter referred to be “the Manual”) cannot
be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of
Hikvision. Unless otherwise stipulated, Hikvision does not make any
warranties, guarantees or representations, express or implied,
regarding to the Manual.
About this Manual
This Manual is applicable to 20xx Network Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the
properties of Hikvision in various jurisdictions. Other trademarks and
logos mentioned below are the properties of their respective
owners.
Network Bullet Camera·
··
·Quick Start Guide
2
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE
LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR
LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF
THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
Network Bullet Camera·
··
·Quick Start Guide
3
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
Network Bullet Camera·
··
·Quick Start Guide
4
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the RE Directive 2014/53/EU, the EMC
Directive 2014/30/EU, LVD Directive 2015/35/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
Network Bullet Camera·
··
·Quick Start Guide
5
supplier or to a designated collection point. For more information
see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radioexempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut
Network Bullet Camera·
··
·Quick Start Guide
6
fonctionner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le
but de réduire les risques de brouillage radioélectrique à l'intention
des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale
de 20 cm entre le radiateur et votre corps.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent potential
injury or material damage.
Network Bullet Camera·
··
·Quick Start Guide
7
Warnings
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
Network Bullet Camera·
··
·Quick Start Guide
8
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Keep the camera away from liquid while in use.
● While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
Network Bullet Camera·
··
·Quick Start Guide
9
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
Network Bullet Camera·
··
·Quick Start Guide
10
Table of Contents
1 Appearance Description ............................................................... 11
1.1 Overview of Type I Bullet Camera ................................. 11
1.2 Overview of Type II Bullet Camera ................................ 13
1.2.1 Installing the microSD Card ................................ 15
1.2.2 Resetting the Camera ......................................... 15
1.2.3 Setting the WPS Protocol.................................... 16
2 Installation .................................................................................... 18
2.1 Installation of the Bullet Camera ................................... 19
2.2 Installation of Network Cable Water-proof Jacket
(Optional) ................................................................................. 22
3 Setting the Network Camera over the LAN .................................. 25
3.1 Wiring ........................................................................... 25
3.2 Activating the Camera ................................................... 26
3.2.1 Activation via Web Browser ................................ 26
3.2.2 Activation via SADP Software ............................. 27

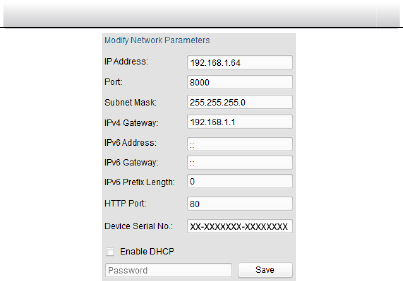

3.3 Modifying the IP Address .............................................. 29
4 Accessing via Web Browser .......................................................... 31
0503001050901
Network Bullet Camera·
··
·Quick Start Guide
11
1 Appearance Description
1.1 Overview of Type I Bullet Camera

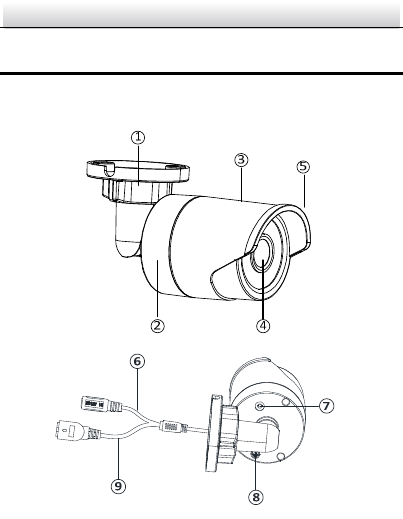

Figure 1-1 Type I Bullet Camera
Network Bullet Camera·
··
·Quick Start Guide
12
Table 1-1 Description
No.
Description No.
Description
1 Mounting Base 4 Lens
2 Back Box 5 Sun Shield
3 Front Box 6 Power Cable
7 Reset Button 8 GND Screw
9 10/100M Self-adaptive
Ethernet Interface
Type I camera does not support the function of Wi-Fi or micorSD
card.
Press Reset button about 10s when the camera is power on or
rebooting to restore the default settings, including the user name,
password, IP address, port No., etc.
Network Bullet Camera·
··
·Quick Start Guide
13

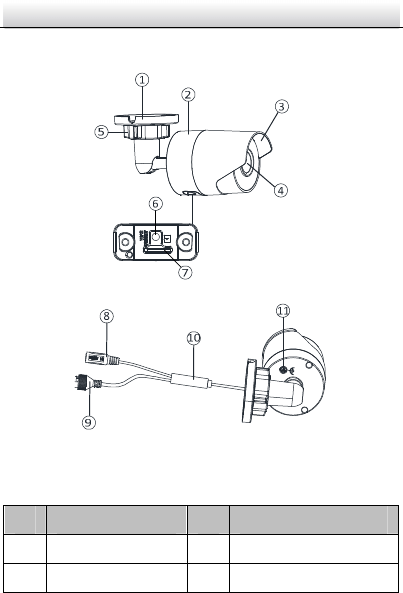

1.2 Overview of Type II Bullet Camera
Figure 1-2 Type II Bullet Camera
Table 1-2 Description
No.
Description No.
Description
1 Mounting Base 7 microSD Card Slot
2 Main Body 8 Power Supply Interface
Network Bullet Camera·
··
·Quick Start Guide
14
No.
Description No.
Description
3 Sun Shield 9 10/100M Self-adaptive
Ethernet Interface
4 Lens 10 PoE Cable
5 Adjusting Nut 11 GND Screw
6 WPS/RESET Button
This type of bullet camera supports PoE power supply. You can
power the camera by connecting both DC 12V interface and the
Ethernet interface. Or you can connect the Ethernet interface
only.

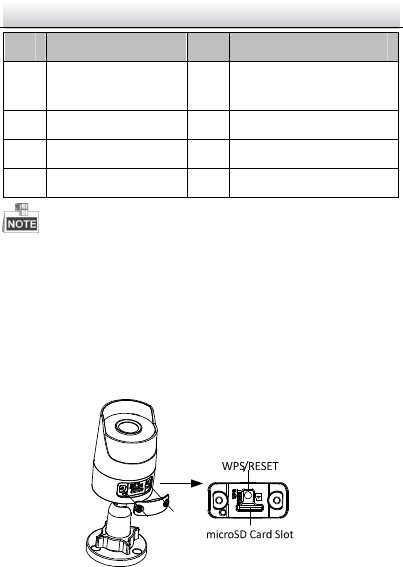

microSD Card Slot & WPS/RESET Button
Unscrew the microSD/RESET/WPS Cover, and you can see the
WPS/RESET button and the microSD card slot.
Figure 1-3 Removing the microSD/WPS/RESET Cover
Network Bullet Camera·
··
·Quick Start Guide
15
WPS function and Reset function share the same button. The
button works as a reset button only when you press it when the
camera is powered on.

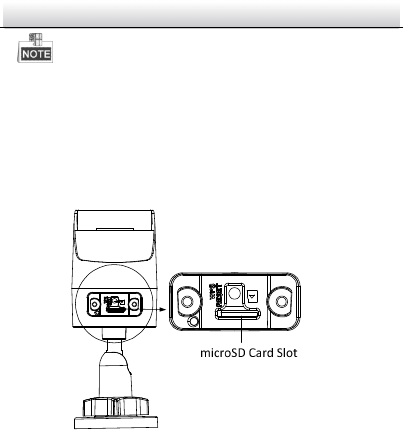

1.2.1 Installing the microSD Card
Insert the microSD card into the microSD card slot.
Figure 1-4 Installing the microSD Card
1.2.2 Resetting the Camera
Press WPS/RESET button about 10s when the camera is power on or
rebooting to restore the default settings, including the user name,
password, IP address, port No., etc.
Network Bullet Camera·
··
·Quick Start Guide
16

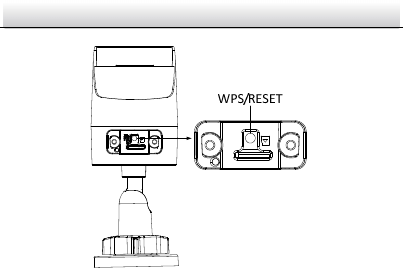

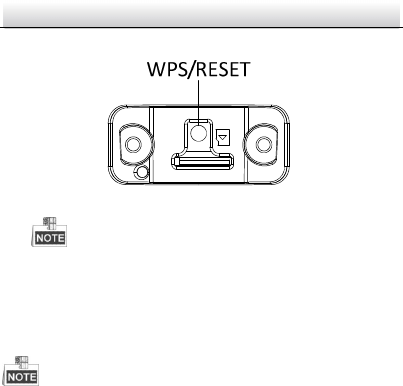

Figure 1-5 WPS/RESET Button
1.2.3 Setting the WPS Protocol
A wireless router with the WPS function is required to enable the
WPS function of the camera. Refer the steps below.
Steps:
1. Enable the WPS function of your router. Refer to the operation
guide of your router for detailed procedures.
2. Press the WPS/RESET button (about 2s) on the camera to join in
the wireless network.
Network Bullet Camera·
··
·Quick Start Guide
17
Figure 1-6 WPS/RESET Button
You can also press the WPS button on the camera first and then
enable the WPS function on the router to establish the
connection. But the WPS function of the router must be turned
on within 120s right after pressing the WPS/RESET button on
the camera.
Screw the microSD/RESET/WPS Cover back to the camera after all
the settings.
Network Bullet Camera·
··
·Quick Start Guide
18
2 Installation
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● The standard power supply is 12V DC or 24V AC, please make
sure your power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
● Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
Network Bullet Camera·
··
·Quick Start Guide
19
2.1 Installation of the Bullet Camera
Both wall mounting and ceiling mounting are suitable for the bullet
camera. Wall mounting will be taken as an example in this section.
You can take steps of wall mounting for reference if ceiling mounting
is adopted.
Steps:
1. Drill the screw holes in the wall according to the drill template.

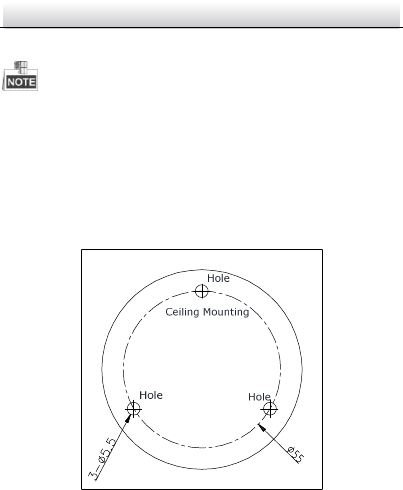

Figure 2-1 Drill Template
2. Route the corresponding cables.
3. Secure the camera to the wall with the supplied Screws.
Network Bullet Camera·
··
·Quick Start Guide
20

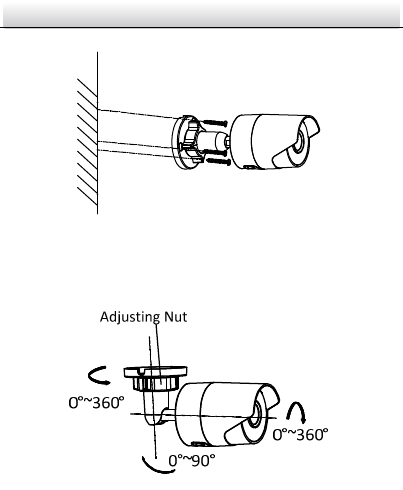

Figure 2-2 Secure the Camera to the Ceiling
4. Connect the corresponding power/Video Output cables.
5. Adjust the surveillance angle.
Figure 2-3 3-axis Adjustment
1). Loosen the adjusting nut.
2). Adjust the pan direction [0° to 360°].
3). Adjust the tilt direction [0° to 90°].
Network Bullet Camera·
··
·Quick Start Guide
21
4). Rotate the camera [0° to 360°] to adjust the lens to the
desired surveillance angle.
5). Tighten the adjusting nut to complete the installation.
Network Bullet Camera·
··
·Quick Start Guide
22
2.2 Installation of Network Cable Water-proof
Jacket (Optional)
Purpose:
If the camera is installed outdoor, you can adapt the water-proof
accessory for the network cable after the camera is secured on the
installation surface.

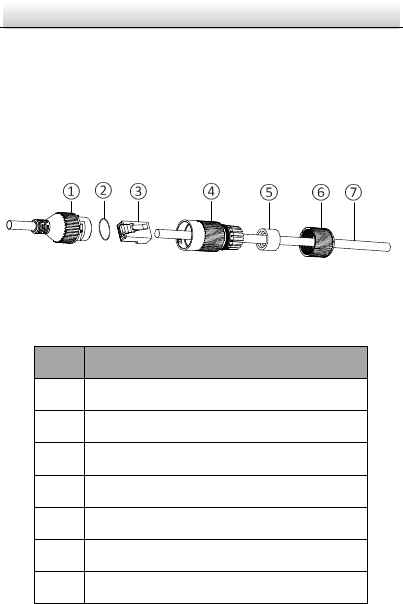

Figure 2-4 Water-proof Accessory Components
Table 2-1 Components
No. Components
1 Camera’s Network Interface Socket
2 O-Type Gasket
3 Network Plug
4 Waterproof Endcap
5 Waterproof Rubber Gasket
6 Lock Nut
7 Network Cable from Router/Switch
Network Bullet Camera·
··
·Quick Start Guide
23

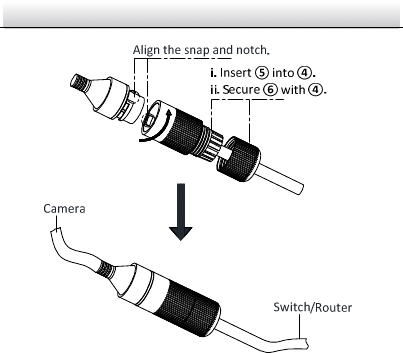

Figure 2-5 Water-proof Accessory Installation
Steps:
1. Feed the plugless network cable ⑦ through the lock nut ⑥,
waterproof rubber gasket ⑤ (rubber gasket inset ridge must
face waterproof endcap), and the water-proof endcap ④ in
order.
2. Crimp an RJ-45 network plug ③onto the end of the cable,
taking care to insert the twisted pairs of wires in correct order.
3. Place the O-type gasket ② onto the end of the camera’s
network interface socket ①.
Network Bullet Camera·
··
·Quick Start Guide
24
4. Insert the network plug ③ into the camera’s network interface
socket①.
5. Insert the water-proof rubber gasket ⑤ into the waterproof
endcap ④, and secure lock nut ⑥ with the water-proof
endcap ④.
6. Align the snap on the water-proof endcap ④ with the notch on
the camera’s network interface socket ①, and then secure the
water-proof endcap ④ to the camera’s network interface
socket ① to finish installation.
Network Bullet Camera·
··
·Quick Start Guide
25
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection. If the product does not work properly, please
contact with your dealer or the nearest service center.

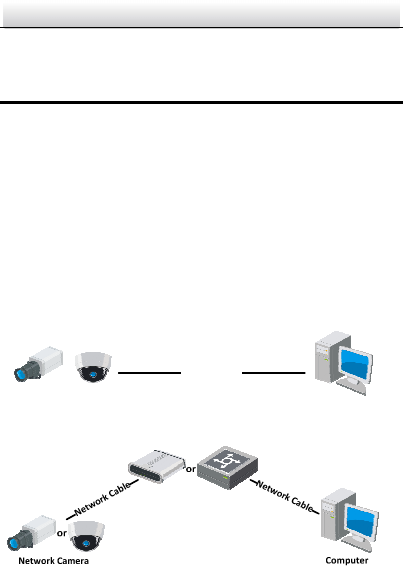

3.1 Wiring
Please connect to the camera to the network according to the
following figures
Network Cable
or
Network Camera
Computer
Figure 3-1 Connecting Directly
Figure 3-2 Connecting via a Switch or a Router
Network Bullet Camera·
··
·Quick Start Guide
26
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via
Client Software are all supported. We will take activation via SADP
software and Activation via Web Browser as examples to introduce
the camera activation. Please refer to the User Manual of Network
Camera for Activation via Client Software.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.
For the camera enables the DHCP by default, you need to
activate the camera via SADP software and search the IP
address.

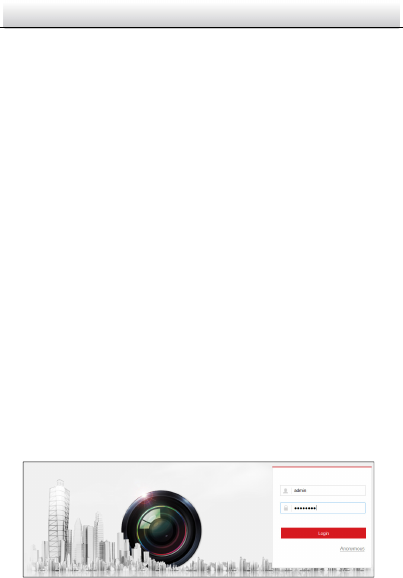

Figure 3-3 Activation Interface(Web)
Network Bullet Camera·
··
·Quick Start Guide
27
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.

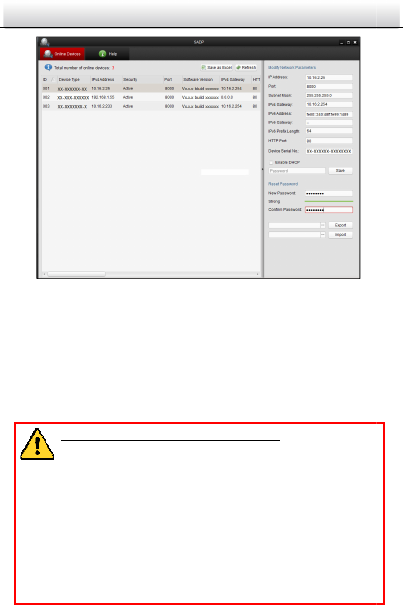

3.2.2 Activation via SADP Software
SADP software is used for detecting the online device, activating the
camera, and resetting the password.
Get the SADP software from the supplied disk
or the official website,
and install the SADP according to the prompts. Follow the steps
to
activate the camera, please refer to the User Manual of Network
Camera for other two activation methods.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
SADP software is used for detecting the online device, activating the
or the official website,
to
Network Bullet Camera·
··
·Quick Start Guide
28
Figure 3-4 SADP Interface
Note:
The SADP software supports activating the camera in batch. Please
refer to the user manual of SADP software for details.
3. Create a password and input the
password in the password field,
and confirm the password.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
The SADP software supports activating the camera in batch. Please
password in the password field,
Network Bullet Camera·
··
·Quick Start Guide
29
4. Click OK to save the password.
You can check whether the activation is completed on the popup
window. If activation failed, please make sure that the password
meets the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the SADP software or client software to search and
change the IP of network camera. We will take modifying the IP
Address via SADP software as an example to introduce the IP address
modification.
Steps:
1. Run the SADP software.
2. Select an active device.
Note:
Please refer to Section 3.2 to activate the camera if the camera is
inactive.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Network Bullet Camera·
··
·Quick Start Guide
30
Figure 3-5 Modify the IP Address
4. Input the password to activate your IP address modification.
The batch IP address modification is
supported by the SADP; please
refer to the User Manual of SADP for details.
supported by the SADP; please
Network Bullet Camera·
··
·Quick Start Guide
31
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64.
If the camera is not activated, please activate the camera first
according to Section 3.2.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
Network Bullet Camera·
··
·Quick Start Guide
32
4. Click Login.

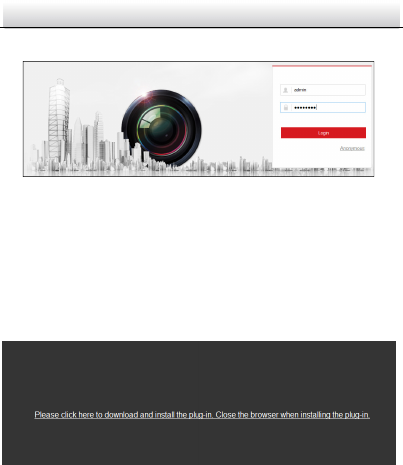

Figure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the
plug-in.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Figure 4-2 Download Plug-in
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual of network camera.
