Hangzhou Hikvision Digital Technology MP5504 Mobile DVR User Manual

Hangzhou Hikvision Digital Technology Co., Ltd. Mobile DVR Users Manual

Users Manual

Mobile Digital Video Recorder User Manual
0
Mobile DVR
User Manual
Mobile Digital Video Recorder User Manual
1
TABLE OF CONTENTS
Chapter 1 Panel Introduction .................................................................................................................................................. 9

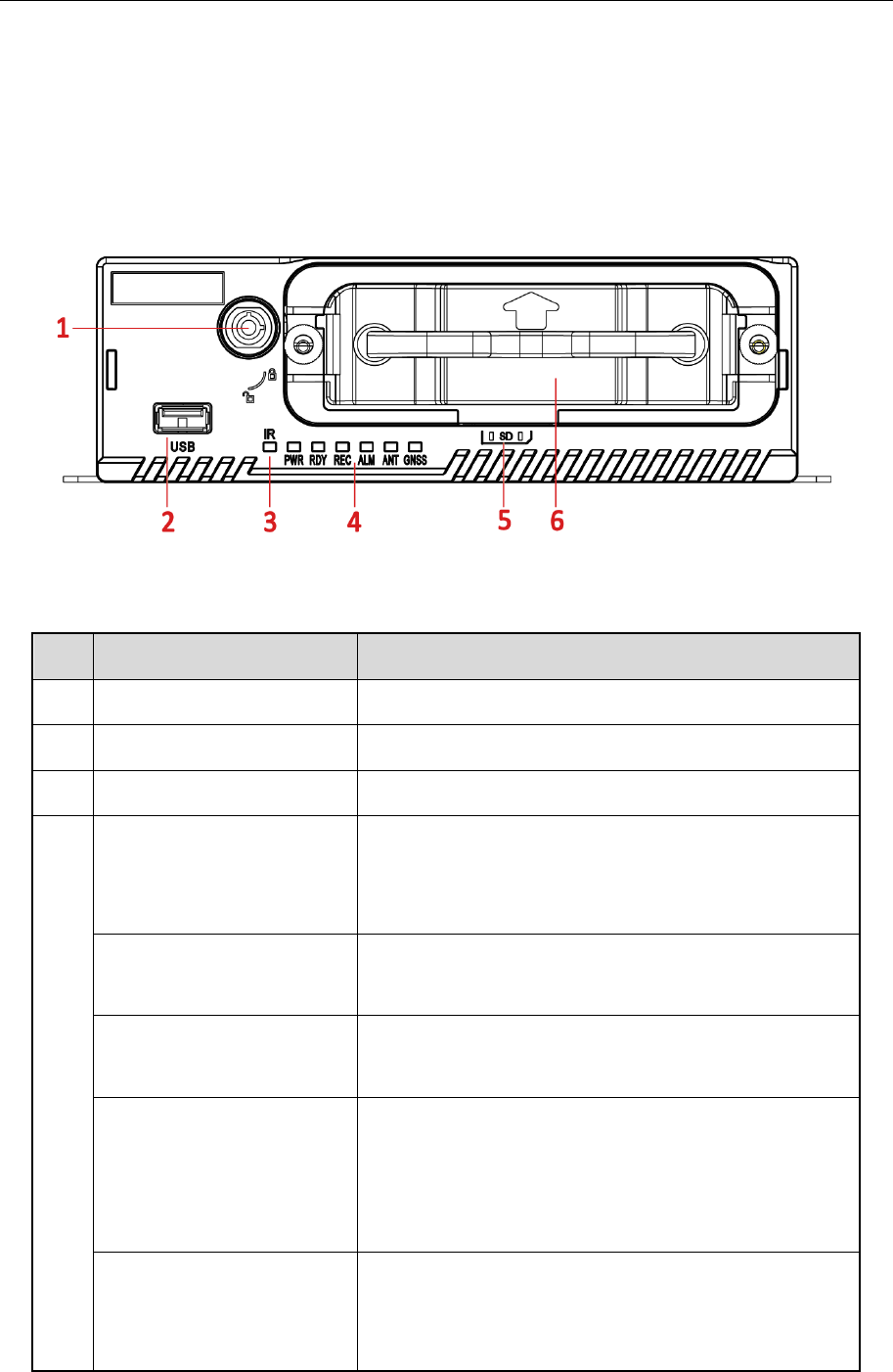

1.1 Front Panel ................................................................................................................................................................... 9

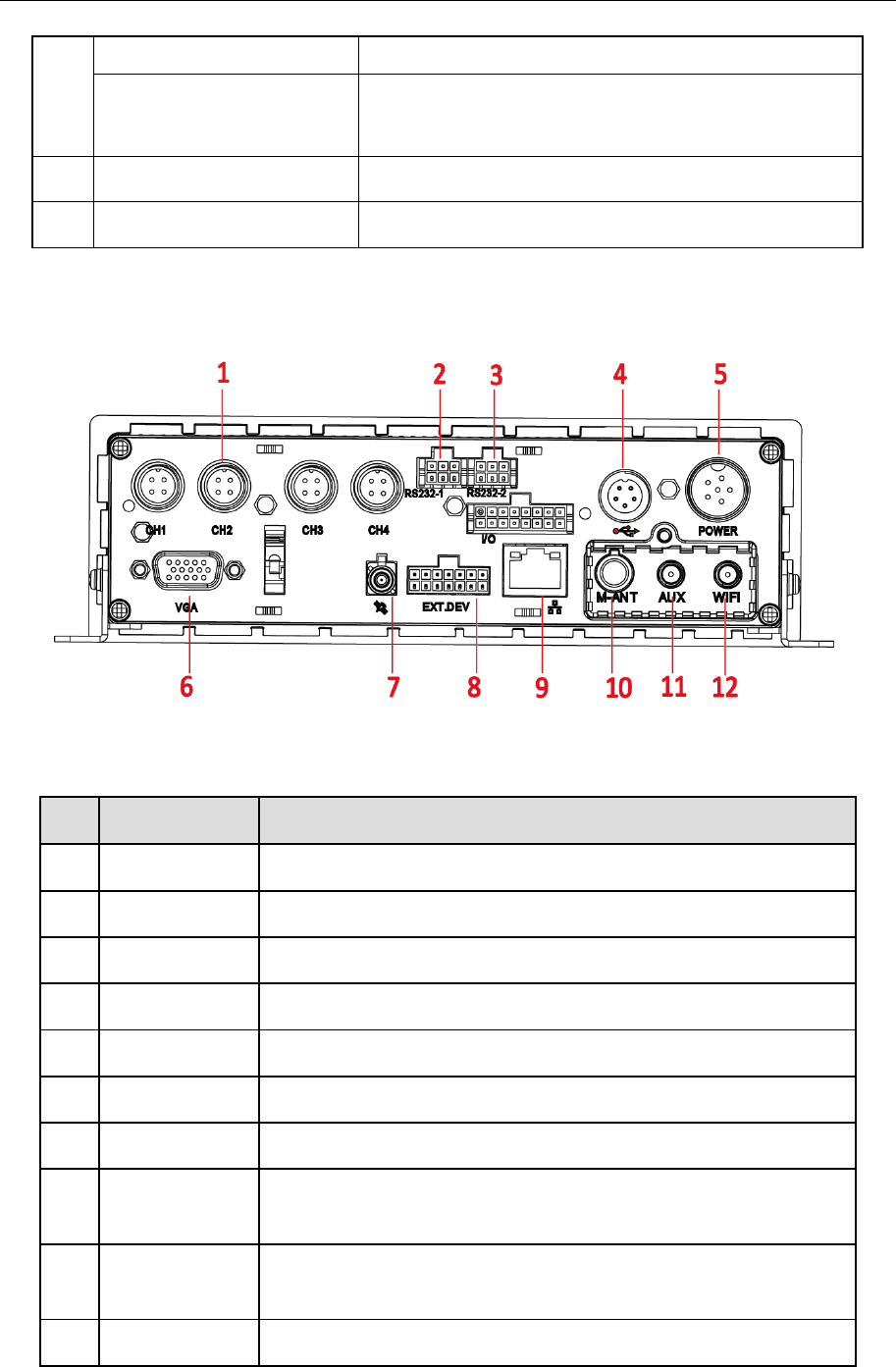

1.2 Rear Panel .................................................................................................................................................................. 10
Chapter 2 Installation and Connections ............................................................................................................................... 12

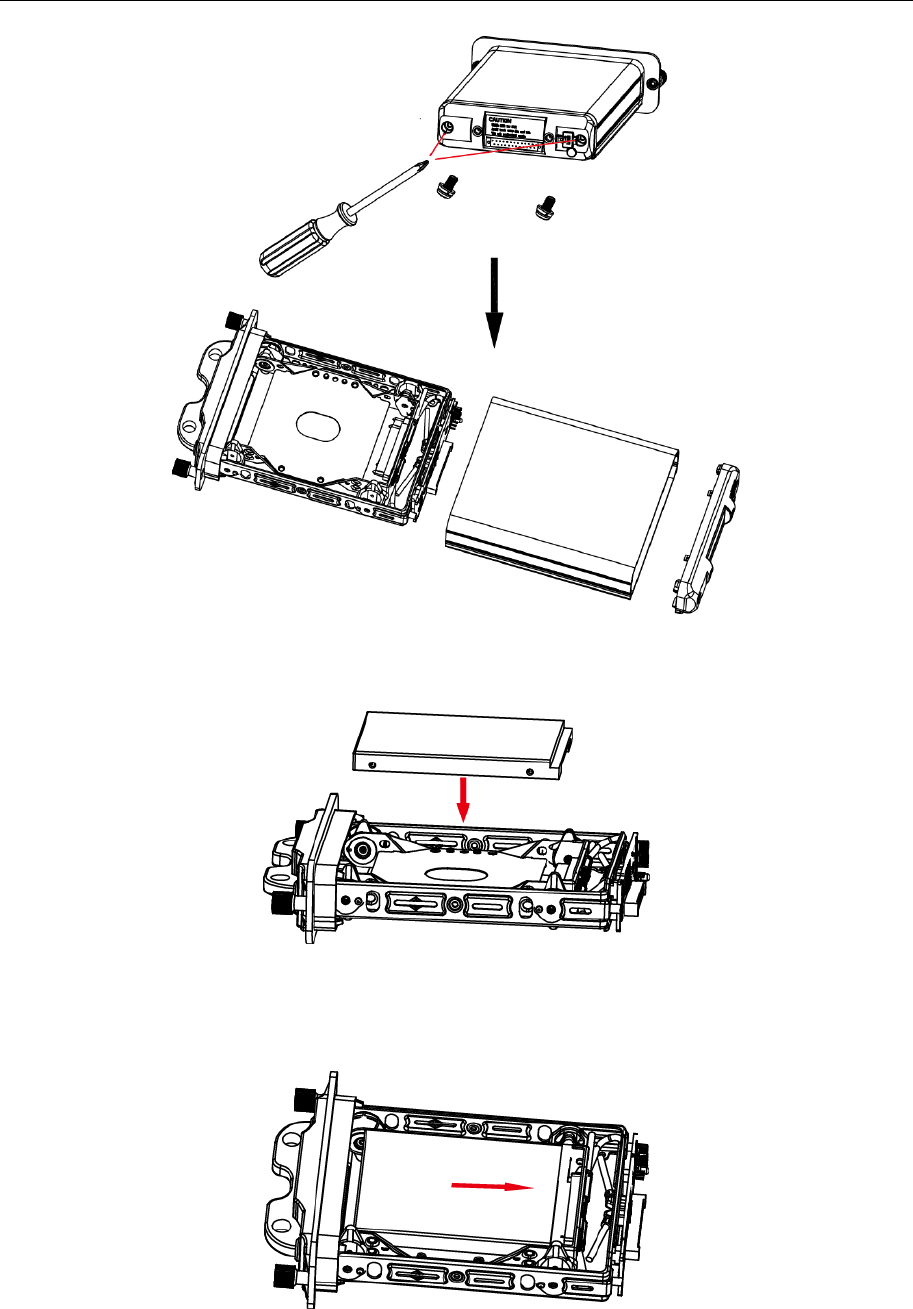

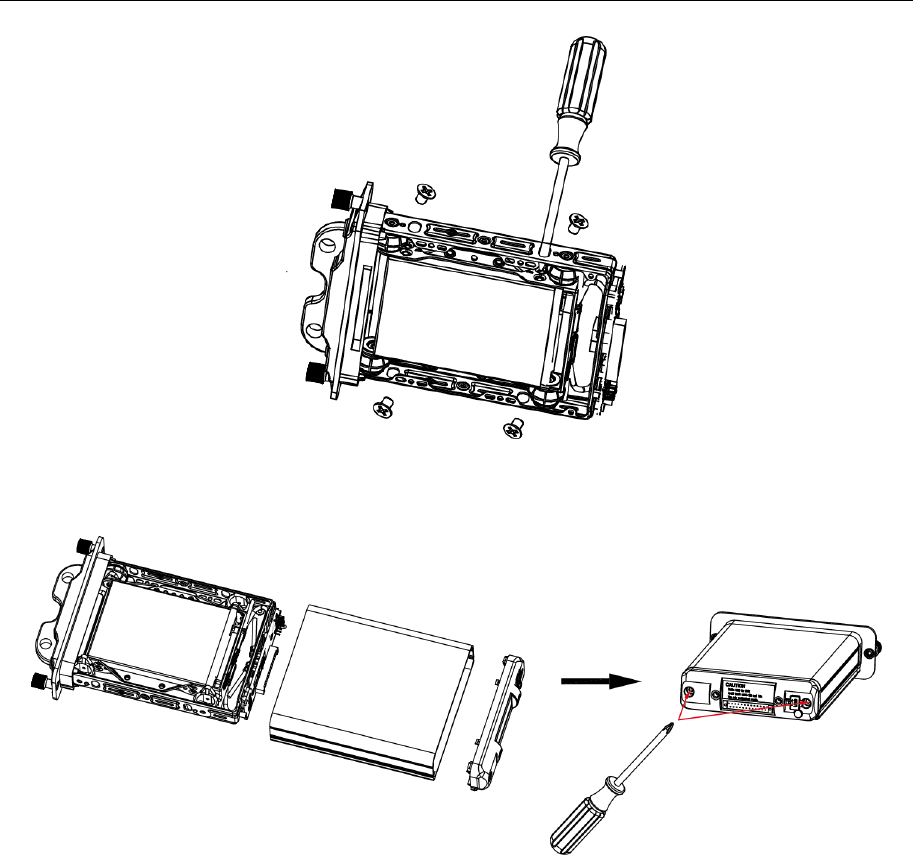

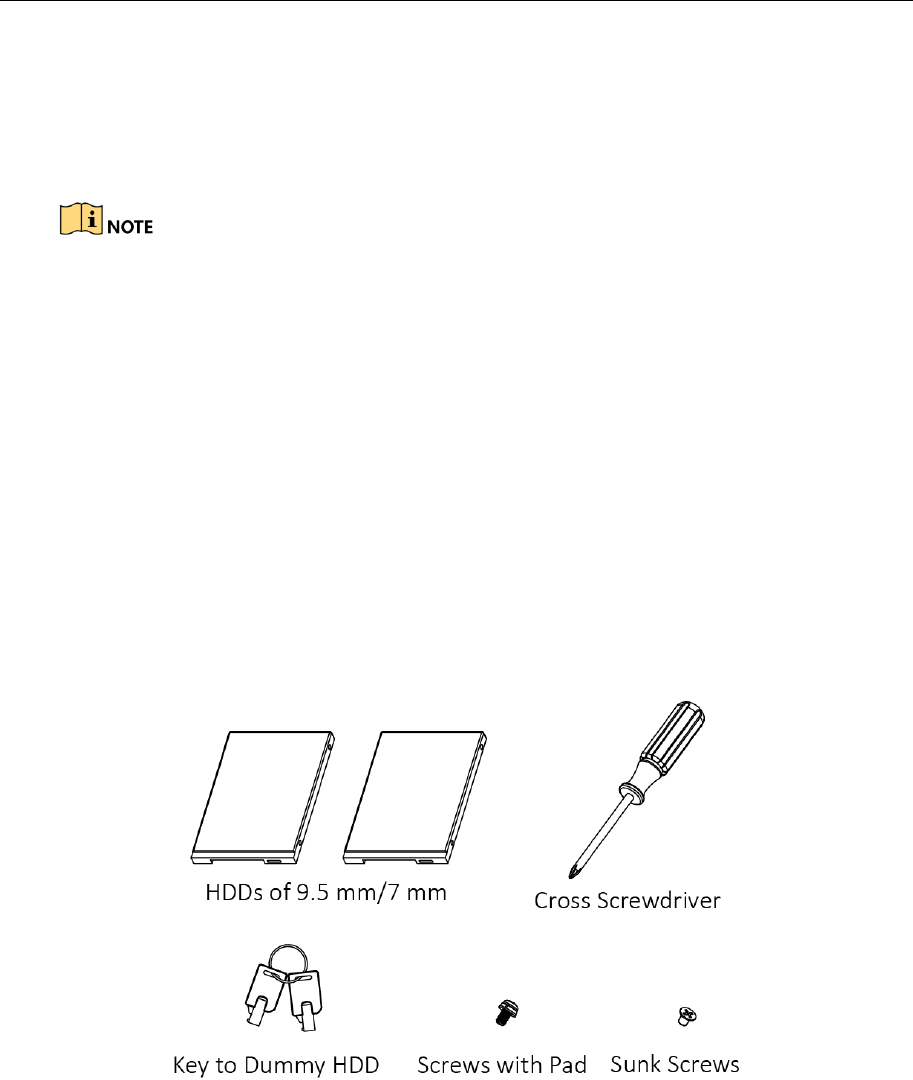

2.1 Install HDD ................................................................................................................................................................ 12

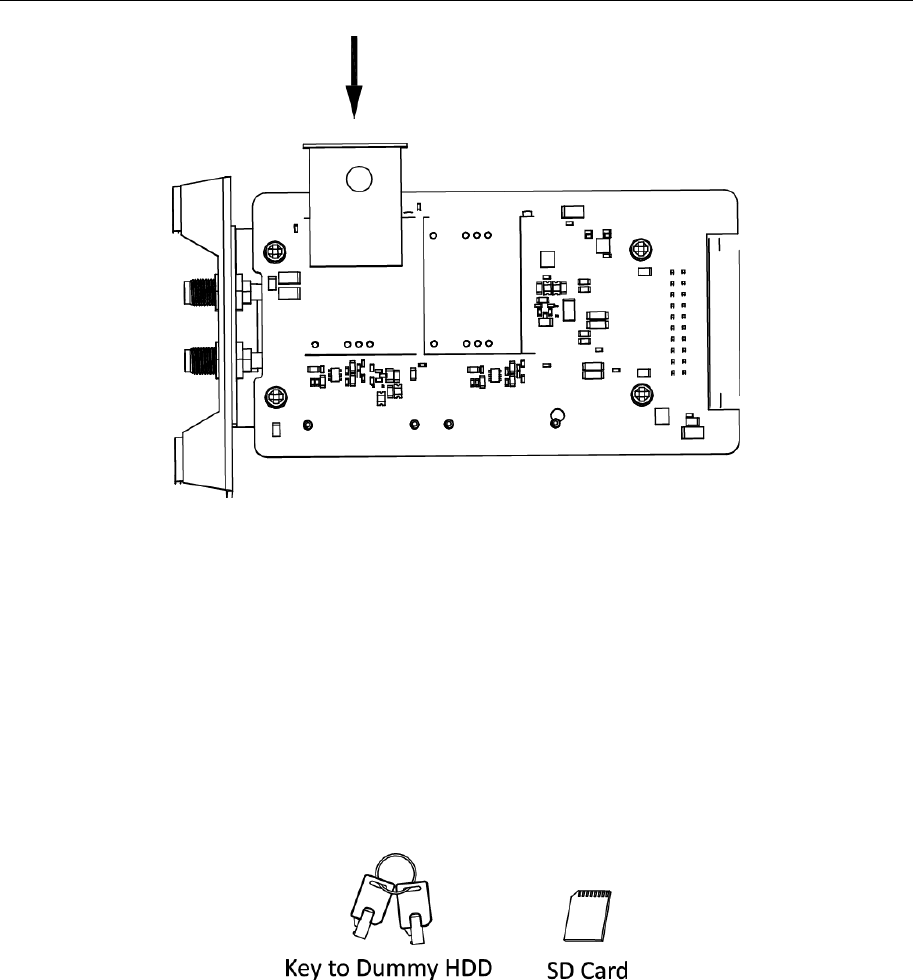

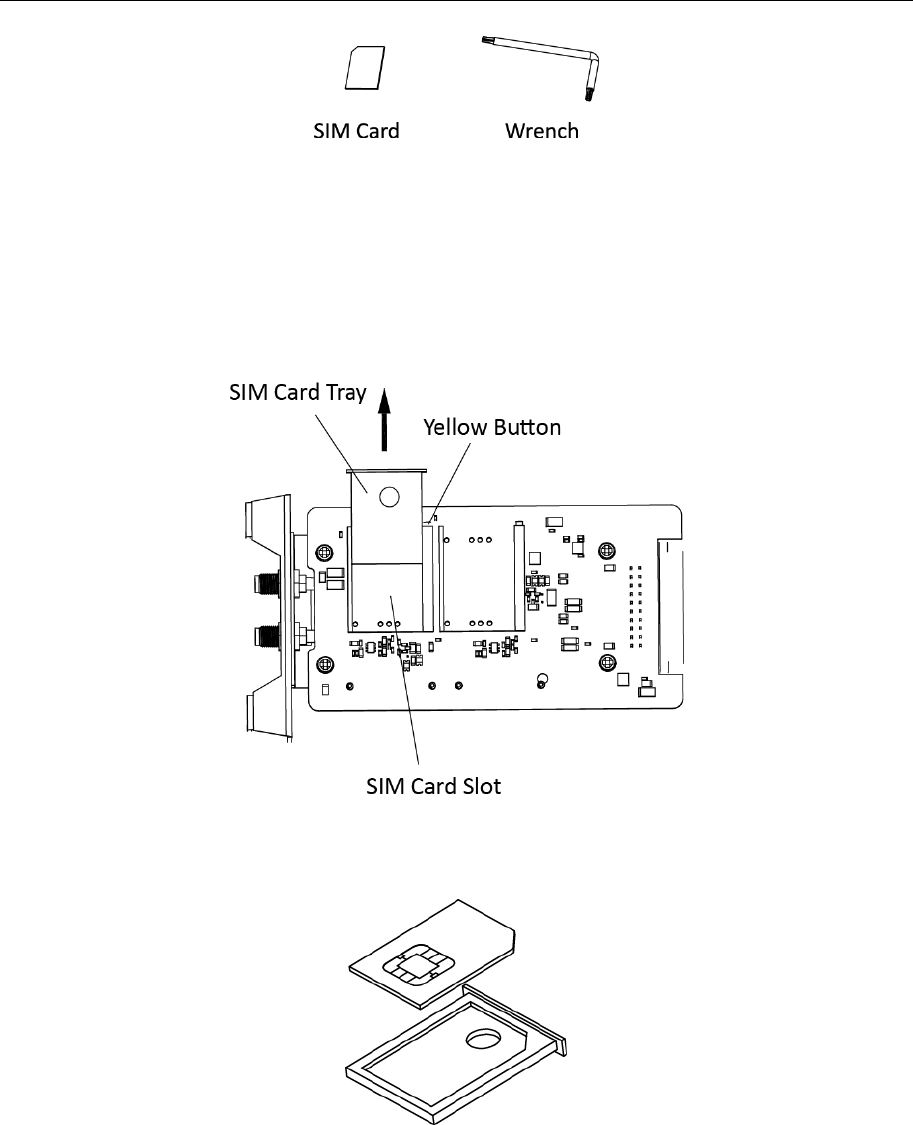

2.2 Install SIM Card ......................................................................................................................................................... 14
2.3 Install SD Card ........................................................................................................................................................... 16

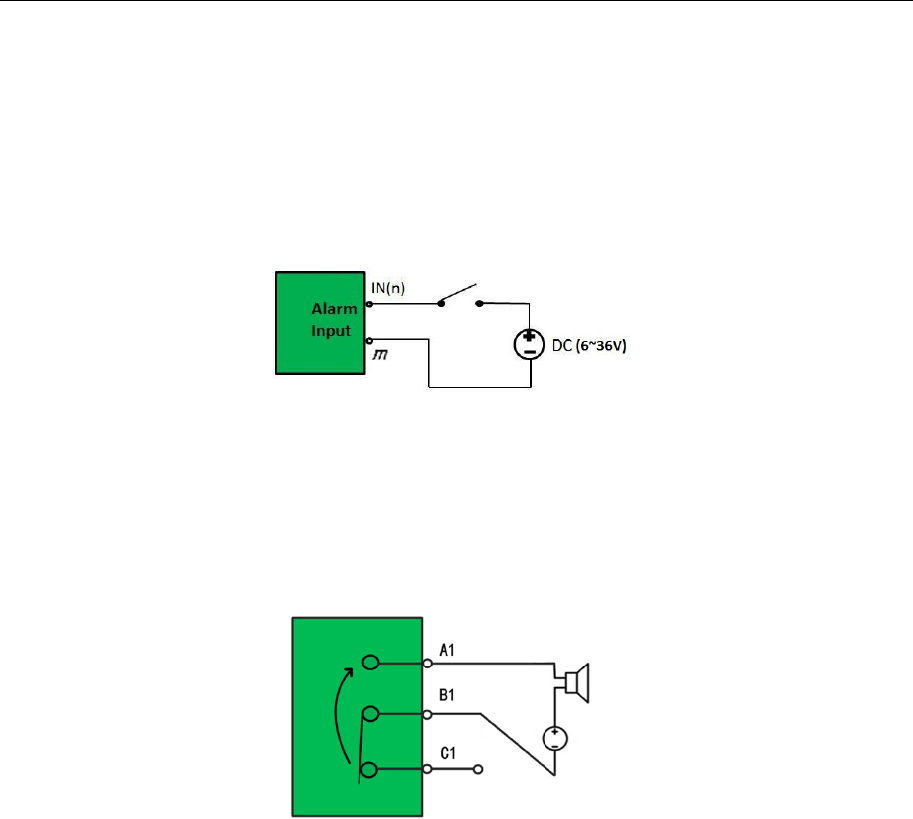

2.4 Alarm Input/Output Connection ................................................................................................................................. 17
2.4.1 Alarm Input Connection .................................................................................................................................. 17
2.4.2 Alarm Output Connection ................................................................................................................................ 17
2.5 Sensor-in Wiring ......................................................................................................................................................... 17

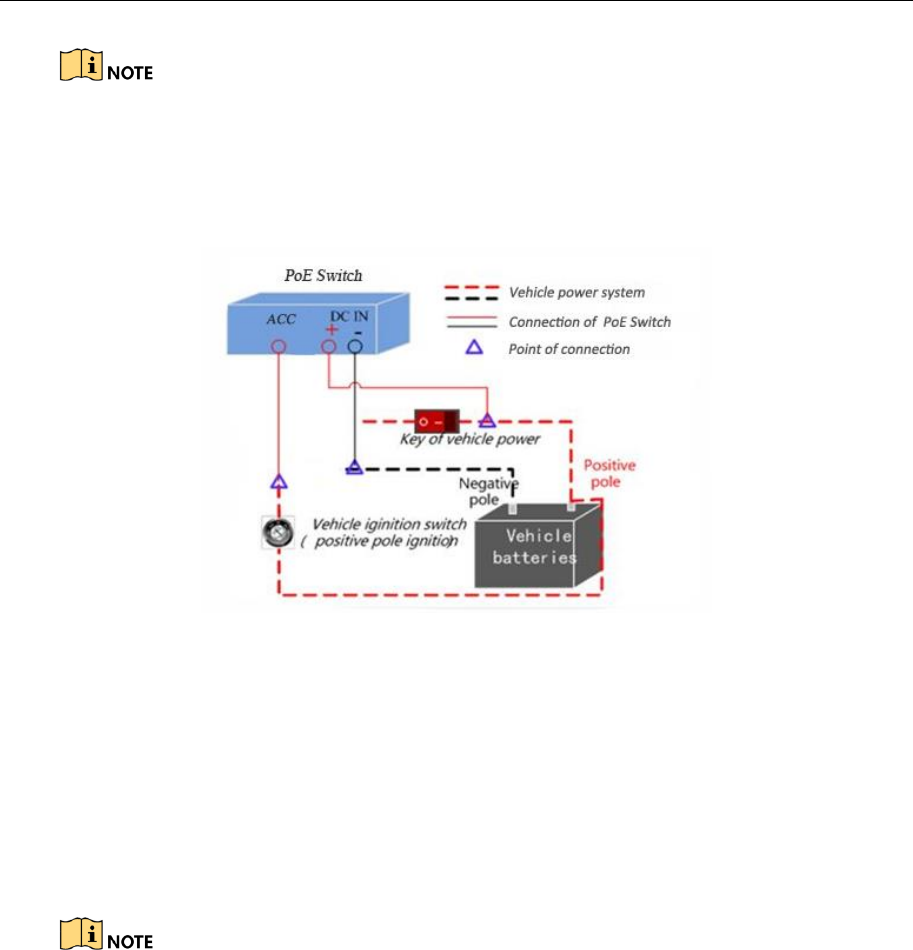

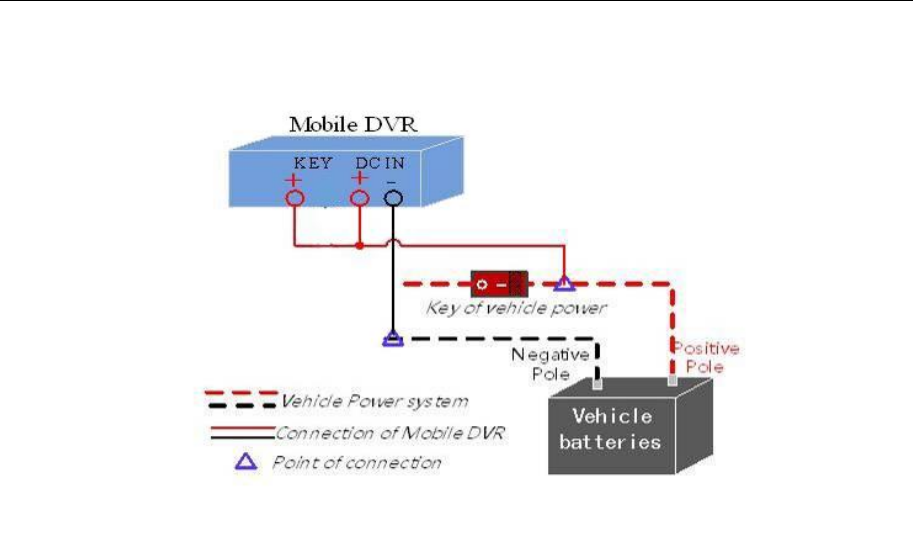

2.6 Power Cord Wiring ..................................................................................................................................................... 17
2.6.1 Shutdown Delay .............................................................................................................................................. 17
2.6.2 Timed Shutdown .............................................................................................................................................. 19
Chapter 3 Start Up Device ..................................................................................................................................................... 20
3.1 Startup ........................................................................................................................................................................ 20

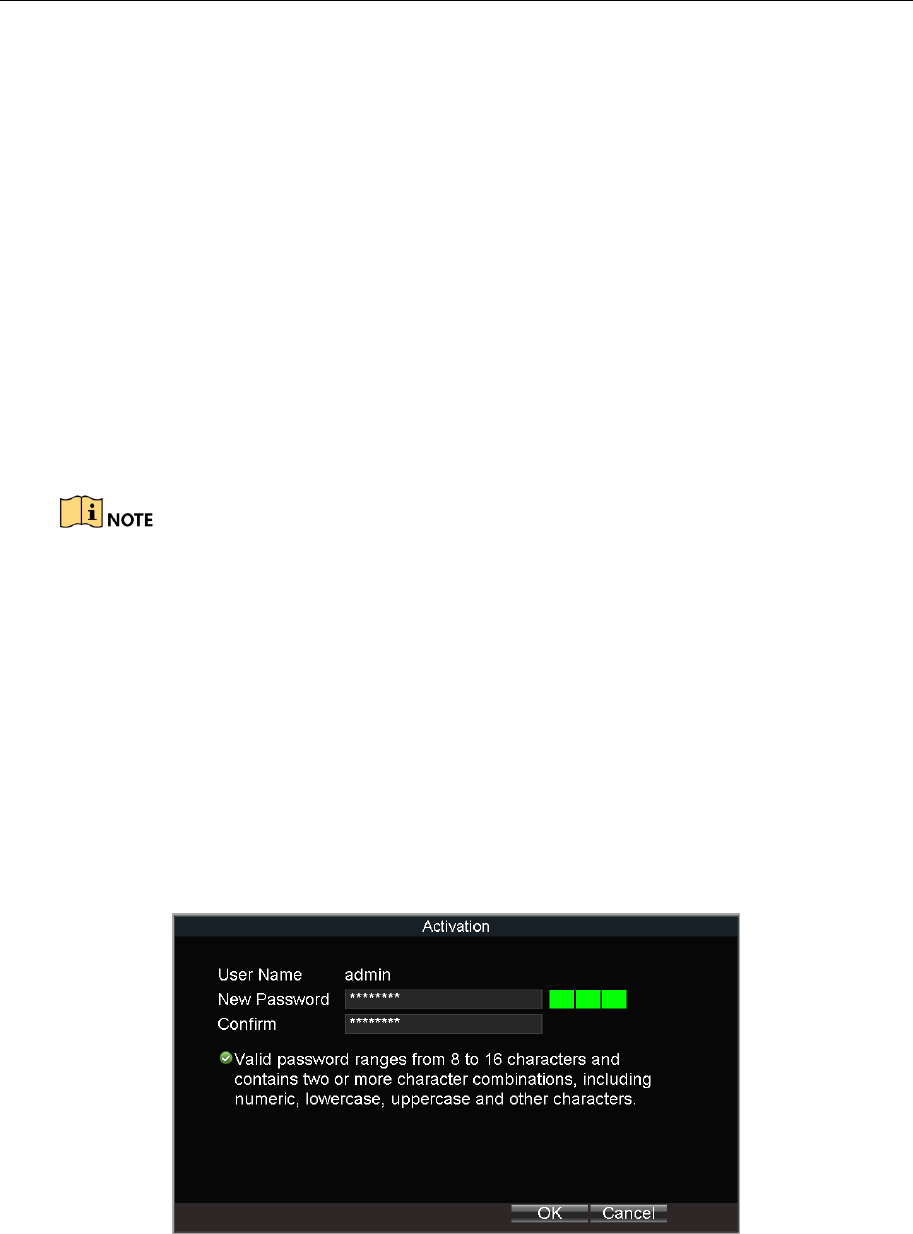

3.2 Activation ................................................................................................................................................................... 20
Chapter 4 Network ................................................................................................................................................................. 22

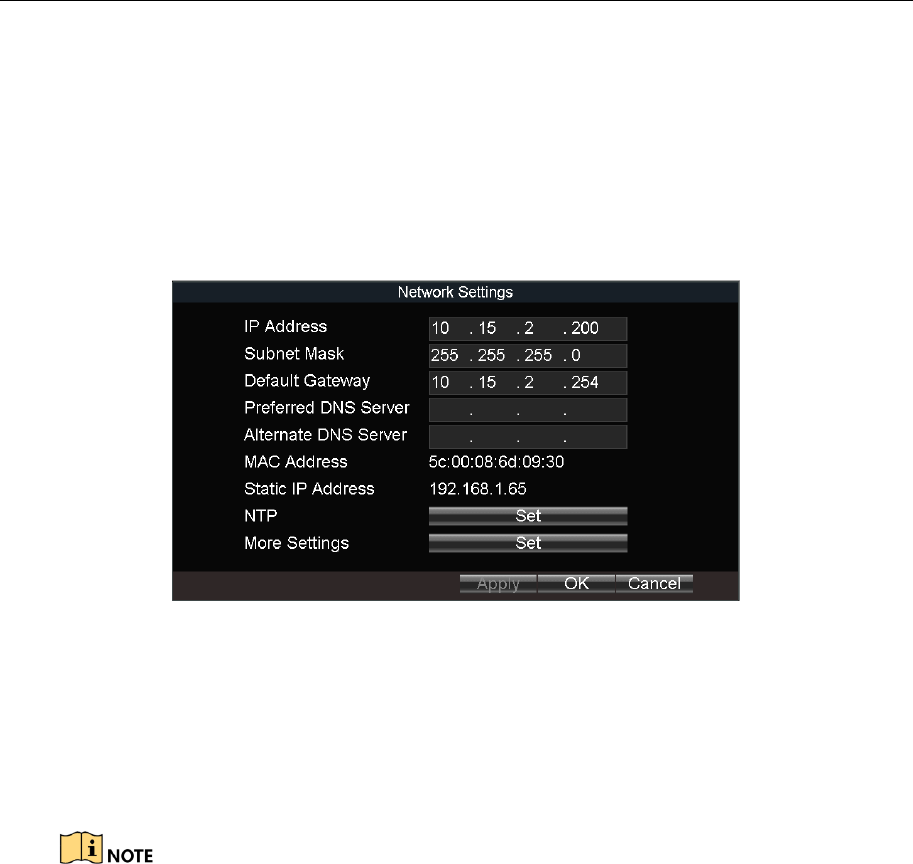

4.1 Set Local Network ...................................................................................................................................................... 22
4.2 Connect Wireless Network ......................................................................................................................................... 22

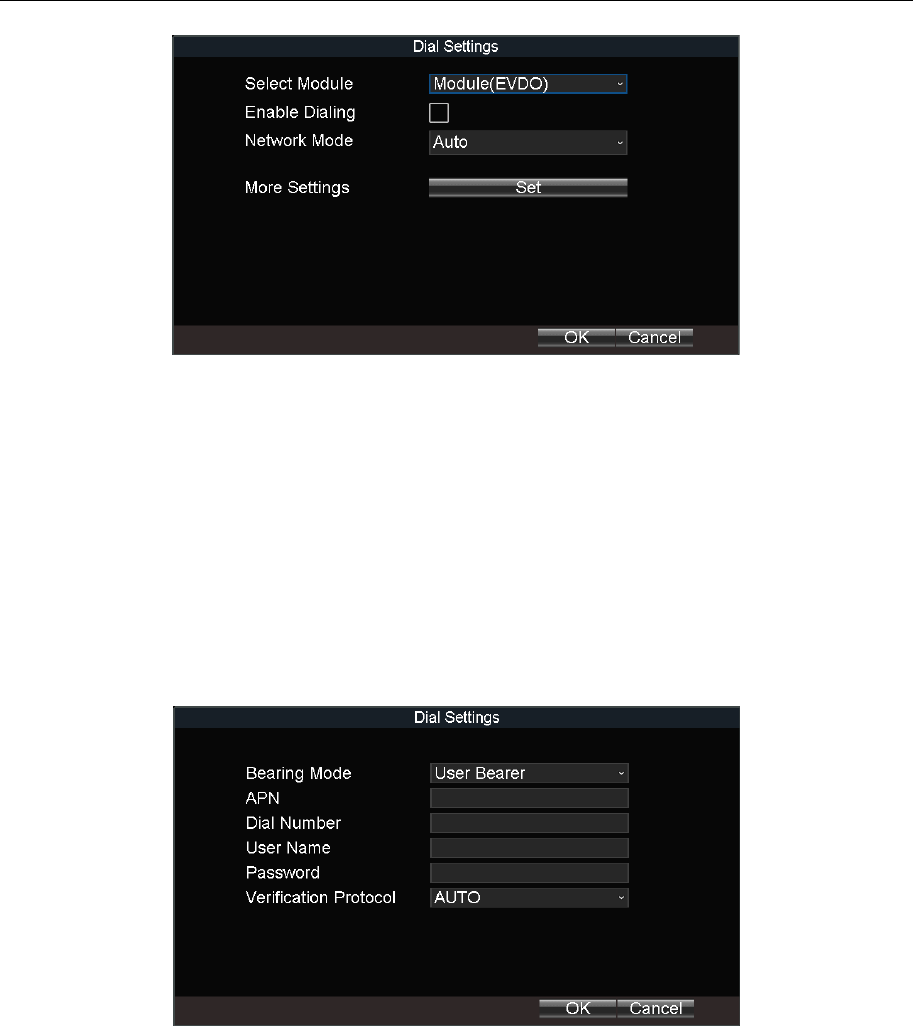

4.2.1 3G/4G Dialing ................................................................................................................................................. 22

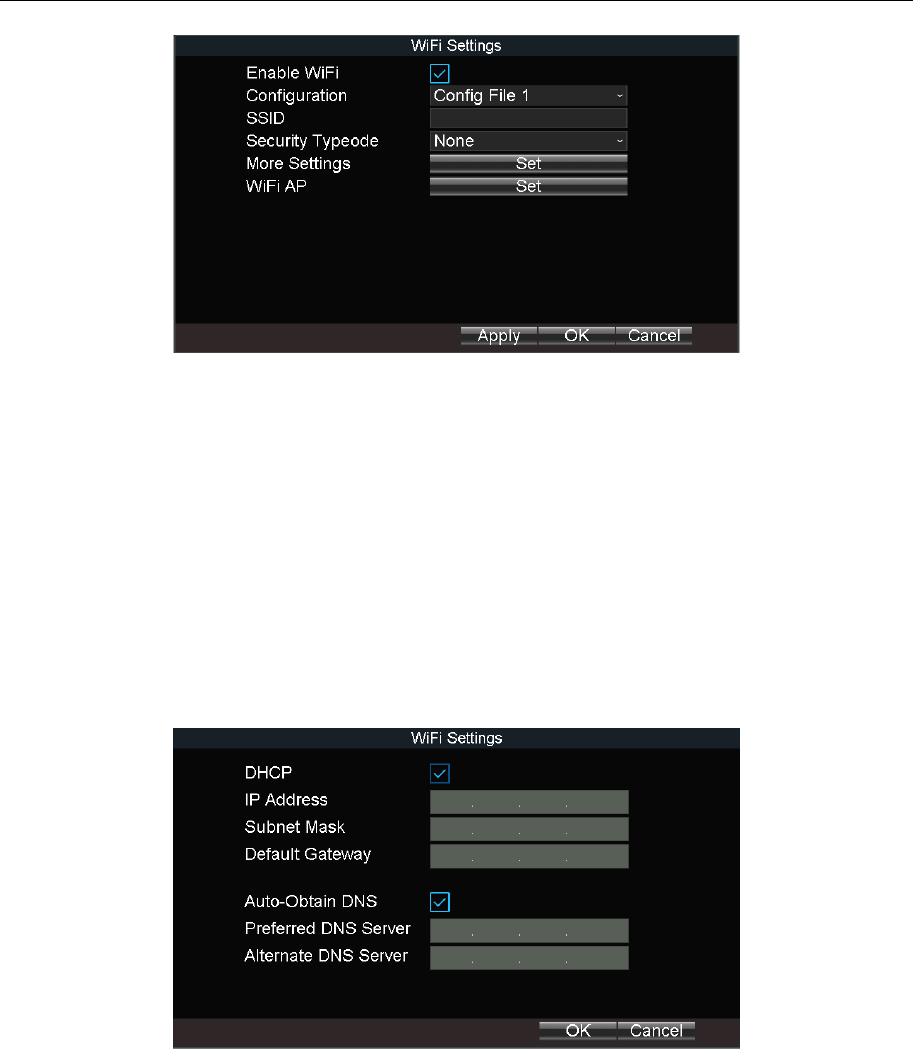

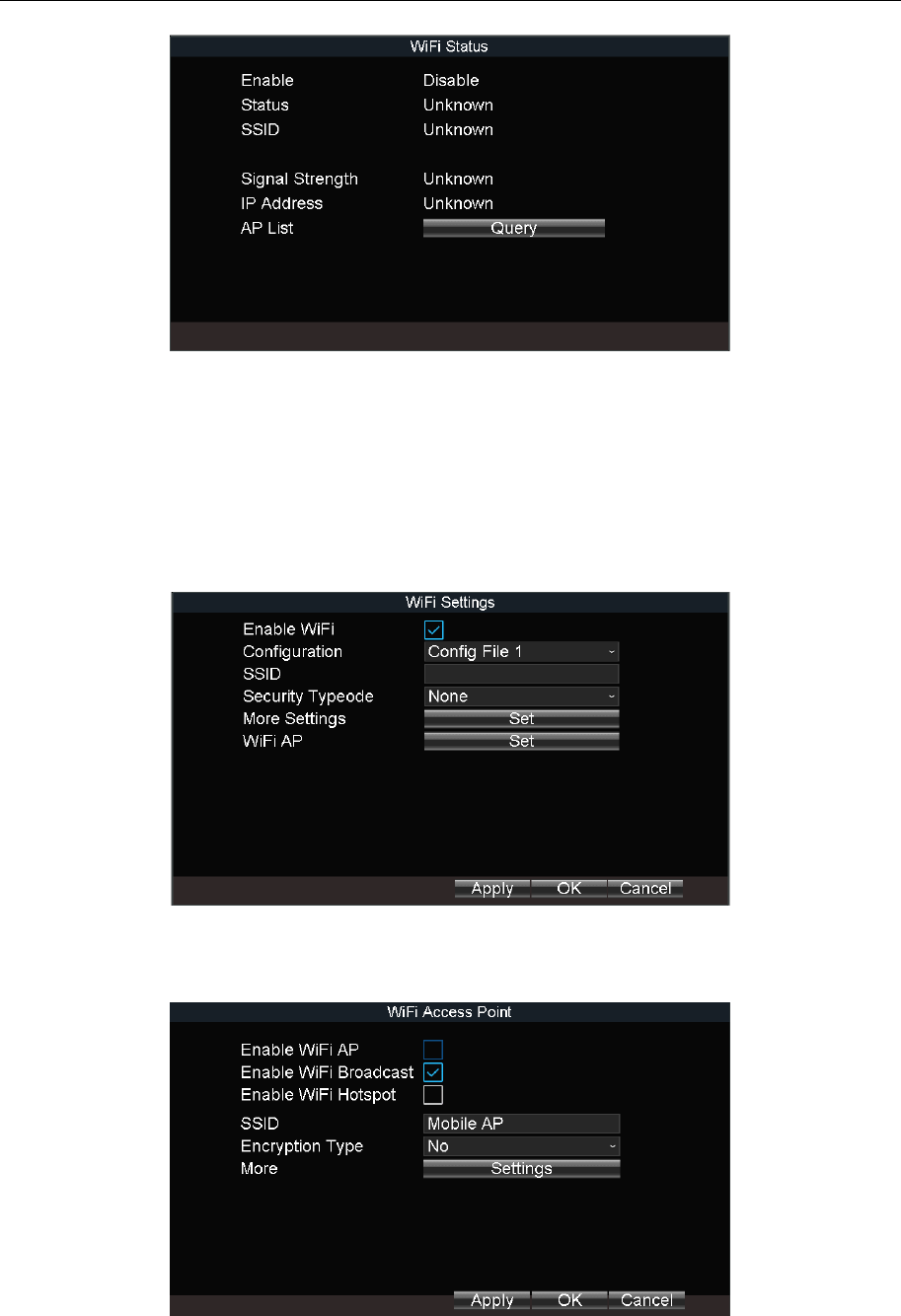

4.2.2 Set Wi-Fi.......................................................................................................................................................... 23
4.2.3 Set Wi-Fi AP .................................................................................................................................................... 25

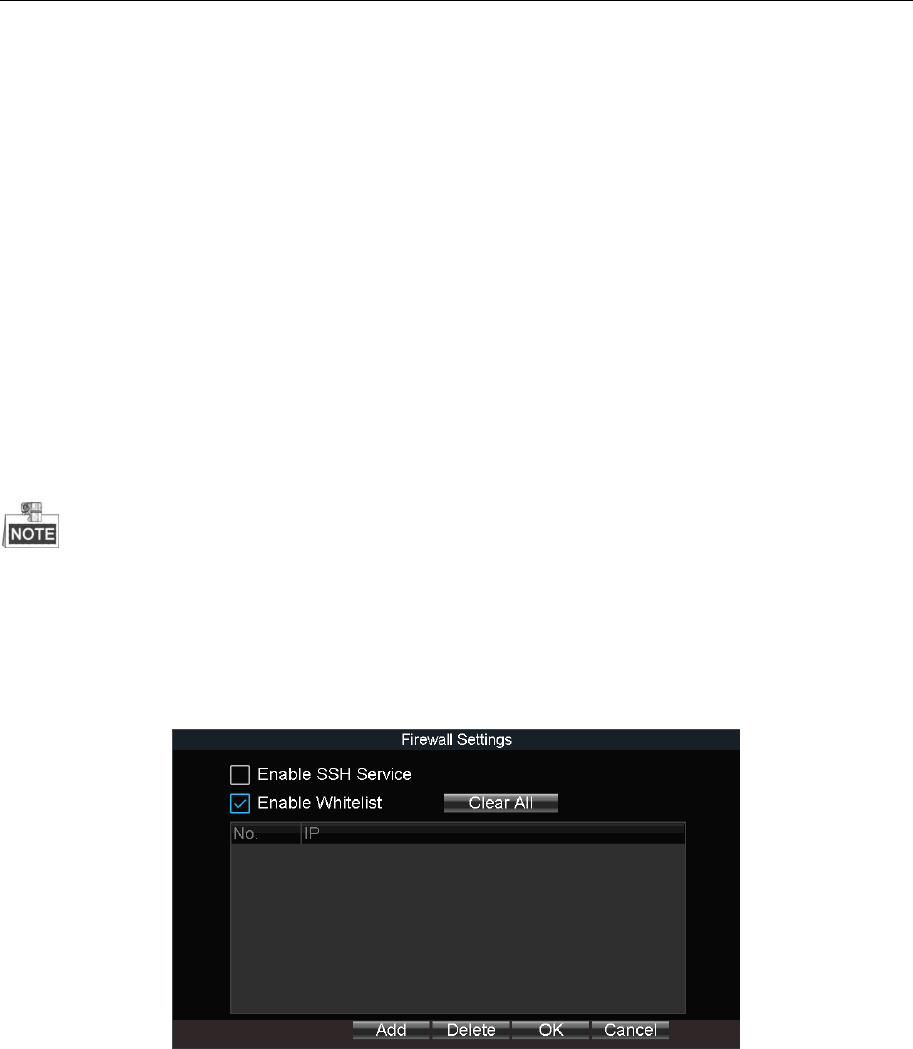

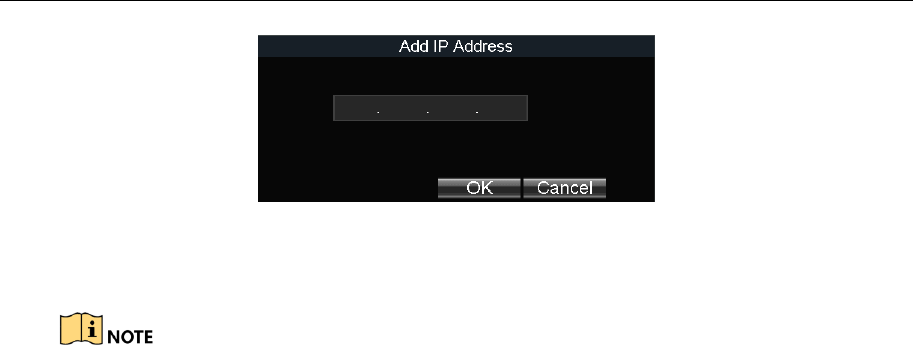

4.3 Firewall Settings ......................................................................................................................................................... 26
Chapter 5 IP Camera ............................................................................................................................................................. 28

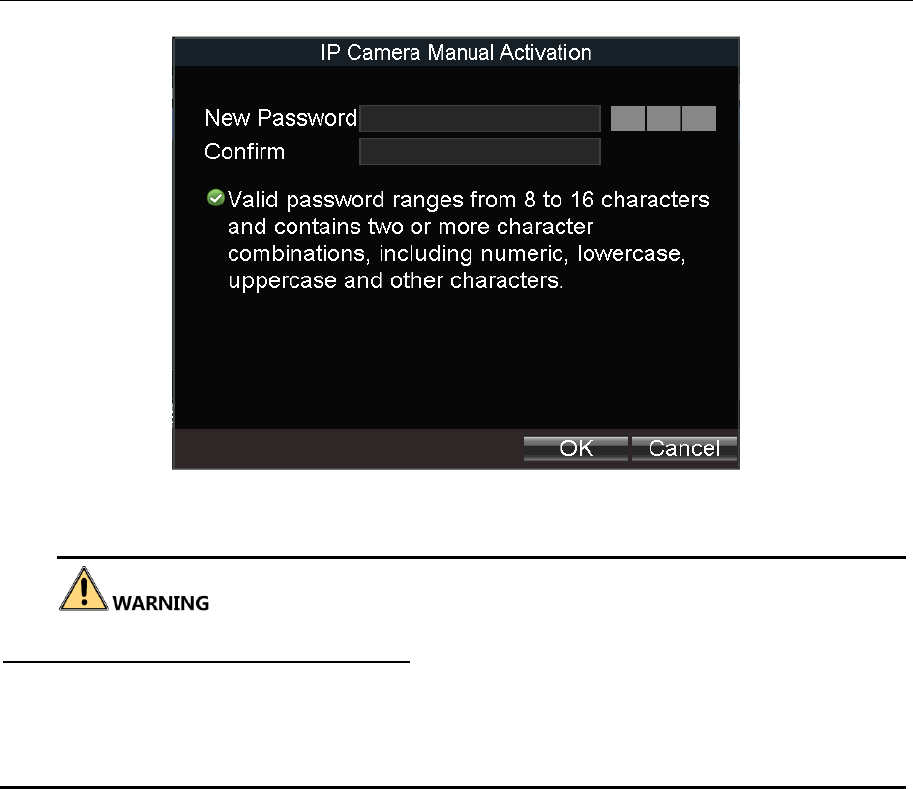

5.1 Activate IP Cameras ................................................................................................................................................... 28

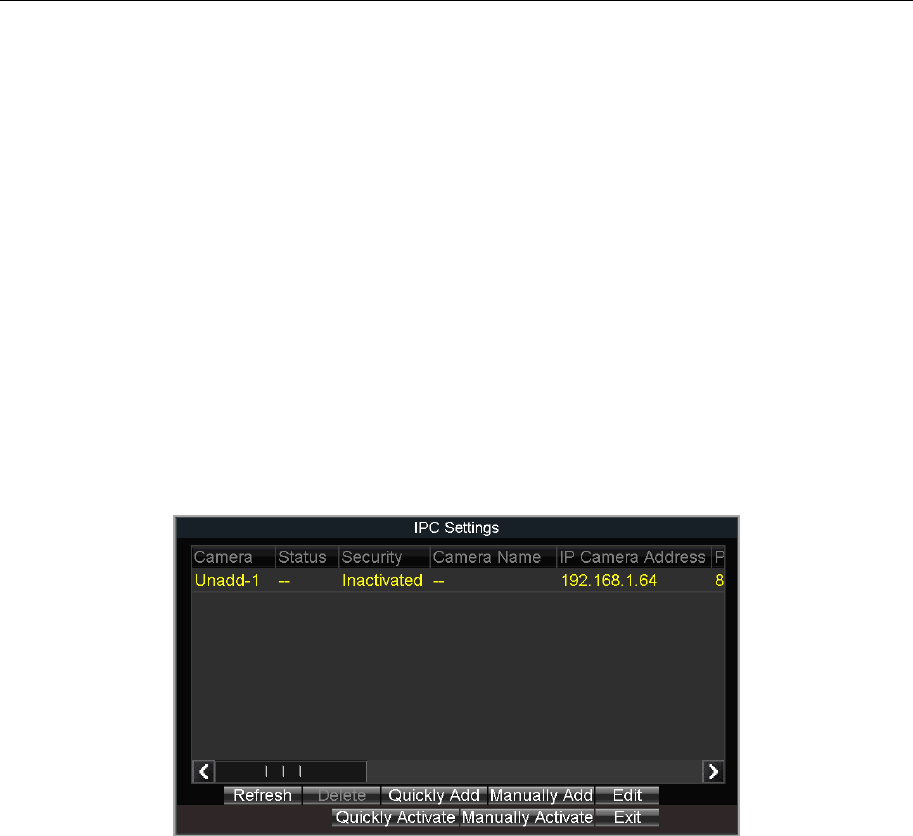

5.2 Add IP Cameras .......................................................................................................................................................... 29
5.2.1 Quick Add........................................................................................................................................................ 29

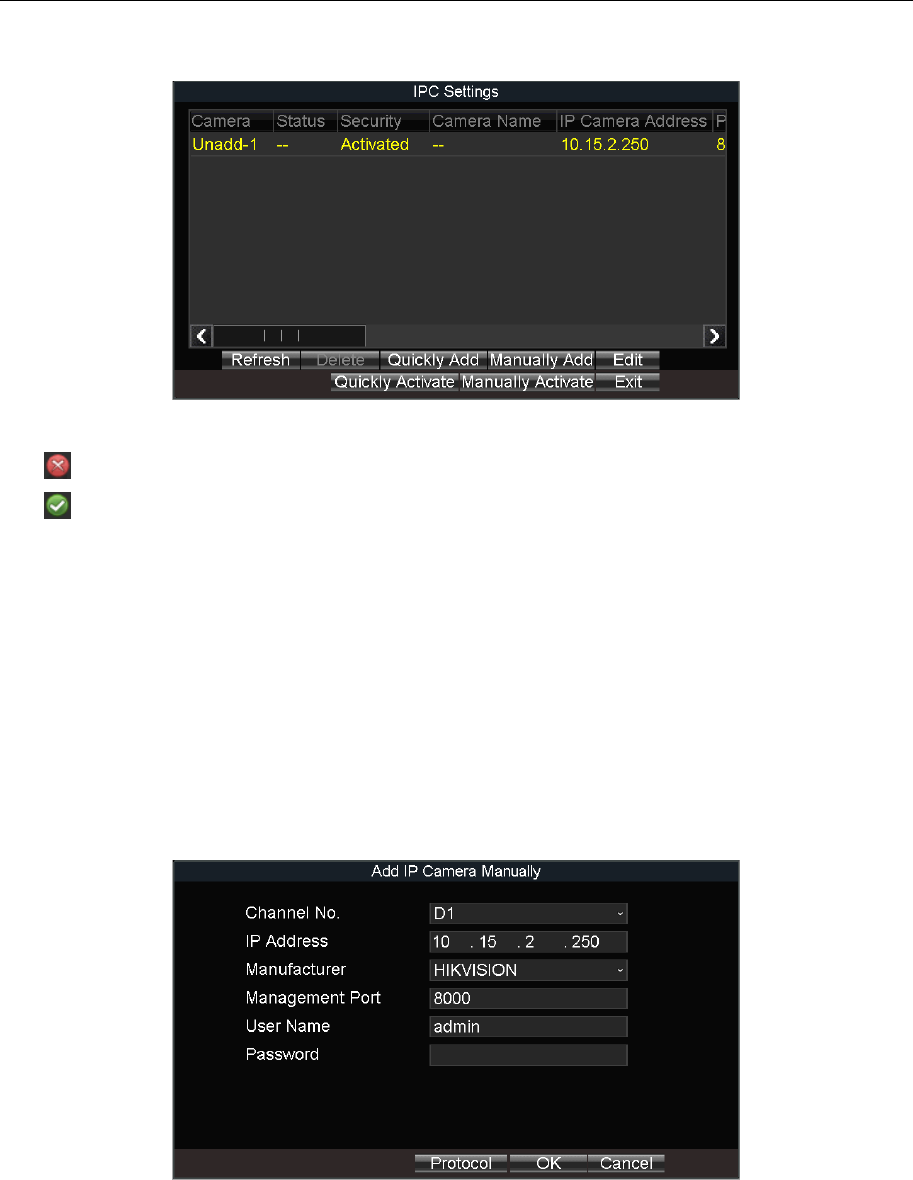

5.2.2 Add IP Camera Manually ................................................................................................................................ 30

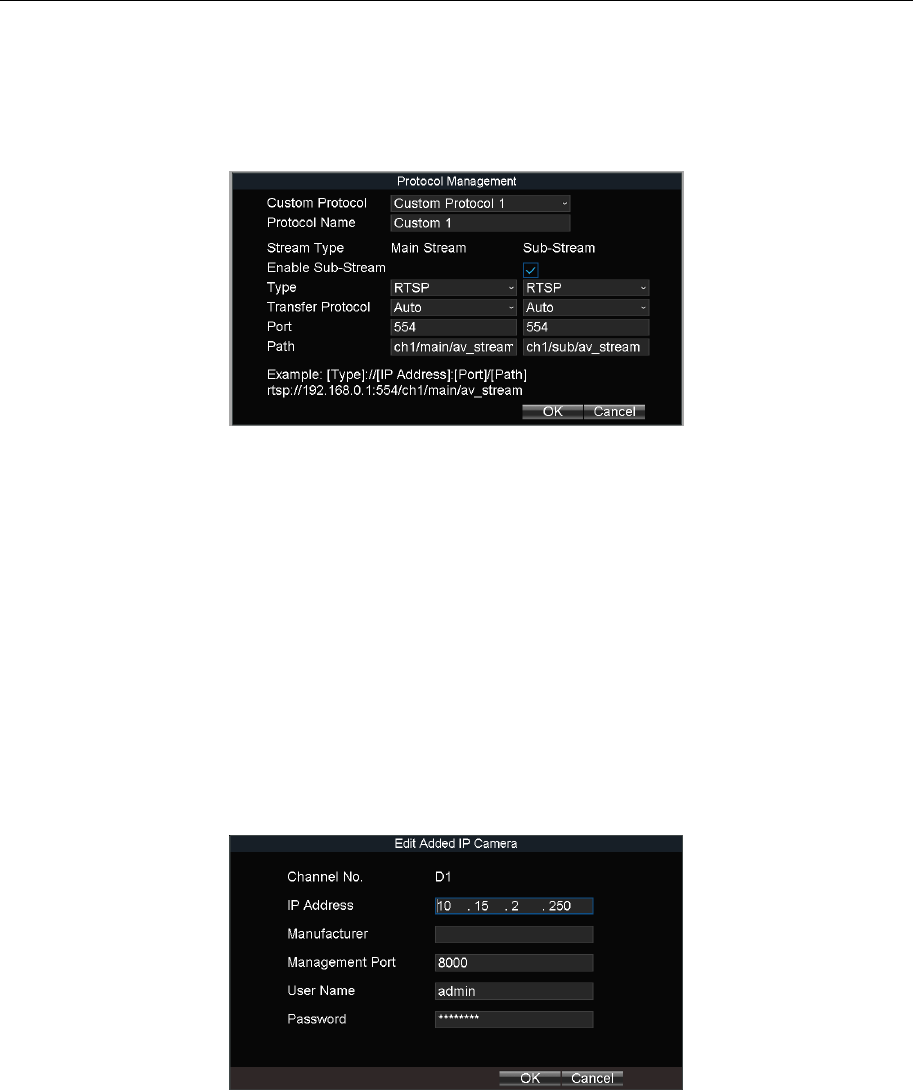

5.2.3 Edit Protocol .................................................................................................................................................... 30
5.3 Edit IP Cameras .......................................................................................................................................................... 31

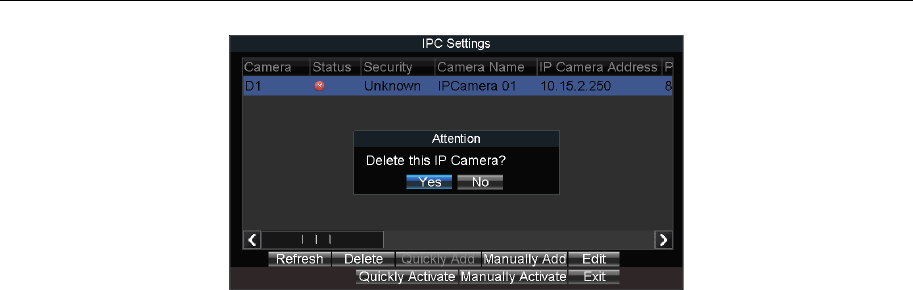

5.4 Delet IP Cameras ........................................................................................................................................................ 31
Chapter 6 Camera Management ........................................................................................................................................... 33

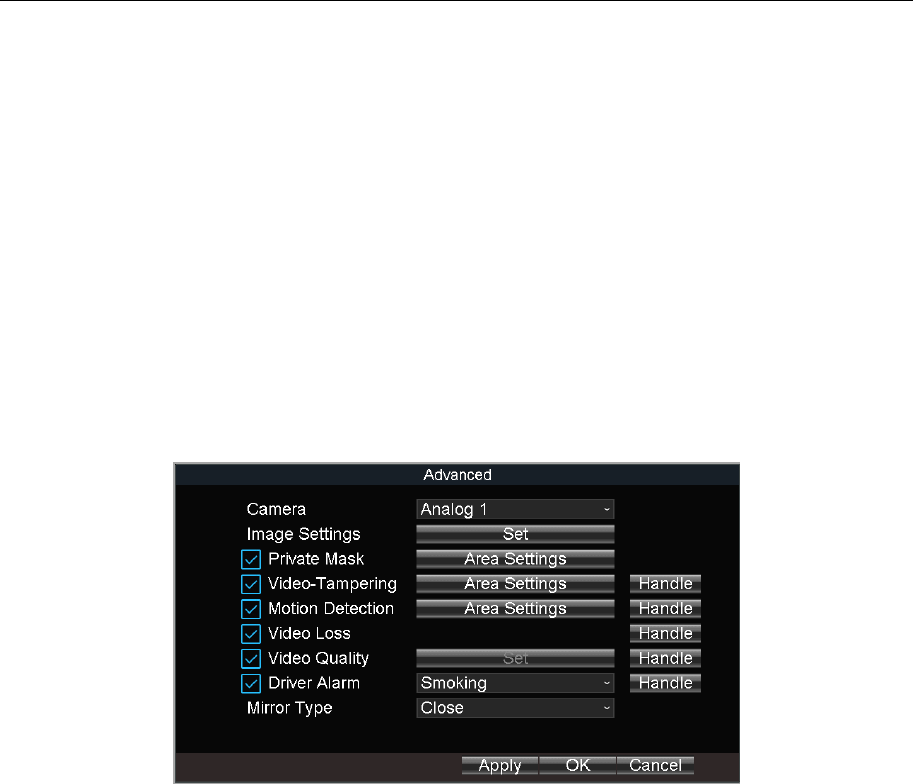

6.1 Basic Image Settings .................................................................................................................................................. 33

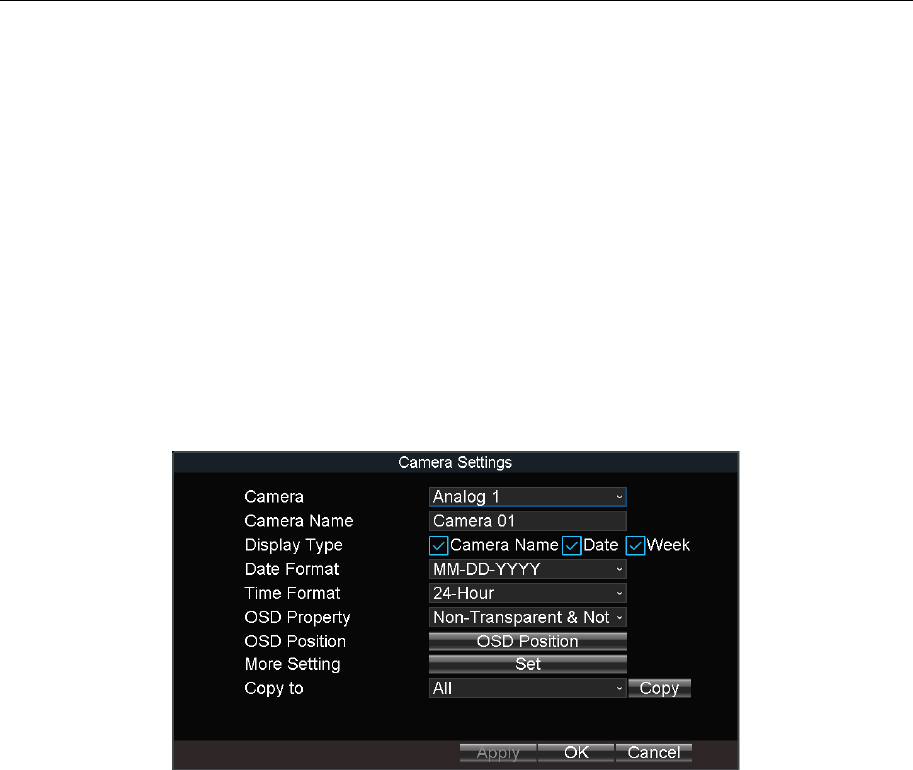

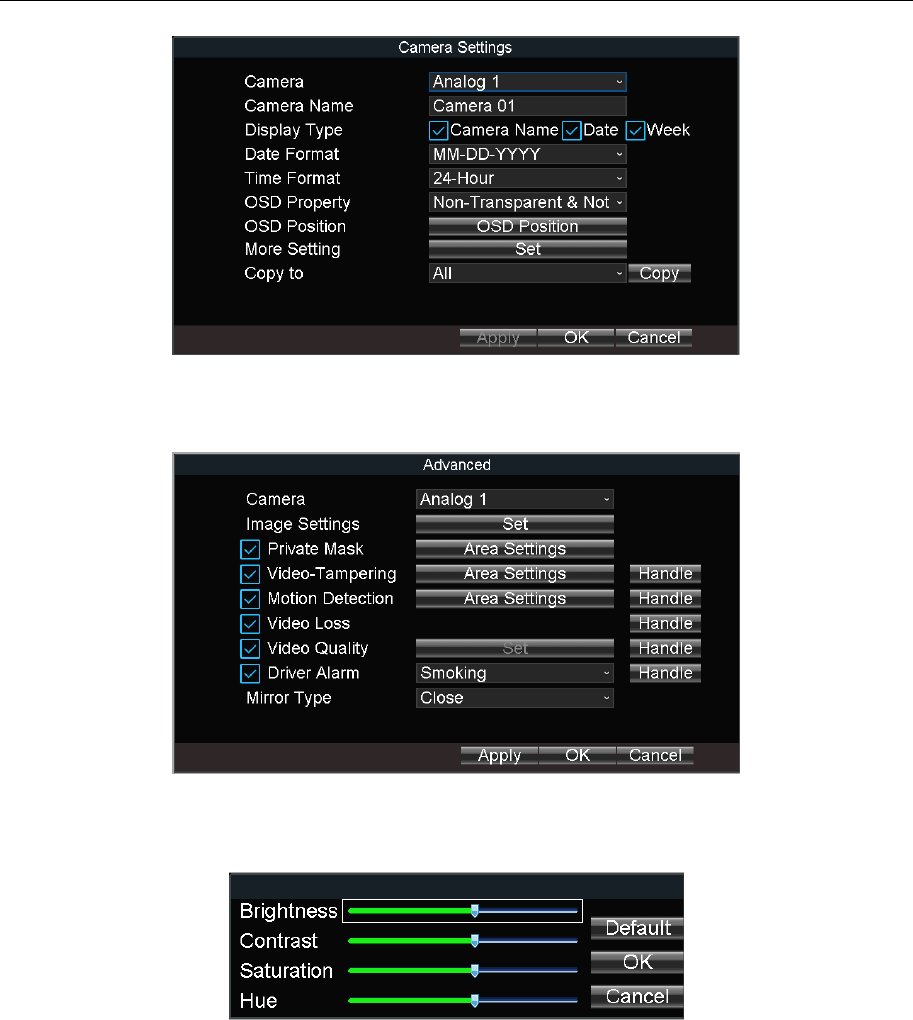

6.1.1 Set OSD Parameters ........................................................................................................................................ 33
6.1.2 Set Image Parameters ...................................................................................................................................... 33
6.1.3 Set TVI Camera ............................................................................................................................................... 34

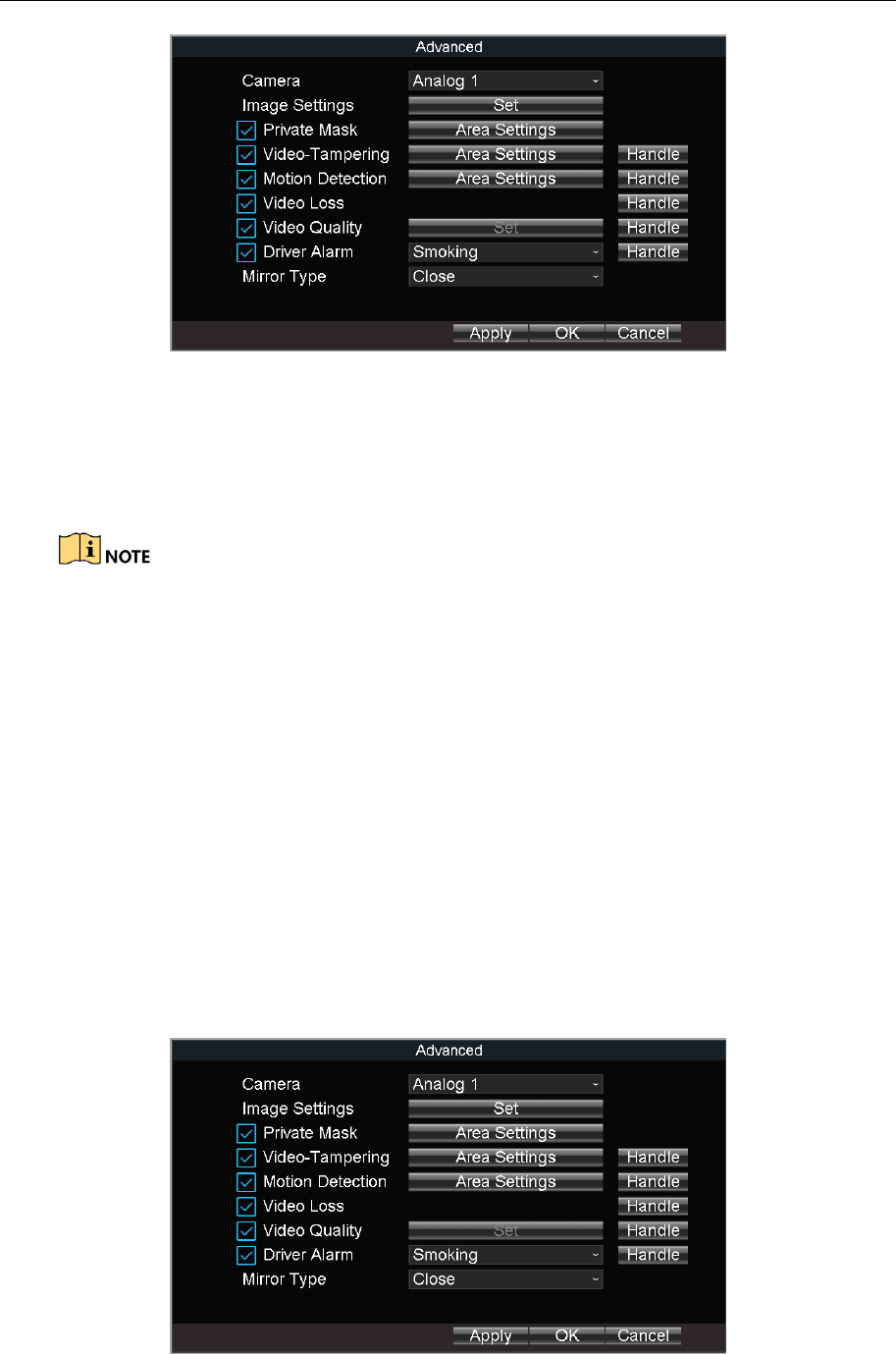

6.2 Set Privacy Mask ........................................................................................................................................................ 35

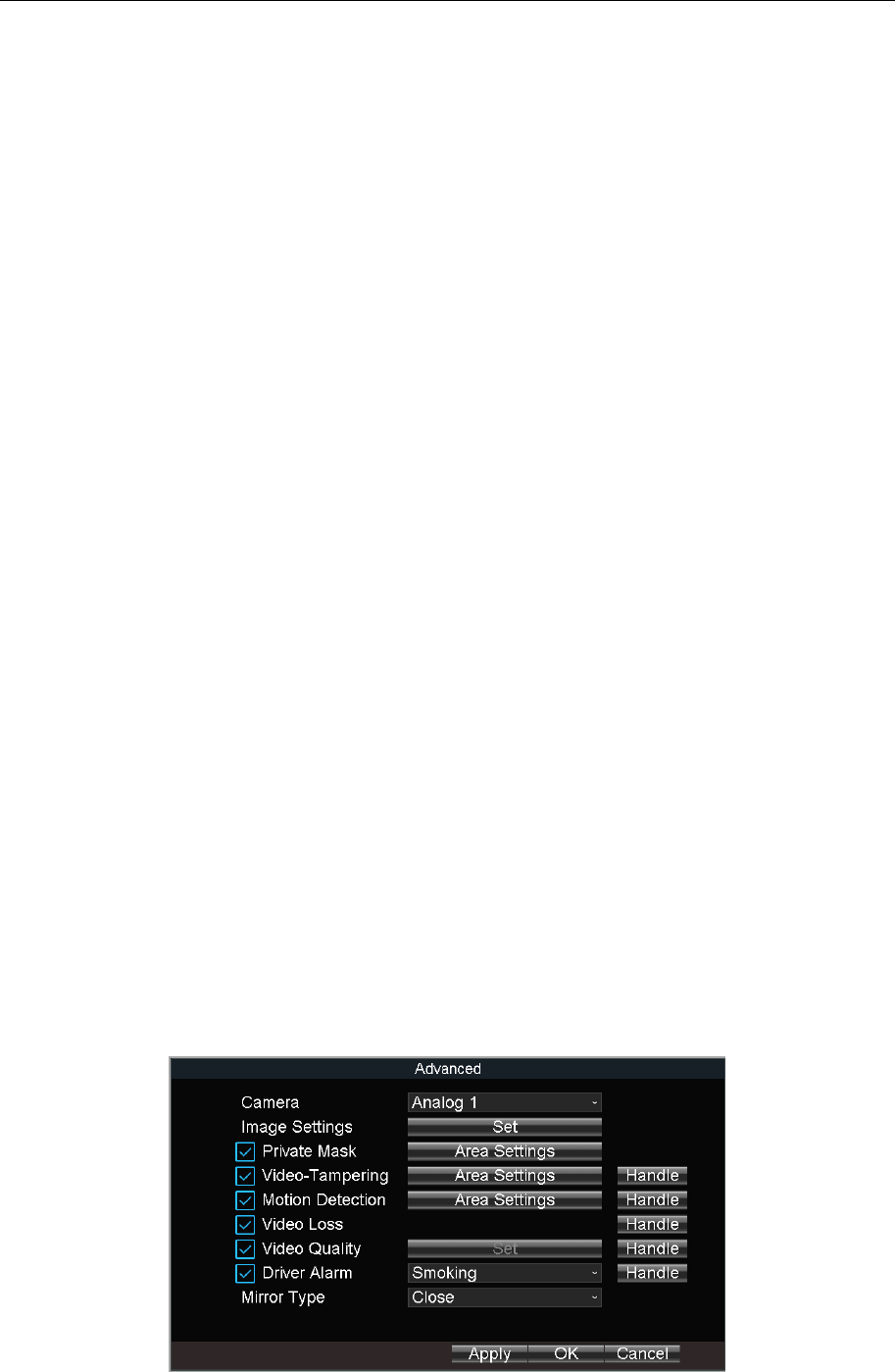

6.3 Set Mirror Type .......................................................................................................................................................... 36
Chapter 7 Live View ............................................................................................................................................................... 38

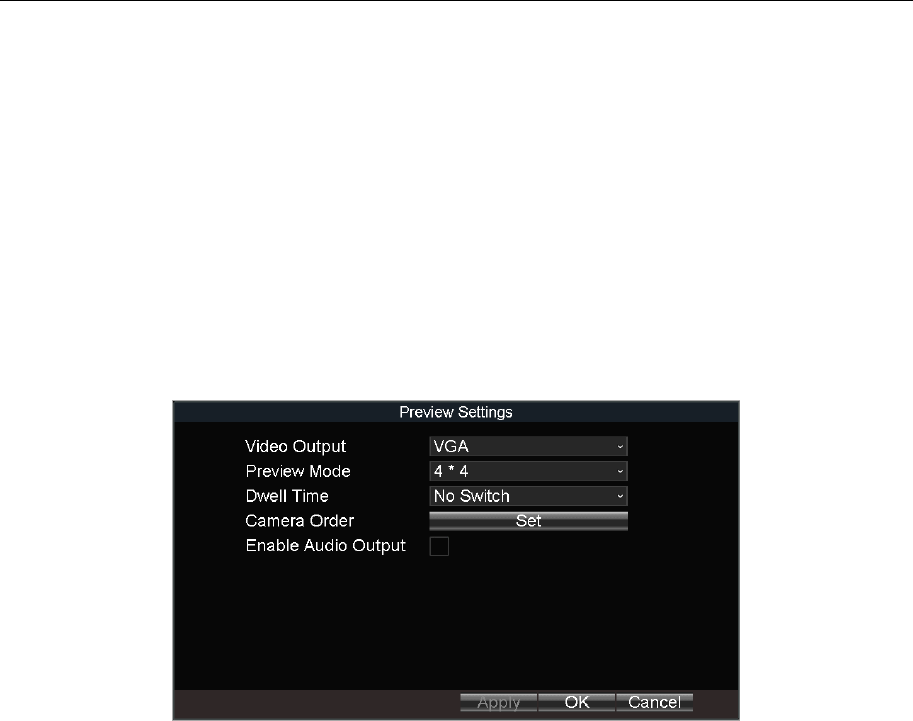

7.1 Preview Settings ......................................................................................................................................................... 38
7.2 Set Camera Order ....................................................................................................................................................... 38
Mobile Digital Video Recorder User Manual
2
7.3 Right-Click Menu ....................................................................................................................................................... 39
7.4 PTZ Operation ............................................................................................................................................................ 40
7.4.1 Configure PTZ Settings ................................................................................................................................... 40

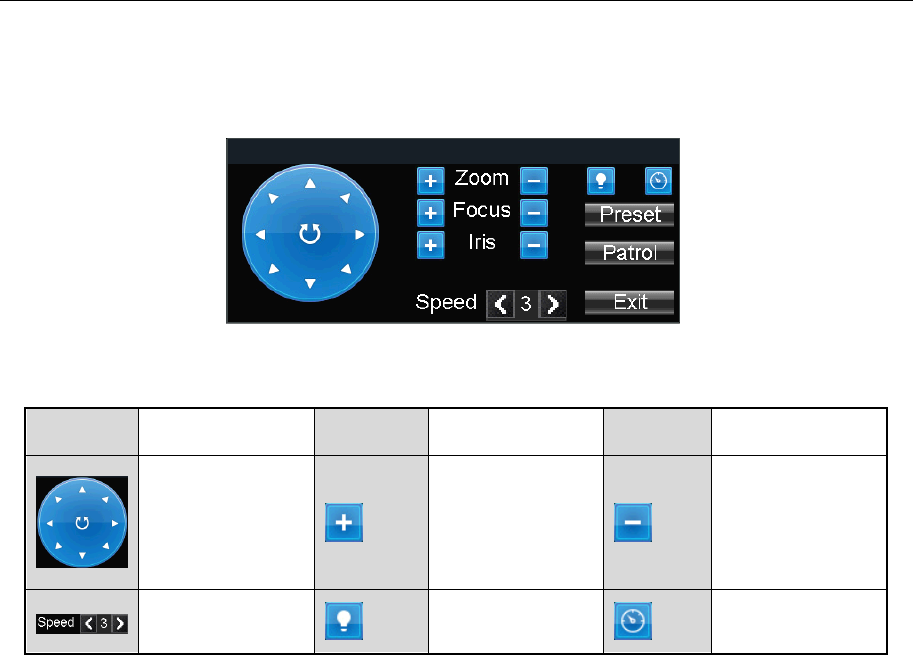

7.4.2 PTZ Control Panel ........................................................................................................................................... 41
Chapter 8 Storage ................................................................................................................................................................... 42

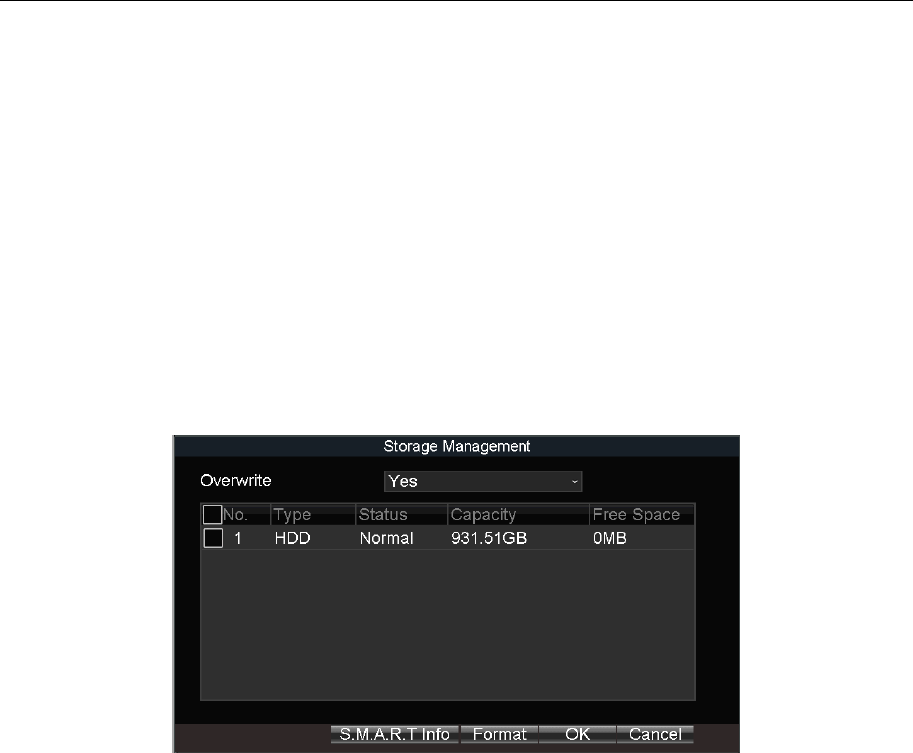

8.1 Storage Settings .......................................................................................................................................................... 42
8.1.1 Format HDD .................................................................................................................................................... 42
8.1.2 Configure Overwrite ........................................................................................................................................ 42

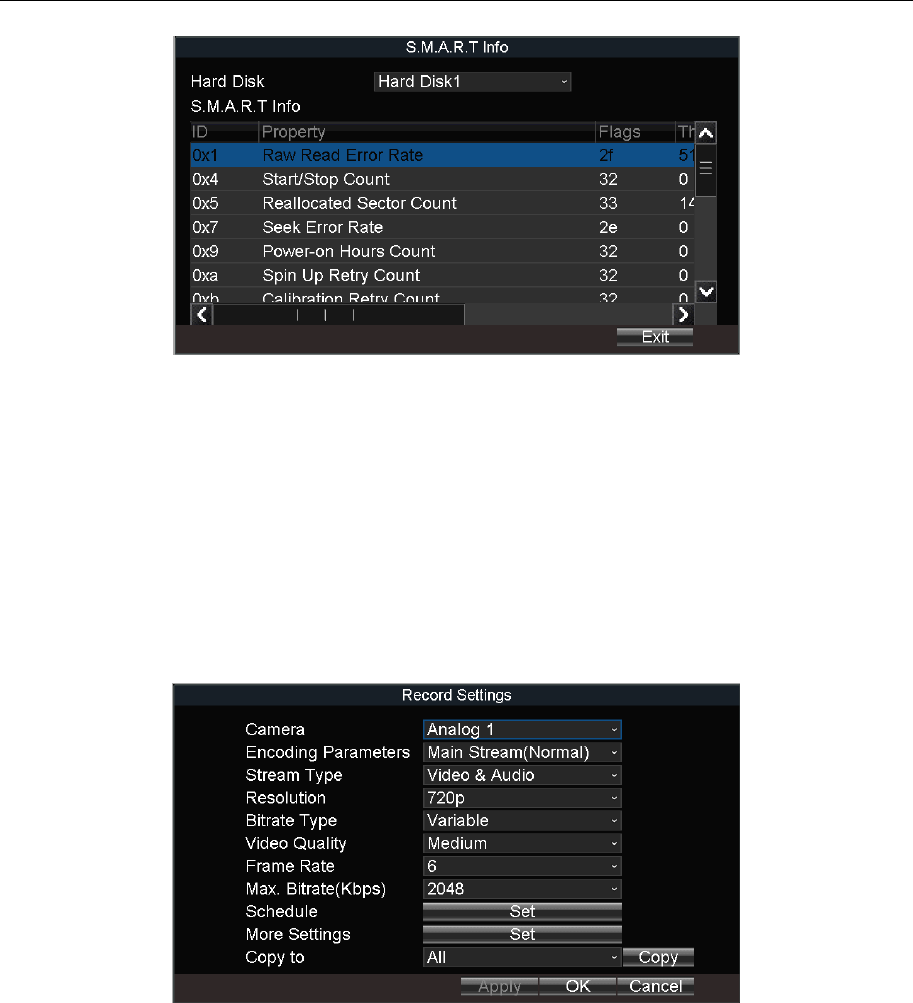

8.1.3 View S.M.A.R.T. Information ......................................................................................................................... 43
8.2 Recording Settings ..................................................................................................................................................... 44

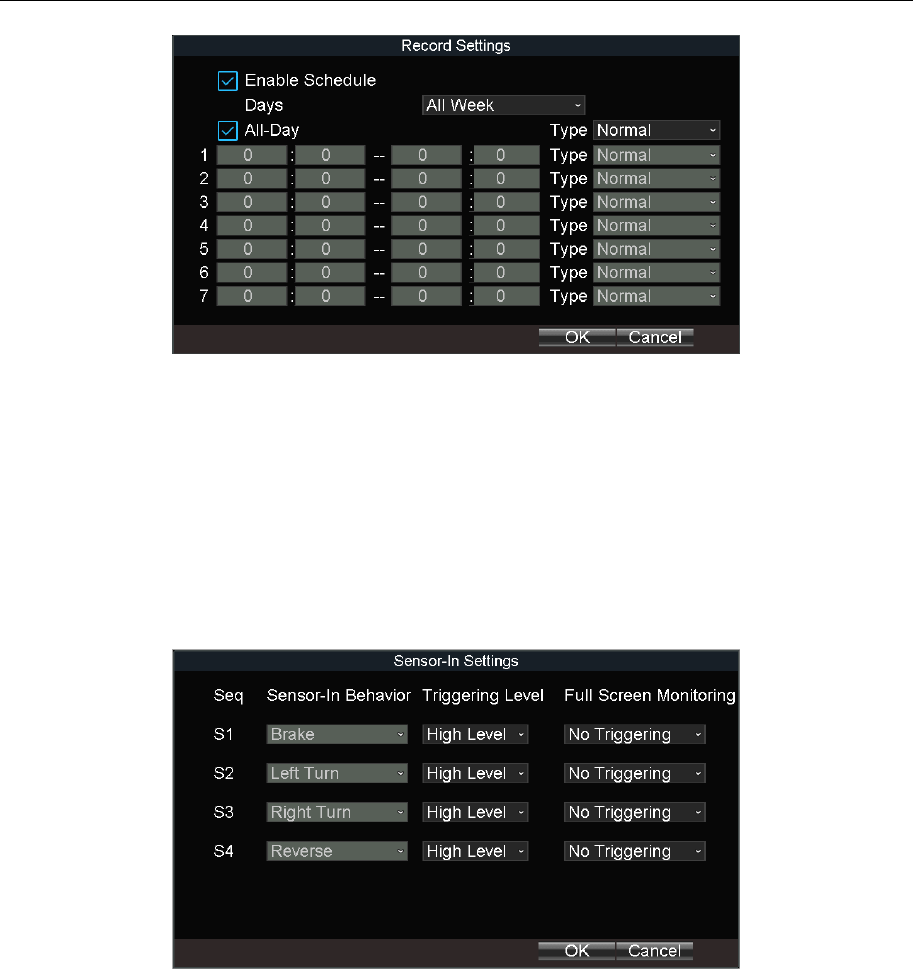

8.2.1 Configure Record Settings ............................................................................................................................... 44
8.2.2 Configure Motion Detection Recording .......................................................................................................... 45
8.2.3 Configure Alarm Triggered Recording ............................................................................................................ 46
8.2.4 Configure Alarm Terminal ............................................................................................................................... 46
8.2.5 Configure Schedule ......................................................................................................................................... 47
8.3 Sensor-in Settings ....................................................................................................................................................... 48
Chapter 9 Playback ................................................................................................................................................................ 49
9.1 Instant Playback ......................................................................................................................................................... 49

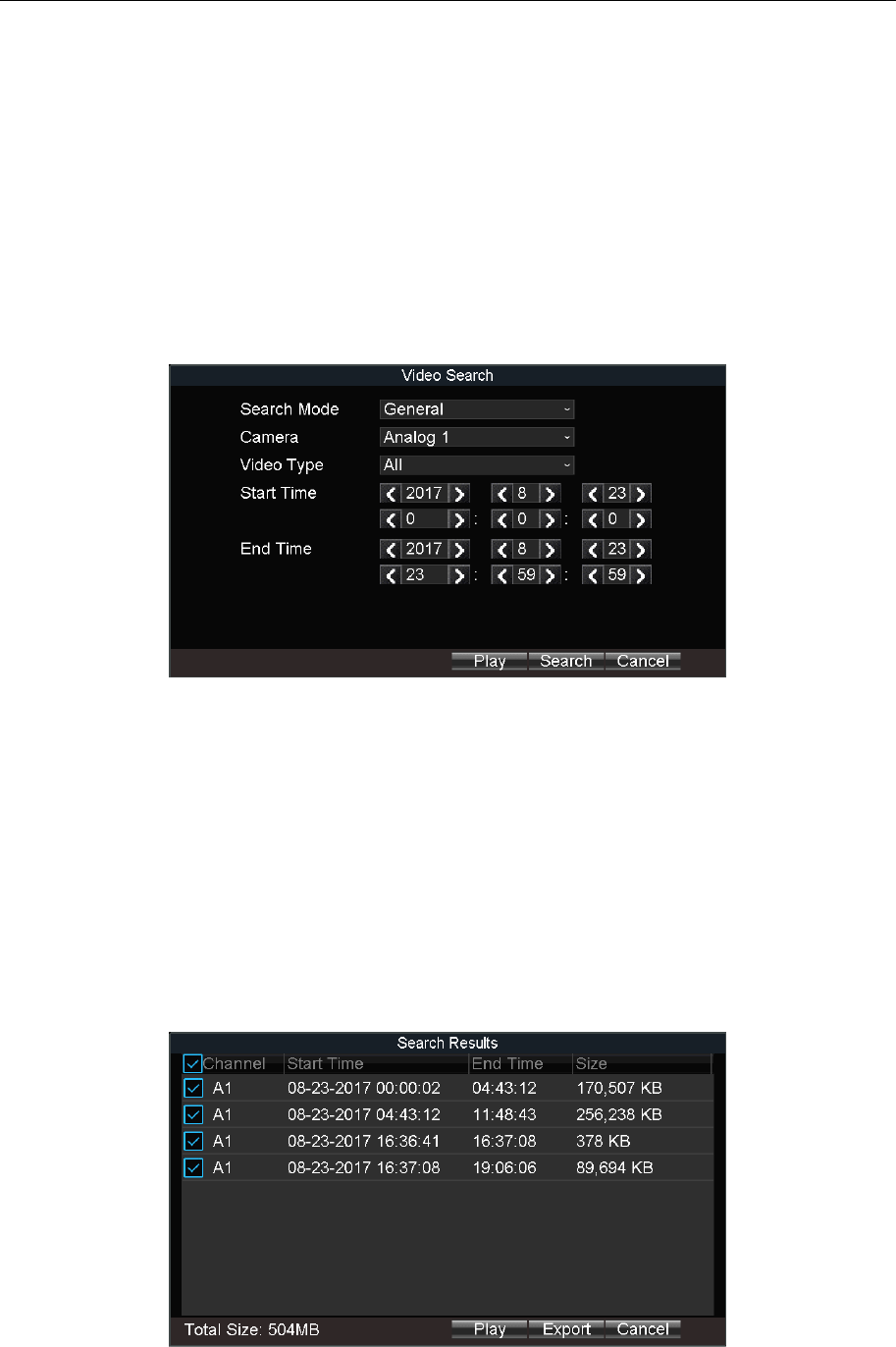

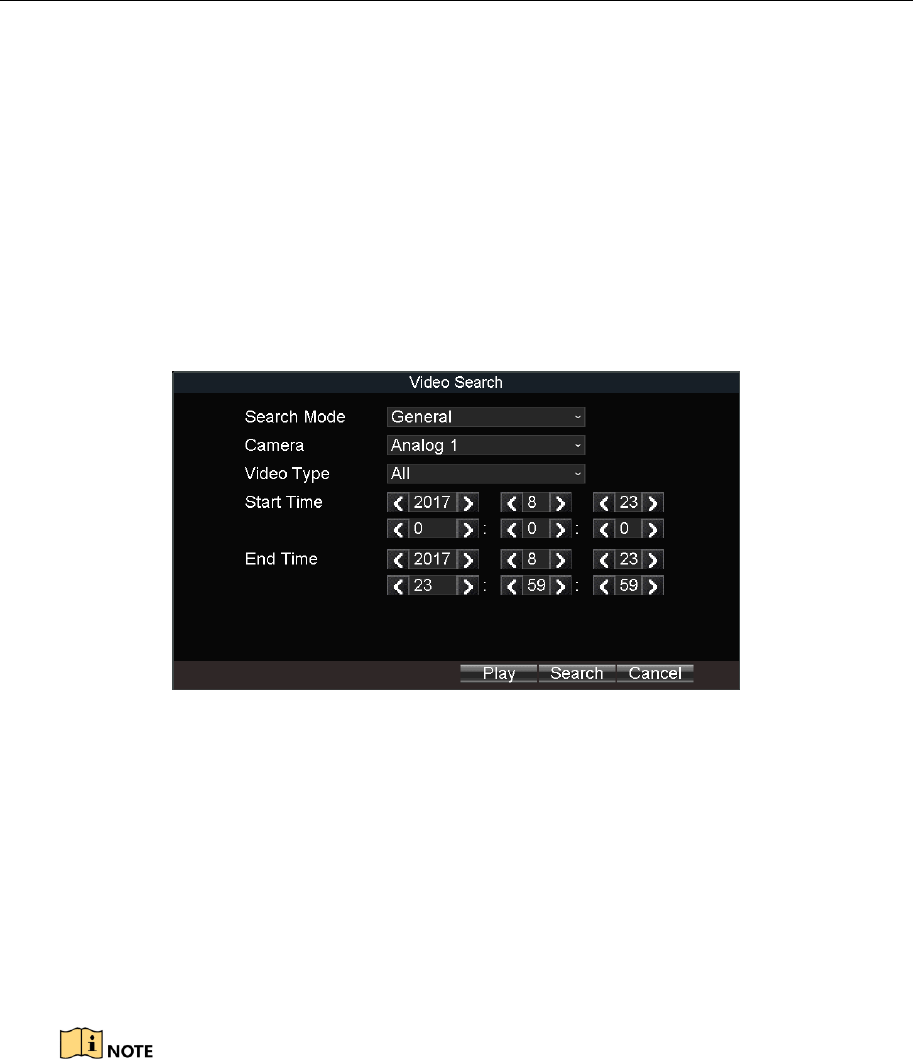

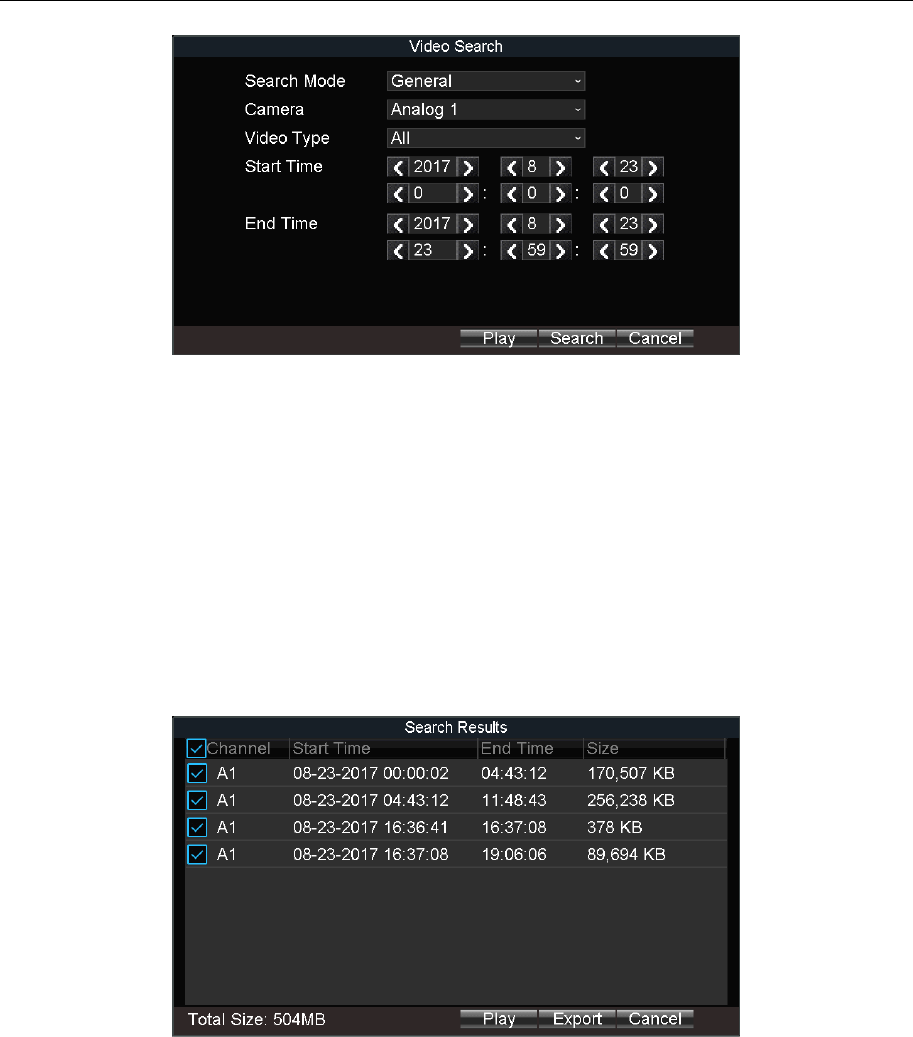

9.2 Play Video by File ...................................................................................................................................................... 49
Chapter 10 Platform .............................................................................................................................................................. 51

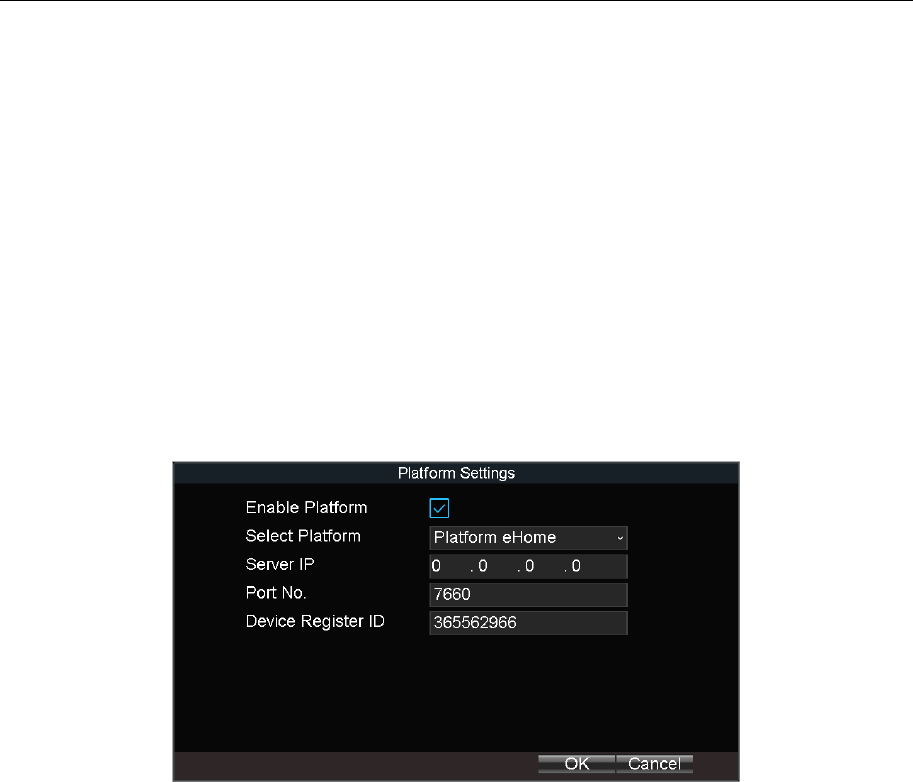

10.1 Ehome ...................................................................................................................................................................... 51
10.2 Guarding Vision........................................................................................................................................................ 51
10.3 Register Device in Guarding Vision platform ........................................................................................................... 52
Chapter 11 Backup ................................................................................................................................................................. 53
11.1 Manual Backup ......................................................................................................................................................... 53
11.2 Format Backup Device ............................................................................................................................................. 54
Chapter 12 Events and Alarms.............................................................................................................................................. 55
12.1 Configure Motion Detection Alarm .......................................................................................................................... 55

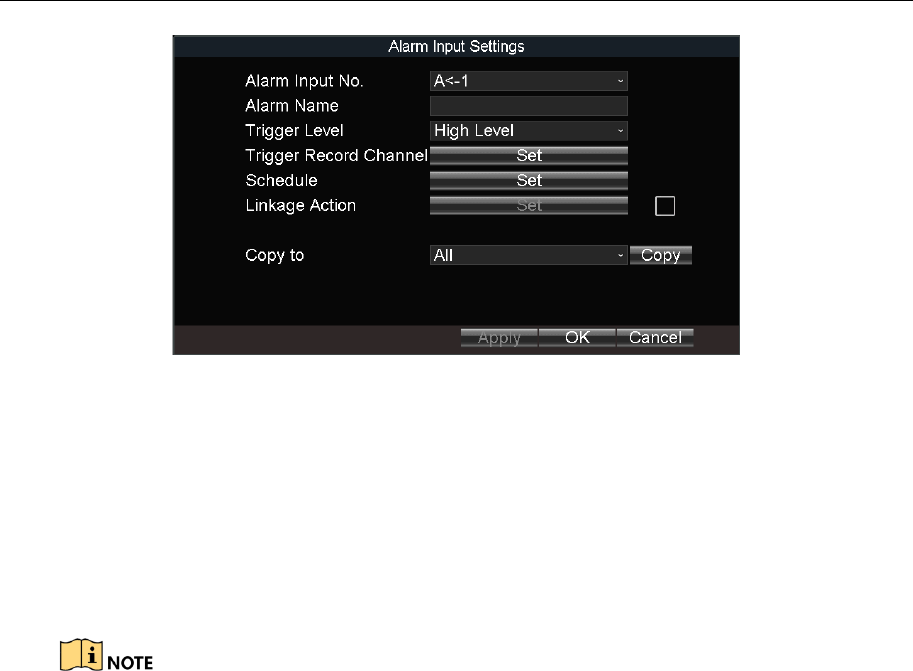

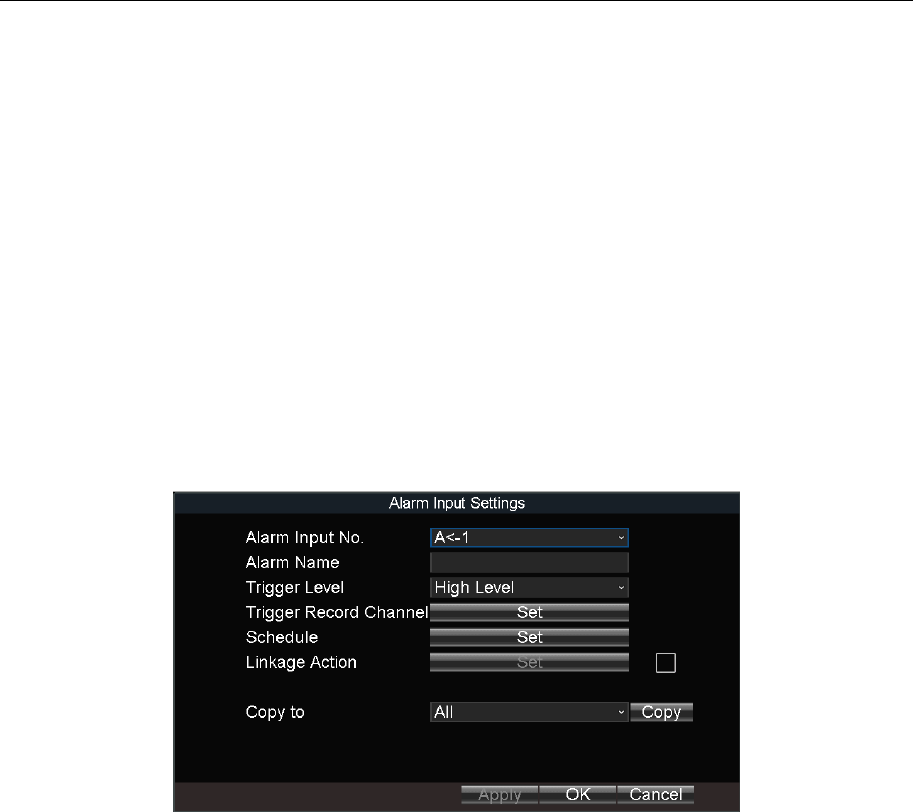

12.2 Configure Alarm Input ............................................................................................................................................. 55

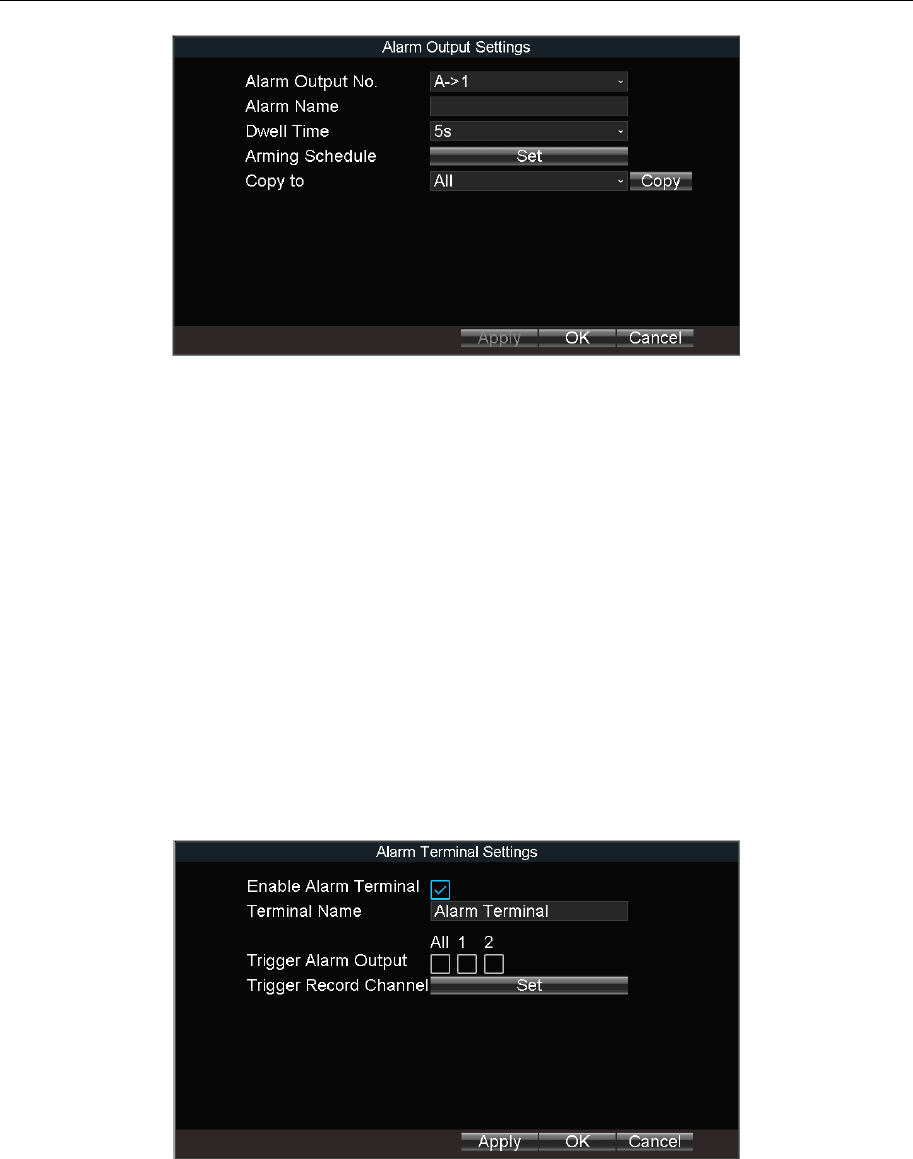

12.3 Configure Alarm Output ........................................................................................................................................... 56

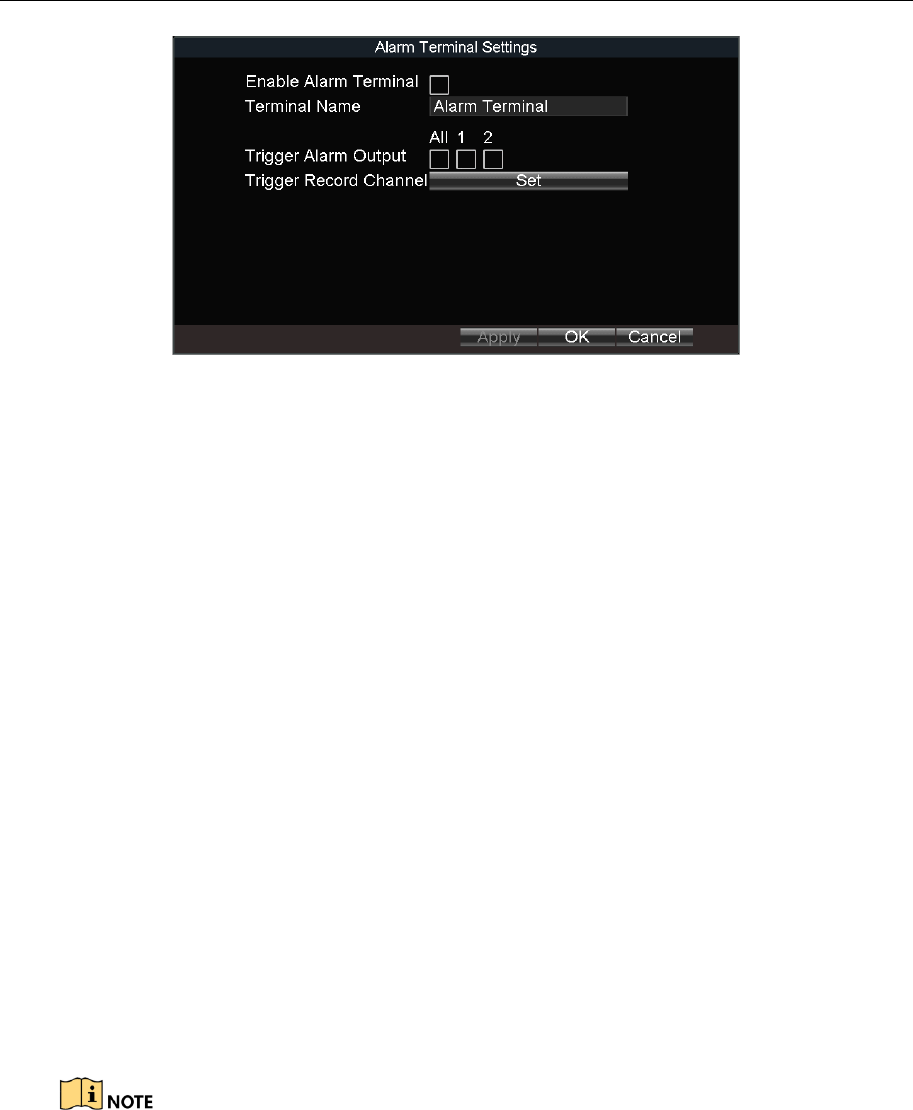

12.4 Configure Alarm Terminal ........................................................................................................................................ 57
12.5 Configure Video Loss Alarm .................................................................................................................................... 58
12.6 Configure Video Tampering Alarm .......................................................................................................................... 58
12.7 Configure Video Quality Diagnostics ....................................................................................................................... 59

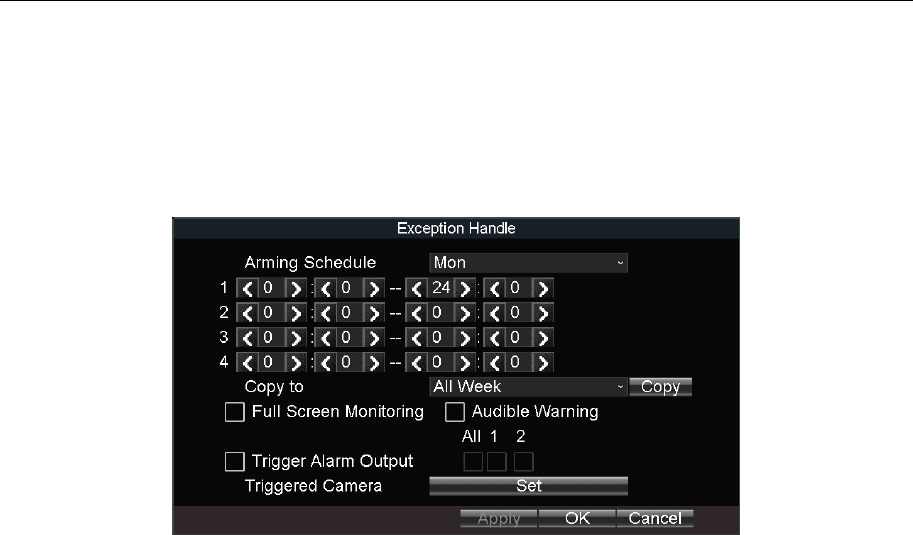

12.8 Configure Exception Alarm ...................................................................................................................................... 60

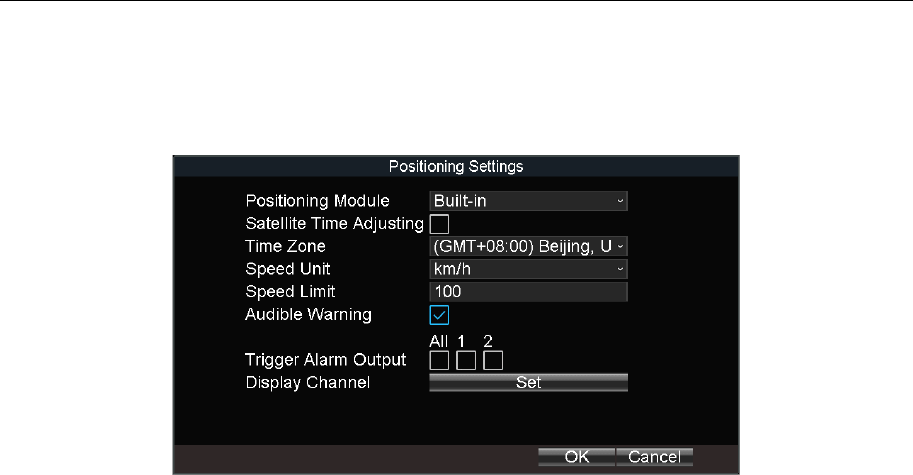

12.9 Configure Satellite Positioning ................................................................................................................................. 60

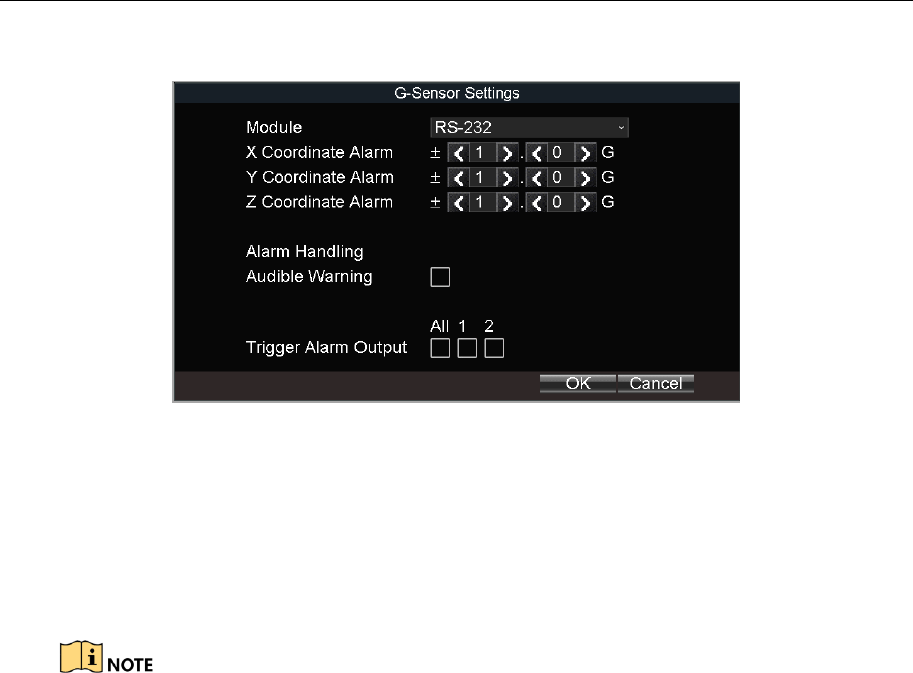

12.10 Configure G-Sensor Alarm ..................................................................................................................................... 61
12.11 Configure Arming Schedule and Linkage Actions .................................................................................................. 62
12.12 Configure Detection Area ....................................................................................................................................... 63
Chapter 13 User Account Management ................................................................................................................................ 64

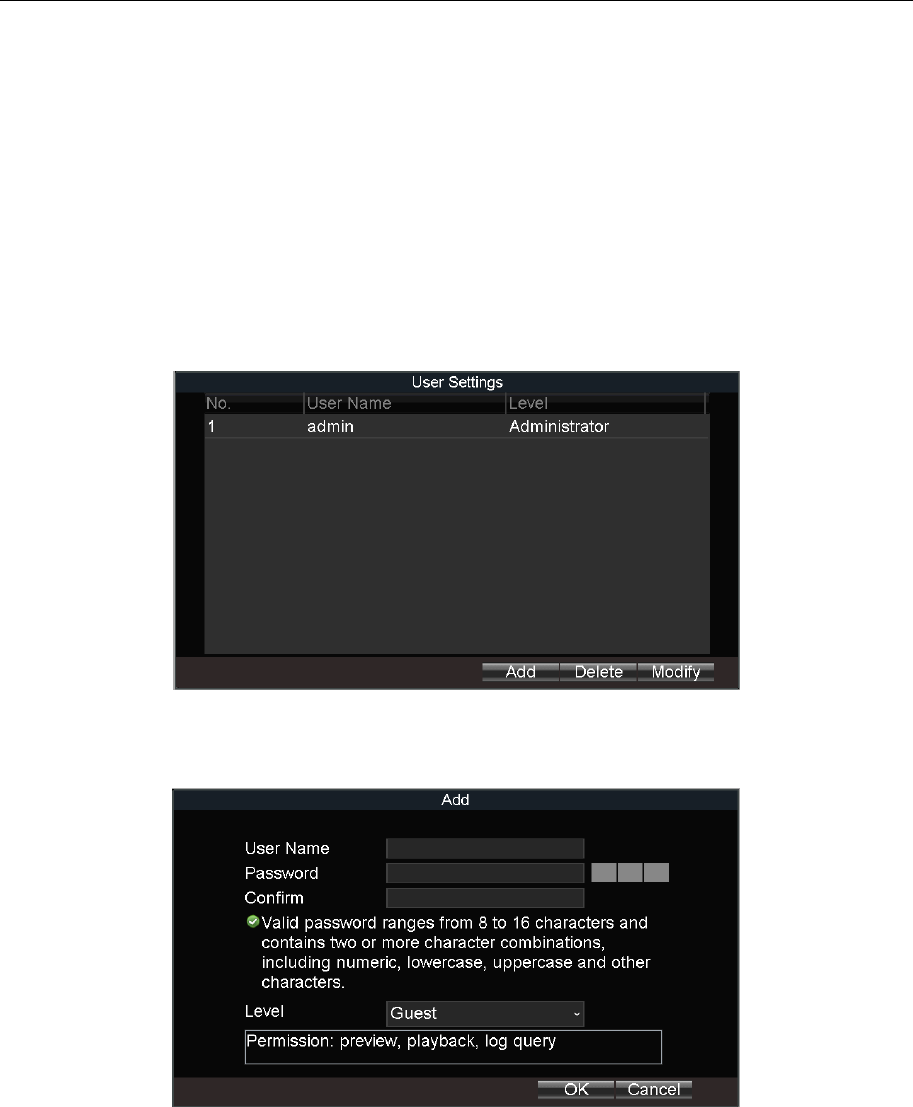

13.1 Add User ................................................................................................................................................................... 64
13.2 Delete User ............................................................................................................................................................... 65
13.3 Edit User ................................................................................................................................................................... 65
Chapter 14 General System Configuration .......................................................................................................................... 66
Mobile Digital Video Recorder User Manual
3

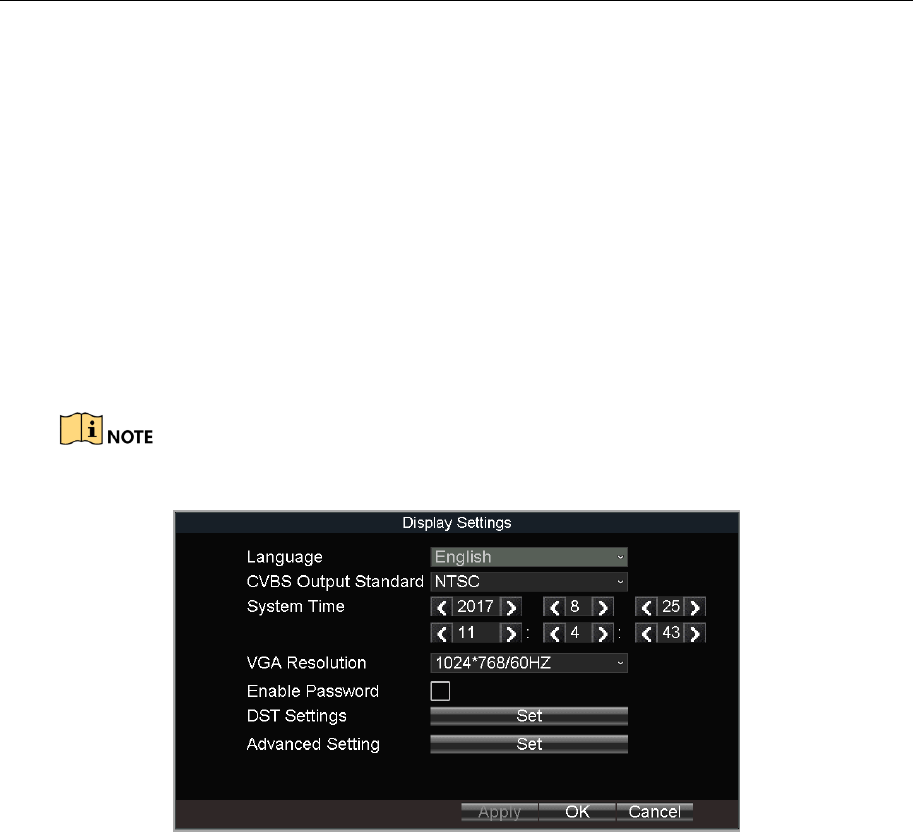

14.1 Configure Basic Display Settings ............................................................................................................................. 66

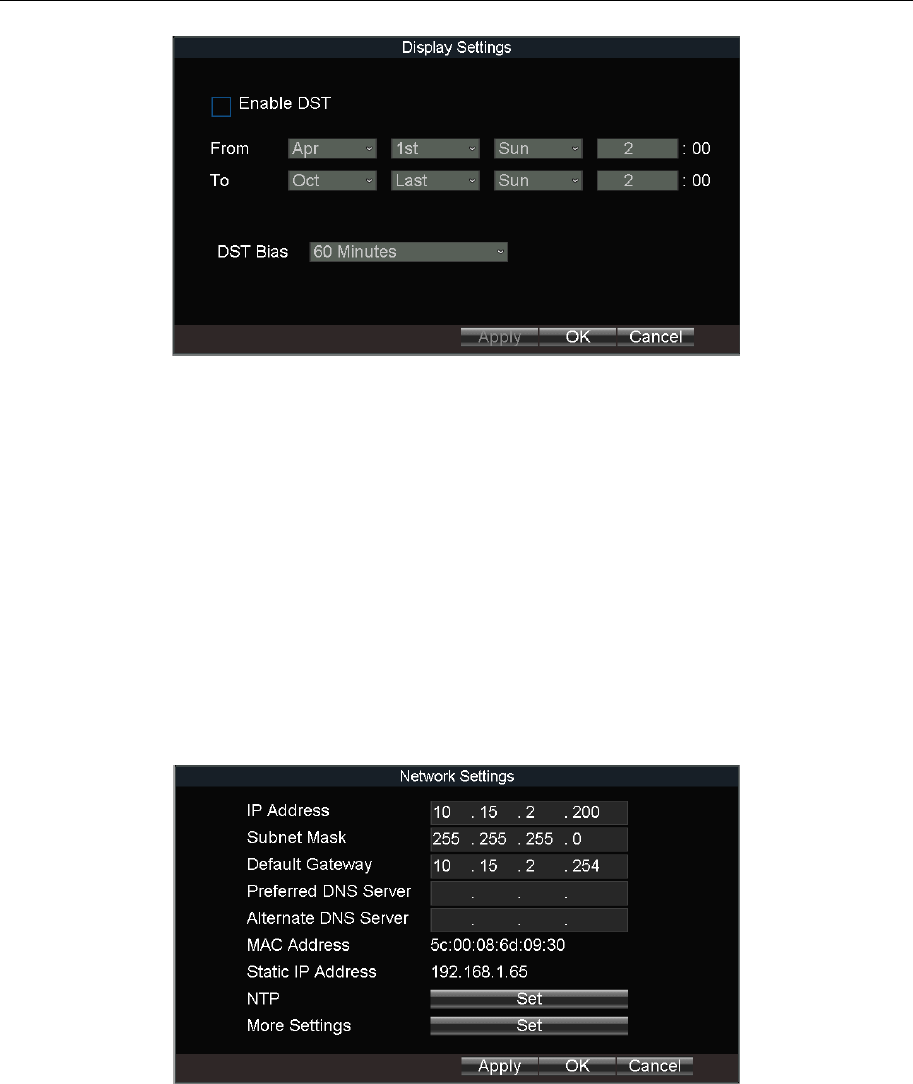

14.2 Configure DST Settings............................................................................................................................................ 66

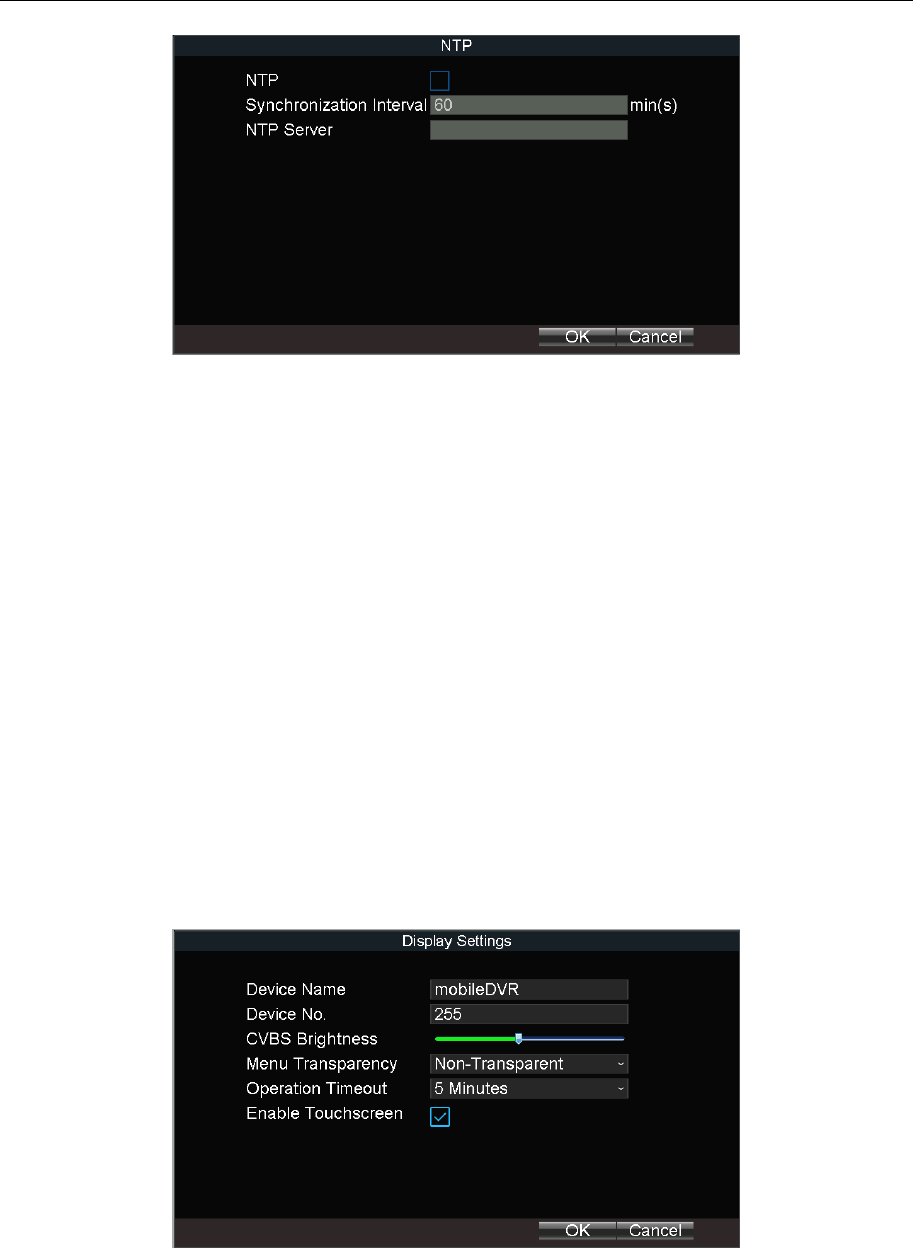

14.3 Configure NTP ......................................................................................................................................................... 67
14.4 Configure Advanced Display Settings ...................................................................................................................... 68
Chapter 15 Maintenance ........................................................................................................................................................ 70

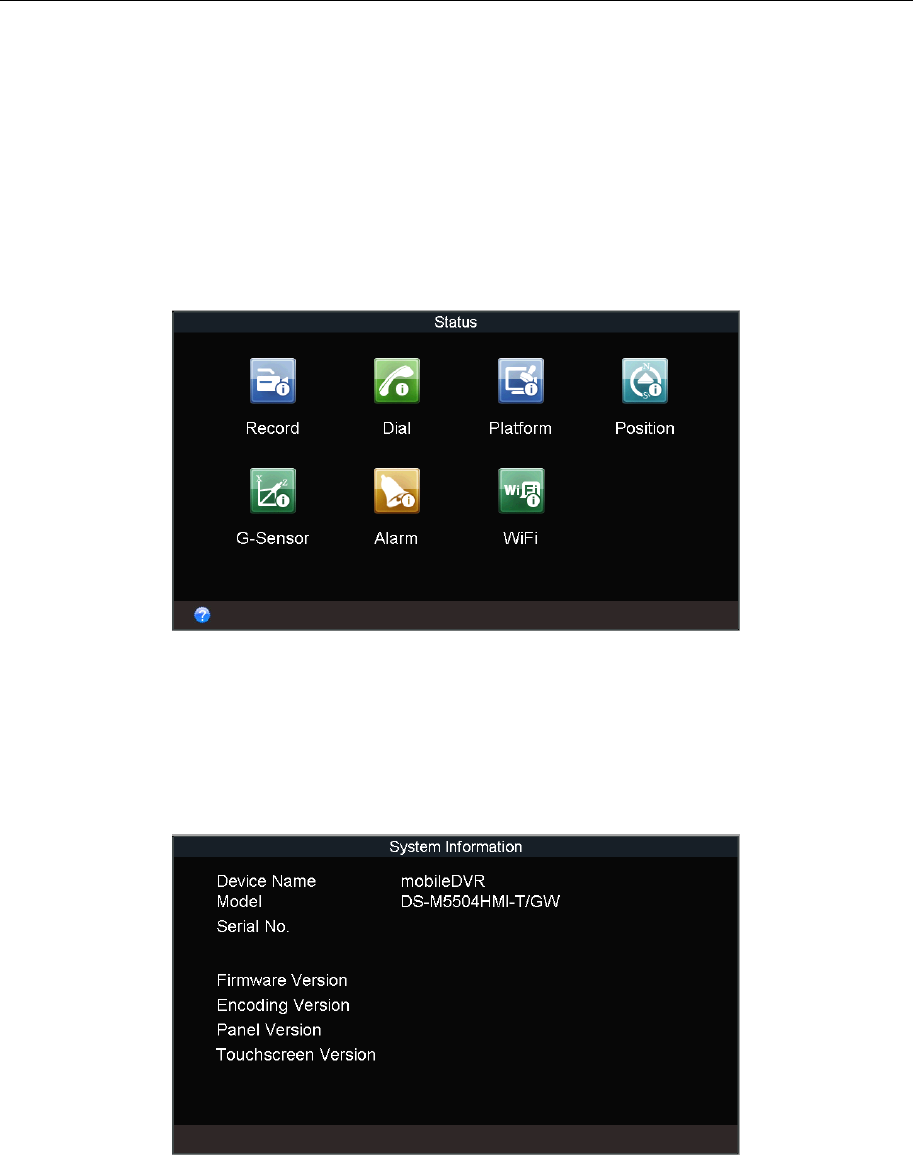

15.1 Check Status ............................................................................................................................................................. 70
15.2 View System Information ......................................................................................................................................... 70
15.3 Upgrade the System .................................................................................................................................................. 70

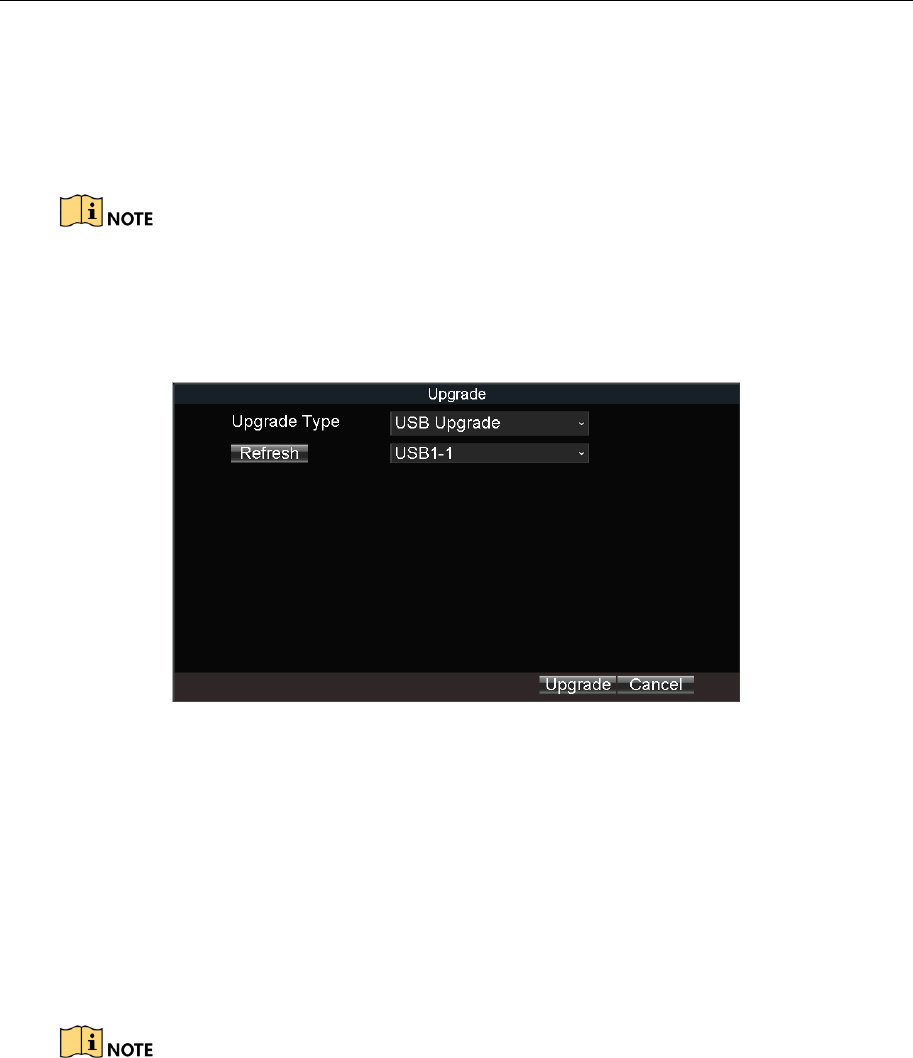

15.3.1 Upgrade by Local USB Flash Disk ................................................................................................................ 71

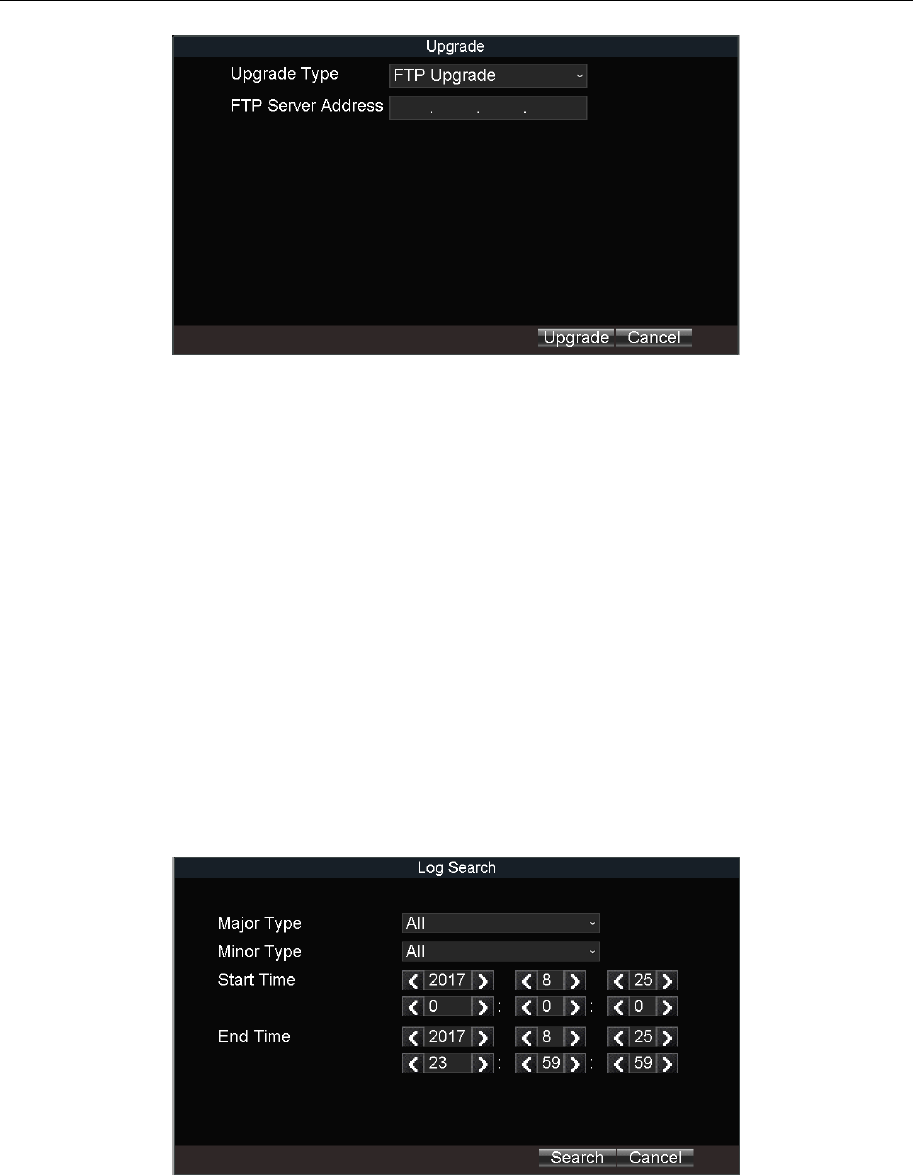

15.3.2 Upgrade by Remote FTP server ..................................................................................................................... 71
15.4 Log Operation........................................................................................................................................................... 72

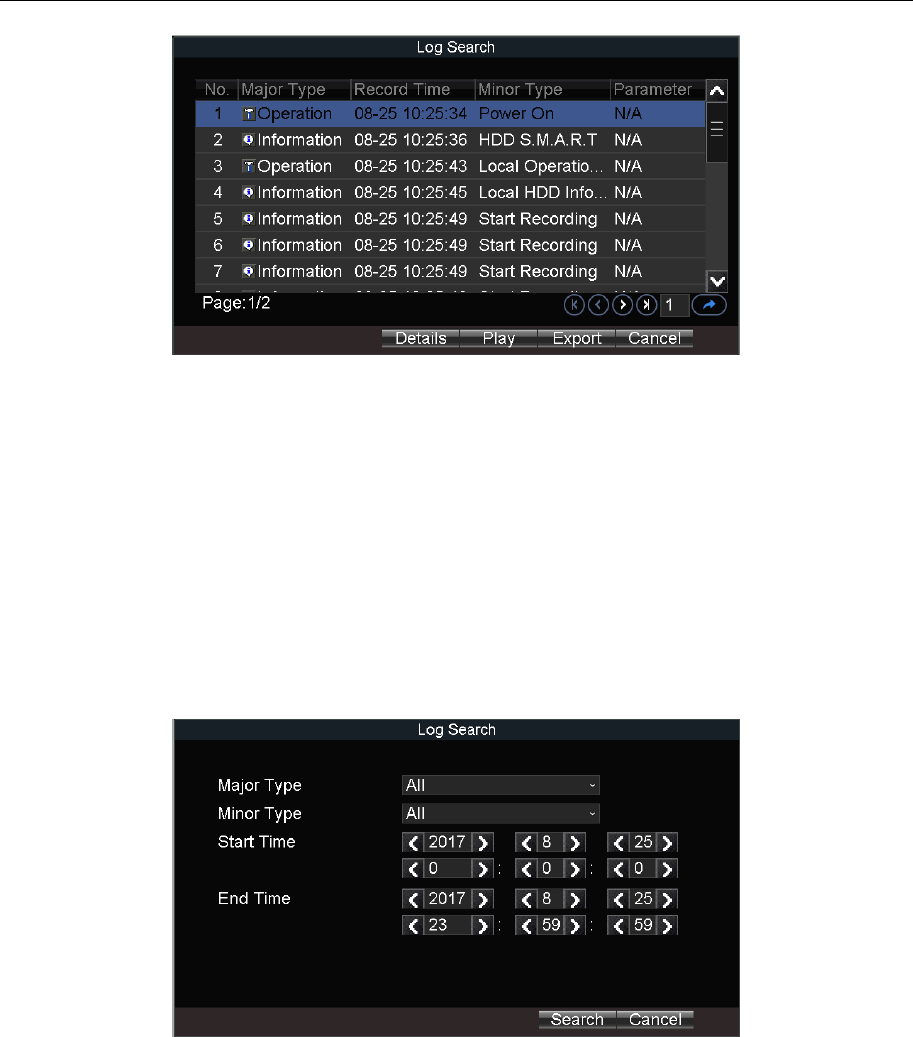

15.4.1 View Log Files............................................................................................................................................... 72
15.4.2 Export Log Files ............................................................................................................................................ 73

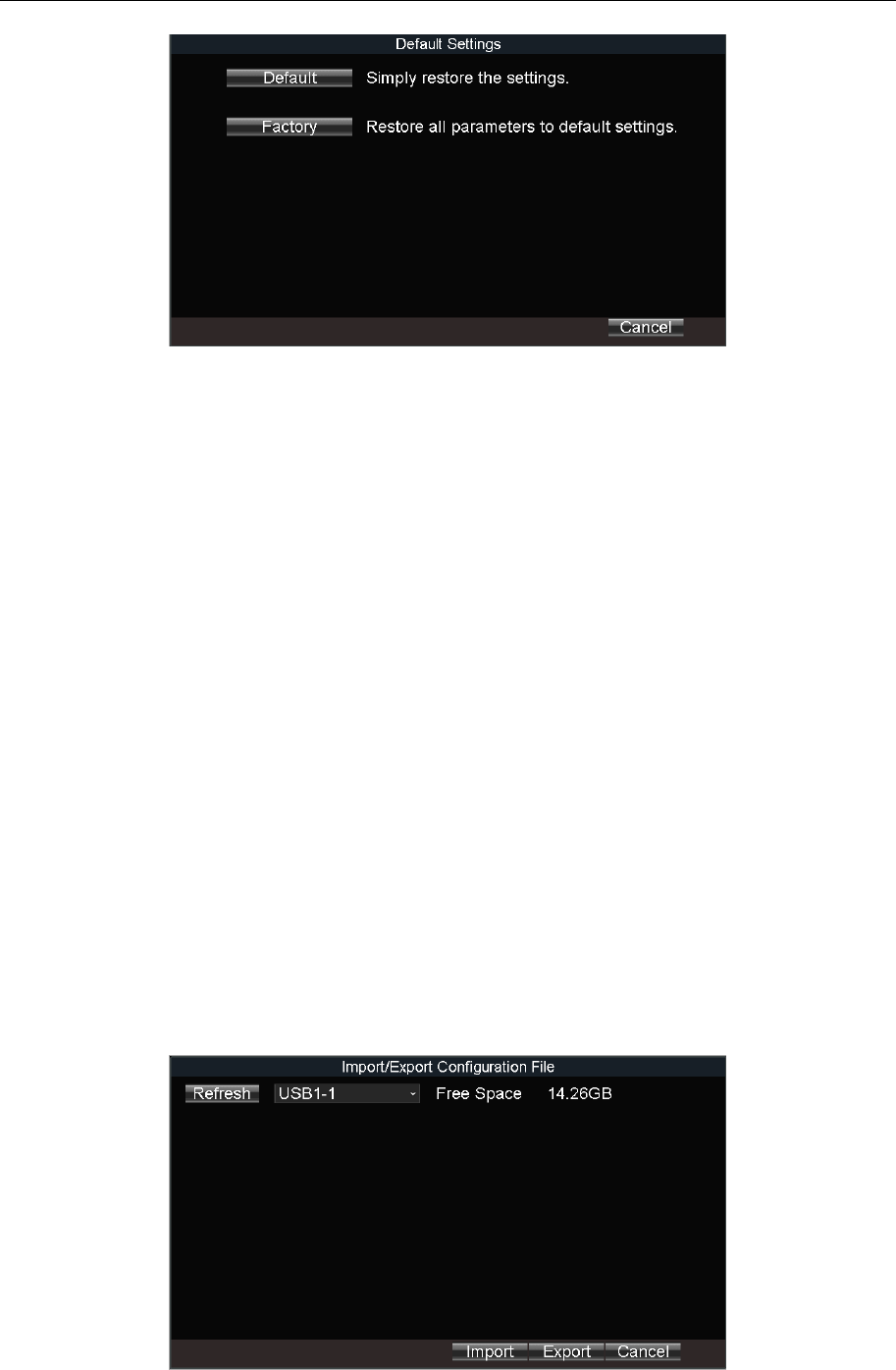

15.5 Restoring Default Settings ........................................................................................................................................ 73

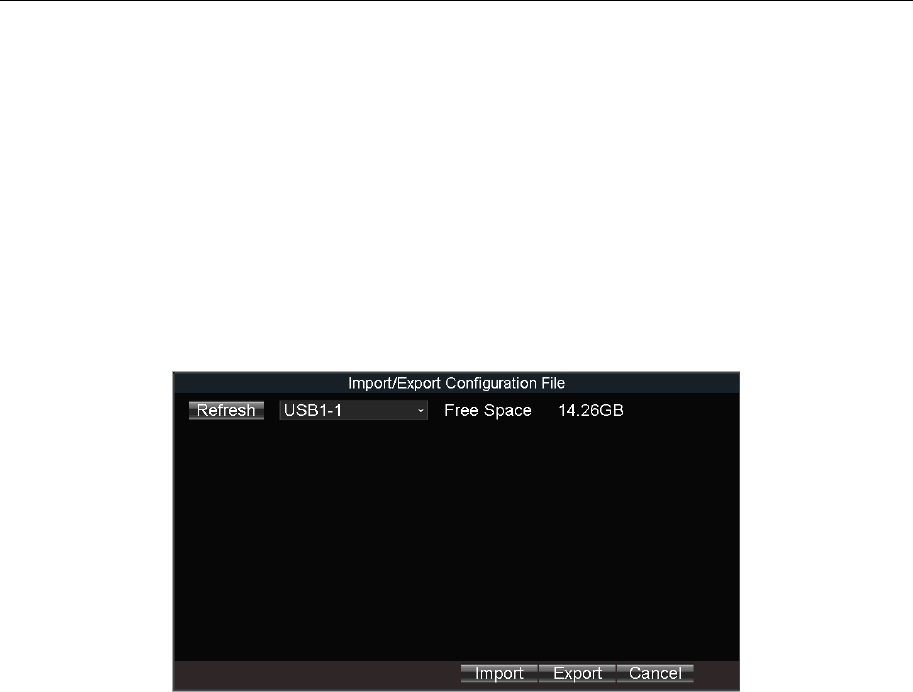

15.6 Import/Export Configuration Files ........................................................................................................................... 74
15.6.1 Import Configuration Files ............................................................................................................................ 74
15.6.2 Export Configuration Files ............................................................................................................................ 75

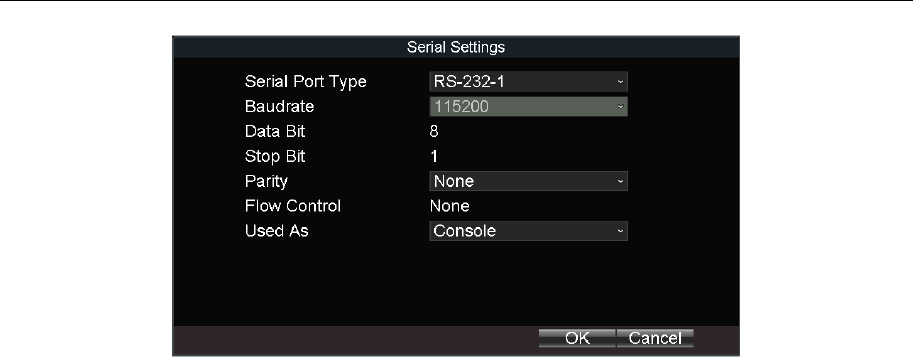

15.7 Serial Port Settings ................................................................................................................................................... 75
Chapter 16 Shut Down Device ............................................................................................................................................... 77

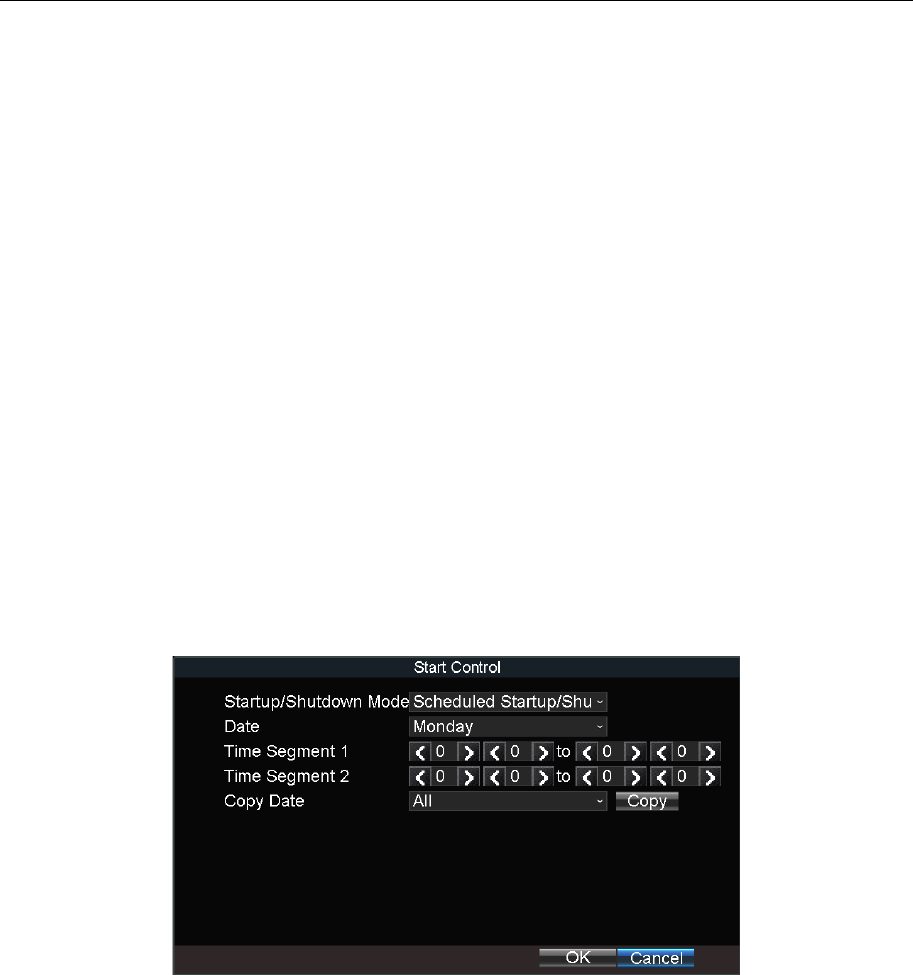

16.1 Enable Scheduled Startup/Shutdown ........................................................................................................................ 77
16.2 Enable Halt Delay .................................................................................................................................................... 77
16.3 Reboot DVR ............................................................................................................................................................. 78
Chapter 17 Appendix ............................................................................................................................................................... 0
17.1 Glossary ...................................................................................................................................................................... 0
17.2 FAQ ............................................................................................................................................................................ 1

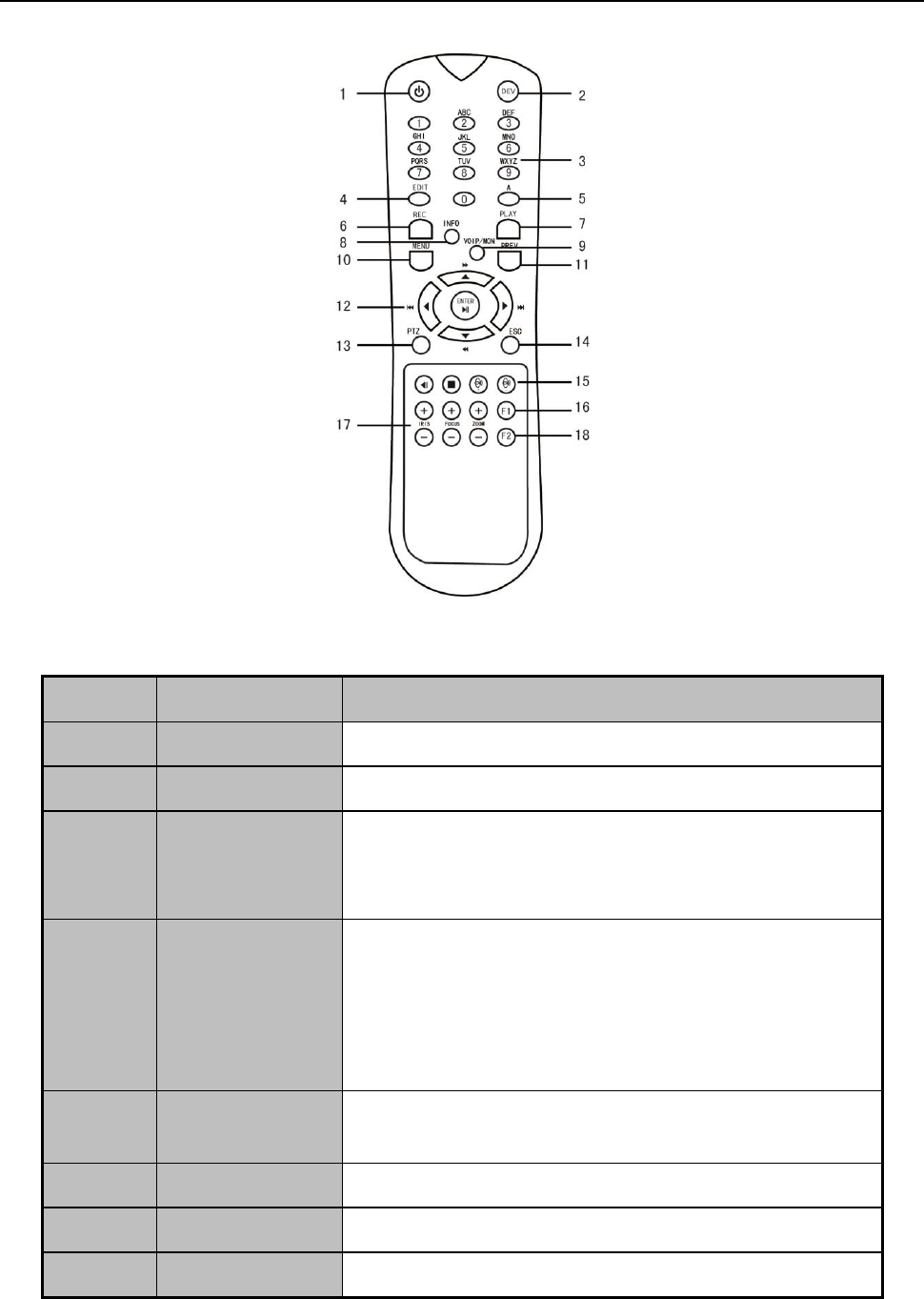

17.3 Remote Control .......................................................................................................................................................... 2
17.3.1 Buttons Description ......................................................................................................................................... 2
17.3.2 Operation Introduction .................................................................................................................................... 4
17.3.3 Troubleshooting ............................................................................................................................................... 5
17.3.4 Set Areas with Remote Control ....................................................................................................................... 6
Mobile Digital Video Recorder User Manual
4
User Manual
COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the
properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter
referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”)
cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means,
without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision
does not make any warranties, guarantees or representations, express or implied, regarding
to the Manual.
About this Manual
This Manual is applicable to Mobile Digital Video Recorder (MDVR).
The Manual includes instructions for using and managing the product. Pictures, charts,
images and all other information hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in
various jurisdictions. Other trademarks and logos mentioned below are the properties of
their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS
AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY
SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG
OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF
HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE
WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE
CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT
THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE
LATER PREVAILS.
Mobile Digital Video Recorder User Manual
5
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
FCC Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between
the radiator and your body
EU Conformity Statement
Mobile Digital Video Recorder User Manual
6
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For more
information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a designated collection point.
For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Mobile Digital Video Recorder User Manual
7
Applicable Models
This manual is applicable to the models listed in the following table.
Series
Model
DS-M5504HM-T
DS-M5504HM-T(1T)
DS- M5504HM-T/GW(1T)
DS- M5504HM-T/GW/WI58(1T)
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Mobile Digital Video Recorder User Manual
8
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of
the installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited
Power Source with 9 to 32 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the
power cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Keep all liquids away from the device.
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a
result of dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should be used for this device.
Improper use or replacement of the battery may result in hazard of explosion. Replace
with the same or equivalent type only. Dispose of used batteries according to the
instructions provided by the battery manufacturer.
Mobile Digital Video Recorder User Manual
9
Chapter 1 Panel Introduction
1.1 Front Panel
Figure 1-1 Front Panel
Table 1-1 Interface Descrption
No.
Name
1
Dummy HDD lock
2
USB interface
3
IR receiver
4
PWR
RDY
REC
GNSS
ANT
Mobile Digital Video Recorder User Manual
10
1.2 Rear Panel
Figure 1-2 Rear Panel
Table 1-2 Interface Descrption
ALM
5
SD card slot
6
Dummy HDD
No.
Name
Description
1
CH1 to CH4
4 video inputs.
2
RS-232-1
For debugging.
3
RS-232-2
For connecting external devices.
4
USB interface
USB interface of 5-pin aviation plug.
5
Power
6-pin aviation plug for power supply.
6
VGA
VGA video output interface.
7
GNSS antenna
GNSS antenna interface.
8
EXT.DEV
RS-422 communication interface, two-way audio interface,
and CVBS video output.
9
Network
interface
10M/100M RJ45 Ethernet interface.
10
M-ANT
Main antenna interface of 3G/4G dialing.
Mobile Digital Video Recorder User Manual
11
11
AUX
Auxiliary Wi-Fi antenna interface.
12
Wi-Fi antenna
Wi-Fi antenna interface.
Mobile Digital Video Recorder User Manual
12
Chapter 2 Installation and Connections
Product pictures in following chapters are for reference only. In the event of any conflicts
between this manual and the product, the later prevails.
2.1 Install HDD
Before You Start:
Prepare the tools and components for installation:
One factory recommended 2.5-inch HDD.
Antistatic gloves
Key to dummy HDD (delivered with device)
Cross screwdriver
Screws (delivered with device)
Figure 2-1 Tools
Purpose:
Perform the following steps to install the HDD on the device.
Step 1 Insert the key and turn counterclockwise to unlock dummy HDD.
Step 2 Unfasten the two screws of dummy HDD and pull dummy HDD out of device.
Step 3 Use cross screwdriver to loosen the two screws and remove them, and then take the
dummy HDD apart.
Mobile Digital Video Recorder User Manual
13
Figure 2-2 Take Apart Dummy HDD
Step 4 Place HDD into the dummy HDD, with the PCB facing down.
Figure 2-3 Place HDD
Step 5 Push the HDD along the direction shown in Figure 2-4 to connect HDD with socket of
dummy HDD.
Figure 2-4 Push HDD
Step 6 Use four sunk screws to fix HDD with dummy HDD.
Mobile Digital Video Recorder User Manual
14
Figure 2-5 Fix HDD
Step 7 Reassemble the dummy HDD.
Figure 2-6 Reassemble Dummy HDD
Step 8 Plug the dummy HDD back to the device and then tighten the screws clockwise.
Step 9 Turn the key clockwise to lock dummy HDD.
2.2 Install SIM Card
Purpose:
Pluggable 3G/4G wireless communication module is designed for the device and you should
install the SIM card to realize the wireless communication function.
Before You Start
Prepare the tools and components for installation:
SIM card
Wrench
Mobile Digital Video Recorder User Manual
15
Figure 2-7 Tools
Step 1 Use wrench to unfasten and remove the two screws fixing the 3G/4G and Wi-Fi
module.
Step 2 Pull out the 3G/4G and Wi-Fi module.
Step 3 Press the yellow button on the 3G/4G slot and then pull the SIM card tray out.
Figure 2-8 Pull out SIM Card Tray
Step 4 Place the SIM card on SIM card tray.
Figure 2-9 Place SIM card on SIM Card Tray
Step 5 Insert the SIM card tray back to SIM card slot.
Mobile Digital Video Recorder User Manual
16
Figure 2-10 Insert SIM Card Tray back to SIM Card Slot
Step 6 Install the 3G/4G module back to the device and tighten the set screw.
2.3 Install SD Card
Before You Start
Prepare the tools and components for installation:
Key to dummy HDD (delivered with device)
SD card
Figure 2-11 Tools
Step 1 Insert the key and turn counterclockwise to unlock dummy HDD.
Step 2 Unfasten the two screws of dummy HDD and pull dummy HDD out of device.
Step 3 Open the cover of SD card slot.
Step 4 Insert SD card into SD card slot with gold contacts facing down till you hear a click.
Step 5 Plug the dummy HDD back to the device, close the cover of SD card slot, and then
tighten the screws clockwise.
Step 6 Turn the key clockwise to lock dummy HDD.
Mobile Digital Video Recorder User Manual
17
2.4 Alarm Input/Output Connection
2.4.1 Alarm Input Connection
The device adopts the high/low-level electrical signals triggering (high level: 6 to 36 VDC; low
level: 0 to 5 VDC) to realize alarm input. And in order to avoid error report caused by voltage
fluctuation, no alarm will be triggered by voltage ranging of 5 to 6VDC.
Figure 2-12 Alarm Input Connection
2.4.2 Alarm Output Connection
The alarm output interfaces A1 and B1 of the mobile DVR is opened normally if no alarm
occurs. When an alarm output is triggered, the corresponding A1 and B1 interfaces will be
connected. Thus, the active alarm device is required for the system.
DC
Figure 2-13 Alarm Output Connection
2.5 Sensor-in Wiring
Step 1 Connect the delivered extension cable to I/O interface.
Step 2 Connect the vehicle braking, reversing, left-turn, and right-turn signals to sensor-in
interface.
2.6 Power Cord Wiring
2.6.1 Shutdown Delay
Purpose:
The device starts up when the vehicle ignites and shuts down after the vehicle is off. The
vehicle ignition startup and shutdown are realized by the vehicle positive pole ignition switch
(providing high level signal when the switch closes). The wire connection of the device varies
with the vehicle ignition models.
Mobile Digital Video Recorder User Manual
18
Please contact the vehicle manufacturer for the connection information of starting
switch.
The vehicle ignition switch, also called car key, controls the startup and shutdown of
the vehicle. Most of vehicles adopt positive pole ignition switch currently.
Figure 2-14 Connection of Positive Pole Ignition Switch
Ignition switch is connected to the positive pole of +12/24 VDC of vehicle batteries. Make
sure that the connection is correct, and then perform the following steps:
Step 1 Connect the "DC IN +" of the device to the positive pole of vehicle batteries, jumping
over the switch of normal vehicle power.
Step 2 Connect the "DC IN -" of the device to the negative pole of vehicle batteries.
Step 3 Connect the "ACC" of the device to the vehicle ignition switch.
Step 4 The normal vehicle power refers to the main power of the vehicle power supply
system. After the vehicle is off, the normal vehicle power still provides direct-current
source for the other devices inside and generally a main switch is used to turn on/off
it.
Mobile Digital Video Recorder User Manual
19
2.6.2 Timed Shutdown

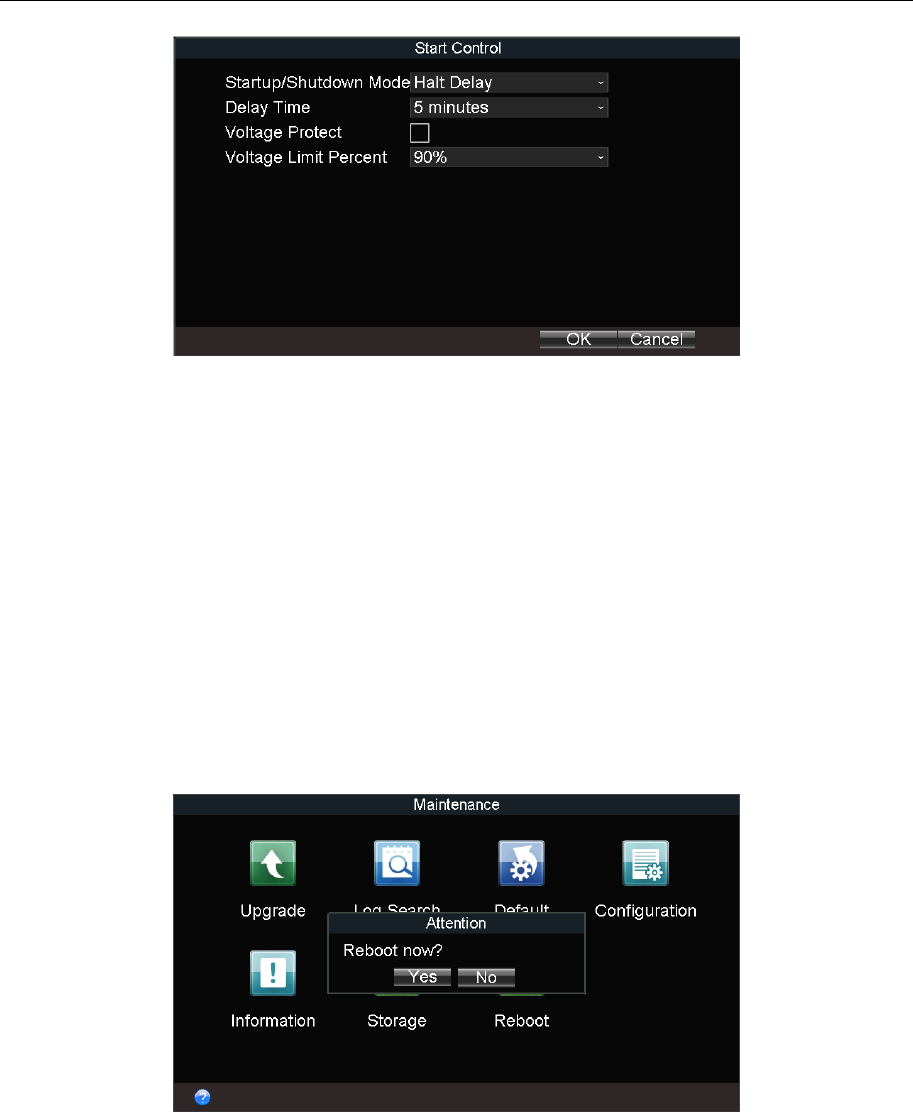

Figure 2-15 Timing On/Off
Step 2 Connect the “DC IN +” and “KEY +” of mobile DVR to the positive pole of vehicle
batteries.
Step 3 Connect the “DC IN -” and “KEY -” of mobile DVR to the negative pole of vehicle
batteries.
For detailed time settings of time-delay shutdown, see 16.1 Enable Scheduled
Startup/Shutdown.
Mobile Digital Video Recorder User Manual
20
Chapter 3 Start Up Device
3.1 Startup
Before you start:
Install the HDD. Refer to 2.1 Install HDD for details.
Connect the cables and modules correctly. Refer to Chapter 2 Installation and
Connections for details.
Step 1 Insert the key into the dummy HDD lock.
Step 2 Rotate it clockwise to ON status.
Do not perform any operations during the startup process.
The startup process takes about 1 minute. The system enters the live view interface
after startup.
3.2 Activation
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No
operation is allowed before activation.
Step 1 Enter the same password in the text field of New Password and Confirm.
Figure 3-1 Settings Admin Password
Mobile Digital Video Recorder User Manual
21
STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password
of your own choosing (Using a minimum of 8 characters, including at least three of the
following categories: upper case letters, lower case letters, numbers, and special characters.)
in order to increase the security of your product. And we recommend you reset your
password regularly, especially in the high security system, resetting the password monthly or
weekly can better protect your product.
Step 2 Click OK to save the password and activate the device.
For the old version device, if you upgrade it to the new version, a dialog box will pop up
once the device starts up. You can click YES and follow the wizard to set a strong password.
Mobile Digital Video Recorder User Manual
22
Chapter 4 Network
4.1 Set Local Network
Step 1 Go to Menu > Basic Settings > Network.
Figure 4-1 Local Network Settings
Step 2 Enter the device IP Address, Subnet Mask, Default Gateway, DNS Server Address, and
Download Server IP.
Step 3 Optionally, click Set of More Settings to enable/disable LAN Sharing.
LAN Sharing: Enable the function to share 3G/4G network to network interface.
The IP address of the device should be unique in the network and the default value is
192.168.1.64.
Step 4 Click OK.
4.2 Connect Wireless Network
4.2.1 3G/4G Dialing
Before you start:
Install a 3G/4G SIM card on the device. Refer to 2.2 Install SIM Card for details.
Step 1 Go to Menu > Basic Settings > Dial.
Mobile Digital Video Recorder User Manual
23
Figure 4-2 Dialing Settings
Step 2 Check Enable Dialing.
Step 3 Configure the 3G/4G VPDN (Virtual Private Dialup Network) settings. Please consult
the local operator for the network parameters of the VPDN.
1) Click the Set button of More Settings.
2) Select Bearing Mode.
3) Enter APN (Access Point Name), Dial Number, User Name, and Password.
4) Select the Verification Protocol.
5) Click OK.
Figure 4-3 Private Network Settings
Step 4 Click OK and reboot the device to activate the new settings.
Step 5 Optionally, go to Menu > Status > Dial to view dialing status.
4.2.2 Set Wi-Fi
Purpose:
Connect the device to a Wi-Fi network and transmit the data via the Wi-Fi.
Step 1 Go to Menu > Basic Settings > WiFi.
Mobile Digital Video Recorder User Manual
24
Figure 4-4 Wi-Fi Settings
Step 2 Check Enable WiFi.
Step 3 Select the Configuration file. 5 configuration files are available and only one SSID can
be set for each file.
Step 4 Select network SSID (Service Set Identifier), Security Type, Encryption Type, and Key.
Step 5 Set the IP address and DNS server for Wi-Fi network.
6) Click Set of More Settings.
7) Configure IP address and DNS parameters.
8) Click OK.
Figure 4-5 IP & DNS Settings for Wi-Fi
Step 6 Click OK.
Step 7 Optionally, go to Menu > Status > WiFi to view the Wi-Fi status.
Mobile Digital Video Recorder User Manual
25
Figure 4-6 Wi-Fi Status Interface
4.2.3 Set Wi-Fi AP
Purpose:
Configure Wi-Fi access point settings.
Step 1 Go to Menu > Basic Settings > WiFi.
Figure 4-7 Wi-Fi Settings
Step 2 Click Set of WiFi AP
Figure 4-8 Wi-Fi Access Point Settings
Step 3 Check Enable WiFi AP and edit other parameters as required.
Mobile Digital Video Recorder User Manual
26
Enable WiFi AP: Once enabled, the device can work as a wireless router.
Enable WiFi Broadcast: Once enabled, other devices are able to detect the SSID of the
device.
Enable WiFi Hotspot: Enable it to share the device’s internet connection. Other devices
can access to internet via joining the hotspot.
Step 4 Click OK.
4.3 Firewall Settings
Purpose:
The device provides software-based firewall to protect the device against the threats from
the public network. A white list can be set, and only the trusted IP addresses on the white list
can access the device via the network.
192.0.0.xxx is set as the default trusted IP addresses.
The IP address of the platform server to add the device is set as the trusted IP address.
Up to 16 IP addresses can be added on the white list.
Step 1 Go to Menu > Other Settings > Firewall.
Figure 4-9 Firewall Settings
Step 2 Optionally, select Enable SSH Service, thus to effectively prevent information leakage
during remote management.
Step 3 Click Add.
Step 4 Enter the trusted IP address and click OK.
Mobile Digital Video Recorder User Manual
27
Figure 4-10 Add IP Address
Step result: The trusted IP address will be added on the white list.
The configured whitelist will be cleared after you reboot the device.
Mobile Digital Video Recorder User Manual
28
Chapter 5 IP Camera
Purpose:
Add IP cameras to the device. You can get the live view, record the video, and set the
parameters of the connected IP camera.
5.1 Activate IP Cameras
Purpose:
Before adding an IP camera, activate it by setting a password for it.
Step 1 Go to Menu > Other Settings > IPC Settings.
Figure 5-1 IPC Settings
Step 2 Select an inactivated IP camera.
Step 3 Activate the selected IP camera.
Option 1: Quick Activation
Click Quickly Activate. The IP camera password will be set as the same with the device
password.
Option 2: Manual Activation
1) Click Manually Activate.
Mobile Digital Video Recorder User Manual
29
Figure 5-2 Activate IP Camera Manually
2) Enter New Password and enter the same password in Confirm.
STRONG PASSWORD RECOMMENDED – We highly recommend you create a strong
password of your own choosing (Using a minimum of 8 characters, including at least three of
the following categories: upper case letters, lower case letters, numbers, and special
characters.) in order to increase the security of your product. And we recommend you reset
your password regularly, especially in the high security system, resetting the password
monthly or weekly can better protect your product.
3) Click OK.
5.2 Add IP Cameras
Purpose:
You can add the online IP cameras. Ensure the network communication between the device
and IP camera is well.
5.2.1 Quick Add
Purpose:
The online IP cameras in the same network segment with the device will be displayed on a
list. If the IP camera on the list has the same password with the device, you can quickly add
it.
Before you start:
Make sure the IP camera password is the same with the device.
Step 1 Go to Menu > Other Settings > IPC Settings.
Step 2 Select an online IP camera.
Mobile Digital Video Recorder User Manual
30
Step 3 Click Quickly Add.
Figure 5-3 Quick Add IP Camera
: The IP camera is disconnected.
: The IP camera is connected.
5.2.2 Add IP Camera Manually
Step 1 Go to Menu > Other Settings > IPC Settings.
Step 2 Click Manually Add.
Step 3 Select the IP channel No. for the IP camera.
Step 4 Edit the required information, including the IP address, Protocol, Port No., User Name,
and Password.
Step 5 Click OK.
Figure 5-4 Manual Add
5.2.3 Edit Protocol
Purpose:
To connect the network cameras which are not configured with the standard protocols, you
can configure the customized protocols for them. The system provides 16 customized
protocols.
Mobile Digital Video Recorder User Manual
31
Step 1 Go to Menu > Other Settings > IPC Settings.
Step 2 Click Manually Add.
Step 3 Click Protocol.
Figure 5-5 Protocol
Step 4 Edit parameters as required.
Step 5 Click OK
5.3 Edit IP Cameras
Step 1 Select an added IP camera and click Edit.
Step 2 Edit the parameters.
Step 3 Enter Password. The password must be correct.
Step 4 Click OK.
Figure 5-6 Edit IP Camera
5.4 Delet IP Cameras
Step 1 Select an IP camera and click Delete.
Step 2 Click Yes on the pop-up dialog box.
Mobile Digital Video Recorder User Manual
32
Figure 5-7 Delete IP Camera
Mobile Digital Video Recorder User Manual
33
Chapter 6 Camera Management
6.1 Basic Image Settings
6.1.1 Set OSD Parameters
Purpose:
Configure the camera name, OSD (On Screen Display) settings, etc.
Step 1 Go to Menu > Other Settings > Camera.

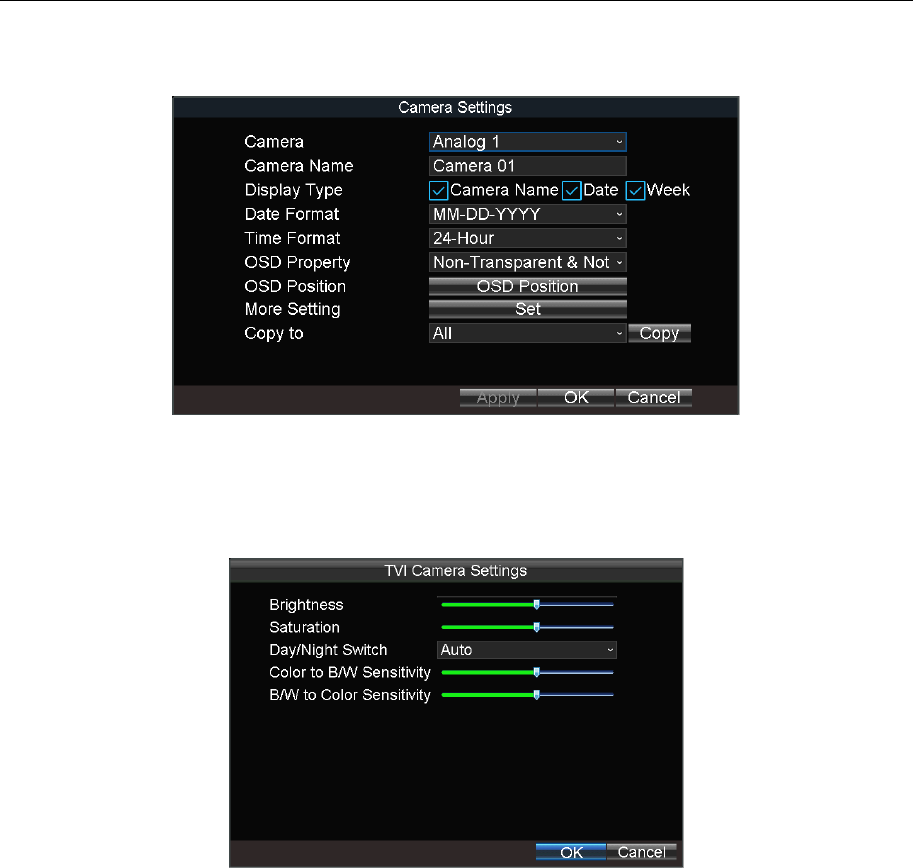

Figure 6-1 Camera Settings
Step 2 Select the Camera from the drop-down list.
Step 3 Edit parameters as your desire.
Step 4 Optionally, select the camera in Copy to dropdown list and click Copy to copy the
current settings to the selected camera.
Step 5 Click OK.
6.1.2 Set Image Parameters
Step 1 Go to Menu > Other Settings > Camera.
Mobile Digital Video Recorder User Manual
34
Figure 6-2 Camera Settings
Step 2 Click Set of More Setting.
Figure 6-3 More Setting
Step 3 Click Set of Image Settings.
Figure 6-4 Image Settings
Step 4 Edit the parameters.
Step 5 Click OK.
Step 6 Click OK in advanced settings interface.
Step 7 Click OK in camera settings interface.
6.1.3 Set TVI Camera
Purpose:
Configure the image parameters of connected TVI camera. The feature is only available for
TVI camera.
Mobile Digital Video Recorder User Manual
35
Step 1 Go to Menu > Other Settings > Camera.
Figure 6-5 Advanced Settings
Step 2 Click Set of More Setting.
Step 3 Click Set of TVI Camera Settings.
Figure 6-6 TVI Camera Settings
Step 4 Edit the parameters according to your needs.
Step 5 Click OK in TVI Camera Settings interface.
Step 6 Click OK in Advanced settings interface.
Step 7 Click OK in Camera settings interface.
6.2 Set Privacy Mask
Purpose:
The privacy mask can be used to protect personal privacy by concealing parts of the image
from view or recording with a masked area.
Step 1 Go to Menu > Other Settings > Camera.
Mobile Digital Video Recorder User Manual
36

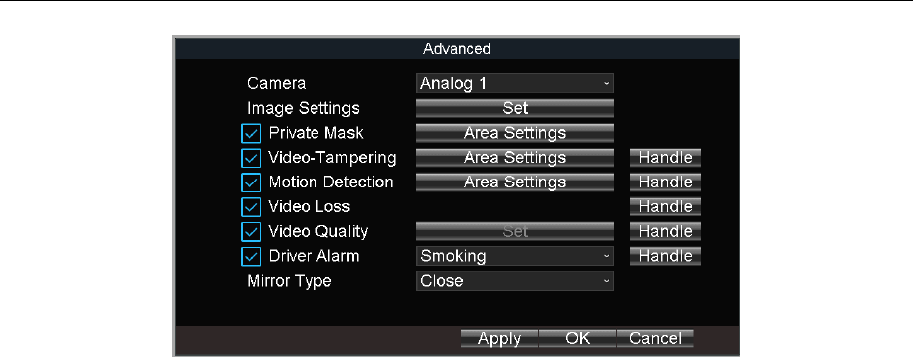

Figure 6-7 Advanced Settings
Step 2 Click Set of More Setting.
Step 3 Check Private Mask.
Step 4 Click Area Settings of Private Mask.
Step 5 Draw areas.
Step 6 Right click and select Exit.
Step 7 Click OK in Advanced settings interface.
Step 8 Click OK in Camera settings interface.
6.3 Set Mirror Type
Purpose:
Set the mirror type of the image as left/right, up/down, or center. The camera image will
change according to the selected mirror type.
The feature is only available for IP camera. (To configure mirror image for analog camera,
refer to 6.1.3 Set TVI Camera.)
Step 1 Go to Menu > Other Settings > Camera.
Mobile Digital Video Recorder User Manual
37

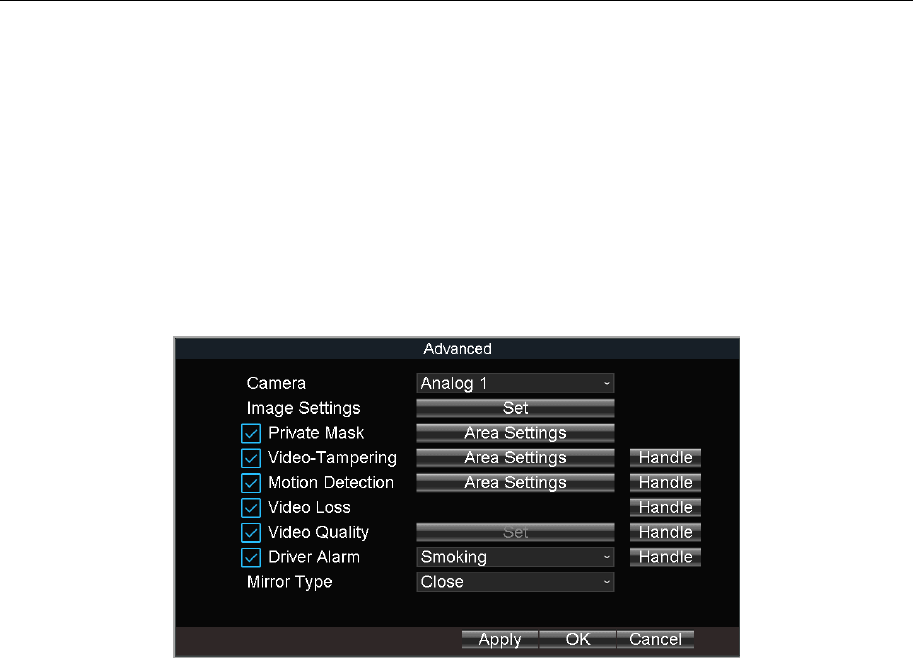

Figure 6-8 Advanced Settings
Step 2 Click Set of More Setting.
Step 3 Select Mirror Type as required.
Step 4 Click OK in Advanced settings interface.
Step 5 Click OK in Camera settings interface.
Mobile Digital Video Recorder User Manual
38
Chapter 7 Live View
7.1 Preview Settings
Purpose:
Configure the dwell time of live view, set the camera order, enable/disable the audio preview,
etc.
Step 1 Go to Menu > Other Settings > Preview.

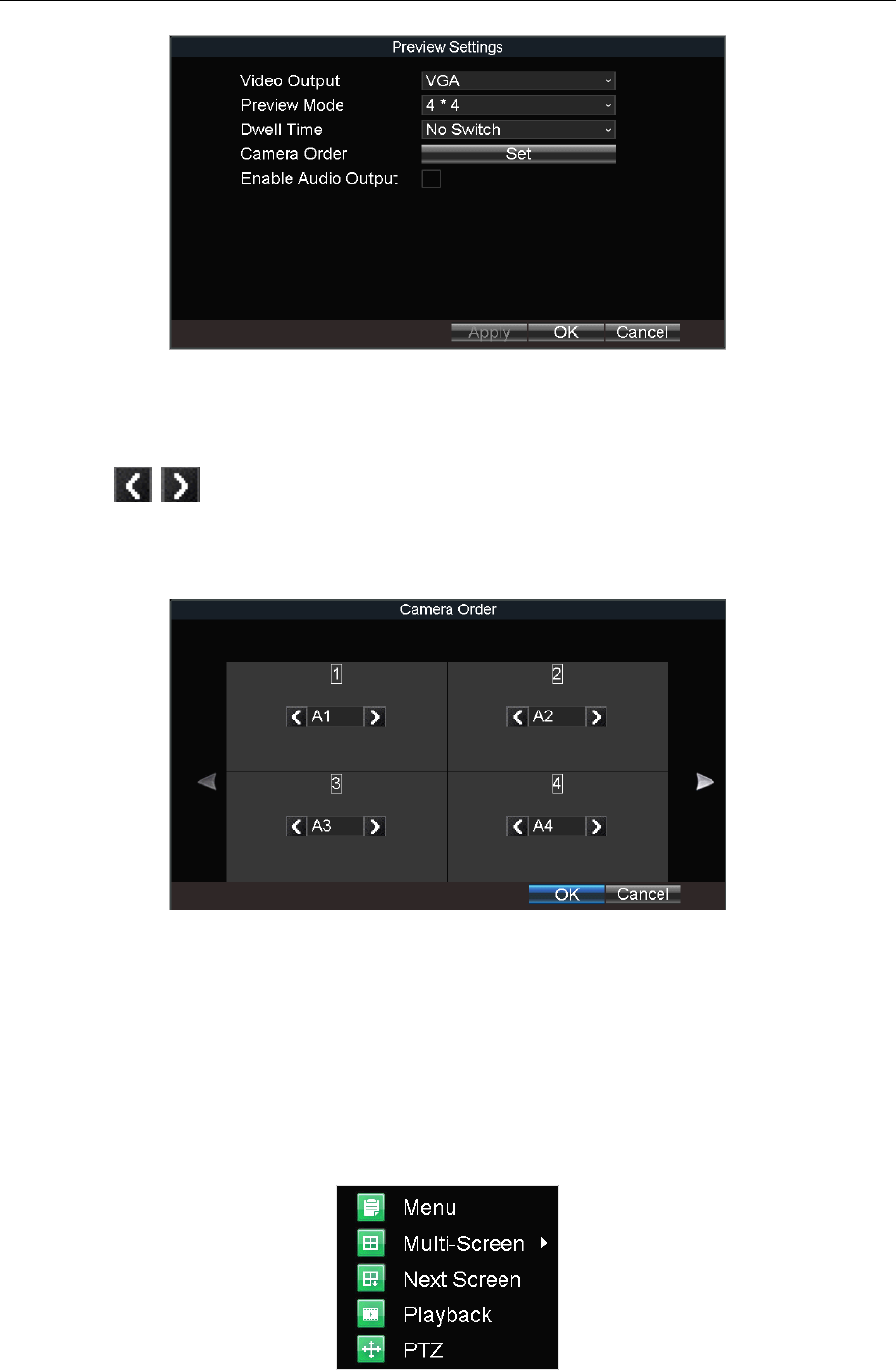

Figure 7-1 Preview Settings
Step 2 Select the Video Output according to the actual needs.
Step 3 Configure the Preview Mode, Dwell Time, Enable Audio Output.
Preview Mode: Select the window division mode for live view.
Dwell Time: The switch interval of the live view screen. The screen will be switched to the
next one after the selected dwell time.
Enable Audio Output: Enable/disable audio output for the selected video output.
Step 4 Click OK.
7.2 Set Camera Order
Purpose:
Set the live display order for cameras.
Step 1 Go to Menu > Other Settings > Preview.
Mobile Digital Video Recorder User Manual
39
Figure 7-2 Preview Settings
Step 2 Click Set of Camera Order.
Step 3 Click / to switch camera.
Step 4 Click OK.
Figure 7-3 Camera Order
Step 5 Click OK in Preview Settings interface.
7.3 Right-Click Menu
Purpose:
In live view, right click on a camera to pop up right-click menu.
Figure 7-4 Right-Click Menu
Mobile Digital Video Recorder User Manual
40
Table 7-1 Item Description
7.4 PTZ Operation
7.4.1 Configure PTZ Settings
Purpose:
Follow the procedure to set the parameters for PTZ. The configuration of the PTZ parameters
should be done before you control the PTZ camera.
Before you start:
Connect the RS-485 cables of PTZ camera to EXT.DEV interface of the device.
Step 1 Go to Menu > Other Settings > PTZ.

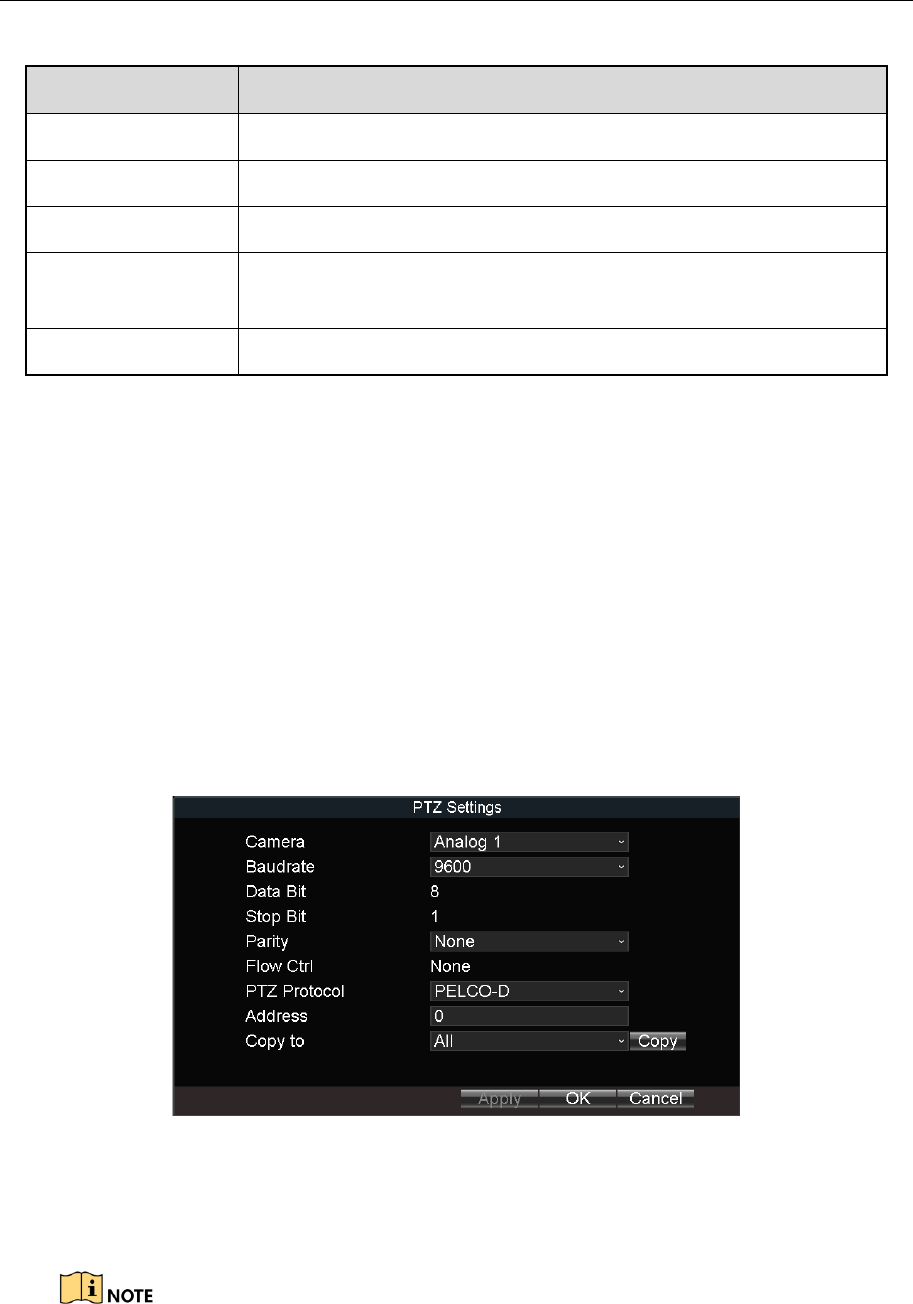

Figure 7-5 PTZ Settings
Step 2 Select the Camera for PTZ settings.
Step 3 Configure the parameters of the PTZ camera.
All the parameters should be exactly the same with those of the PTZ camera.
Step 4 Click OK.
Item
Description
Menu
Enter the main menu of the system by right clicking the mouse.
Multi-Screen
Adjust the screen layout by choosing from the dropdown list.
Next Screen
Switch to the next screen.
Playback
Enter the playback interface and start playing back the video of
the selected channel immediately.
PTZ
Click to pop up PTZ control panel.
Mobile Digital Video Recorder User Manual
41
7.4.2 PTZ Control Panel
In live view interface, right click a PTZ camera and click PTZ on right-click menu.
Figure 7-6 PTZ Control Panel
Table 7-2 Description of PTZ Control Panel
Icon
Description
Icon
Description
Icon
Description
Direction
buttons and
the auto-cycle
button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
Moving speed
Light on/off
Wiper on/off
Mobile Digital Video Recorder User Manual
42
Chapter 8 Storage
8.1 Storage Settings
8.1.1 Format HDD
Purpose:
A newly installed hard disk drive (HDD) must be initialized before it can be used.
Step 1 Go to Menu > Storage.

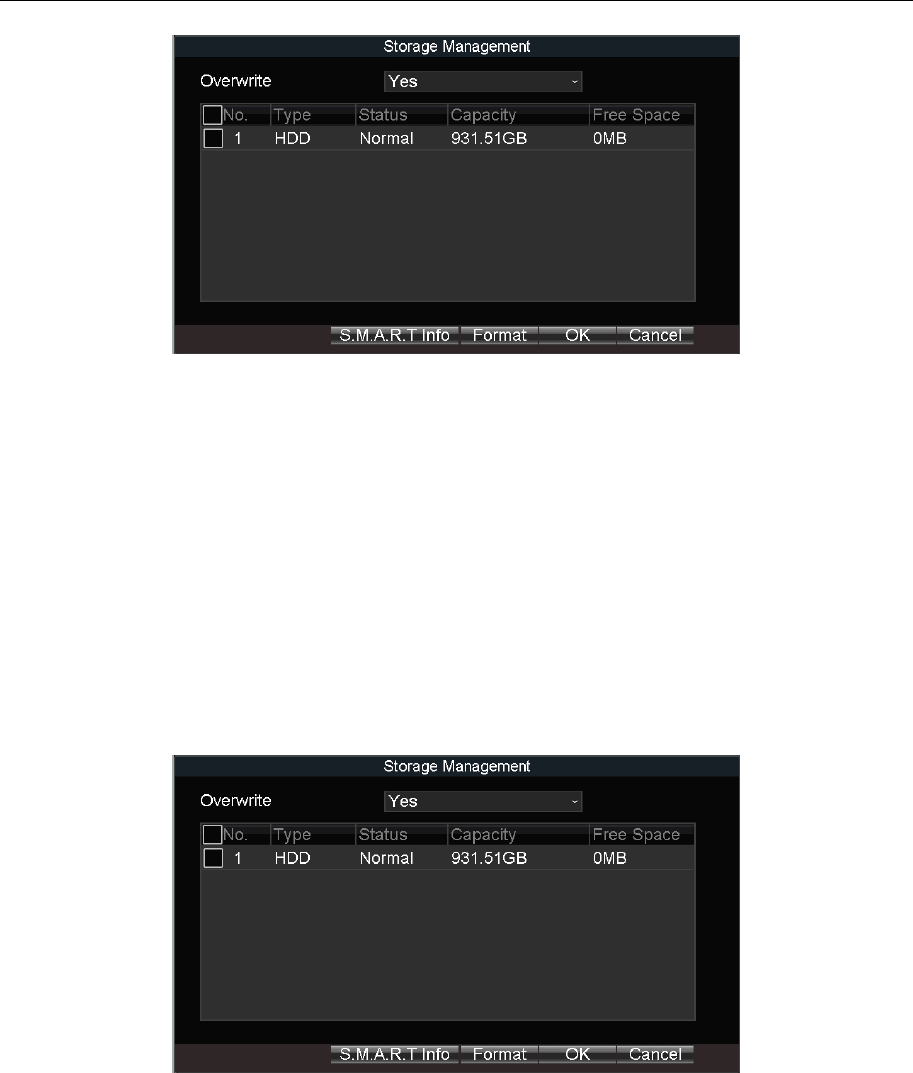

Figure 8-1 Storage Management
Step 2 Check the HDD to format.
Step 3 Click Format.
8.1.2 Configure Overwrite
Purpose:
The overwrite function is enabled by default. If the function is disabled, the recording will
stop when the storage device is full.
Step 1 Go to Menu > Storage.
Mobile Digital Video Recorder User Manual
43
Figure 8-2 Storage Management
Step 2 Select Overwrite as Yes or No.
Step 3 Click OK.
8.1.3 View S.M.A.R.T. Information
Purpose:
The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system
for HDD to detect and report on various indicators of reliability in the hopes of anticipating
failures.
Step 1 Go to Menu > Storage.
Figure 8-3 Storage Management
Step 2 Select an HDD.
Step 3 Click S.M.A.R.T. Info.
Mobile Digital Video Recorder User Manual
44
Figure 8-4 S.M.A.R.T Information
8.2 Recording Settings
8.2.1 Configure Record Settings
Purpose:
Configure the transmission stream type, the resolution, frame rate, etc.
Step 1 Go to Menu > Basic Settings > Record.
Figure 8-5 Record Settings
Step 2 Select camera in Camera drop-down list.
Step 3 Configure the image parameters.
Encoding Parameters
Main Stream (Normal): Used for continuous recording.
Main Stream (Event): Used for event recording.
Sub Stream: Used for network transmission.
Stream Type
Video and Video & Audio are selectable.
Bitrate Type
Mobile Digital Video Recorder User Manual
45
Variable and Constant are selectable.
Variable: The video quality is configurable.
Constant: The video quality is set as Medium and cannot be edited.
Video Quality
Bitrate type is variable, you can set the video quality as Highest, Higher, Medium, Low,
Lower, or Lowest.
Frame Rate
Frame rate refers to the frequency of the image frame after compression. With other
parameters constant, reduce the video frame rate, and you can lower the maximum
bitrate to some extent.
Max. Bitrate(Kbps)
Select the fixed value provided by the system or customize the maximum bitrate as
desired.
Step 4 Edit recording schedule. For details, refer to 8.2.5 Configure Schedule.
Step 5 Click Set of More Settings to configure the pre-record and post-record time.
Pre-Record: Normally used for the event (motion or alarm) triggered record, when you
want to record before the event happens. For example, when an alarm occurs at 10:00, if
the pre-record time is set as 5 seconds, the camera records the alarm at 9:59:55.
Post-Record: After the event finished, the video can also be recorded for a certain time.
For example, when an alarm ends at 11:00, if the post-record time is set as 5 seconds,
the camera records till 11:00:05.
Step 6 Click OK.
8.2.2 Configure Motion Detection Recording
Purpose:
In the motion detection recording, once a motion event occurs, the device starts to record.
Step 1 Go to Menu > Other Settings > Camera.
Step 2 Click Set of More Setting.
Figure 8-6 Motion Detection Settings
Mobile Digital Video Recorder User Manual
46
Step 3 Check Motion Detection.
Step 4 Click Area Settings of Motion Detection.
Step 5 Edit area settings. For details, refer to 12.12 Configure Detection Area.
Step 6 Click OK.
Step 7 Set motion detection recording schedule. For details, refer to 8.2.5 Configure Schedule.
Recording type should be alarm, motion|alarm, or motion&alarm.
8.2.3 Configure Alarm Triggered Recording
Purpose:
Follow the procedure to configure alarm triggered recording.
Step 1 Go to Menu > Other Settings > Alarm In.
Figure 8-7 Alarm Input Settings
Step 2 Click Set of Trigger Record Channel to select the alarm triggered recording channel(s).
Step 3 Click OK.
Step 4 Enter the Record Settings interface to set alarm triggered recording schedule. Refer to
Chapter 3.1.2 for record settings. Recording type should be alarm, motion | alarm, or
motion & alarm.
8.2.4 Configure Alarm Terminal
Before you start:
Install an alarm terminal. For details, refer to alarm terminal user manual.
The RS-232 serial port should be used in the way of transparent channel and the baud
rate should be set as 9600.
Step 1 Go to Menu > Other Settings > Alarm Terminal.
Mobile Digital Video Recorder User Manual
47
Figure 8-8 Alarm Terminal
Step 2 Check Enable Alarm Terminal.
Step 3 Edit the terminal name in Terminal Name text field.
Step 4 Select Set of Trigger Record Channel to set alarm triggered recording channel(s).
Step 5 Click OK.
8.2.5 Configure Schedule
Step 1 Go to Menu > Basic Settings > Record.
Step 2 Click Set of Schedule.
Step 3 Check Enable Schedule.
Step 4 Select the day from the dropdown list for settings.
Step 5 Configure all day schedule or custom schedule.
Check All Day to enable all-day recording, and then select the recording type from the
drop-down list.
Uncheck All Day, customize the time period for recording, and select the recording type
for each time period.
Step 6 Click OK.
5 recording types are selectable: Normal, Motion Detection, Alarm, Motion|Alarm, and
Motion&Alarm.
Up to 8 time periods can be set for each day and each of the time periods cannot be
overlapped.
Mobile Digital Video Recorder User Manual
48
Figure 8-9 Record Schedule Settings
8.3 Sensor-in Settings
Purpose:
Sensor-in detects and records the driving information of the vehicle, including pedal braking,
turning left/right, reversing, etc.
Step 1 Go to Menu > Basic Settings > Sensor-In.
Figure 8-10 Sensor-In Settings
Step 2 Set Triggering Level and Full Screen Monitoring for sensor-in.
Step 3 Click OK.
Mobile Digital Video Recorder User Manual
49
Chapter 9 Playback
9.1 Instant Playback
Purpose:
You can search and play back the record files stored on the device instantly.
Step 1 Go to Menu > Video Search.
Figure 9-1 Video Search
Step 2 Select Search Mode as General. Only general videos support instant playback.
General: Normal videos
Step 3 Select Camera.
Step 4 Select Video Type.
Step 5 Specify Start Time and End Time.
Step 6 Click Play to play back the matched videos.
If more than 4,000 videos are found, the top 4,000 items have the priority to be played.
9.2 Play Video by File
Purpose:
You can search and play back the record files stored on the mobile DVR.
Step 1 Go to Menu > Video Search.
Mobile Digital Video Recorder User Manual
50
Figure 9-2 Video Search
Step 2 Select Search Mode.
General: Normal videos
Event: Motion detection, alarm, motion│alarm, motion&alarm videos.
Step 3 Select Camera.
Step 4 Select Video Type.
Step 5 Specify Start Time and End Time.
Step 6 Click Search. The matched videos will be displayed.
Figure 9-3 Search Result
Step 7 Select a video and click Play.
Mobile Digital Video Recorder User Manual
51
Chapter 10 Platform
10.1 Ehome
Purpose:
The device can be remotely accessed via Ehome platform.
Before you start:
Create the device ID on the Ehome platform.
Step 1 Go to Menu > Basic Settings > Platform.
Figure 10-1 Platform Settings
Step 2 Check Platform Enable.
Step 3 Select Platform as Ehome.
Step 4 Configure the following parameters.
Server IP: Enter the static IP address of iVMS server.
Port No.: The default value is 7660.
Device Register ID: The ID of the device registered on the Ehome platform. If you leave it
empty, device logs in to the platform with serial No.
Step 5 Click OK and reboot the device to activate the new settings.
Step 6 Optionally, go to Menu > Status > Platform to view the platform status.
10.2 Guarding Vision
Purpose:
The device can be remotely accessed via guarding vision platform.
Before you start:
Mobile Digital Video Recorder User Manual
52
Register the device in guarding vision platform. For detailed steps, refer to 10.3 Register
Device in Guarding Vision platform.
Step 1 Go to Menu > Basic Settings > Platform.
Step 1 Check Enable Platform.
Step 2 Select Platform as Guarding Vision.
Step 3 Click OK and reboot the device to activate the new settings.
Step 4 Optionally, go to Menu > Status > Platform to view the platform status.
10.3 Register Device in Guarding Vision platform
Step 1 Access Guarding Vision platform.
For computer user: dev.guardingvision.com.
For mobile phone user: download Guarding Vision app.
Step 2 Log in the platform.
Step 3 Register device by adding the device serial number and verification code.
Mobile Digital Video Recorder User Manual
53
Chapter 11 Backup
11.1 Manual Backup
Purpose:
Back up the videos stored on the device.
Step 1 Go to Menu > Video Search.
Figure 11-1 Video Search
Step 2 Select Search Mode.
General: Normal videos
Event: Motion detection, alarm, motion│alarm, motion&alarm videos.
Step 3 Select Camera.
Step 4 Select Video Type.
Step 5 Specify Start Time and End Time.
Step 6 Click Search. The matched videos will be displayed.
Figure 11-2 Search Result
Mobile Digital Video Recorder User Manual
54
Step 7 Select the videos and click Export.

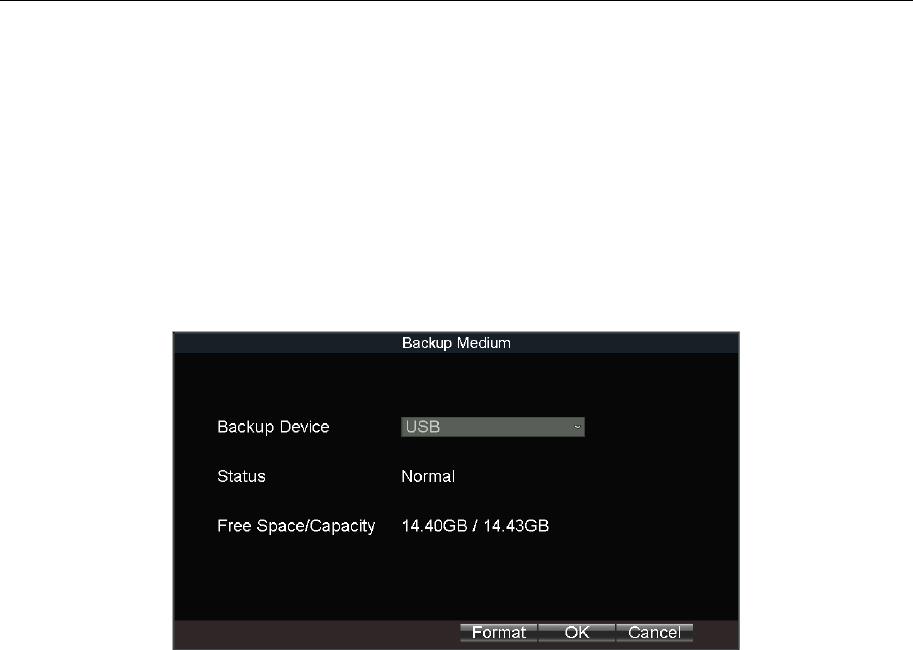

11.2 Format Backup Device
Purpose:
View the status and the free space/capacity of the connected backup device. And you can
also format the backup device.
Step 1 Go to Menu > Maintenance > Storage.
Figure 11-3 Backup Device
Step 2 Select the Backup Device.
Step 3 View the Status and Free Space/Capacity of the backup device.
Step 4 Optionally, click Format to format the selected backup device.
Mobile Digital Video Recorder User Manual
55
Chapter 12 Events and Alarms
12.1 Configure Motion Detection Alarm
Purpose:
When motion detection alarm is configured, once a motion event is detected, the device
starts to record and multiple linkage actions will be triggered.
Step 1 Go to Menu > Other Settings > Camera.
Step 2 Click Set of More Setting.
Figure 12-1 Motion Detection Settings
Step 3 Check Motion Detection to enable the function.
Step 4 Set the area for motion detection. For detailed steps, refer to 12.12 Configure
Detection Area.
Step 5 Set the arming schedule and alarm linkage actions. For detailed steps, refer to 12.11
Configure Arming Schedule and Linkage Actions.
Step 6 Click OK.
12.2 Configure Alarm Input
Purpose:
Configure the settings for alarm input, including trigger level, arming schedule and alarm
linkage actions, etc.
Step 1 Go to Menu > Other Settings > Alarm In.
Mobile Digital Video Recorder User Manual
56
Figure 12-2 Alarm Input Settings
Step 2 Select Alarm Input No.
Step 3 Enter Alarm Name.
Step 4 Select Trigger Level.
High level: 6 to 36 VDC.
Low level: 0 to 5 VDC
In order to avoid error caused by voltage fluctuation, no alarm will be triggered by voltage
ranging from 5 VDC to 6 VDC.
Step 5 Click Set of Schedule to set arming schedule. For detailed steps, refer to 12.11
Configure Arming Schedule and Linkage Actions.
Step 6 Check Linkage Action and click Set of Linkage Action to set the linkage actions. For
detailed steps, refer to 12.11 Configure Arming Schedule and Linkage Actions.
Step 7 Click OK.
12.3 Configure Alarm Output
Purpose:
Configure the arming schedule, alarm duration time and alarm name for alarm output.
Step 1 Go to Menu > Other Settings > Alarm Out.
Mobile Digital Video Recorder User Manual
57
Figure 12-3 Alarm Output Settings
Step 2 Select Alarm Output No.
Step 3 Enter Alarm Name.
Step 4 Select Dwell Time.
Dwell Time: Alarm output will keep alarming for the dwell time.
Step 5 Click Set of Schedule to set the arming schedule for alarm outputs. For detailed steps,
refer to 12.11 Configure Arming Schedule and Linkage Actions.
Step 6 Click OK.
12.4 Configure Alarm Terminal
Step 1 Go to Menu > Other Settings > Alarm Terminal.
Figure 12-4 Alarm Terminal
Step 2 Check Enable Alarm Terminal.
Step 3 Edit the Terminal Name.
Step 4 Select the alarm outputs to trigger.
Step 5 Click OK.
Mobile Digital Video Recorder User Manual
58
12.5 Configure Video Loss Alarm
Purpose:
When the device cannot receive video signal from the front-end devices, the video loss alarm
will be triggered. Linkage actions, including audible warning and alarm output, can be set to
respond.
Step 1 Go to Menu > Other Settings > Camera.
Step 2 Click Set of More Setting.
Figure 12-5 Video Loss
Step 3 Check Video Loss.
Step 4 Set arming schedule and linkage actions. For detailed steps, refer to 12.11 Configure
Arming Schedule and Linkage Actions.
Step 5 Click OK.
12.6 Configure Video Tampering Alarm
Purpose:
A tampering alarm is triggered when the camera is covered and the monitoring area cannot
be viewed. Linkage actions, including audible warning, alarm output, can be set to respond.
Step 1 Go to Menu > Other Settings > Camera.
Step 2 Click Set of More Setting.
Mobile Digital Video Recorder User Manual
59
Figure 12-6 Video-Tampering
Step 3 Check Tamper-proof.
Step 4 Set area for video tampering detection. For detailed steps, refer to 12.12 Configure
Detection Area.
The video tampering alarm can be triggered only when the view of the camera is fully
covered.
Step 5 Set arming schedule and linkage actions. For detailed steps, refer to 12.11 Configure
Arming Schedule and Linkage Actions.
Step 6 Click OK.
12.7 Configure Video Quality Diagnostics
Purpose:
When your analog camera is out of focus, the linkage actions will be triggered.
Step 1 Go to Menu > Other Settings > Camera.
Step 2 Click Set of More Setting.
Figure 12-7 Video Quality Settings
Mobile Digital Video Recorder User Manual
60
Step 3 Check Video Quality to enable the function.
Step 4 Set arming schedule and linkage actions. For detailed steps, refer to 12.11 Configure
Arming Schedule and Linkage Actions.
Step 5 Click OK.
12.8 Configure Exception Alarm
Purpose:
Configure alarms which are triggered by exceptions to take necessary actions in time.
Step 1 Go to Menu > Other Settings > Exception.

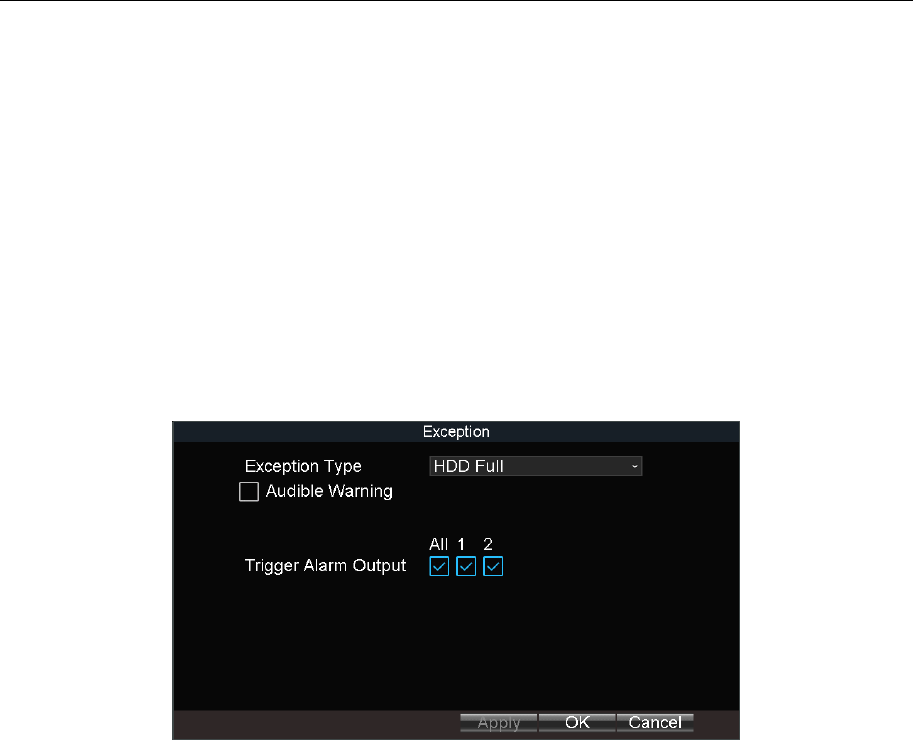

Figure 12-8 Exception
Step 2 Select Exception Type and set corresponding alarm linkage actions, including audible
warning and alarm output.
Step 3 Click OK.
Info:
Exception types include:
HDD Full: The HDD is full.
HDD Error: Writing HDD error, unformatted HDD, etc.
Network Disconnected: Network cable is disconnected.
IP Conflicted: Duplicated IP address.
Illegal Login: Incorrect user ID or password.
Video Output Standard Mismatch: I/O video standards do not match.
Abnormal Recording: No space for saving recorded files.
12.9 Configure Satellite Positioning
Purpose:
Mobile Digital Video Recorder User Manual
61
The built-in GNSS module supports GPS (Global Positioning System), enabling device
positioning and speed limit alarm.
Step 1 Go to Menu > Basic Settings > Position.
Figure 12-9 Position
Step 2 Select Positioning Module.
RS-232: Obtain data from the satellite positioning module connected through RS-232
interface.
RS-485: Obtain data from the satellite positioning module connected through RS-485
interface.
Built-in: Obtain data from the satellite positioning module built in the mobile DVR.
Display Terminal: Obtain data from display terminal.
Step 3 Check Satellite Time Adjusting and select your time zone.
Step 4 Select Speed Unit and input Speed Limit.
Step 5 Set the linkage action for speeding alarm, including Audible Warning and Alarm
Output.
Step 6 Click Set of Display Channel and select display channels. The device positioning
information will be displayed on the selected channels.
Step 7 Click OK.
Step 8 Optionally, go to Menu > Status > Position to view positioning status.
12.10 Configure G-Sensor Alarm
Purpose:
G-Sensor detects and records acceleration information in 3-axial (X, Y, Z) directions.
Before you start:
Connect an external sensor to the device for obtaining and providing the acceleration speed
in 3-axial directions.
Mobile Digital Video Recorder User Manual
62
Step 1 Go to Menu > Basic Settings > G-Sensor.
Figure 12-10 G-Sensor Settings
Step 2 Select you G-sensor mode under Module:
RS-232: The G-sensor is connected to the mobile DVR through RS-232 interface.
Built-in: The G-sensor is built in the mobile DVR.
Step 3 Set the limit value for acceleration alarm in X, Y and Z directions.
X, Y and Z represent the direction of acceleration and the unit of alarm value is G (G=9.8
m/s2).
Step 4 Set the linkage actions for acceleration alarm, including Audible Warning and Alarm
Output.
Step 5 Click OK.
Step 6 Optionally, go to Menu > Status > G-sensor to view the G-sensor status.
12.11 Configure Arming Schedule and Linkage Actions
Step 1 Click Handle to set the arming schedule and alarm linkage actions.
Step 2 Select the day from Arming Schedule dropdown list.
Step 3 Set the arming period for selected day.
Step 4 (Optional) Copy the current settings to other days in the week.
Step 5 Check to enable linkage actions.
Full Screen Monitoring
When an alarm is triggered, the local monitor displays the video image from the alarming
channel configured for full screen monitoring.
Audible Warning
Mobile Digital Video Recorder User Manual
63
Trigger an audible beep when an alarm is detected.
Trigger Alarm Output
Trigger an alarm output when an alarm is detected.
Step 6 Click OK.
Figure 12-11 Linkage Action
12.12 Configure Detection Area
Step 1 Click Area Settings.
Step 2 Draw to draw detection area.
Step 3 Optionally, right click to delete areas or set detection sensitivity.
Step 4 Right click and select Exit.
Mobile Digital Video Recorder User Manual
64
Chapter 13 User Account Management
13.1 Add User
Purpose:
Add and delete users, and modify the password and permission of users.
Step 1 Go to Menu > Other Settings > User.
Figure 13-1 User Management
Step 2 Click Add.
Figure 13-2 Add User
Step 3 Enter User Name and Password and enter the same password in Confirm.
Step 4 Select the user permission level.
Operator: The operator has permissions for Preview, Playback, Backup, Log Search and
Parameters Settings.
Guest: The Guest has permissions for Preview, Playback, Backup and Log Search.
Step 5 Click OK.
Mobile Digital Video Recorder User Manual
65
13.2 Delete User
Step 1 Go to Menu > Other Settings > User.
Step 2 Select a user and click Delete.
Step 3 Click Yes in confirmation message box.
13.3 Edit User
Step 1 Go to Menu > Other Settings > User.
Step 2 Select a user and click Modify.
Step 3 Edit parameters as required.
Step 4 Click OK.
Mobile Digital Video Recorder User Manual
66
Chapter 14 General System Configuration
14.1 Configure Basic Display Settings
Purpose:
Set system time, select CVBS output standard, enable password and configure DST settings,
etc.
Step 1 Go to Menu > Other Settings > Display.
The system language is set as English by default and is not editable.
Figure 14-1 Display Settings
Step 2 Edit parameters as required.
CVBS Output Standard: NTSC or PAL are selectable. Set it according to actual video input
standard.
System Time: Set it by adjusting year, month, day, hour, minute, and second.
VGA Resolution: Specify the VGA output resolution.
Enable Password: Check it to enable authentication before operations.
Step 3 Click OK.
14.2 Configure DST Settings
Purpose:
Configure DST (Daylight Saving Time) settings for the system.
Step 1 Go to Menu > Other Settings > Display.
Step 2 Click Set of DST Settings.
Mobile Digital Video Recorder User Manual
67
Figure 14-2 DST Settings
Step 3 Check Enable DST.
Step 4 Set the start time and end time for DST.
Step 5 Select DST bias.
Step 6 Click OK in DST settings interface.
Step 7 Click OK in Display Settings.
14.3 Configure NTP
Step 1 Go to Menu > Basic Settings > Network.
Figure 14-3 Local Network Settings
Step 2 Click Set of NTP.
Mobile Digital Video Recorder User Manual
68
Figure 14-4 NTP Settings
Step 3 Check NTP to enable the function.
Step 4 Enter Synchronization Interval.
Step 5 Enter the IP address of NTP server.
Step 6 Click OK in NTP settings interface.
Step 7 Click OK in network settings interface.
14.4 Configure Advanced Display Settings
Purpose:
You can set the system time, select the CVBS output standard, enable the password,
configure the DST settings, etc.
Step 1 Go to Menu > Other Settings > Display.
Step 2 Click Set of Advanced Settings.
Figure 14-5 Advanced Settings
Step 3 Edit parameters as required.
Device Name: Enter the system name as desired.
Mobile Digital Video Recorder User Manual
69
Device No.: Edit the device No. for remote control. The device No. ranges from 1 to 255.
The default device No. is 255.
It is not recommended to modify Device No. Otherwise, you need to enter the Device No.
on the remote control every time you use it.
CVBS Brightness: Adjust video output brightness.
Menu Transparency: The transparency proportion of the menu displayed on the live
view interface. You can set it as 1:3, 1:1, 3:1, or Non-transparent. The smaller the
proportion value is, the more transparent the menu is. When Non-transparent is
selected, only the menu is displayed on the page.
Operation Timeout: If no operation is performed after a specified period of time, live
view will be displayed automatically.
Enable Touch Screen: Enable/disable touch screen. If the function is on, PTZ function is
unavailable.
Step 4 Click OK.
Mobile Digital Video Recorder User Manual
70
Chapter 15 Maintenance
15.1 Check Status
Go to Menu > Status to view status of recording, 3G/4G, platform, satellite positioning,
G-Sensor, alarm, and WiFi.
Figure 15-1 Status Interface
15.2 View System Information
Go to Menu > Maintenance > Information to view the device name, model, serial No.,
firmware version, encoding version, and panel version.
Figure 15-2 System Information
15.3 Upgrade the System
Purpose:
The device can be upgraded by local USB flash disk or remote FTP server.
Mobile Digital Video Recorder User Manual
71
15.3.1 Upgrade by Local USB Flash Disk
Before you start:
Connect the USB device that contains the upgrade firmware.
The upgrade firmware should be stored in the root directory of the USB device.
Step 1 Go to Menu > Maintenance > Upgrade.
Step 2 Select Upgrade Type as USB Upgrade.
Figure 15-3 Upgrade Interface
Step 3 Click Upgrade to start upgrading and reboot the device to activate the new settings.
15.3.2 Upgrade by Remote FTP server
Before you start:
Ensure the network connection of the PC (running FTP server) and the DVR is valid and
correct. Run the FTP server on the PC and copy the firmware into the corresponding
directory of your PC.
Refer to the user manual of the FTP server to set the FTP server on your PC and put the
firmware file into the directory as required.
Step 1 Go to Menu > Maintenance > Upgrade.
Mobile Digital Video Recorder User Manual
72
Figure 15-4 Upgrade Interface
Step 2 Select Upgrade Type as FTP Upgrade.
Step 3 Enter FTP Server Address.
Step 4 Click Upgrade to start upgrading and reboot the device to activate the new settings.
15.4 Log Operation
15.4.1 View Log Files
Purpose:
The operation, alarm, exception and information of the device can be stored in log files,
which can be viewed and exported at any time.
Step 1 Go to Menu > Maintenance > Log Search.
Figure 15-5 Log Search Interface
Step 2 Select the Major Type and Minor Type of the logs.
Step 3 Specify the Start Time and End Time for the log search.
Step 4 Click Search. The matched logs will be displayed.
Mobile Digital Video Recorder User Manual
73
Figure 15-6 Log Search
15.4.2 Export Log Files
Purpose:
The operation, alarm, exception and information of the device can be stored in log files,
which can be viewed and exported at any time.
Before you start:
Connect a backup device to the device.
Step 1 Go to Menu > Maintenance > Log Search.
Figure 15-7 Log Search Interface
Step 2 Search log files. For detailed steps, refer to 15.4.1 View Log Files.
Step 3 Click Export.
15.5 Restoring Default Settings
Step 1 Go to Menu > Maintenance > Default.
Mobile Digital Video Recorder User Manual
74
Figure 15-8 Restore Default Settings
Step 2 Select the restoring type from the following two options.
Default: Restore all parameters, except the network (including IP address, subnet mask,
gateway, MTU, NIC working mode, default route, server port, etc.) and user account
parameters, to the factory default settings.
Factory: Restore all parameters to the factory default settings.
Step 3 Click OK and click Yes in confirmation message box.
15.6 Import/Export Configuration Files
15.6.1 Import Configuration Files
Purpose:
The configuration files of one device can be imported to multiple device devices if they are to
be configured with the same parameters.
Before you start:
Connect a backup device that contains the configuration file to the device. The configuration
file should be stored on the root directory of the backup device.
Step 1 Go to Menu > Maintenance > Configuration.
Figure 15-9 Import/Export Configuration Files
Mobile Digital Video Recorder User Manual
75
Step 2 Click Import and click Yes on confirmation message box.
15.6.2 Export Configuration Files
Purpose:
The configuration files of the device can be exported to local device for backup.
Before you start:
Connect a USB storage device to the mobile DVR.
Step 1 Go to Menu > Maintenance > Configuration.
Figure 15-10 Import/Export Configuration Files
Step 2 Click Export.
15.7 Serial Port Settings
Purpose:
Two types of serial ports are provided: RS-232 and RS-485.
The RS-232 port can be used in two ways:
Parameters Configuration: Connect a PC to the DVR through the PC serial port. DVR
parameters can be configured by using software such as HyperTerminal. The serial port
parameters must be the same as of the device when connecting with the PC serial port.
Transparent Channel: Connect a serial device directly to the device. The serial device will
be controlled remotely by the PC through the network and the protocol of the serial
device. If alarm button is connected, select RS-232 usage as Transparent Channel.
The RS-485 port can be used for transparent channel only.
Step 1 Go to Menu > Basic Settings > Serial Port.
Mobile Digital Video Recorder User Manual
76
Figure 15-11 Serial Port Settings Interface
Step 2 Edit parameters as required.
Step 3 Click OK.
Mobile Digital Video Recorder User Manual
77
Chapter 16 Shut Down Device
16.1 Enable Scheduled Startup/Shutdown
Purpose:
Set the scheduled startup/shutdown. The device will automatically start up/shut down
according the schedule.
Step 1 Go to Menu > Basic Settings > Start.
Step 2 Select Startup/Shutdown Mode as Scheduled Startup/Shutdown.
Step 3 Select the Date to set the schedule.
Step 4 Specify the startup time segments. Two periods can be configured for each day. And
the time periods cannot be overlapped each other.
Step 5 Optionally, select Copy Date and click Copy to copy the settings to the selected day.
Step 6 Click OK.
Figure 16-1 Scheduled Startup/Shutdown
16.2 Enable Halt Delay
Purpose:
You can set the shutdown delay time (Vehicle Ignition Startup and Shutdown) for the device.
Step 1 Go to Menu > Basic Settings > Start.
Mobile Digital Video Recorder User Manual
78
Figure 16-2 Start Control
Step 2 Select Startup/Shutdown Mode as Halt Delay.
Step 3 Select the Delay Time. The delay time ranges from 0 to 6 hours.
Step 4 Optionally, check Voltage Protect and select Voltage Limit Percent. If the voltage of
the device reaches the selected threshold, the device will shut down automatically.
Step 5 Click OK.
16.3 Reboot DVR
Step 1 Go to Menu > Maintenance > Reboot.
Step 2 Click Reboot and click Yes on confirmation message box to reboot the device.
Figure 16-3 Reboot
Mobile Digital Video Recorder User Manual
0
Chapter 17 Appendix
17.1 Glossary
3G/4G: 3G/4G refers to the 3rd/4th-generation telecommunication technology which is the
high speed transmission of the cell data. The 3G/4G service can transmit sound and other data
simultaneously and the bitrate is up to hundreds kbps.
DHCP: DHCP is the acronym of Dynamic Host Configuration Protocol, and it is one of the
TCP/IP protocol stacks, it is used to assign the dynamic IP address to the host on the network.
Dual Stream: Dual stream is a technology used to record high resolution video locally while
transmitting a lower resolution stream over the network.
GNSS: A satellite navigation system is a system of satellites that provide autonomous
geo-spatial positioning with global coverage. It allows small electronic receivers to determine
their location (longitude, latitude, and altitude) to high precision (within a few meters) using
time signals transmitted along a line of sight by radio from satellites. The signals also allow the
electronic receivers to calculate the current local time to high precision, which allows time
synchronization. A satellite navigation system with global coverage may be termed GNSS
(Global Navigation Satellite System).
GPS: GPS (Global Positioning System) is a space-based global navigation satellite system that
provides location and time information in all weather and anywhere on or near the earth,
where there is an unobstructed line of sight to 4 or more GPS satellite.
G-Sensor: G-sensor (Gravity-sensor) can sense the change of the accelerated force, such as the
shaking, free falling and lifting. And those changes of the accelerated force can be sensed by
the G-sensor in a means of electrical signals, and then link certain action according to the
changes of the electrical signals. When applied in the hard disk protection, G-Sensor can check
the current status of the hard disk in case of the affection of the R/W function by the sudden
change of the accelerated force.
NTP: NTP is Network Time Protocol, and it is a protocol used to synchronize the computer
time.
Sensor-In: Sensor-In is a built-in module on the mobile DVR used to record the movement
information of the vehicle, such as the braking, left-turning and right-turning and so on. The
information can be used for analysis of an accident.
Transparent Channel: Transparent channel is a mechanism which analyzes the IP datagram
and sends it by the serial interface. It extends the control distance of the serial devices and for
the user, only the point to point transmission is seen and the actual transmission is ignored.
VPDN: Virtual Private Dial-up Network is a network that uses primarily public
telecommunication infrastructure, such as the internet, to provide remote office or travelling
users’ access to a central organization network, such as the ISP private network, financial
network and so on.
Network Video Recorder Quick Start Guide
1
Wi-Fi: Wi-Fi is a mechanism of the wireless connecting electronic devices. A device enabled
with Wi-Fi such as PC, video game console, can connect to the internet via a wireless network
access point.
17.2 FAQ
• Why does my DVR make a beeping sound after booting?
The possible reasons for the warning beep on the device are as follows:
a) There is no HDD installed in the device.
b) The HDD is not initialized.
c) HDD error
To cancel the beeping sound and use the device without HDD, enter the Exception Settings
interface.
• DVR fails to start up after connecting the power.
Possible reasons:
a) Incorrect voltage input (6 ~ 36 VDC) and power consumption (≥ 50W).
b) The HDD lock is not closed.
c) The power connections are incorrect.
d) The motherboard or power functions abnormally. In case of hardware failure, please
contact the supplier of the product.
• Fail to connect 3G/4G.
Possible reasons for 3G/4G connection failure are as follows:
a) Dialing is not enabled.
b) APN, dial number, user name and password should be set for 3G/4G VPDN private
network.
c) No 3G/4G antenna connected. When both the master/slave antennas are connected,
locate them vertically with above 20cm distance from each other.
d) SIM card is out of service or 3G/4G service is not opened.
• Fail to connect to Wi-Fi.
Please check the following settings:
a) The SSID, encryption type or password are entered incorrectly.
b) AP (access point) or router works abnormally.
c) No Wi-Fi antenna connected or the antenna is not vertically located.
Network Video Recorder Quick Start Guide
2
• The DVR cannot be accessed via platform (iVMS) after successful connection to 3G/4G or
Wi-Fi.
Possible reasons:
a) The parameters (e.g., server IP, device registered ID, etc.) of the platform are configured
incorrectly.
b) The platform works abnormally.
• Fail to obtain satellite positioning information.
Possible reasons:
a) The satellite positioning antenna is not placed outdoor.
b) There is no satellite positioning module (built-in or external) available for the DVR.
c) The Position Module is configured incorrectly.
• Why does the device seem unresponsive when operating with the IR remote control?
a) The batteries are installed correctly, making sure that the polarities of the batteries are not
reversed.
b) The batteries are fresh and are not out of power.
c) The remote sensor is not covered or blocked by other object.
d) There are no fluorescent lamps in use nearby.
• No backup device is detected when exporting recorded files?
Possible reasons:
a) There is no backup device connected with the DVR.
b) The DVR and your backup device are not compatible.
c) Initialize the backup device before using.
d) The backup device is damaged.
17.3 Remote Control
Purpose:
The device can be controlled via IR remote control and mouse.
17.3.1 Buttons Description
Before you start:
Batteries (2×AAA) must be installed before operation.
Network Video Recorder Quick Start Guide
3
Figure 17-1 Remote Control
Table 17-1 Description of the IR Remote Control Buttons
No.
Name
Description
1
Power
Reserved
2
DEV
Input device number.
3
Number keys
Input number, symbol, and character.
Switch to the corresponding channel in Live View
mode.
4
Edit
Enter the edit status, and then delete the character in
the front of the cursor.
It can also be used to tick checkbox.
In Playback mode, it can be used to generate video clips
for backup.
5
A
Switch between input methods (Number, English,
symbol) when in the edit status.
6
REC
Reserved
7
PLAY
Enter video search interface.
8
INFO
Reserved
Network Video Recorder Quick Start Guide
4
17.3.2 Operation Introduction
Purpose:
In this chapter we will describe the operation via IR remote control about general steps in the
following chapters.
Before you start:
Batteries are installed correctly and the polarities of the batteries are not reversed.
Batteries are fresh and not out of charge.
9
VOIP/MON
Reserved
10
MENU
Enter Main menu interface.
11
PREV
Switch between single screen and multi-screen mode.
12
DIRECTION
Buttons
Up, Down, Left, Right
The DIRECTION buttons are used to navigate between
different fields and items in menus.
In the playback interface, they are used for fast
forward, slow forward, rewind.
In Live View mode, these buttons can be used to switch
channel(s).
ENTER
The ENTER button is used to confirm selection in any of
the menu modes.
It can also be used to tick checkbox.
In Playback mode, it can be used to play or pause the
video.
In Auto-switch mode, it can be used to stop /start auto
switch.
13
PTZ
Reserved
14
ESC
Back to the previous menu.
15
RESERVED
Reserved for future use.
16
F1
In video search interface, it can be used to select all
record files.
17
PTZ Control
Buttons
Buttons to adjust the iris, focus and zoom of a PTZ
camera.
18
F2
Reserved
Network Video Recorder Quick Start Guide
5
IR receiver is not obstructed.
Step 1 Go to Menu > Other Settings > Display.
Step 2 Click Set of Advanced Settings.
Step 3 Edit device number. The default number is 255.
Step 4 Press DEV on the remote control.
Step 5 Enter the device number.
Step 6 Press ENTER on the remote control.
Step 7 Refer to Table 17-2 for detailed operations.
Table 17-2 Remote Control Operations
Operation
Detailed Steps
Enter some contents in a text
field.
Press Left/Right to position the cursor in the text field.
Press Enter to edit.
Press Edit to delete the previous content.
Press A to switch input method.
Press the numeric buttons to enter numbers, symbols,
or characters.
Press Enter to finish entering.
Click a button.
Press Left/Right to position the cursor in the
checkbox.
Press Enter to click the button.
Check the checkbox of a button.
Press Left/Right to position the cursor in the
checkbox.
Press Enter/Edit to check the checkbox.
Select an item from an option
dropdown list.
Press Left/Right to position the cursor in the option.
Press Enter to pop up dropdown list.
Press Up/Down to select an item.
Press Enter to select it.
17.3.3 Troubleshooting
Purpose:
If there is no response after you press any button on the remote, follow the procedure below to
troubleshoot.
Network Video Recorder Quick Start Guide
6
Step 1 Go to Menu > Other Settings > Display
Step 2 Click Set of Advanced Settings.
Step 3 Edit device number. The default number is 255.
Step 4 Press DEV on the remote control.
Step 5 Enter the device number.
Step 6 Press ENTER on the remote control.
17.3.4 Set Areas with Remote Control
Step 1 Click the Area Settings button.
Step 2 Press the Edit key on the remote control and a red block appears on the screen.
Step 3 Press the Direction keys on the remote control to adjust the position of the red block.
Step 4 Press the Enter key on the remote control to save the position of the red block.
Step 5 Press the Direction keys on the remote control to adjust the size of the block.
Step 6 Press the Enter key on the remote control to save the size of the block.
Step 7 Press the Menu key on the remote control to set the detection sensitivity. You can set the
level as 1~6 or off. Click OK to save the settings.
Step 8 You can press the A key on the remote control to clear all the mask areas.
Press the Enter key on the remote control to save the settings and then press Esc key to exit.
Network Video Recorder Quick Start Guide
7
