User Manual

TYZS2DATASHEET

Tuya Smart Zigbee Module

1. Product Overview

TYZS2 is a low power consumption module with built-in Zigbee connectivity TYZS2

solution designed by Hangzhou Tuya Information Technology Co., Ltd. The Zigbee Module

consists of a highly integrated wireless radio chip EFR32MG1B132 and some extra

component that has been programed with Zigbee network protocol 802.15.4 PHY/MAC and

plenty of software examples. TYZS2 include a 32-bit ARM Cortex-M4 CPU, 256K byte

flash, 32k SRAM and various peripheral resources.

TYZS2 is a Free RTOS platform, embedded with all the Zigbee MAC and TCP/IP protocol

function examples, users can customize their Zigbee product by using these software examples.

Figure 1 shows the block diagram of the TYZS2.

Figure 1. The block diagram of the TYZS2

1.1 Features

Integrated low power consumption 32-bit ARM Cortex-M4 CPU, with DSP command and

float computing unit also using for application processor

Basic frequency of the CPU can support 40MHz

Supply voltage range: 1.8V to 3.8V

Peripherals: 6 GPIO channels, 1 UART, 1 ADC

Zigbee connectivity:

802.15.4 MAC/PHY

Channel 11 to 26 @ 2.400-2.480 GHz, radio rate 250 kbps

Embedded DC-DC circuit, maximally improving power efficiency

+9.15dBm output power

1.4uA standby current at 63uA/MHz

Automatic paring for terminals

PCB Antenna

TYZS2DATASHEET

On-board PCB antenna

Operating temperature range: -40℃ to 85℃

Hardware encryption, AES 128/256

1.2 Main Application Fields

Intelligent Building

Intelligent home, Intelligent household applications

Smart socket, smart lighting

Industrial wireless control

Health and measurement management

Asset trace

TYZS2DATASHEET

2. Dimensions and Footprint

2.1 Dimensions

TYZS2 has 2 columns of Pins. The distance between each Pin is 2mm.

Size of TYZS2: 14.8mm(W)*20.4mm(L)*2mm(H)

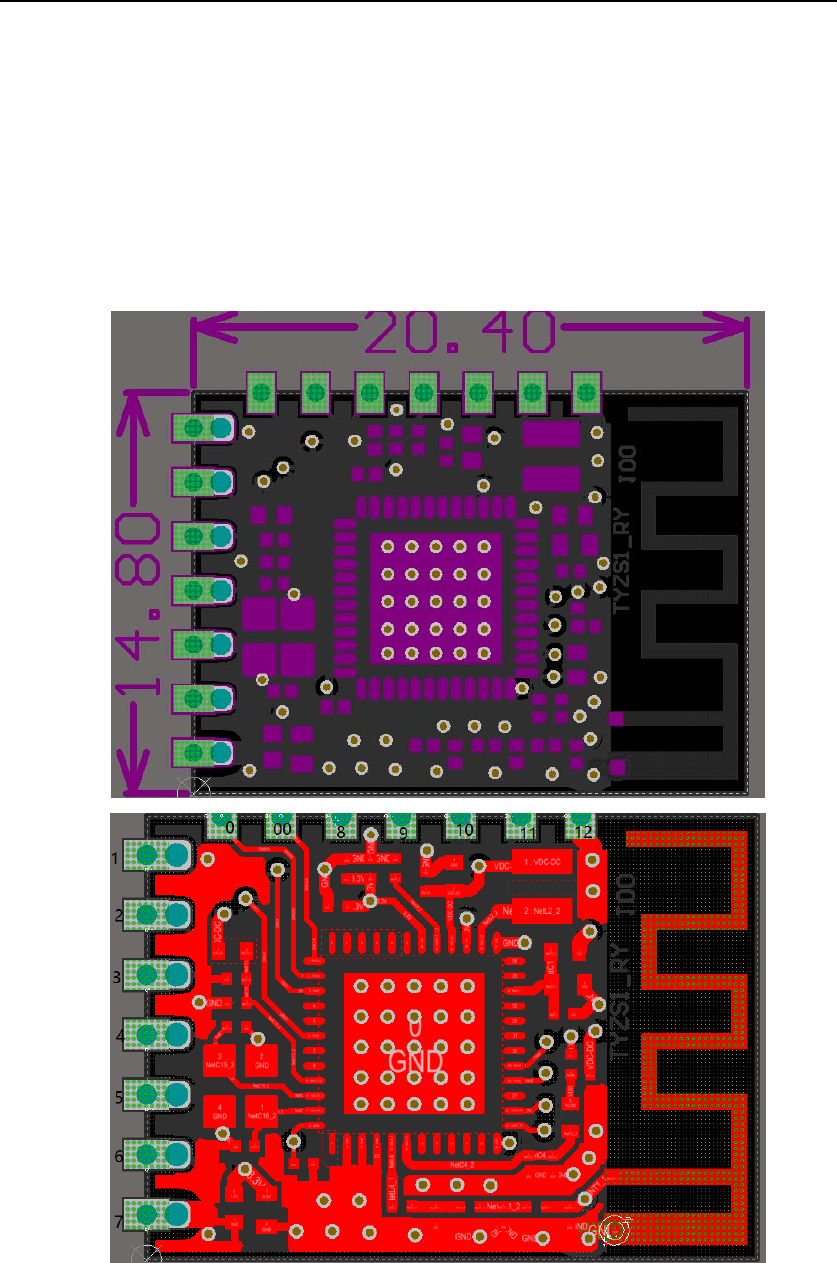

Figure 2 shows the dimensions of TYZS2.

Figure 2. The dimensions of TYZS2

2.2 Pin Definition

Table 1 shows the general pin attributes of TYZS2

TYZS2DATASHEET

Table 1. The typical pin definition of TYZS2

PINNO.NAMETYPEDISCREPTION

1PWM1I/OusedforLEDdriveroutput/universalGPIO

2PWM2I/OusedforLEDdriveroutput/universalGPIO

3I2C_SDAI/OI2C_SDA,alsocanbeusedasuniversalGPIO

4I2C_SCLI/OI2C_SCL,alsocanbeusedasuniversalGPIO

5VCCPSupplyvoltage(3.3V)

6ADCAIADCterminal(12‐bitsSARADC)

7GNDPGround

0SWDIOI/OJLINKSWDIOburingpin,alsousedforuniversalGPIO

0SWCLKI/OJLINKSWCLKburingpin,alsousedforuniversalGPIO

8RXDI/OUART0_RXD

9nRSTIhardwareresetpin,lowleveleffects;

themodulewillresetwhilebooting,usercouldignorethe

pinjustincase

10VCCPSupplyvoltage(3.3V)

11TXDOUART0_TXD

12GNDPGround

Note: S: Power supply pins; I/O: Digital input or output pins; AI: Analog input. RST pin is

the module hardware reset pin; it cannot eliminate Zigbee module pairing information.

(1) This pin can only be used as ADC input, cannot use it as normal I/O. when not using, just

connect nothing. When used as ADC input, the input voltage range is 0~AVDD, can be configured

by firmware.

2.3 Test Pin Definition

Table 2 shows the general test pin definition of TYZS2

Table 2. The general test pin definition of TYZS2

PINNO.SYMBOLTYPEDESCRIPTION

‐ TESTIUsedformodule’sproductiontest

Note: This test pin is not recommended to use.

TYZS2DATASHEET

3. Electrical Characteristics

3.1 Absolute Maximum Ratings

Table 3. Absolute Maximum Ratings

PARAME TERSDESCRIPTIONMINMAXUNIT

TsStoragetemperature‐50150℃

VCCSupplyvoltage ‐0.33.8V

Staticelectricityvoltage

(humanmodel)

TAMB‐25℃‐ 2.5KV

Staticelectricityvoltage

(machinemodel)

TAMB‐25℃‐ 0.5KV

3.2 Electrical Conditions

Table 4. Electrical Conditions

PARAME TERSDESCRIPTIONMINTYPICAL MAXUNIT

TaWorkingtemperature ‐40 ‐85℃

VCCWorkingvoltage1.83.33.8V

VILIOlowlevelinput ‐0.3‐ VCC*0.25V

VIHIOhighlevelinputVCC*0.75 ‐ VCCV

VOLIOlowleveloutput ‐‐VCC*0.1V

VoHIOhighleveloutputVCC*0.8‐ VCCV

ImaxIOdrivecurrent ‐‐12mA

3.3 Zigbee Transmitting Current Consumptions

Table 5. Zigbee TX current consumption

PARAMETERSRATETransmittingpowerTYPICAL UNIT

IRF250kbps+9.15dBm32mA

IRF250kbps+9.10dBm17mA

IRF250kbps+6.29dBm11.8mA

Note: continuously transmitting data while testing the result shown above, duty cycle=100%

3.4 Zigbee Receiving Current Consumptions

Table 6. Zigbee RX current consumption

PARAME TERSRATETYPICALUNIT

IRF250kbps8mA

Note: Receiving current 14mA while in active mode.

TYZS2DATASHEET

3.5 Working Mode Current Consumptions

Table 7. The module working current consumption

WORKMODEAT TA =25℃TYPICALMAX*UNIT

Quickpairing

Mode

TYZS2isunderquickparingmodewith

Gateway

1040mA

Connection

Mode

TYZS2isconnected0.0051mA

Deepsleep

Mode

TYZS2isindeepsleepmode,reserving64KB

flash

1.43uA

4. WLAN Radio Specification

4.1 Basic Radio Frequency Characteristics

Table 8. Basic Radio frequency characteristics

PARAME TERSDESCRIPTION

Frequencyband2.405GHzto2.480GHz

ZigbeestandardIEEE802.15.4

Datatransmittingrate250kbps

AntennatypeOn‐boardPCBAntenna

Visibletransmittingdistance >100m

4.2 Zigbee Transmitting Power

Table 9. Zigbee transmitting power

PARAME TERSMIN TYPICAL MAXUNI

T

Maximumoutputpower ‐

9.15

‐dBm

Minimumoutputpower ‐

6.29 

‐dBm

TheFrequencyerror ‐15‐+15ppm

Outputfrequencyadjacentchannelsuppression ‐31 dBc

4.3 Zigbee Receiving Sensitivity

Table 9. Zigbee Receiving sensitivity

PARAME TERSMIN TYPICAL MAXUNIT

PER<10%,Receivingsensitivity,250kbps@OQPSK‐ 102‐‐dBm

TYZS2DATASHEET

5. Antenna Information

5.1 Antenna Type

Antenna can be default connected using On-board PCB antenna.

5.2 Reduce Antenna Interference

While using the On-board PCB antenna, in order to have the best Zigbee performance, it’s

recommended to keep a minimum 15mm distance between the antenna part and the other metal

pieces.

User’s own PCBA design is recommended NOT to pass any wire, NOT do copper pour under

the region of the module’s antenna, to avoid interferences.

TYZS2DATASHEET

6. Packaging Information And Production Guide

6.1 Mechanical Dimensions

Figure 3. Top view of the module



6.2 PCB Recommended Package

TYZS2DATASHEET



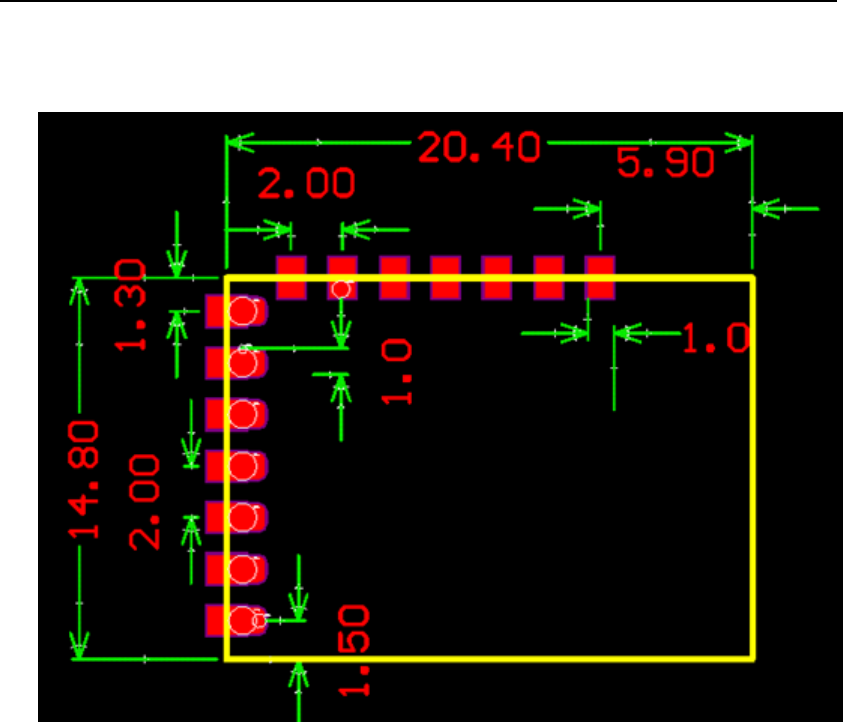

Figure 4. PCB Package Drawing



TYZS2DATASHEET

6.3 Production Guide

The storage for the delivered module should meet the following condition:

1. The anti-moisture bag should be kept in the environment with temperature < 30℃ and

humidity < 85% RH.

2. The expiration date is 6 months since the dry packaging products was sealed.

Cautions:

1. All the operators should wear electrostatic ring in the whole process of production.

2. While operating, water and dirt should not have any contact with the modules.

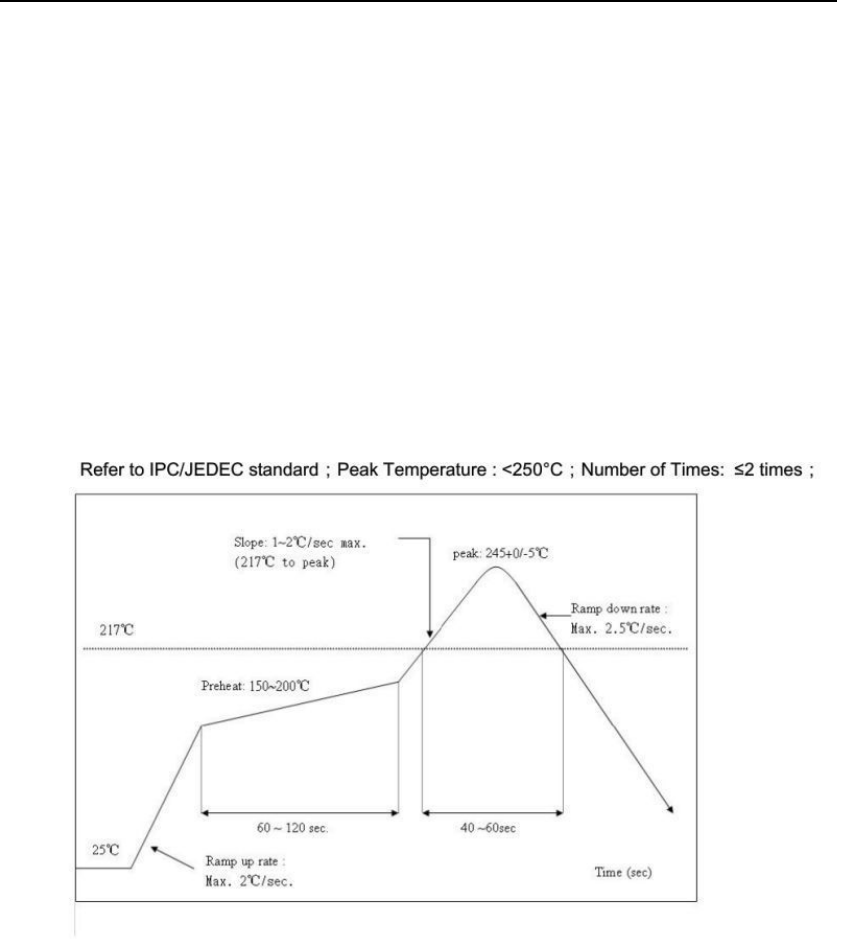

6.4 Recommended furnace temperature curve

Figure 5. PCB Package DrawingRecommended furnace temperature curve



FCC Statement:

Any Changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This

equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

FCC Label Instructions:

The outside of final products that contains this module device must display a label

referring to the enclosed module. This exterior label can use wording such as: “Contains

Transmitter Module FCC ID:2ANDL-TYZS2”,or “Contains FCC ID:2ANDL-TYZS2”, Any

similar wording that expresses the same meaning may be used.
