1. Product Overview
WR5P  is  a  low  power  consumption  module  with  built-in  Wi-Fi  connectivity
solution designed by Hangzhou Tuya Information Technology Co., Ltd. The Wi-Fi Module
consists of a highly integrated wireless radio chipRTL8710BN and some extra flash that has
been  programmed  with  Wi-Fi  network  protocol  and  plenty  of  software  examples.WR5P
include a ARM CM4F, WLAN MAC, 1T1R WLAN, maximum frequency reaches 125MHz,
256K SRAM, 1M byte flash and various peripheral resources.
WR5P is a RTOS platform, embedded with all the Wi-Fi MAC and TCP/IP protocol function
examples, users can customize their Wi-Fi product by using these software examples.
1.1 Features
Integrated low power consumption 32-bit CPU, also known as application processor
Basic frequency of the CPU can support 125 MHz
Supply voltage range: 3.3V DC
Peripherals: 9 GPIO channels, 1 UART, 1 ADC
Wi-Fi connectivity:
802.11 B/G/N20/N40
Channel 1 to 11 @ 2.4GHz
Support WPA/WPA2
+20.67dBm output power in 802.11b mode
Support SmartConfig function for both Android and IOS devices

WR5PDATASHEET
On-board PCB antenna
Operating temperature range: -20℃ to 85℃
1.2 Main Application Fields
Intelligent Building
Intelligent home, Intelligent household applications
Healthy devices
Industrial wireless control
Baby monitor
Webcam
Intelligent bus

WR5PDATASHEET
2. Dimensions and Footprint
2.1Dimensions
WR5P has 2 columns of Pins. The distance between each Pin is 2 mm.
Size of WR5P: 16mm(W)*24.74mm(L)*3.5mm(H)
Figure 2 shows the dimensions of WR5P.

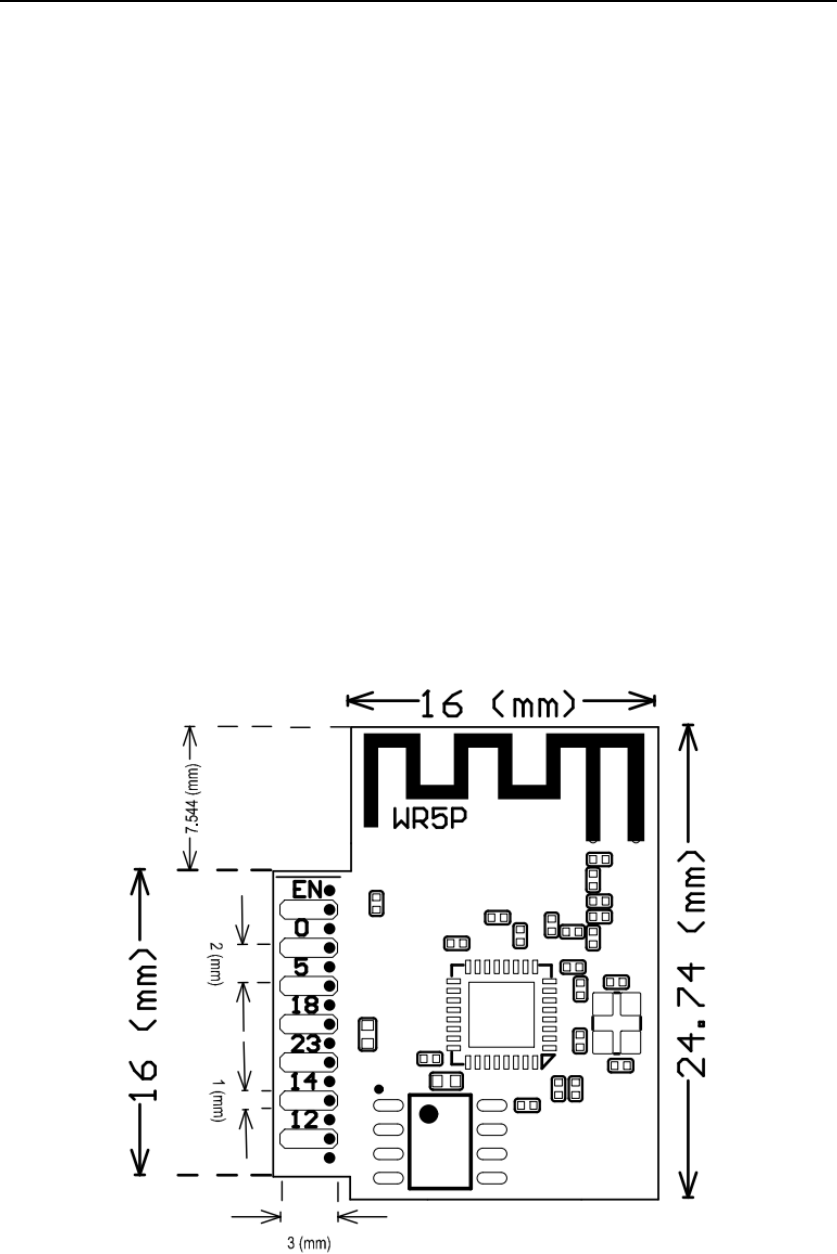

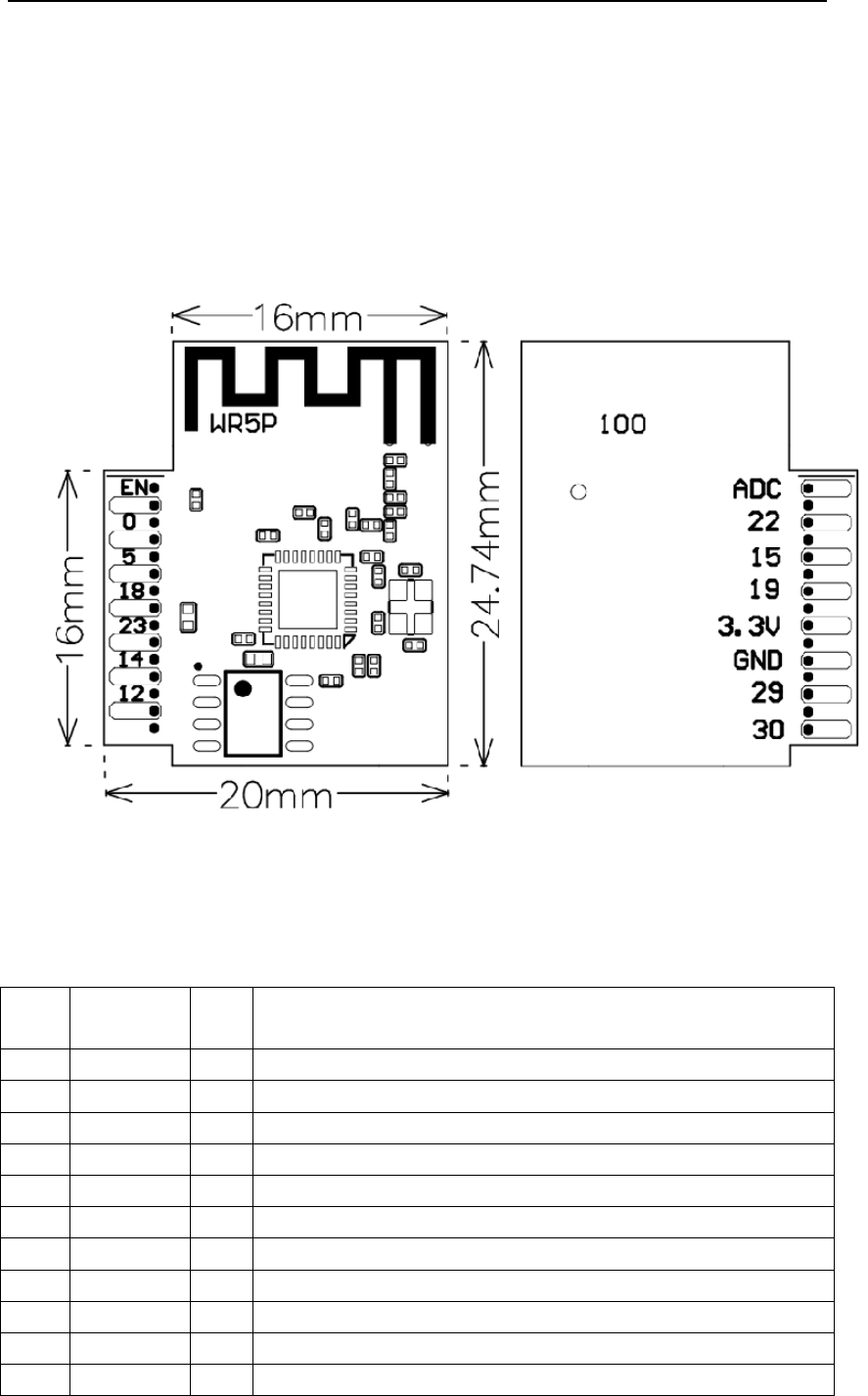

Figure 2. The dimensions of WR5P
2.2 Pin Definition
Table 1 shows the general pin attributes of WR5P
Table 2.1 The typical pin definition of WR5P
PIN
NO.
NAMETYPEDISCREPTION
1GPIOA_30 I/O
UART_Log_TXD(usedtoprintmodule'sinternalinformation)
2GPIOA_12 I/O GPIOA_12
3GPIOA_29 I/O
UART_Log_RXD(usedtoprintmodule'sinternalinformation)
4GPIOA_14 I/O
GPIOA_14
5 GND  P
Ground
6GPIOA_23 I/O
UART0_TXD
7VD33 P
Supplyvoltage(3.3V)
8GPIOA_18 I/O
UART0_RXD
9GPIOA_19 I/O
GPIOA_19
10GPIOA_5 I/O
GPIOA_5
11GPIOA_15 I/O GPIOA_15

WR5PDATASHEET
12GPIOA_0 I/O
GPIOA_0,cannotbepull‐upwhilebooting,canbeusedasGPIO
whileinnormalworkingmode
13GPIOA_22 I/O
GPIOA_22
14EN I/O
Externalresetsignal(lowleveleffects)
15ADC AI
ADCterminal(input5Vmaximally)
Note: S: Power supply pins; I/O: Digital input or output pins; AI: Analog input.

WR5PDATASHEET
3. Electrical Characteristics
3.1 Absolute Maximum Ratings
Table 3.1 Absolute Maximum Ratings
PARAMETERSDESCRIPTIONMINMAXUNIT
TsStoragetemperature‐40105℃
VDDSupplyvoltage ‐0.33.6V
Staticelectricityvoltage
(humanmodel)
TAMB‐25℃‐ 2KV
Staticelectricityvoltage
(machinemodel)
TAMB‐25℃‐ 0.5KV
3.2 Electrical Conditions
Table 3.2. Electrical Conditions
PARAMETERSDESCRIPTIONMINTYPICAL MAXUNIT
TaWorkingtemperature ‐20 ‐85℃
VCCWorkingvoltage3‐3.6V
VILIOlowlevelinput ‐0.3‐ VCC*0.25V
VIHIOhighlevelinputVCC*0.75 ‐ VCCV
VOLIOlowleveloutput ‐‐VCC*0.1V
VoHIOhighleveloutputVCC*0.8‐ VCCV
ImaxIOdrivecurrent ‐‐16mA
CpadInputcapacitor ‐2‐pF
3.3 Wi-Fi Transmitting Current Consumptions
Table 3.3. Wi-Fi TX current consumption
PARAMETERSMODERATETransmittingpowerTYPICALUNIT
IRF11b1Mbps +20.67dBm287mA
IRF11g6Mbps +23.45dBm255mA
IRF11nHT20 MCS0+22.56dBm244mA
IRF11nHT40 MCS0+19.13dBm220mA

WR5PDATASHEET
3.4 Wi-Fi Receiving Current Consumptions
Table 3.4. Wi-Fi RX current consumption
PARAMETERSMODETYPICALUNIT
IRFCPUsleep90mA
IRFCPUactive120mA
3.5 Working Mode CurrentConsumptions
Table 3.5 The module working current consumption
WORKMODEATTA =2 5 ℃TYPICALMAX*UNIT
EZModeWR5PisunderEZparingmode,Wi‐Fiindicator
lightflashesquickly
115 130
mA
StandbyModeWR5Pisconnected,Wi‐Fiindicatorlightison50 110
mA
OperationModeWR5Pisconnected,Wi‐Fiindicatorlightison120 265
mA
Disconnection
Mode
WR5Pisdisconnected,Wi‐Fiindicatorlightis
off
35 90
mA
Note: peak continuous time is about 5us.
The parameter shown above will vary depending on different firmware functions.
4. WLAN Radio Specification
4.1 Basic Radio Frequency Characteristics
Table 4.1 Basic Radio frequency characteristics
PARAMETERSDESCRIPTION
Frequencyband2412-2462MHz
Wi‐FistandardIEEE802.11n/g/b(Terminal1‐11)
Datatransmittingrate11b:1,2,5.5,11(Mbps)
11g:6,9,12,18,24,36,48,54(Mbps)
11n:HT20,MCS0~7
11n:HT40,MCS0~7
AntennatypeOn‐boardPCBAntenna

WR5PDATASHEET
4.2Wi-Fi Receiving Sensitivity
Table 4.3 Wi-Fi Receiving sensitivity
PARAMETERSMIN TYPICALMAXUNI
T
PER<8%,Receivingsensitivity,802.11bCCKMode11M ‐ ‐91‐dBm
PER<10%,Receivingsensitivity,802.11gOFDMMode 54M ‐ ‐75‐dBm
PER<10%,Receivingsensitivity,802.11nOFDMMode MCS7 ‐ ‐72‐dBm

WR5PDATASHEET
5. Antenna Information
5.1 Antenna Type
Antenna can be connected using On-board PCB antenna by default.
5.2 Reduce Antenna Interference
While using the On-board PCB antenna, in order to have the best Wi-Fi performance, it’s
recommended to keep a minimum15mm distance between the antenna part and the other metal
pieces.
User’s own PCBA design is recommended NOT to pass any wire, NOT do copper pour under
the region of the module’s antenna, to avoid interferences.
6. Packaging Information And Production Guide
6.1 Mechanical Dimensions

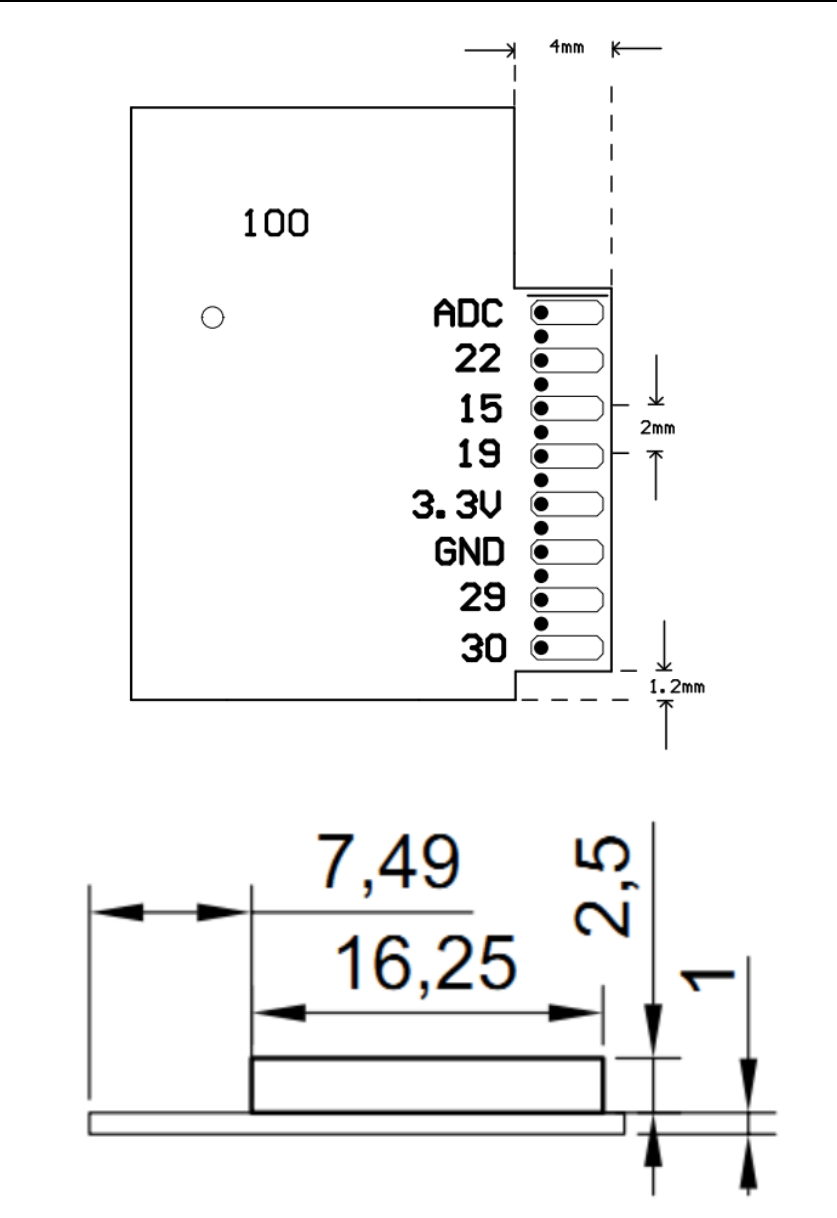

Figure 6.1 Top view of the module

WR5PDATASHEET
Figure 6.2 Side view of the module
6.2 PCB Recommended Package

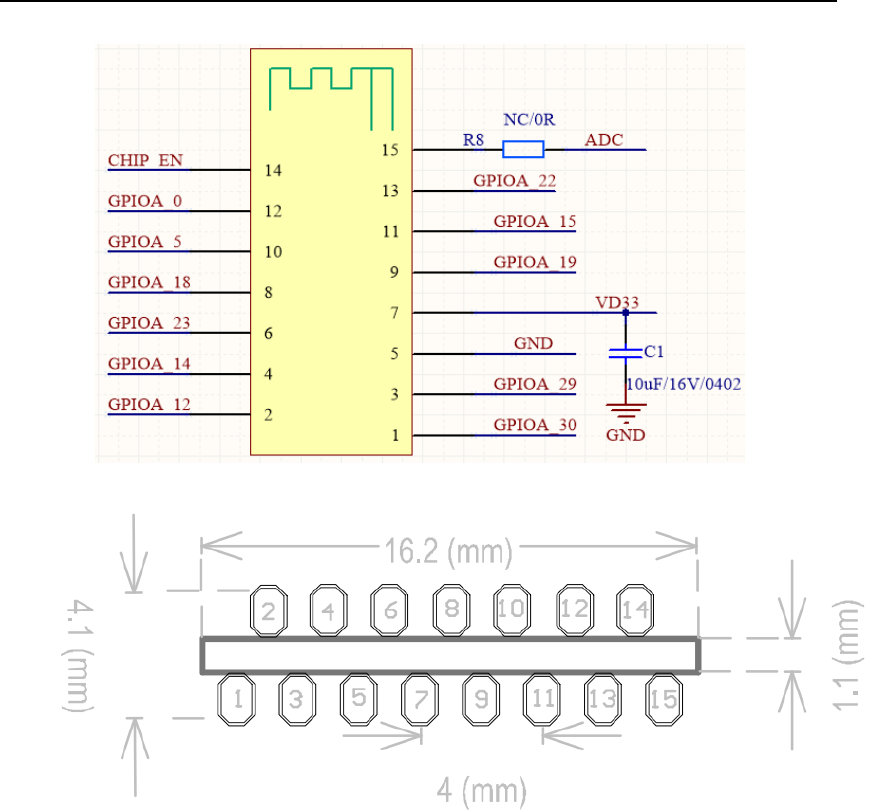

Figure 6.3 PCB schematic Drawing

WR5PDATASHEET
Figure 6.4 PCB footprint Drawing
6.3 Production Guide
The storage for the delivered module should meet the following condition:
1. The anti-moisture bag should be kept in the environment with temperature< 30℃ and
humidity< 85% RH.
2. The expiration date is 6 months since the dry packaging products was sealed.
Cautions:
1. All the operators should wear electrostatic ringin the whole process of production.
2. While operating, water and dirt should not have any contact with the modules.
6.4 Recommended furnace temperature curve
Figure 6.5 PCB Package Drawing Recommended furnace temperature curve

WR5PDATASHEET

WR5PDATASHEET
