Hanrongda Electronic HRD-831 Portable FM Transmitter User Manual

Shenzhen Hanrongda Electronic Co., Ltd. Portable FM Transmitter

User Manual

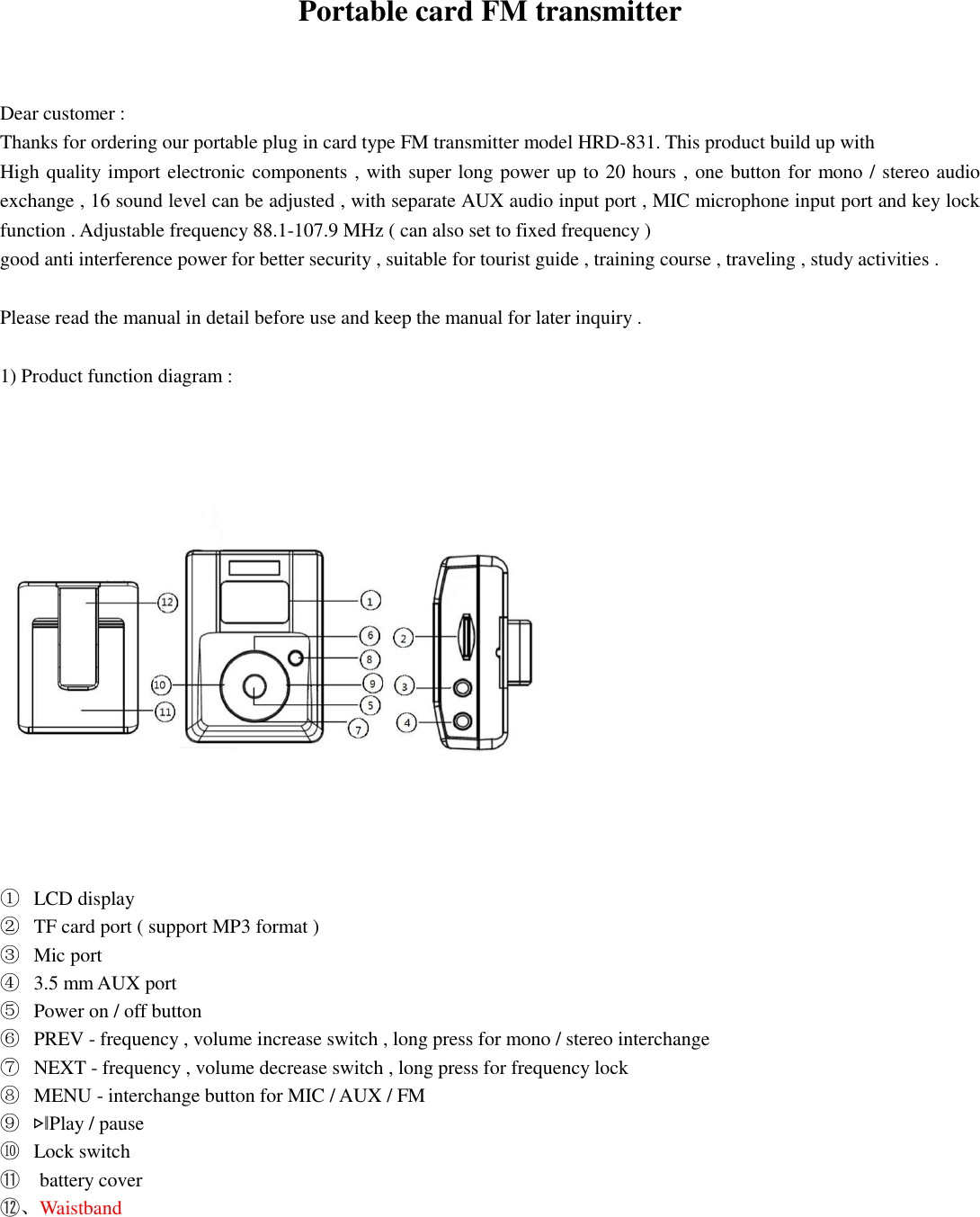

Portable card FM transmitter   Dear customer : Thanks for ordering our portable plug in card type FM transmitter model HRD-831. This product build up with   High quality import electronic components , with super long power up to 20 hours , one button for mono / stereo audio exchange , 16 sound level can be adjusted , with separate AUX audio input port , MIC microphone input port and key lock function . Adjustable frequency 88.1-107.9 MHz ( can also set to fixed frequency ) good anti interference power for better security , suitable for tourist guide , training course , traveling , study activities .  Please read the manual in detail before use and keep the manual for later inquiry .  1) Product function diagram :        ① LCD display   ② TF card port ( support MP3 format ) ③ Mic port ④ 3.5 mm AUX port ⑤ Power on / off button ⑥ PREV - frequency , volume increase switch , long press for mono / stereo interchange ⑦ NEXT - frequency , volume decrease switch , long press for frequency lock ⑧ MENU - interchange button for MIC / AUX / FM   ⑨ ▷‖Play / pause ⑩ Lock switch ⑪  battery cover ⑫、Waistband
一、:Operation :  1. Push open battery cover , insert BL-5C Li battery , close battery cover    2. Long press power button ⑥ to power on,          (2.1) Internal MP3 playing : In condition no audio input in AUX port ⑤, insert TF card to enter MP3 playing mode , transmitter with automatically read card and play music , short press PREV⑦,NEXT⑧ for previous / next song , short press ▷‖⑩ for play / pause       (2.2) Play external audio : connect AUX⑤port using audio cable to PC / TV / mobile to play external audio , unplug audio cable in AUX playing mode will automatically change to TF card playing mode in 3 seconds.        (2.3) insert microphone to MIC port for chatting  3. Function interchange :   Short press MENU button , MIC / AUX / FM    flashing in sequence。  When “MIC” flashing , short press PREV⑦,NEXT⑧ to adjust Mic volume  When “AUX” flashing , short press    short press PREV⑦,NEXT⑧ to adjust AUX volume When “FM” flashing , short press PREV⑦,NEXT⑧ to adjust frequency ( if transmitter locked frequency 88.1MHz , long press NEXT button for frequency exchange )  4. Lock / unlock method :    (1)In normal condition , long press LOCK button ,  icon appear in display , function locked. (2) In locked condition , long press LOCK button to release locking function ,  icon disappear.  5. Charging (1)  Connect  transmitter  to  DC5V  charging  adapter  by  USB  charging  cable  ,  icon  flashing to indicate  charging  in process . (2) Icon  stop flashing upon fully charged , charging time around 5 hours  6. Long press PREV button for 2 seconds to interchange mono / stereo mode , STEREO appear on display is stereo mode .  二、Notice for operate the product : 1. Maintenance should be done by professional technician 2. Please do not use it in easy explosive circumstance ( such as gas station , steam room ) 3. Please don’t place transmitter in high dusty , high temperature & high humidity condition. 4. Please follow the rules set by Administration of radio   5. Please don’t use the device in stormy weather.  三、Product feature : 1. This product using professional IC , high quality audio can be separate handled to obtain lossless audio   2. Professional level of noise wave / harmonic wave , ≤60dB , get rid of surrounding interference   3. Mono / stereo easily interchange , easy operate  4. Suitable applicant / organization       Driving college / school / stage director / public speech / tourist / vehicle mounted chatting , MP3 audio forward / in house wireless audio system / wireless meeting system / simultaneous interpretation / outdoor traveling
Note :   A、 Please recharge device when  icon indicate empty . B、 No charging indication when charging in power off status. C、 Please release battery while long period not in use. 5. Main specification data : no item technical spec 1 Working voltage BL-5C 3.7V 1000mAh 2 Frequency range 88.1-107.9MHz(step value:0.2MHz) 3 Frequency stability   ±10PPM 4 Frequency step up 0.2MHz 5 Duration period   8 hrs / 6 hrs / 5hrs / 3hrs level 1 to 4 6 Charging time   Around 5 hrs 7 noise wave / harmonic wave radiation   ≤-60dB 8 Audio loss ≤1% 9 Frequency response 50Hz~1500Hz 10 Input level ≤-15dBV 11 SNR ≥60dB 12 Support format MP3 format 13 product dimension 80*58*18mm 14 product weight 83 grams    6. Package : number Product name spec quantity unit 1 main product HRD-831 1 set 2 Lithium battery BL-5C1000mAh 1 pc 3 Microphone Stereo  ,  1.2  M with shielding 1 pc 4 Audio cable 3.5MM  male  to male 1 pc 5  USB cable USB  to  micro usb plug 1 pc 6 packing box Printed  box  + blister 1 set   7. After sell service :

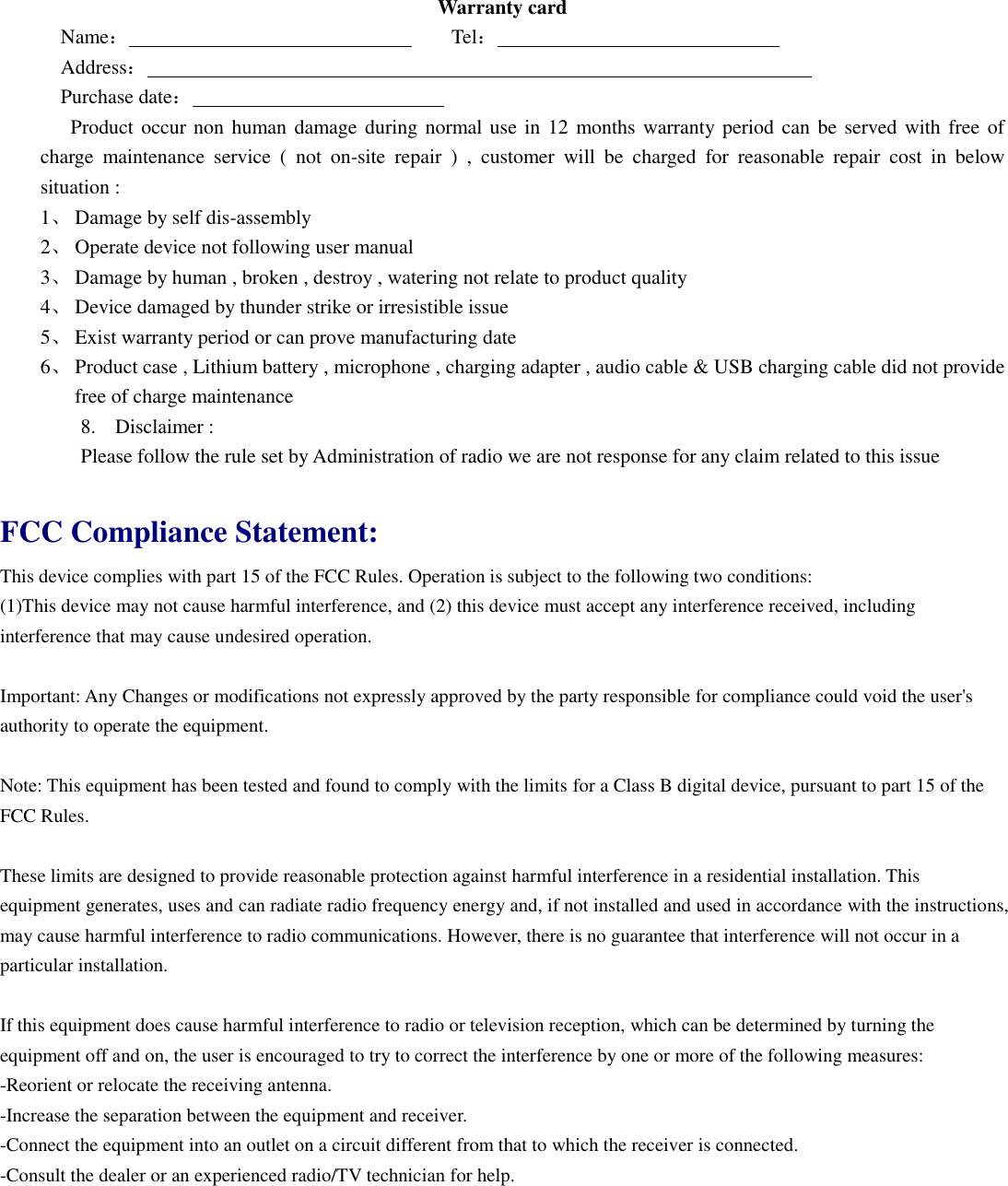

Warranty card Name:                                Tel:                             Address:                                                                   Purchase date:                             Product occur non human damage during normal use in 12  months warranty period can  be served with free of charge  maintenance  service  (  not  on-site  repair  )  ,  customer  will  be  charged  for  reasonable  repair  cost  in  below situation : 1、 Damage by self dis-assembly 2、 Operate device not following user manual 3、 Damage by human , broken , destroy , watering not relate to product quality 4、 Device damaged by thunder strike or irresistible issue 5、 Exist warranty period or can prove manufacturing date 6、 Product case , Lithium battery , microphone , charging adapter , audio cable & USB charging cable did not provide free of charge maintenance 8. Disclaimer : Please follow the rule set by Administration of radio we are not response for any claim related to this issue  FCC Compliance Statement:   This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:   (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Important: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.    Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.   -Increase the separation between the equipment and receiver.   -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   -Consult the dealer or an experienced radio/TV technician for help.
