D101831 0713 BLident® Installation of the UHF System 3
1 General Information ................................................................................................................. 5
1.1 Intended purpose of this documentation ..............................................................................................6
1.2 Meaning of the symbols used ................................................................................................................ 6
1.3 Safety notes ...........................................................................................................................................6
1.3.1 Intended use ................................................................................................................................................................................................7
1.3.2 Engineering/installation instructions for the product..................................................................................................................7
1.3.3 Safety instructions for RFID systems– minimum permissible distances ................................................................................7
– Minimum distances to the read/write head acc. to ETSI (Europe) ......................................................................................8
– Minimum distances to the read/write head acc. to FCC (USA) .............................................................................................8
1.4 TURCK Service ........................................................................................................................................8
1.5 Relevant documents .............................................................................................................................. 9
2 The TURCK BL ident® UHF System ........................................................................................... 11
2.1 BL ident® – Modular RFID system..........................................................................................................12
2.1.1 BL ident® system concept...................................................................................................................................................................... 12
2.1.2 BL ident® data carriers............................................................................................................................................................................. 12
2.1.3 BL ident® read/write heads ................................................................................................................................................................... 12
2.1.4 BL ident® interfaces.................................................................................................................................................................................. 12

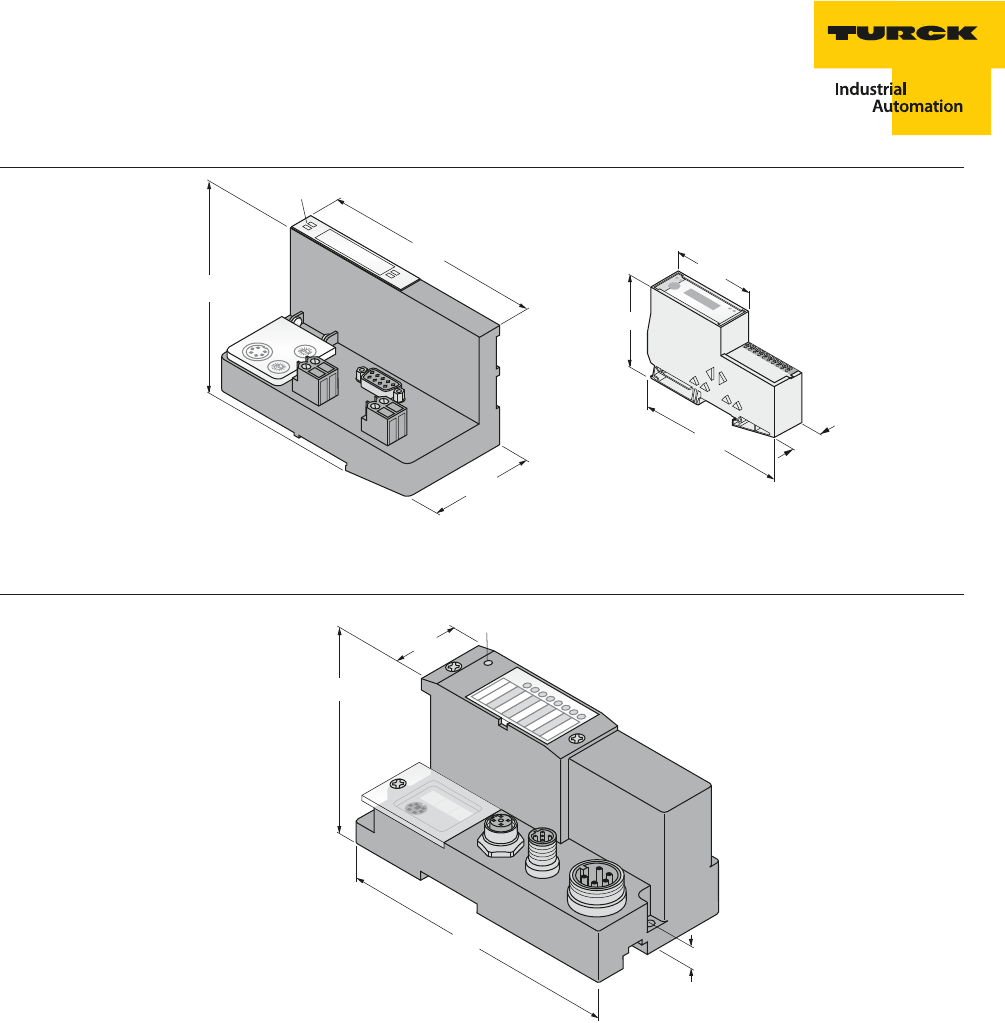

– Gateways (BL20 and BL67) .............................................................................................................................................................. 12

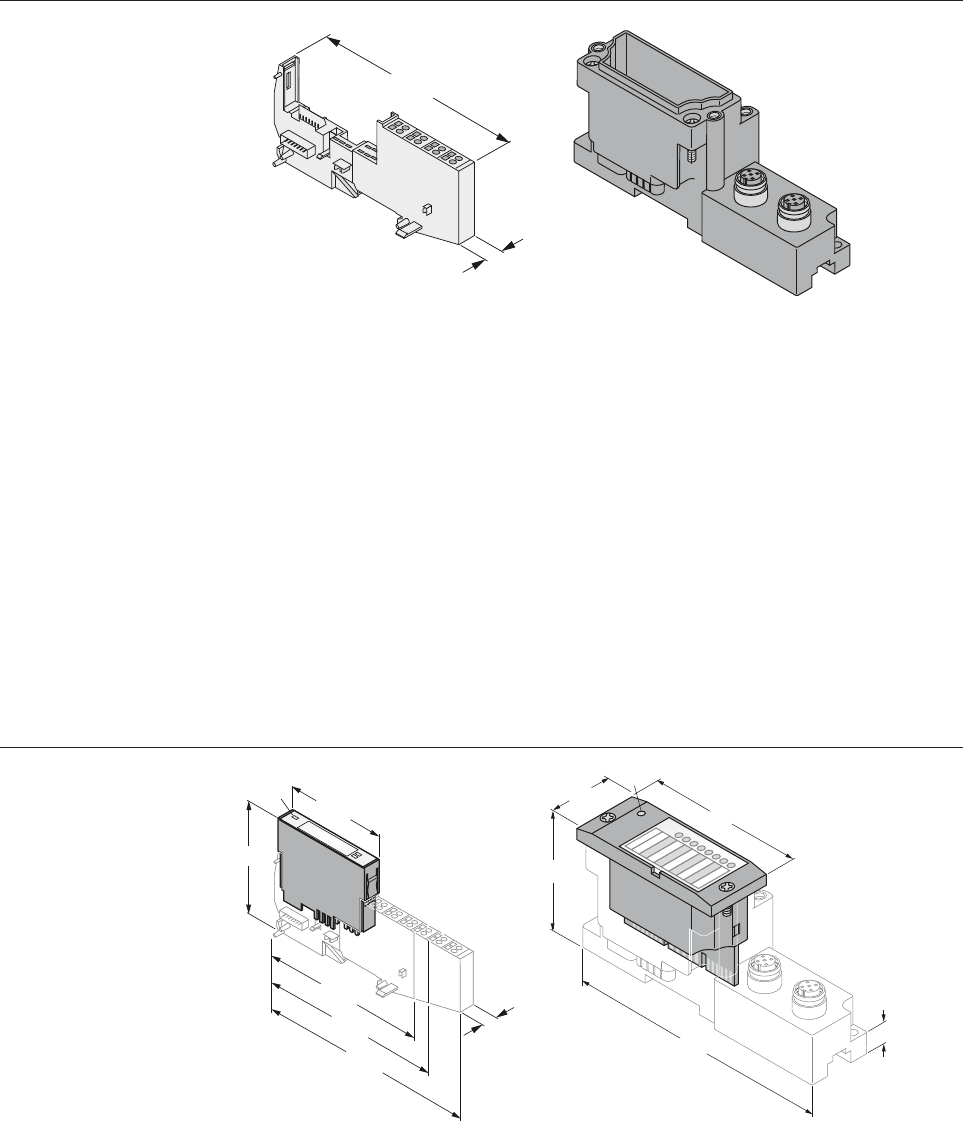

– Interface modules: electronic and base modules .................................................................................................................. 13
– Combination of gateways and interface modules ................................................................................................................. 14
–BL compact interfaces ....................................................................................................................................................................... 16

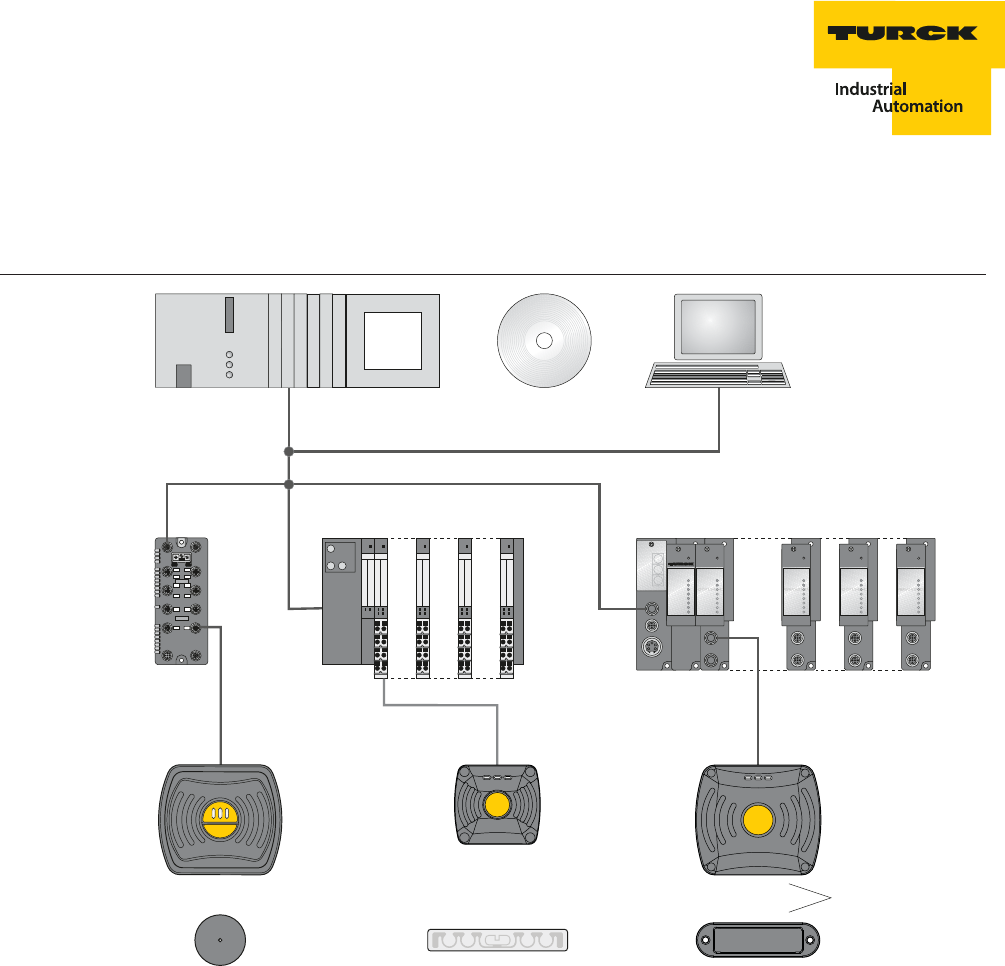

2.2 Schematic representation of the BL ident® UHF identification system ................................................ 19
2.2.1 Networking with BL ident® UHF systems......................................................................................................................................... 20
2.3 Identification systems with radio frequency technology (RFID).......................................................... 20
2.4 Features and application areas of the BL ident® system....................................................................... 20
2.4.1 Degree of protection.............................................................................................................................................................................. 20
2.4.2 Lifespan....................................................................................................................................................................................................... 21
2.4.3 Transmission frequency........................................................................................................................................................................ 21
2.4.4 Mounting types........................................................................................................................................................................................ 22
– Data carriers ......................................................................................................................................................................................... 22
– Read/write heads ............................................................................................................................................................................... 22
2.4.5 Memory....................................................................................................................................................................................................... 22
2.5 Read/write time in the sensing range of the UHF read/write head ......................................................22
2.6 User data areas of the UHF data carrier variants .................................................................................23
2.7 General information on the UHF data carriers..................................................................................... 23
2.7.1 Multiple access (multi-tag detection, bulk reading)................................................................................................................... 24
2.7.2 User data areas of the data carrier variants ................................................................................................................................... 25
– Overview of UHF data carriers with Impinj Monza® 3 chip ................................................................................................. 25
– Overview of UHF data carriers with Impinj Monza® 4D chip .............................................................................................. 25
– Overview of UHF data carriers with Impinj Monza® 4E chip ............................................................................................... 26
D101831 0713 BLident® Installation of the UHF System4
– Overview of UHF data carriers with Impinj Monza® 4QT chip – private mode ............................................................27
– Overview of UHF data carriers with Impinj Monza® 4QT chip – public mode ..............................................................28
– Overview of UHF data carriers with Impinj Monza® 5 chip ..................................................................................................28
– Overview of UHF data carriers with Alien Higgs® 3 chip ......................................................................................................29
– Overview of UHF data carriers with NXP U-Code G2XM/G2XL chip ................................................................................30
– Overview of UHF data carriers NXP U-Code G2IM chip ........................................................................................................31
– Overview of UHF data carriers with NXP U-Code G2IL chip ................................................................................................32
2.8 Speed of the data carrier at the read/write head on RFID systems ...................................................... 33
2.9 Read range / write range......................................................................................................................33

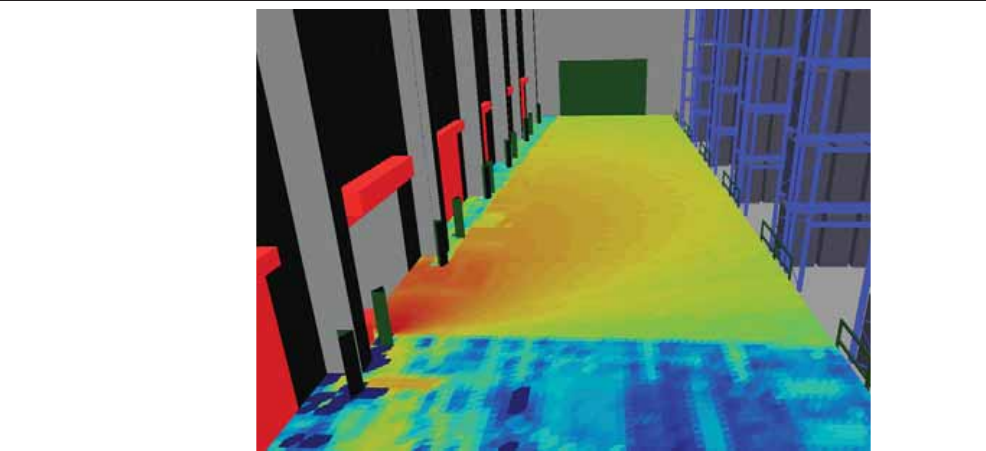

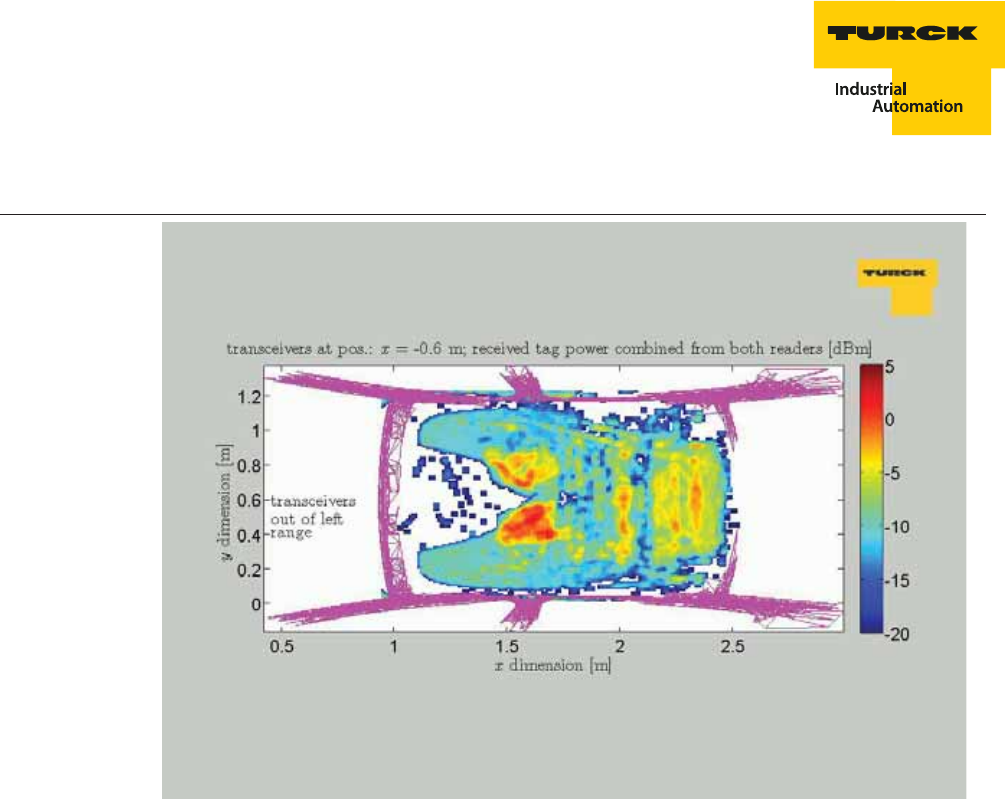

2.10 BL ident® Simulator for UHF-RFID (Ray Tracer) ....................................................................................34
2.11 Compatibility .......................................................................................................................................35
2.12 Application areas (examples)...............................................................................................................36
3BL ident® System – Planning ....................................................................................................37
3.1 Selection criteria for data carriers, read/write heads and interface module ....................................... 38
3.2 Transmission zone and read/write distance ........................................................................................ 38
3.2.1 UHF transmission zone ..........................................................................................................................................................................38
3.2.2 Minimum distance of data carrier to the read/write head........................................................................................................39
3.2.3 Permissible motion direction and alignment of the data carriers .........................................................................................39
3.2.4 Reading and writing in static mode..................................................................................................................................................40
3.2.5 Reading and writing in dynamic mode (on the fly).....................................................................................................................40
3.2.6 Transfer rate...............................................................................................................................................................................................40
3.2.7 Range difference between reading and writing ..........................................................................................................................40
3.2.8 Minimum distance between two adjacent data carriers in single mode ............................................................................40
3.2.9 Minimum distance between two adjacent data carriers in multiple access ......................................................................41
3.2.10 Dwell time Td of the data carrier.........................................................................................................................................................41
4 Mounting and operating guidelines .......................................................................................43
4.1 Effect on the performance of the BL ident® system ..............................................................................44

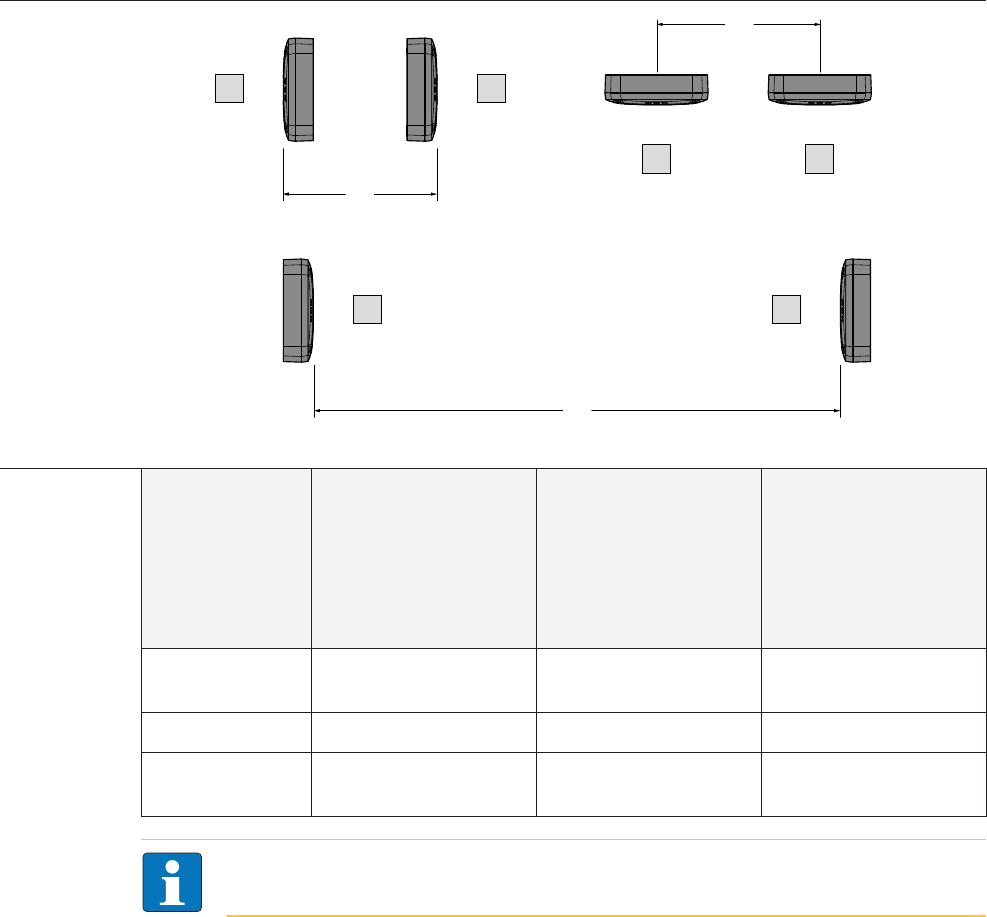

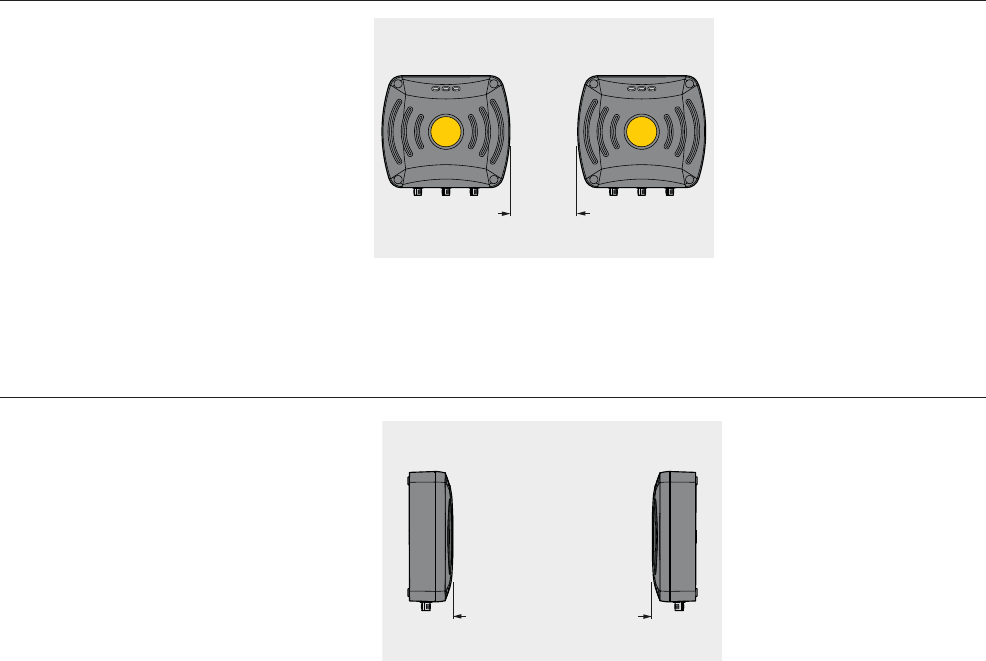

4.1.1 Minimum / maximum distance between read/write heads ....................................................................................................44

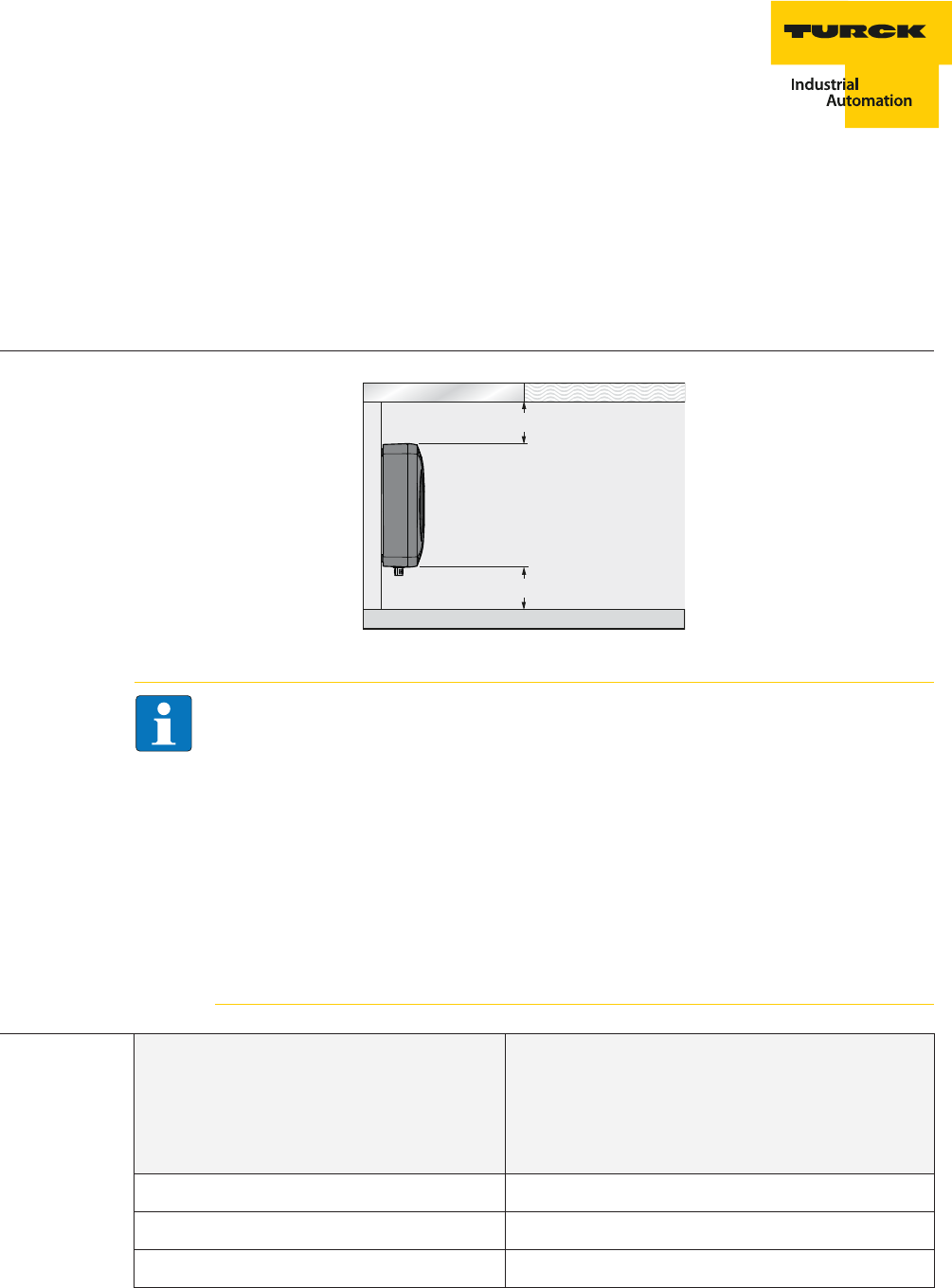

4.1.2 Minimum distance of read/write heads to conductive materials ..........................................................................................45

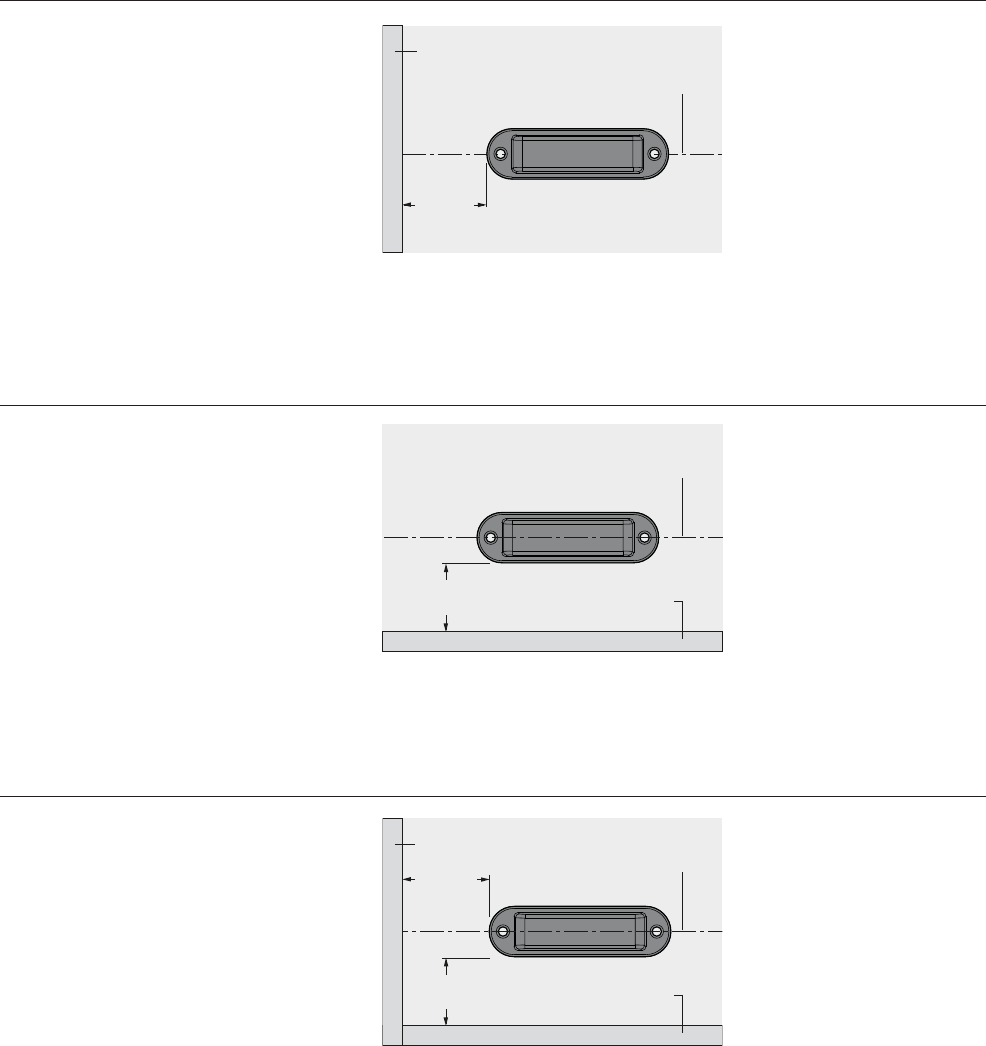

4.1.3 Minimum distance of data carriers to conductive walls............................................................................................................46

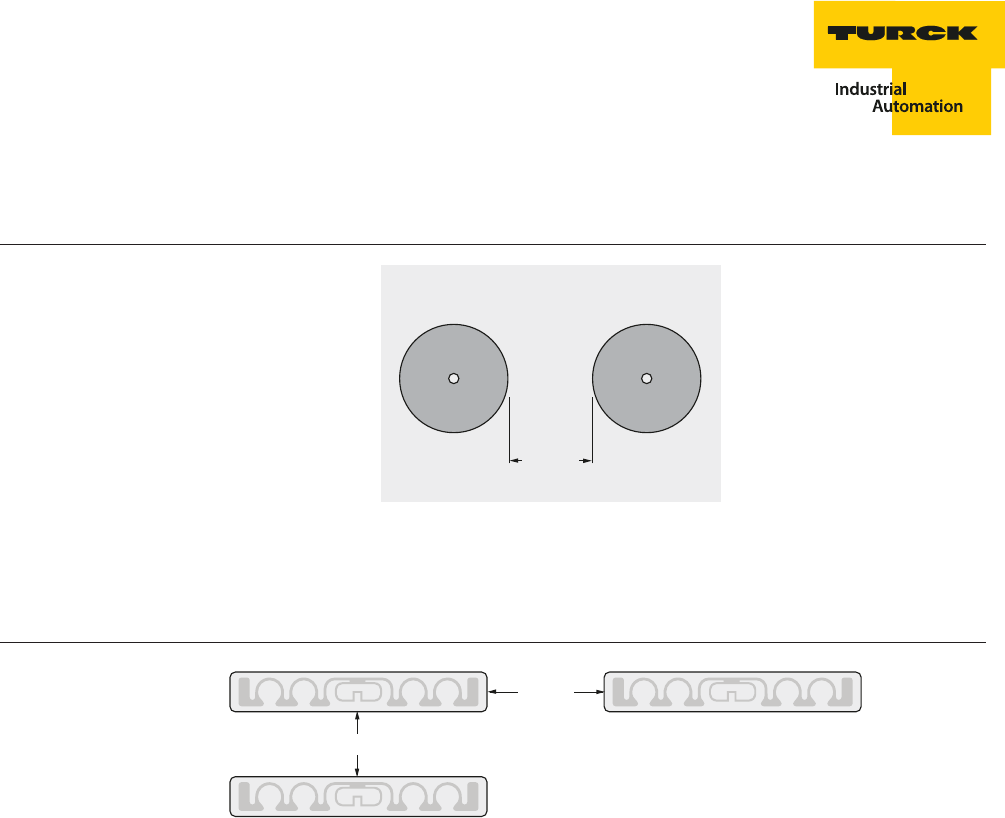

4.1.4 Minimum distance between data carriers ......................................................................................................................................47
4.1.5 Minimum distance of smart label data carriers between each other ...................................................................................47
4.1.6 Interaction when using several read/write heads .......................................................................................................................47
– Adaptive frequency agility ..............................................................................................................................................................47
– Frequency hopping procedure .....................................................................................................................................................47
4.1.7 Factors influencing the read distance..............................................................................................................................................51
4.1.8 Environmental conditions for data carriers....................................................................................................................................51

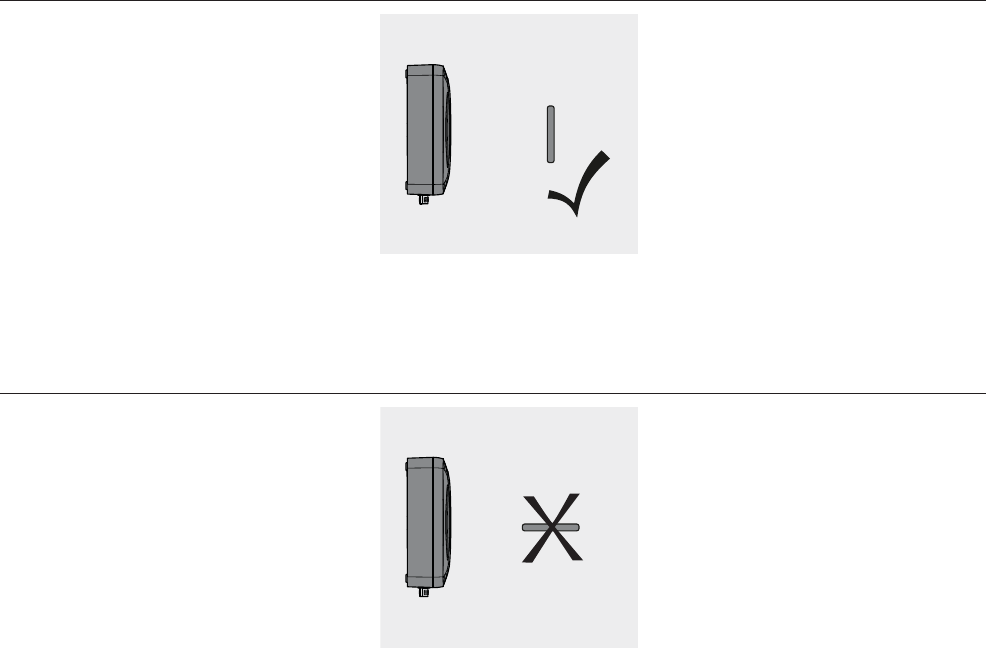

4.1.9 Data carrier orientation in the room.................................................................................................................................................52
4.2 Behavior of electromagnetic waves in the UHF range ......................................................................... 53
4.2.1 Effect of reflections and interference ...............................................................................................................................................53
– Reflections and interference ...........................................................................................................................................................53
– Reducing the effect of reflections/interference on data carrier detection ....................................................................53
4.2.2 Effect of liquids and non-metallic substances...............................................................................................................................53
D101831 0713 BLident® Installation of the UHF System 5
4.2.3 Effect of third party components ...................................................................................................................................................... 53
– Reflections and interference .......................................................................................................................................................... 53
– Third party components in the same frequency band ......................................................................................................... 54
4 Startup with the RDemo and WebConfig software tools 55
4.1 Testing, parameter assignment and configuration of the read/write heads.......................................56
4.1.1 Testing with RDemo............................................................................................................................................................................... 56
4.1.2 Parameter assignment and configuration with WebConfig.................................................................................................... 57
5 EMC Guidelines ...................................................................................................................... 59
5.1 Target group ........................................................................................................................................60
5.2 Propagation of electromagnetic interference ..................................................................................... 60
5.3 RFID interference ................................................................................................................................. 61
5.4 EMC – Definition................................................................................................................................... 61
5.5 Basic rules for ensuring EMC................................................................................................................ 62
5.5.1 Installation in a control cabinet.......................................................................................................................................................... 63
5.5.2 Preventing interference sources........................................................................................................................................................ 63
5.5.3 Equipotential bonding .......................................................................................................................................................................... 63
5.5.4 Shielding the cables ............................................................................................................................................................................... 64
6BL ident® – Data carriers for the UHF band .............................................................................. 65
6.1 Function ............................................................................................................................................... 66
6.1.1 Memory module ...................................................................................................................................................................................... 66
6.1.2 Data carrier antenna............................................................................................................................................................................... 66

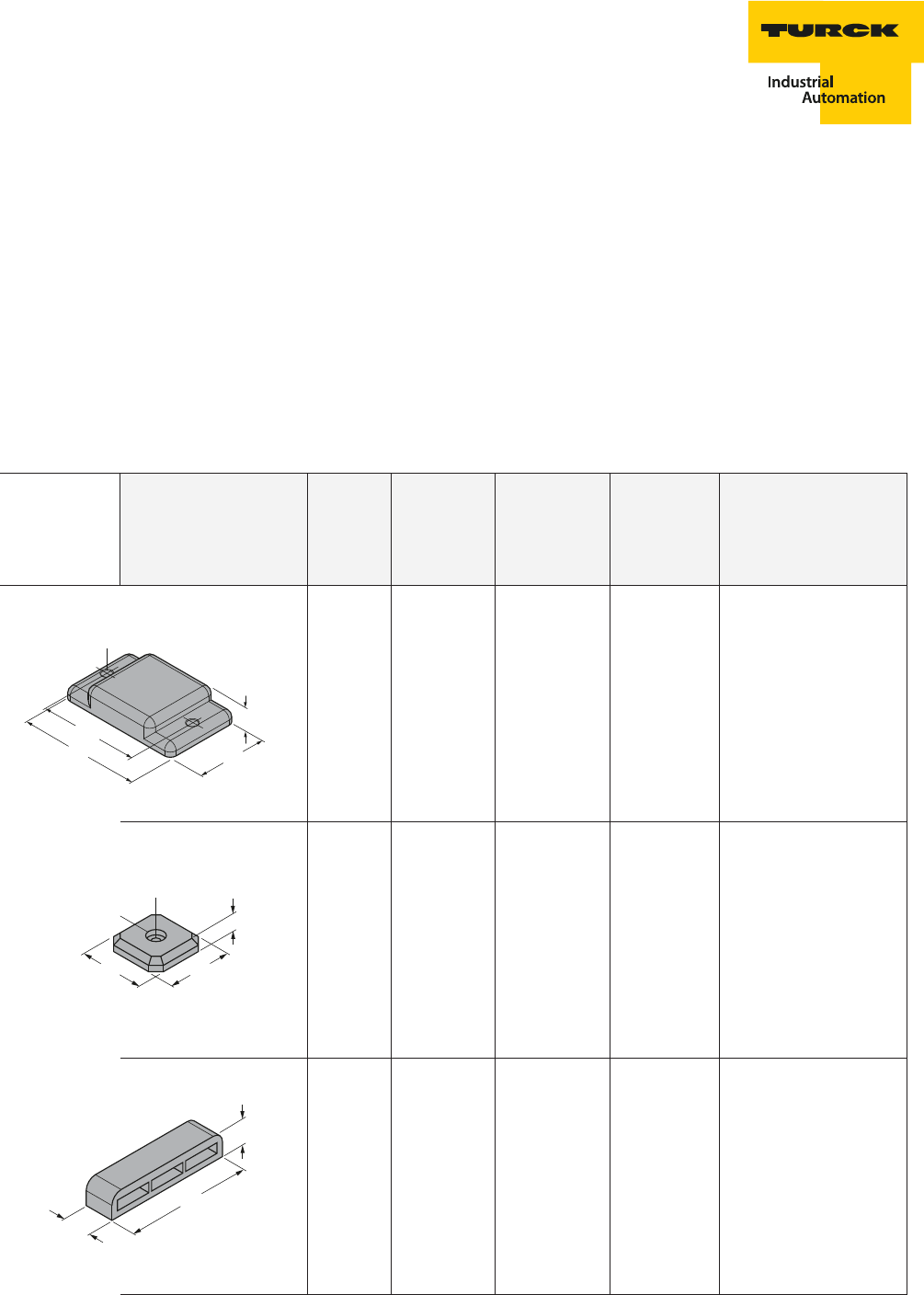

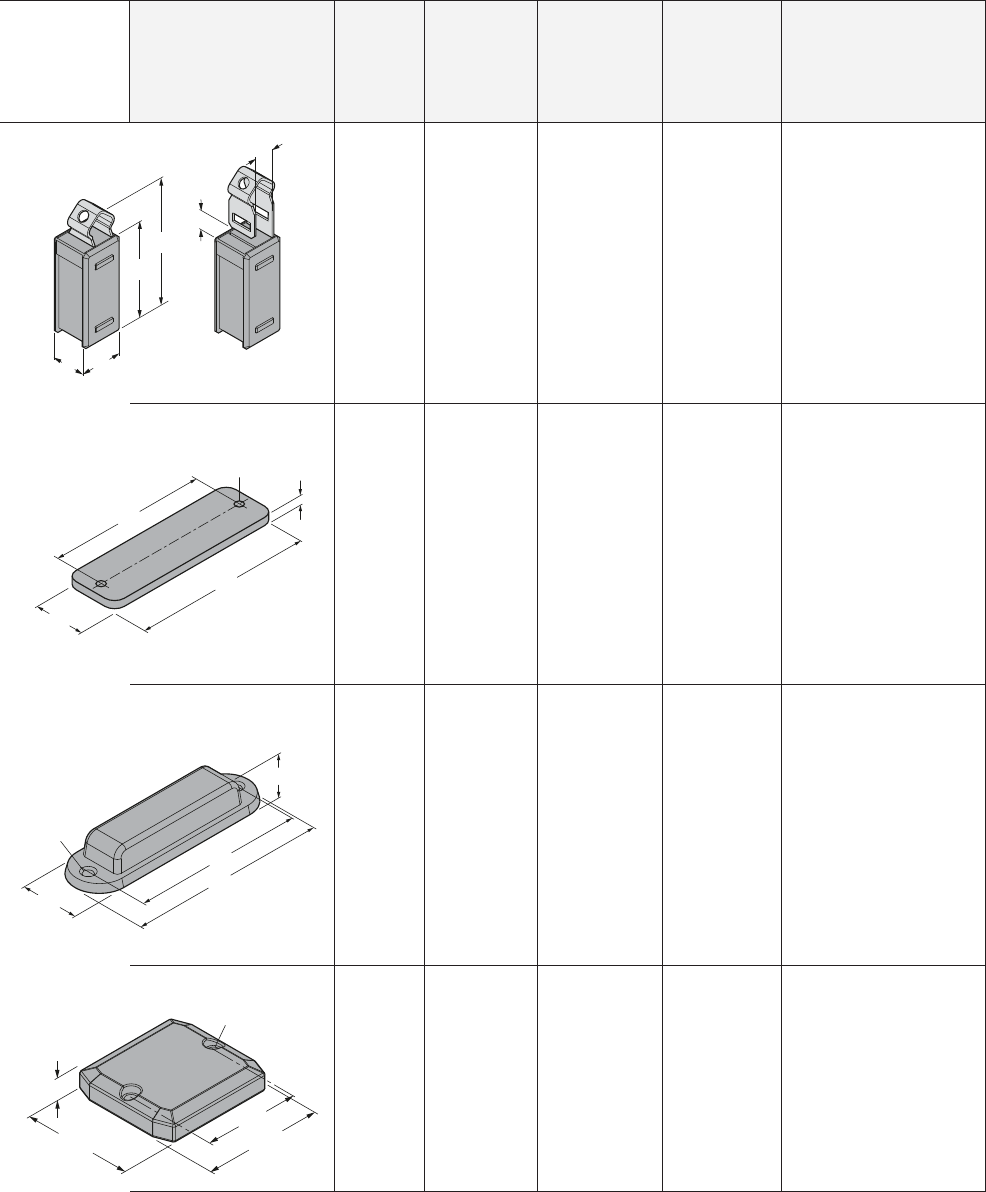

6.2 Type overview of the data carriers.......................................................................................................67
7BL ident® read/write heads for the UHF band ......................................................................... 71
7.1 Function ............................................................................................................................................... 72
7.1.1 Read/write head antenna..................................................................................................................................................................... 72

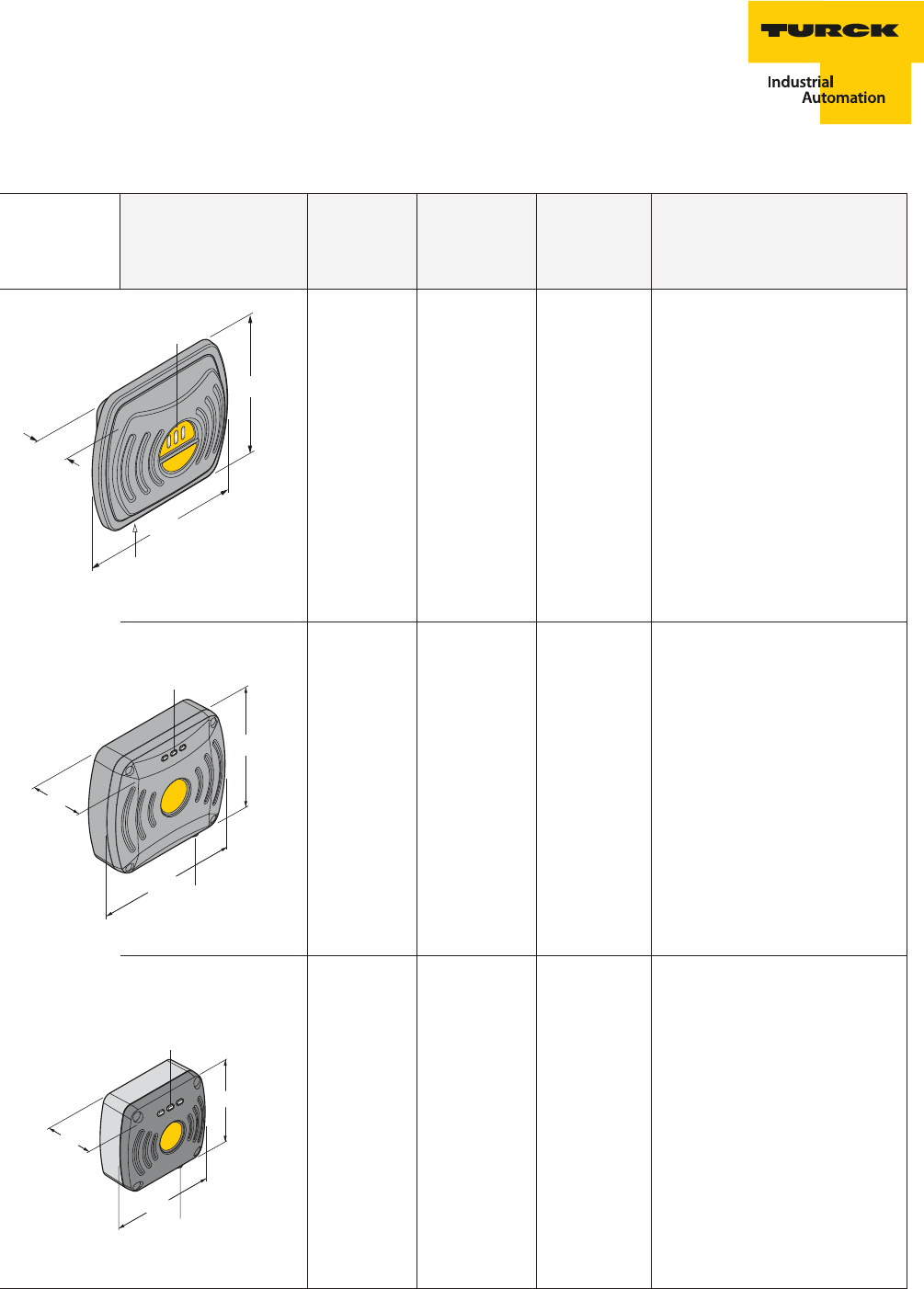

7.2 Type overview of the read/write heads ...............................................................................................73

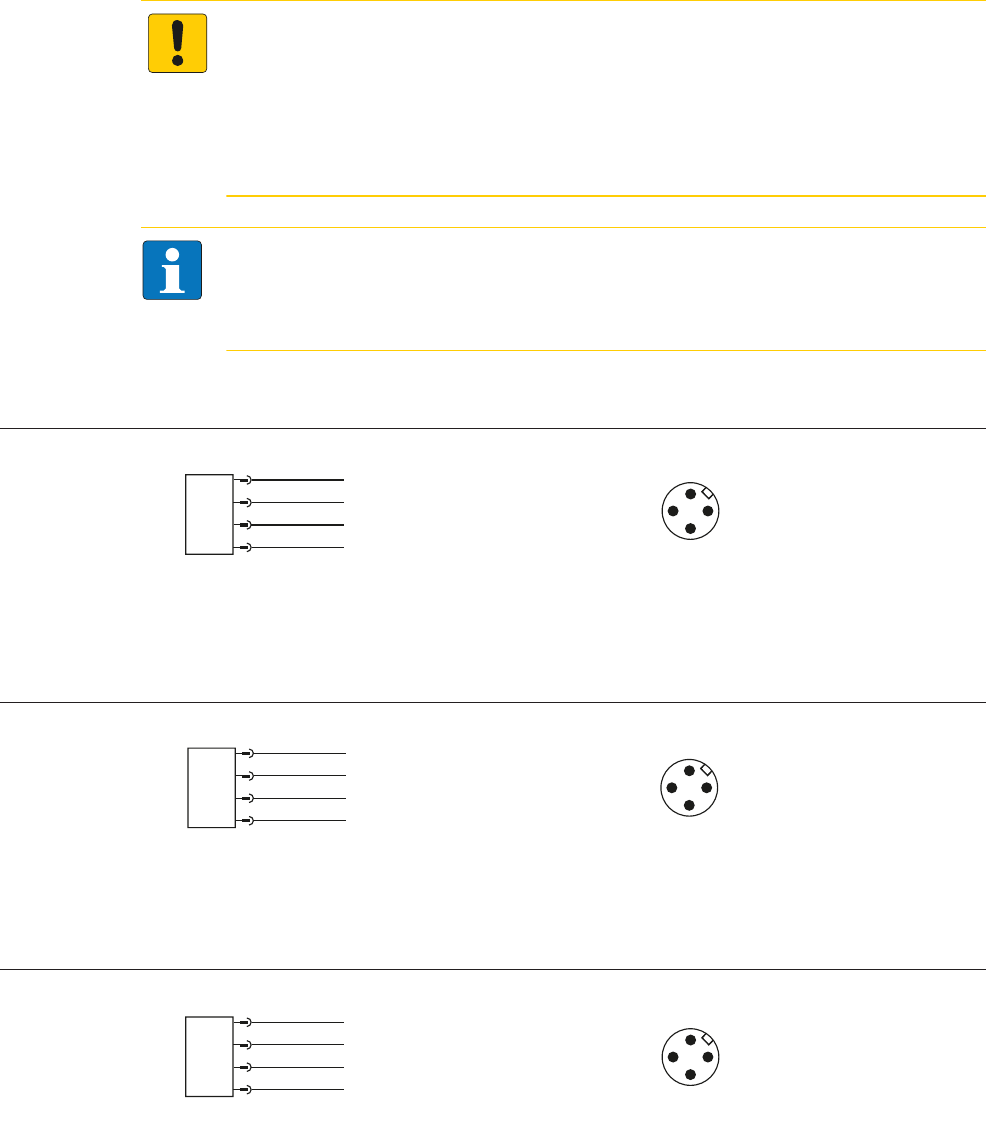

7.3 Connecting the read/write heads.........................................................................................................74
7.3.1 Connecting the grounding terminal................................................................................................................................................ 75
7.4 LED functions of the read/write heads................................................................................................. 75

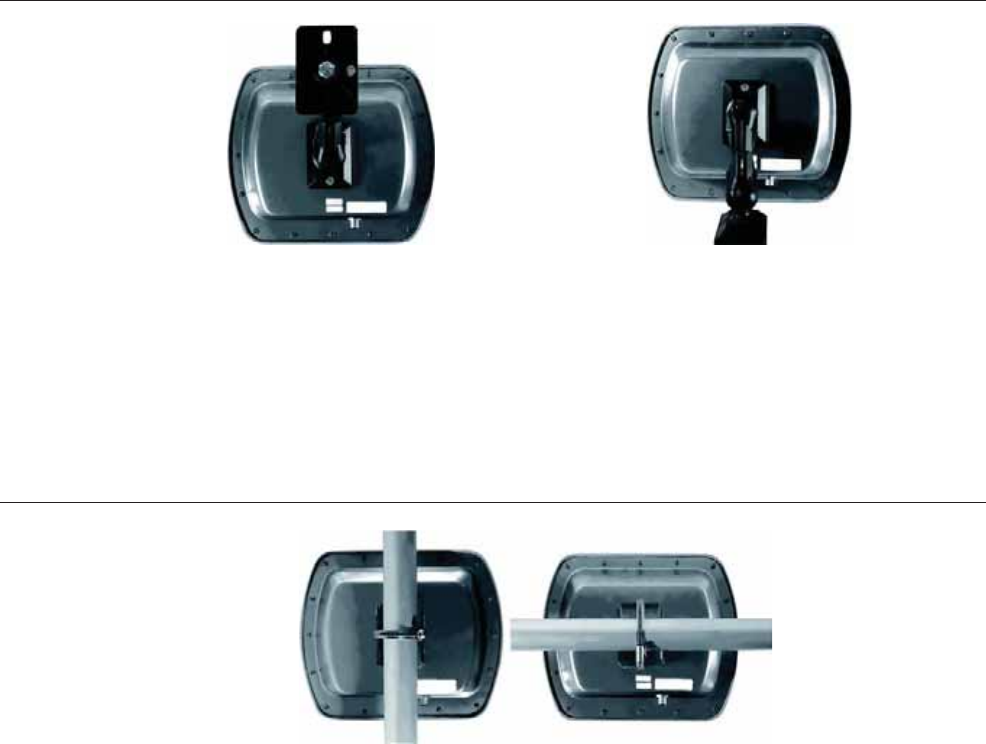

7.5 Wall mounting of the TN...-Q240L280-H1147 read/write head ..........................................................76
7.6 Mast/tube mounting of the TN...-Q240L280-H1147 read/write head .................................................76
8 Approvals ............................................................................................................................... 77
8.1 CE approvals (only for the TN865-… read/write head) ........................................................................ 78
D101831 0713 BLident® Installation of the UHF System6
8.2 FCC digital device limitations (only for read/write head TN902-…) ....................................................78
8.3 ANATEL approval (only for read/write head TN902/915-…)................................................................ 78
8.4 SRRC approval (only for read/write head TN840/920-…) ....................................................................79
8.5 KSQ approval (only for read/write head TN917-…) .............................................................................79
9 Glossary ..................................................................................................................................81
A Appendix ................................................................................................................................87

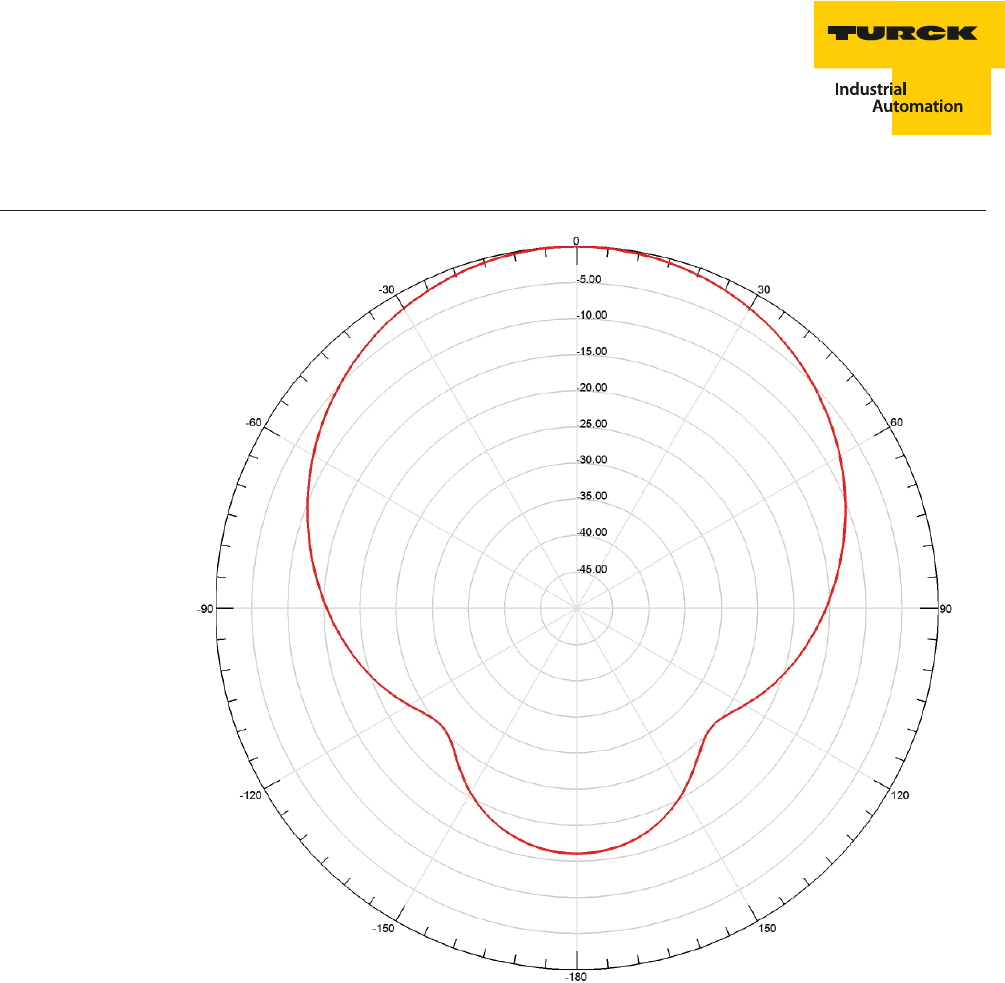

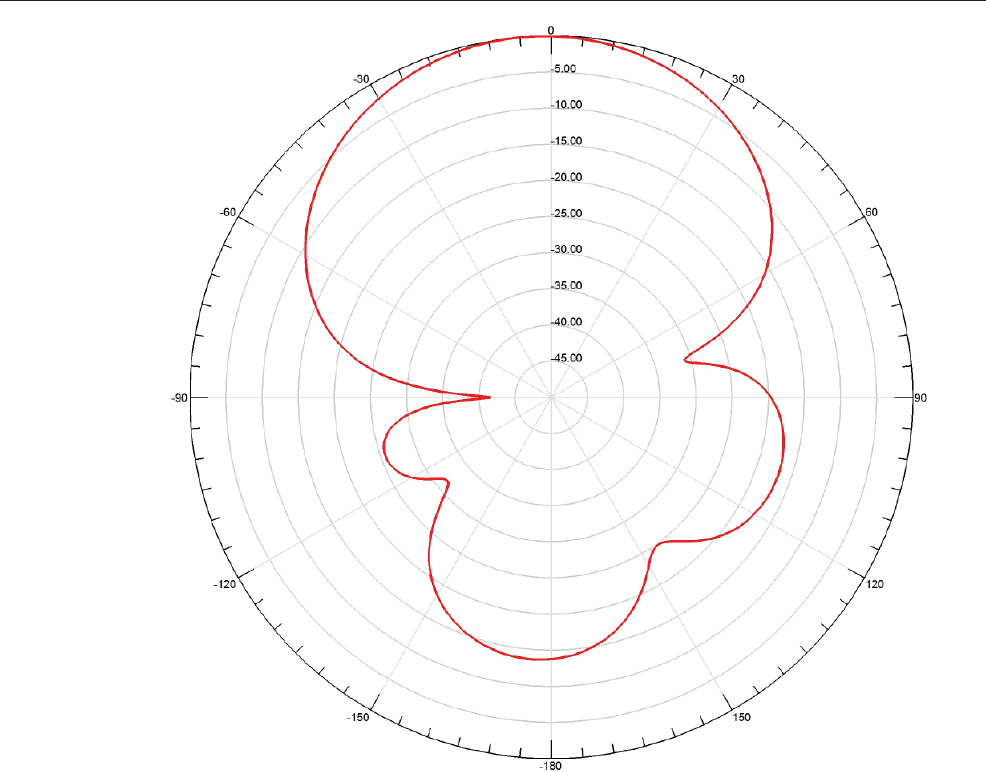

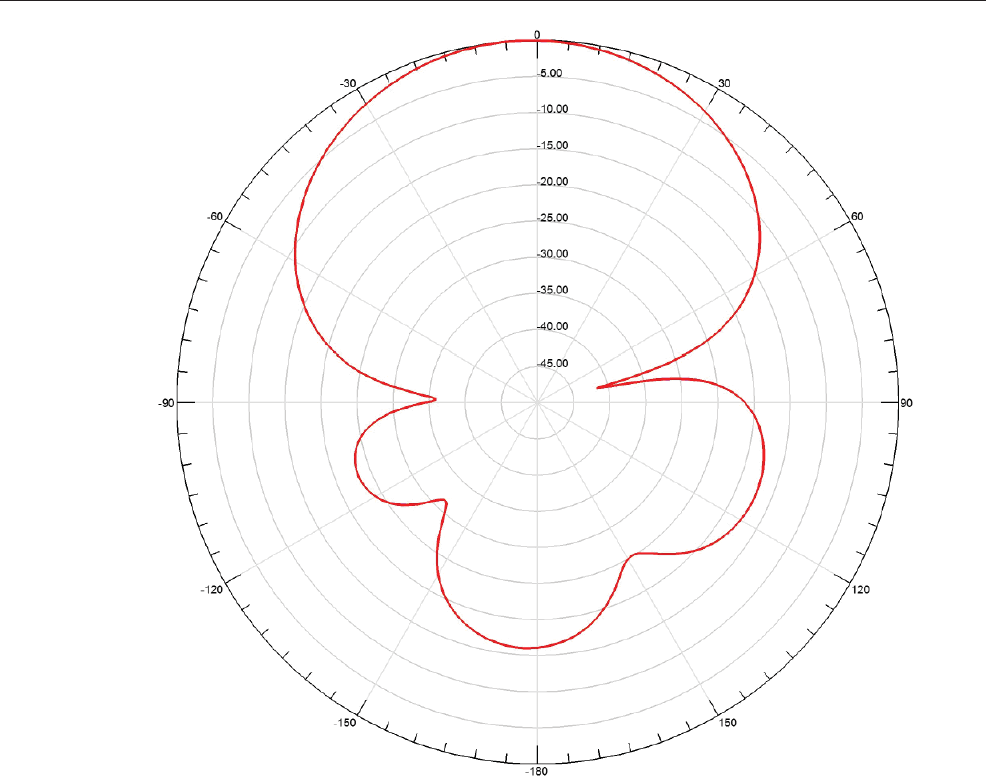

A.1 Directional characteristics of the antenna for the TN...-Q240L280-H1147 read/write head ............... 88
A.1.1 Azimuth section, horizontal polarization........................................................................................................................................88
A.1.2 Azimuth section, vertical polarization..............................................................................................................................................89
A.1.3 Elevation section, horizontal polarization ......................................................................................................................................90
A.1.4 Elevation section, vertical polarization ............................................................................................................................................91
A.2 Type code for BL ident®........................................................................................................................92
A.2.1 Type code for BL ident® interface........................................................................................................................................................92
A.2.2 Type code for BL compact for BL ident®............................................................................................................................................93
A.2.3 Type code for BL ident® read/write heads .......................................................................................................................................94
A.2.4 Type code for BL ident® data carriers.................................................................................................................................................95
A.2.5 Type code for BL ident® connection technology (RFID cables)................................................................................................96
A.3 Type code for fieldbus technology....................................................................................................... 97
A.3.1 Type code for BLxx gateways ..............................................................................................................................................................97
A.3.2 Type code for BL compact.....................................................................................................................................................................98
D101831 0713 BLident® Installation of the UHF System 7
1 General Information
1.1 Intended purpose of this documentation ..............................................................................................8
1.2 Meaning of the symbols used ................................................................................................................8
1.3 Safety instructions .................................................................................................................................8
1.3.1 Intended use ................................................................................................................................................................................................9
1.3.2 Notes concerning configuration/installation of the product.....................................................................................................9
1.3.3 Safety instructions for RFID systems– minimum permissible distances ..............................................................................9
– Minimum distances to the read/write head acc. to ETSI (Europe) .................................................................................... 10
– Minimum distances to the read/write head acc. to FCC (USA)........................................................................................... 10
1.4 TURCK Service ......................................................................................................................................10
1.5 Associated documents ......................................................................................................................... 11
General Information
D101831 0713 BLident® Installation of the UHF System8
1.1 Intended purpose of this documentation
This manual contains all the information for the proper installation of the BL ident® UHF system
particularly with regard to the data carriers and read/write heads.
The following chapter give an overview of the BL ident® UHF system, how to plan a BL ident® UHF system,
shows the necessary mounting regulations and provides a brief overview of the EMC guidelines.
The manual also describes the operation of the data carriers and read/write heads, the mounting as well
as the available accessories.
1.2 Meaning of the symbols used
Danger
Personal injury resulting in death likely
Proceed with extreme caution.
This sign is placed next to a warning indicating a potential hazard. Personal injury or death
are very likely if this is not observed.
Caution
Risk of damage to devices
Proceed with caution.
This sign is placed next to a warning indicating a potential hazard. Possible damage to
systems (hardware and software) and installations if this is not observed.
Note
This symbol is placed next to general instructions that indicate important information on the
procedure for one or several operations.
The relevant instructions can facilitate work and possibly help to avoid additional work
resulting from faulty procedures.
1.3 Safety notes
Caution
This section should be read without fail since safety in the handling of electrical equipment
should not be left to chance.
This manual contains all the information for the proper commissioning of the TURCK BL ident® system
with regard to the data carriers and read/write heads.
It was specially written for suitably qualified personnel with the relevant specialist knowledge.
D101831 0713 BLident® Installation of the UHF System 9
Safety notes
1.3.1 Intended use
Danger
The devices described in this manual must only be used for the intended applications
described herein and in the relevant technical description, and only in conjunction with
certified systems and components of other suppliers.
To ensure correct and safe operation of the devices, proper transportation, storage, assembly and
installation, as well as careful operation and maintenance must be ensured.
1.3.2 Engineering/installation instructions for the product
Danger
The safety and accident prevention regulations for the relevant application must be
observed without fail.
To ensure correct and safe operation of the devices, proper transportation, storage, assembly and
installation, as well as careful operation and maintenance must be ensured.
1.3.3 Safety instructions for RFID systems– minimum permissible distances
During the installation and operation of HF and UHF systems it may occur that people are positioned
momentarily or for long periods in the radiation range. In this case safety distances from the active
components must be observed.
Danger
Effect on electrically controlled medical devices such as pacemakers
Malfunction or failure of the devices
Find out the extent to which the radiation strength of your medical devices is affected.
Find out the permissible distances from radiation sources for the devices you are
using.
In case of doubt, keep an additional distance from active radiation sources up to the
maximum transmission range of the radiation source.
General Information
D101831 0713 BLident® Installation of the UHF System10
Minimum distances to the read/write head acc. to ETSI (Europe)
For the maximum permissible total radiant output power acc. to ETSI (2 W EIRP) the safety distance is
d = 0.24 m. Do not get closer than 24 cm to the active radiant area of the read/write head for long
periods.
According to current knowledge, a short stay in this area is not harmful, even when repeated.
Minimum distances to the read/write head acc. to FCC (USA)
For the maximum permissible total radiant output power acc. to FCC (4 W EIRP) the safety distance is
d = 0.26 m. Do not get closer than 26 cm to the active radiant area of the read/write head for long
periods.
According to current knowledge, a short stay in this area is not harmful, even when repeated.
1.4 TURCK Service
TURCK provides extensive support in addition to the products. The product database at www.turck.de/
products provides a complete overview of the product portfolio with brief descriptions of devices and
an overview of supplementary products. All relevant device information such as flyers, catalogs,
manuals, certificates and CAD data are also available for download free of charge.
Application and operating software for different applications is available under the Software tab for
download free of charge.
The Service Team in Germany can also be contacted for further inquiries under the following service
numbers. Here you will be directed to the appropriate specialists. For overseas support please contact
your national agents (addresses on the rear of this document):
Sales: +49 (0) 208 4952-380
Technical: +49 (0) 208 4952-390
Email: more@turck.com
Note
If a device has to be returned, bear in mind that only devices with a decontamination
declaration will be accepted. This is available for download at http://www.turck.de/de/
support_download.asp and must be completely filled in, and affixed securely and weather-
proof to the outside of the packaging.
D101831 0713 BLident® Installation of the UHF System 11
Relevant documents
1.5 Relevant documents
The following documents in addition to this manual can be obtained from www.turck.com:
D101581 – Interface modules for fieldbus connection.
This manual describes the proper operation of BL ident® interface modules.
D101579 – Commissioning in PROFIBUS-DP
D101640 – Commissioning with CoDeSys for programmable gateways
D101642 – Commissioning in DeviceNetTM
D101644 – Commissioning in EtherNet/IPTM
D101648 – Commissioning in PROFINET
D101763 – Commissioning in CANopen
D101925 – Quick Reference Guide for UHF System
General Information
D101831 0713 BLident® Installation of the UHF System12
D101831 0713 - BLident® Installation of the UHF System 13
2The TURCK BL ident® UHF System
2.1 BL ident® – Modular RFID system..........................................................................................................14
2.1.1 BL ident® – System concept.................................................................................................................................................................. 14
2.1.2 BL ident® – Data carriers......................................................................................................................................................................... 14
2.1.3 BL ident® – Read/write heads............................................................................................................................................................... 14
2.1.4 BL ident® interfaces.................................................................................................................................................................................. 14
– Gateways (BL20 and BL67)............................................................................................................................................................... 14
– Interface modules: Electronic and base modules ................................................................................................................... 15
– Combination of gateways and interface modules ................................................................................................................. 16
–BL compact interfaces ........................................................................................................................................................................ 18
2.2 Schematic representation of the BL ident® UHF identification system ................................................ 21
2.2.1 Networking with BL ident ® UHF systems........................................................................................................................................ 22
2.3 Identification systems with radio frequency technology (RFID).......................................................... 22
2.4 Features and areas of application of the BL ident® system .................................................................. 22
2.4.1 Degree of protection.............................................................................................................................................................................. 22
2.4.2 Lifetime ....................................................................................................................................................................................................... 23
2.4.3 Transmission frequency........................................................................................................................................................................ 23
2.4.4 Models ......................................................................................................................................................................................................... 24
– Data carriers ......................................................................................................................................................................................... 24
– Read/write heads ............................................................................................................................................................................... 24
2.4.5 Memory ...................................................................................................................................................................................................... 24
2.5 Read/write time in the sensing range of the UHF read/write head ......................................................24
2.6 User data areas of the data carrier variants......................................................................................... 25
2.7 General information on the UHF data carriers..................................................................................... 25
2.7.1 Multiple access (multi-tag detection, bulk reading) .................................................................................................................. 26
2.7.2 User data areas of the data carrier variants ................................................................................................................................... 27
– Overview of UHF data carriers with Impinj Monza® 3 chip ................................................................................................. 27
– Overview of UHF data carriers with Impinj Monza® 4D chip .............................................................................................. 27
– Overview of UHF data carriers with Impinj Monza® 4E chip ............................................................................................... 28
– Overview of UHF data carriers with Impinj Monza® 4QT chip – private mode ............................................................ 29
– Overview of UHF data carriers with Impinj Monza® 4QT chip – public mode ............................................................. 30
– Overview of UHF data carriers with Impinj Monza® 5 chip ................................................................................................. 30
– Overview of UHF data carriers with Alien Higgs 3 chip ........................................................................................................ 31
– Overview of UHF data carriers with NXP U-Code G2XM/G2XL chip ................................................................................ 32
– Overview of UHF data carriers with NXP U-Code G2IM chip .............................................................................................. 33
– Overview of UHF data carriers with NXP U-Code G2IL chip ............................................................................................... 34
2.8 Speed of the data carrier at the read/write head on RFID systems ...................................................... 35
2.9 Read range / write range ......................................................................................................................35
2.10 BL ident® Simulator for UHF-RFID (Ray Tracer) ....................................................................................36
2.11 Compatibility .......................................................................................................................................37
2.12 Application areas (examples) ..............................................................................................................38
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System14
2.1 BL ident® – Modular RFID system
BL ident® is a complete RFID system that shows its particular benefits primarily in industrial
environments. The modular system is based on the BL67 I/O systems (for field mounting) and the BL20
(for control cabinet mounting) and the BL compact fieldbus modules.
Each BL ident® system can be created flexibly with data carriers, read/write heads, connection
technology and interfaces (gateways and RFID I/O modules) to form a tailored RFID solution.
In addition to high-speed FRAM data carriers offering a virtually unlimited number of read/write
operations, high temperature variants for temperatures up to 240 °C are available which can be used
for example in paint lines.
Another feature: BL ident® can be integrated into existing plant configurations without any problems.
2.1.1 BL ident® system concept
The BL ident® RFID system offers you the flexibility you need for your application on all levels: From the
selection of data carriers to read/write heads, right through to the connection to the control level: You
always have the possibility to achieve the perfect configuration of the system and to adapt it to your
specific requirements.
BL ident® is future-proof with interoperability ensured thanks to its compliance with international,
global standards. Optimum protection of your investment is therefore guaranteed.
2.1.2 BL ident® data carriers
EEPROM data carriers with high memory quality and price benefit, particularly with large quantities
High temperature data carriers for comprehensive process control at -40…+240 °C
Designed for direct mounting on metal
Customized solutions through open and globally applicable standards (ISO 18000-6C)
2.1.3 BL ident® read/write heads
Industrial and rugged design
Read/write ranges up to several meters (UHF)
Compact mounting forms for restricted mounting conditions
2.1.4 BL ident® interfaces
The BL20 and BL67 modular interfaces as well as the compact BL compact interfaces are available for
the BL ident® system. The modular interfaces can be combined from a Standard gateway as well as an
RFID interface module of the relevant system.
Interfaces for the exclusive connection of read/write heads and also for connecting read/write heads
and other field devices such as sensors or actuators are available for BL compact
Gateways (BL20 and BL67)
The gateway connects the fieldbus with the I/O modules and depends on the fieldbus used, unlike the
I/O modules themselves. It handles the entire process data traffic and generates diagnostic information
for the higher-level controller as well as for the IO-ASSISTANT software. Extended functions are
available depending on the type of gateway, such as programmable gateways.
Figure 1:
Gateway for BL20
(example
PROFIBUS-DP):
Standard gateway
(left) and
ECONOMY gate-
way (right)
33,5
72,6
129,5
75
50,6
114,8
74,4
LED
Figure 2:
Gateway for BL67
(example
PROFIBUS-DP)
LED
77,5
145
32
13
D101831 0713 - BLident® Installation of the UHF System 15
BL ident® – Modular RFID system
Interface modules: electronic and base modules
The individual interface modules of the modular I/O systems each consist of a passive base module and
an electronic module.
The base modules consist of the connection technology for connecting the field devices such as read/
write heads, sensors and actuators. The following base modules are suitable for use in the BL ident®
system:
Degree of protection IP20 (BL20 system)
– BL20-S4T-SBBS (cage clamp terminal) in connection with Standard and ECONOMY gateways.
– BL20-S4S-SBBS (screw terminal) only in connection with Standard gateways
Degree of protection IP67 (BL67 system)
– BL67-B-2M12 (M12 male connector terminal)
Figure 3:
Base module for
BL20 (left) and BL67
(right)
128,9
12,6
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System16
The electronic modules contain the functions of the interface modules (power supply modules, digital
and analog input and output modules and technology modules such as RFID modules).
They are fitted to the base modules and are independent of the wiring. During commissioning or
maintenance, the electronic modules can be removed and fitted without having to disconnect the field
wiring.
The BL ident® system comprises two types of electronic modules, the BLxx-RFID-S modules (Simple
RFID) for simple I/O communication and the BLxx-RFID-A modules (Advanced RFID) for use with
function blocks or with programmable gateways.
Figure 4:
Electronic module
for BL20 (left) and
BL67 (right)
154,5
12,6
74,1
LED
128,9
117,6
73,1
LED
91
32
77,5
13
145
Combination of gateways and interface modules
The following tables show the possible combinations of BL20 and BL67 gateways with the relevant
RFID modules. For all possible combinations, TURCK offers interface sets with cage clamp connection
options for 2, 4, 6 or 8 read/write heads.
Table 1:
Combination
and function ma-
trix for
BL ident® inter-
faces (sets) in
IP20 (BL20)
Fieldbus BL ident® interface (set): Gateway + electronic module (with base module)
TypeAGateway Electronic modules
x = No. of
channels:
2, 4, 6, 8
TypeBpro-
gramm-
able
Type
BL20-
2RFID-AC
Type
BL20-
2RFID-SE
PROFIBUS-DP TI-BL20-DPV1-x BL20-GW-DPV1 xD
TI-BL20-DPV1-S-x BL20-GW-DPV1 x
TI-BL20-E-DPV1-x BL20-E-GW-DPV1 xD
TI-BL20-E-DPV1-S-x BL20-E-GW-DPV1 x
DeviceNetTM TI-BL20-DN-S-x BL20-GWBR-DNET x
TI-BL20-E-DN-S-x BL20-E-GW-DN x
CANopen TI-BL20-E-CO-S-x BL20-E-GW-CO x
Modbus-TCP TI-BL20-EN-S-x BL20-GW-EN x
TI-BL20-PG-EN-x BL20-PG-EN x x
TI-BL20-PG-EN-S-x BL20-PG-EN x x
EtherNet/IPTM TI-BL20-EIP-S-x BL20-GW-EN-IP x
TI-BL20-PG-EIP-x BL20-PG-EN-IP x x
TI-BL20-PG-EIP-S-x BL20-PG-EN-IP x x
PROFINET IO TI-BL20-E-PN-x BL20-E-GW-PN xDx
TI-BL20-E-PN-S-x BL20-E-GW-PN
EtherCAT® TI-BL20-E-EC-S-x BL20-E-GW-EC x
D101831 0713 - BLident® Installation of the UHF System 17
BL ident® – Modular RFID system
A) Refer to the Appendix for the type code, “Type code for BL ident® interface” page 94.
B) Refer to the Appendix for the type code, “Type code for BLxx gateways” page 99.
C) Advanced RFID module for enhanced RFID communication with function block (PIB)
D) Advanced RFID module for enhanced RFID communication with function block (PIB) via Siemens S7 PLC
E) Simple RFID module for 8-byte I/O communication
Table 2:
Combination
and function ma-
trix for
BL ident® inter-
faces (sets) in
IP67 (BL67)
Fieldbus BL ident® interface (set): Gateway + electronic module (with base module)
TypeAGateway Electronic modules
x = No. of
channels:
2, 4, 6, 8
TypeBprogramm
able
Type
BL67-
2RFID-AC
Type
BL67-
2RFID-SE
PROFIBUS-DP TI-BL67-DPV1-x BL67-GW-DPV1 xD
TI-BL67-DPV1-S-x BL67-GW-DPV1 x
TI-BL67-PG-DP-x BL67-PG-DP x x
TI-BL67-PG-DP-S-x BL67-PG-DP x x
DeviceNetTM TI-BL67-DN-S-x BL67-GW-DN x
Multi-
protocol:Modb
us-TCP +
EtherNet/IPTM
TI-BL67-EN-S-x BL67-GW-EN x
Modbus-TCP TI-BL67-PG-EN-x BL67-PG-EN x x
TI-BL67-PG-EN-S-x BL67-PG-EN x x
EtherNet/IPTM TI-BL67-PG-EIP-x BL67-PG-EN-IP x x
TI-BL67-PG-EIP-S-x BL67-PG-EN-IP x x
PROFINET IO TI-BL67-EN-PN-x BL67-GW-EN-PN xD
PROFINET IO +
AIDA
connection
technology
TI-BL67-PN-AC-x BL67-GW-PN-AC xD
TI-BL67-PN-AC-S-x BL67-GW-PN-AC x
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System18
A) Refer to the Appendix for the type code, “Type code for BL ident® interface” page 94.
B) Refer to the Appendix for the type code, “Type code for BLxx gateways” page 99.
C) Advanced RFID module for enhanced RFID communication with function block (PIB)
D) Advanced RFID module for enhanced RFID communication with function block (PIB) via Siemens S7 PLC
E) Simple RFID module for 8-byte I/O communication
BL compact interfaces
The BL compact devices consist of up to two I/O signal modules as well as a fieldbus connection in a
compact housing with degree of protection to IP67. The functions of a device are the same as those of
a corresponding modular fieldbus station.
The BL compact interfaces for BL ident® are designed for the connection of two read/write heads, and
variants with eight additional channels are also available. The BL compact interfaces for BL ident® are
designed as standard for simple I/O communication (Simple RFID), and some variants are available with
an extended range of functions (Advanced RFID). The following table shows the available variants.
Table 3:
Combination and
function matrix
for
BL ident® -
BL compact (IP67)
Fieldbus InterfaceAFunction Type …-
2RFID-AB
Type …-
2RFID-SD
PROFIBUS-DP BLCDP-2M12MT-2RFID-A
BLCDP-2M12MT-2RFID-S
2 × read/write head xCx
BLCDP-6M12LT-2RFID-A-
8DI-PD
BLCDP-6M12LT-2RFID-S-
8DI-PD
2 × read/write head +
8 × digital input
xCx
BLCDP-6M12LT-2RFID-A-
8XSG-PD
BLCDP-6M12LT-2RFID-S-
8XSG-PD
2 × read/write head +
8 × digital input/output
(configurable)
xCx
DeviceNetTM BLCDN-2M12S-2RFID-S 2 × read/write head x
BLCDN-4M12L-2RFID-S-
2RFID-S
4 × read/write head x
BLCDN-6M12LT-2RFID-S-
8XSG-PD
2 × read/write head +
8 × digital input/output
(configurable)
x
CANopen BLCCO-2M12S-2RFID-S 2 × read/write head x
BLCCO-4M12L-2RFID-S-
2RFID-S
4 × read/write head x
BLCCO-6M12LT-2RFID-S-
8XSG-PD
2 × read/write head +
8 × digital input/output
(configurable)
x
Multi-
protocol:Modb
us-TCP +
EtherNet/IPTM
BLCEN-2M12LT-2RFID-S 2 × read/write head x
BLCEN-4M12LT-2RFID-S-
2FRID-S
4 × read/write head x
BLCEN-6M12LT-2RFID-S-
8XSGD-PD
2 × read/write head +
8 × digital input/output
(configurable)
x
BLCEN-3M12LT-1RS232-
2RFID-S
2 × read/write head +
1 × RS232 interface
x
D101831 0713 - BLident® Installation of the UHF System 19
BL ident® – Modular RFID system
A) Refer to the Appendix for the type code, “Type code for BL compact for BL ident®” page 95.
B) Advanced RFID module for enhanced RFID communication with function block (PIB)
C) Advanced RFID module for enhanced RFID communication with function block (PIB) via Siemens S7 PLC
D) Simple RFID module for 8-byte I/O communication
Figure 5:
BL compact station
(example
PROFIBUS-DP): only
for read/write
heads (left) and
with additional dig-
ital channels (right)
71
102 ±1
113
32,5
44,5
71
157 ±1
168
32,5
44,5
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System20
D101831 0713 - BLident® Installation of the UHF System 21
Schematic representation of the BL ident® UHF identification system
2.2 Schematic representation of the BL ident® UHF identification system
The TURCK BL ident® system consists of several levels. Each level offers a wide range of possibilities.
An application tailored to the total system is possible.
Figure 6:
System overview
D
PLC/PC for commissioning
Interface module for integration
in the fieldbus systems
IP67IP20
Read/write devices
Air Interface
Mobile data carriers
IP67
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System22
2.2.1 Networking with BL ident® UHF systems
BL ident® systems can be integrated in (existing) bus systems, enabling the networking of several
BL ident® systems.
The guidelines for the maximum extension of the bus system used apply.
A PROFIBUS-DP system can consist of up to 31 stations and a master without the use of repeaters.
2.3 Identification systems with radio frequency technology (RFID)
RFID is the acronym for Radio Frequency Identification.
An RFID system is composed of a data carrier, a device for reading and writing the data from and to the
data carrier, and other devices for transmitting and processing the data.
The transmission of the data from the data carrier to the read/write head is contactless using
electromagnetic waves. This form of transmission is unaffected by dirt and temperature fluctuations.
The data carriers can be attached directly to a product. For this reason the term “mobile data storage”
is used. Further terms for the data carrier are TAG or transponder. The data can consist of production
and manufacturing data. The data used here to identify the product is of special importance. Hence the
term “identification system” is used.
The ability to change the data content through write operations to the data carrier offers an additional
range of possibilities. This enables the tracing of production/manufacturing processes. Logistics /
distribution systems can also be optimized.
The identification systems can be integrated into (existing) fieldbus automation systems (such as
PROFIBUS-DP). The connection to the fieldbus system is implemented using the appropriate interface
modules.
Standardized software modules (such as the Proxy Ident Function Block for PROFIBUS-DP) simplify the
system integration and commissioning.
2.4 Features and application areas of the BL ident® system
In order to meet the requirements of different application areas, the TURCK BL ident® system offers a
host of combination options for data carriers and read/write heads, as well as interface modules for
connecting to automation systems (such as PROFIBUS-DP). Software modules enable systems to be
integrated and commissioned simply.
The following is a list of features of the TURCK BL ident® system:
2.4.1 Degree of protection
Some data carriers as well as the corresponding read/write heads come with a high degree of
mechanical protection (such as IP67) and can thus also be used in harsh industrial environments.
The connection to a fieldbus system is implemented with suitable TURCK interface modules.
The interface modules for CANopen are available with protection to IP20. The identification system is
rounded off with TURCK connection cables offering appropriate degrees of protection.
Temperature-resistant data carriers up to 240°C are available for high temperature applications.
D101831 0713 - BLident® Installation of the UHF System 23
Features and application areas of the BL ident® system
2.4.2 Lifespan
The lifespan is determined by the number of possible read/write operations on the data carriers.
EEPROM data carriers can ensure an unlimited number of read operations and 105 write operations.
The data carriers do not require any batteries.
2.4.3 Transmission frequency
The TURCK BL ident® system operates at nationally specified transmission frequencies in the UHF range
of (865...928 MHz) between the data carriers and read/write heads. These national frequencies for UHF
are required due to the frequency ranges individually specified by the national regulation bodies.
UHF systems in this frequency band achieve a higher read/write range than HF systems, typically
several meters. The operating frequency of the devices in the UHF band is for example 865…868 MHz
for Europe and 902…928 MHz for the USA. The BL ident® read/write heads in the UHF band can
therefore only be used in the countries they are intended for and must not be put into operation
outside of these regions. As the BL ident® UHF data carriers are passive, and therefore do not radiate
their own radiate radio waves, these are suitable for use worldwide.
TURCK offers different data carrier variants that are specially designed and optimized for national
frequency bands in order to achieve as large a communication range as possible. Wide-band multi-
range data carriers for international use are also available as an alternative.
The various TURCK read/write heads support the following transmission frequencies:
865...868 MHz (e.g. for Europe)
902...928 MHz (e.g. for USA and Canada)
920…925 MHz (e.g. for China)
902...907.5 MHz and 915...928 MHz (e.g. Brazil)
917...920.8 MHz (e.g. for Korea)
The relevant national specifications for UHF such as frequency range, output and the status of any
national regulations can be obtained from the Internet at:
http://www.gs1.org/docs/epcglobal/UHF_Regulations.pdf
For more detailed information please contact the relevant authorities of the country where you wish to
use the UHF RFID system.
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System24
2.4.4 Mounting types
Data carriers
Data carriers for the UHF RFID range are available in different mounting forms and fixing options, and
are either optimized for small housing dimensions or large data transmission ranges. Besides the
frequency ranges, the selection criteria for the data carriers depend on the application at hand. Data
carriers for the direct mounting on metal, for attaching with a metal loop, as well as smart labels and
high temperature versions are therefore available in addition to the standard mounting forms.
Customized data carrier solutions that are tailored to the relevant application are also available on
request.
Read/write heads
Different rectangular mounting forms are available such as compact read/write heads in housings with
approx. 175 mm or 240 mm edge length for large data transmission ranges of up to several meters.
2.4.5 Memory
EEPROM data carriers for the UHF range are available with up to 138 bytes memory (110 bytes user
data).
EEPROM: (Electrically erasable programmable read only memory), non-volatile.
The data carriers in the UHF frequency range meet the requirements of the ISO 18000-6C and EPCglobal
Class 1 Gen 2 communication standard.
2.5 Read/write time in the sensing range of the UHF read/write head
The time that the data carrier must be in the sensing range of the read/write head in order for all the
required data to be read and/or written reliably depends on the following factors:
Command type (write or read)
Data volume
Extent of the sensing range (resulting from the combination of the type of read/write head and the
data carrier as well as the environmental conditions)
Homogeneity of the electromagnetic field with UHF (interruption of the communication with
moving data carriers through field reflections and interference; interaction of radio waves with the
environment).
The acquisition of data may be disturbed by the following factors:
Electromagnetic interference in the relevant frequency band
Interference may cause the cancellation of the waves and fading.
D101831 0713 - BLident® Installation of the UHF System 25
User data areas of the UHF data carrier variants
2.6 User data areas of the UHF data carrier variants
2.7 General information on the UHF data carriers
The UHF data carrier memory hierarchy is divided into four logical areas (also called domains) in
accordance with ISO 18000-6C and can accommodate several blocks – each block consisting of 2 bytes.
Caution
Possible damage to the data carriers!
Incorrect writing to the reserved area (bank address = 00) or to the first four bytes of the UII
memory (bank address = 01) of the data carrier memory may cause the data carrier to
permanently malfunction.
Bank 00 – reserved range: This area contains the passwords for accessing the memory and for deac-
tivating the data carrier. The passwords for deactivating are stored in the memory addresses 00hex
to 1Fhex. The passwords for access protection are stored in the memory addresses 20hex to 3Fhex.
Memory access to this reserved area is normally executed with separate protocol commands.
Bank 01 – EPC (electronic product code) or UII (unique item identifier): This area contains the essen-
tial identification data of the transponder. The 16-bit checksum (CRC) is located in the first data word
(from address 00hex). The second data word (= 2 bytes) contains specific data carrier control infor-
mation (protocol control byte, from address 10hex). The actual data area of the UIIs starts at address
20hex. The data carriers are identified in the BL ident® system by means of the first eight bytes of the
data area, i.e. from address 04hex to 0Chex.
Bank 10 – TID (tag identification): This area contains one of three values for determining the class
identification (E0hex, E2hex or E3hex) in accordance with ISO/IEC 15963, contained in the memory
addresses 00hex to 07hex. If the class is ID E0hex, the TID contains a 48-bit serial number.
The composed 64-bit data carrier ID is assigned once within all data carrier classes which are defined
in ISO/IEC 15963 and write-protected by the manufacturer. If the class ID is E2hex, the TID contains a
12-bit data mask identification and a 12-bit data carrier model number defined by the
manufacturer. The use of memory addresses above 1Fhex is defined in the EPCglobal data standards,
version 1.5 and higher. If the class ID is E3hex, the TID contains an 8-bit manufacturer ID, followed by
a 2-byte working memory for different data lengths, the 48-bit serial number, the 1-Bit-XTID and the
15-BIT-XTID header data. The composed 80-bit data carrier ID is assigned once within all data carrier
classes which are defined in ISO/IEC 15963 and write-protected by the manufacturer.
Bank 11– User area: This area is optional and contains a varying memory range for use as required
by the user.
Figure 7:
UHF data carrier
memory hierarchy
Bank 11
Bank 10
Bank 01
Bank 00
MSB LSB
MSB LSB
MSB LSB
MSB LSB
00hex 0Fhex
10hex 1Fhex
00hex 0Fhex
220hex 22Fhex
210hex 21Fhex
20hex 2Fhex
10hex 1Fhex
00hex 0Fhex
30hex 3Fhex
20hex 2Fhex
10hex 1Fhex
00hex 0Fhex
.
.
.
Optional XPC_W2 [15:0]
Optional XPC_W2 [15:0]
.
.
.
EPC/UII/... [15:0]
.
.
.
EPC/UII/... [N:N-15]
PC [15:0]
CRC [15:0]
.
.
.
Word 0 of Block 0
.
.
.
TID [15:0]
TID [31:16]
.
.
.
Access Passwd [15:0]
Access Passwd [31:16]
Kill Passwd [15:0]
Kill Passwd [31:16]
User
TID
EPC/UII/...
Reserved
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System26
BL ident® UHF data carriers are currently available with the following memory types:
EEPROM-U-Code G2
EEPROM-Monza
EEPROM-Higgs
Note
The number of areas for the different memory types currently varies.
The Impinj Monza® 5 therefore only has three areas (the user area is missing), whilst the NXP-
G2XM contains all four areas.
2.7.1 Multiple access (multi-tag detection, bulk reading)
The data carriers are identified in the BL ident® system by means of the UII. With multi-access these must
be different! (multiple access means a read/write head can communicate with different data carriers at
the same time. The read/write head can thus address a data carrier selectively by means of its UII.)
If the data carriers are factory set with the same UII, these must be individually written with different
UIIs before they are used for the first time in applications with multi-access.
D101831 0713 - BLident® Installation of the UHF System 27
General information on the UHF data carriers
2.7.2 User data areas of the data carrier variants
Overview of UHF data carriers with Impinj Monza® 3 chip
The type Impinj Monza® 3 UHF data carriers are provided with a UII memory area of 12 bytes.
The following table describes the data structure of the data carriers.
Table 4:
Memory area of
Impinj Monza® 3
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
10 TID 10hex-1Fhex 2 0001 + Model number
00hex-0Fhex 2 fixed = 1110001000000000
01 UII 20hex-7Fhex 12 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
Overview of UHF data carriers with Impinj Monza® 4D chip
The type Impinj Monza® 4D UHF data carriers are provided with a UII memory area of 16 bytes.
The following table describes the data structure of the data carriers.
Table 5:
Memory area of
Impinj Monza®
4D
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-1Fhex 4 freely usable
10 TID 30hex-5Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
10hex-1Fhex 2 Manufacturer ID + model
number
00hex-0Fhex 2 11100010 + manufacturer ID
01 UII 20hex-9Fhex 16 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System28
Overview of UHF data carriers with Impinj Monza® 4E chip
The type Impinj Monza® 4E UHF data carriers are provided with a UII memory area of 62 bytes.
The following table describes the data structure of the data carriers.
Table 6:
Memory area of
Impinj Monza® 4E
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-7Fhex 16 freely usable
10 TID 30hex-5Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
10hex-1Fhex 2 Manufacturer ID + model
number
00hex-0Fhex 2 11100010 + manufacturer ID
01 UII 20hex-20Fhex 62 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
D101831 0713 - BLident® Installation of the UHF System 29
General information on the UHF data carriers
Overview of UHF data carriers with Impinj Monza® 4QT chip – private mode
This memory chip has two different states for dividing the memory; Private mode and Public mode.
Private mode is the factory setting and is available in operation with the BLxx-2RFID-S, BLxx-2RFID-A
electronic modules and BLcompact.
The type Impinj Monza® 4QT UHF data carriers in Private mode are provided with a UII memory area of
16 bytes and a freely available user area of 64 bytes.
The following table describes the data structure of the data carriers.
Table 7:
Memory area of
Impinj Monza®
4QT - private
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-1FFhex 64 freely usable
10 TID 60hex-BFhex 12 UII public
30hex-5Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
10hex-1Fhex 2 Manufacturer ID + model
number
00hex-0Fhex 2 11100010 + manufacturer ID
01 UII private 20hex-9Fhex 16 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System30
Overview of UHF data carriers with Impinj Monza® 4QT chip – public mode
Note
The following specifications for the Impinj Monza 4QT in public mode is only for information
purposes since public mode is not supported by the BL ident® system.
The type Impinj Monza® 4 QT UHF data carriers are provided in public mode with a UII memory area of
12 bytes.
The following table describes the data structure of the data carriers.
Table 8:
Memory area of
Impinj Monza®
4QT - public
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
10 TID 10hex-1Fhex 2 Manufacturer ID + model
number
00hex-0Fhex 2 11100010 + manufacturer ID
01 UII public 20hex-7Fhex 12 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
Overview of UHF data carriers with Impinj Monza® 5 chip
The type Impinj Monza® 5 UHF data carriers are provided with a UII memory area of 16 bytes.
The following table describes the data structure of the data carriers.
Table 9:
Memory area of
Impinj Monza® 5
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
10 TID 30hex-5Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
10hex-1Fhex 2 Model number
00hex-0Fhex 2 11100010 + manufacturer ID
01 UII 20hex-9Fhex 16 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
D101831 0713 - BLident® Installation of the UHF System 31
General information on the UHF data carriers
Overview of UHF data carriers with Alien Higgs® 3 chip
The type Alien Higgs® 3 UHF data carriers are provided with a UII memory area of 12 bytes and a freely
available user area of 64 bytes.
The following table describes the data structure of the data carriers.
Table 10:
Memory area of
Alien Higgs® 3
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-1FFhex 64 freely usable
10 TID 60hex-BFhex 12 reserved
20hex-5Fhex 8 Serial number
10hex-1Fhex 2 Model number
00hex-0Fhex 2 Manufacturer ID
01 UII 20hex-7Fhex 12 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System32
Overview of UHF data carriers with NXP U-Code G2XM/G2XL chip
The type NXP U-Code G2XM/G2XL UHF data carriers are provided with a UII memory area of 30 bytes.
The following table describes the data structure of the data carriers.
Table 11:
Memory area of
NXP U-Code
G2XM/G2XL
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-1FFhex 64 only with NXP U-Code G2XM,
NXP U-Code G2XL has 0 bytes
10 TID 20hex-3Fhex 4 Serial number
10hex-1Fhex 2 Model number
00hex-0Fhex 2 Manufacturer ID, fixed
11100010
01 UII 20hex-10Fhex 30 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
D101831 0713 - BLident® Installation of the UHF System 33
General information on the UHF data carriers
Overview of UHF data carriers NXP U-Code G2IM chip
The type NXP U-Code G2IM data carriers are provided with a UII memory area of 16 bytes and a freely
available user area of 64 bytes and a user TID of 14 bytes.
The following table describes the data structure of the data carriers.
Table 12:
Memory area of
NXP U-Code
G2IM
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
11 User 00hex-27Fhex 64 freely usable
10 TID 60hex-CFhex 14 User TID, freely usable
30hex-5Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
14hex-1Fhex 2 Model number
08hex-13hex 2 fixed 000000000110
00hex-07hex 1 Manufacturer ID, fixed
11100010
01 UII 20hex-9Fhex 16 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System34
Overview of UHF data carriers with NXP U-Code G2IL chip
The type NXP U-Code G2IL UHF data carriers are provided with a UII memory area of 16 bytes.
The following table describes the data structure of the data carriers.
Table 13:
Memory area of
NXP U-Code G2IL
Bank
address
[bin.]
Bank
name
Memory
address
[hex.]
No. of
bytes
Remark
10 TID 20hex-3Fhex 6 Serial number
20hex-2Fhex 2 Extended TID header
14hex-1Fhex 2 Model number
00hex-13hex 2 11100010 + manufacturer ID
01 UII 200hex-20Fhex 2 Configuration word
20hex-9Fhex 16 UII
10hex-1Fhex 2 Protocol control bits
00hex-0Fhex 2 Checksum CRC-16
00 Reserved 20hex-3Fhex 4 Password for memory access
00hex-1Fhex 4 Password to deactivate the
memory
D101831 0713 - BLident® Installation of the UHF System 35
Speed of the data carrier at the read/write head on RFID systems
2.8 Speed of the data carrier at the read/write head on RFID systems
The speed at which the data carrier can move past the read/write head depends on the data volume to
be processed, the combination of read/write head and data carrier as well as the spatial conditions of
the environment.
Specific values for maximum speed and data volume can therefore only be given as examples!
The UHF system normally offers a higher read speed than the HF system and many data carriers are
detected simultaneously (bulk detection), fast moving data carriers are detected reliably.
The processing time of the overall configuration of the identification system must be taken into
account as well as the data processing time in the read/write head (“System overview” page 21). The
time required for forwarding and processing the data in the overall installation can vary from
application to application!
If your application is designed for a fast succession of data carriers, it may be necessary to reduce the
speed at which the data carriers are moved past the read/write head.
In cases of doubt we recommend that you determine the possible speed by trial and error!
2.9 Read range / write range
The achievable read/write distances depend on the relevant combination of data carrier and read/write
head, as well as the spatial physical conditions of the environment. The possible read/write distance
depends on the data volume to be written and read as well as the speed at which the data carrier moves
past the read/write head. The UHF read/write heads typically have a sensing range of several meters.
Note
The maximum read/write distance of several meters is only an idealized value under
laboratory conditions.
The achievable distances may be reduced due to component tolerances, mounting location
in the application, ambient conditions and the influence of materials (particularly metal and
liquids).
The parameters for achievable passing speed (read and write operations on the fly) and the
maximum transmittable data volume also vary, depending on the actual transmission in the
relevant application.
Depending on the data carrier, the maximum write distance can be considerably less (e.g.
50 %) than the maximum read distance (see “UHF transmission zone” page 40).
A test under actual conditions is therefore always required!
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System36
2.10 BL ident® Simulator for UHF-RFID (Ray Tracer)
The Ray Tracer is a software simulation tool that enables the functioning of a wide range of different
UHF RFID system constellations to be tested in realistic conditions.
Three-dimensional computer models of the RFID application environment and algorithms for
calculating the radio wave propagation in the space realistically simulate the operation of UHF-RFID
systems.
Completing several different simulation runs thus makes it possible to narrow down and preselect
suitable system components before the actual installation of the UHF-RFID hardware.
When complex spatial application environments are involved, the Ray Tracer also analyzes the
technical feasibility of UHF-RFID radio applications for the spatial structure at hand.
Figure 8:
Three dimensional,
complex computer
imaging of an ap-
plication environ-
ment
All the essential physical factors involved in the propagation of radio waves are taken into account.
These include for example: Attenuation characteristics in air and other media (obstacles), reflection and
transmission properties on objects of different materials, polarization characteristics, antenna
characteristics and gain of read/write units and data carriers.
Use of the Ray Tracer requires a considerable amount of training and specialist knowledge, and so it
cannot be used by the customer. It is therefore only available for use by TURCK-RFID specialists and
their system partners. Contact us so that we can examine the possibility of a simulation, if required for
your application. As each simulation is based on actual spatial application conditions, each simulation
run is always customer-specific and supplies tailored results for the relevant application site. The
information value of these simulation results is often comparable with results gained from actual
measurement series carried out on site, and the time and costs involved can be considerably reduced.
General and transferable statements cannot be derived from it due to the changing specific physical
characteristics of different application sites.
Ray Tracer simulations are nevertheless ideal for considerably speeding up the system planning and
analysis of UHF-RFID systems, whilst taking customer-specific application conditions into account.
Figure 9:
Example of a Ray
Tracer field strength
simulation
D101831 0713 - BLident® Installation of the UHF System 37
Compatibility
2.11 Compatibility
All technical data refers to the BL ident® system, i.e. the combinations of BL ident® data carriers, read/
write heads and RFID electronic modules. Completely different values may apply to data carriers of
other vendors.
The TURCK BL ident® UHF System
D101831 0713 - BLident® Installation of the UHF System38
2.12 Application areas (examples):
The features stated in the previous chapter allow the use of a TURCK BL ident® system in the following
sectors:
Automotive
Transport and handling
Machine building
Food and beverage
Chemical industry
Pharmaceutical and petrochemical industry.
The system can be used in all areas such as:
Assembly lines
Materials handling
Industrial production
Inventory management
Logistics
Distribution
Component picking
Transport logistics
D101831 0713- BLident® Installation of the UHF System 39
3BL ident® System – Planning
3.1 Selection criteria for data carriers, read/write heads and interface module ....................................... 40
3.2 Transmission zone and read/write distance ........................................................................................ 40
3.2.1 UHF transmission zone ......................................................................................................................................................................... 40
3.2.2 Minimum distance of data carrier to the read/write head ...................................................................................................... 41
3.2.3 Permissible motion direction and alignment of the data carriers ........................................................................................ 41
3.2.4 Reading and writing in static mode ................................................................................................................................................ 42
3.2.5 Reading and writing in dynamic mode (on the fly) ................................................................................................................... 42
3.2.6 Transmission rate .................................................................................................................................................................................... 42
3.2.7 Range difference between reading and writing ......................................................................................................................... 42
3.2.8 Minimum distance between two adjacent data carriers in single mode ........................................................................... 42
3.2.9 Minimum distance between two adjacent data carriers in multiple access ..................................................................... 43
3.2.10 Dwell time Td of the data carrier ....................................................................................................................................................... 43
BL ident® System – Planning
D101831 0713- BLident® Installation of the UHF System40
3.1 Selection criteria for data carriers, read/write heads and interface module
In order to make the right selection of BL ident® system components, the application should be assessed
according to the following criteria:
Mechanical dimensions,
Distance of data carriers to read/write heads for read and write operations,
Tolerances in the mechanical guidance/motion within the transmission zone,
Static and/or dynamic transfer of data,
Data volume to be transferred,
Speed of dynamic read and write operations (on the fly),
Attenuation characteristics in air and other media (obstacles), reflection and transmission
properties on objects of different materials,
environmental conditions such as hazardous areas, humidity, temperature, effect of chemicals etc.
The following selection criteria apply in particular to read/write heads:
Mechanical dimensions,
Region of use (Europe, USA ... etc.),
Size of the data carrier used,
The following criteria must be particularly taken into account when using the interface modules:
Degree of protection,
Bus type,
Number of channels.
3.2 Transmission zone and read/write distance
UHF technology makes use of the properties of a radiated electromagnetic wave.
The recommended read/write distances depend on the combination of data carrier and read/write
head, as well as the spatial physical conditions of the surroundings. The distribution of the radio field
depends on the type of antennas in the data carrier and the read/write head, as well as the layout and
characteristics of the spatial environment (e.g. reflecting obstacles).
3.2.1 UHF transmission zone
As with HF RFID, the size of the UHF transmission zone also depends on the combination of data carrier
and read/write head. However, the shape and the extent of the transmission zone is primarily
determined here by external environmental factors. As the electromagnetic waves in the UHF band
have a larger range, obstacles in the spatial environment of the read/write head, as well the data carrier
play a major role. Metallic objects or objects with a high permittivity in particular change the spatial
field distribution of the reflected and transmitted radio waves, and thus the condition of the data
transmission zone in the air.
Obstacles that are not located directly in the connection line between data carrier and read/write head,
but for example at the side or rear, also have an effect.
The transmission zone can take on a more or less jagged shape – with fading inside it.
D101831 0713- BLident® Installation of the UHF System 41
Transmission zone and read/write distance
Reserve transmission distances should be allowed for in planning in order to ensure safe operation.
Depending on the mounting conditions, this means for example, that only approx. 40 ... 80 % of the
maximum possible distance Dread_ideal is actually used for read operations based on the maximum
possible read distance Dread_ideal for a particular combination of read/write head and data carrier. The
possible distance for a write mode may be even less, e.g. only 50 % of the possible read distance
Dread_ideal.
Figure10:
Possible read/write
distances
Dread_ideal
Dread_real_max
Dwrite_max
ca. 40…80 %
ca. 50 %
100 %
Reserve capacity must be included in planning, not only with regard to the possible radio range, but
also with regard to time available for accessing the data carrier on the fly within a time window.
Note
Appropriate range tests in real conditions must be carried out in all cases!
3.2.2 Minimum distance of data carrier to the read/write head
With BL ident® a minimum distance between the data carrier and the read/write head is not necessary.
3.2.3 Permissible motion direction and alignment of the data carriers
The data carriers can move over the read/write head in any direction.
It is only necessary for the data
carriers
to be aligned parallel to the read/write head..
Note
The TN…Q240L280… can either be set for linear or circular polarization via the WebConfig
software tool! If linear polarization is selected, the data carrier has to be directed in horizontal
or vertical direction.
BL ident® System – Planning
D101831 0713- BLident® Installation of the UHF System42
3.2.4 Reading and writing in static mode
In static mode, the data carrier is located in a fixed positioned precisely in front of the read/write head.
Unlike HF, UHF allows use up to a greater distance of several meters. In this mode, the processing of a
large number of data carriers is possible, however, due to the inhomogeneous UHF field, several
transfer attempts may be necessary, and the data carriers may not even be detected in this mode as
they are located in a dead zone.
Note
Reading and writing in static mode is therefore not recommended!
3.2.5 Reading and writing in dynamic mode (on the fly)
In on the fly mode, the data carrier moves according to the configuration at a transverse speed past the
read/write head.
This mode is preferred for the processing of a large number of data carriers, however several transfer
attempts may be necessary due to the inhomogeneous UHF field. An additional time reserve for
detecting all data carriers must therefore be included in planning.
There is also the risk of fading, by which communication with the data carriers may fail and the data
carriers may possibly not be detected.
3.2.6 Transfer rate
The transfer speed in the UHF band may vary depending on the data carrier and the transmission
process used. It is therefore not possible to provide a general calculation formula. However, the transfer
speed is generally higher than for HF (ISO 15693).
3.2.7 Range difference between reading and writing
The difference primarily depends on the data carrier. Depending on type and mounting location, the
range for write operations may only be 30…50 % of the maximum range for read operations in the
same conditions (see also “UHF transmission zone” page 40).
Note
TURCK recommends that write operations in an application are not carried out close to the
limit of the transmission zone.
3.2.8 Minimum distance between two adjacent data carriers in single mode
In dynamic mode (on the fly) the minimum distance of successive data carriers depends on the data
volume and the bus cycle time.
Note
Appropriate tests to determine the minimum distance of successive data carriers must be
carried out before startup.
D101831 0713- BLident® Installation of the UHF System 43
Transmission zone and read/write distance
3.2.9 Minimum distance between two adjacent data carriers in multiple access
Multiple access means a read/write head can communicate with several data carriers at the same time.
The read/write head can thus address a data carrier selectively by means of its UII/EPC.
In order to access several data carriers located at the same time within the wireless sensing range of the
read/write head, as large a distance between the data carriers should be selected as possible.
The minimum distance between the data carriers should be 50 mm.
If the data carriers are located close together, it may not always be possible to ensure successful
identification via the communication in the air interface.
Note
Information about the expected performance must be determined by carrying out a function
test under specified application conditions.
Multiple access requires that all the data carriers involved are located at the same time in the radio field
of the relevant read/write head. As this is not always possible due to interference in the environment
(e.g. radio reflections) and the spatial distance and arrangement of the data carriers, as well as the need
for additional modifications in the application process such as:
modifications to the arrangement of the data carriers,
changing from static mode to dynamic mode,
applications that only access a single data carrier at the same time are often easier to implement.
3.2.10 Dwell time Td of the data carrier
The dwell time Td is the time in which the data carrier is in the sensing range of the read/write head on
passing. During this time the read/write head can exchange data with the data carrier.
In static operation, the dwell time can either be as long as required or zero if the data carrier is located
in a dead zone due to interference in the environment.
However, the dwell time must be at least as long as necessary to complete communication with the
data carrier.
In dynamic mode, the dwell time is determined by the system environment. The dwell time must be
adapted to the transferred data volume. Conversely this means that the shorter the dwell time, the
smaller the data volume that can be transferred.
However, with UHF there is a risk of fading, in which communication with the data carriers can fail.
Several transfer attempts may therefore be necessary to establish communication due to the
inhomogeneous UHF field.
The dwell time should therefore allow for enough additional time for further retries.
Note
The number of automatic retries can be set via the offline parameters of the higher-level
controller (PLC).
BL ident® System – Planning
D101831 0713- BLident® Installation of the UHF System44
D101831 0713 - BLident® Installation of the UHF System 45
4 Mounting and operating guidelines
4.1 Effect on the performance of the BL ident® system .............................................................................46
4.1.1 Minimum / maximum distance between read/write heads .................................................................................................... 46
4.1.2 Minimum distance of read/write heads to conductive materials ......................................................................................... 47
4.1.3 Minimum distance of data carriers to conductive walls .......................................................................................................... 48
4.1.4 Minimum distance between data carriers ..................................................................................................................................... 49
4.1.5 Minimum distance of smart label data carriers between each other .................................................................................. 49
4.1.6 Interaction when using several read/write heads ...................................................................................................................... 49
– Adaptive frequency selection ........................................................................................................................................................ 49
– Frequency hopping procedure ..................................................................................................................................................... 49
4.1.7 Factors influencing the read distance ............................................................................................................................................ 53
4.1.8 Environmental requirements for data carriers ............................................................................................................................ 53
4.1.9 Data carrier orientation in the room ............................................................................................................................................... 54
4.2 Behavior of electromagnetic waves in the UHF range ........................................................................55
4.2.1 Effect of reflections and interference .............................................................................................................................................. 55
– Reflections and interference .......................................................................................................................................................... 55
– Reducing the effect of reflections/interference on data carrier detection ................................................................... 55
4.2.2 Effect of liquids and non-metallic substances ............................................................................................................................. 55
4.2.3 Effect of third party components ..................................................................................................................................................... 55
– Reflections and interference .......................................................................................................................................................... 56
– Third party components in the same frequency band ......................................................................................................... 56
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System46
4.1 Effect on the performance of the BL ident® system
The following important points should be taken into account during design and installation:
Minimum / maximum distance between read/write heads
Minimum distance of read/write heads to conductive materials
Minimum distance between two adjacent data carriers
Interaction when using several read/write heads
Behavior of electromagnetic waves in the UHF range
Parameter assignment of the read/write heads, such as setting the transmission output, operating
frequency and RF transmission parameters via the DTM or the RDemo and WebConfig software
tools
4.1.1 Minimum / maximum distance between read/write heads
The distance between two read/write heads mounted next to each other depends on the transmission
output, i.e. the lower the transmission output, the smaller the minimum distance possible. At least 20
cm should be selected as a guide value, and a distance of 50 cm or greater is recommended.
Figure 11:
Minimum distance
between two read/
write heads mount-
ed next to each oth-
er
20...50 cm
With a portal configuration, the maximum distance between two read/write heads is 3.5 m.
Figure 12:
Maximum distance
for portal configu-
ration
Europe max. 3,5 m
USA, China max. 4,0 m
D101831 0713 - BLident® Installation of the UHF System 47
Effect on the performance of the BL ident® system
4.1.2 Minimum distance of read/write heads to conductive materials
A minimum distance of the read/write heads to conductive materials should be observed due to the
detuning of the read/write heads through a conductive environment.
The following minimum distances must be observed when mounting read/write heads:
A minimum distance of 50 cm must be observed between a read/write head and liquids or metals.
The distance between the read/write head and the ground must also be at least 50 cm.
Figure 13:
Minimum distances
for mounting read/
write heads
min. 50 cm
min. 50 cm
metal
ground
liquid
Note
The effect of interference produced by conductive material in the environment on the radio
field of the read/write head, and which may cause detuning, can be compensated using the
two RDemo and WebConfig software tools.
The read/write head should first of all be tuned with the RDemo software tool via the
Antenna tuning function so that the effect of interference on its performance is sufficiently
suppressed.
If this does not produce the desired result, you should try to compensate the detuning in the
next step by using the Auto tuning function which can be activated in the WebConfig
software tool after a specific firmware of the read/write head (see the following “Table 14:
Firmware versions for read/write heads that support “Autotuning””). This function enables
the cyclical, automatic tuning of the radio field in response to the effects of ambient
interference; this reduces the operating range of the radio field.
Table 14:
Firmware ver-
sions for
read/write heads
that support “Au-
totuning”
Read/write head from firmware version
TN…-Q240 L280-H1147 1.33
TN…-Q175 L200-H1147 1.39
TN…-Q120L130-H1147 1.39
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System48
4.1.3 Minimum distance of data carriers to conductive walls
A distance of 20...200 mm is recommended if conductive walls and obstacles are present in the
environment that shadow the radio field. The effect of walls is minimized in all cases if the polarization
axis is orthogonal to the wall.
Figure 14:
Minimum distances
of data carriers to a
conductive wall,
polarization axis or-
thogonal
50...200
mm
polarization axis
conductive wall
A minimum distance to a conductive wall must be observed for the data carriers. This is 50…200 mm
parallel to the polarization axis.
Figure 15:
Minimum distances
of data carriers to a
conductive wall,
polarization axis
parallel
50...200
mm
polarization axis
conductive wall
A minimum distance to two conductive walls must be observed for the data carriers. This is 50…200
mm parallel and vertical to the polarization axis.
Figure 16:
Minimum distance
of data carriers to
two conductive
walls
50...200
mm
50...200
mm
conductive wall
polarization axis
conductive wall
D101831 0713 - BLident® Installation of the UHF System 49
Effect on the performance of the BL ident® system
4.1.4 Minimum distance between data carriers
A minimum distance of 50 mm must be observed between data carriers.
Figure 17:
Minimum distances
between
data carriers
50 mm
4.1.5 Minimum distance of smart label data carriers between each other
A minimum distance of 50 mm must be observed between smart labels.
Figure 18:
Minimum distances
between
data carriers (smart
labels)
50 mm
50 mm
4.1.6 Interaction when using several read/write heads
If several RFID read/write heads are in operation, there is a danger that RFID data carriers are also read
by other read/write heads. It must therefore be ensured that the data carrier is only read by the
appropriate read/write head.
Technical malfunctions between read/write heads will particularly occur if the read/write heads
transmit on the same channel (on the same frequency).
There are different methods to prevent this with BL ident®. For example, TURCK read/write heads in
Europe use “adaptive frequency agility” (ETSI 302 208 V1.2), and in China, Korea and the USA, the
frequency hopping procedure (FCC Rules Part 15).
Adaptive frequency agility
In order to exclude signal collision, the read/write head using adaptive frequency agility checks before
transmitting whether the four receive channels adjacent to the transmit channel concerned (two above
and two below the transmit channel) are free. The read/write head only transmits if the adjacent
channels are free. The read/write head must transmit up to four seconds on the channel and must then
either make a pause of at least 100 milliseconds or jump to a free channel and transmit on this channel
for four seconds.
Frequency hopping procedure
With the frequency hopping procedure used in the USA and China, the read/write head changes its
transmit channel in a random or programmed sequence (FHSS – frequency hopping spread spectrum).
With 50 channels (USA) and 16 channels (China) available, there is a low probability that two read/write
heads are operating on the same frequency.
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System50
Other ways of preventing the interaction between read/write heads are:
Observe the necessary minimum antenna distances according to their alignment
The necessary minimum distance between the read/write heads using the same frequency depends
on the set effective radiant power and the alignment of the antenna.
Figure 19:
Antenna alignment
Tag Tag
TagTag
Tag Tag
D
D
D
Table 15:
Antenna distanc-
es with the same
frequency
Antenna align-
ment
see “Figure 19:”
Required minimum
antenna distance = D
for
TN…-Q240 L280-
H1147
with ERP = 2 W
Required minimum
antenna distance = D
for
TN…-Q175 L200-
H1147
with ERP = 1 W
Required minimum
antenna distance = D
for
TN…-Q120L130-
H1147
with ERP = 0.5 W
Back to back
arrangement
1 m 0.5 m 0.25 m
Side by side 2 m 1 m 0.5 m
Antenna facing
each other
5 m 2.5 m 1.25 m
Note
The stated values do not take into account the effect on the data carriers.
Use Dense Reader Mode (DRM) for applications in Europe
The special DRM = Dense Reader Mode for BL ident® read/write heads enables several read/write
heads in close proximity and using one and the same frequency to operate fault-free.
In accordance with EPC Global and ETSI EN 302 208 V1.2.1, transmission is implemented on the four
transmit channels and the data carrier response appears on the associated adjacent channels. Due
to the large difference in signal levels between the transmit channels and the data carrier response
channels, this technique offers significant benefits when frequencies are reused. However, this
requires the observance of minimum distances and thus a minimum decoupling between the
antennas of adjacent read/write heads.
Note
When the read/write heads are used in Europe, the use of DRM filters is advantageous if
several read/write heads are operated in a narrow space.
These DRM filters can be switched on manually in the WebConfig software in the Link profiles
menu.
D101831 0713 - BLident® Installation of the UHF System 51
Effect on the performance of the BL ident® system
Synchronize read/write heads using a higher-level controller
In order to minimize the interference between read/write heads, their mode should be as
synchronized as possible, e.g. via a central controller (PLC), or the TDMA procedure should be used
for the transmission.
If possible there should always only be one read/write head active for read or write modes and its
activation time should be at a minimum.
Trigger read/write heads
In order to minimize the operating time of the radio field to the time required for communication
with the data carrier, the read/write heads should if possible only be triggered on, for example, by
means of an additional switch sensor that only activates the radio field if the data carriers are in the
sensing range of the read/write head.
Create a channel assignment plan
TURCK recommends the creation of a channel assignment plan for RFID applications in Europe. For
this the read/write heads using the same channel in a spatial environment (e.g. machine hall) should
be located as far apart from each other as possible
(see “Table 15:”).
The following frequency ranges with the associated channels are used in Europe, Korea, the USA or
China:
Figure 20:
Frequency ranges
in Europe
data carrier response
865.0 865.7 866.3 866.9 867.5 868.0
600 kHz 200 kHz
read/write signal
max. 2.0 W (ERP)
f [MHz]
Note
For applications in Europe, the read/write heads should be assigned to and use equally the
four channels provided, i.e. when using, for example, 5 read/write heads, not all of them
should run on channel 4 whilst channels 7, 10 and 13 remain free.
Figure 21:
Frequency ranges
in Korea,
Frequency hopping
procedure
data carrier response
917.0 917.3 917.9 918.5 919.1919.7 920,3 920,8
600 kHz 200 kHz
read/write signal
max. 4.0 W (EIRP)
f [MHz]
Figure 22:
Frequency ranges
in the USA, frequen-
cy hopping proce-
dure
902.5902.0
902.75
927.5 928.0
927.25
500 kHz
max. 4.0 W (EIRP)
f [MHz]
50 channels
Figure 23:
Frequency ranges
in China,
Frequency hopping
procedure
920.5920.125
920.625
924.5 924.875
924.375
250 kHz
max. 2.0 W (ERP)
f [MHz]
16 channels
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System52
D101831 0713 - BLident® Installation of the UHF System 53
Effect on the performance of the BL ident® system
Set the transmission output and possibly other read/write head parameters
In order to reduce the mutual interference between components in the application, a practical
transmission output setting and if necessary other read/write head parameters should be ensured,
for example, via the DTM or the RDemo and WebConfig software tools.
Use mechanical shielding
If necessary, TURCK also recommends the use of mechanical shielding, such as mesh grills as a
further measure to reduce interference, such as the faulty and unintended detection of data carriers
positioned further away.
4.1.7 Factors influencing the read distance
The read range between the read/write head and the data carrier is influenced by the following factors:
Transmission output of the read/write head:
The higher the transmission output, the greater the read distance.
Size and design of the data carrier:
The larger the antenna of the data carrier, the greater the energy consumption and therefore the
greater the read distance.
Absorption factor of materials:
The greater the absorption of the materials in the environment, the smaller the read distance.
Reflective properties of the environment:
In a multi-reflective environment (e.g. in rooms with reflective surfaces, machines, concrete walls)
the read distance can be considerably higher than in an environment with low reflective
properties.Fading is possible!
Data carrier frequency tuning:
Data carriers optimized for specific regions such as with the 865…868 MHz frequency band for
Europe, normally offer in this region higher read distances than data carriers designed with a broad
frequency band such as 860…960 MHz.
4.1.8 Environmental conditions for data carriers
The data carrier must not be placed directly on metal surfaces or on liquid containers. This does not
apply to specially designed data carriers which can be mounted directly on metal. The possible read/
write distance can nevertheless be reduced!
A minimum distance between the data carriers and conductive material must be ensured due to the
physical factors involved. A minimum distance of 5 cm is recommended. However, a greater distance
(between 5 and 20 cm) is recommended.
Liquids such as water and aqueous substances, ice, carbon have a higher RF attenuation in the UHF
band. The electromagnetic energy is partly reflected and absorbed so that the data carrier must not be
mounted directly on containers of liquid.
The mounting of a data carrier on a non-conductive material (plastic, wood) is normally less critical than
mounting on material with low conductivity.
Note
Appropriate range tests in real conditions must be carried out in all cases!
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System54
4.1.9 Data carrier orientation in the room
The orientation of the data carrier antenna to the antenna of the read/write head determines the read
range.
In order to achieve optimum performance and maximum read range, the data carrier antenna must be
aligned parallel to the read/write head.
Figure 24:
Parallel data carrier
alignment
If the data carrier antenna is aligned vertically to the read/write head, this will only result in poor
performance and a minimum read range. Vertical alignment should therefore be avoided.
Figure 25:
Vertical data carrier
alignment
D101831 0713 - BLident® Installation of the UHF System 55
Behavior of electromagnetic waves in the UHF range
4.2 Behavior of electromagnetic waves in the UHF range
4.2.1 Effect of reflections and interference
Reflections and interference
Electromagnetic waves in the UHF range behave and are propagated in a similar way to light waves, i.e.
they are reflected on large objects such as ceilings, floors, walls, windows and interfere with each other.
Due to the nature of electromagnetic waves interference may cause wave amplification, which will
increase the read range. In unfavorable circumstances, interference may also cause wave cancellation
and therefore lead to fading.
Due to these electromagnetic properties in a multi-reflective environment as they occur in the actual
environment onsite, it is difficult to determine in advance the propagation paths and field strength for
a particular location.
Note
Appropriate range tests in real conditions must be carried out in all cases!
Reducing the effect of reflections/interference on data carrier detection
Reduce transmission output:
In order keep interference to a minimum, we recommend reducing the transmission output of the
read/write head so that it is sufficient for a detection rate of 100 %.
Synchronize read/write heads through a higher-level controller:
The operation of the read/write heads between each other should be synchronized as much as
possible, for example using a central PLC, in order to minimize the interference between them.
4.2.2 Effect of liquids and non-metallic substances
Non-metallic substances can also affect the propagation of electromagnetic waves. If non-metallic
substances/bodies that absorb UHF radiation are present in the propagation field, this can change the
field or cause the cancellation of the field depending on the size and distance involved.
Liquids and aqueous substances, ice, carbon have a higher RF attenuation in the UHF band. The
electromagnetic energy is partly reflected and absorbed.
Oil and petroleum-based liquids have low attenuation properties.
Electromagnetic waves penetrate these liquids and are only slightly attenuated.
4.2.3 Effect of third party components
The R&TTE directive and the relevant standards stipulate the requirements for electromagnetic
compatibility. This includes third party components of the BL ident® system. Although the requirements
for electromagnetic compatibility are defined, different components nevertheless produce mutual
interference.
The performance of the BL ident® system very much depends on the electromagnetic environment of
the read/write heads.
Reflections and interference
Electromagnetic fields of the read/write head are weakened by absorbing materials and reflected by
conductive materials. If electromagnetic fields are reflected, the reflecting fields and the fields of the
read/write heads produce overlays (interference).
Mounting and operating guidelines
D101831 0713 - BLident® Installation of the UHF System56
Third party components in the same frequency band
Third party components may possibly transmit in the same frequency band as the read/write head.
Alternatively, the third party components may transmit in other frequency bands with side bands that
overlap the frequency bands of the read/write head. This may cause a decrease in the signal-to-
interference ratio, thus reducing the performance of a BL ident® system.
D101831 0713 - BLident® Installation of the UHF System 57
5 Startup with the RDemo and WebConfig software tools
5.1 Testing, parameter assignment and configuration of the read/write heads.......................................58
5.1.1 Testing with RDemo............................................................................................................................................................................... 58
5.1.2 Parameter assignment and configuration with WebConfig.................................................................................................... 59
Startup with the RDemo and WebConfig software tools
D101831 0713 - BLident® Installation of the UHF System58
5.1 Testing, parameter assignment and configuration of the read/write heads
The RDemo and WebConfig software application enables the read/write heads to be fully tested,
parameterized and configured via a PC.
These software tools are only designed for users wishing to make additional settings to the read/write
heads other than the parameter options of BL ident®.
The following additional components are required to use these RDemo and WebConfig software
applications with the UHF read/write head:
the TURCK interface converter STW-RS485-USB (Ident no. 7030354)
the TURCK power supply unit STW-RS485-USB-PS (Ident no. 7030355)
a PC or a laptop
a standard USB connection cable with a type A connector variant at one end and a type B connector
at the other
a single-ended TURCK standard sensor cable or BL ident® cable such as
RK4.5T-2/S2500, RK4.5T-2/S2501 or RK4.5T-2/S2503
5.1.1 Testing with RDemo
The RDemo software application enables you to also test the UHF RFID read/write heads without
integration into the BL20/BL67 system.
The software also offers the following options:
Reading and writing of data carriers
Display of data carrier user data (also graphically)
Show the communication between the PC and the read/write heads
Record the communication between the PC and the read/write head
Transfer customer-specific commands
Transfer data with multiple access
Transfer data carrier-specific commands
D101831 0713 - BLident® Installation of the UHF System 59
Testing, parameter assignment and configuration of the read/write heads
5.1.2 Parameter assignment and configuration with WebConfig
The WebConfig software application enables the extensive parameterization and configuration of the
read/write heads.
The various setting options in WebConfig for the BL ident® read/write heads include the following:
(Event handling) event handling with regard to LEDs/buzzers/messages
(Gen2 Selection and truncate) Selection of data carriers and the setting of a status. The selection is
made by filtering data carriers with a specific data sequence in one of the memory banks
(Data matching) Filtering of the data of the data carrier by means of its UII
(Access) Setting the access to data carriers, e.g. with multiple access
(Frequency setup/channel mask) Used transmission frequency/channel assignment
(Inventory profiles) Selection of parameters for multiple access to the data carriers
(Link profiles) Selection of parameters in the wireless transmission protocol (see also “Interaction
when using several read/write heads” page 49 )
(Post read filter) Filtering of data carrier read operations
Startup with the RDemo and WebConfig software tools
D101831 0713 - BLident® Installation of the UHF System60
D101831 0713 - BLident® Installation of the UHF System 61
6 EMC Guidelines
6.1 Target group ........................................................................................................................................62
6.2 Propagation of electromagnetic interference ..................................................................................... 62
6.3 RFID interference ................................................................................................................................. 63
6.4 EMC – Definition................................................................................................................................... 63
6.5 Basic rules for ensuring EMC................................................................................................................ 64
6.5.1 Installation in a control cabinet.......................................................................................................................................................... 65
6.5.2 Preventing interference sources........................................................................................................................................................ 65
6.5.3 Equipotential bonding .......................................................................................................................................................................... 65
6.5.4 Shielding the cables ............................................................................................................................................................................... 66
EMC Guidelines
D101831 0713 - BLident® Installation of the UHF System62
6.1 Target group
These EMC guidelines are aimed at:
Design engineers and planners involved in the planning the installation with the RFID modules to
be configured.
Fitters, service technicians and engineers using this description to ensure the proper installation of
the connection cables
or having to rectify faults if interference is present.
This chapter provides more information about the EMC guidelines, particularly:
Propagation of electromagnetic interference
Definition of EMC
Basic rules for ensuring EMC,
Installation in a control cabinet,
Preventing interference sources,
Equipotential bonding,
Shielding the cables.
6.2 Propagation of electromagnetic interference
Electromagnetic interference can only occur in an installation if the following elements are present:
Interference source,
Coupling path,
Interference sink.
Interference cannot occur if one of these elements is missing (such as the coupling path), even if the
interference source has strong interference emissions (“Figure 26: Interference components” ):
Figure 26:
Interference
components
source of interference
e.g. motor
susceptible equipment
e.g. read/write head
link
e.g. cable connector
The measures to prevent interference (EMC measures) are applied to all three elements.
When designing an installation, the manufacturer must take all possible measures to counteract the
occurrence of interference sources.
The installation must also be implemented in such a way that the mutual interference of the individual
elements is prevented or is kept as low as possible.
D101831 0713 - BLident® Installation of the UHF System 63
RFID interference
6.3 RFID interference
Problem: Radiated interference via the current supply through the use of power supply units.
Remedy: Use a stabilized power supply unit.
Problem: Interference via the serial connection cable.
Remedy: Improved cable shielding and/or grounding of the read/write head.
Problem: HF interference via the antenna through another RFID read/write head.
Remedy:
Position the antennas further apart from each other or change the alignment of antennas to each
other.
Install suitable damping materials between the antennas.
Reduce the power of the read/write heads.
Problem: HF interference via the antenna through a different wireless system that is transmitting in
the same frequency band.
Remedy: For example a change of channel can provide a remedy, depending national radio
regulations.
Coupling paths
There are four types of interference coupling:
Galvanic coupling,
Capacitive coupling,
Inductive coupling,
Radiative coupling.
This interference coupling has different causes:
On cables and lines:
Incorrect our unfavorable cable routing,
Missing or incorrectly connected shield,
Spatially unfavorable cable arrangement.
With control cabinets or housings:
Missing or incorrectly wired equipotential bonding,
Missing or incorrect grounding,
Spatially unfavorable arrangement,
Insecurely mounted modules,
Unfavorable control cabinet layout.
6.4 EMC – Definition
The electronic elements of an installation are increasingly exposed to interference due to the increasing
density of installed components, the increasing amount of power electronics connected and the faster
switching speeds involved. The is always subject to the following principle: The higher the degree of
automation, the greater the risk of mutual interference.
Definition of EMC:
“By electromagnetic compatibility (EMC) is meant the ability of an electrical or electronic device to
operate satisfactorily in an electromagnetic environment without affecting or interfering with the
environment over and above certain limits.”
EMC Guidelines
D101831 0713 - BLident® Installation of the UHF System64
As the RFID modules are only components within an overall system and may produce new interference
sources through the combination of various components, the design of an installation must comply
with specific regulations.
The interference immunity of an installation requires the implementation of a complete package of
measures; in this case, the operator is responsible for the RFI suppression of the entire installation. This
person must also observe the relevant national specifications and regulations. All measures that are
implemented when the system is installed will save expensive modifications and fault rectification
measures made later.
6.5 Basic rules for ensuring EMC
Observe the following basic rules to ensure electromagnetic (EMC):
Shielding through housing
Protect the device from external interference by installing it in a cabinet or housing. The cabinet or the
housing must be integrated in the chassis ground.
Shield electromagnetic fields of inductive loads from the device using partition plates. Use metal
connector housings for shielded data transmission cables.
Large-area ground connection
Connect all passive metal parts to the chassis ground using an HF low impedance connection across
a large area. Establish a large-area connection between the passive metal parts and the central
grounding point.
Incorporate the shield ground in the chassis grounding system, i.e. the shield ground must be
connected to chassis ground with a large-area connection.
Planning the cable installation
Break the cabling down into cable groups and install these separately.
Always route power cables and data cables in separate ducts or in separate bundles.
Feed the cabling into the cabinet from one side only and, if possible, on one level only.
Route the data cables as close as possible to chassis surfaces.
Twist the feed and return conductors of separately installed cables.
In many cases, a separate cable duct for the bus cable is provided anyway. Ideally this should
likewise be used for laying the data cables between the read/write heads and the interface modules.
Shielding the cables
Shield the data transmission cables and connect the shield at both ends.
Shield the analog cables and connect the shield at one end, e.g. on the drive unit.
Always apply large-area connections between the cable shields and the shielding bus at the cabinet
entry and fasten with a low impedance contact using clamps.
Feed the connected shield through to the module without interruption.
Use braided shields, not foil shields.
Line and signal filters
Use only line filters with metal housings.
Connect the filter housing to the cabinet chassis using a HF low impedance large-area connection.
Never fix the filter housing to painted surfaces.
Fix the filter at the control cabinet entry or in the direction of the interference source.
D101831 0713 - BLident® Installation of the UHF System 65
Basic rules for ensuring EMC
6.5.1 Installation in a control cabinet
Magnetic and electrical fields and electromagnetic waves can be kept away from the interference sink
by using a metal housing. The easier the induced interference current can flow, the greater the intrinsic
weakening of the interference field. All housings and metal panels in the cabinet should therefore be
connected with a low impedance connection.
If the control cabinet panels are insulated from each other, an HF low impedance connection can be
established using ribbon cables and HF terminals or HF paste (the larger the area of the connection, the
better).
Interference can also be prevented through optimum control cabinet design.
In this case the following applies as a general rule:
The effect of the interference decreases as the distance between the interference source and
interference sink increases,
The interference can be further decreased by installing shielding plates,
Signal cables should have a minimum clearance from power cables or load cables of 10 cm.
Interference from the power supply should be prevented through the installation of line filters. Ensure
that the line filter is correctly rated and is mounted directly at the cabinet entry.
6.5.2 Preventing interference sources
Prevent the installation of interference sources that particularly occur with switched inductances.
Relays, contactors, fluorescent lights in the control cabinet and valves are particular sources of
interference, which can be prevented through the use of RC circuits, free-wheeling diodes etc. This also
prevents stray interference on conductors installed parallel to the coil conductors.
6.5.3 Equipotential bonding
Potential differences between different parts of a plant can arise due to the different design of the plant
sections and different voltage levels. Equalizing currents then flow across the signal cables (the
equipotential bonding must not be confused with the protective ground conductor).
Proper equipotential bonding is therefore essential.
The following points must be observed:
The equipotential bonding conductor must have a sufficiently large cross section (at least 10 mm2)
The distance between the signal cable and the associated equipotential bonding conductor must
be as small as possible (antenna effect)
A fine-strand conductor must be used (better high-frequency conductivity)
When connecting the equipotential bonding conductors to the central equipotential bonding strip
(EBS), the power components and non-power components must be combined
The equipotential bonding conductors of the individual modules must lead directly to the
equipotential bonding strip.
The better the equipotential bonding in an installation, the smaller the chance of interference due to
fluctuations in potential.
Equipotential bonding should not be confused with the protective grounding of an installation.
Protective grounding prevents the occurrence of excessive shock voltages in the event of equipment
faults whereas equipotential bonding prevents the occurrence of differences in potential.
EMC Guidelines
D101831 0713 - BLident® Installation of the UHF System66
6.5.4 Shielding the cables
Signal cables must be shielded in order to prevent the coupling of interference. The best shielding is
achieved by installing the cables in steel tubes. However, the use of cables with braided shields is
normally enough. In either case, however, correct connection is vital for effective shielding, since an
unconnected or incorrectly connected shield has no shielding effect.
The following always applies:
Since interference signals are frequently within a range > 10 kHz, a large-area shield connection is
necessary,
The shielding bus should be connected to the control cabinet housing using a low impedance
connection across a large area and must be situated as close as possible to the cable entry. The cable
insulation must be removed and the cables clamped to the shielding bus with an HF clamp or
secured using cable ties,
The shielding bus must be connected to the PE rail
If shielded cables have to be interrupted, the shield must be continued via the connector housings
of suitable male connectors,
If intermediate connectors are used, which do not have a suitable shield connection, the shield must
be continued by fixing cable clamps at the point of interruption.
D101830 0713 - BLident® Installation of the UHF System 67
7BL ident® – Data carriers for the UHF band
7.1 Function ............................................................................................................................................... 68
7.1.1 Memory module ...................................................................................................................................................................................... 68
7.1.2 Data carrier antenna............................................................................................................................................................................... 68
7.2 Type overview of the data carriers.......................................................................................................69
BL ident® – Data carriers for the UHF band
D101830 0713 - BLident® Installation of the UHF System68
7.1 Function
The BL ident® data carriers are suitable for non-contact read and write operations with the appropriate
read/write heads. The operating frequency in the UHF band is between 865 MHz and 928 MHz,
depending on the region where the system is to be used.
Different transmission distances are possible, depending on the dimensions of the data carrier and
therefore the dimensions of its dipole antenna. The following applies as a general rule: The smaller the
data carrier and therefore also the antenna, the shorter the distance.
The mounting forms are available as EEPROM memory variants. The BL ident® data carrier essentially
consists of a microchip with an integrated memory and dipole antenna. (“Figure 27: Block diagram of a
data carrier”).

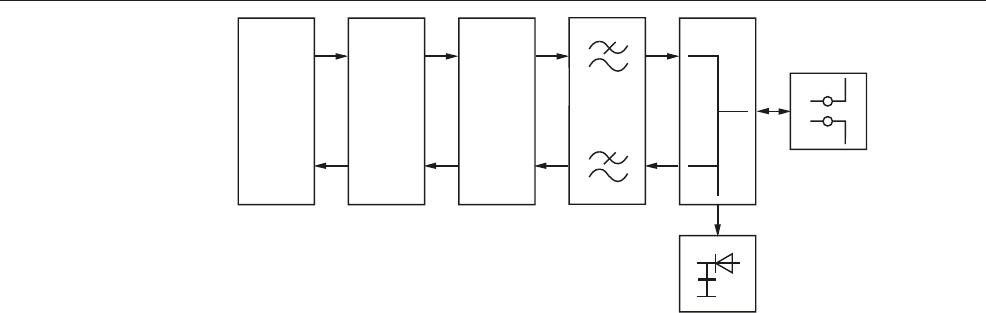

Figure 27:
Block diagram of a
data carrier
UB
modulator
demodulator
control logicsmemory
7.1.1 Memory module
The information on the data carrier can be read – however it is also possible to add new data (read/
write). The size of the memory varies according to type and is in all between 28 bytes and 138 bytes.
The memory module consists of the following components:
EEPROM: Unlimited reading but limited write cycles (105) possible. No battery required.
The data retention time of the memory is:
1 year at 85 °C
10 years at 55 °C
120 years at 25 °C
Electrical fields cannot erase the memory as their field strength is normally too low and these fields do
not resonate due to the frequency tuning.
7.1.2 Data carrier antenna
UHF data carriers normally have similar reception characteristics to a dipole antenna with a linear
polarization. Depending on how the data carrier is fitted, horizontal, vertical or mixed polarization is
used.
D101830 0713 - BLident® Installation of the UHF System 69
Type overview of the data carriers
7.2 Type overview of the data carriers
The RFID operating frequencies in the UHF band are subject to national specifications, for example
865...868 MHz in Europe and 902...928 MHz in the USA. TURCK offers different data carrier variants that
are specially designed and optimized for national frequency bands in order to achieve as large a
transmission range as possible. Wide-band multi-range data carriers for international use are also
available as an alternative.
Besides the frequency ranges, the selection criteria for the data carrier depend on the application at
hand. Data carriers for the direct mounting on metal, for attaching with a metal loop, as well as smart
labels and high temperature versions are therefore available in addition to the standard mounting
forms. Customized data carrier solutions that are tailored to the relevant application are also available
on request.
Table 16:
Type overview of
the data carriers
Dimensions/housing
length
Memory
size
[Byte]
Memory Operating
tempera-
ture
[° C]
Special
features
Type designation
28,5
36
7
ø 2,5
22
112 EEPROM -40...+85 Designed
exclusively
for direct
mounting
on metal,
high
temperature
TW865-868-Q22L36-
M-HT-B112
27
5,5
27
ø 3,4
ø 7,4
112 EEPROM -20...+80 Designed
exclusively
for direct
mounting
on metal,
TW865-868-Q27-M-
B112
TW902-928-Q27-M-
B112
14
12
60
110 EEPROM -35...+85 Suitable for
direct
mounting
on metal
TW865-868-Q14L60-
M-B110
TW902-928-Q14L60-
M-B110
45,9
57,5
19 20
10
8,5
BL ident® – Data carriers for the UHF band
D101830 0713 - BLident® Installation of the UHF System70
110 EEPROM -30...+70 Clip with
metal loop
for fixing
Customized
labeling
TW865-928-Q20L58-
B110
25
77
3
70
ø 3
112 EEPROM -40...+70 Flexible
mounting
form, for
fixing
on bent or
irregular
surfaces
TW860-960-Q25L77-
B-B112
82
97
15
27
ø 5,3
112 EEPROM -40...+80 suitable for
direct
mounting
on metal,
suitable for
outdoor
applications
TW860-960-Q27L97-
M-B112
40
51,5
47,5
10
ø 5 (2x)
110 EEPROM -40...+85 Designed
exclusively
for direct
mounting
on metal
TW865-868-Q47L51-
M-B110
TW902-928-Q47L51-
M-B110
Table 16: (cont.)
Type overview of
the data carriers
Dimensions/housing
length
Memory
size
[Byte]
Memory Operating
tempera-
ture
[° C]
Special
features
Type designation
3,2
ø 50
ø 4,9
D101830 0713 - BLident® Installation of the UHF System 71
Type overview of the data carriers
110 EEPROM -20...+85 Ø 50 mm
with
central hole
TW865-868-R50-
B110
TW902-928-R50-
B110
51
51
6,5
ø 5,5
ø 10,5
110 EEPROM -25…+85 High
temperature
TW865-868-Q51-HT-
B110
73
10 14
70
6
110 EEPROM -35...+60 can be
inserted in
drill holes
with
Ø 13 mm,
e.g. wood
TW860-960-L73-14-
C-B110
18
76,2
21
110 EEPROM -35...+85 self-
adhesive,
suitable for
direct
mounting
on metal
TW865-928-L76-18-
21-F-M-B110
20
80
1,1
44 EEPROM -20...+65 Smart label TW865-868-L80-20-
T-B44
Table 16: (cont.)
Type overview of
the data carriers
Dimensions/housing
length
Memory
size
[Byte]
Memory Operating
tempera-
ture
[° C]
Special
features
Type designation
11
93
97
15
BL ident® – Data carriers for the UHF band
D101830 0713 - BLident® Installation of the UHF System72
44 EEPROM -10…+85 Smart label TW860-960-L97-15-
F-B44
Table 16: (cont.)
Type overview of
the data carriers
Dimensions/housing
length
Memory
size
[Byte]
Memory Operating
tempera-
ture
[° C]
Special
features
Type designation
D101831 0713 - BLident® Installation of the UHF System 73
8BL ident® read/write heads for the UHF band
8.1 Function ............................................................................................................................................... 74
8.1.1 Read/write head antenna..................................................................................................................................................................... 74
8.2 Type overview of the read/write heads ...............................................................................................75
8.3 Connecting the read/write heads ........................................................................................................76
8.3.1 Connecting the grounding terminal................................................................................................................................................ 76
8.4 LED functions of the read/write heads................................................................................................. 77
8.5 Wall mounting of the TN...-Q240L280-H1147 read/write head ..........................................................78
8.6 Mast/tube mounting of the TN...-Q240L280-H1147 read/write head .................................................78
BL ident® read/write heads for the UHF band
D101831 0713 - BLident® Installation of the UHF System74
8.1 Function
The BL ident® read/write heads (transceivers) are used for non-contact data exchange with the
appropriate data carriers (tags). The UHF read/write heads form a transmission zone for which the size
depends on the combination of read/write head, data carrier and the relevant ambient conditions. The
maximum read/write distances only represent typical values under laboratory conditions without the
effect of materials.
The achievable distances may be different due to component tolerances, mounting location in the
application, ambient conditions and the effect of materials (particularly metal and liquids).
Note
For this reason, the application must be tested (particularly with read and write operations in
motion) under real conditions!
The operating frequency in the UHF band is between 865 MHz and 928 MHz, depending on the region
where the system is to be used.
The read/write head consists of an electronic unit and an antenna. (“Figure 28: Block diagram of a read/
write head”)

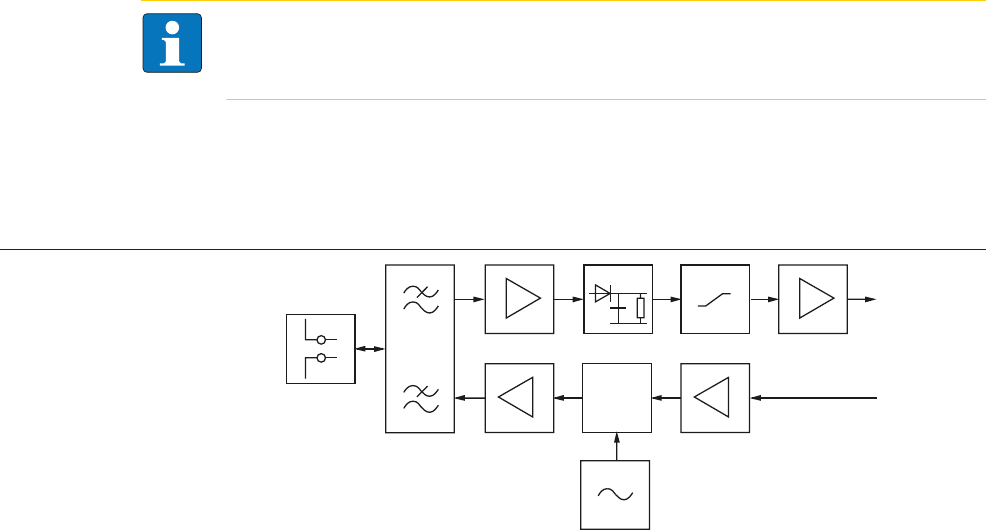

Figure 28:
Block diagram of a
read/write head
Modulator
Demodulator
Generator
8.1.1 Read/write head antenna
The antenna is a radiating element with different designs and properties depending on type. It is used
for transferring data between the data carrier and the read/write head. If the alignment of the data
carriers is unknown, or an alternating alignment is expected, the antenna should have a circular
polarization.
Circular polarization is either left-hand or right-hand circular polarization (LHCP and RHCP).
When using read/write head antennas with linear polarization, ensure that the antenna and the data
carrier have identical polarization (e.g. vertical or horizontal).
Due to the operating principle, no special requirements need be observed to suppress the orthogonal
components (cross-polarization).
The antenna polarization of the TN…-Q240L280-H1147 read/write head can also be preselected via the
WebConfig software tool. Depending on the application, it is therefore possible to set polarization to
LHCP, RHCP, vertical and horizontal during the startup.
D101831 0713 - BLident® Installation of the UHF System 75
Type overview of the read/write heads
8.2 Type overview of the read/write heads
Table 17:
Type overview of
read/write
heads
Dimensions/housing
length
Mounting
require-
ments
Special
features
Connection Type designation
278
238
86
M12
LED
not
flush
Polarization
selectable,
linear/circular
via
BL ident®
cable
TN865-Q240L280-H1147
TN902-Q240L280-H1147
TN840/920-Q240L280-
H1147
TN902/915-Q240L280-
H1147
200
175
60
M12
LED
not
flush
Compact
mounting
form,
IP67
via
BL ident®
cable
TN865-Q175L200-H1147
TN902-Q175L200-H1147
TN840/920-Q175L200-
H1147
TN917-Q175L200-H1147
130
120
60
M12
LED
not
flush
Very compact
mounting
form,
IP67
via
BL ident®
cable
TN865-Q120L130-H1147
TN902-Q120L130-H1147
TN840/920-Q120L130-
H1147
TN917-Q120L130-H1147
BL ident® read/write heads for the UHF band
D101831 0713 - BLident® Installation of the UHF System76
8.3 Connecting the read/write heads
The read/write heads are connected with the BL ident® RFID electronic module via M12 × 1 male
connectors. The power supply (24 VDC) and function are implemented with the BL ident® RFID
electronic module.
Caution
Possible device damage with BL20 due to incorrect connection of the power supply to the BL
ident® RFID electronic module
The power supply of the read/write heads must not be connected via the BL20 base modules
because the current via the RFID I/O modules is not sufficient.
While the wiring of the data cables is implemented via the base modules, the power supply
must be implemented directly via the .../S2500, .../S2501 and .../S2503 supply cables!
Note
Only read/write heads with a sticker on the back (as shown in figures 22 to 24) can be used
on the devices with the TURCK systems BL20, BL67 and BLcompact).
Refer to the enclosed packing slips for further information on connecting.
The .../S2500 cables have the wiring diagram shown in (“Figure 29: Wiring diagram for .../S2500 cables”).
Figure 29:
Wiring diagram for
.../S2500 cables
+
1 BN
3 BU
4 WH
2 BK Data
Data
3
2
4
1
The .../S2501 cables have the following wiring diagram (“Figure 30: Wiring diagram for .../S2501
cables”).
Figure 30:
Wiring diagram for
.../S2501 cables
+
1 BN
3 BU
4 BK
2 WH Data
Data
3
2
4
1
The .../S2503 cables have the following wiring diagram (“Figure 31: Wiring diagram for .../S2503
cables”).
Figure 31:
Wiring diagram for
.../S2503 cables
+
1 RD
3 BK
4 WH
2 BU Data
Data
3
2
4
1
D101831 0713 - BLident® Installation of the UHF System 77
LED functions of the read/write heads
8.3.1 Connecting the grounding terminal
Depending on the device type, the grounding terminal is pre-assembled on the read/write head or is
supplied with the device.
When installing the read/write head on the tab connector ensure that the supplied cable lug is
connected and properly grounded via a yellow/green cable with a cross section of at least 0.75 mm2.
8.4 LED functions of the read/write heads
The arrangement of the three LEDs on the front of the device varies depending on the type of read/
write head (arrangement from left to right):
TN…-Q120/Q175: LED 1 = green, LED 2 = yellow, LED 3 = red
TN…-Q240: LED 1 = yellow, LED 2 = green, LED 3 = red
The functions of the LEDs are as follows:
Table 18:
LED functions
LED 1 LED 2 LED 3 Function
OFF OFF OFF Operating voltage switched off
White White White Startup
Green OFF OFF Operating voltage switched on, radio field switched
off, no internal error
Green yellow OFF Operating voltage switched on, radio field switched
on, no internal error
Green yellow Red Operating voltage switched on, radio field switched
on, internal error
Green OFF Red Operating voltage switched on, radio field switched
off, internal error
Green flashing OFF OFF Data carrier access successful
Green yellow
flashing
Data carrier located in the radio field
Note
The individual LEDs are white on startup.
BL ident® read/write heads for the UHF band
D101831 0713 - BLident® Installation of the UHF System78
8.5 Wall mounting of the TN...-Q240L280-H1147 read/write head with the RH-Q240L280/Q280L640 arm
bracket available as an accessory
For wall or ceiling mountings, the arm bracket can be fitted directly to the mounting plate of the read/
write head. The bracket enables the read/write head to be positioned in many directions. The two fixing
ends of this element are connected to a rotatable arm via ball-joints. The hexagon key supplied is used
to fix the bracket in the desired position.
Figure 32:
Wall bracket
8.6 Mast/tube mounting of the TN...-Q240L280-H1147 read/write head with supplied bracket
The rear of the read/write head is designed for mounting on masts/tubes using the supplied fixing. In
order to mount the read/write head on masts/tubes, the rear of the device is designed so that it is
possible to align it around its vertical or horizontal axis. The jagged tube guides on the rear ensure a
secure fixing on the tube. This enables a 360° adjustment around the tube and ensures a secure
mounting of the read/write head.
Figure 33:
Mast/tube bracket
D101831 0713 - BLident® Installation of the UHF System 79
9Approvals
9.1 CE approvals (only for the TN865-… read/write head) ........................................................................ 80
9.2 FCC digital device limitations (only for read/write head TN902-…) ....................................................80
9.3 ANATEL approval (only for read/write head TN902/915-…)................................................................ 80
9.4 SRRC approval (only for read/write head TN840/920-…) ....................................................................81
9.5 KSQ approval (only TN917-…) .............................................................................................................81
Approvals
D101831 0713 - BLident® Installation of the UHF System80
9.1 CE approvals (only for the TN865-… read/write head)
Hans Turck GmbH & Co.KGm declares herewith that this RF system in its intended use complies with the
basic requirements and the other relevant provisions of the RTTE Directive 1999/5/EC.
A complete declaration of conformity is available on request and is enclosed with every UHF RFID read/
write head.
Approval in all European countries.
9.2 FCC digital device limitations (only for read/write head TN902-…)
FCC/IC digital device limitations
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This equipment complies with FCC/IC exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
& your body.
CAN ICES-3 (A)/NMB-3(A)
Use only with listed LPS or class 2 power supply!
9.3 ANATEL approval (only for read/write head TN902/915-…)
TN902/915-Q240L280-H1147
Este equipamento opera em caráter secundário, isto é, não tem direito à proteção contra interferéncia
prejudicial, mesmo de estações do mesmo tipo e não pode causar interferéncia a sistemas operando
em caráter primário.
D101831 0713 - BLident® Installation of the UHF System 81
SRRC approval (only for read/write head TN840/920-…)
9.4 SRRC approval (only for read/write head TN840/920-…)
In accordance with the provisions on the radio regulations of the People‘s Republic of China, the
following radio transmission equipment, after examination, conforms to the provisions with its CMIIT-
ID:
TN840/920-Q240L280-H1147
TN840/920-Q175L200-H1147
TN840/920-Q120L130-H1147
9.5 KSQ approval (only for read/write head TN917-…)
In accordance with the provisions on the radio regulations of Korea, the following radio transmission
equipment, after examination, conforms to the provisions:
TN917-Q175L200-H1147
TN917-Q120L130-H1147
Approvals
D101831 0713 - BLident® Installation of the UHF System82
D101831 0713 - BLident® Installation of the UHF System 83
10 Glossary
AA
Automation device
A device with inputs and outputs for controlling a connected technical process. Programmable logic controllers (PLCs) are a
special group of automation devices.
B
User area
freely available memory area on which user-specific data can be stored.
Bus
Group signal line for data exchange between hardware components (e.g. between CPU, memory and I/O levels). A bus can be
composed of a number of parallel cables (addressing, control and power supply) for data transmission.
Bus system
The totality of all units that communicate with one another via a bus.
CC
CPU
Acronym for “Central Processing Unit”. Central unit for data processing, the core of a computer.
D
dBm
The power level LP (L = level, P = power) is defined in dB as follows: dB (decibel) is the unit of the power level LP that describes
the ratio of a power value P1 in comparison to a reference power value P0. If the reference value is 1 mW (milliwatt) the
measured value is stated in dBm (m = milliwatt).
LP = 10 log(P1/P0)
with P0 = 1 mW => LP (dBm) = 10 log(P1/1 mW)
and conversely, if the power is required in mW:
P1(mW) = 10(Lp(dBm)/10)
Distribution
Distribution comprises all activities related to the transfer of goods between economic entities.
DIN
German acronym for German Industrial Standard.
DP master class 1
The automation system (PLC) which is mainly responsible for the cyclical processing of process data. The “DPV1” functions
can be employed additionally / optionally. (also DPM1/DPC1).
DP master class 2
Exclusive transmission of acyclical demand data. This data transmission can be carried out, for example, using an engineering
tool (PC application program).
DPV1
Functional extension to PROFIBUS-DP. In addition to the cyclical process data, demand data can be transmitted via acyclical
communication functions. The acyclical services are conducted at the same time and in addition to the cyclical process data
transmission with lower priority.
E
EEPROM - Electrically Erasable Programmable Read-Only Memory
EEPROM is the name given to a non-volatile, electronic memory module. An EEPROM consists of a field effect transistor matrix
with an insulated floating gate, in which each transistor represents a bit.
Glossary
D101831 0713 - BLident® Installation of the UHF System84
EMC
Electromagnetic compatibility (EMC) denotes the normally desired state in which technical devices do not cause or suffer
undesired electrical or electromagnetic interference to or from other devices in the same environment.
EPC
The electronic product code (EPC) is an international code system for a unique identification number, by which products,
stock-keeping units (outer packaging, transport pallets etc.), systems, services, documents, reusable transport containers and
locations (e.g. buildings (sections) or warehouse sites) can be uniquely designated and identified. In combination with RFID
technology it can be used for the detection and tracing of objects fitted with a transponder with EPC without visual or physical
contact.
EPC enables the unique identification of objects by class or type (e.g. a GTIN) and instance (in this case, a serialized GTIN[1])
(e.g. commercial unit, stock-keeping unit or transport container). For this the EPC is stored on a data carrier which is fitted to
the object to be identified. An RFID chip in compliance with ISO 18000-6C is normally used as a data carrier to store and
transmit the code.
Ground
In electrical engineering, the name given to a conductive area with an electrical potential of zero at any point. The electrical
potential of the ground may not equal zero in the area around grounding devices, in which case this is called the “reference
ground”.
Grounding
The connection of an electrically conductive component to the ground using a grounding device.
Grounding device
One or several components that have direct and good contact with the ground.
ERP/EIRP
The effective radiated power (ERP) is the product of the power supplied in the transmitting antenna multiplied by the antenna
gain (referenced to a half-wave dipole). If no direction is stated, the value applies to the main direction of radiation from the
transmitting antenna where its greatest antenna gain is present at the same time. If the antenna gain is referenced to the
isotropic antenna, it is called EIRP (Effective Isotropic Radiated Power).
F
Fieldbus
Data network on the sensor/actuator level. A fieldbus connects the devices on the fieldbus level with a control device. A
fieldbus offers high transmission security and a real-time behavior.
Frequence hopping
This procedure is designed to prevent mutual interference between read/write heads. For this the read/write head changes its
transmitting channel according to a random or programmed sequence (FHSS). With 16 channels that are permitted for
simultaneous operation in China and 50 channels in the USA, this reduces the probability that two read/write heads are
operating on the same frequency.
G
GSD - General Station Description
(previously device master file) The GSD file describes the characteristics of the devices used in PROFIBUS-DP. The GSD file is a
readable text file and is supplied in different languages. Configuration tools require the device information in order to
complete the configuration and commissioning. The GSD file normally contains general information (e.g. vendor name and
version) and with modular devices the communication features (e.g. module designations, texts for diagnostic messages,
parameter options, parameter names) of the individual modules.
H
Hexadecimal
Numerical system with a base of 16. The sequence begins with 0 to 9 and continues with the letters A, B, C, D, E and F.
D101831 0713 - BLident® Installation of the UHF System 85
IEC 61131
L
I
IEC 61131 is an international standard that covers the basic requirements of programmable controllers.
Initialization
During initialization, the memory space is reserved and filled with initial values (such as variables, code, buffer, ...) required for
the execution.
IP - International Protection
The degree of protection (IP) specifies the suitability of electrical equipment (such as devices, installation material) for different
environmental conditions in addition to the protection of persons from potential hazards during use.
C
Configuring
Systematic arrangement of the I/O modules of a station.
L
LSB
Least significant bit. Bit with the lowest numerical significance.
Logistics
Logistics is the science of the overall planning, control, implementation, provision, optimization and monitoring of processes
for the relocation of goods, data, energy and persons, as well as the necessary methods of transport.
M
Master
In a master-slave process on the fieldbus, the master controls the access relationships.
Mode
Operating mode.
MSB
Most significant bit. Bit with the highest numerical significance.
P
Parameterization
The setting of parameters for the individual bus stations and their modules in the configuration software of the DP master.
PIB
Acronym for Proxy Ident Block. This function block represents an ID system in the controller. This provides a standard program
interface to the actual application.
Bulk reading
Simultaneous and unambiguous reading of several RFID data carriers that are led past a read/write head (transceiver).
R
Repeater
In digital communication technology, the repeater is a signal regenerator which receives a signal in the bit transmission layer,
reconditions it and sends it on. Noise and distortion during the runtime (jitter) and the pulse shape are removed from the
received signal during this conditioning process.
Reserved area
This memory area is used for storing passwords for accessing data carriers
RDemo
Software tool for initiating various transponder actions including read/write operations
Glossary
D101831 0713 - BLident® Installation of the UHF System86
RFID
Radio Frequency Identification.
RFID technology
This technology enables a contactless transmission of data by means of an electromagnetic alternating field. This transmission
method is also called radio frequency technology. A tag is used as a data carrier.
S
Read/write head
The read/write head (also read/write device) generates an electromagnetic high frequency field. This is used to transfer data
and the power supply for the data carriers (transponder). The data is represented by the modulation of the electromagnetic
field.
PLC
Acronym for programmable logic controller.
Station
Functional unit or assembly consisting of several elements.
STEP 7
STEP 7 is the latest programming software of the Simatic-S7 PLC series from Siemens AG and is the successor to STEP 5.
T
Tag
RFID tags (data carriers) are small transponders in a housing suitable for the application, e.g. stickers, chip cards, label.
TID
This memory area contains specific data carrier information that was written beforehand by the manufacturer.
TDMA
The Time Division Multiple Access (TDMA) procedure defines specific time slots for the transmission of the responses of
different data carriers on a channel. The read/write head defines the number of time slots for the responses of data carriers, for
which each data carrier selects a time slot randomly. The read/write head checks the time slots with the respective data carrier
responses in succession until the data carrier is detected. If the time slot is exceeded without the corresponding data carrier
being detected, the process is repeated until all data carriers in the sensing range are identified.
Transceiver
Combination of transmitter and receiver.
In RFID technology, transceivers are used in the form of so-called “readers” or read/write heads. These devices first send a
signal to which a response is sent from the data carrier (e.g. RFID tag), the so-called transponder. This response is then received
by the transceiver and forwarded to a (computer) system for further processing.
Transponder
Combination of Transmitter and Responder
Transponder. A transponder consists of a microchip (with a unique identification number), a transmission / receiving aerial and
a housing. Data is transmitted between a reader device and the transponder via electromagnetic waves.
U
UHF - Ultra High Frequency
UHF RFID is implemented in Europe at 865..868 MHz / USA 902..928 MHz / China 840..845 MHz and 920..925 MHz.
UID
Abbreviation for “Unique Identifier”. A UID is an unambiguous serial number for a transponder. As an address it indicates the
data belonging to the transponder i.e. the tagged product. This data can, for example, be stored in a database.
D101831 0713 - BLident® Installation of the UHF System 87
UII
Abbreviation for Unique Item Identifier. Identification number by which a data carrier is identified.
W
WebConfig
Configuration tool for configuring UHF read/write heads.
Glossary
D101831 0713 - BLident® Installation of the UHF System88
D101831 0713 - BLident®-Installation des UHF-Systems 89
A Appendix
A.1 Directional characteristics of the antenna for the TN...-Q240L280-H1147 read/write head ..............90
A.1.1 Azimuth section, horizontal polarization ....................................................................................................................................... 90
A.1.2 Azimuth section, vertical polarization ............................................................................................................................................. 91
A.1.3 Elevation section, horizontal polarization...................................................................................................................................... 92
A.1.4 Elevation section, vertical polarization............................................................................................................................................ 93
A.2 Type code for BL ident®........................................................................................................................94
A.2.1 Type code for BL ident® interface ...................................................................................................................................................... 94
A.2.2 Type code for BL compact for BL ident® ........................................................................................................................................... 95
A.2.3 Type code for BL ident® read/write heads....................................................................................................................................... 96
A.2.4 Type code for BL ident® data carriers ............................................................................................................................................... 97
A.2.5 Type code for BL ident® connection technology (RFID cables) ............................................................................................... 98
A.3 Type code for fieldbus technology....................................................................................................... 99
A.3.1 Type code for BLxx gateways.............................................................................................................................................................. 99
A.3.2 Type code for BL compact...................................................................................................................................................................100
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems90
A.1 Directional characteristics of the antenna for the TN...-Q240L280-H1147 read/write head
3dB half power beamwidth, horizontal: 70°
3dB half power beamwidth, vertical: 70°
Polarization: circular/linear (adjustable)
Represented frequency: f = 867 MHz
A.1.1 Azimuth section, horizontal polarization
Figure34:
Azimuth section,
horizontal
polarization
D101831 0713 - BLident®-Installation des UHF-Systems 91
Directional characteristics of the antenna for the TN...-Q240L280-H1147 read/write head
A.1.2 Azimuth section, vertical polarization
Figure35:
Azimuth section,
vertical
polarization
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems92
A.1.3 Elevation section, horizontal polarization
Figure36:
Elevation section,
horizontal
polarization
D101831 0713 - BLident®-Installation des UHF-Systems 93
Directional characteristics of the antenna for the TN...-Q240L280-H1147 read/write head
A.1.4 Elevation section, vertical polarization
Figure37:
Elevation section,
vertical
polarization
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems94
A.2 Type code for BL ident®
A.2.1 Type code for BL ident® interface
TI
–
BL67
–
PG
–
DP
–
S
–
2
TI
Interface set –
Device Type
IInterface set:
gateway and RFID modules
TURCK RFID system BL ident®
BL67
Modular I/O system –
Modular I/O system
BL20 cabinet mounting (IP20)
BL20-E cabinet mounting (IP20)
ECONOMY version
BL67 field application (IP67)
PG
Programmable gateway –
Programmable gateway
PG Programmable gateway
DP
Fieldbus –
Fieldbus
DP/DPV1 PROFIBUS-DP
EN-PN PROFINET IO
EN Modbus TCP
EIP EtherNet/IP™
EC EtherCAT®
DN DeviceNet™
CO CANopen
S
Communication –
Communication
Adata transfer via function block
(PIB) in the control unit or
programmable Gateway
Sdata transfer via I/O
communication
2
Number of channels
Number of channels
22 channels for 2 read/write heads
44 channels for 4 read/write heads
66 channels for 6 read/write heads
88 channels for 8 read/write heads
Type code – example
Type code – explanation
D101831 0713 - BLident®-Installation des UHF-Systems 95
Type code for BL ident®
A.2.2 Type code for BL compact for BL ident®
BLCDP
–
2 M12 S T
–
2RFID-A
–
8DI-PD
BLCDP
Compact I/O system –
BLC – compact I/O system for
field application (IP67),fieldbus
type:
BLCDN DeviceNet™
BLCDP PROFIBUS-DP
BLCCO CANopen
2 M12 S T
Housing –
Connector for
power supply
Tseparate
M12connector
blank no separate
connector
Housing size
Ssmall housing
93x71x32.5
Mmiddle housing
113x71x32.5
Llarge housing
168x71x32.5
Connector type
M8 connector M8x1
M12 connector
M12x1
M16 connector
M16x0.75
Number of connectors
11 connector
22 connnectors
44 connnectors
66 connnectors
88 connnectors
16 16 connnectors
2RFID-A
RFID communication –
RFID communication
2RFID-A data transmission
via function block
(PIB)
2RFID-S data transmission
via I/O
communication
8DI-PD
Inputs/Outputs
Inputs/Outputs
8XSG-PD 8 digital inputs/
outputs, configurable,
PNP, diagnostics
8DI-PD 8 digital inputs, PNP,
diagnostics
Type code – example
Type code – explanation
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems96
A.2.3 Type code for BL ident® read/write heads
T N LR …
–
Q80
–
H1147
–
S
–
Ex
T N LR …
Read/write head –
Working frequency
blank 13.56 MHz
865 865…868 MHz
902 902…928 MHz
840/
920
840.5…844.5
MHz &
920.5…924.5
MHz
902/
915
902…907 MHz
& 915…928
MHz
917 917…920.8
MHz
Special range
ER extended range
LR long range
SLR super long
range
Read/write heads,
mounting condition
Bflush
mountable
Nnon-flush
mountable
TURCK RFID-System
BL ident®
Q80
Housing –
Housing
M18 thread M18
M30 thread M30
Q14 rectangular
55.5 x 30 x 14 mm
CK40 rectangular
40 x 40 x 65 mm,
variable orientation of
active face
Q80 rectangular,
114 x 80 x 40 mm
S32XL ring shaped,
180 x 120 x 32 mm
Q350 rectangular,
370 x 350 x 20 mm
Q80L400 rectangular,
400x80 x 25mm
Q120L130 rectangular,
120 x 130 x 60 mm
Q240L280 rectangular,
238 x 278 x 86 mm
Q280L640 rectangular,
640 x 280 x 105 mm
Q175L200 rectangular,
175 x 200 x 60 mm
H1147
Connector type /
Connector
0,15-RS4.47T pigtail (150
mm) with male
connector M12
H1147 connector
M12 x 1
H1147L connector
M12 x 1, lateral
V1147 connector M8
S
S-Number –
S-Number
S1126 optimized for different
data carriers
Ex
Approvals
Approvals
Ex approval for Ex-Area
Type code – example
Type code – explanation
D101831 0713 - BLident®-Installation des UHF-Systems 97
Type code for BL ident®
A.2.4 Type code for BL ident® data carriers
TW … –Q51 –M–HT –B128 –Ex
TW …
Data carrier –
Working frequency
blank 13.56 MHz
125 125 KHz
865-868 865…868 MHz
865-928 865…928 MHz
860-960 860…960 MHz
902-928 902…928 MHz
Data carrier,
memory access
Wread/write
Rread only
TURCK RFID-System
BL ident®
Q51
Housing –
Housing
R… round & diameter
I… inlay & dimensions
L… label & dimensions
BD10x1.5-19 screw housing,
plastic, M10x1.5,
wrenchsize 19 mm
BS10x1.5-19 screw housing,
metal/
plastic, M10x1.5,
wrenchsize 19 mm
BV10x1.5-19 screw housing ,
stainless steel/
plastic, M10x1.5,
wrenchsize 19 mm
QxLy rectangular:
x - width, y - length
Q51 quadratic,
lateral lenght:
51 mm
M
On metal –
On metal
Mfor direct mounting on metal
MF for direct mounting on metal,
foil shielded
HT
High temperature –
High temperature
HT High temperature
B128
Memory capacity total –
Memory capacity total
B44 44 Byte
B64 64 Byte
B110 110 Byte
B112 112 Byte
B128 128 Byte
B138 138 Byte
K2 2 kByte
K8 8 kByte
Ex
Approvals
Approvals
Ex Approval for Ex-Area
Type code – example
Type code – explanation
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems98
A.2.5 Type code for BL ident® connection technology (RFID cables)
…–RK4.5T
–
5
/
S2500
…
Usage –
Usage
FB– Food & Beverage type;
resistant to all common acid
and alkaline detergents and
disinfectants; IP67 and IP69K
RK4.5T
Connector type –
Connector type
RK4.5T female straight; 5-pin
WK4.5T female angled; 5-pin
RS4.5T male straight; 5-pin
5
Cable length /
Cable length
0.3 0.3 m
22 m
55 m
10 10 m
25 25 m
50 50 m
S2500
Connector quality
Connector quality
S2500 standard version:
cable: UL 20963; cable jacket:
PUR, yellow, qualified for
drag chain use, oil-resistant,
highly flexible
S2503 economic version:
cable: UL 20549; cable jacket:
PUR, black; qualified for
drag chain use, oil-resistant,
flexible
Type code – example
Type code – explanation
D101831 0713 - BLident®-Installation des UHF-Systems 99
Type code for fieldbus technology
A.3 Type code for fieldbus technology
A.3.1 Type code for BLxx gateways
BL20 –.
–
GW
–
DPV1
BL20
Modular I/O system –
BL20 Degree of protection IP20
BL67 Degree of protection IP67
.
Housing –
E Economy (only for
BL20)
blank Standard
GW
Gateway –
GW Standard Gateway
GWBR Gateway with bus
refreshing
PG programmable
Gateway
DPV1
Fieldbus system
CO CANopen
DN, DNET DeviceNet™
DP, DPV1,
PBDP
PROFIBUS-DP
EC EtherCAT®
EN Modbus TCP
EN-IP EtherNet/IP™
PN PROFINET IO
exception: BL67-GW-EN can be used for
Modbus TCP and EtherNet/IP™
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems100
A.3.2 Type code for BL compact
BLC DN
Product group –
Fieldbus system
CO CANopen
DN DeviceNet™
DP PROFIBUS DP
System designation
BLC BL compact
2 M12 L .
Design –
Power supply
Tseparate M12 male
for power supply
blank no separate
power supply
Design
Ssmall:
93 x 71 x 32.5 mm
Mmiddle:
113 x 71 x 32.5 mm
Llarge:
168 X 71 x 32.5
mm (for two I/O
modules)
Connection
technology
M8 male M8x1
M12 male M12 x 1
M16 male M16 x 0.75
Number of I/O ports
11 port
22 ports
44 ports
66 ports
88 ports
16 16 ports
4AI-VI
I/O module –
I/O module
1CVI CANopen interface
1RS232 RS232 interface
1RS485-422 RS485/422 interface
1SSI synchronous serial
interface
2AI2AO-VI 2 analog inputs
current or voltage,
and two analog outputs,
voltage
2AI-I 2 analog inputs,
current
2AI-PT 2 analog inputs,
resistance thermometer
2AI-TC 2 analog inputs,
thermocouple
2AI-V 2 analog inputs,
voltage
2AO-I 2 analog outputs,
current
2AO-V 2 analog outputs,
voltage
2RFID-A advanced RFID,
advanced functionality
2RFID-S simple RFID, simple
I/O communication
4AI-VI 4 analog inputs,
voltage or current
4DI4DO-PD 4 digital inputs and 4
digital outputs, PNP,
diagnostics
4DI-N 4 digital inputs, NPN
4DI-P 4 digital inputs, PNP
4DI-PD 4 digital inputs,
PNP, diagnostics
4DO-0.5A-P 4 digital outputs,
0.5 A, PNP
4DO-2A-N 4 digital outputs,
2.0 A, NPN
4DO-2A-P 4 digital outputs,
2.0 A, PNP
8DI-N 8 digital inputs,
NPN
8DI-P 8 digital inputs,
PNP
8DI-PN 8 digital inputs,
PNP, diagnostics
8DO-0.5A-N 8 digital outputs,
0.5 A, NPN
8DO-0.5A-P 8 digital outputs,
0.5 A, PNP
8DO-R-NO 8 digital outputs,
relay, NO
8XSG-PD 8 digital I/Os,
configurable, PNP,
diagnostics
16DO-
0.1A-P
16 digital outputs,
0.1 A, PNP
BLC DN
–
xM12 L .
–
4AI-VI
–
2AO-V
2AO-V
Optional second I/O module
Optional second I/O module
1CVI CANopen interface
1RS232 RS232 interface
1RS485-422 RS485/422 interface
1SSI synchronous serial
interface
2AI2AO-VI 2 analog inputs,
current or voltage,
and two analog outputs,
voltage
2AI-I 2 analog inputs,
current
2AI-PT 2 analog inputs,
resistance thermometer
2AI-TC 2 analog inputs,
thermocouple
2AI-V 2 analog inputs,
voltage
2AO-I 2 analog outputs,
current
2AO-V 2 analog outputs,
voltage
2RFID-A advanced RFID,
advanced functionality
2RFID-S simple RFID interface,
simple
I/O communication
4AI-VI 4 analog inputs,
voltage or current
4DI4DO-PD 4 digital inputs and 4
digital outputs, PNP,
diagnostics
4DI-N 4 digital inputs, NPN
4DI-P 4 digital inputs, PNP
4DI-PD 4 digital inputs,
PNP, diagnostics
4DO-0.5A-P 4 digital outputs,
0.5 A, PNP
4DO-2A-N 4 digital outputs,
2.0 A, NPN
4DO-2A-P 4 digital outputs,
2.0 A, PNP
8DI-N 8 digital inputs,
NPN
8DI-P 8 digital inputs,
PNP
8DI-PN 8 digital inputs,
PNP, diagnostics
8DO-0.5A-N 8 digital outputs,
0.5 A, NPN
8DO-0.5A-P 8 digital outputs,
0.5 A, PNP
8DO-R-NO 8 digital outputs,
relay, NO
8XSG-PD 8 digital I/Os,
configurable, PNP,
diagnostics
16DO-
0.1A-P
16 digital outputs,
0.1 A, PNP
D101831 0713 - BLident®-Installation des UHF-Systems 101
Type code for fieldbus technology
Appendix
D101831 0713 - BLident®-Installation des UHF-Systems102
www.turck.com
D101831 2013/07
*D101831ßß0713*
Hans Turck GmbH & Co. KG
Witzlebenstraße 7
45472 Mülheim an der Ruhr
Germany
Tel. +49 (0) 208 4952-0
Fax +49 (0) 208 4952-264
E-Mail more@turck.com
Internet www.turck.com
Scan the QR
code for more
information on
our products
