Hans Turck and KG TNLRQ80L400 RFID Reader User Manual Annex To

Hans Turck GmbH & Co. KG RFID Reader Annex To

Contents

Annex To User Manual

read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
1 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com

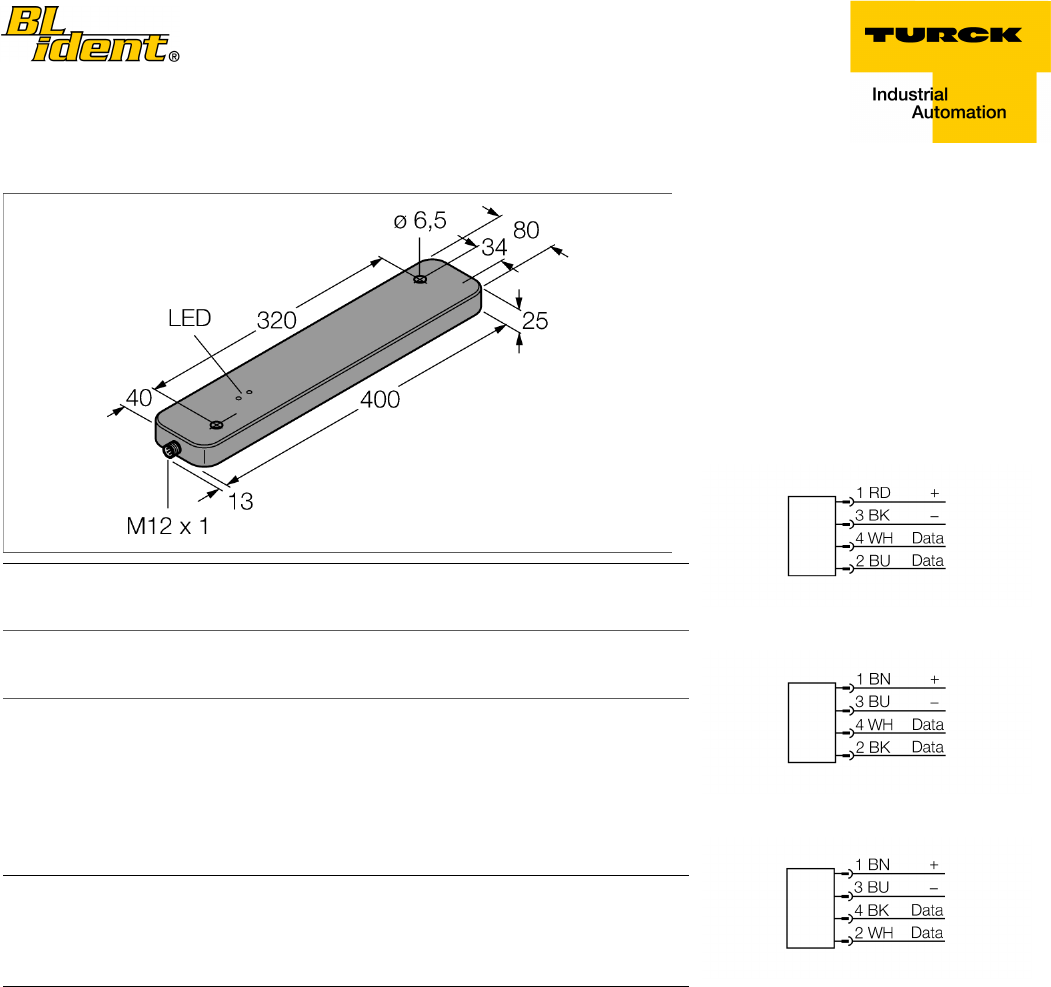

Type code TNLR-Q80L400-H1147
Ident no. 7030204
Mounting conditions non-flush, flush mountable
Ambient temperature -25…+70 °C
Operating voltage 19.2…28.8VDC
DC rated operational current ð 230 mA
Data transfer inductive coupling
Operating frequency 13.56 MHz
Radio communication and protocol standards ISO 15693
Read/write distance max. 345 mm
Output function 4-wire, read/write
Construction rectangular, Q80L400
Dimensions 400x 80x 25mm
Housing material plastic, PBT, black
Material active area plastic, Black
Connection male, M12 x 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
IP Rating IP67
MTTF 121 years acc. to SN 29500 (Ed. 99) 40 °C
Power-on indication LED green
Diagnostic display Functional description of yellow range-restrict-
ed LED: If the read/write head is supplied
with voltage, it briefly checks to see whether
its resonance frequency is affected by sur-
rounding metal. If this is the case, the reso-
nant circuit off-tunes its frequency to reach
again the (optimum) resonance frequency.
However, this is only possible within a cer-
tain range. If too much metal is in the envi-
ronment, the read/write head cannot re-tune
or the surrounding metal takes too much en-
ergy from the field and due to the reduced
range the communication between the read/
write head and the data carrier is cut off (the
orange range-restricted-LED lights up). If the
LED is off, this does not mean conversely,
that no reduction in range occurs. The lit LED
is rather an indication of too much metal in
the environment and a greatly reduced range
(about 50% less).
■For roller conveyors
■Rectangular, 80 x 400 mm, height 25
mm
■Active face on top
■Plastic, PBT-GF30-V0
■Powered and operated only via BL ident
interface module
■Male M12 x 1, only for use with BL ident
extension cable
Connectors …/S2503
Connectors …/S2500
Connectors …/S2501
Functional principle
The HF read/write heads operating at a fre-
quency of 13.56 MHz form a transmission
zone the size of which (0…500 mm) varies,
depending on the combination of read/write
head and data carrier.
The read/write distances mentioned here on-
ly represent standard values measured under
laboratory conditions.
The read/write distances of the data carriers
for mounting in metal TW-R**-M(MF) were de-
termined in metal.
Attainable distances may vary by up to 30 %
due to component tolerances, mounting con-
ditions, ambient conditions and material quali-
ties (especially when mounted in metal)
Testing of the application under real operat-
ing conditions is therefore essential, especial-
ly with read/write on-the-fly!
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
2 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Packaged quantity 1
Special features For roller conveyors (vertical or horizontal ori-
entation)
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
3 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com

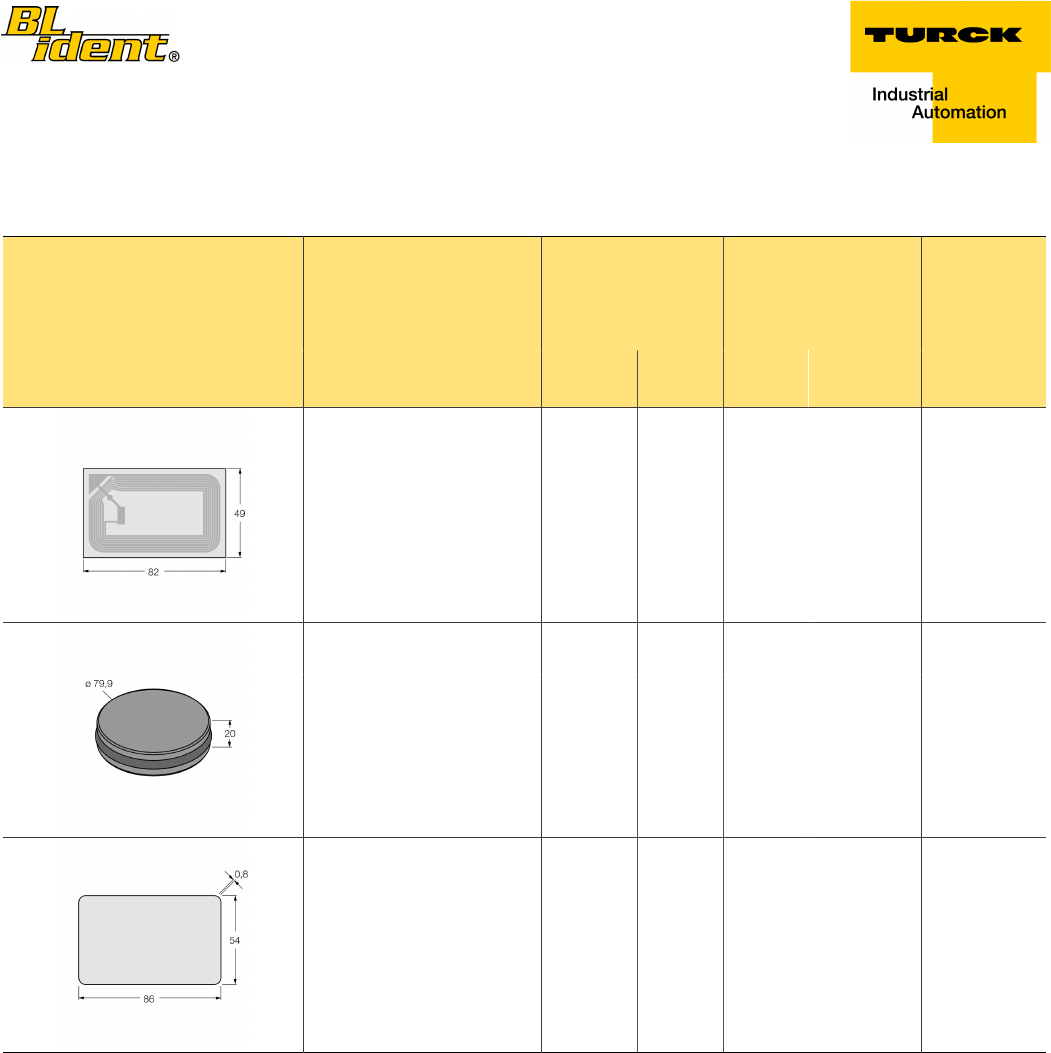

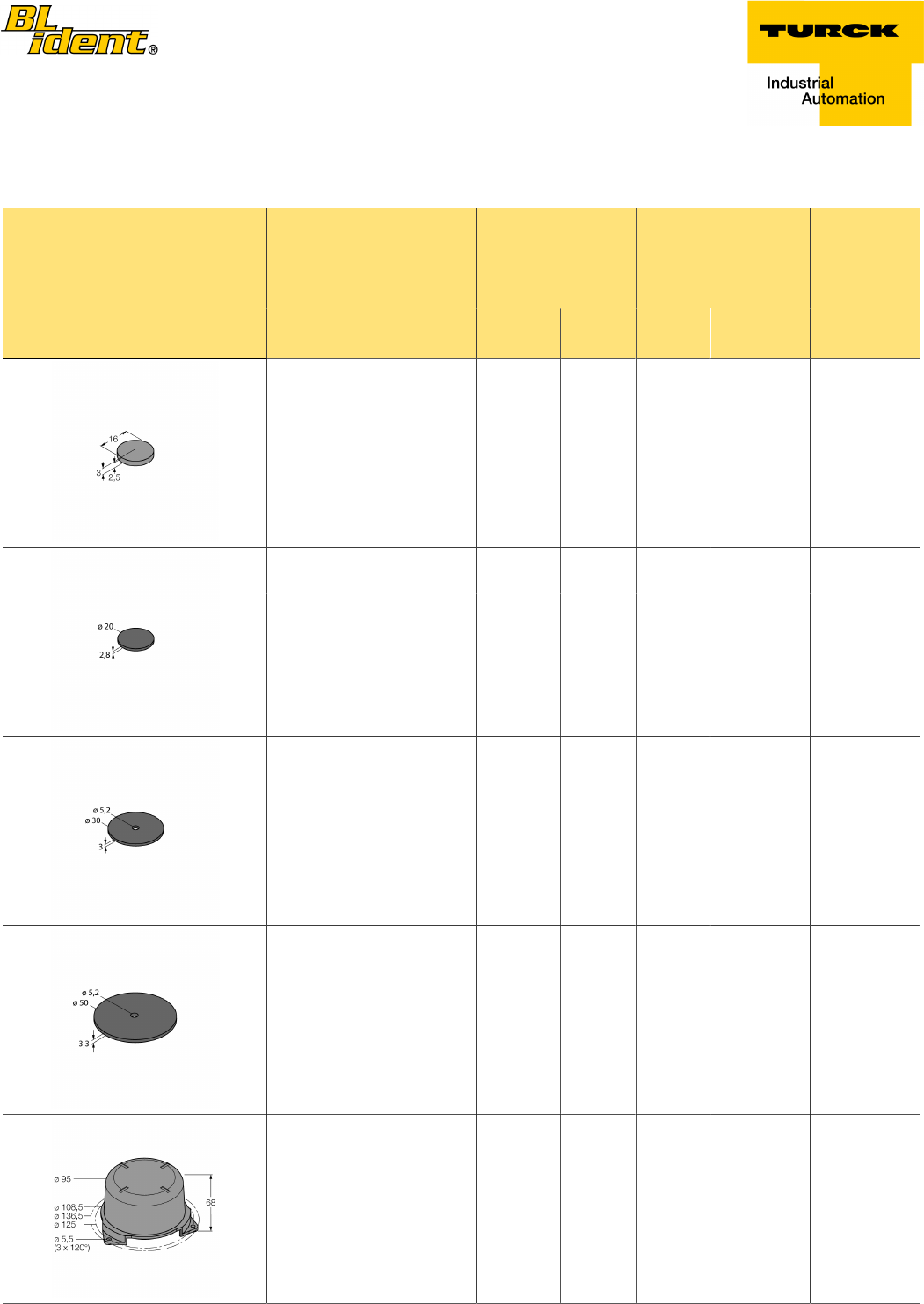

Data carrier
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-R16-B128
6900501
50 95 74 205 240
TW-R20-B128
6900502
60 102 86 202 240
TW-R20-K2
6900505
15 64 70 195 240
TW-R30-B128
6900503
90 152 132 217 240
TW-R30-K2
6900506
70 122 100 208 240
TW-R50-B128
6900504
150 256 230 242 240
TW-R50-K2
6900507
120 216 190 233 240
TW-L49-46-F-B128
7030390
74 176 149 197 240
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
4 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-L80-50-P-B128
7030389
136 229 204 207 240
TW-R80-M-B128
7030207
40 77 56 199 240
TW-R80-M-K2
7030205
30 77 64 195 240
TW-L86-54-C-B128
6900479
200 345 306 242 240
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
5 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com

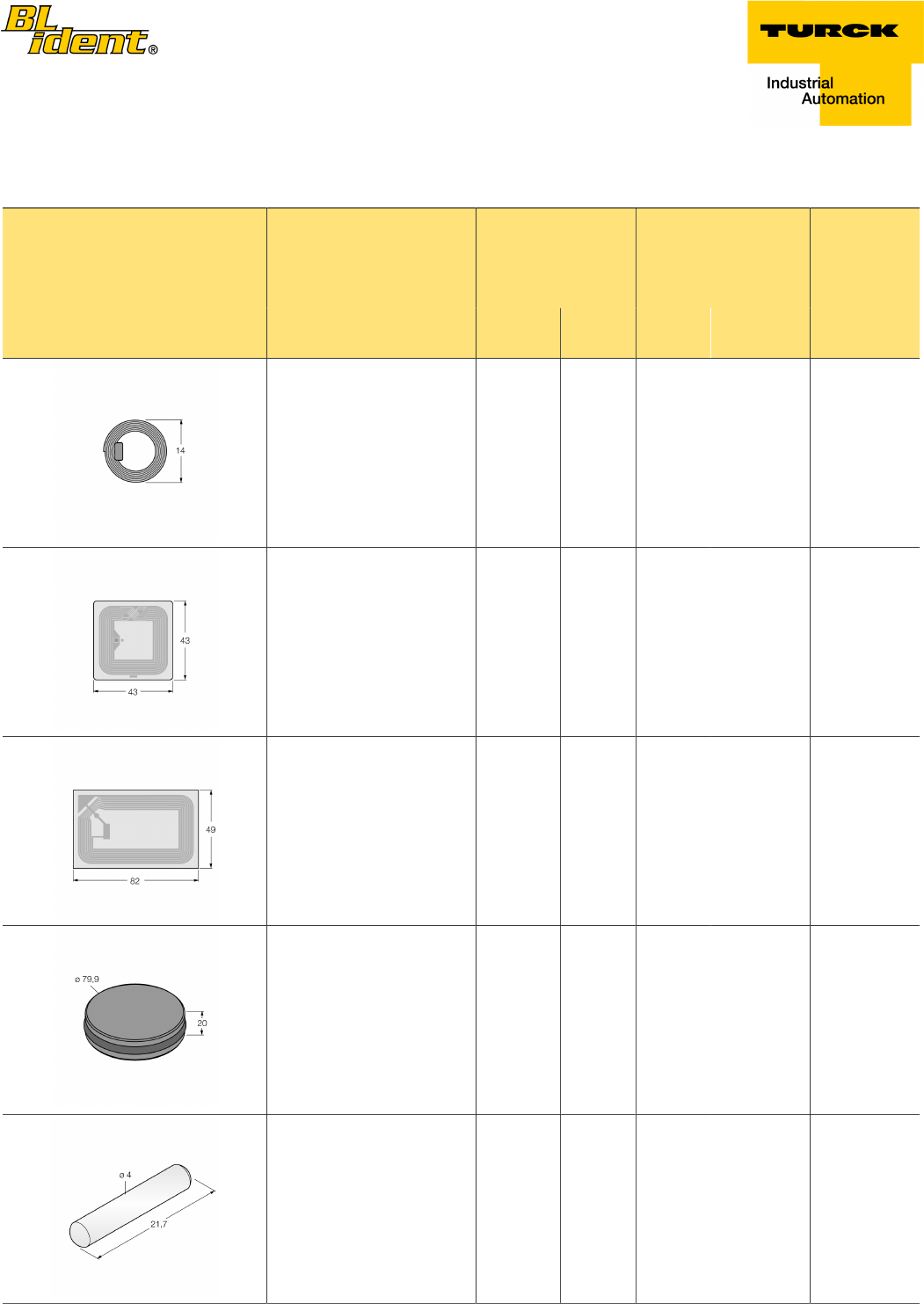

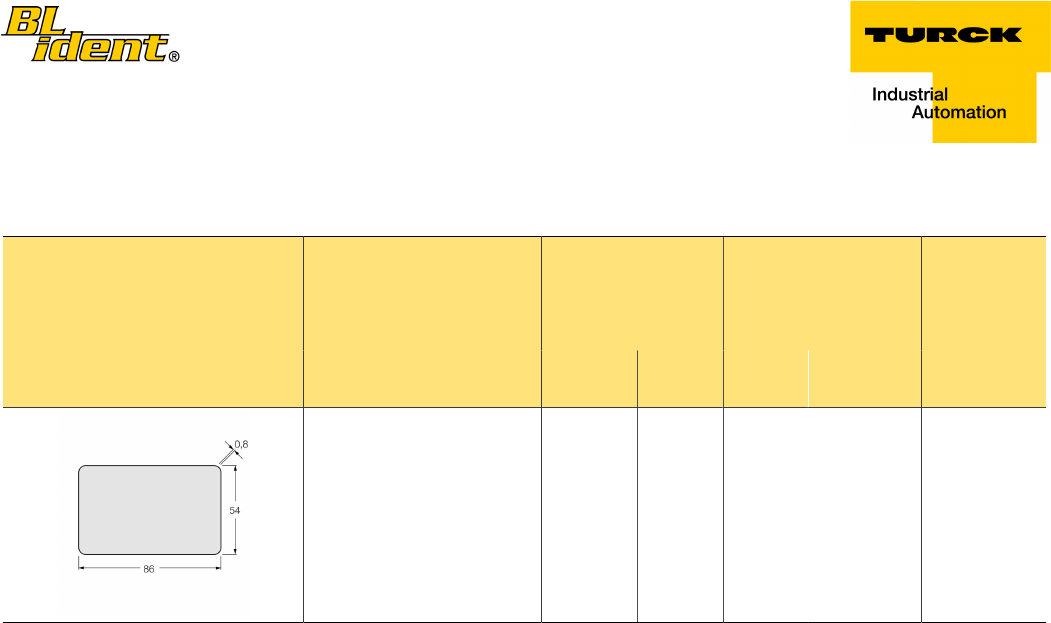

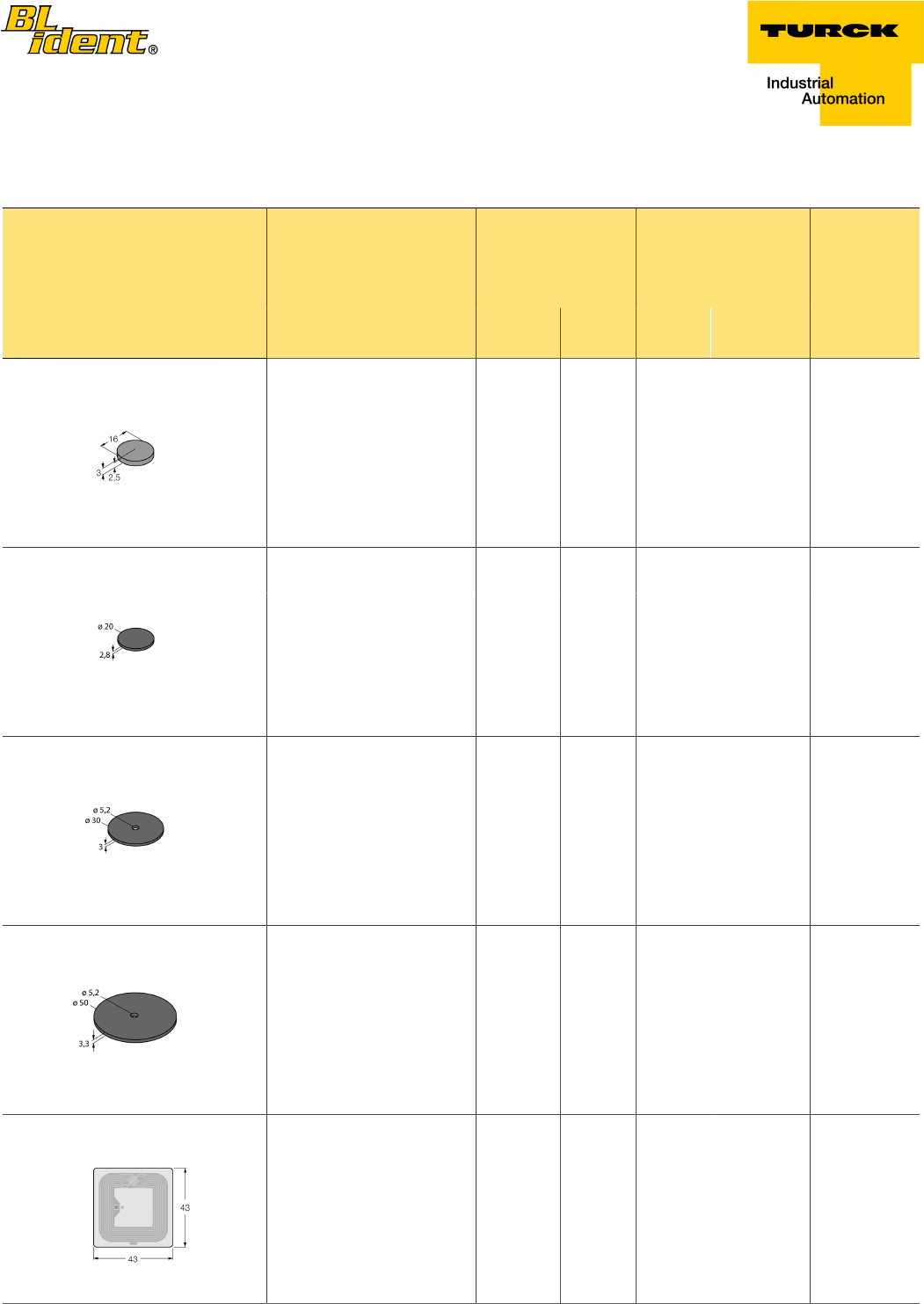

Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-R16-B128
6900501
30 95 410 37 240
TW-R20-B128
6900502
40 102 404 43 240
TW-R20-K2
6900505
30 64 390 35 240
TW-R30-B128
6900503
60 152 434 66 240
TW-R30-K2
6900506
50 122 416 50 240
TW-R50-B128
6900504
100 256 484 115 240
TW-R50-K2
6900507
90 216 466 95 240
TW-R50-90-HT-B128
1542326
70 226 484 115 240
TW-R50-90-HT-K2
1542329
60 186 466 95 240
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
6 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-I14-B128
6900526
30 95 410 37 240
TW-L49-46-F-B128
7030390
68 176 394 74 240
TW-L80-50-P-B128
7030389
85 229 414 102 240
TW-R80-M-B128
7030207
30 77 398 28 240
TW-R80-M-K2
7030205
30 68 390 32 240
TW-R4-22-B128
7030237
20 80 368 34 240
read/write head
TNLR-Q80L400-H1147
Edition • 2015-08-27T10:30:11+02:00
7 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-L86-54-C-B128
6900479
120 360 484 153 240
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
1 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Type code TNLR-Q80L400-H1147L
Ident no. 7030234
Mounting conditions non-flush, flush mountable
Ambient temperature -25…+70 °C
Operating voltage 19.2…28.8VDC
DC rated operational current ð 230 mA
Data transfer inductive coupling
Operating frequency 13.56 MHz
Radio communication and protocol standards ISO 15693
Read/write distance max. 345 mm
Output function 4-wire, read/write
Construction rectangular, Q80L400
Dimensions 400x 80x 25mm
Housing material plastic, PBT, black
Material active area plastic, Black
Connection male, M12 x 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
IP Rating IP67
MTTF 121 years acc. to SN 29500 (Ed. 99) 40 °C
Power-on indication LED green
Diagnostic display Functional description of yellow range-restrict-
ed LED: If the read/write head is supplied
with voltage, it briefly checks to see whether
its resonance frequency is affected by sur-
rounding metal. If this is the case, the reso-
nant circuit off-tunes its frequency to reach
again the (optimum) resonance frequency.
However, this is only possible within a cer-
tain range. If too much metal is in the envi-
ronment, the read/write head cannot re-tune
or the surrounding metal takes too much en-
ergy from the field and due to the reduced
range the communication between the read/
write head and the data carrier is cut off (the
orange range-restricted-LED lights up). If the
LED is off, this does not mean conversely,
that no reduction in range occurs. The lit LED
is rather an indication of too much metal in
the environment and a greatly reduced range
(about 50% less).
■For roller conveyors
■The approach direction of the data car-
rier can be both, diagonal as well as
longitudinal to the read/write head.
■Rectangular, 80 x 400 mm, height 25
mm
■Active face on top
■Plastic, PBT-GF30-VO
■Powered and operated only via BL ident
interface module
■Male M12 x 1, only for use with BL ident
extension cable
Connectors …/S2503
Connectors …/S2500
Connectors …/S2501
Functional principle
The HF read/write heads operating at a fre-
quency of 13.56 MHz form a transmission
zone the size of which (0…500 mm) varies,
depending on the combination of read/write
head and data carrier.
The read/write distances mentioned here on-
ly represent standard values measured under
laboratory conditions.
The read/write distances of the data carriers
for mounting in metal TW-R**-M(MF) were de-
termined in metal.
Attainable distances may vary by up to 30 %
due to component tolerances, mounting con-
ditions, ambient conditions and material quali-
ties (especially when mounted in metal)
Testing of the application under real operat-
ing conditions is therefore essential, especial-
ly with read/write on-the-fly!
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
2 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Packaged quantity 1
Special features For roller conveyors (vertical or horizontal ori-
entation)
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
3 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-R16-B128
6900501
50 95 74 205 240
TW-R20-B128
6900502
60 102 86 202 240
TW-R20-K2
6900505
15 64 70 195 240
TW-R30-B128
6900503
90 152 132 217 240
TW-R30-K2
6900506
70 122 100 208 240
TW-R50-B128
6900504
150 256 230 242 240
TW-R50-K2
6900507
120 216 190 233 240
TW-L49-46-F-B128
7030390
74 176 149 197 240
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
4 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-L80-50-P-B128
7030389
136 229 204 207 240
TW-R80-M-B128
7030207
40 77 56 199 240
TW-R80-M-K2
7030205
30 77 64 195 240
TW-L86-54-C-B128
6900479
200 345 306 242 240
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
5 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-R16-B128
6900501
30 95 410 37 240
TW-R20-B128
6900502
40 102 404 43 240
TW-R20-K2
6900505
30 64 390 35 240
TW-R30-B128
6900503
60 152 434 66 240
TW-R30-K2
6900506
50 122 416 50 240
TW-R50-B128
6900504
100 256 484 115 240
TW-R50-K2
6900507
90 216 466 95 240
TW-R50-90-HT-B128
1542326
70 226 484 115 240
TW-R50-90-HT-K2
1542329
60 186 466 95 240
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
6 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-I14-B128
6900526
30 95 410 37 240
TW-L49-46-F-B128
7030390
68 176 394 74 240
TW-L80-50-P-B128
7030389
85 229 414 102 240
TW-R80-M-B128
7030207
30 77 398 28 240
TW-R80-M-K2
7030205
30 68 390 32 240
TW-R4-22-B128
7030237
20 80 368 34 240
read/write head
TNLR-Q80L400-H1147L
Edition • 2015-08-27T10:30:20+02:00
7 / 7 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Data carrier longitudinal approach
Dimensions Type designation Read-write distance Transfer zone Minimum dis-
tance between
two read-
write heads
Ident - no. Recommend-
ed (mm)
max. [mm] length
max. [mm]
width offset
max. [mm]
[mm]
TW-L86-54-C-B128
6900479
120 360 484 153 240
Type
Ident-No.
7030204
Qty
1

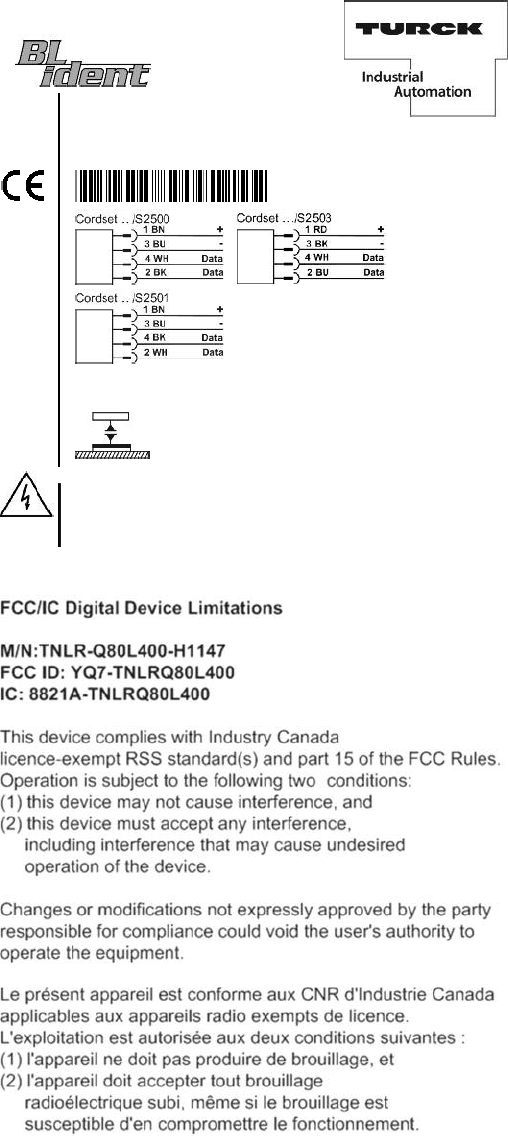

TNLR-Q80L400-H1147
1615H
Warning:Hazardous voltage can cause electrical shock and burns.
Disconnect power before proceeding with any work on this equipment.
Made in Germany
Hans Turck GmbH & Co. KG · Witzlebenstraße 7 · 45472 Mülheim/Ruhr · Germany
Phone +49 208 49 52-0 · Fax +49 208 49 52-264 · more@turck.com · www.turck.com
24 VDC

Navigation menu
