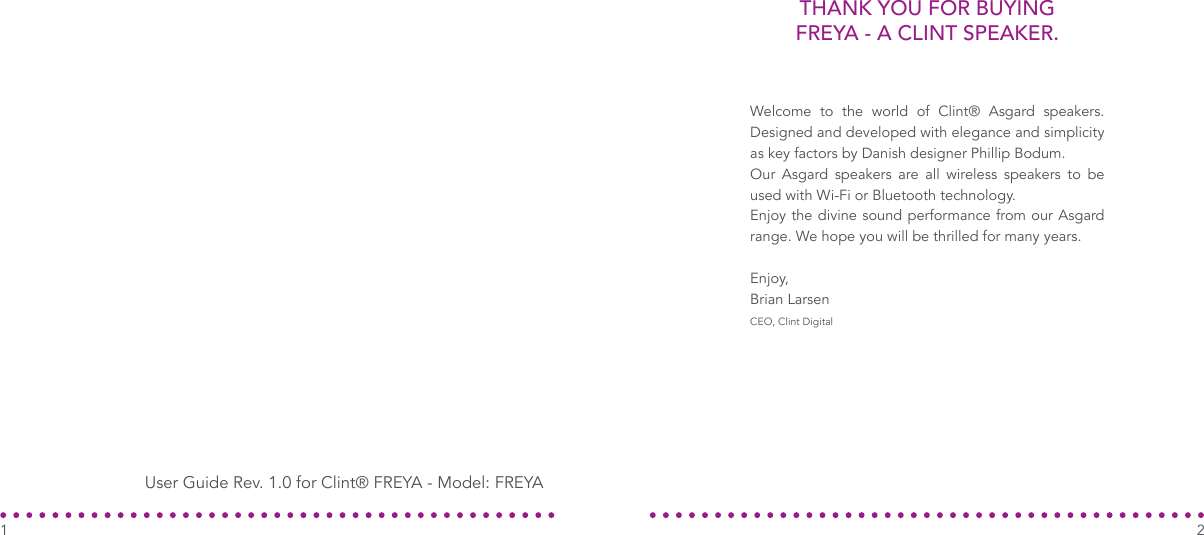

THANK YOU FOR BUYING
FREYA - A CLINT SPEAKER.
Welcome to the world of Clint® Asgard speakers.
Designed and developed with elegance and simplicity
as key factors by Danish designer Phillip Bodum.
Our Asgard speakers are all wireless speakers to be
used with Wi-Fi or Bluetooth technology.
Enjoy the divine sound performance from our Asgard
range. We hope you will be thrilled for many years.
Enjoy,
Brian Larsen
CEO, Clint Digital
User Guide Rev. 1.0 for Clint® FREYA - Model: FREYA
21

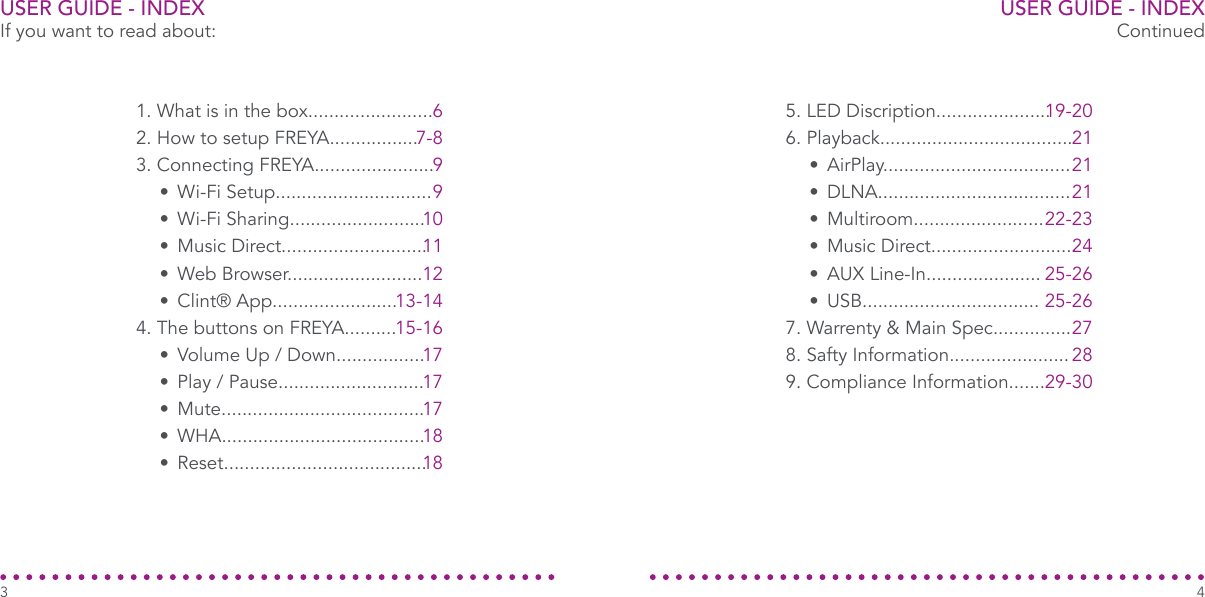

If you want to read about: Continued
1. What is in the box........................
2. How to setup FREYA.................
3. Connecting FREYA.......................
• Wi-Fi Setup..............................
• Wi-Fi Sharing..........................
• Music Direct............................
• Web Browser..........................
• Clint® App........................
4. The buttons on FREYA..........
• Volume Up / Down.................
• Play / Pause............................
• Mute.......................................
• WHA.......................................
• Reset.......................................
5. LED Discription......................
6. Playback.....................................
• AirPlay....................................
• DLNA.....................................
• Multiroom.........................
• Music Direct............................
• AUX Line-In......................
• USB..................................

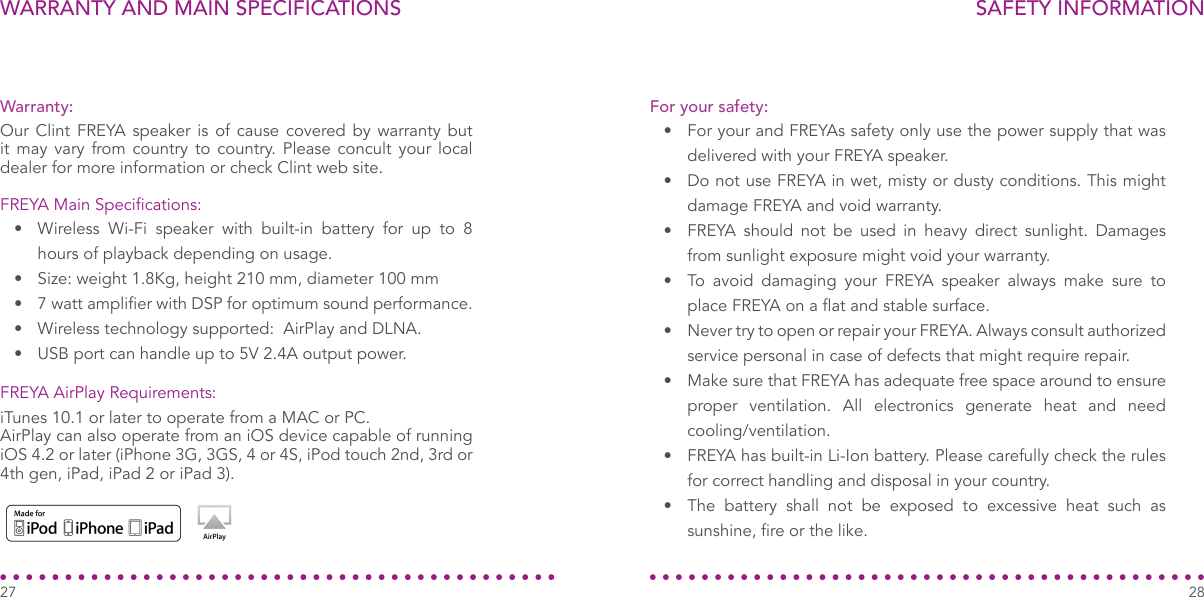

7. Warrenty & Main Spec...............
8. Safty Information.......................
9. Compliance Information.......
6
7-8
9
9
10
11
12
13-14
15-16
17
17
17
18
18
19-20
21
21
21
22-23
24
25-26
25-26
27
28
29-30
USER GUIDE - INDEX USER GUIDE - INDEX
43
IN THE BOX
1 x FREYA (Danish
designed wireless speaker)
What accessories are included
with your FREYA purchase?
1 x AUX cable so you can
listen to music via cable
(analog).
1 x AC/DC power supply
so you can charge and use
FREYA.
1 x User guide so you
can learn how to use your
FREYA.
IMAGE OF FREYA IMAGE OF CABLE
IMAGE OF PSUIMAGE OF MANUAL
65
IMAGE OF GIFT BOX
SETUP

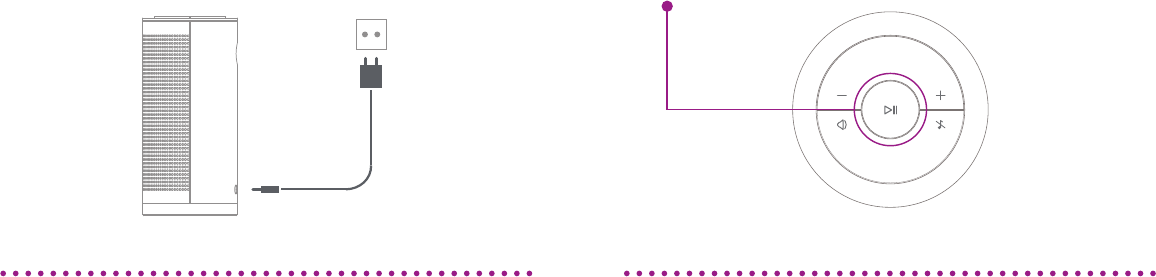

1. Connect the included power supply with a wall outlet
and then to the back of FREYA to start charging.
2. A small LED light on the rear will light up indicating
charging status.
Note: Your device will fully charge in approx. 3 hours,
which we recommend before the rst use. (Battery
lifespan will vary according to usage)
Charging: Power On:
1. Press “PLAY/PAUSE“ and FREYA will power on.
2. Four white LED’s will ash rapidly, which indicates FREYA
is booting up.
Note: If a Wi-Fi connection cannot be established, then
FREYA will say: “No device connected” and then: “Please
reconnect your device”.
How to get started with FREYA.
SETUP
How to get started with FREYA.
87
CONNECTING TO NETWORK
You have a few options to connect
FREYA to your network.
You have a few options to connect
FREYA to your network.
Many modern routers have a “WPS”
button somewhere - if yours does,
continue this guide. If it does not,
select another way to connect with
FREYA.

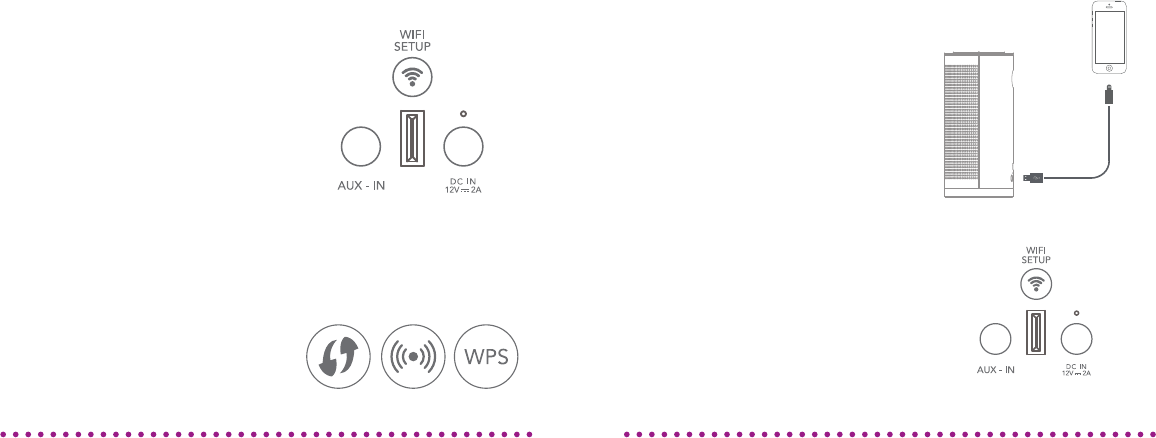

1. Start by pressing the “Wi-Fi
setup” button on the back side of
FREYA. FREYA will say: “Waiting for
connection” and purple LED will ash
rapidly.
2. Quickly press your routers “WPS”
button and wait until FREYA says:
“Your device is now connected”. All
ve LED will start breathing slowly.

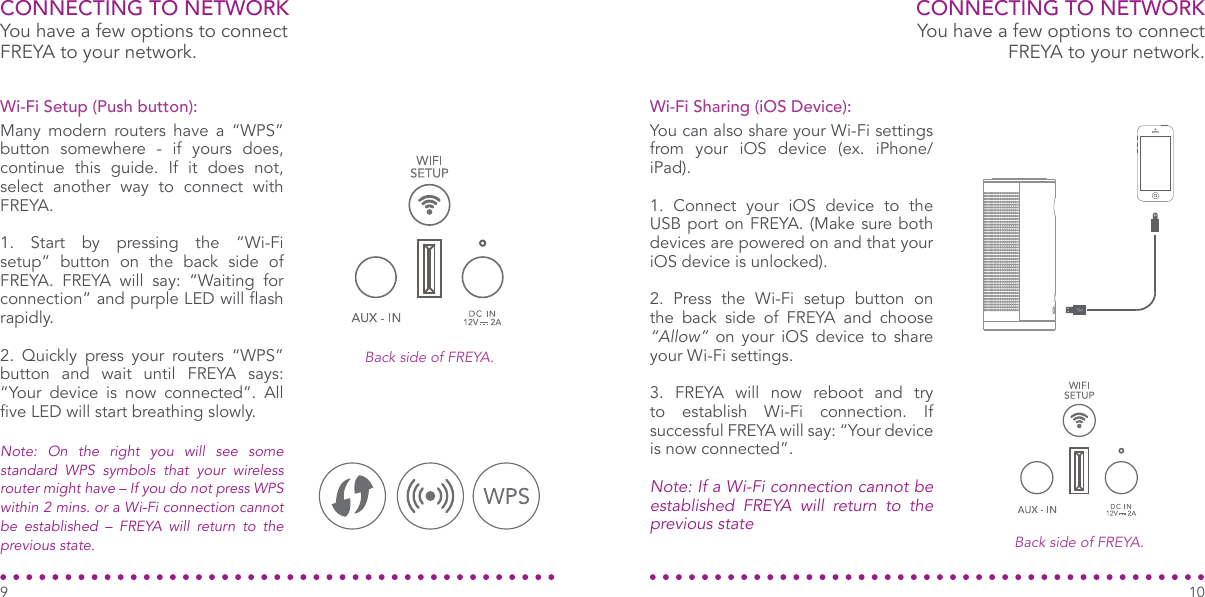

Wi-Fi Setup (Push button):
Back side of FREYA.
Back side of FREYA.
CONNECTING TO NETWORK
You can also share your Wi-Fi settings
from your iOS device (ex. iPhone/
iPad).
1. Connect your iOS device to the
USB port on FREYA. (Make sure both
devices are powered on and that your
iOS device is unlocked).
2. Press the Wi-Fi setup button on
the back side of FREYA and choose
“Allow” on your iOS device to share
your Wi-Fi settings.
3. FREYA will now reboot and try
to establish Wi-Fi connection. If
successful FREYA will say: “Your device
is now connected”.
Note: If a Wi-Fi connection cannot be
established FREYA will return to the
previous state
Wi-Fi Sharing (iOS Device):
Note: On the right you will see some
standard WPS symbols that your wireless
router might have – If you do not press WPS
within 2 mins. or a Wi-Fi connection cannot
be established – FREYA will return to the
previous state.
109

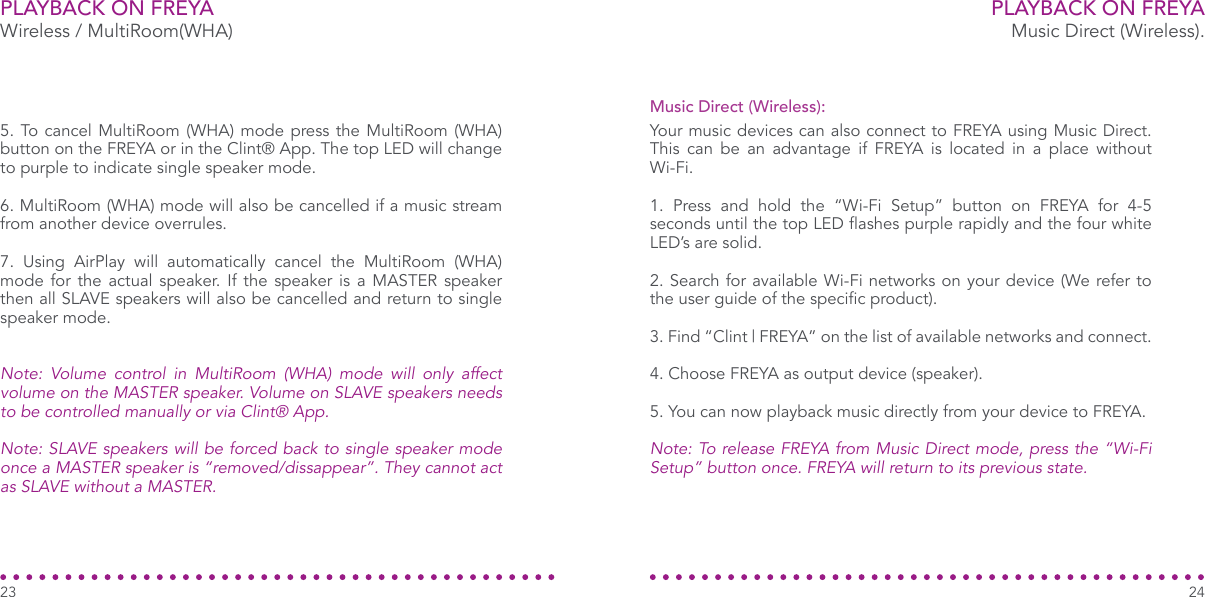

Via Music Direct.

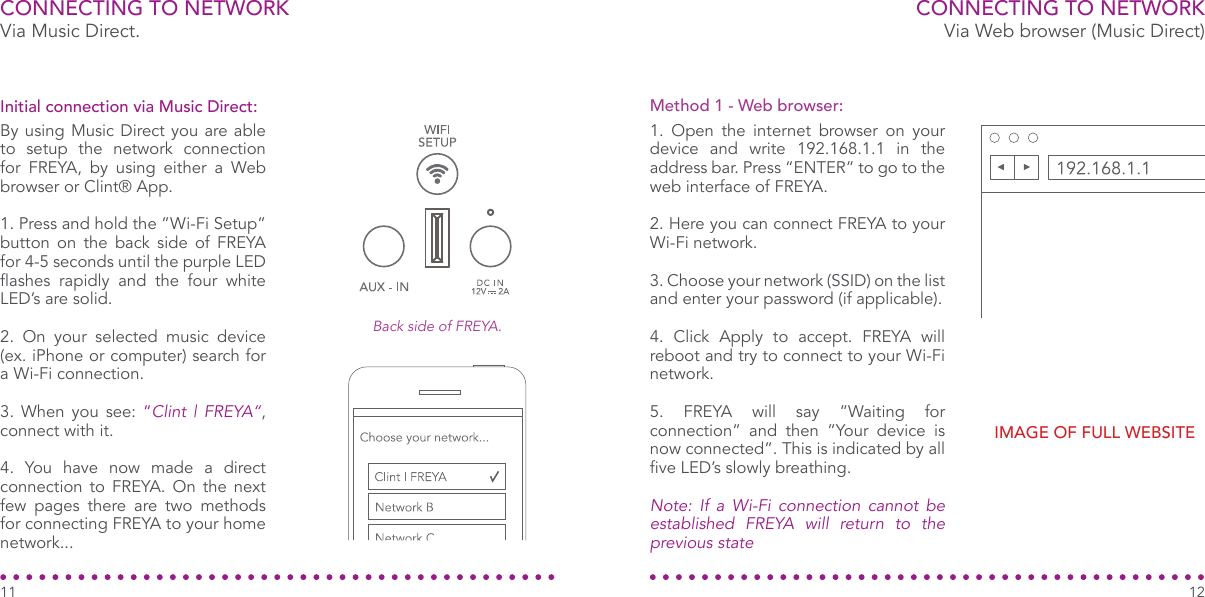

CONNECTING TO NETWORK
By using Music Direct you are able
to setup the network connection
for FREYA, by using either a Web
browser or Clint® App.

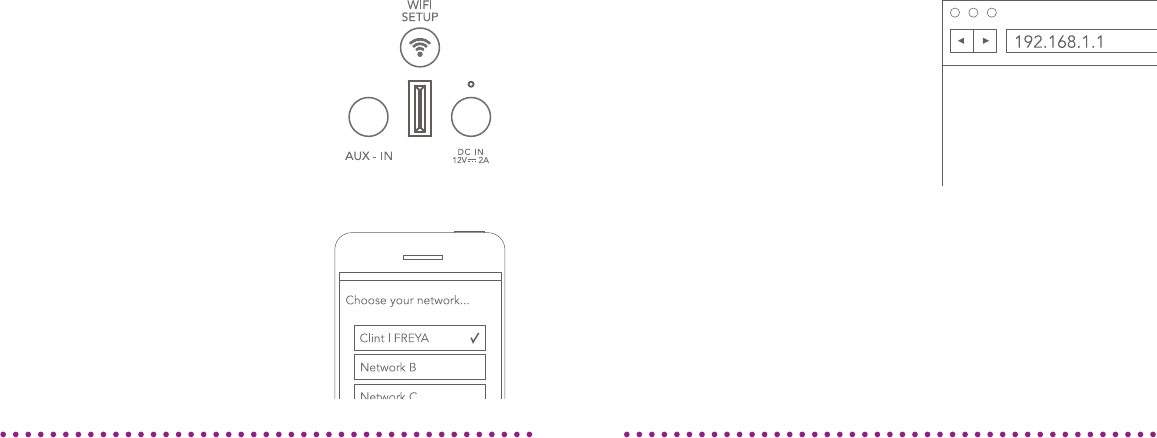

1. Press and hold the ”Wi-Fi Setup”
button on the back side of FREYA
for 4-5 seconds until the purple LED
ashes rapidly and the four white
LED’s are solid.
2. On your selected music device
(ex. iPhone or computer) search for
a Wi-Fi connection.
3. When you see: “Clint | FREYA“,
connect with it.
4. You have now made a direct
connection to FREYA. On the next
few pages there are two methods
for connecting FREYA to your home
network...
Initial connection via Music Direct:
CONNECTING TO NETWORK
1. Open the internet browser on your
device and write 192.168.1.1 in the
address bar. Press “ENTER” to go to the
web interface of FREYA.
2. Here you can connect FREYA to your
Wi-Fi network.
3. Choose your network (SSID) on the list
and enter your password (if applicable).
4. Click Apply to accept. FREYA will
reboot and try to connect to your Wi-Fi
network.
5. FREYA will say ”Waiting for
connection” and then ”Your device is
now connected”. This is indicated by all
ve LED’s slowly breathing.
Note: If a Wi-Fi connection cannot be
established FREYA will return to the
previous state
Method 1 - Web browser:
Via Web browser (Music Direct)
1211
Back side of FREYA.
IMAGE OF FULL WEBSITE
CONNECTING TO NETWORK

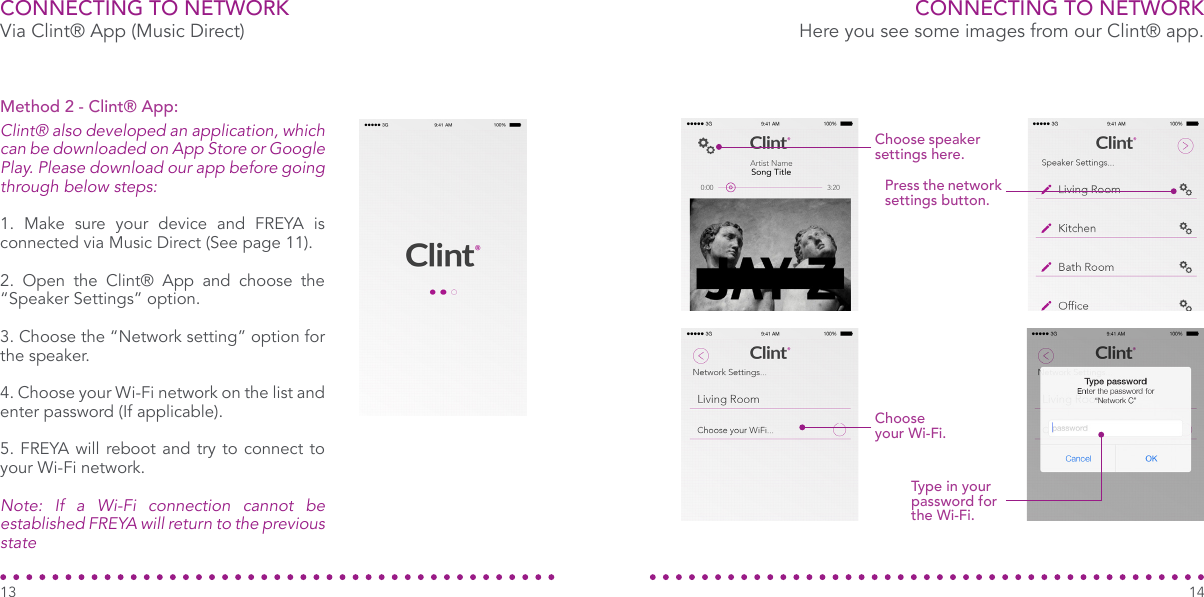

Via Clint® App (Music Direct)
Clint® also developed an application, which
can be downloaded on App Store or Google
Play. Please download our app before going
through below steps:
1. Make sure your device and FREYA is
connected via Music Direct (See page 11).
2. Open the Clint® App and choose the
“Speaker Settings” option.
3. Choose the “Network setting” option for
the speaker.
4. Choose your Wi-Fi network on the list and
enter password (If applicable).
5. FREYA will reboot and try to connect to
your Wi-Fi network.
Note: If a Wi-Fi connection cannot be
established FREYA will return to the previous
state
Method 2 - Clint® App:

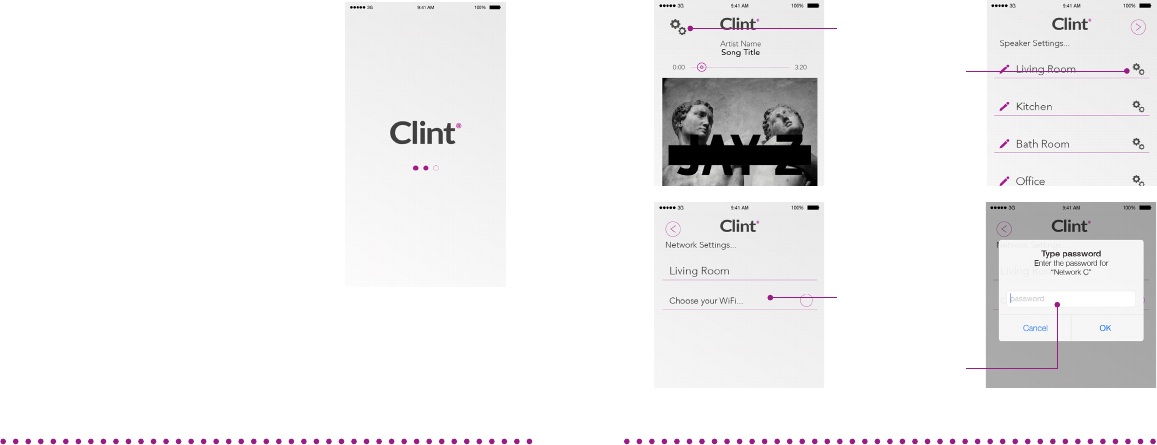

Choose speaker
settings here.
Press the network
settings button.
Choose
your Wi-Fi.
Type in your
password for
the Wi-Fi.
CONNECTING TO NETWORK
Here you see some images from our Clint® app.
1413

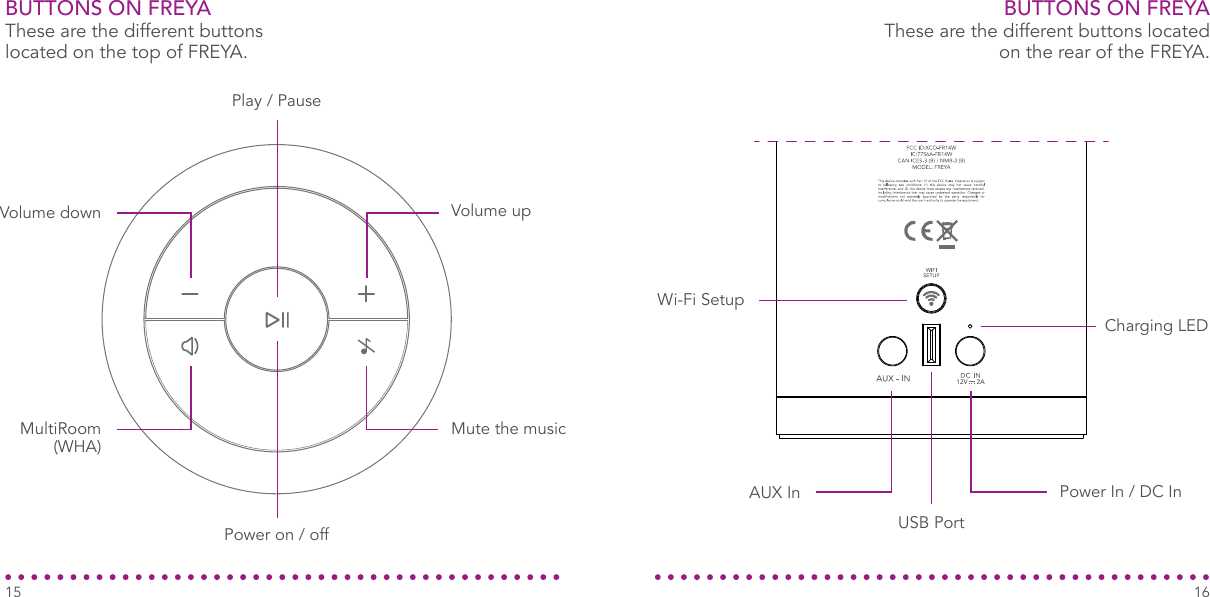

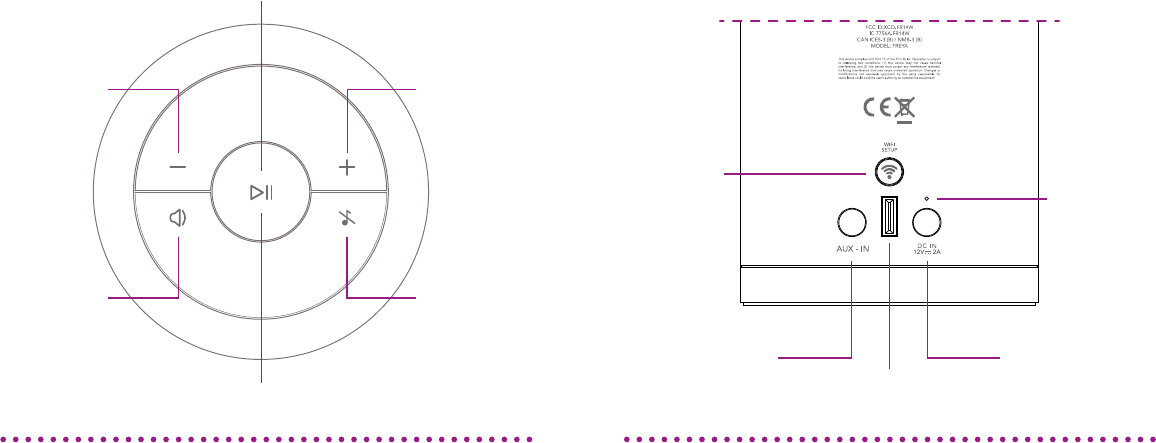

BUTTONS ON FREYA
These are the different buttons
located on the top of FREYA.
Play / Pause
Power on / off
MultiRoom
(WHA)
Mute the music
Volume up
Volume down
Charging LED
Wi-Fi Setup
USB Port
AUX In Power In / DC In
BUTTONS ON FREYA
These are the different buttons located
on the rear of the FREYA.
1615
BUTTONS ON FREYA
Their functions
BUTTONS ON FREYA.
Their functions

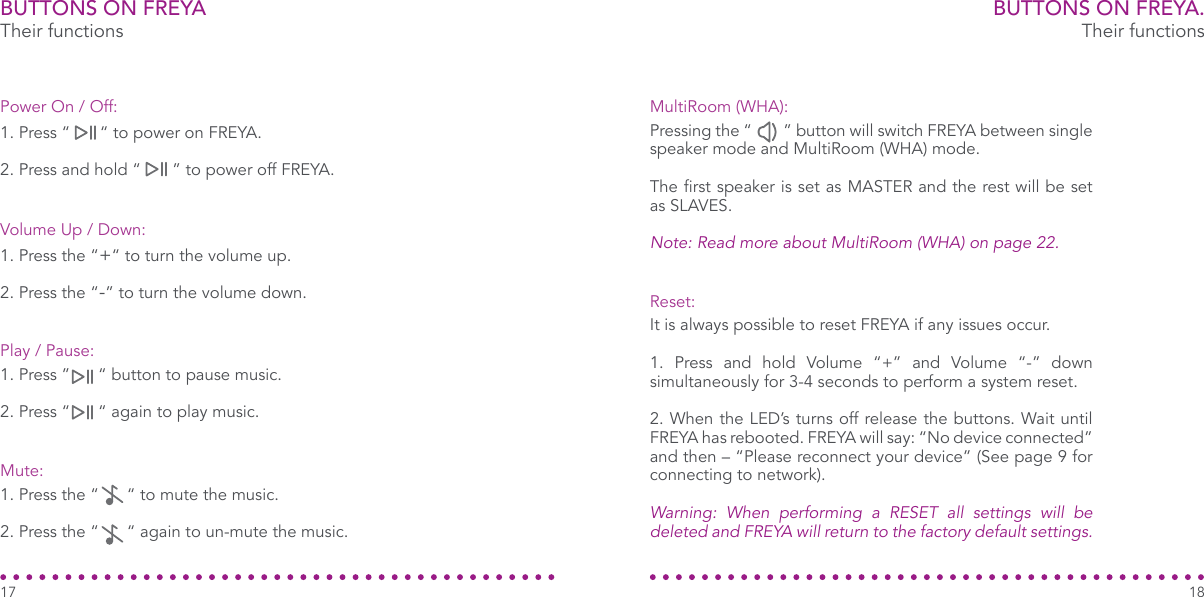

It is always possible to reset FREYA if any issues occur.
1. Press and hold Volume “+” and Volume “-” down
simultaneously for 3-4 seconds to perform a system reset.
2. When the LED’s turns off release the buttons. Wait until
FREYA has rebooted. FREYA will say: “No device connected”
and then – “Please reconnect your device” (See page 9 for
connecting to network).
Warning: When performing a RESET all settings will be
deleted and FREYA will return to the factory default settings.
Pressing the “ ” button will switch FREYA between single
speaker mode and MultiRoom (WHA) mode.
The rst speaker is set as MASTER and the rest will be set
as SLAVES.
Note: Read more about MultiRoom (WHA) on page 22.
1. Press the “+“ to turn the volume up.
2. Press the “-” to turn the volume down.
Volume Up / Down:
Reset:
MultiRoom (WHA):
1. Press the “ “ to mute the music.
2. Press the “ “ again to un-mute the music.
Mute:
1. Press “ “ to power on FREYA.
2. Press and hold “ ” to power off FREYA.
Power On / Off:
1. Press ” “ button to pause music.
2. Press “ “ again to play music.
Play / Pause:
1817
Power Off:
When FREYA is turned off - all
LED’s are off as well.
Booting:
When the 4 white LED’s are
ashing rapidly, FREYA is
booting up.
Searching:
When purple LED is ashing
fast, FREYA is trying to establish
a connection.
No Connection:
When FREYA does not have any
connection, the 4 white LED’s
will ash twice for 2 minutes.

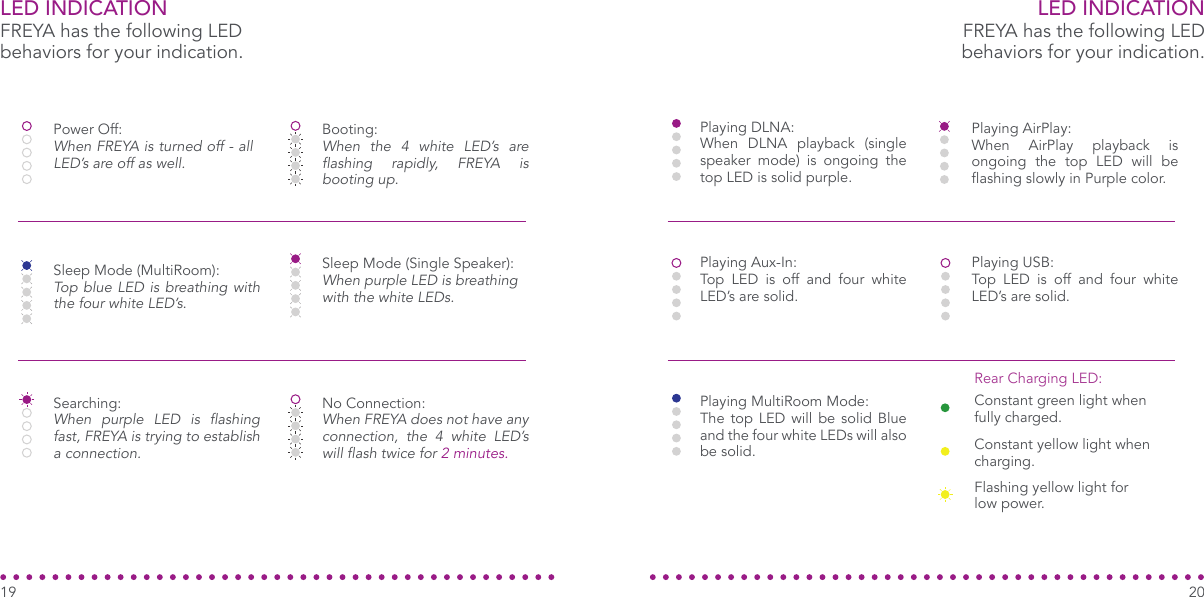

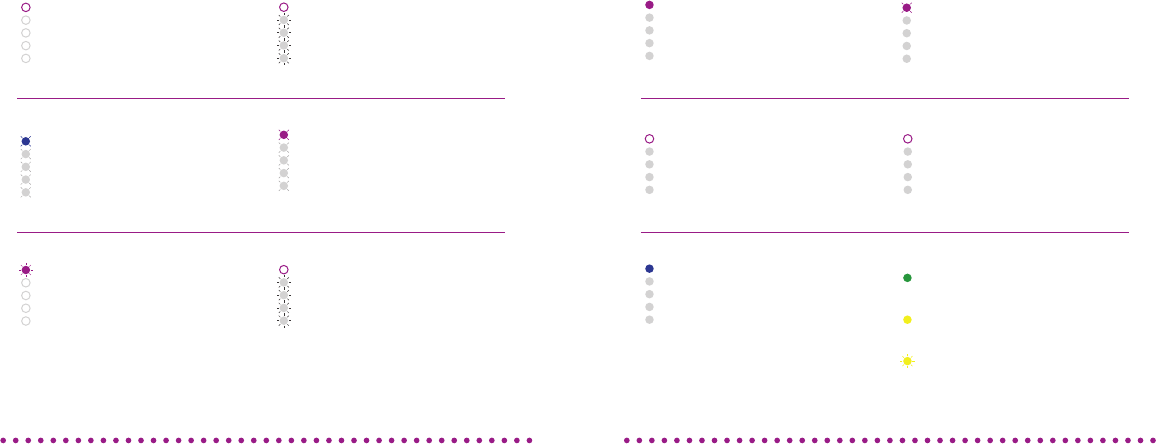

LED INDICATION
FREYA has the following LED
behaviors for your indication.
FREYA has the following LED
behaviors for your indication.
Sleep Mode (Single Speaker):
When purple LED is breathing
with the white LEDs.
Sleep Mode (MultiRoom):
Top blue LED is breathing with
the four white LED’s.
Playing AirPlay:
When AirPlay playback is
ongoing the top LED will be
ashing slowly in Purple color.
Playing USB:
Top LED is off and four white
LED’s are solid.
Constant green light when
fully charged.
Constant yellow light when
charging.
Flashing yellow light for
low power.
LED INDICATION
Playing DLNA:
When DLNA playback (single
speaker mode) is ongoing the
top LED is solid purple.
Playing Aux-In:
Top LED is off and four white
LED’s are solid.
Playing MultiRoom Mode:
The top LED will be solid Blue
and the four white LEDs will also
be solid.
2019
Rear Charging LED:
PLAYBACK ON FREYA

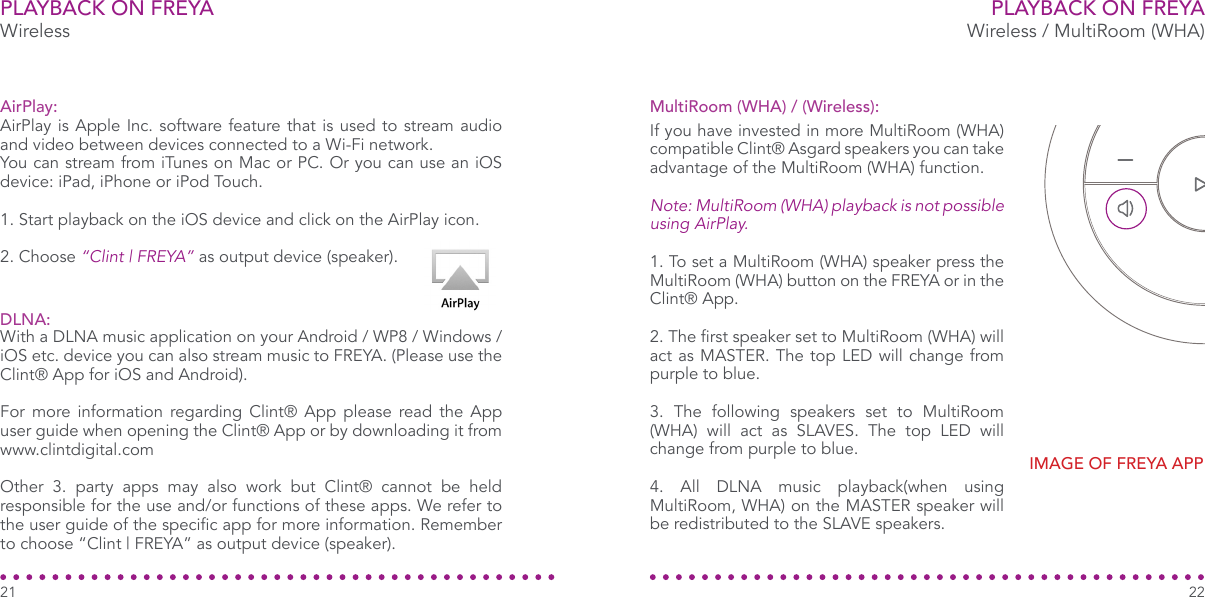

Wireless
AirPlay is Apple Inc. software feature that is used to stream audio
and video between devices connected to a Wi-Fi network.
You can stream from iTunes on Mac or PC. Or you can use an iOS
device: iPad, iPhone or iPod Touch.
1. Start playback on the iOS device and click on the AirPlay icon.
2. Choose “Clint | FREYA” as output device (speaker).
With a DLNA music application on your Android / WP8 / Windows /
iOS etc. device you can also stream music to FREYA. (Please use the
Clint® App for iOS and Android).
For more information regarding Clint® App please read the App
user guide when opening the Clint® App or by downloading it from
www.clintdigital.com
Other 3. party apps may also work but Clint® cannot be held
responsible for the use and/or functions of these apps. We refer to
the user guide of the specic app for more information. Remember
to choose “Clint | FREYA” as output device (speaker).
AirPlay:
DLNA:
21
PLAYBACK ON FREYA
Wireless / MultiRoom (WHA)
If you have invested in more MultiRoom (WHA)
compatible Clint® Asgard speakers you can take
advantage of the MultiRoom (WHA) function.
Note: MultiRoom (WHA) playback is not possible
using AirPlay.
1. To set a MultiRoom (WHA) speaker press the
MultiRoom (WHA) button on the FREYA or in the
Clint® App.
2. The rst speaker set to MultiRoom (WHA) will
act as MASTER. The top LED will change from
purple to blue.
3. The following speakers set to MultiRoom
(WHA) will act as SLAVES. The top LED will
change from purple to blue.
4. All DLNA music playback(when using
MultiRoom, WHA) on the MASTER speaker will
be redistributed to the SLAVE speakers.
MultiRoom (WHA) / (Wireless):
22
IMAGE OF FREYA APP
PLAYBACK ON FREYA
Wireless / MultiRoom(WHA)
5. To cancel MultiRoom (WHA) mode press the MultiRoom (WHA)
button on the FREYA or in the Clint® App. The top LED will change
to purple to indicate single speaker mode.
6. MultiRoom (WHA) mode will also be cancelled if a music stream
from another device overrules.
7. Using AirPlay will automatically cancel the MultiRoom (WHA)
mode for the actual speaker. If the speaker is a MASTER speaker
then all SLAVE speakers will also be cancelled and return to single
speaker mode.
Note: Volume control in MultiRoom (WHA) mode will only affect
volume on the MASTER speaker. Volume on SLAVE speakers needs
to be controlled manually or via Clint® App.
Note: SLAVE speakers will be forced back to single speaker mode
once a MASTER speaker is “removed/dissappear”. They cannot act
as SLAVE without a MASTER.
23
PLAYBACK ON FREYA
Music Direct (Wireless).
Your music devices can also connect to FREYA using Music Direct.
This can be an advantage if FREYA is located in a place without
Wi-Fi.
1. Press and hold the “Wi-Fi Setup” button on FREYA for 4-5
seconds until the top LED ashes purple rapidly and the four white
LED’s are solid.
2. Search for available Wi-Fi networks on your device (We refer to
the user guide of the specic product).
3. Find “Clint | FREYA” on the list of available networks and connect.
4. Choose FREYA as output device (speaker).
5. You can now playback music directly from your device to FREYA.
Note: To release FREYA from Music Direct mode, press the “Wi-Fi
Setup” button once. FREYA will return to its previous state.
Music Direct (Wireless):
24
PLAYBACK ON FREYA

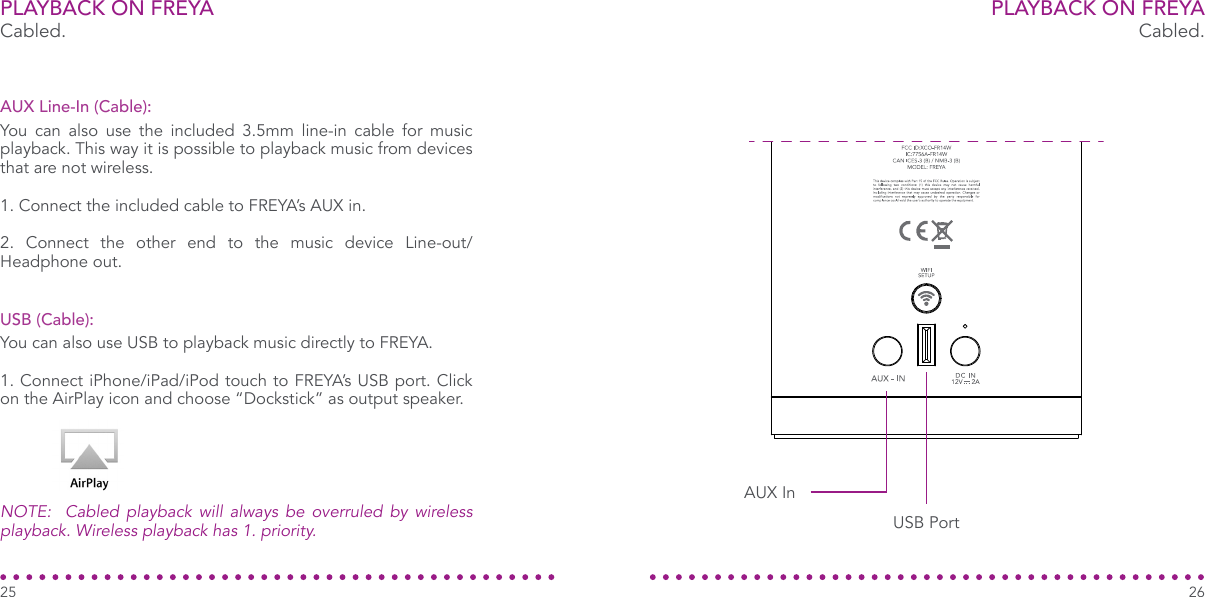

Cabled.
You can also use the included 3.5mm line-in cable for music
playback. This way it is possible to playback music from devices
that are not wireless.
1. Connect the included cable to FREYA’s AUX in.
2. Connect the other end to the music device Line-out/
Headphone out.
You can also use USB to playback music directly to FREYA.
1. Connect iPhone/iPad/iPod touch to FREYA’s USB port. Click
on the AirPlay icon and choose “Dockstick” as output speaker.
NOTE: Cabled playback will always be overruled by wireless
playback. Wireless playback has 1. priority.
AUX Line-In (Cable):
USB (Cable):
25
PLAYBACK ON FREYA
Cabled.
26

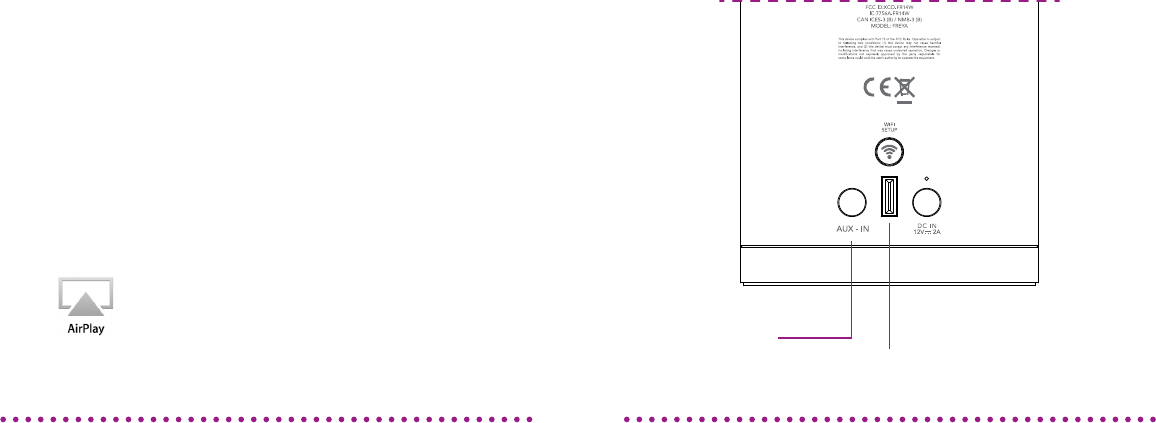

USB Port
AUX In
WARRANTY AND MAIN SPECIFICATIONS
27
SAFETY INFORMATION
28
• For your and FREYAs safety only use the power supply that was
delivered with your FREYA speaker.
• Do not use FREYA in wet, misty or dusty conditions. This might
damage FREYA and void warranty.
• FREYA should not be used in heavy direct sunlight. Damages
from sunlight exposure might void your warranty.
• To avoid damaging your FREYA speaker always make sure to
place FREYA on a at and stable surface.
• Never try to open or repair your FREYA. Always consult authorized
service personal in case of defects that might require repair.
• Make sure that FREYA has adequate free space around to ensure
proper ventilation. All electronics generate heat and need
cooling/ventilation.
• FREYA has built-in Li-Ion battery. Please carefully check the rules
for correct handling and disposal in your country.
• The battery shall not be exposed to excessive heat such as
sunshine, re or the like.
For your safety:Warranty:
FREYA Main Specications:
FREYA AirPlay Requirements:
Our Clint FREYA speaker is of cause covered by warranty but
it may vary from country to country. Please concult your local
dealer for more information or check Clint web site.
iTunes 10.1 or later to operate from a MAC or PC.
AirPlay can also operate from an iOS device capable of running
iOS 4.2 or later (iPhone 3G, 3GS, 4 or 4S, iPod touch 2nd, 3rd or
4th gen, iPad, iPad 2 or iPad 3).
• Wireless Wi-Fi speaker with built-in battery for up to 8
hours of playback depending on usage.
• Size: weight 1.8Kg, height 210 mm, diameter 100 mm
• 7 watt amplier with DSP for optimum sound performance.
• Wireless technology supported: AirPlay and DLNA.
• USB port can handle up to 5V 2.4A output power.

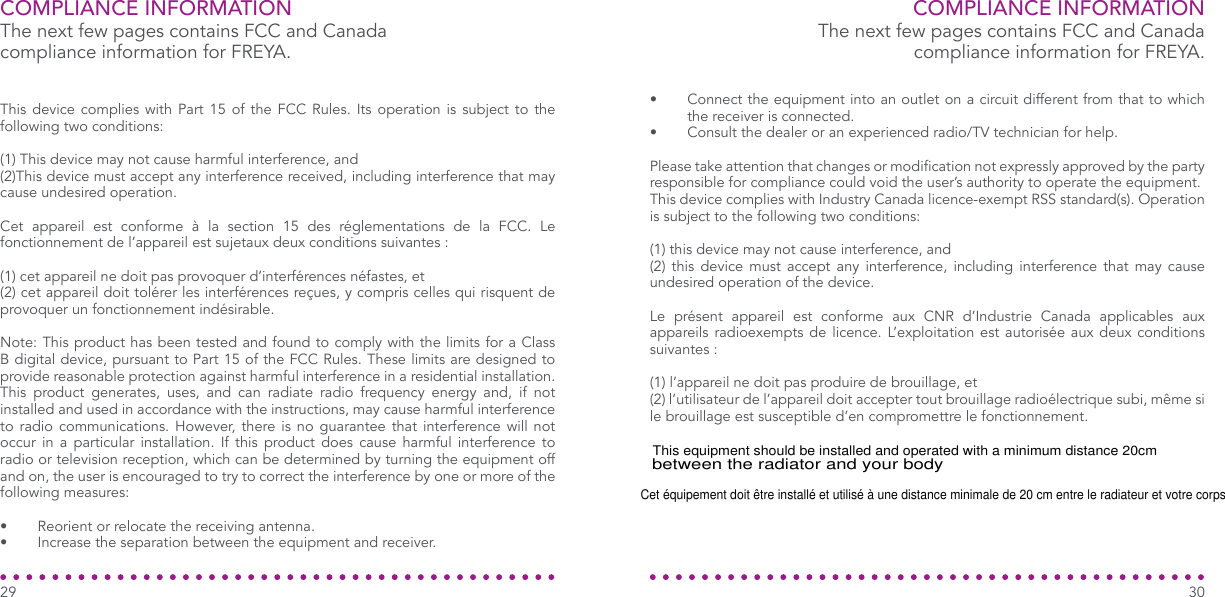

COMPLIANCE INFORMATION
The next few pages contains FCC and Canada
compliance information for FREYA.
This device complies with Part 15 of the FCC Rules. Its operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le
fonctionnement de l’appareil est sujetaux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de
provoquer un fonctionnement indésirable.
Note: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This product generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this product does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
29
COMPLIANCE INFORMATION
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modication not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
The next few pages contains FCC and Canada
compliance information for FREYA.
30
This equipment should be installed and operated with a minimum distance 20cm
between the radiator and your body
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps
31

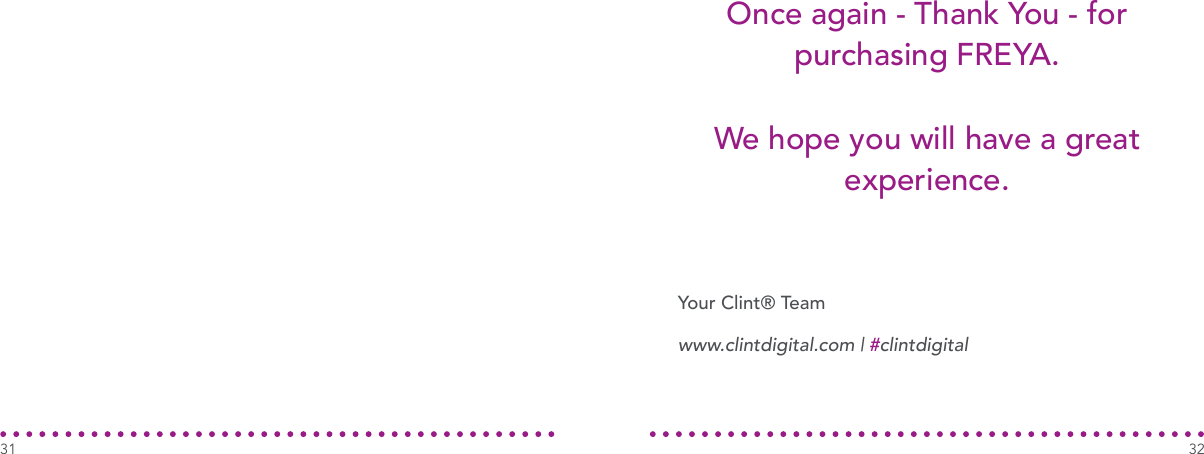

Once again - Thank You - for
purchasing FREYA.
We hope you will have a great
experience.
32
Your Clint® Team
www.clintdigital.com | #clintdigital

Navigation menu
