Hansong HSDWAM83 Wireless module User Manual HSDWAM83
Hansong(Nanjing) Technology Ltd. Wireless module HSDWAM83
Hansong >
XCO-HSDWAM83_user manual
HSDWAM83 user manual
1. Product Description
HSDWAM83 Hansong own module which is base on the Microchip DWAM83 module with
its own PCB antenna or the module external antenna.
It is an uncompressed wireless digital audio transceiver operation in the 2.4GHz, 5.2GHz
and 5.8GHz bands. The wireless audio link supports up to 4 stereo audio streams and
comes together with additional features such as: data encryption, Automatic Frequency
Allocation and support Kleernet.
The Basic Features
·High Quality Audio
·Networking and Connectivity
·Power Management
·Integrated 8052MCU
·Digital Audio Clock Synchronization
·Sample Rate Converter(SRC)+ Sample Rate Detector
·Kleenet
2. Product parameter

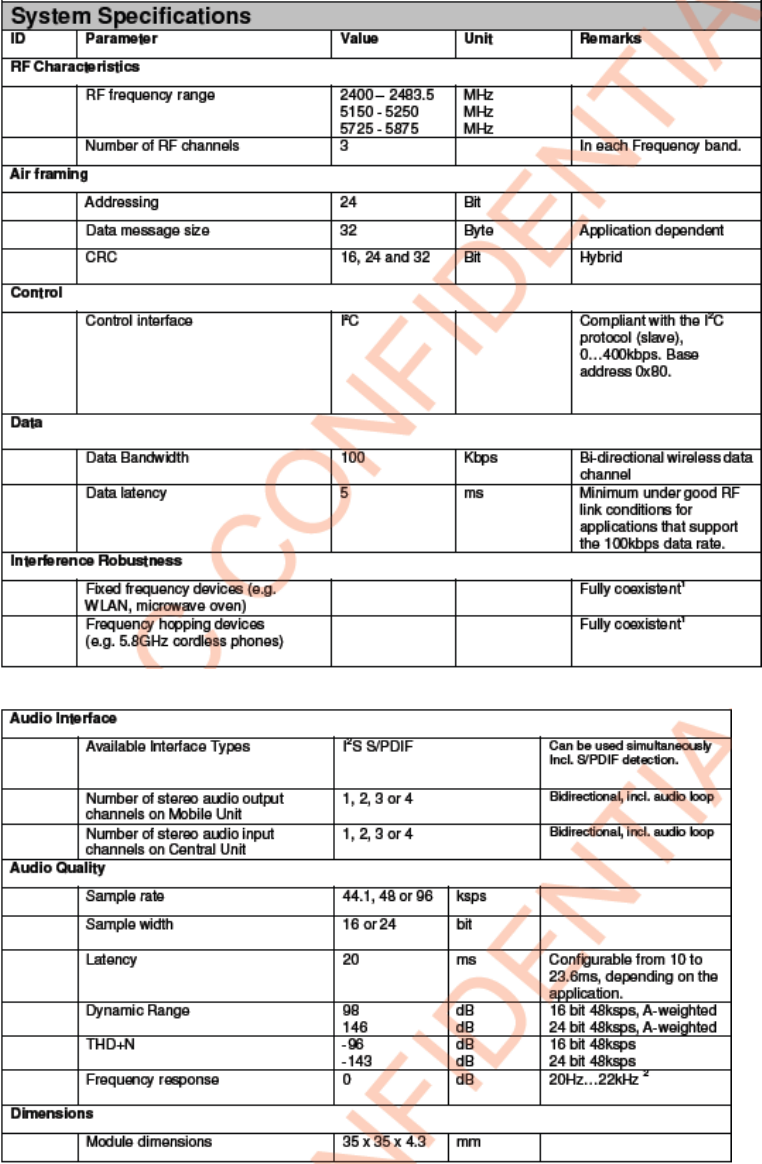

2.1 Module Specifications

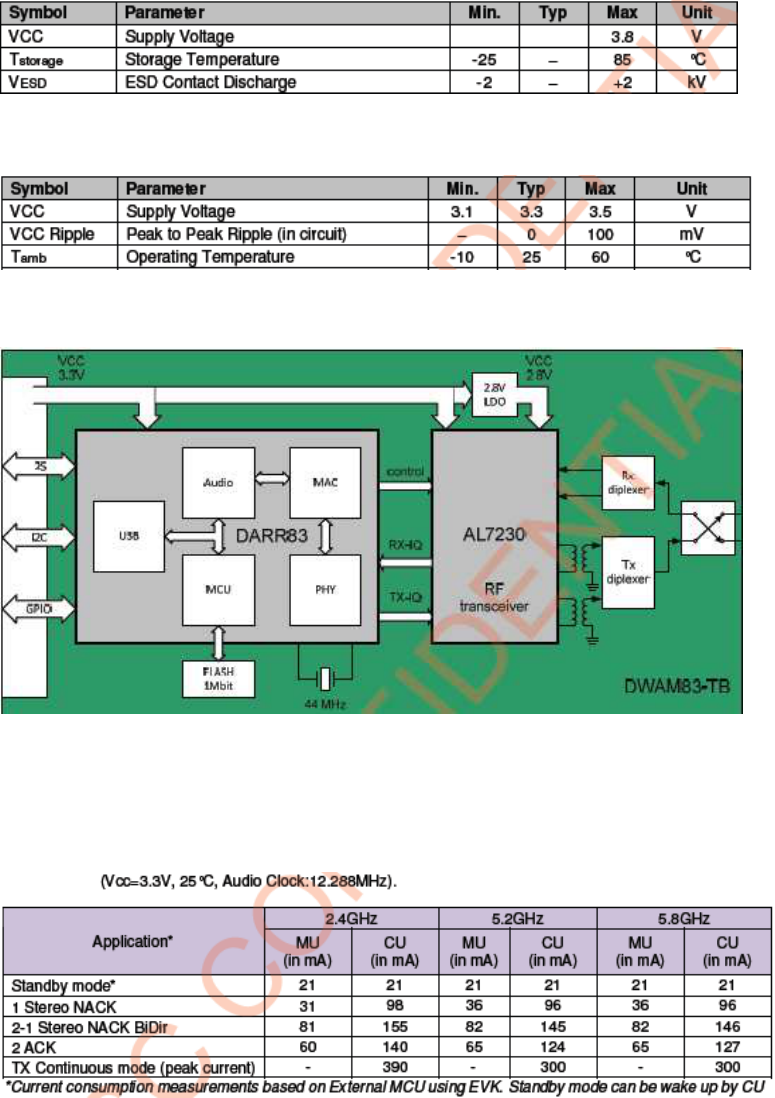

2.1 Absolute Maximum Rating
2.2 Recommended Operating Conditions
2.3 module Block Diagram
2.4 Power Consumption

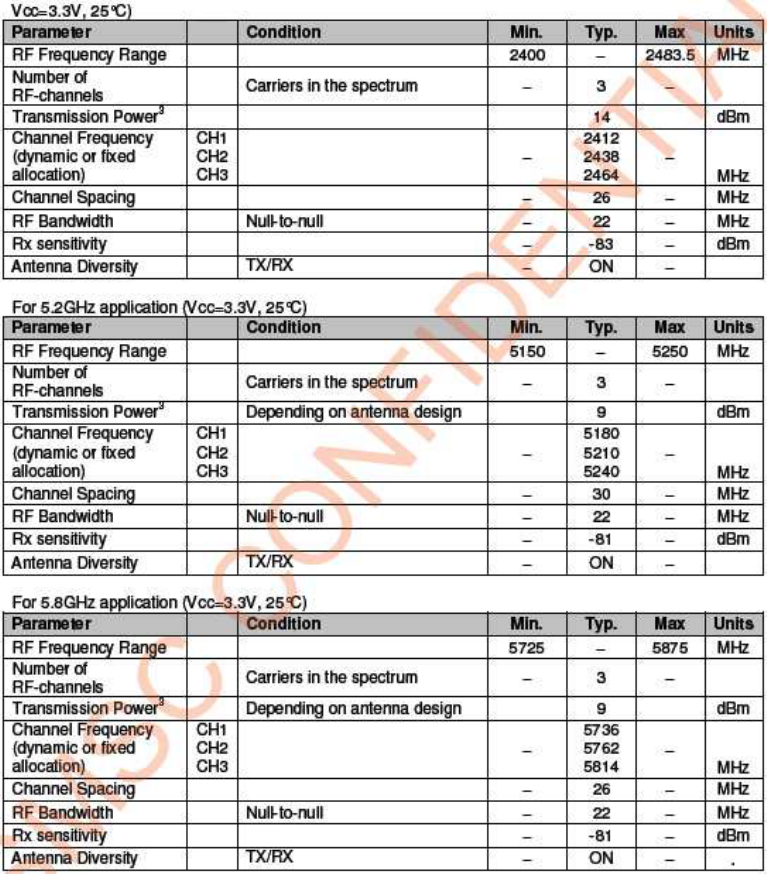

2.5 RF performance
3. Product antenna
The module uses embedded PCB track Tri-Band antennas. Or you can use the module
with external PCB antenna or the coaxial antenna with reverse-SMA male connector.
Antenna Type: module embedded PCB track antenna,
module external PCB antenna(PIFI),
module external mono antenna with reverse-SMA connector
Antenna Gain: module own PCB antenna, 2.4G: 1.5dBi; 5G: 1.5 dBi
External PCB antenna (PIFI), 2.4G: 4.2 dBi; 5G: 4.5dBi
External mono antenna with reverse-SMA male connector: 2.4G: 3.6dBi;
5G: 3.8 dBi
Modulation: QPSK; data rate: 100Kbps

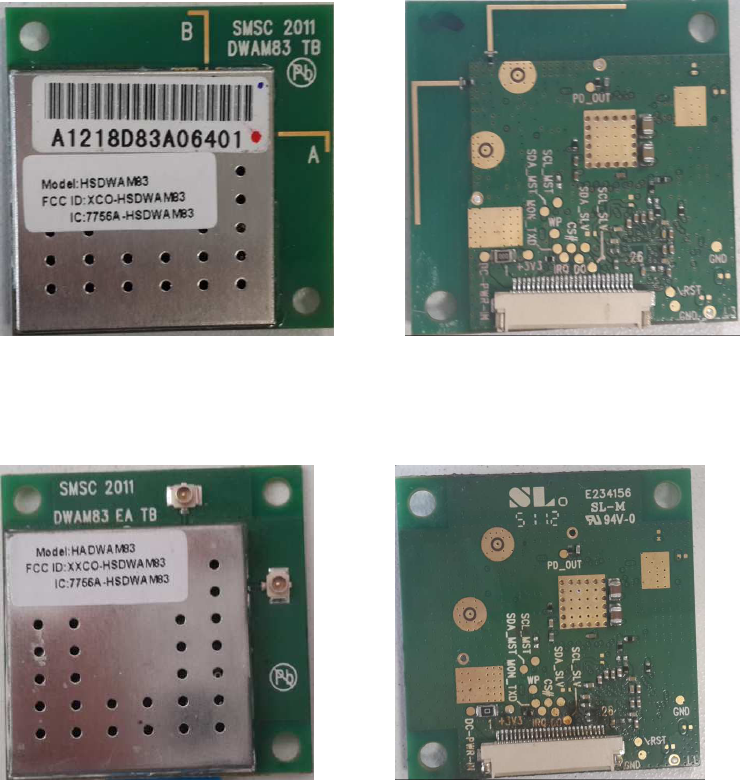

4. Product picture
4.1 module embedded antenna
Top view: Bottom view
4.2 module without embedded antenna
Top view: Bottom view
5. Caution:
This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
Only for detachable antennas:
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use
with this device.
Gain of antenna: 2.4GHz: 4.2 dBi max; 5GHz: 4. 5 dBi max.
Type of antenna: Omni-directional, PCB antenna (PIFI)
Impedance of antenna: 50ohm
OR,
Gain of antenna: 2.4GHz: 3.6 dBi max; 5GHz: 3.8 dBi max.
Type of antenna: Omni-directional, mono antenna
Impedance of antenna: 50ohm
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou
son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par
Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et
ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne.
Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Gain d'antenne: 2.4GHz 4.2dBi maximal; 5GHz 4. 5 dBi maxial
Type d'antenne: 50 ohm, Omni-directionnel, PIFI
OR,
Gain d'antenne: 2.4GHz 3.6 dBi maximal; 5GHz 3.8 dBi maxial
Type d'antenne: 50 ohm, Omni-directionnel, mono
MPE Reminding
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more
should be maintained between the antenna of this device and persons during device
operation. To ensure compliance, operations at closer than this distance is not
recommended.
Les antennes installées doivent être situées de facon à ce que la population ne puisse
y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce
que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’
antenne. La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné
d’au moins 20 cm des personnes pendant son functionnement.
Information for the OEM Integrators
This device is intended for OEM integrators only. Please see the full grant of
equipment document for restrictions.
Label Information to the End User by the OEM or Integrators
If the FCC ID of this module is not visible when it is installed inside another device,
then the outside of the device into which the module is installed must be label with
“Contains FCC ID: XCO-HSDWAM83 and IC: 7756A-HSDWAM83”.
