Hansong HSG17AIR Klipsch G-17 Air User Manual G 17 Air Rev2

Hansong(Nanjing) Technology Ltd. Klipsch G-17 Air G 17 Air Rev2

G-17 Air User Manual_Rev2

Klipsch Gallery G-17 AirOwner's Manual™
ENGLISHIMPORTANT SAFETY INSTRUCTIONS!1. READ these instructions.2. KEEP these instructions.3. HEED all warnings.4. FOLLOW all instructions.5. DO NOT use this apparatus near water.6. CLEAN ONLY with dry cloth.7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. PROTECT the power cord from being walked on or pinched, particularly at plugs, conve-nience receptacles, and the point where they exit from the apparatus.11. ONLY USE attachments/accessories specified by the manufacturer.12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.17. The mains plug of the power supply cord shall remain readily operable.The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.WARNING: No naked flame sources – such as candles – should be placed on the product.WARNING: Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.WARNING: Do not place batteries in mouth or ingest.Please dispose of any used batteries properly, following any local regulations. Do not incinerate.Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch. WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.FCC AND CANADA EMC COMPLIANCE INFORMATION:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Approved under the verification provision of FCC Part 15 as a Class B Digital Device.Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this device.This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.WIRELESS TRANSMITTER COMPLIANCE INFORMATION:The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Le terme «IC:» avant le numéro de certification radio signifie seulement que les spécifications techniques d’Industrie Canada ont été respectées.Cet appareil est conforme à FCC et IC l’exposition aux rayonnements limites fixées pour un environnement non contrôlé. Cet appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co-situé ou opérant en liaison avec toute autre antenne ou transmetteur.This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inter-ference, including interference that may cause undesired operation of the device.EU COMPLIANCE INFORMATION:Eligible to bear the CE mark, Conforms to European Union Low Voltage Directive 2006/95/EC; Conforms to European Union EMC Directive 2004/108/EC, Con-forms to Eco-Design Directive 2009/125/EC. Conforms to European Union R&TTE Directive 1999/5/ECCAUTIONRISK OF ELECTRIC SHOCK. DO NOT OPEN.WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.
WEEE NOTICENote: This mark applies only to countries within the European Union (EU) and Norway.This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.THANK YOUThank you for your purchase of the Klipsch® G-17 Air! You will soon be experiencing not only the newest and easiest way to listen to your favorite music but you will be listening through a system created by a company with a 65 year reputation for building speakers and music devices that recreate the most lifelike sound pos-sible. The Klipsch horn-loaded technology used in the G-17 Air is derived from audiophile speakers costing thousands of dollars. The separate horn-loaded tweeters and woofers are biamplified for the cleanest sound possible.PRODUCT REGISTRATIONRegister your product online at www.klipsch.com/register•KlipschGroupInc,(KGI)willkeepyouup-to-dateonnewproductsandpromotions•Yourpersonalinformationwillneverberesold•Thisregistrationinformationisnotusedforwarrantypurposes. Please retain your receipt for warranty claims.WHAT IT DOESThe Klipsch G-17 Air is designed to play your music:a. Wirelessly from any device equipped with AirPlay® technology, using your existing Wi-Fi® network.b. Connected via the rear-mounted USB input, most 30 pin iPods®, iPhones® or iPads™.c. Connected via the rear-mounted 3.5 mm input and to the headphone output of any MP3 player or phone.If you have iTunes 10.1 or later on your Mac computer or PC, you can wirelessly stream any of the music in your library or stream music from the Internet radio stations accessible to the G-17 Air. You can also wirelessly stream music from your iPhone, iPad or iPod touch to the G-17 Air (iOS 4.2 or later required in these devices). The 3.5 mm auxiliary input also allows you to play any audio device with a 3.5 mm output through the G-17 Air (3.5 mm cable not included).AirPlay requires iTunes 10.1 or later to operate from a MAC or PC. Airplay can also operate from an iOS device capable of running iOS 4.2 or later (iPhone 3G, 3GS or 4, iPod touch 2nd, 3rd or 4th gen, iPad or iPad 2).However it is recommended that you update your iOS and iTunes to get the most out of your system.PACKING LIST 1. G-17 Air Main Unit2. Glass base for G-17 Air with attached feet and post.3. Rubber input cover for post4. Four Phillips head screws (to attach post to the G-17 Air)5. Remote control (with battery)6. Power supply7. AC power cord (plug into power supply)8. This owner’s manual9. Quick AirPlay Setup Guide10. White GlovesATTACHING THE BASE TO THE G-17 AIRFor desktop placement you must first attach the supplied base:1. Gently remove the rubber input cover (A) on rear of the post attached to the tempered glass base exposing four screw holes on post (B).2. Align screw holes on rear of the G-17 main unit with those on the post. 3. Using the four screws, attach G-17 Air to the post. Do not over tighten. 4. Replace rubber input cover.MOUNTING THE G-17 AIR ON WALL1. Determine a suitable location for the G-17 to wall-mount and complete any wiring to it before mounting to the wall. DO NOT CEILING-MOUNT.2. With a pencil, mark on wall two pilot hole locations 12 inches (30.48cm) horizontally apart.3. Pre-drill pilot holes in marked locations. If drilling into a wall stud (ideal) it is recommended to use #10 mounting screws (not included) to mount the G-17 Air. If there is no stud install wall anchors (not included) into the pilot holes to hold G-17 Air instead. Wall anchors should be rated to at least 8 pounds.AB B12" (30.48cm)

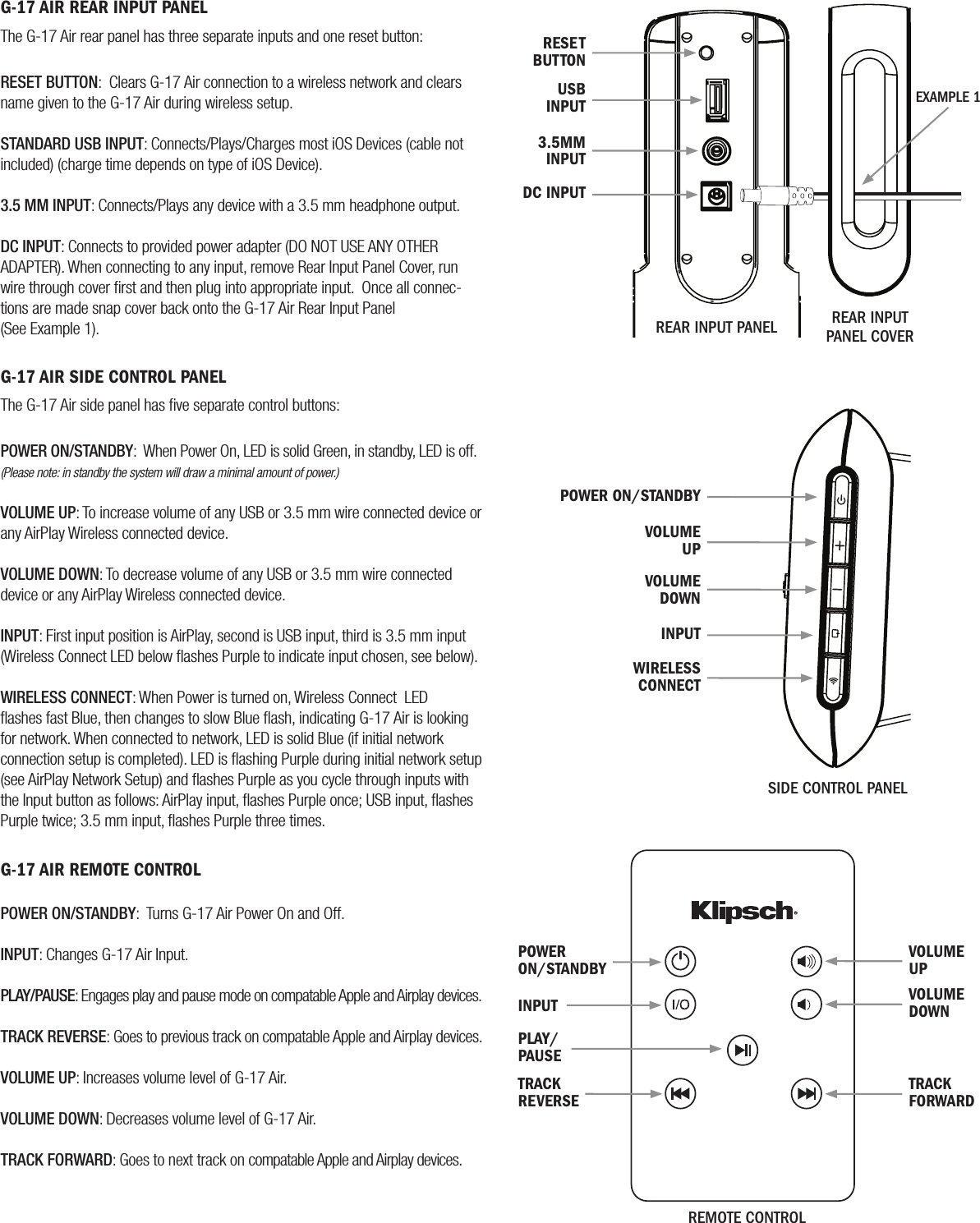

G-17 AIR REAR INPUT PANELThe G-17 Air rear panel has three separate inputs and one reset button:RESET BUTTON: Clears G-17 Air connection to a wireless network and clears name given to the G-17 Air during wireless setup.STANDARD USB INPUT: Connects/Plays/Charges most iOS Devices (cable not included) (charge time depends on type of iOS Device).3.5 MM INPUT: Connects/Plays any device with a 3.5 mm headphone output. DC INPUT: Connects to provided power adapter (DO NOT USE ANY OTHER ADAPTER). When connecting to any input, remove Rear Input Panel Cover, run wire through cover first and then plug into appropriate input. Once all connec-tions are made snap cover back onto the G-17 Air Rear Input Panel (See Example 1).G-17 AIR SIDE CONTROL PANELThe G-17 Air side panel has five separate control buttons:POWER ON/STANDBY: When Power On, LED is solid Green, in standby, LED is off.(Please note: in standby the system will draw a minimal amount of power.)VOLUME UP: To increase volume of any USB or 3.5 mm wire connected device or any AirPlay Wireless connected device.VOLUME DOWN: To decrease volume of any USB or 3.5 mm wire connected device or any AirPlay Wireless connected device.INPUT: First input position is AirPlay, second is USB input, third is 3.5 mm input (Wireless Connect LED below flashes Purple to indicate input chosen, see below).WIRELESS CONNECT: When Power is turned on, Wireless Connect LED flashes fast Blue, then changes to slow Blue flash, indicating G-17 Air is looking for network. When connected to network, LED is solid Blue (if initial network connection setup is completed). LED is flashing Purple during initial network setup (see AirPlay Network Setup) and flashes Purple as you cycle through inputs with the Input button as follows: AirPlay input, flashes Purple once; USB input, flashes Purple twice; 3.5 mm input, flashes Purple three times.G-17 AIR REMOTE CONTROLPOWER ON/STANDBY: Turns G-17 Air Power On and Off.INPUT: Changes G-17 Air Input.PLAY/PAUSE: Engages play and pause mode on compatable Apple and Airplay devices. TRACK REVERSE: Goes to previous track on compatable Apple and Airplay devices.VOLUME UP: Increases volume level of G-17 Air.VOLUME DOWN: Decreases volume level of G-17 Air.TRACK FORWARD: Goes to next track on compatable Apple and Airplay devices.RESET BUTTONUSBINPUT3.5MMINPUTDC INPUTReaR Input panelexample 1ReaR Input panel CoveRPOWER ON/STANDBY VOLUMEUPVOLUMEDOWNINPUTWIRELESSCONNECTPOWERON/STANDBYINPUTTRACKREVERSEPLAY/PAUSETRACKFORWARDVOLUMEDOWNVOLUMEUPSIde ContRol panelRemote ContRol

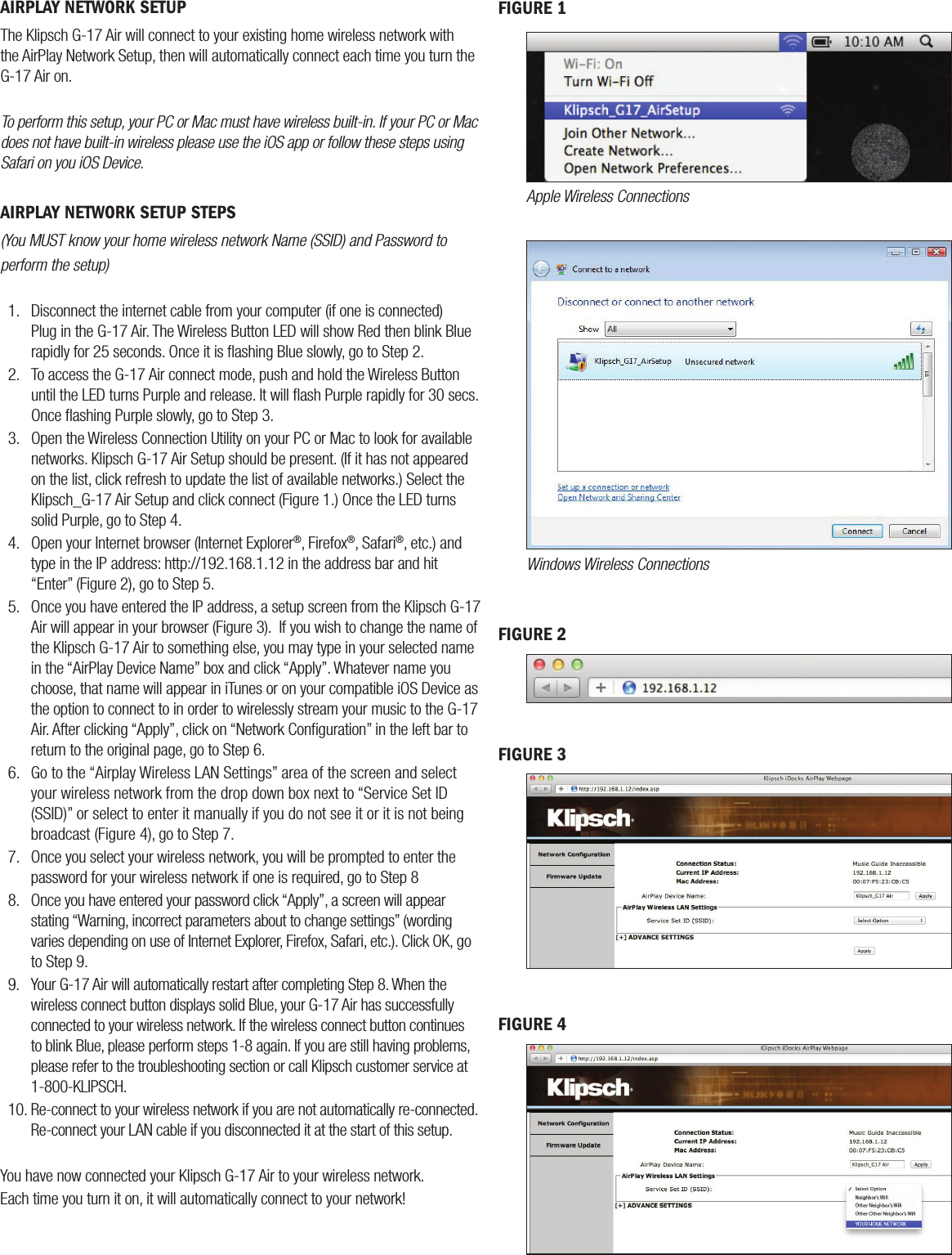

AIRPLAY NETWORK SETUPThe Klipsch G-17 Air will connect to your existing home wireless network with the AirPlay Network Setup, then will automatically connect each time you turn the G-17 Air on.To perform this setup, your PC or Mac must have wireless built-in. If your PC or Mac does not have built-in wireless please use the iOS app or follow these steps using Safari on you iOS Device.AIRPLAY NETWORK SETUP STEPS (You MUST know your home wireless network Name (SSID) and Password to perform the setup)1. Disconnect the internet cable from your computer (if one is connected) Plug in the G-17 Air. The Wireless Button LED will show Red then blink Blue rapidly for 25 seconds. Once it is flashing Blue slowly, go to Step 2.2. To access the G-17 Air connect mode, push and hold the Wireless Button until the LED turns Purple and release. It will flash Purple rapidly for 30 secs. Once flashing Purple slowly, go to Step 3.3. Open the Wireless Connection Utility on your PC or Mac to look for available networks. Klipsch G-17 Air Setup should be present. (If it has not appeared on the list, click refresh to update the list of available networks.) Select the Klipsch_G-17 Air Setup and click connect (Figure 1.) Once the LED turns solid Purple, go to Step 4.4. Open your Internet browser (Internet Explorer®, Firefox®, Safari®, etc.) and type in the IP address: http://192.168.1.12 in the address bar and hit “Enter” (Figure 2), go to Step 5.5. Once you have entered the IP address, a setup screen from the Klipsch G-17 Air will appear in your browser (Figure 3). If you wish to change the name of the Klipsch G-17 Air to something else, you may type in your selected name in the “AirPlay Device Name” box and click “Apply”. Whatever name you choose, that name will appear in iTunes or on your compatible iOS Device as the option to connect to in order to wirelessly stream your music to the G-17 Air. After clicking “Apply”, click on “Network Configuration” in the left bar to return to the original page, go to Step 6.6. Go to the “Airplay Wireless LAN Settings” area of the screen and select your wireless network from the drop down box next to “Service Set ID (SSID)” or select to enter it manually if you do not see it or it is not being broadcast (Figure 4), go to Step 7.7. Once you select your wireless network, you will be prompted to enter the password for your wireless network if one is required, go to Step 88. Once you have entered your password click “Apply”, a screen will appear stating “Warning, incorrect parameters about to change settings” (wording varies depending on use of Internet Explorer, Firefox, Safari, etc.). Click OK, go to Step 9. 9. Your G-17 Air will automatically restart after completing Step 8. When the wireless connect button displays solid Blue, your G-17 Air has successfully connected to your wireless network. If the wireless connect button continues to blink Blue, please perform steps 1-8 again. If you are still having problems, please refer to the troubleshooting section or call Klipsch customer service at 1-800-KLIPSCH.10. Re-connect to your wireless network if you are not automatically re-connected. Re-connect your LAN cable if you disconnected it at the start of this setup.You have now connected your Klipsch G-17 Air to your wireless network. Each time you turn it on, it will automatically connect to your network!FIGURE 1FIGURE 2FIGURE 3FIGURE 4Apple Wireless ConnectionsWindows Wireless Connections

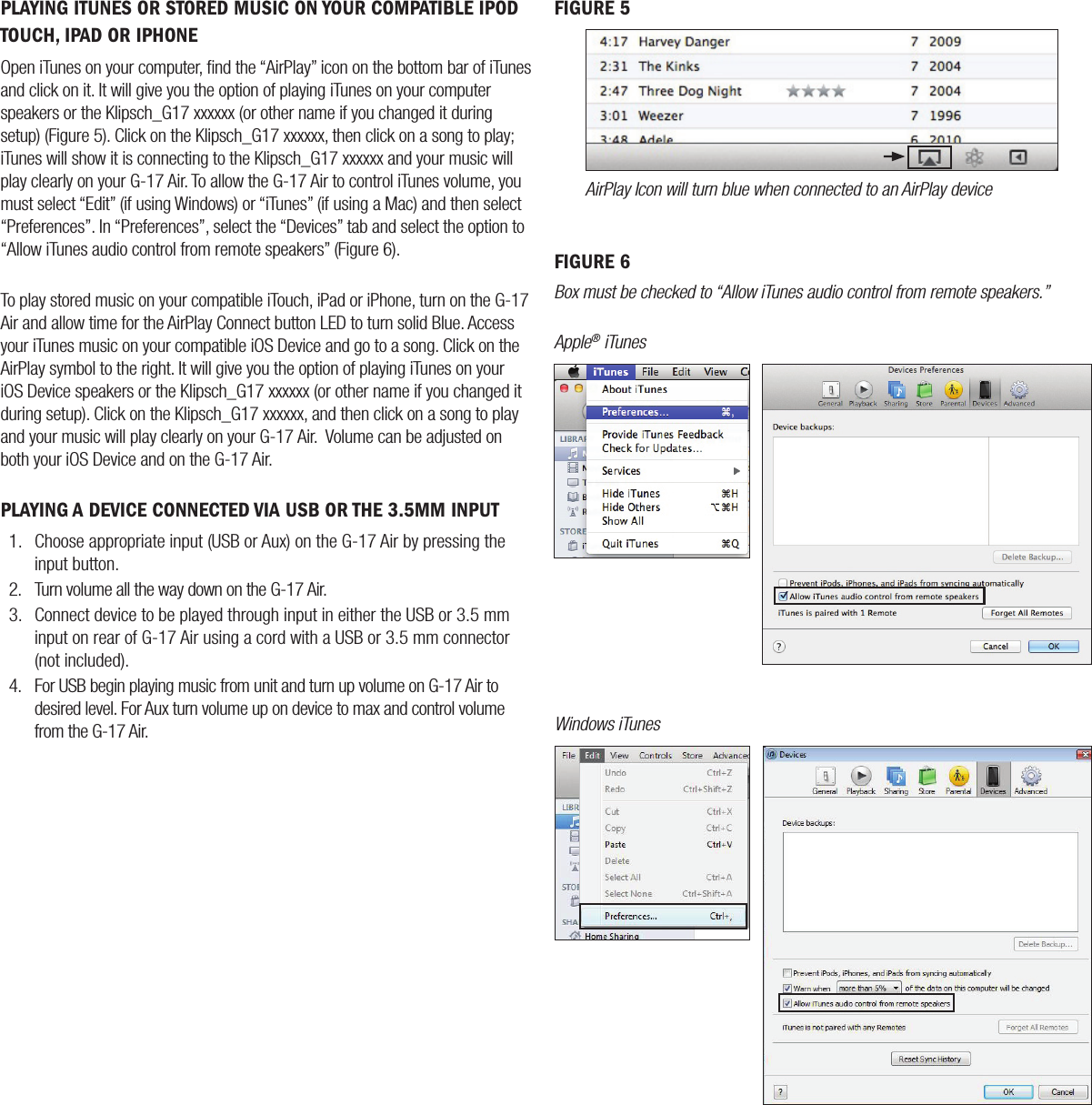

PLAYING ITUNES OR STORED MUSIC ON YOUR COMPATIBLE IPOD TOUCH, IPAD OR IPHONEOpen iTunes on your computer, find the “AirPlay” icon on the bottom bar of iTunes and click on it. It will give you the option of playing iTunes on your computer speakers or the Klipsch_G17 xxxxxx (or other name if you changed it during setup) (Figure 5). Click on the Klipsch_G17 xxxxxx, then click on a song to play; iTunes will show it is connecting to the Klipsch_G17 xxxxxx and your music will play clearly on your G-17 Air. To allow the G-17 Air to control iTunes volume, you must select “Edit” (if using Windows) or “iTunes” (if using a Mac) and then select “Preferences”. In “Preferences”, select the “Devices” tab and select the option to “Allow iTunes audio control from remote speakers” (Figure 6). To play stored music on your compatible iTouch, iPad or iPhone, turn on the G-17 Air and allow time for the AirPlay Connect button LED to turn solid Blue. Access your iTunes music on your compatible iOS Device and go to a song. Click on the AirPlay symbol to the right. It will give you the option of playing iTunes on your iOS Device speakers or the Klipsch_G17 xxxxxx (or other name if you changed it during setup). Click on the Klipsch_G17 xxxxxx, and then click on a song to play and your music will play clearly on your G-17 Air. Volume can be adjusted on both your iOS Device and on the G-17 Air.PLAYING A DEVICE CONNECTED VIA USB OR THE 3.5MM INPUT1. Choose appropriate input (USB or Aux) on the G-17 Air by pressing the input button.2. Turn volume all the way down on the G-17 Air.3. Connect device to be played through input in either the USB or 3.5 mm input on rear of G-17 Air using a cord with a USB or 3.5 mm connector (not included).4. For USB begin playing music from unit and turn up volume on G-17 Air to desired level. For Aux turn volume up on device to max and control volume from the G-17 Air. FIGURE 5FIGURE 6AirPlay Icon will turn blue when connected to an AirPlay deviceBox must be checked to “Allow iTunes audio control from remote speakers.”Apple® iTunesWindows iTunes

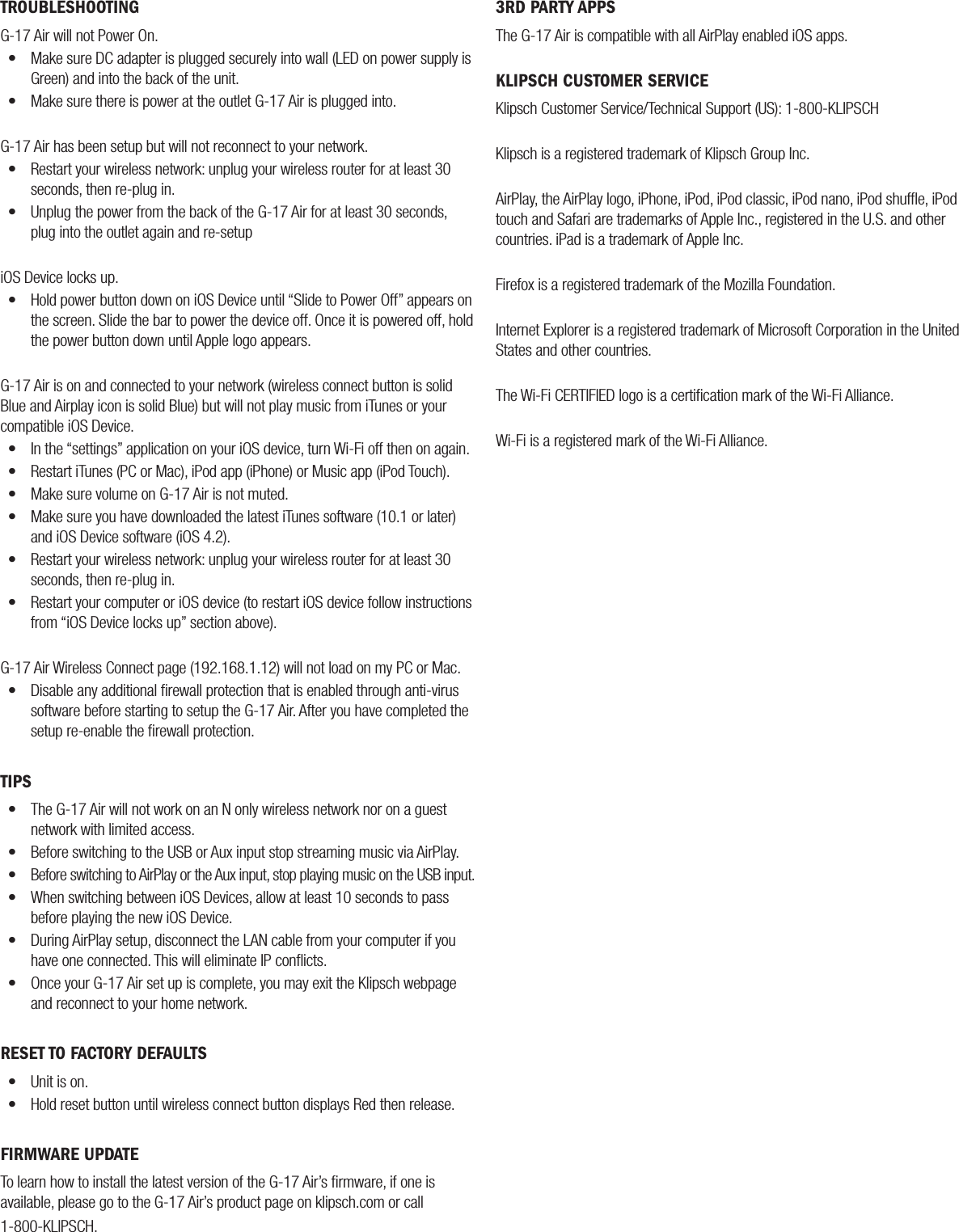

TROUBLESHOOTINGG-17 Air will not Power On.• Make sure DC adapter is plugged securely into wall (LED on power supply is Green) and into the back of the unit.• Make sure there is power at the outlet G-17 Air is plugged into.G-17 Air has been setup but will not reconnect to your network.• Restart your wireless network: unplug your wireless router for at least 30 seconds, then re-plug in.• Unplug the power from the back of the G-17 Air for at least 30 seconds, plug into the outlet again and re-setupiOS Device locks up.• Hold power button down on iOS Device until “Slide to Power Off” appears on the screen. Slide the bar to power the device off. Once it is powered off, hold the power button down until Apple logo appears.G-17 Air is on and connected to your network (wireless connect button is solid Blue and Airplay icon is solid Blue) but will not play music from iTunes or your compatible iOS Device.• In the “settings” application on your iOS device, turn Wi-Fi off then on again. • Restart iTunes (PC or Mac), iPod app (iPhone) or Music app (iPod Touch).• Make sure volume on G-17 Air is not muted.• Make sure you have downloaded the latest iTunes software (10.1 or later) and iOS Device software (iOS 4.2).• Restart your wireless network: unplug your wireless router for at least 30 seconds, then re-plug in.• Restart your computer or iOS device (to restart iOS device follow instructions from “iOS Device locks up” section above).G-17 Air Wireless Connect page (192.168.1.12) will not load on my PC or Mac.• Disable any additional firewall protection that is enabled through anti-virus software before starting to setup the G-17 Air. After you have completed the setup re-enable the firewall protection. TIPS• The G-17 Air will not work on an N only wireless network nor on a guest network with limited access.• Before switching to the USB or Aux input stop streaming music via AirPlay. • Before switching to AirPlay or the Aux input, stop playing music on the USB input.• When switching between iOS Devices, allow at least 10 seconds to pass before playing the new iOS Device.• During AirPlay setup, disconnect the LAN cable from your computer if you have one connected. This will eliminate IP conflicts.• Once your G-17 Air set up is complete, you may exit the Klipsch webpage and reconnect to your home network.RESET TO FACTORY DEFAULTS• Unit is on.• Hold reset button until wireless connect button displays Red then release.FIRMWARE UPDATETo learn how to install the latest version of the G-17 Air’s firmware, if one is available, please go to the G-17 Air’s product page on klipsch.com or call 1-800-KLIPSCH.3RD PARTY APPSThe G-17 Air is compatible with all AirPlay enabled iOS apps.KLIPSCH CUSTOMER SERVICEKlipsch Customer Service/Technical Support (US): 1-800-KLIPSCHKlipsch is a registered trademark of Klipsch Group Inc.AirPlay, the AirPlay logo, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, iPod touch and Safari are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.Firefox is a registered trademark of the Mozilla Foundation.Internet Explorer is a registered trademark of Microsoft Corporation in the United States and other countries.The Wi-Fi CERTIFIED logo is a certification mark of the Wi-Fi Alliance.Wi-Fi is a registered mark of the Wi-Fi Alliance.
3502 Woodview TraceIndianapolis, IN 462681-800-KLIPSCH•klipsch.com© 2011 Klipsch Group, Inc.
