Hansong MUSAIC1401 Music Player User Manual

Hansong(Nanjing) Technology Ltd. Music Player

User Manual

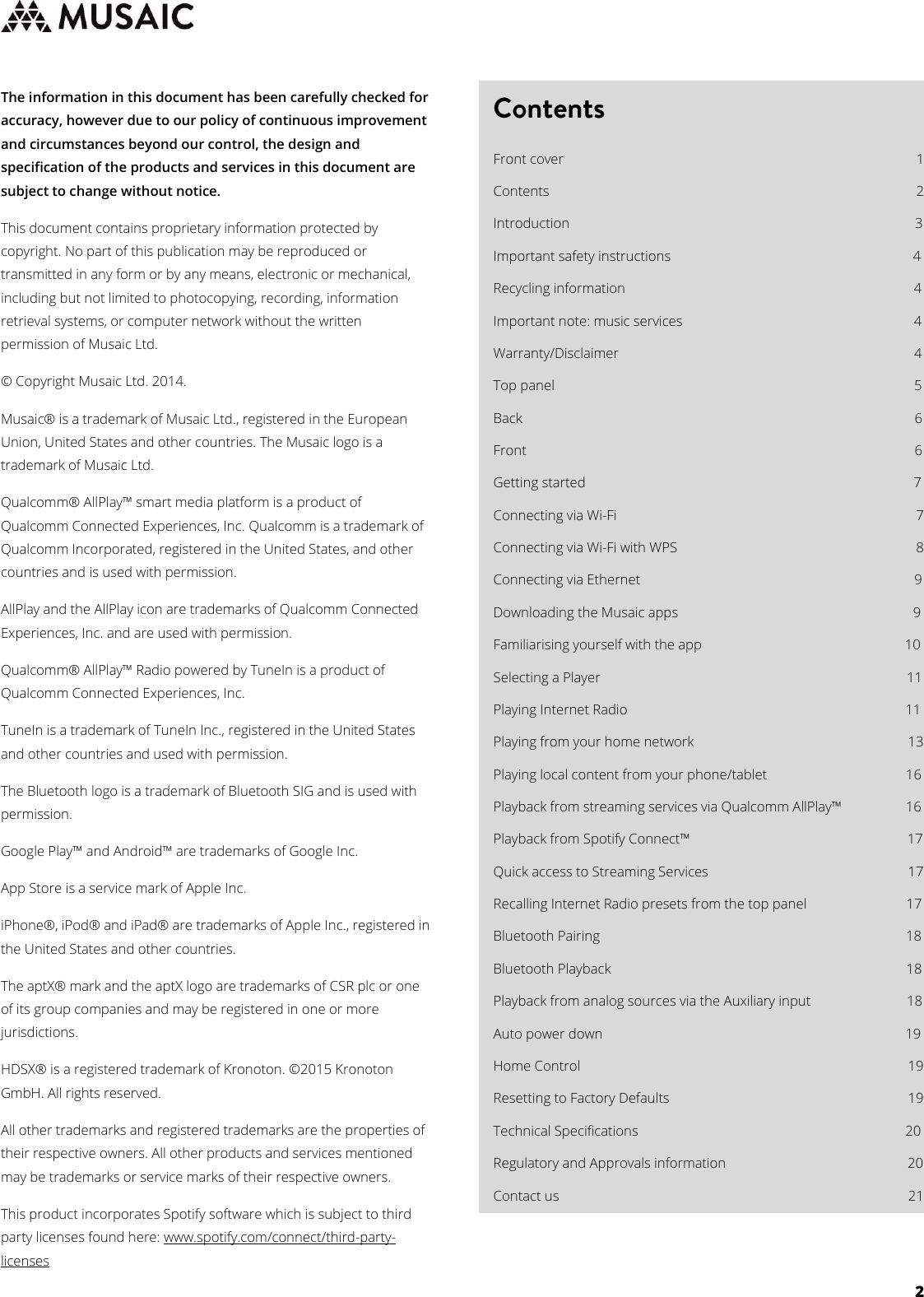

    2  The information in this document has been carefully checked for accuracy, however due to our policy of continuous improvement and circumstances beyond our control, the design and specification of the products and services in this document are subject to change without notice.  This document contains proprietary information protected by copyright. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Musaic Ltd. © Copyright Musaic Ltd. 2014.  Musaic® is a trademark of Musaic Ltd., registered in the European Union, United States and other countries. The Musaic logo is a trademark of Musaic Ltd. Qualcomm® AllPlay™ smart media platform is a product of Qualcomm Connected Experiences, Inc. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States, and other countries and is used with permission.  AllPlay and the AllPlay icon are trademarks of Qualcomm Connected Experiences, Inc. and are used with permission. Qualcomm® AllPlay™ Radio powered by TuneIn is a product of Qualcomm Connected Experiences, Inc.  TuneIn is a trademark of TuneIn Inc., registered in the United States and other countries and used with permission. The Bluetooth logo is a trademark of Bluetooth SIG and is used with permission. Google Play™ and Android™ are trademarks of Google Inc. App Store is a service mark of Apple Inc. iPhone®, iPod® and iPad® are trademarks of Apple Inc., registered in the United States and other countries. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. HDSX® is a registered trademark of Kronoton. ©2015 Kronoton GmbH. All rights reserved. All other trademarks and registered trademarks are the properties of their respective owners. All other products and services mentioned may be trademarks or service marks of their respective owners. This product incorporates Spotify software which is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses    Front cover                                                                                                   1 Contents                                                                                                       2 Introduction                                                                                                 3 Important safety instructions                                                                    4 Recycling information                                                                                 4 Important note: music services                                                                 4 Warranty/Disclaimer                                                                                   4 Top panel                                                                                                     5 Back                                                                                                       6 Front                                                                                                             6 Getting started                                                                                            7 Connecting via Wi-Fi                                                                                    7 Connecting via Wi-Fi with WPS                                                                   8 Connecting via Ethernet                                                                             9 Downloading the Musaic apps                                                                  9 Familiarising yourself with the app                                                         10 Selecting a Player                                                                                      11 Playing Internet Radio                                                                              11 Playing from your home network                                                            13 Playing local content from your phone/tablet                                       16 Playback from streaming services via Qualcomm AllPlay™                  16 Playback from Spotify Connect™                                                             17 Quick access to Streaming Services                                                        17 Recalling Internet Radio presets from the top panel                            17 Bluetooth Pairing                                                                                      18 Bluetooth Playback                                                                                   18 Playback from analog sources via the Auxiliary input                           18 Auto power down                                                                                     19 Home Control                                                                                            19 Resetting to Factory Defaults                                                                   19 Technical Specifications                                                                           20  Regulatory and Approvals information                                                   20 Contact us                                                                                                  21
    3   Thank you for purchasing this Musaic MP5 or MP10 Music Player. The Musaic product range has been designed by the Musaic team in London with sound quality and ease of use the top priorities. We sincerely hope you gain many years of pleasure from it. We encourage you to feedback your experiences, comments and suggestions at www.musaic.com. We constantly strive to improve the Musaic user experience and from time to time will issue software updates with new features based on your feedback. What follows is an overview of the Musaic system. Musaic works with your home network to play music from your mobile devices, NAS drives, Macs or PCs, plus thousands of internet radio stations and internet based streaming services. If you have more than one Musaic Player you can play different music through different Players at the same time, all controlled by one or more phones and tablets plus Macs and PCs. You can also play the same music through multiple Players at the same time in perfect sync, which is great for entertaining. To control the Musaic Players you should download the Musaic app for Apple devices from the Apple App Store or the Musaic app for Android devices from the Google Play store. Simply go to the appropriate store online or access the store via your device’s built-in app store button and search for Musaic. You can also download the Musaic app for Windows PC or Apple Macintosh from our own download section at www.musaic.com.  These apps allow music files on iPads, iPhones, iPod Touch, Android phones and tablets and from NAS drives and PCs/Macs to be played to the Musaic Players. The apps also feature our Internet Radio service which allows browsing and playback from many thousands of stations all over the world, categorised by genre or country.  Internet Radio presets can be set for recall from the buttons on the top of the MP5 and MP10 Music Player as well as from the app. Our Players feature the Qualcomm® AllPlay™ smart media platform, a technology which allows native playback from many music streaming apps. Depending on where you live you can download and use apps such as Rhapsody™, Napster™, Soma FM™, TIDAL™, iHeartRadio™, Grooveshark™, Aupeo! ™, Qualcomm® AllPlay Radio™ powered by TuneIn, Recochoku™, DAR FM™, Style Jukebox™ and Double Twist Music Player™, and play from them directly to Musaic Players all over your home. Spotify Connect™ is also featured which allows direct playback from the Spotify app. Please check our website at www.musaic.com for details of the latest supported streaming service apps. For broad compatibility with almost any phone/tablet and a wide range of other devices the Musaic Players also feature Bluetooth audio. This is useful in many situations, for example, to send the audio from a laptop to a Musaic Player when playing a game, or for allowing a friend to play you a song without having to first access your Wi-Fi network. Any phone, tablet, laptop or PC with Bluetooth audio can playback its content via the MP5 and MP10 Music Players.  An auxiliary analog input allows the connection of the line or headphone output of MP3 players, CD players or TVs etc. and a USB charging output allows you to power/charge your phone or tablet so that it is always ready to use with your Musaic Music Player.  High quality audio components are used throughout, including a fully digital 24-bit signal path and the very latest in Digital Signal Processing techniques. Both models use a custom tuned version of HDSX® by Kronoton. The patented HDSX® process expands the listening ‘sweet-spot’ and allows the Musaic units to fill a room with an acoustic experience that sounds natural wherever you listen from. The MP5 features two high excursion speakers in a stereo arrangement with 36 watts of total output power. The MP10 features three speakers in a 2.1 arrangement (two stereo mid-tweeters plus a built in subwoofer) and 60 watts of total output power. Both models feature an environmentally friendly low power (<0.5w) Standby mode as well as a fast wakeup Networked Standby mode. The Musaic system is optionally able to control lighting and other products from our home automation partners. There is a section at the end of this manual which introduces some of the cool things you can do with Musaic above and beyond listening to music. Thanks for taking the time to read this manual; let’s get started!  Matthew Bramble, Musaic CEO, and all the team at Musaic.

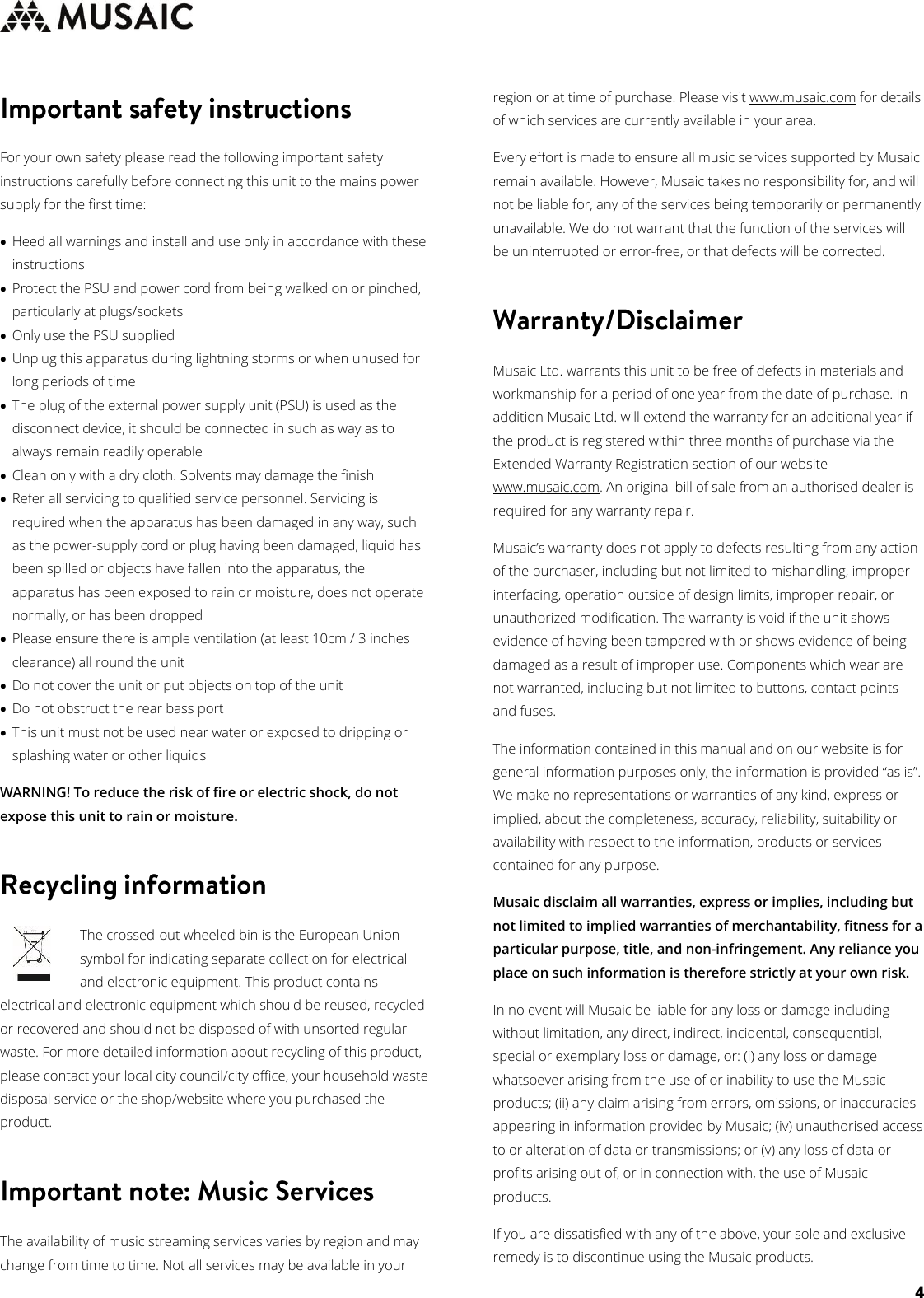

    4   For your own safety please read the following important safety instructions carefully before connecting this unit to the mains power supply for the first time:  Heed all warnings and install and use only in accordance with these instructions  Protect the PSU and power cord from being walked on or pinched, particularly at plugs/sockets  Only use the PSU supplied  Unplug this apparatus during lightning storms or when unused for long periods of time  The plug of the external power supply unit (PSU) is used as the disconnect device, it should be connected in such as way as to always remain readily operable  Clean only with a dry cloth. Solvents may damage the finish  Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug having been damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped  Please ensure there is ample ventilation (at least 10cm / 3 inches clearance) all round the unit  Do not cover the unit or put objects on top of the unit  Do not obstruct the rear bass port  This unit must not be used near water or exposed to dripping or splashing water or other liquids WARNING! To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.   The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. For more detailed information about recycling of this product, please contact your local city council/city office, your household waste disposal service or the shop/website where you purchased the product.  The availability of music streaming services varies by region and may change from time to time. Not all services may be available in your region or at time of purchase. Please visit www.musaic.com for details of which services are currently available in your area. Every effort is made to ensure all music services supported by Musaic remain available. However, Musaic takes no responsibility for, and will not be liable for, any of the services being temporarily or permanently unavailable. We do not warrant that the function of the services will be uninterrupted or error-free, or that defects will be corrected.  Musaic Ltd. warrants this unit to be free of defects in materials and workmanship for a period of one year from the date of purchase. In addition Musaic Ltd. will extend the warranty for an additional year if the product is registered within three months of purchase via the Extended Warranty Registration section of our website www.musaic.com. An original bill of sale from an authorised dealer is required for any warranty repair. Musaic’s warranty does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. The warranty is void if the unit shows evidence of having been tampered with or shows evidence of being damaged as a result of improper use. Components which wear are not warranted, including but not limited to buttons, contact points and fuses. The information contained in this manual and on our website is for general information purposes only, the information is provided “as is”. We make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the information, products or services contained for any purpose.  Musaic disclaim all warranties, express or implies, including but not limited to implied warranties of merchantability, fitness for a particular purpose, title, and non-infringement. Any reliance you place on such information is therefore strictly at your own risk. In no event will Musaic be liable for any loss or damage including without limitation, any direct, indirect, incidental, consequential, special or exemplary loss or damage, or: (i) any loss or damage whatsoever arising from the use of or inability to use the Musaic products; (ii) any claim arising from errors, omissions, or inaccuracies appearing in information provided by Musaic; (iv) unauthorised access to or alteration of data or transmissions; or (v) any loss of data or profits arising out of, or in connection with, the use of Musaic products.  If you are dissatisfied with any of the above, your sole and exclusive remedy is to discontinue using the Musaic products.

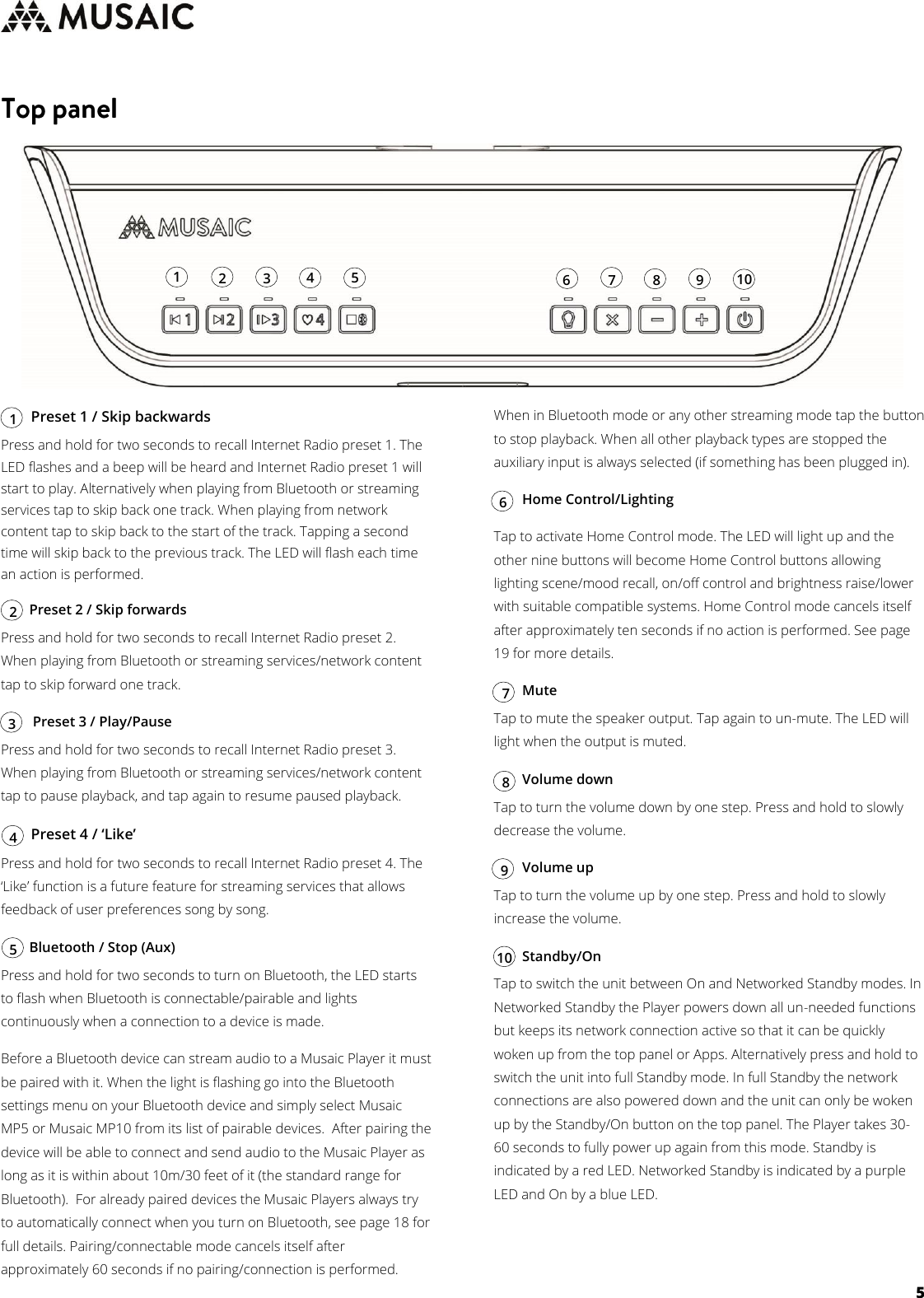

    5          Preset 1 / Skip backwards Press and hold for two seconds to recall Internet Radio preset 1. The LED flashes and a beep will be heard and Internet Radio preset 1 will start to play. Alternatively when playing from Bluetooth or streaming services tap to skip back one track. When playing from network content tap to skip back to the start of the track. Tapping a second time will skip back to the previous track. The LED will flash each time an action is performed.         Preset 2 / Skip forwards  Press and hold for two seconds to recall Internet Radio preset 2. When playing from Bluetooth or streaming services/network content tap to skip forward one track.           Preset 3 / Play/Pause Press and hold for two seconds to recall Internet Radio preset 3. When playing from Bluetooth or streaming services/network content tap to pause playback, and tap again to resume paused playback.          Preset 4 / ‘Like’ Press and hold for two seconds to recall Internet Radio preset 4. The ‘Like’ function is a future feature for streaming services that allows feedback of user preferences song by song.          Bluetooth / Stop (Aux) Press and hold for two seconds to turn on Bluetooth, the LED starts to flash when Bluetooth is connectable/pairable and lights continuously when a connection to a device is made. Before a Bluetooth device can stream audio to a Musaic Player it must be paired with it. When the light is flashing go into the Bluetooth settings menu on your Bluetooth device and simply select Musaic MP5 or Musaic MP10 from its list of pairable devices.  After pairing the device will be able to connect and send audio to the Musaic Player as long as it is within about 10m/30 feet of it (the standard range for Bluetooth).  For already paired devices the Musaic Players always try to automatically connect when you turn on Bluetooth, see page 18 for full details. Pairing/connectable mode cancels itself after approximately 60 seconds if no pairing/connection is performed.   When in Bluetooth mode or any other streaming mode tap the button to stop playback. When all other playback types are stopped the auxiliary input is always selected (if something has been plugged in).                 Home Control/Lighting  Tap to activate Home Control mode. The LED will light up and the other nine buttons will become Home Control buttons allowing lighting scene/mood recall, on/off control and brightness raise/lower with suitable compatible systems. Home Control mode cancels itself after approximately ten seconds if no action is performed. See page 19 for more details.         Mute Tap to mute the speaker output. Tap again to un-mute. The LED will light when the output is muted.          Volume down Tap to turn the volume down by one step. Press and hold to slowly decrease the volume.          Volume up Tap to turn the volume up by one step. Press and hold to slowly increase the volume.          Standby/On Tap to switch the unit between On and Networked Standby modes. In Networked Standby the Player powers down all un-needed functions but keeps its network connection active so that it can be quickly woken up from the top panel or Apps. Alternatively press and hold to switch the unit into full Standby mode. In full Standby the network connections are also powered down and the unit can only be woken up by the Standby/On button on the top panel. The Player takes 30-60 seconds to fully power up again from this mode. Standby is indicated by a red LED. Networked Standby is indicated by a purple LED and On by a blue LED.  1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10

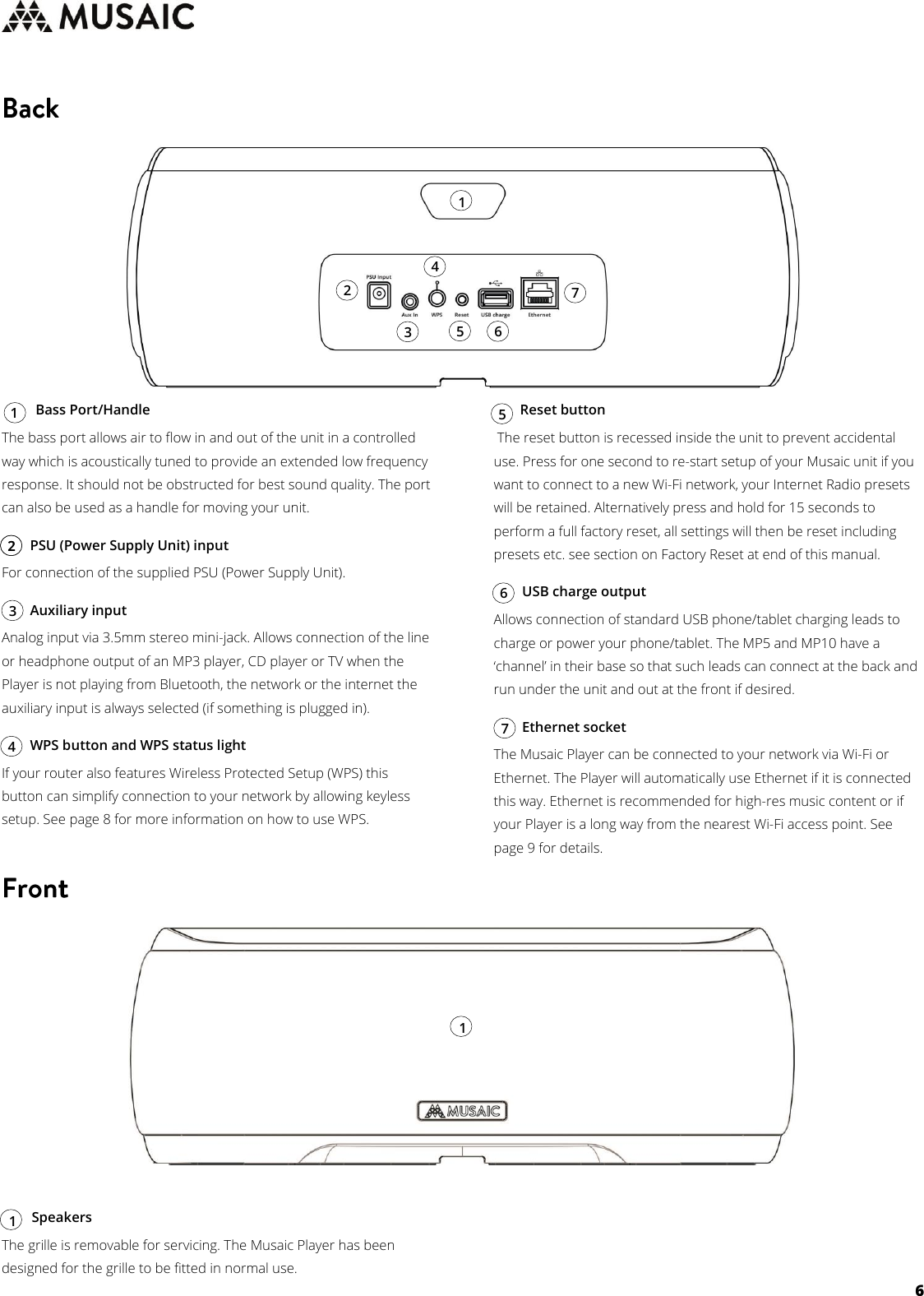

    6           Bass Port/Handle The bass port allows air to flow in and out of the unit in a controlled way which is acoustically tuned to provide an extended low frequency response. It should not be obstructed for best sound quality. The port can also be used as a handle for moving your unit.         PSU (Power Supply Unit) input For connection of the supplied PSU (Power Supply Unit).          Auxiliary input Analog input via 3.5mm stereo mini-jack. Allows connection of the line or headphone output of an MP3 player, CD player or TV when the Player is not playing from Bluetooth, the network or the internet the auxiliary input is always selected (if something is plugged in).         WPS button and WPS status light If your router also features Wireless Protected Setup (WPS) this button can simplify connection to your network by allowing keyless setup. See page 8 for more information on how to use WPS.                  Speakers The grille is removable for servicing. The Musaic Player has been designed for the grille to be fitted in normal use.                Reset button  The reset button is recessed inside the unit to prevent accidental use. Press for one second to re-start setup of your Musaic unit if you want to connect to a new Wi-Fi network, your Internet Radio presets will be retained. Alternatively press and hold for 15 seconds to perform a full factory reset, all settings will then be reset including presets etc. see section on Factory Reset at end of this manual.         USB charge output Allows connection of standard USB phone/tablet charging leads to charge or power your phone/tablet. The MP5 and MP10 have a ‘channel’ in their base so that such leads can connect at the back and run under the unit and out at the front if desired.         Ethernet socket The Musaic Player can be connected to your network via Wi-Fi or Ethernet. The Player will automatically use Ethernet if it is connected this way. Ethernet is recommended for high-res music content or if your Player is a long way from the nearest Wi-Fi access point. See page 9 for details.      1 2 3 4 5 6 7 1 2 3 4 5 6 7  1 1 2

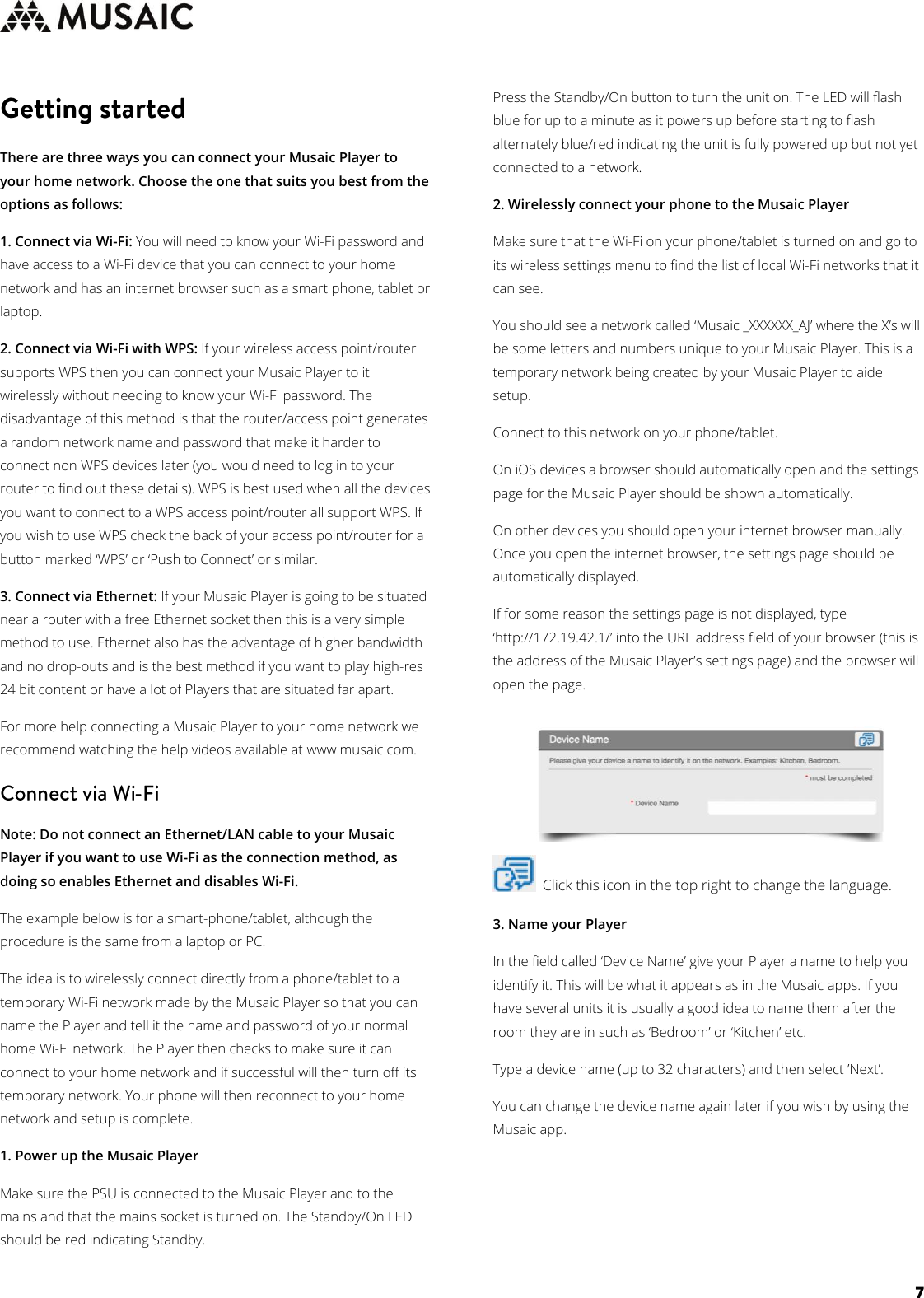

    7   There are three ways you can connect your Musaic Player to your home network. Choose the one that suits you best from the options as follows: 1. Connect via Wi-Fi: You will need to know your Wi-Fi password and have access to a Wi-Fi device that you can connect to your home network and has an internet browser such as a smart phone, tablet or laptop. 2. Connect via Wi-Fi with WPS: If your wireless access point/router supports WPS then you can connect your Musaic Player to it wirelessly without needing to know your Wi-Fi password. The disadvantage of this method is that the router/access point generates a random network name and password that make it harder to connect non WPS devices later (you would need to log in to your router to find out these details). WPS is best used when all the devices you want to connect to a WPS access point/router all support WPS. If you wish to use WPS check the back of your access point/router for a button marked ‘WPS’ or ‘Push to Connect’ or similar. 3. Connect via Ethernet: If your Musaic Player is going to be situated near a router with a free Ethernet socket then this is a very simple method to use. Ethernet also has the advantage of higher bandwidth and no drop-outs and is the best method if you want to play high-res 24 bit content or have a lot of Players that are situated far apart. For more help connecting a Musaic Player to your home network we recommend watching the help videos available at www.musaic.com.   Note: Do not connect an Ethernet/LAN cable to your Musaic Player if you want to use Wi-Fi as the connection method, as doing so enables Ethernet and disables Wi-Fi.  The example below is for a smart-phone/tablet, although the procedure is the same from a laptop or PC. The idea is to wirelessly connect directly from a phone/tablet to a temporary Wi-Fi network made by the Musaic Player so that you can name the Player and tell it the name and password of your normal home Wi-Fi network. The Player then checks to make sure it can connect to your home network and if successful will then turn off its temporary network. Your phone will then reconnect to your home network and setup is complete. 1. Power up the Musaic Player Make sure the PSU is connected to the Musaic Player and to the mains and that the mains socket is turned on. The Standby/On LED should be red indicating Standby. Press the Standby/On button to turn the unit on. The LED will flash blue for up to a minute as it powers up before starting to flash alternately blue/red indicating the unit is fully powered up but not yet connected to a network. 2. Wirelessly connect your phone to the Musaic Player Make sure that the Wi-Fi on your phone/tablet is turned on and go to its wireless settings menu to find the list of local Wi-Fi networks that it can see. You should see a network called ‘Musaic _XXXXXX_AJ’ where the X’s will be some letters and numbers unique to your Musaic Player. This is a temporary network being created by your Musaic Player to aide setup. Connect to this network on your phone/tablet. On iOS devices a browser should automatically open and the settings page for the Musaic Player should be shown automatically. On other devices you should open your internet browser manually. Once you open the internet browser, the settings page should be automatically displayed. If for some reason the settings page is not displayed, type ‘http://172.19.42.1/’ into the URL address field of your browser (this is the address of the Musaic Player’s settings page) and the browser will open the page.   Click this icon in the top right to change the language.  3. Name your Player In the field called ‘Device Name’ give your Player a name to help you identify it. This will be what it appears as in the Musaic apps. If you have several units it is usually a good idea to name them after the room they are in such as ‘Bedroom’ or ‘Kitchen’ etc. Type a device name (up to 32 characters) and then select ’Next’. You can change the device name again later if you wish by using the Musaic app.

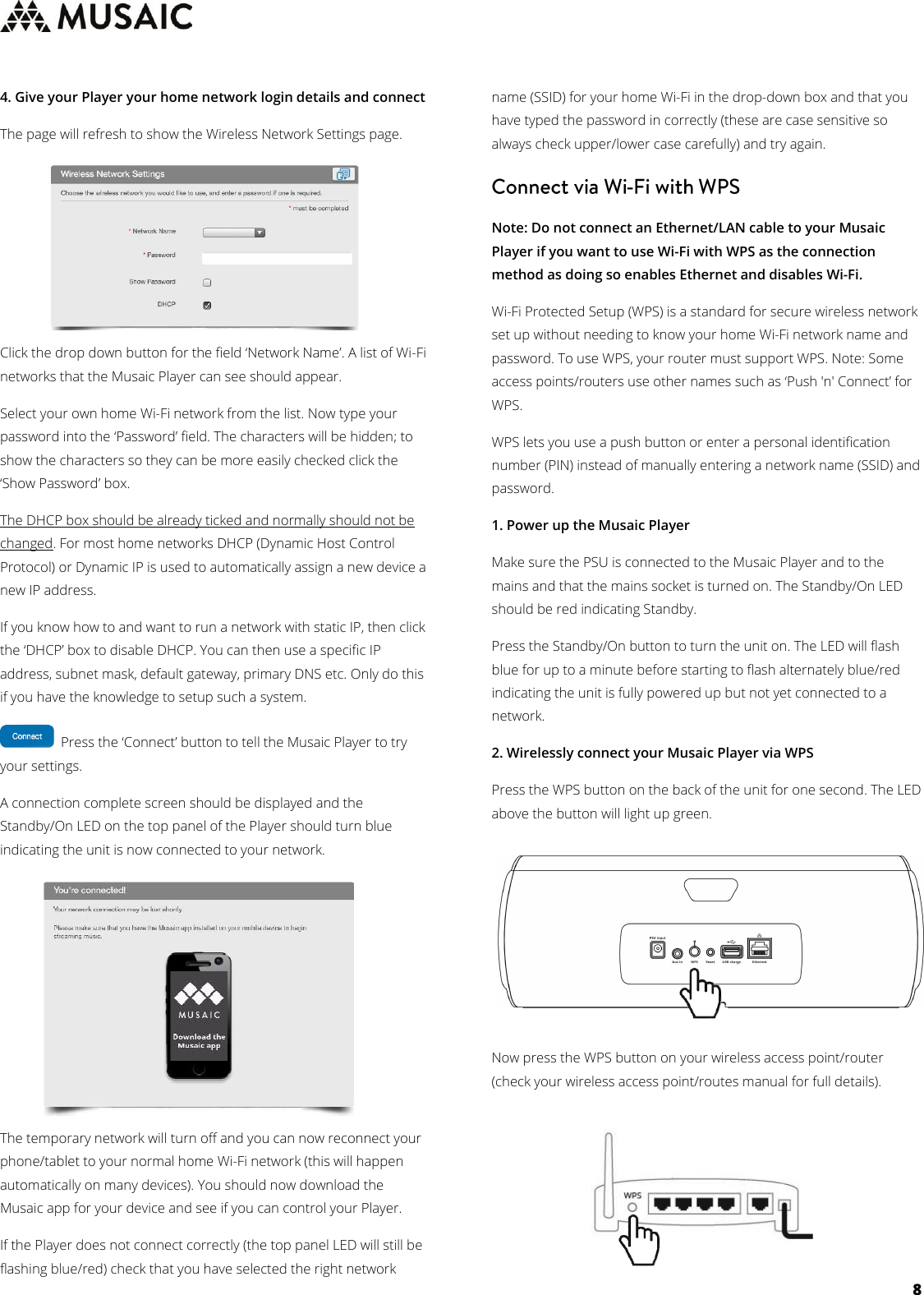

    8  4. Give your Player your home network login details and connect The page will refresh to show the Wireless Network Settings page.  Click the drop down button for the field ‘Network Name’. A list of Wi-Fi networks that the Musaic Player can see should appear. Select your own home Wi-Fi network from the list. Now type your password into the ‘Password’ field. The characters will be hidden; to show the characters so they can be more easily checked click the ‘Show Password’ box. The DHCP box should be already ticked and normally should not be changed. For most home networks DHCP (Dynamic Host Control Protocol) or Dynamic IP is used to automatically assign a new device a new IP address.  If you know how to and want to run a network with static IP, then click the ‘DHCP’ box to disable DHCP. You can then use a specific IP address, subnet mask, default gateway, primary DNS etc. Only do this if you have the knowledge to setup such a system.   Press the ‘Connect’ button to tell the Musaic Player to try your settings. A connection complete screen should be displayed and the Standby/On LED on the top panel of the Player should turn blue indicating the unit is now connected to your network. The temporary network will turn off and you can now reconnect your phone/tablet to your normal home Wi-Fi network (this will happen automatically on many devices). You should now download the Musaic app for your device and see if you can control your Player. If the Player does not connect correctly (the top panel LED will still be flashing blue/red) check that you have selected the right network name (SSID) for your home Wi-Fi in the drop-down box and that you have typed the password in correctly (these are case sensitive so always check upper/lower case carefully) and try again.  Note: Do not connect an Ethernet/LAN cable to your Musaic Player if you want to use Wi-Fi with WPS as the connection method as doing so enables Ethernet and disables Wi-Fi.  Wi-Fi Protected Setup (WPS) is a standard for secure wireless network set up without needing to know your home Wi-Fi network name and password. To use WPS, your router must support WPS. Note: Some access points/routers use other names such as ‘Push 'n' Connect’ for WPS.  WPS lets you use a push button or enter a personal identification number (PIN) instead of manually entering a network name (SSID) and password. 1. Power up the Musaic Player Make sure the PSU is connected to the Musaic Player and to the mains and that the mains socket is turned on. The Standby/On LED should be red indicating Standby. Press the Standby/On button to turn the unit on. The LED will flash blue for up to a minute before starting to flash alternately blue/red indicating the unit is fully powered up but not yet connected to a network. 2. Wirelessly connect your Musaic Player via WPS Press the WPS button on the back of the unit for one second. The LED above the button will light up green.  Now press the WPS button on your wireless access point/router (check your wireless access point/routes manual for full details).

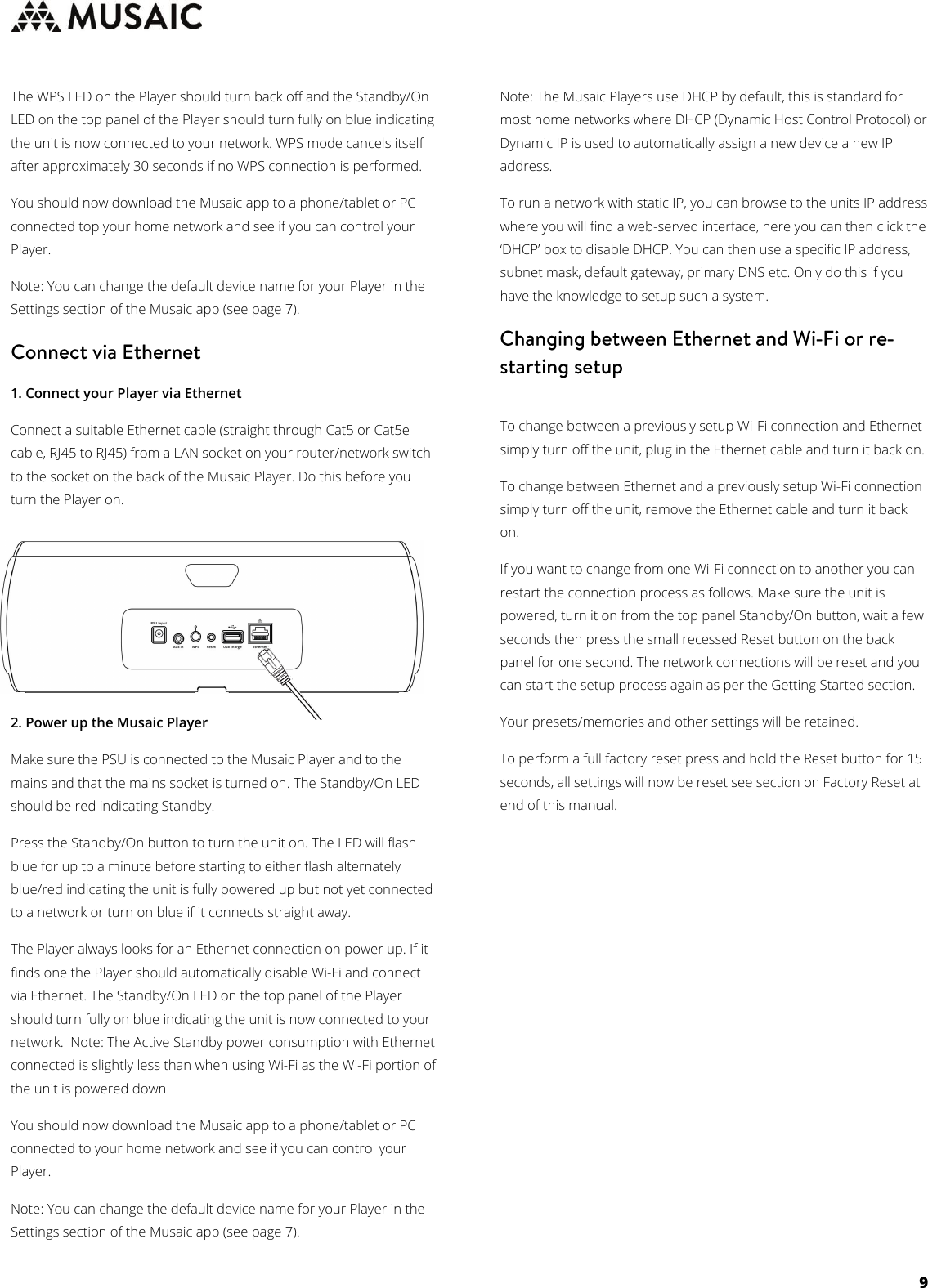

    9  The WPS LED on the Player should turn back off and the Standby/On LED on the top panel of the Player should turn fully on blue indicating the unit is now connected to your network. WPS mode cancels itself after approximately 30 seconds if no WPS connection is performed. You should now download the Musaic app to a phone/tablet or PC connected top your home network and see if you can control your Player. Note: You can change the default device name for your Player in the Settings section of the Musaic app (see page 7).  1. Connect your Player via Ethernet Connect a suitable Ethernet cable (straight through Cat5 or Cat5e cable, RJ45 to RJ45) from a LAN socket on your router/network switch to the socket on the back of the Musaic Player. Do this before you turn the Player on.  2. Power up the Musaic Player Make sure the PSU is connected to the Musaic Player and to the mains and that the mains socket is turned on. The Standby/On LED should be red indicating Standby. Press the Standby/On button to turn the unit on. The LED will flash blue for up to a minute before starting to either flash alternately blue/red indicating the unit is fully powered up but not yet connected to a network or turn on blue if it connects straight away. The Player always looks for an Ethernet connection on power up. If it finds one the Player should automatically disable Wi-Fi and connect via Ethernet. The Standby/On LED on the top panel of the Player should turn fully on blue indicating the unit is now connected to your network.  Note: The Active Standby power consumption with Ethernet connected is slightly less than when using Wi-Fi as the Wi-Fi portion of the unit is powered down. You should now download the Musaic app to a phone/tablet or PC connected to your home network and see if you can control your Player. Note: You can change the default device name for your Player in the Settings section of the Musaic app (see page 7).  Note: The Musaic Players use DHCP by default, this is standard for most home networks where DHCP (Dynamic Host Control Protocol) or Dynamic IP is used to automatically assign a new device a new IP address.  To run a network with static IP, you can browse to the units IP address where you will find a web-served interface, here you can then click the ‘DHCP’ box to disable DHCP. You can then use a specific IP address, subnet mask, default gateway, primary DNS etc. Only do this if you have the knowledge to setup such a system.   To change between a previously setup Wi-Fi connection and Ethernet simply turn off the unit, plug in the Ethernet cable and turn it back on. To change between Ethernet and a previously setup Wi-Fi connection simply turn off the unit, remove the Ethernet cable and turn it back on. If you want to change from one Wi-Fi connection to another you can restart the connection process as follows. Make sure the unit is powered, turn it on from the top panel Standby/On button, wait a few seconds then press the small recessed Reset button on the back panel for one second. The network connections will be reset and you can start the setup process again as per the Getting Started section. Your presets/memories and other settings will be retained. To perform a full factory reset press and hold the Reset button for 15 seconds, all settings will now be reset see section on Factory Reset at end of this manual.

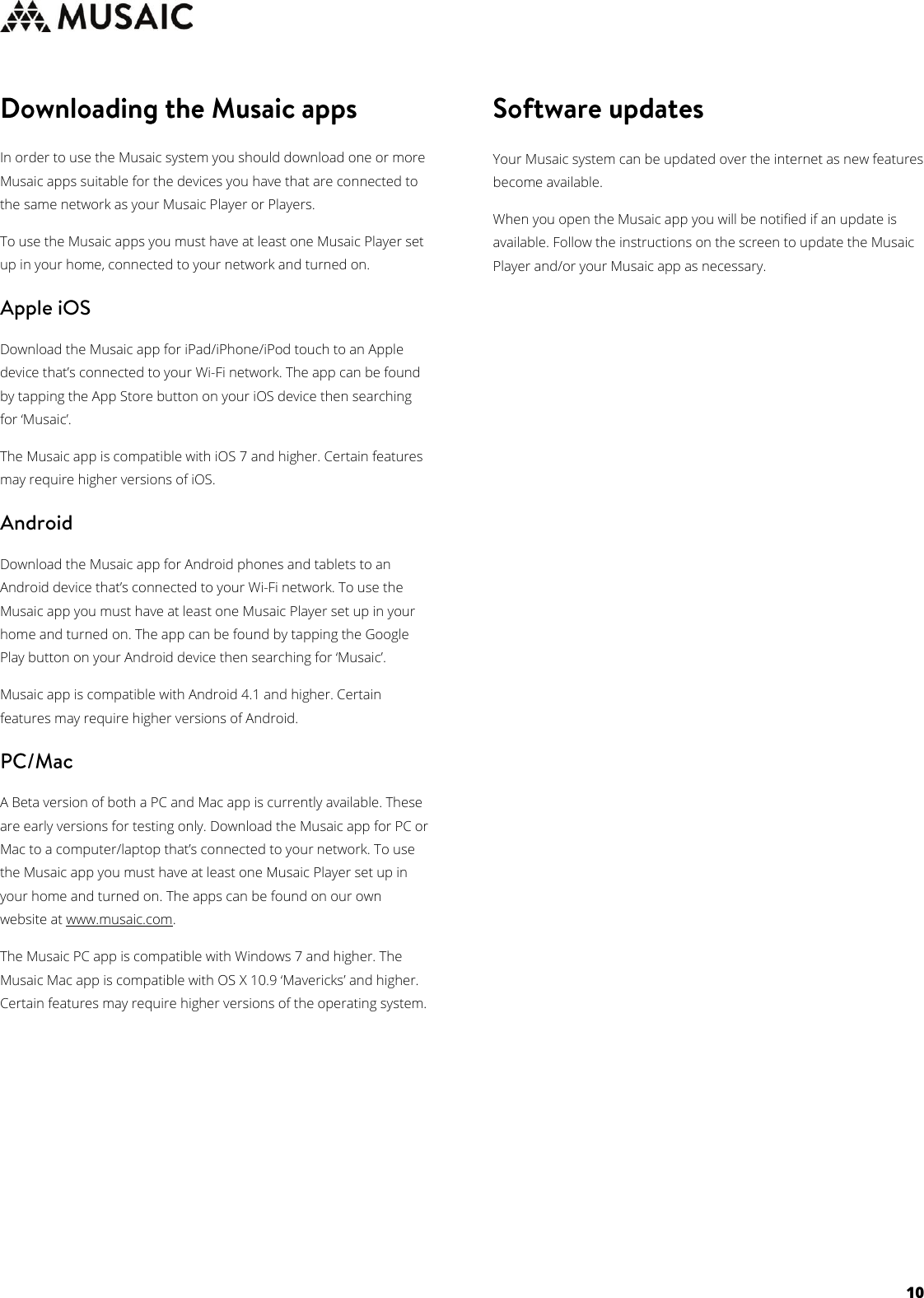

    10   In order to use the Musaic system you should download one or more Musaic apps suitable for the devices you have that are connected to the same network as your Musaic Player or Players.  To use the Musaic apps you must have at least one Musaic Player set up in your home, connected to your network and turned on.  Download the Musaic app for iPad/iPhone/iPod touch to an Apple device that’s connected to your Wi-Fi network. The app can be found by tapping the App Store button on your iOS device then searching for ‘Musaic’. The Musaic app is compatible with iOS 7 and higher. Certain features may require higher versions of iOS.  Download the Musaic app for Android phones and tablets to an Android device that’s connected to your Wi-Fi network. To use the Musaic app you must have at least one Musaic Player set up in your home and turned on. The app can be found by tapping the Google Play button on your Android device then searching for ‘Musaic’. Musaic app is compatible with Android 4.1 and higher. Certain features may require higher versions of Android.  A Beta version of both a PC and Mac app is currently available. These are early versions for testing only. Download the Musaic app for PC or Mac to a computer/laptop that’s connected to your network. To use the Musaic app you must have at least one Musaic Player set up in your home and turned on. The apps can be found on our own website at www.musaic.com.   The Musaic PC app is compatible with Windows 7 and higher. The Musaic Mac app is compatible with OS X 10.9 ‘Mavericks’ and higher. Certain features may require higher versions of the operating system.          Your Musaic system can be updated over the internet as new features become available. When you open the Musaic app you will be notified if an update is available. Follow the instructions on the screen to update the Musaic Player and/or your Musaic app as necessary.

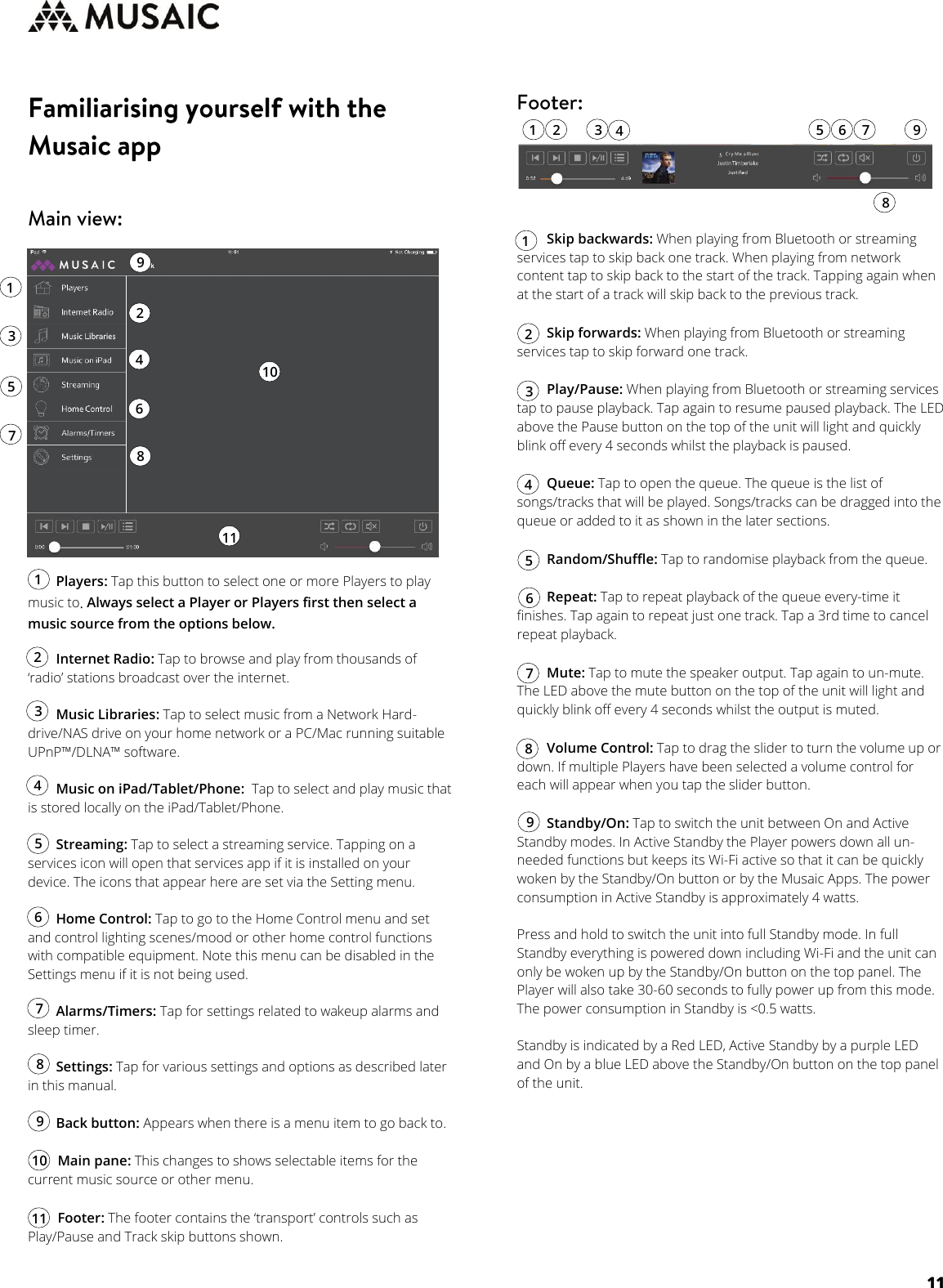

    11           Players: Tap this button to select one or more Players to play music to. Always select a Player or Players first then select a music source from the options below.         Internet Radio: Tap to browse and play from thousands of ‘radio’ stations broadcast over the internet.          Music Libraries: Tap to select music from a Network Hard-drive/NAS drive on your home network or a PC/Mac running suitable UPnP™/DLNA™ software.          Music on iPad/Tablet/Phone:  Tap to select and play music that is stored locally on the iPad/Tablet/Phone.          Streaming: Tap to select a streaming service. Tapping on a services icon will open that services app if it is installed on your device. The icons that appear here are set via the Setting menu.           Home Control: Tap to go to the Home Control menu and set and control lighting scenes/mood or other home control functions with compatible equipment. Note this menu can be disabled in the Settings menu if it is not being used.           Alarms/Timers: Tap for settings related to wakeup alarms and sleep timer.          Settings: Tap for various settings and options as described later in this manual.          Back button: Appears when there is a menu item to go back to.          Main pane: This changes to shows selectable items for the current music source or other menu.          Footer: The footer contains the ‘transport’ controls such as Play/Pause and Track skip buttons shown.                   Skip backwards: When playing from Bluetooth or streaming services tap to skip back one track. When playing from network content tap to skip back to the start of the track. Tapping again when at the start of a track will skip back to the previous track.           Skip forwards: When playing from Bluetooth or streaming services tap to skip forward one track.           Play/Pause: When playing from Bluetooth or streaming services tap to pause playback. Tap again to resume paused playback. The LED above the Pause button on the top of the unit will light and quickly blink off every 4 seconds whilst the playback is paused.          Queue: Tap to open the queue. The queue is the list of songs/tracks that will be played. Songs/tracks can be dragged into the queue or added to it as shown in the later sections.          Random/Shuffle: Tap to randomise playback from the queue.          Repeat: Tap to repeat playback of the queue every-time it finishes. Tap again to repeat just one track. Tap a 3rd time to cancel repeat playback.          Mute: Tap to mute the speaker output. Tap again to un-mute. The LED above the mute button on the top of the unit will light and quickly blink off every 4 seconds whilst the output is muted.          Volume Control: Tap to drag the slider to turn the volume up or down. If multiple Players have been selected a volume control for each will appear when you tap the slider button.          Standby/On: Tap to switch the unit between On and Active Standby modes. In Active Standby the Player powers down all un-needed functions but keeps its Wi-Fi active so that it can be quickly woken by the Standby/On button or by the Musaic Apps. The power consumption in Active Standby is approximately 4 watts.   Press and hold to switch the unit into full Standby mode. In full Standby everything is powered down including Wi-Fi and the unit can only be woken up by the Standby/On button on the top panel. The Player will also take 30-60 seconds to fully power up from this mode. The power consumption in Standby is <0.5 watts.   Standby is indicated by a Red LED, Active Standby by a purple LED and On by a blue LED above the Standby/On button on the top panel of the unit.      1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 9 8 9 10 10 11 11 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9

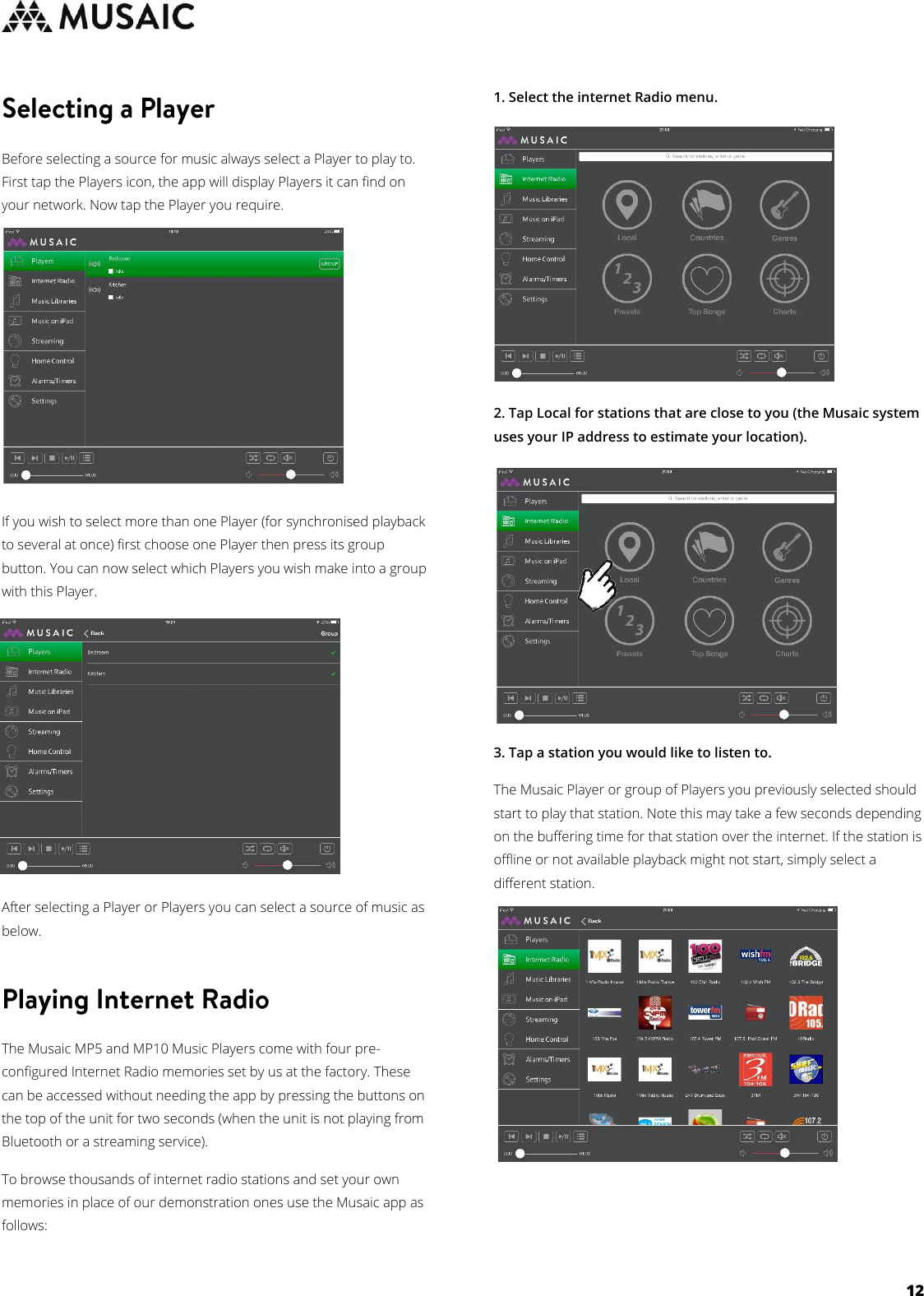

    12   Before selecting a source for music always select a Player to play to. First tap the Players icon, the app will display Players it can find on your network. Now tap the Player you require.         If you wish to select more than one Player (for synchronised playback to several at once) first choose one Player then press its group button. You can now select which Players you wish make into a group with this Player.         After selecting a Player or Players you can select a source of music as below.  The Musaic MP5 and MP10 Music Players come with four pre-configured Internet Radio memories set by us at the factory. These can be accessed without needing the app by pressing the buttons on the top of the unit for two seconds (when the unit is not playing from Bluetooth or a streaming service). To browse thousands of internet radio stations and set your own memories in place of our demonstration ones use the Musaic app as follows:  1. Select the internet Radio menu.         2. Tap Local for stations that are close to you (the Musaic system uses your IP address to estimate your location).         3. Tap a station you would like to listen to.  The Musaic Player or group of Players you previously selected should start to play that station. Note this may take a few seconds depending on the buffering time for that station over the internet. If the station is offline or not available playback might not start, simply select a different station.

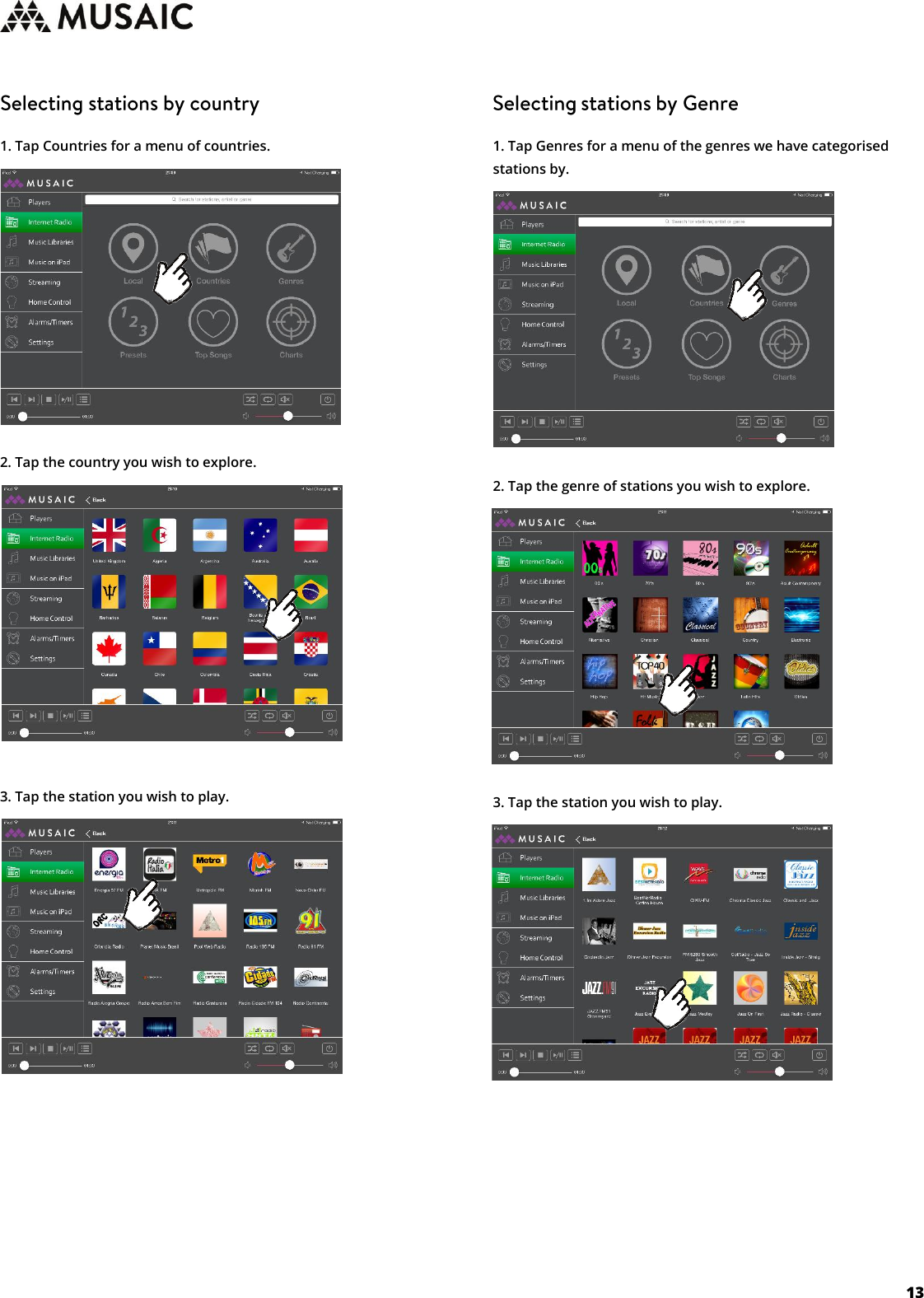

    13   1. Tap Countries for a menu of countries.         2. Tap the country you wish to explore.         3. Tap the station you wish to play.                1. Tap Genres for a menu of the genres we have categorised stations by.         2. Tap the genre of stations you wish to explore.         3. Tap the station you wish to play.
    14   To set an Internet Radio preset simply find a station in the normal way (i.e. browse Internet Radio by Country or Genre etc.) then press and hold that station’s button in the main viewing pane for four seconds.         A menu will pop up as shown where you can select which preset to store that station in. Initially there will be four presets (which will contain our default preset stations). You can simply select these to overwrite the stored station. You can also add/remove preset slots by tapping ‘Add Preset’ or ‘Remove preset’  this creates/removes a new preset for use up to a limit of 18 presets.  Presets 1-4 are always available from the top panel of the unit,  To reset all the stations back to the default preset values and reset all other settings use the reset to factory default option as described at the end of this manual.  Musaic works with your home network to play music from NAS drives, Macs or PCs which have a UPnP™/DLNA™ server installed. A NAS (Network Attached Storage) drive is a stand-alone, always-on, networked hard-drive that has such a server pre-installed. These drives allow an always available music library for the whole home.  Alternatively it is possible to run a server on a Mac or Windows PC (desktop or laptop) and achieve the same functionality. The only downside of this approach is that the desktop/laptop will need to be on for its music library to be available to the Musaic units in your house. Windows PCs generally include a free UPnP server built in, this functionality is turned off by default but can be easily turned on.  See our website for more details on NAS drives, how to turn on the server functionality for Windows PCs and for help on installing servers in general. To play from a music library on a suitable server first select the Music Libraries menu in the Musaic app.         The Musaic system allows music to be selected in various ways and added to a playback queue as below.  1. Tap Albums         2. Select an album to play by pressing and holding on an album cover then dragging it to the Queue button as shown.         To add further albums to the Queue simple repeat the process.

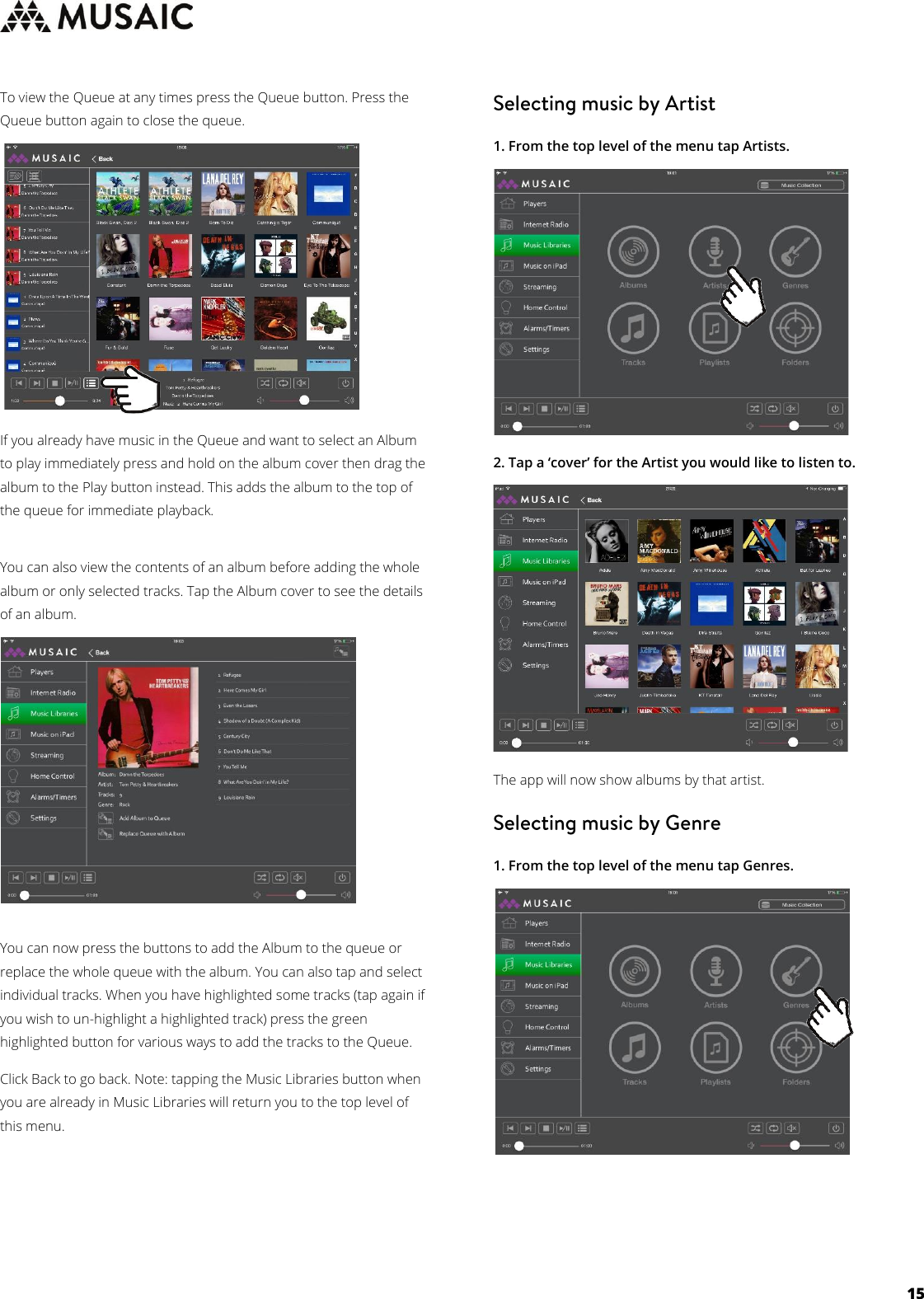

    15  To view the Queue at any times press the Queue button. Press the Queue button again to close the queue.          If you already have music in the Queue and want to select an Album to play immediately press and hold on the album cover then drag the album to the Play button instead. This adds the album to the top of the queue for immediate playback.  You can also view the contents of an album before adding the whole album or only selected tracks. Tap the Album cover to see the details of an album.          You can now press the buttons to add the Album to the queue or replace the whole queue with the album. You can also tap and select individual tracks. When you have highlighted some tracks (tap again if you wish to un-highlight a highlighted track) press the green highlighted button for various ways to add the tracks to the Queue.  Click Back to go back. Note: tapping the Music Libraries button when you are already in Music Libraries will return you to the top level of this menu.     1. From the top level of the menu tap Artists.         2. Tap a ‘cover’ for the Artist you would like to listen to.           The app will now show albums by that artist.   1. From the top level of the menu tap Genres.

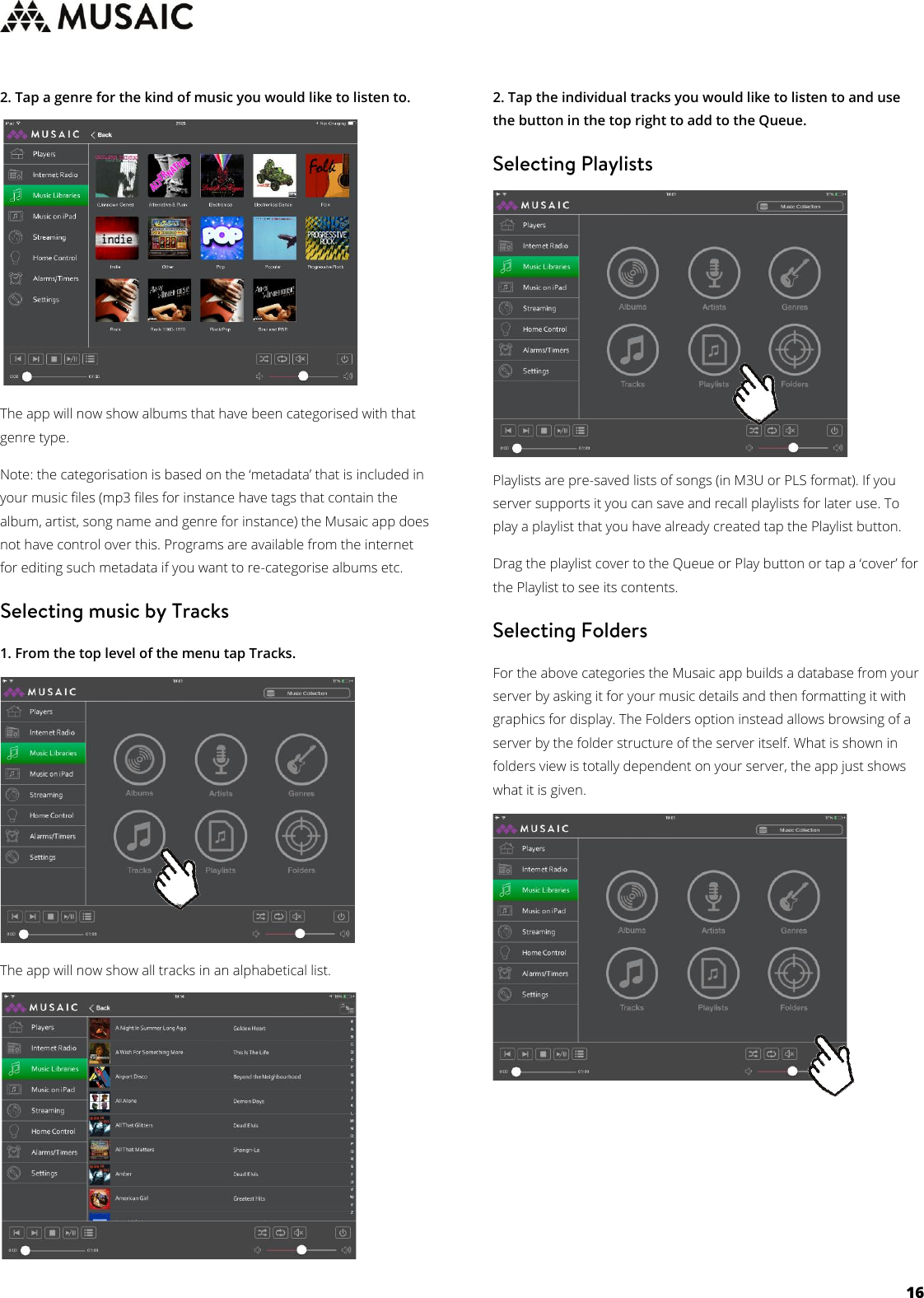

    16  2. Tap a genre for the kind of music you would like to listen to.          The app will now show albums that have been categorised with that genre type.  Note: the categorisation is based on the ‘metadata’ that is included in your music files (mp3 files for instance have tags that contain the album, artist, song name and genre for instance) the Musaic app does not have control over this. Programs are available from the internet for editing such metadata if you want to re-categorise albums etc.  1. From the top level of the menu tap Tracks.         The app will now show all tracks in an alphabetical list.          2. Tap the individual tracks you would like to listen to and use the button in the top right to add to the Queue.  Playlists are pre-saved lists of songs (in M3U or PLS format). If you server supports it you can save and recall playlists for later use. To play a playlist that you have already created tap the Playlist button. Drag the playlist cover to the Queue or Play button or tap a ‘cover’ for the Playlist to see its contents.   For the above categories the Musaic app builds a database from your server by asking it for your music details and then formatting it with graphics for display. The Folders option instead allows browsing of a server by the folder structure of the server itself. What is shown in folders view is totally dependent on your server, the app just shows what it is given.

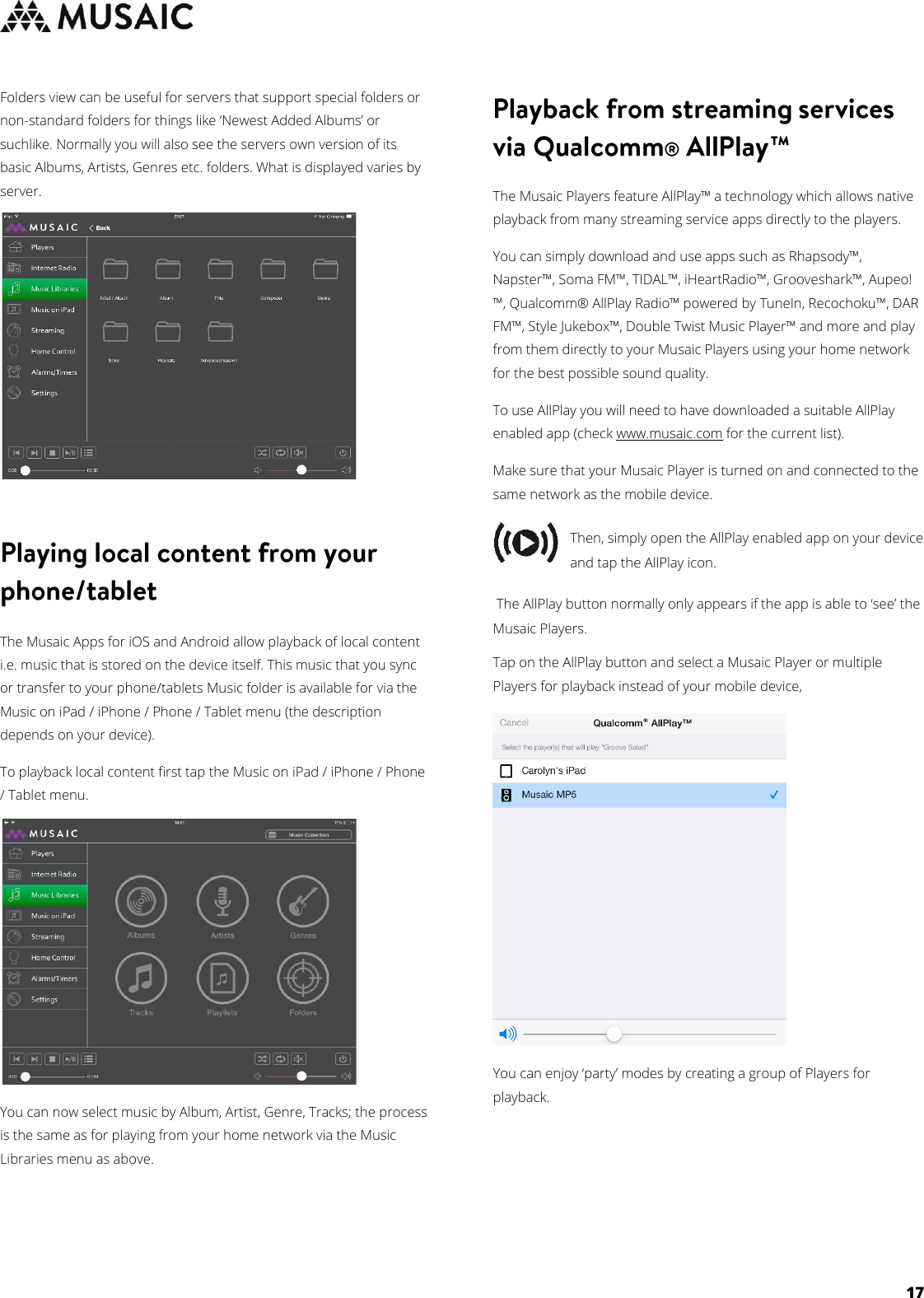

    17  Folders view can be useful for servers that support special folders or non-standard folders for things like ‘Newest Added Albums’ or suchlike. Normally you will also see the servers own version of its basic Albums, Artists, Genres etc. folders. What is displayed varies by server.          The Musaic Apps for iOS and Android allow playback of local content i.e. music that is stored on the device itself. This music that you sync or transfer to your phone/tablets Music folder is available for via the Music on iPad / iPhone / Phone / Tablet menu (the description depends on your device). To playback local content first tap the Music on iPad / iPhone / Phone / Tablet menu.         You can now select music by Album, Artist, Genre, Tracks; the process is the same as for playing from your home network via the Music Libraries menu as above.     The Musaic Players feature AllPlay™ a technology which allows native playback from many streaming service apps directly to the players. You can simply download and use apps such as Rhapsody™, Napster™, Soma FM™, TIDAL™, iHeartRadio™, Grooveshark™, Aupeo! ™, Qualcomm® AllPlay Radio™ powered by TuneIn, Recochoku™, DAR FM™, Style Jukebox™, Double Twist Music Player™ and more and play from them directly to your Musaic Players using your home network for the best possible sound quality. To use AllPlay you will need to have downloaded a suitable AllPlay enabled app (check www.musaic.com for the current list). Make sure that your Musaic Player is turned on and connected to the same network as the mobile device. Then, simply open the AllPlay enabled app on your device and tap the AllPlay icon.  The AllPlay button normally only appears if the app is able to ‘see’ the Musaic Players. Tap on the AllPlay button and select a Musaic Player or multiple Players for playback instead of your mobile device,  You can enjoy ‘party’ modes by creating a group of Players for playback.

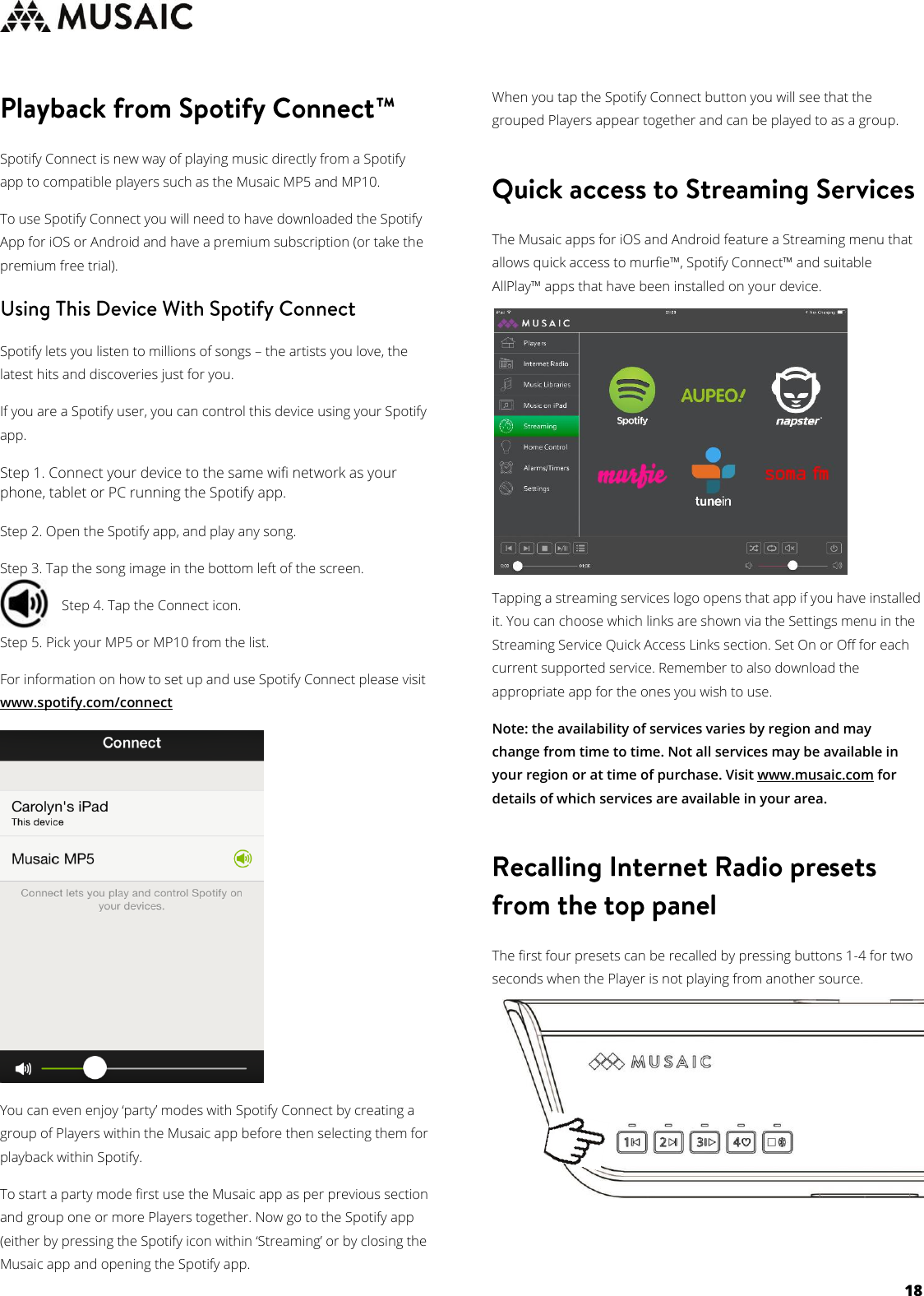

    18   Spotify Connect is new way of playing music directly from a Spotify app to compatible players such as the Musaic MP5 and MP10. To use Spotify Connect you will need to have downloaded the Spotify App for iOS or Android and have a premium subscription (or take the premium free trial).  Spotify lets you listen to millions of songs – the artists you love, the latest hits and discoveries just for you. If you are a Spotify user, you can control this device using your Spotify app. Step 1. Connect your device to the same wifi network as your phone, tablet or PC running the Spotify app.  Step 2. Open the Spotify app, and play any song. Step 3. Tap the song image in the bottom left of the screen.  Step 4. Tap the Connect icon.  Step 5. Pick your MP5 or MP10 from the list. For information on how to set up and use Spotify Connect please visit www.spotify.com/connect   You can even enjoy ‘party’ modes with Spotify Connect by creating a group of Players within the Musaic app before then selecting them for playback within Spotify. To start a party mode first use the Musaic app as per previous section and group one or more Players together. Now go to the Spotify app (either by pressing the Spotify icon within ‘Streaming’ or by closing the Musaic app and opening the Spotify app. When you tap the Spotify Connect button you will see that the grouped Players appear together and can be played to as a group.   The Musaic apps for iOS and Android feature a Streaming menu that allows quick access to murfie™, Spotify Connect™ and suitable AllPlay™ apps that have been installed on your device.         Tapping a streaming services logo opens that app if you have installed it. You can choose which links are shown via the Settings menu in the Streaming Service Quick Access Links section. Set On or Off for each current supported service. Remember to also download the appropriate app for the ones you wish to use. Note: the availability of services varies by region and may change from time to time. Not all services may be available in your region or at time of purchase. Visit www.musaic.com for details of which services are available in your area.  The first four presets can be recalled by pressing buttons 1-4 for two seconds when the Player is not playing from another source.

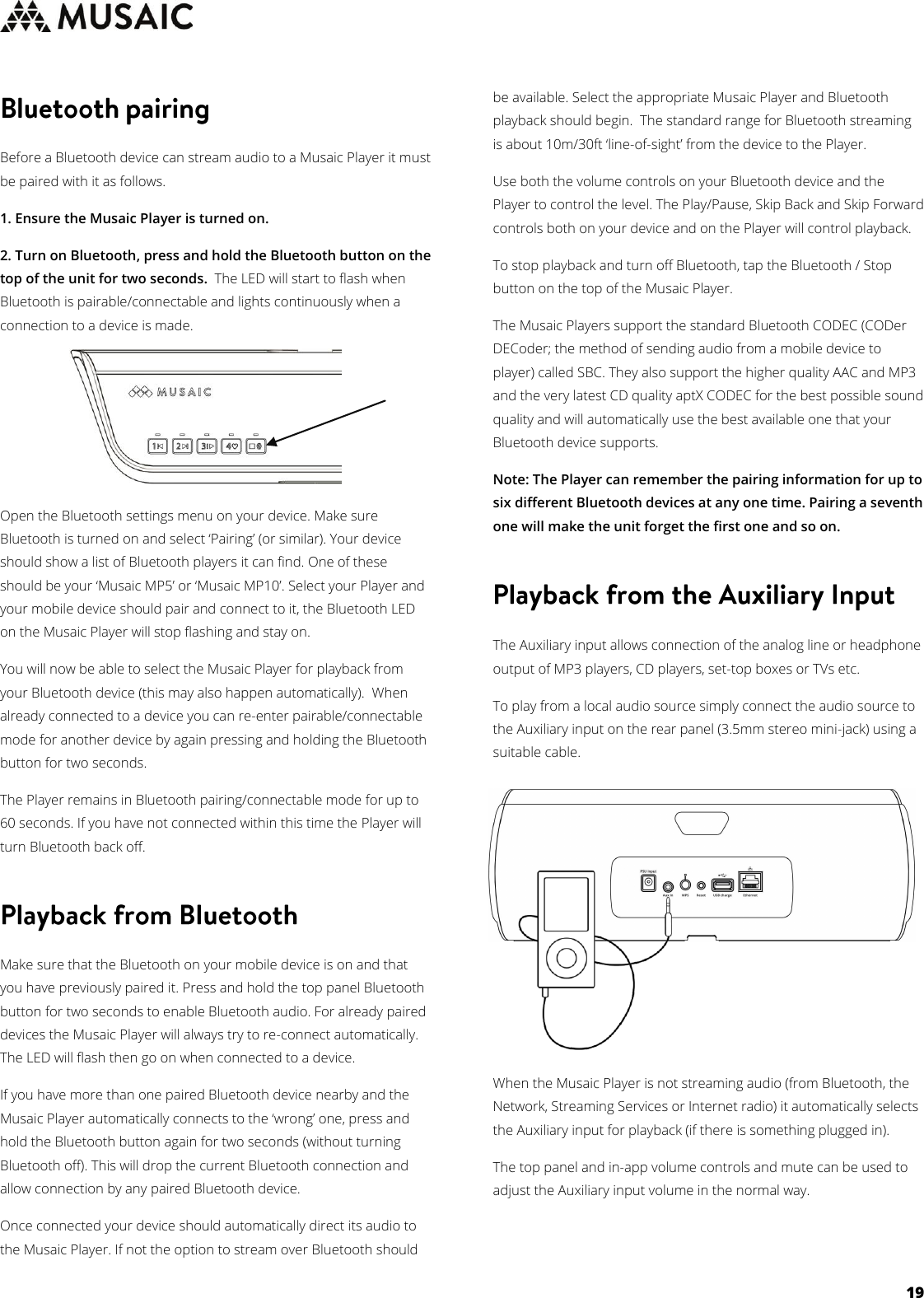

    19   Before a Bluetooth device can stream audio to a Musaic Player it must be paired with it as follows. 1. Ensure the Musaic Player is turned on. 2. Turn on Bluetooth, press and hold the Bluetooth button on the top of the unit for two seconds.  The LED will start to flash when Bluetooth is pairable/connectable and lights continuously when a connection to a device is made. Open the Bluetooth settings menu on your device. Make sure Bluetooth is turned on and select ‘Pairing’ (or similar). Your device should show a list of Bluetooth players it can find. One of these should be your ‘Musaic MP5’ or ‘Musaic MP10’. Select your Player and your mobile device should pair and connect to it, the Bluetooth LED on the Musaic Player will stop flashing and stay on.   You will now be able to select the Musaic Player for playback from your Bluetooth device (this may also happen automatically).  When already connected to a device you can re-enter pairable/connectable mode for another device by again pressing and holding the Bluetooth button for two seconds. The Player remains in Bluetooth pairing/connectable mode for up to 60 seconds. If you have not connected within this time the Player will turn Bluetooth back off.  Make sure that the Bluetooth on your mobile device is on and that you have previously paired it. Press and hold the top panel Bluetooth button for two seconds to enable Bluetooth audio. For already paired devices the Musaic Player will always try to re-connect automatically. The LED will flash then go on when connected to a device. If you have more than one paired Bluetooth device nearby and the Musaic Player automatically connects to the ‘wrong’ one, press and hold the Bluetooth button again for two seconds (without turning Bluetooth off). This will drop the current Bluetooth connection and allow connection by any paired Bluetooth device. Once connected your device should automatically direct its audio to the Musaic Player. If not the option to stream over Bluetooth should be available. Select the appropriate Musaic Player and Bluetooth playback should begin.  The standard range for Bluetooth streaming is about 10m/30ft ‘line-of-sight’ from the device to the Player. Use both the volume controls on your Bluetooth device and the Player to control the level. The Play/Pause, Skip Back and Skip Forward controls both on your device and on the Player will control playback. To stop playback and turn off Bluetooth, tap the Bluetooth / Stop button on the top of the Musaic Player. The Musaic Players support the standard Bluetooth CODEC (CODer DECoder; the method of sending audio from a mobile device to player) called SBC. They also support the higher quality AAC and MP3 and the very latest CD quality aptX CODEC for the best possible sound quality and will automatically use the best available one that your Bluetooth device supports. Note: The Player can remember the pairing information for up to six different Bluetooth devices at any one time. Pairing a seventh one will make the unit forget the first one and so on.  The Auxiliary input allows connection of the analog line or headphone output of MP3 players, CD players, set-top boxes or TVs etc. To play from a local audio source simply connect the audio source to the Auxiliary input on the rear panel (3.5mm stereo mini-jack) using a suitable cable.    When the Musaic Player is not streaming audio (from Bluetooth, the Network, Streaming Services or Internet radio) it automatically selects the Auxiliary input for playback (if there is something plugged in). The top panel and in-app volume controls and mute can be used to adjust the Auxiliary input volume in the normal way.
    20  Note: Starting any form of streaming audio always takes priority and causes the Musaic Player to automatically switch away from Auxiliary input to that streaming source.  To return to Auxiliary input playback simply stop the streaming playback (tap the Stop button) and the Musaic Player will return to the Auxiliary input.   The Musaic Players feature Bluetooth as well as two Network Ports: Wi-Fi and Ethernet. To save power the Bluetooth section is only powered up when the Bluetooth function is turned on using the dedicated Bluetooth button. Turning off Bluetooth via this button will power down the Bluetooth section completely.  Because the Musaic Players primary function is as an always available network connected device it normally always requires an active Network Port. Tapping the top panel Standby/On button switches the Player between On (indicated by a blue LED) and Networked Standby (indicated by a purple LED). In Networked Standby the Player powers down all unused functions but keeps one Network Port powered.  In this mode the active Network Port allows the Player to be remotely triggered to wake up and respond to commands from Apps, it can also receive and generate home automation commands over the network and perform other primary functions.To save power only one of the Network Ports is powered at a time. The choice of whether the Ethernet or Wi-Fi Network Port is used is mutually exclusive and is simply made by whether or not an active Ethernet connection is plugged in. If Ethernet is plugged in Wi-Fi will be powered down. If Ethernet is not plugged in unit will power up Wi-Fi and Ethernet will be powered down. To further help to save power the Musaic Players also feature Auto Power Down. If no user activity or audio playback is detected for 20 minutes the Players will automatically go to Networked Standby. In all modes if you wish to turn off all Networks Ports and put the unit into full Standby simply press and hold the top panel Standby/On button for four seconds. Full Standby is indicated by a red LED, in this mode the unit will only be able to be woken back up from the top panel Standby/On button and all App control, home automation and other primary functions will be disabled. Note: In addition to the above, if no Network connection can be found at all (no IP address is obtained from your network using the active Network Port) and there is no user activity (button presses or playback from Aux or Bluetooth) the unit will go to full Standby mode after 20 minutes.  The Musaic Players and apps are able to control lighting systems from LightwaveRF and Philips Hue. Compatibility with further systems will be announced soon. Go to www.musaic.com to see the latest list of compatible devices. A downloadable ‘Guide to the setup of Home Control’ is available via the Musaic website at www.musaic.com. With compatible systems the Musaic Players can turn on and off your lights, raise and lower their levels and set and recall lighting scenes/moods (i.e. saved settings for multiple lights) all from the top panel buttons or the Musaic apps. These are accessed by tapping the Lighting/Home Control button, the LED lights up to show Home Control mode is active. The preset buttons (1-4) perform scene/mood recall, the X button performs Off, - and + perform raise/lower and The Standby/On button performs On. The Home Control mode automatically cancels itself after no activity for six seconds. You can also assign a lighting scene/mood to your wake-up alarm with a slow turn on time so that you are gently woken by the lights coming up and an Internet Radio starting to play. More features will be announced as they become available. See the ‘Guide to the setup of Home Control’ for details of the current options.  WARNING! This will clear the saved network information and the paired Bluetooth devices list, reset the name of the unit and change the Internet Radio presets back to the factory defined settings. To reset your Musaic Player back to its factory defaults follow the steps below: 1. Turn On the unit as usual. 2. Press and hold the Reset button on the back panel for fifteen seconds. The Player will now restore the factory settings and power off before powering back up in a default state. All Internet Radio presets will be set to their defaults and all settings reset. This will take approximately 60 seconds. You will then need to connect the Player to your network. See the connections section at the start of this manual.

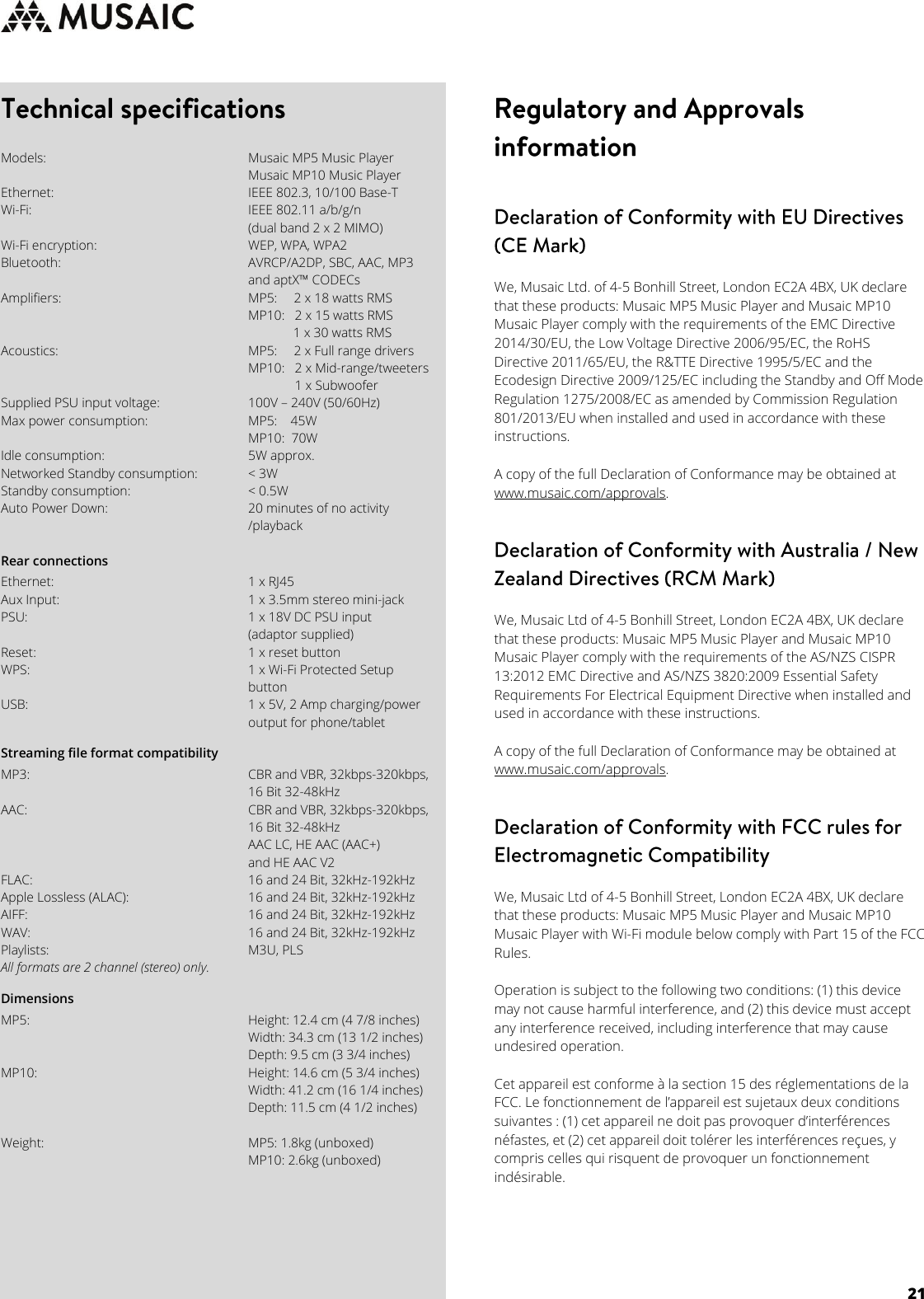

    21   Models:        Musaic MP5 Music Player Musaic MP10 Music Player Ethernet:        IEEE 802.3, 10/100 Base-T  Wi-Fi:        IEEE 802.11 a/b/g/n  (dual band 2 x 2 MIMO) Wi-Fi encryption:       WEP, WPA, WPA2 Bluetooth:  AVRCP/A2DP, SBC, AAC, MP3 and aptX™ CODECs Amplifiers:       MP5:     2 x 18 watts RMS         MP10:   2 x 15 watts RMS                                       1 x 30 watts RMS Acoustics:    MP5:     2 x Full range drivers MP10:   2 x Mid-range/tweeters                       1 x Subwoofer Supplied PSU input voltage:     100V – 240V (50/60Hz) Max power consumption:    MP5:    45W         MP10:  70W Idle consumption:      5W approx. Networked Standby consumption:   < 3W Standby consumption:    < 0.5W Auto Power Down:  20 minutes of no activity /playback  Rear connections  Ethernet:        1 x RJ45 Aux Input:       1 x 3.5mm stereo mini-jack  PSU:        1 x 18V DC PSU input  (adaptor supplied) Reset:        1 x reset button WPS:  1 x Wi-Fi Protected Setup button USB:  1 x 5V, 2 Amp charging/power output for phone/tablet Streaming file format compatibility  MP3:      CBR and VBR, 32kbps-320kbps,  16 Bit 32-48kHz AAC:      CBR and VBR, 32kbps-320kbps,         16 Bit 32-48kHz AAC LC, HE AAC (AAC+)  and HE AAC V2 FLAC:        16 and 24 Bit, 32kHz-192kHz Apple Lossless (ALAC):    16 and 24 Bit, 32kHz-192kHz AIFF:        16 and 24 Bit, 32kHz-192kHz   WAV:        16 and 24 Bit, 32kHz-192kHz Playlists:        M3U, PLS All formats are 2 channel (stereo) only. Dimensions  MP5:        Height: 12.4 cm (4 7/8 inches) Width: 34.3 cm (13 1/2 inches) Depth: 9.5 cm (3 3/4 inches) MP10:        Height: 14.6 cm (5 3/4 inches) Width: 41.2 cm (16 1/4 inches) Depth: 11.5 cm (4 1/2 inches)  Weight:        MP5: 1.8kg (unboxed)         MP10: 2.6kg (unboxed)   We, Musaic Ltd. of 4-5 Bonhill Street, London EC2A 4BX, UK declare that these products: Musaic MP5 Music Player and Musaic MP10 Musaic Player comply with the requirements of the EMC Directive 2014/30/EU, the Low Voltage Directive 2006/95/EC, the RoHS Directive 2011/65/EU, the R&TTE Directive 1995/5/EC and the Ecodesign Directive 2009/125/EC including the Standby and Off Mode Regulation 1275/2008/EC as amended by Commission Regulation 801/2013/EU when installed and used in accordance with these instructions.  A copy of the full Declaration of Conformance may be obtained at www.musaic.com/approvals.    We, Musaic Ltd of 4-5 Bonhill Street, London EC2A 4BX, UK declare that these products: Musaic MP5 Music Player and Musaic MP10 Musaic Player comply with the requirements of the AS/NZS CISPR 13:2012 EMC Directive and AS/NZS 3820:2009 Essential Safety Requirements For Electrical Equipment Directive when installed and used in accordance with these instructions.  A copy of the full Declaration of Conformance may be obtained at www.musaic.com/approvals.    We, Musaic Ltd of 4-5 Bonhill Street, London EC2A 4BX, UK declare that these products: Musaic MP5 Music Player and Musaic MP10 Musaic Player with Wi-Fi module below comply with Part 15 of the FCC Rules.  Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d’interférences néfastes, et (2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable.
    22     Model: MP5 FCC ID: XCO-MUSAIC1401 IC: 7756A-MUSAIC1401  Model: MP10 FCC ID: XCO-MUSAIC1401 IC: 7756A-MUSAIC1401  Contain Wi-Fi Module: FCC ID: PPD-CUS227 IC: 4104A-CUS227  This radio has been approved by the FCC and Industry Canada to operate with the antenna types fitted inside the unit only (Part WPB214). These have been specified to be below the maximum permissible gain and have the correct required antenna impedance. Any other Antenna types are strictly prohibited for use with this device.   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.   This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   Re-orient or relocate the receiving antenna  Increase the separation between the equipment and the receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help.  FCC Caution: Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.   This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment.   This equipment should be installed and operated with a minimum distance of 20cm (8 inches) between the radiator and your body.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  This device complies with Industry Canada license-exempt RSS standard(s).  Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  The device due to its operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.  Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.   The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate.  Be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.   Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence.   L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.  Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.   Le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et 5470-5725 MHz doivent respecter le pire

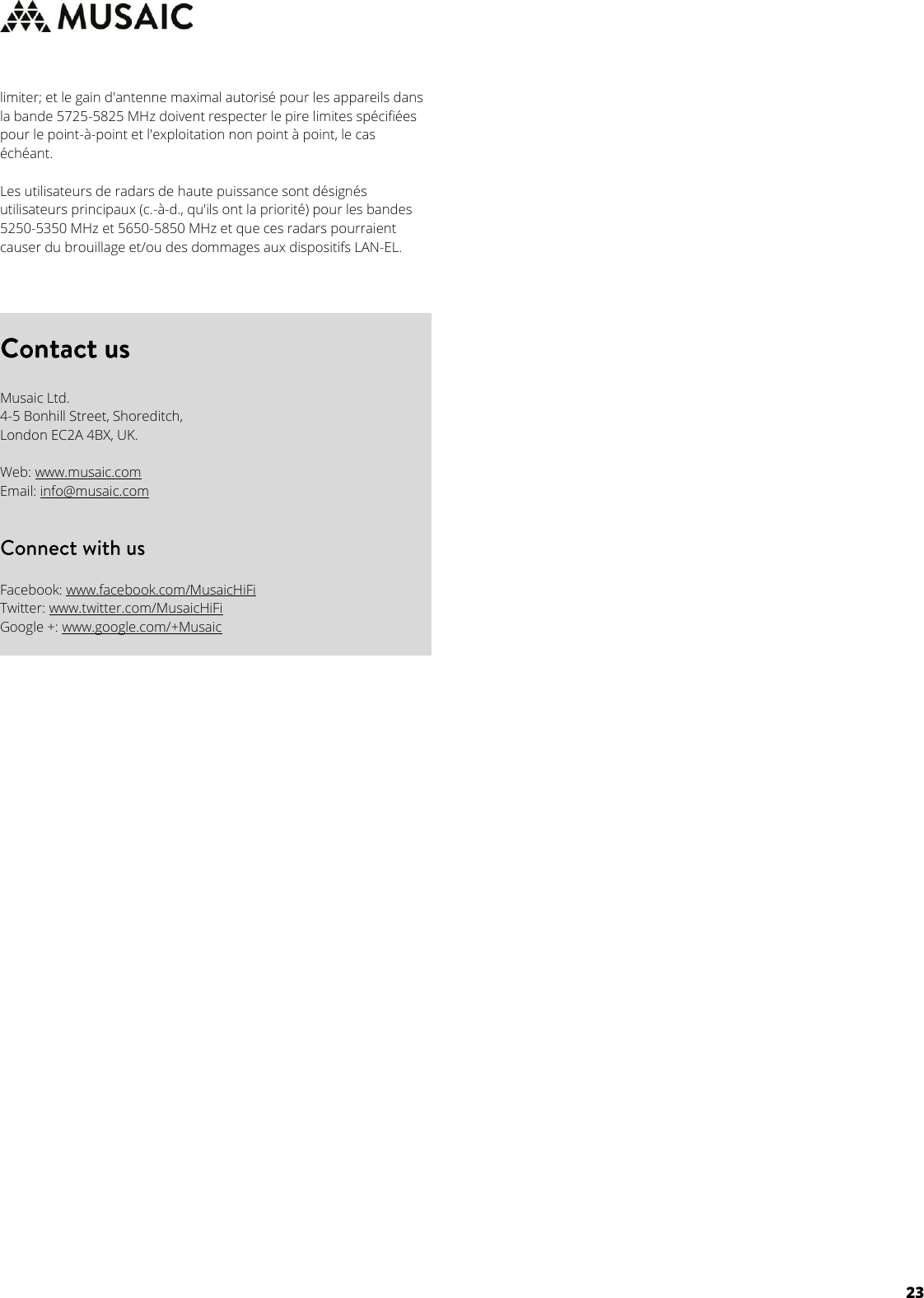

    23  limiter; et le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent respecter le pire limites spécifiées pour le point-à-point et l'exploitation non point à point, le cas échéant.  Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.    Musaic Ltd. 4-5 Bonhill Street, Shoreditch,  London EC2A 4BX, UK.  Web: www.musaic.com  Email: info@musaic.com    Facebook: www.facebook.com/MusaicHiFi Twitter: www.twitter.com/MusaicHiFi Google +: www.google.com/+Musaic
