Hansong VIFANORDIC Active Wireless Loudspeaker User Manual VIFA010 Rev2

Hansong(Nanjing) Technology Ltd. Active Wireless Loudspeaker VIFA010 Rev2

Contents

User Manual - VIFA010-Rev2

COPENHAGEN owner’s manual
2

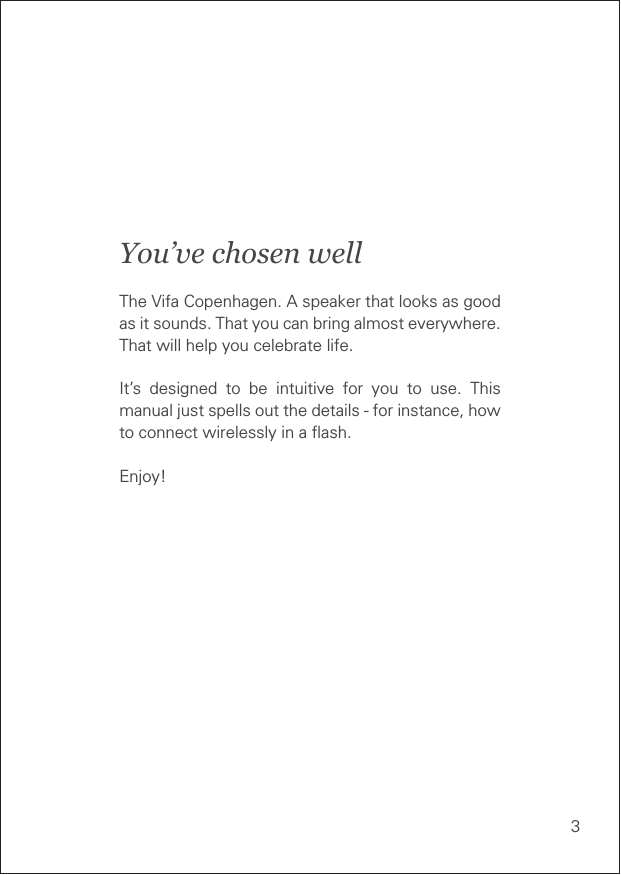

3You’ve chosen wellThe Vifa Copenhagen. A speaker that looks as good as it sounds. That you can bring almost everywhere. That will help you celebrate life.It’s designed to be intuitive for you to use. This manual just spells out the details - for instance, how to connect wirelessly in a flash.Enjoy!
4

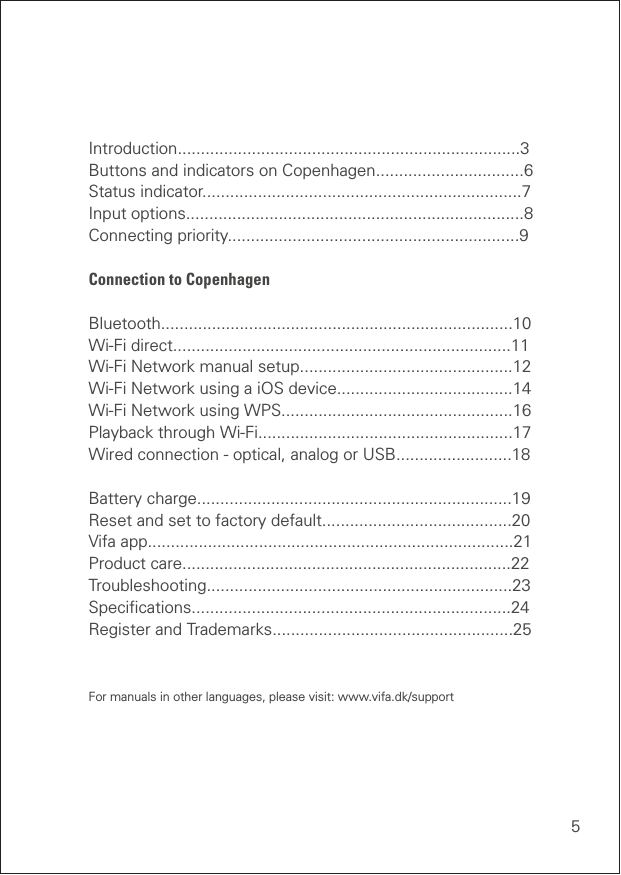

5Introduction..........................................................................3 Buttons and indicators on Copenhagen................................6 Status indicator.....................................................................7 Input options.........................................................................8 Connecting priority...............................................................9Connection to CopenhagenBluetooth............................................................................10 Wi-Fi direct.........................................................................11 Wi-Fi Network manual setup..............................................12 Wi-Fi Network using a iOS device......................................14 Wi-Fi Network using WPS..................................................16 Playback through Wi-Fi.......................................................17 Wired connection - optical, analog or USB.........................18Battery charge....................................................................19 Reset and set to factory default.........................................20 Vifa app...............................................................................21 Product care.......................................................................22 Troubleshooting..................................................................23 Specifications.....................................................................24 Register and Trademarks....................................................25 For manuals in other languages, please visit: www.vifa.dk/support

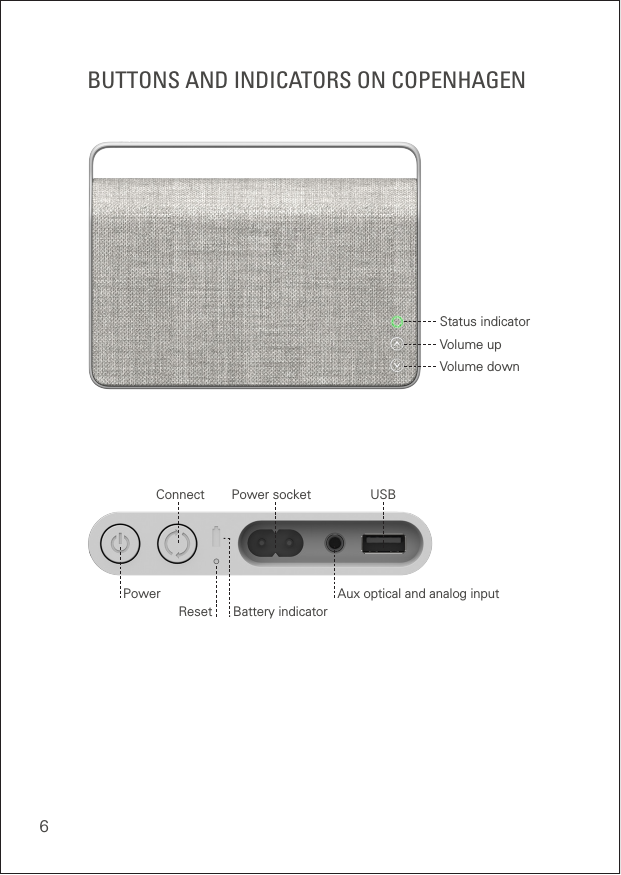

6BUTTONS AND INDICATORS ON COPENHAGENBattery indicatorPower socketConnectPowerResetAux optical and analog inputUSB Volume downVolume upStatus indicator

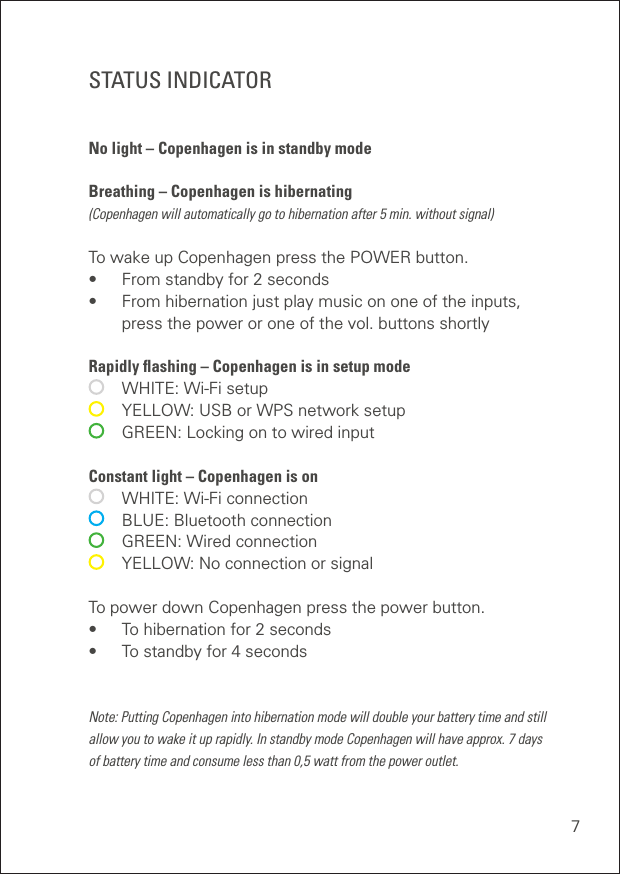

7STATUS INDICATORNo light – Copenhagen is in standby mode Breathing – Copenhagen is hibernating (Copenhagen will automatically go to hibernation after 5 min. without signal) To wake up Copenhagen press the POWER button. • From standby for 2 seconds • From hibernation just play music on one of the inputs, press the power or one of the vol. buttons shortly Rapidly flashing – Copenhagen is in setup mode WHITE: Wi-Fi setup YELLOW: USB or WPS network setup GREEN: Locking on to wired input Constant light – Copenhagen is on WHITE: Wi-Fi connection BLUE: Bluetooth connection GREEN: Wired connection YELLOW: No connection or signalTo power down Copenhagen press the power button.• To hibernation for 2 seconds • To standby for 4 secondsNote: Putting Copenhagen into hibernation mode will double your battery time and still allow you to wake it up rapidly. In standby mode Copenhagen will have approx. 7 days of battery time and consume less than 0,5 watt from the power outlet.

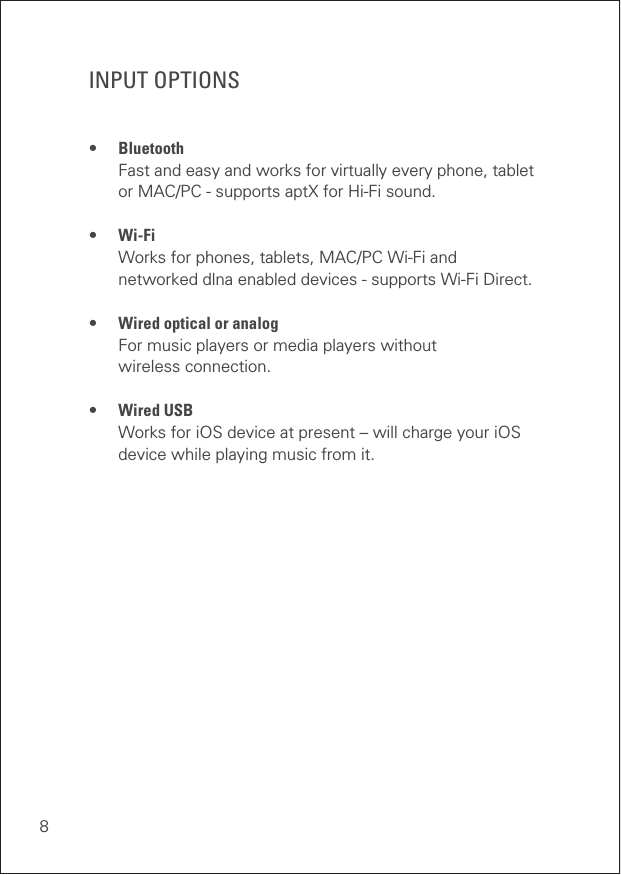

8INPUT OPTIONS• Bluetooth Fast and easy and works for virtually every phone, tablet or MAC/PC - supports aptX for Hi-Fi sound. • Wi-Fi Works for phones, tablets, MAC/PC Wi-Fi and networked dlna enabled devices - supports Wi-Fi Direct. • Wired optical or analog For music players or media players without wireless connection. • Wired USB Works for iOS device at present – will charge your iOS device while playing music from it.

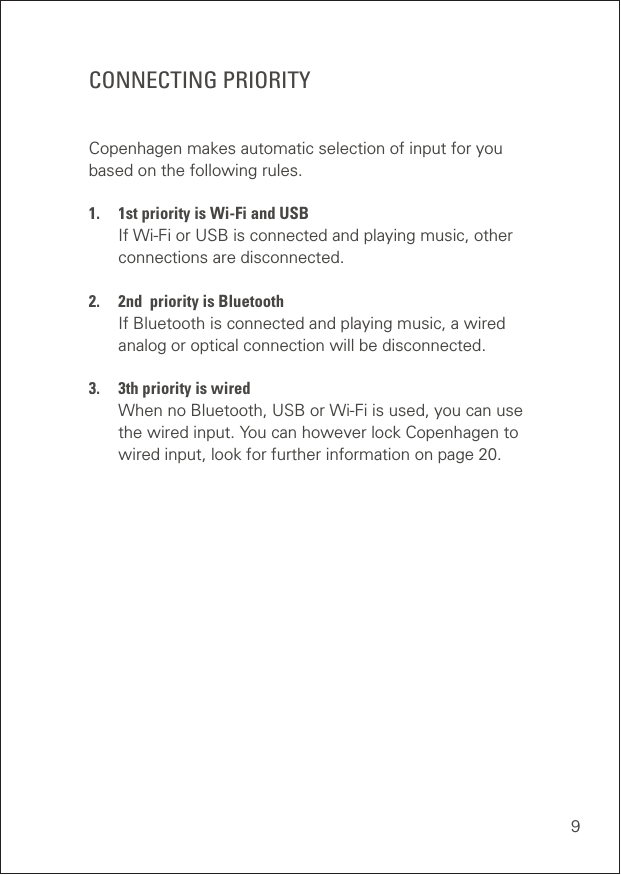

9CONNECTING PRIORITYCopenhagen makes automatic selection of input for you based on the following rules. 1. 1st priority is Wi-Fi and USB If Wi-Fi or USB is connected and playing music, other connections are disconnected. 2. 2nd priority is Bluetooth If Bluetooth is connected and playing music, a wired analog or optical connection will be disconnected. 3. 3th priority is wired When no Bluetooth, USB or Wi-Fi is used, you can use the wired input. You can however lock Copenhagen to wired input, look for further information on page 20.

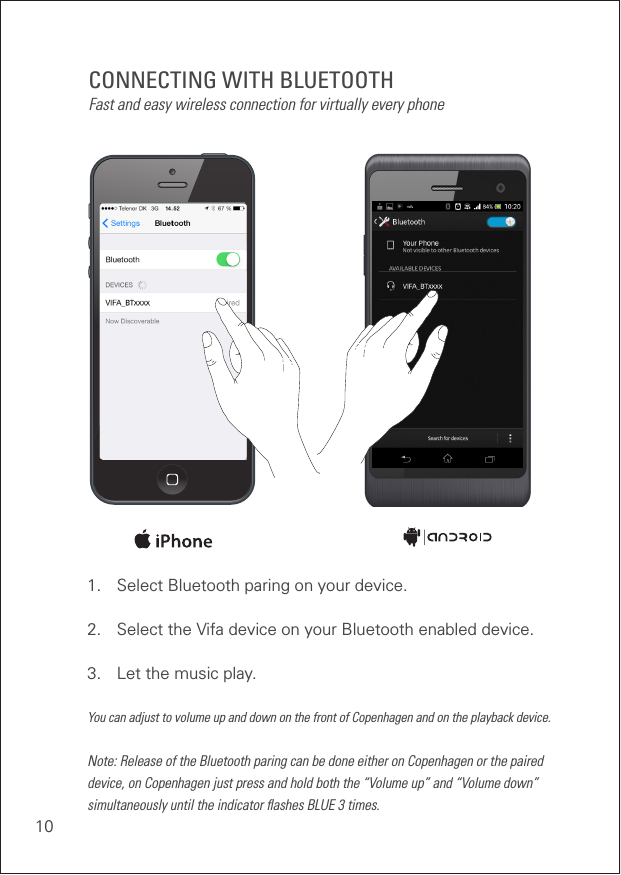

10CONNECTING WITH BLUETOOTHFast and easy wireless connection for virtually every phone1. Select Bluetooth paring on your device. 2. Select the Vifa device on your Bluetooth enabled device. 3. Let the music play. You can adjust to volume up and down on the front of Copenhagen and on the playback device.Note: Release of the Bluetooth paring can be done either on Copenhagen or the paired device, on Copenhagen just press and hold both the “Volume up” and “Volume down” simultaneously until the indicator flashes BLUE 3 times.

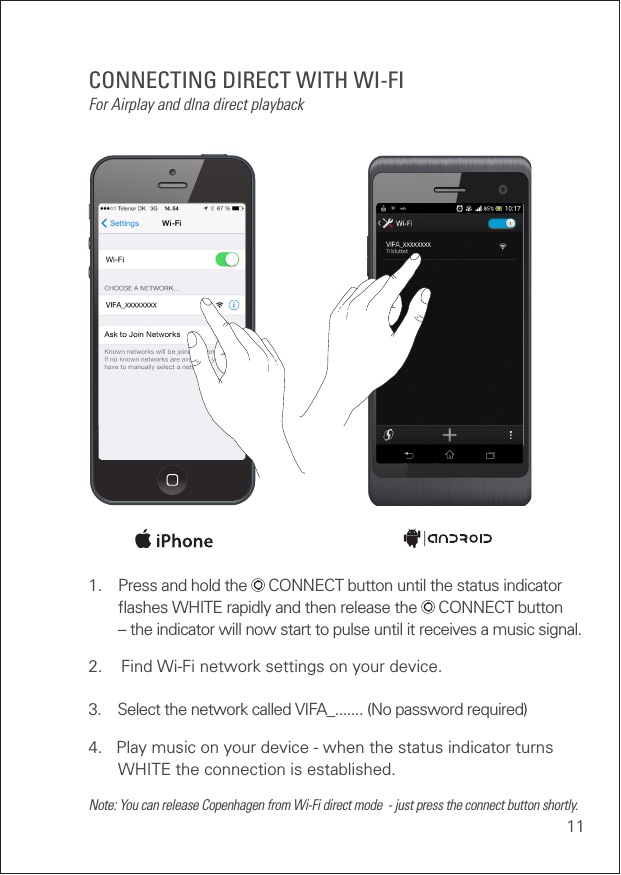

111. Press and hold the CONNECT button until the status indicator flashes WHITE rapidly and then release the CONNECT button – the indicator will now start to pulse until it receives a music signal.2. Find Wi-Fi network settings on your device.3. Select the network called VIFA_....... (No password required)4. Play music on your device - when the status indicator turns WHITE the connection is established.Note: You can release Copenhagen from Wi-Fi direct mode - just press the connect button shortly.CONNECTING DIRECT WITH WI-FIFor Airplay and dlna direct playback

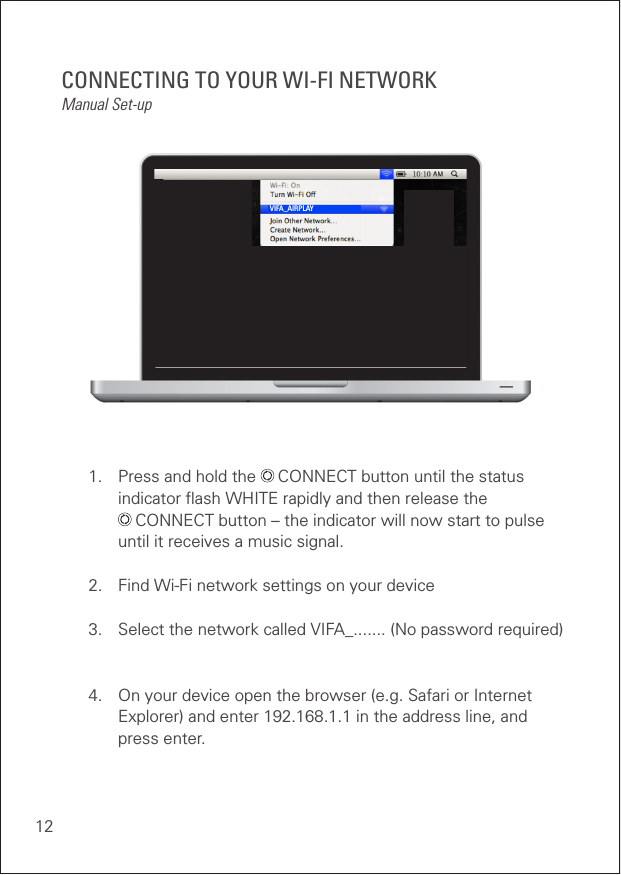

12CONNECTING TO YOUR WI-FI NETWORKManual Set-up1. Press and hold the CONNECT button until the status indicator flash WHITE rapidly and then release the CONNECT button – the indicator will now start to pulse until it receives a music signal.2. Find Wi-Fi network settings on your device3. Select the network called VIFA_....... (No password required)4. On your device open the browser (e.g. Safari or Internet Explorer) and enter 192.168.1.1 in the address line, and press enter.VIFA_AIRPLAY

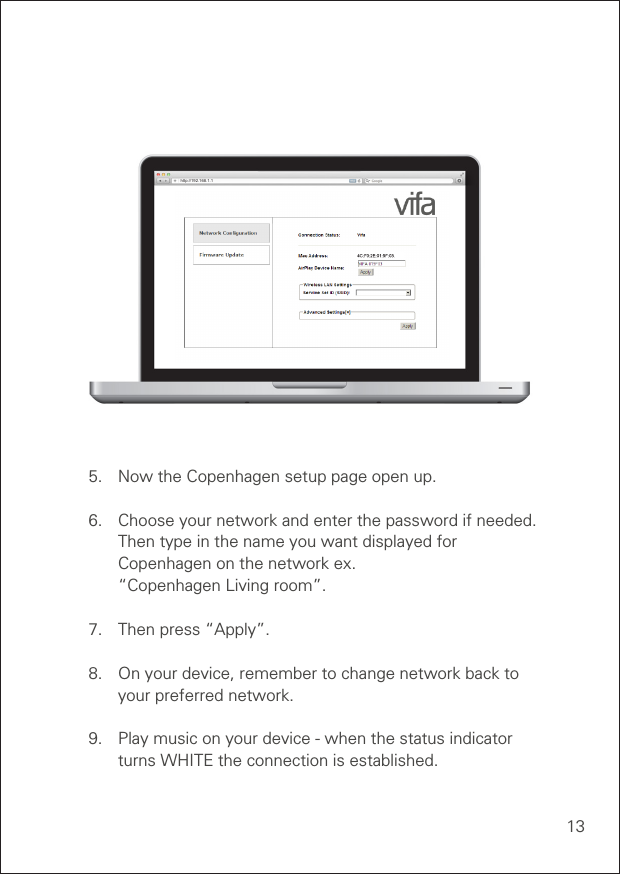

13http://192.168.1.1VIFA AIRPLAY SETUP5. Now the Copenhagen setup page open up.6. Choose your network and enter the password if needed. Then type in the name you want displayed for Copenhagen on the network ex. “Copenhagen Living room”.7. Then press “Apply”.8. On your device, remember to change network back to your preferred network.9. Play music on your device - when the status indicator turns WHITE the connection is established.

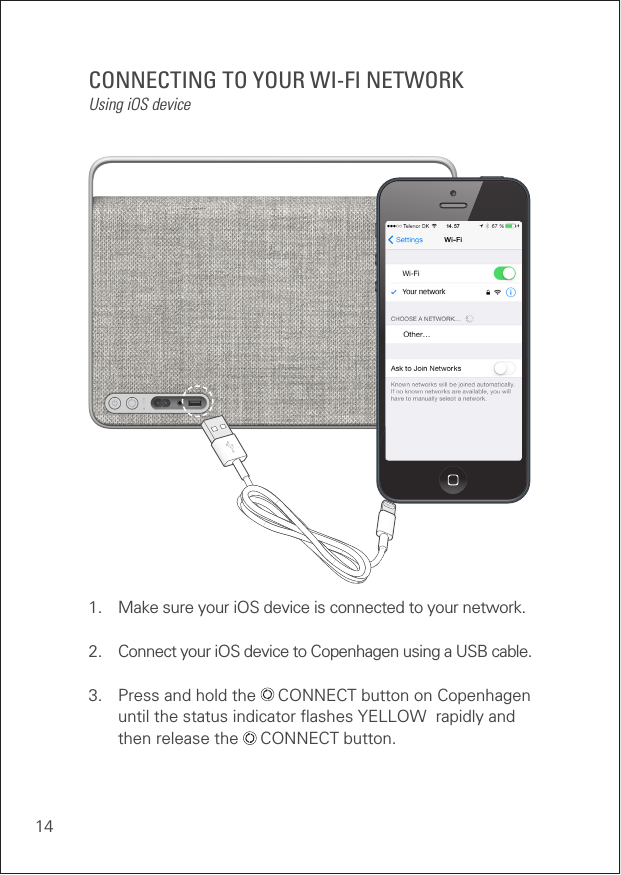

14CONNECTING TO YOUR WI-FI NETWORKUsing iOS device1. Make sure your iOS device is connected to your network.2. Connect your iOS device to Copenhagen using a USB cable.3. Press and hold the CONNECT button on Copenhagen until the status indicator flashes YELLOW rapidly and then release the CONNECT button.

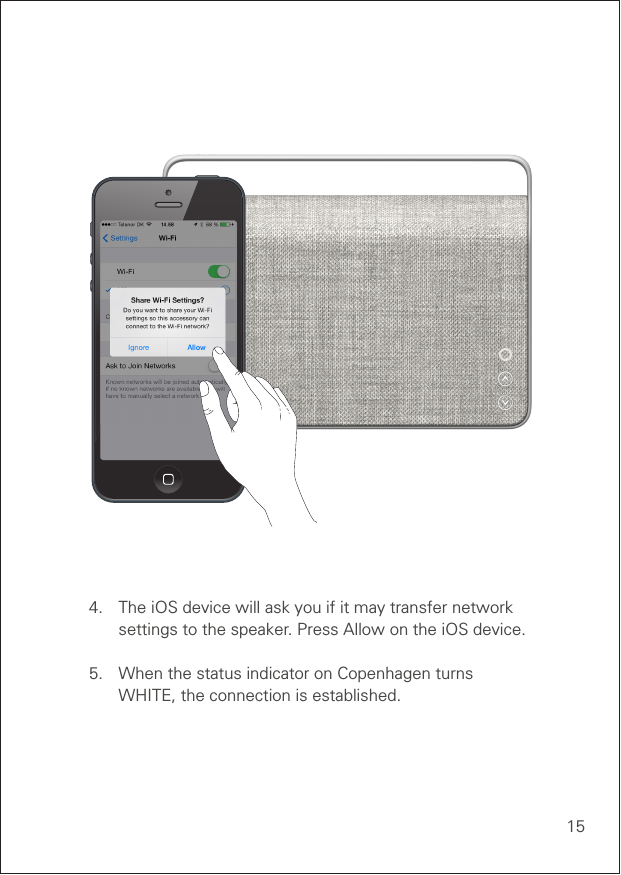

154. The iOS device will ask you if it may transfer network settings to the speaker. Press Allow on the iOS device.5. When the status indicator on Copenhagen turns WHITE, the connection is established.

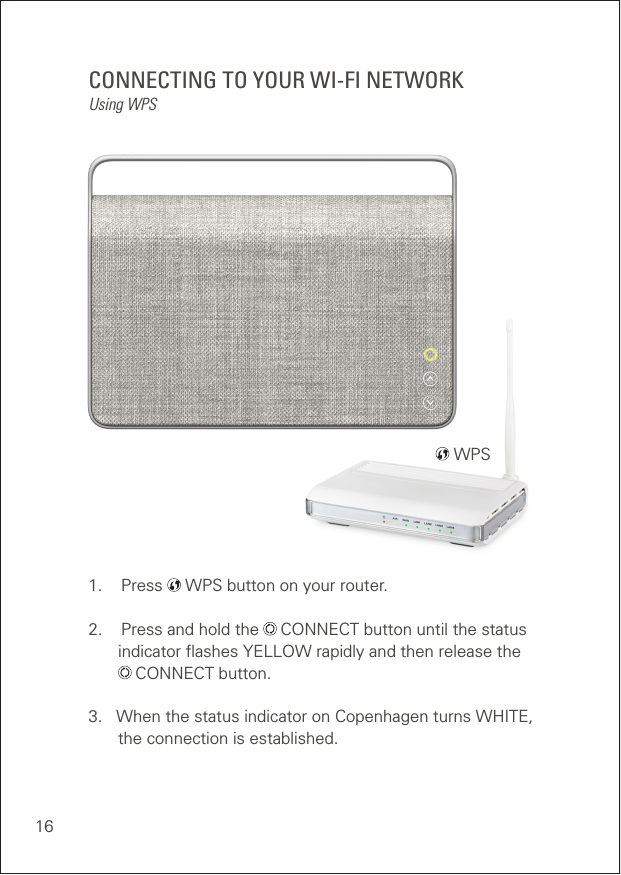

16CONNECTING TO YOUR WI-FI NETWORKUsing WPS1. Press WPS button on your router.2. Press and hold the CONNECT button until the status indicator flashes YELLOW rapidly and then release the CONNECT button.3. When the status indicator on Copenhagen turns WHITE, the connection is established. WPS

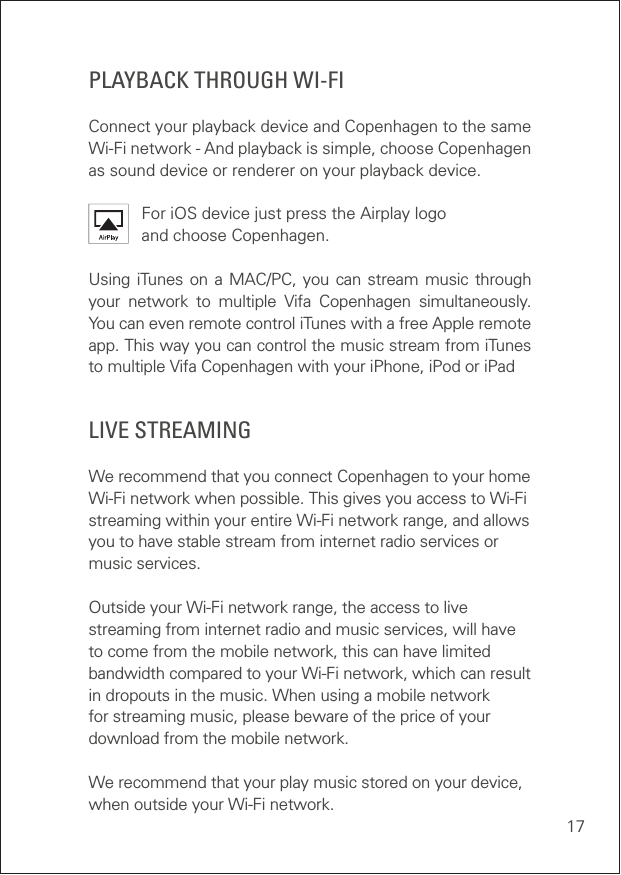

17 WPSPLAYBACK THROUGH WI-FIConnect your playback device and Copenhagen to the same Wi-Fi network - And playback is simple, choose Copenhagen as sound device or renderer on your playback device.For iOS device just press the Airplay logo and choose Copenhagen. Using iTunes on a MAC/PC, you can stream music through your network to multiple Vifa Copenhagen simultaneously. You can even remote control iTunes with a free Apple remote app. This way you can control the music stream from iTunes to multiple Vifa Copenhagen with your iPhone, iPod or iPadLIVE STREAMING We recommend that you connect Copenhagen to your home Wi-Fi network when possible. This gives you access to Wi-Fi streaming within your entire Wi-Fi network range, and allows you to have stable stream from internet radio services or music services. Outside your Wi-Fi network range, the access to live streaming from internet radio and music services, will have to come from the mobile network, this can have limited bandwidth compared to your Wi-Fi network, which can result in dropouts in the music. When using a mobile network for streaming music, please beware of the price of your download from the mobile network. We recommend that your play music stored on your device, when outside your Wi-Fi network.
18WIRED CONNECTION• On the back of Copenhagen the 3,5 mm mini-jack auxiliary input, will support 2 channel analog signal or optical input with a digital data stream up to 24bit/192kHz. • To lock on to wired input press and hold the CONNECT button, until the status indicator flashes rapidly GREEN and then release. • To release the locked wired input, just press shortly on the CONNECT button, then the status indicator will flash GREEN 3 times and normal input priority is restored. • You can use USB as a playback input from your iOS device. Copenhagen will charge your iOS simultaneously. • The USB port on Copenhagen will be able to charge most smart devices.Aux optical and analog input; MP3 players, media streamer or TV USB / iOS deviceConnect

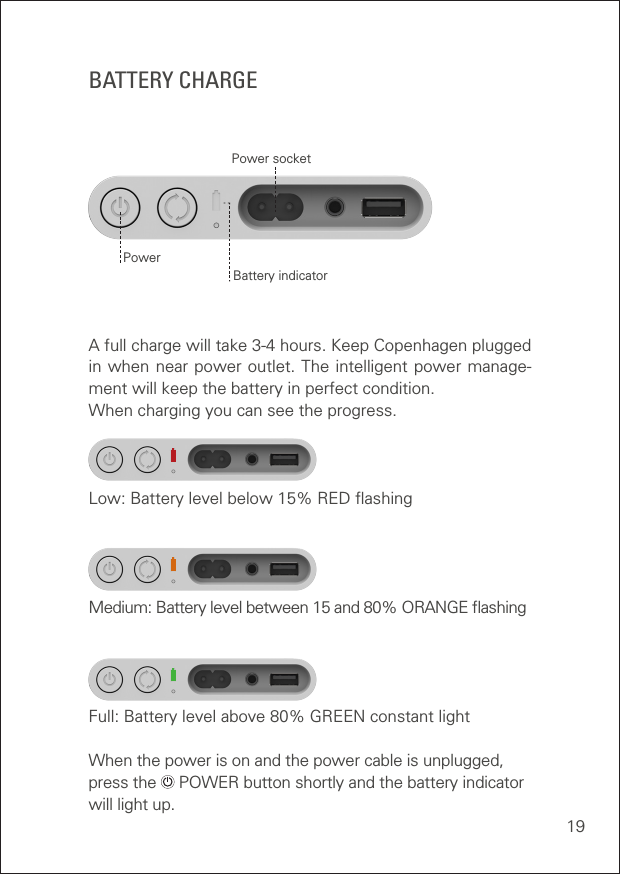

19A full charge will take 3-4 hours. Keep Copenhagen plugged in when near power outlet. The intelligent power manage-ment will keep the battery in perfect condition. When charging you can see the progress.Low: Battery level below 15% RED flashing Medium: Battery level between 15 and 80% ORANGE flashing Full: Battery level above 80% GREEN constant light When the power is on and the power cable is unplugged, press the POWER button shortly and the battery indicator will light up. BATTERY CHARGEBattery indicatorPower socketPower
20RESET AND SET TO FACTORY DEFAULTRESET - USED IF COPENHAGEN LOCKS UP To reset Copenhagen press the reset button shortly - no user settings will be lost. FACTORY DEFAULT - SET’S COPENHAGEN’S SOFTWARE BACK TO FACTORY SETTINGS To factory default Copenhagen – press and hold the POWER and the CONNECT button simultaneously until the status indicator starts triple flashing. Release the buttons and Copenhagen will go to factory default – after factory default ALL USER SETTINGS WILL BE LOST.To firmware update Copenhagen, please go to the www.Vifa.dk/support for further information.ConnectPowerReset

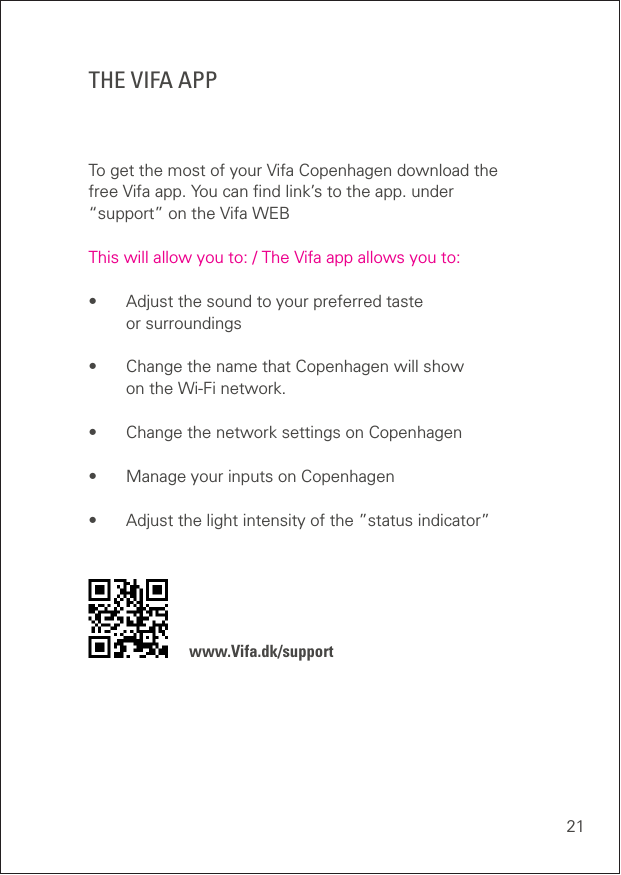

21THE VIFA APPTo get the most of your Vifa Copenhagen download the free Vifa app. You can find link’s to the app. under “support” on the Vifa WEB This will allow you to: / The Vifa app allows you to:• Adjust the sound to your preferred taste or surroundings • Change the name that Copenhagen will show on the Wi-Fi network. • Change the network settings on Copenhagen • Manage your inputs on Copenhagen• Adjust the light intensity of the ”status indicator” www.Vifa.dk/support

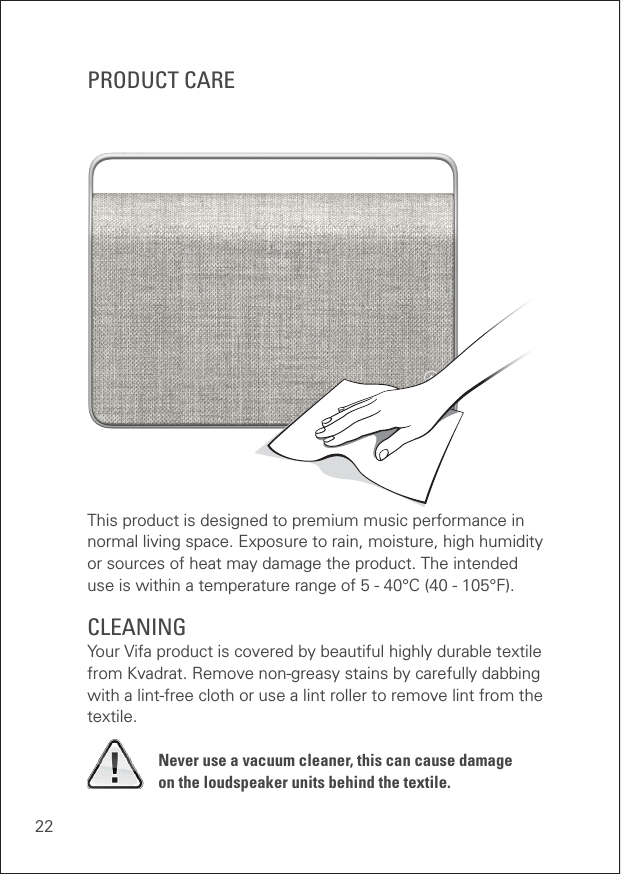

22This product is designed to premium music performance in normal living space. Exposure to rain, moisture, high humidity or sources of heat may damage the product. The intended use is within a temperature range of 5 - 40°C (40 - 105°F).CLEANING Your Vifa product is covered by beautiful highly durable textile from Kvadrat. Remove non-greasy stains by carefully dabbing with a lint-free cloth or use a lint roller to remove lint from the textile.Never use a vacuum cleaner, this can cause damage on the loudspeaker units behind the textile.PRODUCT CARE

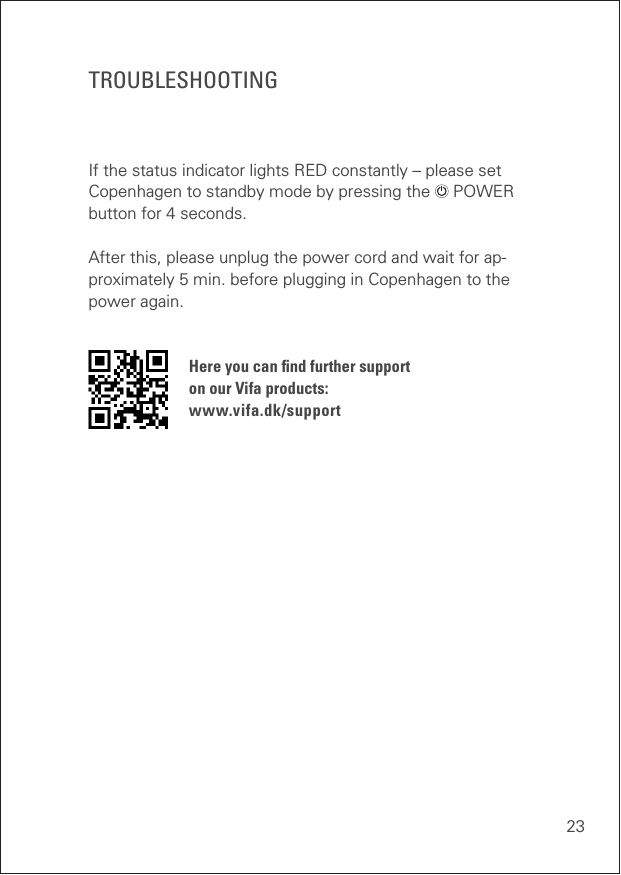

23TROUBLESHOOTINGIf the status indicator lights RED constantly – please set Copenhagen to standby mode by pressing the POWER button for 4 seconds. After this, please unplug the power cord and wait for ap-proximately 5 min. before plugging in Copenhagen to the power again. Here you can find further support on our Vifa products: www.vifa.dk/support

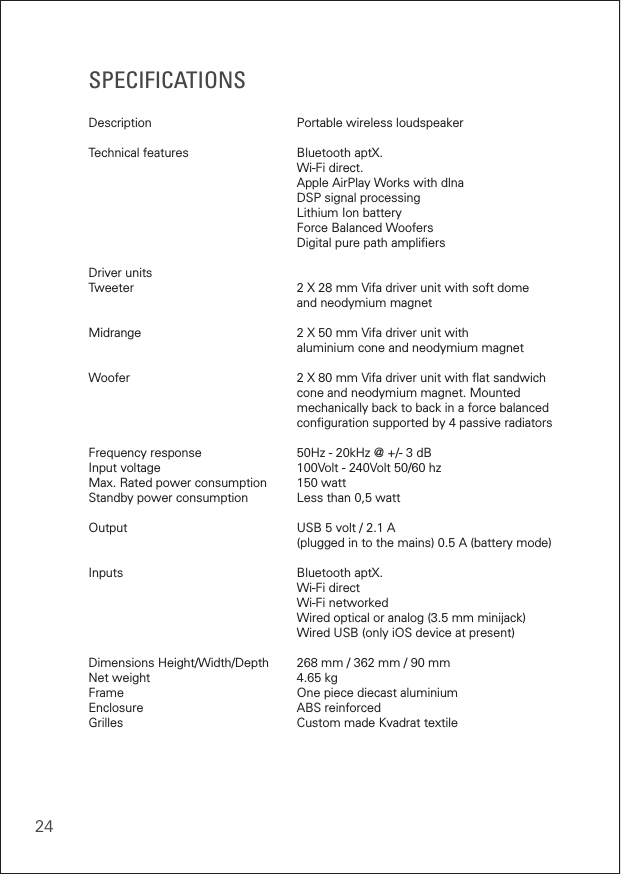

24SPECIFICATIONSDescription Portable wireless loudspeaker Technical features Bluetooth aptX. Wi-Fi direct. Apple AirPlay Works with dlna DSP signal processing Lithium Ion battery Force Balanced Woofers Digital pure path amplifiersDriver units Tweeter 2 X 28 mm Vifa driver unit with soft dome and neodymium magnetMidrange 2 X 50 mm Vifa driver unit with aluminium cone and neodymium magnet Woofer 2 X 80 mm Vifa driver unit with flat sandwich cone and neodymium magnet. Mounted mechanically back to back in a force balanced configuration supported by 4 passive radiators Frequency response 50Hz - 20kHz @ +/- 3 dBInput voltage 100Volt - 240Volt 50/60 hzMax. Rated power consumption 150 wattStandby power consumption Less than 0,5 wattOutput USB 5 volt / 2.1 A (plugged in to the mains) 0.5 A (battery mode)Inputs Bluetooth aptX. Wi-Fi direct Wi-Fi networked Wired optical or analog (3.5 mm minijack) Wired USB (only iOS device at present)Dimensions Height/Width/Depth 268 mm / 362 mm / 90 mmNet weight 4.65 kgFrame One piece diecast aluminiumEnclosure ABS reinforced Grilles Custom made Kvadrat textile

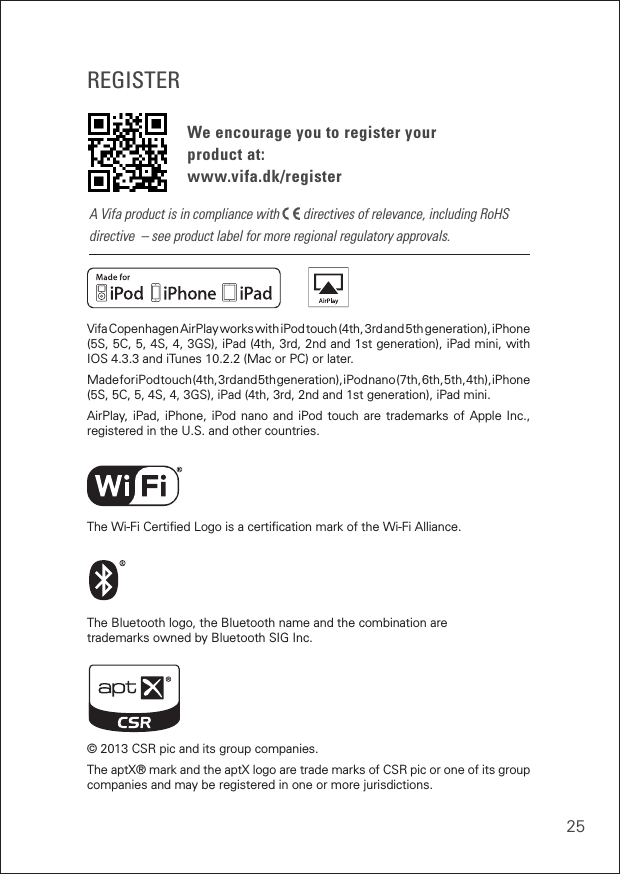

25REGISTERWe encourage you to register your product at: www.vifa.dk/registerVifa Copenhagen AirPlay works with iPod touch (4th, 3rd and 5th generation), iPhone (5S, 5C, 5, 4S, 4, 3GS), iPad (4th, 3rd, 2nd and 1st generation), iPad mini, with IOS 4.3.3 and iTunes 10.2.2 (Mac or PC) or later.Made for iPod touch (4th, 3rd and 5th generation), iPod nano (7th, 6th, 5th, 4th), iPhone (5S, 5C, 5, 4S, 4, 3GS), iPad (4th, 3rd, 2nd and 1st generation), iPad mini.AirPlay, iPad, iPhone, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. The Wi-Fi Certified Logo is a certification mark of the Wi-Fi Alliance.The Bluetooth logo, the Bluetooth name and the combination are trademarks owned by Bluetooth SIG Inc.© 2013 CSR pic and its group companies.The aptX® mark and the aptX logo are trade marks of CSR pic or one of its group companies and may be registered in one or more jurisdictions.A Vifa product is in compliance with directives of relevance, including RoHS directive – see product label for more regional regulatory approvals.

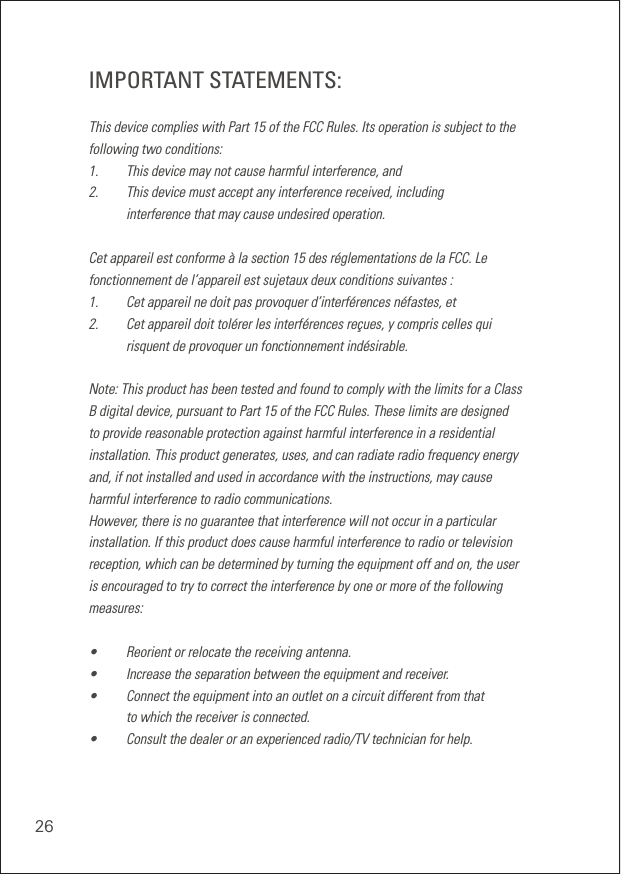

26IMPORTANT STATEMENTS:This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes :1. Cet appareil ne doit pas provoquer d’interférences néfastes, et2. Cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable.Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

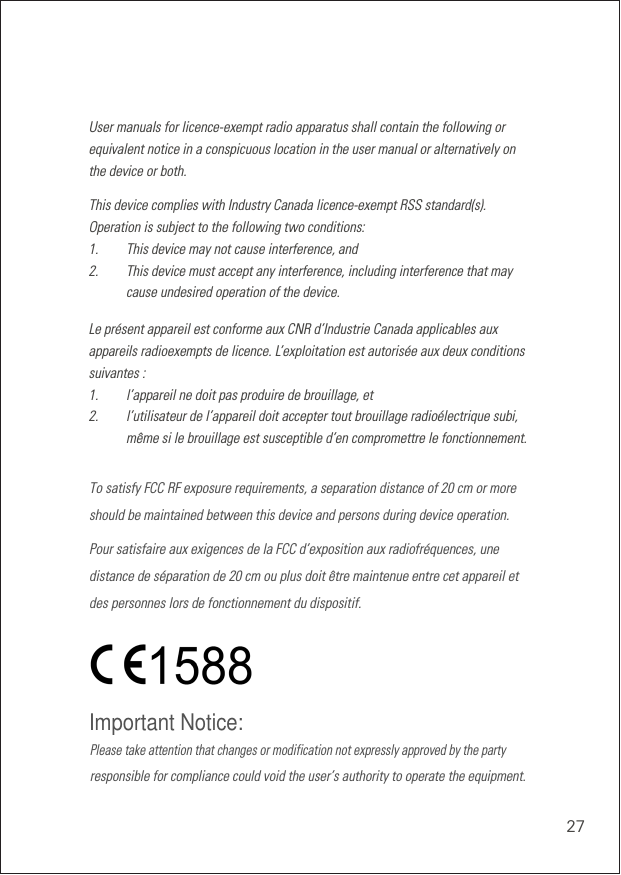

27User manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions suivantes :1. l’appareil ne doit pas produire de brouillage, et2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Please take attention that changes or modification not expressly approved by the partyImportant Notice:responsible for compliance could void the user’s authority to operate the equipment.To satisfy FCC RF exposure requirements, a separation distance of 20 cm or moreshould be maintained between this device and persons during device operation.Pour satisfaire aux exigences de la FCC d’exposition aux radiofréquences, unedistance de séparation de 20 cm ou plus doit être maintenue entre cet appareil etdes personnes lors de fonctionnement du dispositif.
