User Manual - VIFA020--Rev1
STOCKHOLM
owner’s manual
2
3
You’ve chosen well
The Vifa Stockholm . A speaker that looks as good
as it sounds. That you can bring almost everywhere.
That will help you celebrate life.
It’s designed to be intuitive for you to use. This
manual just spells out the details - for instance, how
to connect wirelessly in a flash.
Enjoy!
4
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufac-
turer’s instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A polar-
ized plug has two blades with one wider
than the other. A grounding type plug has
two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided
plug does not fit into your outlet consult
an electrician for replacement of the ob-
solete outlet.
10 Protect the power cord from being wal-
ked on or pinched particularly at plugs
convenience receptacles and the point
where they exit from the apparatus.
11 Only use attachments/accessories speci-
fied by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket or table speci-
fied by the manufacturer or
sold with the apparatus. When
a cart is used, use caution when moving
the cart/apparatus combination to avoid
injury from tip-over.
13 Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14 Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally or
has been dropped.
15 To completely disconnect unit power
from the AC mains, disconnect the unit’s
power cord from the mains socket.
WARNING:
• To reduce the risk of fire and electric
shock do not expose this apparatus to
rain or moisture.
• Do not place objects filled with liquids
such as vases on the apparatus.
• Do not open apparatus. There are no us-
er-serviceable parts inside. Risk of elec-
tric shock inside.
The lightning flash and arrow
head within the triangle is a warn-
ing sign alerting you of dangerous
voltage inside the product
The exclamation point within the
triangle is a warning sign alerting
you ofimportant instructions ac-
companying the product.
Vifa Denmark A/S
Mariendalsvej 2A
DK-8800 - Denmark
www.vifa.dk
IMPORTANT SAFETY INSTRUCTIONS
Regulatory Safety Information
5
Buttons and indicators on Stockholm ................................. 6
Status indicator .................................................................... 7
Input options ........................................................................8
Connecting priority ..............................................................9
Connecting to Stockholm
Bluetooth ............................................................................10
Wi-Fi DIRECT ..................................................................... 11
Wi-Fi Network manual setup ............................................. 12
Wi-Fi Network using an iOS device ................................... 14
Wi-Fi Network using WPS ................................................. 16
Playback through Wi-Fi ...................................................... 17
Wired connection - optical, analog or USB ........................18
Reset and set to factory default ........................................19
Vifa app .............................................................................. 20
Product care ......................................................................21
Troubleshooting .................................................................22
Specifications ....................................................................23
Register and Trademarks ................................................... 24
Important statements ........................................................ 25
For manuals in other languages, please visit: www.vifa.dk/support
6

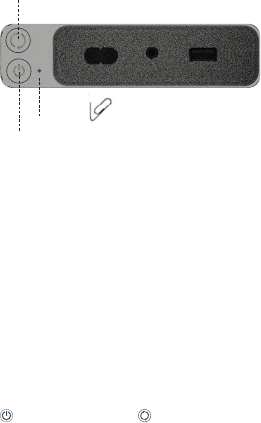

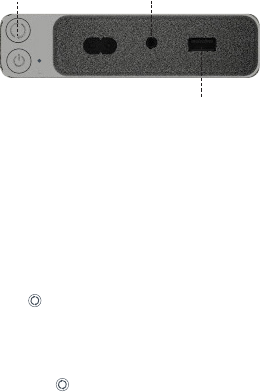

BUTTONS AND INDICATORS ON STOCKHOLM
Power socket
Connect
Power
Aux optical and analog input
USB
Volume down
Volume up
Status indicator
You can change the light intensity of
the status indicator using the Vifa app.
Reset
7
STATUS INDICATOR
No light – Stockholm is in standby mode
Breathing – Stockholm is hibernating
(Stockholm will automatically go to hibernation after 5 min. without signal)
To wake up Stockholm press the POWER button.
• From standby: press until the status indicator flashes WHITE.
• From hibernation: play music on one of the inputs,
or press the power or one of the vol. buttons shortly.
Rapidly flashing – Stockholm is in setup mode
WHITE: Wi-Fi setup
YELLOW: USB or WPS network setup
GREEN: Locking on to wired input
Constant light – Stockholm is on
WHITE: Wi-Fi connection
BLUE: Bluetooth connection
GREEN: Wired connection
YELLOW: No connection or signal
To power down Stockholm press the POWER button.
• To hibernation: press until the status indicator
flashes WHITE once.
• To standby: press until the status indicator
flashes WHITE twice.
Note: Putting Stockholm into hibernation mode will allow you to wake it up rapidly.
In standby mode Stockholm will consume less than 0,5 watt from the power outlet.
8
INPUT OPTIONS
• Bluetooth
Fast and easy and works for virtually every phone, tablet
or MAC/PC - supports aptX for Hi-Fi sound.
• Wi-Fi
Works for phones, tablets, MAC/PC Wi-Fi and networked
dlna enabled devices - supports Wi-Fi DIRECT.
• Wired optical or analog
For music players,media players or TV without
wireless connection.
• Wired USB
Works for iOS device at present – will charge your iOS
device while playing music from it.
9
CONNECTING PRIORITY
Stockholm makes automatic selection of input for you
based on the following rules.
1. 1st priority is Wi-Fi and USB
If Wi-Fi or USB is connected and playing music, other
connections are disconnected.
2. 2nd priority is Bluetooth
If Bluetooth is connected and playing music, a wired
analog or optical connection will be disconnected.
3. 3th priority is wired
When no Bluetooth, USB or Wi-Fi is used, you can use
the wired input. You can however lock Stockholm to
wired input, look for further information on page 18.
10
CONNECTING WITH BLUETOOTH
Fast and easy wireless connection for virtually every phone

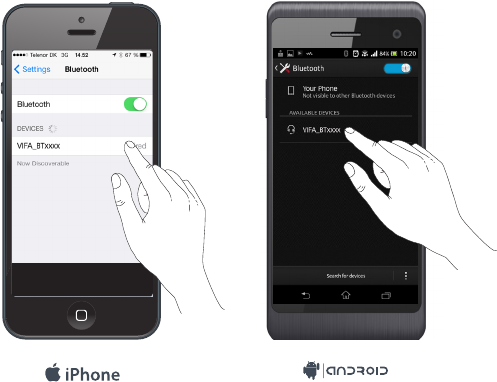

1. Enable Bluetooth paring on your device and select Vifa
BTxxxxxx. as your Bluetooth device.
2. Let the music play, the status indicator turns BLUE
when Stockholm receives the music.
3. Adjust the volume on Stockholm and your device.
Note: Release of the Bluetooth paring can be done either on Stockholm or the paired
device, on Stockholm press and the “Volume up” and “Volume down” button
simultaneously until the indicator flashes BLUE 3 times.
11
1. Press and hold the CONNECT button until the status indicator
flashes WHITE rapidly and then release the CONNECT button
– the indicator will now start to pulse until it receives a music signal.

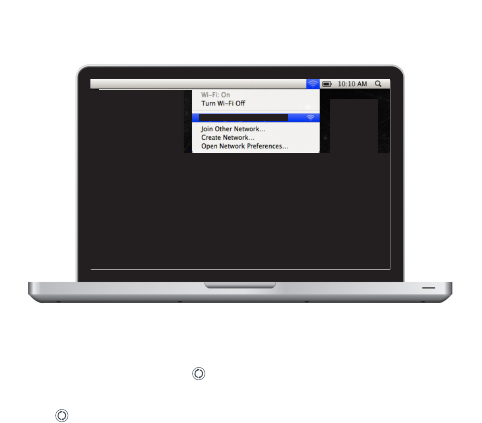

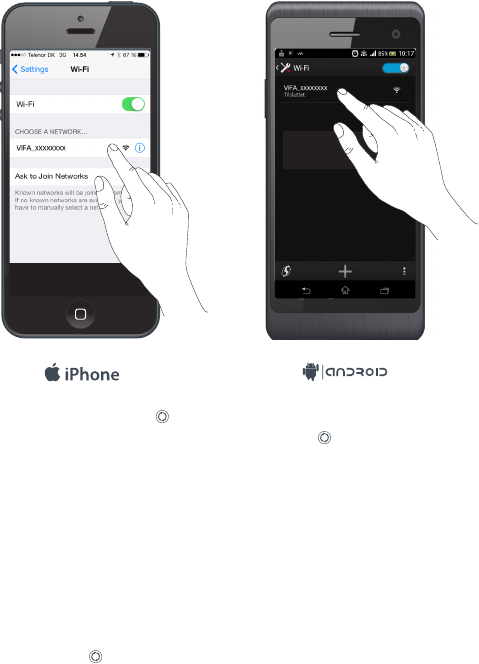

2. Find Wi-Fi network settings on your device.
3. Select the network called VIFA_....... (No password required)
4. Play music on your device - the status indicator turns
solid WHITE when Stockholm receives the music.
Note*: Internet connection in DIRECT mode will have to come from the mobile network.
Note **: You can release Stockholm from Wi-Fi DIRECT mode
- by pressing the CONNECT button shortly.
CONNECTING DIRECT WITH Wi-Fi
For AirPlay and dlna direct playback
12
CONNECTING TO YOUR Wi-Fi NETWORK
Manual Setup
1. Press and hold the CONNECT button until the status
indicator flashes WHITE rapidly and then release the
CONNECT button – the indicator will now start to pulse
until it receives a music signal.
2. Find Wi-Fi network settings on your device.
3. Select the network called VIFA_....... (No password required)
4. On your device open the browser (e.g. Safari or Internet
Explorer) and enter 192.168.1.1 in the address line, and
press enter.
VIFA_AIRPLAY
13
http://192.168.1.1

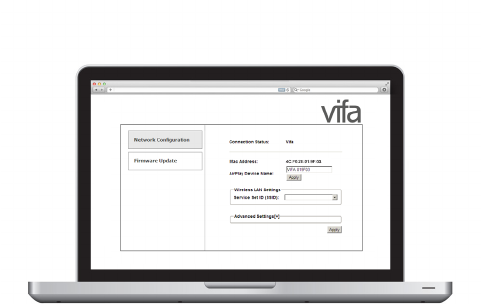

VIFA AIRPLAY SETUP
5. Now the Stockholm setup page open up.
6. Choose your network and enter the password if needed.
Then type in the name you want displayed for
Stockholm on the network ex.
“Stockholm Living room”.
7. Then press “Apply”.
8. On your device, remember to change network back
to your network.
9. Play music on your device - when the status indicator
turns solid WHITE the connection is established.
14
CONNECTING TO YOUR Wi-Fi NETWORK
Using iOS device
1. Make sure your iOS device is connected to your network.

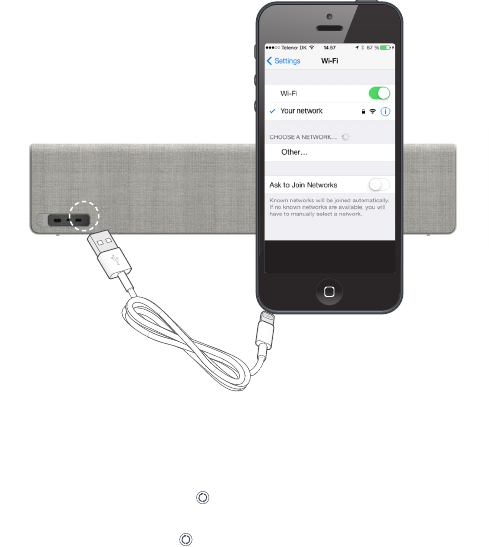

2. Connect your iOS device to Stockholm using a USB cable.
3. Press and hold the CONNECT button on Stockholm
until the status indicator flashes YELLOW rapidly and
then release the CONNECT button.
15

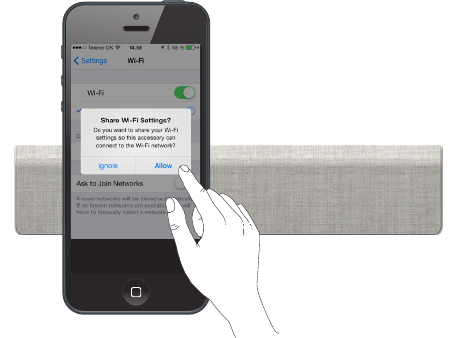

4. The iOS device will ask you if it may transfer network
settings to the speaker. Press Allow on the iOS device.
5. When the status indicator on Stockholm turns
solid WHITE, the connection is established.
16
CONNECTING TO YOUR Wi-Fi NETWORK
Using WPS

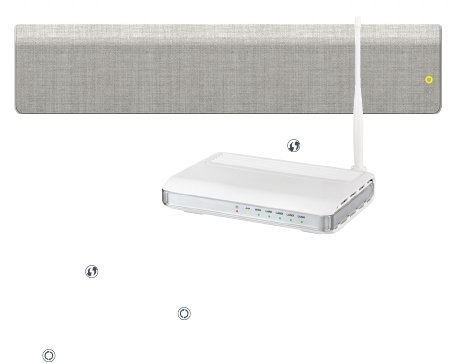

1. Press WPS button on your router.
2. Press and hold the CONNECT button until the status
indicator flashes YELLOW rapidly and then release the
CONNECT button.
3. When the status indicator on Stockholm turns solid
WHITE, the connection is established.
WPS
17
PLAYBACK THROUGH Wi-Fi
Connect your playback device and Stockholm to the same
Wi-Fi network - and playback is simple, choose Stockholm
as sound device or renderer on your playback device.
For iOS device just press the AirPlay logo
and choose Stockholm .
Using iTunes on a MAC/PC, you can stream music through
your network to multiple Vifa Stockholm simultaneously. You
can even remote control iTunes with a free Apple remote app.
This way you can control the music stream from iTunes to
multiple Vifa Stockholm with your iPhone, iPod or iPad.
LIVE STREAMING
We recommend that you connect Stockholm to your home
Wi-Fi network when possible. This gives you access to Wi-Fi
streaming within your entire Wi-Fi network range, and allows
you to have stable streaming from internet radio services or
music services.
Outside your Wi-Fi network range, the access to live
streaming from internet radio and music services, will have
to come from the mobile network, this can have limited
bandwidth compared to your Wi-Fi network, which can result
in dropouts in the music. When using a mobile network
for streaming music, please beware of the price of your
download from the mobile network.
We recommend that your play music stored on your device,
when outside your Wi-Fi network.
18
WIRED CONNECTION
• On the rear side of Stockholm the 3,5 mm mini-jack
auxiliary input, will support 2 channel analog signal
or optical input with a digital data stream up to
24bit/192kHz.
• To lock on to wired input, press and hold the
CONNECT button, until the status indicator flashes
rapidly GREEN and then release.
• To release the locked wired input, press shortly on
the CONNECT button, then the status indicator will
flash GREEN 3 times and normal input priority is
restored.
• You can use USB as a playback input from your iOS
device. Stockholm will charge your iOS device
simultaneously.
Aux optical and analog input;
MP3 players, media streamer or TV
USB / iOS device
Connect
19
RESET AND SET TO FACTORY DEFAULT
RESET
- USED IF STOCKHOLM LOCKS UP
To reset Stockholm press the reset button shortly
- no user settings will be lost.
FACTORY DEFAULT
- SET’S STOCKHOLM ’S SOFTWARE BACK TO FACTORY SETTINGS
To factory default Stockholm – press and hold the
POWER and the CONNECT button simultaneously
until the status indicator starts triple flashing. Release the
buttons and Stockholm will go to factory default – after fac-
tory default ALL USER SETTINGS WILL BE LOST.
To firmware update Stockholm , please go to the
www.Vifa.dk/support for further information.
Connect
Power
Reset
20
THE VIFA APP
To get the most of your Vifa Stockholm download the free
Vifa app. You can find links to the app. under
“support” on the Vifa website.
The Vifa app. allows you to:
• Adjust the sound to your preferred taste
or surroundings
• Change the name that Stockholm will show
on the Wi-Fi network.
• Change the network settings on Stockholm
• Manage your inputs on Stockholm
• Adjust the light intensity of the ”status indicator”
www.vifa.dk/support
21
This product is designed to premium music performance in
normal living space. Exposure to rain, moisture, high humidity
or sources of heat may damage the product. The intended
use is within a temperature range of 5 - 40°C (40 - 105°F).
CLEANING
Your Vifa product is covered by beautiful highly durable textile
from Kvadrat. Remove non-greasy stains by carefully dabbing
with a lint-free cloth or use a lint roller to remove lint from the
textile.
Never use a vacuum cleaner, this can cause damage
on the loudspeaker units behind the textile.
PRODUCT CARE
22
TROUBLESHOOTING
In the extreme case that Stockholm is pushed to
overheating, the status indicator lights RED constantly
– please set Stockholm to standby mode by pressing
the POWER button until the status indicator flashes
WHITE twice.
After this, please unplug the power cord and wait for
approximately 5 min. before plugging in Stockholm to
the power again.
Here you can find further support
on our Vifa products:
www.vifa.dk/support
23
SPECIFICATIONS
Description Wireless loudspeaker
Technical features Bluetooth aptX.
Wi-Fi DIRECT
Apple AirPlay
Works with dlna
DSP signal processing
Lithium Ion battery
Force Balanced Woofers
Digital pure path amplifiers
Driver units
Tweeter 2 X 28 mm Vifa driver unit with soft dome
and neodymium magnet.
Midrange 2 X 80 mm Vifa driver unit with
aluminium cone and neodymium magnet .
Woofer 4 X 100 mm Vifa driver unit with flat sandwich
cone and neodymium magnet. Mounted
mechanically back to back in a force balanced
configuration supported by 4 passive radiators.
Frequency response 42Hz - 20kHz @ +/- 3 dB
Input voltage 100Volt - 240Volt 50/60 hz
Max. Rated power consumption 150 watt
Standby power consumption Less than 0,5 watt
Output USB 5 volt / 2.1 A
Inputs Bluetooth aptX.
Wi-Fi DIRECT
Wi-Fi networked
Wired optical or analog (3.5 mm minijack)
Wired USB (only iOS device at present)
Dimensions Height/Width/Depth 215 mm / 1100 mm / 100 mm
Net weight 9.8 kg
Frame Diecast aluminium
Enclosure ABS reinforced
Grilles Custom made Kvadrat textile
24
REGISTER AND TRADEMARKS
We encourage you to register your
product at:
www.vifa.dk/register
Vifa Stockholm AirPlay works with iPod touch (4th, 3rd and 5th generation), iPhone
(5S, 5C, 5, 4S, 4, 3GS), iPad (4th, 3rd, 2nd and 1st generation), iPad mini, with
IOS 4.3.3 and iTunes 10.2.2 (Mac or PC) or later.
Made for iPod touch (4th, 3rd and 5th generation), iPod nano (7th, 6th, 5th, 4th), iPhone
(5S, 5C, 5, 4S, 4, 3GS), iPad (4th, 3rd, 2nd and 1st generation), iPad mini.
AirPlay, iPad, iPhone, iPod nano and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
The Wi-Fi Certified Logo is a certification mark of the Wi-Fi Alliance.
The Bluetooth logo, the Bluetooth name and the combination are
trademarks owned by Bluetooth SIG Inc.
© 2013 CSR pic and its group companies.
The aptX® mark and the aptX logo are trade marks of CSR pic or one of its group
companies and may be registered in one or more jurisdictions.
A Vifa product is in compliance with directives of relevance, including RoHS
directive – see product label for more regional regulatory approvals.
26
IMPORTANT STATEMENTS:
This device complies with Part 15 of the FCC Rules. Its operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le
fonctionnement de l’appareil est sujetaux deux conditions suivantes :
1. Cet appareil ne doit pas provoquer d’interférences néfastes, et
2. Cet appareil doit tolérer les interférences reçues, y compris celles qui
risquent de provoquer un fonctionnement indésirable.
Note: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this product does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
27
User manuals for licence-exempt radio apparatus shall contain the following or
equivalent notice in a conspicuous location in the user manual or alternatively on
the device or both.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
For more information please visit our website at
www.vifa.dk
2013 12 REV.1
