Hantel ST-750P Pager User Manual

Hantel Co., Ltd. Pager Users Manual

users manual

TM

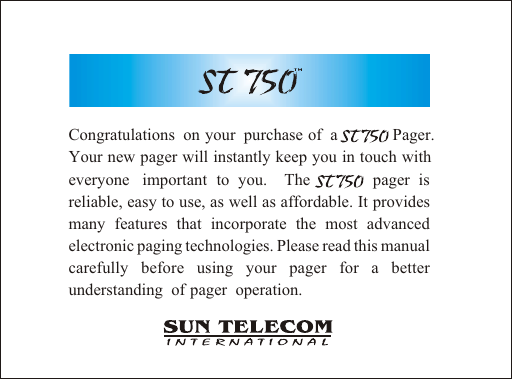

Congratulations on your purchase of a Pager. Your new pager will instantly keep you in touch with everyone important to you. The pager is reliable, easy to use, as well as affordable. It provides many features that incorporate the most advanced electronic paging technologies. Please read this manual carefully before using your pager for a better understanding of pager operation.

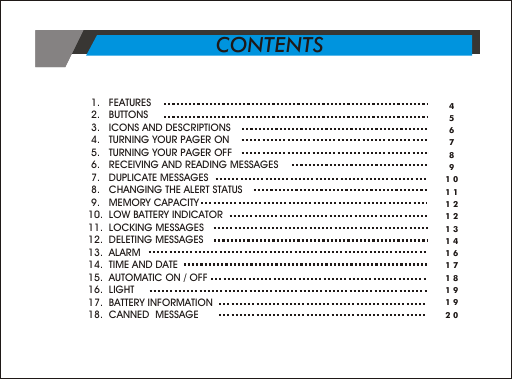

1. FEATURES 2. BUTTONS 3. ICONS AND DESCRIPTIONS 4. TURNING YOUR PAGER ON 5. TURNING YOUR PAGER OFF 6. RECEIVING AND READING MESSAGES 7. DUPLICATE MESSAGES 8. CHANGING THE ALERT STATUS 9. MEMORY CAPACITY10. LOW BATTERY INDICATOR11. LOCKING MESSAGES12. DELETING MESSAGES13. ALARM14. TIME AND DATE15. AUTOMATIC ON / OFF16. LIGHT17. BATTERY INFORMATION18. CANNED MESSAGE 456789101112121314161718191920CONTENTS

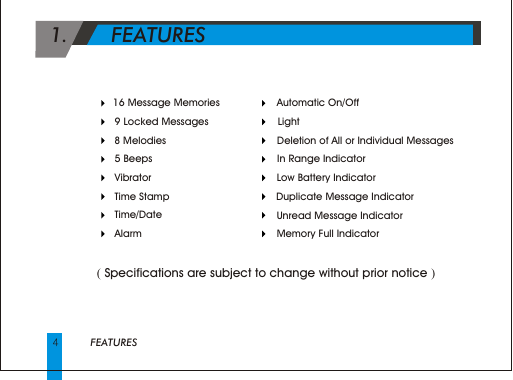

4FEATURES Automatic On/Off Light Deletion of All or Individual Messages In Range Indicator Low Battery Indicator Duplicate Message Indicator Unread Message Indicator Memory Full Indicator 16 Message Memories 9 Locked Messages 8 Melodies 5 Beeps Vibrator Time Stamp Time/Date Alarm 1. FEATURES ( Specifications are subject to change without prior notice )

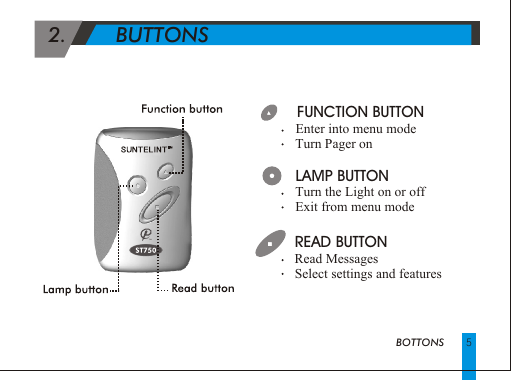

BOTTONS2. BUTTONS FUNCTION BUTTON Enter into menu mode Turn Pager on READ BUTTON Read Messages Select settings and features LAMP BUTTON Turn the Light on or off Exit from menu mode5TM

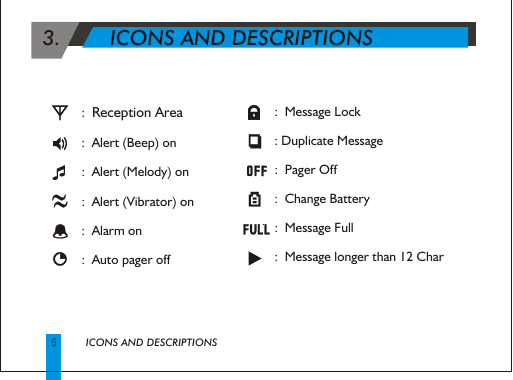

ICONS AND DESCRIPTIONS 3. ICONS AND DESCRIPTIONS6 : Message Lock : Duplicate Message : Pager Off : Change Battery : Message Full : Message longer than 12 Char : Reception Area : Alert (Beep) on : Alert (Melody) on : Alert (Vibrator) on : Alarm on : Auto pager off

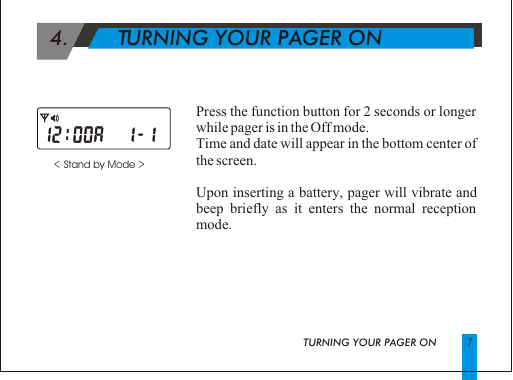

4. TURNING YOUR PAGER ON< Stand by Mode > Press the function button for 2 seconds or longer while pager is in the Off mode.Time and date will appear in the bottom center of the screen.Upon inserting a battery, pager will vibrate and beep briefly as it enters the normal reception mode. 7TURNING YOUR PAGER ON
5. TURNING YOUR PAGER OFFPress the function button for 2 seconds or longer to enter the function menu.Pager will beep once and " "will be displayed.Press the function button once more and " " will be displayed. Then press the read button to turn off pager." " sign will appear in the top right corner of the screen.8TURNING YOUR PAGER OFF

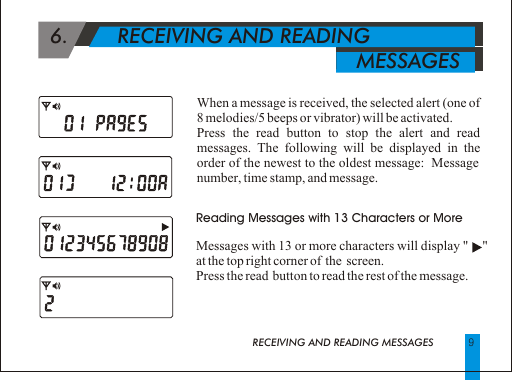

6. RECEIVING AND READING MESSAGES Reading Messages with 13 Characters or MoreMessages with 13 or more characters will display " " at the top right corner of the screen.Press the read button to read the rest of the message.9When a message is received, the selected alert (one of 8 melodies/5 beeps or vibrator) will be activated.Press the read button to stop the alert and read messages. The following will be displayed in the order of the newest to the oldest message: Message number, time stamp, and message.RECEIVING AND READING MESSAGES

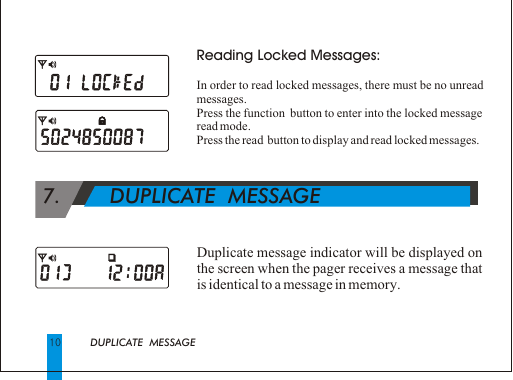

10Reading Locked Messages:In order to read locked messages, there must be no unread messages.Press the function button to enter into the locked message read mode.Press the read button to display and read locked messages. Duplicate message indicator will be displayed on the screen when the pager receives a message that is identical to a message in memory.DUPLICATE MESSAGE 7. DUPLICATE MESSAGE

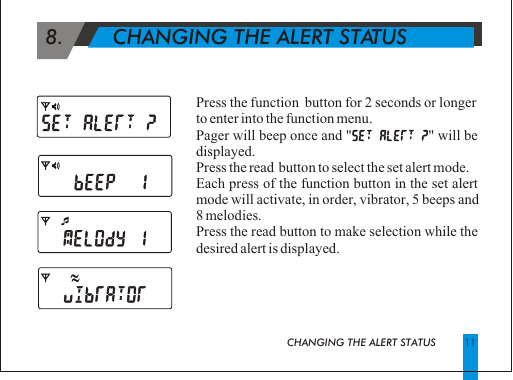

Press the function button for 2 seconds or longer to enter into the function menu.Pager will beep once and " " will be displayed.Press the read button to select the set alert mode.Each press of the function button in the set alert mode will activate, in order, vibrator, 5 beeps and 8 melodies.Press the read button to make selection while the desired alert is displayed. 11 8. CHANGING THE ALERT STATUSCHANGING THE ALERT STATUS

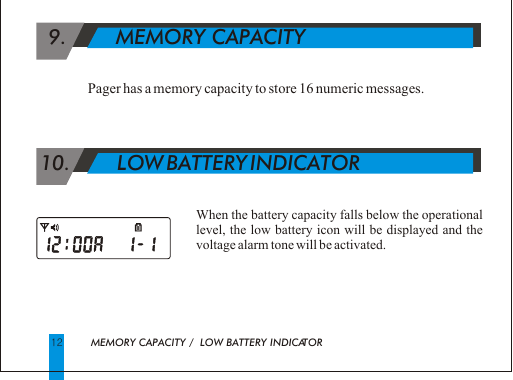

9. MEMORY CAPACITY Pager has a memory capacity to store 16 numeric messages. 10. LOW BATTERY INDICATORWhen the battery capacity falls below the operational level, the low battery icon will be displayed and the voltage alarm tone will be activated. MEMORY CAPACITY / LOW BATTERY INDICATOR 12

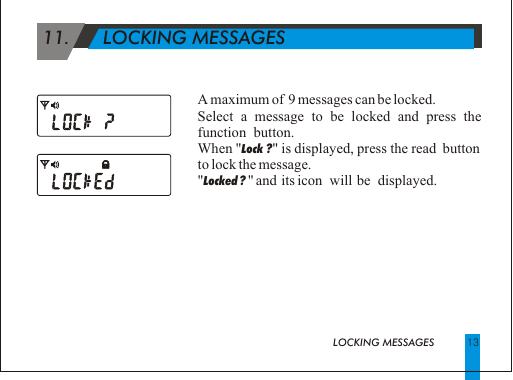

1311. LOCKING MESSAGES LOCKING MESSAGES A maximum of 9 messages can be locked.Select a message to be locked and press the function button.When "Lock ?" is displayed, press the read button to lock the message."Locked ? " and its icon will be displayed.

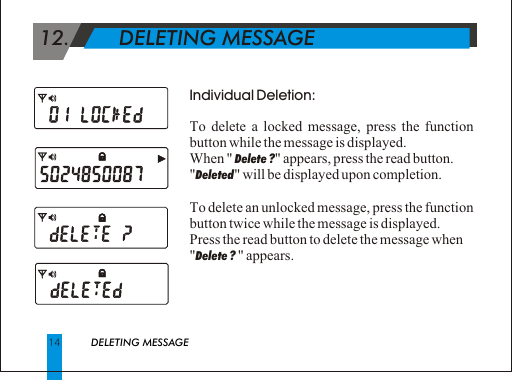

12. DELETING MESSAGE14DELETING MESSAGEIndividual Deletion:To delete a locked message, press the function button while the message is displayed.When " Delete ?" appears, press the read button. "Deleted " will be displayed upon completion.To delete an unlocked message, press the function button twice while the message is displayed. Press the read button to delete the message when "Delete ? " appears.

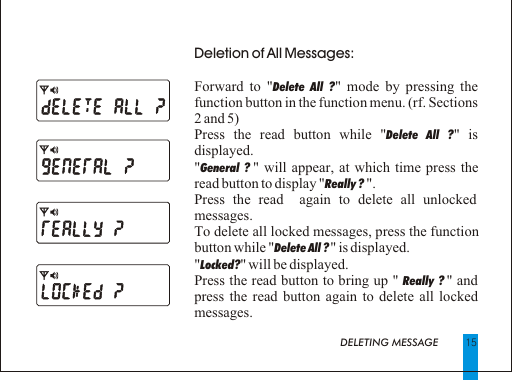

Deletion of All Messages:Forward to "Delete All ?" mode by pressing the function button in the function menu. (rf. Sections 2 and 5)Press the read button while "Delete All ?" is displayed. "General ? " will appear, at which time press the read button to display "Really ? ".Press the read again to delete all unlocked messages.To delete all locked messages, press the function button while "Delete All ? " is displayed. "Locked?" will be displayed.Press the read button to bring up " Really ? " and press the read button again to delete all locked messages.15DELETING MESSAGE

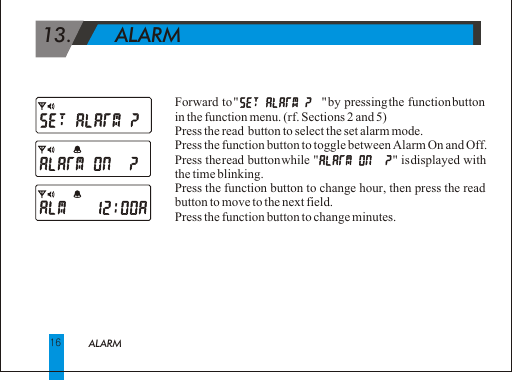

13. ALARM Forward to " " by pressing the function button in the function menu. (rf. Sections 2 and 5)Press the read button to select the set alarm mode.Press the function button to toggle between Alarm On and Off.Press the read button while " " is displayed with the time blinking.Press the function button to change hour, then press the read button to move to the next field.Press the function button to change minutes.16ALARM

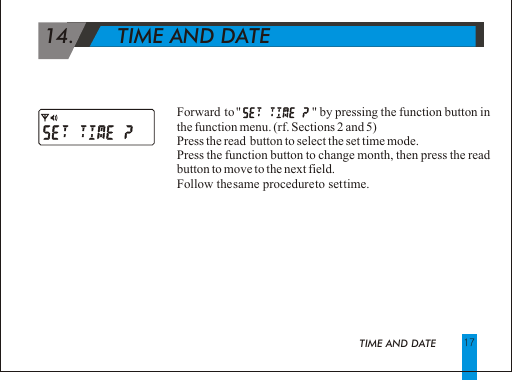

Forward to " " by pressing the function button in the function menu. (rf. Sections 2 and 5)Press the read button to select the set time mode.Press the function button to change month, then press the read button to move to the next field.Follow the same procedure to set time. 14. TIME AND DATE17 TIME AND DATE

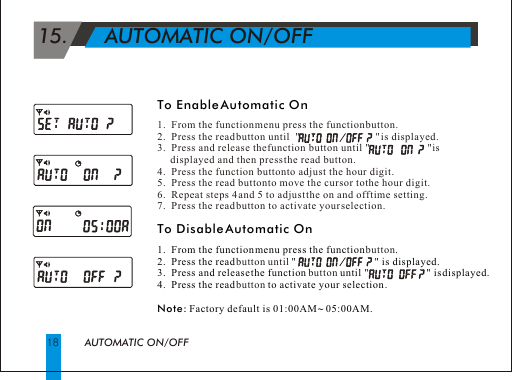

15. AUTOMATIC ON/OFFAUTOMATIC ON/OFF18To Enable Automatic OnTo Disable Automatic On 1. From the function menu press the function .2. Press the read " " is displayed.3. Press and release the function until " " is displayed. 4. Press the read to activate your selection .Note: Factory default is 01:00AM ~ 05:00AM.1. From the function menu press the function button.2. Press the read button until " " is displayed.3. Press and release the function button until " " is displayed and then press the read button.4. Press the function button to adjust the hour digit.5. Press the read button to move the cursor to the hour digit.6. Repeat steps 4 and 5 to adjust the on and off time setting.7. Press the read button to activate your selection.buttonbutton until buttonbutton

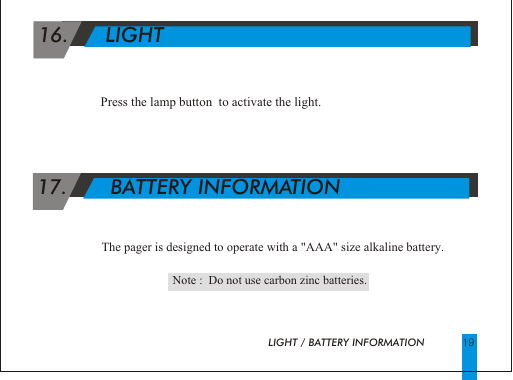

16. LIGHTPress the lamp button to activate the light. 17. BATTERY INFORMATION The pager is designed to operate with a "AAA" size alkaline battery.LIGHT / BATTERY INFORMATION 19 Note : Do not use carbon zinc batteries.

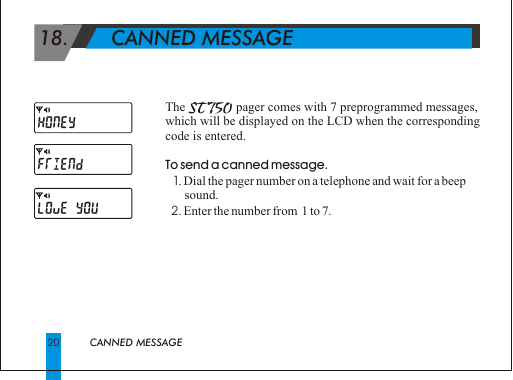

20 CANNED MESSAGE 18. CANNED MESSAGEThe pager comes with 7 preprogrammed messages, which will be displayed on the LCD when the corresponding code is entered.To send a canned message. 1. Dial the pager number on a telephone and wait for a beep sound. 2. Enter the number from 1 to 7.

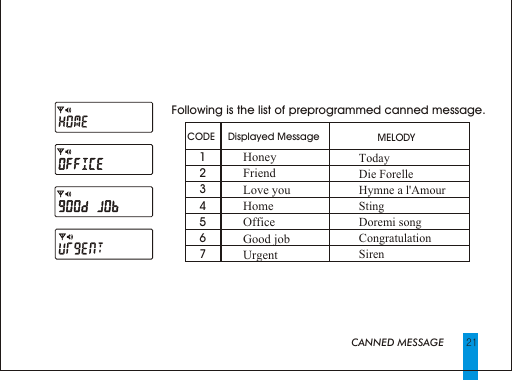

21 CANNED MESSAGEFollowing is the list of preprogrammed canned message. CODE 1234567TodayDie Forelle Hymne a l'Amour Sting Doremi songCongratulation SirenMELODY Displayed MessageHoneyFriendLove youHomeOfficeGood jobUrgent

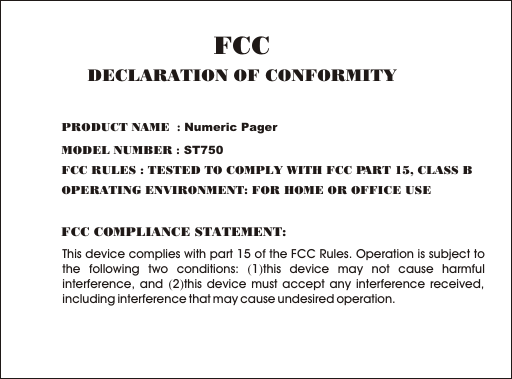

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.FCC COMPLIANCE STATEMENT:PRODUCT NAME : Numeric PagerMODEL NUMBER : ST750FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE FCCDECLARATION OF CONFORMITY

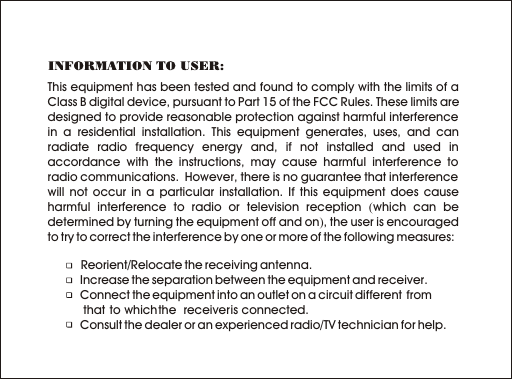

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures: Reorient/Relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

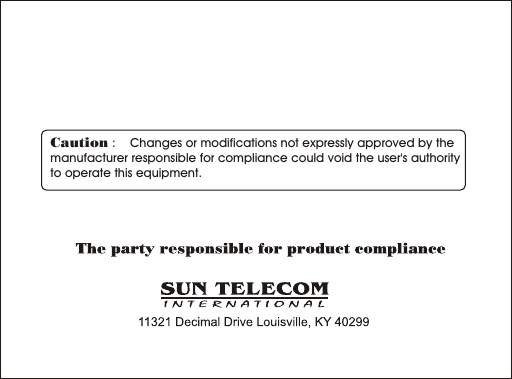

Caution : Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate this equipment.
