Hanwang Technology Co., Ltd Wireless Tablet Users Manual
User Manual
Wireless Tablet
User’s Manual
Hanwang Technology Co., Ltd.
Copyright © Hanwang Technology Co., Ltd, 2009
All rights reserved. No part of this manual may be reproduced except for
your express personal use. Hanwang Technology Co., Ltd reserves the
rights to revise this publication without obligation to provide notification of
such changes. Hanwang Technology Co., Ltd does its best to provide
current and accurate information in this manual. However, Hanwang
Technology Co., Ltd reserves the right to change any specifications and
product configurations at its discretion, without prior notice and without
obligation to include such changes in this manual.
Hanvon are registered trademarks of Hanwang Technology Co., Ltd.
Microsoft, Windows, and Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries. Apple, the Apple logo, and Macintosh are registered trademarks
of Apple Computer, Inc., registered in the U.S. and other countries. Any
additional company and product names mentioned in this documentation
may be trademarked and /or registered as trademarks. Mention of
third-party products is for information purposes only and constitutes neither
an endorsement nor a recommendation.
Hanwang Technology Co., Ltd assumes no responsibility with regard to the
performance or use of these products.
Contents
CHAPTER 1 GRAPHICS TABLET INTRODUCTION.......................1
1.1 GENERAL INTRODUCTION................................................................1
1.2 FEATURES........................................................................................1
CHAPTER 2 QUICK-START TUTORIAL............................................2
2.1 SETUP STEPS ..................................................................................2
2.2 ILLUSTRATION OF WIRELESS TABLET..............................................3
2.3 WAKE UP TABLET ............................................................................6
2.4 SWITCH CHANNEL OF TABLET.........................................................7
2.5 BATTERY CHARGING FOR TABLET...................................................7
2.6 MATCH CODE OF TABLET ................................................................7
CHAPTER 3 USAGE OF PEN..............................................................9
CHAPTER 4 INSTRUCTION FOR WINDOWS SYSTEMS............13
4.1 SYSTEM REQUIREMENTS ..............................................................13
4.2 INSTALLATION ................................................................................13
4.3 UNINSTALLING ...............................................................................14

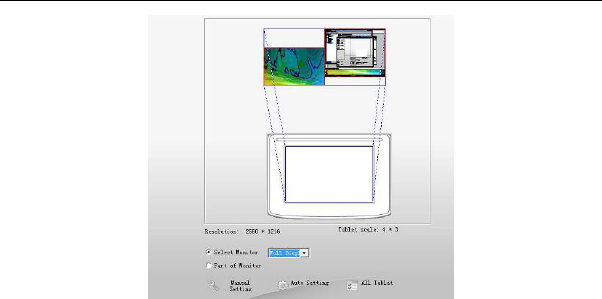

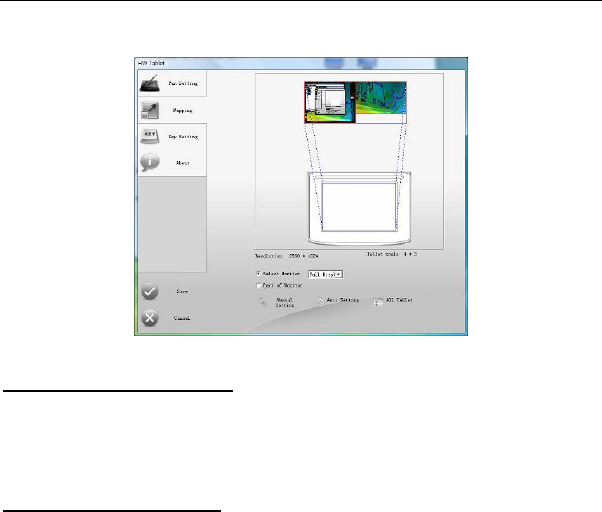

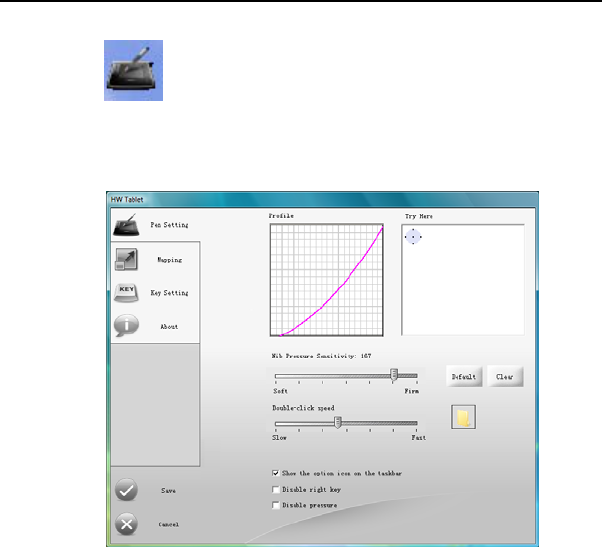

4.4 CONFIGURATION............................................................................15
CHAPTER 5 INSTRUCTION FOR MAC SYSTEMS.......................25
5.1 SYSTEM REQUIREMENTS ..............................................................25
5.2 INSTALLATION ................................................................................25

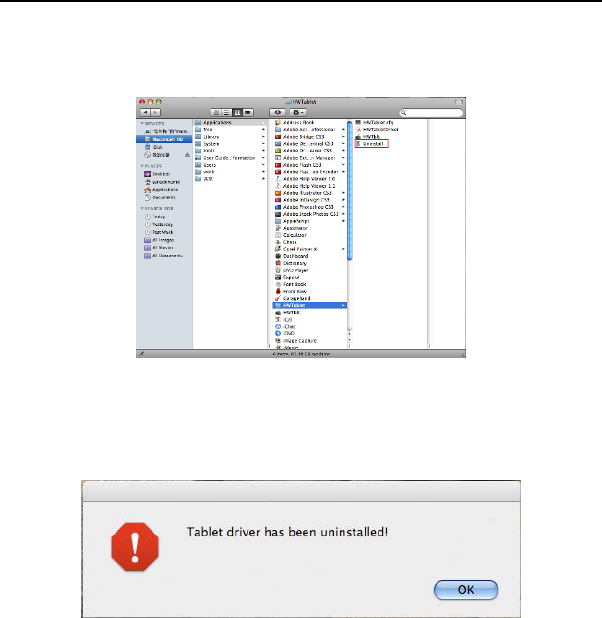

5.3 UNINSTALLING ...............................................................................28
5.4 CONFIGURATION............................................................................29
CHAPTER 6 BUNDLED SOFTWARE...............................................35

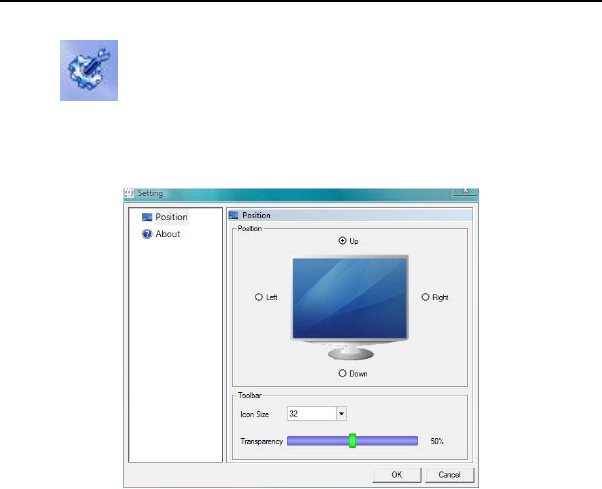

6.1 HANVON SHELL .............................................................................35

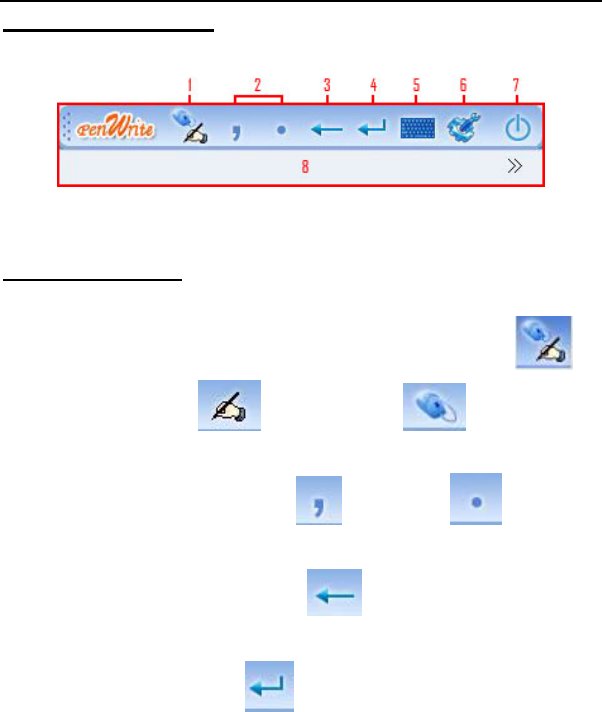

6.2 PENWRITE.....................................................................................41

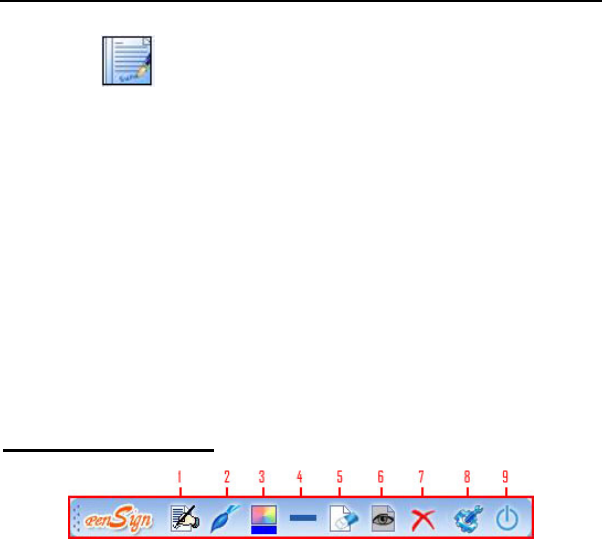

6.3 PENSIGN .......................................................................................48

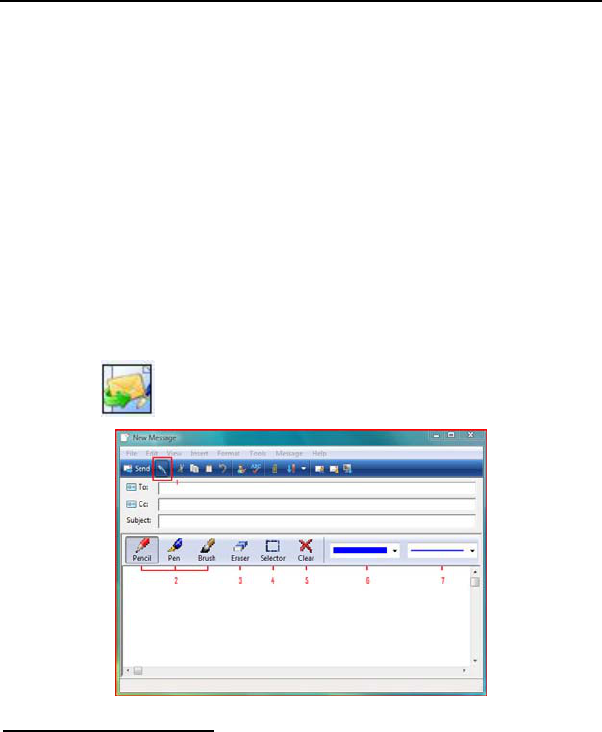

6.4 PENMAIL........................................................................................49

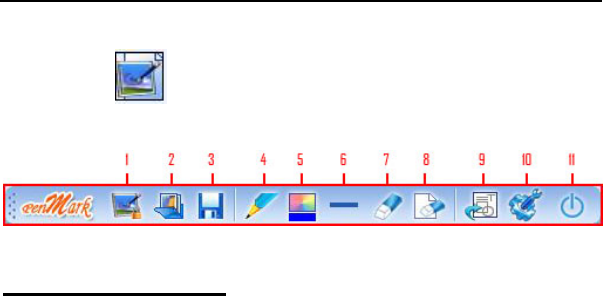

6.5 PENMARK......................................................................................51

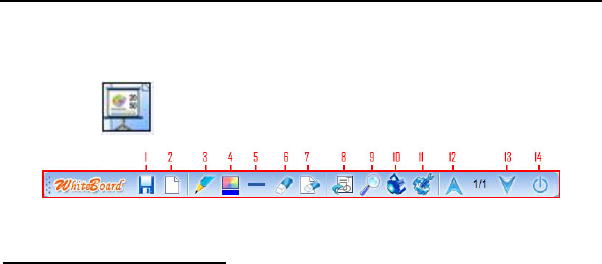

6.6 WHITEBOARD................................................................................53
CHAPTER 7 MAINTENANCE ............................................................57

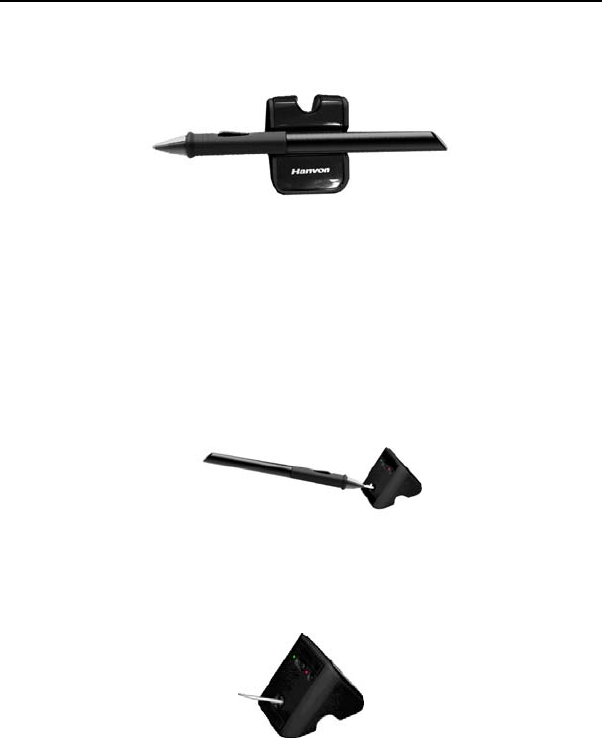

7.1 PEN HOLDER.................................................................................57
7.2 EXCHANGE PEN NIB......................................................................58
7.3 CAUTIONS......................................................................................59
APPENDIX.............................................................................................61
WARRANTY ..........................................................................................61
This User’s Manual does not contain detailed information of any
software from third party.
Due to our continuous updates on the product, all figures in this
manual are only for reference, the actual item is the standard.
CHAPTER 1 GRAPHICS Tablet Introduction
1
Chapter 1 Graphics Tablet
Introduction
1.1 General Introduction
The Hanvon Graphics Tablet allows user to create graphics on a
computer using a cordless and battery-free pen. It is very easy
to use. The user does not have to be an experienced graphic
artist to use it. This USB graphics tablet supports a variety of
professional painting and photo editing software including
Painter, Photoshop, Ulead Photolmpact, Flash, Dabbler, Maya,
PaintShop and more.
1.2 Features
z Cordless and Battery-free pen
z Pressure Sensitive Technology
z Radio Frequency Technology
z Equipped with Office Assistant Tools
z Using standard USB without the need for an external power
adapter
z Windows & Mac compatible
z Software Supported: Painter / Photoshop / Ulead
PhotoImpact / Flash / CorelDraw / Dabbler / Maya and a
variety of graphic processing software.
CHAPTER 2 Quick-Start Tutorial
2
Chapter 2 Quick-Start Tutorial
2.1 Setup steps
1. Install the driver from product CD
2. Connect receiver to USB port on computer.
3. Choose working mode:
z Wired mode: Connect the receiver to tablet.
z Wireless mode: Disconnect the receiver from
tablet.
Note: Either wired or wireless mode requires the receiver
connecting to USB port of computer.
CHAPTER 2 Quick-Start Tutorial
3
2.2 Illustration of Wireless Tablet

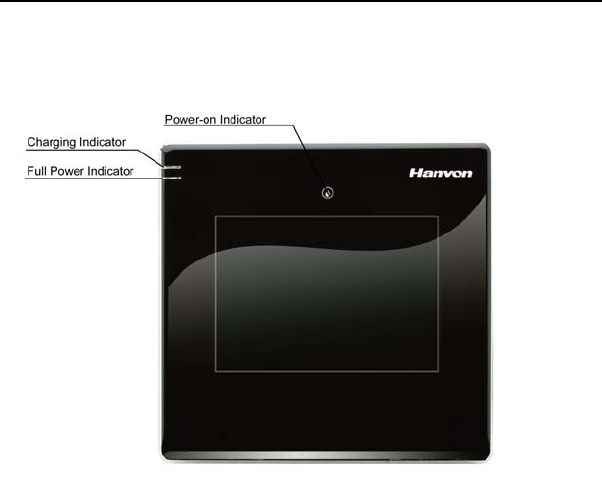

2.2.1 Front Side
Power-on Indicator: To represent the state of graphics
tablet.Data is transmitting between the tablet and the receiver
when green light blinks.
Charging Indicator: Red light represents charging the tablet.
Full Power Indicator: Green light represents full battery power.
The battery cannot be detected or malfunctioned when the
Power-on Indicator and Charging Indicator are blinking;please
check whether the battey is secured in the compartment and is
CHAPTER 2 Quick-Start Tutorial
4
in good condition. The battery is fully charged when Charging
Indicator and Full power Indicator are on at the same time.

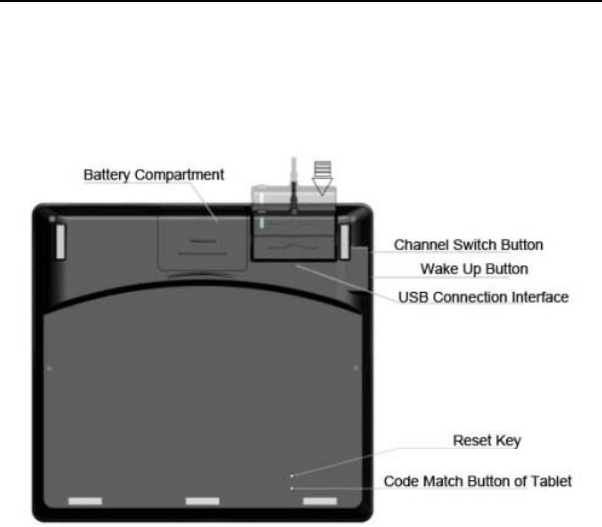

2.2.2 Wired Mode
Battery compartment: A compartment stores tablet battery.
Channel switch button: To switch channel when multiple
wireless tablets use the same channel and interfere each other.
Press Channel switch button for once time, the channel can be
switched from 0 to 15.Receiver Indicator blinks if the channel
was switched successfully.
CHAPTER 2 Quick-Start Tutorial
5
Wake up button: To wake up wireless tablet from sleep mode.
USB Connection Interface: To connect the receiver to tablet.
The interface is for charging battery and communication
between the tablet and receiver at wired mode.
Reset Key: To reset the tablet when sleep mode or crashing.
Code Match Button: Press the code match button of tablet for 3
seconds and receiver indicator will blink, then match the code.
Note: Code between tablet and its receiver has been
matched during production.

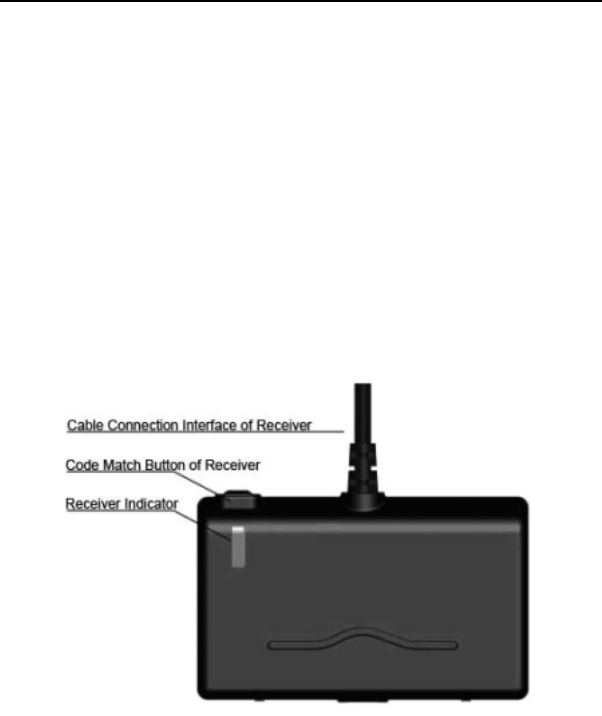

2.2.3 Receiver
Cable Connection Interface of Receiver: To connect the
CHAPTER 2 Quick-Start Tutorial
6
receiver to tablet.
Code Match Button of Receiver: Press to match code
between receiver and tablet.
Receiver Indicator: green light blinks when transmitting
between receiver and tablet.

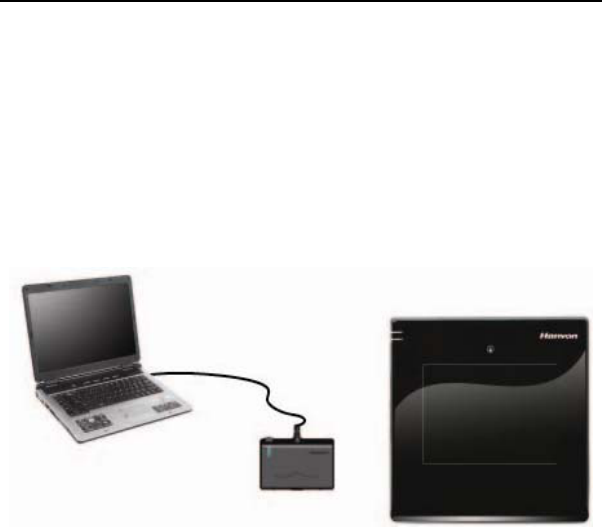

2.2.4 Wireless Mode
2.3 Wake up Tablet
Tablet will be into sleep mode automatically when the tablet idled
over about 10 minutes. Press wake up button, then users can
use the tablet normally.
CHAPTER 2 Quick-Start Tutorial
7
2.4 Switch Channel of Tablet
Disconnect receiver with tablet, the tablet will be on wireless
mode.
It will be disturbed when multiple tablets using the same channel,
for example: multiple tablets being wireless mode, using
wireless tablet with RF mouse or wireless telephone together in
one room.
Press Channel switch button once, receiver indicator will blink,
and the channel will be switched.
2.5 Battery Charging for Tablet
There is a BL-5C LI battery in the tablet. Please charge the
battery when power is low.
Charging: Connect receiver to tablet, then connect tablet to
computer,
2.6 Match Code of Tablet
It will be disturbed when multiple tablets using the same channel,
then please try to rematch the code for tablet.
Steps as follow:
1. Install the tablet driver for computer
2. Connect receiver with the computer, disconnect the receiver
CHAPTER 2 Quick-Start Tutorial
8
with tablet,
3. Press code match button of receiver; when receiver indicator
will blink, press code match button of tablet on the back case.
4. Match code successfully if using the pen tablet normally.
Otherwise, please press match code of receiver again, then
press match code of tablet. Operate as above until match code
successfully.
Note: Hanvon has already matched the code between
tablet and receiver when finishing production, it is unnecessory
to match the code at first time use.
CHAPTER 3 USAGE of Pen
9
Chapter 3 Usage of Pen

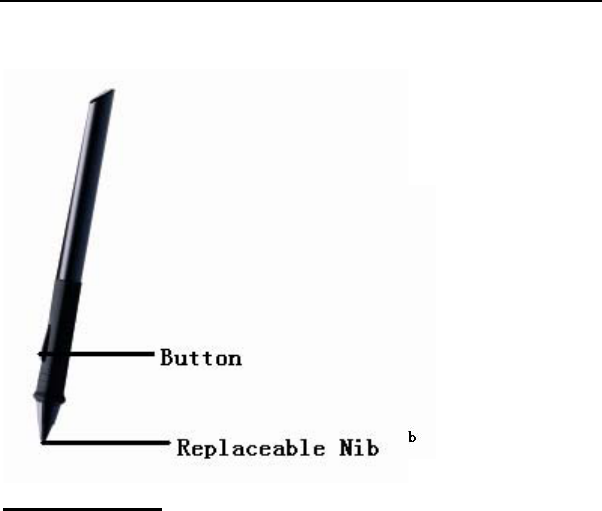

Holding the pen
Hold the pen as usual.

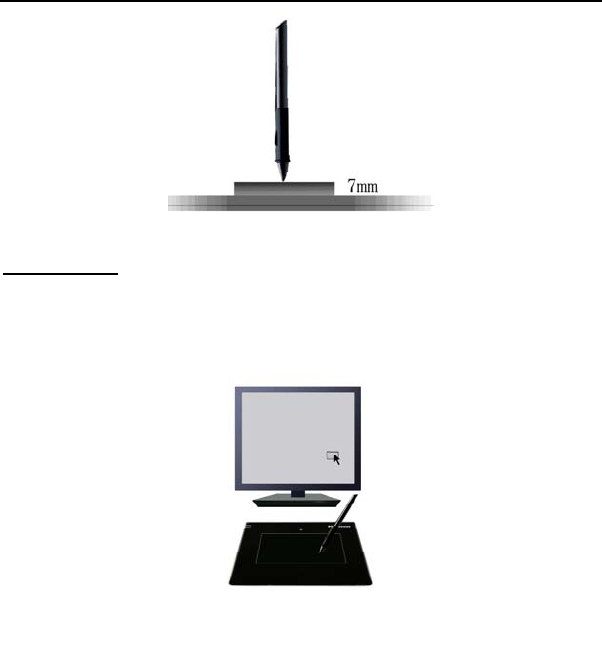

z The pen will take effect when it comes within 7mm above
the tablet.
z While using the pen, be sure that your thumb or index finger
can easily control the button on the pen, which acts as the
right-click key of a mouse.
CHAPTER 3 USAGE of Pen
10

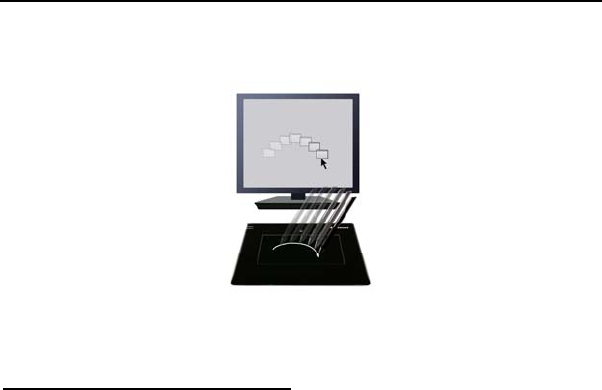

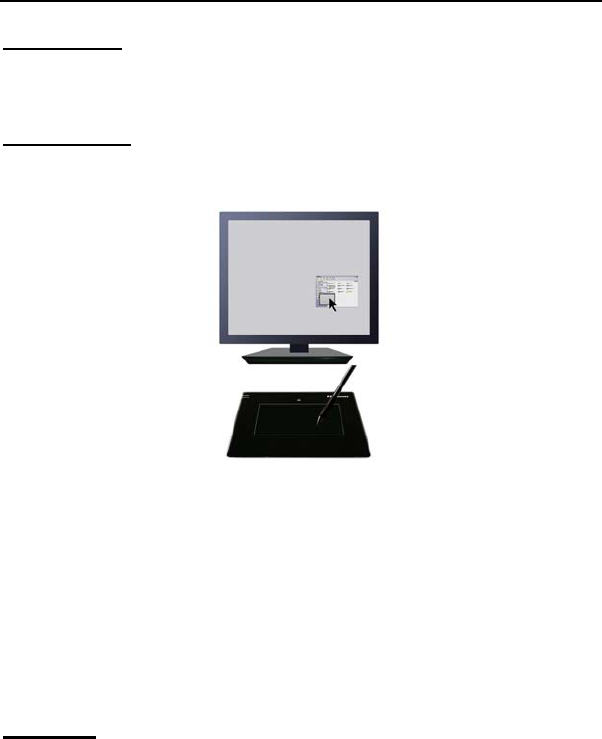

Positioning
Moving the pen in the active area of the tablet will control the
cursor’s position on the computer screen.
The pen and tablet use the Absolute Coordination method. This
means the active area of the tablet represents the entire
computer screen. Moving the pen on the tablet creates a
corresponding movement of the cursor on the screen.
CHAPTER 3 USAGE of Pen
11
Single Click
One slight touch of the pen on the tablet has the same effect as
a single left-click of the mouse.
Double Click
Two immediate clicks on the tablet have the same effect as a
double left-click of the mouse.
Double Click Technology
When the cursor is positioned, press the tablet twice
immediately with the pen tip, making sure that you do not move
the pen tip. The response for the double click can be slow for
beginners. You can solve this problem by adjusting the double
click speed from the normal setting of the tablet.
Dragging
Select a target by pressing the pen down on it, and do not
CHAPTER 3 USAGE of Pen
12
release the pen till you have moved the target to the new
position you want.
Pressure Sensitive Painting
In applicable software, you can use the pressure sensitivity of
the pen to control the painting brushwork for different effects
such as direction, stroke width, color and thickness.
The software that supports pressure sensitivity includes Adobe
Photoshop, Painter, Flash, Ulead PhotoImpact, Art Dabbler etc.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
13
Chapter 4 Instruction for Windows
Systems
4.1 System Requirements
CPU Pentium III 1GHz or later
RAM 256MB
Hard-disk 200MB
OS WINDOWS 2000/XP/Vista X86/Vista X64
Port USB1.1 or 2.0
4.2 Installation
Connect the drawing tablet’s USB cable to the computer’s USB
port.
Step 1
Insert the driver CD into the CD-ROM drive. The Installation
Menu should pop-up automatically. If the menu does not appear,
double-click the My Computer icon on the Desktop, find the
AutoRun.exe file under the CD-ROM’s root directory, and
CHAPTER 4 INSTRUCTION FOR Windows
Systems
14
double-click it.
Step 2
Click on Install Driver for Graphic Tablet button to install the
driver and click on Install Hanvon Soft to install the bundled
software.
Step 3
After installing the driver and the bundled software, read this
manual for detailed information on using and customizing your
graphics tablet.
Note: If the tablet cannot be used after driver installation, please
restart your computer.
4.3 Uninstalling

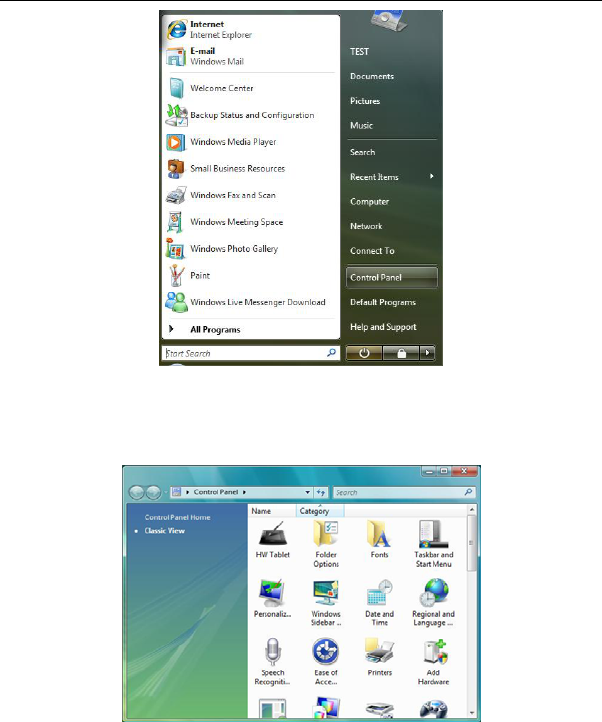

Step 1
Click the Windows Start button and then select Control panel.

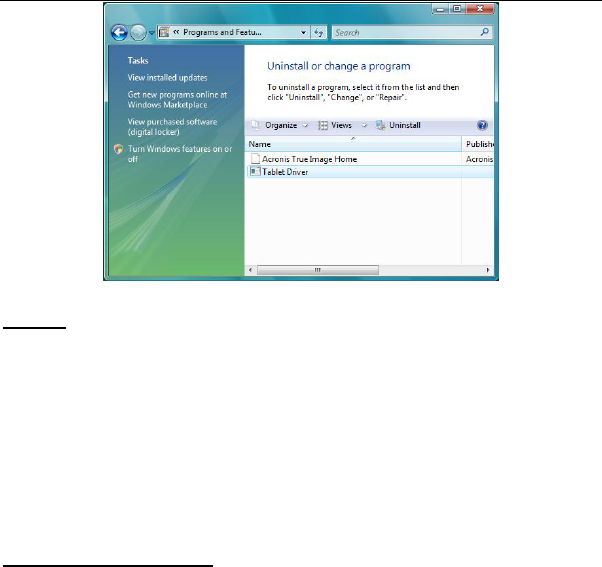

Step 2
Double click Add/remove program in the control panel window
and find Tablet Driver.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
15
Step 3
Click Uninstall and follow the prompts to remove the tablet
driver.
4.4 Configuration
Hanvon tablet driver provides a configuration window to set pen
pressure, working area, dual-monitors, double-click speed,
express touch keys, etc.
Before Configuration
z Connect the graphics tablet to the USB port on your
computer.
z Go to control panel.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
16
z Double-click the HW Tablet icon to open the configuration
interface.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
17

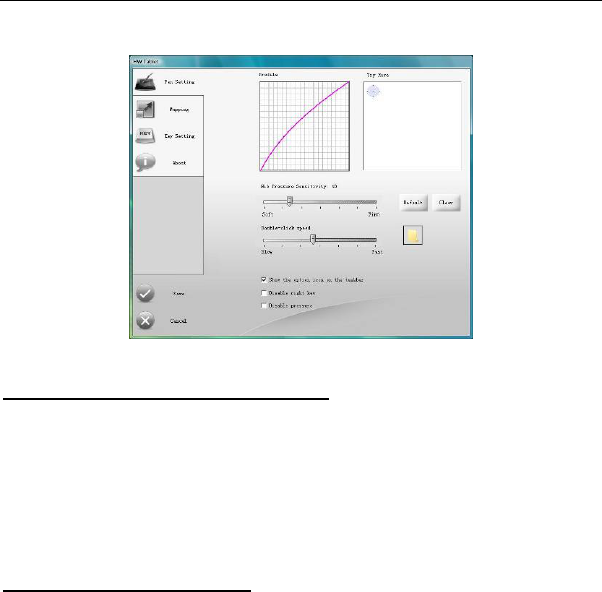

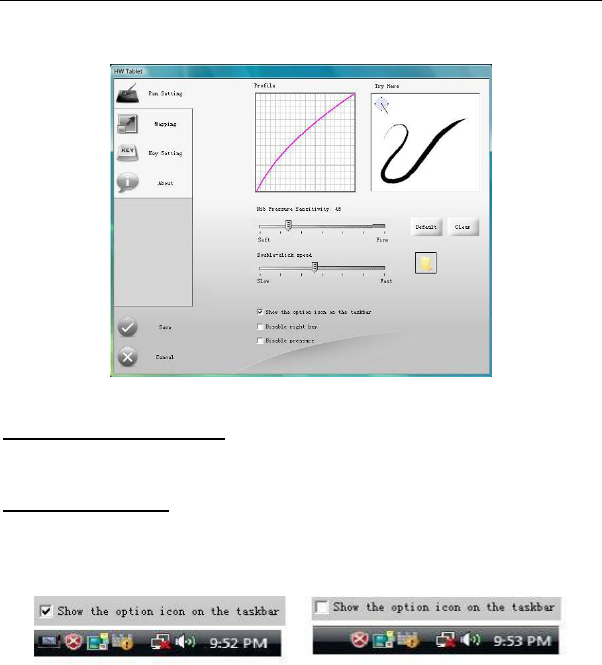

4.4.1 General Configuration
a. Adjusting Pressure Sensitivity
Pen pressure sensitivity can be adjusted by dragging the slider
between soft and hard. To create broad strokes, use a soft tip.
To draw thin lines, use a hard tip. The factory setting can be
restored by clicking the Default button. Adjustments can be
saved by clicking the Save button or can be canceled by clicking
the Cancel button.

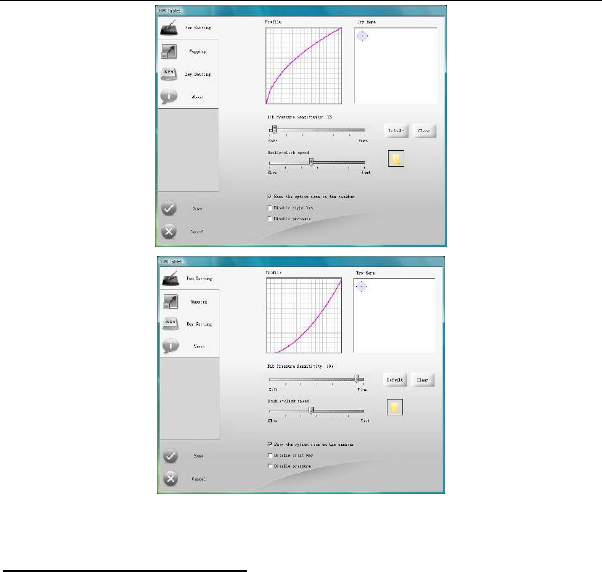

b. Pressure Curve Graph
Pen pressure sensitivity changes are displayed on the Pressure
Curve Graph. The images below show the graphs for light and
heavy pen pressure respectively.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
18
c. Pressure Testing Area
The right area is the pressure test area which is use to test the
pen tip feel. The round circle at the upper left corner represents
the tile angle between the drawing pen and the tablet surface. All
the writing and drawing in the test area can be cleared by
clicking the Clear button.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
19
Note: Only Windows 2000/XP/Vista X86/Vista X64 support tilt
angle.
d. Double-Click Speed
Dragging the slider to adjust the double-click speed and then
you can test the double click speed on the folder icon.
e. Other settings
z When you select the option to display the icon on taskbar,
the user can configure the tablet by right-clicking on the icon.
Uncheck option not to show HW Tablet icon on the taskbar.
z Check the option Disable right key, the pen button acting as
right-click of mouse button will not be functional.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
20
4.4.2 Mapping
a. Single Monitor Mode
The entire active area of the tablet maps to the entire monitor by
default. If your computer has more than one monitor, see
Multi-Monitor Mode.

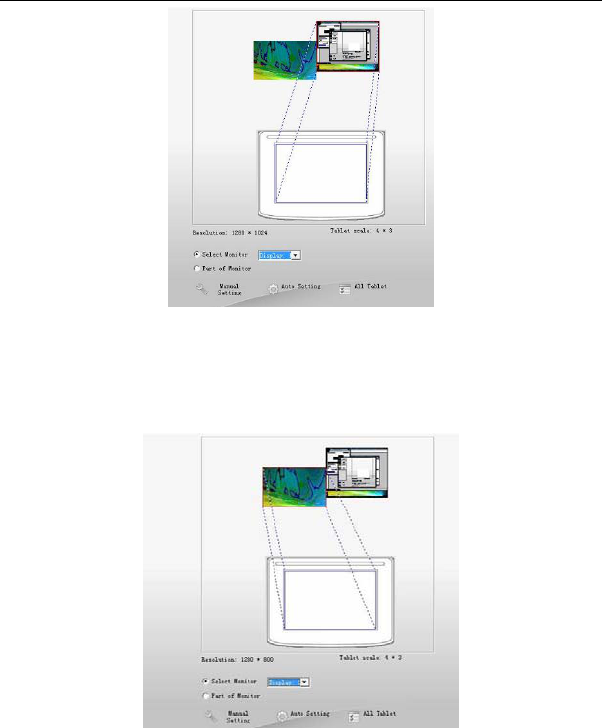

b. Multi-Monitor Mode
a) Full Screen
Choose Select Monitor and then select Full Display from the
drop-down menu. You will see the screen area corresponding to
the active area of the tablet is mapped.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
21

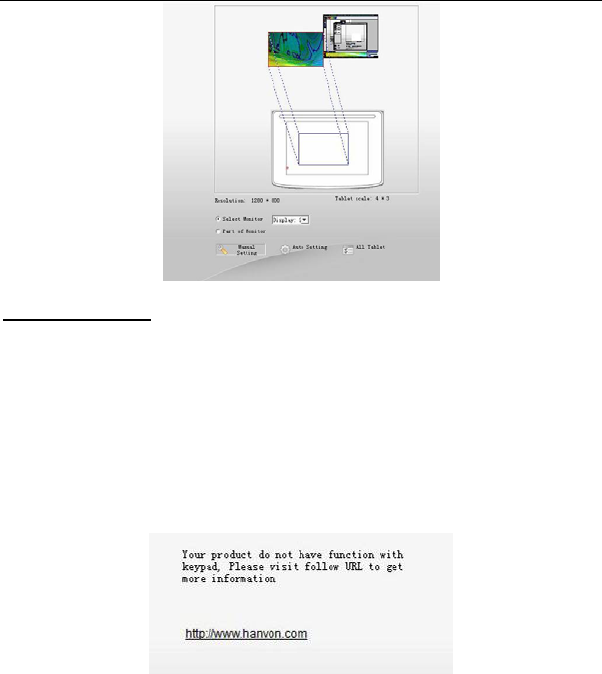

b) Screen #1
Choose Select Monitor and select Display 1 from the drop-down
menu to set the area only Display 1can be controlled by the
tablet.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
22
c) Screen #2
Choose Select Monitor and select Display 2 from the drop-down
menu to set the area only Display 2 can be controlled by the
tablet.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
23

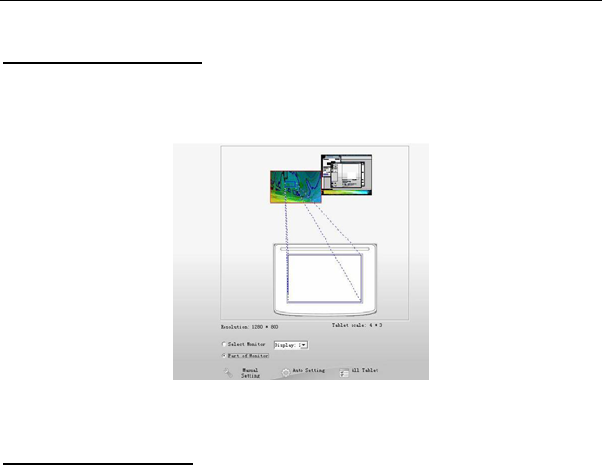

c. Portion of Screen
Choose Part of Monitor, and then click the upper left corner and
lower right corner for the expected area of screen which will be
mapped to the full tablet.
d. Portion of Tablet
Manual Setting enables you to select part of the active area of
the tablet mapped to the full screen.
CHAPTER 4 INSTRUCTION FOR Windows
Systems
24
e. Auto Setting
The tablet active area can be automatically set by clicking the
Auto Setting button. The active area can be set when the user
have single monitor, multi-monitor or wide screen monitor (16:9).
4.4.3 Key setting
You will see the information as following figure shown because
the tablet you purchased does not support the express touch
keys.
CHAPTER 5 INSTRUCTION FOR Mac Systems
25
Chapter 5 Instruction for Mac
Systems
5.1 System Requirements
RAM Minimum is 128MB (256MB is recommended)
Hard-disk 200MB
OS MAC-OS 10.4 or later
Port USB1.1or 2.0
5.2 Installation
Connect the graphic tablet’s USB cable to the computer’s USB
port.

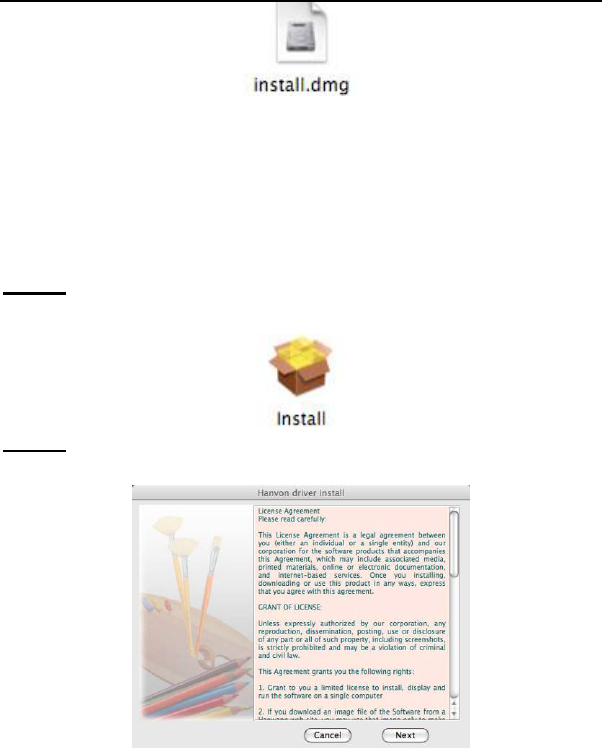

Step 1
Insert the driver CD into the CD-ROM drive then find the install
file in MacOS X/Mac104/Install.dmg (Note:For MacOS 10.4 or
later) or MacOS X/Mac103/Hwinstall.dmg (Note: For MacOS
10.3.X and it does not support express touch keys of graphics
tablet), click on the Install.dmg or Hwinstall.dmg icon to run the
file.
CHAPTER 5 INSTRUCTION FOR Mac Systems
26
Note: If you installed driver for Mac OS 10.3.X, you need to
uninstall it before driver installation for Mac OS 10.4.X or later.
For removing the driver, please open
"System-Library-Extensions" and delete "HYTabletDriver.kext"
file.
Step 2
Double-click the Install icon.
Step 3
Please read the license agreement carefully then click Next.
CHAPTER 5 INSTRUCTION FOR Mac Systems
27

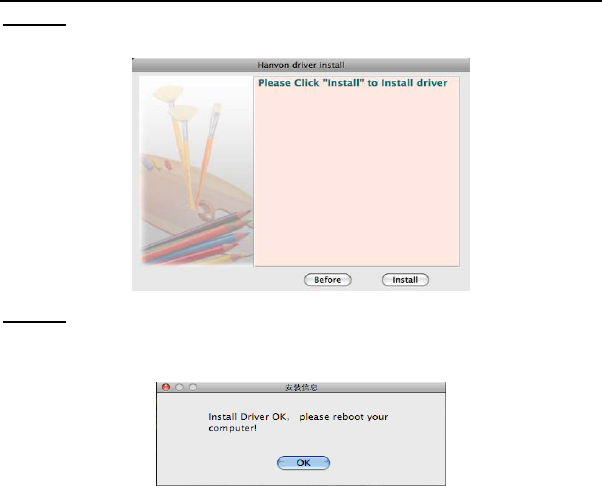

Step 4
Click Install to install the tablet driver.
Step 5
Click OK and reboot your computer when the install process is
finished.
CHAPTER 5 INSTRUCTION FOR Mac Systems
28
5.3 Uninstalling
Open HWTablet in Applications.
Choose Uninstall to remove the tablet driver. Please click OK
when the driver has been removed.（Suggestion: Reboot the
computer）.
CHAPTER 5 INSTRUCTION FOR Mac Systems
29

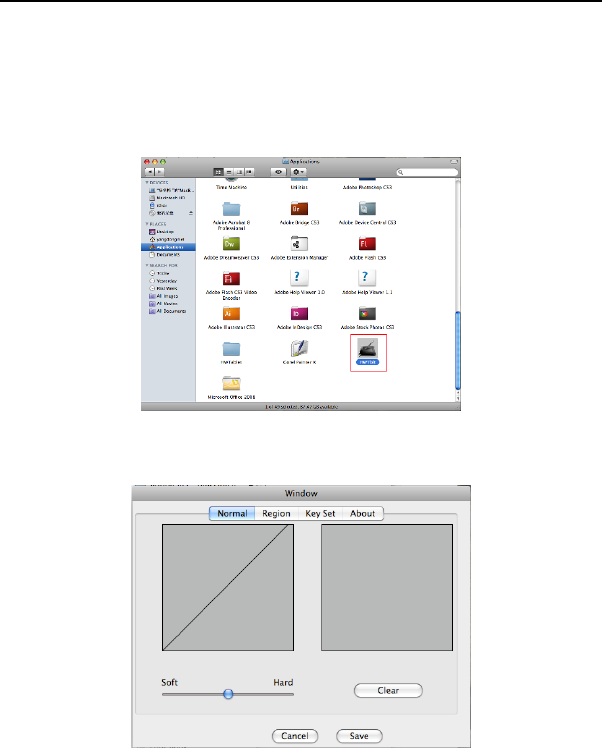

5.4 Configuration
Connect the tablet to your computer by USB cable and port.
The HWTblt icon has been added in the applications.
Double-click the HWTblt icon to open the tablet control panel.
5.4.1 General Configuration
CHAPTER 5 INSTRUCTION FOR Mac Systems
30
a. Adjusting Pressure Sensitivity
Pen pressure sensitivity can be adjusted by dragging the slider
between soft and hard. The right area is the pressure test area.
Adjustment can be saved by clicking the Save button, or can be
canceled by clicking the Cancel button.

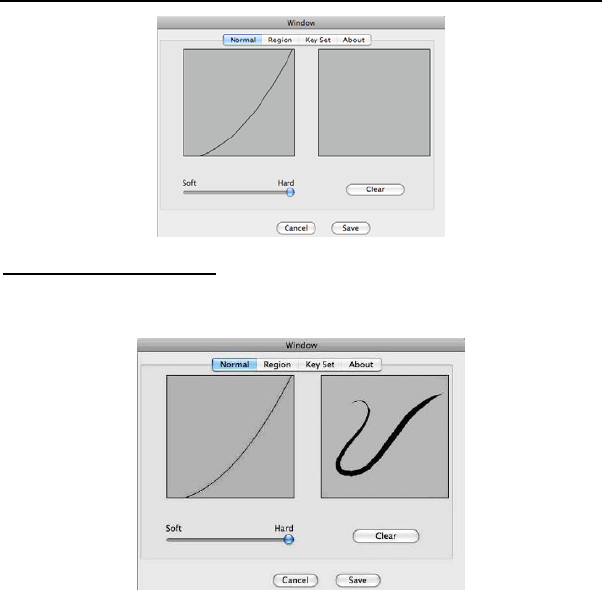

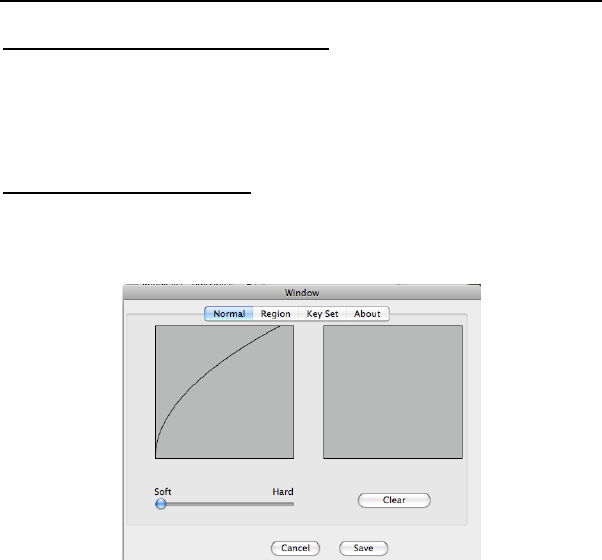

b. Pressure Curve Graph
Pen pressure sensitivity changes are displayed on the Pressure
curve graph. The images below show the graphs for light and
heavy pen pressure respectively.
CHAPTER 5 INSTRUCTION FOR Mac Systems
31
c. Pressure Test Area
All the writing and drawing in the test area can be cleared by
clicking Clear button.
CHAPTER 5 INSTRUCTION FOR Mac Systems
32

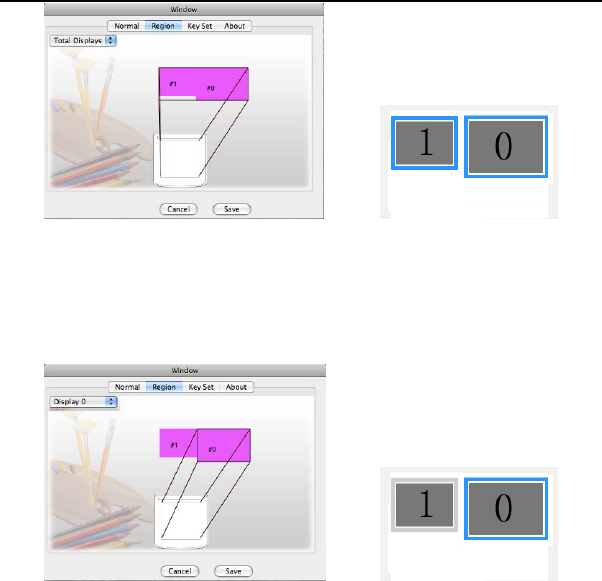

5.4.2 Mapping
a. Multi-Monitor Mode
You can drag the displays to the desired order if you computer
has more than one monitor.
a) Full screen
Choose Region and select Total Displays from the drop-down
menu. You will see the active area of the monitors
corresponding to the area in table is mapped.
CHAPTER 5 INSTRUCTION FOR Mac Systems
33

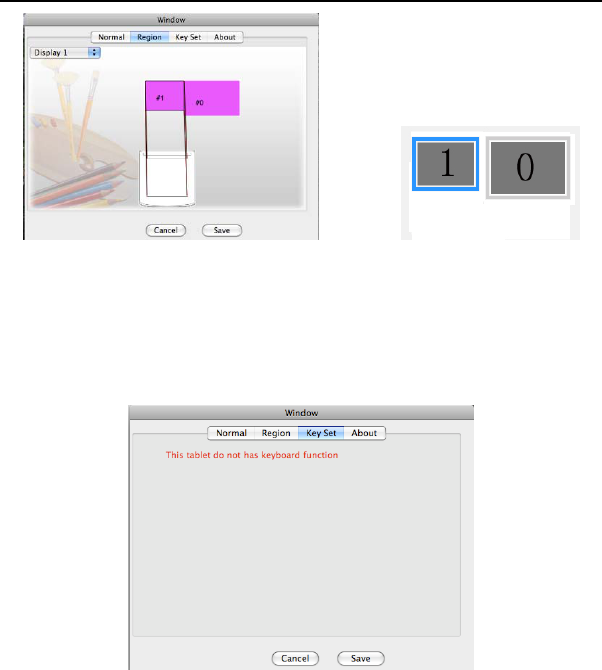

b) Display #0
Select Display 0 from the drop-down menu to set the area in
tablet to control Display 0.
c) Display #1
Select Display 1 from the drop-down menu to set the area in
tablet to control Display 1.
CHAPTER 5 INSTRUCTION FOR Mac Systems
34
5.4.3 Key set
You will see the information as following figure shown because
the tablet you purchased does not support the express touch
keys.
CHAPTER 6 Bundled Software
35
Chapter 6 Bundled Software
6.1 Hanvon Shell
6.1.1 Shell Summary
Hanvon Shell is a shortcut startup application for starting
bundled Hanvon Software or other software.
Default startup style: it will be operated automatically when you
startup your computer; if user exits shell from the application, it
will switch to the manual startup style; double click the shortcut
icon on the desktop to startup the Shell toolbar.

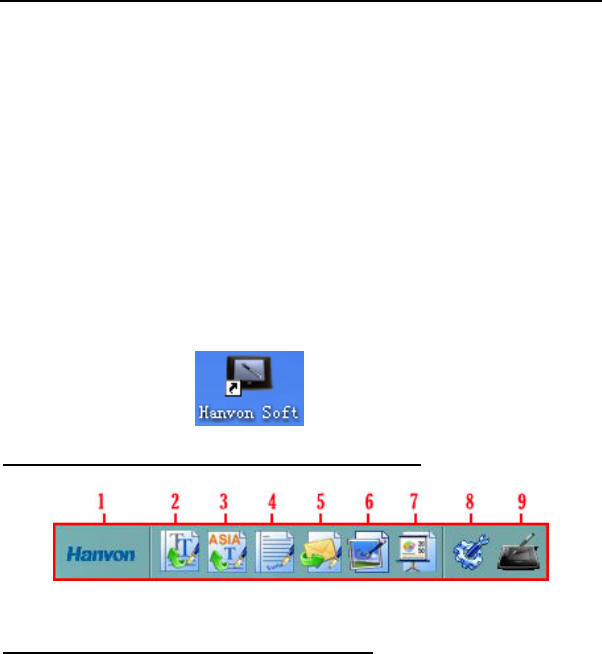

Main interface will be shown as following:
Icons explanations as following:
1. Area for Dragging Shell
After opening shell toolbar, you can drag the icon to adjust the
CHAPTER 6 Bundled Software
36
positions at up, down, left and right locations on computer’s
screen;
When cursor have been left the toolbar for 5 seconds or later,
Shell toolbar will be hided, Single-click it to display the main
interface;
2. PenWrite
Editing Microsoft Office documents formatted as: Word、Txt、
Excel and PPT by handwriting directly;
PenWrite Provides English、German、French、Italian、Dutch、
Spanish、Swedish、Portuguese (Portugal)、Portuguese (Brazil)
multi-languages recognition
3. PenWrite Asia
Editing Microsoft Office documents formatted as: word、Txt、
Excel and PPT by handwriting directly;
PenWrite Asia Provides Simplified Chinese 、Traditional
Chinese (Hong Kong) 、Traditional Chinese (Taiwan) 、
Japanese and Korean languages recognition
4. PenSign
This program enables you to add your handwriting signature in a
document such as Microsoft Office word /PPT;
CHAPTER 6 Bundled Software
37
5. PenMail
Providing handwrite email in Outlook Express or Windows Mail.
6. PenMark
Providing handwrite mark on desktop or pictures;
7. WhiteBoard
A software application simulates Electronic Whiteboard. The
monitor is like a marker board in front of users and become a
simplified Electronic Whiteboard through a projector.
8. System Menu
Configure shell setting
9. Tablet Setting
Configure tablet setting
CHAPTER 6 Bundled Software
38
6.1.2 System Menu Shell
Click to enter Shell configuration interface shown as
following figure:
Position: Set the position for Hanvon Shell on the screen;
Icon Size: Set the icon size shown in the Hanvon startup
toolbar;
Transparency: Set the transparency for Hanvon startup
toolbar.
CHAPTER 6 Bundled Software
39
6.1.3 Tablet Setting
Click to enter tablet setting interface shown as
following figure:
CHAPTER 6 Bundled Software
40

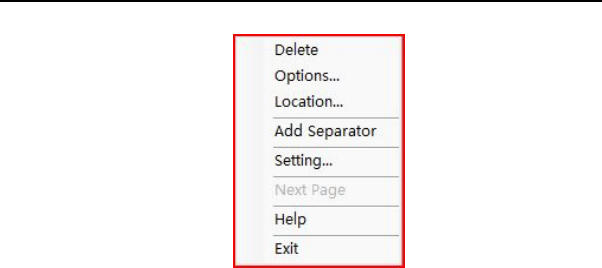

6.1.4 Shell right key menu
Delete: Delete the current icon or separator；
Options: Change name and icon of the current software
Location: Find the target file position which the software is
saved
Add Separator: Add the separator in the location where the
cursor is placed.
Setting: （ the function is the same as System Menu）
Next Page: Turn to next page
CHAPTER 6 Bundled Software
41

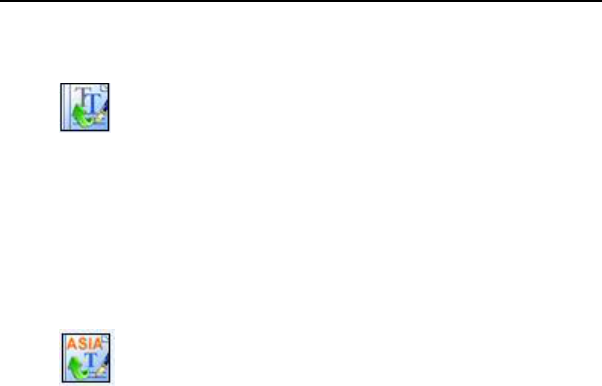

6.2 PenWrite

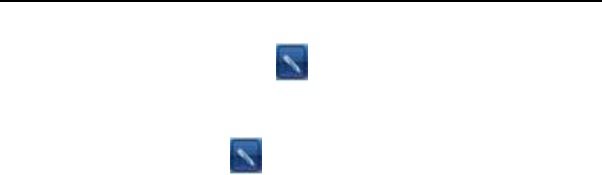

Click on the shell to open PenWrite application.
Open WORD application for editing, Then users may
handwriting input words ,sentences, punctuation&symbol and
numbers in English、German、French、Italian、Dutch、
Spanish 、Swedish 、Portuguese (Portugal) 、Portuguese
(Brazil).The handwriting characters would be turn to be text
automatically to the location where the cursor was placed.
Click on the shell to open PenWrite Asia application.
Open WORD application for editing, Then users may
handwriting input characters、punctuation&symbol and numbers
in Simplified Chinese、Traditional Chinese (Hong Kong) 、
Traditional Chinese(Taiwan) 、Japanese and Korean.
Note: Please confirm the cursor’s location firstly, and then start
handwriting.
PenWrite and PenWrite Asia have the same main
interface.
Instruction as following:
CHAPTER 6 Bundled Software
42
Icon explanations:
Basic functions
1. Pen & Mouse Mode
Switch the status between Pen & Mouse Mode \
Pen Mode \ Mouse Mode
2. Comma & Period
Edit”,” or “.” by clicking Comma or Period
3. Backspace
Backspace by clicking
4. Enter
Enter by clicking

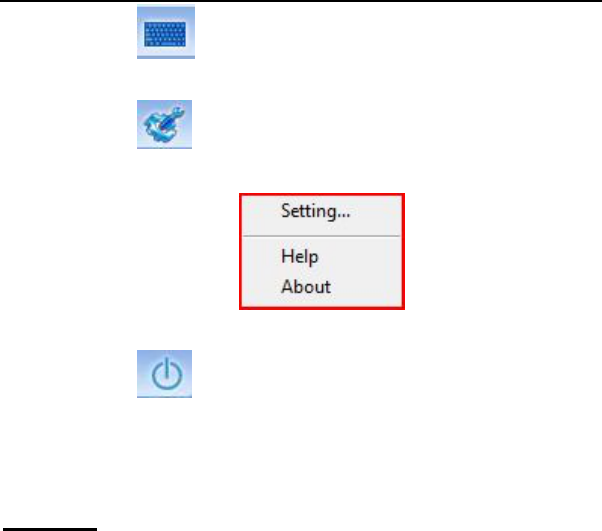

5. Keyboard
CHAPTER 6 Bundled Software
43
Click to startup software keyboard
6. System Menu
Click to enter an interface shown as following
figure:
7. Exit
Click to exit
8. the candidate area for recognized results
Setting
Click “setting…” shown as following figure:

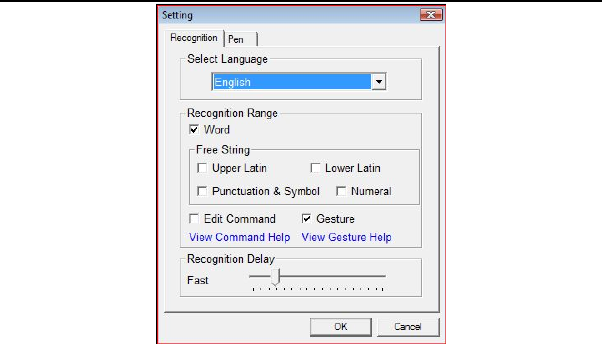

Setting for PenWrite—Recognition
CHAPTER 6 Bundled Software
44
[Select Language] Choose recognition language
between 9 kinds of languages；
[Recognition Range] Choose the recognition range；
[Recognition Delay] Adjust the recognition interval time.
CHAPTER 6 Bundled Software
45
Setting for PenWrite Asia—Recognition
[Select Language] Choose recognition language
between Simplified Chinese、Traditional Chinese (Hong
Kong) 、Traditional Chinese (Taiwan) 、Japanese and
Korean. [Recognition Range] Choose the recognition
range；
[Recognition Delay] Adjust the recognition interval time.
CHAPTER 6 Bundled Software
46

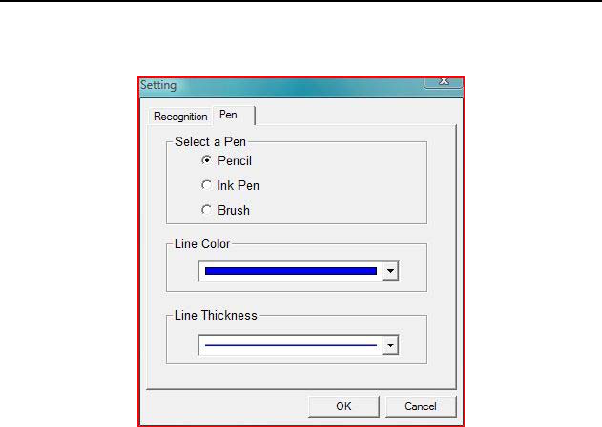

Setting—Pen
Selecting the pen type, line colors or line thickness
CHAPTER 6 Bundled Software
47

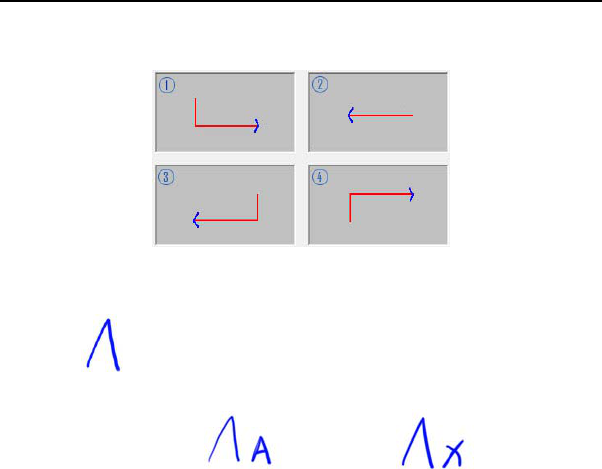

Gesture:
① Space、②Backspace、③Enter、④Tab
Edit Command:
=Ctrl
For example:
Ctrl+A Ctrl+X
Edit Command supported as bellow:
Ctrl + A
Ctrl +C
Ctrl +V
Ctrl +X
Ctrl +Z
CHAPTER 6 Bundled Software
48
6.3 PenSign
Click to open PenSign application
z The program can be used in Microsoft Office 2000 and the
version higher, Word、Excel、PowerPoint ( Notice: please
don’t write directly in Word outline\Excel pagination preview\
PowerPoint insert images )；
z Support the Word Pad and Windows Draw (when the script
will be shown opacity, it wouldn’t support “Hide Sign & Show
Sign” and “Delete Sign” functions）.
z The signature size and position can be adjusted freely.
Icon explanations:
1. Start Sign & End Sign;
Start and end to sign;
2. Pen(Brush \ pencil \ Ink Pen)
Select pen type
3. Color
Select line color
4. Width
CHAPTER 6 Bundled Software
49
Select line thickness
5. Clear all
Clear current script
6. Hide Sign & Show Sign
Show or hide your signature
7. Delete Sign
Delete all script
8. System Menu
Help & About
9. Exit
6.4 PenMail
Click to open PenMail application.
Icon explanations:
CHAPTER 6 Bundled Software
50
1. PenMail
When pressing icon down, it will switch to
handwriting status; and it will return to text editor status
when lifting icon .
2. Pen(Brush \ pencil \ Ink Pen)
Select pen type
3. Eraser
Erase the individual script
4. Selector
Select part script
5. Clear
Clear all script
6. Colors
Select line color
7. Width
Select line thickness
The program can be used in Outlook Express 6.0 and the
version higher in Windows 2000/XP OS, and Windows Mail in
Windows Vista OS. When the system operating is Windows
2000, please install IE6 and Outlook Express 6 or higher version
before applying PenMail.
PenMail can also support Vista x32 but not Vista x64;
CHAPTER 6 Bundled Software
51
6.5 PenMark
Click to open PenMark application; you can
handwrite marks on the screen or pictures.
Icon explanations:
1. Start\exit screen annotation
2. Open picture
3. Save
z Files can be saved as BMP、JPG、TIF、PNG or GIF
format
z Suggest you to select TIF format when the file has
several pages.
z Default saving path: C:\Documents and
Settings\Administrator\My Documents\My Pictures.
4. Pen(Brush \ pencil \ Ink Pen\ High Lighter)
Select Pen type
5. Color
Select line color
6. Width
Select line thickness
CHAPTER 6 Bundled Software
52
7. Eraser
Clear part script
8. Clear all
Clear all script
9. Tools
Insert line\figure\text\pictures
10. System Menu
Setting、Help、About
11. Exit

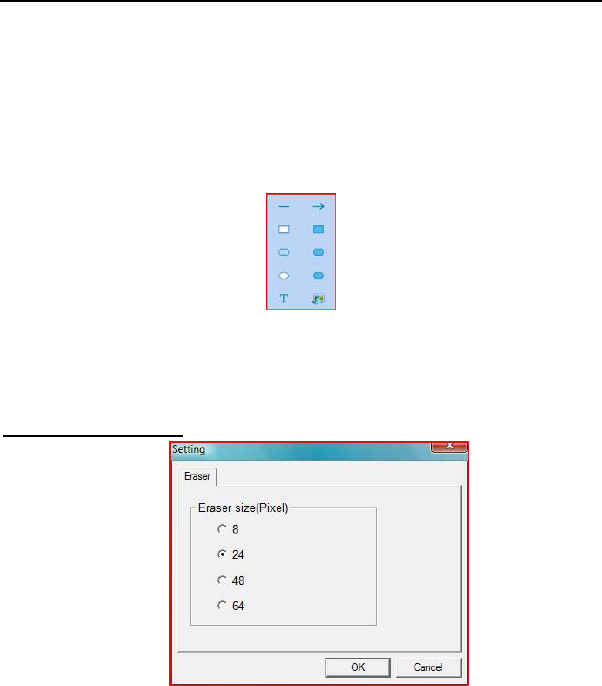

Setting—Eraser
Setting the size of eraser
CHAPTER 6 Bundled Software
53
6.6 WhiteBoard
Click to open WhiteBoard application.
Icon explanations:
1. Save
z The document can be saved as BMP、JPG、TIF、PNG
or GIF format
z Suggest you to select TIF format when the document
has multiple pages.
z Default saving path: C:\Documents and
Settings\Administrator\My Documents\My Pictures.
2. New Page
Add a new page
3. Pen (Brush \ pencil \ Ink Pen\ High Lighter)
Select pen type
4. Color
Select line color
5. Width
Select line thickness
6. Eraser
CHAPTER 6 Bundled Software
54
Clear part script
7. Clear all
Clear all script

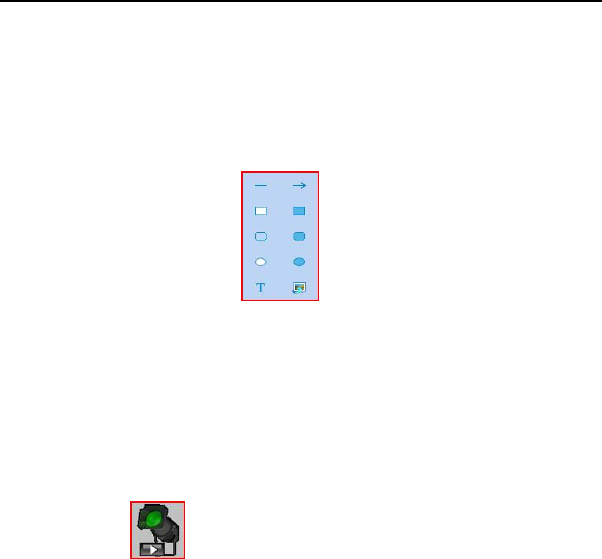

8. Tools
Insert Line\figure\text\pictures
9. Magnifier
z Click the right key, the menu will popup, you can set
spotlight size, shape, radio, high quality display, show
border and exit
z Exit the application directly by pressing ESC
10. Spotlight
z Click down arrow, the menu will popup, you can
set spotlight transparency, shape and exit.
z Exit the application directly by pressing ESC
11. System Menu
Setting、Help、About
12. Previous
Turn to previous page
CHAPTER 6 Bundled Software
55
13. Next
Turn to next page
14. Exit
Setting

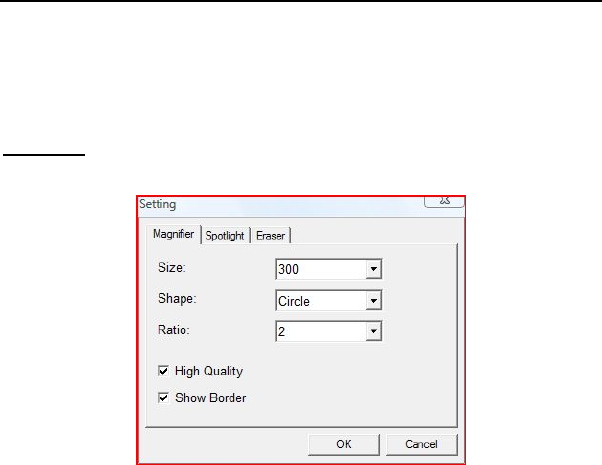

Setting--Magnifier
Setting magnifier size, shape, ratio, high quality display and
show border

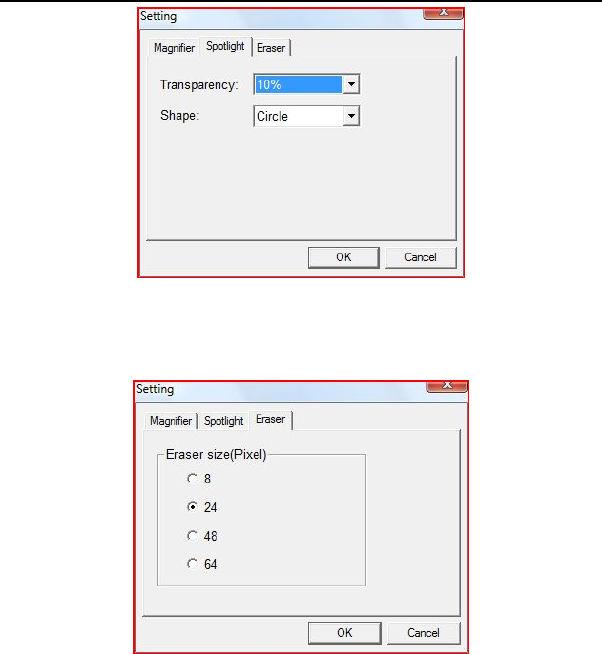

Setting—Spotlight
CHAPTER 6 Bundled Software
56
Setting spotlight transparency and shape
Setting—Eraser
Setting the size of eraser
MAINTENANCE
57
Chapter 7 Maintenance

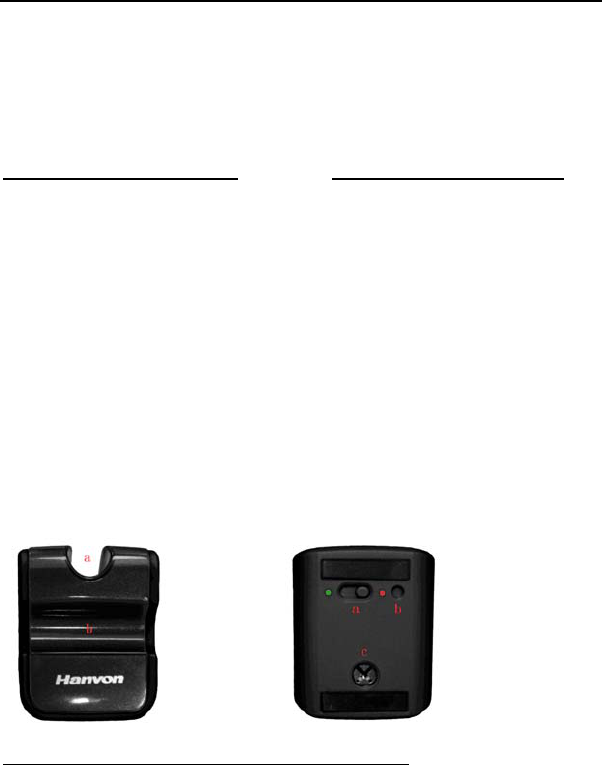

7.1 Pen Holder
Front View of Pen Holder Back View of Pen Holder
a. Vertical Pen Slot a. Pen Nib Storage
Slide the switch toward
green dot to open, then pick
pen nibs from Pen Nib
Storage; slide the switch
toward red dot to close the
Pen Nib Storage
b. Horizontal Pen Slot b. Storage hole for extra pen
nibs
c. Pen Nib Exchanger
Front view with pen placed in horizontal slot
MAINTENANCE
58
7.2 Exchange Pen Nib
z Insert the old nib to Pen Nib Exchanger, hold tight and pull
the pen out of the pen nib exchanger.
z Pulling out the pen nib
After pulling the pen out of the exchanger, the old pen nib
stayed in Pen Nib Exchanger.
z Insert a new pen nib into the pen.
MAINTENANCE
59
Note: The pen holder is not included in all series of products. If
you purchased the product does not have the pen holder as
mentioned above, please using tweezers, grasp the nib and
draw it out. Once removed, a new nib may be inserted into the
pen.
7.3 Cautions
z Do not put the tablet on a metal surface, such as iron or
aluminum alloys.
z Due to a CRT monitor’s electromagnetic radiation, do not
use the drawing tablet too close to a CRT monitor.
z Please do not stack tablets while battery has been installed
in compartment; otherwise, the tablet cannot enter sleep
mode, and battery power will be consumed very fast. Taking
out battery is recommended in this case.
z For receivers and Class B digital
This product has been tested and complies with the
specifications for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used according
to the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
MAINTENANCE
60
reception, which is found by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment or devices
Connect the equipment to an outlet other than the receiver's
Consult a dealer or an experienced radio/TV technician for
assistance
z Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
APPENDIX
61
Appendix
Warranty
Limited Warranty
Hanwang Technology warrants that this product is free from any
defects in workmanship or materials under normal use and
conditions for a period of two (2) years for Europe or one (1)
year for the U.S. from the date of original purchase. If such a
defect is discovered within this warrant’s limitations, Hanvon
agrees, at its sole discretion, to repair or replace the same item
with one of equal value, free of charge to the original consumer
purchaser.
This warranty shall not apply if this product is modified, misused,
tampered with, subject to abnormal working conditions, or
transferred to someone other than the original consumer
purchaser.
Warranty Redemption for US Market Only
Should this product fail to function in a satisfactory manner,
please return it to the store where it was originally purchased.
Please be sure to contact us at service@hanvon.com to obtain
a Return Merchandise Authorization Number before you return it,
and within your email please include your name, address, phone
number, a copy of the original receipt, serial number and the
reasons for returning the product.
APPENDIX
62
Should this fail to resolve the matter and service is still required
by reason of any defect or malfunction during the warranty
period, Hanvon Corporation will repair or replace this product
without charge (except for a charge for handling, packing, return
UPS/postage, and insurance).
Technical Support
Should you have any questions or comments, please contact us
via tech@hanvon.com, or visit our website at:
Global site: http://www.hanvon.com
US site: http://usa.hanvon.com
Online Registration for US Market Only
To better serve our customers, please take the time to register
online at http://usa.hanvon.com. This information is for internal
use only. No information provided will be distributed to soliciting
organizations.
The registration also allows you to receive valuable information
and enjoy special savings on upgrades for products.
Thank you for choosing Hanvon products.
