User Manual

WIRELESS MONITORING SYSTEM

User Manual SEW-3035WN , SEB-1018RW

SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS

FCC NOTE:

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.

SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE

EQUIPMENT.

WARNING

Some adult assembly or installation required.

This product contains small parts that may cause choking. Keep small parts away from

children.

This product is NOT intended to replace proper supervision of children.

You MUST check your child’s activity regularly, as this product will not alert parents to silent

activities of a child.

Before using this product, read and follow all instructions contained in this booklet, and

read and follow all instructions and warnings on the product.

To prevent entanglement with adapter cords, NEVER PLACE THE CORD IN OR NEAR A

CRIB OR PLAYPEN. DO NOT place the product or its AC adapter cords within reach of

children.

ALWAYS KEEP THE TRANSMITTER, RECEIVER AND AC ADAPTERS OUT OF REACH OF

CHILDREN.

NEVER use the transmitter or receiver near water, including near a bathtub, sink, laundry

tub, wet basement, etc.

This product is intended for indoor use only.

This product is not intended for use as a medical monitor and its use should not replace

adult supervision.

Check reception regularly. Test monitor before use and after changing camera location.

Always unplug AC adapters from wall outlets and power sources during periods of non-

use.

The wireless signal transfer range may be shortened if there exists an obstacle such

as a concrete wall

Samsung Techwin Co., Ltd. All rights

reserved.

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their

respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no

circumstances, this document shall be reproduced, distributed or changed, partially or

wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents

in this document, but no formal guarantee shall be provided. Use of this document

and the subsequent results shall be entirely on the user’s own responsibility. Samsung

Techwin reserves the right to change the contents of this document without prior notice.

Wireless

Monitoring System

User Manual

between.

•

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference; and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy. If not installed and used in accordance with the instructions, it may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try and correct the interference

by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and the receiver.

- Connect the equipment to outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

“This appliance and its antenna must not be collocated or operation in conjunction with

any other antenna or transmitter. A minimum separation distance of 20 cm must be

maintained between the antenna and the person for this appliance to satisfy the RF

exposure requirements."

To prevent overheating, keep the product and AC power adapters away from any

direct sunlight and heat sources such as radiators, heat registers, cooking devices

(e.g., stoves and ovens) and other appliances that produce heat (e.g., amplifiers,

televisions and stereos).

Ensure that the product is well ventilated during use. Avoid contact with pillows and

furniture that may block ventilation.

Use only the AC adapters provided with the product, as other adapters may damage

the product. Plug the adapters only into standard household current (120 volts AC).

Place the AC adapters avoiding pinch points otherwise you can damage the

adapters.

When an AC adapter is plugged into a power source, DO NOT touch the exposed

end of the AC adapter’s cord.

Do not use extension cords with the AC power adapters to avoid entanglement.

This product should only be serviced by qualified and authorized Samsung service

centers.

Images and sounds are transmitted by the product over public airwaves and

transmissions may be picked up by other units.

Caution if you use the system to watch a young child, do not place the camera where

the child can reach.

When using the system with only battery power and the charge is low, then the

picture and or sound may affected.

If this occurs then please connect the AC power adapter and/or replace with new

batteries.

If you are using the optional rechargeable battery then plug in the AC power adapter

to recharge.

BATTERY WARNING

When using the product in portable mode, check batteries regularly.

DO NOT use the monitor in portable mode when batteries are low.

DISPOSE OF OR RECYCLE BATTERIES PROPERLY IN ACCORDANCE WITH

APPLICABLE LAWS, which may vary by location.

Insert batteries with the correct polarity.

Do not mix new and used batteries.

Remove exhausted batteries from the product.

Keep all batteries away from children.

THERE IS A RISK OF EXPLOSION IF INCORRECT BATTERIES ARE USED.

Do not disassemble or modify the battery pack.

Do not use batteries if there is any evidence of leakage or deformity.

•

Contents

GETTING STARTED

Features ……………………………………………………… 4

Getting to know your Monitoring system …………………… 5

INSTALLATION

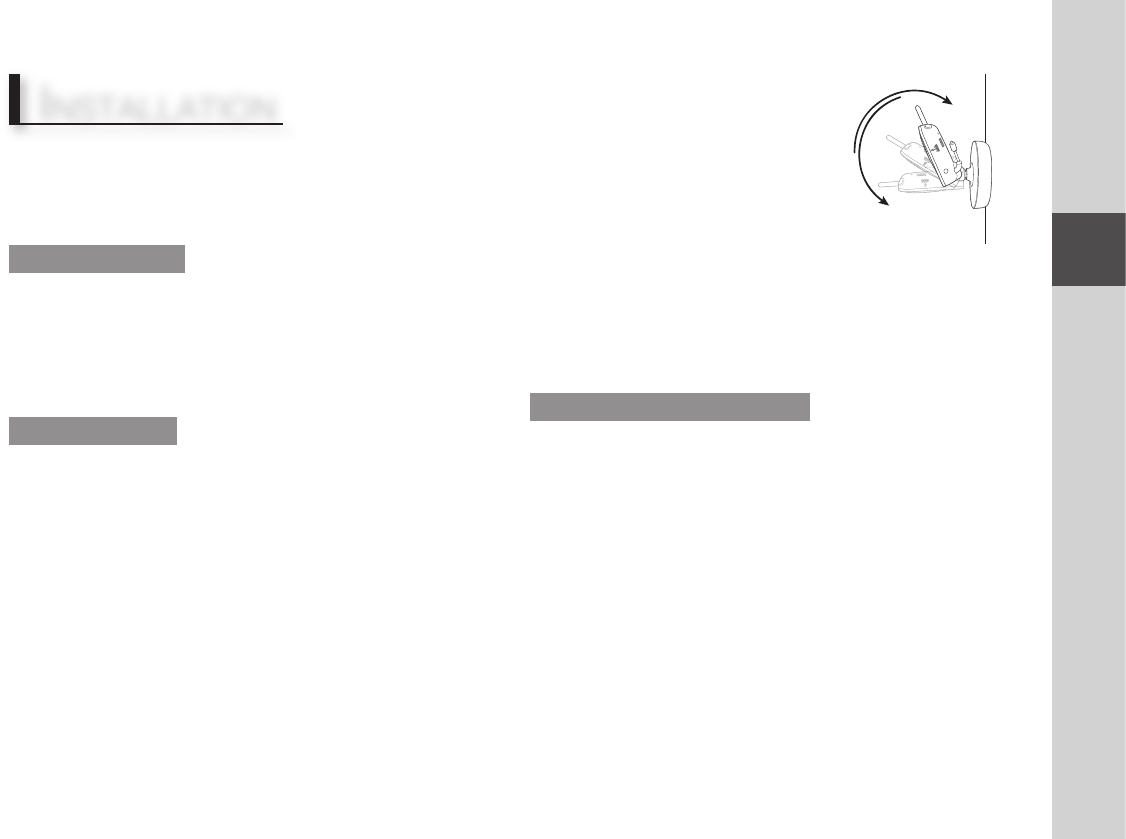

How to Install ………………………………………………… 9

Viewing Mode Display ………………………………………… 10

MENU OPERATION

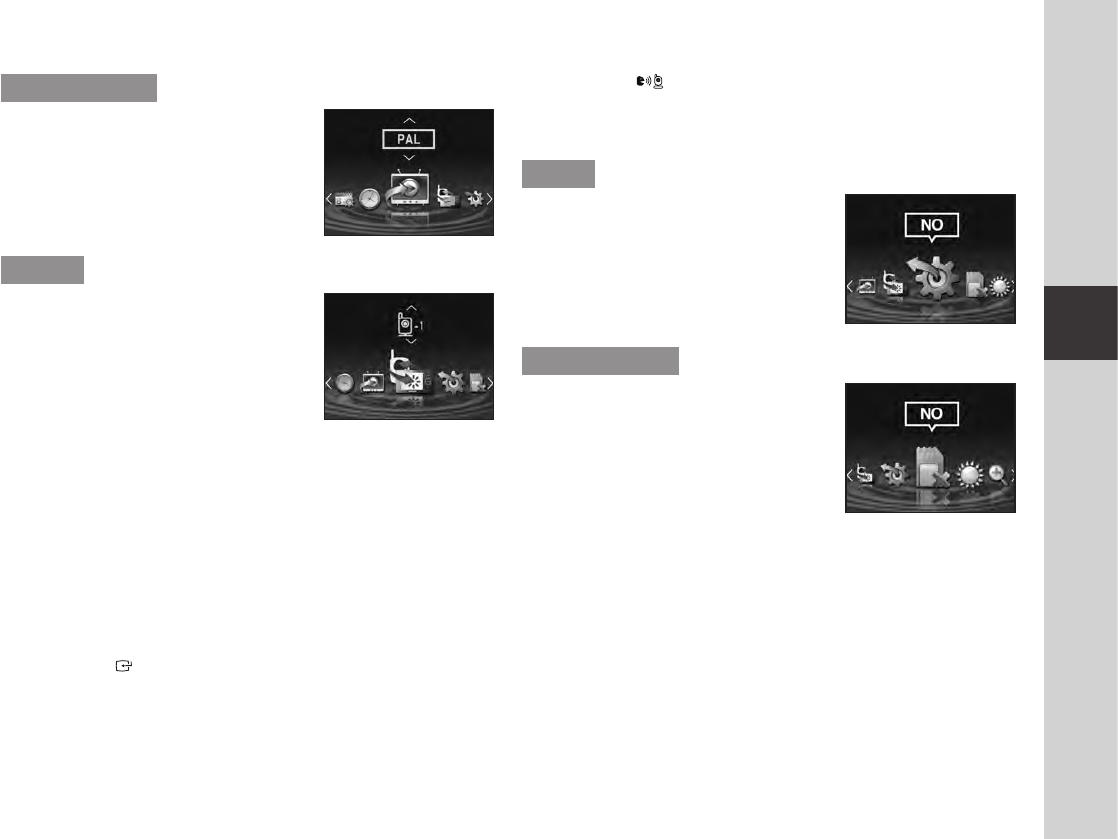

Menu Operation ……………………………………………… 11

APPENDIX

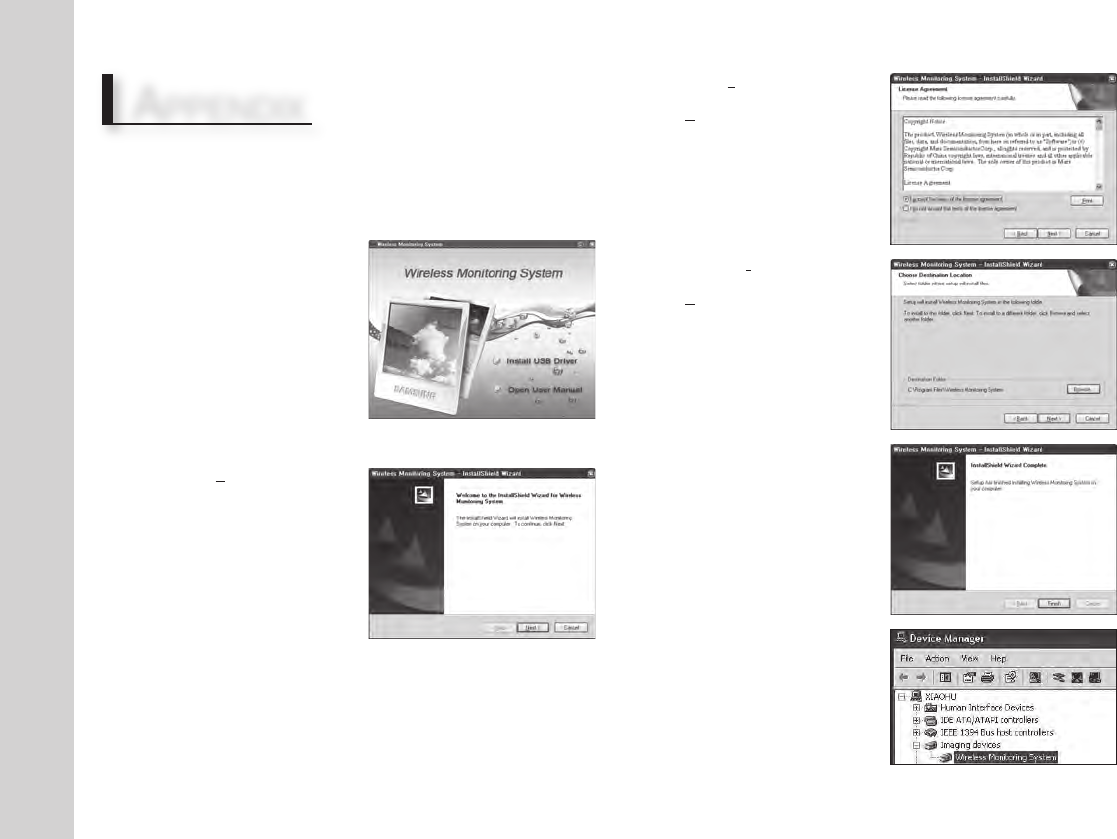

Hardware and CD driver installation ………………………… 14

Troubleshooting ……………………………………………… 15

Specifications ………………………………………………… 16



· English

Features

Samsung’s digital wireless technology provides excellent image quality and clarity.

Virtually eliminates interference using a secure and private signal

Up to 100m/330ft wireless open space transmission range.

The actual range may vary depending on the use environment.

Listen in with exceptional sound clarity

Safety warning feature on monitor notifies you when the camera is out of range of the

transmitter.

System is expandable up to 4 cameras (additional cameras sold separately).

Two-way audio communication.

Camera temperature display on monitor.

Built-in music player with 4 different tunes.

Camera Features

VGA resolution camera.

Night vision allows for low-light viewing up to 3.0m/10ft .

Performance varies depending on environmental conditions.

Built-in microphone and speaker.

Camera can be battery operated for true portable wireless operation.

Plays up to 4 different tunes activated from monitor.

Temperature sensor.

Nightlight

Receiver Features

3.5” color LCD monitor/receiver with superior image quality.

Video/Audio output for viewing on TV/Monitor or recording on VCR/DVD recorder.

Rechargeable lithium polymer battery for true portability.

Audio level indicator and alarm.

Room temperature display.

•

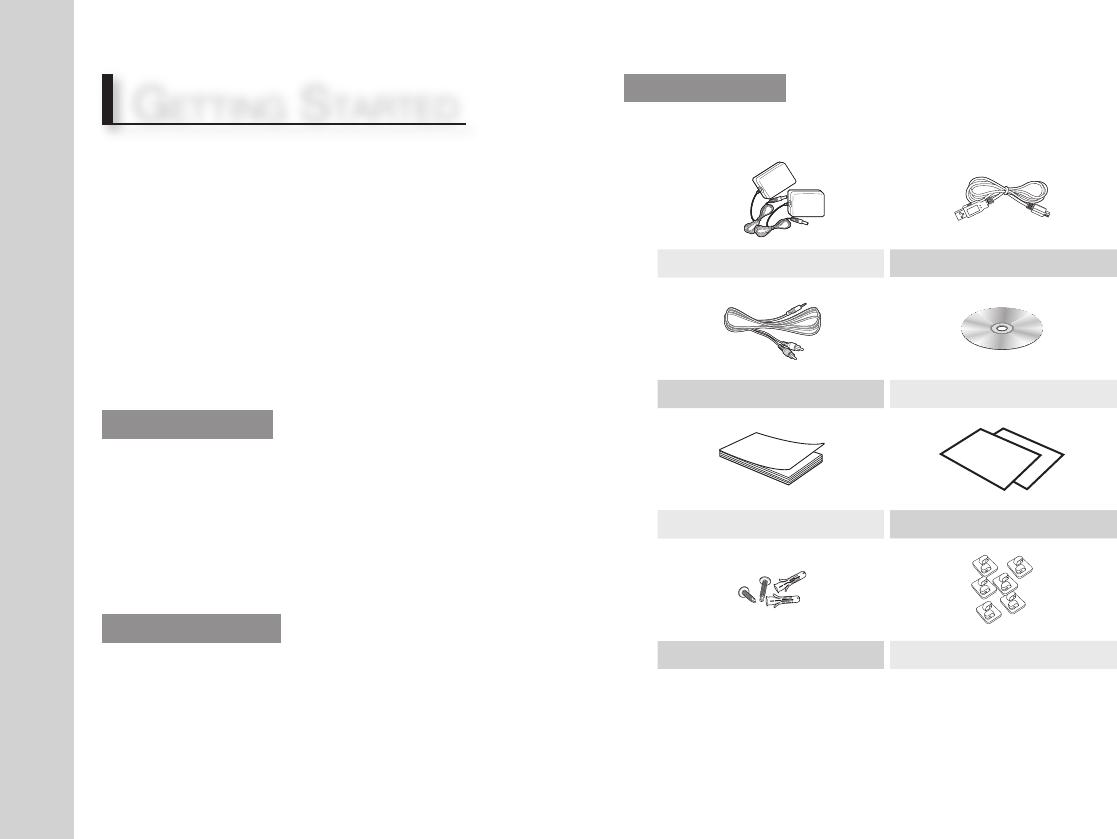

What’s Included

The system comes with the following components:

Adapter (2EA) USB Cable

RCA Cable CD

User Manual Warranty Card & Quick Guide

Screws (2EA) & Plastic anchor (2EA) Wire Clips (6EA)

Check your package to confirm that you have received the complete system,

including all components shown above.

GettinG Started



Getting Started

Getting to know your Monitoring system

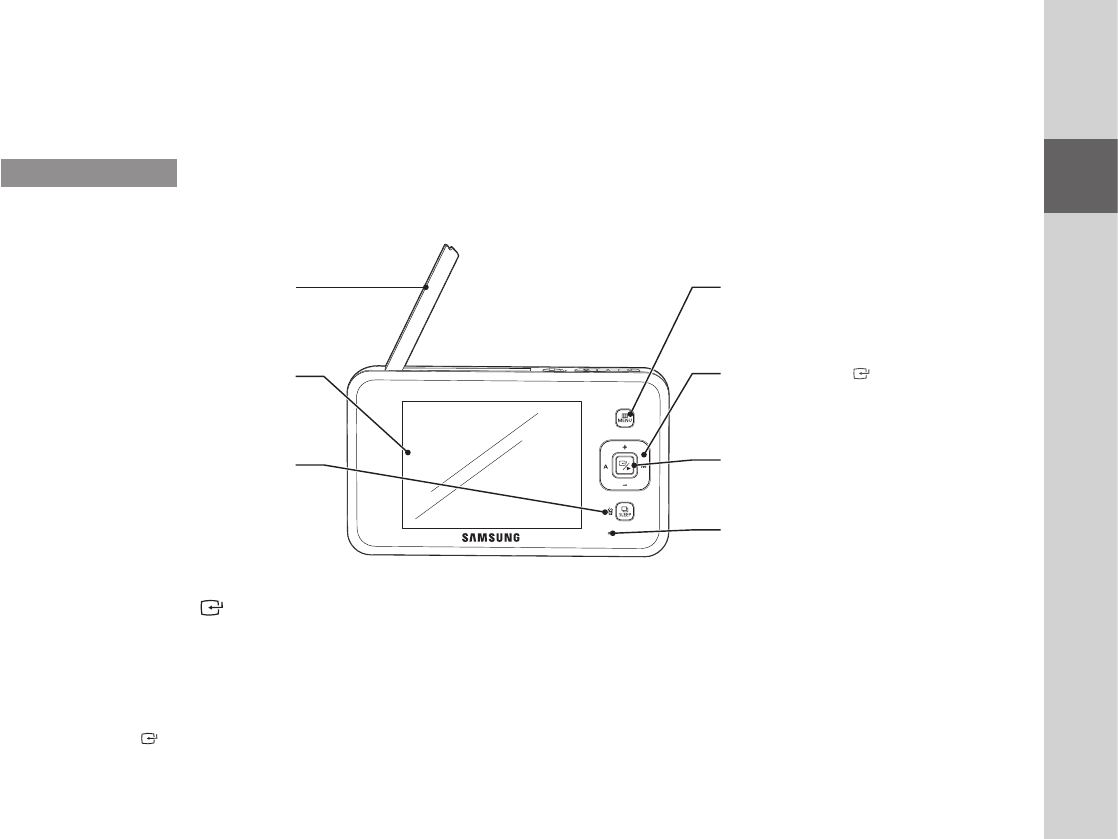

Wireless Receiver

After opening the box, fully charge the monitor before use. After initial charge, recharge as needed.

Front Controls

Navigation Controls / Button

Viewing Mode: The following controls are used while watching live video from the camera:

Press the [+] or [–] keys to increase or decrease the volume.

Press the [A] key to view cameras in automatic switching mode.

Press the [M] key to manually switch between cameras.

Menu Mode: Use the [+/–/A/M] key arrows to navigate in Menu Mode.

Press the [

] button to confirm the menu selection.



•

SEW-3035

Receiver Antenna

Receives and sends signals from or to the camera.

3.5” LCD Screen

Displays video from the camera.

Microphone

Transmits audio to the camera when Talk Button is

pressed down and held like a walkietalkie.

MENU Button

Press to access the receiver menu.

Press the button again to exit.

Navigation Controls/ Button

Use the controls to move and select while in Viewing

Mode and Menu Mode.

Play/Stop

Used to play or stop playing the recorded data.

SLEEP Button

Used to activate the screen saver mode.

Press the [A/M] or [SLEEP] button again to release the

screen saver mode.

Delete Button

Used to delete the recorded data

on the Micro SD/SDHC card in search mode.



· English

Back Controls

You must have more than one camera configured on the system when using the functions that requires more than one camera.

Side Controls

Using this feature will disable the LCD screen. The LCD screen will turn back on when the A/V cable is disconnected.

Talk Button

Press down and hold the button to talk back to the camera

currently being displayed on the LCD screen.

USB Port (Optional Use)

Connect the included USB cable to view video from the receiver

on your computer.

Receiver ON and low battery indication

When the Unit is turned on the LED is solid green.

If the LED blinks then the battery charge is low. Please connect

to the AC power adapter to charge.

Charging Indication LED

A red LED shows battery is charging.

A Green LED shows battery is fully charged.

DC 5V Power Input

Connect the included AC power adapter to power and/or

charge the receiver battery (when the receiver is not placed in

the optional Charge cradle).

A/V Out Port (Optional)

Connect the included A/V cable to view video from a TV or

monitor, or record transmissions on a DVD recorder/VCR.

Power Slide Switch

Slide the switch to ON or OFF position to switch on/off the

receiver.

SD Memory Card Compartment

Insert SD memory card.

OUT

DC IN 5V

A/M record

Press to auto record or manual record during monitoring.

Night Light Button

Press to remotely turn on/off the night light on the camera

(for the camera currently being displayed on the LCD screen).

When the night light is on, an indication icon will be

displayed on the LCD screen.

Antenna Locking Switch

Slide the switch to unlocking position, the receiver antenna

will pop up.

Then you can adjust the antenna for better signal reception.

Speaker

Produces the sound transmitted from the camera(s).

Belt hanger

When you carry the receiver, use the belt hanger to hold the

receiver onto your belt.

Stand lever

Use to hold the receiver onto a table.



Getting Started

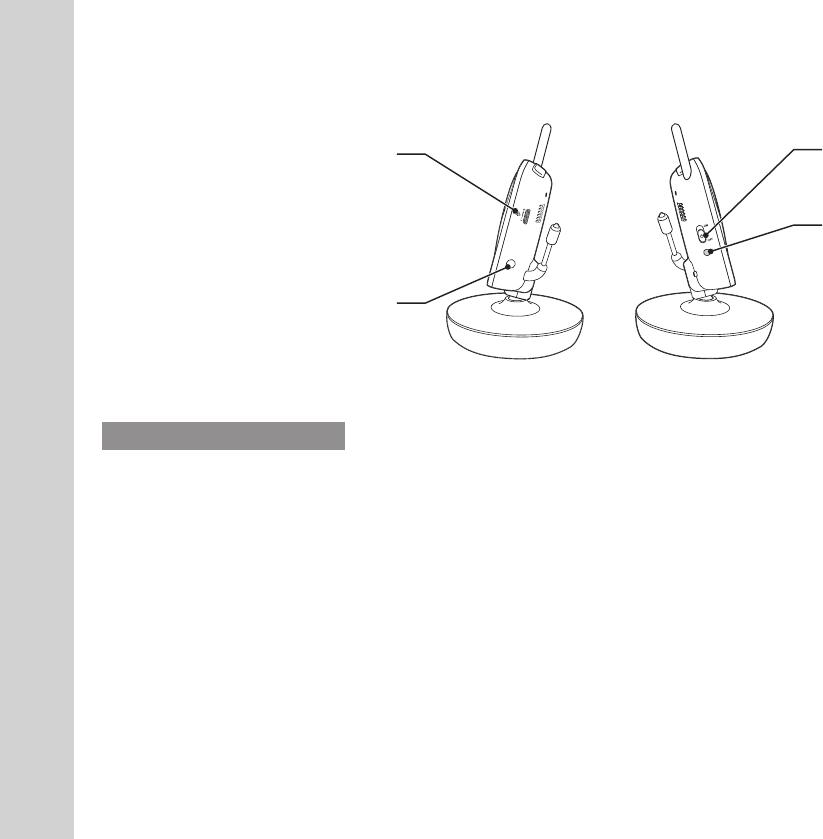

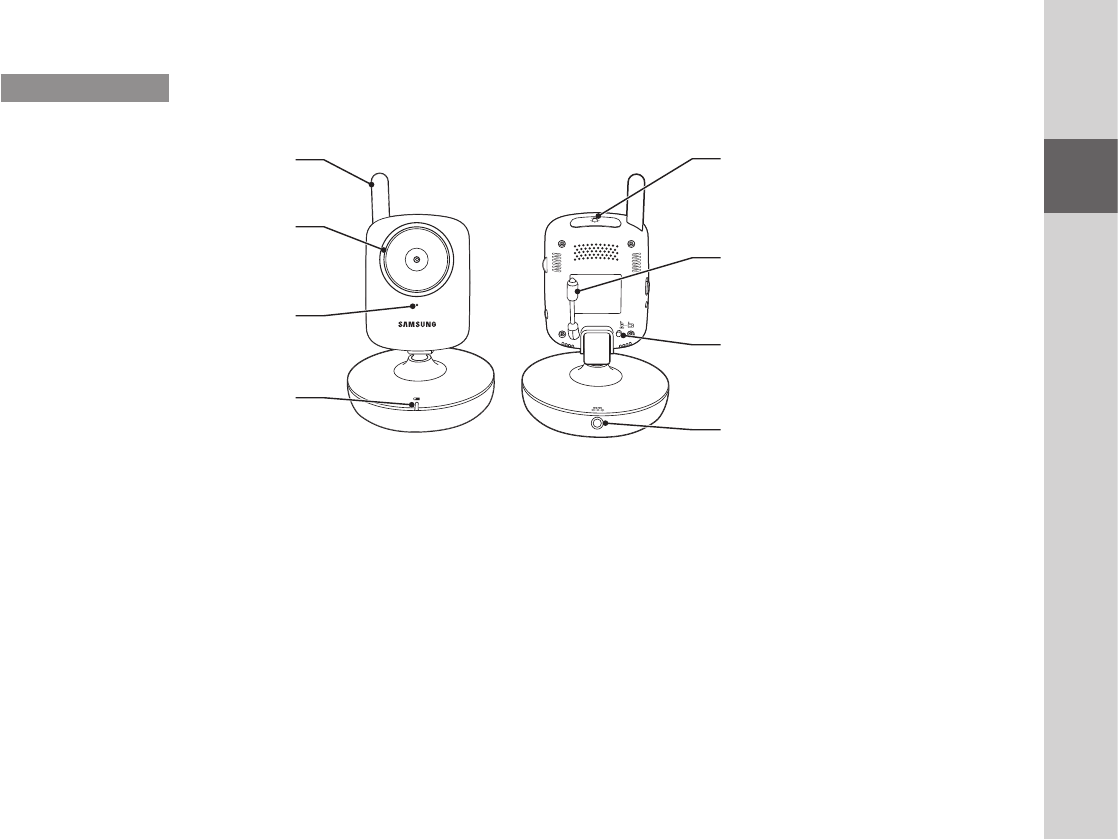

Wireless Camera

Front & Back Controls

The camera can also be powered using 3 AA batteries (not included) installed in the base. If the camera is plugged in with the AC adapter, the batteries will not be used.

The batteries are intended for short term, portable camera use.

Night Light is available only when the camera is paired to the receiver.

The IR indicator will be activated in a low contrast scene and cause an increase of the temperature, which may affect the temperature sensor.

Camera Antenna

Sends & receives signals to or from the receiver.

Lens/IR LED Cover

Infrared LED’s provide viewing in no/low light

conditions.

Night Light Switch

Press to turn the night light ON or OFF.

Alternatively, press the light button on the receiver to

remotely turn the camera light ON or OFF.

Temperature Sensor

Gives an indication of the air temperature where the

camera is placed.

Microphone

Receives sounds for the area near the camera, and

transmits sound from the camera to the receiver. Pairing Button

The pairing button is located on the back of the camera

behind by the stand mount.

Charging Indication LED

LED is off when there is no rechargeable battery inside

the camera base; the LED is red when the rechargeable

battery pack is charging; the LED turns off when the

rechargeable battery is fully charged.

DC 5V Power Input

Connect the AC power adapter to the camera.



· English

Side Controls

Sound Alarm Trigger

Adjust the sensitivity knob to set the sound alarm

sensitivity.

The receiver will beep to alert you when the sound is

above a preset sound level.

Adjust to increase or decrease the level of sensitivity.

Camera ON/OFF Switch

Turns the camera ON or OFF.

Camera on and low battery indication

Turn on the camera, the LED light will blink green once;

Low battery, the LED will blink repeatedly.

When the camera is turned on, the LED light would

appear green. After 2 seconds, it goes out.

Night vision sensor

Detects light levels where the camera is placed.

To Use The Battery Mode

You can use the battery to power the camera if it’s distant from the power source or if

you want to carry the camera.

This camera has built-in IR LED’s, which provides the camera with the ability to view

images in no/low light conditions. It is important to use the provided power adapter

(and not the batteries) when using the camera for prolonged periods in low light

conditions, as the built-in IR LED’s will deplete the battery more quickly than regular

daytime use.

Remove the battery cover from the base of the camera.

Insert 3 AA batteries (not included) into the Battery Pack. Make sure to

correctly line up the Positive (+) and negative (-) terminals of the batteries.

Replace the battery pack cover.

When the battery level is low and requires recharging, the LED light will blink

intermittently.

When using the system with only battery power and the charge is low, then the picture

and or sound may affected.

If this occurs then please connect the AC power adapter and/or replace with new

batteries.

If you want to use the product for a longer time than using the default AA battery without

the AC adapter, purchase the optional charging battery (SEA-B100).

If you are using the optional rechargeable battery then plug in the AC power adapter to

recharge

BATTERY WARNING

When using the product in portable mode, check batteries regularly.

DO NOT use the monitor in portable mode when batteries are low.

DISPOSE OF OR RECYCLE BATTERIES PROPERLY IN ACCORDANCE WITH

APPLICABLE LAWS, which may vary by location.

Insert batteries with the correct polarity.

Do not mix new and used batteries.

Remove exhausted batteries from the product.

Keep all batteries away from children.

THERE IS A RISK OF EXPLOSION IF INCORRECT BATTERIES ARE USED.

Do not disassemble or modify the battery pack.

Do not use batteries if there is any evidence of leakage or deformity.

•



Installation

How to Install

Caution if you use the system to watch a young child, do not place the camera where

the child can reach.

Wireless Receiver

Place the receiver in a place that will have clear reception with your camera(s).

Pull out the stand.

Do not pull up the stand lever with an excessive force. Otherwise, it may be broken.

Wireless Camera

Before you install the camera, carefully plan where and how it will be positioned, and

where you will route the cable that connects the camera to the power adapter.

Before starting permanent installation, verify its performance by observing the image

on the receiver when camera is positioned in the same location/position where it will

be permanently installed and the receiver is placed in the location where it will be used

most of the time.

Installation Warnings

Aim the camera(s) to best optimize the viewing area: Select a location for the camera

that provides a clear view of the area you want to monitor, which is free from dust,

and is not in line-of-sight to a strong light source or direct sunlight.

Avoid installing the camera where there are thick walls or obstructions between the

camera and the receiver.

Carefully unpack the camera.

If you are installing cameras that did not come with the system, please see the

pairing camera section of this manual for details on installation.

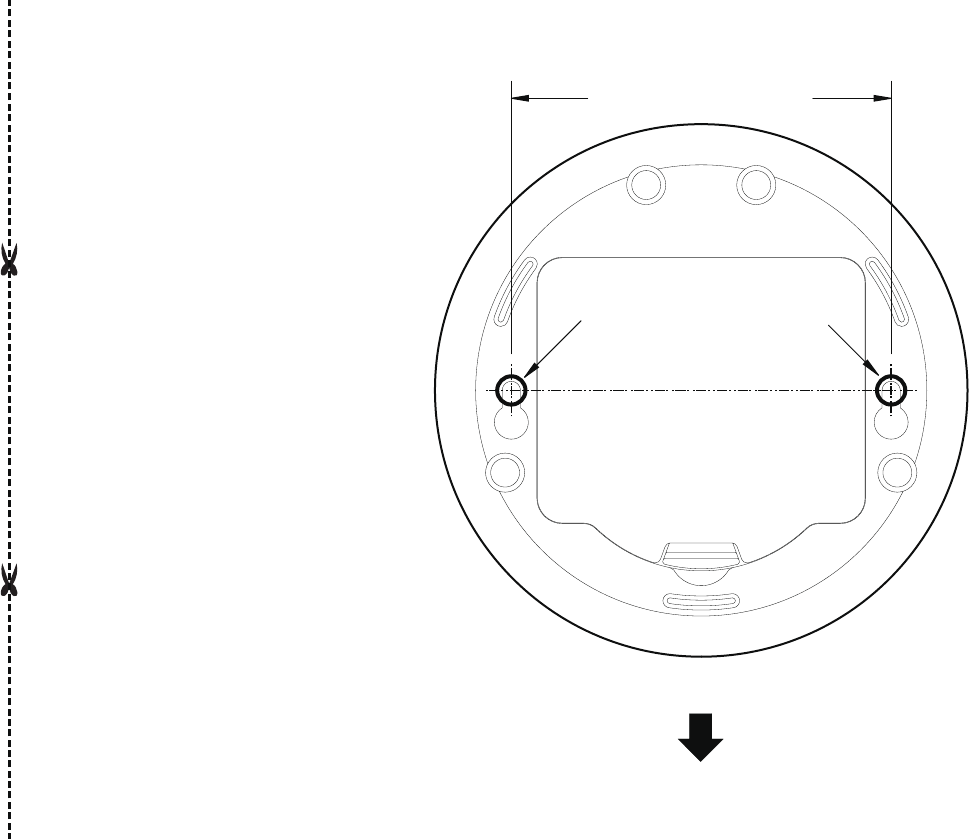

Mount the camera to the wall.

Mark the position of the screw holes on the

wall, and drill holes and insert 2 screws, then

firmly attach the camera to the wall by placing

the stand over the installed screws and

pushing the base downwards.

The camera can also be placed on a flat surface,

such as a table or shelf, and no mounting

hardware is required.

Adjust the viewing angle of the camera

You can install additional cameras (maximum of 4 cameras).

When adding cameras that were not included in the original box, you will need to pair

up the cameras with the receiver.

For paring to add a camera, refer to “Pairing”. (Page 13)

How it works in viewing mode

If you want to view the child’s scene (on the camera display) on a larger screen such

as TV or computer monitor, use the provided AV cable to connect the wireless

receiver with the TV.

When using with a TV or computer monitor, the picture may appear to be grainy as

the camera limits video resolution to VGA.

This is not a product defect. For best performance, use with the TV/Monitor PIP

(Picture in Picture) function.

Check your TV/Monitor product manual to see if this feature is available on your TV/

Monitor.

When connected to the TV or monitor, the receiver will display the message of

“A/V monitoring”.

inStallation

· English

Wireless Receiver

Signal Indicator

The signal indicator shows the strength of the signal being received from the

camera. The number of bars in the signal indicator shows the strength of the

signal – One or no bars indicate the signal is poor, and 4 bars indicate a strong

signal.

Camera Number

Indicates the number of camera that is displayed on the current screen. Press

the [M] key on the receiver to switch between available cameras.

To automatically switch between channels, press the [A] key (AUTO).

For paring to add a camera, refer to “Pairing”. (Page 13)

Temperature

Shows the ambient temperature where the wireless camera is installed.

Trigger Alert

Indicates the type of alert when audio is detected on the camera.

Talk

It displays if you press and hold [ ] in the left corner.

Indicates that it is on talking mode.

SEW-3035

Viewing Mode Display

Night light

If you press [ ] in the wireless receiver or wireless camera, the night light of

the wireless camera turns on with the applicable message.

Auto Mute

If you set Auto Mute to <YES>, the applicable message appears on the screen.

SD card status

Indicates when a Micro SD card is inserted.

It displays the recording type if you press record button.

Volume adjustment

The receiver volume can be adjusted by using the [+], [–] keys when viewing a

camera.

Press the [–] key to decrease the volume, and press the [+] key to increase the

volume. When the volume is set to one bar (lowest setting), the volume will be

muted and no sound will be emitted by the device.

The volume adjustment icon will be displayed

during volume changes, and will disappear after 10 seconds of inactivity.

Alarm adjustment

The Trigger Alert volume will be adjusted with the applicable message on the

screen.

Press the [–] key to decrease the volume, and press the [+] key to increase the

volume.

Time/ZOOM

Displays the time that is set in the current receiver.

Displays zoom size if it sets x2.

No Signal Warnings

You will see the following warning message when the camera is out of range of the

receiver.

The "OUT OF RANGE" message means the receiver cannot access the camera.

Please reposition the camera, or check the camera power.

Menu Operation

How to use the buttons to setup

Press [MENU] button to enter the menu setting or exit the menu setting.

Move to other menu by press [A] or [M] key.

Press the [

] button for option selection mode.

Adjust option level by [+] or [–] key.

Press the [

] button to complete.

Brightness

Adjusts the brightness of the image.

Menu operation

Zoom

Zoom in 1x or 2x of the video image.

In double size mode, press the navigation control

buttons to pan up/down and left/right while viewing

live image.

Power Saving

Enables receiver power save mode (when no activity

on the camera is detected).

The Power Saving Menu is used to turn off the screen

at a predetermined time, to conserve battery power.

After selected time, the monitor will go to a select

screen saver or black screen if blank is selected as

the screen saver.

Power Saving mode will be deactivated by pushing

any key on the front panel of monitor or by higher sound detected by cameras.

If Power Saving mode is deactivated by pushing [A], [M] and [SLEEP], the monitor will

go back to black screen after the time you set if there is no sound trigger during that

time.

If Power Saving mode is deactivated by a sound trigger, the device will go back to

black screen approximately 8 seconds after the last trigger.

Screen Saver

After selected time, the monitor will go to a select

screen saver or black screen if blank is selected as

the screen saver.

►►►►

Enter menu

setting

Move to a

Select the

Adjust level Save the

change

· English

Auto Mute

Automatically cuts off the audio when there is only

slight environmental noise on the camera side.

Choose <YES> to enable this function.

If auto mute is enabled, the receiver will automatically

mute if there is no audio detected from the camera. If

the audio is detected on the camera, the receiver will

automatically unmute.

Alert Setting

Select the type of alert when audio is detected on the

camera.

You may select the Vibration or Beep as the trigger

alert manner while something has been detected by

camera side.

Temperature Unit

Select the temperature unit ˚C or ˚F for you option to

show in the screen.

Temperature Alert

Sets the temperature alert range.

When temperature on camera side is out of the set

range, the monitor will be alerted.

Alarm Setting

Sets the time value with HH, MM and select the ON

or OFF to decide alarm or not.

Date Setting

Sets the year, month, date value to show in the

monitor screen.

Date Format

Sets the date format to show in the monitor screen.

Time Setiing

Sets the time value with hour, minute to show in the

monitor screen.

Menu Operation

A/V Out Format

Choose the TV system when outputting the video/

audio to TV, DVR/VCR or other viewing/recording

devices.

Pairing

You can register a wireless camera with the receiver

using the registration menu where you can view the

video of the selected wireless camera.

Pairing The system comes with a camera that has

already been paired with the receiver unit.

The pairing function assigns the camera to a channel

on the wireless receiver. Up to 4 Cameras (each

additional camera sold separately) may be paired,

which each optional camera on its own channel.

If additional cameras are paired, they must each be configured separately.

It is highly recommended to pair the cameras to the receiver before permanently

mounting the cameras. See the pairing section on this manual for details.

Pairing Camera

Power on and turn the switch to ON.

The power LED for the camera and receiver should be ON.

Press the [MENU] button on the receiver.

Select Pairing menu by pressing [A] or [M] key.

Press the [

] button to go into the Pairing menu.

Select a channel by pressing the [+] or [–] key.

The receiver will count down from 30~0 sec as showing a message you must

press the pairing button on the camera during this time to successfully pair the

camera.

Press the [ ] button on the back of the camera.

If not, the receiver will return to the view screen, and no pairing will take place.

Once the camera has been paired, it will be immediately viewable on the

receiver monitor.

Reset

Choose <YES> to reset the receiver to factory

defaults.

All menu settings will be reset.

Camera pairing settings will NOT be affected by

a reset. The camera will remain paired with the

receiver.

Memory-format

Delete recorded data Choose <YES> to delete all

data.

1

· English

Hardware and CD driver

installation

Put CD into CD ROM on computer

and click the icon of Install USB

Driver to run installation program.

Click the <Next

> button to

continue

Select “I accept the terms of the

license agreement” and then press

<Next

> button.

Click the <Browse...> button, select

the destination folder and then press

<Next

> button.

Press the <Finish> button to

complete the driver program.

After installation is finished, you can

find “Wireless Monitoring System”

in the Device Manager

It can also work as a wireless

webcam for MSN Messenger and

SKYPE after installation is complete.

appendix

1

Appendix

If you have problems with the system, there is often a quick and simple solution. Please

try the following:

Troubleshooting

Problem Solution

The Picture appears

to be grainy when

using AV out function

to view on a large

screen TV/Monitor

The purpose of the AV output is for convenience only. When using with large

screen TV/Monitor, the picture might be grainy as the camera limits video

resolution to VGA.

This is not a product defect.

For best performance use with TV/Monitor PIP (Picture in Picture) function.

Check your TV/Monitor product manual to see if this feature is available on

your TV/Monitor.

View video on a smaller screen TV/Monitor.

Low batteries will cause the supply current to become unstable and will affect the

quality of the video/audio. Please charge the battery fully or replace the batteries for

use for superior video.

Problem Solution

No picture from a

camera

Check all connections to the camera. Make sure the adapter is plugged in.

Make sure that the cameras and receiver are both ON.

Make sure that the camera is in range of the receiver.

If using the battery adapter, try replacing the batteries.

Make sure the camera and monitor are paired.

The picture is

dropping

Move the camera closer to the receiver.

Try repositioning the camera, receiver or both to improve the reception.

Adjust the monitor antenna to vertical position.

Audio problems Ensure that the volume on the TV is on.

Make sure that there is sound within range of the camera microphone.

If the unit emits a loud screeching noise (feedback), move the camera or

receiver farther apart.

The picture is or has

become choppy

The picture may become choppy when experiencing a lower frame rate

(i.e. 10 frames per second vs. a higher 20 frames per second).

Try moving the camera closer to the receiver.

Remove obstructions between the receiver and camera.

Adjust the monitor antenna to vertical position.

1

· English

Item Details

Receiver

Receiving Frequency Range 2.400GHz~2.4835GHz

Monitor 3.5” Color LCD

Data Rate 2.0 Mbps

Receiving Sensitivity -81dBm

Demodulation Type GFSK with FHSS

Resolution 320 x 240 (RGB)

Viewing Angle H: 120° V: 100°

A/V Output / Resolution VGA /QVGA Optional

Power Requirement 5V DC ±10%

Power Consumption 450mA Max without charging

Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity 85% RH

Weight

Size(WXHXD)

No. of cameras supported Max. 4

Item Details

Camera

Transmit Frequency Range 2.400GHz~2.4835GHz

Data Rate 2.0 Mbps

Transmitting Power 16dBm (MAX)

Modulation Type GFSK

Transmitting Distance 100m (Line of Sight)

Image Sensor Type 1/4” Color CMOS Image Sensor

Effective Pixels H: 640 V: 480

Image Processing Motion JPEG

Image Resolution / Frame Rate H: 640 V: 480 / 15FPS Max (H: 320, V:240 / 30 fps)

White Balance Auto

Lens 4.9mm / F2.8

Viewing Angle (Diagonal) 50°

Minimum Illumination 2 LUX (without IR LED illumination)

IR LED Type / Night Vision

Range 940nm 3m

Power Requirement 5V DC ±10%

Power Consumption 500mA MAX (IR LED)

340mA (IR LED)

Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity 85% RH

Weight

Size(WXHXD)

Specications

94 X 148 X 94 mm

75 X 128 X 24.2 mm

170 g

145.6 g

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate

collection systems)

This marking on the product, accessories or literature indicates that the product and

its electronic accessories (e.g. charger, headset, USB cable) should not be disposed

of with other household waste at the end of their working life. To prevent possible

harm to the environment or human health from uncontrolled waste disposal, please

separate these items from other types of waste and recycle them responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they can take

these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product and its electronic accessories should not be

mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery

return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this

product should not be disposed of with other household waste at the end of their

working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the

battery contains mercury, cadmium or lead above the reference levels in EC Directive

2006/66. If batteries are not properly disposed of, these substances can cause harm

to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries

from other types of waste and recycle them through your local, free battery return system.

Samsung Techwin cares for the environment at all product manufacturing stages, and

is taking measures to provide customers with more environmentally friendly products.

The Eco mark represents Samsung Techwin’s devotion to creating environmentally

friendly products, and indicates that the product satisfies the EU RoHS Directive.

USA-Federal Communications Commission (FCC)
