H18 Wireless Mini Keyboard & Touchpad
Thank you for using this product of our company.In order to let you experience the product
swimmingly,detailed instruction is provided which you can find the product's introduction, usage and other
information.Before using this product,please read the manual carefully,so that you can correctly use it.In
case of any printing or translation error,we apologize for the inconvenience.
1. General Information
This product is a well-designed wirelss mini touchpad with keyboard which applies to smart tv, PC and so on.It offers you a
convenient method to control the host side.
2. Function Overview
2.1 Touch Functions: including the mouse moving, left mouse button , right mouse button and mouse
scroll wheel
2.2 Keyboard function：virtual keyboard function can supply the letter input.
2.3 Gestures: support touch gestures like touch panel in laptop. What’s more, It also support some
shortcut gestures to simplfy the common control.
3. Operation
Toggle switch to “on” side to startup the touchpad.
This product has two kinds of operation mode: Touch mode and Keyboard mode. You can press the
key to switch between the 2 modes.
3.1 Touch mode:
In this mode, users can realize the mouse click and moving as well as some common gestures
3.2 Keyboard mode:
In this mode, users can input letters and symbols as your will and it will use viberation as feedback(of
course, you can close the viberation by pressing “Fn+ ”)
3.3 Hotkeys
However, users can press “Fn” and blue icons at the same time to achieve some hotkey functions at
any status.
3.4 Exclusive Gestures
Besides the common gestures which have been realized on laptop’s touch panel, this product also
adde some exclusive gestures to simplify the the common control.
3.4.1 Common Getstures:

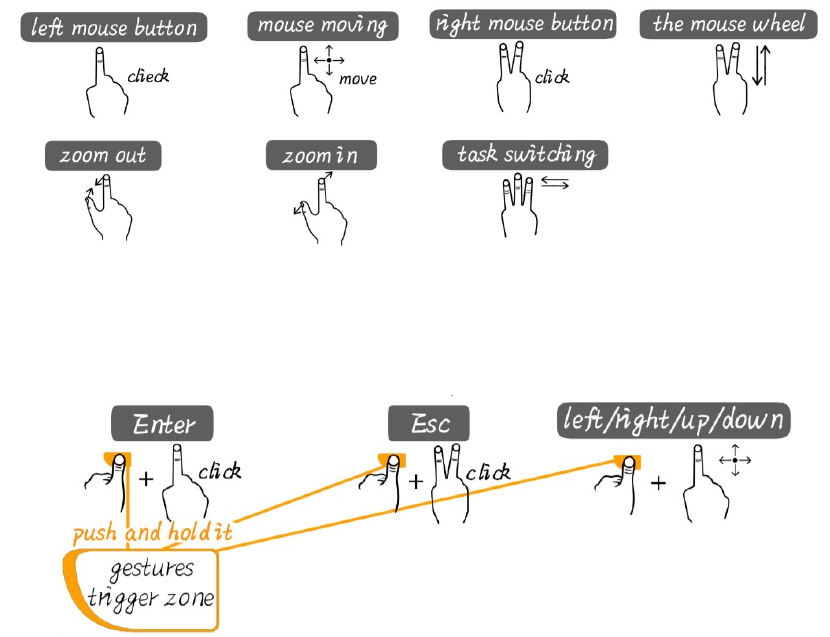

At any time, you can press and hold the gestures trigger zone(the right two orange light will be on
at the same time), and the other finger(s) operate the touch pad to realize the enter / esc / left / right /
up / down functions (as the figure shows below).
4. Technical Specification
4.1 Transmit Frequency: 2400-2483MHZ(16 channels)
4.2 Power Consumption:
Normal: < 20mA Halt: < 20uA

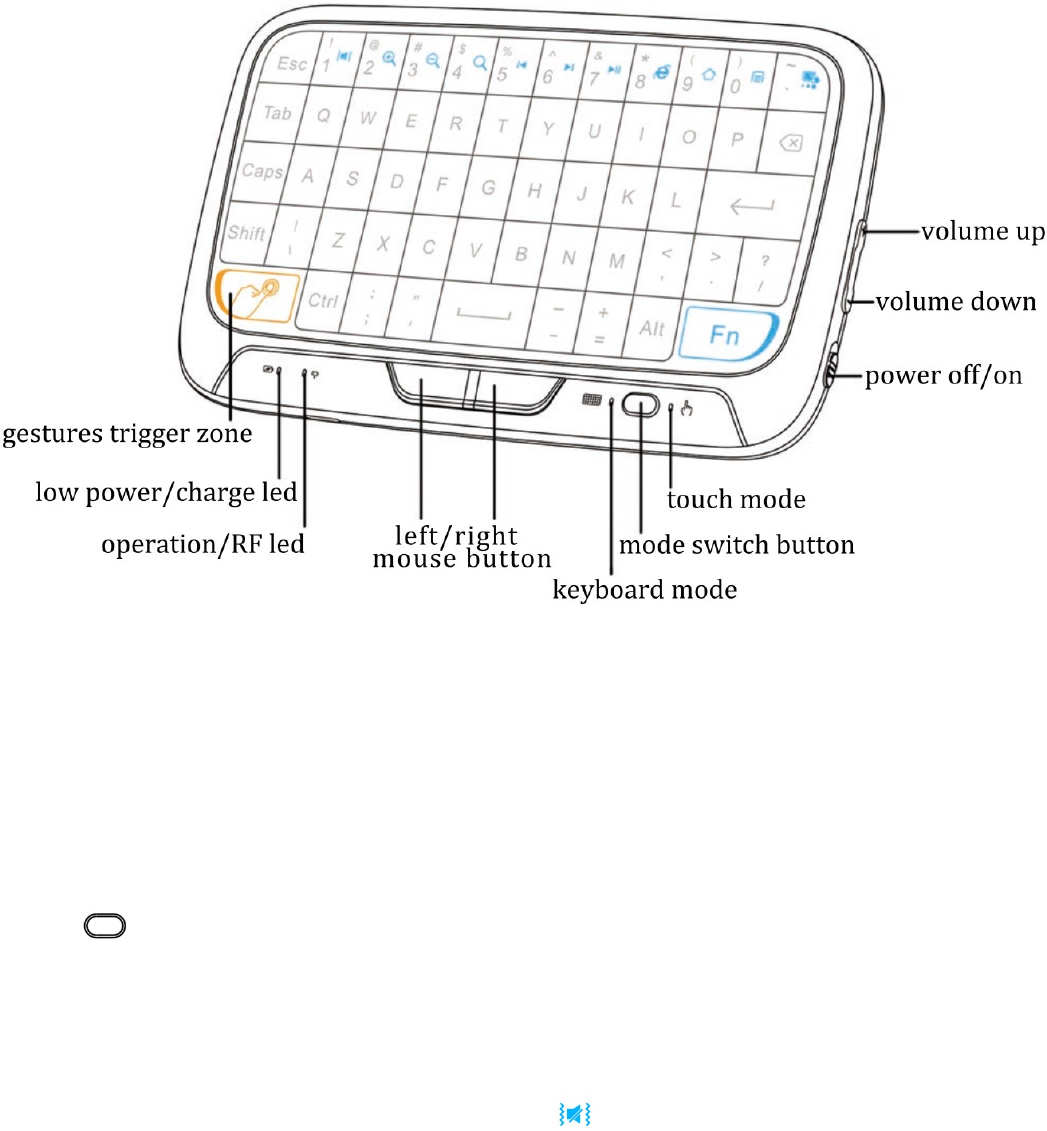

5. Light Indicator
5.1 Red light: it blink in low voltage and be on in charging status
5.2 Blue light:operation light
5.3 Orange light(left): in keyboard mode.
5.4 Orange light(right): in touch mode.
6. Accessories
6.1 Mini Keyboard & Touchpad
6.2 A usb dongle( usb receiver)
6.3 A set of user’s manual
6.4 A usb charging line
