10,000 PSI AIR/HYDRAULIC
FOOT PUMP
Model
98318
SET UP AND OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2008 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
REV 11h
Page 2SKU 98318 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
Safety Alert Symbol and Signal
Words
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using tools, basic pre-
cautions should always be followed,
including the following:
General
To reduce risks of electric shock, a.
re, and injury to persons, read
instructions before using tool.
Work area
Keep the work area clean and well a.
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
Keep bystanders, children, and b.
visitors away while operating the
tool. Distractions are able to result in
the loss of control of the tool.
Personal safety
Stay alert. Watch what you are do-a.
ing and use common sense when
operating the tool. Do not use the
Page 3SKU 98318 For technical questions, please call 1-800-444-3353.
tool while tired or under the inu-
ence of drugs, alcohol, or medica-
tion. A moment of inattention while
operating tool increases risk of injury.
Dress properly. Do not wear loose b.
clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases risk of injury to as result of
being caught in moving parts.
Avoid unintentional starting. Be c.
sure the switch is off before con-
necting to the air supply. Do not
carry the tool with your nger on the
switch or connect the tool to the air
supply with the switch on.
Do not overreach. Keep proper d.
footing and balance at all times.
Proper balance enables better control
of the tool in unexpected situations.
e. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-duty work
gloves during use.
f. Always wear eye protec-
tion. Wear ANSI-ap-
proved safety goggles.
g. Always wear hearing
protection when using
the tool. Prolonged expo-
sure to high intensity noise
is able to cause hearing loss.
Tool use and care
Use clamps or another practical a.
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not force the tool. b. Use correct
tool for application. The correct tool
will do the job better and safer at the
rate for which the tool is designed.
Do not use the tool if the Foot Ped-c.
al (37) does not turn the tool on or
off. Any tool that cannot be controlled
is dangerous and must be repaired.
Disconnect the tool from the air d.
source before making any adjust-
ments, changing accessories, or
storing the tool. Such preventive
safety measures reduce the risk of
starting the tool unintentionally. Turn
off and detach the air supply, safely
discharge any residual air pressure,
and release the throttle and/or turn
the switch to its off position before
leaving the work area.
Store the idle tool out of reach e.
of children and other untrained
persons. A tool is dangerous in the
hands of untrained users.
Maintain the tool with care. f. Keep a
cutting tool sharp and clean. A prop-
erly maintained tool, with sharp cut-
ting edges reduces the risk of binding
and is easier to control.
Check for misalignment or bind-g.
ing of moving parts, breakage of
parts, and any other condition that
affects the tool’s operation. If dam-
aged, have the tool serviced before
using. Many accidents are caused
by poorly maintained tools. There is a
risk of bursting if the tool is damaged.
Use only accessories that are h.
identied by the manufacturer for
Page 4SKU 98318 For technical questions, please call 1-800-444-3353.
the specic tool model. Use of an
accessory not intended for use with
the specic tool model, increases the
risk of injury to persons.
Service
Tool service must be performed a.
only by qualied repair personnel.
When servicing a tool, use only b.
identical replacement parts. Use
only authorized parts.
Use only the lubricants supplied c.
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 120 psi. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry,
regulated compressed air at the rated
pressure or within the rated pressure
range as marked on the tool. Always
verify prior to using the tool that the
air source has been adjusted to the
rated air pressure or within the rated
air-pressure range.
Never use oxygen, carbon dioxide, b.
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons.
SAVE THESE
INSTRUCTIONS.
SYMBOLS AND SPECIFIC SAFETY INSTRUCTIONS
Symbol Denitions
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
The warnings and precautions dis-1.
cussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
Page 5SKU 98318 For technical questions, please call 1-800-444-3353.
Do not adjust the factory set Safety 2.
Valve. This valve should only be set
or reset by a qualied technician.
This air hydraulic Foot Pump must be 3.
secured tightly to a stable surface to
prevent dynamic pressure from mov-
ing it around during use. Make sure
there is no tripping hazard.
Follow manufacturer’s instructions for 4.
compressor and attachments used.
WARNING: The brass components 5.
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
Hydraulics must be opened and ser-6.
viced only by a qualied technician.
Only use with hose (not included) and 7.
other accessories rated to handle
the forces exerted by this tool during
operation. Other accessories not de-
signed for the forces generated may
break and forcefully launch pieces.
Never press the end of the hose (not 8.
included) against your skin or the skin
of another person or animal. It is pos-
sible to inject uids into your skin if
using this tool inappropriately.
Attach all accessories properly to the 9.
tool before connecting the air sup-
ply. A loose accessory may detach or
break during operation.
Obey the manual for the air compres-10.
sor used to power this tool.
Install in-line shutoff valve to allow 11.
control over the air supply in an emer-
gency, even if a hose is ruptured.
Vibration Precautions
This tool vibrates during use. Re-
peated or long-term exposure to vibra-
tion may cause temporary or permanent
physical injury, particularly to the hands,
arms and shoulders. To reduce the risk of
vibration-related injury:
Anyone using vibrating tools regu-1.
larly or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries, ner-
vous system disorders, diabetes, or
Raynaud’s Disease should not use
this tool. If you feel any medical or
physical symptoms related to vibra-
tion (such as tingling, numbness, and
white or blue ngers), seek medical
advice as soon as possible.
Do not smoke during use. Nico-2.
tine reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
Wear suitable gloves to reduce the 3.
vibration effects on the user.
Use tools with the lowest vibration 4.
when there is a choice between dif-
ferent processes.
Include vibration-free periods each 5.
day of work.
Grip tool as lightly as possible (while 6.
still keeping safe control of it). Let
the tool do the work.
To reduce vibration, maintain tool as 7.
explained in this manual. If abnormal
vibration occurs, stop immediately.
Page 6SKU 98318 For technical questions, please call 1-800-444-3353.
SAVE THESE
INSTRUCTIONS.
Specications
Air Pressure Range 110-120 PSI
Maximum Air Pressure 120 PSI
Maximum Hydraulic
Pressure 10,000 PSI
Air Inlet 1/4” -18 NPT
Oil Capacity 23 oz.
Air Consumption 7 CFM @ 110-120 PSI
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.

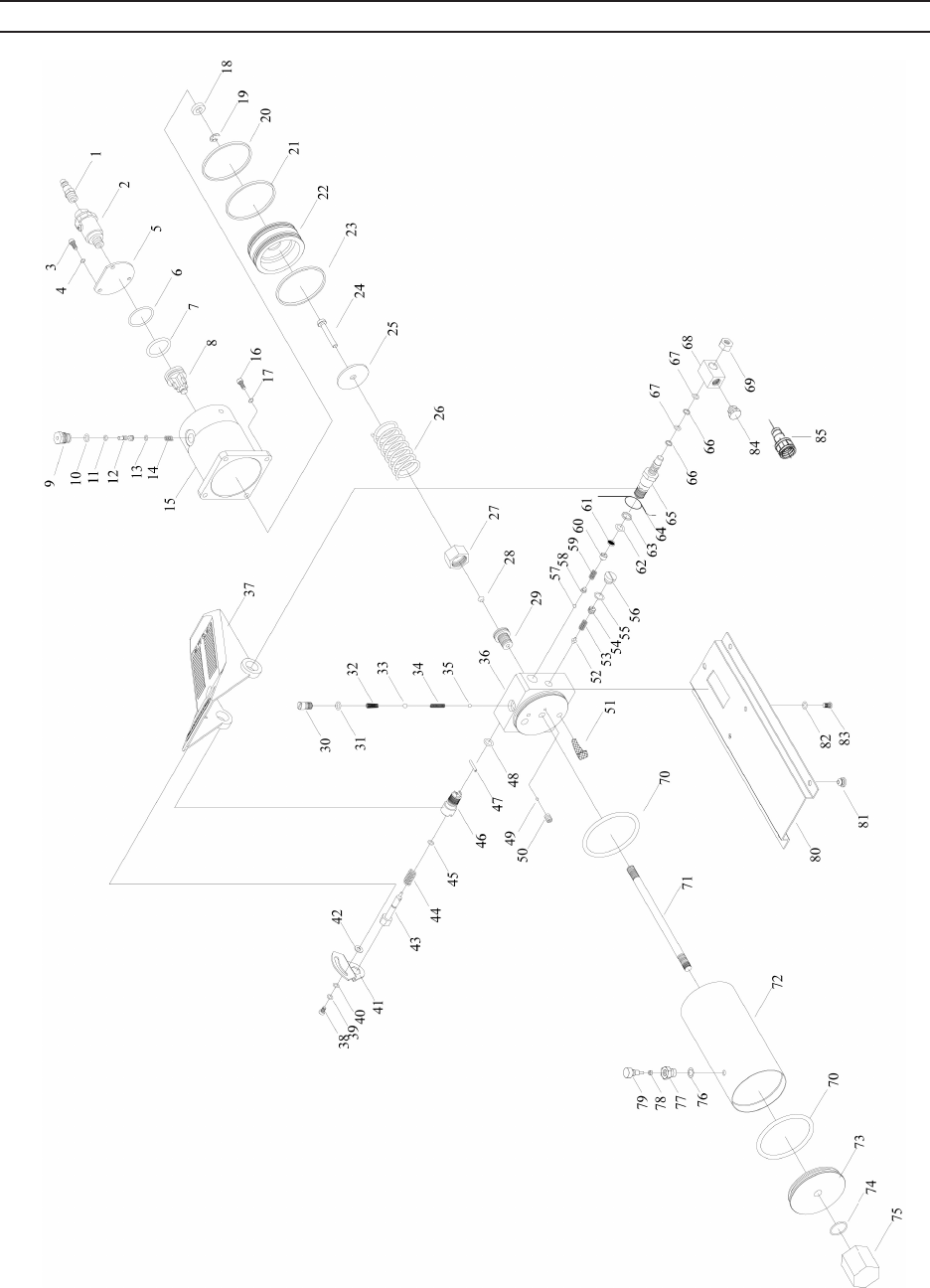

Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible.
This air tool may be shipped with a •
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen,
carbon dioxide, combustible
gases, or any other bottled
gas as a power source for this
tool.

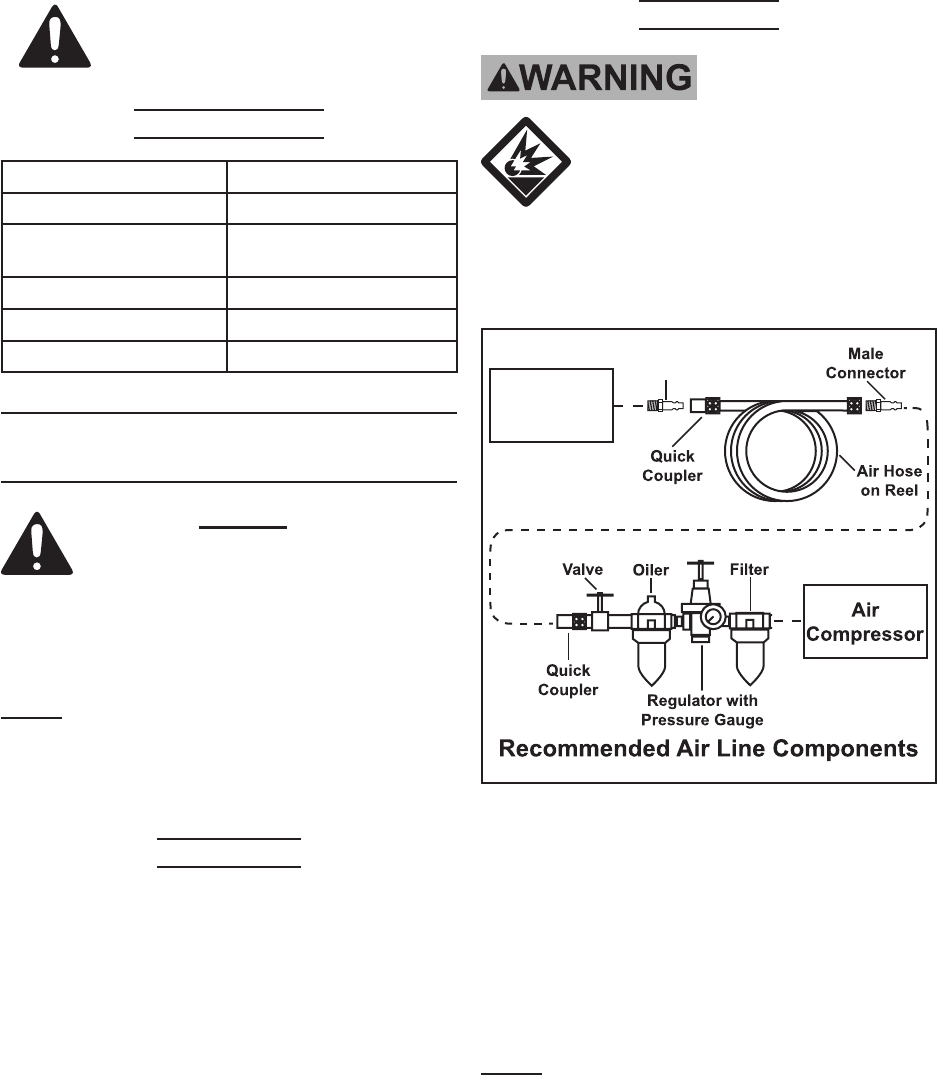

1. Incorporate an in-line oiler, shut-off
valve, hose, regulator with pressure
gauge, and lter for best service, as
shown in the diagram above. An in-
line shutoff valve is an important
safety device because it controls
the air supply even if the air hose
is ruptured.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil to the airline connection be-
fore operation. Add a few more drops
after each hour of continual use.
Attach an air hose (not included) to 2.
the compressor’s air outlet. Attach
Pump
Adapter
Page 7SKU 98318 For technical questions, please call 1-800-444-3353.
the Air Nipple (1) to the air inlet and
tighten it.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that allows air
tool to retain pressure and operate
accidentally after the air supply is
disconnected. The Foot Pedal is
designed to t a 1/4” NPT air nipple
(included). Also verify air source can
dedicate 7 CFM @ 110-120 PSI.
Note: Air ow, and therefore tool perfor-
mance, can be hindered by under-
sized air supply components.
The air hose must be long enough 3.
to reach the work area with enough
extra length to allow free movement
while working.
Make sure throttle or switch is in the 4.
off position; refer to Operation section
for description of controls.
Close the in-line safety valve be-5.
tween the compressor and the tool.
Turn on compressor according to the 6.
manufacturer’s directions and allow it
to build up pressure until it cycles off.
Adjust the air compressor’s output 7.
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
Inspect the air connections for leaks. 8.
Repair any leaks found.
If the tool will not be used at this 9.
time, turn off and detach the air sup-
ply, safely discharge any residual air
pressure, and release the throttle
and/or turn the switch to its off posi-
tion to prevent accidental operation.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use tool until
repaired.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and press down on
the Release Bar (43) before
performing any inspection,
maintenance, or cleaning
procedures.
Page 8SKU 98318 For technical questions, please call 1-800-444-3353.
TO PREVENT SERIOUS
INJURY:
Do not adjust or tamper with
any control or component in a
way not specically explained
within this manual. Improper
adjustment can result in
tool failure or other serious
hazards.
Note: This Air Hydraulic Foot Pump is
designed to operate pneumatically. It
is an ideal power source for various
body, frame and alignment applica-
tions. It can be used with different
ram kits, shop presses and hydraulic
pullers (not included) that operate up
to 10,000 PSI. It is equipped with a
factory set Safety Valve to prevent
sudden hydraulic failure.
Note: Check the oil level and purge air
from system before use. The Res-
ervoir (72) should be full but after
shipping it may need to be topped off.
Check the oil in the pump reservoir
prior to use. Place Pump on at and
horizontal surface. Wipe top of cylin-
der with clean, dry rag. Remove the
Fill Plug (77) and add the uid being
careful not to spill. Replace the Fill
Plug and wipe up any spilled hydrau-
lic uid. Periodically check the uid
level.
FOR BEST OPERATION: Before
use, unscrew the Breather Valve.
After use, shut the Breather Valve.
Work Piece and Work Area Set Up
Designate a work area that is clean 1.
and well-lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
Route the air hose along a safe route 2.
to reach the work area without creat-
ing a tripping hazard or exposing the
air hose to possible damage. The air
hose must be long enough to reach
the work area with enough extra
length to allow free movement while
working.
Pneumatic Tool Operation
Push down momentarily on Foot 1.
Pedal (37) and release it. The Air
Valve (12) should be raised in order
to operate. (Feel underneath the Foot
Pedal to make sure Valve is raised.)
Attach the air hose from your com-2.
pressor to the Air Nipple (1).
As pressure may be present, verify 3.
that the system is not pressurized be-
fore hydraulic hoses are connected or
disconnected. Verify this by pressing
Release Bar (43) with hand to re-
lease any internal hydraulic pressure.
Remove the Protective Plug (84) from
the Adapter (85), attach your hydrau-
lic hose with a 1/4” NPT end to the
hose Connector (68) directly. If you
use our SKU 95944 Hydraulic Hose

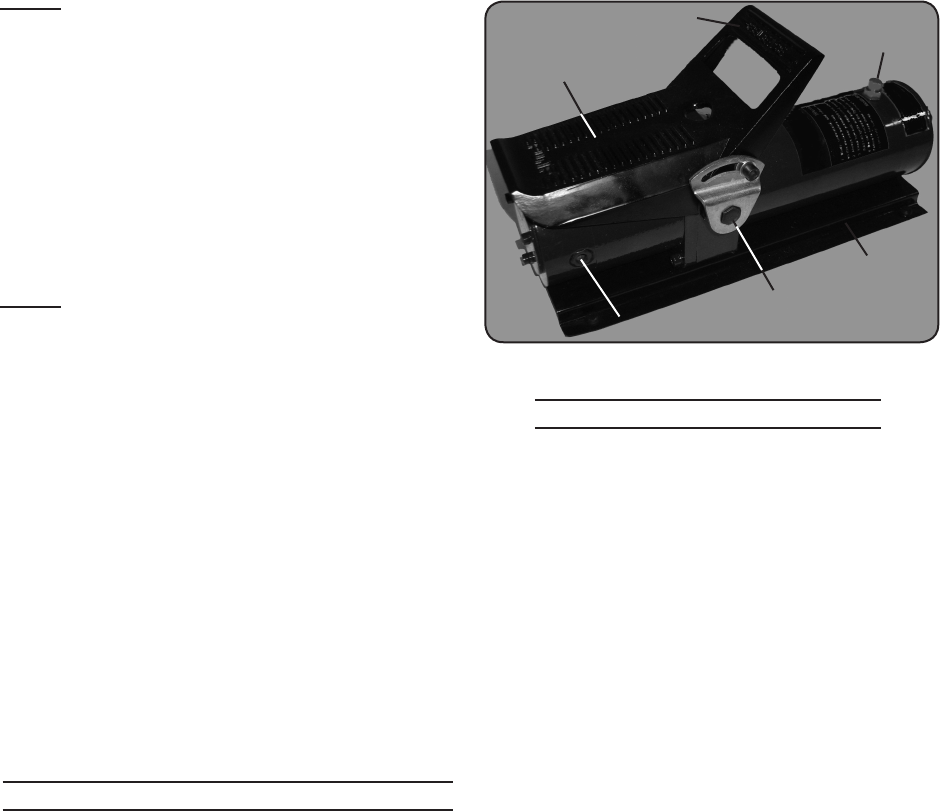

Release Bar (43)
Foot Pedal (37)
Breather
Valve (79)
Bleeding Plate (41)
Base Plate (80)
Air Cylinder (15)
Page 9SKU 98318 For technical questions, please call 1-800-444-3353.
(not included) with thread-on 13/16”-
20 UNF tting, please rst attach the
Adapter (85) to the Hose Connec-
tor (68), which is supplied in the bag
containing instruction manual. Use
this hose to attach to any tool that is
to be activated/deactivated with this
Pump.
Then press down Pedal (37) to apply 4.
pressure. Please note: There is no
high/low settings for Pump. Once the
Pedal is pressed, pressure is applied
at a constant setting. Press on Re-
lease Bar (43) to release pressure.
To prevent accidents, turn off the tool, 5.
shut the Air Valve (12), and detach
the air supply, and safely discharge
any residual air pressure in the tool
after use. Clean external surfaces
of the tool with clean, dry cloth, and
apply a thin coat of tool oil. Then
store the tool indoors out of children’s
reach.
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
throttle and/or turn the switch
to its off position before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
TO PREVENT EXPLOSION:
Lubricate the tool only
with specied lubricants.
Lubricate the air inlet using
only pneumatic tool oil. Other
lubricants may damage the
mechanism and may be
highly ammable, causing an
explosion.
Page 10SKU 98318 For technical questions, please call 1-800-444-3353.
Cleaning, Maintenance, and
Lubrication
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular op-
eration of the air-operated tool.
WARNING! Make sure the Foot
Pump is disconnected from air supply
and all hydraulic pressure is released
before performing any inspection,
maintenance, or cleaning procedures.
BEFORE USE,1. inspect the general
condition of the Foot Pump. Check
for loose screws, misalignment or
binding of moving parts, cracked or
broken parts, cracked welds, cracked
or broken hoses, leaking oil, and
any other condition that may affect
its safe operation as well as abnor-
mal noise or vibration. If any of this
should occur, have the problem cor-
rected before further use.
Do not use damaged equipment.
AFTER USE,2. wipe off with a clean
cloth. Be sure to wipe away any
spilled hydraulic uid.
MONTHLY,3. check and rell hydrau-
lic uid. (See Bleeding Instructions,
below.)
Bleeding Instructions
WARNING! 1. Air may accumulate in
the Foot Pedal’s system during ship-
ping and/or use. Before each use,
bleed air from system for better per-
formance. To do this:
Open the Fill Plug (77) by turning it 2.
counterclockwise.
Depress the Release Bar (43) to 3.
open the Release Valve Seat (46).
Depress the Air Valve (12) located 4.
on the top of the Air Cylinder (15) to
remove air from system.
Top off with hydraulic oil and close 5.
the Fill Plug (77).
Page 11SKU 98318 For technical questions, please call 1-800-444-3353.
Troubleshooting
Problem Possible Causes Likely Solutions
Foot Pedal (37) will
not depress when
trying to pump.
Reservoir (72) is overlled with
hydraulic oil.
Make sure the Breather Valve (79) is open,
letting the trapped oil escape if necessary.
Low hydraulic
pressure
Loose air ttings.1.
Cracked hose.2.
Tighten all ttings.1.
Change any cracked or broken hoses. 2. DO
NOT FEEL FOR LEAKS WITH HANDS.
HIGH PRESSURE CAN INJECT FLUID
UNDER SKIN. DO NOT REPAIR WITH TAPE
OR METAL CLAMPS. ALWAYS REPLACE
THE HOSE.
Housing heats
during use.
Incorrect lubrication or not 1.
enough lubrication.
Worn parts.2.
Lubricate using air tool oil and grease 1.
according to directions.
Have qualied technician inspect internal 2.
mechanism and replace parts as needed.
Severe air
leakage.
(Slight air leakage
is normal,
especially on older
tools.)
Cross-threaded housing 1.
components.
Loose housing. 2.
Damaged valve or housing.3.
Dirty, worn or damaged valve. 4.
Check for incorrect alignment and uneven 1.
gaps. If cross-threaded, disassemble and
replace damaged parts before use.
Tighten housing assembly. If housing cannot 2.
tighten properly, internal parts may be
misaligned.
Replace damaged components.3.
Clean or replace valve assembly.4.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 12SKU 98318 For technical questions, please call 1-800-444-3353.
PARTS LIST
Part Description Q’ty
1 Air Nipple 1
2 Oil Port 1
3 Screw 3
4 Lock Washer 3
5 Cover 1
6 O-Ring 1
7 O-Ring 1
8 Small piston 1
9 Air Valve Seat 1
10 O-Ring 1
11 O-Ring 1
12 Air Valve 1
13 O-Ring 1
14 Spring 1
15 Air Cylinder 1
16 Screw 1
17 Lock Washer 1
18 Sealing Ring 4
19 Snap Retainer 4
20 Sealing Ring 1
21 O-Ring 1
22 Air Piston 1
23 Sealing Ring 1
24 Piston 1
25 Washer 1
26 Spring 1
27 Nut 1
28 Sealing Ring 1
29 Cylinder 1
30 Screw 1
31 Copper Washer 1
32 Spring 1
33 Ball 1
34 Spring 1
35 Ball 1
36 Valve Base 1
37 Foot Pedal 1
38 Screw 1
39 Lock Washer 1
40 Washer 1
41 Bleeding Plate 1
42 Washer 1
43 Release Bar 1
PARTS LIST
Part Description Q’ty
44 Spring 1
45 O-Ring 1
46 Release Valve Seat 1
47 Pin 1
48 O-Ring 1
49 Ball 1
50 Screw 1
51 Strainer 1
52 Needle Valve 1
53 Safe Valve Spring 1
54 Screw 1
55 O-Ring 1
56 Screw 1
57 Ball 1
58 Ball Cup 1
59 Spring 1
60 Screw 1
61 Oil Filter 1
62 O-Ring 1
63 Retainer 1
64 Torsion Spring 1
65 Oil Outlet Seat 1
66 Retainer 2
67 O-Ring 2
68 Hose Connector 1
69 Lock Nut 1
70 O-Ring 2
71 Lever 1
72 Reservoir 1
73 Reservoir Cover 1
74 O-Ring 1
75 Nut 1
76 Nylon Ring 1
77 Fill Plug 1
78 Sealing Ring 1
79 Breather Valve 1
80 Base Plate 1
81 Rubber Foot 4
82 Lock Washer 3
83 Screw 3
84 Protective Plug 1
85 Adapter 1
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN
THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS
TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 13SKU 98318 For technical questions, please call 1-800-444-3353.
ASSEMBLY DIAGRAM
Page 14SKU 98318 For technical questions, please call 1-800-444-3353.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
REV 11h
90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free
from defects in materials and workmanship for the period of 90 days from the date of
purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal ac-
tivity, improper installation, normal wear and tear, or to lack of maintenance. We shall in
no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. This warranty is expressly in lieu of
all other warranties, express or implied, including the warranties of merchantability and
tness.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection veries the defect, we will ei-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
