Harbor Freight 18 Volt Cordless 4 Tool Combo Pack Product Manual

2015-05-27

: Harbor-Freight Harbor-Freight-18-Volt-Cordless-4-Tool-Combo-Pack-Product-Manual-723183 harbor-freight-18-volt-cordless-4-tool-combo-pack-product-manual-723183 harbor-freight pdf

Open the PDF directly: View PDF PDF.
Page Count: 24

Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2012 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
Owners Manual & Safety Instructions
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
ITEM 68857
18 VOLT CORDLESS
Four Tool
coMbo pack
Page 2 For technical questions, please call 1-800-444-3353. Item 68857
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 8
Setup .......................................................... 9
Operation ................................................... 12
Maintenance .............................................. 18

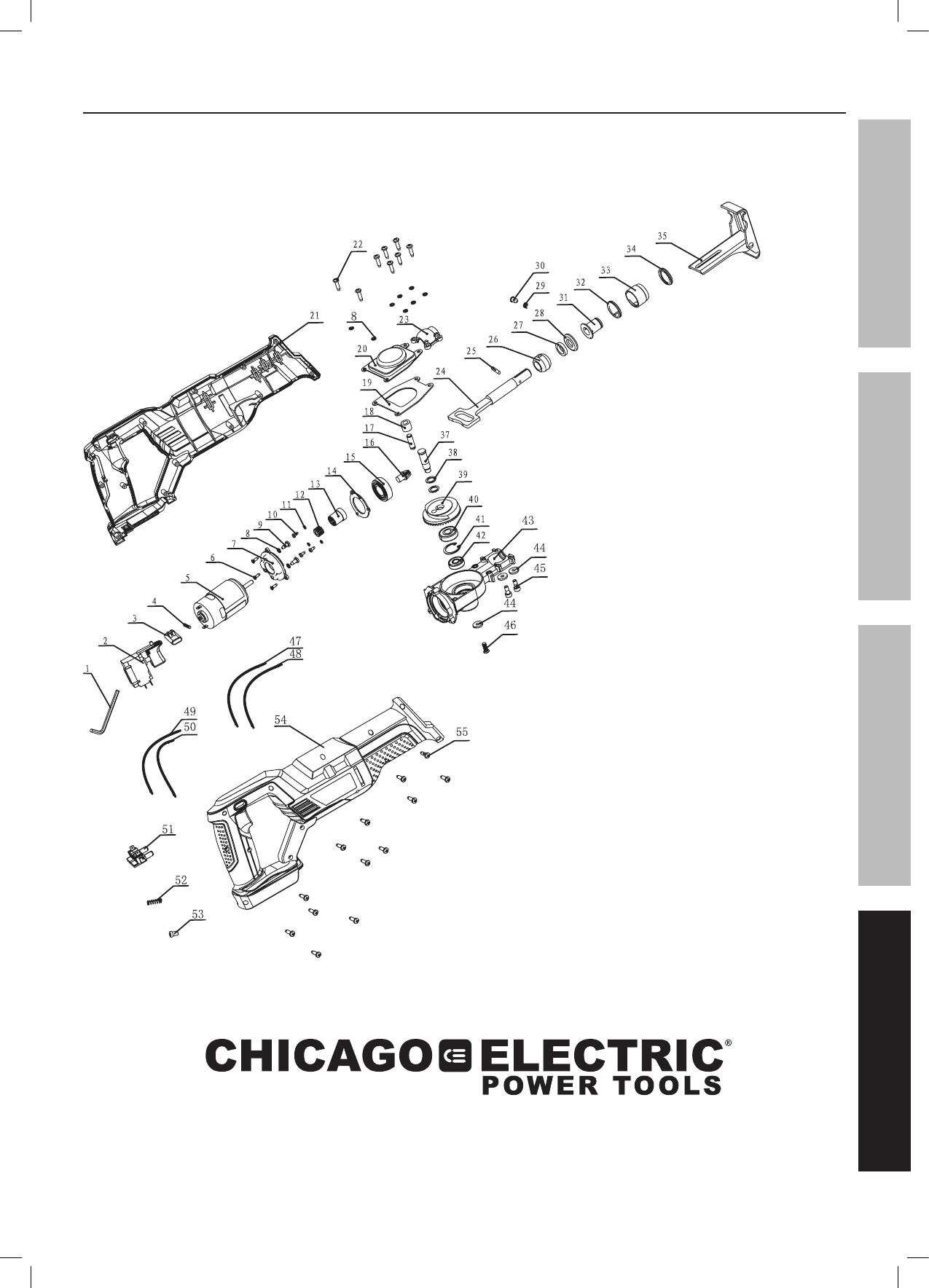

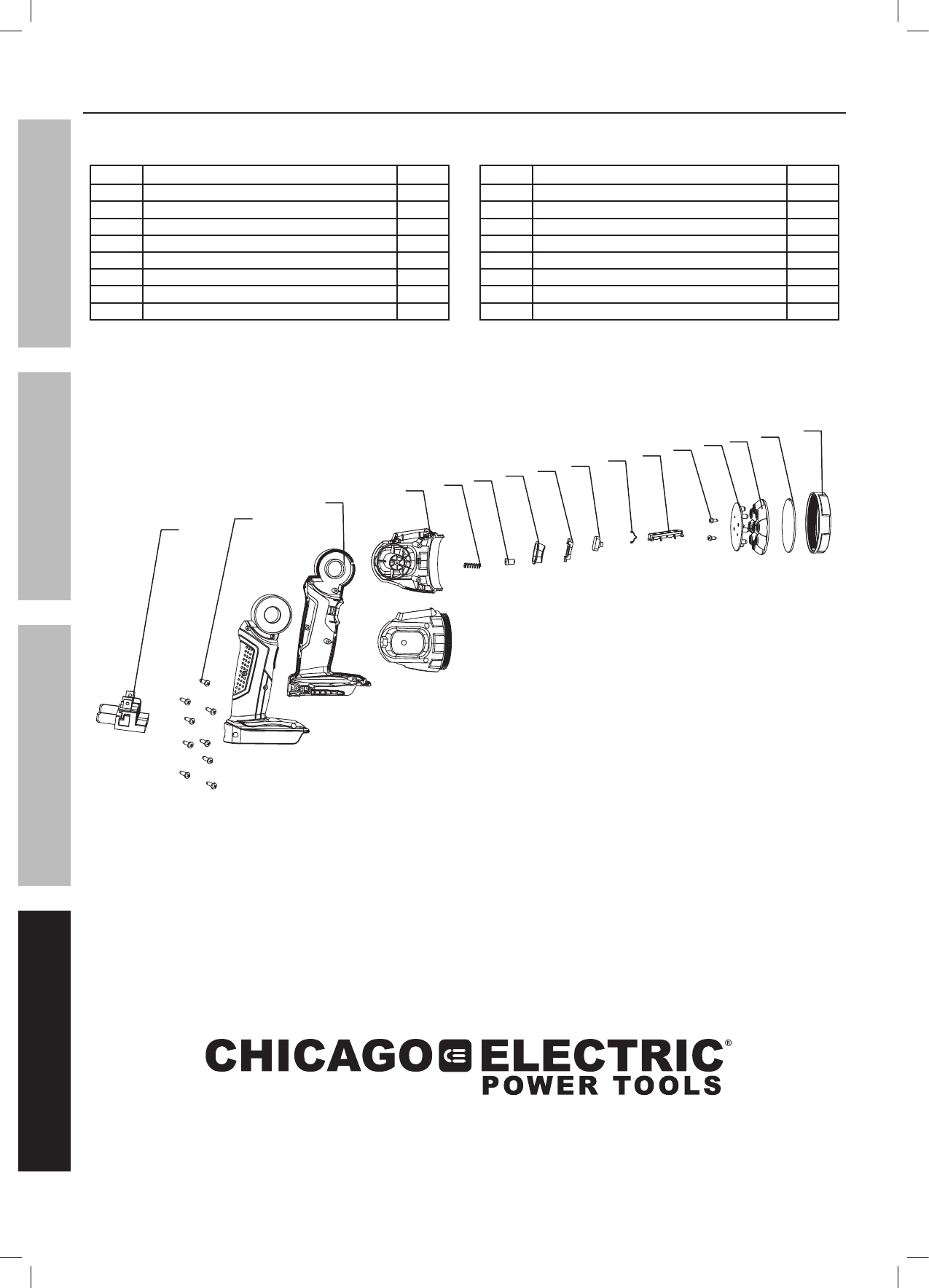

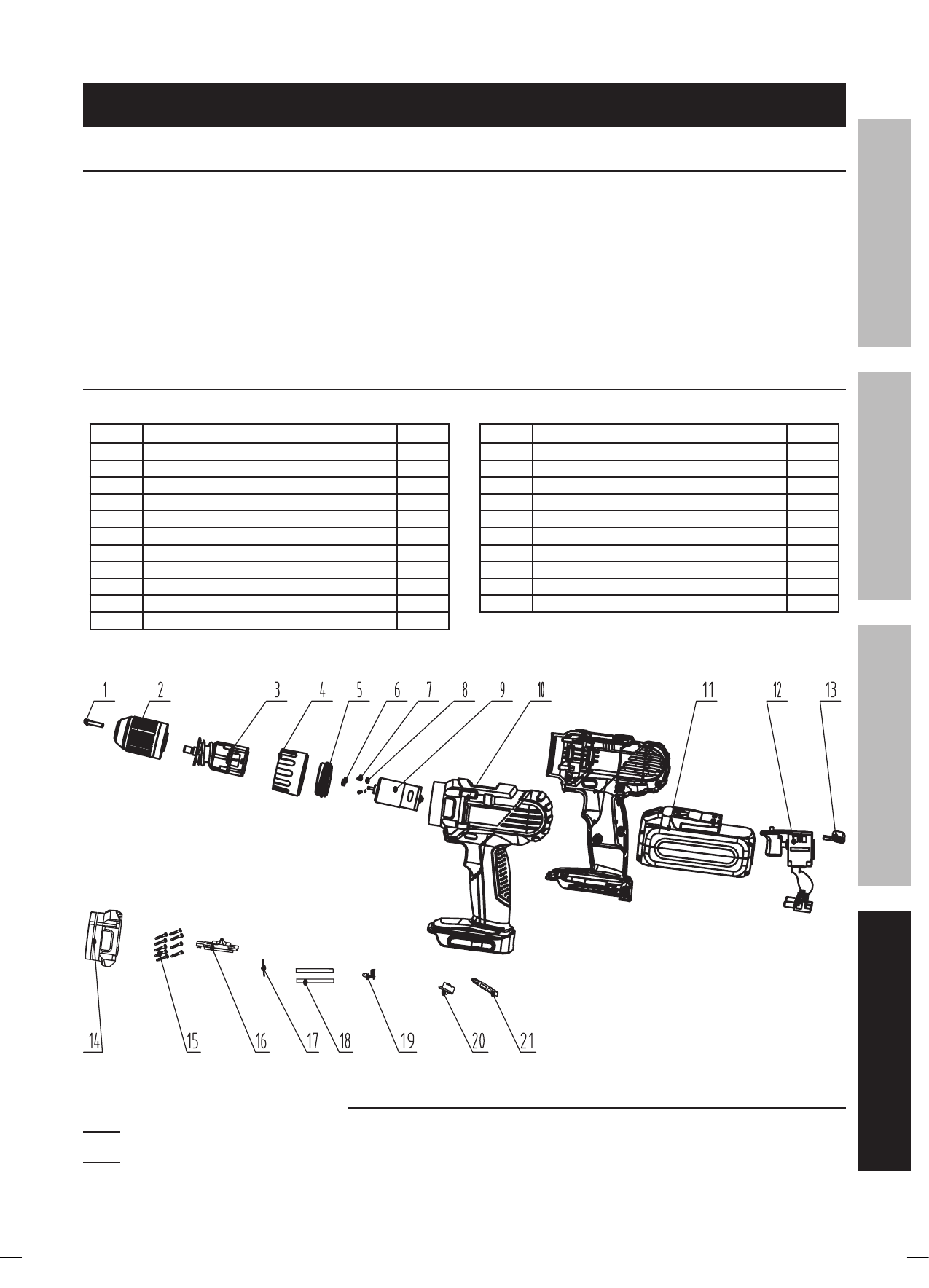

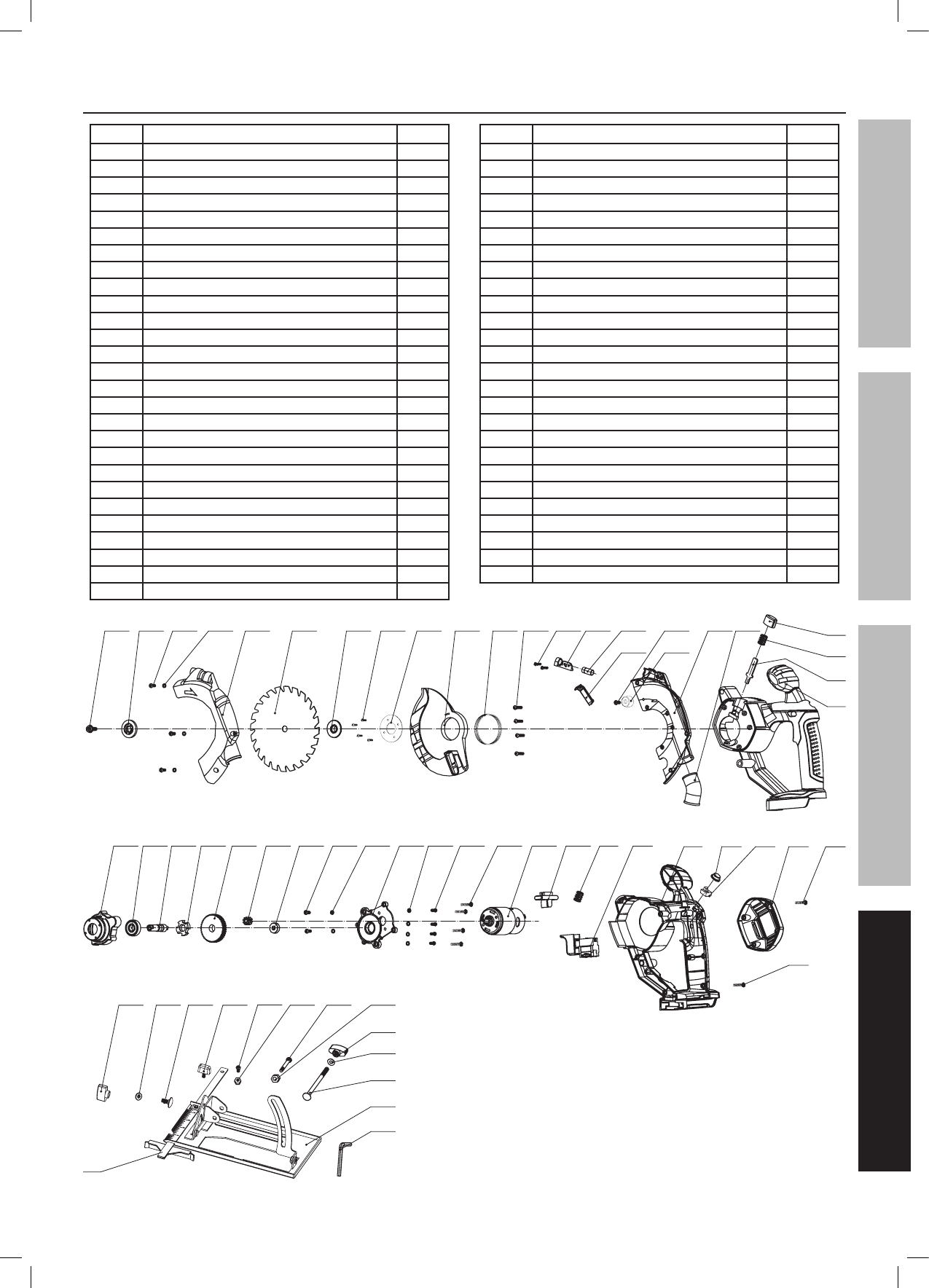

Parts Lists and Diagrams .......................... 19
Warranty .................................................... 24
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
SAFETY OPERATION MAINTENANCESETUP
Page 3For technical questions, please call 1-800-444-3353.Item 68857
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting the
battery pack, picking up or carrying the tool.
Carrying power tools with your finger on
the switch or energizing power tools that
have the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a rotating part
of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
8. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI-approved and breathing protection
must be NIOSH-approved for the
specific hazards in the work area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
2. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
3. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
SAFETYOPERATIONMAINTENANCE SETUP
Page 4 For technical questions, please call 1-800-444-3353. Item 68857
Battery tool use and care
1. Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
2. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Drill Safety Warnings
1. Hold power tools by insulated gripping
surfaces when performing an operation where
the cutting tool may contact hidden wiring.
Contact with a ″live″ wire will make exposed metal
parts of the tool ″live″ and shock the operator.
2. Let bit cool before touching, changing
or adjusting it. Bits heat up dramatically
while in use, and can burn you.
3. If the drill bit jams, release the trigger immediately;
drill torque can cause injury or break bit.
Circular Saw Safety Warnings
1. DANGER! Keep hands away from cutting area
and the blade. Keep your second hand on
auxiliary handle or motor housing. If both hands
are holding the saw, they cannot be cut by the blade.
2. Do not reach underneath the workpiece.
The guard cannot protect you from
the blade below the workpiece.
3. Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
4. Never hold piece being cut in your hands
or across your leg. Secure the workpiece
to a stable platform. It is important to support
the work properly to minimize body exposure,
blade binding, or loss of control.
5. Hold power tools by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Contact with a ″live″ wire will make exposed metal
parts of the tool ″live″ and shock the operator.
6. When ripping, always use a rip fence or straight
edge guide. This improves the accuracy of cut
and reduces the chance of blade binding.
7. Always use blades with correct size and shape
(diamond versus round) of arbor holes. Blades
that do not match the mounting hardware of the
saw will run eccentrically, causing loss of control.
8. Never use damaged or incorrect blade
washers or bolt. The blade washers and
bolt were specially designed for your saw, for
optimum performance and safety of operation.
9. Causes and Operator Prevention of Kickback:
• Kickback is a sudden reaction to a pinched,
bound, or misaligned saw blade, causing
an uncontrolled saw to lift up and out of
the workpiece toward the operator;
• When the blade is pinched or bound tightly by the
kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back toward the
operator;
• If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the
wood, causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be
avoided by taking proper precautions as given below:
SAFETY OPERATION MAINTENANCESETUP
Page 5For technical questions, please call 1-800-444-3353.Item 68857
a. Maintain a firm grip with both hands on the
saw and position your arms to resist kickback
forces. Position your body to either side
of the blade, but not in line with the blade.
Kickback could cause the saw to jump backwards,
but kickback forces can be controlled by the
operator, if proper precautions are taken.
b. When blade is binding, or when interrupting
a cut for any reason, release the trigger
and hold the saw motionless in the material
until the blade comes to a complete stop.
Never attempt to remove the saw from
the work or pull the saw backward while
the blade is in motion or kickback may
occur. Investigate and take corrective actions
to eliminate the cause of blade binding.
c. When restarting a saw in the workpiece, center
the saw blade in the kerf and check that saw
teeth are not engaged into the material. If
saw blade is binding, it may walk up or kickback
from the workpiece as the saw is restarted.
d. Support large panels to minimize the risk of
blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must
be placed under the panel on both sides, near
the line of cut and near the edge of the panel.
e. Do not use dull or damaged blades.
Unsharpened or improperly set blades
produce narrow kerf causing excessive
friction, blade binding and kickback.
f. Blade depth and bevel adjusting locking levers
must be tight and secure before making cut.
If blade adjustment shifts while cutting,
it may cause binding and kickback.
g. Use extra caution when making a
″plunge cut″ into existing walls or other
blind areas. The protruding blade may
cut objects that can cause kickback.
10. Check lower guard for proper closing before
each use. Do not operate the saw if lower
guard does not move freely and close instantly.
Never clamp or tie the lower guard into the
open position. If saw is accidentally dropped,
lower guard may be bent. Raise the lower guard
with the retracting handle and make sure it
moves freely and does not touch the blade or
any other part, in all angles and depths of cut.
11. Check the operation of the lower guard spring.
If the guard and the spring are not operating
properly, they must be serviced before use.
Lower guard may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of debris.
12. Lower guard should be retracted manually
only for special cuts such as ″plunge
cuts″ and ″compound cuts.″ Raise lower
guard by retracting handle and as soon as
blade enters the material, the lower guard
must be released. For all other sawing, the
lower guard should operate automatically.
13. Always observe that the lower guard is covering
the blade before placing saw down on bench
or floor. An unprotected, coasting blade will cause
the saw to walk backwards, cutting whatever
is in its path. Be aware of the time it takes for
the blade to stop after switch is released.
14. DO NOT USE THIS SAW WITH THE SAW
HELD UPSIDE DOWN IN A VISE. The
saw is not designed for such use and
cannot be used safely in that position.
15. The torque developed during braking may
loosen the blade-retaining nut/bolt. The blade
retaining nut/bolt should be checked periodically
and tightened if necessary, especially after braking.
16. Do not use to cut logs, tree
limbs, or uneven lumber.
17. Wet lumber, green (unseasoned) lumber,
and pressure treated lumber all have an
increased potential for kickback and should
only be cut with a blade for cutting that
lumber type. Wear a NIOSH-approved
respirator and have appropriate ventilation
whenever cutting pressure treated lumber.
18. Do not use blades made from high-speed steel,
abrasive blades, or metal- or masonry-cutting
blades. The guards of this saw are not designed
to protect against the failure of such blades.
19. Place the larger portion of the saw base on
the larger, supported part of the workpiece.
This will help maintain balance and
control while the cut is completed.
20. Do not depress the spindle lock when
starting or during operation.
Reciprocating Saw Safety Warnings
1. Hold power tools by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Contact with a ″live″ wire will make exposed metal
parts of the tool ″live″ and shock the operator.
2. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body
leaves it unstable and may lead to loss of control.
SAFETYOPERATIONMAINTENANCE SETUP
Page 6 For technical questions, please call 1-800-444-3353. Item 68857
Additional Safety Warnings
1. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
2. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
3. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
4. When using a handheld power tool,
maintain a firm grip on the tool with both
hands to resist starting torque.
5. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
6. The battery Charger gets hot during use.
The Charger’s heat can build up to unsafe
levels and create a fire hazard if it does
not receive adequate ventilation, due to
an electrical fault, or if it is used in a hot environment.
Do not place the Charger on a flammable surface.
Do not obstruct any vents on the Charger.
Especially avoid placing the Charger on carpets
and rugs; they are not only flammable, but they
also obstruct vents under the Charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench or
concrete floor) at least 1 foot away from all flammable
objects, such as drapes or walls. Keep a fire
extinguisher and a smoke detector in the area.
Frequently monitor the Charger and
Battery Pack while charging.
7. This product is not a toy.
Keep it out of reach of children.
8. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
In addition, people with pacemakers should:
•Avoidoperatingalone.
•Donotusewithpowerswitchlockedon.
•Properlymaintainandinspect
to avoid electrical shock.
9. WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities, contains chemicals known [to the State
of California] to cause cancer, birth defects or
other reproductive harm. Some examples of
these chemicals are:
•Leadfromlead-basedpaints
•Crystallinesilicafrombricksandcementor
other masonry products
•Arsenicandchromiumfrom
chemically treated lumber
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
filter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
10. WARNING: Handling the cord on this product’s
Charger will expose you to lead, a chemical
known to the State of California to cause cancer,
and birth defects or other reproductive harm.
Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
11. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Vibration Safety
This tool vibrates during use.
Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people who
have impaired blood circulation to the hand, past
hand injuries, nervous system disorders, diabetes,
or Raynaud’s Disease should not use this tool.
If you feel any symptoms related to vibration (such
as tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration-free periods each day of work.
SAFETY OPERATION MAINTENANCESETUP
Page 7For technical questions, please call 1-800-444-3353.Item 68857
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUCTIONS.

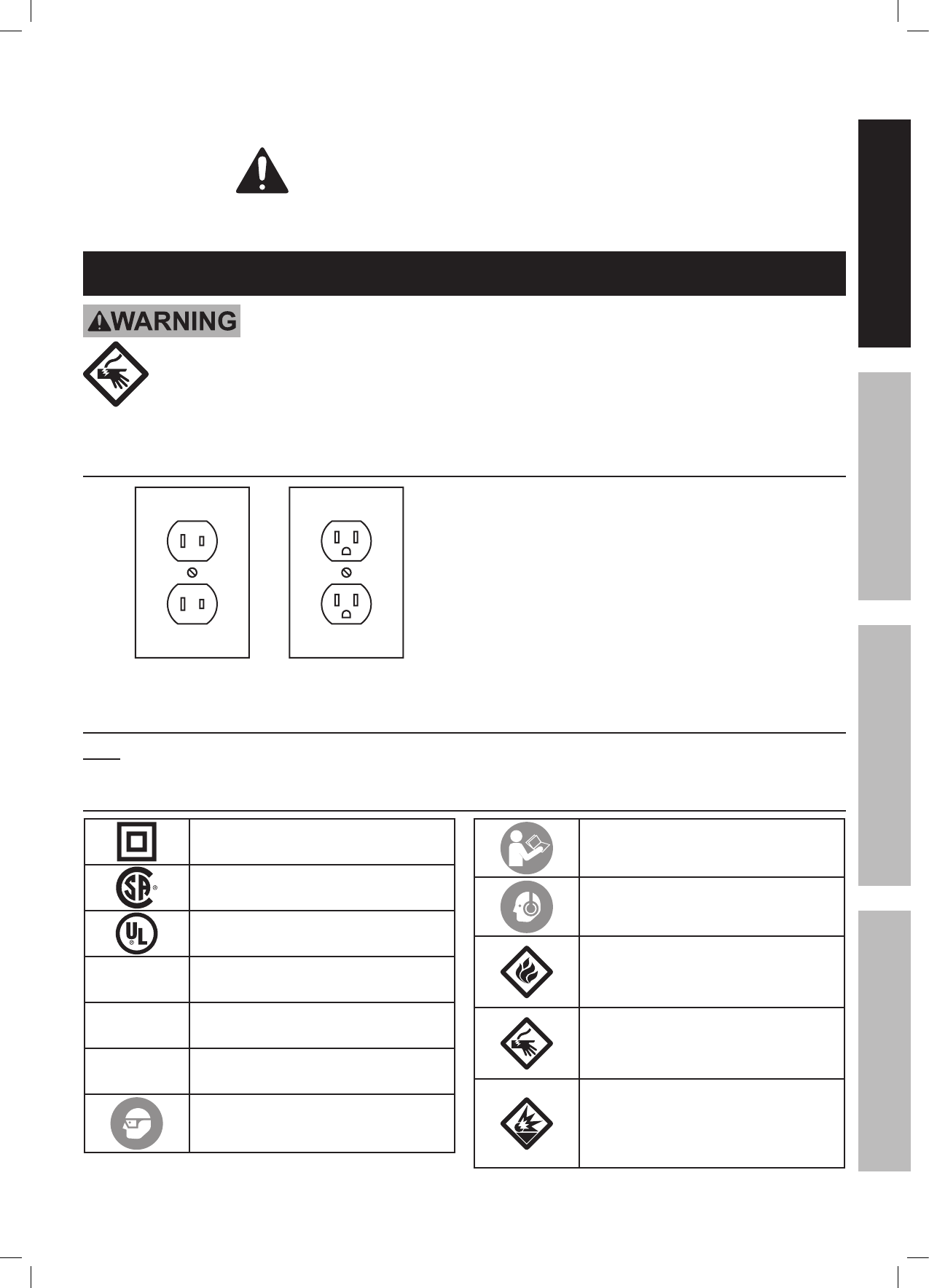

Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING
WIRE CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet
is properly grounded. Do not modify the power cord plug provided with the Charger. Do not use
the Charger if the power cord or plug is damaged. If damaged, have it repaired by a service facility
before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Double Insulated Tools: Tools with Two Prong Plugs
Outlets for 2-Prong Plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies
OSHA requirements and complies with
the applicable standards of Underwriters
Laboratories, Inc., the Canadian Standard
Association, and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
(See Outlets for 2-Prong Plug.)
Extension Cords
Note: Extension cords must not be used with this item’s Charger.
Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0 xxxx/min. No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
WARNING marking
concerning Risk of Fire.
Do not cover Charger ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
SAFETYOPERATIONMAINTENANCE SETUP
Page 8 For technical questions, please call 1-800-444-3353. Item 68857
Specifications
Charger
120V~, 60Hz Input
7.2-24VDC Output
1 Hour Charge Time
(SKU 68859, included)
Battery Type 18V, 1500mAh, NiCd
(SKU 68860, one included)

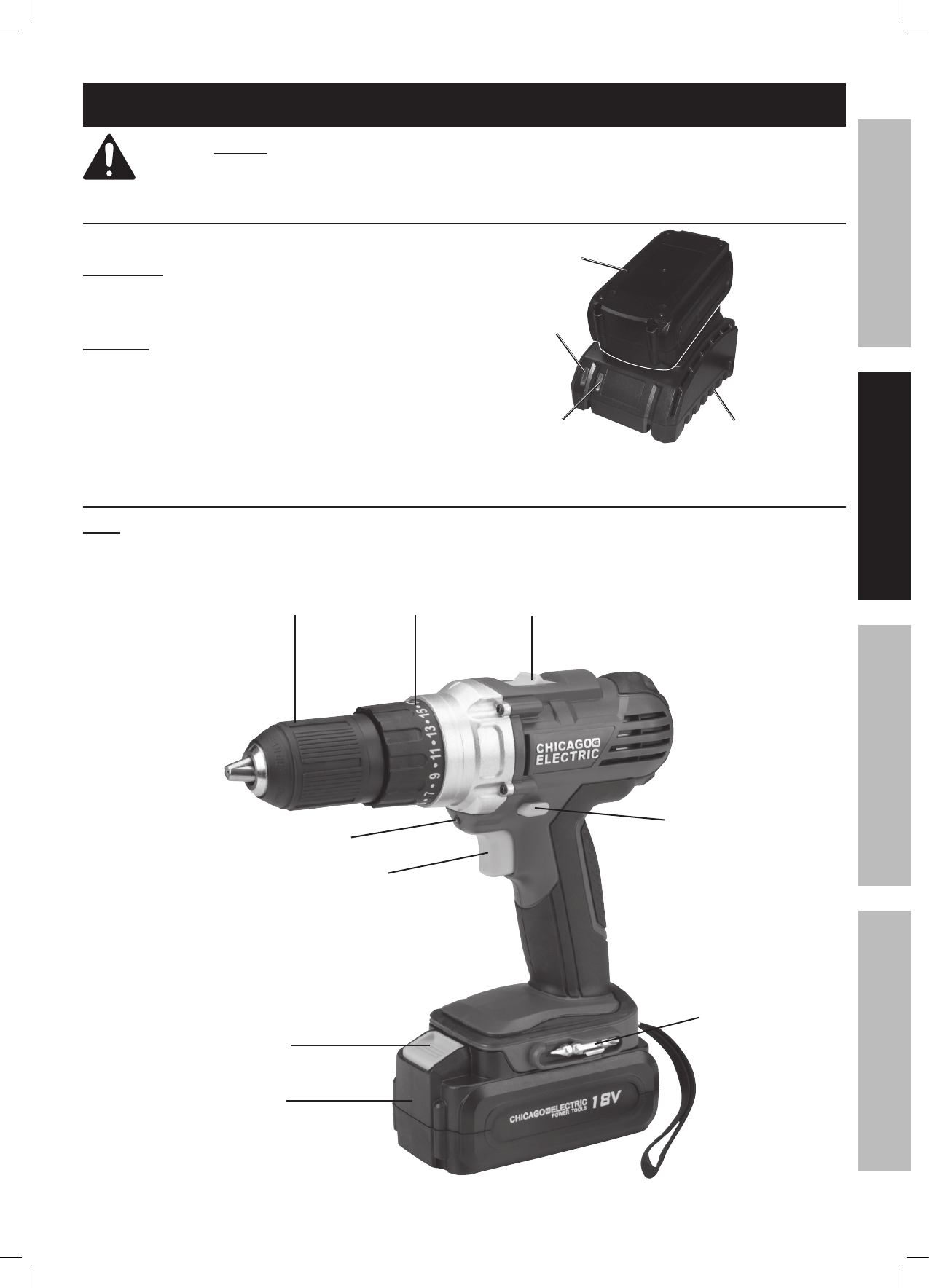

Drill / Driver
Speed 0-400/0-1200 RPM;
Variable/Reversible
Chuck 1/2 IN., Keyless
Settings 23 Torque Settings
1 Drill Setting
Max. Torque 225 in-lb

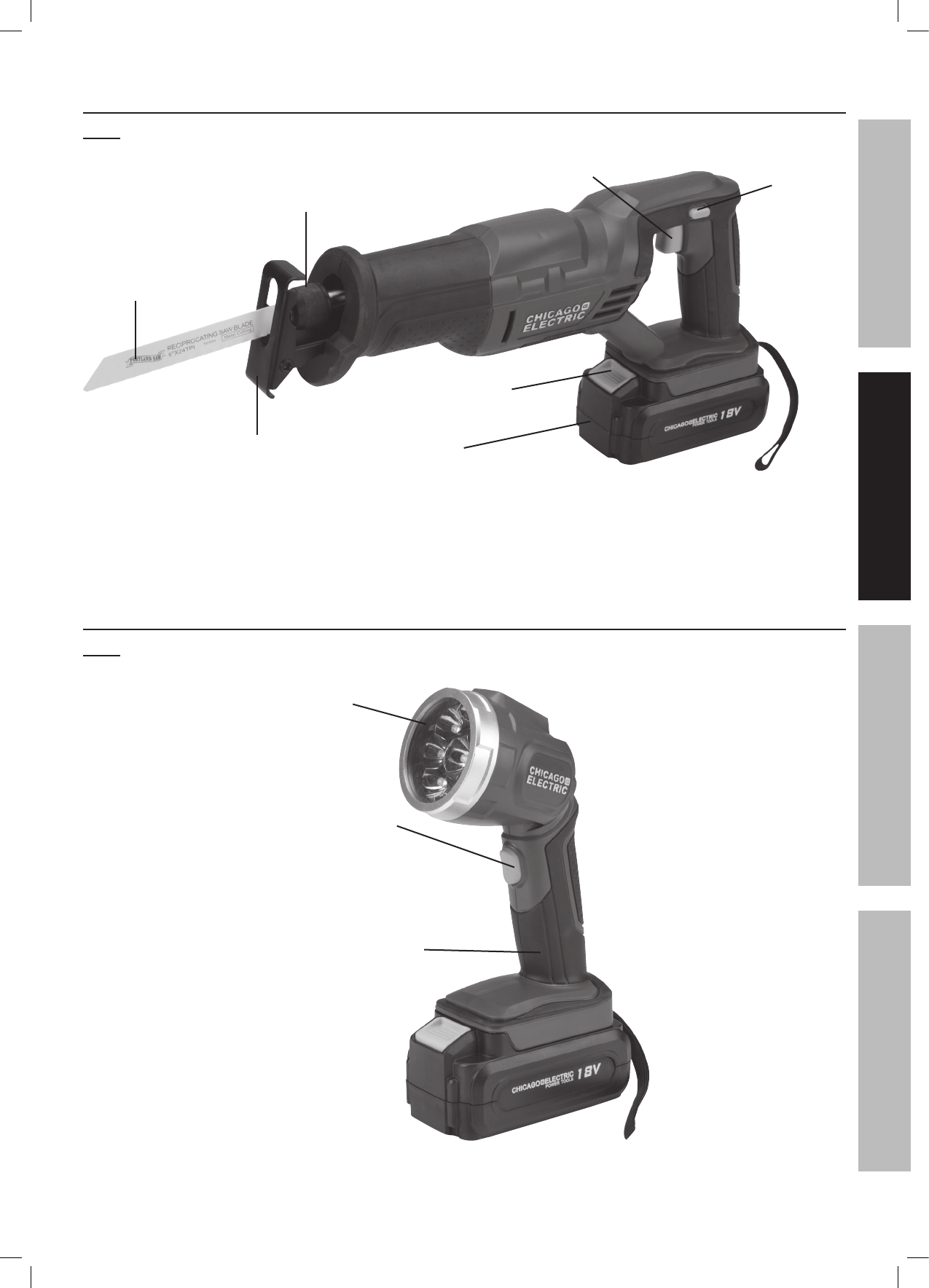

Reciprocating Saw
Speed 0-3000 Strokes Per Minute; Variable
Stroke Length 3/4"
Flashlight
Adjustment 90°
Circular Saw
Speed 4000 RPM; Variable/Reversible
Blade Size 5-1/2 IN.
Arbor 10mm
Cutting Capacity 1-9/16 IN. @ 90°
1-1/8 IN. @ 45°
Footplate Angle 0-45°
LASER LIGHT
DO NOT STARE INTO BEAM
Max. Output: <1 mW,
Wavelength: 650 nm
CLASS II LASER PRODUCT
This product complies with
21 CFR 1040.10 and 1040.11
Diode Mfr.: Yueqing Dengke Electron Ltd.,
Xiaxue Industry Area, Shifan Town,
Yue Qing City, Zhejiang, China
Manufacture Date: ___________, ______
AVOID EXPOSURE
Laser light is emitted
from this opening.
Note: This label applies
only to Circular Saw
Caution: Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Caution: The use of optical instruments
with this product will increase eye hazard.
SAFETY OPERATION MAINTENANCESETUP
Page 9For technical questions, please call 1-800-444-3353.Item 68857
Torque Setting
Ring (4)
Work Light
Trigger (12)
Direction
Switch
Battery Pack (11)
Battery Button
Chuck (2)
Speed
Selector (16)
Bit Groove
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Charger Indicator LED’s
Green LED: Continuously lit indicates
charger is powered.
Red LED: Flashing indicates that the battery is charging.
Continuously lit (not flashing) indicates
that the battery has finished charging and
should be removed from the charger.
Drill / Driver Components and Controls
Note: For additional information regarding the parts listed in the following pages,
refer to Drill / Driver Parts List and Diagram on page 19.
Battery
Pack
Red
LED
Green
LED
Charger
SAFETYOPERATIONMAINTENANCE SETUP
Page 10 For technical questions, please call 1-800-444-3353. Item 68857
Circular Saw Components and Controls
Note: For additional information regarding the parts listed in the following pages,
refer to Circular Saw Parts List and Diagram on page 21.
Fence Adjusting
Knob (45)
Depth Adjustment
Knob (53)
Laser Switch (38)
Laser Guide (14)
Trigger Lock Button (34)
Spindle Lock Button (20)
Depth Gauge
Auxiliary
Handle
Trigger (36)
Battery Pack
Battery Button
Bevel Adjustment
Knob (42)
Plate (50) Saw Blade (6)
Bevel Scale
SAFETY OPERATION MAINTENANCESETUP
Page 11For technical questions, please call 1-800-444-3353.Item 68857
Reciprocating Saw Components and Controls
Note: For additional information regarding the parts listed in the following pages, refer to
Reciprocating Saw Parts List on page 22 and Reciprocating Saw Assembly Diagram on page 23.
Blade Guard (35)
Trigger (2)
Battery Pack
Battery Button
Blade
(sold separately)
Lock
Button (3)
Blade Collet (33)
Flashlight Components and Controls
Note: For additional information regarding the parts listed in the following
pages, refer to Flashlight Parts List and Diagram on page 20.
Trigger (9)
Handle
Lens
Cover (2)
SAFETYOPERATIONMAINTENANCE SETUP
Page 12 For technical questions, please call 1-800-444-3353. Item 68857
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Release the Trigger, disconnect the Battery Pack, and center any Direction Switch
(which locks the Trigger) prior to making any adjustments to the tool.
Drill / Driver Set Up
WARNING! Do not install the Battery Pack
until AFTER you complete the following
steps to set up the tool for use.
1. The Drill is designed to accept up to 1/2 IN.
standard drill bits. Do not use larger drill bits in
this Drill as damage to the gears and/or motor
may result. Always use a drill bit that is designed
for the specific drilling job. Keep other drill bits
tucked in the Drill Driver’s Bit Groove during use.
2. To “lock” the trigger mechanism as a safety
measure, slide the Direction Switch so that
it is in the “center” position. This will prevent
the drill from turning on accidentally.
3. While holding the ring behind the collar of the
chuck with one hand, rotate the collar of the
Chuck (2) counterclockwise, if needed, and
place the desired drill bit or screw driver bit
into the drill between the Chuck Jaws.
4. Hand tighten the Chuck until the bit is held securely
in place, centered between the Chuck Jaws.
5. Slide the Speed Selector (16) at the top
of the Drill Driver forward and back to
adjust from the lower speed (0-400 RPM)
to the higher speed (0-1200 RPM).
6. Set the desired torque setting by rotating the
Torque Setting Ring (4) to the desired setting.
a. Use the torque setting marked by
the drill icon for drilling.
b. The numbered torque settings from 1 to 23
are for driving screws, bolts and nuts.
• It is recommended that a very low torque
setting be used when first driving small screws
into soft materials. Then adjust the setting
as the proper force required is determined.
• The torque setting required depends on the
item being driven. In the case of screws,
consider the size, length, and type of material.
• If a pilot hole has been drilled into the material,
a lower torque setting will be required.
• In addition to single or double-ended screwdriver
bits, adapters with hexagonal shafts with
matching socket heads can also be used.
• Fix the torque setting low enough
to allow a safety margin.
SAFETY OPERATION MAINTENANCESETUP
Page 13For technical questions, please call 1-800-444-3353.Item 68857
Circular Saw Set Up
TO PREVENT SERIOUS INJURY FROM FLYING FRAGMENTS:
Do not use blades made from high-speed steel, abrasive blades, or metal- or masonry-cutting blades.
The guards of this saw are not designed to protect against the failure of such blades.

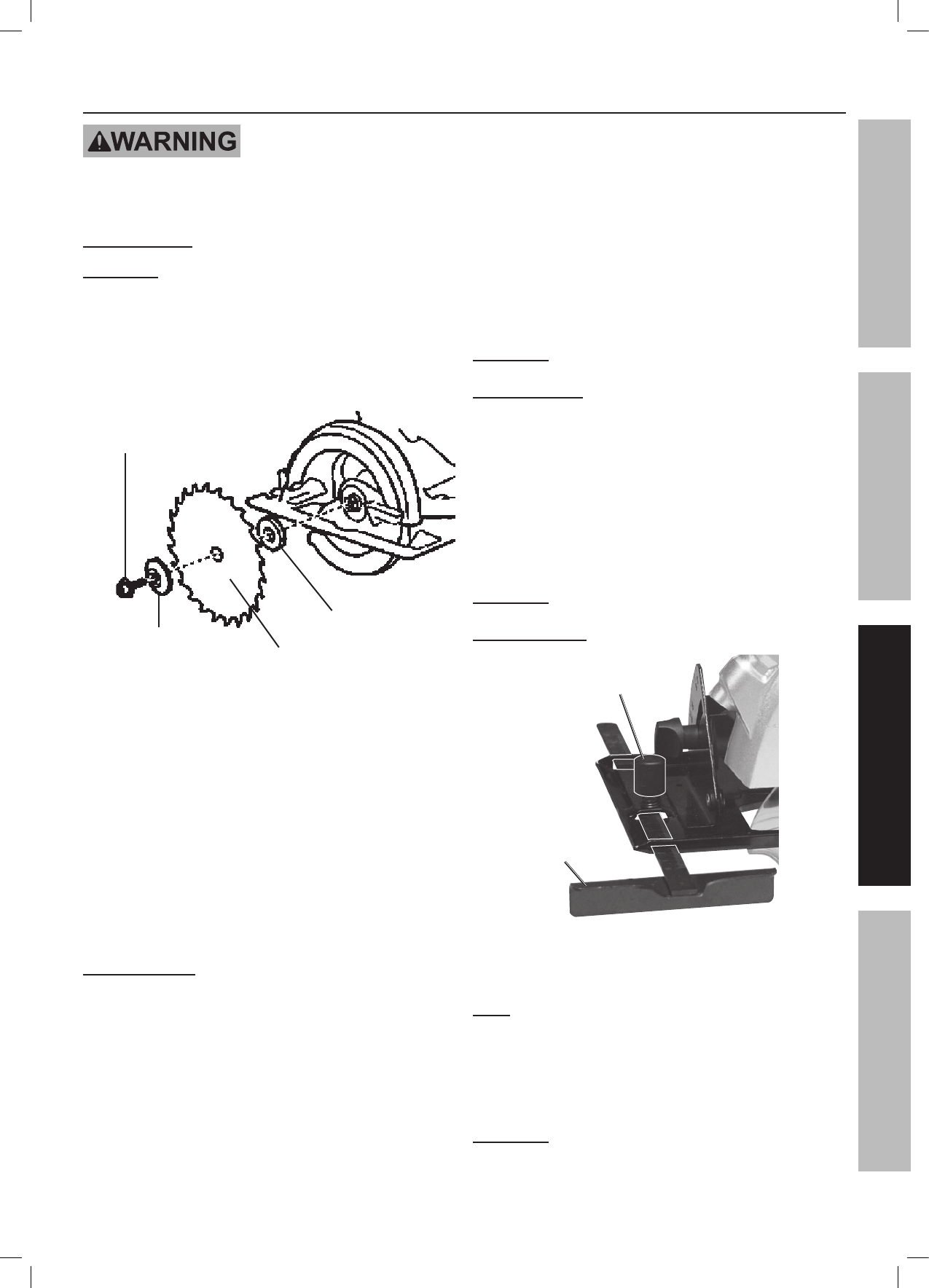

Mounting Blade
WARNING! Do not install the Battery Pack
until AFTER you complete the following
steps to set up the tool for use.
1. Hold in the Spindle Lock Button (20) while
using the Hex Wrench (51) to remove the Hex
Flange Screw (1), turning it CLOCKWISE.
Hex Flange Screw (1)
Outer Flange (2)
Inner Flange (7)
Saw Blade (6)
Figure A: Blade Installation
2. Remove the Outer Flange (2).
3. Use the lever on the Lower Guard (10) to
raise the Guard and remove the Blade (6).
Leave the inner flange in place.
4. Install the new blade, with the directional
arrow on the blade pointing the same as the
directional arrow on the Upper Guard (5,18).
5. Place the Outer Flange on the
spindle, recessed side first.
6. Hold the Spindle Lock Button (20) while using
the Hex Wrench (51) to replace the Hex
Flange Screw (1), turning it clockwise.
Adjusting Depth
1. Use the Depth Adjusting Knob (53) to
adjust the Saw’s cutting depth.
2. Set the Plate (50) flat against the edge of
the workpiece. Loosen the Knob, which
will allow the Plate to be moved.
3. Use the scale along the Depth Gauge located behind
the main housing to determine depth of cut. Adjust
the depth of cut to just barely clear the workpiece and
remove shavings. This will reduce the risk of injury.
4. After adjustment, tighten Depth Adjusting Knob.
WARNING! Tighten Depth Adjusting Knob before use.
Adjusting Bevel
1. Use the Bevel Adjusting Knob (42) to
adjust the Saw’s cutting depth.
2. Turn the Bevel Adjusting Knob to loosen the Plate,
allowing you to adjust angle of cut.
3. Use the Bevel Scale to set the desired
angle (anywhere between 0-45°).
4. After adjustment, tighten the Bevel Adjusting Knob.
WARNING! Tighten Bevel Adjusting Knob before use.
Adjusting Fence
Fence (53)
Fence Adjusting
Knob (45)
Figure B: Fence Adjustment
1. Loosen the Fence Adjusting Knob (45) and
slide the Fence (53) to the desired setting.
Note: There is a ruler on the fence to
show the approximate width of cut.
2. The Fence can be removed entirely, if needed.
3. After adjustment if the Fence is used,
tighten the Fence Adjusting Knob.
WARNING! Tighten Fence Adjusting Knob before use.
SAFETYOPERATIONMAINTENANCE SETUP
Page 14 For technical questions, please call 1-800-444-3353. Item 68857
Reciprocating Saw Set Up
WARNING! Do not install the Battery Pack
until AFTER you complete the following
steps to set up the tool for use.
Installing the Saw Blade
1. If there is an installed blade, rotate the
Chuck counterclockwise and hold it
open while pulling the blade out.
2. Rotate and hold the Chuck counterclockwise
while inserting the Saw Blade and
pushing it in to its deepest position.
3. Release the Chuck to close it.
4. Check that the Saw Blade is firmly locked in
place and that the teeth are pointed downward.
Adjusting the Shoe
CAUTION! Adjust the retracted blade length
to be longer than the width of the workpiece.
If the Blade is shorter, the tip will jam in the
workpiece during cutting, possibly causing injury
and damaging the Blade or workpiece.
Figure C: Shoe Adjustment
Hex Key
Shoe
Screws
Shoe
Front Cover
1. Loosen both Cap Screws on the
underside of the Front Cover.
2. Adjust the Pivot Shoe in or out as needed.
3. Tighten the Cap Screws. Do not over tighten.
Charging
1. Place the Battery Pack on a dry fireproof surface in
a room where the temperature is from 50–104° F.
Note: If recharging a newly spent Battery Pack,
allow it to cool completely before charging.
2. Examine the Battery Pack. It must be
undamaged, and a NiCd type Battery Pack.
Do not charge a cracked, open, or
leaking Battery Pack, or charge a
non-recommended type of Battery Pack.
3. The Battery Pack’s terminals are designed to fit
this Charger specifically. If the Battery Pack does
to not fit the Charger properly, do not try to insert it.
Do not force a Battery Pack into the Charger.
4. Plug the Power Supply into a grounded,
120V~, 60Hz receptacle.
5. Connect the Power Supply to the Charger.
The green power LED will light, showing
that power is supplied to the Charger.
6. Slide the Battery Pack into the charger until the
button on the Battery Pack clicks into place.
The Red LED will flash to show the Battery is
charging and the Green LED will continue to stay lit.
Note: The Battery Pack’s capacity will increase
somewhat during the first few charging cycles.
A fully discharged Battery Pack will take about 1 hour
to fully charge. Recharging the Battery Pack for
more than 1 hour can damage the battery cells.
7. While charging, the Battery Pack, Charger, and
Power Supply may become warm to the touch.
This is normal, and does not indicate a problem.
8. The red LED will light continuously when the
Battery Pack is charged. Unplug the Charger and
disconnect it from the Battery Pack when finished.
9. Allow the Battery Pack to cool
completely before using it.
10. Press the Battery Button to release
Battery Pack from the Charger.
Work Piece and Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Secure loose work pieces using a vise or clamps
(not included) to prevent movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
SAFETY OPERATION MAINTENANCESETUP
Page 15For technical questions, please call 1-800-444-3353.Item 68857
Operating Drill / Driver
1. Insert the fully charged Battery Pack (11)
into the base of the Drill Driver, making sure
that it clicks into place securely. Be sure the
Battery Pack is securely seated into the Drill
Handle so it does not fall off during use.
2. Slide the Direction Switch (which should initially
be centered in the “lock” position) to the right for
forward drilling/fastening, or to the left for reversing
the operation. Use the “reverse” setting only to
remove screws or to release a jammed drill bit.
NOTICE: Do not change direction of rotation
while Chuck is rotating. Wait until Chuck has come
to a complete stop before changing direction.
3. If using the Drill to insert or remove screws, position
the driver tip in the item to insert or remove.
4. If drilling a hole, hold the Drill above the area to drill.
5. Press the Trigger to start the drill. NOTE: The built-in
worklight will also activate once the Switch is
pressed and turn off once Switch is released.
6. When inserting or removing a screw or bolt, use
slight pressure at first to keep the screw driver bit in
the head of the screw or bolt and cause the screw
or bolt to thread into or unthread from the material.
7. When drilling a hole, let the Drill do the work,
using only enough pressure to follow the
drill as it cuts the hole in the material.
8. When drilling a hard, smooth surface, use
a center punch (not included) to mark the
desired hole. This will prevent the drill bit
from slipping as the hole is started.
Wood Drilling Tips
a. For best performance, use high speed
drill bits for wood drilling and turn the
torque setting to the drill icon.
b. Start wood drilling at very low
speed to keep the bit from slipping.
Increase speed as drill bit bites into wood.
c. When drilling through holes, place a block
or wood behind the workpiece to prevent
ragged edges on the back side of the hole.
Metal Drilling Tips
a. For best performance, use high speed
drill bits for metal or steel drilling and turn
the torque setting to the drill icon.
b. Start wood drilling at very low
speed to keep the bit from slipping.
Maintain the speed and pressure, allowing
for cutting without overheating the bit.
NOTICE: Applying too much pressure will
overheat Drill Driver, wear out the bearings, bend
or burn bits, and produce irregular shaped holes.
c. When drilling large holes in metal surfaces, use a
small drill bit at first. Then finish with a larger drill
bit. Be sure to lubricate the bit with oil to improve
the drilling action and help increase bit life.
9. When finished using the Drill, release the
Trigger and center the Direction Switch to lock
the trigger mechanism as a safety measure.
10. Remove the Battery Pack.
11. Clean then store the Drill indoors
and out of children’s reach.
SAFETYOPERATIONMAINTENANCE SETUP
Page 16 For technical questions, please call 1-800-444-3353. Item 68857
Operating Circular Saw
1. WARNING! TO PREVENT SERIOUS INJURY,
BEFORE OPERATION:
a. Remove Battery Pack.
b. Adjust Blade Depth to extend beyond
bottom of workpiece by 1/4 IN. or less.
Lock Depth Adjustment Knob (53).
c. Make sure that all guards are in place
and in proper working order.
d. Tighten all knobs/bolts securely.
e. Tighten Hex Flange Screw.
2. Install fully charged Battery Pack
into base at back of handle.
3. Hold the saw with one hand on the Main Handle
and the other hand on the Auxiliary Handle.
4. Align Saw on cut line with the larger part of
the workpiece to the left of the Saw Blade.
5. Press Laser Switch (38) to activate Laser (14).
WARNING! Only turn Laser on when Saw is on
workpiece. Do not stare directly at the laser beam.
Do not aim the beam at any person or object other
than the workpiece. Do not aim Laser Guide
at a workpiece with a reflective surface, such
as sheet steel or metal. Bright, shiny reflective
sheet metal could direct the beam back at you.
6. Push the Trigger Lock Button (34)
and squeeze the Trigger (36).
7. Allow the Blade to come up to full speed
before contacting the workpiece.
Note: When cutting across the grain, wood fibers can lift
and tear. Move the Saw slowly to minimize any tearing.
8. After completing the cut, release the trigger. Make
sure that the Movable Guard closes immediately.
9. To prevent accidents, turn off the tool and
disconnect the Battery Pack after use.
10. Clean, then store the tool indoors
out of children’s reach.
Pocket Cut
11. WARNING! Verify workpiece is clear of any
hidden wiring and utility lines before cutting.
12. Draw a line on the workpiece to indicate
the cut. Set the Blade’s depth adjustment
accordingly and raise the Lower Guard (10).
13. Set the Blade so that it is barely above the workpiece.
14. Start the Saw and allow the Blade
to come to full speed.
15. Gradually lower the Blade onto the workpiece, using
the front end of the Plate (50) as a pivot point.
16. Once the Blade starts cutting, release
the Blade’s Lower Guard.
17. When the Plate is resting flat on the surface being
cut, continue to cut forward to the end of the cut.
18. Allow the Blade to come to a full stop
before removing it from the cut.
19. WARNING! Do not pull the Saw back. Doing
so will cause the Blade to climb out of the cut,
leading to Kickback (see warnings on page 4).
20. Turn the Saw around and finish the cut in a normal
manner, sawing forward. Use a jig saw or hand saw
(not included) to finish cutting the corners, if needed.
Cutting Large Sheets
1. Cutting large sheets or boards requires support
to prevent sagging. Cutting without leveling and/
or proper support will cause the Blade to bind,
leading to kickback (see warnings on page 4).
2. Use sawhorses to support the
board or panel to be cut.
SAFETY OPERATION MAINTENANCESETUP
Page 17For technical questions, please call 1-800-444-3353.Item 68857
Operating Reciprocating Saw
1. Slide a fully charged Battery Pack into the bottom
of the Handle, making sure that it clicks into place.
Be sure the Battery Pack is securely seated into
the Saw Handle so it will not fall off during use.
2. Firmly hold the Reciprocating Saw with both hands.
Position the Blade near the work piece, depress the
Trigger Lock Button (3) and hold the Trigger down.
3. Release the Lock Button once the tool has
power. Allow the Saw to come up to full speed
before addressing it to the work piece.
IMPORTANT: Do not start the Saw if the Saw Blade is in
contact with anything before operation. If necessary, lift
the tool from the work piece before squeezing the Trigger.
4. In preparation for making a cut, place the Blade
Guard (35) on the surface to be cut. Align the Saw
Blade with the direction of the cut and slowly lower
the saw blade onto the cut line to begin the cut.
Do not attempt to cut with the tip of the Blade;
kickback and damage to the Blade could result.
Metal Cutting
a. When cutting metal materials with the Saw,
make sure to use the metal Saw Blade.
b. Lubricate the cutting surface with cutting oil to
avoid heat build-up. Follow the “Operating
the Reciprocating Saw” section earlier
in this manual for basic instructions.
c. Slowly start the cut. You may tip the
Handle down for a slant cut.
5. When finished cutting, release the
Trigger to stop the tool.
6. Remove the Battery Pack and the Saw Blade.
7. Clean, then store the Saw indoors
and out of children’s reach.
Plunge Cutting
WARNING! TO PREVENT SERIOUS INJURY
FROM ELECTRICAL SHOCK AND FIRE: Do not
cut into areas where you cannot identify possible
hazards behind or inside the surface being cut.
Note: Before Plunge Cutting, drill a hole large
enough to insert the Saw Blade. Never allow the
tip of the Saw Blade to contact the workpiece.
1. Clearly mark the line of cut on the work piece.
2. From a convenient starting point within the cut out
area, place the blade tip into the hole or opening.
The Blade Guard should be positioned vertically at
a 90° angle to the workpiece. See Figure B, below.

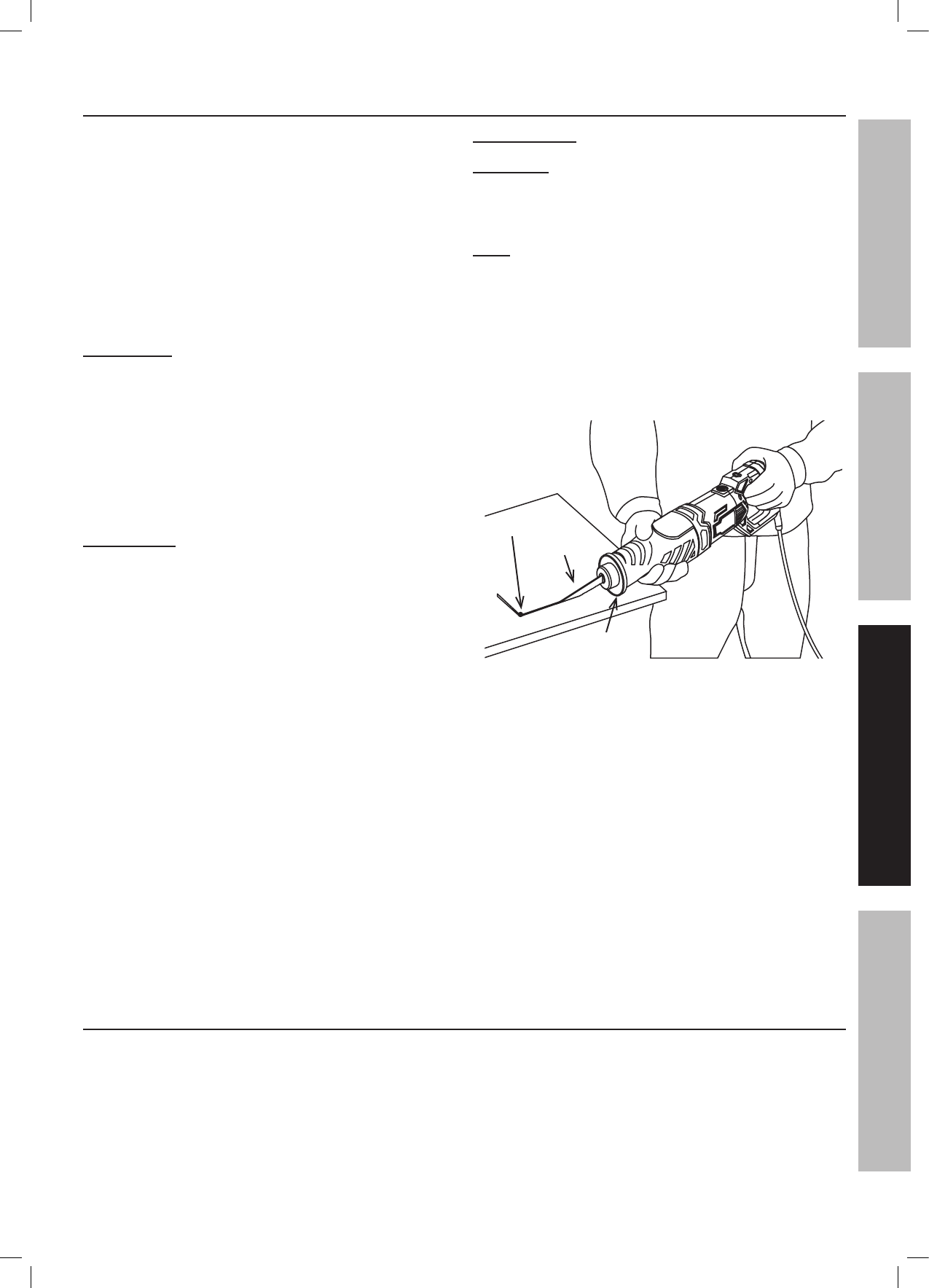

Figure D: Plunge Cutting
Guard resting
on workpiece
Saw Blade
Drilled Hole
3. Start the Saw and allow it to reach full speed.
4. With the Saw resting on the Blade Guard,
slowly tilt the Saw Blade onto the cut line.
Continue this motion until the Saw Blade
is perpendicular to the work piece.
5. Continue cutting along the line to complete the cut.
Operating Flashlight
1. Slide the top of the Battery into the bottom of the
Flashlight handle until Battery locks into place.
2. Adjust the Flashlight’s head position
by rotating it up or down.
3. Press the Trigger to activate LED lights on the front
of the Flashlight. Press again to turn off the lights.
4. After use, press the battery release latch on the front
of the Battery to release the Battery Pack from the
Flashlight and slide it out of the Base to remove it.
SAFETYOPERATIONMAINTENANCE SETUP
Page 18 For technical questions, please call 1-800-444-3353. Item 68857
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger and remove
the Battery Pack before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
If abnormal noise or vibration occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery pack,
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Ni-Cd BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY.
Do not short, incinerate or open Battery Pack.
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will
not start.
1. Battery Pack not properly
connected.
2. Battery Pack not
properly charged.
3. Battery Pack burnt-out.
4. Internal damage or wear.
1. Remove Battery Pack, make sure there are no
obstructions, reinsert the Battery Pack according
to its shape (it should only fit one way), and press
firmly until the Battery Pack locks in place.
2. Make sure Charger is connected and operating properly.
Give enough time for Battery Pack to recharge properly.
3. Dispose of old Battery Pack properly or recycle.
Replace Battery Pack.
4. Have technician service tool.
Tool operates
slowly.
1. Forcing tool to work too fast.
2. Battery Pack power low.
3. Battery Pack burnt-out.
1. Allow tool to work at its own rate.
2. Recharge Battery Pack.
3. Dispose of old Battery Pack properly or recycle.
Replace Battery Pack.
Performance
decreases
over time.
1. Accessory dull or damaged.
2. Battery Pack wearing out.
1. Keep cutting accessories sharp. Replace as needed.
2. Battery Pack capacity will gradually decrease through use.
If symptoms are severe, recycle old Battery Pack
(or dispose of properly) and replace it.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Accessory misaligned.
3. Accessory dull or damaged.
4. Blocked motor housing vents.
1. Allow tool to work at its own rate.
2. Check and correct accessory to fence
and/or table alignment.
3. Keep cutting accessories sharp. Replace as needed.
4. Wear ANSI-approved safety goggles and
NIOSH-approved dust mask/respirator while
blowing dust out of motor using compressed air.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery Pack and Charger power supply before service.
SAFETY OPERATION MAINTENANCESETUP
Page 19For technical questions, please call 1-800-444-3353.Item 68857
Parts Lists and Diagrams
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Drill / Driver Parts List and Diagram
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Part Description Qty
1 Thread Screw 1
2 Chuck 1
3 Gear Box 1
4 Torque Setting Ring 1
5 Torque Sleeve Inner Lane 1
6 Motor Gear 1
7 Pan Head Screw 2
8 Spring Pad 2
9 Motor 1
10 Housing (Left/Right) 1
11 Battery Pack 1
Part Description Qty
12 Trigger 1
13 Push Rod 1
14 Front Housing Sleeve 1
15 Self-Tapping Screw 13
16 Speed Selector 1
17 Speed Wire 1
18 Latch Pin 2
19 Light 1
20 Clamp Driver 1
21 Two-Pronged Bit 1
SAFETYOPERATIONMAINTENANCE SETUP
Page 20 For technical questions, please call 1-800-444-3353. Item 68857
Flashlight Parts List and Diagram
Part Description Qty
1 Protective Shield 1
2 Lens Cover 1
3 Reflector 1
4 Front Light Circuit Board 1
5 Screw 2
7 Top Cover 1
8 Tuning Fork 1
9 Trigger 1
Part Description Qty
10 Switch Pad 1
11 Switch Frame 1
12 Top Pin 1
13 Spring 1
14 Main Housing 1
15 Handle Housing 1
16 Screw 9
17 Bracket 1
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
SAFETY OPERATION MAINTENANCESETUP
Page 21For technical questions, please call 1-800-444-3353.Item 68857
Circular Saw Parts List and Diagram
Part Description Qty
1 Hex Flange Screw 1
2 Outer Flange 1
3 Screw (M4x10) 3
4 Spring Pad 5
5 Left Upper Guard 1
6 Saw Blade 1
7 Inner Flange 1
8 Screw (M3x10) 10
9 Guard Washer 1
10 Lower Guard 1
11 Torque Spring 1
12 Self Tapping Screw (ST3.5x14) 8
13 Laser Base 1
14 Laser 1
15 Wire Plate 1
16 Screw (M4x14) 4
17 Rubber Ring 1
18 Right Upper Guard 1
19 Connector Pipe 1
20 Spindle Lock Button 1
21 Lock Spring 1
22 Lock Block Shaft 1
23 Left Housing 1
24 Gearbox 1
25 Bearing (6000) 1
26 Output Shaft 1
27 Lock Block 1
Part Description Qty
28 Large Gear 1
29 Small Gear 1
30 Bearing (606) 1
31 Gearbox Cover 1
32 Spring Pad (Ø3) 1
33 Motor 1
34 Trigger Lock Button 4
35 Trigger Spring 1
36 Trigger 1
37 Right Housing 1
38 Laser Switch 1
39 Laser Switch Frame 1
40 Rear Housing 1
41 Self Tapping Screw (ST3x14) 13
42 Bevel Adjusting Knob 2
43 Washer (Ø6.5xØ15) 2
44 Screw 1
45 Fence Adjusting Knob 1
46 Nut (M4) 1
47 Connecting Screw Rod 1
48 Locknut 1
49 Screw (M6x95) 1
50 Plate 1
51 Hex Wrench 1
52 Depth Adjusting Knob 1
53 Fence 1
123 5
46 7 10
98 813
12
11
84
14
12
15
25 26 27 28 302924
19
18
23
22
21
20
37 38 39 40 41
52
53
42 44 45 47 4846
34
333231 36
35
41
17
16
16
16
51
50
49
43
43
SAFETYOPERATIONMAINTENANCE SETUP
Page 22 For technical questions, please call 1-800-444-3353. Item 68857
Part Description Qty
1 Hex Wrench 1
2 Trigger 1
3 Lock Button 1
4 Lock Button Spring 3
5 Motor 1
6 Head Screw 10
7 Motor Bracket 2
8 Washer 3
9 Head Screw 3
10 Head Screw 1
11 Washer 1
12 External Spline Gear 1
13 Internal Spline Gear 1
14 Pressure Plate 1
15 Bearing (6002) 1
16 Pinion Wheel 1
17 Eccentric Pin 1
18 Needle Bearing 1
19 Middle Plate 1
20 Gearbox Cover 8
21 Left Housing 1
22 Screw 1
23 Ball Press Cover 1
24 Reciprocating Lever 1
25 Straight Pin 1
26 Slide Bearing 1
27 Wool Washer 1
Part Description Qty
28 Collet Ring 1
29 Compression Spring 1
30 Collet Pin 1
31 Inner Gasket 1
32 Torque Spring 1
33 Blade Collet 1
34 Collet Washer 1
35 Shoe 1
37 Gearshaft 1
38 Washer 2
39 Gearwheel 1
40 Bearing (6000) 1
41 Circlip 1
42 Bearing (608-2Z) 1
43 Gearbox 1
44 Washer 3
45 Shoe Adjustment Screw 2
46 Head Screw 1
47 Red wire 1
48 Black wire 1
49 Red wire 1
50 Black wire 1
51 Bracket 1
52 Spring 1
53 Top Pin 1
54 Right Housing 1
55 Screw 13
Reciprocating Saw Parts List
SAFETY OPERATION MAINTENANCESETUP
Page 23For technical questions, please call 1-800-444-3353.Item 68857
Reciprocating Saw Assembly Diagram
SAFETYOPERATIONMAINTENANCE SETUP
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Navigation menu
