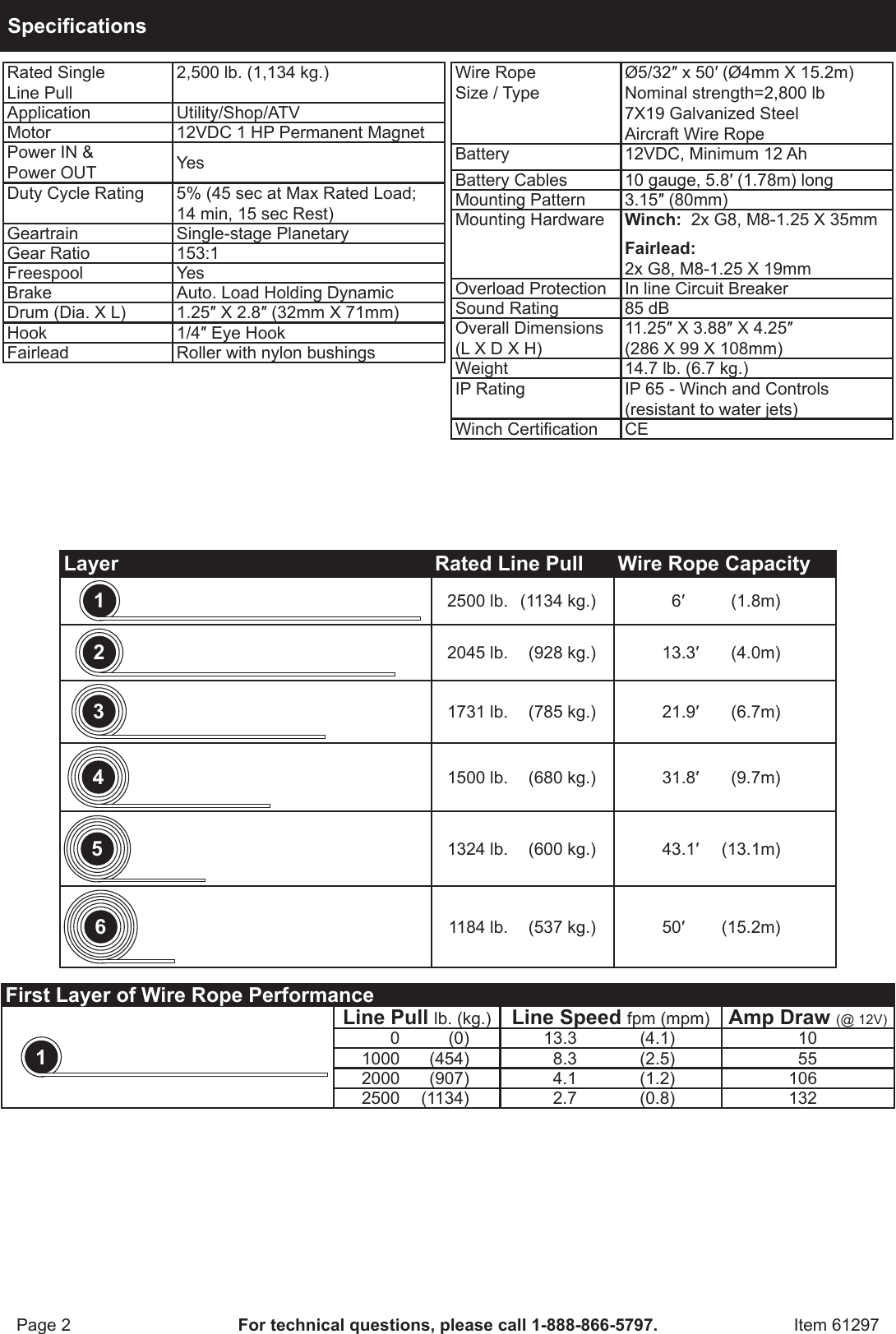

Page 2 For technical questions, please call 1-888-866-5797. Item 61297 Rated Single Line Pull2,500 lb. (1,134 kg.)Application Utility/Shop/ATVMotor 12VDC 1 HP Permanent MagnetPower IN & Power OUT YesDuty Cycle Rating 5% (45 sec at Max Rated Load; 14 min, 15 sec Rest)Geartrain Single-stage PlanetaryGear Ratio 153:1Freespool YesBrake Auto. Load Holding DynamicDrum (Dia. X L) 1.25″ X 2.8″ (32mm X 71mm)Hook 1/4″ Eye HookFairlead Roller with nylon bushingsWire Rope Size / TypeØ5/32″ x 50′ (Ø4mm X 15.2m) Nominal strength=2,800 lb7X19 Galvanized Steel Aircraft Wire RopeBattery 12VDC, Minimum 12 AhBattery Cables 10 gauge, 5.8′ (1.78m) longMounting Pattern 3.15″ (80mm)Mounting Hardware Winch: 2x G8, M8-1.25 X 35mmFairlead: 2x G8, M8-1.25 X 19mmOverload Protection In line Circuit BreakerSound Rating 85 dBOverall Dimensions (L X D X H)11.25″ X 3.88″ X 4.25″(286 X 99 X 108mm)Weight 14.7 lb. (6.7 kg.)IP Rating IP 65 - Winch and Controls (resistant to water jets)Winch Certification CELayer Rated Line Pull Wire Rope Capacity1 2500 lb. (1134 kg.) 6′ (1.8m)2 2045 lb. (928 kg.) 13.3′ (4.0m)3 1731 lb. (785 kg.) 21.9′ (6.7m)4 1500 lb. (680 kg.) 31.8′ (9.7m)5 1324 lb. (600 kg.) 43.1′ (13.1m)6 1184 lb. (537 kg.) 50′ (15.2m)First Layer of Wire Rope Performance1Line Pull lb. (kg.) Line Speed fpm (mpm) Amp Draw (@ 12V) 0 (0) 13.3 (4.1) 10 1000 (454) 8.3 (2.5) 55 2000 (907) 4.1 (1.2) 106 2500 (1134) 2.7 (0.8) 132Specifications
