Page 2 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Specifications ............................................. 2
Safety ......................................................... 3
Setup .......................................................... 6
Operation .................................................... 8
Maintenance .............................................. 12
Troubleshooting ......................................... 14
Parts Lists and Diagrams .......................... 16
Warranties ................................................. 22
Specifications
Maximum Drilling Depth 22″
Auger Diameter 4″
Overall Bit Length 30-1/2″ Long
Drive Shaft 7/8″ Diameter x 1-1/2″ Long
Accessories Auger Bit, Spark Plug Wrench,
Screwdriver, 2 Hex Keys
Engine Type 1.5 Horsepower / 52cc / Single Cylinder
2 stroke / Recoil Start
Bore x Stroke 44 x 34
Compression Ratio 8.2:1
Displacement 52cc
Rotation viewed from PTO
(power takeoff ‑ the output shaft) Clockwise
Fuel Type 25:1 ‑ 89+ octane unleaded gasoline
to 2 cycle oil mix
Capacity .26 Gallons
Recommended Gear Oil SAE 80‑90 Weight Gear Oil
Spark
Plug
Compatible
Types
NGK BPM7A
Bosch WS7F
Champion CJ7Y
Torch L7T
(resistive plugs only)
Gap 0.028~0.031″
Drilling Speed 150 RPM
Page 3For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP

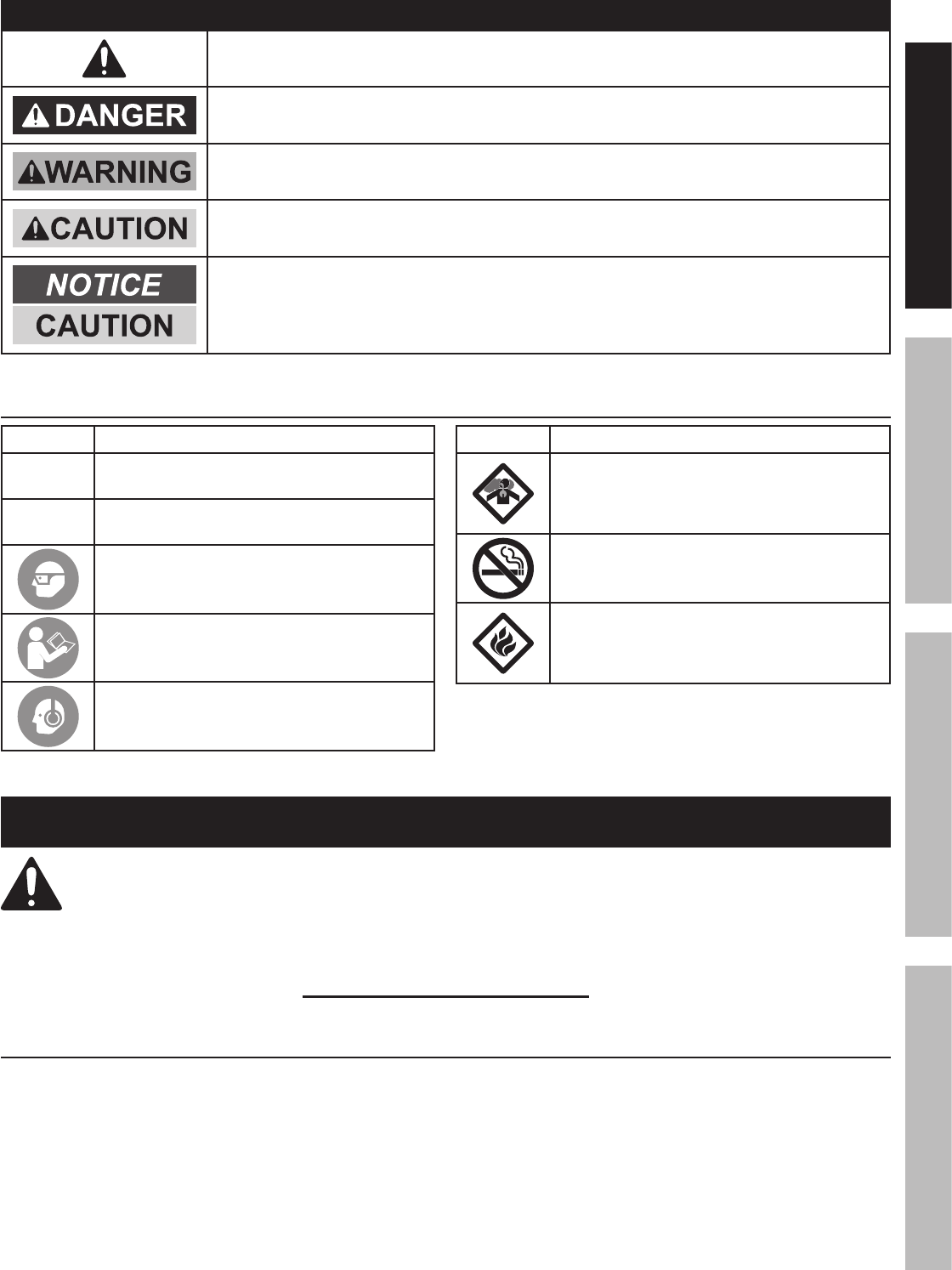

WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
Symbol Definitions
Symbol Property or Statement
RPM Revolutions Per Minute
HP Horsepower
WARNING marking concerning
Risk of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before set‑up and/or use.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
Symbol Property or Statement
WARNING marking concerning
Risk of Respiratory Injury.
Operate Engine OUTSIDE and far away
from windows, doors, and vents.
WARNING marking concerning
Risk of Fire while handling fuel.
Do not smoke while handling fuel.
WARNING marking concerning
Risk of Fire.
Do not refuel while operating.
Keep flammable objects away from Engine.
Safety Warnings
WARNING! Read all instructions.
Failure to follow all instructions listed below may result in fire, serious injury and/or DEATH.
The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
Set up Precautions
1. Gasoline fuel and fumes are flammable, and
potentially explosive. Use proper fuel storage
and handling procedures. Do not store fuel
or other flammable materials nearby.
2. Have multiple ABC class fire extinguishers nearby.
3. Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
4. Wear ANSI‑approved safety goggles,
heavy‑duty work gloves, and
dust mask/respirator during set up.
5. Use only oil and fuel recommended in the
Specifications chart of this manual.
Page 4 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Operating Precautions
1. Buried utility lines may be unmarked; contact
utility companies before drilling. Contacting utility
lines may cause severe personal injury or death.
2. Check for landscape fabric before drilling.
Landscape fabric may get pulled into the Bit
and also pull the operator into the Bit.
Before drilling, cut a hole in the landscape fabric
sufficiently larger than the diameter of the Auger to
prevent contact or entanglement with the fabric.
3. Keep everyone other than the operator
at least 10 feet from the Auger during operation.
People using hand tools should not move or
remove soil-pile while the Auger is operating.
Always keep children away from the Auger,
especially while it is operating.
4. To prevent severe personal injury or
dismemberment from rotating Bit:
Stand on flat, level, solid surface and brace against
torque during use. Keep hands and feet away
from Bit and hole when Engine is running.
5. CARBON MONOXIDE HAZARD
Using an engine indoors
CAN KILL YOU IN MINUTES.
Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Only use OUTSIDE and far away from
windows, doors, and vents.
6. Do not lock trigger on.
Never disable safety switches or components.
7. Maintain a firm grip on the Auger
with both hands and be aware of the
strong start-up torque of the tool.
8. Disconnect and insulate spark plug wire
before maintenance and/or changing bits.
9. Do not carry between holes with Engine running.
10. Carry by handle only; not by Bit.
11. Keep your thumb near the Power Switch in the
event the Auger must be turned off immediately.
12. Do not use the Auger if the Bit
is dull, bent, or damaged.
13. Drill with the Engine running at full speed.
Fully squeeze the Throttle to maintain
a steady drilling speed.
14. When shutting off the Engine, make sure the
Auger has stopped before setting the tool down.
15. Fire Hazard! Do not fill gas tank while Engine is
running. Do not operate if gasoline has been spilled.
Clean spilled gasoline before starting Engine.
Do not operate near pilot light or open flame.
16. Do not touch Engine during use.
Let Engine cool down after use.
17. Never store fuel or other flammable
materials near the Engine.
18. Only use a suitable means of transport and
lifting devices with sufficient weight bearing
capacity when transporting the Engine.
19. Secure the Engine on transport vehicles to
prevent the tool from rolling, slipping, and tilting.
20. Industrial applications must follow
OSHA requirements.
21. Do not leave the Auger unattended when it is
running. Turn off the Auger (and remove safety
keys, if available) before leaving the work area.
22. Engine can produce high noise levels.
Prolonged exposure to noise levels
above 85 dBA is hazardous to hearing.
Always wear ear protection when operating or
working around the gas Engine while it is operating.
23. Wear ANSI‑approved safety glasses, hearing
protection, and NIOSH‑approved dust mask/
respirator under a full face shield along
with steel‑toed work boots during use.
24. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to a heart pacemaker could cause
pacemaker interference or pacemaker failure.
Caution is necessary when near the
Engine’s magneto or recoil starter.
25. Use only accessories that are recommended by
Harbor Freight Tools for your model. Accessories
that may be suitable for one Auger may become
hazardous when used on another Auger.
26. Do not operate in explosive atmospheres,
such as in the presence of flammable
liquids, gases, or dust. Gasoline‑powered
engines may ignite the dust or fumes.
27. Stay alert, watch what you are doing and use
common sense when operating this Auger.
Do not use this Auger while tired or under the
influence of drugs, alcohol or medication.
28. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the Auger in unexpected situations.
29. Dress properly. Do not wear loose clothing
or jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
30. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
31. Do not cover the Engine or Auger during operation.
32. Keep the Auger, Engine, and surrounding
area clean at all times.
33. Use the Auger, accessories, etc., in accordance with
these instructions and in the manner intended for
the particular type of Auger, taking into account the
working conditions and the work to be performed.
Use of the Auger for operations different from those
intended could result in a hazardous situation.
34. Do not operate the Auger with known
leaks in the Engine’s fuel system.
Page 5For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
35. This product contains or, when used, produces a
chemical known to the State of California to cause
cancer and birth defects or other reproductive harm.
(California Health & Safety Code § 25249.5, et seq.)
36. When spills of fuel or oil occur, they must be
cleaned up immediately. Dispose of fluids and
cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom‑ventilated, covered, metal container.
37. Keep hands and feet away from moving parts.
Do not reach over or across Auger while operating.
38. Before use, check for misalignment or
binding of moving parts, breakage of parts,
and any other condition that may affect
the Auger’s operation. If damaged, have the
Auger serviced before using. Many accidents
are caused by poorly maintained Augers.
39. Use the correct Auger for the application.
Do not modify the Auger and do not use the
Auger for a purpose for which it is not intended.
Vibration Hazard
This tool vibrates during use. Repeated or long‑term exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check‑ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people
who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
fingers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Use tools with the lowest vibration when there
is a choice between different processes.
4. Include vibration‑free periods each day of work.
5. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
Service Precautions
1. Before service, maintenance, or cleaning:
a. Turn the Engine switch to its “OFF” position.
b. Allow the Engine to completely cool.
c. Then, remove the spark plug cap
from the spark plug.
2. Keep all safety guards in place and in
proper working order. Safety guards include
muffler, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Do not alter or adjust any part of the Auger or
its Engine that is sealed by the manufacturer
or distributor. Only a qualified service
technician may adjust parts that may increase
or decrease governed Engine speed.
4. Wear ANSI‑approved safety goggles, heavy‑duty
work gloves, and dust mask/respirator during service.
5. Maintain labels and nameplates on the Auger.
These carry important information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Have the Auger serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the Auger
is maintained. Do not attempt any service or
maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
7. Store Auger out of the reach of children.
8. Follow scheduled Engine and Auger maintenance.
Refueling:
1. Do not smoke, or allow sparks, flames,
or other sources of ignition around the Auger,
especially when refuelling.
2. Do not refill the fuel tank while the
Engine is running or hot.
3. Do not fill fuel tank to the top.
Leave a little room for the fuel to expand as needed.
4. Refuel in a well‑ventilated area only.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting Engine.
To prevent FIRE, do not start the Engine
while the smell of fuel hangs in the air.
SAVE THESE INSTRUCTIONS.
Page 6 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Set Up
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required.
The operator should contact local fire
agencies for laws or regulations relating
to fire prevention requirements.
At high altitudes, the Engine’s carburetor, governor
(if so equipped), and any other parts that control
the fuel‑air ratio will need to be adjusted by a
qualified mechanic to allow efficient high‑altitude
use and to prevent damage to the Engine and
any other devices used with this product.
The emission control system for this Engine is
warranted for standards set by the U.S. Environmental
Protection Agency and by the California Air Resources
Board (also known as CARB). For warranty
information, refer to the last pages of this manual.
IMPORTANT! Your Warranty is voided if either:
1. You operate the Auger without the proper
25:1 fuel-oil mix in its Fuel Tank. Do not run the
Engine with an improper fuel mix, low or no fuel mix.
Running the Engine with an improper fuel mix,
low or no fuel mix, will permanently damage the unit.
2. You operate the Auger without the proper amount
of SAE 80-90 gear oil in its Gearbox.
Do not run the Auger with low or no gear oil.
Running the Auger with low or no gear oil
will permanently damage the unit.
Page 7For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP

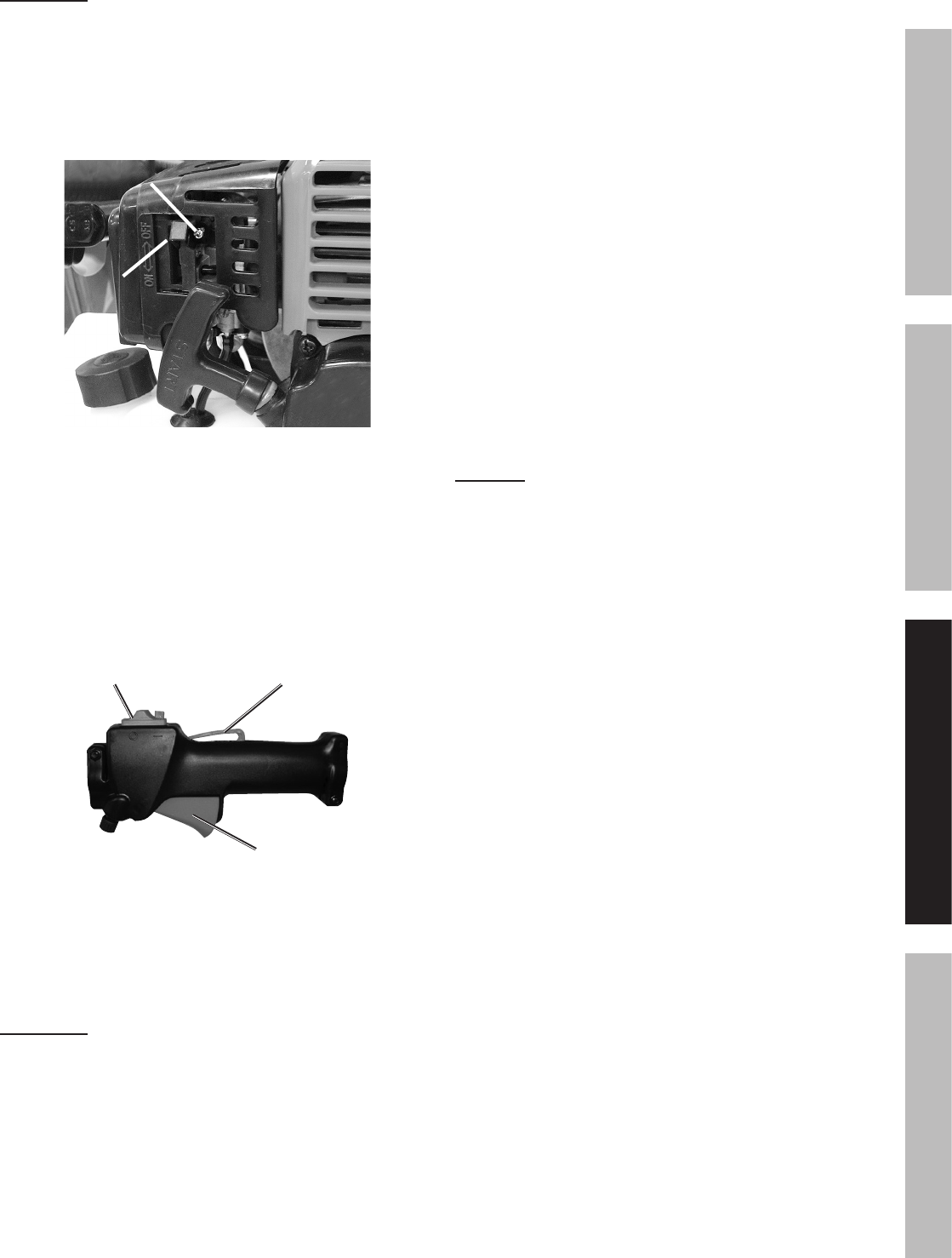

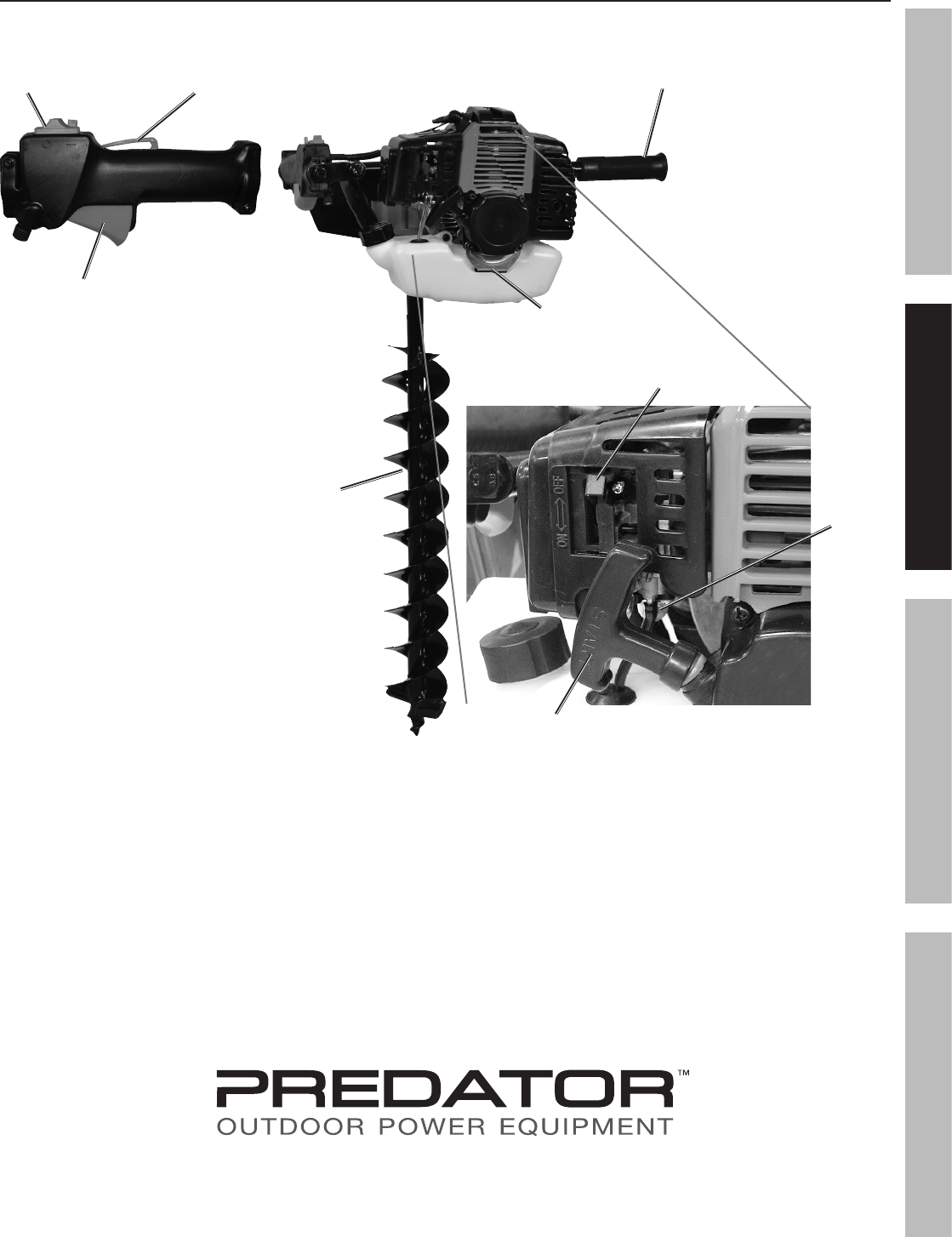

Components and Controls
Throttle
Power
Switch
Safety
Switch
Bit
Choke
Starter Handle
Primer
Handle
Fuel Tank
Figure A
Page 8 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Operation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Pre-Start Checks
Inspect Engine and Auger looking for damaged, loose, and missing parts before set up and starting.
If any problems are found, do not use Auger until fixed properly.
Checking and Filling Fuel
WARNING! TO PREVENT SERIOUS INJURY FROM FIRE:
Fill the fuel tank in a well‑ventilated area away from ignition sources.
If the Engine is hot from use, shut the Engine off and wait for it to cool before adding fuel.
Do not smoke.
IMPORTANT! Your warranty is voided if you operate the Auger without the proper
25:1 fuel-oil mix in its Fuel Tank. Do not run the Engine with an improper fuel mix, low or no fuel mix.
Running the Engine with an improper fuel mix, low or no fuel mix will permanently damage the unit.
Check the fuel level before every use. If needed, add the proper fuel mixture as follows:
1. To obtain the proper 25:1 fuel mix, combine 25 parts
unleaded gasoline (89+ octane) with 1 part 2‑cycle
oil in the provided Fuel Mix Container. Cover and
gently agitate to thoroughly mix before each fueling.
Refer to the chart below for proper mix quantities.
FUEL MIX QUANTITIES
Ratio 2-cycle
Engine Oil
Unleaded Gasoline
(89+ Octane)
25:1 5 -oz 1 Gal.
25:1 10 -oz 2 Gal.
NOTE: Mix only enough fuel for a few days work.
The maximum storage time of mixed fuel is three months.
Note: Do not use gasoline containing more than
10% ethanol (E10). Do not use E85 ethanol.
Note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. It can
cause particles to enter the carburetor, affecting
Engine performance and/or causing damage.

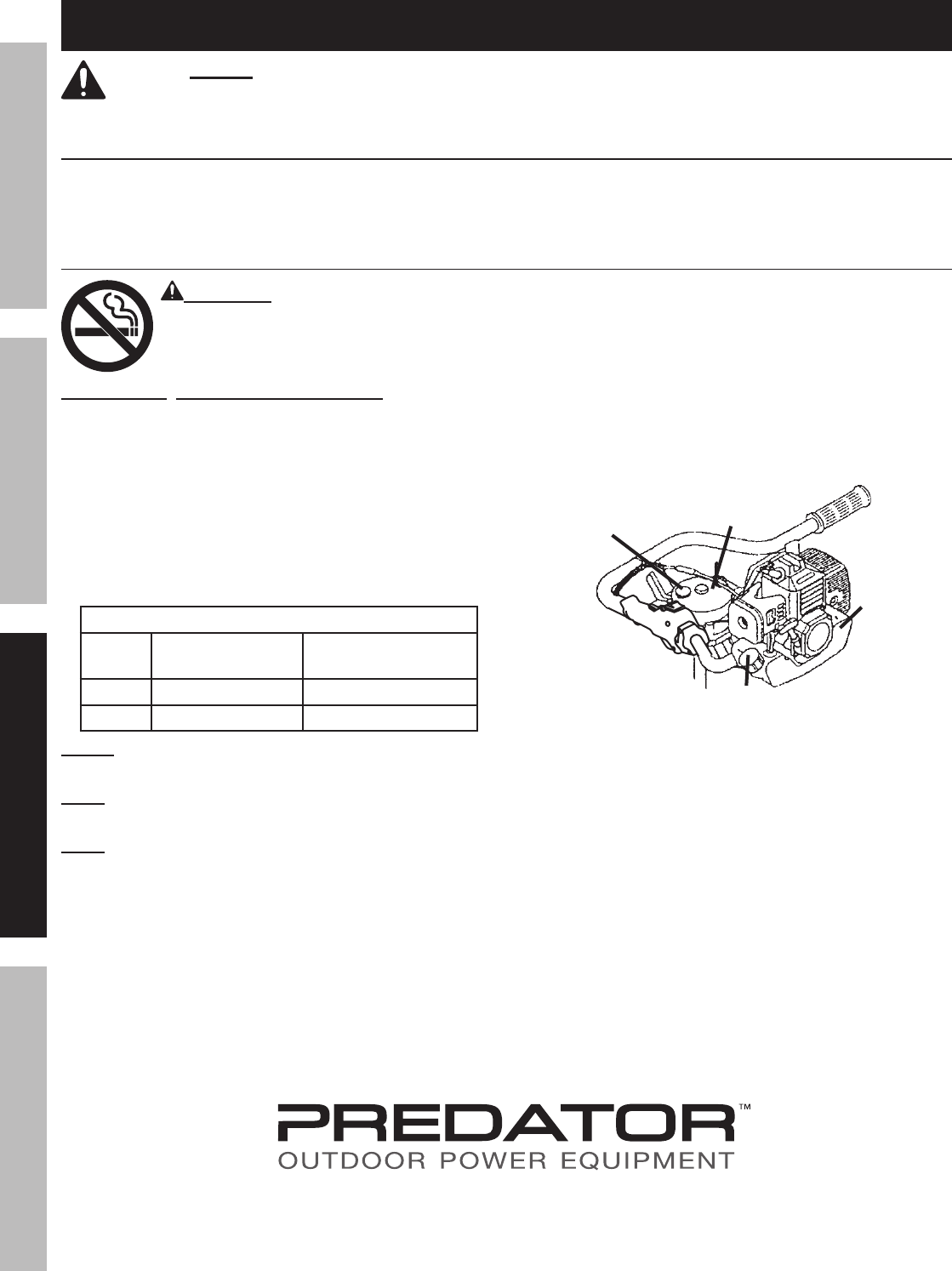

Gearbox
Oil Fill
Plug
Fuel
Tank
Fuel Cap
Figure B: Fuel and Oil Fill Locations
2. Once the proper fuel mixture is
obtained, remove the Fuel Cap.
3. Fill the Fuel Tank approximately
3/4 full with the fuel mixture.
4. Replace the Fuel Cap.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting Engine.
To prevent FIRE, do not start the Engine
while the smell of fuel hangs in the air.
Page 9For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
Fill the Gearbox
IMPORTANT! Your warranty is voided if you operate the Auger without the proper amount
of SAE 80-90 gear oil in its Gearbox. Do not run the Auger with low or no gear oil.
Running the unit with low or no gear oil will permanently damage the unit.
1. Remove the Oil Fill Plug.
2. Wipe top of Gearbox with a clean cloth.
3. Remove Gearbox Fill Level Plug and
add oil through the Oil Fill Level Plug until it
reaches the Gearbox Fill Level Plug hole.
Note: The Auger must be vertical when
adding gear oil to assure proper oil level.
4. Wipe up any spilled oil.
5. Replace the Oil Fill Plug and tighten securely.
NOTICE: Do not use dirty, used, or otherwise
contaminated gear oil. Damage may occur to
the internal mechanisms of the Gearbox.
NOTICE: Do not run the Auger with too little or
too much oil. The Auger will be permanently damaged.
Installing Bit
1. Insert the shank of the Bit fully upward into the
Transmission Socket on the bottom of the Auger.
2. Secure the Bit in the Transmission
Socket, using the Pin and R‑Pin.
Page 10 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Operating Instructions
Before starting the Engine:
a. Follow the Pre-start Checks to prepare the Auger.
b. Inspect the Auger and Engine.
c. Fill the Engine with the proper amount and type of fuel mixture and gearbox oil.
d. Check the work area for utility lines and landscaping fabric.
Do not use near utility lines, and cut landscaping fabric clear before drilling.
e. Read the section that follows.
1. Place the Auger on its side with its Bit resting
on the ground that is to be drilled.
WARNING! Make sure that no debris, clothing,
or other objects are near the Bit.
Keep all bystanders away.
2. Press the Primer three or four times.

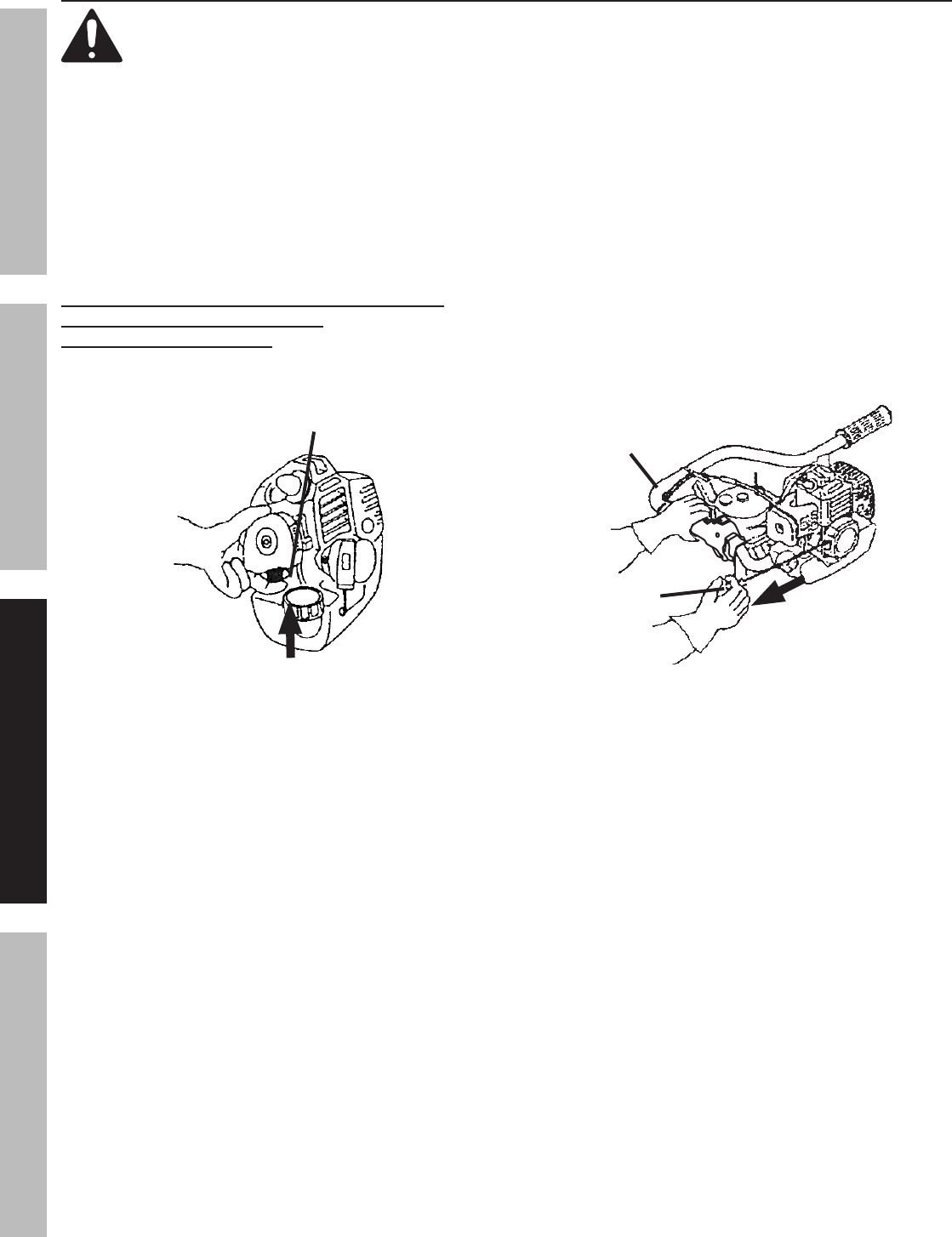

Primer
Figure C: Primer
3. Set the Choke (see Figure E):
Closed (Up) if the Engine is cold.
Open (Down) if the Engine is warm.
4. Move the Power Switch to the I position.
Squeeze the Safety Switch with your palm
and squeeze and release the Throttle.
5. Grip the Frame firmly with your left hand.
Keep all body parts well away from the Bit.
Then, with your right hand, pull rapidly on
the Starter Handle to start the Engine.
Frame
Starter
Handle
Figure D: Starter Handle
Page 11For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
WARNING! The Bit should NOT turn at idle.
If it is turning at idle, shut off the Engine by releasing
the Speed Control and pressing the Power Switch,
disconnect the wire from the spark plug,
then turn the Idle Screw (shown in Figure E)
counterclockwise to reduce the idle RPM, or
immediately discontinue using the Auger and contact a
qualified service technician to make the adjustment.
Idle Screw
Choke
Figure E: Idle Screw and Choke
6. Once the Engine is started,
press the Choke down slowly to open it.
7. If the Engine does not start,
press the Primer one more time.
Raise the Choke if it is pressed down,
and again attempt to start the Engine.
Throttle
Power
Switch
Safety
Switch
Figure F: Handle Controls
8. To stop the Auger when needed, release
pressure on the Throttle. Then, slide the
Power Switch to the O position.
WARNING! Keep your thumb near the
Power Switch so the Auger can be stopped
immediately in an emergency. (See Figure F.)
9. Stand with a solid stance on stable ground.
Brace yourself and maintain a proper grip with both
hands on the Frame whenever the Engine is running.
10. Accelerate the Engine to full throttle just before
starting to drill by squeezing the Throttle.
Keep the Engine at full throttle the entire time
you are drilling, unless a problem arises.
11. Do not drill at an angle.
Keep the Bit vertical at all times.
12. Allow the Bit to drill for you. Exert only light
downward pressure. If you attempt to force
the drill, damage to the Auger and Bit can result.
Be aware of the strong twisting forces
produced by the drill during operation.
13. Release the Throttle as soon as the drilling
is completed, allowing the Engine to idle.
NOTICE: Avoid running the Auger at
full throttle without a drilling load.
14. After running the Auger for an extended period of
time, allow the Engine to idle for several minutes to
dissipate the heat. This will prevent some Engine
parts (ignition system, piston rings, carburetor, etc.)
from being damaged by overheating. Then press the
Power Switch to turn off the Engine.
15. Clean, then store the tool in a clean, dry,
safe location out of reach of children
and other unauthorized people.
Page 12 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Maintenance
WARNING
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING:
Turn the Power Switch of the Auger to its “OFF” position, wait for the Engine to cool, and disconnect
the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM AUGER FAILURE:
Do not use damaged Auger. If abnormal noise, vibration, or excess smoking occurs,
have the problem corrected before further use.
Follow all service instructions in this manual. The Engine may fail critically if not serviced properly.
Many maintenance procedures, including any not detailed in this manual, will need to be performed
by a qualified technician for safety. If you have any doubts about your ability to safely service the
Auger or Engine, have a qualified technician service the Auger instead.
Cleaning, Maintenance, and Lubrication Schedule
Note: This maintenance schedule is intended solely as a general guide. If performance decreases or if
Auger operates unusually, check systems immediately. The maintenance needs of each Auger will differ
depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.
Note: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the Engine and Auger.
Every Month (in dirty environments):
a. Check/clean Air Filter element.
b. Check/clean Fuel Filter (84)
and Fuel Cap Set (94).
Every 3 Months or 50 Operation Hours:
a. Clean/replace Air Filter element.
b. Clean Fuel Filter (84) and Fuel Cap Set (94).
c. Replace gear oil in Gearbox.
Every 6 Months or 100 Operation Hours:
a. Clean/replace Air Filter element.
b. Clean/replace spark plug.
Every 300 Operation Hours:
a. Clean fuel tank and carburetor.
b. Clean carbon build‑up from combustion chamber.
Every 3 years:
Replace Fuel Filter (84) and Fuel Cap Set (94).
Daily Maintenance
1. Before each use: Inspect the general condition
of the Auger. Check for misalignment or binding
of moving parts, cracked or broken parts, dull,
bent, or damaged Bit, and any other condition
that may affect the safe operation of the tool.
2. A Bit that is bent or packed with dirt and debris
can cause personal injury. Replace a damaged
Bit and keep the Bit clean at all times.
3. Check the Air Filter prior to each use for
excessive dirt and debris buildup, clean as needed.
4. Check the gear oil level in the Gearbox
prior to each use, and fill as needed
with SAE 80‑90 weight gear oil.
5. After each use, clean the exterior of the Engine with a
clean cloth and mild detergent. Do not use solvents.
Remove the Bit from the Engine and use a
garden hose to wash off any dirt. Do not introduce
liquids into the interior of the Engine.
Page 13For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
Air Filter Element Maintenance
1. Wipe off the Air Filter Cover (79).
2. Remove the Head Cover Bolt (81),
the Air Filter Cover, and the plate holding the Air Filter
in place. Note the placement of the plate so the bolt
hole in the center is in alignment for re‑assembly.
3. Remove the Air Filter element.
4. Wipe Air Cleaner Case (73).
5. Wash the element in warm water and mild detergent
several times. Rinse. Squeeze out excess water
and allow it to dry completely. Soak the filter in
lightweight oil briefly, then squeeze out the excess oil.
6. Install the new Filter or the cleaned
filter in reverse order of removal.
Secure the Air Filter Cover before use.
Spark Plug Maintenance
1. Disconnect spark plug wire from end of plug.
Clean out debris from around spark plug.
2. Using a spark plug wrench, remove the spark plug.
3. Inspect the spark plug:
If the electrode is oily, clean it using a clean, dry rag.
If the electrode has deposits on it,
polish it using emery paper.
If the white insulator is cracked or chipped,
the spark plug needs to be replaced.
4. When installing a new spark plug, adjust the plug’s
gap to the specification on the Specification chart.
Do not pry against the electrode or the
insulator, the spark plug can be damaged.
5. Install the new spark plug or the cleaned
spark plug into the Engine.
Gasket-style: Finger‑tighten until the gasket contacts
the cylinder head, then about 1/2‑2/3 turn more.
Non-gasket-style: Finger‑tighten until the plug
contacts the head, then about 1/16 turn more.
6. Apply a small amount of dielectric grease
(not included) to the insulator of the spark plug
and attach the wire securely to the spark plug.
Fuel Filter Maintenance
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Replace or clean the Fuel Filter in a well‑
ventilated area away from ignition sources.
Do not smoke.
1. Wear protective gear including,
ANSI‑approved safety goggles, NIOSH‑approved
dust mask/respirator, and nitrile gloves.
2. There is a Fuel Filter (84) hanging inside the
Fuel Tank and a filter in the Fuel Cap Set (94).
3. To clean, remove them from the tank and flush them
with clean gas over a container to remove any debris.
Replace the cleaned filter or a new filter in the tank.
4. Clean up any spilled fuel.
5. Wait for at least one hour before use to
allow all residual fuel vapors to dissipate.
To prevent FIRE, do not start the Engine
while the smell of fuel hangs in the air.
Storage
1. Wait for Engine to cool, then clean
Engine with clean cloth.
2. When the equipment is to remain idle for longer than
20 days, prepare the Engine for storage as follows:
a. Empty fuel tank.
b. Clean out area around spark plug.
Remove spark plug and pour one tablespoon of
2‑cycle oil into cylinder through spark plug hole.
c. Reinstall spark plug, but leave
spark plug wire disconnected.
d. Gently pull the Starter Handle to distribute oil in
the cylinder. Stop after one or two revolutions
when you feel the piston start the compression
stroke (when you start to feel resistance).
3. Apply a thin coat of rust preventive
oil to all uncoated metal parts.
4. Cover and store in a dry, well‑ventilated
area out of reach of children.
Page 14 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Troubleshooting
Problem Possible Causes Probable Solutions
Engine will
not start
FUEL RELATED:
1. Low or no fuel in fuel tank or
improper fuel/2‑cycle oil mixture.
2. Choke not in start position,
especially with cold Engine.
3. Low quality or deteriorated, old gasoline.
4. Carburetor not primed.
5. Dirty fuel passageways blocking fuel flow.
6. Carburetor needle stuck.
Fuel can be smelled in the air.
7. Too much fuel in chamber. This can be
caused by the carburetor needle sticking.
8. Blocked Fuel Cap Set (94)
or Fuel Filter (84).
FUEL RELATED:
1. Fill fuel tank with proper 25:1 unleaded
gasoline and 2‑cycle oil mixture.
2. Close the choke if Engine is cold.
Leave open if the Engine is hot.
3. Use only fresh 25:1 ratio of 89+ octane
unleaded gasoline and 2‑cycle oil mixture.
4. Prime carburetor by pressing Primer
specified number of times.
5. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
6. Gently tap side of carburetor float
chamber with screwdriver handle.
7. Open the choke. Remove spark
plug and pull the start handle
several times to air out the chamber.
Reinstall spark plug and close the choke.
8. Clean/replace Filter (84 or 94) components.
IGNITION (SPARK) RELATED:
1. Spark plug wire not connected securely.
2. Spark plug electrode wet or dirty.
3. Incorrect spark plug gap.
4. Spark plug wire or spark plug broken.
5. Incorrect spark timing or
faulty ignition system.
IGNITION (SPARK) RELATED:
1. Connect spark plug wire properly.
2. Clean spark plug.
3. Reset spark plug gap.
4. Replace spark plug wire and/or spark plug.
5. Have qualified technician diagnose/
repair ignition system.
COMPRESSION RELATED:
1. Cylinder not lubricated.
Problem after long storage periods.
2. Loose or broken spark plug.
(Hissing noise will occur
when trying to start.)
3. Loose cylinder head or damaged
head gasket. (Hissing noise will
occur when trying to start.)
COMPRESSION RELATED:
1. Pour tablespoon of oil into spark plug hole.
Crank Engine a few times
and try to start again.
2. Tighten spark plug. If that does not work,
replace spark plug. If problem persists, it
may be a head gasket problem, see #3.
3. Tighten head. If that does not remedy
problem, replace head gasket.
Auger rotates
while Engine
is idle
Engine idle Speed set too high. Reset carburetor Idle Screw to lower idle
(RPM) speed, see Warning on page 11.
Gearbox feels
exceptionally hot
to the touch
Low level of gear oil. Immediately turn off Auger.
Allow gearbox to completely cool.
Then, fill gearbox with SAE 80‑90 gear oil.
Power switch
does not turn
off Engine
Faulty Power switch. Immediately remove spark plug cap
from spark plug to stop Engine.
Discontinue using Auger until the tool is
repaired by a qualified service technician.
Follow all safety precautions whenever diagnosing or servicing the Auger or Engine.
Page 15For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
Problem Possible Causes Probable Solutions
Engine runs, but
Bit is not rotating
1. Throttle not properly used.
2. Throttle cable not properly adjusted.
3. Bit stuck in rocks, roots, etc.
1. Make sure to fully squeeze the Throttle.
2. Have a qualified service technician
adjust Throttle cable.
3. Remove Bit from hole and clear
hole of obstructions.
Engine misfires 1. Spark plug wire loose.
2. Incorrect spark plug gap or
damaged spark plug.
3. Defective spark plug wire.
4. Old or low quality gasoline.
5. Incorrect compression.
1. Check wire connections.
2. Correct gap or replace spark plug.
3. Replace spark plug wire.
4. Use only fresh 25:1 ratio of 89+ octane
unleaded gasoline and 2‑cycle oil mixture.
5. Diagnose and repair compression.
(Use Engine will not start: COMPRESSION
RELATED section, facing page.)
Engine stops
suddenly
1. Fuel tank empty or full of impure,
low quality gasoline or
improper mix of gasoline to oil.
2. Defective fuel tank cap creating vacuum,
preventing proper fuel flow.
3. Improper idle speed.
4. Incorrect timing, or clogged carburetor.
1. Empty and dispose of old fuel properly.
Fill fuel tank with fresh 25:1 ratio
of 89+ octane unleaded gasoline
and 2‑cycle oil mixture.
2. Test/replace fuel tank cap.
3. Properly adjust idle speed.
4. Have qualified technician diagnose
and service Engine.
Engine knocks 1. Fuel tank empty or full of impure,
low quality gasoline or
improper mix of gasoline to oil.
2. Engine overloaded.
3. Incorrect spark timing,
deposit buildup, worn Engine, or
other mechanical problems.
1. Empty and dispose of old fuel properly.
Fill fuel tank with fresh 25:1 ratio
of 89+ octane unleaded gasoline
and 2‑cycle oil mixture.
2. Do not exceed equipment’s load rating.
3. Have qualified technician diagnose
and service Engine.
Engine backfires 1. Fuel tank empty or full of impure,
low quality gasoline or
improper mix of gasoline to oil.
2. Engine too cold.
3. Choke not open after Engine warm.
4. Engine not properly adjusted
for high altitude operation.
5. Intake valve stuck, choke stuck,
incorrect timing, clogged carburetor,
or overheated Engine.
1. Empty and dispose of old fuel properly.
Fill fuel tank with fresh 25:1 ratio
of 89+ octane unleaded gasoline
and 2‑cycle oil mixture.
2. Use cold weather fuel and oil additives
to prevent backfiring.
3. Open choke after Engine warms up.
4. Qualified technician must adjust
Engine at altitudes greater than
5,000 feet above sea level.
5. Have qualified technician diagnose
and service Engine.
Follow all safety precautions whenever diagnosing or servicing the Auger or Engine.
Page 16 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Parts Lists and Diagrams
Engine Parts List
Part Description Qty
1 Set Screw (M5 x 12) 1
2 Gasket 1
3 Reel 1
4 Starter Rope 1
5 Spiral Spring 1
6Rewind Starter Assy. 1
7 Starter Handle 1
8 Handle Clip 1
9 Screw (M5 x 20) 6
10 Crankcase Gasket 1
11 Nut (M8) 1
12 Startup Claw 1
13 Startup Reed 1
14 Cover 1
15 Outer Snap Ring (4) 1
16 Small Oil Seal 2
17 Crankcase Cover 1
18 Ball Bearing (6201/P5) 2
19 Crankshaft (Complete) 1
20 Woodruff Key (3 x 5 x 13) 1
21 Set Pin (B4 x 10) 2
22 Screw (M5 x 12) 2
23 Crankcase 1
24 Flow Guard 1
25 Set Pin (B4 x 10) 2
26 Support 1
27 Screw (M5 x 30) 4
28 Rotor 1
29 Nut (M8) 1
30 Stator 1
31 Flameout Line 1
32 Screw 1
33 Washer (B) 2
34 Return Spring 1
35 Cushion 2
36 Washer 2
37 Screw 2
38 Fan Shroud 1
39 Screw (M5 x 21) 4
40 Wire Clip 1
41 Piston Pin 1
42 Piston Pin Circlip 2
43 Piston 1
44 Piston Pin 1
45 Crankcase Gasket 1
46 Piston Ring 2
47 Cylinder Gasket 1
Part Description Qty
48 Cylinder 1
49 Bolt (M5 x 18) 4
50 Cylinder Cover 1
51 Spark Plug 1
52 Spark Plug Clip Reed 1
53 Spark Plug Cover 1
54 Spark Plug Cap 1
55 Cap Cover 1
56 Top Cover 1
57 Screw (M5 x 20) 1
58 Muffler Insulator 1
59 Muffler 1
60 Socket Head Bolt (M5 x 12) 1
61 Socket Head Bolt (M5 x 12) 1
63 Stud 2
64 Nut (M6) 2
65 Muffler Protection Cover 1
66 Intake Port Gasket 2
67 Intake Port 1
68 Carburetor Gasket 1
69 Carburetor Assy. 1
70 Choke Switch 1
71 Washer 1
72 Nut (M4) 1
73 Air Cleaner Case 1
74 Bolt (M5 x 50) 2
75 Recoil Starter 1
76 Choke 1
77 Self Tapping Bolt (ST4.2 x 12) 1
78 Air Filter 1
79 Air Filter Cover 1
81 Head Cover Bolt 1
82 Gasoline Tank Strut 1
83 Latex Cover 1
84 Fuel Filter 1
85 Fuel Line 1
86 Fuel Line Plug 1
87 Fuel Line 1
88 Bolt (M5 x 20) 2
89 Fuel Tank 1
90 Packing Ring 1
91 Intake Strut 1
92 Intake 1
93 Fuel Cap 1
94 Fuel Cap Set 1
95 Primer 1
Page 17For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP

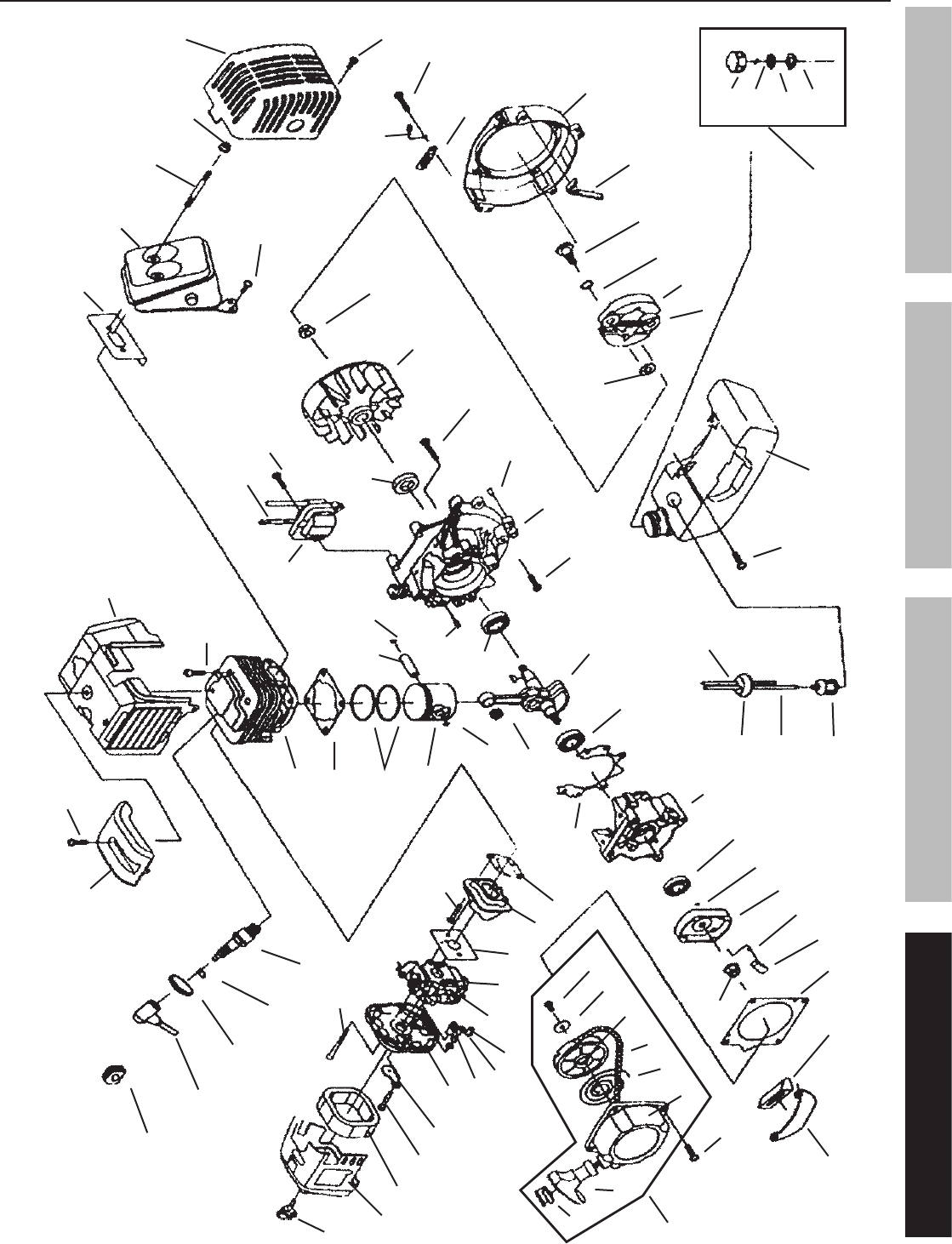

Engine Assembly Diagram
1
6
11 17
27
37
67
47
77
57
87
2
7
12
18
28
38
68
48
78
58
88
3
8
13
23
33
63
43
73
53
83
93
19
29
39
69
49
79
59
89
4
9
9
14
24
34
64
44
74
54
84
94
20
30
40
70
50
60
90
5
10
15
25
35
65
45
75
55
85
95
21
31
61
41
71
51
81
91
16
16 26
36
66
46
76
56
86
22
32
42
42
72
52
82
92
Page 18 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1a Starting Flange 1
2a Oil Seal (20 x 52 x 7) 1
3a Washer 1
4a Washer 1
5a Fender Ring (47) 1
6a Bearing (6204) 1
7a Worm Gear 1
8a Gearbox 1
9a Hex Head Screw (M6 x 25) 4
10a Stud (M6) 4
11a Nut (M6) 4
12a Washer 1
13a Gear 1
14a Lining (not shown) 1
15a Transmission Socket 1
16a Washer 1
17a Gasket 1
18a Gearbox Cover 1
19a Oil Seal (20 x 35 x 7) 1
20a Oil Fill Plug 1
Part Description Qty
21a Gearbox Fill Level Plug (M6 x 12) 1
22a Washer 1
23a Paper Underlay 1
24a Screw (M6 x 16) 6
25a Cushion Frame 1
26a Liner Tube 5
27a Washer 10
28a Washer 6
29a Hex Head Screw (M6 x 30) 5
30a Screw 4
31a Nut 4
32a Washer 4
33a Bit 1
34a Pin 1
35a R‑Pin 1
36a Fuel Mix Container 1
37a Hex Wrenches 2
38a Open End Wrench 1
39a Spark Plug Socket 1
40a Screwdriver 1
Parts List A - Auger
Page 19For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP

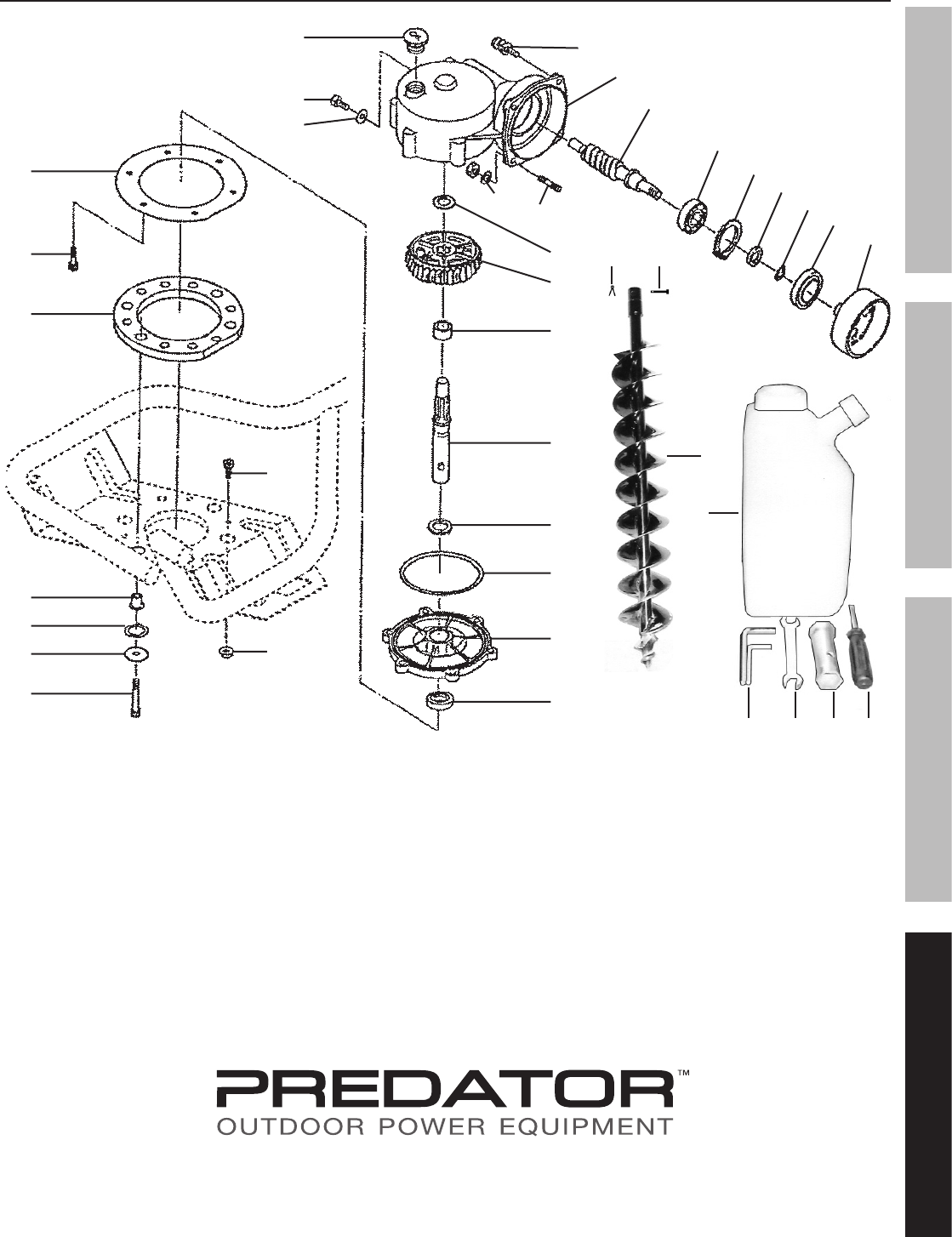

Assembly Diagram A - Auger
36a
37a 38a 40a39a
34a
35a
33a
29a
31a
30a
19a
18a
17a
16a
15a
11a
13a
12a
22a
21a
20a 9a
8a
7a
6a
5a
4a
3a 2a
1a
11a
32a 10a
28a
27a
26a
25a
24a
23a
Page 20 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1b Frame 1
2b Handle 1
3b Tie Strip 3
4b Handle 1
5b Power Switch 1
Part Description Qty
6b Power Switch Bracket 1
7b Screw M12 x 20 2
8b Accelerator Cable 1
9b Bushing 1
10b Throttle 1
Parts List B - Frame
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Page 21For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP

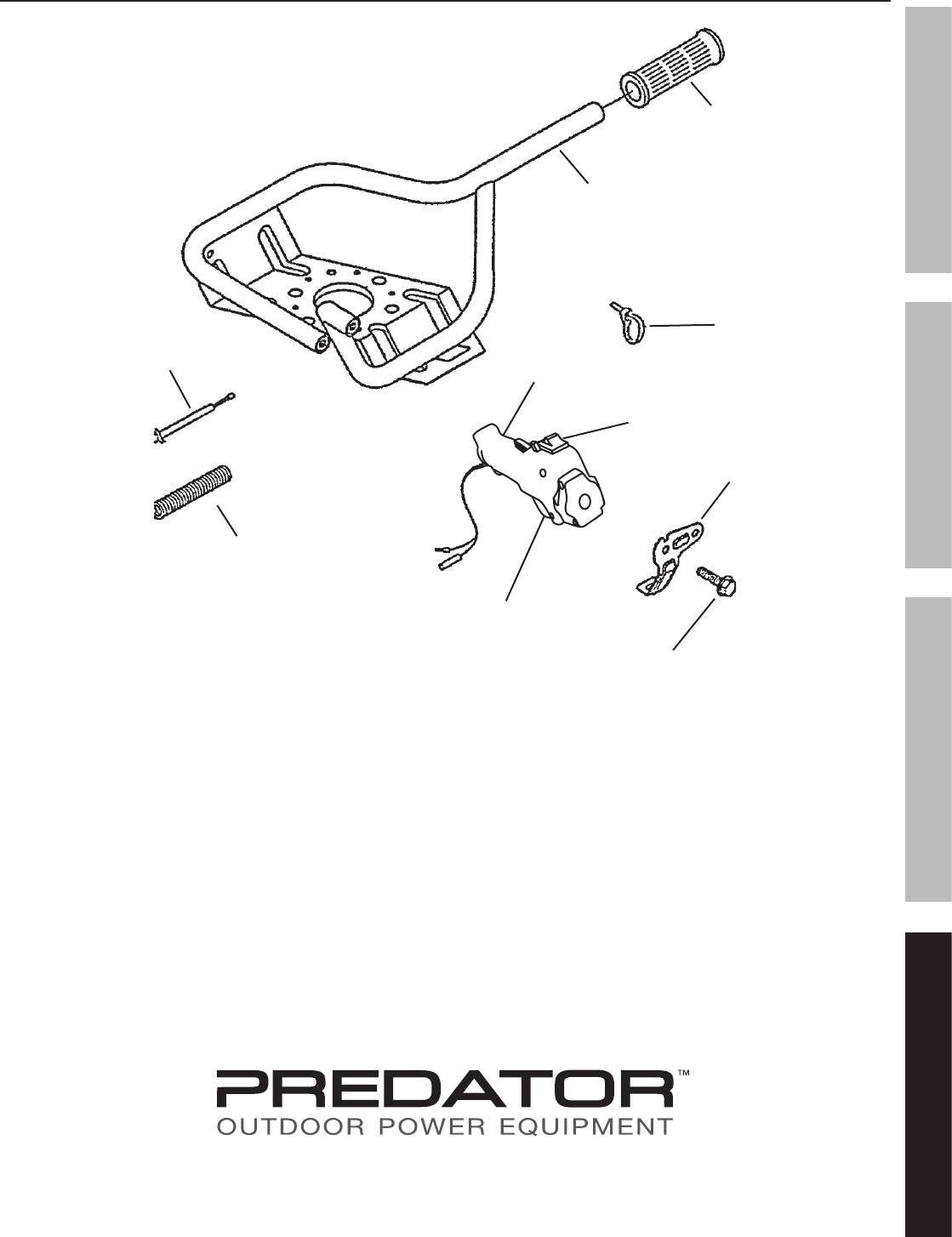

Assembly Diagram B - Frame
1b
6b
2b
7b
3b
8b 4b
9b
5b
10b
Page 22 For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETY OPERATION MAINTENANCESETUP
Warranties
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Emission Control System Warranty
California and United States Emission
Control Defects Warranty Statement
The California Air Resources Board (herein CARB), the
United States Environmental Protection Agency (herein EPA), and
Harbor Freight Tools (herein HFT) are pleased to explain the emission
control system warranty on your 1995 and later Small Off‑Road Engine
(herein engine). In California, the engine must be designed, built and
equipped to meet the State’s stringent anti‑smog standards. Elsewhere
Within the United States, new off‑road, spark‑ignition engines certified
for model year 1997 and later, must meet similar standards set forth
by the EPA. HFT must warrant the emission control system on your
engine for the periods of time described below, provided there has
been no abuse, neglect or improper maintenance of your engine.
Your emission control system may include parts
such as the carburetor or fuel‑injection system, and
the ignition system. Also included may be hoses, belts,
connectors and other emission‑related assemblies.
Where a warrantable condition exists, HFT will repair your
engine at no cost to you including diagnosis, parts and labor.
Manufacturer’s Warranty Coverage
The 1995 and later engines are warranted for two
(2) years. If any emission‑related part on your engine is
defective, the part will be repaired or replaced by HFT.
Harbor Freight Tools Emission Control
Defects Warranty Coverage
Engines are warranted for a period of two (2) years relative
to emission control parts defects, subject to the provisions
set forth below. If any emission related part on your engine is
defective, the part will be repaired or replaced by HFT.
Owner’s Warranty Responsibilities
• As the engine owner, you are responsible for the performance
of the required maintenance listed in your Owner’s Manual.
HFT recommends that you retain all receipts covering
maintenance on your engine, but HFT cannot deny warranty
solely for the lack of receipts or for your failure to ensure
the performance of all scheduled maintenance.
• As the engine owner, you should, however, be aware
that HFT may deny you warranty coverage if your engine
or a part has failed due to abuse, neglect, improper
maintenance, or unapproved modifications.
• You are responsible for shipping your engine to a HFT warranty
station as soon as a problem exists. Contact the HFT Customer
Service department at the number below to make shipping
arrangements. The warranty repairs should be completed
in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty
rights and responsibilities, you should contact the
Harbor Freight Tools Customer Service Department at 1‑800‑520‑0882.
Page 23For engine questions, please call 1-800-520-0882.
For other technical questions, please call 1-800-444-3353.
ITEM 60622
SAFETYOPERATIONMAINTENANCE SETUP
Harbor Freight Tools Emission Control
Defects Warranty Provisions
1. Length of Coverage
HFT warrants to a first retail purchaser and each
subsequent purchaser that the engine is free from
defects in materials and workmanship that cause the
failure of warranted parts for a period of two (2) years
after the date of delivery to the first retail purchaser.
2. No Charge Repair or Replacement
Repair or replacement of any warranted part will be performed at
no charge to the owner if the work is performed through a warranty
station authorized by HFT. For emissions warranty service,
contact the HFT Customer Service Department at 1‑800‑520‑0882.
3. Consequential Damages Coverage
Coverage under this warranty shall also extend to the failure
of any engine components caused by the failure of any
warranted part while it is still covered under this warranty.
4. Coverage Exclusions
Warranty claims shall be filed in accordance with the provisions
of the HFT warranty policy explained in the box at the top of the
previous page. HFT shall not be liable for any loss of use of
the engine, for any alternative usage, for any damage to goods,
loss of time, or inconvenience. Warranty coverage shall also be
excluded for any part which fails, malfunctions, or is damaged
due to failure to follow the maintenance and operating instructions
set forth in the Owner’s Manual including, but not limited to:
a) Use of parts which are not authorized by HFT
b) Improper installation, adjustment or repair of
the engine or of any warranted part unless
performed by an authorized warranty center
c) Failure to follow recommendations on fuel
use contained in the Owner’s Manual
d) Improper or inadequate maintenance of any warranted parts
e) Repairs performed outside of the authorized
warranty service dealers
f) Alterations by changing, adding to or
removing parts from the engine.
5. Service and Maintenance
Component parts which are not scheduled for replacement
as required maintenance or are scheduled only for regular
inspection to the effect of “repair or replace as necessary”
are warranted for the warranty period. Any warranted part
which is scheduled for replacement as required maintenance
is warranted for the period of time up to the first scheduled
replacement point for that part. Any replacement part, provided
it is equivalent in durability and performance, may be used
in performance of maintenance or repairs. The owner is
responsible for commissioning a qualified technician/mechanic
to perform all required maintenance, as outlined in the
Inspection, Cleaning, and Maintenance section in this manual.
6. Warranted Parts
1) Fuel Metering System
i) Carburetor and its internal parts.
ii) Fuel pump (if so equipped).
iii) Cold start enrichment system.
2) Air Induction System
i) Intake pipe/manifold.
ii) Air cleaner.
3) Ignition System
i) Spark plug.
ii) Magneto ignition system.
4) Catalyst System (if so equipped)
i) Exhaust pipe stud.
ii) Muffler.
iii) Catalytic converter (if so equipped).
5) Miscellaneous Items Used in Above Systems
i) Vacuum, temperature and time
sensitive valves and switches.
ii) Hoses, belts, connectors, and assemblies.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 520-0882

Navigation menu
