40 LB. PORTABLE SODA
BLASTER
67625
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein. Soda Blasters required for assembly
and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10d
SKU 67625 For technical questions, please call 1-800-444-3353. Page 2
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
Safety Alert Symbol and
Signal Words
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using Soda Blasters,
basic precautions should always be
followed, including the following:
General
To reduce the risks of electric shock,
instructions before using the Soda
Blaster.
Work Area
Keep the work area clean and well a.
lighted. Cluttered benches and dark
areas increase the risks of electric
Do not operate the Soda Blaster in b.
explosive atmospheres, such as in
the presence of ammable liquids,
gases, or dust. The Soda Blaster is
able to create sparks resulting in the
ignition of the dust or fumes.
Keep bystanders and children c.
away while operating the Soda
SKU 67625 For technical questions, please call 1-800-444-3353. Page 3
Blaster. Distractions can result in the
Personal Safety
Stay alert. Watch what you are do-a.
ing and use common sense when
operating the Soda Blaster. Do not
use the Soda Blaster while tired or
under the inuence of drugs, al-
cohol, or medication. A moment of
inattention while operating the Soda
persons.
Dress properly. b. Tie up loose sleeves
and trouser leggings to prevent con-
tact with soda dust.
Avoid unintentional starting. Be c.
sure the Media Release Valve (18)
is off before connecting to the
air supply. Do not carry the Soda
or connect the Soda Blaster to the air
Do not overreach. Keep proper d.
footing and balance at all times.
Proper footing and balance enables
better control of the Soda Blaster in
unexpected situations.
e. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-
duty work gloves during use.
f. Always wear eye protec-
tion. Wear ANSI-ap-
proved safety goggles and
abrasive blasting hood
(such as SKU 38138).
g. Always wear hearing
protection when using
the Soda Blaster. Pro-
longed exposure to high
intensity noise is able to
cause hearing loss.
Soda Blaster Use and Care
Use clamps or another practical a.
way to secure and support the
work piece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not use the Soda Blaster if the b.
Valve does not turn the Soda Blast-
er air supply on or off. Any Soda
Blaster that cannot be controlled with
repaired.
Disconnect the Soda Blaster from c.
the air source and discharge
trapped and air pressure before
making any adjustments, changing
accessories, or storing the Soda
Blaster. Such preventive safety mea-
sures reduce the risk of starting the
Soda Blaster unintentionally. Turn
off and detach the air supply, safely
discharge any residual air pressure,
-
tion before leaving the work area.
Store the Soda Blaster when it is d.
idle out of reach of children and
other untrained persons. A Soda
Blaster is dangerous in the hands of
untrained users.
Check for misalignment or bind-e.
ing of moving parts, breakage of
parts, and any other condition
that affects the Soda Blaster’s
operation. If damaged, have the
SKU 67625 For technical questions, please call 1-800-444-3353. Page 4
Soda Blaster serviced before using.
Many accidents are caused by poorly
maintained Soda Blasters. There is a
risk of bursting if the Soda Blaster is
damaged.
Use only accessories that are f.
identied by the manufacturer for
this specic Soda Blaster model.
Use of an accessory not intended for
persons.
Service
Soda Blaster service must be a.
performed only by qualied repair
personnel who uses only autho-
rized and identical replacement
parts.
Air Source
a. Never connect to an air
source that is capable of
exceeding 100 psi. Over
pressurizing the Soda
Blaster may cause burst-
ing, abnormal operation, failure of the
persons. Use only clean, dry, regu-
lated compressed air at the rated
pressure or within the rated pressure
range as marked on the Soda Blast-
er. Always verify prior to using the
Soda Blaster that the air source has
-
sure or within the rated air-pressure
range.
Never use oxygen, carbon dioxide, b.
combustible gases or any bottled
gas as an air source for the Soda
Blaster. Such gases are capable of
-
sons.
The warnings and precautions dis-
cussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
SAVE THESE
INSTRUCTIONS.

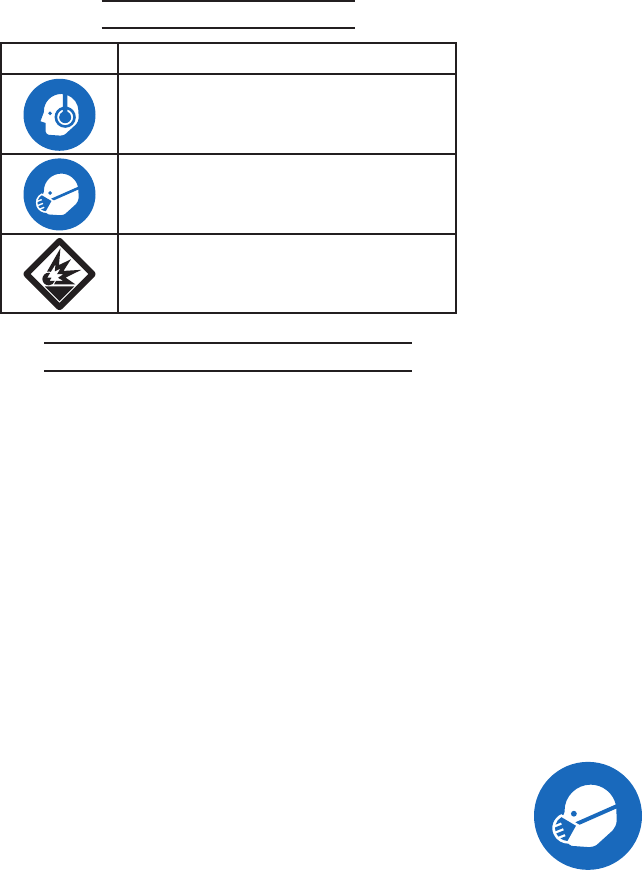

SYMBOLS AND
SPECIFIC SAFETY
INSTRUCTIONS
Symbol Denitions
Symbol Property or Statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM
SCFM
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
eye protection.
Chart continued in next column.
SKU 67625 For technical questions, please call 1-800-444-3353. Page 5
Symbol Denitions
Symbol Property or Statement
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
Do not use sand (crystalline silica) 1.
as a blasting media. See informa-
tion on following page regarding the
hazards of silica inhalation.
WARNING:2. This product, when used
for abrasive blasting and similar ap-
plications, produces chemicals known
to the State of California to cause
cancer and birth defects (or other re-
productive harm). (California Health
& Safety Code § 25249.5, et seq.)
WARNING: The brass components
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
Only use with accessories rated to 3.
handle the forces exerted by this
Soda Blaster during operation. Other
accessories not designed for the
forces generated may break and
forcefully launch pieces.
Attach all accessories properly to the 4.
Soda Blaster before connecting the
air supply. A loose accessory may
detach or break during operation.
Obey the manual for the air compres-5.
sor used to power this Soda Blaster.
Install an in-line shutoff valve to allow 6.
immediate control over the air supply
in an emergency, even if a hose is
ruptured.
Never point the Media Hose Outlet 7.
(19) toward yourself or any person or
the abrasive spray.
Stand back from the item being blast-8.
ed.
-9.
sive spray from damaging nearby
items. Keep workplace cleared of
items which may be damaged by
pressurized soda discharge.
All industrial applications of this Soda 10.
Blaster must meet OSHA require-
ments.
Whenever possible, test the abrasive 11.
blaster on a sample or inconspicu-
ous part of the work piece to prevent
damage during operation.
12. WARNING! Abrasive
blasting with media con-
taining crystalline silica
can cause serious or
fatal respiratory disease. Exposure
to crystalline silica may cause silico-
sis (a serious lung disease), cancer,
and death. Exposure to aluminum
oxide (a dust generated from material
removing processes) can result in
eye, skin, and breathing irritation.
Always use a NIOSH-approved
respirator, safety impact eye glasses,
and a full face shield. Avoid skin
exposure. Proper ventilation in the
work area is required.
Do not use silica sand (or other 13.
substances containing more than
SKU 67625 For technical questions, please call 1-800-444-3353. Page 6
1% crystalline silica) as an abrasive
blasting material and only use Bicar-
bonate of soda media with this Soda
Blaster.
Conduct air monitoring to measure 14.
worker exposures.
Use containment methods such as 15.
blast-cleaning machines and cabinets
to control the hazard.
Practice good personal hygiene to avoid 16.
unnecessary exposure to silica dust.
Wear washable or disposable protec-17.
tive clothes at the work site. Shower,
and change into clean clothes before
leaving the work site to prevent con-
tamination of cars, homes, and other
work areas.
Use respiratory protection when source 18.
controls cannot keep silica exposures
below the recommended levels.
Provide periodic medical examina-19.
tions for all workers who may be
exposed to crystalline silica.
Post signs to warn workers about 20.
the hazard and to inform them about
required protective equipment.
Provide workers with training that 21.
includes information about health ef-
fects, work practices, and protective
equipment for crystalline silica.
Report all cases of silicosis to State 22.
health departments and to OSHA or
the Mine Safety and Health Adminis-
tration (MSHA).
SAVE THESE
INSTRUCTIONS.
FUNCTIONAL DESCRIPTION
Specications
Operating Air
Pressure Range 35-90 PSI
Air Inlet 1/4” -18 NPT
Air Consumption
@ 90 PSI 8.5 SCFM
Media Capacity 40 lbs.
Media Type Sodium Bicarbonate
(Baking Soda)
Air Hose 3/8” (not included)
Note: Inline Desiccant Dryer/Filter (SKU 94733) is
highly recommended whenever moisture level in
ambient air is high.
INITIAL SODA BLASTER
SET UP AND ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible.
This air Soda Blaster may be
shipped with a protective plug cov-
ering the air inlet. Remove this plug
before set up.
SKU 67625 For technical questions, please call 1-800-444-3353. Page 7
Components and Controls

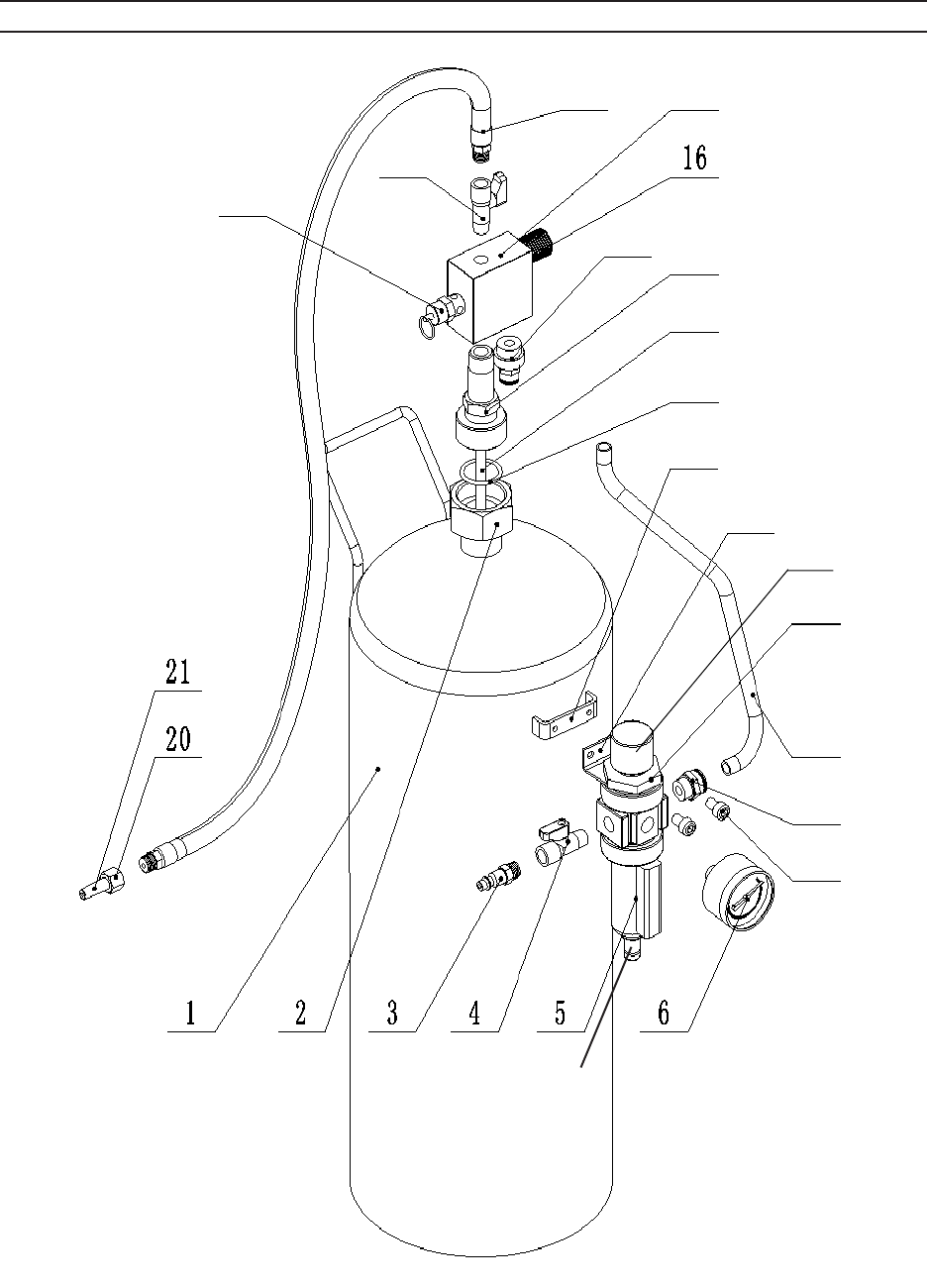

Please refer to illustrations and parts
list on pages 14-15 to identify important
components and controls of this tool.

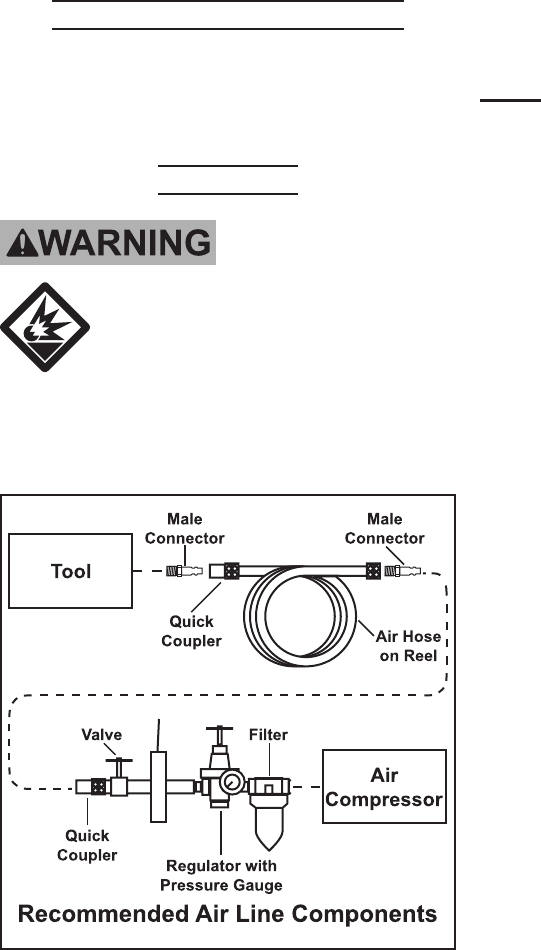

Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
Soda Blaster. Do not use
oxygen, carbon dioxide,
combustible gases, or any
other bottled gas as a power
source for this Soda Blaster.
1.
valve and regulator with pressure
gauge for best service, as shown in
the diagram above. An in-line shut-
off valve is an important safety de-
vice because it controls air supply
even if the air hose is ruptured.
Attach an air hose to the compres-2.
sor’s air outlet. Connect the air hose
to the Male Coupler (3) of the Soda
Blaster. Note: Use of quick coupler
(not included) is recommended, but
not mandatory.
Note:
performance, can be hindered by
undersized air supply components.
The air hose must be long enough 3.
to reach the work area with enough
extra length to allow free movement
while working. (See Figure A.)
Close the in-line safety valve be-4.
tween the compressor and the Soda
Blaster.
Turn on the air compressor according 5.
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
-6.
gradually, while checking the air
output gauge to set the right pressure
(4). Pull the Quick Disconnect Safety
the Storage Tank (1).
If the Soda Blaster will not be used at 7.
this time, turn off the air supply, turn
-
tion, and detach the air supply hose.
release the trapped air pressure from
Storage Tank (1). Close both Air Input
(18) to prevent moisture from being
drawn into the tank..
Dryer/Filter
Figure A
SKU 67625 For technical questions, please call 1-800-444-3353. Page 8
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect Soda Blaster before
use, looking for damaged,
loose, and missing parts. If any
problems are found, do not use
Soda Blaster until repaired.
Soda Blaster Set Up
Note: When setting up this
product always use thread
sealer tape at every tting to
assure leak free operation.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the Soda Blaster,
detach the air supply, safely
discharge any residual air
pressure in the Soda Blaster,
and release the throttle and/or
turn the switch to its off
position before performing
any inspection, maintenance,
or cleaning procedures.
TO PREVENT SERIOUS
INJURY:
Do not adjust or tamper with
any control or component in a
way not specically explained
within this manual. Improper
adjustment can result in
Soda Blaster failure or other
serious hazards.
Ceramic Discharge
Nozzle (21)

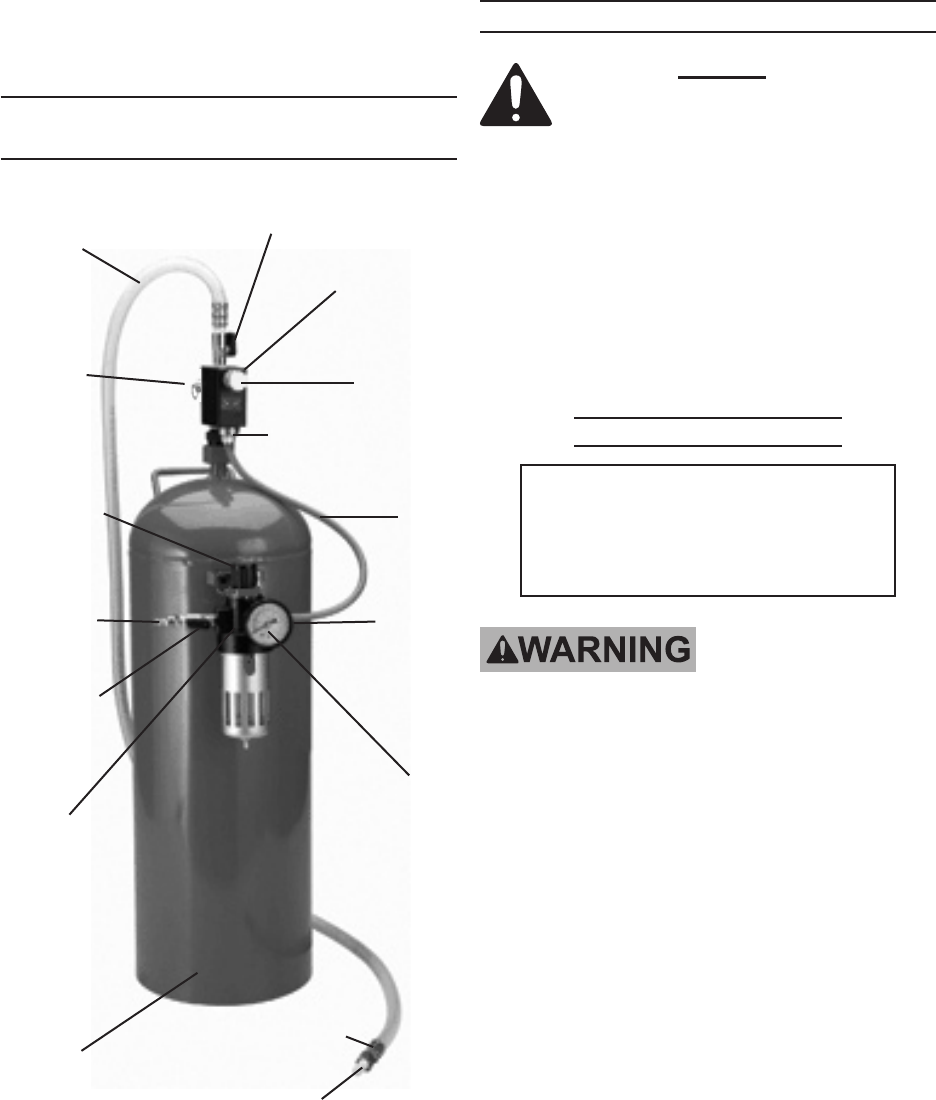

COMPONENTS AND CONTROLS
OF THE PORTABLE SODA BLASTER
Media Outlet
Hose (19)
Storage Tank (1)
Nozzle Coupler (20)
Safety
Valve
(17)
Male
Coupler (3)
Air Input
Valve (4)
Pressure
Gauge (6)
Air Pressure
Regulator (5)
Media Regulator
(15)
Media Flow
Control
Knob (16)
Air
Hose
(10)
Media Release
Valve (18)
Air Pressure
Regulator
Knob (24)
Quick
Release
(14)
Quick
Disconnect
Safety
Valve (7)
Figure B
SKU 67625 For technical questions, please call 1-800-444-3353. Page 9

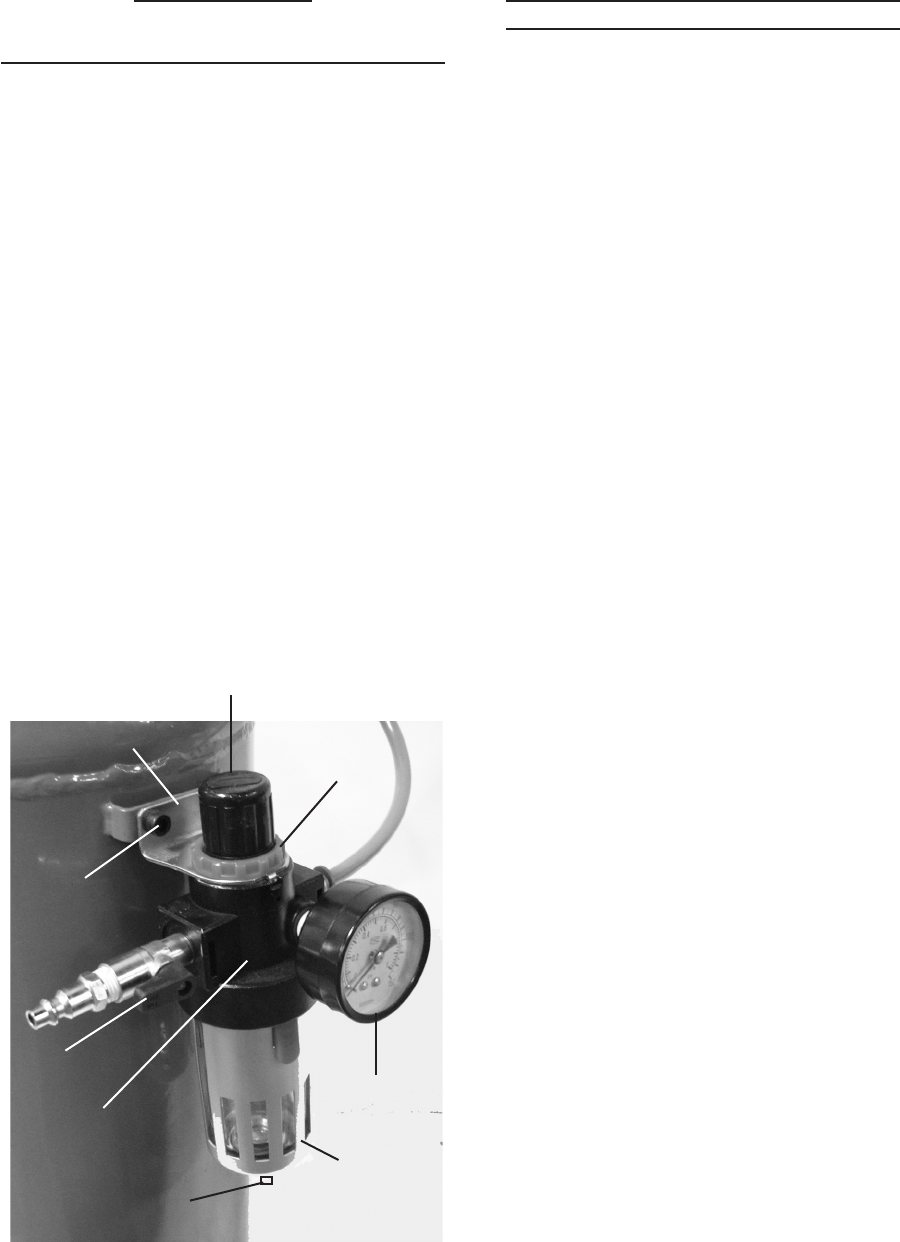

Attaching the
Air Pressure Regulator Assembly
Wrap the threads of the Pressure 1.
Gauge (6) with thread sealer tape
(not included). Screw the Pressure
Gauge into the opening in the face of
the Air Pressure Regulator (5). Tight-
en snugly using a 9/16” wrench on
the back of the gauge block. Rotate
till snug but do not overtighten.
Attach Bracket (9) to the Tank us-2.
ing the two Socket Head Screws (8)
and wrench tighten. Observe the
orientation in Figure C., remove the
Compression Nut (22) past the Air
Pressure Regulator Knob (24) and
through the Bracket (9). Align the
tab on the Bracket with the recess at
gauge side of the regulator, attach
tighten until snug.
Loading Media Into The Tank:
WARNING! Never service or disas-
semble the Soda Blaster with the air
hose attached. Always release any
built-up air even after disconnecting
the hose.
This portable Soda Blaster is de-
signed to be used with Bicarbon-
ate of Soda (Baking Soda) as the
only media. Use of other media
may damage this tool.
Applicable Soda Blast Media avail-
able from Harbor Freight Tools is
65929 Medium Grade Armex®
Soda Blast Media and 65931 Extra
Large Grade Armex® Soda Blast
Media.
Make sure the media used is dry to
avoid clogging the Media Outlet Hose
(19) or Media Regulator (15).
Pull up on the Quick Release Fitting 1.
(14) blue ring and pull out Air Hose
(10). Hold Bushing (13) with a wrench
and Hex Nut on the Bushing with an-
other wrench. Remove entire media
discharge assembly slowly, being
careful with the Pickup Tube (11) as
it may contain residual media which
can spill when removed. Allow time
for the trapped aggregate to safely
discharge back into the Storage Tank
(1).
Using a funnel, pour up to 40 pounds 2.
of media into the Storage Tank. In-
spect condition of the O-ring (12) at
the bottom of the Bushing (13), and
replace if damaged. Insert the Pick
up tube into the storage tank, attach
Tighten the nut (do not over tighten).
Pull up on the blue pressure ring and
Bracket (9) Compression
Nut (22)
Socket Head Cap
Screws (8)
Air Pressure
Regulator
Assembly (5)
Figure C
Air Pressure Regulator Knob (24)
Pressure
Gauge (6)
Air Filter
Moisture Release
Air Input
SKU 67625 For technical questions, please call 1-800-444-3353. Page 10
Release the ring (if air leaks around
the tube, remove it and cut ap-
proximately a quarter of an inch of its
length and reattach.
NOTE: 3.
Tank only 3/4 full and reload as
IMPORTANT TIP: 4. If the humidity is
90 to 100%, it is recommended to
more frequently. This will reduce the
possibility of clogging the bottom of
the Storage Tank (1) and the Media
Outlet Hose or Ceramic Discharge
Nozzle (21).
Insert the Pickup Tube (11) into the 5.
Storage Tank (1).
Place the O-Ring (12) onto the top of 6.
the Pickup Tube (11) and position the
Media Regulator (15) on top of it.
Attaching to Air Compressor
1.
(18) on top of the Media Regulator
(15) is in the OFF (horizontal) posi-
tion.
Air Hose (10) should be attached to 2.
Air Pressure Regulator outlet and
Media Regulator.
Attach the pressure line from the 3.
air compressor (not included) to the
Regulator.
4.
horizontal position) at the air pressure
inlet.
5.
than 90 PSI. To do so, lift the Air
Pressure Regulator Knob (24) and
turn it clockwise to increase or coun-
terclockwise to decrease the air
pressure (Read the pressure on the
Pressure Gauge). When set, push
the knob down to lock the Regulator
Knob and save the setting.
Check to be sure all connections are 6.
tight with no leaks. Disconnect the
air supply and discharge air from
the tank before making any needed
repairs.
After putting on all required safety 7.
equipment, direct the Ceramic Dis-
charge Nozzle (21) on a piece of test
material. Open the Media Release
turning the Media Flow Control Knob
(16). Turning this knob clockwise in-
8.
Pressure Regulator Knob (24). Do
not exceed 90 PSI.
After completing the test and insuring 9.
that the Soda Blaster works properly,
ready to set up the work piece.
Work Piece and Work Area Set Up
Designate a work area that is clean 1.
and well-lit. The work area must not
allow access by children or pets to
Route the air hose along a safe path 2.
to reach the work area without creat-
ing a tripping hazard or exposing the
air hose to possible damage. The air
hose must be long enough to reach
SKU 67625 For technical questions, please call 1-800-444-3353. Page 11
the work area with enough extra
length to allow free movement while
working.
Secure loose work pieces using a 3.
vise or clamps (not included) to pre-
vent movement while working.
There must not be hazardous ob-4.
hazard while working.
There will be considerable excess 5.
blasting medium left in the work area.
Contain it and clean it up.
General Operating Instructions
WARNING: Do not hold the work 1.
piece in hand while blasting it. You
may seriously injure yourself.
If possible, place the work piece 2.
inside a sandblast cabinet. Other-
wise, isolate the work piece to make
sure no damage can occur to nearby
walls, tools, personal property, etc.
CAUTION:3. Make sure bystanders
are completely clear of the work area
before beginning work.
4.
Pressure Regulator to the ON posi-
tion (aligned with the line).
Grip the Media Outlet Hose (19) 5.
Media Regulator clockwise to release
the media.
NOTE:6.
rate will normalize in approximately
one minute.
Spray the abrasive media onto the 7.
work material, moving the gun from
side to side.
8.
rate.
9.
the Ceramic Nozzle. Do not set the
pressure higher than 90 PSI.
If the Soda Blaster requires more 10.
force to accomplish the task, verify
that the Soda Blaster receives
and increase the pressure (PSI)
output of the regulator up to the
maximum air pressure rating of this
Soda Blaster.
CAUTION! TO PREVENT SODA
BLASTER AND ACCESSORY
FAILURE, RESULTING IN INJURY:
Do not exceed the Soda Blaster’s
maximum air pressure rating.
If the Soda Blaster still does not have
Soda Blaster may be required.
SKU 67625 For technical questions, please call 1-800-444-3353. Page 12
If excessive air pressure is used, or 11.
Media Regulator becomes clogged,
releasing air pressure. See Figure D.
12.
Pressure Regulator to below 90 PSI.
the problem happens again, detach
the air supply and clean out the
Media Regulator and Media Outlet
Hose.
To prevent accidents, turn off the 13.
Soda Blaster, detach the air sup-
ply, safely discharge any residual air
pressure in the Soda Blaster, and
turn the switch to its off position after
use. Clean external surfaces of the
Soda Blaster with clean, dry cloth.
Then store the Soda Blaster indoors
out of children’s reach.
When work is completed, turn off 14.
the air pressure supply. Clean up all
materials and store your Soda Blaster
safely and securely.
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM
ACCIDENTAL OPERATION:
Turn off the Soda Blaster,
detach the air supply, safely
discharge any residual air
pressure in the Soda Blaster,
before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS
INJURY FROM SODA
BLASTER FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
Cleaning and Maintenance
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular
operation of the air-operated Soda
Blaster.
Separated moisture from supplied
air will automatically drip from bot-
tom of the lter. At the end of each
-
ture trap release valve underneath
page 15). This will allow discharge of
possibility trapped small particles.

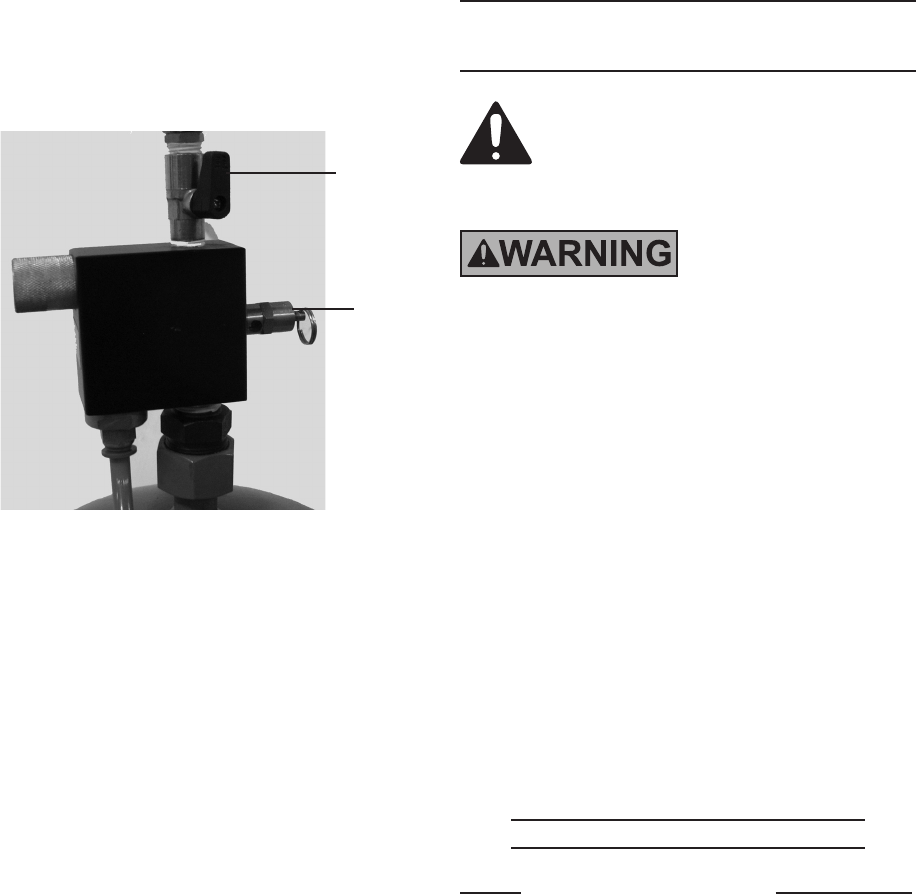

Figure B
Safety
(17)
Media
Release
(18)
SKU 67625 For technical questions, please call 1-800-444-3353. Page 13
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output. Not enough air pressure and/1.
2.
Contaminated media. 3.
Check for loose connections and make sure 1.
(CFM) at required pressure (PSI) to the Soda
Blaster’s air inlet. Do not exceed maximum
rated air pressure.
2.
3.
with dry, non-contaminated media.
Severe air
leakage.
(Slight air leakage
is normal,
especially on
older Soda
Blasters.)
Cross-threaded housing 1.
components.
Loose housing. 2.
Torn/damaged O-Ring (12).3.
Damaged valve or housing.4.
Dirty, worn or damaged valve. 5.
Check for incorrect alignment and uneven 1.
gaps. If cross-threaded, disassemble and
replace damaged parts before use.
Tighten housing assembly. If housing cannot 2.
tighten properly, internal parts may be
misaligned.
Replace O-Ring.3.
Replace damaged components.4.
Clean or replace valve assembly.5.
Follow all safety precautions whenever diagnosing or servicing the
Soda Blaster. Disconnect air supply before service.
If the valve gets stuck or debris and
moisture remain trapped in the cup,
noting orientation of the cup, push
in the red lock release and twist and
valve and re-attach.
SKU 67625 For technical questions, please call 1-800-444-3353. Page 14
PARTS LIST
Part Description Qty
1 Storage Tank 1
2 Hex Nut (M42 x 2) 1
3 Male Coupler 1/4” 1
4 1
5 Air Pressure Regulator 1
6 Pressure Gauge (1MPa-1/4”) 1
7 1
8 Socket Head Cap Screw (M6 x 10) 2
9 Bracket 1
10 Air Hose (350mm) 1
11 Pickup Tube 1
12 O-Ring (Ø35 x 3.1mm) 1
13 Bushing (M42 x 2-1/2”) 1
14 Quick Release Fitting 1
15 Media Regulator 1
16 Media Flow Control Knob 1
17 1
18 1
19 Media Hose Outlet 1
20 Nozzle Coupler 1
21 Ceramic Discharge Nozzle 1
22 Compression Nut 1
23 Tank Bracket 1
24 Air Pressure Regulator Knob 1
PLEASE READ THE FOLLOWING CAREFULLY
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE SODA BLASTER ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY
KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT,
OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS
REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND
NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR
HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
SKU 67625 For technical questions, please call 1-800-444-3353. Page 15
ASSEMBLY DIAGRAM
8
7
10
11
12
13
14
15
17
18
19
22
24
23
9
Moisture
Trap Release
SKU 67625 For technical questions, please call 1-800-444-3353. Page 16
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
LIMITED 1 YEAR WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of one year from the
date of purchase (90 days if used by a professional contractor or if used as rental equip-
ment). This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, normal wear
to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not ap-
ply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
