Page 2 For technical questions, please call 1-800-444-3353. Item 69079

SAFETY OPERATION MAINTENANCESETUP

Table of Contents

Safety ......................................................... 2

Specifications ............................................ 10

Setup ......................................................... 10

Operation ................................................... 11

Maintenance .............................................. 13

Parts List and Diagram .............................. 14

Warranty .................................................... 16

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INFORMATION

General Power Tool Safety Warnings

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term ″power tool″ in the warnings refers to your mains-operated (corded) power tool.

Work Area Safety

1. Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

2. Do not operate power tools in explosive

atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

3. Keep children and bystanders

away while operating a power tool.

Distractions can cause you to lose control.

SAFETY OPERATION MAINTENANCESETUP

Page 3For technical questions, please call 1-800-444-3353.Item 69079

SAFETYOPERATIONMAINTENANCE SETUP

Electrical Safety

1. Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with grounded

power tools. Unmodified plugs and matching

outlets will reduce risk of electric shock.

2. Avoid body contact with grounded surfaces

such as pipes, radiators, ranges and

refrigerators. There is an increased risk of

electric shock if your body is grounded.

3. Do not expose power tools to rain or wet

conditions. Water entering a power tool

will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled

cords increase the risk of electric shock.

5. When operating a power tool outdoors,

use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor

use reduces the risk of electric shock.

6. If operating a power tool in a damp location

is unavoidable, use a Ground Fault Circuit

Interrupter (GFCI) protected supply.

Use of a GFCI reduces the risk of electric shock.

Personal Safety

1. Stay alert, watch what you are doing and use

common sense when operating a power tool.

Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication.

A moment of inattention while operating power

tools may result in serious personal injury.

2. Use personal protective equipment. Always wear

eye protection. Safety equipment such as

dust mask, non-skid safety shoes, hard hat,

or hearing protection used for appropriate

conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power source,

picking up or carrying the tool.

Carrying power tools with your finger on

the switch or energizing power tools that

have the switch on invites accidents.

4. Remove any adjusting key or wrench

before turning the power tool on.

A wrench or a key left attached to a rotating part

of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing

or jewelry. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewelry

or long hair can be caught in moving parts.

7. If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

these devices can reduce dust-related hazards.

8. Only use safety equipment that has been

approved by an appropriate standards agency.

Unapproved safety equipment may not provide

adequate protection. Eye protection must be

ANSI-approved and breathing protection

must be NIOSH-approved for the

specific hazards in the work area.

SAFETYOPERATIONMAINTENANCE SETUP

Page 4 For technical questions, please call 1-800-444-3353. Item 69079

SAFETY OPERATION MAINTENANCESETUP

Power Tool Use and Care

1. Do not force the power tool. Use the

correct power tool for your application.

The correct power tool will do the job better and

safer at the rate for which it was designed.

2. Do not use the power tool if the

switch does not turn it on and off.

Any power tool that cannot be controlled with the

switch is dangerous and must be repaired.

3. Disconnect the plug from the power source

before making any adjustments, changing

accessories, or storing power tools.

Such preventive safety measures reduce the

risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of

children and do not allow persons unfamiliar

with the power tool or these instructions

to operate the power tool. Power tools are

dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts and

any other condition that may affect the power

tool’s operation. If damaged, have the power

tool repaired before use. Many accidents are

caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits

etc. in accordance with these instructions,

taking into account the working conditions

and the work to be performed. Use of the

power tool for operations different from those

intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

SAFETY OPERATION MAINTENANCESETUP

Page 5For technical questions, please call 1-800-444-3353.Item 69079

SAFETYOPERATIONMAINTENANCE SETUP

Circular Saw Safety Warnings

1. DANGER: Keep hands away from cutting

area and the blade. Keep your second hand on

auxiliary handle, or motor housing. If both hands

are holding the saw, they cannot be cut by the blade.

2. Do not reach underneath the workpiece.

The guard cannot protect you from

the blade below the workpiece.

3. Adjust the cutting depth to the thickness of

the workpiece. Less than a full tooth of the blade

teeth should be visible below the workpiece.

4. Never hold piece being cut in your hands

or across your leg. Secure the workpiece

to a stable platform. It is important to support

the work properly to minimize body exposure,

blade binding, or loss of control.

5. Hold power tool by insulated gripping

surfaces when performing an operation

where the cutting tool may contact hidden

wiring or its own cord. Contact with a ″live″

wire will also make exposed metal parts of the

power tool ″live″ and shock the operator.

6. When ripping always use a rip fence or straight

edge guide. This improves the accuracy of cut

and reduces the chance of blade binding.

7. Always use blades with correct size and

shape (diamond versus round) of arbor holes.

Blades that do not match the mounting hardware of

the saw will run eccentrically, causing loss of control.

8. Never use damaged or incorrect blade

washers or bolt. The blade washers and

bolt were specially designed for your saw, for

optimum performance and safety of operation.

9. Causes and Operator Prevention of Kickback:

• Kickback is a sudden reaction to a pinched,

bound or misaligned saw blade, causing

an uncontrolled saw to lift up and out of

the workpiece toward the operator;

• When the blade is pinched or bound

tightly by the kerf closing down, the blade

stalls and the motor reaction drives the

unit rapidly back toward the operator;

• If the blade becomes twisted or misaligned

in the cut, the teeth at the back edge of the

blade can dig into the top surface of the

wood causing the blade to climb out of the

kerf and jump back toward the operator.

• Kickback is the result of saw misuse and/

or incorrect operating procedures or

conditions and can be avoided by taking

proper precautions as given below:

a. Maintain a firm grip with both hands on

the saw and position your arms to resist

kickback forces. Position your body to either

side of the blade, but not in line with the blade.

Kickback could cause the saw to jump backwards,

but kickback forces can be controlled by the

operator, if proper precautions are taken.

b. When blade is binding, or when interrupting a

cut for any reason, release the trigger and hold

the saw motionless in the material until the

blade comes to a complete stop. Never attempt

to remove the saw from the work or pull the saw

backward while the blade is in motion or kickback

may occur. Investigate and take corrective

actions to eliminate the cause of blade binding.

c. When restarting a saw in the workpiece,

center the saw blade in the kerf and check that

saw teeth are not engaged into the material.

If saw blade is binding, it may walk up or kickback

from the workpiece as the saw is restarted.

d. Support large panels to minimize the risk of

blade pinching and kickback. Large panels tend

to sag under their own weight. Supports must

be placed under the panel on both sides, near

the line of cut and near the edge of the panel.

e. Do not use dull or damaged blades.

Unsharpened or improperly set blades

produce narrow kerf causing excessive

friction, blade binding and kickback.

f. Blade depth and bevel adjusting locking levers

must be tight and secure before making cut.

If blade adjustment shifts while cutting,

it may cause binding and kickback.

g. Use extra caution when making a

″plunge cut″ into existing walls or other

blind areas. The protruding blade may

cut objects that can cause kickback.

10. Check lower guard for proper closing before each

use. Do not operate the saw if lower guard does

not move freely and close instantly. Never clamp or

tie the lower guard into the open position. If saw is

accidentally dropped, lower guard may be bent. Raise

the lower guard with the retracting handle and make

sure it moves freely and does not touch the blade

or any other part, in all angles and depths of cut.

11. Check the operation of the lower guard spring.

If the guard and the spring are not operating

properly, they must be serviced before use. Lower

guard may operate sluggishly due to damaged

parts, gummy deposits, or a build-up of debris.

SAFETYOPERATIONMAINTENANCE SETUP

Page 6 For technical questions, please call 1-800-444-3353. Item 69079

SAFETY OPERATION MAINTENANCESETUP

12. Lower guard should be retracted manually only

for special cuts such as ″plunge cuts″ and

″compound cuts.″ Raise lower guard by retracting

handle and as soon as blade enters the material, the

lower guard must be released. For all other sawing,

the lower guard should operate automatically.

13. Always observe that the lower guard is covering

the blade before placing saw down on bench

or floor. An unprotected, coasting blade will cause

the saw to walk backwards, cutting whatever

is in its path. Be aware of the time it takes for

the blade to stop after switch is released.

14. DO NOT USE THIS SAW WITH THE

SAW HELD UPSIDE DOWN IN A VISE.

The saw is not designed for such use and

cannot be used safely in that position.

15. Do not use to cut logs, tree

limbs, or uneven lumber.

16. Wet lumber, green (unseasoned) lumber, and

pressure treated lumber all have an increased

potential for kickback and should only be cut

with a blade for cutting that lumber type. Wear

a NIOSH-approved respirator and have appropriate

ventilation whenever cutting pressure treated lumber.

17. Do not use blades made from high-speed steel,

abrasive blades, metal-cutting blades or masonry-

cutting blades. The guards of this saw are not

designed to protect against the failure of such blades.

18. Place the larger portion of the saw base on

the larger, supported part of the workpiece.

This will help maintain balance and

control while the cut is completed.

19. Blades must be rated to at least the

maximum speed marked on the tool.

20. Maintain labels and nameplates on the tool.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

21. Avoid unintentional starting.

Prepare to begin work before turning on the tool.

22. Do not lay the tool down until it has come to

a complete stop. Moving parts can grab the

surface and pull the tool out of your control.

23. When using a handheld power tool,

maintain a firm grip on the tool with

both hands to resist starting torque.

24. Do not leave the tool unattended when it is

plugged into an electrical outlet. Turn off the tool,

and unplug it from its electrical outlet before leaving.

25. Use clamps (not included) or other practical ways

to secure and support the workpiece to a stable

platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

26. This product is not a toy.

Keep it out of reach of children.

27. Verify that there are no utility lines or

hardware in or near the workpiece.

This is especially critical for plunge cuts.

28. Do not depress the spindle lock when

starting or during operation.

29. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields

in close proximity to heart pacemaker could cause

pacemaker interference or pacemaker failure. In

addition, people with pacemakers should:

•Avoidoperatingalone.

•DonotusewithTriggerlockedon.

•Properlymaintainandinspecttoavoid

electrical shock.

•Anypowercordmustbeproperlygrounded.

Ground Fault Circuit Interrupter (GFCI)

should also be implemented – it prevents

sustained electrical shock.

30. WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction

activities, contains chemicals known [to the State

of California] to cause cancer, birth defects or

other reproductive harm.

Some examples of these chemicals are:

•Leadfromlead-basedpaints

•Crystallinesilicafrombricksandcementorother

masonry products

•Arsenicandchromiumfrom

chemically treated lumber

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well

ventilated area, and work with approved safety

equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

(California Health & Safety Code § 25249.5, et seq.)

31. WARNING: Handling the cord on this product

will expose you to lead, a chemical known

to the State of California to cause cancer,

and birth defects or other reproductive

harm. Wash hands after handling. (California

Health & Safety Code § 25249.5, et seq.)

32. The warnings, precautions, and instructions

discussed in this instruction manual cannot

cover all possible conditions and situations

that may occur. It must be understood by the

operator that common sense and caution are

factors which cannot be built into this product,

but must be supplied by the operator.

Circular Saw Safety Warnings (continued)

SAFETY OPERATION MAINTENANCESETUP

Page 7For technical questions, please call 1-800-444-3353.Item 69079

SAFETYOPERATIONMAINTENANCE SETUP

Vibration Safety

This tool vibrates during use.

Repeated or long-term exposure to vibration may

cause temporary or permanent physical injury,

particularly to the hands, arms and shoulders. To

reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for an

extended period should first be examined by a

doctor and then have regular medical check-ups

to ensure medical problems are not being caused

or worsened from use. Pregnant women or people

who have impaired blood circulation to the hand, past

hand injuries, nervous system disorders, diabetes,

or Raynaud’s Disease should not use this tool.

If you feel any symptoms related to vibration (such

as tingling, numbness, and white or blue fingers),

seek medical advice as soon as possible.

2. Do not smoke during use. Nicotine reduces

the blood supply to the hands and fingers,

increasing the risk of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration

when there is a choice.

5. Include vibration-free periods each day of work.

6. Grip tool as lightly as possible (while still keeping

safe control of it). Let the tool do the work.

7. To reduce vibration, maintain the tool as

explained in this manual. If any abnormal

vibration occurs, stop use immediately.

SAVE THESE INSTRUCTIONS.

SAFETYOPERATIONMAINTENANCE SETUP

Page 8 For technical questions, please call 1-800-444-3353. Item 69079

SAFETY OPERATION MAINTENANCESETUP

Grounding

TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING

WIRE CONNECTION:

Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

Do not modify the power cord plug provided with the tool. Never remove the grounding prong from

the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a service

facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounded Tools: Tools with Three Prong Plugs

3-Prong Plug and Outlet

1. Tools marked with “Grounding Required” have a three

wire cord and three prong grounding plug. The plug

must be connected to a properly grounded outlet.

If the tool should electrically malfunction or break

down, grounding provides a low resistance path to

carry electricity away from the user, reducing the risk

of electric shock. (See 3-Prong Plug and Outlet.)

2. The grounding prong in the plug is connected through

the green wire inside the cord to the grounding

system in the tool. The green wire in the cord must

be the only wire connected to the tool’s grounding

system and must never be attached to an electrically

“live” terminal. (See 3-Prong Plug and Outlet.)

3. The tool must be plugged into an appropriate outlet,

properly installed and grounded in accordance with

all codes and ordinances. The plug and outlet should

look like those in the preceding illustration.

(See 3-Prong Plug and Outlet.)

Double Insulated Tools: Tools with Two Prong Plugs

Outlets for 2-Prong Plug

1. Tools marked “Double Insulated” do not

require grounding. They have a special

double insulation system which satisfies

OSHA requirements and complies with

the applicable standards of Underwriters

Laboratories, Inc., the Canadian Standard

Association, and the National Electrical Code.

2. Double insulated tools may be used in either of the

120 volt outlets shown in the preceding illustration.

(See Outlets for 2-Prong Plug.)

SAFETY OPERATION MAINTENANCESETUP

Page 9For technical questions, please call 1-800-444-3353.Item 69079

SAFETYOPERATIONMAINTENANCE SETUP

Extension Cords

1. Grounded tools require a three wire extension cord.

Double Insulated tools can use either

a two or three wire extension cord.

2. As the distance from the supply outlet increases,

you must use a heavier gauge extension cord.

Using extension cords with inadequately sized

wire causes a serious drop in voltage, resulting

in loss of power and possible tool damage.

(See Table A on page 9.)

3. The smaller the gauge number of the wire, the

greater the capacity of the cord. For example,

a 14 gauge cord can carry a higher current

than a 16 gauge cord. (See Table A.)

4. When using more than one extension cord to make

up the total length, make sure each cord contains at

least the minimum wire size required. (See Table A.)

5. If you are using one extension cord for more

than one tool, add the nameplate amperes

and use the sum to determine the required

minimum cord size. (See Table A.)

6. If you are using an extension cord outdoors, make

sure it is marked with the suffix “W-A” (“W” in

Canada) to indicate it is acceptable for outdoor use.

7. Make sure the extension cord is properly wired

and in good electrical condition. Always replace

a damaged extension cord or have it repaired

by a qualified electrician before using it.

8. Protect the extension cords from sharp objects,

excessive heat, and damp or wet areas.

TABLE A: RECOMMENDED MINIMUM WIRE

GAUGE FOR EXTENSION CORDS* (120/240 VOLT)

NAMEPLATE

AMPERES

(at full load)

EXTENSION CORD

LENGTH

25´ 50´ 75´ 100´ 150´

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop to five volts at

150% of the rated amperes.

Symbology

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

VVolts

~ Alternating Current

AAmperes

n0 xxxx/min. No Load Revolutions per Minute (RPM)

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

WARNING marking concerning

Risk of Hearing Loss.

Wear hearing protection.

WARNING marking

concerning Risk of Fire.

Do not cover ventilation ducts.

Keep flammable objects away.

WARNING marking concerning

Risk of Electric Shock.

Properly connect power cord

to appropriate outlet.

SAFETYOPERATIONMAINTENANCE SETUP

Page 10 For technical questions, please call 1-800-444-3353. Item 69079

Specifications

Electrical Rating 120V~ / 60Hz / 10 A

Motor No Load Speed 5500 RPM

Maximum Blade Diameter 7-1/4"

Arbor 5/8"

Depth of Cut 2-7/16" @ 90°

1-5/8" @ 45°

Bevel Capacity 0° to 45°

4005982

Setup - Before Use:

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Note: For additional information regarding the parts listed in the following

pages, refer to Parts List and Diagram on page 14.

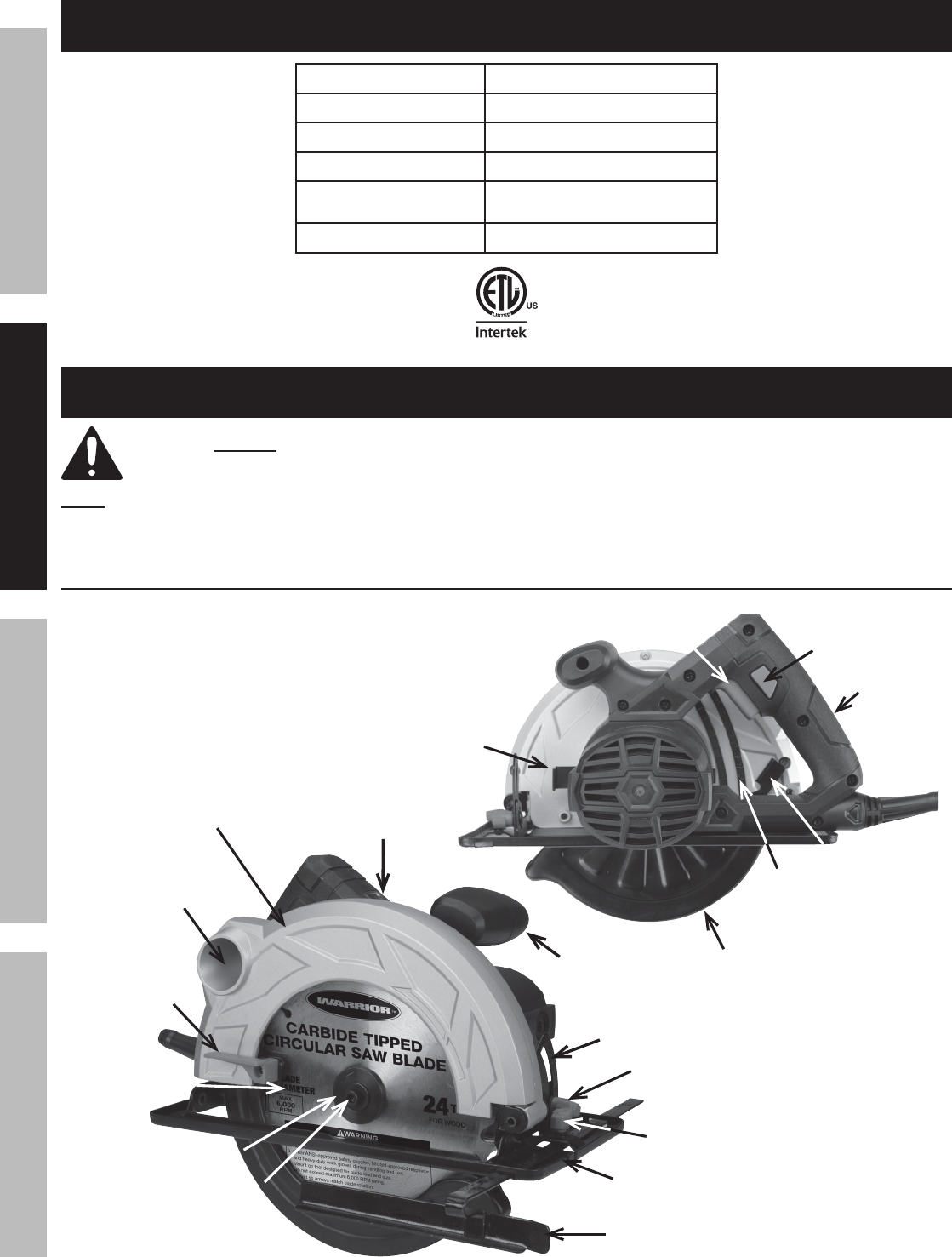

Functions

Spindle Lock Lever (14)

Lower Guard (39)

Trigger Lock

Depth

Gauge (62)

Depth

Lever (58)

Angle Gauge

Trigger (18)

Auxiliary Handle

Main Handle

Figure 1

Stationary Guard (30) Power ON Light (7)

Dust Outlet

Angle Lock Knob (71)

Fence Lock Knob (69)

Rip Fence (60)

Base (64)

Outer Flange (32)

Blade Bolt (31)

Saw Blade

(Sold separately)

Lower

Guard

Lever (38)

SAFETY OPERATION MAINTENANCESETUP

Page 11For technical questions, please call 1-800-444-3353.Item 69079

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Tool Set Up

TO PREVENT SERIOUS INJURY FROM

ACCIDENTAL OPERATION:

Release the Trigger and unplug the tool

from its electrical outlet before adjusting

tool or installing accessories.

TO PREVENT SERIOUS INJURY

FROM FLYING FRAGMENTS:

Do not use blades made from high-speed steel,

abrasive blades, or metal- or masonry-cutting blades.

The guards of this saw are not designed to

protect against the failure of such blades.

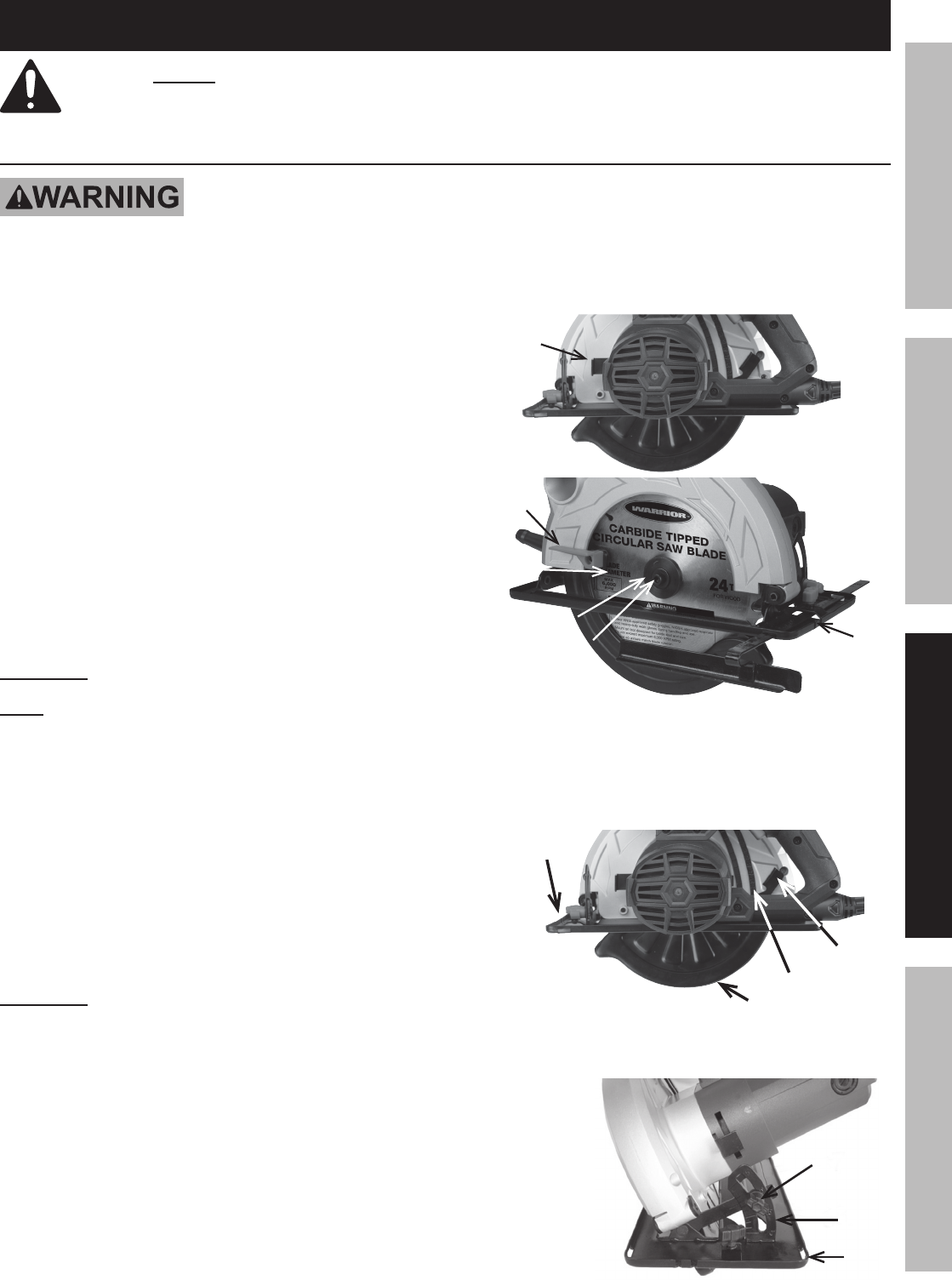

To Remove/Install A Saw Blade (sold separately):

1. Lower the Base Plate to its lowest setting

(See Depth Adjustment, following).

2. Depress the Spindle Lock Lever to hold the Saw

Blade in place and unscrew (clockwise) and

remove the Blade Clamp Bolt and Outer Flange.

3. Pull the Lower Guard all the way up into the

Upper Guard. Remove the old Saw Blade and

install a new Saw Blade onto the Spindle.

4. Slide the Outer Flange onto the Spindle with

the cupped side towards the blade, and wrench

tighten the Blade Bolt in place on the Spindle.

WARNING! Blade must be rated to at least 5,500 RPM.

Note: Make sure to install the new Saw Blade with its teeth

and the arrow on the Saw Blade pointing in the same

direction as the arrow on the Lower Guard.

Depth Adjustment

1. Loosen the Depth Lever.

2. Hold the Base down with one hand and raise or lower the

body of the Saw with the other hand until the Blade is at the

desired Depth of cut, using the Depth Gauge as a guide.

3. Tighten in place with the Depth Lever.

WARNING! To reduce the risk of Serious Injury:

Depth of cut must be adjusted to just clear the workpiece.

Angle Adjustment

1. Loosen the Angle Lock Knob.

2. Adjust the Base to the desired angle between 0°

and 45°, using the Angle Gauge as a guide.

3. Tighten in place with the Angle Lock Knob.

Spindle

Lock

Lever

Figure 2

Base

Outer Flange

Blade Bolt

Saw Blade

Lower

Guard

Lever

Lower Guard

Depth Gauge

Depth Lever

Figure 3

Base

Figure 4

Angle Lock

Knob

Base

Angle

Gauge

SAFETYOPERATIONMAINTENANCE SETUP

Page 12 For technical questions, please call 1-800-444-3353. Item 69079

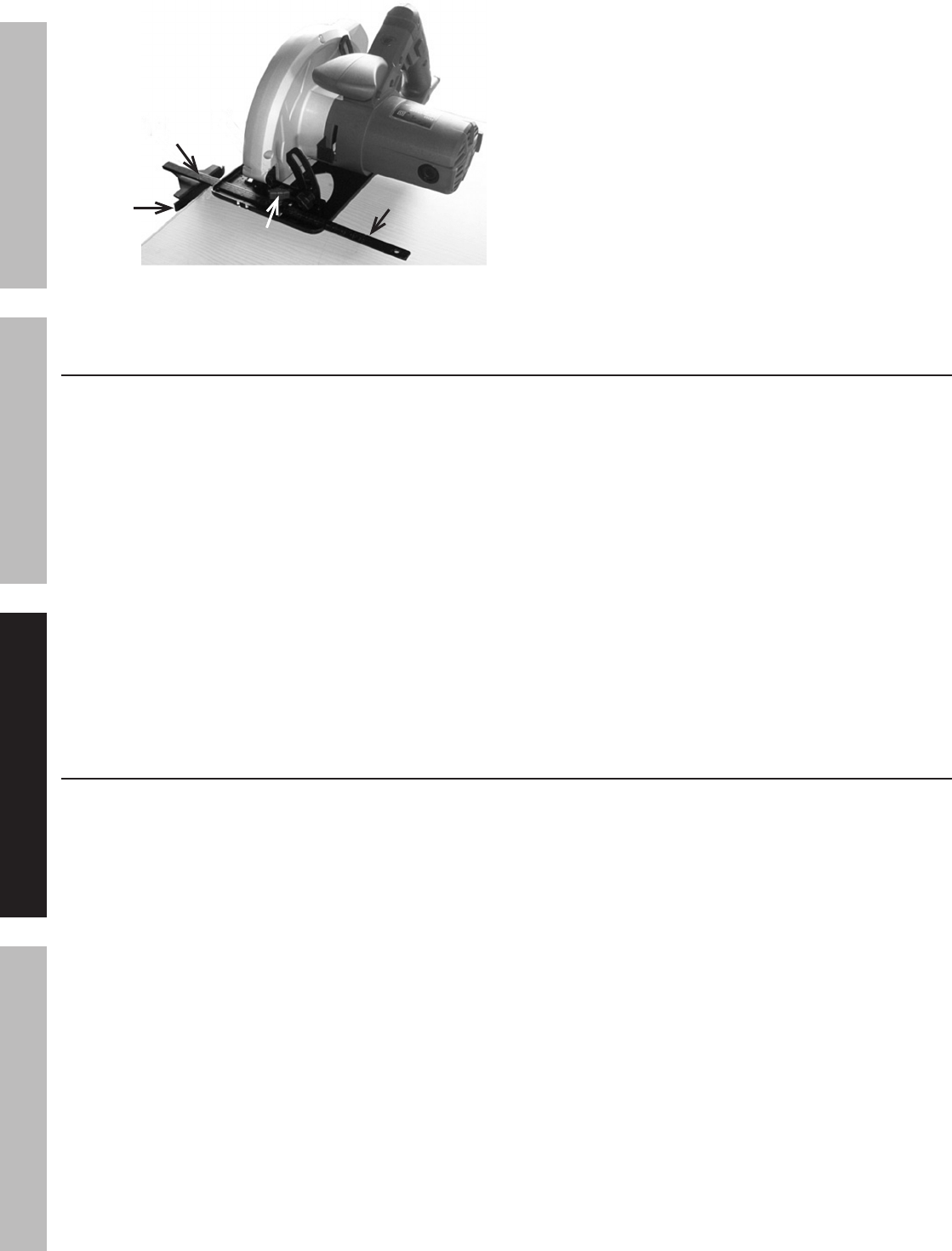

Fence Adjustment

Figure 5

Fence

Bar of Fence

Fence Lock

Knob

Main

guide of

Fence

1. Loosen the Fence Lock Knob.

2. With the main guide of the Fence facing downward,

slide the bar of the Fence into the slots on the Base

until it is the desired distance from the Blade.

3. Tighten in place with the Fence Lock Knob.

Dust Collector

Connect a Dust collection system (sold separately)

to the Dust Chute on the Stationary Guard.

Work Piece and Work Area Set Up

1. Work piece selection:

a. Work piece must be free of foreign

objects and loose knots.

b. Do not use to cut logs, tree

limbs, or uneven lumber.

c. Wet lumber, green (unseasoned) lumber,

and pressure treated lumber all have an

increased potential for kickback and should

only be cut with a blade designed for cutting

that lumber. Wear a NIOSH-approved

respirator and have appropriate ventilation

whenever cutting pressure treated lumber.

2. Designate a work area that is clean and well-lit.

The work area must not allow access by children

or pets to prevent distraction and injury.

3. Route the power cord along a safe route

to reach the work area without creating a

tripping hazard or exposing the power cord

to possible damage. The power cord must

reach the work area with enough extra length

to allow free movement while working.

4. Secure loose workpieces using a vise or clamps

(not included) to prevent movement while working.

5. Verify that there are no utility lines or

hardware in or near the workpiece.

This is especially critical for plunge cuts.

General Operating Instructions

1. Make all necessary depth and angle

adjustments to the Circular Saw.

2. Make sure that all guards are in place in

proper working order and that all adjustment

knobs are tight before operation.

3. Plug the Power Cord into the nearest

120 volt, grounded, electrical outlet.

4. Firmly grip the Handle with one hand and

the Auxiliary Handle with the other hand.

Squeeze and hold the Trigger Lock, then

the Trigger to turn on the Circular Saw.

5. Release the Trigger Lock.

6. Allow the Saw Blade to reach full speed before

feeding the Saw Blade into the workpiece.

7. Make straight cuts only. Do not attempt to twist

the Circular Saw to the right or left while cutting.

If this occurs, the Saw Blade will “bind” in the

workpiece causing kickback, potential injury, and/

or damage to the workpiece and Circular Saw.

8. Do not force the Circular Saw to cut faster

than it is designed to cut. Feed the Saw

Blade gradually into the workpiece.

9. Turn off the Circular Saw if the Saw Blade is to be

backed out of an uncompleted cut. When turning

off the Circular Saw, allow the Saw Blade to fully

stop on its own before removing the Circular Saw.

Do not press against the Saw Blade to stop it.

10. Once the cutting job is completed, release the

Trigger and wait until the Saw Blade stops spinning.

11. To prevent accidents, unplug the Power Cord

from its electrical outlet. Clean, then store

the tool indoors out of children’s reach.

SAFETY OPERATION MAINTENANCESETUP

Page 13For technical questions, please call 1-800-444-3353.Item 69079

Maintenance and Servicing

Procedures not specifically explained in this manual must

be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Release the Trigger and unplug the tool from its electrical outlet before

performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:

Do not use damaged equipment. If abnormal noise or vibration

occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

1. BEFORE EACH USE, inspect the general condition of the tool. Check for loose

hardware, misalignment or binding of moving parts, cracked or broken parts, damaged

electrical wiring, and any other condition that may affect its safe operation.

2. AFTER USE, wipe external surfaces of the tool with clean cloth.

3. WARNING! If the supply cord of this power tool is damaged, it

must be replaced only by a qualified service technician.

4. TO CLEAN: The ventilation openings should be kept clean and free of dirt and debris. Wear ANSI-

approved safety goggles and NIOSH-approved dust mask/respirator before cleaning ducts. The most

effective way to clean the ventilation openings is with compressed air. The outer body may be cleaned with

a clean cloth and a mild detergent. Do not use solvents. Do not immerse the Circular Saw in liquid.

Troubleshooting

Problem Possible Causes Likely Solutions

Tool will not start. 1. Cord not connected.

2. No power at outlet.

3. Tool’s thermal reset breaker

tripped (if equipped).

4. Internal damage or wear. (Carbon

brushes or switch, for example.)

1. Check that cord is plugged in.

2. Check power at outlet. If outlet is unpowered, turn off tool and

check circuit breaker. If breaker is tripped, make sure circuit

is right capacity for tool and circuit has no other loads.

3. Turn off tool and allow to cool. Press reset button on tool.

4. Have technician service tool.

Tool operates slowly. Extension cord too long or

cord diameter too small.

Eliminate use of extension cord. If an extension cord is needed, use one with the

proper diameter for its length and load. See Extension Cords section on page 9.

Performance

decreases over time.

1. Blade dull or damaged.

2. Carbon brushes worn

or damaged.

1. Keep Blade sharp. Replace as needed.

2. Have qualified technician replace brushes.

Excessive noise

or rattling.

Internal damage or wear. (Carbon

brushes or bearings, for example.)

Replace Carbon Brushes.

Overheating. 1. Forcing tool to work too fast.

2. Accessory misaligned.

3. Accessory dull or damaged.

4. Blocked motor housing vents.

5. Motor being strained by long or

small diameter extension cord.

1. Allow tool to work at its own rate.

2. Check and correct accessory to fence and/or table alignment.

3. Keep cutting accessories sharp. Replace as needed.

4. Wear ANSI-approved safety goggles and NIOSH-approved dust mask/

respirator while blowing dust out of motor using compressed air.

5. Eliminate use of extension cord. If an extension cord is

needed, use one with the proper diameter for its length and

load. See Extension Cords section on page 9.

Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power

supply before service.

SAFETYOPERATIONMAINTENANCE SETUP

Page 14 For technical questions, please call 1-800-444-3353. Item 69079

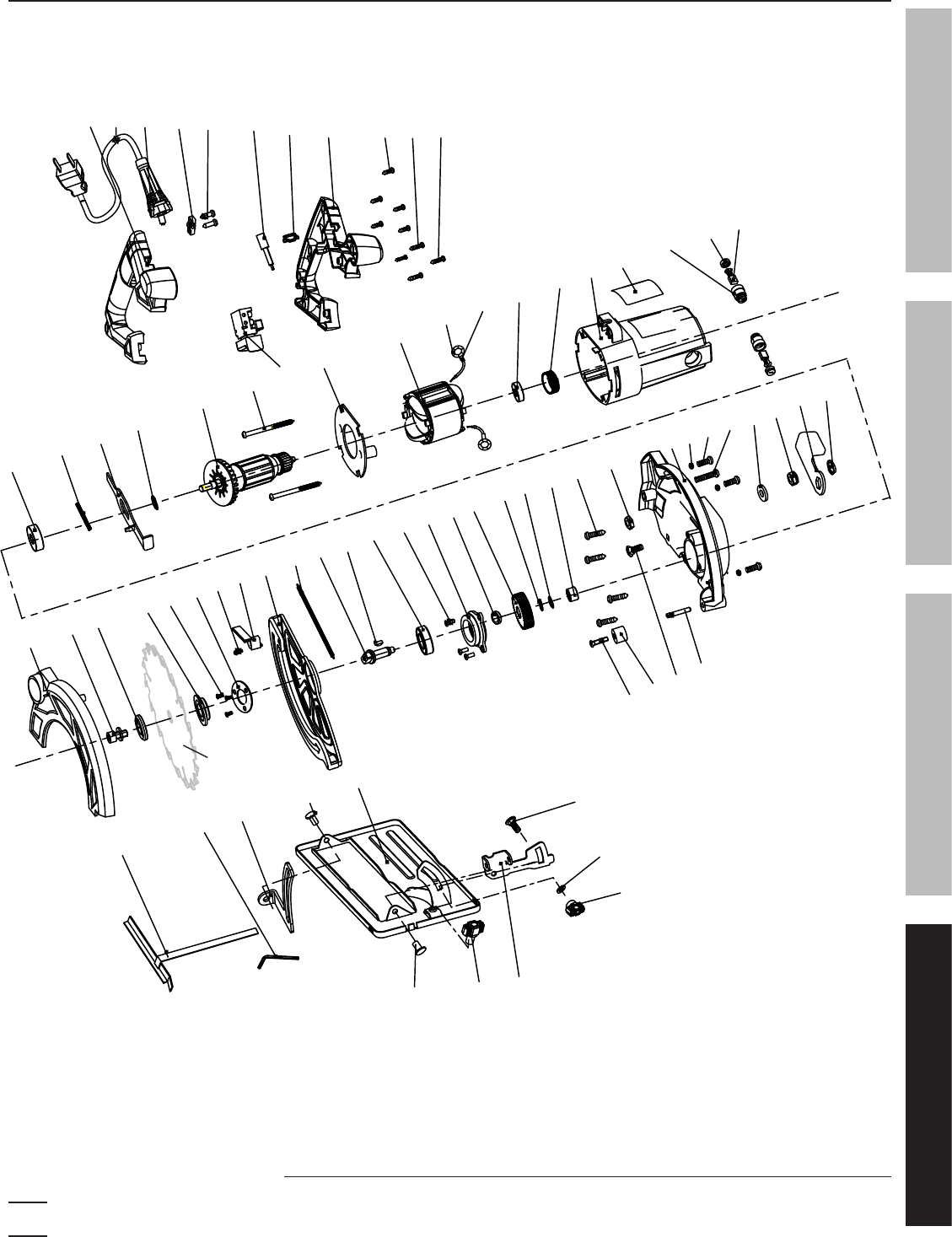

Part Description Qty

1Right Handle 1

2Cable &Plug 1

3Cable Sleeve 1

4Cord Plate 1

5Pan Head Screw st4.2x14 2

6Indicator-Lamp 1

7Power ON Light 1

8Left Handle 1

9Pan Head Screw st4.2x16 6

10 Pan Head Screw st4.2x22 1

11 Pan Head Screw st4.2x25 2

12 Bearing 6002-2Z 1

13 Self-Lock Spring 1

14 Spindle Lock Lever 1

15 Circlip For Shaft 12 2

16 Rotor 1

17 Pan Head Screw st4.8x65 2

18 Trigger 1

19 Air Baffle Plate 1

20 Stator 1

21 Spring 1

22 Cord Plate 2

23 Bearing 607-2Z 1

24 Bearing Sleeve 17# 1

25 Housing 1

26 Nameplate 1

27 Carbon Brush Holder 1

28 Carbon Brush Cover 1

29 Carbon Brush 1

30 Stationary Guard 1

31 Blade Bolt M6x16 1

32 Outer Flange 1

34 Inner Flange 1

35 Cross Screw M4x12 3

36 Lower Guard Plate 1

37 Pan Head Screw M4x12 1

Part Description Qty

38 Lower Guard Lever 1

39 Lower Guard 1

40 Guard Spring 1

41 Output Spindle 1

42 Key 3X10x3.7 1

43 Bearing 6001Z 1

44 Cross Screw M5x10 3

45 Front Cover 1

46 Gear Position Steel Sleeve 1

47 Gear 1

48 Wave Washer 12 1

49 Oil Bearing 14X8x8 1

50 Pan Head Screw st4.8x25 4

51 Nut m4 1

52 Gear Housing 1

53 Washer 4 3

54 Pan Head Screw M4x14 3

55 Pan Head Screw M4x22 1

56 WasherΦ6xφ14x1.5 2

57 Nut M6 1

58 Depth Lever 1

59 Circlip For Shaft 10 1

60 Rip Fence 1

61 Hex Key 1

62 Depth Gauge 1

63 Rivet 2

64 Base 1

65 Pan Head Screw M6x18 1

66 Lower Guard Bumper 1

67 Carriage Bolt M6x14 1

68 Spring 6x40 1

69 Fence Lock Knob 1

70 Angle Plate 1

71 Angle Lock Knob 1

72 Carriage Bolt M6x12 1

Parts List and Diagram

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN

THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS

TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE

MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD

BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES

ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT

PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

SAFETY OPERATION MAINTENANCESETUP

Page 15For technical questions, please call 1-800-444-3353.Item 69079

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.

Assembly Diagram

5

4

18

52

47

68

66

65

43

41 42

45

44

40

39

37

34

32

62

12

14

29

20

22 23

24

1

23

6789

27

16

30 31

35

38

54

60

61

63

64

70

69

28

49

63

71

13

26

56 57

59

67

17

56

72

19

15

36

46

48

50

53

21

25

15

10

51

55

58

11

Blade sold

separately

SAFETYOPERATIONMAINTENANCE SETUP

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
