Harbor Freight 69490 Owner S Manual

: Harbor-Freight Harbor-Freight-69490-Owner-S-Manual harbor-freight-69490-owner-s-manual harbor-freight pdf

Open the PDF directly: View PDF .
Page Count: 16

Visit our website at: http://www.harborfreight.com

Email our technical support at: tech@harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Copyright© 2012 by Harbor Freight Tools®. All rights reserved.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-800-444-3353 as soon as possible.

Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual

near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and

the receipt in a safe and dry place for future reference.

Owner’s Manual & Safety Instructions

ITEM 69490

3/4" heavy duty

air impact wrench

Page 2 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

Table of Contents

Safety ......................................................... 2

Specifications ............................................. 6

Setup .......................................................... 7

Operation ................................................... 10

Maintenance .............................................. 12

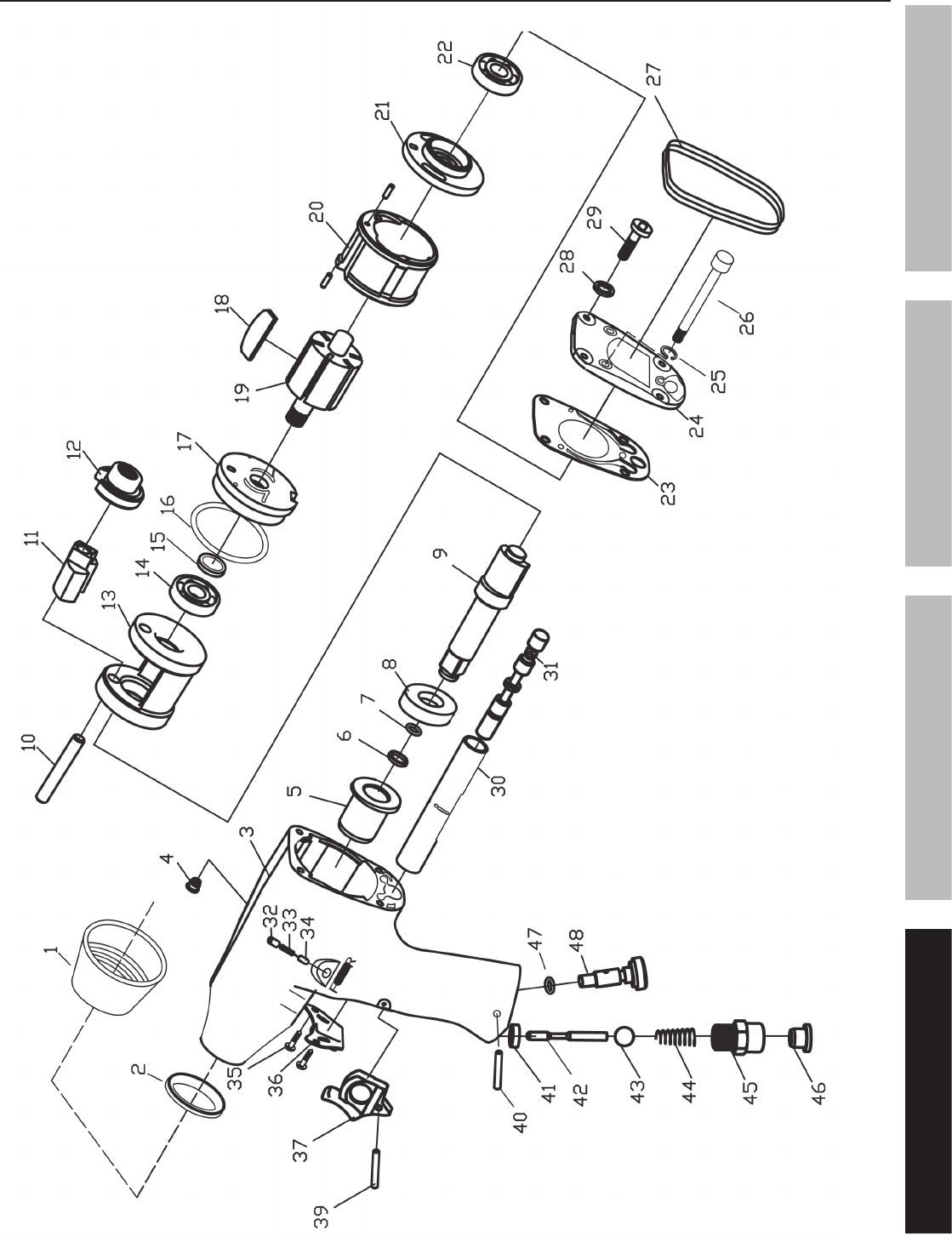

Parts List and Diagram .............................. 14

Warranty .................................................... 16

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING – When using tools, basic precautions should always be followed, including the following:

General

To reduce the risks of electric shock,

fire, and injury to persons, read all the

instructions before using the tool.

Work Area

1. Keep the work area clean and well lighted.

Cluttered benches and dark areas increase the

risks of electric shock, fire, and injury to persons.

2. Do not operate the tool in explosive atmospheres,

such as in the presence of flammable liquids,

gases, or dust. The tool is able to create sparks

resulting in the ignition of the dust or fumes.

3. Keep bystanders, children, and visitors away

while operating the tool. Distractions are able

to result in the loss of control of the tool.

Page 3For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

Personal Safety

1. Stay alert. Watch what you are doing and

use common sense when operating the tool.

Do not use the tool while tired or under the

influence of drugs, alcohol, or medication.

A moment of inattention while operating the

tool increases the risk of injury to persons.

2. Dress properly. Do not wear loose

clothing or jewelry. Contain long hair.

Keep hair, clothing, and gloves away from

moving parts. Loose clothes, jewelry, or long

hair increases the risk of injury to persons as

a result of being caught in moving parts.

3. Avoid unintentional starting. Be sure the switch

is off before connecting to the air supply.

Do not carry the tool with your finger on the switch or

connect the tool to the air supply with the switch on.

4. Remove adjusting keys and wrenches

before turning the tool on. A wrench or a

key that is left attached to a rotating part of the

tool increases the risk of personal injury.

5. Do not overreach.

Keep proper footing and balance at all times.

Proper footing and balance enables better

control of the tool in unexpected situations.

6. Use safety equipment. A dust mask,

non-skid safety shoes and a hard hat

must be used for the applicable

conditions.

7. Always wear eye protection.

Wear ANSI-approved safety goggles.

8. Always wear hearing protection

when using the tool.

Prolonged exposure to high intensity

noise is able to cause hearing loss.

Tool Use and Care

1. Use clamps or another practical way to secure

and support the workpiece to a stable platform.

Holding the work by hand or against the body is

unstable and is able to lead to loss of control.

2. Do not force the tool. Use the correct tool for the

application. The correct tool will do the job better

and safer at the rate for which the tool is designed.

3. Do not use the tool if the switch does not turn the

tool on or off. Any tool that cannot be controlled

with the switch is dangerous and must be repaired.

4. Disconnect the tool from the air source

before making any adjustments, changing

accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the

tool unintentionally. Turn off and detach the air

supply, safely discharge any residual air pressure,

and release the throttle and/or turn the switch to

its off position before leaving the work area.

5. Store the tool when it is idle out of reach

of children and other untrained persons.

A tool is dangerous in the hands of untrained users.

6. Maintain the tool with care. Keep a cutting

tool sharp and clean. A properly maintained

tool, with sharp cutting edges reduces the

risk of binding and is easier to control.

7. Check for misalignment or binding of moving

parts, breakage of parts, and any other condition

that affects the tool's operation. If damaged,

have the tool serviced before using. Many accidents

are caused by poorly maintained tools.

There is a risk of bursting if the tool is damaged.

8. Use only accessories that are identified by the

manufacturer for the specific tool model. Use of

an accessory not intended for use with the specific

tool model, increases the risk of injury to persons.

Page 4 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

Service

1. Tool service must be performed only

by qualified repair personnel.

2. When servicing a tool, use only identical

replacement parts. Use only authorized parts.

3. Use only the lubricants supplied with the

tool or specified by the manufacturer.

Air Source

1. Never connect to an air source that is

capable of exceeding 200 psi.

Over pressurizing the tool may cause

bursting, abnormal operation, breakage

of the tool or serious injury to persons.

Use only clean, dry, regulated compressed air at the

rated pressure or within the rated pressure range as

marked on the tool. Always verify prior to using the

tool that the air source has been adjusted to the rated

air pressure or within the rated air-pressure range.

2. Never use oxygen, carbon dioxide, combustible

gases or any bottled gas as an air source

for the tool. Such gases are capable of

explosion and serious injury to persons.

SAVE THESE INSTRUCTIONS.

Symbols and Specific Safety Instructions

Symbol Definitions

Symbol Property or statement

noNo-load speed

.../min Revolutions or reciprocation per minute

PSI Pounds per square inch of pressure

ft-lb Foot-pounds of torque

BPM Blows per minute

CFM Cubic Feet per Minute flow

SCFM Cubic Feet per Minute flow

at standard conditions

Symbol Property or statement

NPT National pipe thread, tapered

NPS National pipe thread, straight

WARNING marking

concerning Risk of Eye Injury.

Wear ANSI-approved eye protection.

WARNING marking concerning Risk of

Hearing Loss. Wear hearing protection.

WARNING marking concerning

Risk of Respiratory Injury. Wear

NIOSH-approved dust mask/respirator.

WARNING marking concerning

Risk of Explosion.

Page 5For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

Specific Safety Instructions

1. The warnings and precautions discussed in this

manual cannot cover all possible conditions and

situations that may occur. It must be understood

by the operator that common sense and caution

are factors which cannot be built into this

product, but must be supplied by the operator.

2. WARNING: The brass components of

this product contain lead, a chemical

known to the State of California to cause

birth defects (or other reproductive harm).

(California Health & Safety code § 25249.5, et seq.)

3. Only use with impact rated accessories.

Other accessories not designed for the forces

generated may break and forcefully launch pieces.

4. Do not hold accessories during operation.

Attach all accessories properly to the tool before

connecting the air supply. A loose accessory

may detach or break during operation.

5. Obey the manual for the air compressor

used to power this tool.

6. Install an in-line shutoff valve to allow

immediate control over the air supply in an

emergency, even if a hose is ruptured.

7. Use this tool with both hands only. Using tools

with only one hand can result in loss of control.

8. Do not lay the tool down until it has come to

a complete stop. Moving parts can grab the

surface and pull the tool out of your control.

Vibration Precautions

This tool vibrates during use. Repeated or long-term

exposure to vibration may cause temporary or permanent

physical injury, particularly to the hands, arms and

shoulders. To reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for an

extended period should first be examined by a

doctor and then have regular medical check-ups to

ensure medical problems are not being caused or

worsened from use. Pregnant women or people who

have impaired blood circulation to the hand, past

hand injuries, nervous system disorders, diabetes,

or Raynaud's Disease should not use this tool.

If you feel any symptoms related to vibration (such

as tingling, numbness, and white or blue fingers),

seek medical advice as soon as possible.

2. Do not smoke during use. Nicotine reduces

the blood supply to the hands and fingers,

increasing the risk of vibration-related injury.

3. Use tools with the lowest vibration

when there is a choice.

4. Include vibration-free periods each day of work.

5. Grip tool as lightly as possible (while still keeping

safe control of it). Let the tool do the work.

6. To reduce vibration, maintain

tool as explained in this manual.

If abnormal vibration occurs, stop immediately.

SAVE THESE INSTRUCTIONS.

Page 6 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

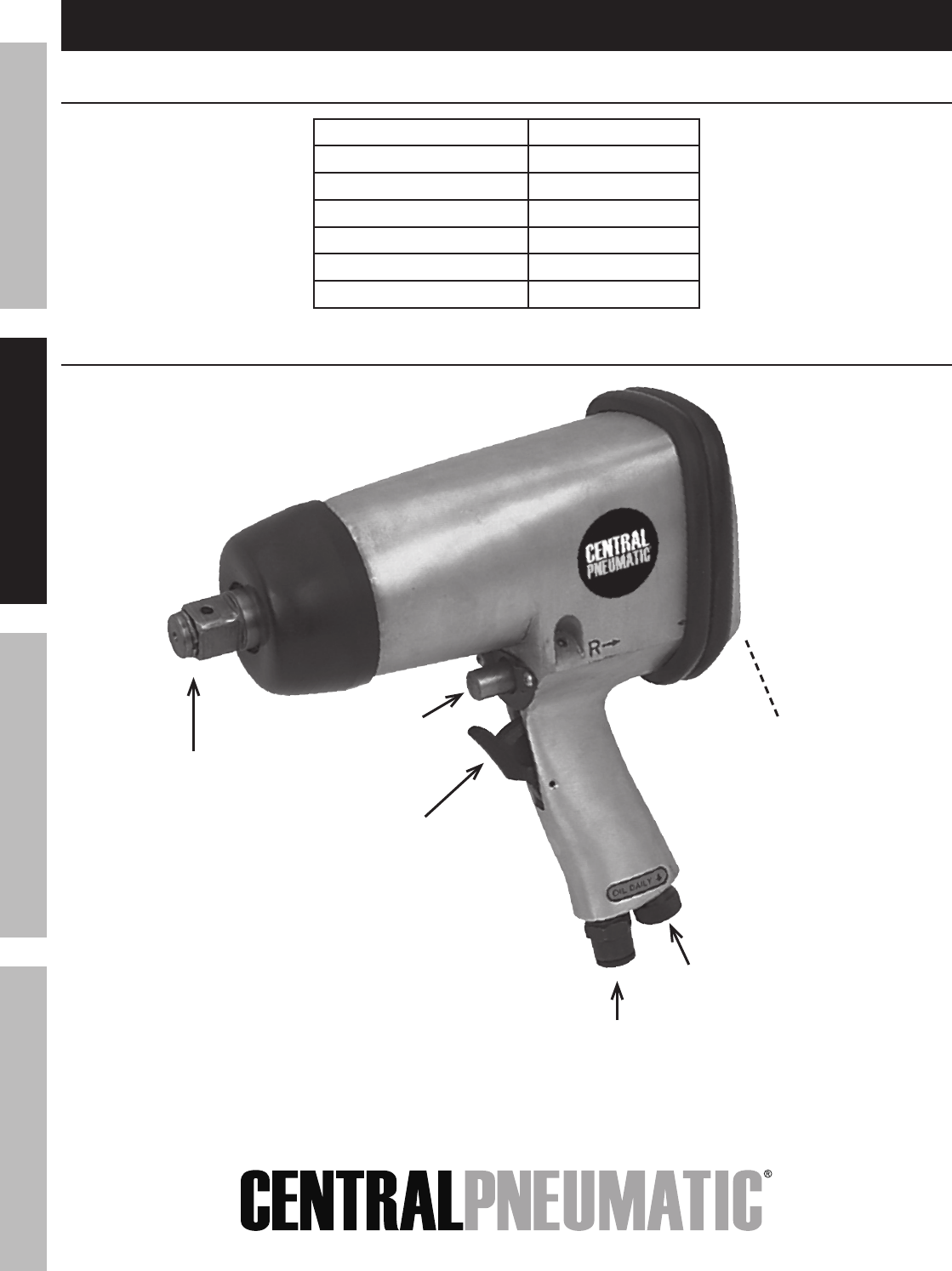

Functional Description

Specifications

Maximum Torque 500 ft. lb.

Maximum Air Pressure 90 PSI

Air Inlet 1/4″ -18 NPT

Anvil Size 3/4"

Speed 4500 RPM

Average Air Consumption 7 CFM @ 90 PSI

Recommended Hose Size 3/8″ ID

Components and Controls

Anvil

Trigger

Air Regulator

Reverse Valve

(in forward

position)

Air Inlet

(Reverse Valve

extends out the back

of the housing when

in Reverse position)

Figure A: Controls

Page 7For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

Initial Tool Set Up/Assembly

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Note: For additional information regarding the parts listed in the following pages,

refer to the Assembly Diagram near the end of this manual.

Note: This air tool may be shipped with a protective plug covering the air inlet. Remove this plug before set up.

Air Supply

TO PREVENT SERIOUS INJURY FROM EXPLOSION:

Use only clean, dry, regulated, compressed air to power this tool.

Do not use oxygen, carbon dioxide, combustible gases,

or any other bottled gas as a power source for this tool.

1. Incorporate a filter, regulator with pressure gauge,

oiler, in-line shutoff valve, and quick coupler for

best service, as shown on Figure B on page 8

and Figure C on page 9. An in-line shutoff

ball valve is an important safety device because

it controls the air supply even if the air hose

is ruptured. The shutoff valve should be a

ball valve because it can be closed quickly.

Note: If an automatic oiler system is not used,

add a few drops of Pneumatic Tool Oil to the

airline connection before operation. Add a few

more drops after each hour of continual use.

2. Attach an air hose to the compressor's air outlet.

Connect the air hose to the air inlet of the tool.

Other components, such as a coupler plug

and quick coupler, will make operation

more efficient, but are not required.

WARNING! TO PREVENT SERIOUS INJURY

FROM ACCIDENTAL OPERATION:

Do not install a female quick coupler on the tool.

Such a coupler contains an air valve that will

allow the air tool to retain pressure and operate

accidentally after the air supply is disconnected.

Note: Air flow, and therefore tool performance, can

be hindered by undersized air supply components.

The air hose must be long enough to reach

the work area with enough extra length to

allow free movement while working.

3. Release the Trigger.

4. Close the in-line shutoff valve between

the compressor and the tool.

5. Turn on the air compressor according to

the manufacturer's directions and allow it

to build up pressure until it cycles off.

6. Adjust the air compressor's output regulator

so that the air output is enough to properly

power the tool, but the output will not exceed

the tool's maximum air pressure at any time.

Adjust the pressure gradually, while checking the

air output gauge to set the right pressure range.

7. Inspect the air connections for leaks.

Repair any leaks found.

8. If the tool will not be used at this time, turn off

and detach the air supply, safely discharge

any residual air pressure, and release

the throttle and/or turn the switch to its off

position to prevent accidental operation.

Note: Residual air pressure should not be present

after the tool is disconnected from the air supply.

However, it is a good safety measure to attempt to

discharge the tool in a safe fashion after disconnecting

to ensure that the tool is disconnected and not powered.

Page 8 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

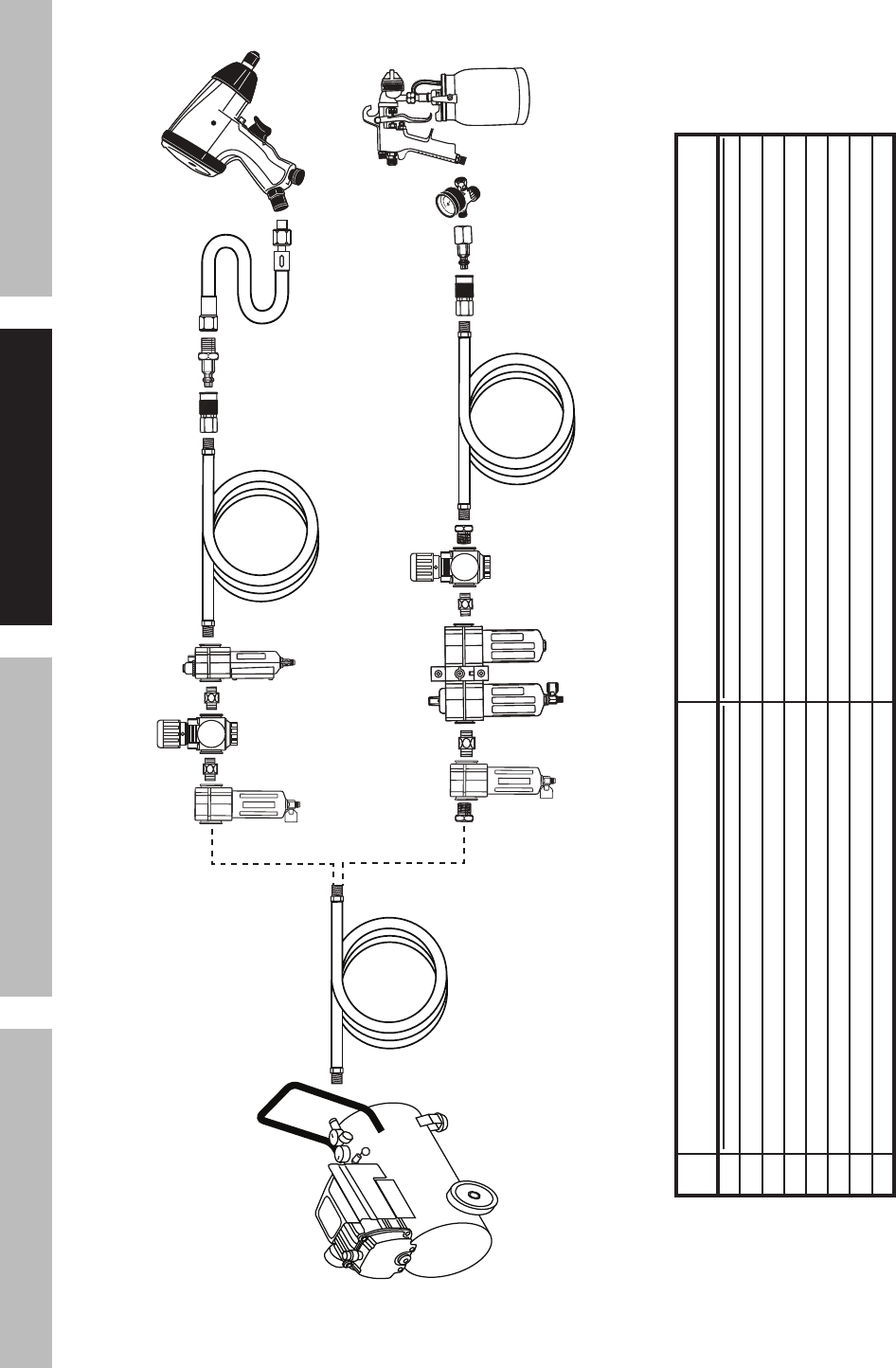

Figure B: Portable Air Supply Setup

G

A

E

E H

F

B

Non-lubricated

Tools

Lubricated

Tools

A

B

C

C

DA

Description Function

A Air Hose Connects air to tool

B Filter Prevents dirt and condensation from damaging tool or work piece

C Regulator Adjusts air pressure to tool

D Lubricator (optional) For air tool lubrication

E Coupler and Plug Provides quick connection and release

F Leader Hose (optional) Increases coupler life

G Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece

H Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 9For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

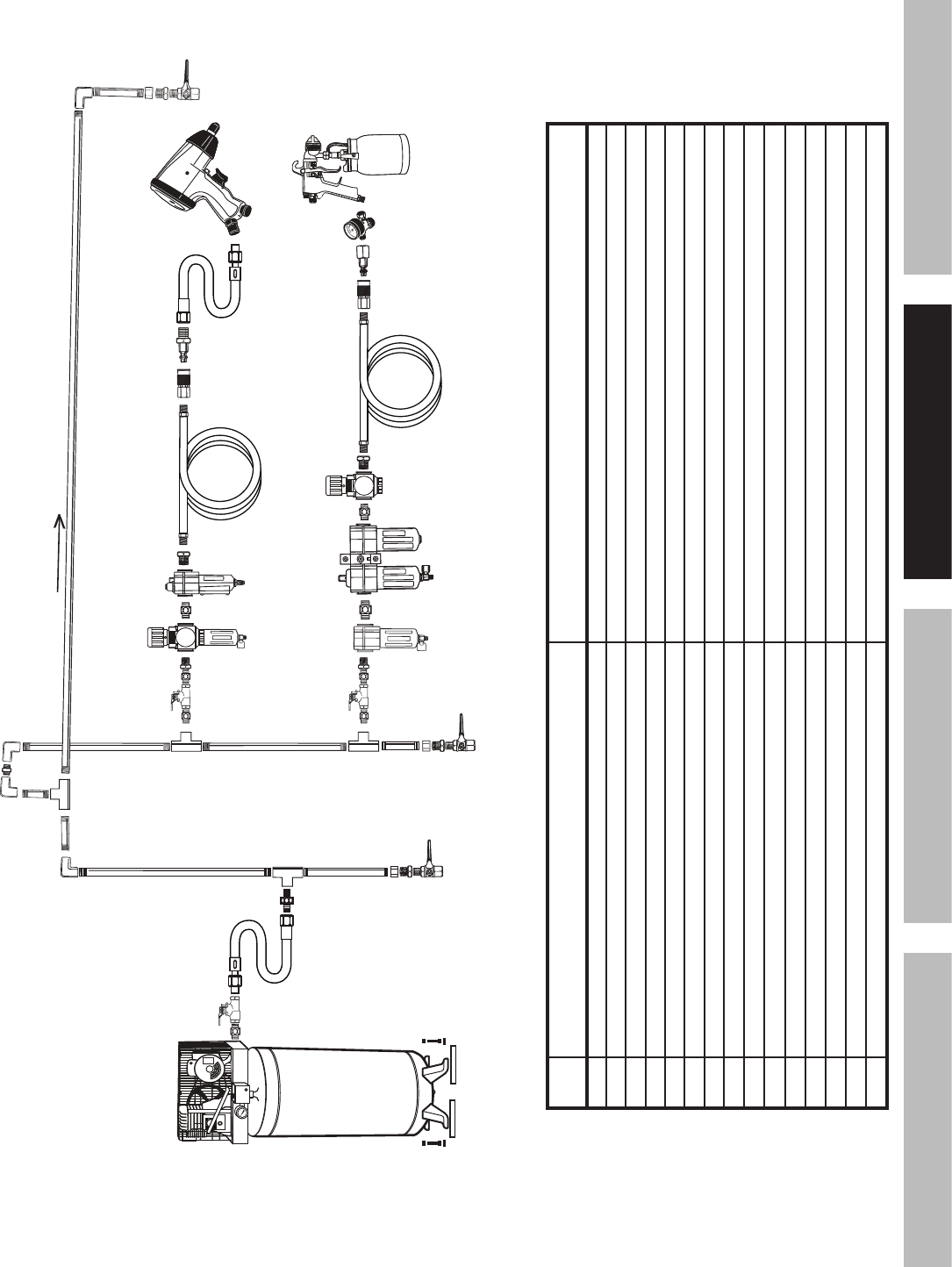

Figure C: Stationary Air Supply Setup

N

L

L O

M

C

C

Non-lubricated

Tools

Lubricated

Tools

H

I

I

J

JKH

F

G

E

Slope

F

F

B B

A A

CD

Description Function

A Vibration Pads For noise and vibration reduction

B Anchor Bolts Secures air compressor in place

C Ball Valve Isolates sections of system for maintenance

D Isolation Hose For vibration reduction

EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines

F Ball Valve To drain moisture from system

GBranch Air Line -1/2″ minimum recommended Brings air to point of use

H Air Hose Connects air to tool

I Filter Prevents dirt and condensation from damaging tool or work piece

J Regulator Adjusts air pressure to tool

K Lubricator (optional) For air tool lubrication

L Coupler and Plug Provides quick connection and release

M Leader Hose (optional) Increases coupler life

N Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece

O Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 10 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Inspect tool before use, looking for damaged, loose, and missing parts.

If any problems are found, do not use tool until repaired.

TO PREVENT SERIOUS INJURY:

Do not adjust or tamper with any control or component in a way not specifically explained within

this manual. Improper adjustment can result in tool failure or other serious hazards.

Work Piece and Work Area Set Up

1. Designate a work area that is clean and well-lit.

The work area must not allow access by children

or pets to prevent distraction and injury.

2. Route the air hose along a safe route to reach

the work area without creating a tripping hazard

or exposing the air hose to possible damage.

The air hose must be long enough to reach

the work area with enough extra length to

allow free movement while working.

3. Secure loose workpieces using a vise or clamps

(not included) to prevent movement while working.

4. There must not be hazardous objects

(such as utility lines or foreign objects) nearby

that will present a hazard while working.

Page 11For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

General Operating Instructions

1. If an automatic oiler is not used, add a few

drops of Pneumatic Tool Oil to the airline

connection before use. Add a few drops

more after each hour of continual use.

Note: Turn off the air compressor and disconnect

the air hose when changing sockets.

2. Select the desired size 3/4" drive

impact socket (sold separately).

3. Push the socket onto the Anvil until it clicks into place.

4. Connect the air hose and turn on the air compressor.

5. Adjust the Air Regulator on the Impact Wrench

as needed for higher or lower pressure.

6. Press the Reverse Valve to set the direction:

• Reverse - counterclockwise rotation Push

Valve towards the back of the tool.

• Forward - clockwise rotation

Push Valve towards the front of the tool.

7. If tightening the nut, tighten by

hand as much as possible.

8. Position the socket on the Impact

Wrench over the nut.

9. Grip the Impact Wrench firmly with two

hands and gently squeeze the Trigger.

WARNING! Do not hold socket or extension during

use to prevent serious injury from entanglement.

10. If the tool requires more force to accomplish

the task, verify that the tool receives sufficient,

unobstructed airflow (CFM) and increase the

pressure (PSI) output of the regulator up to the

maximum air pressure rating of this tool.

CAUTION! TO PREVENT INJURY FROM

TOOL OR ACCESSORY FAILURE:

Do not exceed the tool's

maximum air pressure rating.

If the tool still does not have sufficient force

at maximum pressure and sufficient airflow,

then a larger tool may be required.

11. When the nut is tightened or

loosened, release the Trigger.

12. To prevent accidents, turn off the tool, detach

the air supply, safely discharge any residual air

pressure in the tool, and release the throttle and/

or turn the switch to its off position after use.

Clean external surfaces of the tool with clean,

dry cloth, and apply a thin coat of tool oil.

Then store the tool indoors out of children's reach.

13. When tightening, if needed, check the

recommended torque specification for the nut

and tighten the nut further, to the proper setting,

using a torque wrench (sold separately).

Page 12 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

User-Maintenance Instructions

Procedures not specifically explained in this manual must

be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn off the tool, detach the air supply, safely discharge any residual air pressure in the tool, and

release the Trigger before performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:

Do not use damaged equipment. If abnormal noise, vibration,

or leaking air occurs, have the problem corrected before further use.

TO PREVENT SEROUS INJURY FROM EXPLOSION:

Lubricate the tool only with specified lubricants. Lubricate the air inlet using only

pneumatic tool oil. Lubricate the internal mechanism using only white lithium grease.

Other lubricants may damage the mechanism and may be highly flammable, causing an explosion.

Cleaning, Maintenance, and Lubrication

Note: These procedures are in addition to the regular checks and maintenance

explained as part of the regular operation of the air-operated tool.

1. BEFORE EACH USE, inspect the general

condition of the tool. Check for:

• loose hardware or housing,

• misalignment or binding of moving parts,

• cracked or broken parts, and

• any other condition that may

affect its safe operation.

2. Daily - Air Supply Maintenance:

Every day, maintain the air supply according

to the component manufacturers' instructions.

Maintain the lubricator's oil level.

Drain the moisture filter regularly.

Performing routine air supply maintenance

will allow the tool to operate more safely

and will also reduce wear on the tool.

3. Weekly - Lubrication:

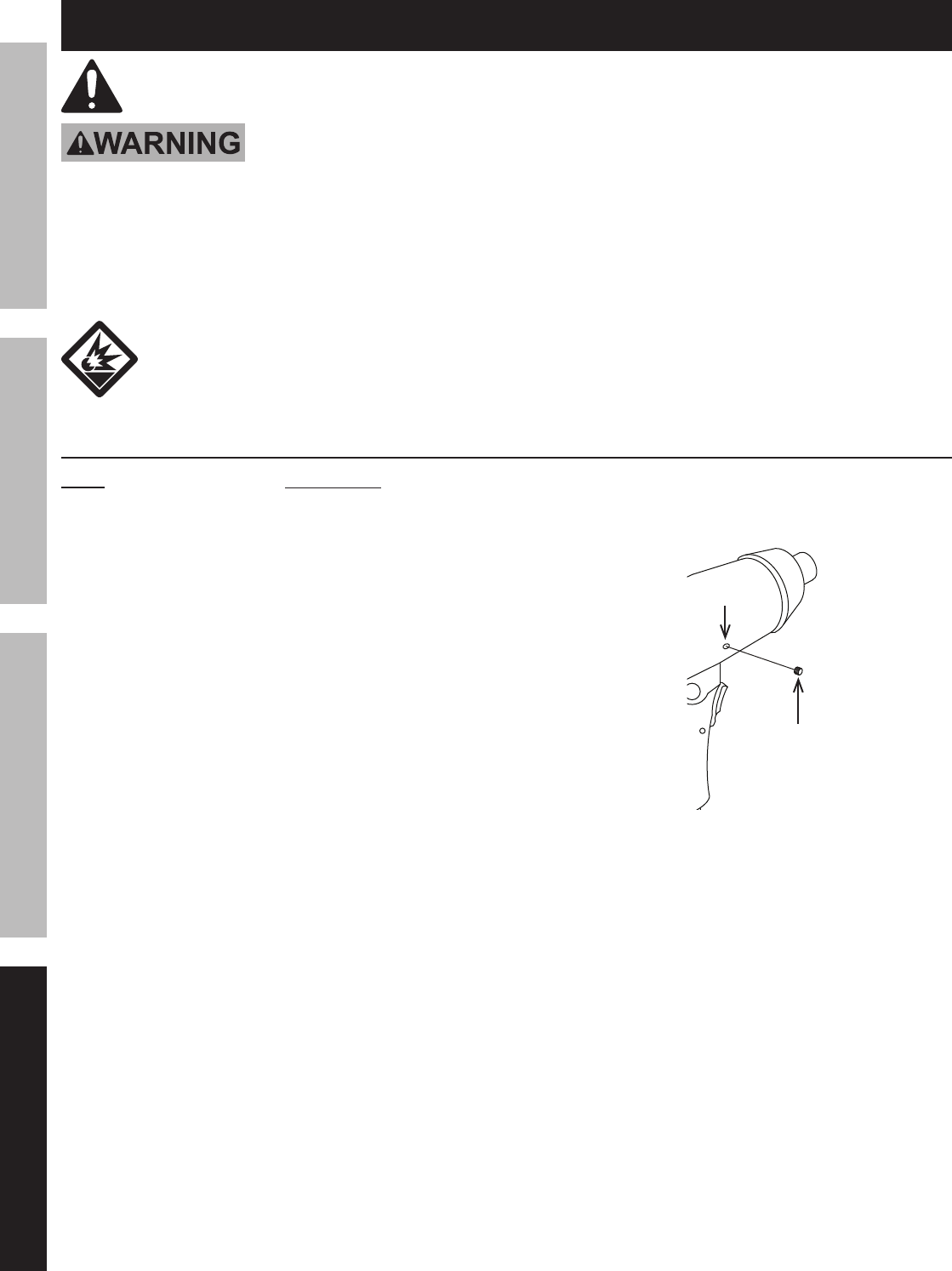

Figure D

Oil Plug

Oil Inlet

Add a high quality machine oil to the oil inlet by

removing the Oil Plug.

4. Quarterly (every 3 months) –

Tool Disassembly, Cleaning, and Inspection:

Have the internal mechanism cleaned, inspected,

and lubricated by a qualified technician.

If the vanes need replacement,

replace them all as a set.

Page 13For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

Troubleshooting

Problem Possible Causes Likely Solutions

Decreased output. 1. Not enough air pressure and/

or air flow.

2. Obstructed trigger.

3. Incorrect lubrication or

not enough lubrication.

4. Blocked air inlet screen

(if equipped).

5. Air leaking from loose housing.

6. Mechanism contaminated.

7. Vane wear or damage.

1. Check for loose connections and make sure that

air supply is providing enough air flow (CFM)

at required pressure (PSI) to the tool's air inlet.

Do not exceed maximum air pressure.

2. Clean around trigger to ensure free movement.

3. Lubricate using air tool oil and grease

according to directions.

4. Clean air inlet screen of buildup.

5. Make sure housing is properly assembled and tight.

6. Have qualified technician

clean and lubricate mechanism. Install in-line filter

in air supply as stated in Setup: Air Supply.

7. Replace all vanes.

Housing heats

during use.

1. Incorrect lubrication or

not enough lubrication.

2. Worn parts.

1. Lubricate using air tool oil and grease

according to directions.

2. Have qualified technician inspect internal

mechanism and replace parts as needed.

Severe air leakage.

(Slight air leakage

is normal,

especially on

older tools.)

1. Cross-threaded housing

components.

2. Loose housing.

3. Damaged valve or housing.

4. Dirty, worn or damaged valve.

1. Check for incorrect alignment and uneven gaps.

If cross-threaded, disassemble and

replace damaged parts before use.

2. Tighten housing assembly. If housing cannot tighten

properly, internal parts may be misaligned.

3. Replace damaged components.

4. Clean or replace valve assembly.

Follow all safety precautions whenever diagnosing or servicing the tool.

Disconnect air supply before service.

Page 14 For technical questions, please call 1-800-444-3353. Item 69490

SAFETY OPERATION MAINTENANCESETUP

Parts List and Diagram

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

Record Product's Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only,

and are not available individually as replacement parts.

Part Description Qty

1 Rubber Dust Shield 1

2 Oil Seal 1

3 Housing 1

4 Oil Plug 1

5 Anvil Bushing 1

6 Retaining Ring 1

7 O-Ring 1

8 Spacer 1

9 Anvil(3/4") 1

10 Hammer Pin 1

11 Hammer Dog 1

12 Hammer Cage 1

13 Drive Cam 1

14 Ball Bearing 1

15 Oil Seal 1

16 "O" Ring 1

17 Front End Plate 1

18 Rotor Blade 6

19 Rotor 1

20 Cylinder 1

21 Rear End Plate 1

22 Ball Bearing 1

23 Rear Gasket 1

24 Rear Cover 1

Part Description Qty

25 Washer 3

26 Screw 3

27 Rubber Cushion 1

28 Washer 4

29 Screw 4

30 Valve Bushing 1

31 Valve Stem 1

32 Screw 1

33 Spring 1

34 Pin 1

35 Screw 2

36 Exhaust Deflector 1

37 Trigger 1

39 Pin 1

40 Pin 1

41 Bushing 1

42 Valve Stem 1

43 Ball Valve 1

44 Spring 1

45 Air Inlet 1

46 Plug 1

47 O-Ring 1

48 Air Regulator 1

Page 15For technical questions, please call 1-800-444-3353.Item 69490

SAFETYOPERATIONMAINTENANCE SETUP

Assembly Diagram

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
