Page 2 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Table of Contents

Safety .................................................2

Specifications .....................................8

Setup ..................................................8

Operation ............................................9

Maintenance ......................................13

Parts List and Diagram ......................15

Warranty ............................................16

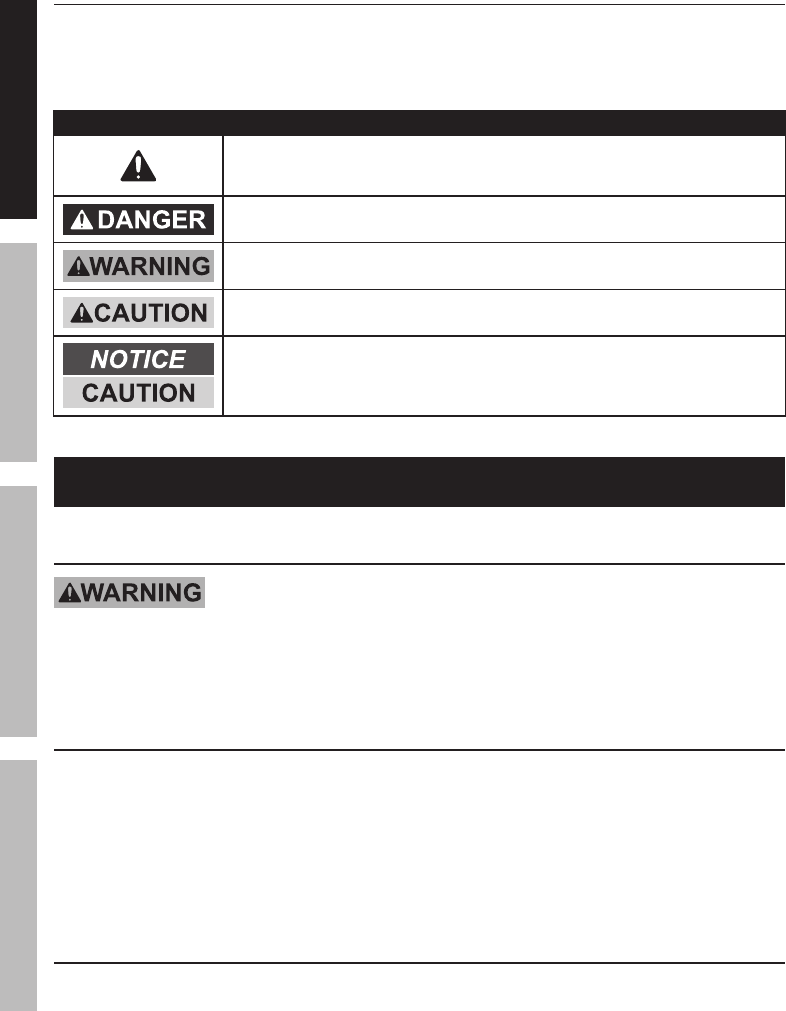

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INFORMATION

General Power Tool Safety Warnings

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

2. Do not operate power tools in

explosive atmospheres, such as in the

presence of flammable liquids, gases

or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep children and bystanders

away while operating a power tool.

Distractions can cause you to lose control.

Electrical safety

Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

Page 3For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

Personal safety

1. Stay alert, watch what you are doing

and use common sense when operating

a power tool. Do not use a power

tool while you are tired or under the

influence of drugs, alcohol or medication.

A moment of inattention while operating power

tools may result in serious personal injury.

2. Use personal protective equipment.

Always wear eye protection.

Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or

hearing protection used for appropriate

conditions will reduce personal injuries.

3. Prevent unintentional starting.

Ensure the Switch is in the off-position

before connecting to power source, picking

up or carrying the tool.

Carrying power tools with your finger on

the Switch or energizing power tools that

have the Switch on invites accidents.

4. Do not overreach. Keep proper

footing and balance at all times.

This enables better control of the power

tool in unexpected situations.

5. Dress properly. Do not wear loose clothing

or jewelry. Keep your hair, clothing

and gloves away from moving parts.

Loose clothes, jewelry or long hair

can be caught in moving parts.

6. If devices are provided for the connection

of dust extraction and collection

facilities, ensure these are connected

and properly used. Use of these devices

can reduce dust-related hazards.

7. Only use safety equipment

that has been approved by an

appropriate standards agency.

Unapproved safety equipment may

not provide adequate protection.

Eye protection must be ANSI-approved and

breathing protection must be NIOSH-approved

for the specific hazards in the work area.

Power tool use and care

1. Do not force the power tool. Use the

correct power tool for your application.

The correct power tool will do the job better

and safer at the rate for which it was designed.

2. Do not use the power tool if the Switch

does not turn it on and off.

Any power tool that cannot be controlled with

the Switch is dangerous and must be repaired.

3. Disconnect the battery pack from

the power tool before making any

adjustments, changing accessories, or

storing power tools. Such preventive

safety measures reduce the risk of

starting the power tool accidentally.

4. Store idle power tools out of the

reach of children and do not allow

persons unfamiliar with the power tool

or these instructions to operate the

power tool. Power tools are dangerous

in the hands of untrained users.

5. Maintain power tools. Check for

misalignment or binding of moving

parts, breakage of parts and any other

condition that may affect the power tool’s

operation. If damaged, have the power

tool repaired before use. Many accidents

are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean.

Properly maintained cutting tools with

sharp cutting edges are less likely to

bind and are easier to control.

7. Use the power tool, accessories and

tool bits etc. in accordance with these

instructions, taking into account the

working conditions and the work to

be performed. Use of the power tool for

operations different from those intended

could result in a hazardous situation.

Page 4 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Battery tool use and care

1. Recharge only with the charger

specified by the manufacturer. A

charger that is suitable for one type of

battery pack may create a risk of fire

when used with another battery pack.

2. Use power tools only with specifically

designated battery packs. Use

of any other battery packs may

create a risk of injury and fire.

3. When battery pack is not in use, keep

it away from other metal objects, like

paper clips, coins, keys, nails, screws

or other small metal objects, that can

make a connection from one terminal

to another. Shorting the battery terminals

together may cause burns or a fire.

4. Under abusive conditions, liquid

may be ejected from the battery;

avoid contact. If contact accidentally

occurs, flush with water. If liquid

contacts eyes, additionally seek

medical help. Liquid ejected from the

battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings Common for Grinding, Sanding,

Wire Brushing, or Polishing Operations

1. This power tool is intended to function as

a grinder, sander, wire brush, or polisher.

Read all safety warnings, instructions,

illustrations and specifications

provided with this power tool.

Failure to follow all instructions

listed below may result in electric

shock, fire and/or serious injury.

2. Use as intended only. Operations for

which the power tool was not designed may

create a hazard and cause personal injury.

3. Do not use accessories which are not

specifically designed and recommended

by the tool manufacturer. Just because

the accessory can be attached to your

power tool, it does not assure safe operation.

4. The rated speed of the accessory

must be at least equal to the maximum

speed marked on the power tool.

Accessories running faster than their

RATED SPEED can break and fly apart.

5. The outside diameter and the thickness

of your accessory must be within the

capacity rating of your power tool.

Incorrectly sized accessories cannot be

adequately guarded or controlled.

6. The arbor size of wheels, flanges, backing

pads or any other accessory must

properly fit the collet of the power tool.

Accessories with arbor holes that do not

match the mounting hardware of the power

tool will run out of balance, vibrate excessively

and may cause loss of control.

7. Do not use a damaged accessory.

Before each use inspect the accessory

such as abrasive wheels for chips and

cracks, backing pad for cracks, tear or

excess wear, wire brush for loose or

cracked wires. If power tool or accessory

is dropped, inspect for damage or install

an undamaged accessory. After inspecting

and installing an accessory, position

yourself and bystanders away from the

plane of the rotating accessory and run

the power tool at maximum no-load speed

for one minute. Damaged accessories will

normally break apart during this test time.

8. Wear personal protective equipment.

Depending on application, use face

shield, safety goggles or safety glasses.

As appropriate, wear dust mask, hearing

protectors, gloves and workshop apron

capable of stopping small abrasive or

Page 5For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

workpiece fragments. The eye protection

must be capable of stopping flying debris

generated by various operations.

The eye protection must be capable of

stopping flying debris generated by various

operations. The dust mask or respirator must

be capable of filtering out particles generated

by your operation. Prolonged exposure to

high intensity noise may cause hearing loss.

9. Keep bystanders a safe distance away

from work area. Anyone entering the

work area must wear personal protective

equipment. Fragments of workpiece or of a

broken accessory may fly away and cause

injury beyond immediate area of operation.

10. Hold power tool by insulated gripping

surfaces only, when performing an

operation where the accessory may

contact hidden wiring or its own cord.

An accessory contacting a ″live″ wire may

make exposed metal parts of the power

tool ″live″ and shock the operator.

11. Never lay the power tool down until the

accessory has come to a complete stop.

The spinning accessory may grab the surface

and pull the power tool out of your control.

12. Do not run the power tool while carrying

it at your side. Accidental contact with the

spinning accessory could snag your clothing,

pulling the accessory into your body.

13. Regularly clean the power tool’s air vents.

The motor’s fan will draw the dust inside

the housing and excessive accumulation of

powdered metal may cause electrical hazards.

14. Do not operate the power tool

near flammable materials.

Sparks could ignite these materials.

15. Do not use accessories that require

liquid coolants. Using water or other liquid

coolants may result in electrocution or shock.

16. Maintain labels and nameplates on the tool.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

17. Avoid unintentional starting.

Prepare to begin work before

turning on the tool.

18. Do not depress the spindle lock when

starting or during operation.

19. Do not leave the tool unattended when the

Battery Pack is connected. Turn off the tool,

and remove the Battery Pack before leaving.

20. The battery Charger gets hot

during use. The Charger’s heat

can build up to unsafe levels

and create a fire hazard if it

does not receive adequate

ventilation, due to an electrical fault, or if it is

used in a hot environment.

Do not place the Charger on a flammable

surface. Do not obstruct any vents on the

Charger. Especially avoid placing the

Charger on carpets and rugs; they are not

only flammable, but they also obstruct

vents under the Charger.

Place the Charger on a stable, solid,

nonflammable surface (such as a stable metal

workbench or concrete floor) at least 1 foot

away from all flammable objects, such as

drapes or walls. Keep a fire extinguisher and

a smoke detector in the area.

Frequently monitor the Charger and

Battery Pack while charging.

21. This product is not a toy.

Keep it out of reach of children.

22. People with pacemakers should

consult their physician(s) before use.

Electromagnetic fields in close proximity to

heart pacemaker could cause pacemaker

interference or pacemaker failure.

23. WARNING: Handling the cord on this product’s

Charger will expose you to lead, a chemical

known to the State of California to cause

cancer, and birth defects or other reproductive

harm. Wash hands after handling.

(California Health & Safety

Code § 25249.5, et seq.)

24. The warnings, precautions, and instructions

discussed in this instruction manual cannot

cover all possible conditions and situations

that may occur.

It must be understood by the operator that

common sense and caution are factors

which cannot be built into this product,

but must be supplied by the operator.

Page 6 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Safety Warnings Specific for Grinding and

Abrasive Cutting-off Operations

1. Use only wheel types that are

recommended for your power tool and

the specific guard designed for the

selected wheel. Wheels for which the

power tool was not designed cannot be

adequately guarded and are unsafe.

2. Wheels must be used only for

recommended applications. For example:

do not grind with the side of cut-off wheel.

Abrasive cut-off wheels are intended for

peripheral grinding, side forces applied to

these wheels may cause them to shatter.

3. Always use undamaged wheel flanges

that are of correct size and shape for your

selected wheel. Proper wheel flanges support

the wheel thus reducing the possibility of

wheel breakage. Flanges for cut-off wheels

may be different from grinding wheel flanges.

4. Do not use worn down wheels from larger

power tools. Wheel intended for larger

power tool is not suitable for the higher

speed of a smaller tool and may burst.

5. Dress appropriately.

Do not wear pants with cuffs,

shirts with open pockets, or any clothing that

can catch and hold molten metal or sparks.

Safety Warnings Specific for Wire Brushing Operations

Be aware that wire bristles are thrown by the brush even during ordinary operation.

Do not overstress the wires by applying excessive load to the brush.

The wire bristles can easily penetrate light clothing and/or skin.

Vibration Safety

This tool vibrates during use. Repeated or

long-term exposure to vibration may cause

temporary or permanent physical injury,

particularly to the hands, arms and shoulders.

To reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for

an extended period should first be examined

by a doctor and then have regular medical

check-ups to ensure medical problems are

not being caused or worsened from use.

Pregnant women or people who have impaired

blood circulation to the hand, past hand

injuries, nervous system disorders, diabetes,

or Raynaud’s Disease should not use this

tool. If you feel any medical or physical

symptoms related to vibration (such as

tingling, numbness, and white or blue fingers),

seek medical advice as soon as possible.

2. Do not smoke during use. Nicotine reduces

the blood supply to the hands and fingers,

increasing the risk of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration when there

is a choice between different processes.

5. Include vibration-free periods

each day of work.

6. Grip tool as lightly as possible

(while still keeping safe control of it).

Let the tool do the work.

7. To reduce vibration, maintain the tool as

explained in this manual. If any abnormal

vibration occurs, stop use immediately.

SAVE THESE INSTRUCTIONS.

Page 7For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

Grounding

TO PREVENT ELECTRIC SHOCK AND DEATH FROM

INCORRECT GROUNDING WIRE CONNECTION:

Check with a qualified electrician if you are in doubt as to whether the outlet is

properly grounded. Do not modify the power cord plug provided with the tool.

Never remove the grounding prong from the plug. Do not use the tool if the power cord or plug

is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit

the outlet, have a proper outlet installed by a qualified electrician.

Double Insulated Tools: Tools with Two Prong Plugs

Figure A: Outlets for 2-Prong Plug

1. Tools marked “Double Insulated” do not

require grounding. They have a special

double insulation system which satisfies OSHA

requirements and complies with the applicable

standards of Underwriters Laboratories, Inc.,

the Canadian Standard Association,

and the National Electrical Code.

2. Double insulated tools may be used in

either of the 120 volt outlets shown in the

preceding illustration. (See Figure A.)

Extension Cords

Note: Extension cords must not be used with this item’s Charger.

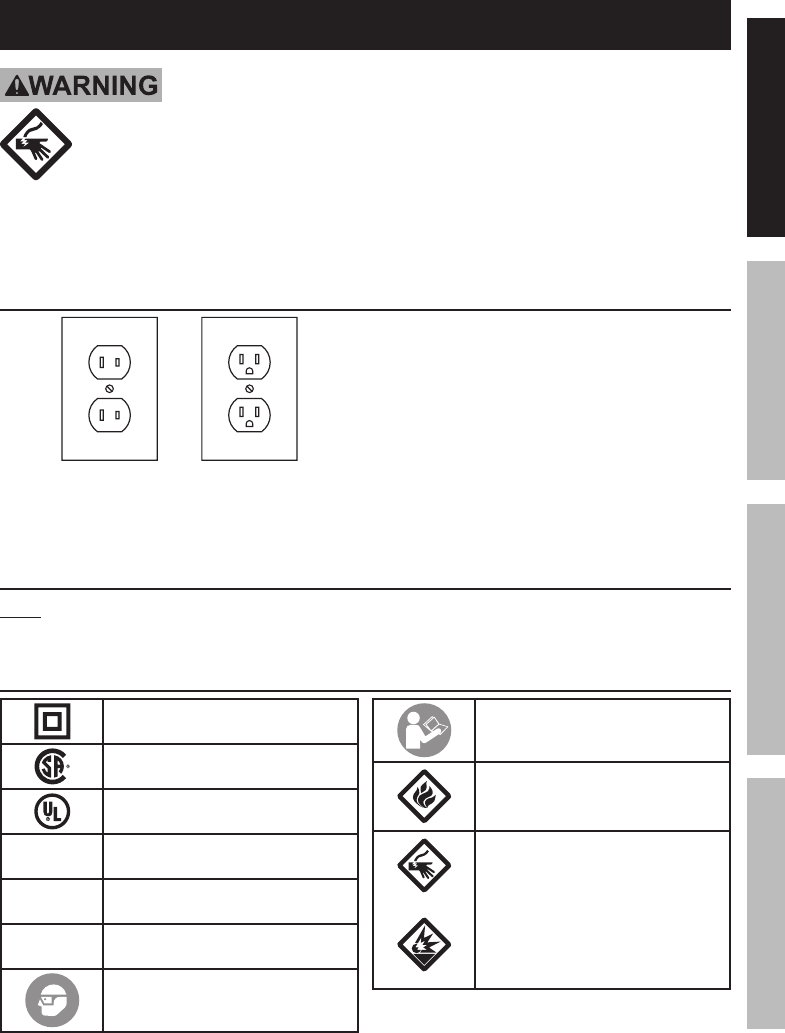

Symbology

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

V~ Volts Alternating Current

AAmperes

n0 xxxx/min. No Load Revolutions per Minute (RPM)

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

WARNING marking

concerning Risk of Fire.

Do not cover ventilation ducts.

Charge on fireproof surface only.

WARNING marking concerning

Risk of Electric Shock.

Properly connect Charger’s power

cord to appropriate outlet.

WARNING marking concerning

Risk of Explosion.

Do not puncture, short, or open

battery packs and do not charge

damaged battery packs.

Page 8 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Specifications

Battery Pack 9.6V NiCd

Charge Adapter 120 V~ to 12 VDC

Tool Speed 5,000 - 25,000 RPM

LED Source (2) CR927 3V batteries

Setup - Before Use:

Read the ENTIRE IMPORTANT SAFETY INFORMATION section

at the beginning of this manual including all text under

subheadings therein before set up or use of this product.

Functions

Charge

Base

AC

Transformer

LED

Collar

Cutoff

Discs

Drill Bits

Buffing

Mandrel

Diamond

Burrs

Grinding

Stones

Flexible

Shaft

Wrench

Sanding

Drum

Buffing

Wheels

Stone

Dresser

Disc

Mandrel

Spare

Collet

Collet

Spindle

Lock

Speed

Control

Battery

Pack

Page 9For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section

at the beginning of this manual including all text under

subheadings therein before set up or use of this product.

TOOL SET UP

Battery Charging

Charging the Battery Pack

Battery packs are normally shipped with low or

no charge to prevent potential problems during

shipment. Charge the battery pack before use.

Note: Batteries will not reach full charge the

first time they are charged. Allow several

cycles (operation followed by recharging)

before the battery will become fully charged.

WARNING! Battery explosion may cause serious

personal or property injury including death.

Charge the battery only within a 50° to 100° F

room temperature. Lower temperatures

may inhibit charging. Higher temperatures

increase chance of battery failure.

1. Charge the battery pack only with the included

Charger Base (25). Use of other chargers

may cause battery failure including explosion.

2. Ensure that the Charger Base (25) is

connected to a circuit breaker protected

120 V~, 60 Hz power supply only.

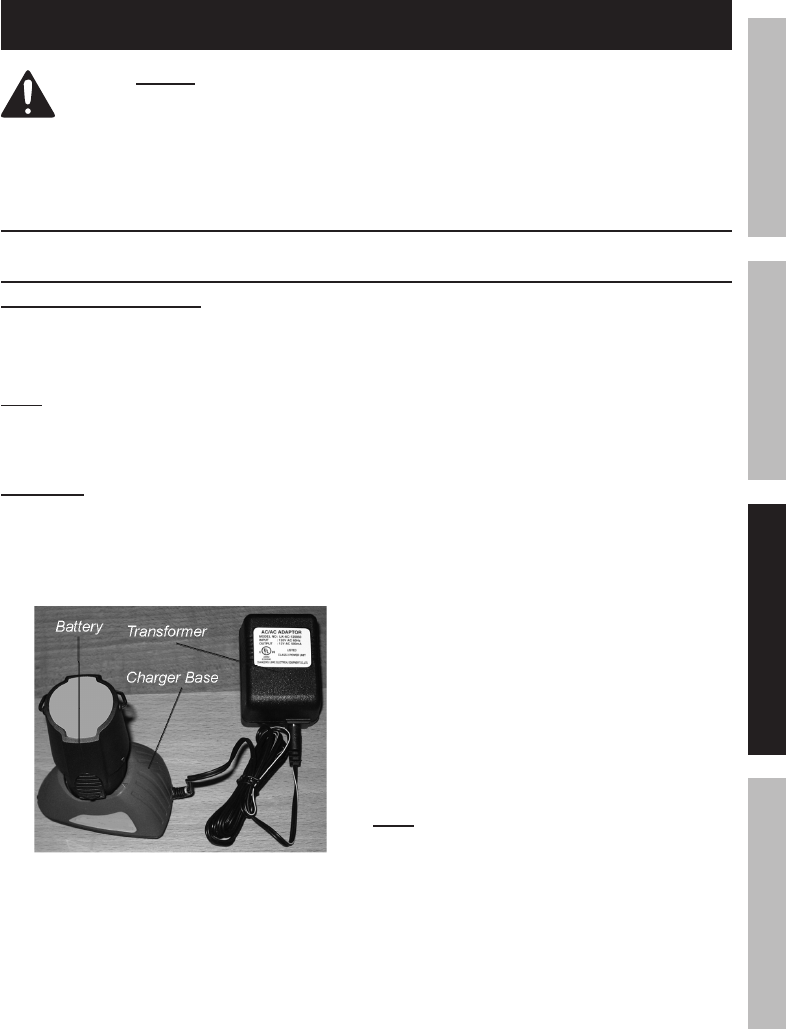

3. Connect the Charger Base to the

Transformer (24), by plugging it in as shown.

Plug the Transformer (24) into

a 120 V~ wall outlet.

4. Insert the battery pack into the

Charger Base (25) by aligning

the ribs on the Charger Base with

the grooves in the battery pack.

Press the battery pack into place.

5. Press down on the battery pack to make sure

that the contacts on the battery pack are fully

engaged with the contacts in the charger unit.

6. While being charged, the green LED will be lit,

indicating that the charger is in operation.

During recharging, the battery pack

will become slightly warm to the touch.

This is normal and not a cause for concern.

7. Do not place the battery and charger in

an environment of extreme heat or cold.

They will work best at room temperature.

Note: The Charger Base (25) will not shut off

automatically. When the battery is fully charged

(after 3 to 5 hours), unplug the battery charger

and remove the battery pack. Do not leave the

battery in the Charger Base (25) indefinitely.

Page 10 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Installing the Battery Pack

1. Place the battery pack in the tool,

aligning the arrows on the battery

pack with the arrows on the tool.

2. Press the battery pack into the tool.

Make sure that the battery pack snaps

into place, and that the battery pack is

secure in the tool before beginning use.

Removing the Battery Pack

1. Press the Release Tabs (19) on

both sides of the battery pack to

release the battery from the tool.

2. Remove the battery pack from the

tool by pulling straight out.

Inserting a Bit in the Tool

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch of the tool off, wait for the motor to stop, and remove

the battery pack before adjusting tool or installing accessories.

TO PREVENT SERIOUS INJURY FROM ACCESSORY FAILURE:

Only use accessories that are rated at or above the RPM rating of the Cordless Rotary Tool.

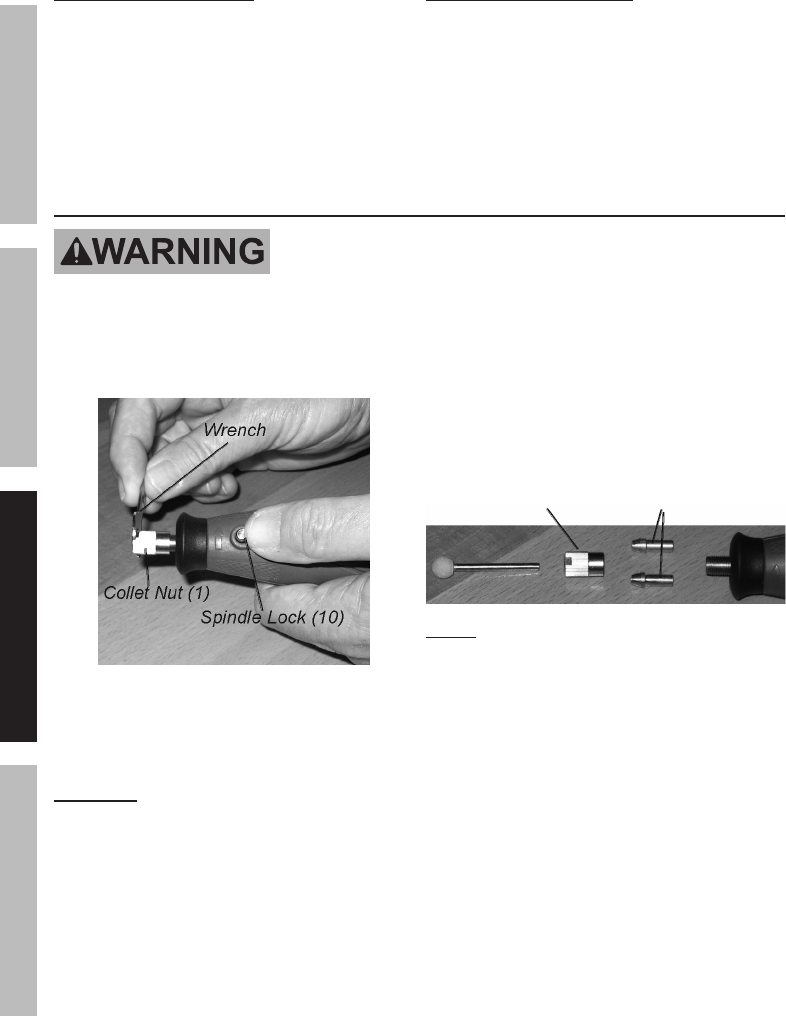

1. Depress the Spindle Lock (10).

Rotate collet until shaft is engaged by the lock.

2. Loosen the Collet Nut (1) by turning it

counterclockwise, using the Wrench provided.

WARNING! If you are changing a bit immediately

after use, be careful not to touch the bit. It may

be very hot from use, possibly causing injury.

Allow the bit time to cool before handling it.

3. To remove a bit: Pull the bit straight out

of the Collet once the Collet Nut is loose.

To insert a bit: Insert the shank end if the bit

into the Collet once the Collet Nut is loose.

Collet Nut Collets

NOTE: Your tool is provided with two collets,

1/8″ and 3/32″ diameter. These are precision

manufactured to fit comparably sized bits.

Do not force a bit into the wrong sized collet, and

do not modify a mismatched collet or bit.

Severe personal or property damage may

result from using mismatched collets or bits.

4. Tighten Collet Nut securely using the

provided wrench. Ensure that the spindle

lock is released before turning on the tool.

Page 11For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

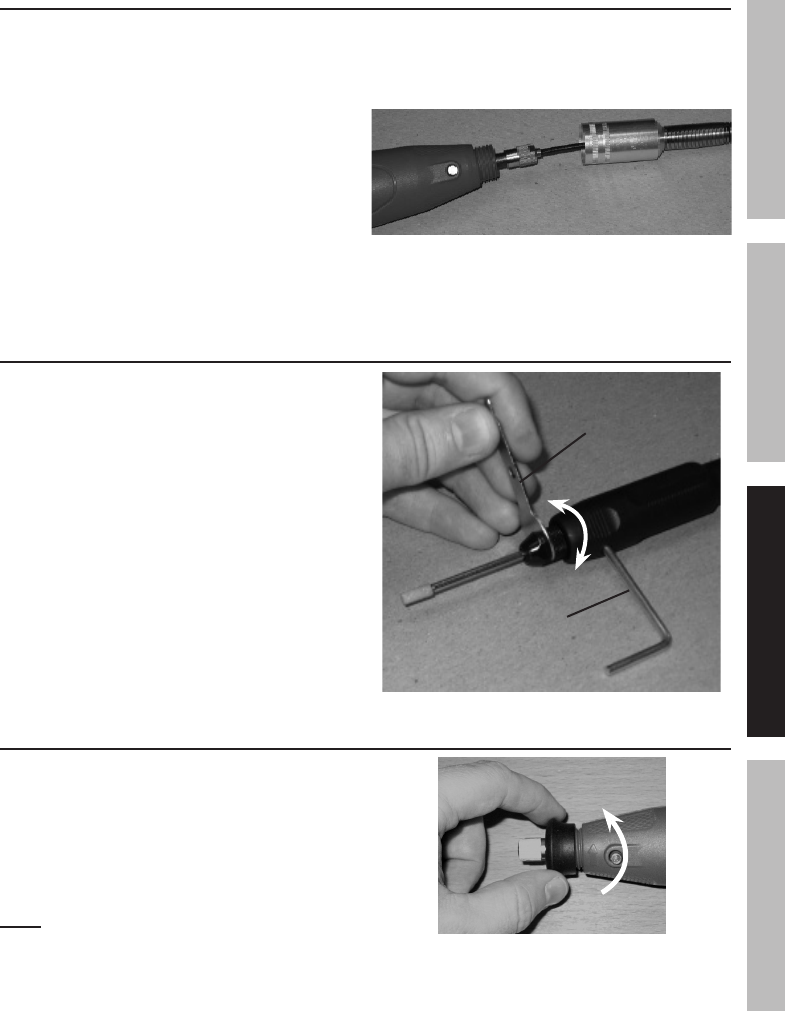

Installing the Flexible Shaft

1. Turn the Rotary Tool OFF (the “O” position),

and remove the Battery from

the Handle before attaching the

Flexible Shaft Attachment (26).

2. Remove any bits that might be installed.

Remove the Collet Lock Nut and the Collet.

3. Remove the Collar or LED Collar from the

tool Body by turning it counterclockwise.

4. Pass the end of the Flexible Shaft Core

through the Collet Nut, and into the 1/8″ Collet.

Depress the Spindle Lock (10), and

hold it down while tightening the

Collet Nut with the Wrench.

5. When the Collet Nut is tight, release

the Spindle Lock (10) and turn the

Flexible Shaft Attaching Nut clockwise

onto the tool body until hand tight.

Installing a Bit in the Flexible Shaft

1. Use the Round “L” Tool to prevent the Flexible

Shaft Core from turning by inserting it into the

hole in the side of the Flexible Shaft Handle.

2. Once “L” tool is in place, remove

the Collet locking nut by turning it

counterclockwise with the Wrench.

3. Place the bit into the appropriate sized collet.

4. Place the collet into the end of

the Flexible Shaft Handle.

5. Place the Collet Locking Nut over the bit,

and tighten it by turning clockwise.

6. Tighten in place using the Wrench

and the Round “L” Tool.

Wrench

“L” Tool

Loosen

Tighten

Installing or Removing Collars

The Front Collar (3) is interchangeable

with the LED Collar (23).

1. Remove the previous collar by

turning counterclockwise.

2. Install the LED Collar or standard

collar by turning clockwise.

Note: When installing or removing, use only

hand pressure and tighten firmly by hand.

Do not overtighten, as this may damage the part.

Page 12 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

WORKPIECE AND WORK AREA SET UP

1. Designate a work area that is clean

and well-lit. The work area must not

allow access by children or pets to

prevent distraction and injury.

2. Route the power cord along a safe route

to reach the work area without creating a

tripping hazard or exposing the power cord

to possible damage. The power cord must

reach the work area with enough extra length

to allow free movement while working.

3. Secure loose workpieces using

a vise or clamps (not included)

to prevent movement while working.

4. There must not be objects,

such as utility lines, nearby that will

present a hazard while working.

GENERAL OPERATING INSTRUCTIONS

1. Charge the Battery Pack (18) and insert it in

the tool, as described in the previous section.

2. Select an appropriate bit or attachment

for the job. Insert the bit or attachment

as described in the previous section.

3. The LED Collar may be turned on by

moving the switch on the collar.

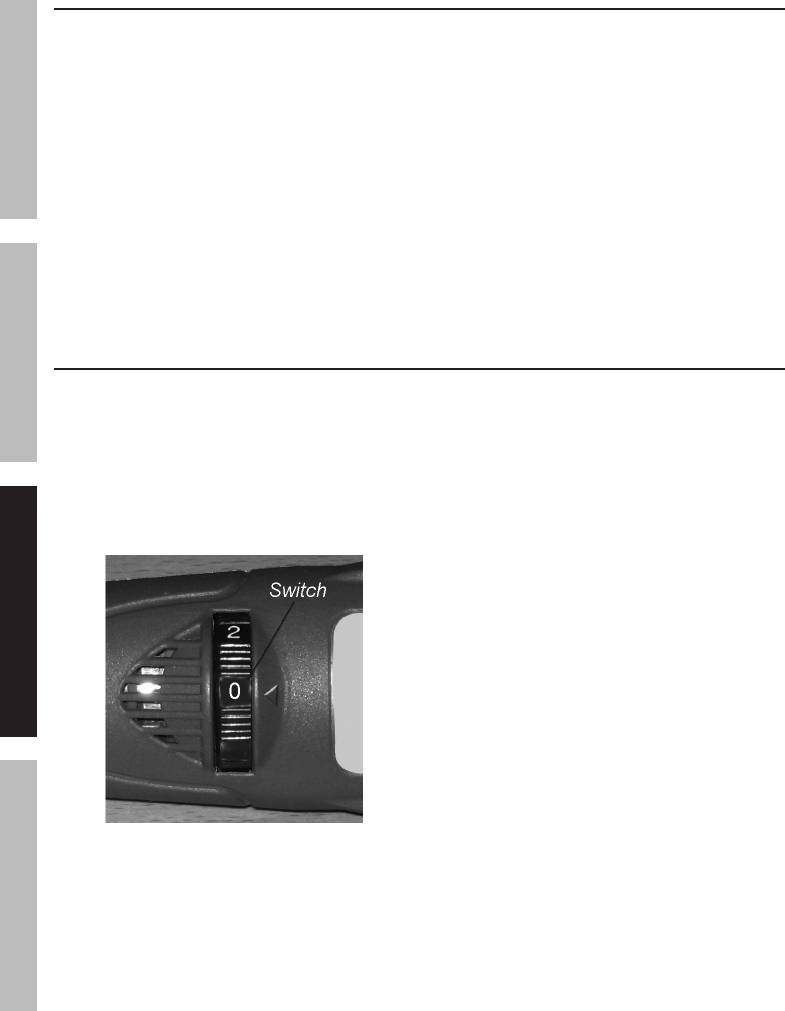

4. Rotate the Switch (8) to the ON position.

This is a variable speed switch. The tool

bit speed is dependent on the position of

the Switch. Use a speed appropriate to

the bit and the material being worked on.

In general, harder materials require faster

speeds and softer materials require slower

speeds. Relative speeds are indicated

by the numbers on the Switch.

5. Apply the tool bit to the work

material as needed.

6. When the task has been completed, stop the

tool by rotating the Switch (8) to the OFF (“O”)

position. If the LED Collar is ON, switch it OFF.

Unplug the rechargeable battery.

Remove the bit or attachment as

discussed in the previous section.

7. Store the tool, its battery, and its bits and

attachments in their case in a safe location.

Page 13For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

Maintenance and Servicing

Procedures not specifically explained in this manual must

be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch of the tool off and remove the battery pack before

performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:

Do not use damaged equipment. If abnormal noise or vibration

occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

1. BEFORE EACH USE, inspect the general

condition of the tool. Check for:

• loose hardware,

• misalignment or binding of moving parts,

• cracked or broken parts,

• damaged electrical wiring, and

• any other condition that may

affect its safe operation.

2. AFTER USE, wipe external surfaces

of the tool with clean cloth.

3. Protect the tool and its parts and

accessories from moisture and humidity.

4. Some of the bits provided are “grinding bits”

using stone abrasives. During use, these

may clog up with removed material or

lose their shape. To clean and reshape

these bits, run them against the provided

Dressing Stone. The Dressing Stone will

abrade away the clogging materials and will

reshape the Grinding Bits as appropriate.

5. NiCd BATTERY MUST BE RECYCLED

OR DISPOSED OF PROPERLY.

Do not short, incinerate or open battery.

6. Dispose of used batteries properly.

Consult your local hazardous waste

authority for disposal guidelines.

7. To change the batteries in the LED Collar:

a. Remove it from the Rotary Tool.

b. Using a cross head screwdriver, open the

battery compartment.

c. Replace the batteries with the same type as

originally installed (Two CR-927, 3V

batteries). Be sure to match the polarity

marking in the battery compartment.

Page 14 For technical questions, please call 1-800-444-3353. Item 69946

SAFETY OPERATION MAINTENANCESETUP

Troubleshooting

Problem Possible Causes Likely Solutions

Tool will not start. 1. Cord not connected.

2. No power at outlet.

3. Internal damage or wear.

(Carbon brushes or

switch, for example.)

1. Check that cord is plugged in.

2. Check power at outlet. If outlet is unpowered,

turn off tool and check circuit breaker.

If breaker is tripped, make sure circuit is right

capacity for tool and circuit has no other loads.

3. Have technician service tool.

Performance

decreases

over time.

1. Accessory dull

or damaged.

2. Carbon brushes

worn or damaged.

1. Keep cutting accessories sharp.

Replace as needed.

2. Have qualified technician replace brushes.

Excessive noise

or rattling.

Internal damage or wear.

(Carbon brushes or

bearings, for example.)

Have technician service tool.

Overheating. 1. Forcing tool to

work too fast.

2. Accessory dull

or damaged.

3. Blocked motor

housing vents.

1. Allow tool to work at its own rate.

2. Keep cutting accessories sharp.

Replace as needed.

3. Wear ANSI-approved safety goggles and

NIOSH-approved dust mask/respirator while

blowing dust out of motor using compressed air.

Follow all safety precautions whenever diagnosing or servicing the tool.

Disconnect power supply before service.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY

DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER

OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE

BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR

THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE

MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS

REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS,

AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF

HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO,

OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 15For technical questions, please call 1-800-444-3353.Item 69946

SAFETYOPERATIONMAINTENANCE SETUP

819

18

12 17

21

22

20

2

3

413 14

15

6

7

910

11

516

1

Part Description

1 Collet nut

2 Collet

3 Front end nut

4 Driver shaft

5 Bearing

6 Sleeve

7 Motor

8 Switch

9 Shaft lock spring

Part Description

10 Shaft lock Button

11 Left cover

12 Left mark

13 Rubber buffer

14 Right cover

15 Screw

16 Right mark

17 Battery cover

18 Battery

Part Description

19 Release tab

20 Back moving spring

21 End cover

22 Hanger

23 LED Collar*

24 Transformer*

25 Charger Base*

26 Flexible Shaft*

*Not shown.

Parts List and Diagram

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only,

and are not available individually as replacement parts.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality

and durability standards, and warrants to the original purchaser that this product is free from

defects in materials and workmanship for the period of 90 days from the date of purchase. This

warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or

accidents, repairs or alterations outside our facilities, criminal activity, improper installation,

normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,

injuries to persons or property, or for incidental, contingent, special or consequential damages

arising from the use of our product. Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation of exclusion may not apply to

you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with

transportation charges prepaid. Proof of purchase date and an explanation of the complaint

must accompany the merchandise. If our inspection verifies the defect, we will either repair or

replace the product at our election or we may elect to refund the purchase price if we cannot

readily and quickly provide you with a replacement. We will return repaired products at our

expense, but if we determine there is no defect, or that the defect resulted from causes not

within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also

have other rights which vary from state to state.
