FLOOR NAILER
CLEAT & STAPLE TYPE
Model
97586
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 10g
Page 2 For technical questions, please call 1-800-444-3353. SKU 97586
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions, assembly, operating,
inspection, maintenance and cleaning
procedures. Write the product’s serial number
in the back of the manual near the assembly
diagram (or month and year of purchase if
product has no number). Keep this manual
and the receipt in a safe and dry place for
future reference.
Safety Alert Symbol and Signal
Words
In this manual, on the labeling, and
all other information provided with
this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible
injury or death.
DANGER indicates a
hazardous situation
which, if not avoided, will result
in death or serious injury.
WARNING indicates a
hazardous situation
which, if not avoided, could
result in death or serious injury.
CAUTION, used with
the safety alert
symbol, indicates a hazardous
situation which, if not avoided,
could result in minor or moderate
injury.
NOTICE is used to
address practices not
related to personal injury.
CAUTION, without the
safety alert symbol, is
used to address practices not
related to personal injury.
Symbol Denitions
Symbol Property or statement
PSI Pounds per square inch of pressure
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at standard
conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk of
Eye Injury. Wear ANSI-approved safety
goggles with side shields.
Warning marking concerning Risk of
Puncture Injury. Wear heavy-duty work
gloves.
Read the manual before set-up and/or
use.
WARNING marking concerning Risk of
Hearing Loss. Wear hearing protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk of
Explosion.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO
PERSONS
Page 3For technical questions, please call 1-800-444-3353.SKU 97586
WARNING – When using tools, basic
precautions should always be followed,
including the following:
General
a. To reduce the risks of electric shock,
re, and injury to persons, read all the
instructions before using the tool.
Work area
a. Keep the work area clean and well
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
b. Do not operate the tool in explosive
atmospheres, such as in the presence
of ammable liquids, gases, or dust.
The tool is able to create sparks resulting
in the ignition of the dust or fumes.
c. Keep bystanders, children, and
visitors away while operating the tool.
Distractions are able to result in the loss
of control of the tool.
Personal safety
a. Stay alert. Watch what you are
doing and use common sense when
operating the tool. Do not use the
tool while tired or under the inuence
of drugs, alcohol, or medication. A
moment of inattention while operating
the tool increases the risk of injury to
persons.
b. Dress properly. Do not wear loose
clothing or jewelry. Contain long hair.
Keep hair, clothing, and gloves away
from moving parts. Loose clothes,
jewelry, or long hair increases the risk
of injury to persons as a result of being
caught in moving parts.
c. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables
better control of the tool in unexpected
situations.
d. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must be
used for the applicable
conditions. Wear heavy-duty work
gloves during use.
e. Always wear eye protection.
Wear ANSI-approved safety
goggles with side shields.
f. Always wear hearing
protection when using the
tool. Prolonged exposure to
high intensity noise is able to
cause hearing loss.
g. Do not attach the hose or tool to your
body. Attach the hose to the structure to
reduce the risk of loss of balance if the
hose shifts.
h. Always assume that the tool contains
fasteners. Do not point the tool toward
yourself or anyone whether it contains
fasteners or not.
i. WARNING – Do not re fastener on
top of another fastener. This is able to
cause the fastener to be deected and
hit someone, or cause the tool to react
and result in a risk of injury to persons.
Tool use and care
a. Use clamps or another practical way
to secure and support the workpiece
to a stable platform. Holding the work
by hand or against the body is unstable
and can lead to loss of control.
b. Do not force the tool. Use the correct
tool for the application. The correct tool
Page 4 For technical questions, please call 1-800-444-3353. SKU 97586
will do the job better and safer at the rate
for which the tool is designed.
c. Disconnect the tool from the air
source before making adjustments,
doing tool maintenance, clearing
jams, touching the safety nosepiece,
leaving work area, loading, or
unloading the tool. Such precautionary
measures reduce the risk of injury to
persons.
d. Store the tool when it is idle out of
reach of children and other untrained
persons. A tool is dangerous in the
hands of untrained users.
e. Maintain the tool with care. A properly
maintained tool reduces the risk of
binding and is easier to control.
f. Check for misalignment or binding
of moving parts, breakage of parts,
and any other condition that affects
the tool’s operation. If damaged,
have the tool serviced before using.
Many accidents are caused by poorly
maintained tools. There is a risk of
bursting if the tool is damaged.
g. Use only accessories that are
identied by the manufacturer for
the specic tool model. Use of an
accessory not intended for use with the
specic tool model, increases the risk of
injury to persons.
h. Use only those fasteners listed in the
Specications chart of this manual.
Fasteners not identied for use with this
tool by the tool manufacturer are able to
result in a risk of injury to persons or tool
damage when used in this tool.
Service
a. Tool service must be performed only
by qualied repair personnel.
b. When servicing a tool, use only
identical replacement parts. Use only
authorized parts.
c. Use only the lubricants supplied
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 200 PSI. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury to
persons. Use only clean, dry, regulated
compressed air at the rated pressure or
within the rated pressure range as
marked on the tool. Always verify prior to
using the tool that the air source has
been adjusted to the rated air pressure
or within the rated air-pressure range.
b. Never use oxygen, carbon dioxide,
combustible gases or any bottled gas
as an air source for the tool. Such
gases are capable of explosion and
serious injury to persons.
SAVE THESE
INSTRUCTIONS.
SPECIFIC SAFETY
INSTRUCTIONS
1. Operators and others in work area
MUST wear ANSI-approved safety
goggles with side shields during use.
The employer is responsible to enforce
the use of eye protection by the operator
and others in the work area.
2. Avoid unintentional misring. Always
use caution to avoid accidentally striking
the Head Cap (10). This product does
Page 5For technical questions, please call 1-800-444-3353.SKU 97586
not feature a safety mechanism to avoid
misres. Do not point the tool towards
yourself or anyone whether it contains
nails/staples or not.
3. Always assume the tool contains
fasteners.
4. Do not point the tool toward yourself or
anyone whether it contains fasteners or
not.
5. Do not actuate the tool unless the tool is
placed rmly against the workpiece.
6. Respect the tool as a working implement.
7. No horseplay. This tool is not a toy and
can be deadly if misused.
8. Do not remove, tamper with, or otherwise
cause the tool operating controls to
become inoperable.
9. Do not operate the tool if any portion of
the tool operating controls is inoperable,
disconnected, altered, or not working
properly.
10. Disconnect the tool from the air supply
when:
a. Unattended.
b. Performing any maintenance or repair.
c. Clearing a jam.
d. Moving the tool to a new location.
11. Do not make any modications to this
tool.
12. Refer to the tool maintenance
instructions for detailed information on
the proper maintenance of the tool.
13. Fire fasteners into an appropriate
work surface only. Do not attempt to
re fasteners into surfaces too hard to
penetrate. Do not drive fasteners on top
of other fasteners, or at too steep of an
angle. Fasteners can ricochet causing
personal injury.
14. Do not re fasteners too close to the
edge of a workpiece. They may split the
workpiece and y free, causing personal
injury.
15. Keep clear of the workpiece near the
area being fastened. Fasteners may
bend sideways during ring, causing
them to exit the workpiece at an
unexpected point, causing personal
injury.
16. Transport tool safely. Always disconnect
air supply when moving the tool. Carry
the tool by the handle and avoid contact
with the head cap.
17. Hold tool away from head and body.
During operation the tool may kick back
causing injury.
18. Do not re fasteners into a workpiece
that has people, utility lines, or other
objects behind or inside it.
19. Keep balance while using this tool.
Keep area below clear if working in
an elevated location, and secure air
hose to prevent falls from bystanders
accidentally pulling on it.
20. Obey the manual for the air compressor
used to power this tool.
21. Install an in-line shutoff valve to allow
immediate control over the air supply
in an emergency, even if a hose is
ruptured.
22. Do not engrave or stamp anything into
the housing to prevent weakening of the
housing.
23. WARNING: Some dust created by
power sanding, sawing, grinding,
drilling, and other construction activities,
contains chemicals known [to the State
Page 6 For technical questions, please call 1-800-444-3353. SKU 97586
of California] to cause cancer, birth
defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from chemically
treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals: work in a well ventilated
area, and work with approved safety
equipment, such as those dust masks
that are specially designed to lter out
microscopic particles. (California Health
& Safety Code § 25249.5, et seq.)
24. WARNING: The brass components of
this product contain lead, a chemical
known to the State of California to cause
birth defects (or other reproductive
harm).
(California Health & Safety code §
25249.5, et seq.)
25. The warnings and precautions discussed
in this manual cannot cover all possible
conditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
Vibration Precautions
This tool vibrates during use. Repeated
or long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly
or for an extended period should rst
be examined by a doctor and then have
regular medical check-ups to ensure
medical problems are not being caused
or worsened from use. Pregnant
women or people who have impaired
blood circulation to the hand, past hand
injuries, nervous system disorders,
diabetes, or Raynaud’s Disease
should not use this tool. If you feel any
symptoms related to vibration (such as
tingling, numbness, and white or blue
ngers), seek medical advice as soon as
possible.
2. Do not smoke during use. Nicotine
reduces the blood supply to the hands
and ngers, increasing the risk of
vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when
there is a choice between different
processes.
5. Include vibration-free periods each day
of work.
6. Grip tool as lightly as possible (while still
keeping safe control of it). Let the tool
do the work.
7. To reduce vibration, maintain tool as
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.
Page 7For technical questions, please call 1-800-444-3353.SKU 97586
SPECIFICATIONS
Product Applications Designed for 1/2” or 3/4” Floor Panels with interchangeable Spacer
Fastener Sizes Cleat Nails: 1-1/2” to 2” Long / 1/2” Crown Staples: 1” to 2” long
Fastener Gauges Cleat Nails: 16 Gauge / Crown Staples: 15-1/2 Gauge
Recommended Air Pressure 70 PSI to 90 PSI: Do Not Exceed 90 PSI
Air Inlet Size 1/4” - 18 NPT
Magazine Capacity 100 Cleat Nails or 80 Crown Staples (Top Loading)
Accessories 3mm Hex Key Wrench / 4 mm Hex Key Wrench
5mm Ball End Hex Wrench / Bottle with Air Tool Oil
Safety Goggles / Hammer
Spacer for 1/2” Boards
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
Unpacking
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon as
possible.
• This air tool may be shipped with a
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen, carbon
dioxide, combustible gases, or
any other bottled gas as a power
source for this tool.
Quick
Coupler

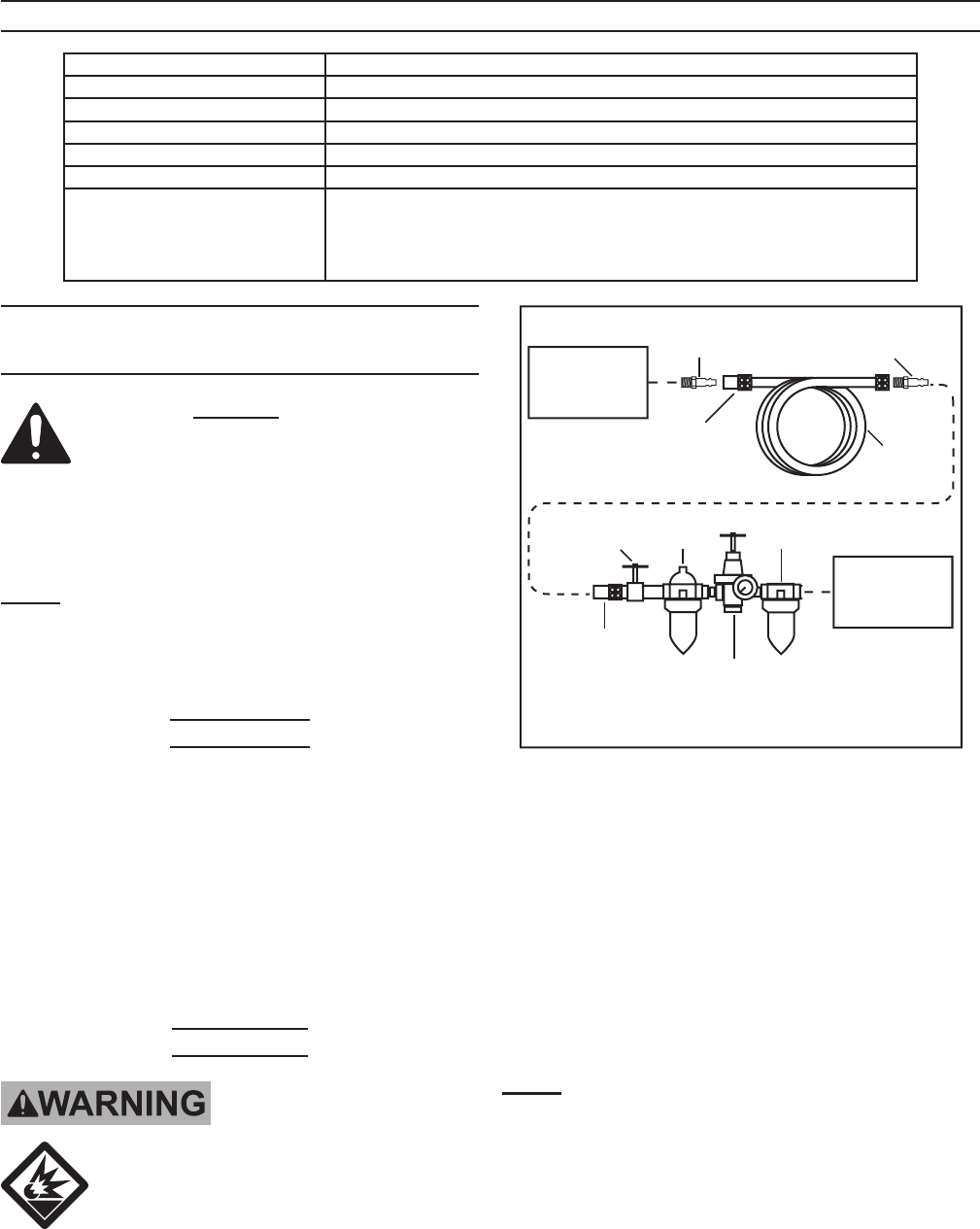

Recommended Air Line Components
Regulator with
Pressure Gauge
Quick
Coupler Air Hose
on Reel
Valve FilterOiler
Coupler
Plug
Tool
Air
Compressor
Coupler
Plug
1. Incorporate a lter, regulator with
pressure gauge, oiler, in-line shutoff
valve, and quick coupler for best service,
as shown in the diagram above. An in-
line shutoff ball valve is an important
safety device because it controls
the air supply even if the air hose is
ruptured. The shutoff valve should be
a ball valve because it can be closed
quickly.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil into the airline connection before
operation. Add a few more drops after
each hour of continual use.
2. Attach an air hose to the compressor’s
air outlet. Connect the air hose to the air
Page 8 For technical questions, please call 1-800-444-3353. SKU 97586
inlet of the tool. Other components, such
as a coupler plug and quick coupler, will
make operation more efcient, but are
not required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick coupler
on the tool. Such a coupler contains
an air valve that will allow the air tool to
retain pressure and operate accidentally
after the air supply is disconnected.
Note: Air ow, and therefore tool
performance, can be hindered by
undersized air supply components.
3. The air hose must be long enough to
reach the work area with enough extra
length to allow free movement while
working.
4. Close the in-line safety valve between
the compressor and the tool.
5. Turn on the air compressor according to
the manufacturer’s directions and allow it
to build up pressure until it cycles off.
6. Adjust the air compressor’s output
regulator so that the air output is enough
to properly power the tool, but the output
will not exceed the tool’s maximum
air pressure at any time. Adjust the
pressure gradually, while checking the
air output gauge to set the right pressure
range.
7. The air pressure setting must not exceed
job site regulations/restrictions.
8. Inspect the air connections for leaks.
Repair any leaks found.
9. If the tool will not be used at this time,
turn off and detach the air supply
and safely discharge any residual air
pressure.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion after
disconnecting to ensure that the tool is
disconnected and unpowered.
Page 9For technical questions, please call 1-800-444-3353.SKU 97586
Loading
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL OPERATION,
BEFORE LOADING:
• Wear ANSI-approved safety
goggles with side shields. Other
people in the work area must also
wear ANSI-approved impact safety
goggles with side shields.
• Release the trigger.
• Detach the air supply.
• Attempt to re the Tool into a
piece of scrap wood to ensure
that it is disconnected and is
incapable of ring any fasteners.
MOVABLE
MAGAZINE (50)
FIXED
MAGAZINE (35)

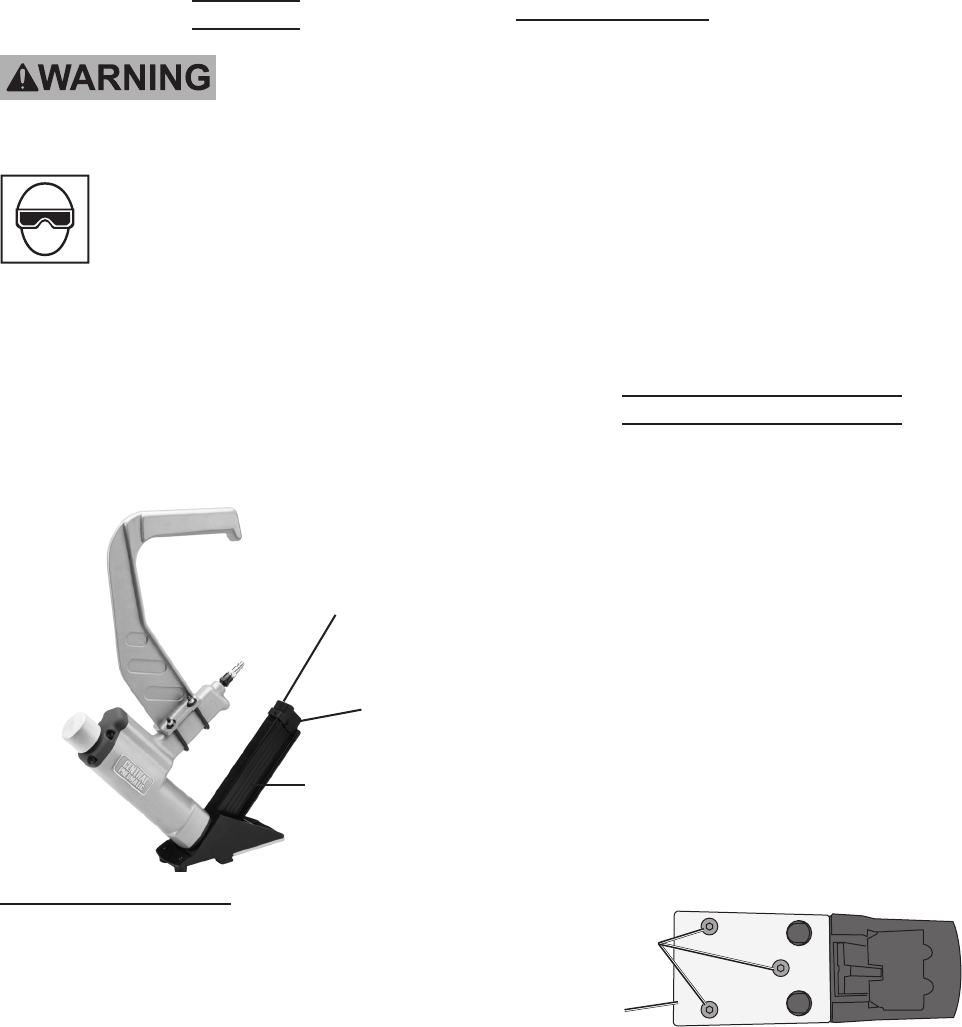

LATCH (44)
Loading Cleat Nails:
1. Press the Latch (44) and pull the
Movable Magazine (50) back.
2. Place a full clip of the desired size cleat
nails (1-1/2” to 2” long) in the Fixed
Magazine (35) from the side. The head
of the cleat nails should be inserted into
the notch on the Fixed Magazine (35).
Up to 100 cleat nails may be loaded in
the Fixed Magazine.
3. Push the Movable Magazine (50) forward
and secure the Movable Magazine in
place with the Latch (44).
Loading Staples:
1. Press the Latch (44) and pull the
Movable Magazine (50) back.
2. Place a full clip of the desired size
staples (1” to 2” long) in the Fixed
Magazine (35) from the top. Up to
80 staples may be loaded in the Fixed
Magazine.
3. Push the Movable Magazine (50) forward
and secure the Movable Magazine in
place with the Latch (44).
Changing the Spacer
The Nailer is equipped with a factory pre-
installed Spacer for 3/4” Boards (32) and an
additional uninstalled Spacer for 1/2” Boards
(58). To change the Spacer:
1. Disconnect the Nailer from its air supply.
2. Empty the Moveable Magazine (50)
completely.
3. Attempt to re the Nailer into a piece
of scrap wood to ensure that it is
disconnected and is incapable of ring
any fasteners.
4. Set the tool on its side to expose the
three Screws (33).
5.
SCREW (33)
SPACER
(32/58)
Remove the three Screws (33). Then,
remove the current Spacer (32/58).
6. Align the three mounting holes in the
desired Spacer (32/58) with the three
threaded mounting holes.
7. Secure the Spacer (32/58) to the tool,
using the three Screws (33).
Page 10 For technical questions, please call 1-800-444-3353. SKU 97586
GENERAL OPERATING
INSTRUCTIONS
This tool DOES NOT
use a SAFETY
MECHANISM.
Extreme caution must be used
whenever this tool is connected to
an air supply. If the tool is
dropped, or if the Head Cap (10)
is accidentally struck, then the tool
will re a nail or staple, potentially
causing SEVERE PERSONAL
INJURY.
1. Attach the Floor Nailer to the air supply
at the Quick Connector. Start your
compressor and check the pressure,
making sure it is set at the recommended
70-90 PSI. Do not exceed the
maximum 90 PSI.
2. WARNING! Keep your feet clear of the
Floor Nailer.
3. NOTE: Before using on a oor, test the
tool on a scrap piece of wood. Adjust
the driving depth by providing more or
less air pressure. Do not exceed the
maximum air pressure (PSI).
4. Hold the Arm (56) securely and press the
Spacer (32) to the work surface, making
sure the Spacer is over the nail/staple
target position.

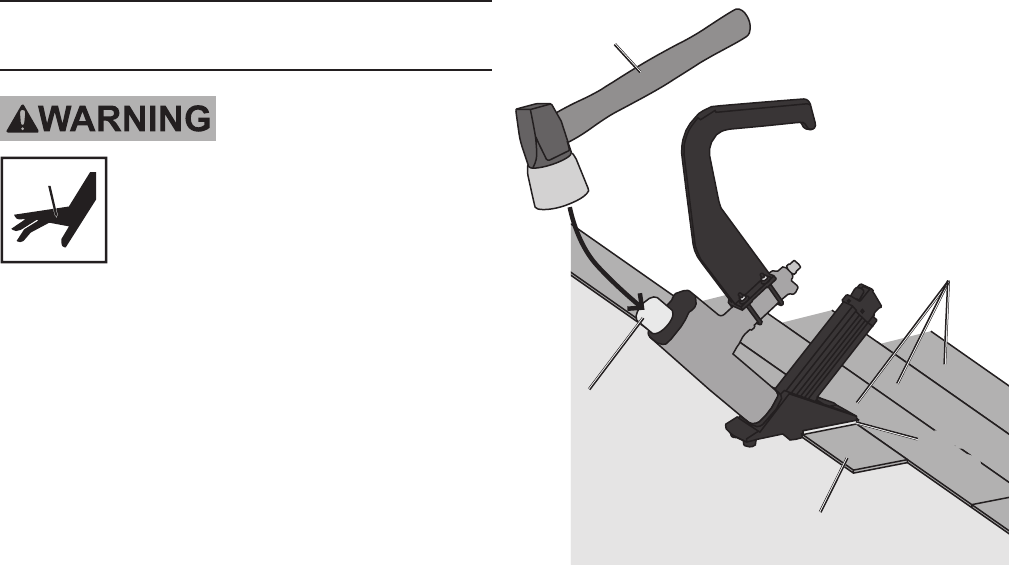

5.
HAMMER
(57)
SPACER
(32)
HEAD
CAP (10)
WOOD
SUBFLOOR
BOARD BEING
INSTALLED
PREVIOUSLY
INSTALLED
BOARDS
Press down hard so that the Spacer (32)
is rmly contacting the work surface.
Then, using the Hammer (57), strike
the Head Cap (10) rmly to drive the
fastener into the work surface. Lift the
Floor Nailer off the work surface. Repeat
this process until the job is completed.
6. When nished, disconnect the Floor
Nailer from the air supply source.
7. WARNING! After disconnecting the
Floor Nailer from the air compressor,
there could still be enough air pressure
to re the Floor Nailer. After the air hose
is disconnected, always re the Floor
Nailer into scrap wood repeatedly to
make sure all of the compressed air is
expended.
8. When nished, make sure to store the
Floor Nailer in a clean, dry, safe location
out of reach of children and other
unauthorized people.
Page 11For technical questions, please call 1-800-444-3353.SKU 97586
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual must
be performed only by a qualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL OPERATION,
BEFORE ANY MAINTENANCE OR
REPAIRS ARE DONE (including
clearing jams):
• Wear ANSI-approved safety
goggles with side shields. Other
people in the work area must also
wear ANSI-approved impact safety
goggles with side shields.
• Detach the air supply.
• Attempt to re the Tool into a
piece of scrap wood to ensure
that it is disconnected and is
incapable of ring any fasteners.
• Empty the magazine and leave
it open during service. The
Magazine is spring-loaded and
may cause parts or a fastener to
y out of the Tool.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise, vibration, or
leaking air is detected, have the
problem corrected before further
use.
TO PREVENT EXPLOSION:
Lubricate only with specied
lubricants. Lubricate the air inlet
using only pneumatic tool oil.
Lubricate the internal mechanism
using only white lithium grease.
Other lubricants may damage the
mechanism and may be highly
ammable, causing an explosion.
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular operation
of the air-operated tool.
Daily - Air Supply Maintenance:
Every day, perform maintenance on the
air supply according to the component
manufacturers’ instructions. The
lubricator’s oil level needs to be
maintained and the moisture lter must
be regularly drained. Performing routine
maintenance on the air supply will allow
the tool to operate more safely and will
also reduce wear on the tool.
Clearing Jams
1. To remove a jammed cleat nail/staple,
disconnect the tool from its air supply, lift
the Latch (44) and slide the Moveable
Magazine (50) back until it locks in place.
Then, lean the Floor Nailer back.
2. Remove all cleat nails/staples from the
Moveable Magazine (50). Then press
the Latch (44) and slide the Moveable
Magazine forward all the way, making
sure it locks in place.
3. Attempt to re the Floor Nailer into
a piece of scrap wood to ensure it is
disconnected and is incapable of ring
any nails/staples.
4. With the Blade Guide (26) facing away
from you, remove the four Screws (24).
Then remove the Blade Guide to expose
the jammed cleat nail/staple.
5. Pull out the jammed fastener and the
remainder of the fastener strip that is
still in the magazine. Dispose of the
remaining fastener strip; it may be bent
or damaged in some other way.
Page 12 For technical questions, please call 1-800-444-3353. SKU 97586
6. Replace the Blade Guide (26), and four
Screws (24).
7. Reload the tool with cleat nails/staples.
Then, reconnect the air supply hose to
the tool.
8. Press the Blade Guide (26) against
a piece of scrap wood, and test re
the Floor Nailer several times while
checking for proper operation. If the
tool is properly ring, you may continue
using the tool. If the tool fails to perform
properly, immediately discontinue use
and have the tool repaired by a qualied
service technician.
9. If you are unable to clear the fastener
jam using the method prescribed above,
the tool should be taken to a qualied
service technician for proper servicing.
Troubleshooting
Problem Possible Causes Likely Solutions
Air leaking in
Cylinder Cap.
1. Loose nose Screw (13).
2. Seal (17) is cracked or worn.
1. Tighten and recheck.
2. Replace Seal.
Lack of power.
Slow to cycle.
Low power when
shooting and
returning.
1. Tool is too dry.
2. Air pressure too low.
3. Exhaust blocked.
1. Add about 3 drops of pneumatic tool oil into the Air
Plug (55).
2. Set air supply between 70 PSI and 90 PSI.
3. Clean exhaust channel.
Shooting no
fasteners, or
intermittent
feeding.
1. Damaged Pusher Spring (39).
2. Wrong size of fasteners.
3. Fixed Magazine (35) or Bafe
Plate (23) is dirty.
1. Replace Spring.
2. Use proper fasteners.
3. Clean Fixed Magazine and Babble Plate.
Fastener is
jammed in tool.
1. Driver channel is worn.
2. Piston Assy. (9) broken/worn.
3. Bent fasteners.
1. Replace Bafe Plate (23).
2. Replace Piston Assy.
3. Remove Bent fasteners. Replace with Cleat Nails
1-1/2 to 2” long or Staples 1” to 2” long.
Severe air
leakage.
(Slight air leakage
is normal,
especially on
older tools.)
1. Cross-threaded housing
components.
2. Loose housing.
3. Damaged valve or housing.
4. Dirty, worn or damaged valve.
1. Check for incorrect alignment and uneven gaps. If
cross-threaded, disassemble and replace damaged
parts before use.
2. Tighten housing assembly. If housing cannot tighten
properly, internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve assembly.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 13For technical questions, please call 1-800-444-3353.SKU 97586
Part Description
1 Cylinder Bushing
2 Plunger
3 O-Ring 19.2×1.8
4 O-Ring 15.9×1.8
5 Poppet
6 O-Ring 42.5×5.4
7 O-Ring 17.5×2.6
8 O-Ring 57.4×3.5
9Piston Assembly
10 Head Cap
11 Screw M5×16
12 Cylinder Cap
13 Screw M4×20
14 Spring Washer 4
15 Poppet Actuator
16 O-Ring 54.2×3.5
17 Seal
18 Body
19 Bumper
20 Nose
21 Screw M3×18
22 Spring Pin 3×14
23 Bafe Plate
Part Description
24 Screw M5×16
25 Spring Washer 5
26 Blade Guide
27 Limited Nail Plate
28 Shoe
29 Joint Guider
30 Bushing
31 Screw M6×16
32 Spacer for 3/4” Boards
33 Screw M6×12
34 Spring Pin 3×20
35 Fixed Magazine
36 Spring Washer 6
37 Screw M6×35
38 Feeder Shoe
39 Spring
40 Bafe Lock
41 Screw
42 Magazine Plate
43 Spring
44 Latch
45 Washer 3
46 Screw M3×5
Part Description
47 Spring Washer 3
48 Leaf Spring
49 Screw M3×8
50 Movable Magazine
51 Spring Pin 2.5×11
52 Nut
53 Washer
54 Clamp Screw
55 Air Plug
56 Arm
57 Hammer
58 Spacer for 1/2” Boards
60 Screw M3×6
61 Magnet
62 Rail
63 Screw M4×16
64 Limited Plate
65 Nut M4
66 Spring Washer 4
67 Bushing
68 Spring Pin 3×12
69 Washer 4
70 Hook
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PARTS LIST
REV 10g
Page 14 For technical questions, please call 1-800-444-3353. SKU 97586

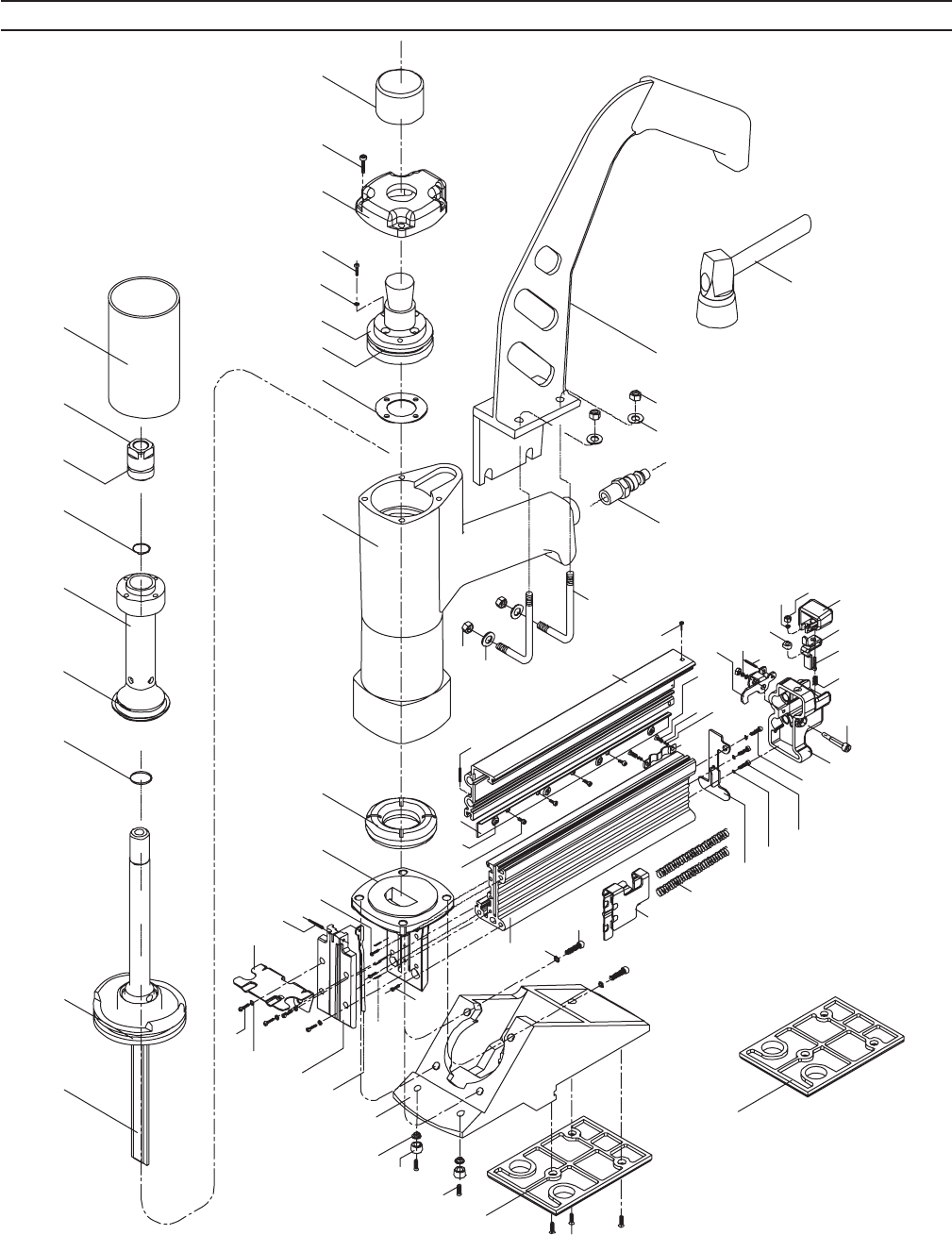

ASSEMBLY DIAGRAM
1
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2425
26
27
28
29
30
31
32
33
34
11
35 36
37 38
39
4014 13
24 42
41
43
63
64
44
65
66
67
68
69
70
49
50
51
62
61
60
53
52
54
55
53
52
56
57
46
45
48
47
58
2
3
4
5
6
7
8
9
REV 10g
Page 15For technical questions, please call 1-800-444-3353.SKU 97586
90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and
durability standards, and warrants to the original purchaser that this product is free from defects
in materials and workmanship for the period of 90 days from the date of purchase. This warranty
does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities, criminal activity, improper installation, normal wear
and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons
or property, or for incidental, contingent, special or consequential damages arising from the use
of our product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection veries the defect, we will either repair or replace the product at our
election or we may elect to refund the purchase price if we cannot readily and quickly provide you
with a replacement. We will return repaired products at our expense, but if we determine there is
no defect, or that the defect resulted from causes not within the scope of our warranty, then you
must bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights which vary from
state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
