Page2 For technical questions, please call 1-800-444-3353. Item92649
Specifications
Blue(Low)Gauge 0-120PSI
BlueHose 1/4IN.FFLx4FT.9IN.
Red(High)Gauge 0-500PSI
RedHose 1/4IN.FFLx4FT.9IN.
YellowHose 1/2IN.ACMEx4FT.9IN.
GaugeAccuracy +/-2%
SetincludesQuickDisconnectValves
WARNING! ONLY USE R-134a REFRIGERANT WITH THIS A/C MANIFOLD GAUGE SET.
Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
1. Keep work area clean and well lit.
2. Keep children away.Childrenmustnever
beallowedintheworkarea.Donotletthem
handletheA/CManifoldGaugeSet.
3. Therearecertainapplicationsforwhichthis
A/CManifoldGaugeSetwasdesigned.
Itwilldothejobbetterandmoresafely
attherateforwhichitwasintended.
DonotmodifythisA/CManifoldGaugeSet
anddonotusethisA/CManifoldGaugeSet
forapurposeforwhichitwasnotintended.
4. Dress properly.Donotwearlooseclothing
orjewelryastheycanbecaughtinmoving
engineparts.Protectiveclothesandnonskid
footweararerecommendedwhenworking.
Wearrestrictivehaircoveringtocontainlonghair.
5. WearANSI-approvedimpactsafetygoggles
andheavy-dutyworkglovesatall
timesduringsetupanduse.
6. Do not overreach.
Keepproperfootingandbalanceatalltimes.
7. Maintain gauge with care.Keepthe
A/CManifoldGaugeSetcleanforbetterand
saferperformance.Inspecthoses
periodically,andifdamaged,havethem
repairedbyaqualifiedtechnician.
8. Stay alert.Watchwhatyouaredoing,
usecommonsense.Donotoperate
gaugewhenyouaretired.
9. Check for damaged parts.Beforeusingany
gauge,anypartthatappearsdamagedshould
becarefullycheckedtodeterminethatitwill
operateproperlyandperformitsintendedfunction.
Checkforalignmentandbindingofmovingparts;
anybrokenpartsormountingfixtures;andany
otherconditionthatmayaffectproperoperation.
Anypartthatisdamagedshouldbeproperly
repairedorreplacedbyaqualifiedtechnician.
10.Replacement parts and accessories.
Whenservicing,useonlyidentical
replacementparts.Useofanyotherpartswill
voidthewarranty.Onlyuseaccessoriesintended
forusewiththisgauge.Approvedaccessories
areavailablefromHarborFreightTools.
11. Do not operate gauge if under the influence of
alcohol or drugs.Readwarninglabelsiftaking
prescriptionmedicinetodetermineif
yourjudgmentorreflexesareimpaired
whiletakingdrugs.Ifthereisany
doubt,donotoperatethegauge.
12.Maintenance.Foryoursafety,
serviceandmaintenanceshouldbe
performedregularlybyaqualifiedtechnician.
13.Industrial applications must follow
OSHA requirements.

Page3For technical questions, please call 1-800-444-3353.Item92649
14.People with pacemakers should consult
their physician(s) before using this product.
Electromagneticfieldsincloseproximity
toaheartpacemakercouldcause
interferencetoorfailureofthepacemaker.
Inaddition,peoplewithpacemakersshould
observethefollowing:Cautionisnecessary
whennearthecoil,sparkplugcables,
ordistributorofarunningengine.
15.WARNING:Thebrasscomponentsof
thisproductcontainlead,achemical
knowntotheStateofCaliforniatocause
birthdefects(orotherreproductiveharm).
(CaliforniaHealth&SafetyCode
§25249.5,et seq.)
16.Thewarnings,cautions,andinstructionsdiscussed
inthisinstructionmanualcannotcoverallpossible
conditionsandsituationsthatmayoccur.Itmust
beunderstoodbytheoperatorthatcommonsense
andcautionarefactors,whichcannotbebuiltinto
thisproduct,butmustbesuppliedbytheoperator.
17.ONLY USE REFRIGERANT R-134a WITH
THIS A/C MANIFOLD GAUGE SET.
18.Do not start an engine in an enclosed area
(like a garage). A running gasoline engine
generates carbon monoxide; carbon monoxide
is a colorless, odorless gas that can cause
serious injury and death, if inhaled.
19.Keep hands away from the moving parts
and hot parts of vehicle’s engine.
20.Read and understand all instructions
and safety precautions as outlined in
the vehicle manufacturer’s manual for
air condition servicing. Only qualified
mechanics that are trained in servicing air
conditioning systems should use this product.
21.When warming up an engine in preparation
for checking of the A/C system, make sure
the vehicle’s transmission is placed in “Park”
and the emergency brake is applied.
22.Refrigerant can cause severe frostbite if it
comes in contact with skin.
Follow the safety warnings and instructions
provided by the refrigerant manufacturer.
23.Do not disconnect any pressurized hose.
Pressurizedrefrigerantcancausesevereinjury.
24.Use caution when opening an air conditioning
system line or can of refrigerant.
Whenchecking,alwaysplaceatowelaround
theservicevalvesoftheairconditioningunit
andRedandBlueCouplers(22and23).
25.Keep refrigerant away from excessive
heat as pressure in the container could
increase enough to rupture the can.
26.Do not discharge refrigerant into the
atmosphere. Capturerefrigerantintoan
approvedrecoverycontainer(notincluded),and
thendisposeofproperly.Contactyourlocal
HazardousWasteAuthorityfordisposalguidelines.
27.Only use refrigerant in a manner
consistent with the air conditioning
system’s repair manual.
SAVE THESE INSTRUCTIONS.

Page4 For technical questions, please call 1-800-444-3353. Item92649
Applications
1. TheRedHPGauge(3)isusedto
measurehigh-pressurecompressor
dischargesidepressure.
2. TheBlueLPGauge(5)isusedtomeasure
low-pressuresidesuctionorpressure.
3. TheManifoldValves(11)controltheflowof
refrigeranttoandfromtheYellowHose(18),
alsocalledtheChargeHose.
4. TheCouplerValves(22,23)control
theflowtotheGauges(3,5)fromthe
RedandBlueHoses(17,19).
5. TheSightGlass(13)allowschecking
theappearanceoftherefrigerant.
6. TheYellowHose(18),alsocalledCharge
Hosecanbeusedthreeways:
a. Refrigerantrecovery/evacuation.
b. Charging(filling)thesystem.
c. Forchecking,attachtheYellowHose(18)
tobothbranchesoftheT-fitting(16)
toreducetheriskofleaks.
7. Thechargevalveallowsforsimultaneous
connectionofarefrigerantrecoverysystem.
8. GeneralinstructionsforA/Cserviceareoutlined
inthismanual.Specificproceduresforeach
individualsystemtypeandmodelshould
bereferencedinthevehiclemanufacturer’s
specificA/Csystemservicemanual.
9. SeeOperationinstructionsthatfollow.

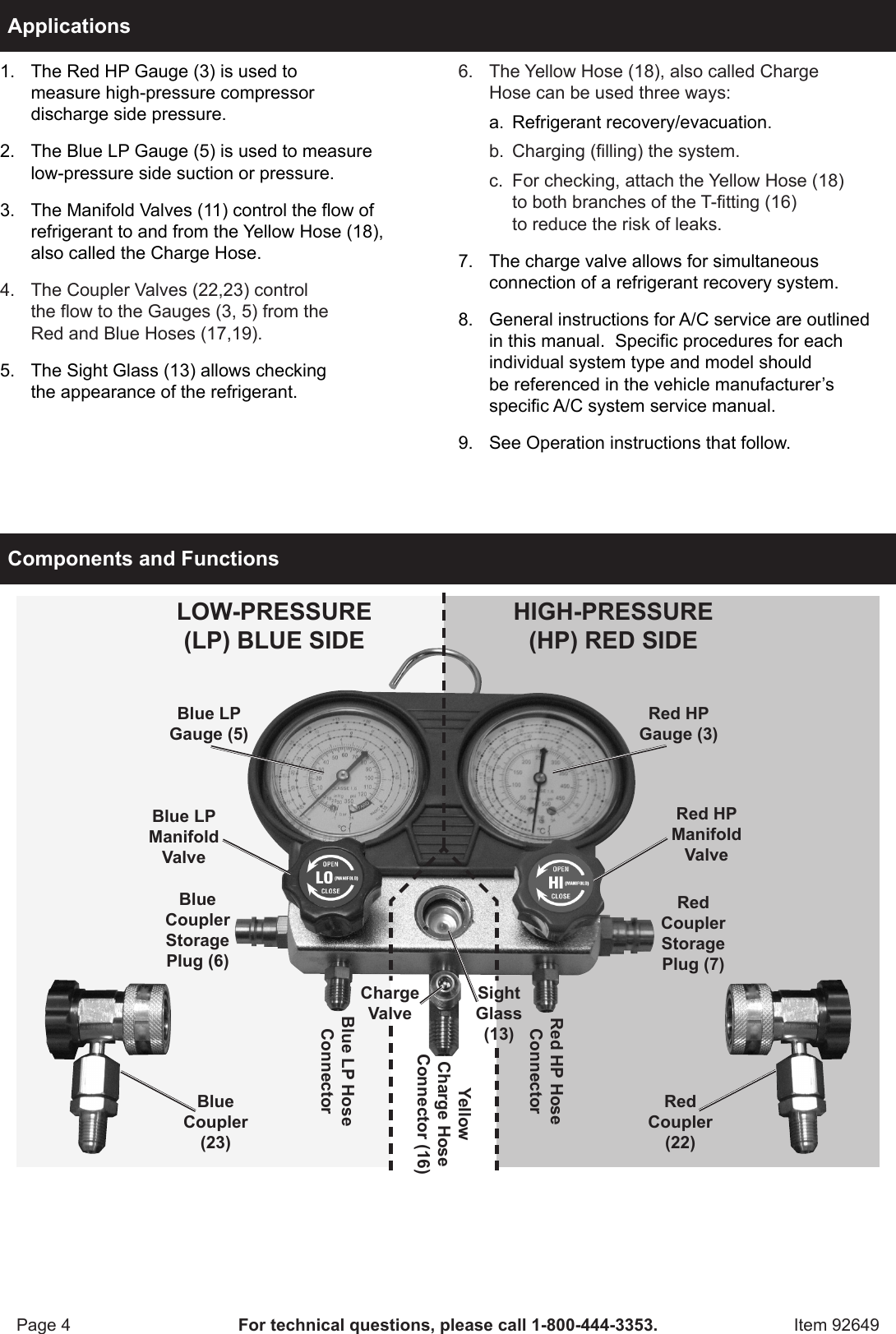

Components and Functions
Blue
Coupler
Storage
Plug (6)
Blue
Coupler
(23)
Red
Coupler
(22)
Red
Coupler
Storage
Plug (7)
Red HP
Gauge (3)
Blue LP
Gauge (5)
Red HP
Manifold
Valve
Blue LP
Manifold
Valve
Yellow
Charge Hose
Connector (16)
Red HP Hose
Connector
Blue LP Hose
Connector
Sight
Glass
(13)
Charge
Valve
LOW-PRESSURE
(LP) BLUE SIDE
HIGH-PRESSURE
(HP) RED SIDE

Page5For technical questions, please call 1-800-444-3353.Item92649

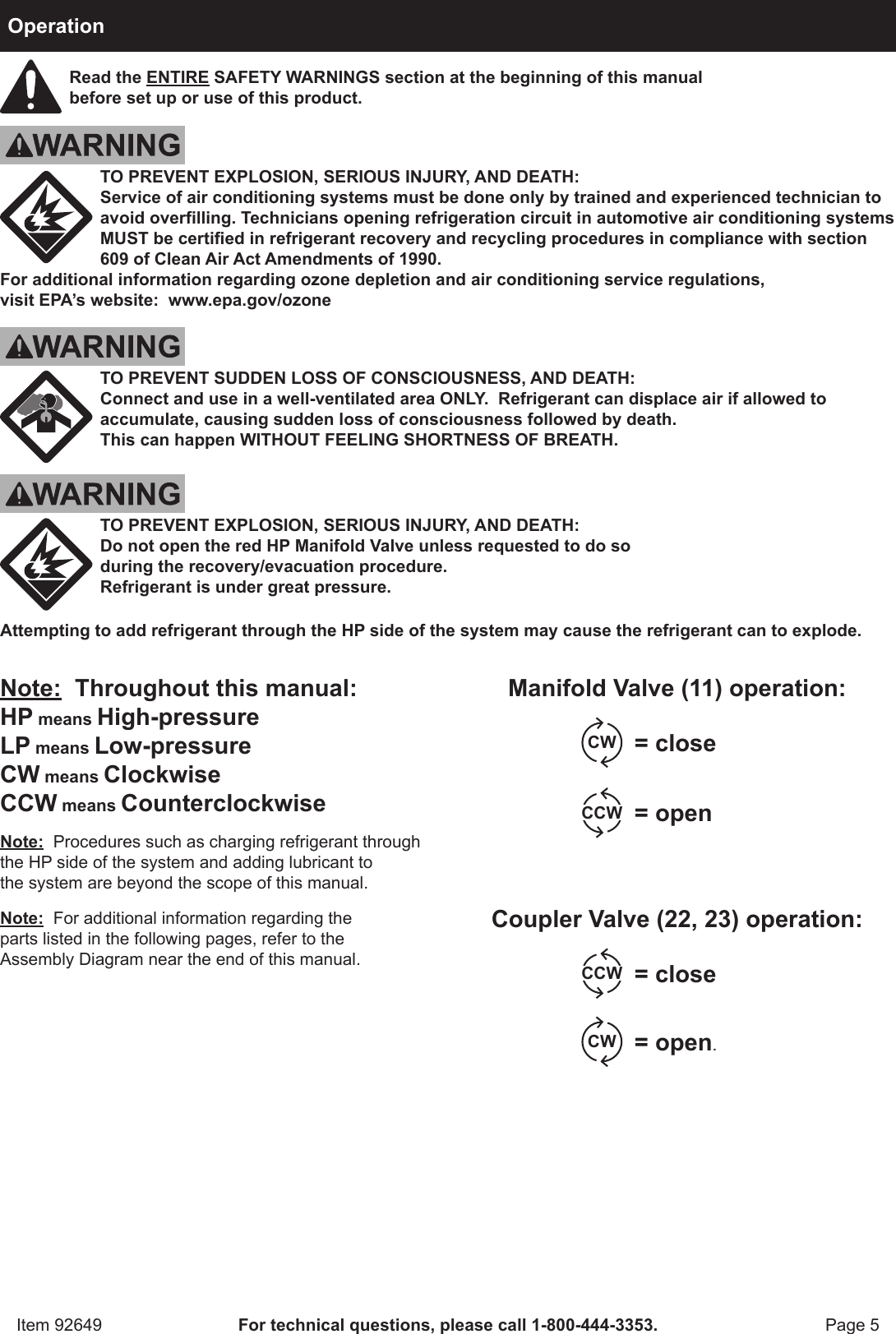

Operation
Read the ENTIRE SAFETY WARNINGS section at the beginning of this manual
before set up or use of this product.
TO PREVENT EXPLOSION, SERIOUS INJURY, AND DEATH:
Service of air conditioning systems must be done only by trained and experienced technician to
avoid overfilling. Technicians opening refrigeration circuit in automotive air conditioning systems
MUST be certified in refrigerant recovery and recycling procedures in compliance with section
609 of Clean Air Act Amendments of 1990.
For additional information regarding ozone depletion and air conditioning service regulations,
visit EPA’s website: www.epa.gov/ozone
TO PREVENT SUDDEN LOSS OF CONSCIOUSNESS, AND DEATH:
Connect and use in a well-ventilated area ONLY. Refrigerant can displace air if allowed to
accumulate, causing sudden loss of consciousness followed by death.
This can happen WITHOUT FEELING SHORTNESS OF BREATH.
TO PREVENT EXPLOSION, SERIOUS INJURY, AND DEATH:
Do not open the red HP Manifold Valve unless requested to do so
during the recovery/evacuation procedure.
Refrigerant is under great pressure.
Attempting to add refrigerant through the HP side of the system may cause the refrigerant can to explode.
Note: Throughout this manual:
HP means High-pressure
LP means Low-pressure
CW means Clockwise
CCW means Counterclockwise
Note:Proceduressuchaschargingrefrigerantthrough
theHPsideofthesystemandaddinglubricantto
thesystemarebeyondthescopeofthismanual.
Note:Foradditionalinformationregardingthe
partslistedinthefollowingpages,refertothe
AssemblyDiagramneartheendofthismanual.
Manifold Valve (11) operation:
CW = close
CCW = open
Coupler Valve (22, 23) operation:
CCW = close
CW = open.

Page6 For technical questions, please call 1-800-444-3353. Item92649
WARNING
To prevent SERIOUS INJURY
and DEATH:
1.WearANSI-approvedsafetygoggles
andheavy-dutyworkgloves
duringsetupanduse.
2.DONOTOPENeither
ManifoldValveunlessdirectedto
doso;otherwise,refrigerantleaks,
A/Csystemcontamination,
andhazardousexpulsionof
pressurizedrefrigerantmayoccur.
3.Useinwell-ventilatedareaonly.
4.Keepgaugeandhosesaway
frommovingengineparts.
5.Turnoffvehicle’sengineand
A/Csystembeforeattachinggauge.
6.Thefollowingprocedureistobe
performedonlybyatechnician
certifiedinrefrigerantrecovery
andrecyclingprocedures,
asexplainedpreviously.

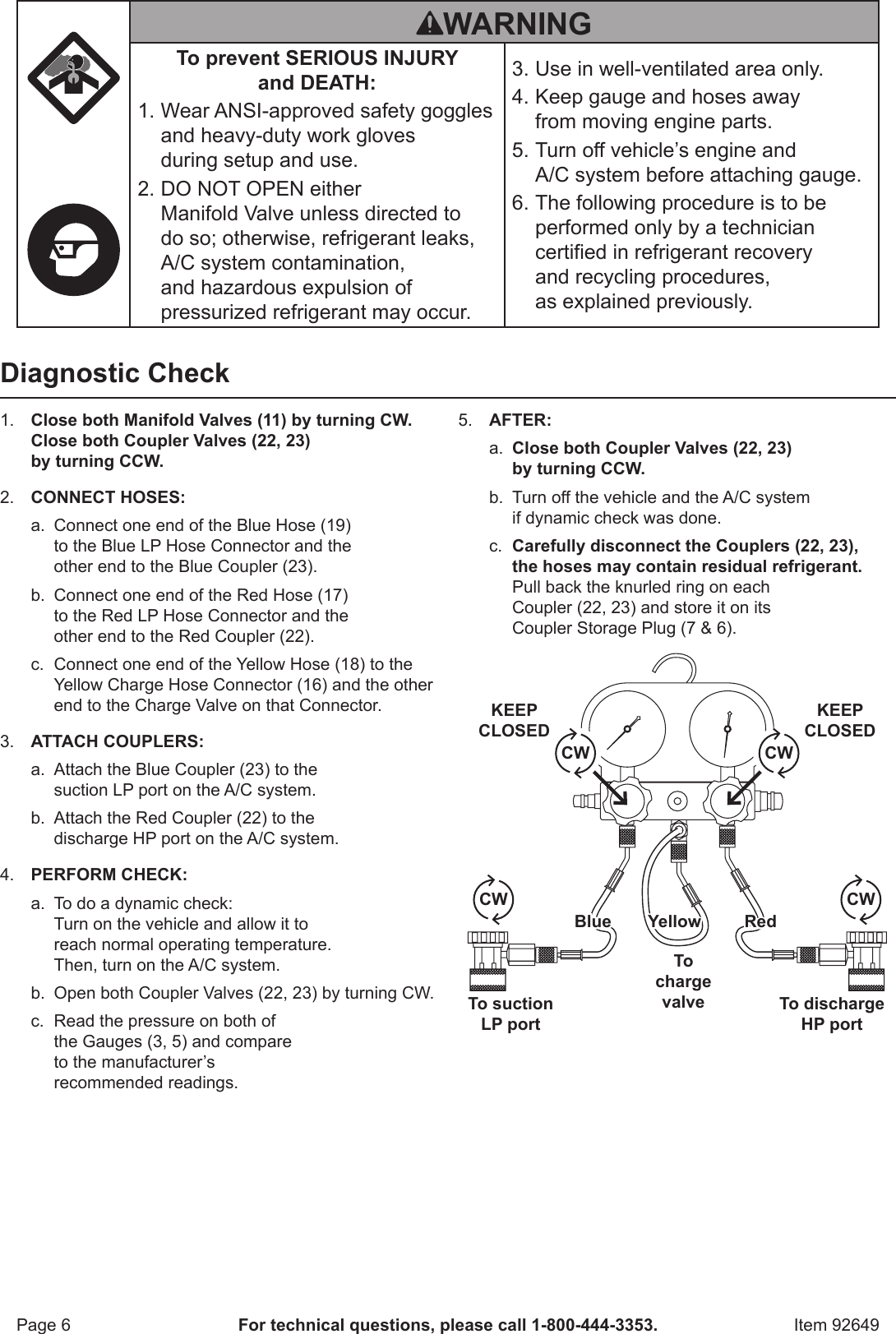

Diagnostic Check
1. Close both Manifold Valves (11) by turning CW.
Close both Coupler Valves (22, 23)
by turning CCW.
2. CONNECT HOSES:
a. ConnectoneendoftheBlueHose(19)
totheBlueLPHoseConnectorandthe
otherendtotheBlueCoupler(23).
b. ConnectoneendoftheRedHose(17)
totheRedLPHoseConnectorandthe
otherendtotheRedCoupler(22).
c. ConnectoneendoftheYellowHose(18)tothe
YellowChargeHoseConnector(16)andtheother
endtotheChargeValveonthatConnector.
3. ATTACH COUPLERS:
a. AttachtheBlueCoupler(23)tothe
suctionLPportontheA/Csystem.
b. AttachtheRedCoupler(22)tothe
dischargeHPportontheA/Csystem.
4. PERFORM CHECK:
a. Todoadynamiccheck:
Turnonthevehicleandallowitto
reachnormaloperatingtemperature.
Then,turnontheA/Csystem.
b. OpenbothCouplerValves(22,23)byturningCW.
c. Readthepressureonbothof
theGauges(3,5)andcompare
tothemanufacturer’s
recommendedreadings.
5. AFTER:
a. Close both Coupler Valves (22, 23)
by turning CCW.
b. TurnoffthevehicleandtheA/Csystem
ifdynamiccheckwasdone.
c. Carefully disconnect the Couplers (22, 23),
the hoses may contain residual refrigerant.
Pullbacktheknurledringoneach
Coupler(22,23)andstoreitonits
CouplerStoragePlug(7&6).
To discharge
HP port
To suction
LP port
To
charge
valve
CW CW
KEEP
CLOSED
KEEP
CLOSED
CWCW
Blue Yellow Red

Page7For technical questions, please call 1-800-444-3353.Item92649
WARNING
To prevent SERIOUS INJURY
and DEATH:
1.WearANSI-approvedsafetygoggles
andheavy-dutyworkgloves
duringsetupanduse.
2.DONOTOPENeither
ManifoldValveunlessdirectedto
doso;otherwise,refrigerantleaks,
A/Csystemcontamination,
andhazardousexpulsionof
pressurizedrefrigerantmayoccur.
3.Useinwell-ventilatedareaonly.
4.Keepgaugeandhosesaway
frommovingengineparts.
5.Turnoffvehicle’sengineand
A/Csystembeforeattachinggauge.
6.Thefollowingprocedureistobe
performedonlybyatechnician
certifiedinrefrigerantrecovery
andrecyclingprocedures,
asexplainedpreviously.

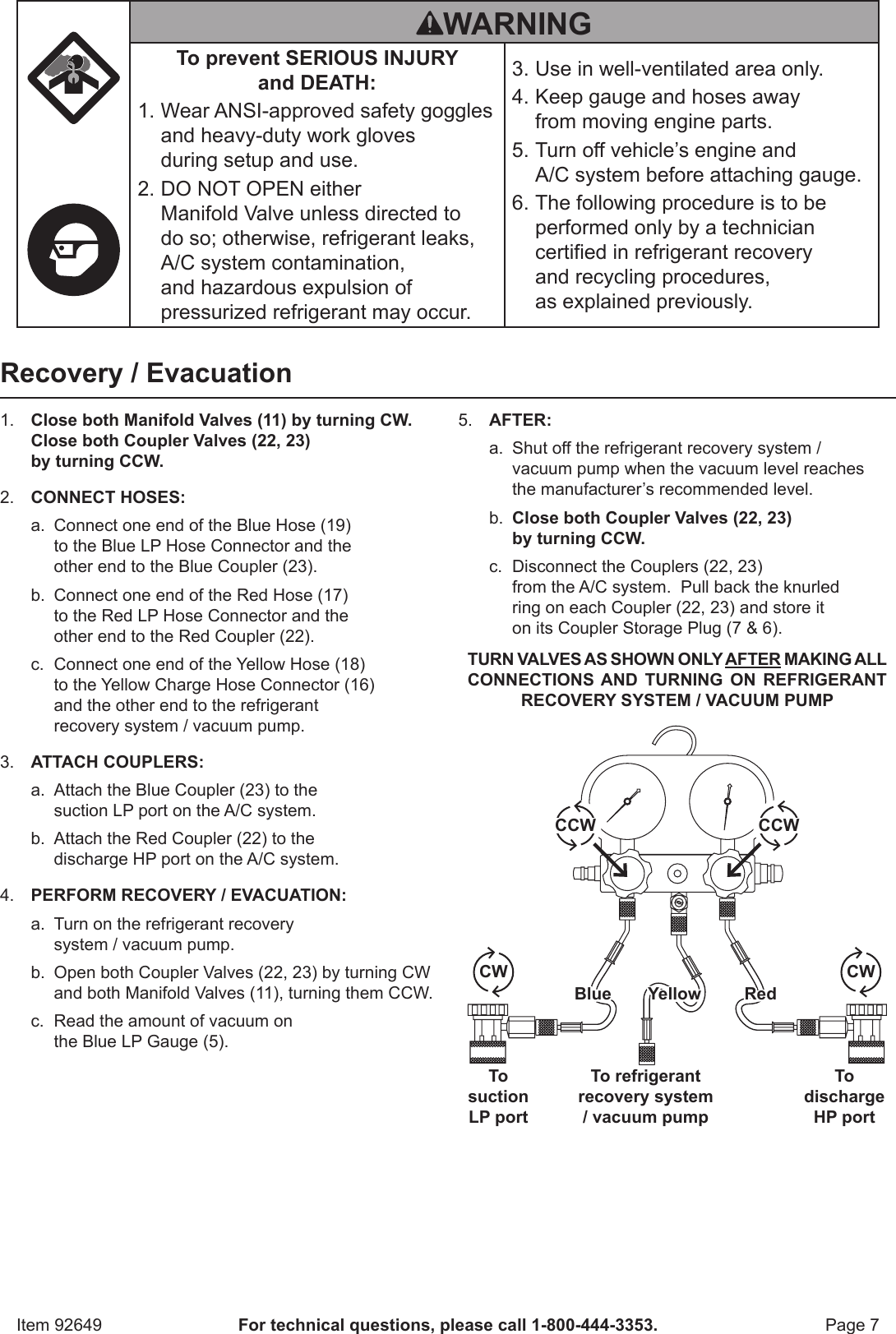

Recovery / Evacuation
1. Close both Manifold Valves (11) by turning CW.
Close both Coupler Valves (22, 23)
by turning CCW.
2. CONNECT HOSES:
a. ConnectoneendoftheBlueHose(19)
totheBlueLPHoseConnectorandthe
otherendtotheBlueCoupler(23).
b. ConnectoneendoftheRedHose(17)
totheRedLPHoseConnectorandthe
otherendtotheRedCoupler(22).
c. ConnectoneendoftheYellowHose(18)
totheYellowChargeHoseConnector(16)
andtheotherendtotherefrigerant
recoverysystem/vacuumpump.
3. ATTACH COUPLERS:
a. AttachtheBlueCoupler(23)tothe
suctionLPportontheA/Csystem.
b. AttachtheRedCoupler(22)tothe
dischargeHPportontheA/Csystem.
4. PERFORM RECOVERY / EVACUATION:
a. Turnontherefrigerantrecovery
system/vacuumpump.
b. OpenbothCouplerValves(22,23)byturningCW
andbothManifoldValves(11),turningthemCCW.
c. Readtheamountofvacuumon
theBlueLPGauge(5).
5. AFTER:
a. Shutofftherefrigerantrecoverysystem/
vacuumpumpwhenthevacuumlevelreaches
themanufacturer’srecommendedlevel.
b. Close both Coupler Valves (22, 23)
by turning CCW.
c. DisconnecttheCouplers(22,23)
fromtheA/Csystem.Pullbacktheknurled
ringoneachCoupler(22,23)andstoreit
onitsCouplerStoragePlug(7&6).
To
discharge
HP port
To refrigerant
recovery system
/ vacuum pump
To
suction
LP port
CCW CCW
CW CW
TURN VALVES AS SHOWN ONLY AFTER MAKING ALL
CONNECTIONS AND TURNING ON REFRIGERANT
RECOVERY SYSTEM / VACUUM PUMP
Blue Yellow Red

Page8 For technical questions, please call 1-800-444-3353. Item92649
WARNING
To prevent SERIOUS INJURY
and DEATH:
1.WearANSI-approvedsafetygoggles
andheavy-dutyworkgloves
duringsetupanduse.
2.DONOTOPENeither
ManifoldValveunlessdirectedto
doso;otherwise,refrigerantleaks,
A/Csystemcontamination,
andhazardousexpulsionof
pressurizedrefrigerantmayoccur.
3.Useinwell-ventilatedareaonly.
4.Keepgaugeandhosesaway
frommovingengineparts.
5.Turnoffvehicle’sengineand
A/Csystembeforeattachinggauge.
6.Thefollowingprocedureistobe
performedonlybyatechnician
certifiedinrefrigerantrecovery
andrecyclingprocedures,
asexplainedpreviously.

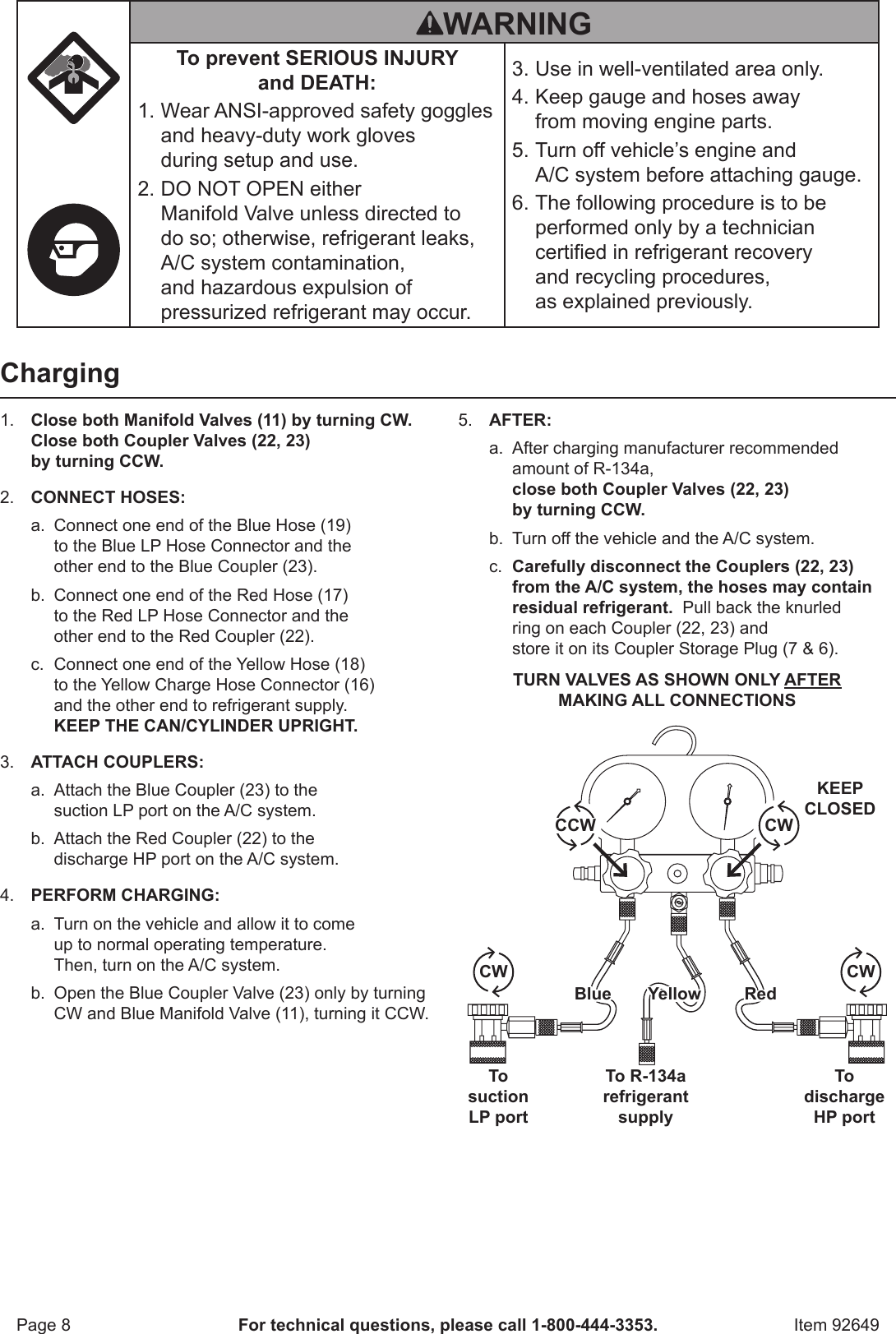

Charging
1. Close both Manifold Valves (11) by turning CW.
Close both Coupler Valves (22, 23)
by turning CCW.
2. CONNECT HOSES:
a. ConnectoneendoftheBlueHose(19)
totheBlueLPHoseConnectorandthe
otherendtotheBlueCoupler(23).
b. ConnectoneendoftheRedHose(17)
totheRedLPHoseConnectorandthe
otherendtotheRedCoupler(22).
c. ConnectoneendoftheYellowHose(18)
totheYellowChargeHoseConnector(16)
andtheotherendtorefrigerantsupply.
KEEP THE CAN/CYLINDER UPRIGHT.
3. ATTACH COUPLERS:
a. AttachtheBlueCoupler(23)tothe
suctionLPportontheA/Csystem.
b. AttachtheRedCoupler(22)tothe
dischargeHPportontheA/Csystem.
4. PERFORM CHARGING:
a. Turnonthevehicleandallowittocome
uptonormaloperatingtemperature.
Then,turnontheA/Csystem.
b. OpentheBlueCouplerValve(23)onlybyturning
CWandBlueManifoldValve(11),turningitCCW.
5. AFTER:
a. Afterchargingmanufacturerrecommended
amountofR-134a,
close both Coupler Valves (22, 23)
by turning CCW.
b. TurnoffthevehicleandtheA/Csystem.
c. Carefully disconnect the Couplers (22, 23)
from the A/C system, the hoses may contain
residual refrigerant.Pullbacktheknurled
ringoneachCoupler(22,23)and
storeitonitsCouplerStoragePlug(7&6).
To
discharge
HP port
To R-134a
refrigerant
supply
To
suction
LP port
CCW CW
CW CW
TURN VALVES AS SHOWN ONLY AFTER
MAKING ALL CONNECTIONS
Blue Yellow Red
KEEP
CLOSED

Page9For technical questions, please call 1-800-444-3353.Item92649
Inspection, Maintenance and Cleaning
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise, vibration, or
leaking air/refrigerant occurs, have the problem corrected before further use.
1. Before each use,inspectthegeneralcondition
oftheA/CManifoldSet.Checkforcrackedor
brokenparts,damagedHoses(17,18,19),andany
otherconditionthatmayaffectsafeoperation.Ifa
problemwiththeSetoccurs,haveitcorrectedbefore
furtheruse.Do not use damaged equipment.
2. Periodically,cleanwithadampcloth
usingamilddetergentorsolvent.
3. Whenstoring,keepthesetcleananddry.
Also,connecttheRedCoupler(22)and
theBlueCoupler(23)toitscorresponding
CouplerStoragePlug(7or6)to
preventcontamination.

Page10 For technical questions, please call 1-800-444-3353. Item92649

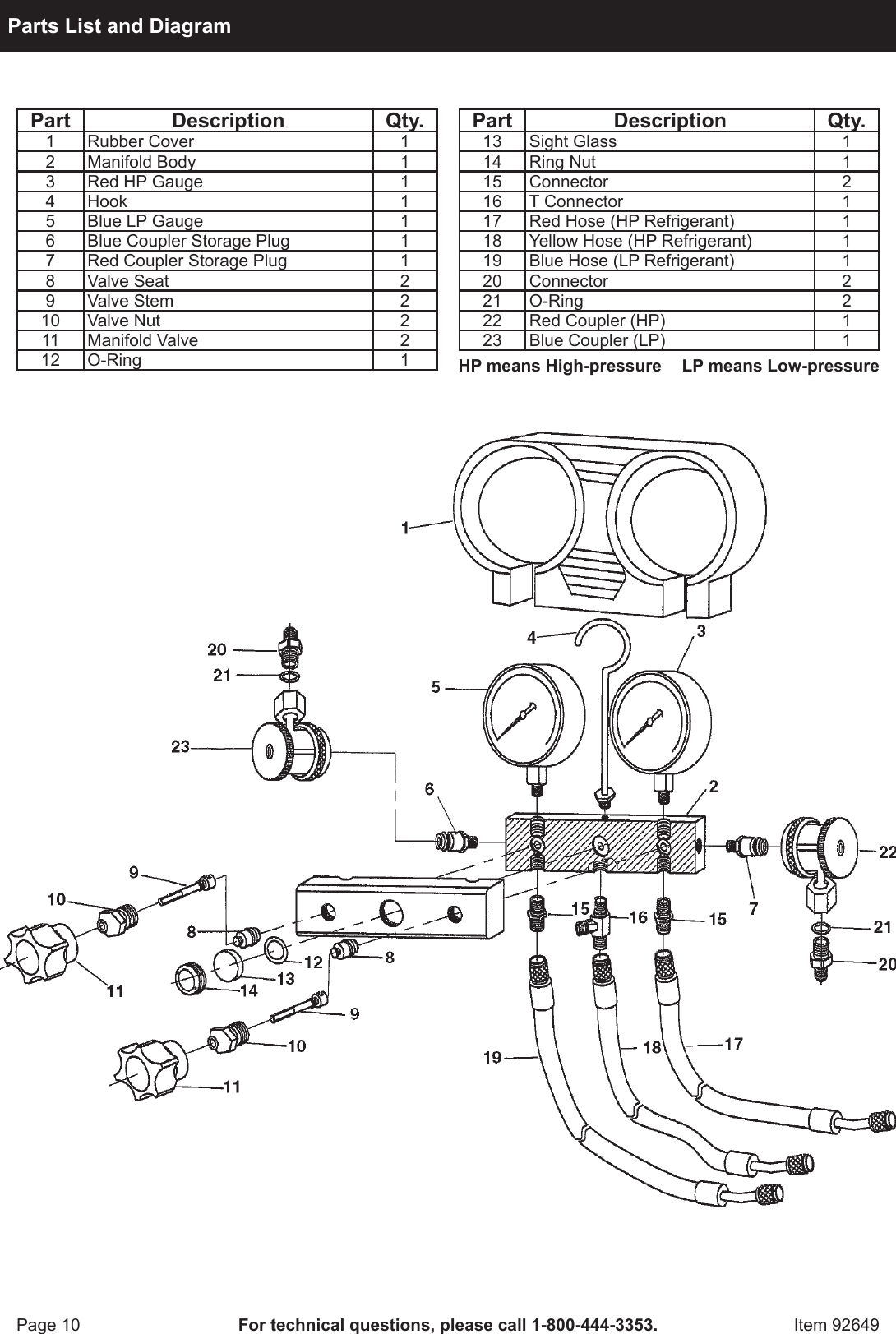

Parts List and Diagram
Part Description Qty.
1 RubberCover 1
2 ManifoldBody 1
3 RedHPGauge 1
4 Hook 1
5 BlueLPGauge 1
6 BlueCouplerStoragePlug 1
7RedCouplerStoragePlug 1
8 ValveSeat 2
9 ValveStem 2
10 ValveNut 2
11 ManifoldValve 2
12 O-Ring 1
Part Description Qty.
13 SightGlass 1
14 RingNut 1
15 Connector 2
16 TConnector 1
17 RedHose(HPRefrigerant) 1
18 YellowHose(HPRefrigerant) 1
19 BlueHose(LPRefrigerant) 1
20 Connector 2
21 O-Ring 2
22 RedCoupler(HP) 1
23 BlueCoupler(LP) 1
HP means High-pressure LP means Low-pressure

Page11For technical questions, please call 1-800-444-3353.Item92649

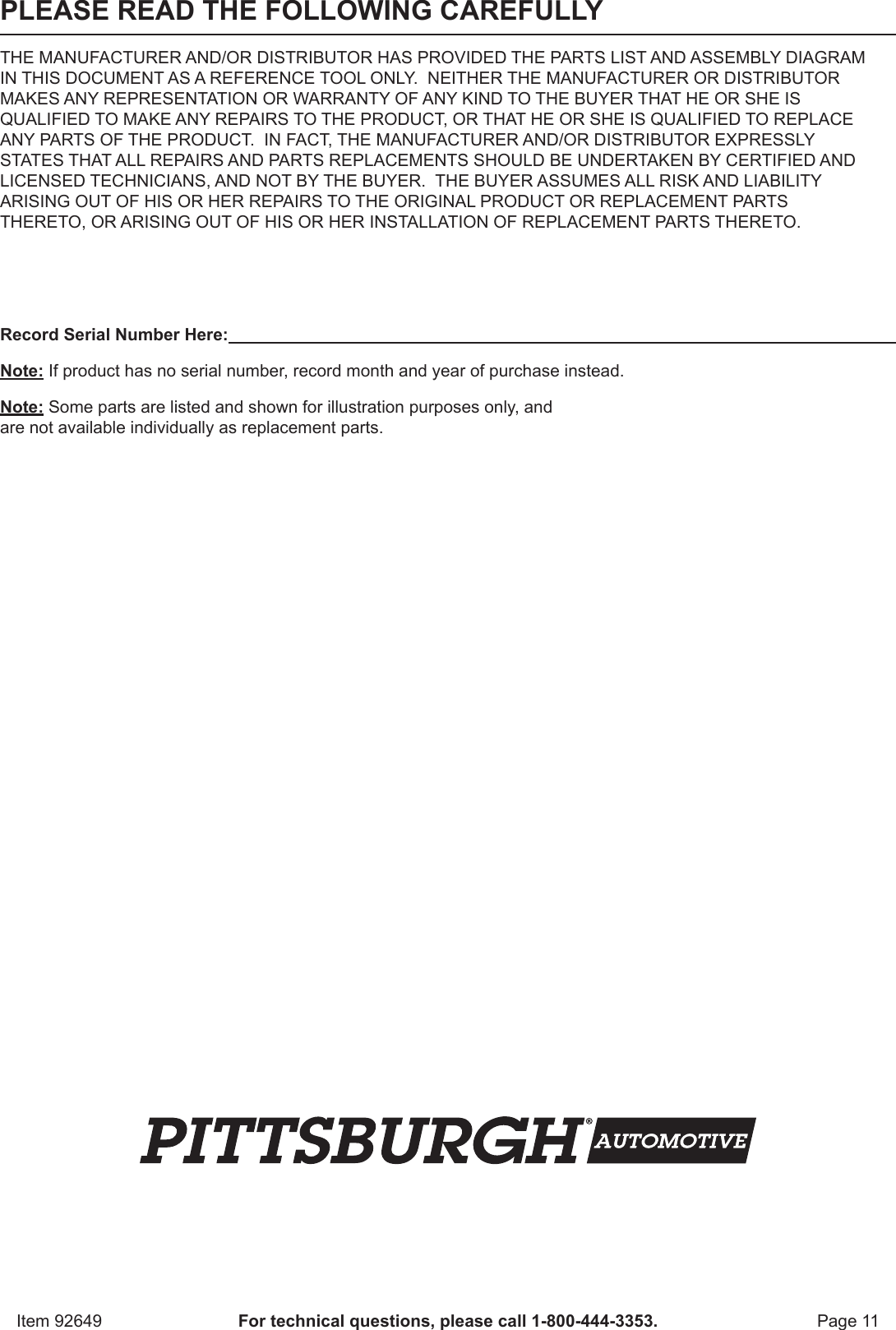

PLEASE READ THE FOLLOWING CAREFULLY
THEMANUFACTURERAND/ORDISTRIBUTORHASPROVIDEDTHEPARTSLISTANDASSEMBLYDIAGRAM
INTHISDOCUMENTASAREFERENCETOOLONLY.NEITHERTHEMANUFACTURERORDISTRIBUTOR
MAKESANYREPRESENTATIONORWARRANTYOFANYKINDTOTHEBUYERTHATHEORSHEIS
QUALIFIEDTOMAKEANYREPAIRSTOTHEPRODUCT,ORTHATHEORSHEISQUALIFIEDTOREPLACE
ANYPARTSOFTHEPRODUCT.INFACT,THEMANUFACTURERAND/ORDISTRIBUTOREXPRESSLY
STATESTHATALLREPAIRSANDPARTSREPLACEMENTSSHOULDBEUNDERTAKENBYCERTIFIEDAND
LICENSEDTECHNICIANS,ANDNOTBYTHEBUYER.THEBUYERASSUMESALLRISKANDLIABILITY
ARISINGOUTOFHISORHERREPAIRSTOTHEORIGINALPRODUCTORREPLACEMENTPARTS
THERETO,ORARISINGOUTOFHISORHERINSTALLATIONOFREPLACEMENTPARTSTHERETO.
Record Serial Number Here:
Note:Ifproducthasnoserialnumber,recordmonthandyearofpurchaseinstead.
Note:Somepartsarelistedandshownforillustrationpurposesonly,and
arenotavailableindividuallyasreplacementparts.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
Limited 90 Day Warranty
HarborFreightToolsCo.makeseveryefforttoassurethatitsproductsmeethighqualityanddurabilitystandards,
andwarrantstotheoriginalpurchaserthatthisproductisfreefromdefectsinmaterialsandworkmanshipforthe
periodof90daysfromthedateofpurchase.Thiswarrantydoesnotapplytodamageduedirectlyorindirectly,
tomisuse,abuse,negligenceoraccidents,repairsoralterationsoutsideourfacilities,criminalactivity,improper
installation,normalwearandtear,ortolackofmaintenance.Weshallinnoeventbeliablefordeath,injuries
topersonsorproperty,orforincidental,contingent,specialorconsequentialdamagesarisingfromtheuseof
ourproduct.Somestatesdonotallowtheexclusionorlimitationofincidentalorconsequentialdamages,sothe
abovelimitationofexclusionmaynotapplytoyou.THISWARRANTYISEXPRESSLYINLIEUOFALLOTHER
WARRANTIES,EXPRESSORIMPLIED,INCLUDINGTHEWARRANTIESOFMERCHANTABILITYANDFITNESS.
Totakeadvantageofthiswarranty,theproductorpartmustbereturnedtouswithtransportationcharges
prepaid.Proofofpurchasedateandanexplanationofthecomplaintmustaccompanythemerchandise.
Ifourinspectionverifiesthedefect,wewilleitherrepairorreplacetheproductatourelectionorwemay
electtorefundthepurchasepriceifwecannotreadilyandquicklyprovideyouwithareplacement.Wewill
returnrepairedproductsatourexpense,butifwedeterminethereisnodefect,orthatthedefectresulted
fromcausesnotwithinthescopeofourwarranty,thenyoumustbearthecostofreturningtheproduct.
Thiswarrantygivesyouspecificlegalrightsandyoumayalsohaveotherrightswhichvaryfromstatetostate.
