HAND RIVETER

Model

38353

INSTRUCTION MANUAL

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Copyright© 2000 by Harbor Freight Tools®. All rights reserved. No portion of this

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools. Diagrams within this

manual may not be drawn proportionally. Due to continuing improvements, actual

product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Safety Warnings and Precautions:

KEEP CHI LDREN AWAY FRO M 1.

PRODUCT USAGE AREA. Do not

allow children to handle this product.

Always wear ANSI approved safety 2.

goggles when working with hand tools.

USE THE RIGHT PRODUCT FOR 3.

THE RIGHT JOB. There are certain

applications for which this product was

designed. Do not use this product for a

purpose for which it was not intended.

NEVER POINT THE LOADED 4.

HAND RIVETER AT A PERSON OR

ANIMAL.

UNPACKING

When unpacking, check to make sure all

parts are included (see below). If any parts

are missing, please call Harbor Freight

Tools at the number shown on the bottom

of this manual as soon as possible.

Kit includes: One Hand Riveter. Four

sizes of rivet holders. One bag of each of

four sizes of rivets: 2.4 mm 3/32”, 3.2 mm

1/8”, 4.0 mm 5/32”, 4.8 mm 3/16”. One

Wrench.

INSTRUCTIONS:

To change the Rivet Holder size use

the Wrench located in the lower handle.

Unscrew the Rivet Holder using the

Wrench and insert the desired Rivet Holder

that is located on the handle and tighten

with wrench.

See page 2 for diagrams.

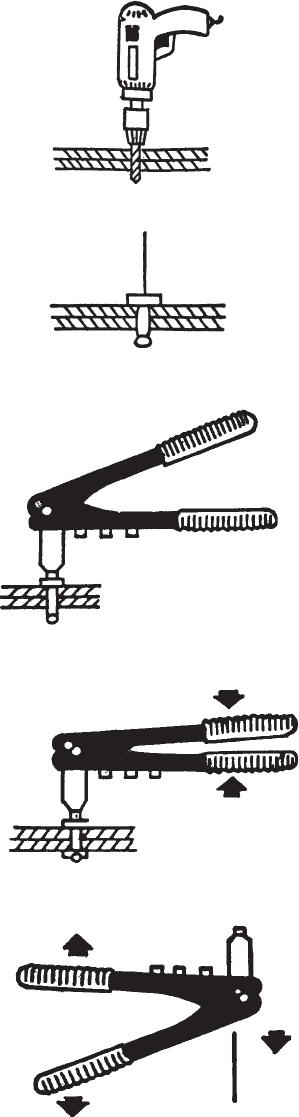

Diagram (A): Drill hole the size of the rivet

to be used.

Diagram (B): Place rivet head side down

in hole that is same size.

Diagram (C): Open the Riveter handles

as wide as possible. Slide the shaft of the

rivet into the Rivet Holder.

Diagram (D): Squeeze the Riveter handles

together; this will break the rivet shaft.

Diagram (E): Open the Riveter handles as

wide as possible; this will enable the rivet

shaft to disengage. When not in use, lock

the Riveter handles in place with the wire

lock, and store in a safe, dry place away

from children.

Diagram A

Diagram B

Diagram C

Diagram D

Diagram E

SKU 38353 Page 2
