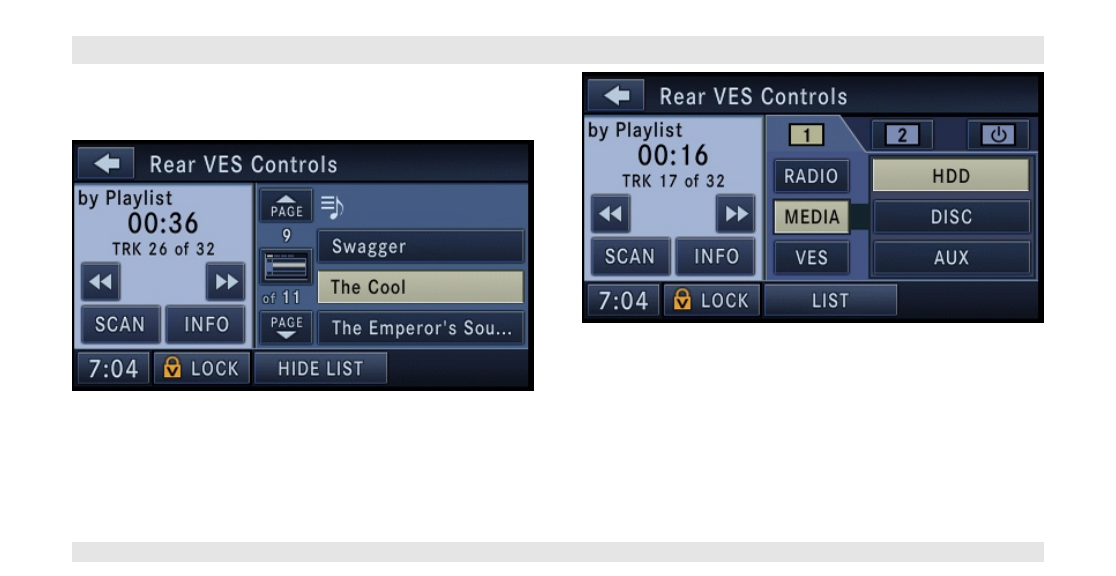

Selecting a Track

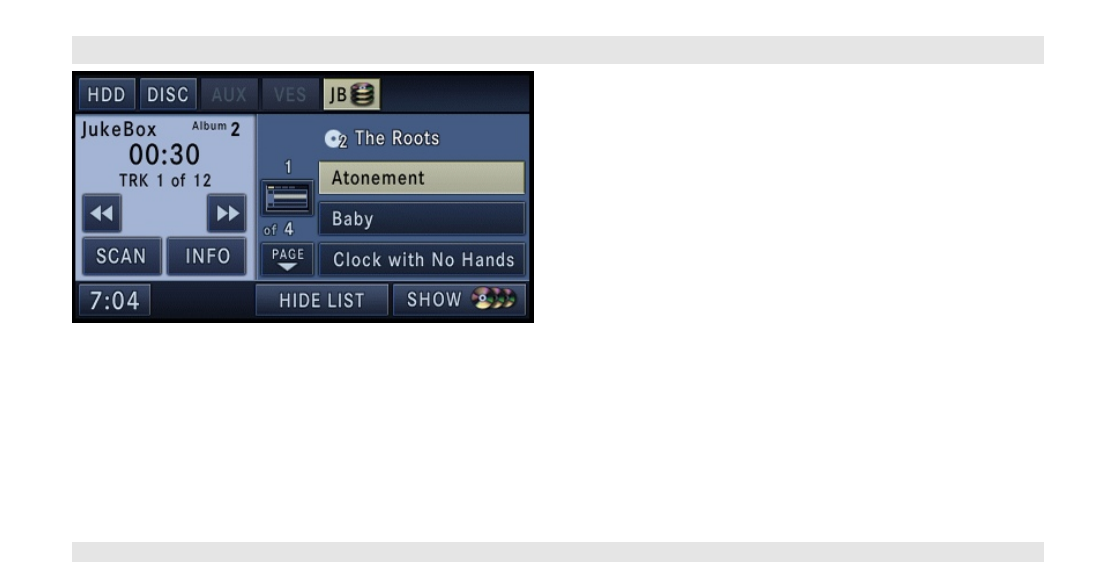

Touch the LIST soft-key to display a list of available tracks in the
selected album.
Touch the soft-key with the desired song name to select and play
the track.
Touch the HIDE LIST soft-key to hide the track list.
Next Track
Press the SEEK up hard-key. The next track of the current album
is played. Once the last track has been reached in the forward
direction, the unit will loop back to the first track.
Previous Track
Press the SEEK down hard-key. The previous track of the cur-
rent album is played. If the first track has been reached in the
backward direction, the unit will switch from the first track to the
last track. If a track has been playing for more than 1 second
when SEEK down hard-key is pressed, the unit will skip back to
the beginning of the current track.
Note: By pressing and holding the SEEK button, the track counter ad-
vances until the button is released.
MEDIA
38
![](/img.php?id=867212&img=bg2.png)
Fast Forward Track
Touch the soft-key. The audio will be heard at a reduced
level while going through the track in this mode. Stop the fast-
forward by releasing the soft-key.
Rewind Track
Touch the soft-key. The audio will be heard at a reduced
level while going through the track in this mode. Stop the fast
reverse by releasing the soft-key.
Displaying the Elapsed Title Time
The elapsed title time of the current playing track is displayed on
the left side of the screen.
Jukebox Menu
While in JB mode press the MENU hard-key to access the Juke
Box Menu.
Random Playback
The random play function plays random tracks from the current
album. Touch the Random soft-key to switch the random play
function on or off.
A red check-mark indicates the active random play function in the
Juke Box Menu.
Repeat Track
The repeat track function repeats the currently played track.
Touch the Rpt. TRK soft-key to switch the repeat track function
on or off.
A red check-mark indicates the active repeat track function in the
Juke Box Menu.
MEDIA
39
![](/img.php?id=867212&img=bg3.png)

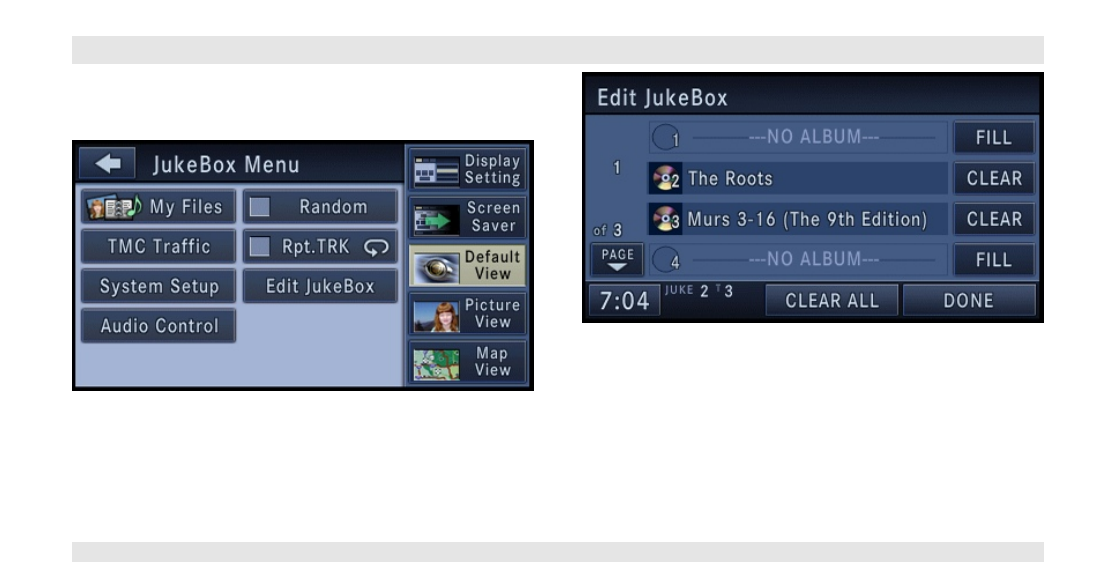

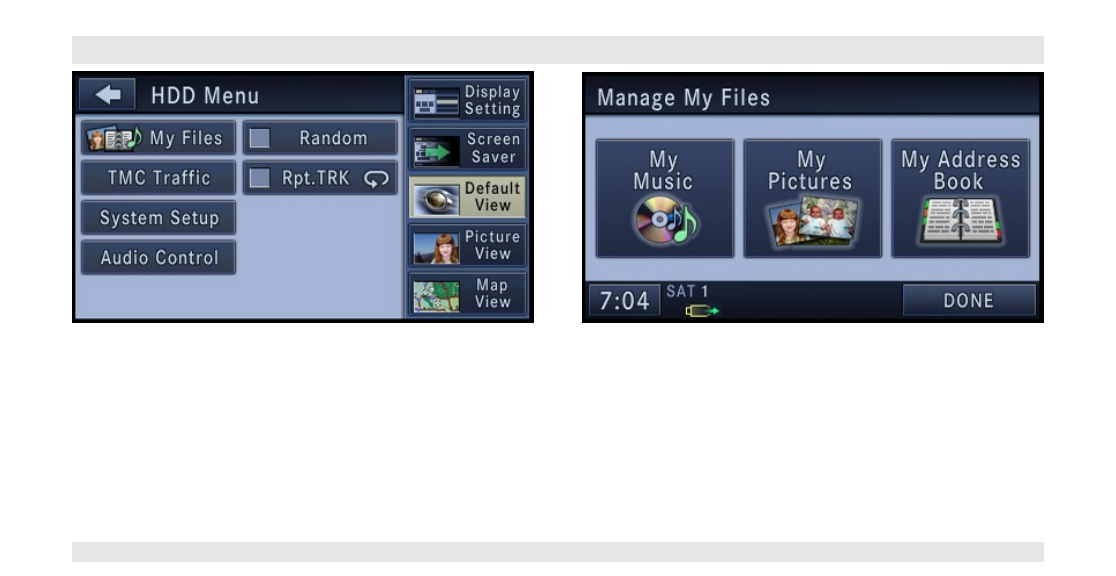

Edit Jukebox
1. While in JB mode press the MENU hard-key to access the
Juke Box Menu.
2. Touch the Edit Jukebox soft-key either to clear a jukebox al-
bums slot, or to fill an empty album slot.
Note: The CLEAR soft-key in the Edit JukeBox menu does not delete the
playlist from the hard disk drive.
MEDIA
40
![](/img.php?id=867212&img=bg4.png)
Hard Disk Drive Mode (HDD)
The HDD mode gives you access to the audio files on the inter-
nal hard disk drive. It functions similar to a CD player, with the
exception that the internal HDD can hold more tracks. It can hold
approximately 1,600 four-minute CD-quality songs.
Before using the HDD mode, you will need to copy tracks to the
internal hard drive.
The files will be stored on the internal hard disk drive and can be
used in the HDD mode, or for Jukebox albums.
Copy Audio Disc to Hard-Drive

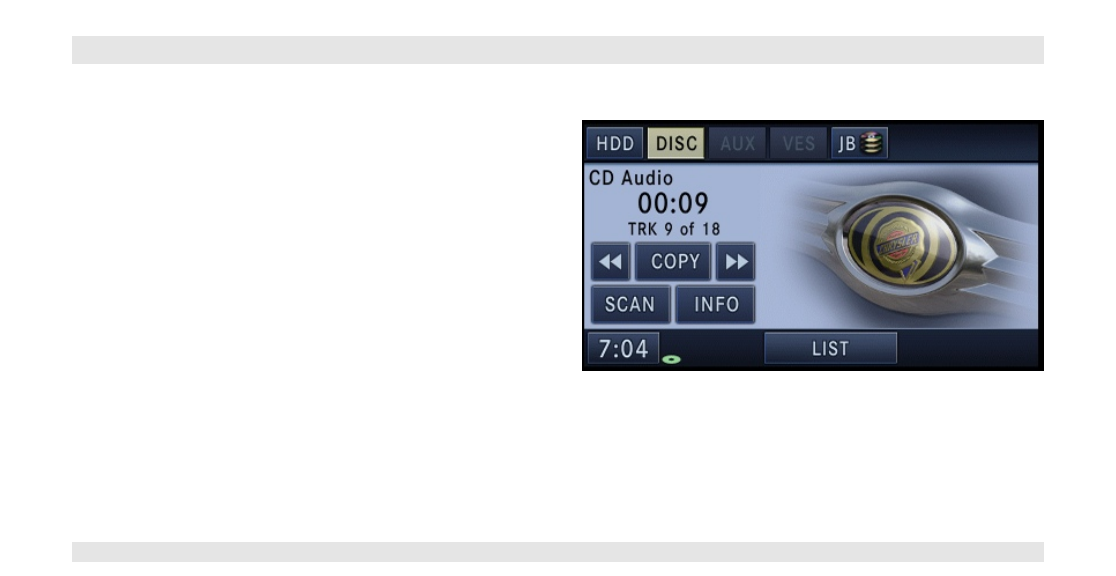

1. Insert a disc.
2. Touch the Copy soft-key to copy music tracks of the inserted
disc to the hard disk drive.
During the copy process, the disc player cannot play audio.
MEDIA
41
![](/img.php?id=867212&img=bg5.png)

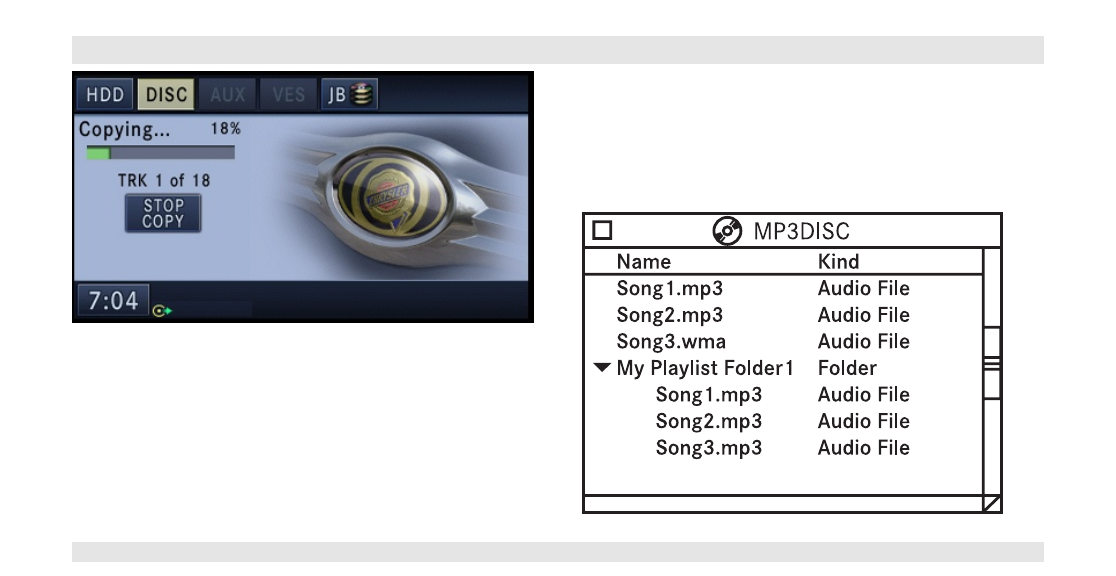

The copy progress is shown in the display.
It is possible to listen radio modes during this process. Copying
time is greater than 5x the normal playback rate.
Note: When copying CD-Audio to HDD, audio files are converted from CD
Audio to WMA. DVD-Audio cannot be copied to the HDD.
Copy WMA/MP3 Files to Hard-Drive
You can copy MP3, and WMA formatted compressed audio files
from a disc or via USB (e.g., USB stick).
It is recommended to sort music files into folders.
Example:
MEDIA
42
![](/img.php?id=867212&img=bg6.png)
Songs located in the root level (top level) of the disc or USB
device are saved in a playlist named Root_Level_Songs.
Once the songs are copied, the playlist will be named by the
originating folder name.
For the example above the list on the HDD will show the follow-
ing:
Disc_Root_Level Songs (Playlist 1)
#Song 1.mp3 (First song in playlist 1)
#Song 2.mp3 (Second song in playlist 1)
#Song 3.wma (Third song in playlist 1)
My Playlist Folder 1 (Playlist 2)
#01 Song.mp3 (First song in playlist 2)
#02 Song.mp3 (Second song in playlist 2)
#03 Song.mp3 (Third song in playlist 2)
Copying complete Disc

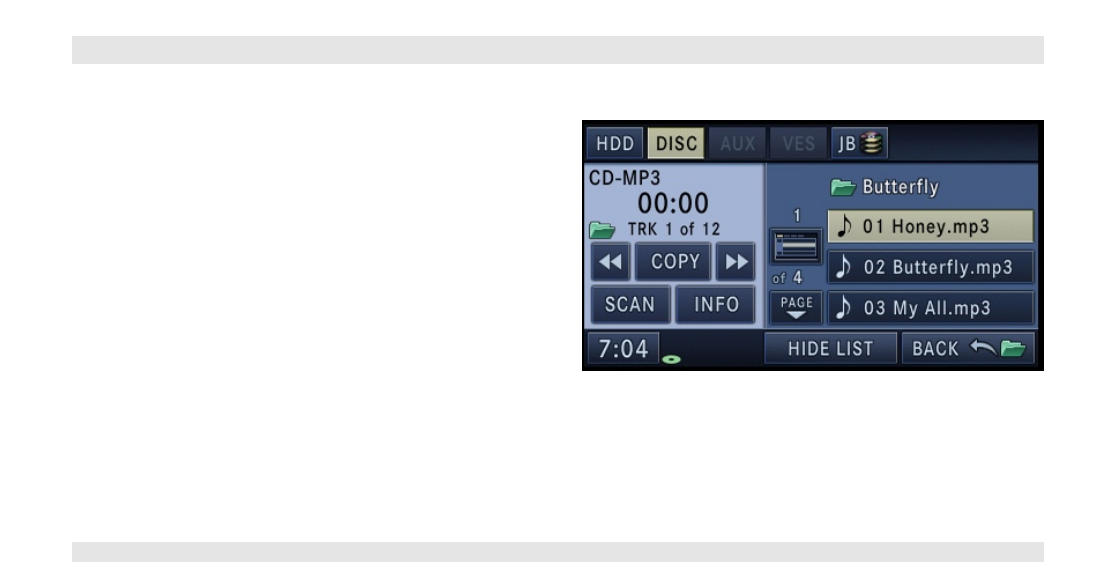

1. Insert a disc with MP3, WMA files.
2. Touch the Copy soft-key to copy music files of the inserted
disc to the hard disk drive.
During the copy process, the disc player cannot play audio.
MEDIA
43
![](/img.php?id=867212&img=bg7.png)

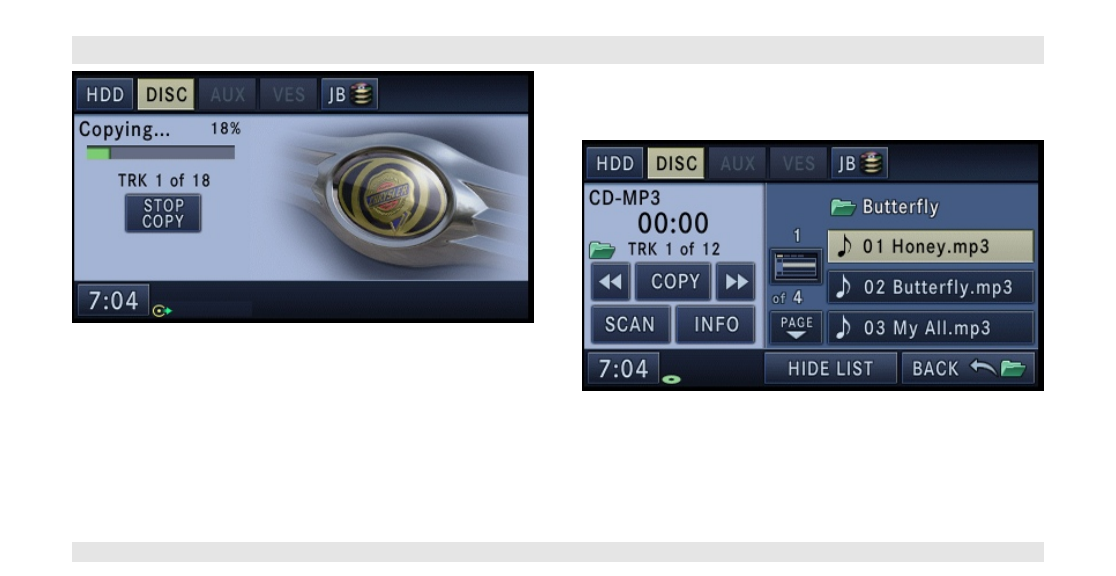

The copy progress is shown in the display.
It is possible to listen radio modes during this process.
Selective Song Copying from disc
You can select specific songs on a WMA/MP3 disc using the
following procedure:

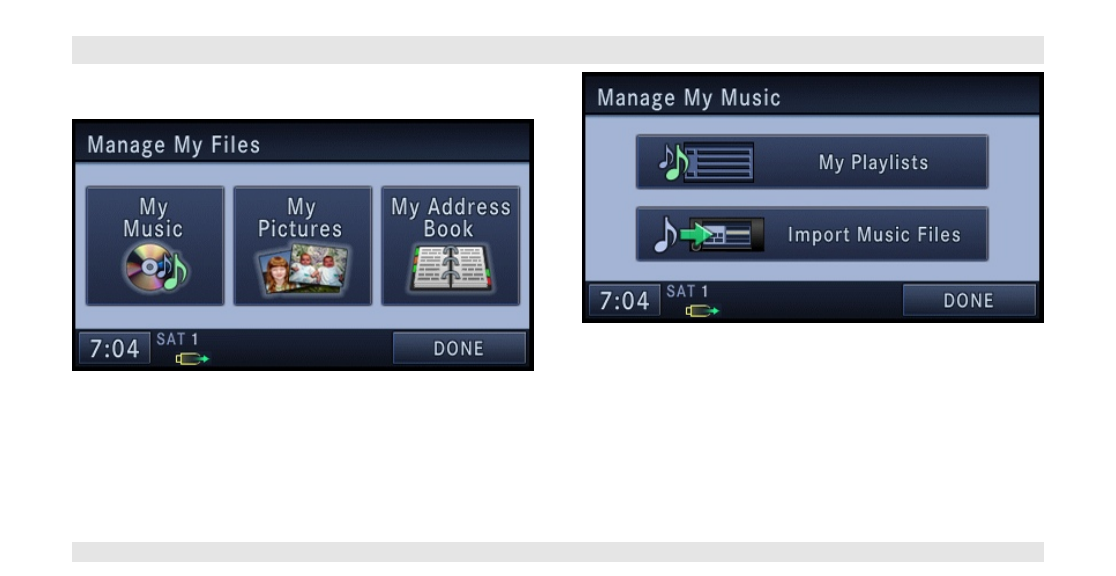

1. While in the DISC mode press the MENU hard-key to access
the settings menu.
MEDIA
44
![](/img.php?id=867212&img=bg8.png)
2. Touch the My Files soft-key. 3. Select My Music.
MEDIA
45
![](/img.php?id=867212&img=bg9.png)
4. Touch the Import Music Files soft-key.
5. Touch the From DISC soft-key in the next screen .
6. Select the folders or titles you would like to copy.
A red check-mark indicates the selected songs and/or folders.
Touch the ALL soft-key to select all files and folders at once.
7. Touch the DONE soft-key to start the copy process.
The copy process is shown on the display. It is possible to listen
to radio modes during this process.
If you unplug or eject the media before the copying process is
finished, the process will be interrupted. You may restart the
copying process by repeating the steps above.
MEDIA
46
![](/img.php?id=867212&img=bga.png)

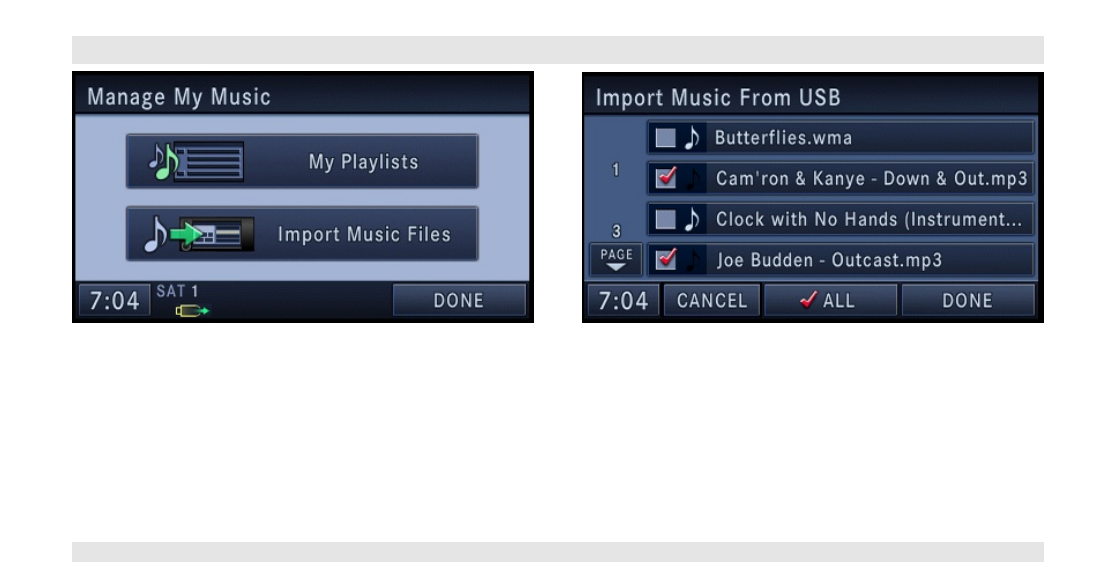

Copying from USB
1. Insert a USB device.
2. Select My Music.
3. Touch the Import Music Files soft-key.
4. Touch the From USB soft-key in the next screen.
MEDIA
47
![](/img.php?id=867212&img=bgb.png)
5. Select the folders or titles you would like to copy.
A red check-mark indicates the selected songs and/or folders.
Touch the ALL soft-key to select all files and folders at once.
6. Touch the DONE soft-key to start the copy process.

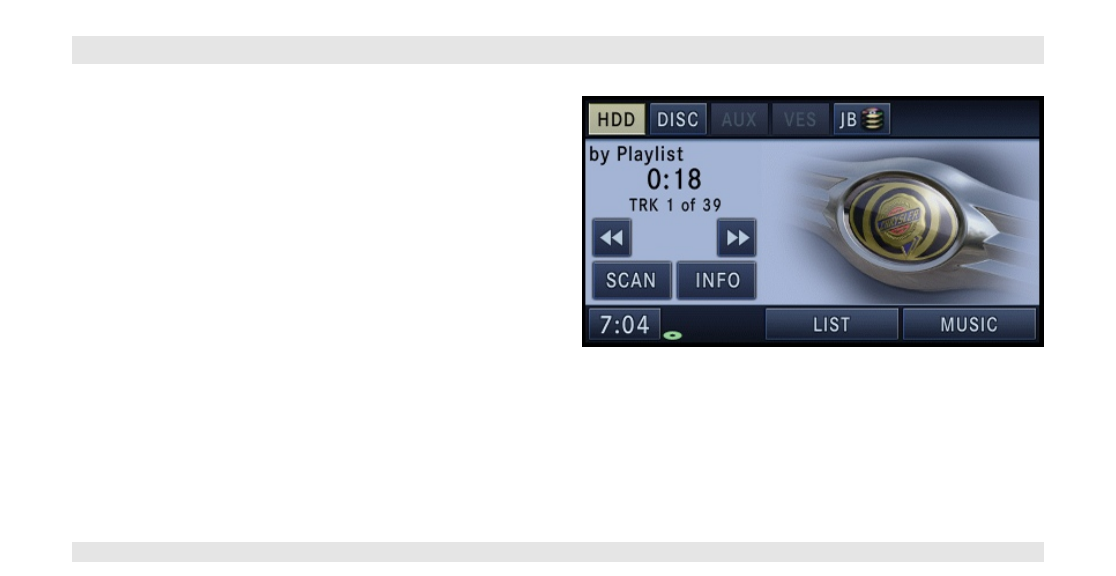

Playing Audio Files from the Hard Disk Drive
You can play songs directly from the internal hard disk drive.
1. Touch the MUSIC soft-key to select an available category.
The navigation radio can sort the files by playlist, by song name,
by artist, by genre, by album, or by year.
MEDIA
48
![](/img.php?id=867212&img=bgc.png)
2. Touch for this example the Playlists soft-key or the desired
category soft-key.
3. Touch a soft-key with the desired playlist name to play a
playlist.
Touch the PLAY ALL PLAYLISTS soft-key to play all available
playlists.
MEDIA
49
![](/img.php?id=867212&img=bgd.png)
Next Track
Press the SEEK up hard-key. The next track of the current album
is played. Once the last track has been reached in the forward
direction, the unit will loop back to the first track. If a track has
been playing for more than 10 seconds when SEEK down hard-
key is pressed, the unit will skip back to the beginning of the
current track, instead of jumping to the previous track.
Previous Track
Press the SEEK down hard-key. The previous track of the cur-
rent album is played. If the first track has been reached in the
backward direction, the unit will switch from the first track to the
last track. If a track has been playing for more than 10 seconds
when SEEK down hard-key is pressed, the unit will skip back to
the beginning of the current track.
Fast Forward Track
Touch the soft-key. The audio will be heard at a reduced
level while going through the track in this mode. Stop the fast-
forward by releasing the soft-key.
Rewind Track
Touch the soft-key. The audio will be heard at a reduced
level while going through the track in this mode. Stop the fast
reverse by releasing the soft-key.
Displaying the Elapsed Title Time
The elapsed title time of the current playing track is displayed on
the left side of the screen.
MEDIA
50
![](/img.php?id=867212&img=bge.png)
HDD Menu
While in HDD mode, press the MENU hard-key to access the
HDD Menu.
Random Playback
The random play function plays random tracks from the hard disk
drive. Touch the Random soft-key to switch the random play
function on or off.
A red check-mark indicates the random play function is active.
Repeat Track
The repeat track function repeats the currently played track.
Touch the Rpt. TRK soft-key to switch the repeat track function
on or off.
A red check-mark indicates the repeat track function is active.

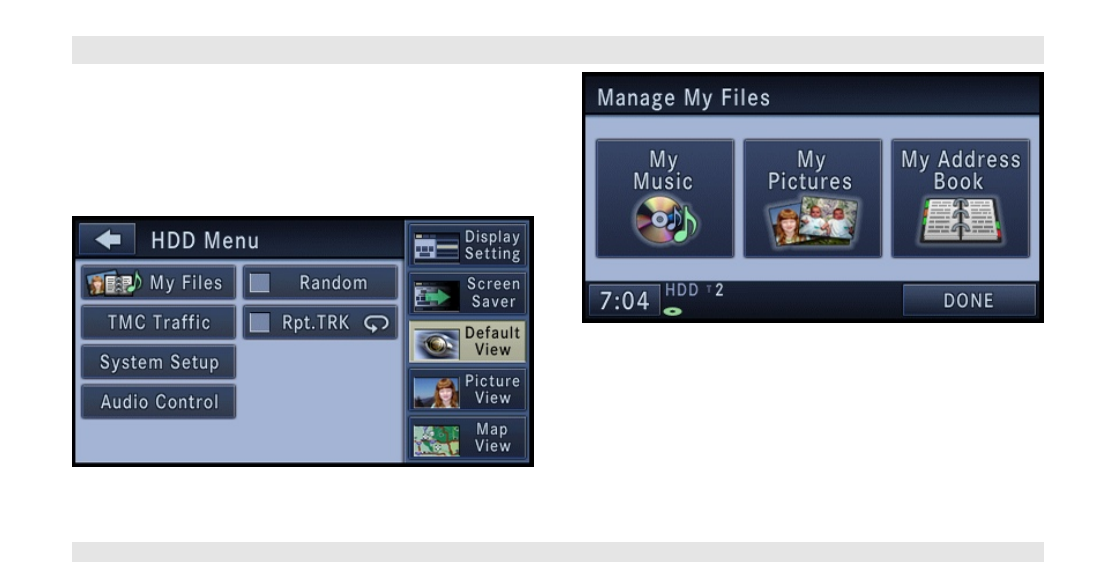

Editing Playlists on the Hard Disk Drive
1. While in the HDD mode press the MENU hard-key to access
the HDD Menu.
MEDIA
51
![](/img.php?id=867212&img=bgf.png)
2. Touch the My Files soft-key. 3. Select My Music.
MEDIA
52
![](/img.php?id=867212&img=bg10.png)

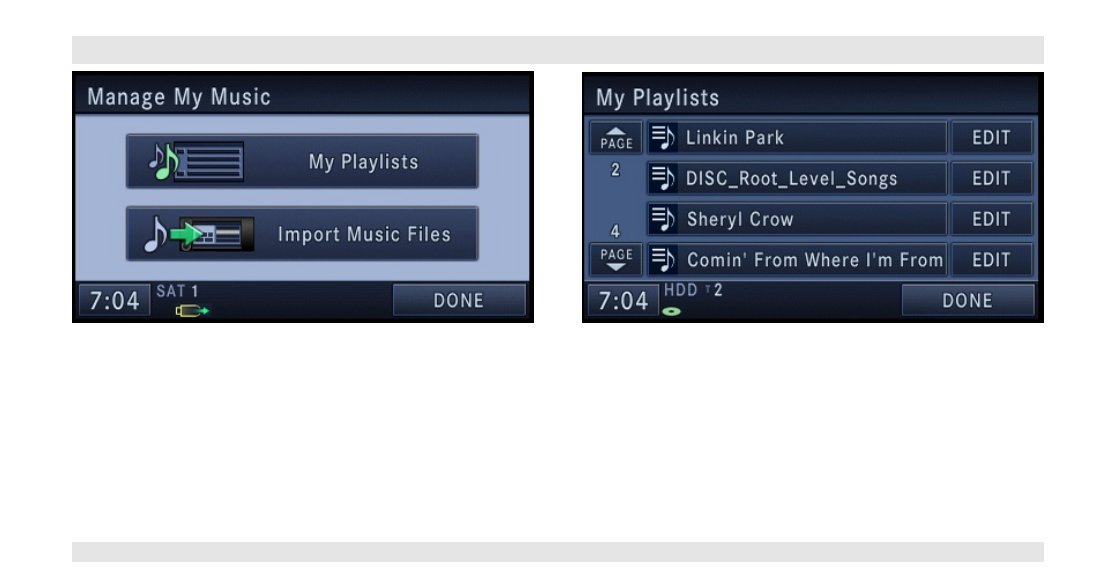

4. Touch the My Playlists soft-key. 5. Touch the EDIT soft-key (example: DISC_Root_Level_Songs)
of the playlist you would like to edit.

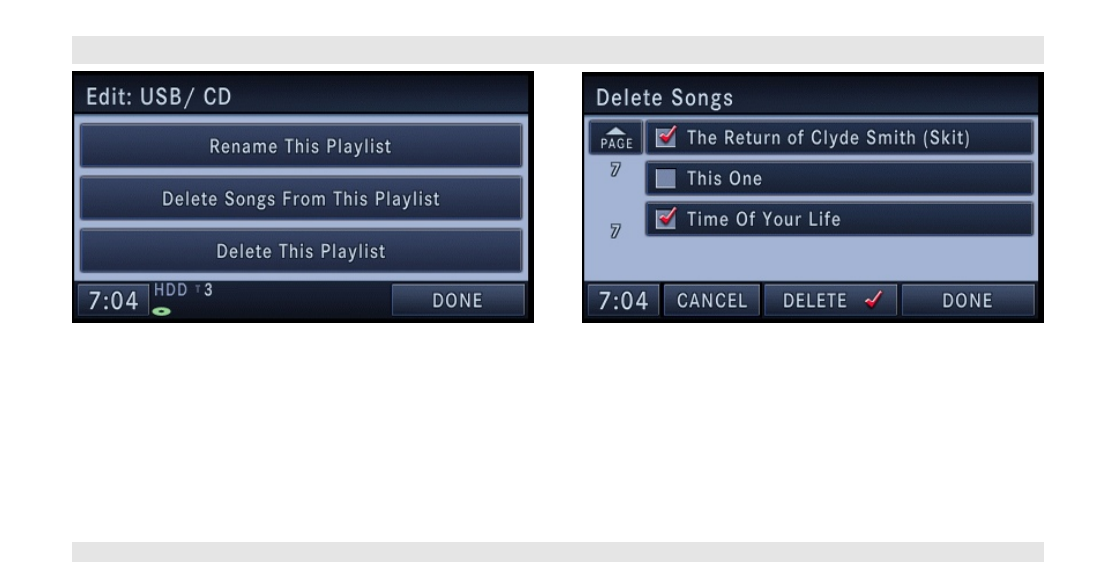

You can rename the selected playlist, delete songs from the
selected playlist, or delete the selected playlist.
MEDIA
53
![](/img.php?id=867212&img=bg11.png)

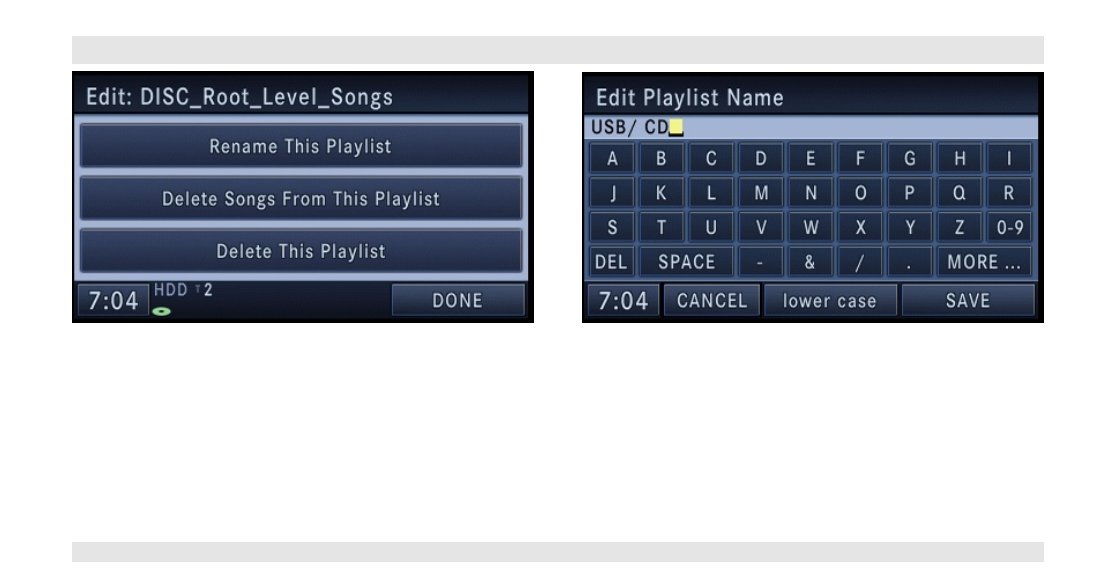

6. Touch the Rename This Playlist soft-key.
Note: If you touch the Delete This Playlist soft-key, the playlist and all
songs contained in it, will be permanently deleted. Neither song nor
playlist can be recovered.
7. Type in a new name for the playlist.
8. Touch the SAVE soft-key to confirm the name.
MEDIA
54
![](/img.php?id=867212&img=bg12.png)
The playlist now has the new name.
9. Touch the Delete Songs From This Playlist soft-key.
Note: If you touch the Delete This Playlist soft-key, the playlist and all
songs contained in it, will be permanently deleted. Neither song nor
playlist can be recovered.
10. Select the titles you would like to delete.
A red check-mark indicates the selected songs.
11. Touch the DELETE soft-key to start the delete process.
Note: If you delete a song from the playlist, the song cannot be recovered.
12. Touch the DONE soft-key, when you are done editing the
playlist.
MEDIA
55
![](/img.php?id=867212&img=bg13.png)

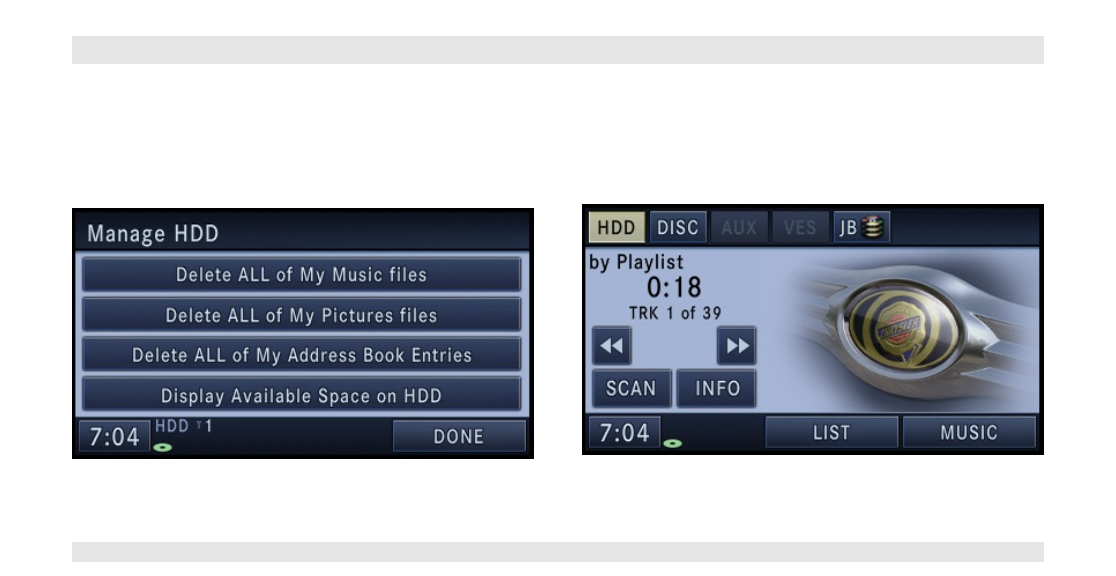

Deleting All Playlists from the Hard Disk Drive
1. Press the MENU hard-key on the right side of the radio.
2. Touch the System Setup soft-key to access the System Setup
menu.
3. Touch the Manage HDD soft-key to access the Manage HDD
menu.
This menu displays the available space on the hard disk drive,
and allows you to delete pictures, music files, and address book
entries.

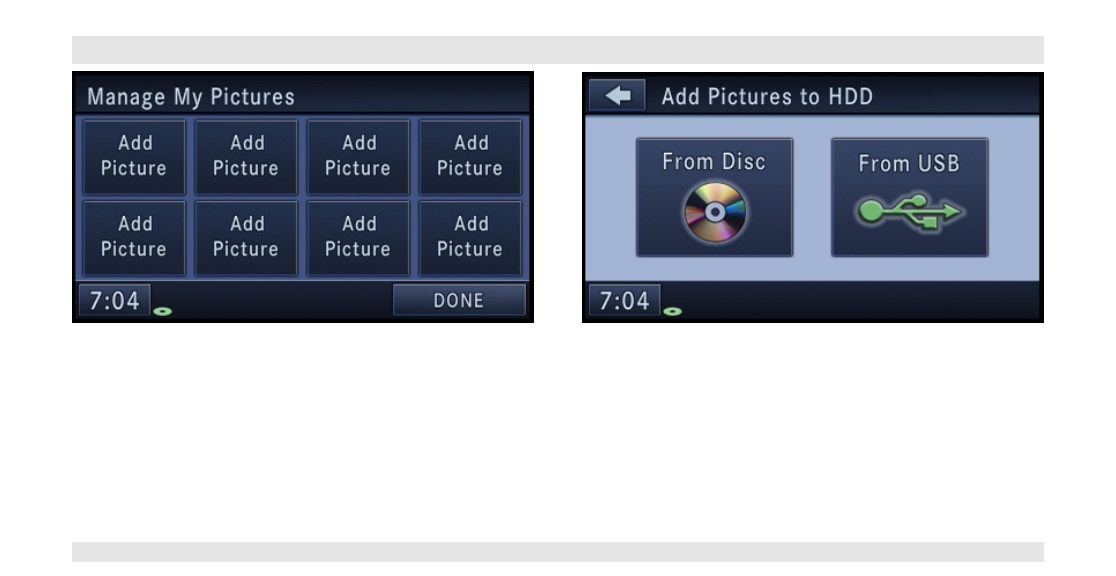

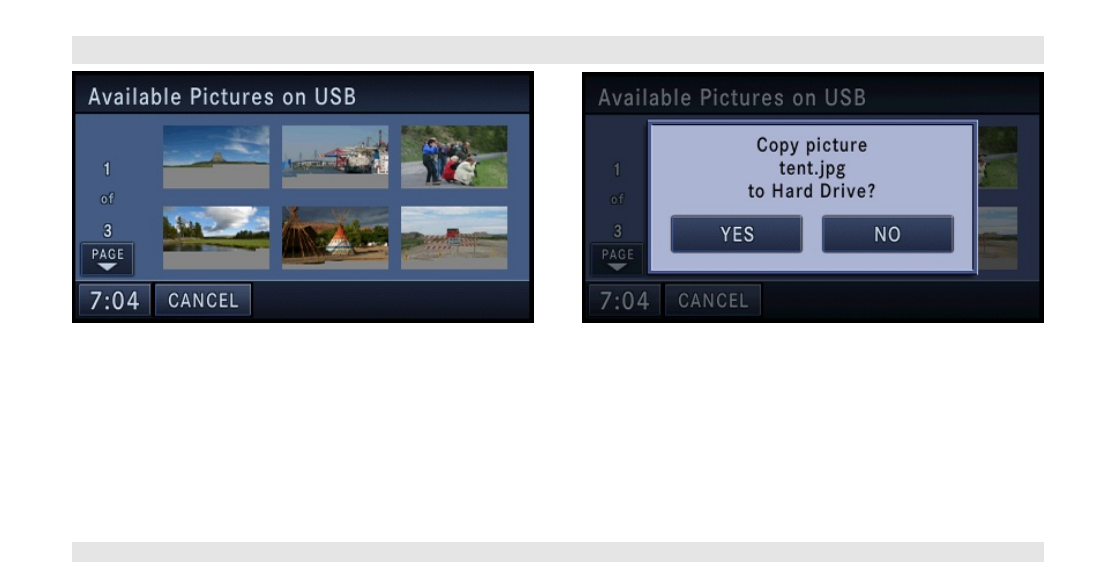

Importing Pictures
It is possible to import display pictures to the internal hard disk
drive. The pictures can be displayed on the right half of the radio
screen.
Warning: It is not possible to copy files of a USB device while the
vehicle is in motion.

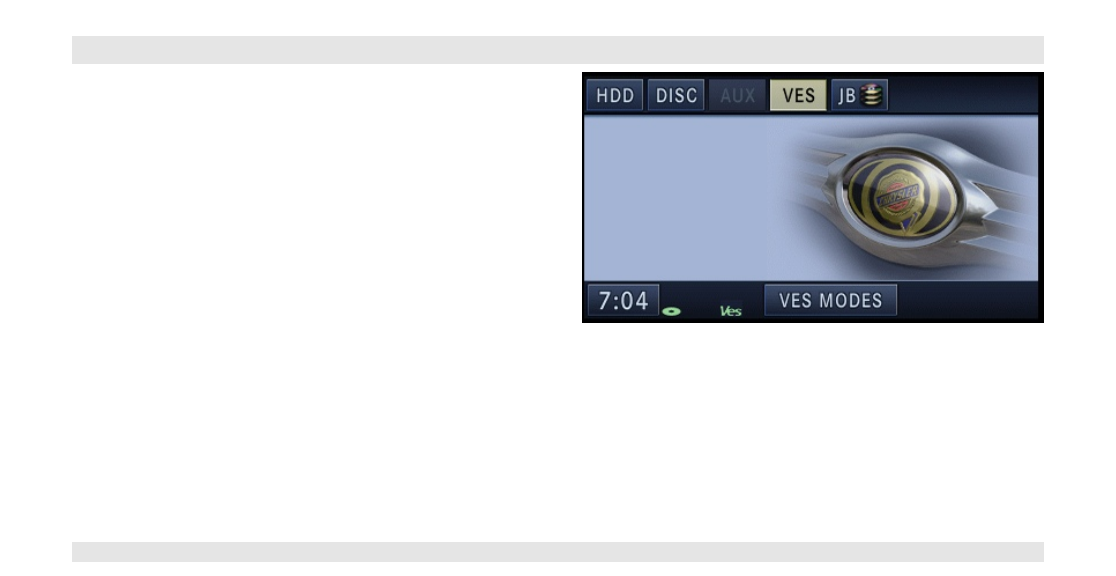

In the default mode, the vehicle brand logo is displayed in the
right half of the screen. Press the Menu hard-key on the right
side of the radio to access one of the setting menus.
MEDIA
56
![](/img.php?id=867212&img=bg14.png)
It is recommended to change the picture dimensions on a PC or
Digital Camera to 240 by 158 pixels before the import.
Note: USB devices (e.g., camera memory USB adaptors, etc.) must com-
ply with the MSD (Mass Storage Device) standard. This USB terminal can
provide power to the inserted device. The devices current limitation must
be less or equal to 500mA.
1. Touch the My Files soft-key to go to the Manage My Files
Screen.
2. Touch the My Pictures soft-key to get an overview of the cur-
rently stored images.
MEDIA
57
![](/img.php?id=867212&img=bg15.png)
The navigation radio can store 8 user pictures.
3. Press one of the Add Picture soft-keys.
4. Insert either a CD or a USB Stick containing your pictures.
5. Select the type of media inserted.
MEDIA
58
![](/img.php?id=867212&img=bg16.png)
6. Use the PAGE soft-keys to page through a list of pictures and
press the picture you would like to import.
Note: Files must be in the root directory (top level) of the disc or
USB device to be recognized.
7. Confirm your selection by touching the YES soft-key.
MEDIA
59
![](/img.php?id=867212&img=bg17.png)
The imported picture is now available in the Manage My Pictures
screen.
8. In order to display the imported picture in the radio screen,
touch the desired picture soft-key.
9. Select this picture by pressing the Picture View soft-key. A
check-mark indicates the currently used picture.
Use the PREV or NEXT soft-key to step through the list of avail-
able pictures.
Touch the DELETE soft-key to delete the picture from the hard
disk drive.
10. Press the MENU hard-key twice and then touch the Picture
View soft-key to enable the picture view.
MEDIA
60
![](/img.php?id=867212&img=bg18.png)
The picture is now displayed on the right half of the screen.
MEDIA
61
![](/img.php?id=867212&img=bg19.png)
Remote Devices
Vehicle Entertainment System™(VES)
The navigation radio can remotely control the VES. Refer to the
VES user’s manual for more information.
Receiving audio/video from the VES
You can play audio from the VES through the vehicles speaker
system. If you have a VES with a video player, you can also see
the video on the radios display, if the vehicle is parked.
The VES tab becomes available after the VES system is turned
on. Touch the VES MODES soft-key to select the VES audio
source.
REMOTE DEVICES
62
![](/img.php?id=867212&img=bg1a.png)
Touch the soft-key with the desired source to play the selected
source in the vehicle cabin.
Availability of the DVD Player soft-key, the Rear AUX 1 soft-key,
and the Rear AUX 2 is based on the type of VES in the vehicle.
DVD Player is not available if there is no DVD player in the VES
or there is no DVD in the player.
A device must be plugged in to the AUX jack of the VES to be
available.

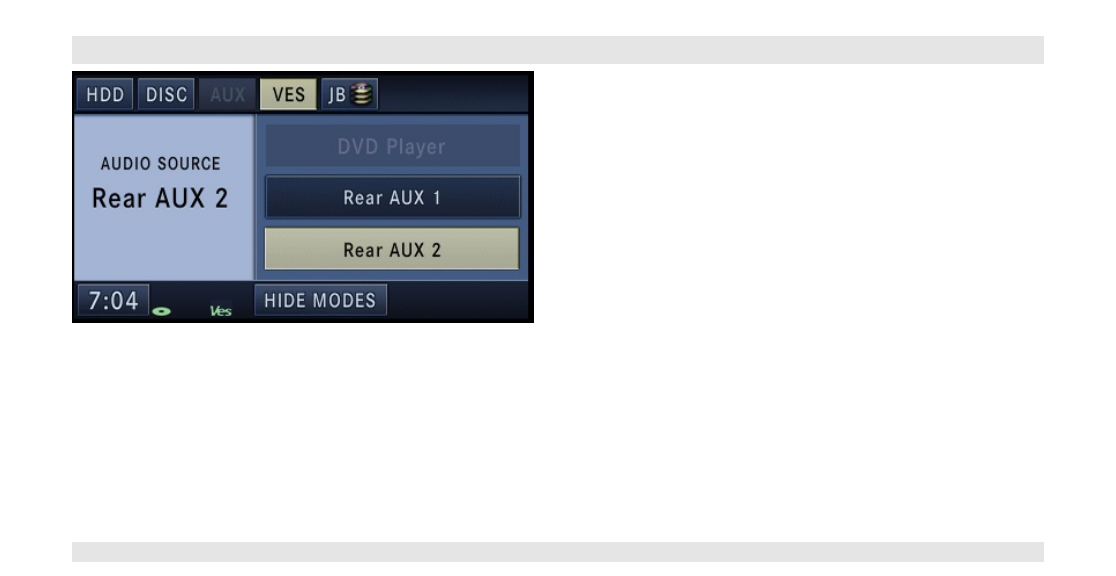

A disabled soft-key indicates an unavailable source. In this ex-
ample the VES DVD Player is not available, and the Rear AUX 2
audio is playing on the navigation radio. You can play the VES
source through the navigation radio sound system.
Sending audio/video and controlling the VES
The navigation radio can also control the VES.
All sources are played through the VES headphones.
Refer to the VES user’s manual for more information on control-
ling the rear VES through the remote control.
To access the rear VES press the MENU hard-key on the right
side of the radio.
REMOTE DEVICES
63
![](/img.php?id=867212&img=bg1b.png)

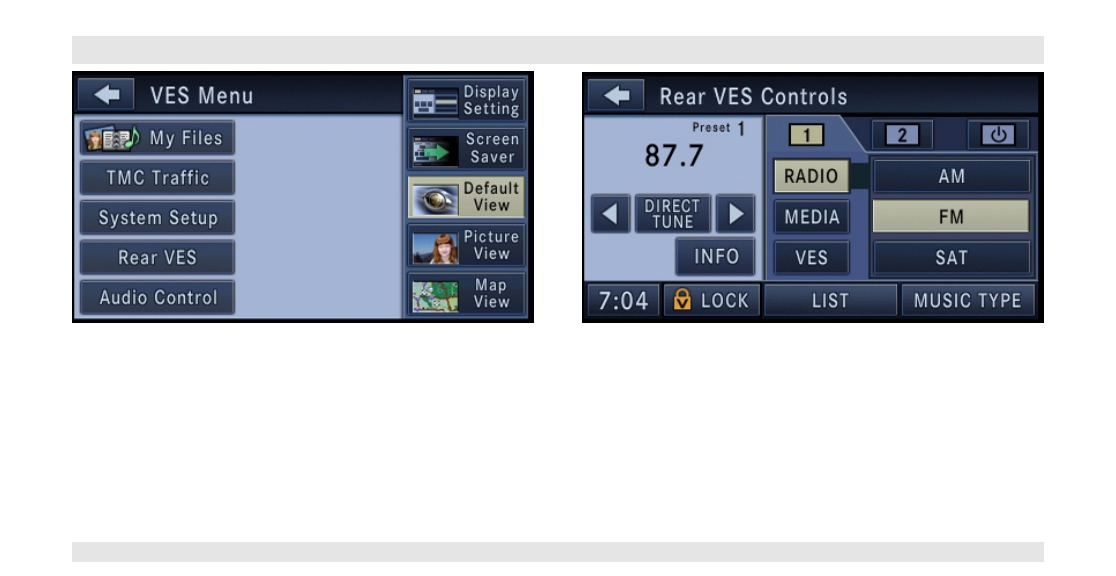

Touch the Rear VES soft-key to display the Rear VES Controls. The Rear VES Controls are displayed in the right half of the
screen.
Note: Press the HIDE LIST soft-key, and/or the CLOSE INFO soft-key, if
you cannot see the Rear VES Controls.
The upper row of tabs controls the headset audio channels 1, or
2. The third tab controls the VES on/off button.
A VES headset can listen to either audio channel 1 or audio
channel 2.
REMOTE DEVICES
64
![](/img.php?id=867212&img=bg1c.png)

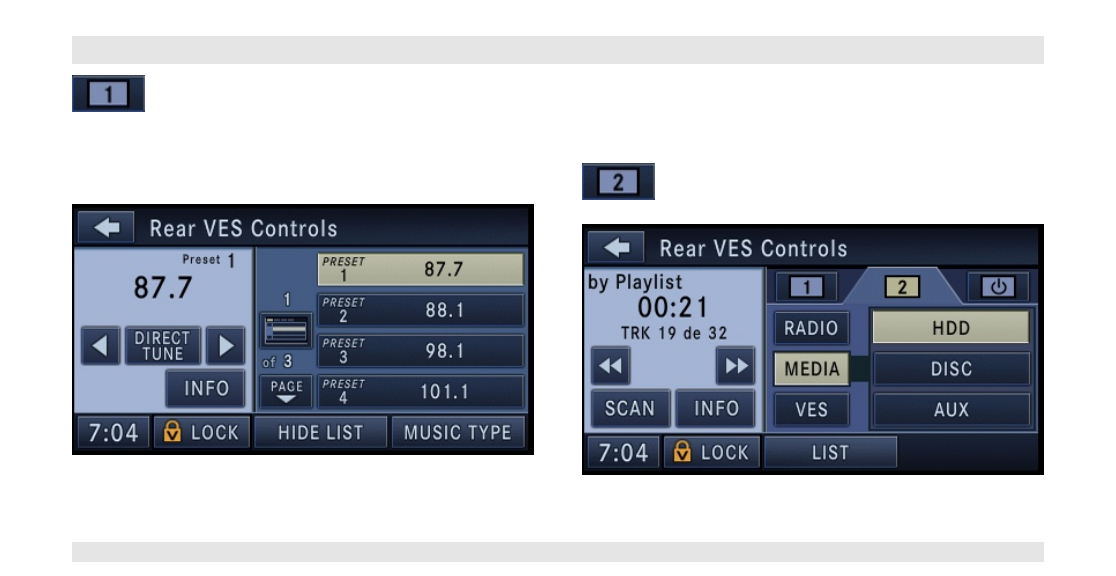

Touch the soft-key-tab 1 to select channel 1. In this
example channel one plays the FM RADIO tuner
audio.
The left half of the screen displays the audio source information,
which is in this case the radio frequency 87.7 MHz of Preset 1.
Touch the LIST soft-key to display the selected source details.
In this case the FM preset list within the selected tuner is dis-
played.
You may touch a preset soft-key to change the station, or touch
the DIRECT TUNE soft-key to enter a frequency, or press the
SEEK up or SEEK down hard-keys to change the radio station.
Touch the 2 soft-key-tab to set the desired audio
source for the second VES audio channel. In this
example channel two plays MEDIA from the HDD.
The left half of the screen displays the audio source information,
REMOTE DEVICES
65
![](/img.php?id=867212&img=bg1d.png)
which is in this case track 19 of a playlist on the HDD of the
navigation radio.
Touch the LIST soft-key to display the selected source details.
In this case the songs within the selected playlist are displayed.
The RADIO soft-key controls the AM/FM tuner, and the SAT
tuner of the navigation radio.
Note: The navigation radio cannot play both AM or FM at the same time.
The MEDIA soft-key controls the HDD, DISC, and AUX audio
source of the navigation radio.
The VES soft-key controls the DVD Player, Rear AUX 1, and
Rear AUX 2 of the VES system.
REMOTE DEVICES
66
![](/img.php?id=867212&img=bg1e.png)

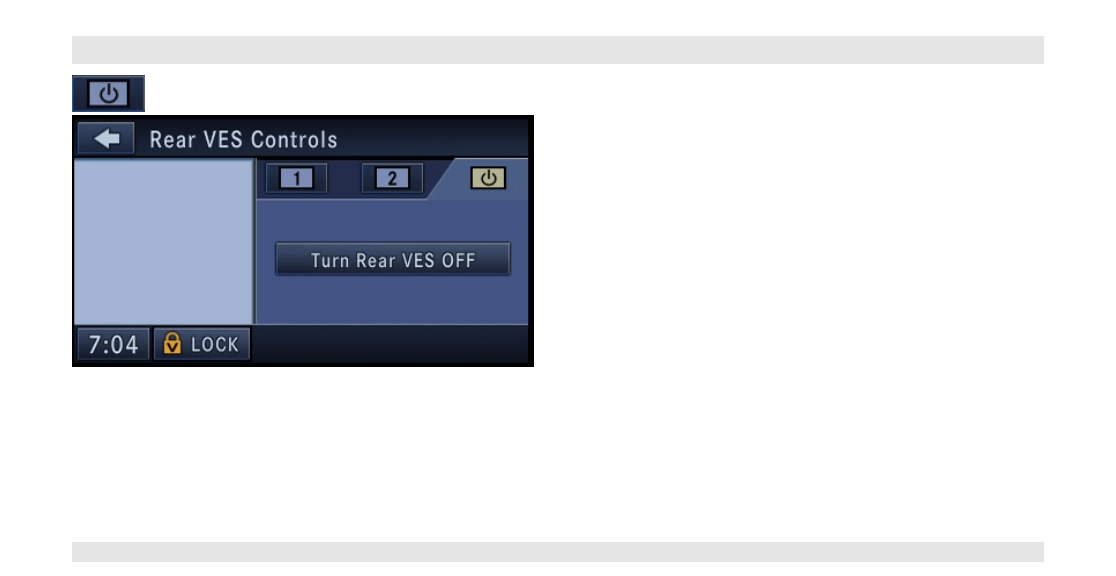

Touch the on/off soft-key-tab to show the VES ON/
OFF display. You may turn the VES system on or off.
Touch the Turn Rear VES OFF soft-key to shut the VES off.
Touch the Turn Rear VES ON soft-key to turn the VES on.
VES LOCK
Press the LOCK soft-key to disable the controls on the VES
remote control unit. Once the VES is locked, it is not possible to
use the VES controls or the VES remote control.
VES UNLOCK
Press the UNLOCK soft-key to enable the controls on the VES
remote control unit.
REMOTE DEVICES
67
![](/img.php?id=867212&img=bg1f.png)
Playing a Video DVD for the rear VES

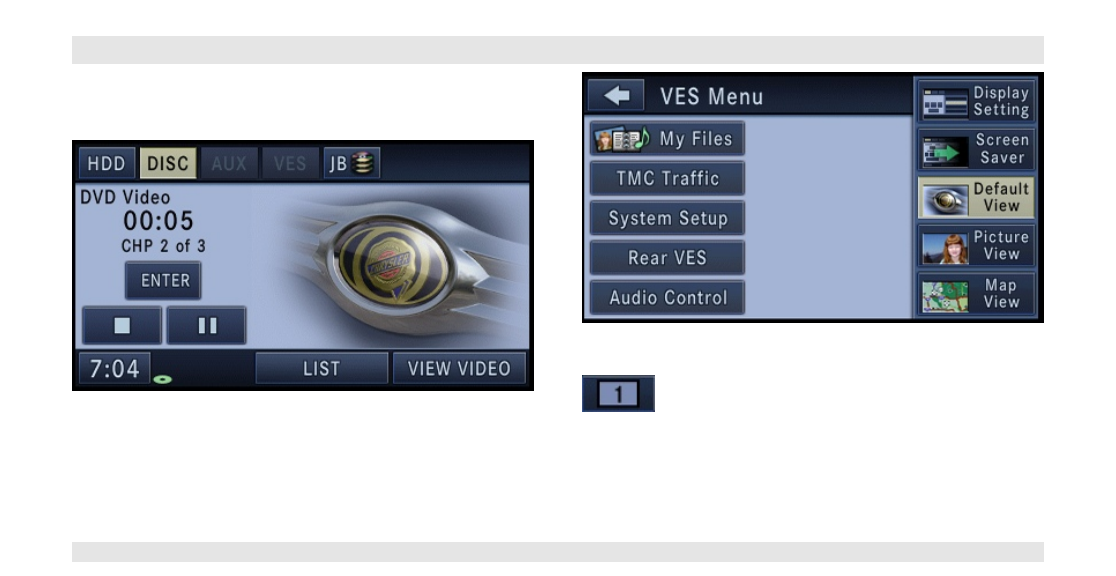

1. To view a DVD video on the rear VES radio screen, insert a
video DVD.
The playback starts automatically after the DVD video is recog-
nized by the disc drive.
2. Press the MENU hard-key on the right side of the radio.
3. Touch the Rear VES soft-key to display the Rear VES Con-
trols.
4. Touch the 1 soft-key-tab to select audio channel 1.
REMOTE DEVICES
68
![](/img.php?id=867212&img=bg20.png)

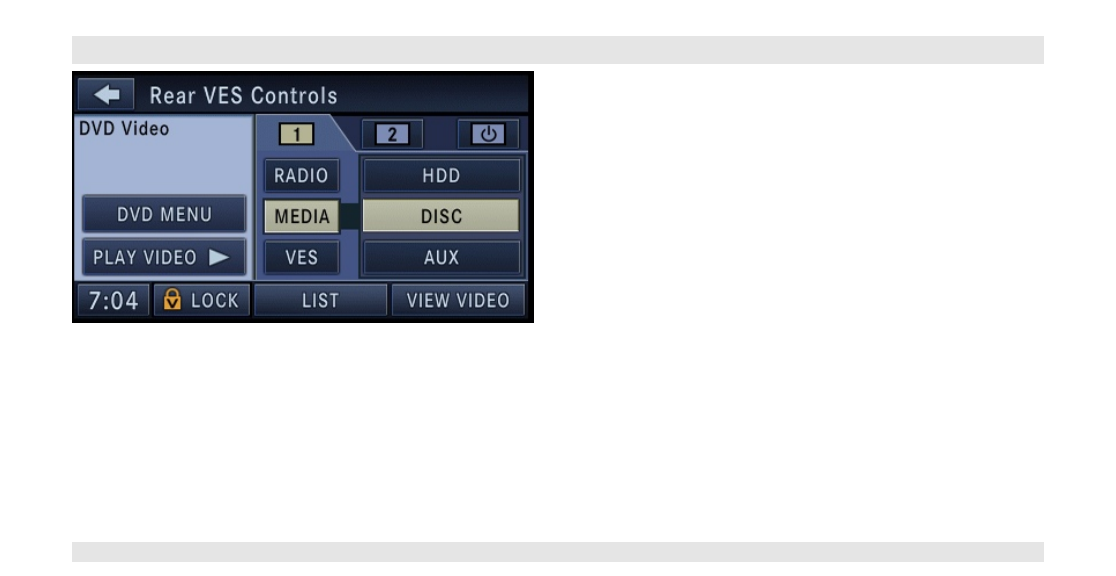

5. Touch the MEDIA soft-key to select the media mode.
6. Touch the DISC soft-key to select the disc player.
7. Touch the PLAY VIDEO soft-key to start the video playback.
REMOTE DEVICES
69
![](/img.php?id=867212&img=bg21.png)
USB Connector
It is possible to transfer audio files or pictures files to the naviga-
tion radio. Files can be on a disc or on a USB device (e.g., USB
stick). The USB connector is covered by a small cover, which
protects the connector from dust or damage.
Note: USB devices (e.g., camera memory USB adaptors, etc.) must com-
ply with the MSD (Mass Storage Device) standard. This USB terminal can
provide power to the inserted device. The devices current limitation must
be less or equal to 500mA.
The transfer speed for this USB connector is approximately 2
megabytes per second.
MP3 player devices cannot be controlled through the USB con-
nector. Some player devices save music files in MP4 format,
which cannot be played in this radio. Some copy protected music
(e.g., downloads from the internet) cannot be played on this
radio.
Compatible devices
Please see your DaimlerChrysler Dealership or visit
http://www.chrysler.com/mygig/ for supported devices.
Note: Some MP3 Player do not allow songs to be copied into other de-
vices.

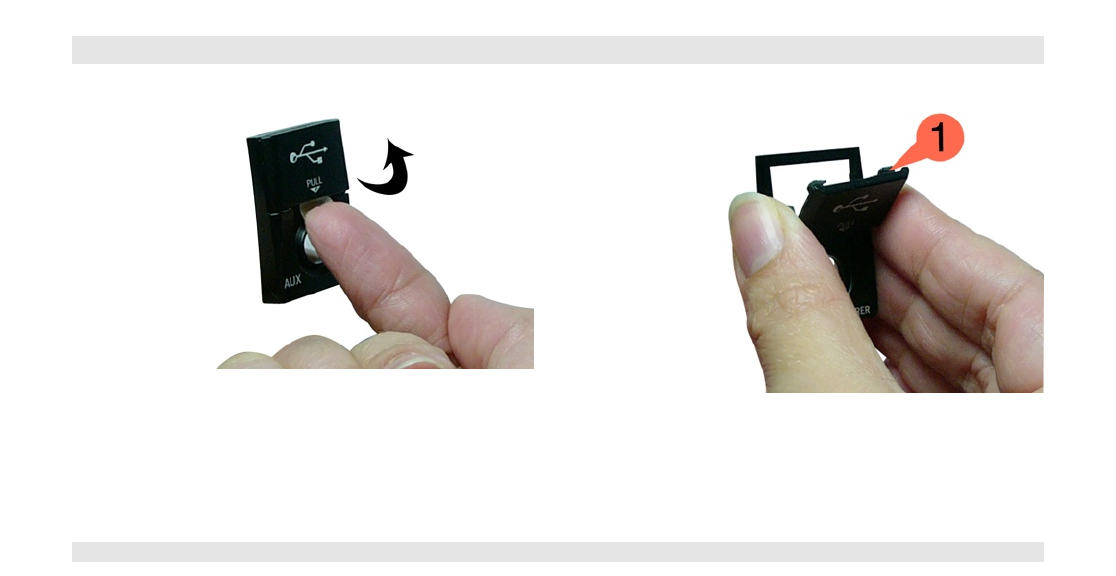

How to open the cover

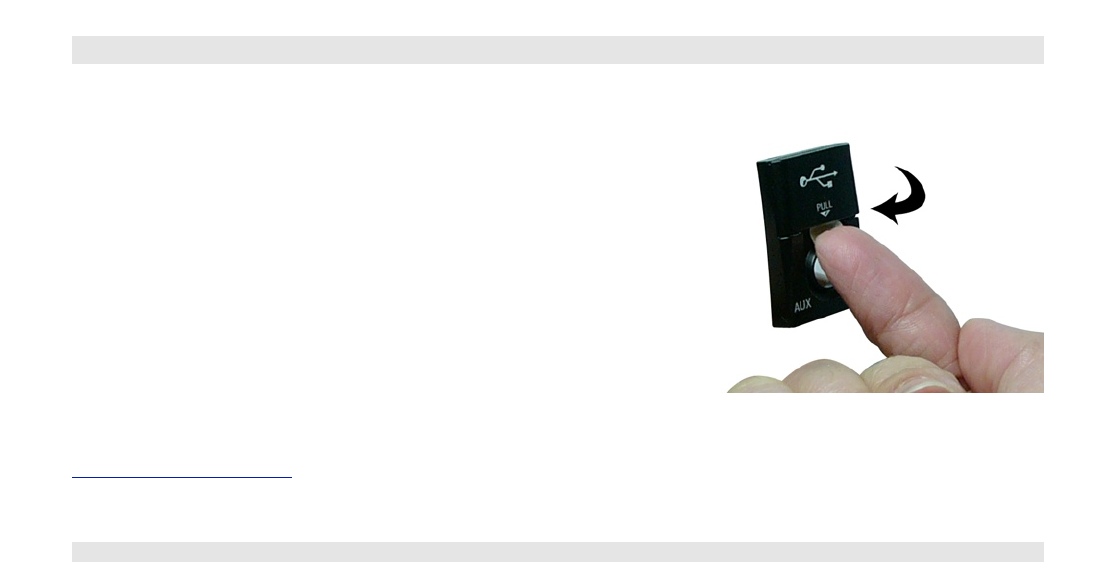

1. Place finger under the pull arrow.#
REMOTE DEVICES
70
![](/img.php?id=867212&img=bg22.png)
2. Pull forward.
Note: The flap is attached and should not be removed! Do not pull off of
the frame. Do not use a tool (e.g. screw driver, nail file, etc.) to open the
flap, as this could cause damage to the face of the radio.

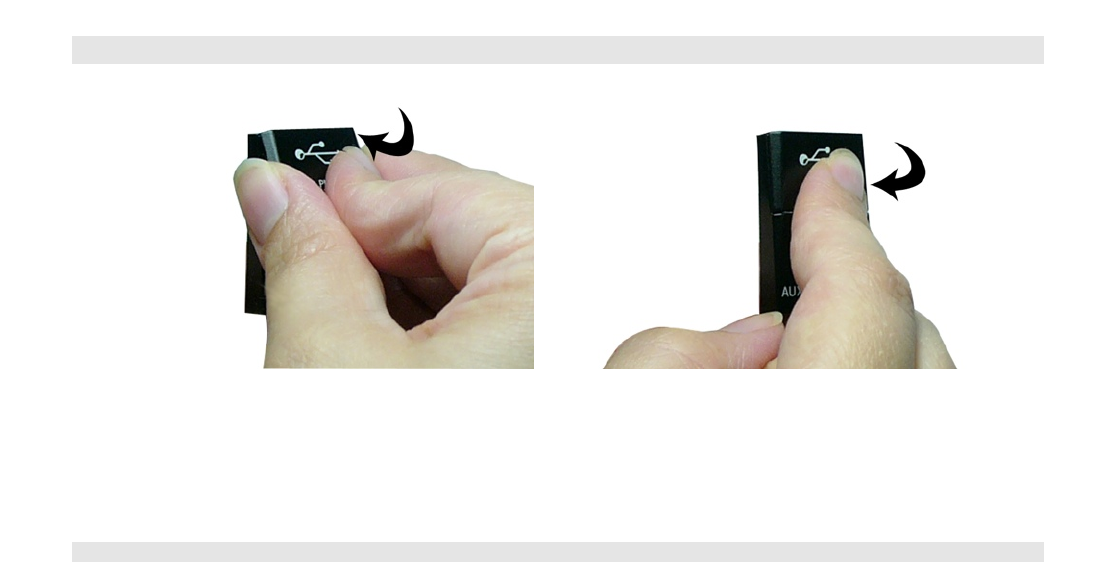

How to close the cover
1. Using your thumb and index finger, grasp the flap. Notice the
hooks (1), which must first be inserted into the frame.
REMOTE DEVICES
71
![](/img.php?id=867212&img=bg23.png)
2. Hook the top hooks (1) into the frame first. 3. Then push on the bottom of the flap, to secure in place.
Caution: Never force any connector into the ports of your radio.
Make sure your connectors are the identical shape and size before
you connect.
REMOTE DEVICES
72
![](/img.php?id=867212&img=bg24.png)
AUX Mode
The AUX connector allows you to connect the headset output of
an audio device (e.g., MP3 player) to the navigation radio. The
audio of the connected device will then be played through the
navigation radio sound system.

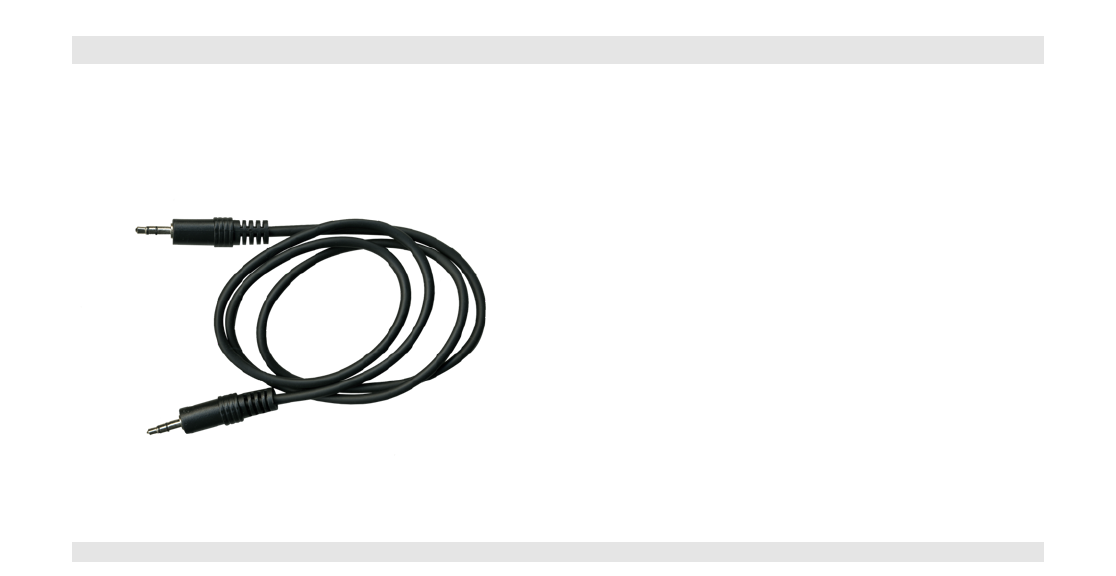

Connect a 3.5 mm stereo mini-jack cable as shown above (not
provided with the radio) to the AUX connector on the navigation
radio and to the earphone connector of your audio device.
The display will switch automatically to the AUX mode, when a
3.5 mm stereo mini-jack cable has been connected. The radio
screen will revert back to the last tuner mode when the cable is
unplugged.
To change radio modes while the cable is connected to the unit,
press the RADIO/MEDIA hard-key until the AUX tab is displayed
on the top of the screen. Touch the AUX tab to return to the AUX
mode.
Adjust the volume with the ON/OFF VOLUME knob, or with the
volume of the attached device.
The control of the external device (e.g., selecting playlists, play,
fast forward, etc.) cannot be provided by the radio; use the de-
vice controls instead.
Note: Inserting of a mono jack will result in improper audio playback.
REMOTE DEVICES
73
![](/img.php?id=867212&img=bg25.png)
Speech Dialogue System
Voice Recognition System (VR)
This Voice Recognition System allows you to control your AM
and FM radio, satellite radio, disc player, navigation system, hard
disk drive storage, and a memo recorder.
WARNING: Any voice commanded system should be used only in
safe driving conditions and all attention should be kept on the road-
way ahead. In a stressful situation, take care to speak into the Voice
Interface System as calmly and normally as possible. The ability of
the Voice interface System to recognize user voice commands may
be negatively affected by rapid speaking or a raised voice level.
When you press the VR hard-key, you will hear a beep. The
beep is your signal to give a command.
Note: If you do not say a command within a few seconds, the system will
present you with a list of options.
You can always recall the help menus by saying HELP.
If you ever wish to interrupt the system while it lists options,
press the VR hard-key, listen for the beep, and say your com-
mand.
Pressing the VR hard-key while the system is speaking is known
as “barging in”. The system will be interrupted and you can add
or change commands. This will become helpful once you start to
learn the options.
Note: At any time you can say the words CANCEL, REPEAT, HELP, or
MAIN MENU.
These commands are universal and can be used from any menu
or screen. For other universal commands, refer to the command
section in this manual.
All other commands can be used depending upon the active
application.
For example: If you are in the navigation menu and you are lis-
tening to FM radio, you can speak commands from the naviga-
tion menu or from the FM radio menu.
When using this system, you should speak clearly and at a nor-
mal speaking volume.
The system will best recognize your speech if the windows are
closed, and the heater- / air-conditioning fan is set to low.
At any point, if the system does not recognize one of your com-
mands, you will be prompted to repeat it.
To hear the first available Menu, press the VR hard-key and say
HELP or MAIN MENU.
SPEECH DIALOGUE SYSTEM
74
![](/img.php?id=867212&img=bg26.png)
Display Menu
In addition to audible help, the navigation radio is able to display
the most important available commands on the screen.
Note: Press the green voice recognition help screen to CANCEL the
currently active voice command session.
Commands
The Voice Recognition understands two types of commands.
Global commands are available at all times. Local commands
are available if the supported radio mode is active.
Changing the volume
1. Start a dialogue by pressing the VR hard-key.
2. Say a command (e.g., HELP).
3. Use the ON/OFF VOLUME rotary knob to adjust the volume to
a comfortable level while the voice recognition system is speak-
ing.
Main Menu
Start a dialogue by pressing the VR hard-key.
You may say MAIN MENU to switch to the SDS main menu.
In this mode you can say the following commands:
• RADIO (to switch to the radio mode)
• HARD DRIVE (to switch to the HDD mode)
• DISC (to switch to the disc mode)
• VES (to switch to the VES mode)
• MEMO (to switch to the memo recorder)
• NAVIGATION (to switch to the navigation mode)
• SYSTEM SETUP (to display the system setup menu)
SPEECH DIALOGUE SYSTEM
75
![](/img.php?id=867212&img=bg27.png)
Radio Menu
You may say RADIO to switch to AM, FM, or SAT.
Say RADIO MENU.
In this mode you may say the following commands:
• RADIO AM (to switch to the AM band)
• RADIO FM (to switch to the FM band)
• SATELLITE RADIO (to switch to the satellite radio)
Radio AM
To switch to the AM band say AM or RADIO AM.
In this mode you may say the following commands:
•"FREQUENCY (to change the frequency)
• NEXT STATION (to select the next station)
• PREVIOUS STATION (to select the previous station)
• RADIO MENU (to switch to the radio menu)
• MAIN MENU (to switch to the main menu)
Radio FM
To switch to the FM band say FM or RADIO FM.
In this mode you may say the following commands:
• FREQUENCY (to change the frequency)
• NEXT STATION (to select the next station)
• PREVIOUS STATION (to select the previous station)
• RADIO MENU (to switch to the radio menu)
• MAIN MENU (to switch to the main menu)

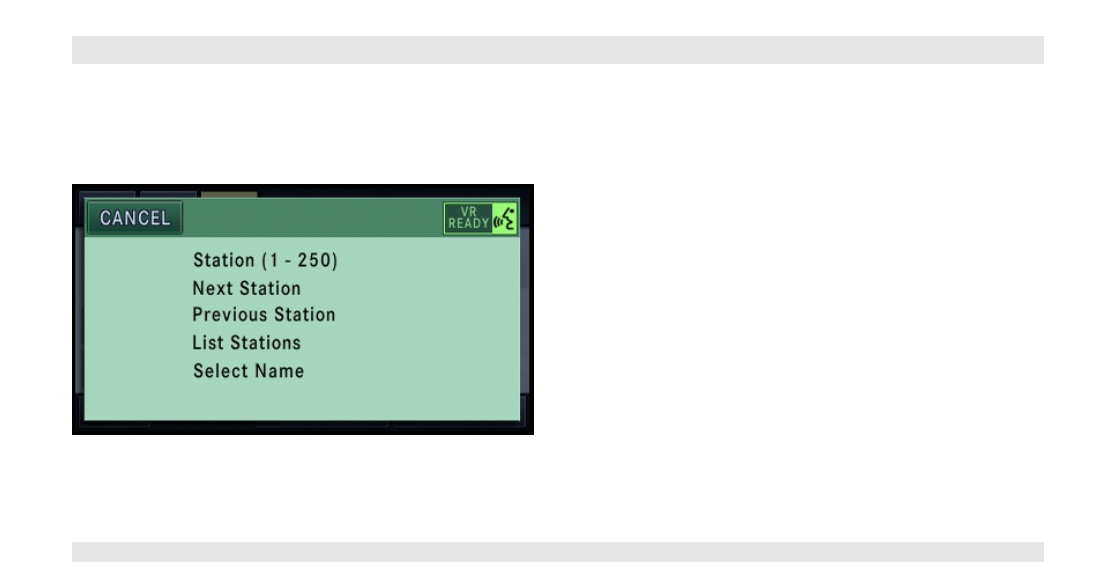

Satellite Radio
To switch to satellite radio mode say SAT or SATELLITE RADIO.
In this mode you may say the following commands:
• STATION (1-250) (to change the station)
• NEXT STATION (to select the next station)
• PREVIOUS STATION (to select the previous station)
• LIST STATIONS (to hear a list of available stations)
• SELECT NAME (to say the name of a station)
• RADIO MENU (to switch to the radio menu)
• MAIN MENU (to switch to the main menu)
Disc
To switch to the disc mode say DISC.
In this mode you may say the following commands:
• TRACK (1-250) (to change the track)
• NEXT TRACK (to play the next track)
• PREVIOUS TRACK (to play the previous track)
• MAIN MENU (to switch to the main menu)
SPEECH DIALOGUE SYSTEM
76
![](/img.php?id=867212&img=bg28.png)
Hard Drive
To switch to the HDD mode say HARD DRIVE.
In this mode you may say the following commands:
• TRACK (1-250) (to change the track)
• NEXT TRACK (to play the next track)
• PREVIOUS TRACK (to play the previous track)
• MAIN MENU (to switch to the main menu)
VES
To switch to the VES mode say V E S.
In this mode you may say the following commands:
• VES
• VES REMOTE LOCK (to lock the VES remote)
Memo
To switch to the voice recorder mode say MEMO.
In this mode you may say the following commands:
• NEW MEMO (to record a new memo)
During the recording you may press the VR hard-key to stop
recording. You continue by saying one of the following com-
mands:
#- SAVE (to save the memo)
#- CONTINUE (to continue recording)
#- DELETE (to delete the recording)
• PLAY MEMOS (to play previously recorded memos)
During the playback you may press the VR hard-key to stop
playing memos. You continue by saying one of the following
commands:
#- REPEAT (to repeat a memo)
#- NEXT(to play the next memo)
#- PREVIOUS (to play the previous memo)
#- DELETE (to delete a memo)
• DELETE ALL (to delete all memos)
Note: Keep in mind that you have to press the VR hard-key first and wait
for the beep, before speaking the “barge in” commands.
Navigation
To switch to the navigation mode say NAVIGATION.
Note: Not all commands will be available at all times, depending upon the
system context.
Note: Read the navigation chapter first, to help you understand the func-
tionality of the available commands.
You may say:
• DESTINATION ENTRY
#- GUIDE ME TO A NAME
SPEECH DIALOGUE SYSTEM
77
![](/img.php?id=867212&img=bg29.png)
#- STREET ADDRESS
##.. INPUT COUNTRY
##.. INPUT STATE
##.. INPUT CITY NAME
##.. INPUT STREET NAME
##.. INPUT HOUSE NUMBER
#- POI
##.. FIND NEARBY POI
##.. FIND POI NEAR DESTINATION
##.. FIND WITHIN A CITY
##.. INPUT PHONE NUMBER
##.. SELECT POI ICONS
#- ADVANCED INPUT
##.. INPUT ZIP CODE
##.. INTERSECTION
##.. CANCEL DESTINATION ENTRY
#- RECENT DESTINATIONS
• ROUTING OPTIONS
#- GO
#- STOP ROUTING
#- MUTE GUIDANCE
#- REPEAT GUIDANCE
#- CHANGE METHOD
##.. FASTER ROUTE
##.. SHORTER ROUTE
• TRAVEL INFO
• MAP
• ADDRESS BOOK
#- NEW ENTRY
#- NAVIGATE TO A NAME
#- DELETE
#- ERASE ALL
System Setup
To switch to the system setup say SETUP.
You can say:
• LANGUAGE
#- ENGLISH
#- SPANISH
#- FRENCH
• VOICE TRAINING
• HELP SCREEN
#- ON
#- OFF
• TUTORIAL
SPEECH DIALOGUE SYSTEM
78
![](/img.php?id=867212&img=bg2a.png)
Voice Training
For users experiencing difficulty with the system recognizing their
voice commands or numbers, the UConnect system Voice Train-
ing feature may be used.
1. Press the VR hard-key.
2. Say VOICE TRAINING.
This will train your own voice to the system and will improve
recognition.
Repeat the words and phrases when prompted by the UConnect
System. For best results, the Voice Training session should be
completed when the vehicle is parked, engine running, all win-
dows closed, and the blower fan switched off.
This procedure may be repeated with a new user. The system
will adapt to the last trained voice only.
If the system does not understand the words VOICE TRAINING:
1. Press the MENU hard-key.
2. Press System Setup.
3. Press the Voice Recognition hard-key to access the Voice
Recognition menu.
Note: Voice Training does not alter the capability of the system to recog-
nize other people’s voices. It gives the recognition system additional in-
formation about your voice.

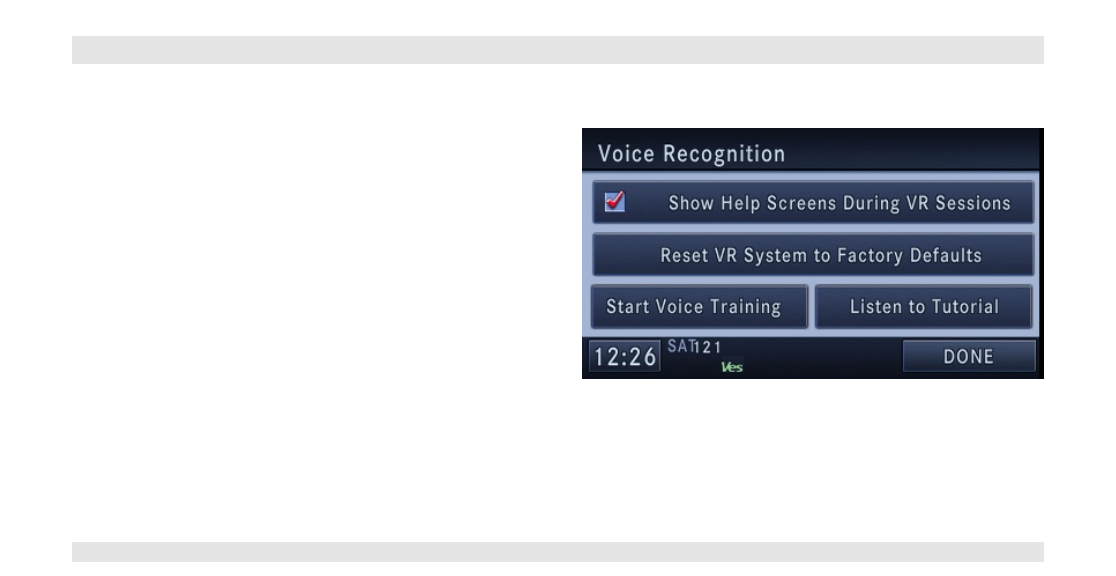

• Touch the Show Help Screens During VR Sessions to show or
hide the help screens when using the speech dialog system.
• Touch the Reset VR System to Factory Defaults when you
would like to restore the Voice recognition system to factory de-
fault settings.
• Touch the Start Voice Training soft-key to train the voice recog-
nition system.
SPEECH DIALOGUE SYSTEM
79
![](/img.php?id=867212&img=bg2b.png)
• Touch the Listen to Tutorial soft-key to hear instructions on
voice training.
Note: With rolled down windows, the system performance may be com-
promised.
In a convertible vehicle, the system performance may be com-
promised with roof top down.
The Rear view mirror top should be at least 1/2 inch below the
overhead console.
Hands Free Cellular Telephone
UConnect™ Overview
UConnect™ is a voice-activated, hands-free, in vehicle commu-
nications system. UConnect™ allows you to dial a phone number
with your cellular phone using simple voice commands (e.g.,
“Call” … “Jim” …Work” or “Dial” … “248-555-1212”). Your cellular
phone’s audio is transmitted through your vehicle’s audio sys-
tem; the system will automatically mute your radio when using
the UConnect™ system.
Compatible Phones
See the UConnect™ site on http://www.chrysler.com/mygig/ for a
current list of compatible cellular phones and any limitations your
phone might have.
Warning: Any voice commanded system should only be used in safe
driving conditions and your attention should be kept on the road
ahead.
If your cellular phone supports a different profile (e.g., Headset
Profile), you may not be able to use any UConnect™ features.
Refer to your cellular service provider or the phone manufacturer
for details.
SPEECH DIALOGUE SYSTEM
80
![](/img.php?id=867212&img=bg2c.png)
The UConnect™ system is fully integrated with the vehicle’s
navigation radio audio system. The volume of the UConnect™
system can either be adjusted from the radio volume control
knob, or from the steering wheel radio control, if so equipped.
The radio display will be used for visual prompts from the UCon-
nect™ system such as “Incoming Call”, duration of the call, or
caller ID.
UConnect™ allows you to transfer calls between the system and
your cellular phone as you enter or exit your vehicle, and enables
you to mute the system’s microphone for private conversations.
The UConnect™ phonebook enables you to store up to 500
names and four numbers per name.
Bluetooth
This system is driven through your Bluetooth™ Hands-Free pro-
file cellular phone. UConnect™ features Bluetooth™ technology
– the global standard that enables different electronic devices to
connect to each other without wires or a docking station, so
UConnect works no matter where you stow your cellular phone
(be it your purse, pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s UConnect™ sys-
tem. The UConnect™ system allows up to seven cellular phones
to be linked to the system. Only one linked (or paired) cellular
phone can be used with the system at a time.
See http://www.bluetooth.org for more information on bluetooth.
UConnect™ microphone
The rearview mirror contains the microphone for the system and
the radio has the two control hard-keys that will enable you to
access the system.
Please remember, the UConnect™ system works best when you
talk in a normal conversational tone, as if speaking to some one
sitting eight feet away from you.
Say phone numbers as you normally would with a pause be-
tween the sets of digits. Speak aloud names as you would nor-
mally.
If the system does not recognize one of your commands, you will
be prompted to repeat it.
If you have trouble with recognition, you should press the VR
hard-key, then say Voice Training. This will train your own voice
to the system and will improve recognition.
SPEECH DIALOGUE SYSTEM
81
![](/img.php?id=867212&img=bg2d.png)
You may always exit the system by saying CANCEL. Other uni-
versal commands include HELP and MAIN MENU.
Operations
Voice commands can be used to operate the UConnect™ sys-
tem and to navigate through the UConnect™ menu structure.
Voice commands are required after most UConnect™ system
prompts. You will be prompted for a specific command and then
guided through the available options.
UConnect™ hard-key
When you press the UConnect™ hard-key you will hear the word
UConnect™ followed by a BEEP. The beep is your signal to give
a command.
Note: If nothing is said within a few seconds, the system will present a list
of menu options.
Listen to the choices and give your command after the beep.
Barge In – Overriding Prompts
The ‘Voice Recognition’ button can be used when you wish to
skip part of a prompt and issue your voice recognition command
immediately. For example, if a prompt is playing “Would you like
to pair a phone, clear a…,” you could press the ‘VR hard-key and
say “Pair a Phone” to select that option without having to listen to
the rest of the voice prompt.
Pressing the VR hard-key while the system is speaking is known
as “barging-in”. Barging-in must be done with the VR hard-key.
Help Command
If you need assistance at any prompt or if you want to know what
your options are at any prompt, say “Help” following the beep.
The UConnect™ system will play all the options at any prompt if
you ask for help.
To activate the UConnect™ system from idle, simply press the
UConnect™ hard-key and follow audible prompts for directions.
All UConnect™ system sessions begin with a press of the
UConnect™ hard-key.
Cancel Command
At any prompt, after the beep, you can say “Cancel” and you will
be returned to the main menu. However, in a few instances the
system will take you back to the previous menu.
SPEECH DIALOGUE SYSTEM
82
![](/img.php?id=867212&img=bg2e.png)
Pair (Link) to a Cellular Phone
To begin using your UConnect™ system, you must pair your
compatible Bluetooth™ enabled cellular phone (refer to “Intro-
duction” section to learn about the phone type). To complete the
pairing process, you will need to reference your cellular phone
owner’s manual. One of the following vehicle specific websites
may also provide detailed instructions for pairing with the brand
of phone that you have:
www.chrysler.com/uconnect or www.dodge.com/uconnect or
www.jeep.com/uconnect
Phone pairing can either be done using the touch screen (see
Getting Started section in this manual) or using voice commands.
Pairing will walk you through a series of steps that will establish a
connection between your handset and the UConnect™ system in
the vehicle.
Once set up, you do not need to re- pair your phone with each
use. However, every new phone must be paired before it can be
used.
The following are general phone to UConnect™ System voice
pairing instructions:
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONE PAIRING.
4. When prompted, after the beep, say PAIR A PHONE and fol-
low the audible prompts.
5. You will be asked to say a four-digit pin number which you will
later need to enter into your cellular. You can enter any four-digit
pin number. You will not need to remember this pin number after
the initial pairing process.
6. The UConnect™ system will then prompt you to begin the
cellular phone pairing process on your cellular phone. Before
attempting to pair phone, please see your cellular phone’s user
manual (Bluetooth section) for instructions on how to complete
this step.
7. For identification purposes, you will be prompted to give the
UConnect™ system a name for your cellular phone. Each cellu-
lar phone that is paired should be given a unique phone name.
8. You will then be asked to give your cellular phone a priority
level between 1 and 7, 1 being the highest priority.
SPEECH DIALOGUE SYSTEM
83
![](/img.php?id=867212&img=bg2f.png)
You can pair up to seven cellular phones to your UConnect™
system. However, at any given time, only one cellular phone can
be in use, connected to your UConnect™ System. The priority
allows the UConnect™ system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the same
time.
For example, if priority 3 and priority 5 phones are present in the
vehicle, the UConnect™ system will use the priority 3 cellular
phone when you make a call. You can select to use a lower prior-
ity cellular phone at any time (refer to “Advanced Phone Connec-
tivity” section).
Dial by Saying a Number
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say DIAL.
4. When prompted, after the beep, say the number you want to
call.
For example, you can say “234-567-8901.” The phone number
that you enter must be of valid length and combination. Based on
the Country in which the vehicle was purchased, the UConnect™
limits the user from dialing invalid combination of numbers. For
example, in USA, 234-567-890 is nine digits long, which is not a
valid USA phone number - the closest valid phone number has
ten digits.
5. The UConnect™ system will ask you to confirm the phone
number and then dial. The number will appear in the display of
the navigation radio.
Call by Saying a Name
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say CALL.
4. When prompted, after the beep, say the name of the person
you want call.
For example, you can say “John Doe,” where John Doe is a
previously stored name entry in the UConnect™ phonebook.
Refer to section “Add Names to Phonebook,” to learn how to
store a name in the phonebook.
5. The UConnect™ system will ask you to confirm the name and
then dial the corresponding phone number, which will appear in
the display of the navigation radio.
SPEECH DIALOGUE SYSTEM
84
![](/img.php?id=867212&img=bg30.png)
Phone Book
Accessing the phone book can either be done using the touch
screen (see Address Book section in this manual) or using voice
commands.
The UConnect™ PHONE BOOK accesses the same database
as the navigation radios ADDRESS BOOK.
Add Names to Phonebook
Adding names to phonebook is recommended when the vehicle
is not in motion.
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONEBOOK.
4. When prompted, after the beep, say NEW ENTRY.
Use of long names helps the voice recognition and is recom-
mended. For example, say “Robert Smith” or “Robert” instead of
“Bob.”
5. When prompted, enter the number designation (e.g.: “Home,”
“Work,” “Mobile,” or “Pager”). This will allow you to store multiple
numbers for each phonebook entry, if desired.
6. When prompted, confirm the phone number for the phonebook
entry that you are adding.
7. After you are finished adding an entry into the phonebook, you
will be given the opportunity to add more phone numbers to the
current entry or to return to the main menu.
The navigation radio will allow you to enter up to 500 names in
the phone book with each name having addresses, and up to
four associated phone numbers, and designations.
Voice Tags
In step 4 of the Add Names to Phonebook section, the navigation
radio is recording your voice. The recording is called Voice Tag.
You may edit, delete, or listen to the voice tag in the contact
information menu (refer to the Address Book section in this man-
ual for more details).
Note: Only voice tags are saved in regards to the currently se-
lected system language setting. If you switch the language, your
voice tag may not be available.
SPEECH DIALOGUE SYSTEM
85
![](/img.php?id=867212&img=bg31.png)
Edit Phonebook Entries
Editing names in the phonebook is recommended when the ve-
hicle is not in motion.
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONEBOOK.
4. When prompted, after the beep, say EDIT ENTRY.
5. You will then be asked for the name of the phonebook entry
that you wish to edit.
6. Next, choose the number designation (home, work, mobile, or
pager) that you wish to edit.
7. When prompted, recite the new phone number for the phone-
book entry that you are editing.
After you are finished editing an entry in the phonebook, you will
be given the opportunities to edit another entry in the phonebook,
call the number you just edited, or return to the main menu.
“Phonebook Edit” can be used to add another phone number to a
name entry that already exists in the phonebook. For example,
the entry John Doe may have a mobile and a home number, but
you can add John Doe’s work number later using the “Phone-
book Edit” feature.
Delete Phonebook Entry
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONEBOOK.
4. When prompted, after the beep, say DELETE ENTRY.
5. After you enter the Phonebook Delete menu, you will then be
asked for the name of the entry that you wish to delete.
You can either say the name of a phonebook entry that you wish
to delete or you can say “List Names” to hear a list of the entries
in the phonebook from which you choose.
6. To select one of the entries from the list, press the “Voice Rec-
ognition” hard-key while the UConnect™ system is speaking the
desired entry and say DELETE.
After you enter the name, the UConnect™ system will ask you
which designation you wish to delete: home, work, mobile, pager
or all.
7. Say the designation you wish to delete.
SPEECH DIALOGUE SYSTEM
86
![](/img.php?id=867212&img=bg32.png)
Delete/Erase “All” Phonebook Entries
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONEBOOK.
4. When prompted, after the beep, say ERASE ALL.
5. The UConnect™ system will ask you to verify that you wish to
delete all the entries from the phonebook.
After confirmation, the phonebook entries will be deleted.
List All Phonebook Names
1. Press the UConnect™ hard-key to begin.
2. Wait for the beep.
3. Say PHONEBOOK.
4. When prompted, after the beep, say LIST NAMES.
The UConnect™ system will play the names of all the phone-
book entries.
5. To call one of the names in the list, press the “Voice Recogni-
tion’ hard-key during the playing of the desired name and say
CALL.
Note: You can also exercise “Edit” or “Delete” operations at this point.
6. The UConnect™ system will then prompt you as to the num-
ber designation you wish to call.
7. The selected number will be dialed.
Phone Call Features
The following features can be accessed through the UConnect™
system if the feature(s) are available on your cellular service
plan. For example, if your cellular service plan provides three-
way calling, this feature can be accessed through the UCon-
nect™ system. Check with your cellular service provider for the
features that you have.
Answer or Reject an Incoming Call
when no Call Currently in Progress:
When you receive a call on your cellular phone, the UConnect™
system will interrupt the vehicle audio system, and will ask if you
would like to answer the call.
1. Press the UConnect™ button to accept the call.
2. To reject the call, press and hold the UConnect™ button until
you hear a single beep indicating that the incoming call was
rejected.
SPEECH DIALOGUE SYSTEM
87
