POI Icons on the Map
The navigation radio is able to display available point of interests
on the map.

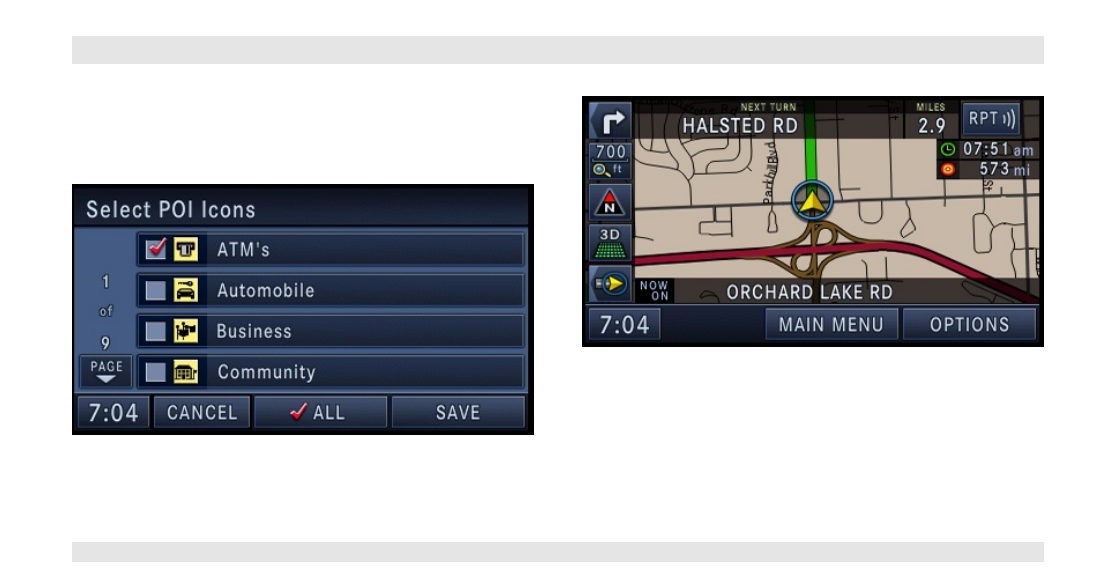

Touch the Select POI Icons soft-key to show a list of point of
interest icons.
Touch the icon soft-key to show or hide an icon on the map.

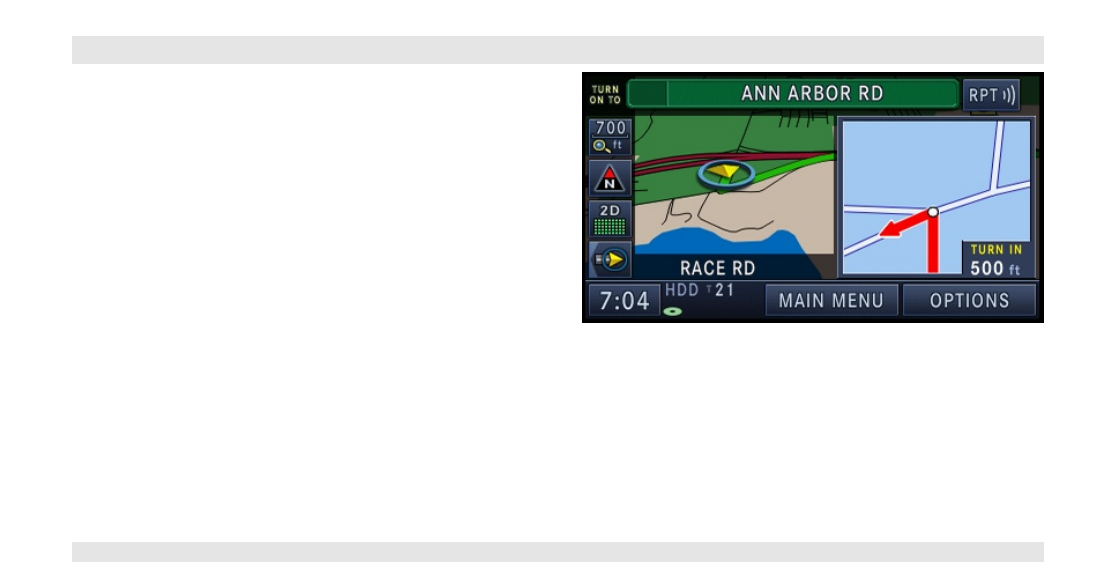

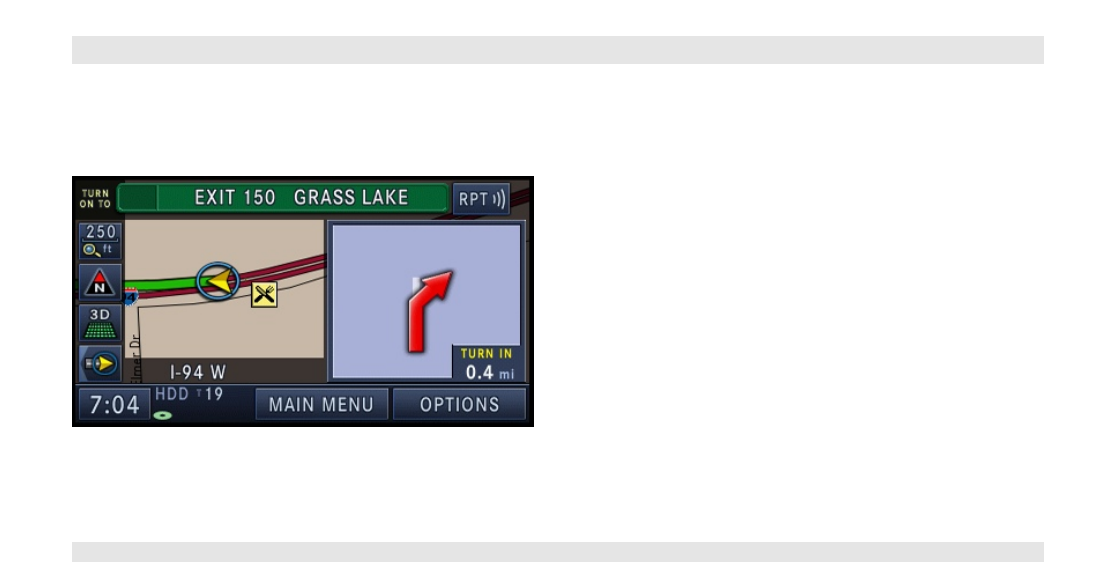

Repeat Navigation Announcement
Touch the RPT soft-key in the upper right corner of the naviga-
tion screen to hear the current navigation announcement.
Automatic Re-Routing
If you miss a turn while navigating, the navigation radio will
automatically adjust your route.
NAVIGATION SYSTEM
123
Route Options

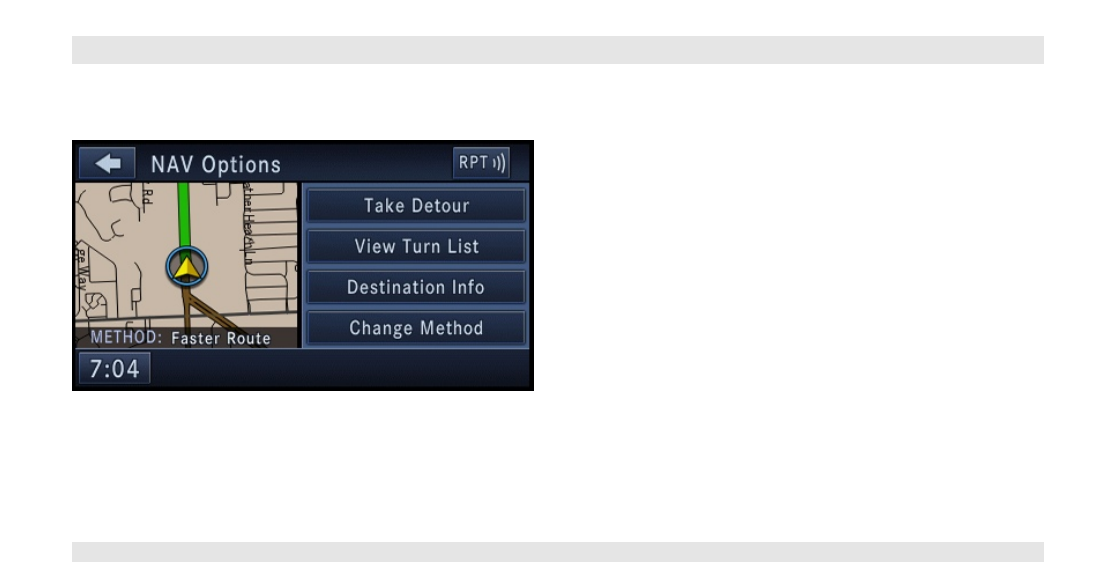

After pressing the OPTIONS soft-key in the Route Guidance
Menu, the following information is displayed:
In the left half of the screen, the current position and the current
routing method are displayed.
The Change Method soft-key will allow you to change the routing
method.
The View Destinations soft-key displays destination information.
The View Turn List soft-key list streets utilized for the current
route.
The Take Detour soft-key will allow you to calculate a different
route.
NAVIGATION SYSTEM
124
Canceling Route Guidance

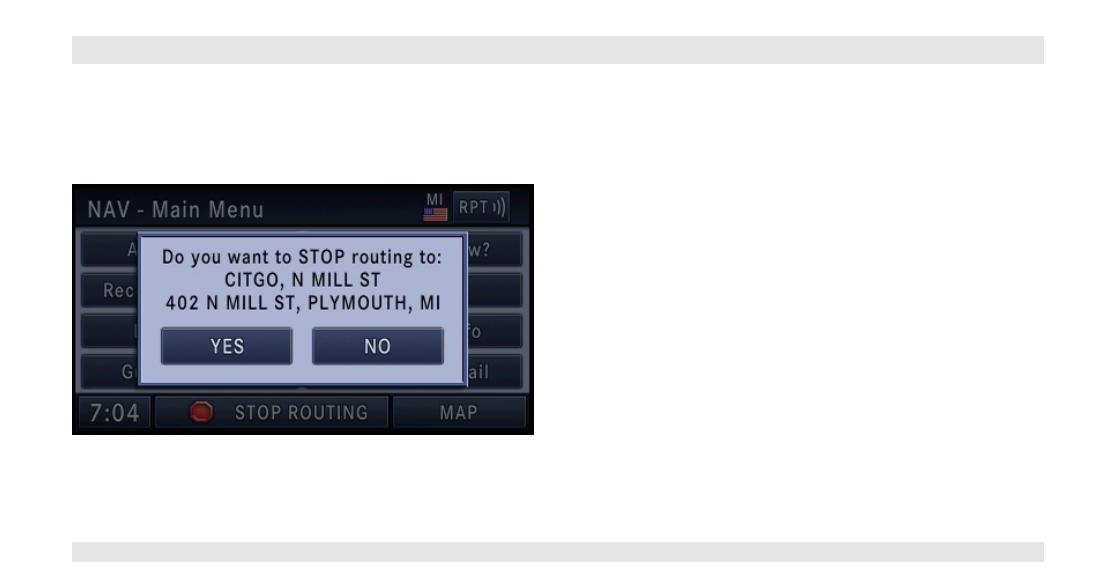

The current route guidance can be aborted at any time by press-
ing the STOP ROUTING soft-key in the NAV -Main Menu.
Touch the YES soft-key to confirm the cancelation, or touch the
NO soft-key to keep the route guidance.
Unverified Navigation Database Area
Unverified areas are roads that are included in the database but
have not been verified.
Route guidance in an unverified area is different from the guid-
ance you receive in a detailed, verified area. When traveling in
an unverified area, turn-by-turn guidance and voice prompts
cannot be provided.
The navigation system will suggest a route highlighted in green.
This is only a route suggestion. In an unverified map area, the
navigation system is unaware of turning restrictions e.g. one way
roads, or where turns are not permitted.
NAVIGATION SYSTEM
125
Notes on Route Guidance
During navigation you will receive voice recommendations to
help guide you. The following explains some guidance messages
you may receive.
Warning: Danger of Accident! DO NOT IGNORE TRAFFIC LAWS. If a
driving recommendation contradicts the traffic laws, the laws AL-
WAYS take precedence!
“Make a U-turn if possible.” - You are driving in the wrong direc-
tion and should turn around at the earliest legal opportunity.
“Follow the arrows on the display.” - This display tells you that
you are currently in an area, such as a parking lot, garage, etc.,
that is not contained on the digital street map. The arrow indi-
cates the actual geographic direction to the destination.

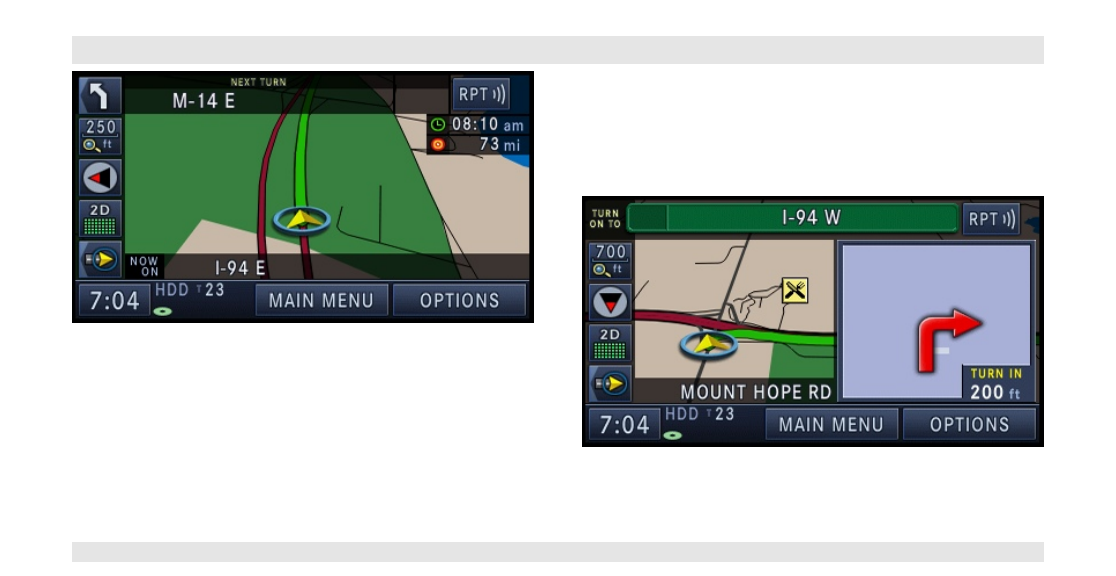

“Please take a sharp left in 500 feet.” - The red arrow points in
the direction you should turn. The dot indicates a maneuver
point.
NAVIGATION SYSTEM
126
“Follow the road.” - You should continue driving on the current
road for the distance shown.
“Prepare to take a left” or “Keep left in one mile.” - Keep left does
not mean to use HOV lanes or express lanes. You should note
that there is an upcoming turn and prepare to make any lane
changes needed to safely make the turn. As always, road safety
must be observed when making a lane change.
“Take the second exit to the right.” - This means to pass the first
exit after this announcement is given.
NAVIGATION SYSTEM
127
“Take the second turn on the right.” - This arrow shows you
which exit you should take from a traffic circle.
Note: At intersections and traffic circles, only the ends of the roads to be
passed are displayed.
“Keep right in half a mile.” - ”Keep right” means that the street will
fork and you should follow the indicated direction.
“You have reached your destination.” - The specified destination
has been reached and route guidance is terminated. The display
will switch back after few seconds.
NAVIGATION SYSTEM
128
Navigation Options
Options before activating the route guidance
Before confirming the route with the GO soft-key, it is possible to
select options different from the default route settings.
Touch the OPTIONS soft-key in the Confirm Route screen to get
to the NAV options screen.

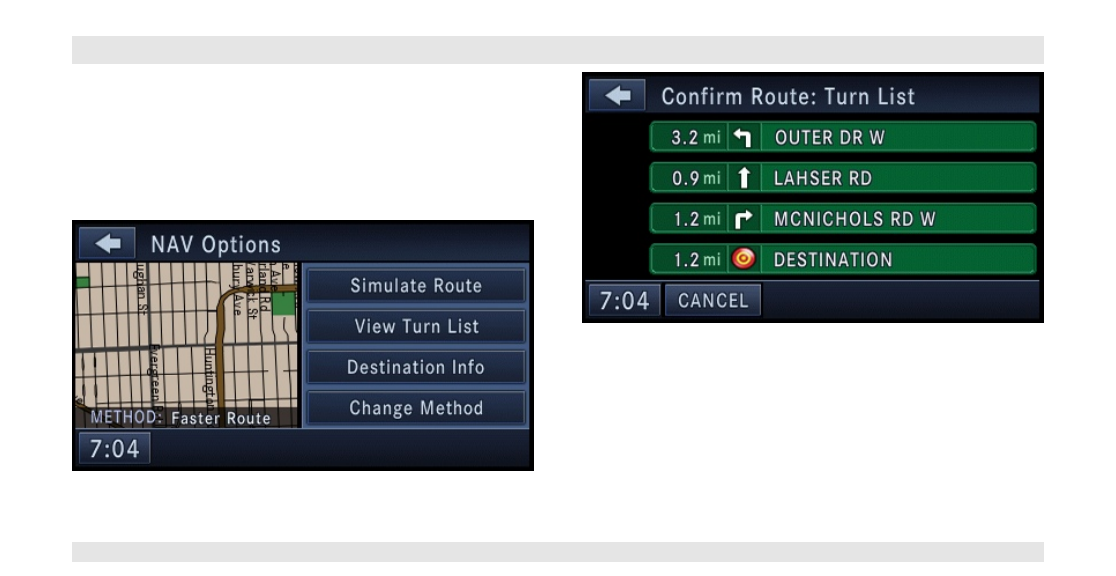

Press Simulate Route to simulate the route.
View Turn List to see a list of turns on the route.
Use the page soft-keys to scroll through the list of turns. The turn
soft-keys display the length of the route segment, direction of
turn, and the name of the street.
Touch a street in the list either to avoid the street or to preview
the turn in the map view.
NAVIGATION SYSTEM
129

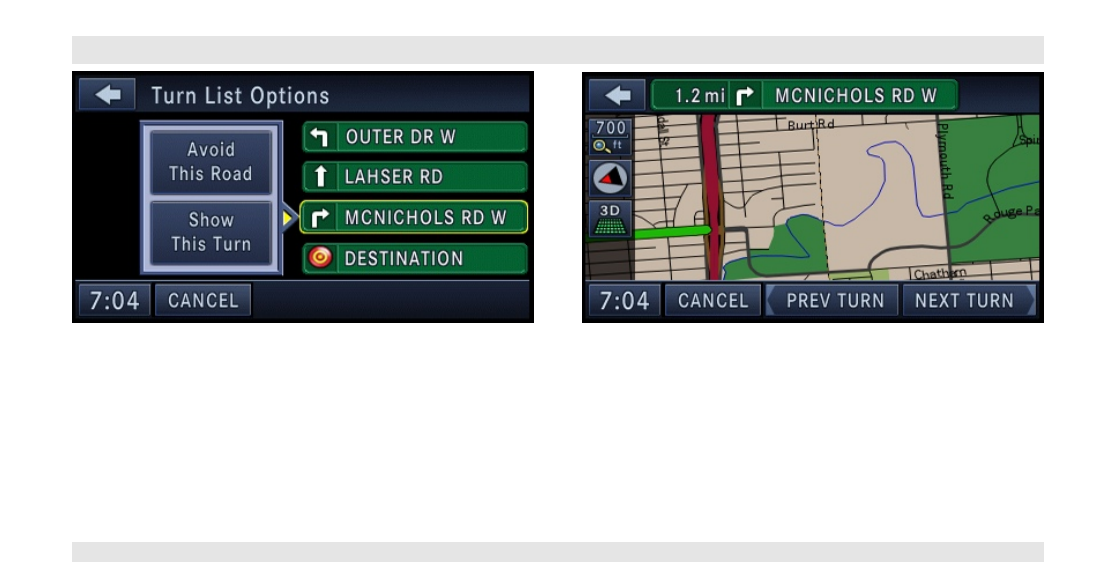

Touch the Avoid This Road soft-key to avoid the selected turn in
the list. The route will be re-calculated, if an alternate route is
possible.
Touch the Show This Turn soft-key to display a map of the area
surrounding the selected turn.
The turn will be displayed in the center of the map. Touch the
NEXT TURN soft-key to show a map of the area close to the
next turn in the turn list, touch the PREV TURN soft-key to show
a map of the area close to the previous turn in the turn list.
Touch the back soft-key to go back to the Turn List menu.
NAVIGATION SYSTEM
130

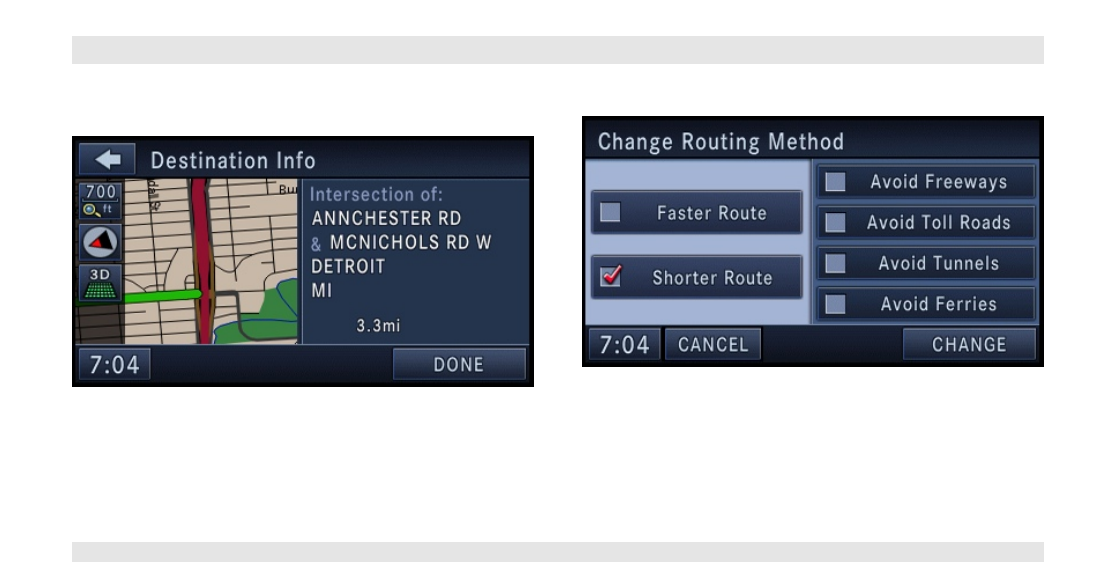

Touch the Destination Info soft-key in the NAV Options menu to
find a map of the destination area, the complete address or co-
ordinate of your destination.
Touch the Find POI Near Destination soft-key to exchange the
destination with a POI near to the desired destination. Read
more about POI in the POI section of this manual.
Touch the Change Method soft-key in the NAV Options menu to
change the default routing method.
After you touch one of the method soft-keys in this menu the
CHANGE soft-key will appear for confirmation of the method
change.
Note: Since toll roads, tunnels and ferries are built for the purpose of
shortening travel distances, avoiding these road types may increase dis-
tance and travel time.
NAVIGATION SYSTEM
131
Options During Route Guidance

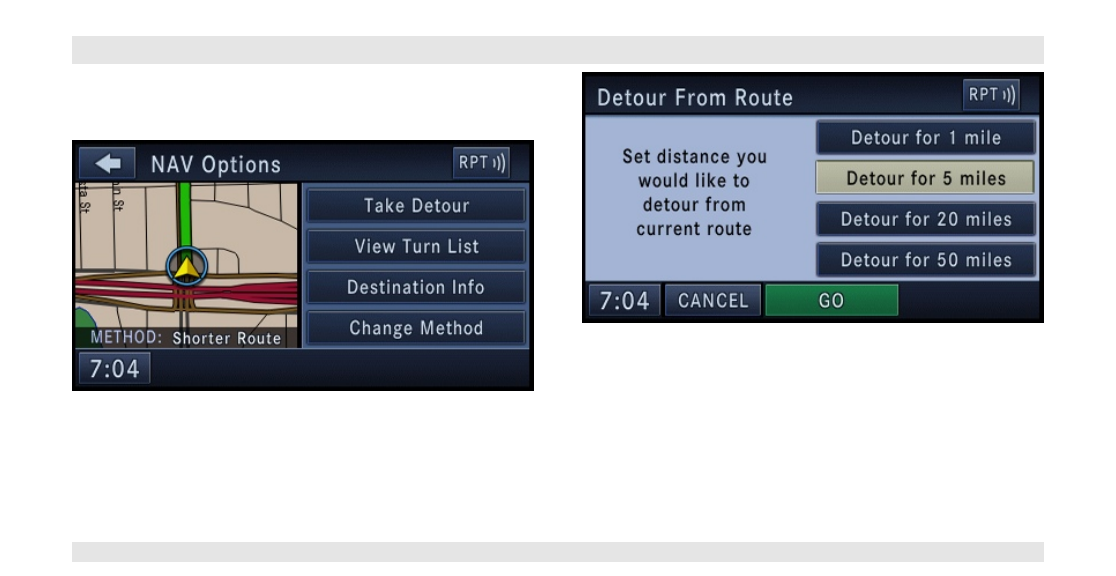

During active route guidance the Simulate Route soft-key is re-
placed by the Take Detour soft-key.
Touch the Take Detour soft-key to access the Detour From Route
menu.
Select a distance and touch the GO soft-key to confirm. The
navigation will avoid the roads in the turn list for the selected
distance and calculate an alternate route.
NAVIGATION SYSTEM
132
Navigation Default Settings

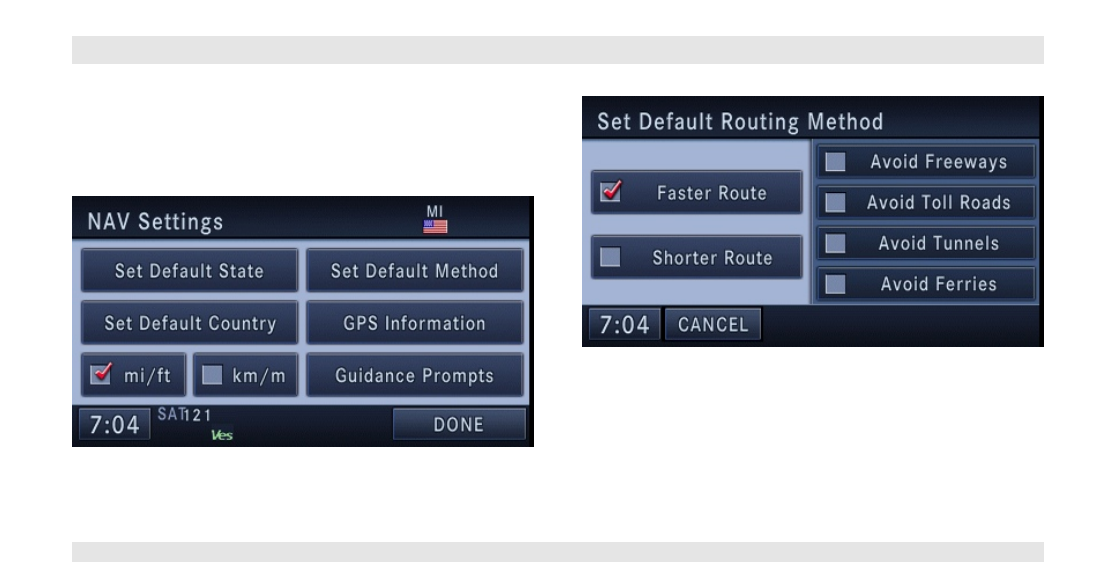

Touch the NAV Settings soft-key in the Navigation Main Menu to
select the preferred measurement, set default routing method,
view GPS information, and adjust guidance prompt volume.
Set Measurement Metric/US
From the Navigation Main Menu touch NAV Settings and then
select either mi/ft or km/m.
Set Default Routing Method
Mark or unmark route parameters and then touch the SAVE soft-
key to confirm the changes. Press the NAV hard-key to cancel
without change.
Note: Avoiding freeways, toll roads, tunnels or ferries may result in very
long routes.
NAVIGATION SYSTEM
133

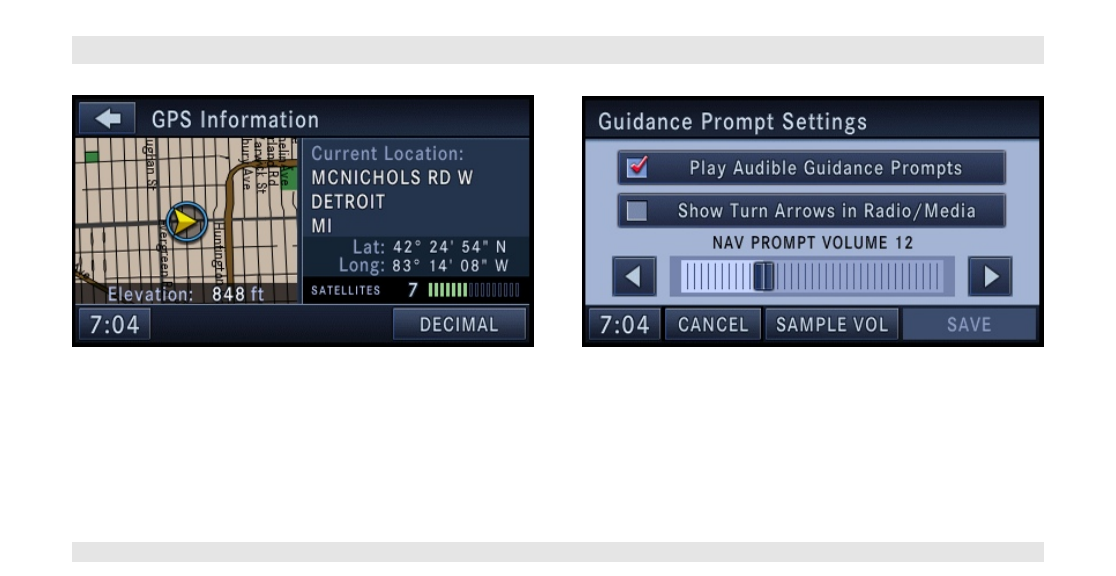

GPS Information
The GPS Information menu displays Current Location, Coordi-
nates in degrees, minutes and seconds (touch the DECIMAL
soft-key to switch to Decimal degrees), number of used satellites,
a map of the calculated position, and elevation.
Press the NAV hard-key to exit to the NAV Main Menu.
Guidance Prompts
Select and adjust the navigation guidance prompts in this menu.
Touch the SAMPLE VOL soft-key to listen to the current volume
setting.
Once satisfied with the volume, touch the SAVE soft-key to save
the settings. Touch the CANCEL soft-key to exit the menu with-
out saving the settings.
NAVIGATION SYSTEM
134
Map Viewer
Press the NAV hard-key to switch to the navigation MAIN MENU.
Press the NAV hard-key again to toggle between navigation
MAIN MENU and navigation MAP.
The tip of the arrow in the circle in the center shows your vehi-
cle´s position on the map. The square soft-keys on the left show
the map zoom factor, the map orientation, the display mode, and
the current location soft-key.

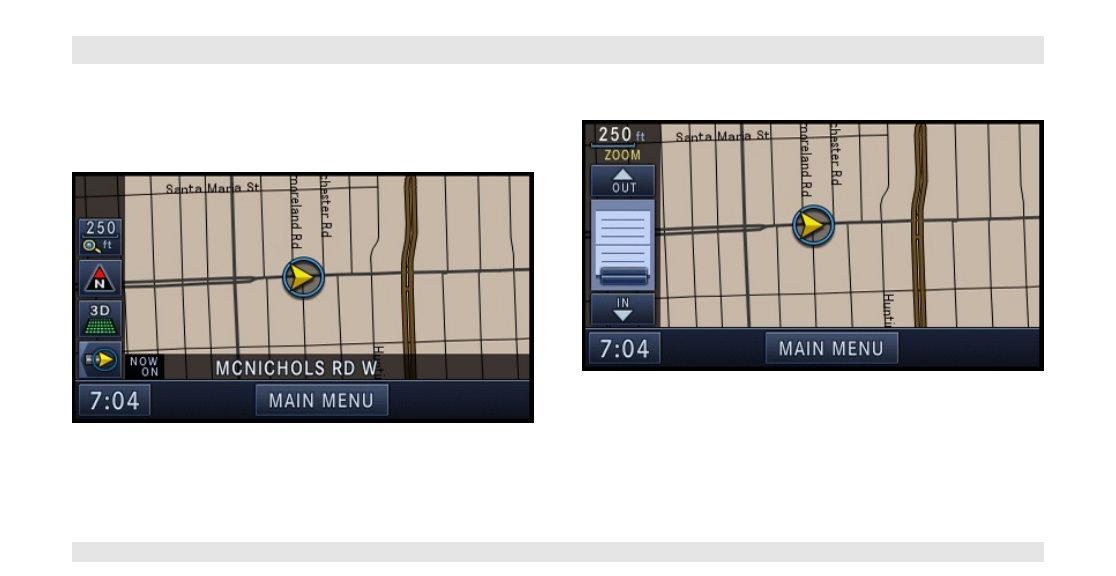

Map Zoom Level
Press the Zoom soft-key to change the zoom level.
Touch the slider or the IN and OUT soft-keys to change the zoom
level.
Map Orientation
Touch the soft-key with the compass arrow to toggle between a
map oriented to the North, or oriented parallel to the vehicle
heading.
NAVIGATION SYSTEM
135
3D Map Viewer
Touch the soft-key with the 2D/3D symbol to toggle between 2D
or 3D map views.
Stop Over
When the route guidance is active, press the Add Stop Over soft-
key, to add multiple destinations. After you confirm a stop over,
you may either go to the entered stop over first, or to add it to a
destination list.
Touch the ADD soft-key to confirm the stop over destination.
Note: Once you reach a destination, the system will automatically guide
you to the next destination on the list.
To review the destination list, touch the OPTIONS soft-key in the
Route Guidance screen and touch the VIEW DESTINATIONS
soft-key.
To show the destinations information touch the desired destina-
tions soft-key.
Touch the DONE soft-key to exit the Destination Info menu.
NAVIGATION SYSTEM
136
Trip Planner
If you are traveling to multiple destinations, the My Trip function
will allow you to calculate and save the route to each destination.

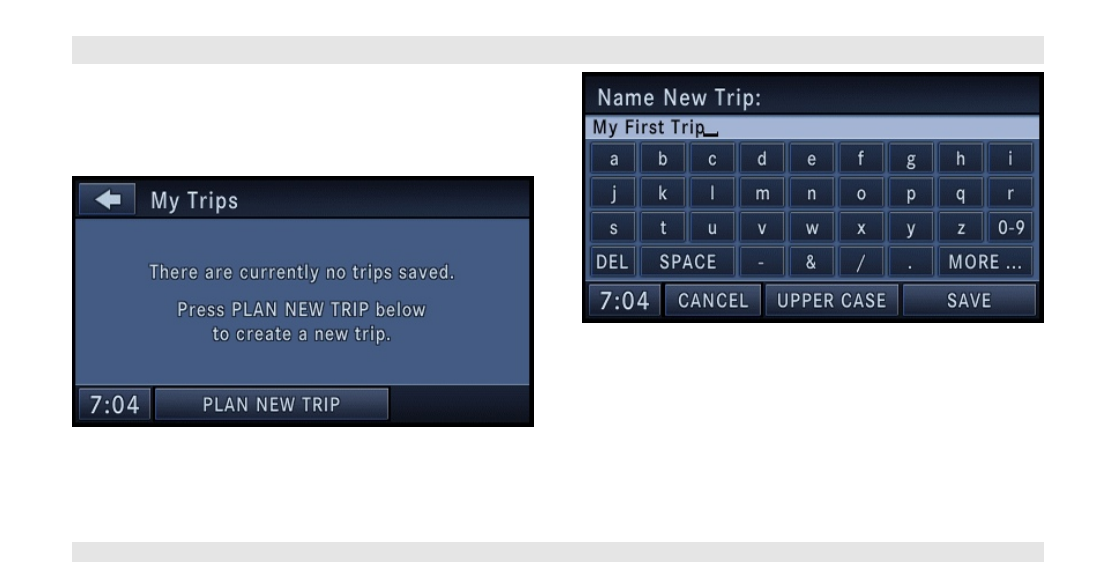

1. Touch the My Trips soft-key in the NAV - Main Menu.
2. Touch the PLAN NEW TRIP soft-key to start a new trip.
3. Name the trip and touch the SAVE soft-key.
NAVIGATION SYSTEM
137
4. Touch ADD DESTINATION.
5. Enter a destination (see section Destination Input in this man-
ual).
In the Confirm Destination screen
6. Touch the SAVE soft-key to add the destination to the list.
NAVIGATION SYSTEM
138

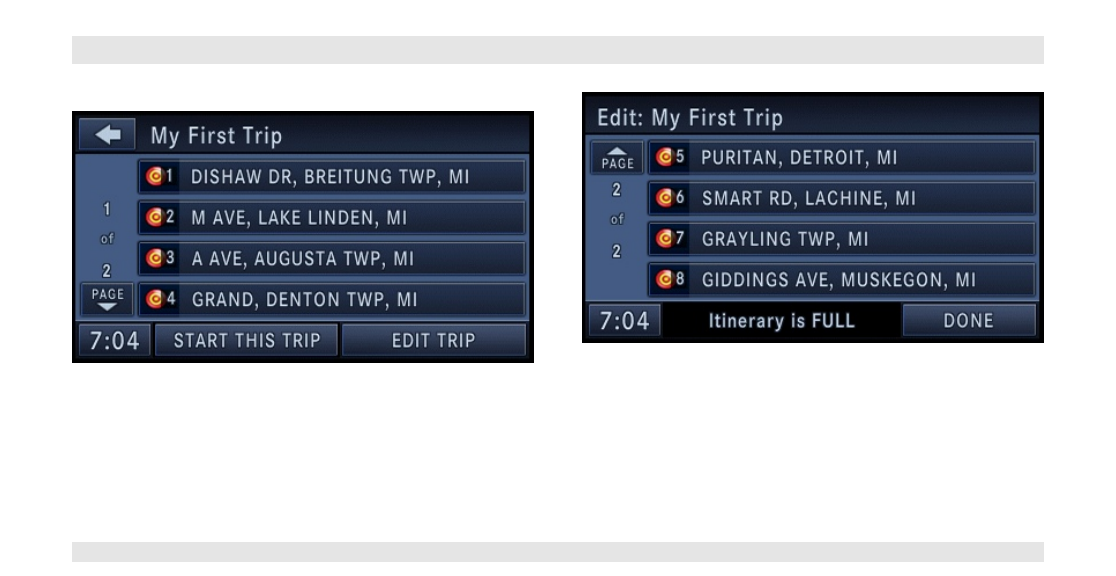

Note: You can add up to 9 destinations to a trip. The display shows the
Itinerary is FULL message in the status line, if all 9 destinations are used.
7. Touch the DONE soft-key to access the My Trips menu.
8. You may now either PLAN NEW TRIP, DELETE ALL your trips,
or select your trip by touching the soft-key with the desired trip
name.
NAVIGATION SYSTEM
139
Note: You may add up to 12 trips to the list. The display shows the My
Trips is FULL message in the status line, if all 12 trips are used.
9. Touch a destination soft-key to get the destination information,
or touch the START THIS TRIP soft-key to start the trip.
10. Touch the GO soft-key to confirm the first destination of the
trip.
You may touch the EDIT TRIP soft-key to edit the trip.
In the Edit Trip menu you may rename, delete, or edit the details
of this trip. Touch a destination in the list.
NAVIGATION SYSTEM
140
From the Edit Trip menu touch the desired destination you would
like to edit.
You may now Change Name or Change Address.
Touch the DONE soft-key to confirm your changes.

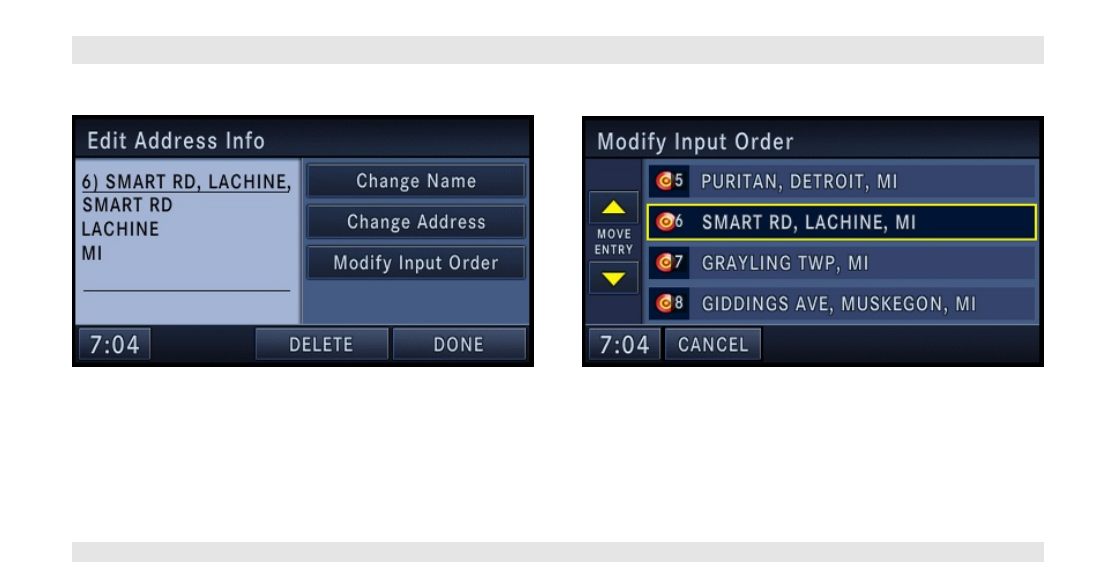

Touch the Modify Input Order soft-key in the Edit Address Info
menu to rearrange the order of the destinations in the trip.
Touch the yellow up and down arrow soft-keys to move the entry
in the list. Touch the SAVE soft-key when you are done.
NAVIGATION SYSTEM
141

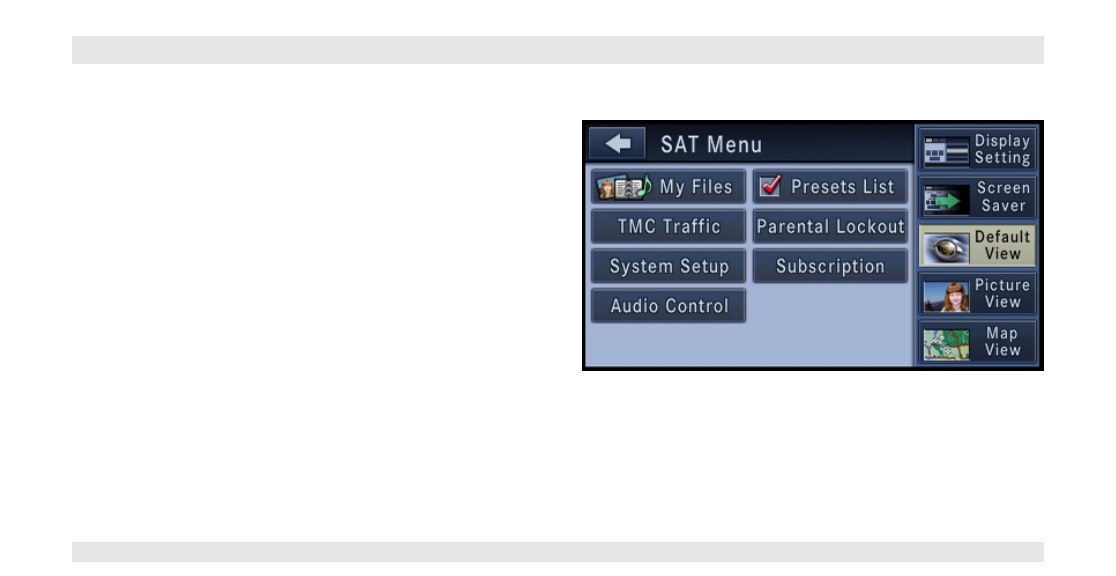

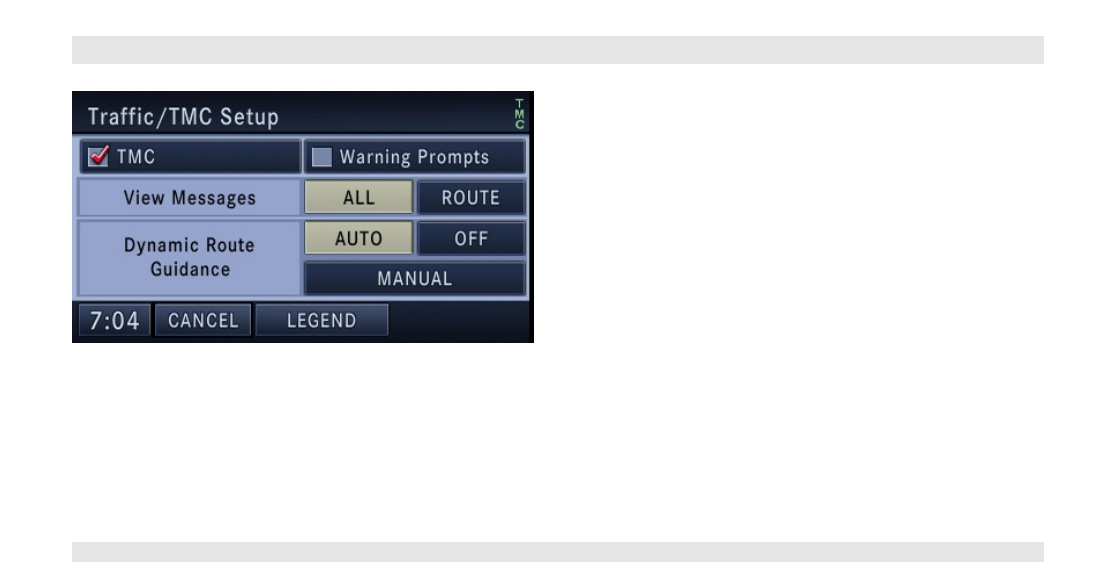

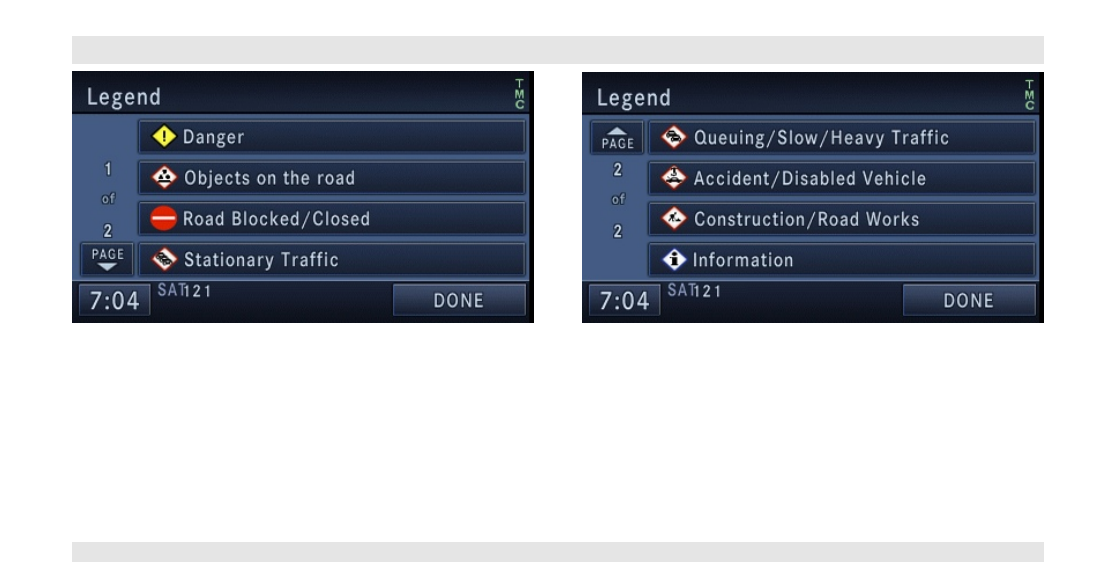

TMC by Sirius Satellite Radio
The Traffic Message Channel (TMC), provided by Sirius Satellite
Radio, is a specific application of the radio receiver used for
broadcasting real-time traffic and weather information.
The navigation radio receives traffic messages with the satellite
radio receiver. You must have a subscription with Sirius to re-
ceive this service. Refer to the Re-Subscribe to Sirius Satellite
Radio chapter in the Radio section of this manual.
Display Traffic Messages
1. Press the MENU hard-key on the right side of the radio.
2. Touch the TMC Traffic soft-key to display the available traffic
messages.
NAVIGATION SYSTEM
142
The traffic message screen displays traffic messages in a list
form. Data related to traffic flows, incidents, weather, etc., are
gathered from traffic monitoring systems, emergency services,
motorists' calls, etc., and are processed at a central traffic infor-
mation center. The information is transferred to the TMC traffic
information service provider, who then generates the TMC traffic
messages.

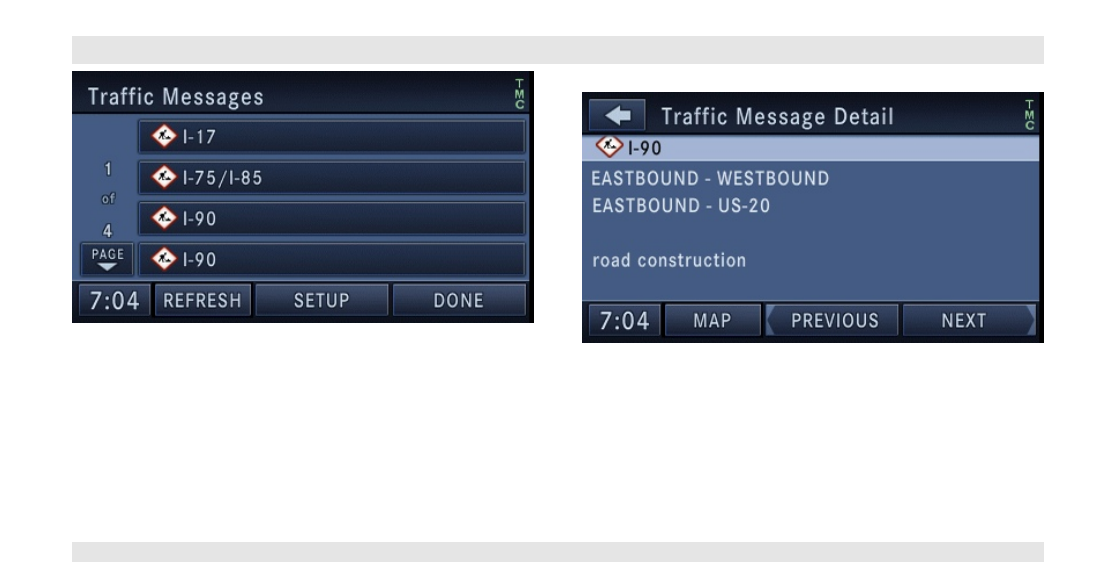

3. Touch one of the soft-keys with a message to view details.
Touch Map to see the location of a message on a map. Touch
PREVIOUS or NEXT to step through the list of available mes-
sages.
Touch the back soft-key in the upper left corner of the screen to
exit the Traffic Message Detail screen.
NAVIGATION SYSTEM
143
Touch setup to access the setup menu.
Touch the TMC soft-key to switch TMC on or off. Touch Warning
Prompts soft-key to enable warning prompts. Once you change
settings, touch the SAVE soft-key to confirm your changes.
You can view either all received messages for the area you have
a subscription, or only the messages on your route within the
same area.
Ongoing route guidance will change your route, based upon the
traffic information received. The AUTO mode will will make these
changes automatically; the MANUAL mode will ask for each
traffic event.
Touch the Legend soft-key to display a list of possible traffic
icons. The icon will be displayed in the map mode.
TMC Legend
The navigation radio can display icons on the map when the
TMC function is active.
Note: It can take between 15 and 30 minutes for a message to reach the
system.
Touch the LEGEND soft-key in the Traffic/TMC Setup menu to
review possible icons and their meaning.
NAVIGATION SYSTEM
144
NAVIGATION SYSTEM
145
Address Book
Overview

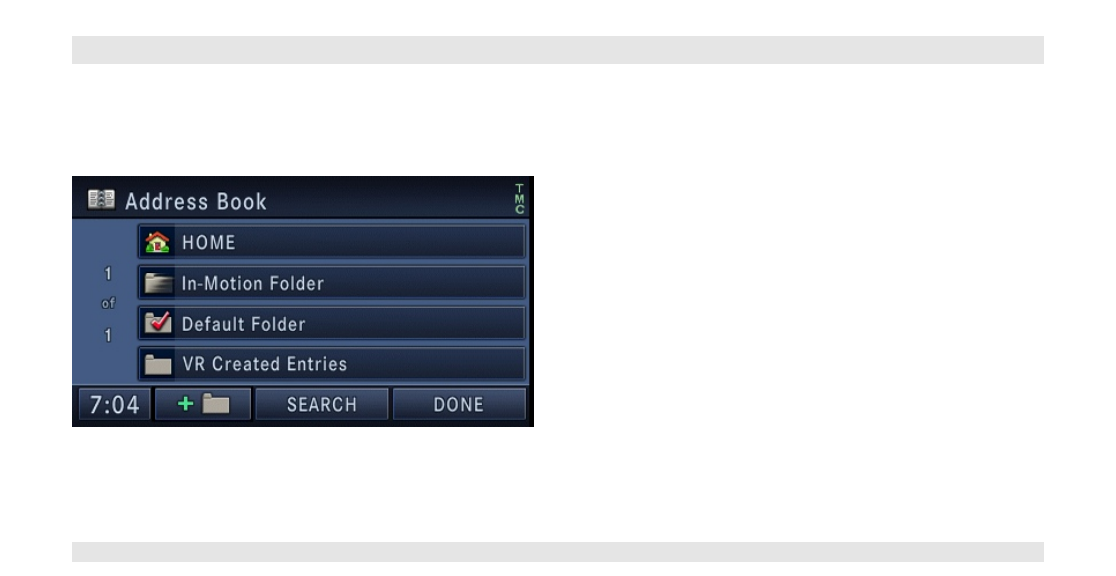

The address book provides a way to organize and store fre-
quently used addresses.
The address book is organized in folders.
• The HOME folder
contains only your home address. Touch this folder soft-key to
edit the home address. You may route to this address by touch-
ing the Guide Me Home soft-key in the NAV Main Menu.
• The In-Motion Folder
contains links to entries in the other folders. The In-Motion Folder
is the only folder accessible while the vehicle is in motion. This is
a safety feature that limits the availability of certain navigation
tasks while the vehicle is traveling. Touch the In-Motion Folder
soft-key and add links to existing entries in the Default Folder,
VR Created Entries folder, or any of the personalized folders.
• The Default Folder
contains contacts which are available whenever the vehicle is not
in motion. Touch the Default Folder soft-key to add, edit, delete,
and route to your contacts.
• The VR Created Entries folder
contains contacts which were created with the help of the speech
dialog system. Touch the VR Created Entries folder soft-key to
add, edit, delete, and route to your contacts.
NAVIGATION SYSTEM
146
Add a Folder
Touch the +Folder soft-key to add a personalized folder. After the
new folder is named, the folder will be available in the address
book.
Entering/Editing/Deleting an Address

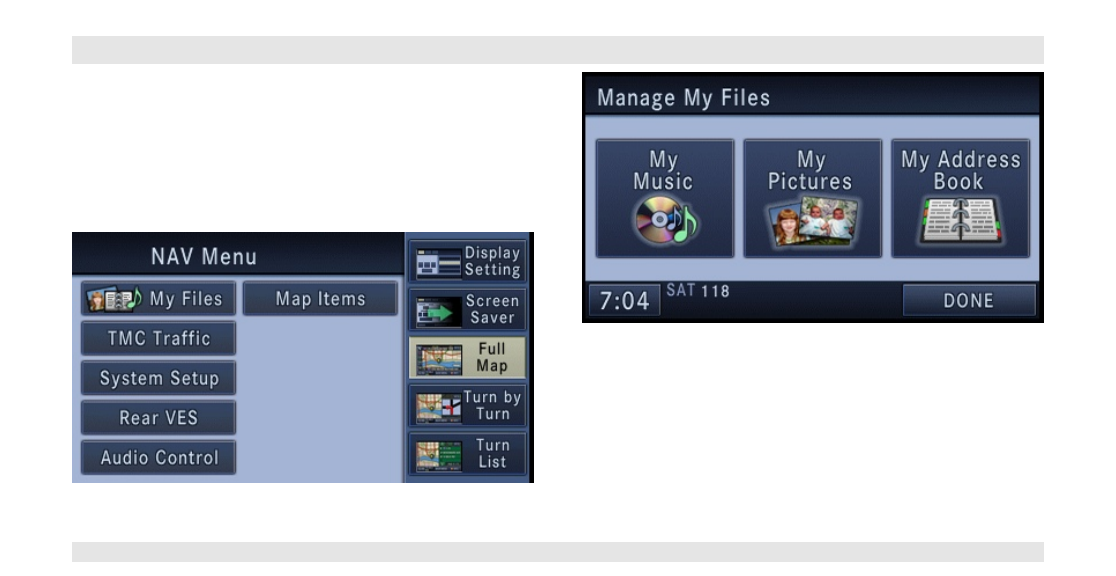

1. Touch MENU to access one of the menus.
2. Touch My Files for the Manage My Files screen.
3. Touch My Address Book soft-key to get to the Address Book
menu.
NAVIGATION SYSTEM
147
The Address Book screen appears.

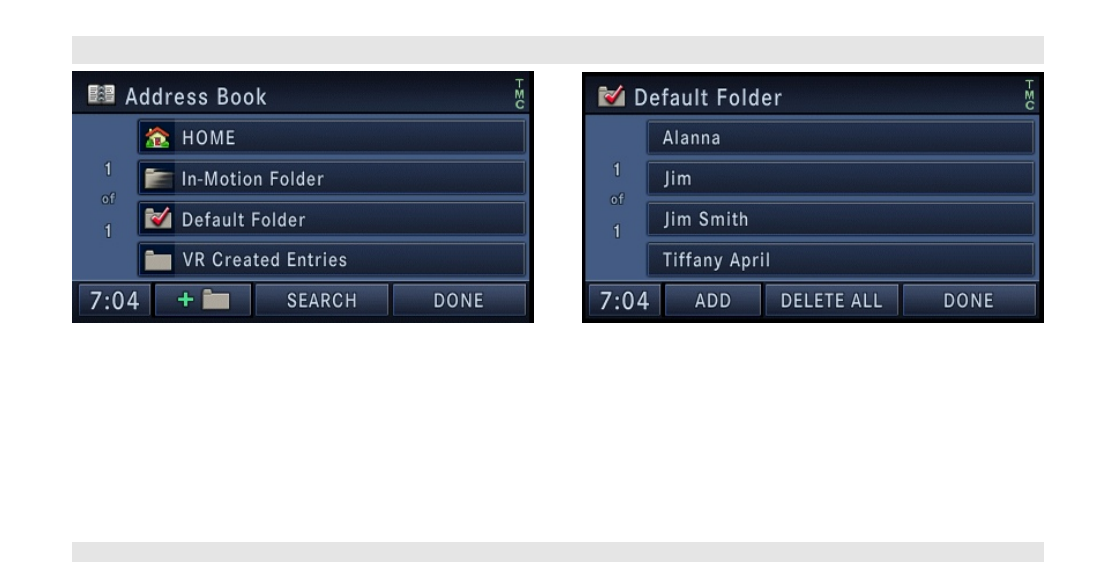

4. To select an address from the Default folder, touch the Default
Folder soft-key.
To select an address from another folder, touch one of the folder
soft-keys.
5. Touch the ADD soft-key to add a new contact. Touch CLEAR
ALL to delete all contacts in this folder, touch DONE to go back
to the Address Book menu, or touch a soft-key with a contact
name to view, edit, or change the Contact Information.
NAVIGATION SYSTEM
148
You may now create a new contact or copy a contact from an-
other folder.

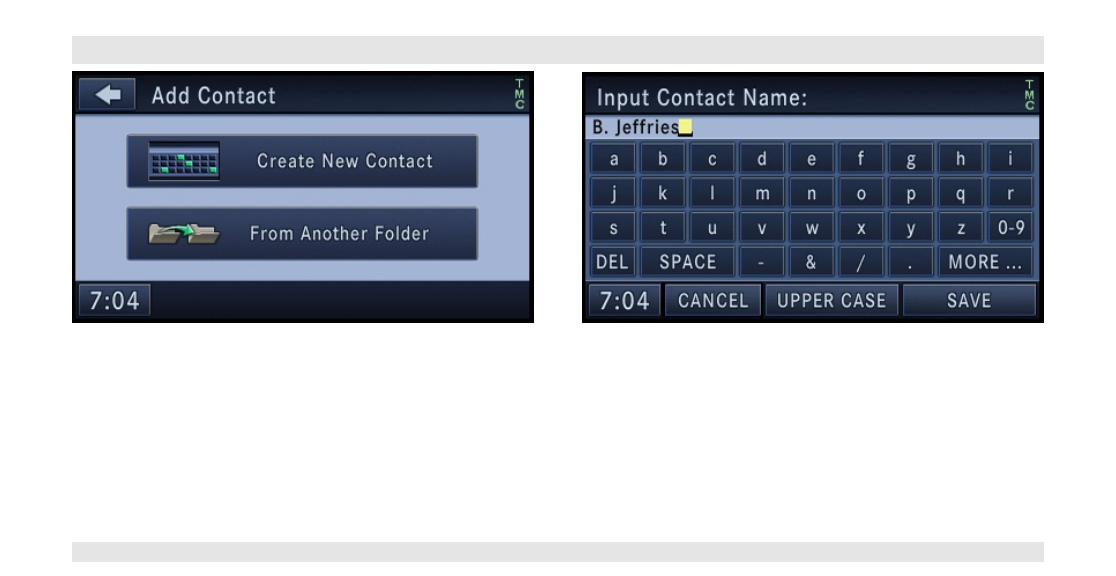

6. Touch Create New Contact to go to the next screen.
7. Enter a name for your new contact.
8. Press the SAVE soft-key to display the Contact Information
menu.
NAVIGATION SYSTEM
149

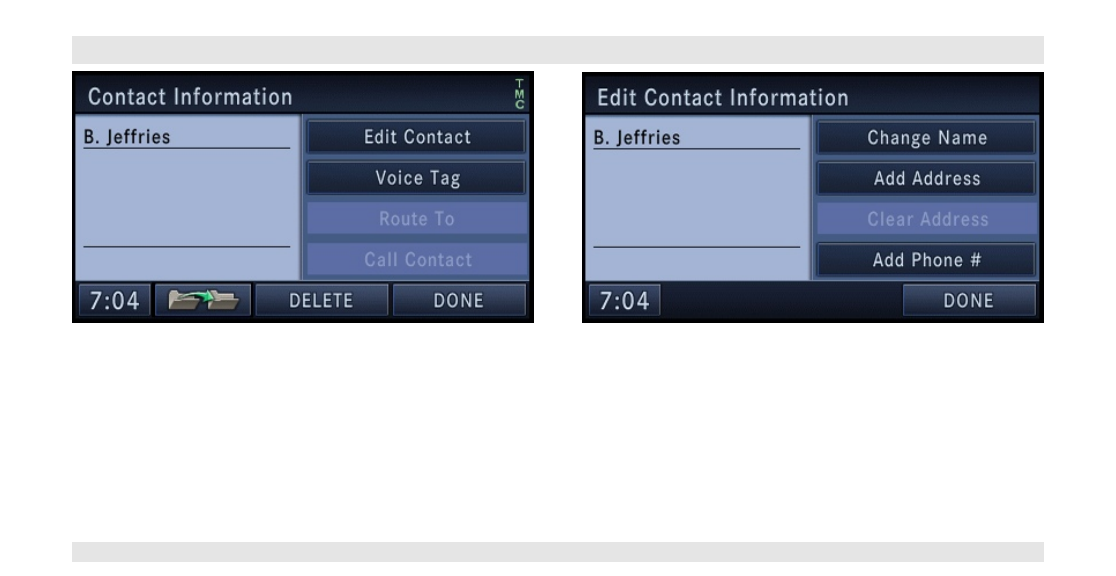

You may now edit the contact information. Add a voice tag for the
voice recognition or touch the Edit Contact soft-key to add more
information to the entry.
Touch the DELETE soft-key to delete the contact.
In this example, we need to add an address to the contact.
9. Press Add Address and enter a destination (refer to Destina-
tion Input section in this manual).
NAVIGATION SYSTEM
150

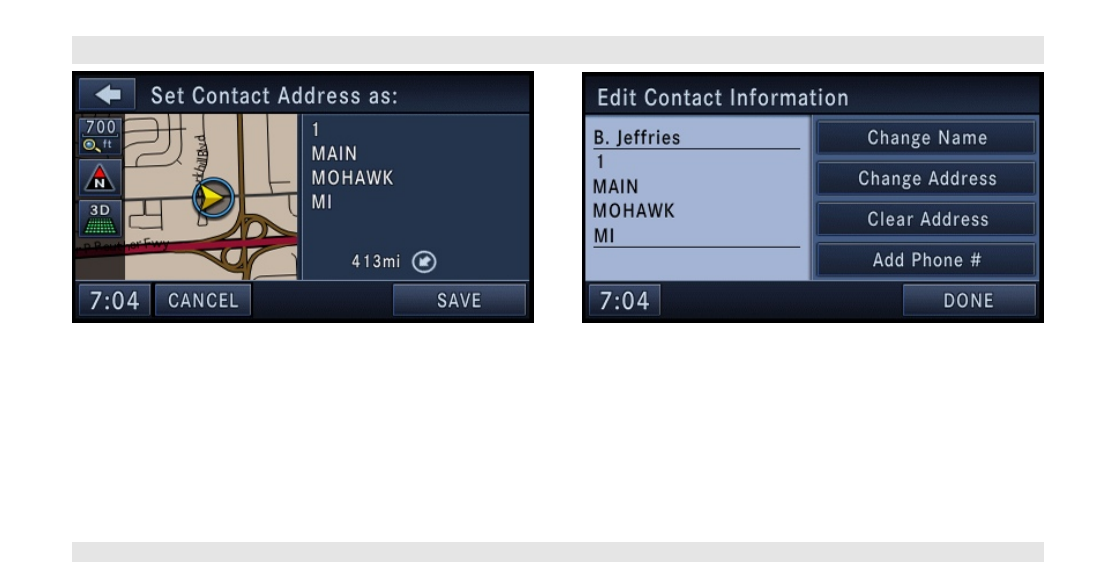

10. Once the destination is entered touch the SAVE soft-key to
confirm the address.
In addition, you may enter a phone number by pressing the Add
Phone # soft-key.
11. Touch the DONE soft-key after all available information has
been entered.
NAVIGATION SYSTEM
151
Search a Contact in the Address Book

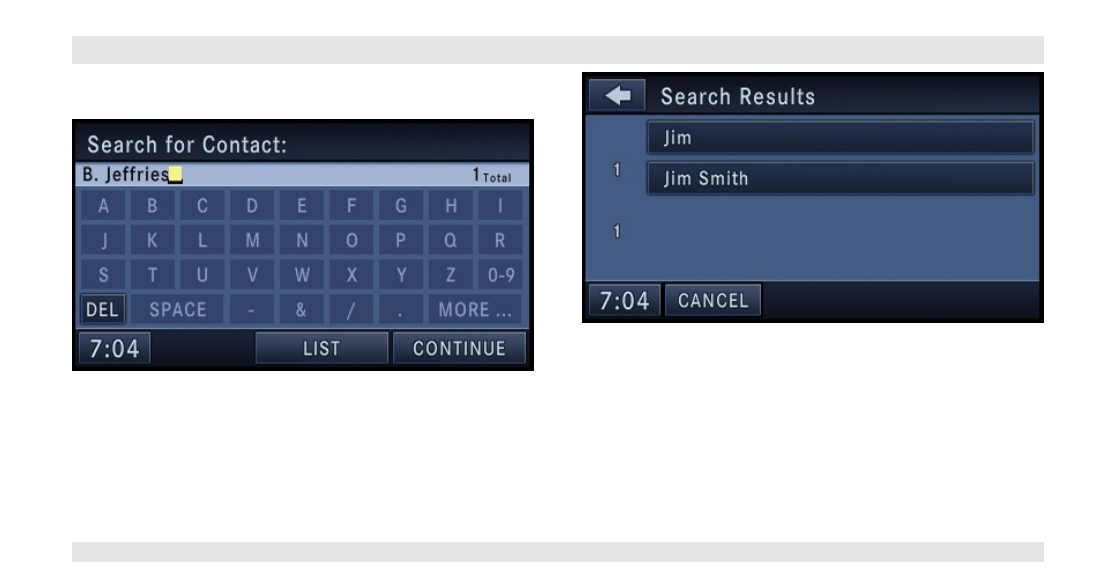

1. Touch the SEARCH soft-key in the Address Book menu.
2. Enter a contact name.
3. Touch either LIST or CONTINUE.
4. Touch the Jim Smith soft-key from the results list to select the
contact.
NAVIGATION SYSTEM
152
5. Once the contact information is displayed, touch the Route To
soft-key to start route guidance to the contacts address, or touch
Call Contact, if a valid phone was entered, and a telephone is
connected to the navigation radio.

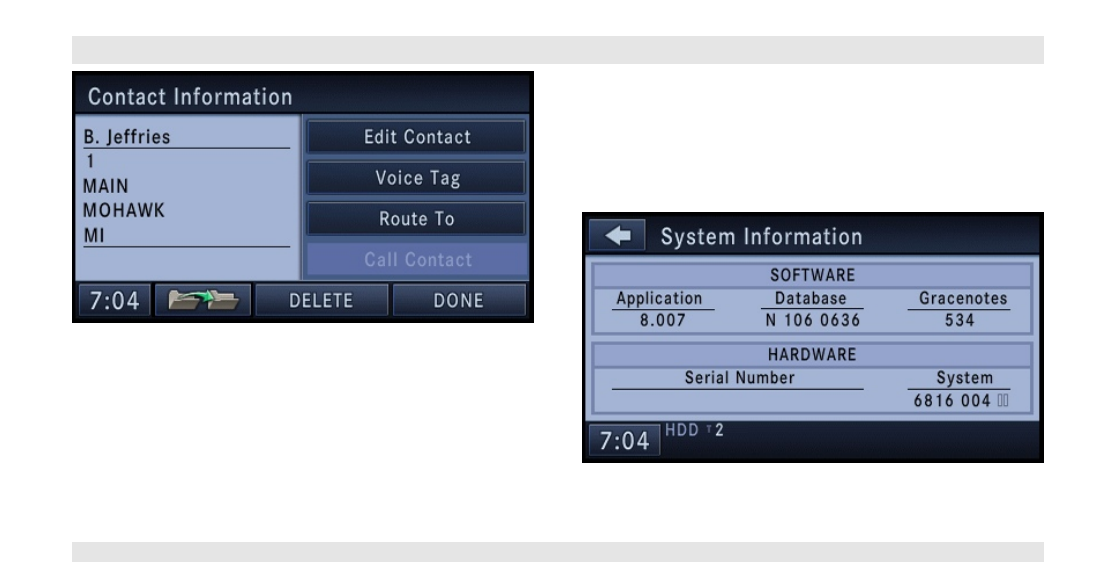

System Information
Press the MENU hard-key on the right side of the radio, and
touch the System Setup soft-key to access the System Setup
menu.
Touch the System Information soft-key to access the system
information.
NAVIGATION SYSTEM
153
User Data Backup
Visit http://www.chrysler.com/mygig/ for information on how to
backup or transfer your user data, such as address book entries,
music files, etc., before returning or changing to a vehicle with a
compatible navigation radio (e.g., end of lease).
Software and Database Updates
Visit http://www.chrysler.com/mygig/ for information on available
software and database updates.
Updates are available for the navigation radio software, the Gra-
cenote® music recognition technology database, and the naviga-
tion database.
Please read the specific instructions on the update discs before
installing the updates.
Contact your local DaimlerChrysler dealership, if you need help
or more information about the available updates.
NAVIGATION SYSTEM
154
Troubleshooting
Radio
Q.: I cannot find my favorite radio station that I was always able
to receive before. What can I do?
A.: Select MUSIC TYPE while in radio mode. Select CLEAR to
disable all PTY filters, and try to SEEK for your station.
Disc
Q.: The radio does not display the information for the disc I in-
serted. How do I access this information
A.: The radio will search the internal Gracenote® music recogni-
tion technology database on the hard drive for the inserted disc.
If the database is out of date, or the database does not contain
the particular disc, the information cannot be displayed. Contact
a D a i m l e r C h r y s l e r d e a l e r s h i p o r w e b s i t e
http://www.chrysler.com/mygig/ for available updates.
Navigation
Q.: I entered the wrong home address. How can I change it?
A.: Go to Destination Input, then Saved Locations. There you will
find the Home Address. Press EDIT to edit the entry.
Voice Recognition
Q.: The voice recognition does not understand what I say. What
can I do to make this work?
A.: If the navigation radio has trouble recognizing your voice, you
should press the MENU hard-key, press System Setup, and then
press the Voice Recognition hard-key to access the Voice Rec-
ognition menu. Touch the Start Voice Training soft-key and follow
the spoken instructions.
UConnect™
Q.: I am in a gas station and my cellphone is ringing, I try to an-
swer the call, but I do not hear anything. How do i get the call?
A.: Your phone is still connected with UConnect™ via Blue Tooth,
the navigation radio expects you to be in the car. You need to
temporarily disconnect from Blue Tooth to answer the call. Refer
to the user’s manual of your Blue Tooth device.
TROUBLESHOOTING
155
Glossary of Terms
AS Autostore
CD Compact Disc
CDC Compact Disc Changer
CDDB A technology company founded in 1995 as CDDB, Inc.
Now renamed to the Gracenote Media Database
DVD Digital Versatile Disc
DVDC Digital Versatile Disc Changer
FIX A position determined from terrestrial, electronic, or astro-
nomical data.
GMD Gracenote Media Database, Gracenote Media Recognition
Service℠ (www.gracenote.com)
GPS Global Positioning System
GMT Greenwich Mean Time
HDD Hard-Disk Drive
HFM Hands-Free Module
MFB Multifunction soft-key
MFS Multi Functional Steering Wheel
MP3 MPEG-1 Audio Layer-3. Compression scheme used to
transfer audio files via the Internet and store in portable players
and digital audio servers.
M4A The .M4A format is actually the audio layer of (non-video)
MPEG 4 movies.
M4P The .M4P format is an audio file purchased from Apple's
Music Store (iTunes) and is protected by a Digital Rights Man-
agement scheme.
NAV Navigation
NCD Navigation Compact Disc
POS Position
PTY Program type (radio)
RDBS Radio Data Broadcasting System
SAT Satellite Radio
SDS Speech Dialog System
TMC Traffic Message Channel
UTC Universal Coordinated Time
VES® Vehicle Entertainment System
WMA Windows Media Audio Format
VES Vehicle Entertainment System
GLOSSARY OF TERMS
156
NOTES
157
NOTES
158
