Harman Becker Automotive Systems BE2810 Automotive Infotainment Unit User Manual

Harman Becker Automotive Systems, Inc. Automotive Infotainment Unit

Contents

09b_User Manual_Part2

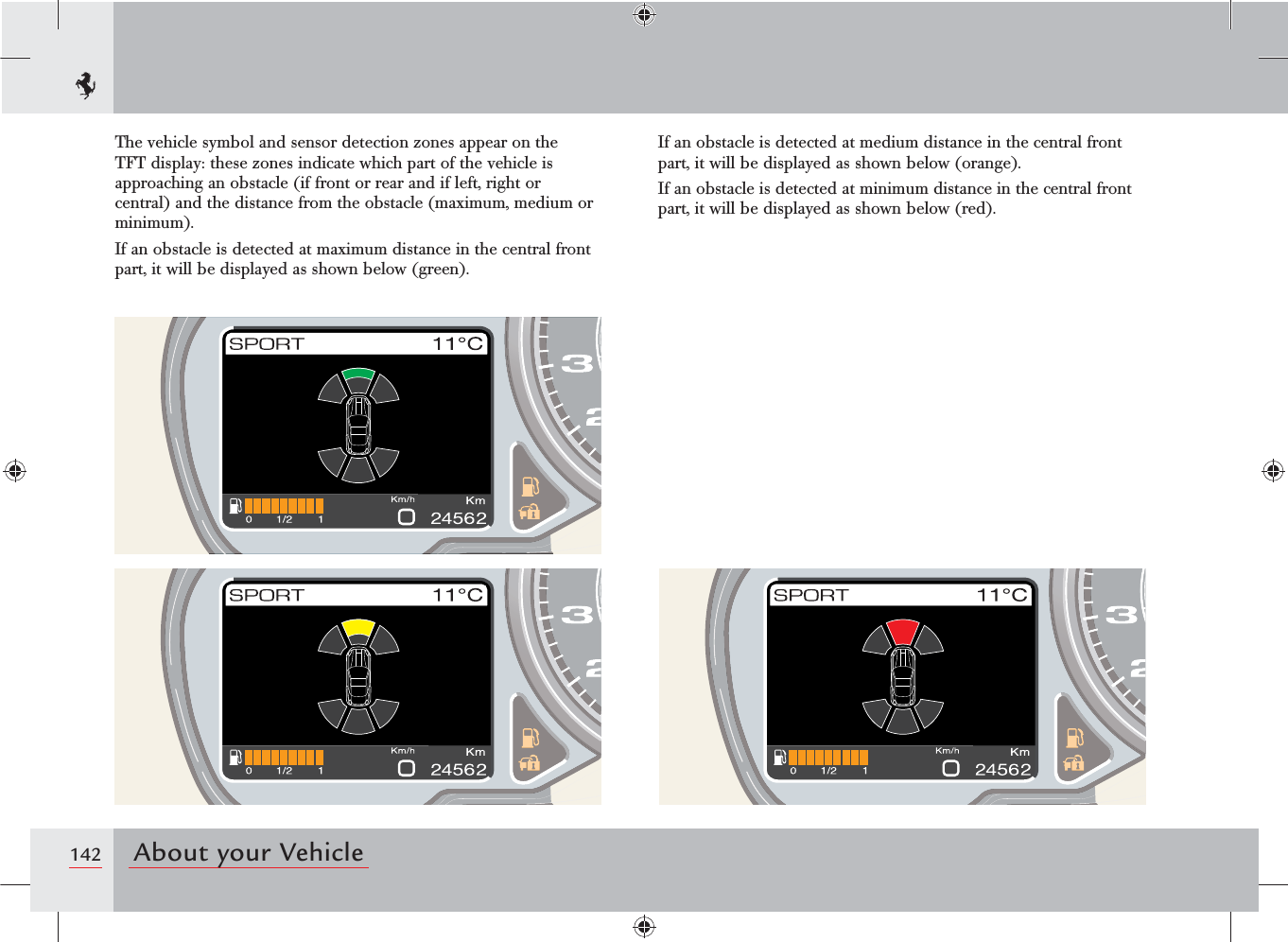

142 About your VehicleThe vehicle symbol and sensor detection zones appear on the TFT display: these zones indicate which part of the vehicle is approaching an obstacle (if front or rear and if left, right or central) and the distance from the obstacle (maximum, medium or minimum).If an obstacle is detected at maximum distance in the central front part, it will be displayed as shown below (green).If an obstacle is detected at medium distance in the central front part, it will be displayed as shown below (orange).If an obstacle is detected at minimum distance in the central front part, it will be displayed as shown below (red).

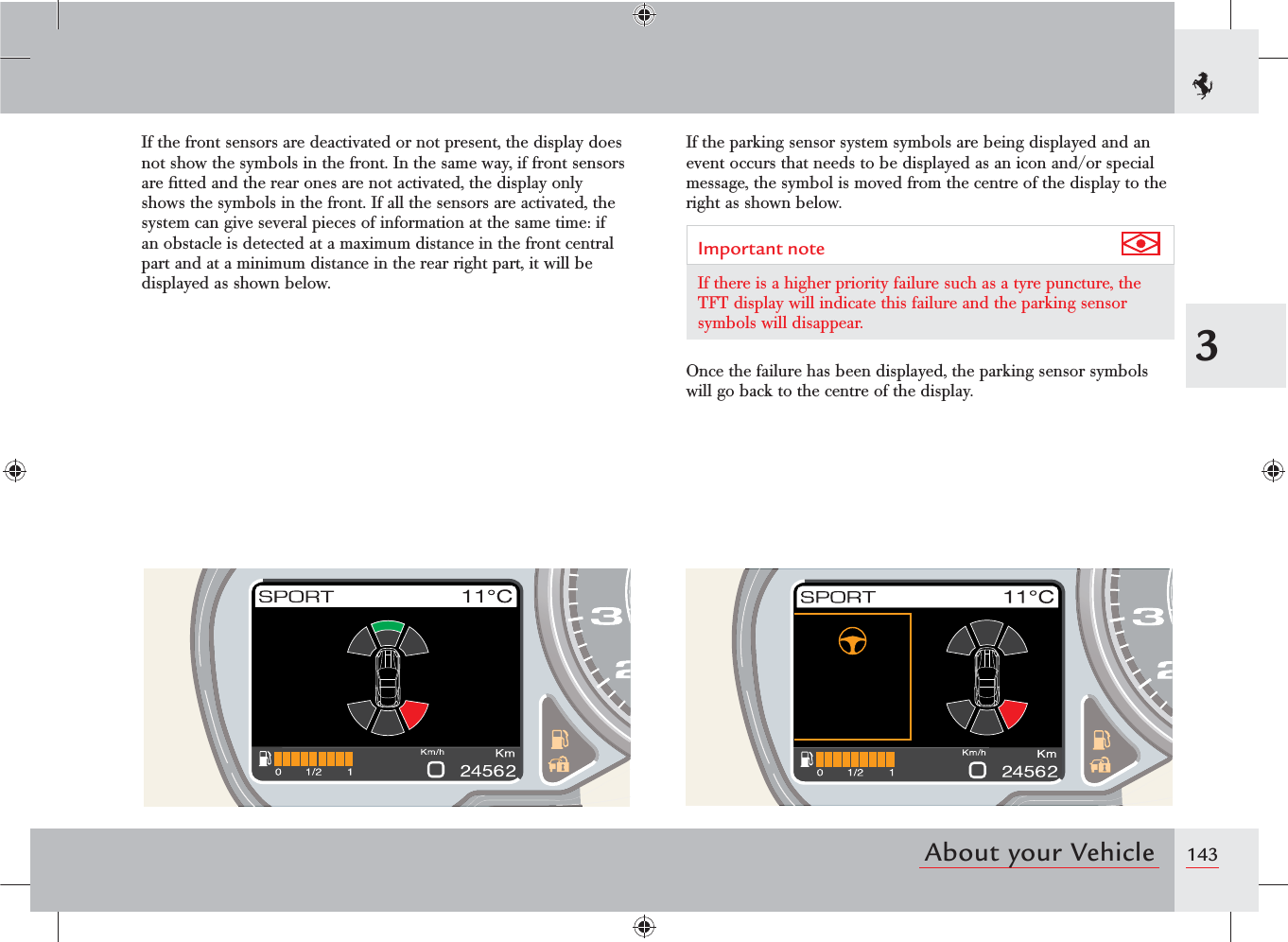

1433About your VehicleIf the front sensors are deactivated or not present, the display does not show the symbols in the front. In the same way, if front sensors are fitted and the rear ones are not activated, the display only shows the symbols in the front. If all the sensors are activated, the system can give several pieces of information at the same time: if an obstacle is detected at a maximum distance in the front central part and at a minimum distance in the rear right part, it will be displayed as shown below.If the parking sensor system symbols are being displayed and an event occurs that needs to be displayed as an icon and/or special message, the symbol is moved from the centre of the display to the right as shown below.Important note If there is a higher priority failure such as a tyre puncture, the TFT display will indicate this failure and the parking sensor symbols will disappear.Once the failure has been displayed, the parking sensor symbols will go back to the centre of the display.

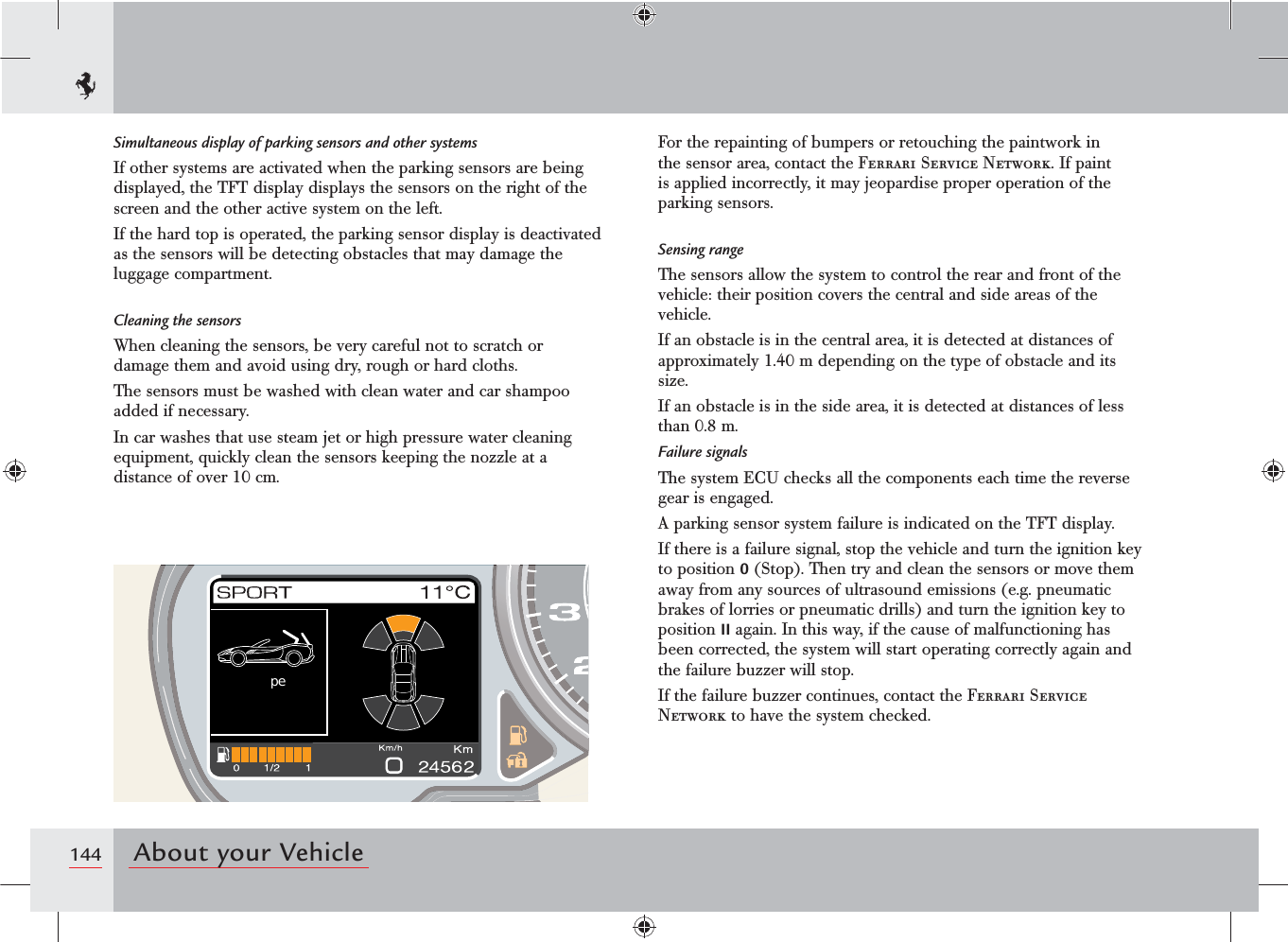

144 About your Vehicle peSimultaneous display of parking sensors and other systemsIf other systems are activated when the parking sensors are being displayed, the TFT display displays the sensors on the right of the screen and the other active system on the left.If the hard top is operated, the parking sensor display is deactivated as the sensors will be detecting obstacles that may damage the luggage compartment.Cleaning the sensorsWhen cleaning the sensors, be very careful not to scratch or damage them and avoid using dry, rough or hard cloths.The sensors must be washed with clean water and car shampoo added if necessary.In car washes that use steam jet or high pressure water cleaning equipment, quickly clean the sensors keeping the nozzle at a distance of over 10 cm.For the repainting of bumpers or retouching the paintwork in the sensor area, contact the Ferrari Service Network. If paint is applied incorrectly, it may jeopardise proper operation of the parking sensors.Sensing rangeThe sensors allow the system to control the rear and front of the vehicle: their position covers the central and side areas of the vehicle.If an obstacle is in the central area, it is detected at distances of approximately 1.40 m depending on the type of obstacle and its size.If an obstacle is in the side area, it is detected at distances of less than 0.8 m.Failure signalsThe system ECU checks all the components each time the reverse gear is engaged.A parking sensor system failure is indicated on the TFT display.If there is a failure signal, stop the vehicle and turn the ignition key to position 0 (Stop). Then try and clean the sensors or move them away from any sources of ultrasound emissions (e.g. pneumatic brakes of lorries or pneumatic drills) and turn the ignition key to position II again. In this way, if the cause of malfunctioning has been corrected, the system will start operating correctly again and the failure buzzer will stop.If the failure buzzer continues, contact the Ferrari Service Network to have the system checked.

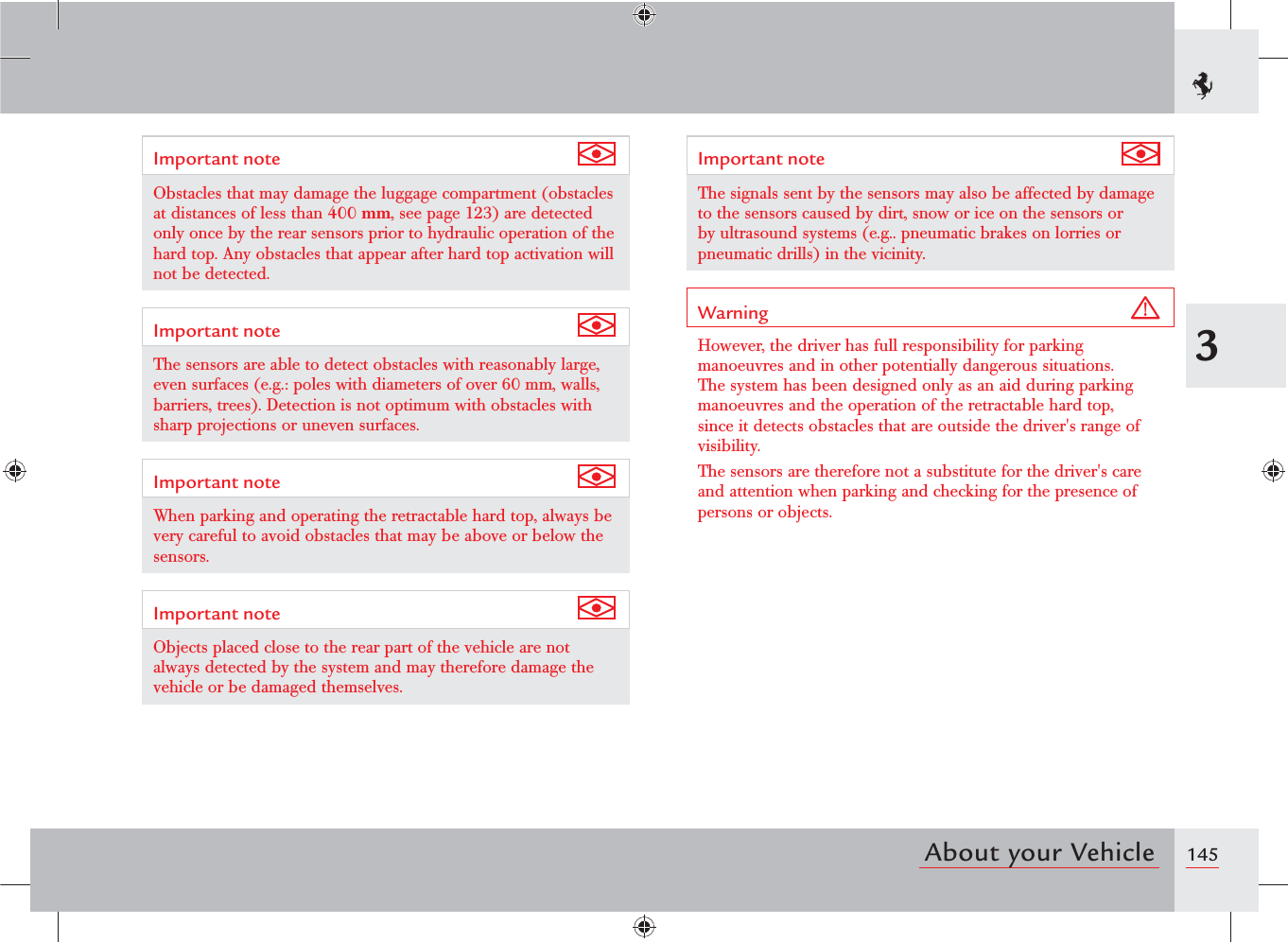

1453About your VehicleImportant note Obstacles that may damage the luggage compartment (obstacles at distances of less than 400 mm, see page 123) are detected only once by the rear sensors prior to hydraulic operation of the hard top. Any obstacles that appear after hard top activation will not be detected.Important note The sensors are able to detect obstacles with reasonably large, even surfaces (e.g.: poles with diameters of over 60 mm, walls, barriers, trees). Detection is not optimum with obstacles with sharp projections or uneven surfaces.Important note When parking and operating the retractable hard top, always be very careful to avoid obstacles that may be above or below the sensors.Important note Objects placed close to the rear part of the vehicle are not always detected by the system and may therefore damage the vehicle or be damaged themselves.Important note The signals sent by the sensors may also be affected by damage to the sensors caused by dirt, snow or ice on the sensors or by ultrasound systems (e.g.. pneumatic brakes on lorries or pneumatic drills) in the vicinity.Warning However, the driver has full responsibility for parking manoeuvres and in other potentially dangerous situations. The system has been designed only as an aid during parking manoeuvres and the operation of the retractable hard top, since it detects obstacles that are outside the driver's range of visibility.The sensors are therefore not a substitute for the driver's care and attention when parking and checking for the presence of persons or objects.

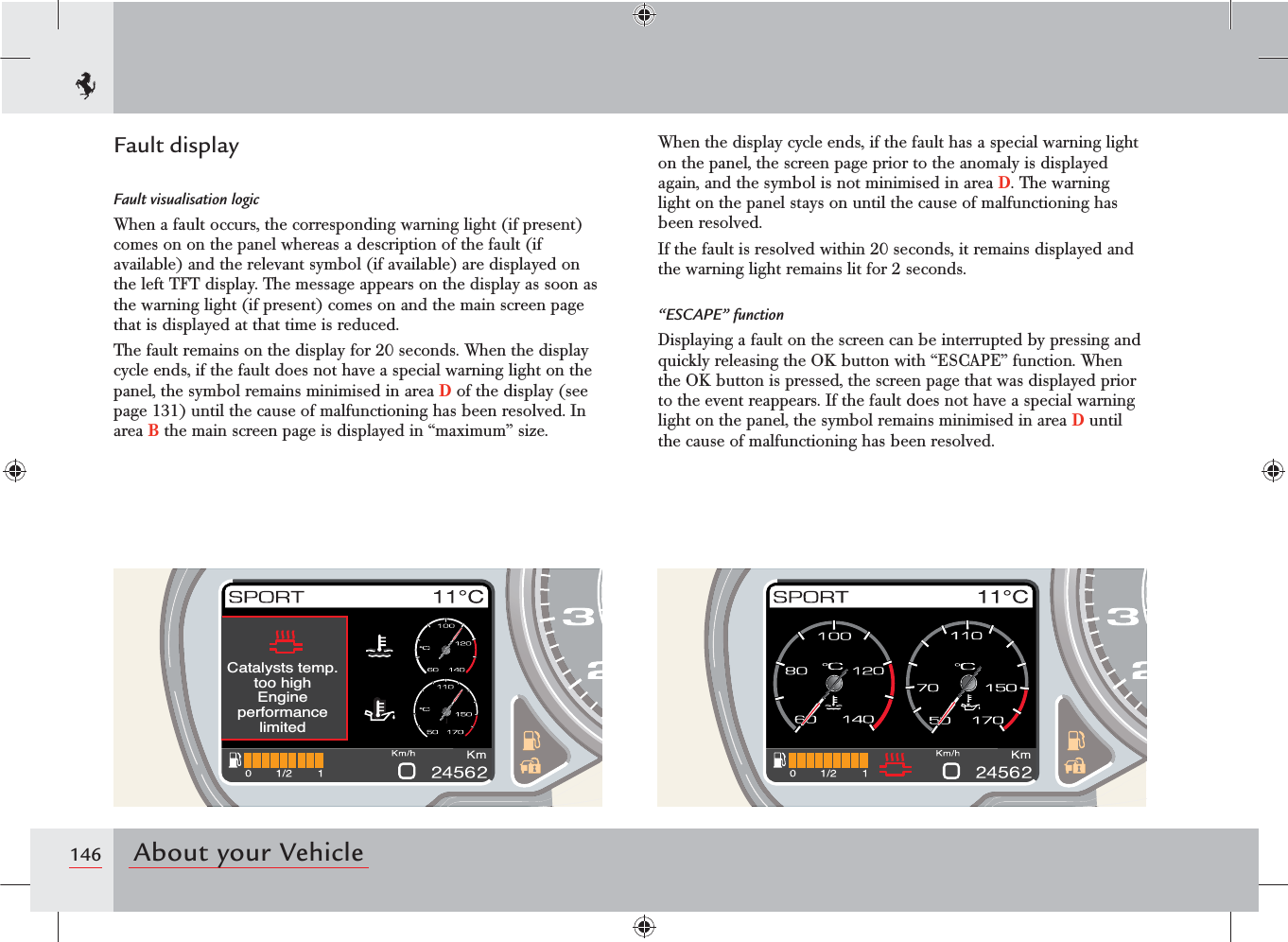

146 About your Vehicle&DWDO\VWVWHPSWRRKLJK(QJLQHSHUIRUPDQFHOLPLWHGFault displayFault visualisation logicWhen a fault occurs, the corresponding warning light (if present) comes on on the panel whereas a description of the fault (if available) and the relevant symbol (if available) are displayed on the left TFT display. The message appears on the display as soon as the warning light (if present) comes on and the main screen page that is displayed at that time is reduced.The fault remains on the display for 20 seconds. When the display cycle ends, if the fault does not have a special warning light on the panel, the symbol remains minimised in area D of the display (see page 131) until the cause of malfunctioning has been resolved. In area B the main screen page is displayed in “maximum” size.When the display cycle ends, if the fault has a special warning light on the panel, the screen page prior to the anomaly is displayed again, and the symbol is not minimised in area D. The warning light on the panel stays on until the cause of malfunctioning has been resolved.If the fault is resolved within 20 seconds, it remains displayed and the warning light remains lit for 2 seconds.“ESCAPE” functionDisplaying a fault on the screen can be interrupted by pressing and quickly releasing the OK button with “ESCAPE” function. When the OK button is pressed, the screen page that was displayed prior to the event reappears. If the fault does not have a special warning light on the panel, the symbol remains minimised in area D until the cause of malfunctioning has been resolved.

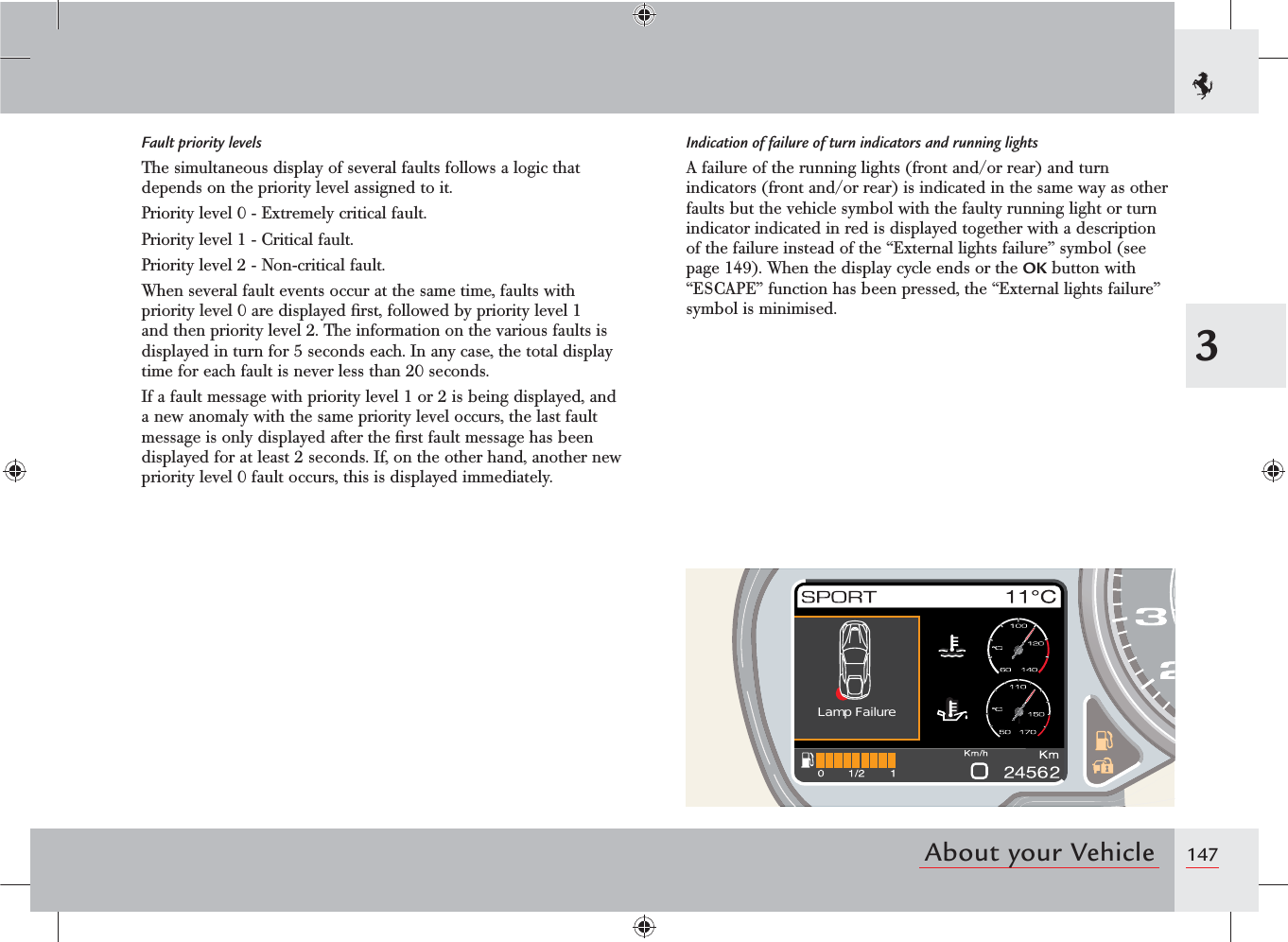

1473About your VehicleLamp FailureFault priority levelsThe simultaneous display of several faults follows a logic that depends on the priority level assigned to it.Priority level 0 - Extremely critical fault.Priority level 1 - Critical fault.Priority level 2 - Non-critical fault.When several fault events occur at the same time, faults with priority level 0 are displayed first, followed by priority level 1 and then priority level 2. The information on the various faults is displayed in turn for 5 seconds each. In any case, the total display time for each fault is never less than 20 seconds.If a fault message with priority level 1 or 2 is being displayed, and a new anomaly with the same priority level occurs, the last fault message is only displayed after the first fault message has been displayed for at least 2 seconds. If, on the other hand, another new priority level 0 fault occurs, this is displayed immediately.Indication of failure of turn indicators and running lightsA failure of the running lights (front and/or rear) and turn indicators (front and/or rear) is indicated in the same way as other faults but the vehicle symbol with the faulty running light or turn indicator indicated in red is displayed together with a description of the failure instead of the “External lights failure” symbol (see page 149). When the display cycle ends or the OK button with “ESCAPE” function has been pressed, the “External lights failure” symbol is minimised.
148 About your VehicleList of TFT display symbols and instrument panel warning lightsTFT Warning lightDescription and warningsorange orangeAlarm system failureIndicates a fault in the alarm system (priority level 1).The system is not programmed (priority level 2).Failure and system not programmed (priority level 1).Alarm system failure (priority level 2).Break-in attempted (priority level 2).Contact the Ferrari Service Network.orange orangeFuel level lowIndicates that the fuel level is too low (priority level 2).redBattery conditioner connected When the instrument panel is on, it indicates that the battery conditioner is connected (priority level 0).orangeInertia switchIndicates activation of the inertia switch following an accident and the resulting cut-out of the fuel supply (priority level 0).The hazard warning lights are also automatically activated.redredAlternator failureIf the recharging system is faulty.When the battery is insufficiently charged or overcharged (flashing).orange orangeOil temperatureIndicates that the oil temperature is too high (priority level 0).orange orangeAdaptive light system failureIndicates an adaptive light system failure (priority level 2).red redEngine coolant temperatureIndicates that the engine coolant temperature is too high (priority level 0).Turn off the engine and contact the Ferrari Service Network.redredOil pressureIndicates that the oil pressure is too low (priority level 0).Turn off the engine and contact the Ferrari Service Network.Indicates a pressure sensor failure (flashing) (priority level 2).

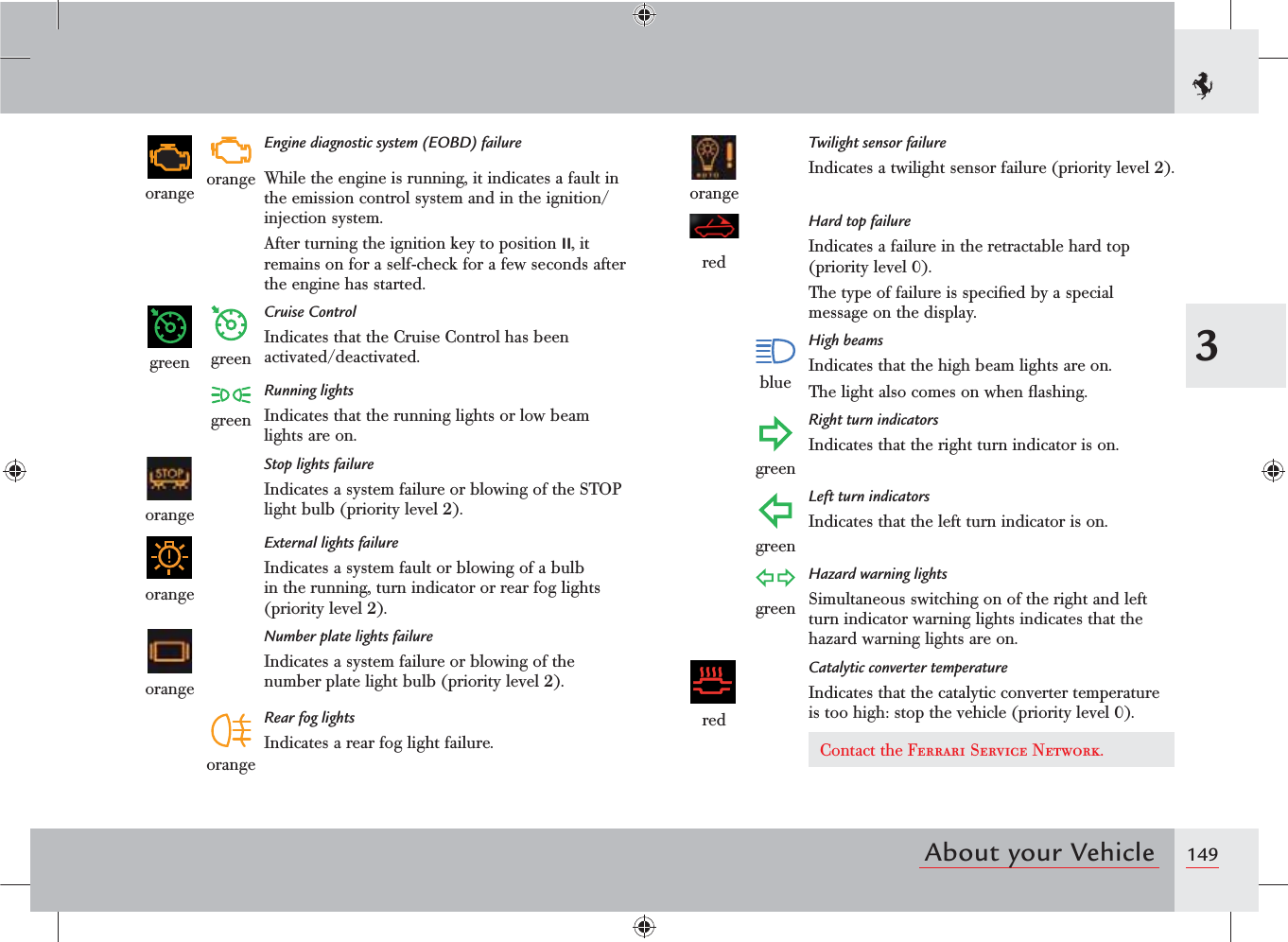

1493About your VehicleorangeTwilight sensor failureIndicates a twilight sensor failure (priority level 2).redHard top failureIndicates a failure in the retractable hard top (priority level 0).The type of failure is specified by a special message on the display.blueHigh beamsIndicates that the high beam lights are on.The light also comes on when flashing.greenRight turn indicatorsIndicates that the right turn indicator is on.greenLeft turn indicatorsIndicates that the left turn indicator is on.greenHazard warning lightsSimultaneous switching on of the right and left turn indicator warning lights indicates that the hazard warning lights are on.redCatalytic converter temperature Indicates that the catalytic converter temperature is too high: stop the vehicle (priority level 0).Contact the Ferrari Service Network.orange orangeEngine diagnostic system (EOBD) failureWhile the engine is running, it indicates a fault in the emission control system and in the ignition/injection system.After turning the ignition key to position II, it remains on for a self-check for a few seconds after the engine has started.green greenCruise ControlIndicates that the Cruise Control has been activated/deactivated.greenRunning lightsIndicates that the running lights or low beam lights are on.orangeStop lights failureIndicates a system failure or blowing of the STOP light bulb (priority level 2).orangeExternal lights failureIndicates a system fault or blowing of a bulb in the running, turn indicator or rear fog lights (priority level 2).orangeNumber plate lights failureIndicates a system failure or blowing of the number plate light bulb (priority level 2).orangeRear fog lightsIndicates a rear fog light failure.
150 About your Vehicleorange orangeESC offSymbol and warning light indicate that the ESC system has been deactivated (priority level 1).The symbol is displayed for 5 seconds together with the “ESC off” message.orange orangeESC system failureIndicates a fault in the ESC system (priority level 1).Warning Stop the vehicle avoiding sharp braking. Stop driving and contact the Ferrari Service Network immediately.Warning The vehicle can still be driven at low speed (max. 40 km/h) to clear the road.orangeESC system activation (flashing warning light)Indicates that the ESC system has been activated (priority level 1).orangeCCM brake discs wornIndicates that the carbon ceramic discs are worn (priority level 2).Contact the Ferrari Service Network.orangeIndicates that the catalytic converter temperature is very high: reduce speed until the symbol goes out (priority level 1).Indicates a failure in the catalytic converter temperature sensor (priority level 0).orangeChecking the engine oil levelIndicates a low engine oil level.orangeSeat heatingIndicates that the seat heating function is activated (front RH/LH) (remains displayed for 5 seconds).orangePower steering failureIndicates that the power steering system is inefficient (priority level 2).Contact the Ferrari Service Network.orangeLow windscreen washer fluid level Indicates a low level of washer fluid in the windscreen washer tank (priority level 2).orange orangeABSIndicates an ABS system failure (priority level 1).The standard braking system is still functioning. Contact the Ferrari Service Network.

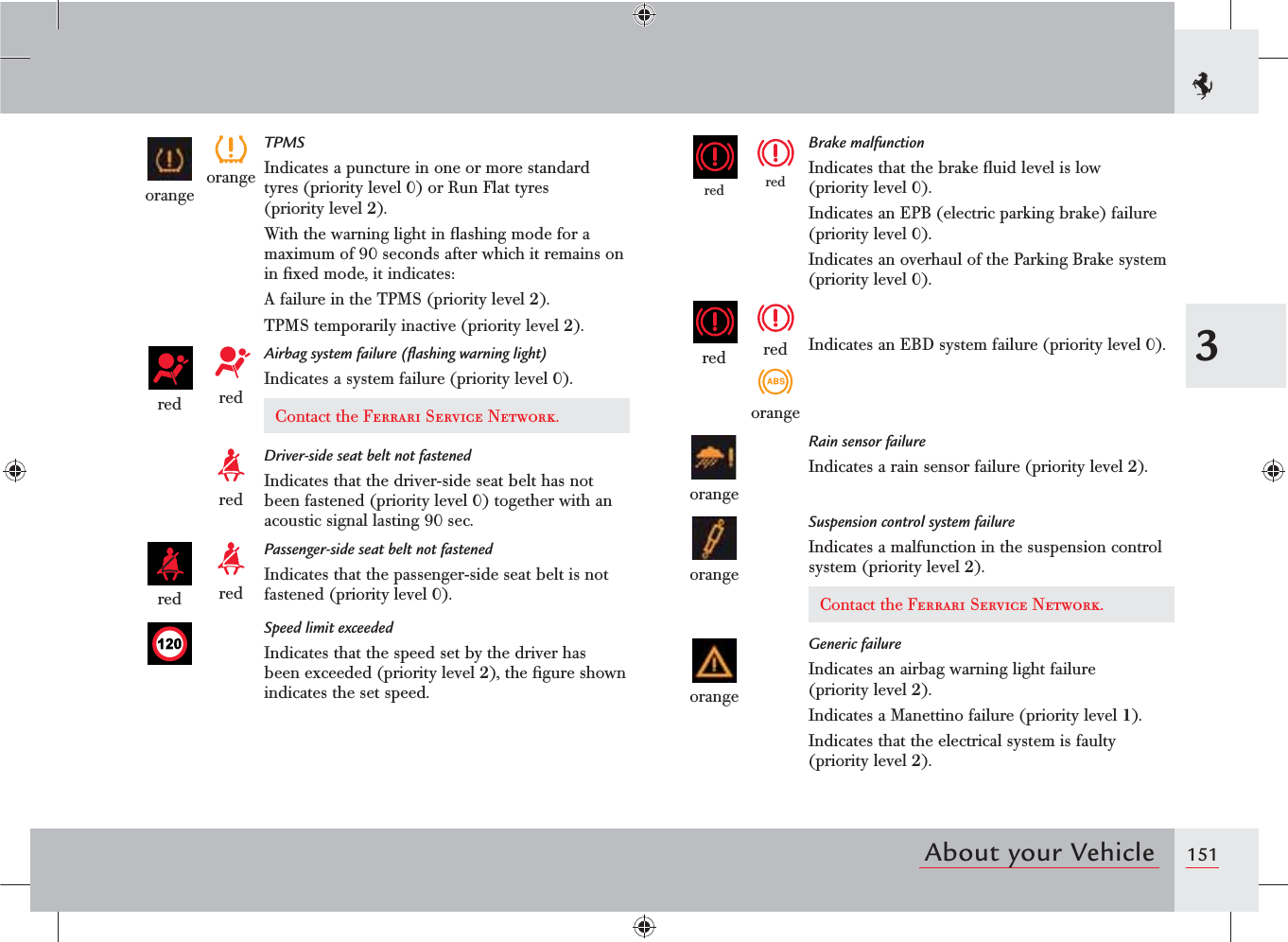

1513About your Vehiclered redBrake malfunctionIndicates that the brake fluid level is low (priority level 0).Indicates an EPB (electric parking brake) failure (priority level 0).Indicates an overhaul of the Parking Brake system (priority level 0).red redorangeIndicates an EBD system failure (priority level 0).orangeRain sensor failureIndicates a rain sensor failure (priority level 2).orangeSuspension control system failureIndicates a malfunction in the suspension control system (priority level 2).Contact the Ferrari Service Network.orangeGeneric failureIndicates an airbag warning light failure (priority level 2).Indicates a Manettino failure (priority level 1).Indicates that the electrical system is faulty (priority level 2).orange orangeTPMSIndicates a puncture in one or more standard tyres (priority level 0) or Run Flat tyres (priority level 2).With the warning light in flashing mode for a maximum of 90 seconds after which it remains on in fixed mode, it indicates:A failure in the TPMS (priority level 2).TPMS temporarily inactive (priority level 2).red redAirbag system failure (flashing warning light)Indicates a system failure (priority level 0).Contact the Ferrari Service Network.redDriver-side seat belt not fastenedIndicates that the driver-side seat belt has not been fastened (priority level 0) together with an acoustic signal lasting 90 sec.red redPassenger-side seat belt not fastenedIndicates that the passenger-side seat belt is not fastened (priority level 0).Speed limit exceededIndicates that the speed set by the driver has been exceeded (priority level 2), the figure shown indicates the set speed.
152 About your VehicleIce hazardIndicates that the outside temperature is 3 °C (38 °F) or lower, highlighting the risk of icy road surfaces.Drive carefully in these conditions and slow down since tyre grip is significantly reduced.Warning In this condition, do not activate the “SPORT” mode.red redGearbox failureIndicates a system failure (priority level 1).Contact the Ferrari Service Network.greenTPMSIndicates that calibration of the TPMS has been activated.redBrake pad wearIndicates excessive wear of the brake pads (priority level 2).orangeParking sensor failureIndicates that the parking sensor system is faulty (priority level 2).greenScheduled Maintenance (Service)Indicates the Scheduled Maintenance deadline.orangeAVH systemIndicates an AVH system failure (priority level 0).red redParking brakeIndicates that the parking brake is applied.

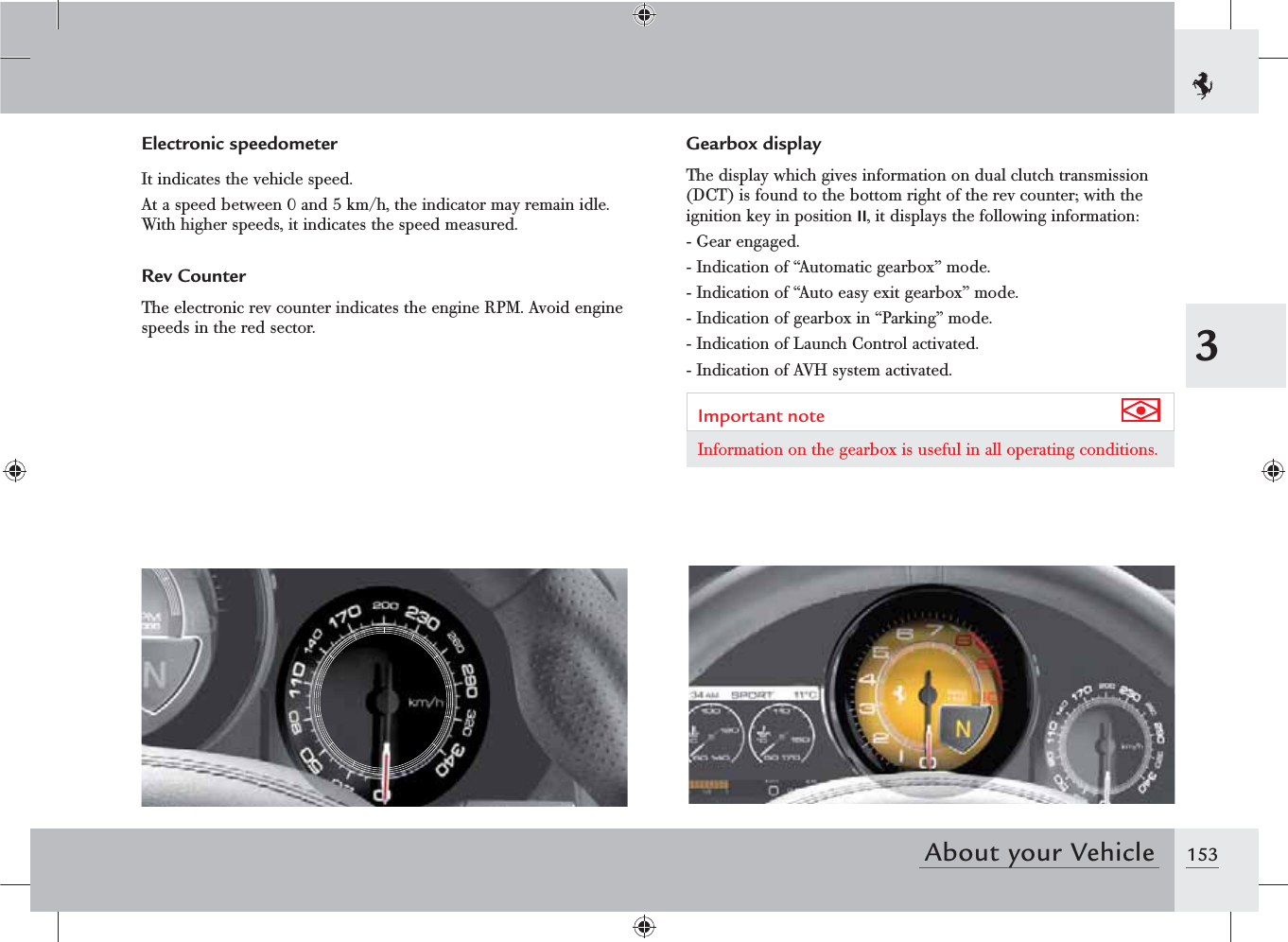

1533About your VehicleGearbox displayThe display which gives information on dual clutch transmission (DCT) is found to the bottom right of the rev counter; with the ignition key in position II, it displays the following information:- Gear engaged.- Indication of “Automatic gearbox” mode.- Indication of “Auto easy exit gearbox” mode.- Indication of gearbox in “Parking” mode.- Indication of Launch Control activated.- Indication of AVH system activated.Important note Information on the gearbox is useful in all operating conditions.Electronic speedometerIt indicates the vehicle speed.At a speed between 0 and 5 km/h, the indicator may remain idle. With higher speeds, it indicates the speed measured.Rev CounterThe electronic rev counter indicates the engine RPM. Avoid engine speeds in the red sector.

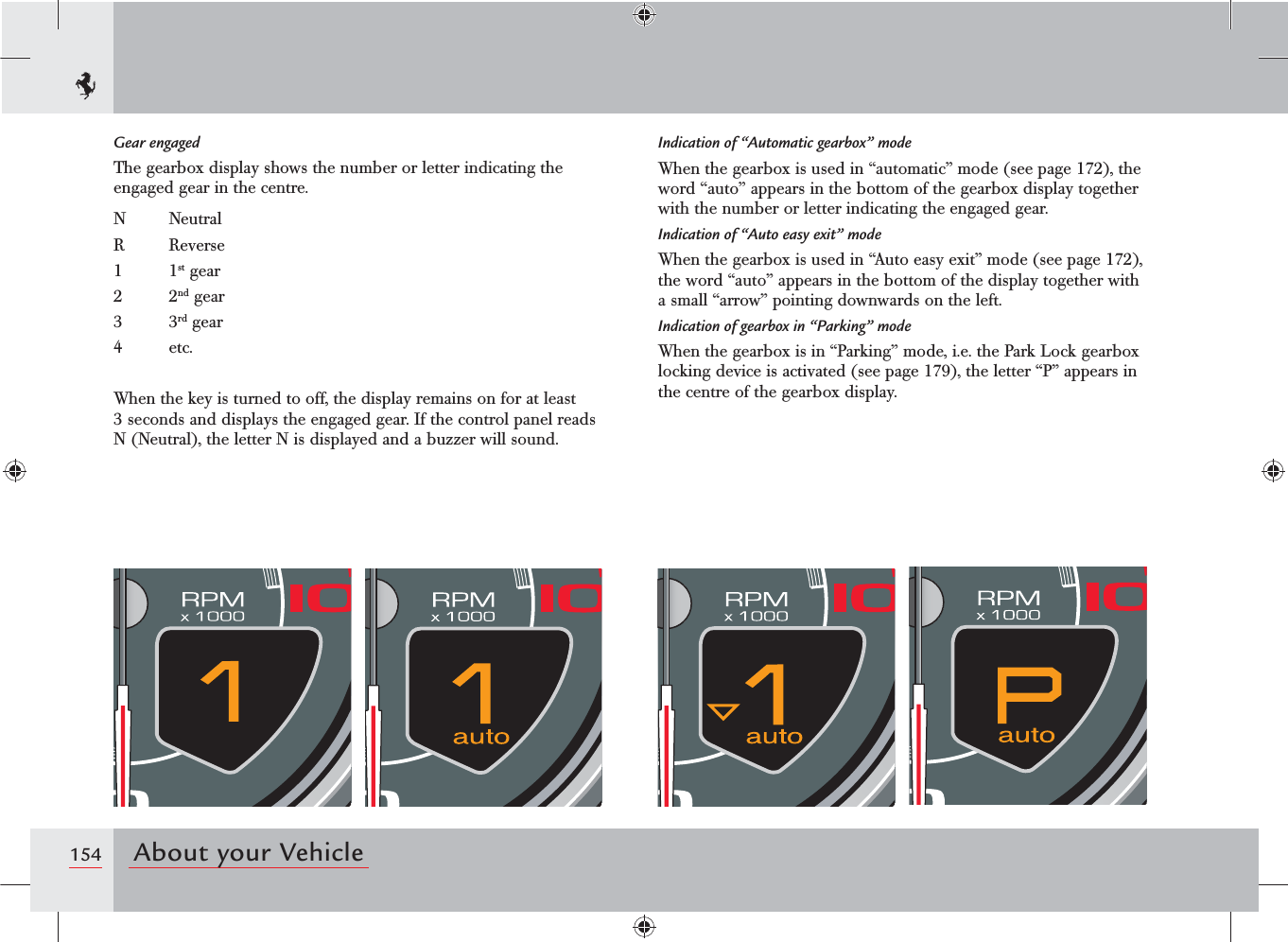

154 About your VehicleIndication of “Automatic gearbox” modeWhen the gearbox is used in “automatic” mode (see page 172), the word “auto” appears in the bottom of the gearbox display together with the number or letter indicating the engaged gear.Indication of “Auto easy exit” modeWhen the gearbox is used in “Auto easy exit” mode (see page 172), the word “auto” appears in the bottom of the display together with a small “arrow” pointing downwards on the left.Indication of gearbox in “Parking” modeWhen the gearbox is in “Parking” mode, i.e. the Park Lock gearbox locking device is activated (see page 179), the letter “P” appears in the centre of the gearbox display.Gear engagedThe gearbox display shows the number or letter indicating the engaged gear in the centre.N NeutralR Reverse1 1st gear2 2nd gear3 3rd gear4 etc.When the key is turned to off, the display remains on for at least 3 seconds and displays the engaged gear. If the control panel reads N (Neutral), the letter N is displayed and a buzzer will sound.

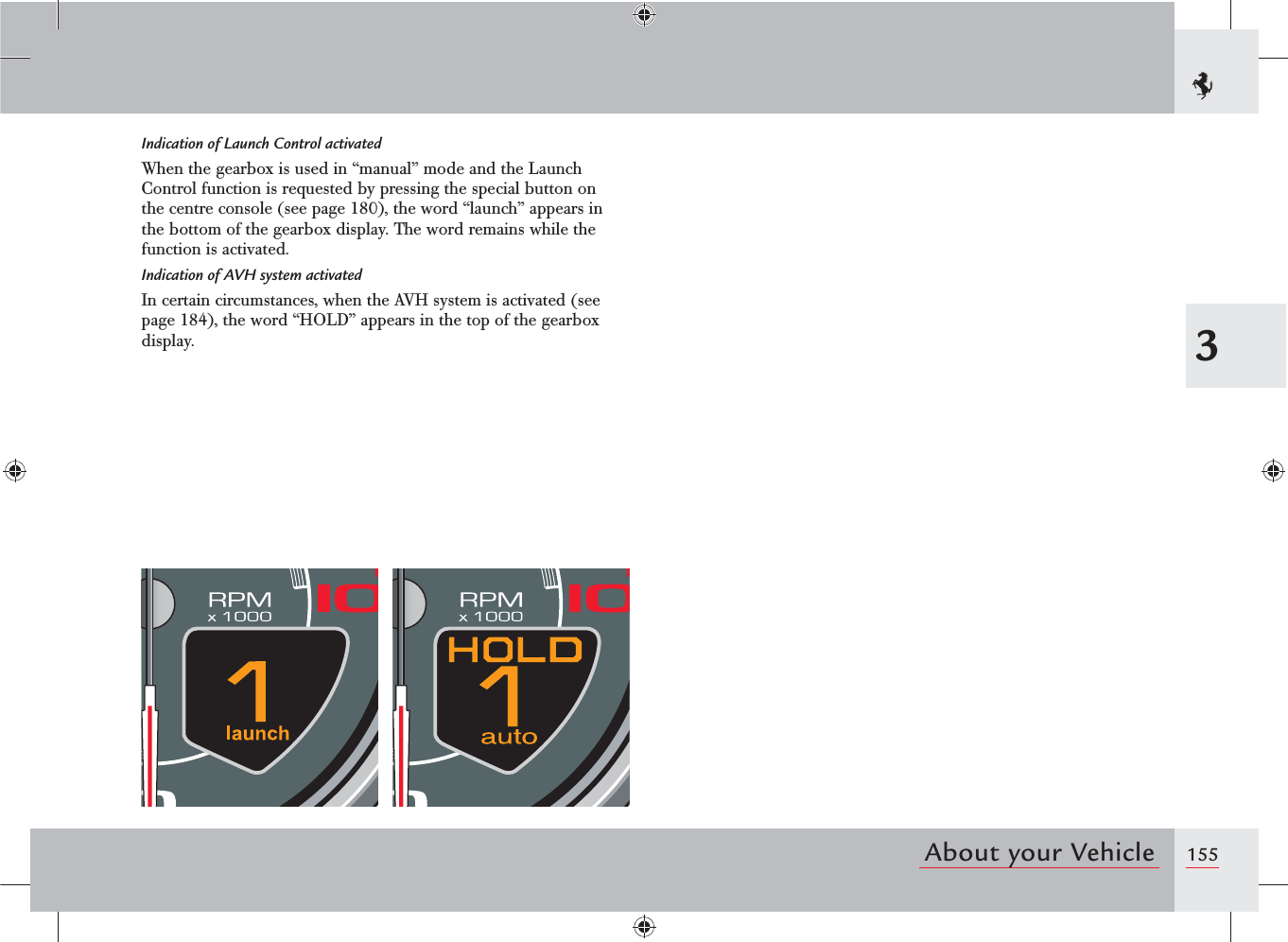

1553About your VehicleIndication of Launch Control activatedWhen the gearbox is used in “manual” mode and the Launch Control function is requested by pressing the special button on the centre console (see page 180), the word “launch” appears in the bottom of the gearbox display. The word remains while the function is activated.Indication of AVH system activatedIn certain circumstances, when the AVH system is activated (see page 184), the word “HOLD” appears in the top of the gearbox display.

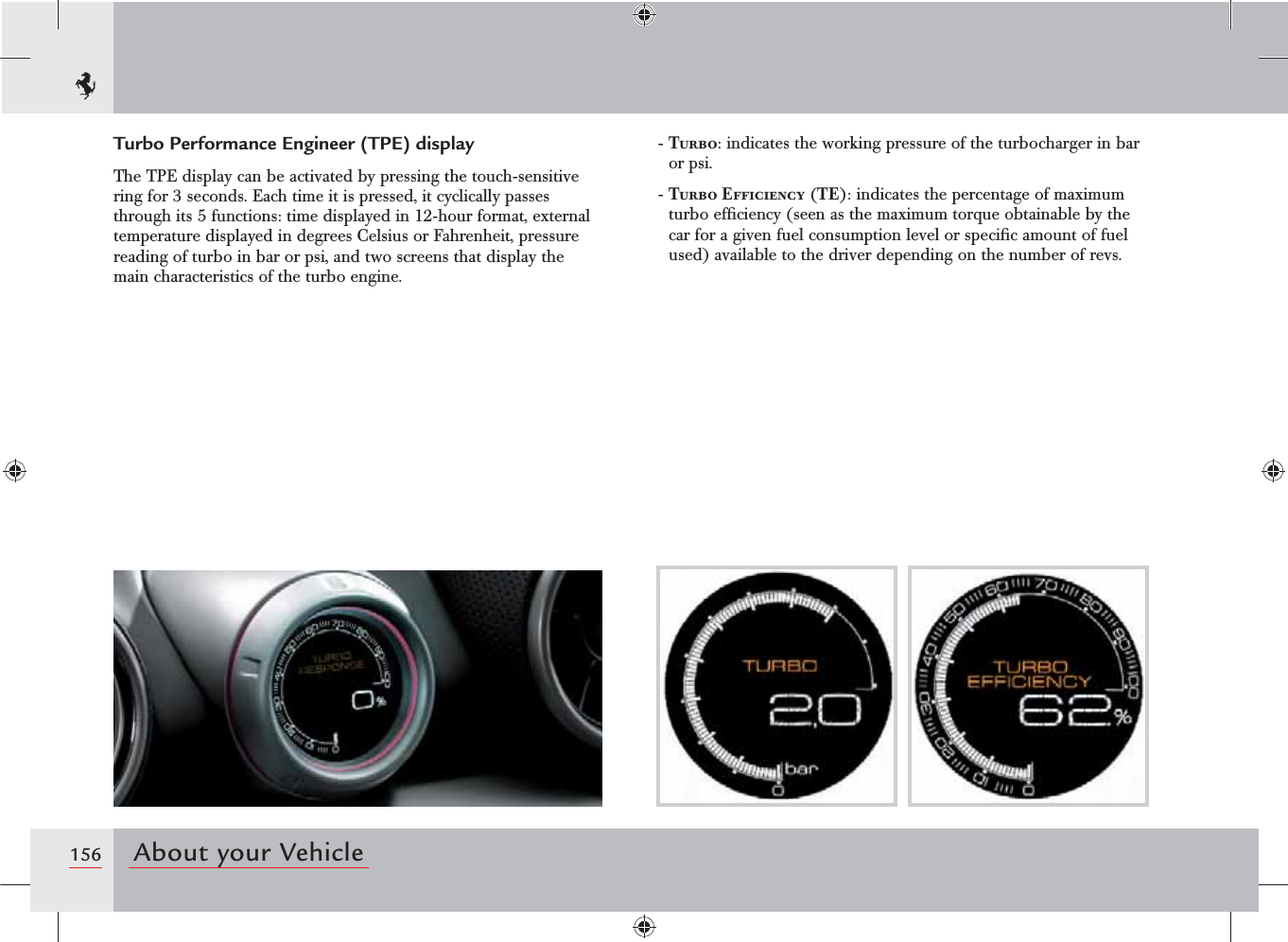

156 About your VehicleTurbo Performance Engineer (TPE) displayThe TPE display can be activated by pressing the touch-sensitive ring for 3 seconds. Each time it is pressed, it cyclically passes through its 5 functions: time displayed in 12-hour format, external temperature displayed in degrees Celsius or Fahrenheit, pressure reading of turbo in bar or psi, and two screens that display the main characteristics of the turbo engine.- Turbo: indicates the working pressure of the turbocharger in bar or psi.- Turbo Efficiency (TE): indicates the percentage of maximum turbo efficiency (seen as the maximum torque obtainable by the car for a given fuel consumption level or specific amount of fuel used) available to the driver depending on the number of revs.

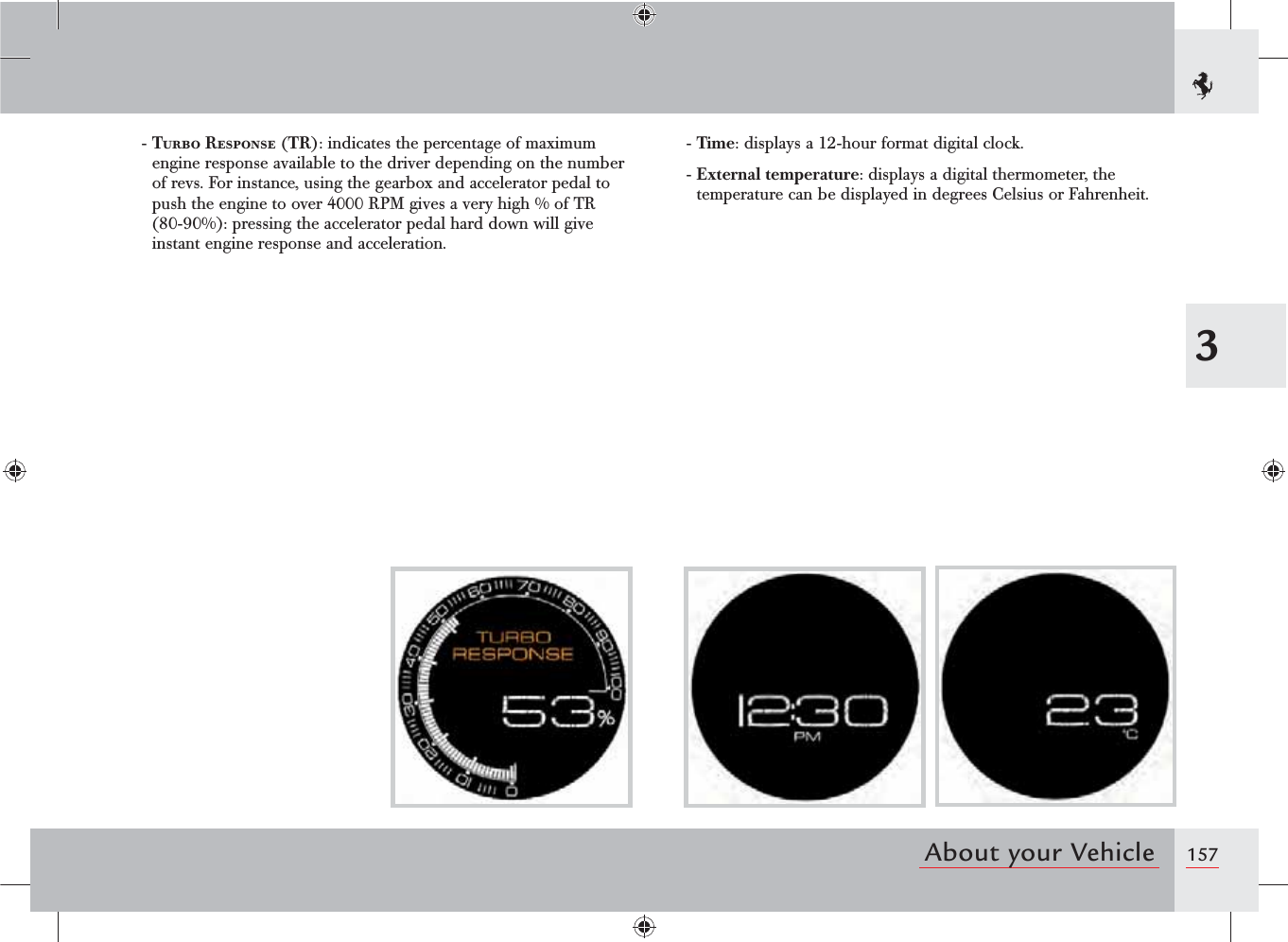

1573About your Vehicle- Turbo Response (TR): indicates the percentage of maximum engine response available to the driver depending on the number of revs. For instance, using the gearbox and accelerator pedal to push the engine to over 4000 RPM gives a very high % of TR (80-90%): pressing the accelerator pedal hard down will give instant engine response and acceleration.- Time: displays a 12-hour format digital clock.- External temperature: displays a digital thermometer, the temperature can be displayed in degrees Celsius or Fahrenheit.

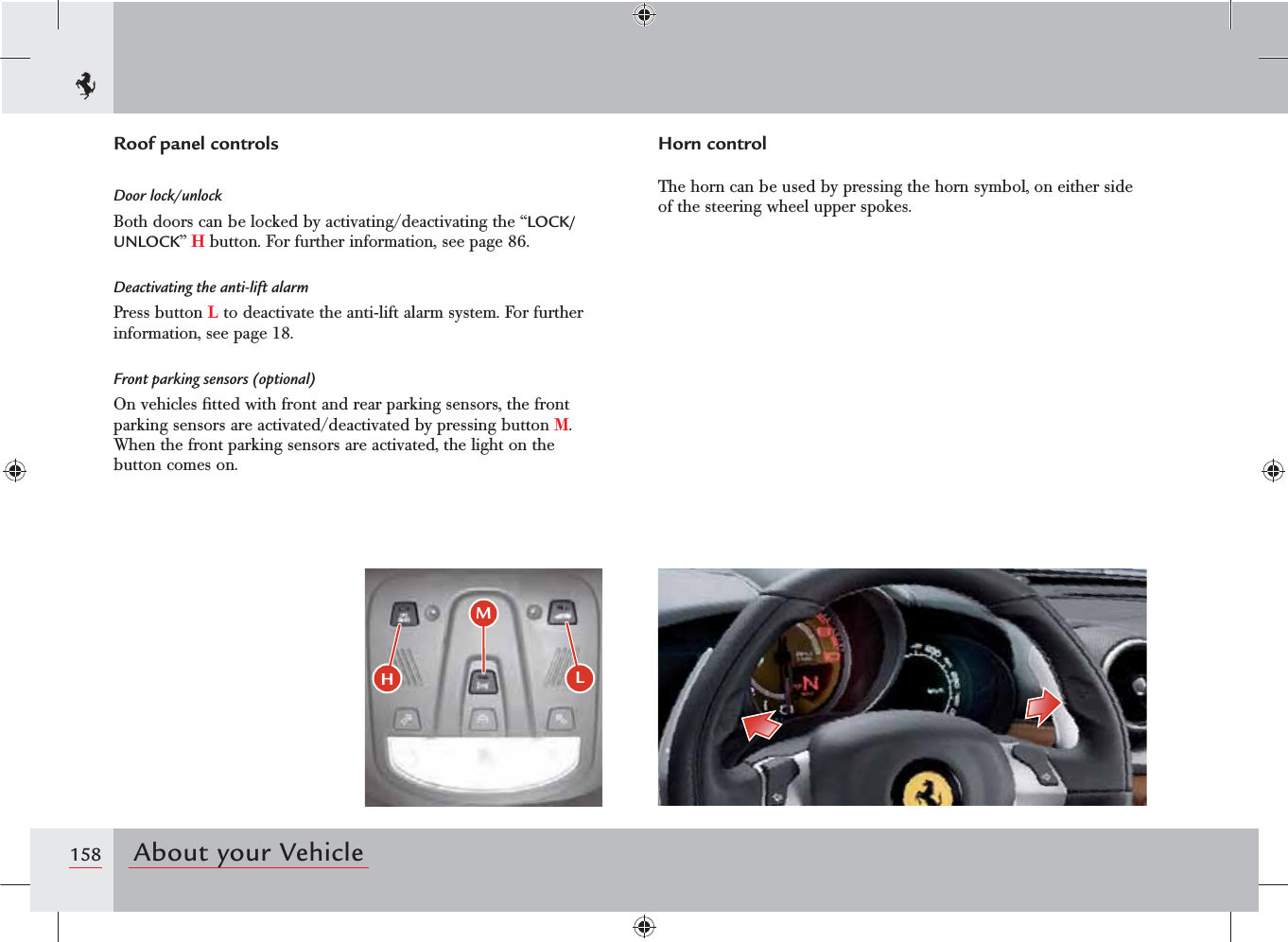

158 About your VehicleRoof panel controlsDoor lock/unlockBoth doors can be locked by activating/deactivating the “LOCK/UNLOCK” H button. For further information, see page 86.Deactivating the anti-lift alarmPress button L to deactivate the anti-lift alarm system. For further information, see page 18.Front parking sensors (optional)On vehicles fitted with front and rear parking sensors, the front parking sensors are activated/deactivated by pressing button M. When the front parking sensors are activated, the light on the button comes on.Horn controlThe horn can be used by pressing the horn symbol, on either side of the steering wheel upper spokes.MHL
1593About your VehicleABControls on the steering wheelStart buttonPress the ENGINE START button A to start the engine. When the engine has started, release the ENGINE START button.Do not hold the ENGINE START button down for a long time.Driving mode control switch “Manettino”The driving mode selected does not exempt the driver from complying with the rules of safe driving.The driver can select the driving mode using the “Manettino” B, according to the desired driving style.Important note In the event of a failure of one of the onboard systems, signalled by the relative warning light on the TFT display, the switch moves to a “recovery” position, but still allows the vehicle to be driven. In these cases, contact the Ferrari Service Network.

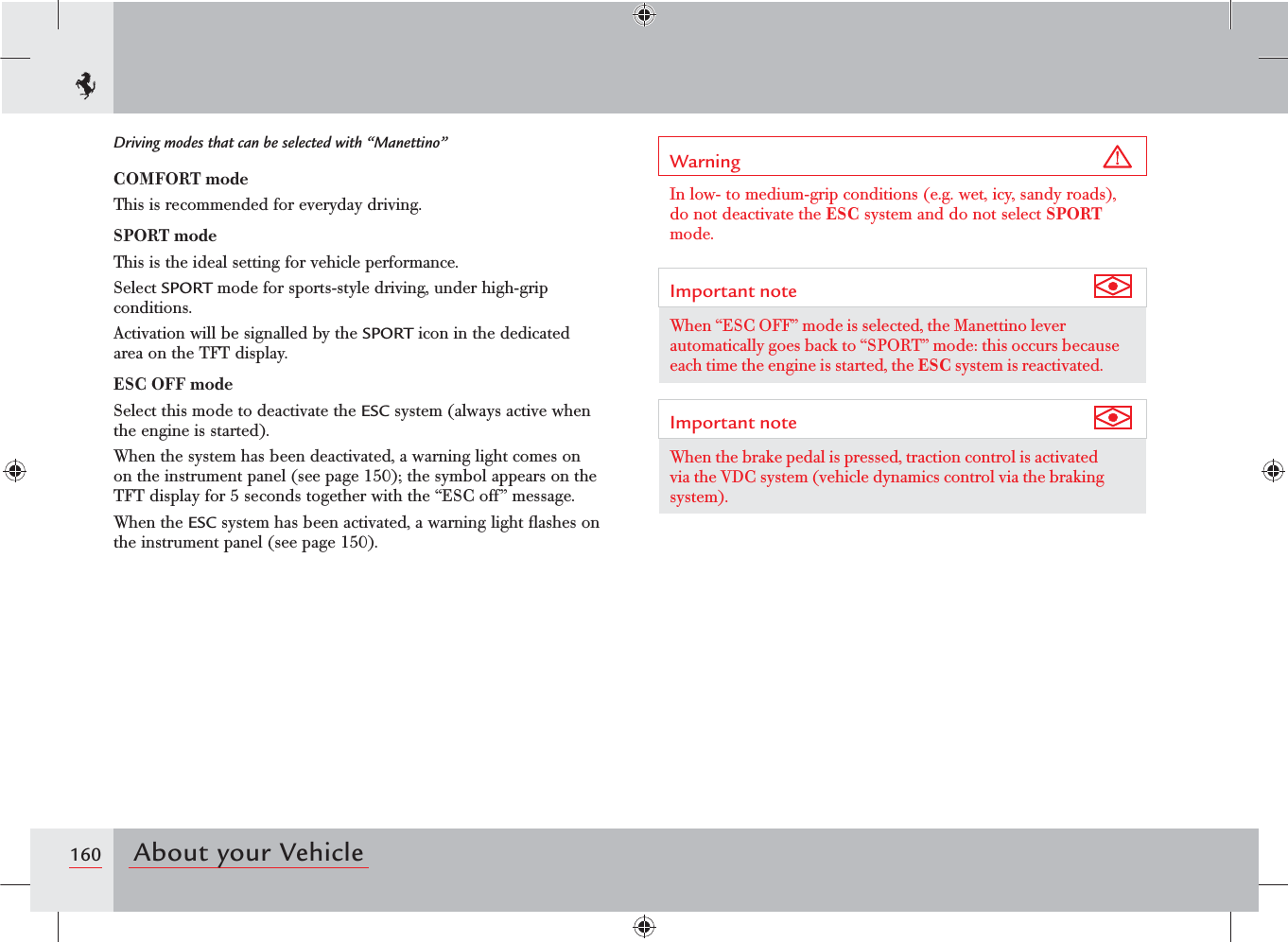

160 About your VehicleDriving modes that can be selected with “Manettino”COMFORT modeThis is recommended for everyday driving.SPORT modeThis is the ideal setting for vehicle performance.Select SPORT mode for sports-style driving, under high-grip conditions.Activation will be signalled by the SPORT icon in the dedicated area on the TFT display.ESC OFF modeSelect this mode to deactivate the ESC system (always active when the engine is started).When the system has been deactivated, a warning light comes on on the instrument panel (see page 150); the symbol appears on the TFT display for 5 seconds together with the “ESC off” message.When the ESC system has been activated, a warning light flashes on the instrument panel (see page 150).Warning In low- to medium-grip conditions (e.g. wet, icy, sandy roads), do not deactivate the ESC system and do not select SPORT mode.Important note When “ESC OFF” mode is selected, the Manettino lever automatically goes back to “SPORT” mode: this occurs because each time the engine is started, the ESC system is reactivated.Important note When the brake pedal is pressed, traction control is activated via the VDC system (vehicle dynamics control via the braking system).
1613About your VehicleDOWNUPAWindscreen and headlight washer/wipersImportant note The windscreen wipers and washer work only with the ignition key in position II.The windscreen wipers have 4 different speeds:OFF Windscreen wipers stationary.AUTO The rain sensor adjusts the windscreen wiper timing to the intensity of the rain.1 Slow continuous operation.2 Fast continuous operation.With the wipers stationary (OFF), quickly pressing lever A towards the dashboard activates the windscreen wipers in AUTO speed.With the wipers on, quickly pressing the lever towards the dashboard increases windscreen wiper speed (from AUTO to 1, from 1 to 2).“UP” shift paddlePull the right-hand UP paddle towards the steering wheel to shift gears up.“DOWN” shift paddlePull the left-hand DOWN paddle towards the steering wheel to shift gears down.

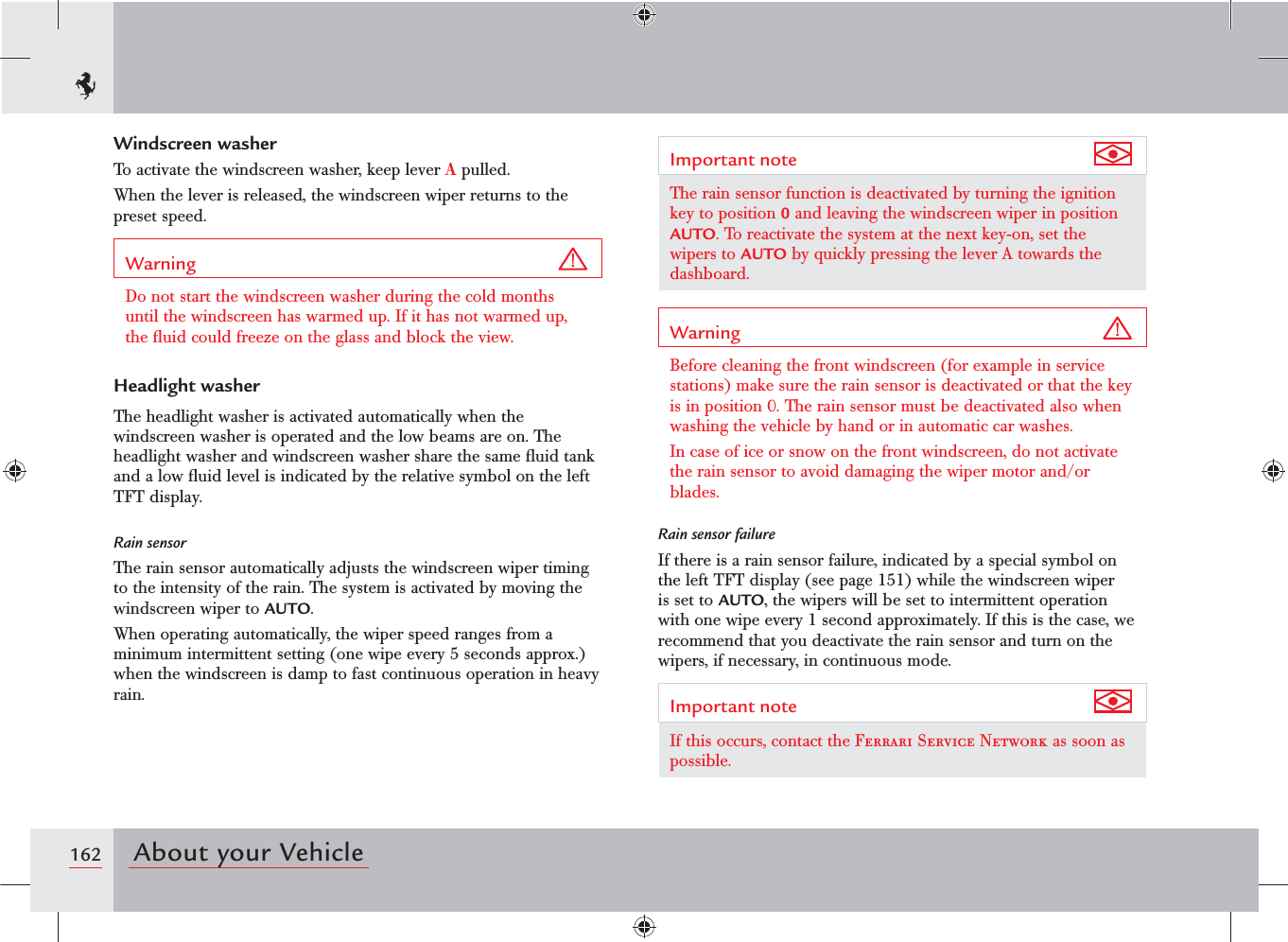

162 About your VehicleWindscreen washerTo activate the windscreen washer, keep lever A pulled.When the lever is released, the windscreen wiper returns to the preset speed.Warning Do not start the windscreen washer during the cold months until the windscreen has warmed up. If it has not warmed up, the fluid could freeze on the glass and block the view.Headlight washerThe headlight washer is activated automatically when the windscreen washer is operated and the low beams are on. The headlight washer and windscreen washer share the same fluid tank and a low fluid level is indicated by the relative symbol on the left TFT display.Rain sensorThe rain sensor automatically adjusts the windscreen wiper timing to the intensity of the rain. The system is activated by moving the windscreen wiper to AUTO.When operating automatically, the wiper speed ranges from a minimum intermittent setting (one wipe every 5 seconds approx.) when the windscreen is damp to fast continuous operation in heavy rain.Important note The rain sensor function is deactivated by turning the ignition key to position 0 and leaving the windscreen wiper in position AUTO. To reactivate the system at the next key-on, set the wipers to AUTO by quickly pressing the lever A towards the dashboard.Warning Before cleaning the front windscreen (for example in service stations) make sure the rain sensor is deactivated or that the key is in position 0. The rain sensor must be deactivated also when washing the vehicle by hand or in automatic car washes.In case of ice or snow on the front windscreen, do not activate the rain sensor to avoid damaging the wiper motor and/or blades.Rain sensor failureIf there is a rain sensor failure, indicated by a special symbol on the left TFT display (see page 151) while the windscreen wiper is set to AUTO, the wipers will be set to intermittent operation with one wipe every 1 second approximately. If this is the case, we recommend that you deactivate the rain sensor and turn on the wipers, if necessary, in continuous mode.Important note If this occurs, contact the Ferrari Service Network as soon as possible.

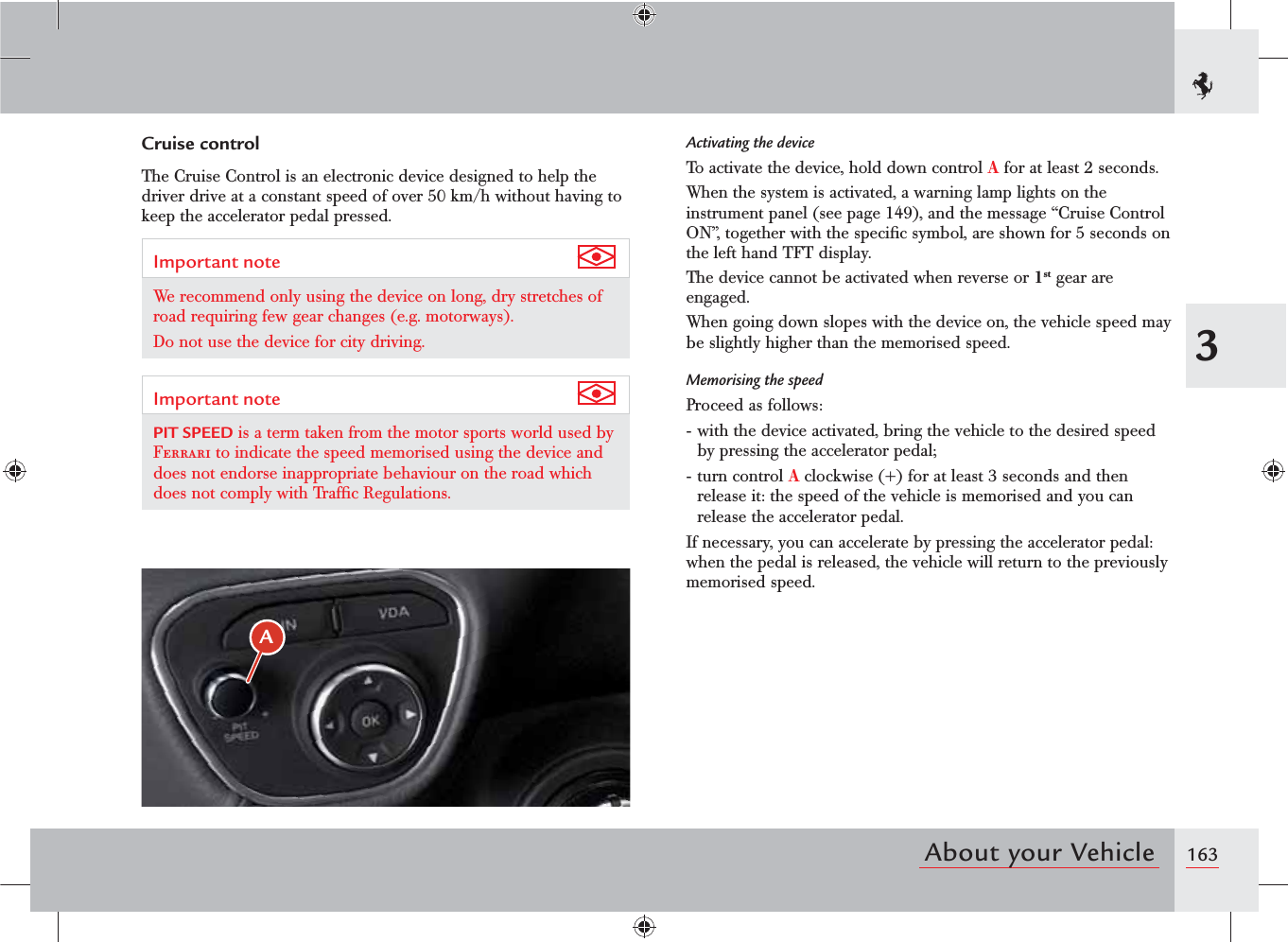

1633About your VehicleActivating the deviceTo activate the device, hold down control A for at least 2 seconds.When the system is activated, a warning lamp lights on the instrument panel (see page 149), and the message “Cruise Control ON”, together with the specific symbol, are shown for 5 seconds on the left hand TFT display.The device cannot be activated when reverse or 1st gear are engaged.When going down slopes with the device on, the vehicle speed may be slightly higher than the memorised speed.Memorising the speedProceed as follows:- with the device activated, bring the vehicle to the desired speed by pressing the accelerator pedal;- turn control A clockwise (+) for at least 3 seconds and then release it: the speed of the vehicle is memorised and you can release the accelerator pedal.If necessary, you can accelerate by pressing the accelerator pedal: when the pedal is released, the vehicle will return to the previously memorised speed.Cruise controlThe Cruise Control is an electronic device designed to help the driver drive at a constant speed of over 50 km/h without having to keep the accelerator pedal pressed.Important note We recommend only using the device on long, dry stretches of road requiring few gear changes (e.g. motorways).Do not use the device for city driving.Important note PIT SPEED is a term taken from the motor sports world used by Ferrari to indicate the speed memorised using the device and does not endorse inappropriate behaviour on the road which does not comply with Traffic Regulations.A

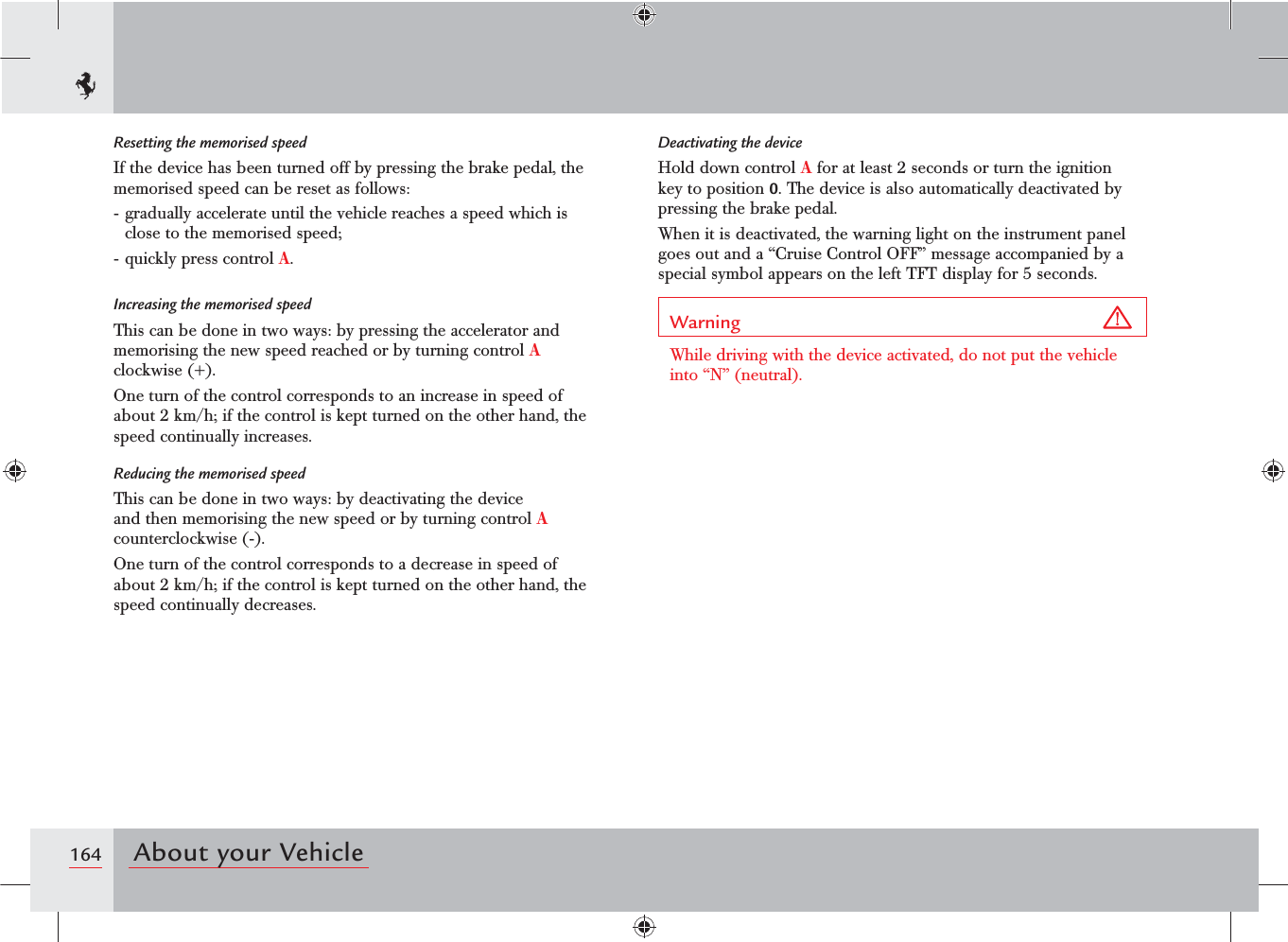

164 About your VehicleResetting the memorised speedIf the device has been turned off by pressing the brake pedal, the memorised speed can be reset as follows:- gradually accelerate until the vehicle reaches a speed which is close to the memorised speed;- quickly press control A.Increasing the memorised speedThis can be done in two ways: by pressing the accelerator and memorising the new speed reached or by turning control A clockwise (+).One turn of the control corresponds to an increase in speed of about 2 km/h; if the control is kept turned on the other hand, the speed continually increases.Reducing the memorised speedThis can be done in two ways: by deactivating the device and then memorising the new speed or by turning control A counterclockwise (-).One turn of the control corresponds to a decrease in speed of about 2 km/h; if the control is kept turned on the other hand, the speed continually decreases.Deactivating the deviceHold down control A for at least 2 seconds or turn the ignition key to position 0. The device is also automatically deactivated by pressing the brake pedal.When it is deactivated, the warning light on the instrument panel goes out and a “Cruise Control OFF” message accompanied by a special symbol appears on the left TFT display for 5 seconds.Warning While driving with the device activated, do not put the vehicle into “N” (neutral).

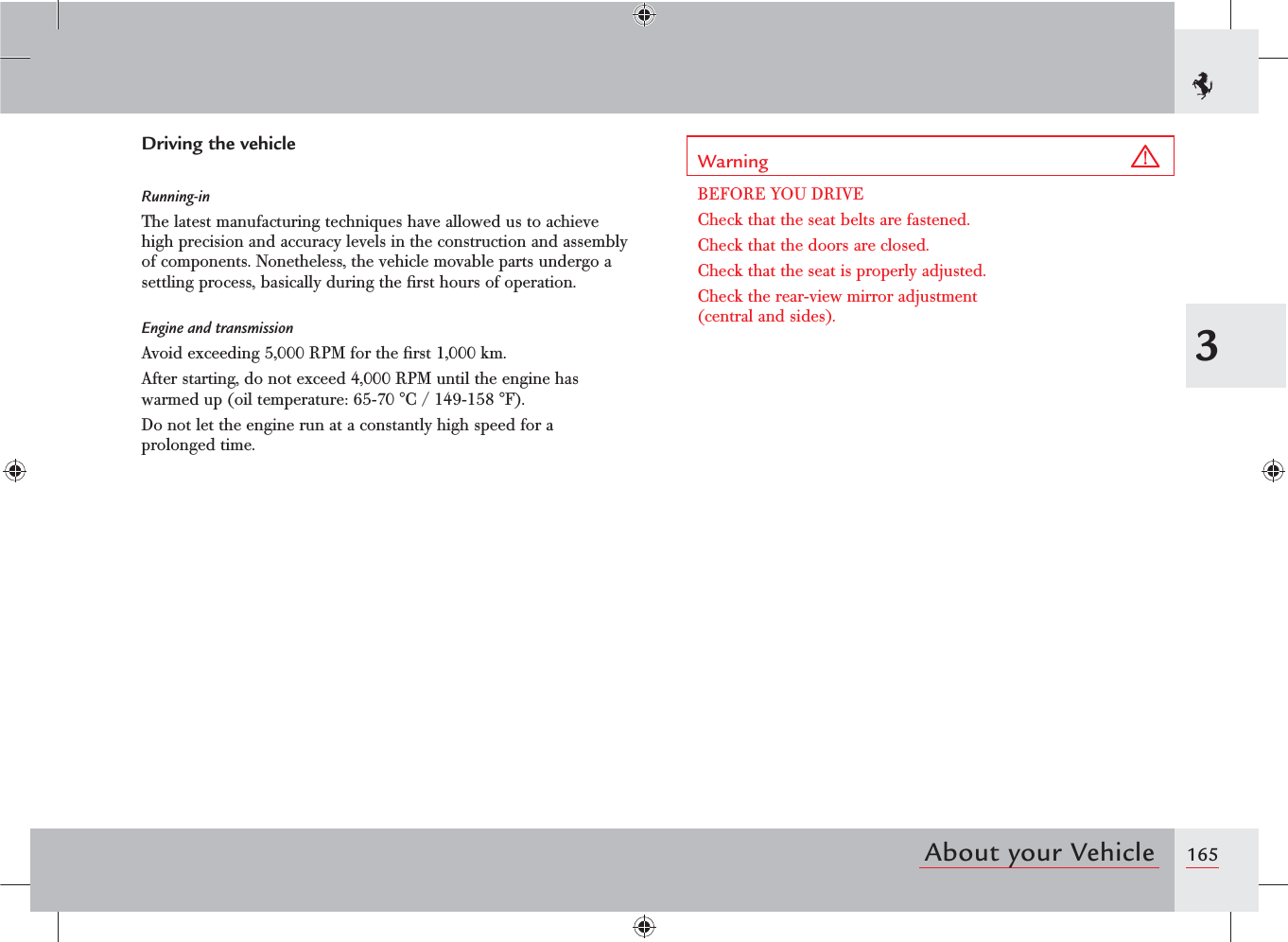

1653About your VehicleWarning BEFORE YOU DRIVECheck that the seat belts are fastened.Check that the doors are closed.Check that the seat is properly adjusted.Check the rear-view mirror adjustment (central and sides).Driving the vehicleRunning-inThe latest manufacturing techniques have allowed us to achieve high precision and accuracy levels in the construction and assembly of components. Nonetheless, the vehicle movable parts undergo a settling process, basically during the first hours of operation.Engine and transmissionAvoid exceeding 5,000 RPM for the first 1,000 km.After starting, do not exceed 4,000 RPM until the engine has warmed up (oil temperature: 65-70 °C / 149-158 °F).Do not let the engine run at a constantly high speed for a prolonged time.

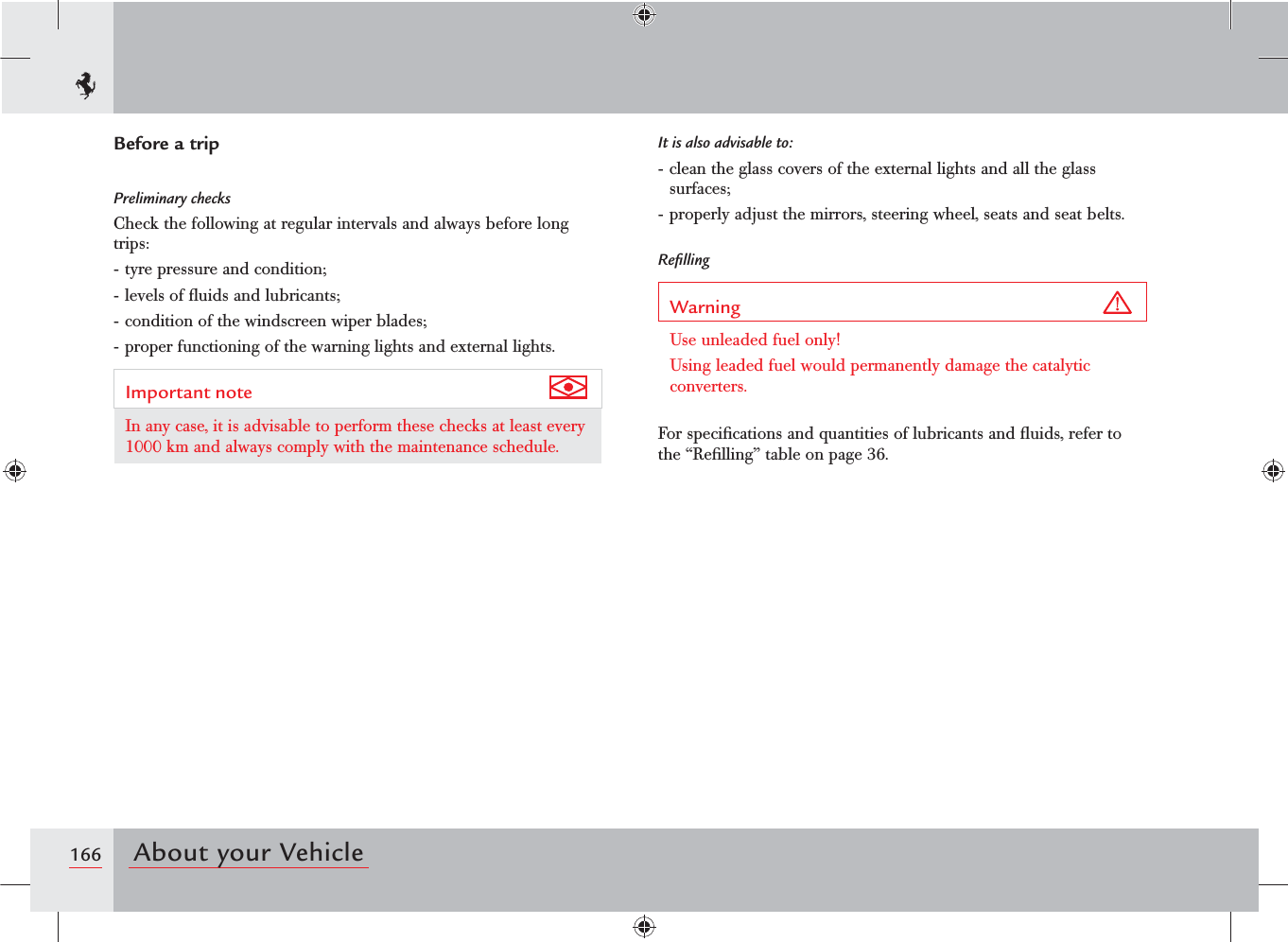

166 About your VehicleBefore a tripPreliminary checksCheck the following at regular intervals and always before long trips:- tyre pressure and condition;- levels of fluids and lubricants;- condition of the windscreen wiper blades;- proper functioning of the warning lights and external lights.Important note In any case, it is advisable to perform these checks at least every 1000 km and always comply with the maintenance schedule.It is also advisable to:- clean the glass covers of the external lights and all the glass surfaces;- properly adjust the mirrors, steering wheel, seats and seat belts.RefillingWarning Use unleaded fuel only!Using leaded fuel would permanently damage the catalytic converters.For specifications and quantities of lubricants and fluids, refer to the “Refilling” table on page 36.
1673About your VehicleStarting and driving the vehicleSystem start-upAfter turning the ignition key to position II (key-on), the TFT display is activated on the instrument panel and system diagnosis is performed. During diagnosis, which lasts 5 seconds, a check is performed on the warning lights on the panel and the presence of any faults is checked.If diagnosis detects any errors, they are only displayed once the 5 seconds required for the check have elapsed. The cases listed below are an exception and errors are displayed as soon as the key is turned to on, even during diagnosis:- Low engine oil pressure (see page 148).- Inertia switch triggered (see page 148).- Semi-automatic gearbox safety warnings.- Deactivation of EPB warning (see page 183).If the next scheduled maintenance deadline is approaching, each time the key is turned to on, information on scheduled maintenance is automatically displayed after diagnosis. For further information, refer to the “Maintenance Schedule” paragraph on page 252.Finally, each time the key is turned to on, the message for activation of the alarm when an intrusion has been attempted (see page 19) is also displayed (after diagnosis).Once the system check has been completed, the gearbox display is activated and the letter “P” (Parking) or “N” (Neutral) will be displayed.Important note BEFORE YOU DRIVEIf the warning light A does not turn off after diagnosis, indicating a fault in the gearbox (which is also indicated by the symbol and specific message on the TFT display - see page 152), contact the Ferrari Service Network.A
168 About your VehicleImportant note The vehicle is equipped with an electro-hydraulically controlled gearbox system operated by means of paddles on the steering wheel.The default setting for the DCT gearbox is always “Automatic” mode (see page 172).Every time the vehicle is started, the DCT gearbox is in “Auto easy exit” mode (see page 172) unless the vehicle was in “Automatic” mode when the engine was turned off.To exit the “Auto easy exit” mode operate the UP and DOWN paddles (while the vehicle is moving) or press the AUTO button on the centre console.Important note Immediately release the UP and DOWN paddles or button R after the gearbox display shows that the gear has been engaged; a prolonged manoeuvre would cause the gearbox failure warning light to turn on (see page 152) and triggering of the buzzer.Important note If the engine compartment lid is open or not properly closed, none of the gears can be engaged. When the vehicle is stationary, with the driver-side door open or not properly closed and the brake pedal released, the system disengages the gear engaged after approximately two seconds.DOWNUP

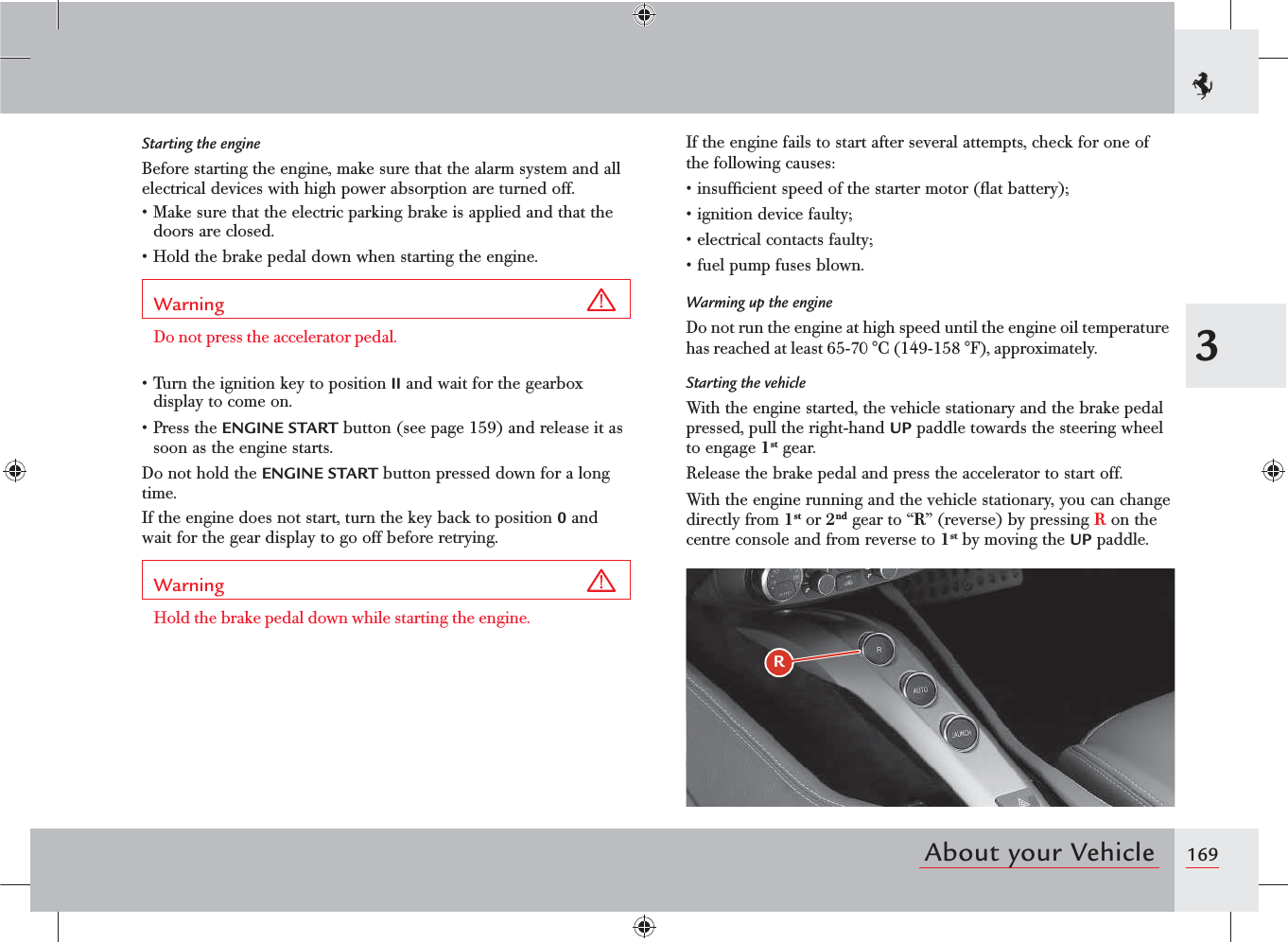

1693About your VehicleRStarting the engineBefore starting the engine, make sure that the alarm system and all electrical devices with high power absorption are turned off.s-AKESURETHATTHEELECTRICPARKINGBRAKEISAPPLIEDANDTHATTHEdoors are closed.s(OLDTHEBRAKEPEDALDOWNWHENSTARTINGTHEENGINEWarning Do not press the accelerator pedal.s4URNTHEIGNITIONKEYTOPOSITIONII and wait for the gearbox display to come on.s0RESSTHEENGINE START button (see page 159) and release it as soon as the engine starts.Do not hold the ENGINE START button pressed down for a long time.If the engine does not start, turn the key back to position 0 and wait for the gear display to go off before retrying.Warning Hold the brake pedal down while starting the engine.If the engine fails to start after several attempts, check for one of the following causes:sINSUFlCIENTSPEEDOFTHESTARTERMOTORmATBATTERYsIGNITIONDEVICEFAULTYsELECTRICALCONTACTSFAULTYsFUELPUMPFUSESBLOWNWarming up the engineDo not run the engine at high speed until the engine oil temperature has reached at least 65-70 °C (149-158 °F), approximately.Starting the vehicleWith the engine started, the vehicle stationary and the brake pedal pressed, pull the right-hand UP paddle towards the steering wheel to engage 1st gear.Release the brake pedal and press the accelerator to start off.With the engine running and the vehicle stationary, you can change directly from 1st or 2nd gear to “R” (reverse) by pressing R on the centre console and from reverse to 1st by moving the UP paddle.
170 About your VehicleWarning If the UP and DOWN paddles are not working, the message “Depress brake pedal and press LAUNCH to engage gear” will appear on the TFT display; you can therefore engage the gear by pressing the LAUNCH button on the centre console (see page 180) and the brake pedal.In these cases, the “Launch Control” function is not available.If the engaged gear was R, the LAUNCH button must be pressed twice to engage 1st gear.Important note When reverse is selected, an acoustic safety signal beeps intermittently as long as “R” is engaged.If the system automatically selects 2nd gear when attempting to shift from R to 1st gear, this indicates that 1st gear has jammed. Therefore, this is not a malfunction, as it falls within the system operating logic. For the same reason, when shifting from 1st gear to “R”, the system will automatically engage “N” if the gear has jammed.During prolonged stops with the engine running, it is advisable to keep the gearshift in “N”.Important note If you allow the vehicle to move forward in N, when UP or DOWN is requested, a gear will be engaged that corresponds to the speed of the vehicle.UP-shiftingOperate the right-hand UP paddle without releasing the accelerator pedal.An UP-shift request is not accepted when engagement of the requested gear forces the engine to underrev or if an UP-shift is already in progress because of engine overrevving.Gearshifting will be much quicker if the request is made with the accelerator pedal pushed right down and the engine at over 5,500 rpm.In any event, it is advisable to: sShift gears without releasing the accelerator pedal if pressed. sWait until gearshifting has been completed before requesting the next shift, avoiding a rapid sequence of multiple requests.UP-shifting due to overrevvingThe system “automatically” engages a higher gear if the accelerator pedal is pressed and the engine approaches the “runaway speed rate” (overrevving).Important note This will not occur when the system is in “SPORT” and “ESC OFF” driving mode.

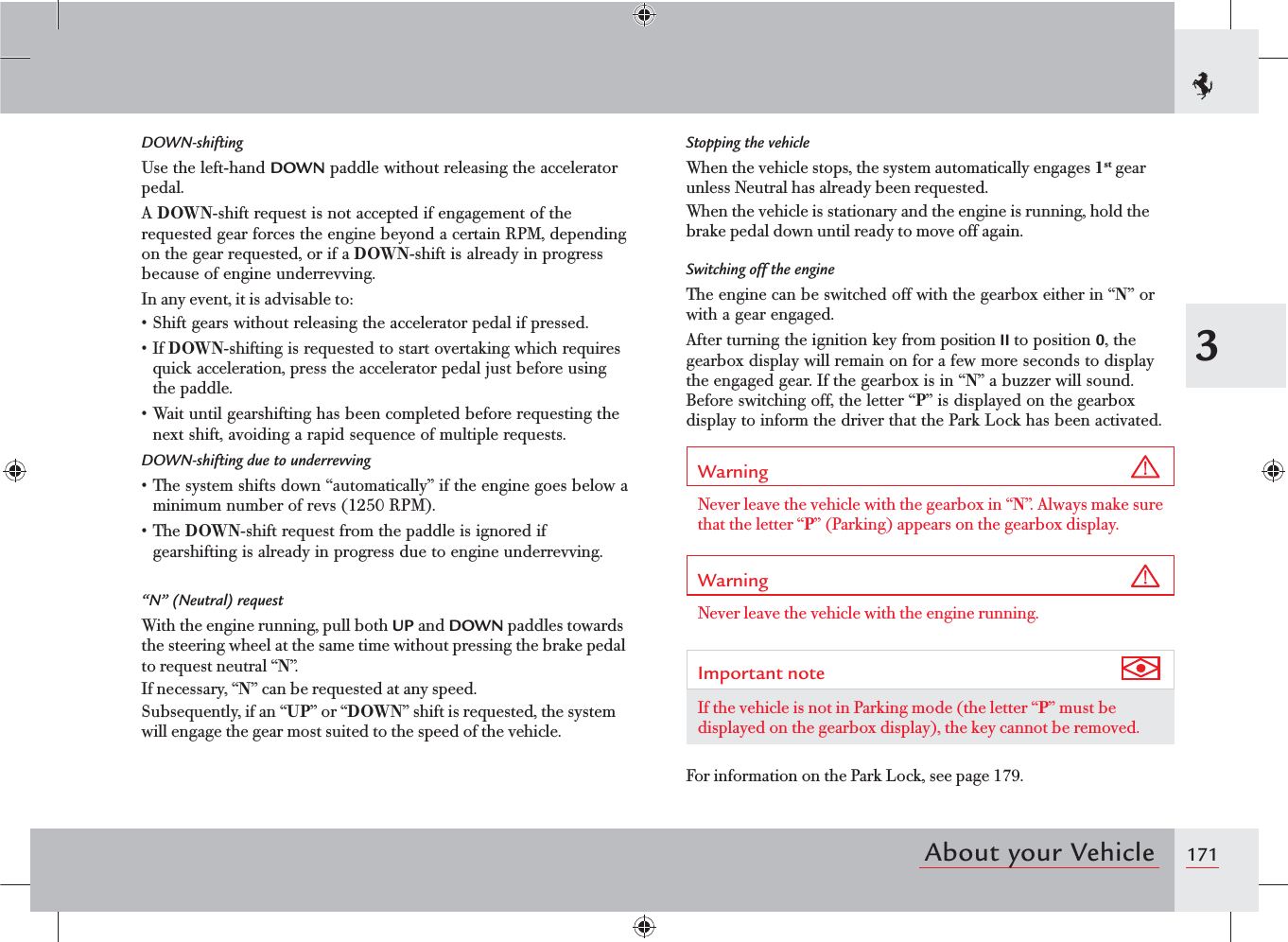

1713About your VehicleStopping the vehicleWhen the vehicle stops, the system automatically engages 1st gear unless Neutral has already been requested.When the vehicle is stationary and the engine is running, hold the brake pedal down until ready to move off again.Switching off the engineThe engine can be switched off with the gearbox either in “N” or with a gear engaged.After turning the ignition key from position II to position 0, the gearbox display will remain on for a few more seconds to display the engaged gear. If the gearbox is in “N” a buzzer will sound. Before switching off, the letter “P” is displayed on the gearbox display to inform the driver that the Park Lock has been activated.Warning Never leave the vehicle with the gearbox in “N”. Always make sure that the letter “P” (Parking) appears on the gearbox display.Warning Never leave the vehicle with the engine running.Important note If the vehicle is not in Parking mode (the letter “P” must be displayed on the gearbox display), the key cannot be removed.For information on the Park Lock, see page 179.DOWN-shiftingUse the left-hand DOWN paddle without releasing the accelerator pedal.A DOWN-shift request is not accepted if engagement of the requested gear forces the engine beyond a certain RPM, depending on the gear requested, or if a DOWN-shift is already in progress because of engine underrevving.In any event, it is advisable to:s Shift gears without releasing the accelerator pedal if pressed.s If DOWN-shifting is requested to start overtaking which requires quick acceleration, press the accelerator pedal just before using the paddle.sWait until gearshifting has been completed before requesting the next shift, avoiding a rapid sequence of multiple requests.DOWN-shifting due to underrevvingsThe system shifts down “automatically” if the engine goes below a minimum number of revs (1250 RPM). sThe DOWN-shift request from the paddle is ignored if gearshifting is already in progress due to engine underrevving.“N” (Neutral) requestWith the engine running, pull both UP and DOWN paddles towards the steering wheel at the same time without pressing the brake pedal to request neutral “N”.If necessary, “N” can be requested at any speed.Subsequently, if an “UP” or “DOWN” shift is requested, the system will engage the gear most suited to the speed of the vehicle.

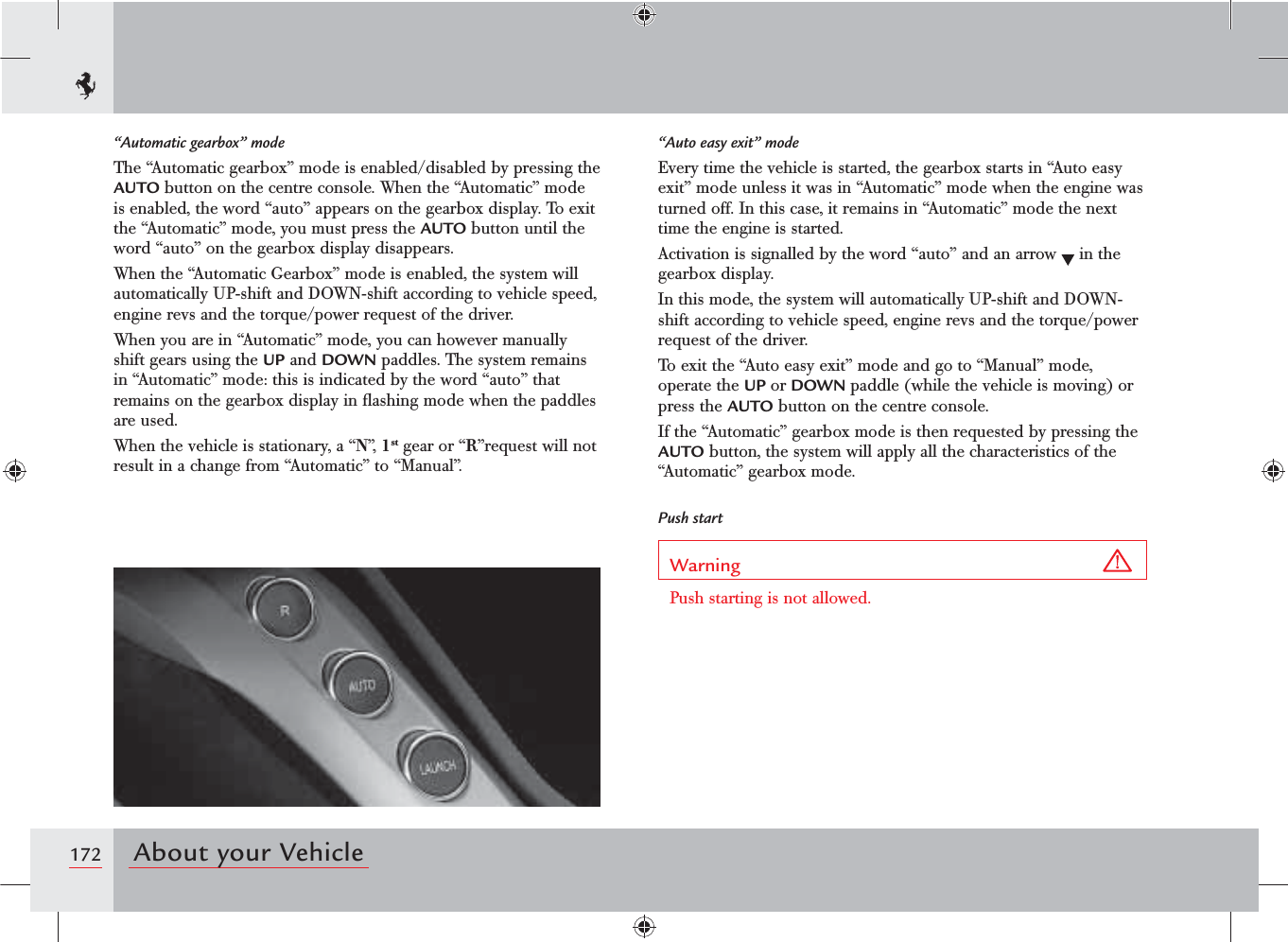

172 About your Vehicle“Auto easy exit” modeEvery time the vehicle is started, the gearbox starts in “Auto easy exit” mode unless it was in “Automatic” mode when the engine was turned off. In this case, it remains in “Automatic” mode the next time the engine is started.Activation is signalled by the word “auto” and an arrow in the gearbox display.In this mode, the system will automatically UP-shift and DOWN-shift according to vehicle speed, engine revs and the torque/power request of the driver.To exit the “Auto easy exit” mode and go to “Manual” mode, operate the UP or DOWN paddle (while the vehicle is moving) or press the AUTO button on the centre console.If the “Automatic” gearbox mode is then requested by pressing the AUTO button, the system will apply all the characteristics of the “Automatic” gearbox mode.Push startWarning Push starting is not allowed.“Automatic gearbox” modeThe “Automatic gearbox” mode is enabled/disabled by pressing the AUTO button on the centre console. When the “Automatic” mode is enabled, the word “auto” appears on the gearbox display. To exit the “Automatic” mode, you must press the AUTO button until the word “auto” on the gearbox display disappears.When the “Automatic Gearbox” mode is enabled, the system will automatically UP-shift and DOWN-shift according to vehicle speed, engine revs and the torque/power request of the driver.When you are in “Automatic” mode, you can however manually shift gears using the UP and DOWN paddles. The system remains in “Automatic” mode: this is indicated by the word “auto” that remains on the gearbox display in flashing mode when the paddles are used.When the vehicle is stationary, a “N”, 1st gear or “R”request will not result in a change from “Automatic” to “Manual”.

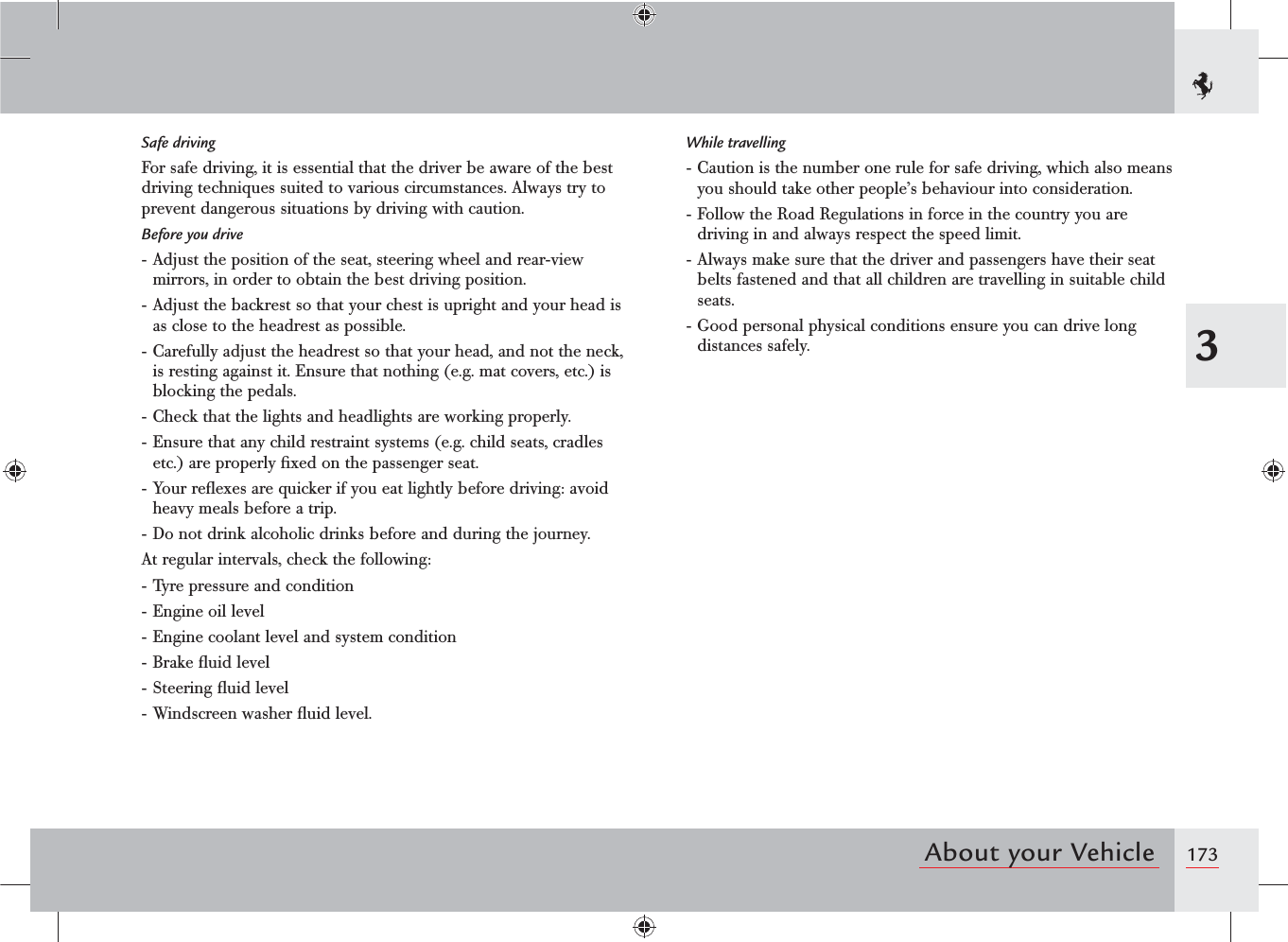

1733About your VehicleSafe drivingFor safe driving, it is essential that the driver be aware of the best driving techniques suited to various circumstances. Always try to prevent dangerous situations by driving with caution.Before you drive- Adjust the position of the seat, steering wheel and rear-view mirrors, in order to obtain the best driving position.- Adjust the backrest so that your chest is upright and your head is as close to the headrest as possible.- Carefully adjust the headrest so that your head, and not the neck, is resting against it. Ensure that nothing (e.g. mat covers, etc.) is blocking the pedals.- Check that the lights and headlights are working properly.- Ensure that any child restraint systems (e.g. child seats, cradles etc.) are properly fixed on the passenger seat.- Your reflexes are quicker if you eat lightly before driving: avoid heavy meals before a trip.- Do not drink alcoholic drinks before and during the journey.At regular intervals, check the following:- Tyre pressure and condition- Engine oil level- Engine coolant level and system condition- Brake fluid level- Steering fluid level- Windscreen washer fluid level.While travelling- Caution is the number one rule for safe driving, which also means you should take other people’s behaviour into consideration.- Follow the Road Regulations in force in the country you are driving in and always respect the speed limit.- Always make sure that the driver and passengers have their seat belts fastened and that all children are travelling in suitable child seats.- Good personal physical conditions ensure you can drive long distances safely.

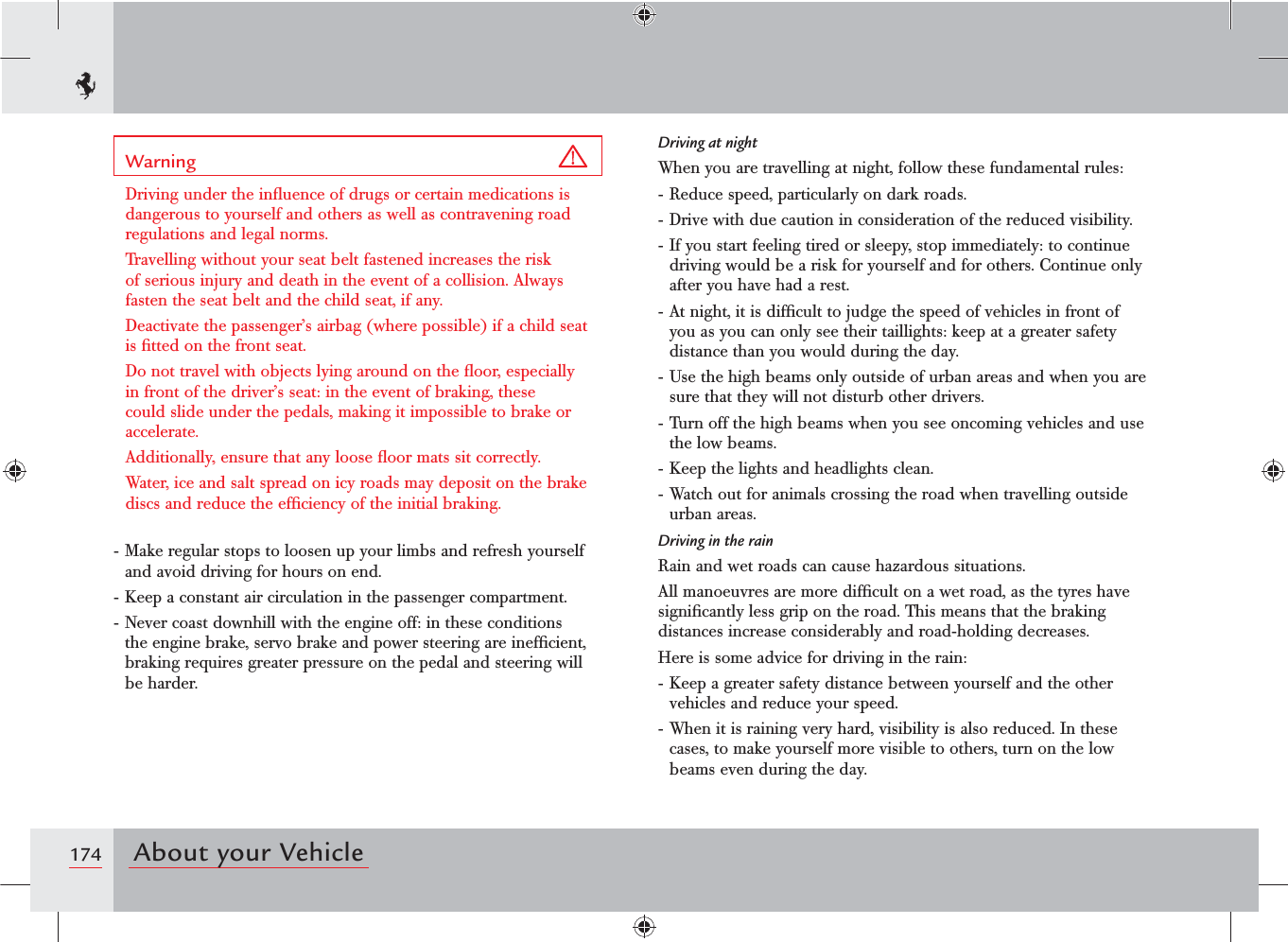

174 About your VehicleWarning Driving under the influence of drugs or certain medications is dangerous to yourself and others as well as contravening road regulations and legal norms.Travelling without your seat belt fastened increases the risk of serious injury and death in the event of a collision. Always fasten the seat belt and the child seat, if any.Deactivate the passenger’s airbag (where possible) if a child seat is fitted on the front seat.Do not travel with objects lying around on the floor, especially in front of the driver’s seat: in the event of braking, these could slide under the pedals, making it impossible to brake or accelerate.Additionally, ensure that any loose floor mats sit correctly.Water, ice and salt spread on icy roads may deposit on the brake discs and reduce the efficiency of the initial braking.- Make regular stops to loosen up your limbs and refresh yourself and avoid driving for hours on end.- Keep a constant air circulation in the passenger compartment.- Never coast downhill with the engine off: in these conditions the engine brake, servo brake and power steering are inefficient, braking requires greater pressure on the pedal and steering will be harder.Driving at nightWhen you are travelling at night, follow these fundamental rules:- Reduce speed, particularly on dark roads.- Drive with due caution in consideration of the reduced visibility.- If you start feeling tired or sleepy, stop immediately: to continue driving would be a risk for yourself and for others. Continue only after you have had a rest.- At night, it is difficult to judge the speed of vehicles in front of you as you can only see their taillights: keep at a greater safety distance than you would during the day.- Use the high beams only outside of urban areas and when you are sure that they will not disturb other drivers.- Turn off the high beams when you see oncoming vehicles and use the low beams.- Keep the lights and headlights clean.- Watch out for animals crossing the road when travelling outside urban areas.Driving in the rainRain and wet roads can cause hazardous situations.All manoeuvres are more difficult on a wet road, as the tyres have significantly less grip on the road. This means that the braking distances increase considerably and road-holding decreases.Here is some advice for driving in the rain:- Keep a greater safety distance between yourself and the other vehicles and reduce your speed.- When it is raining very hard, visibility is also reduced. In these cases, to make yourself more visible to others, turn on the low beams even during the day.

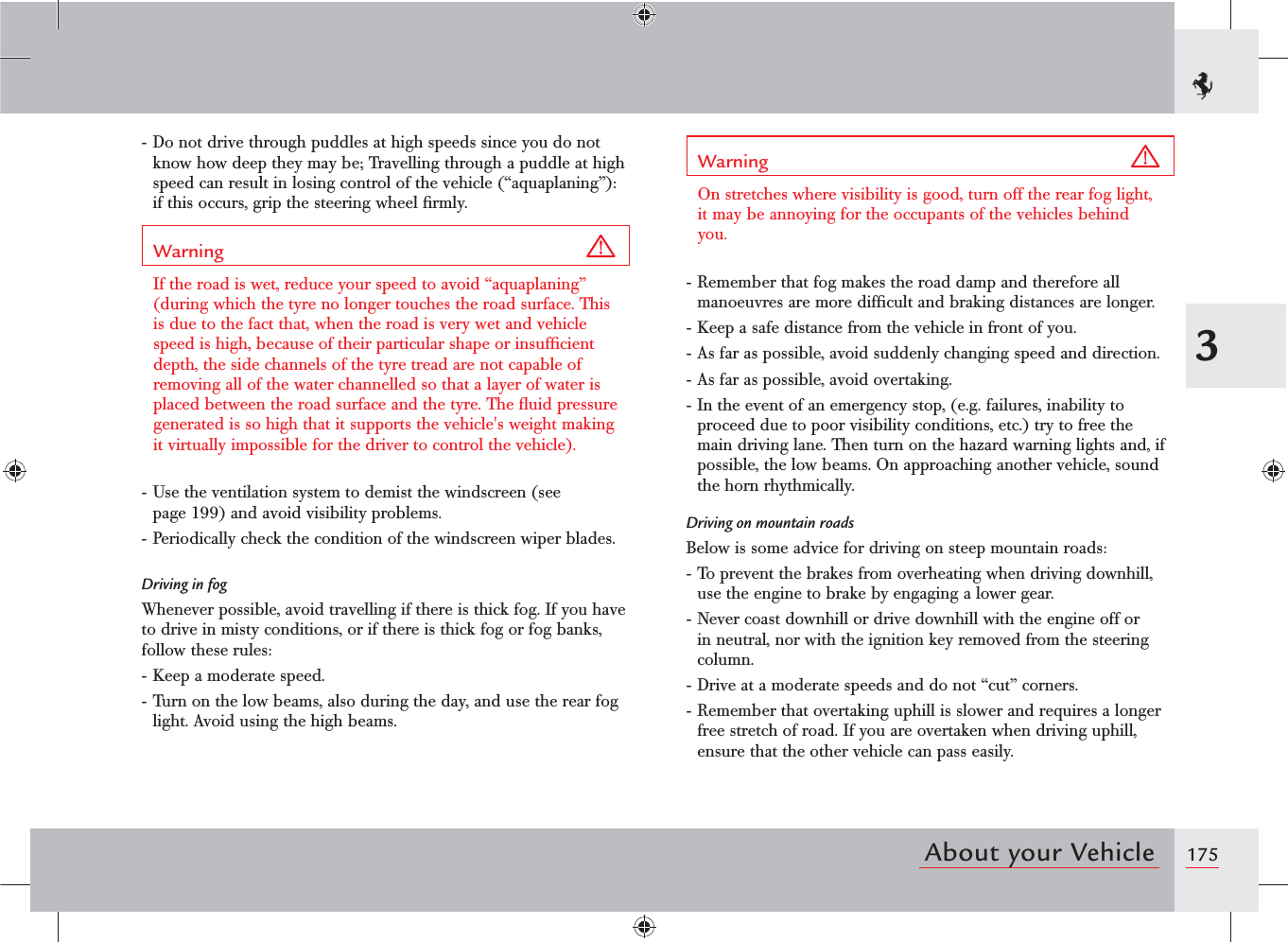

1753About your VehicleWarning On stretches where visibility is good, turn off the rear fog light, it may be annoying for the occupants of the vehicles behind you.- Remember that fog makes the road damp and therefore all manoeuvres are more difficult and braking distances are longer.- Keep a safe distance from the vehicle in front of you.- As far as possible, avoid suddenly changing speed and direction.- As far as possible, avoid overtaking.- In the event of an emergency stop, (e.g. failures, inability to proceed due to poor visibility conditions, etc.) try to free the main driving lane. Then turn on the hazard warning lights and, if possible, the low beams. On approaching another vehicle, sound the horn rhythmically.Driving on mountain roadsBelow is some advice for driving on steep mountain roads:- To prevent the brakes from overheating when driving downhill, use the engine to brake by engaging a lower gear.- Never coast downhill or drive downhill with the engine off or in neutral, nor with the ignition key removed from the steering column.- Drive at a moderate speeds and do not “cut” corners.- Remember that overtaking uphill is slower and requires a longer free stretch of road. If you are overtaken when driving uphill, ensure that the other vehicle can pass easily.- Do not drive through puddles at high speeds since you do not know how deep they may be; Travelling through a puddle at high speed can result in losing control of the vehicle (“aquaplaning”): if this occurs, grip the steering wheel firmly.Warning If the road is wet, reduce your speed to avoid “aquaplaning” (during which the tyre no longer touches the road surface. This is due to the fact that, when the road is very wet and vehicle speed is high, because of their particular shape or insufficient depth, the side channels of the tyre tread are not capable of removing all of the water channelled so that a layer of water is placed between the road surface and the tyre. The fluid pressure generated is so high that it supports the vehicle's weight making it virtually impossible for the driver to control the vehicle).- Use the ventilation system to demist the windscreen (see page 199) and avoid visibility problems.- Periodically check the condition of the windscreen wiper blades.Driving in fogWhenever possible, avoid travelling if there is thick fog. If you have to drive in misty conditions, or if there is thick fog or fog banks, follow these rules:- Keep a moderate speed.- Turn on the low beams, also during the day, and use the rear fog light. Avoid using the high beams.

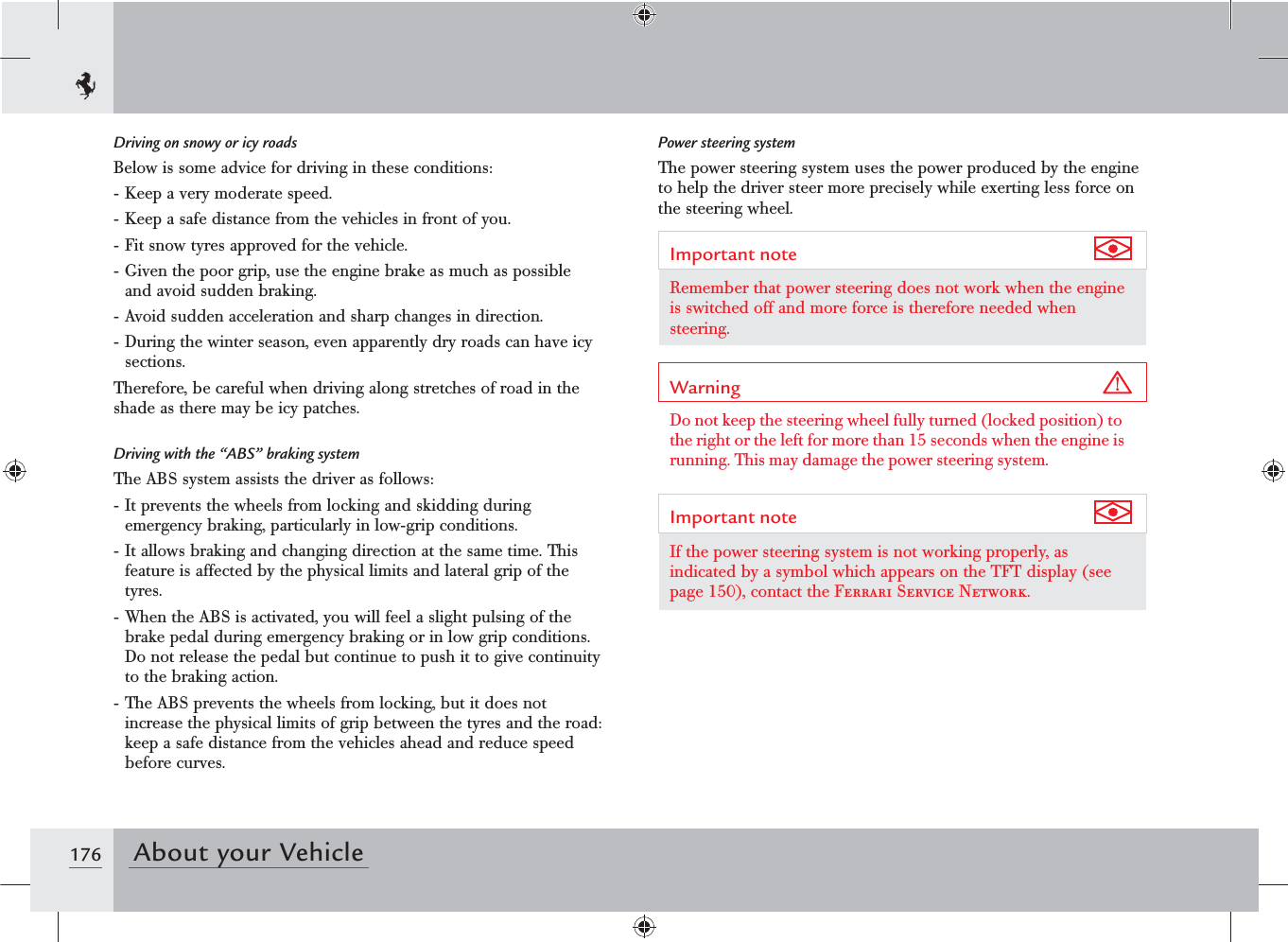

176 About your VehiclePower steering systemThe power steering system uses the power produced by the engine to help the driver steer more precisely while exerting less force on the steering wheel.Important note Remember that power steering does not work when the engine is switched off and more force is therefore needed when steering.Warning Do not keep the steering wheel fully turned (locked position) to the right or the left for more than 15 seconds when the engine is running. This may damage the power steering system.Important note If the power steering system is not working properly, as indicated by a symbol which appears on the TFT display (see page 150), contact the Ferrari Service Network.Driving on snowy or icy roadsBelow is some advice for driving in these conditions:- Keep a very moderate speed.- Keep a safe distance from the vehicles in front of you.- Fit snow tyres approved for the vehicle.- Given the poor grip, use the engine brake as much as possible and avoid sudden braking.- Avoid sudden acceleration and sharp changes in direction.- During the winter season, even apparently dry roads can have icy sections.Therefore, be careful when driving along stretches of road in the shade as there may be icy patches.Driving with the “ABS” braking systemThe ABS system assists the driver as follows:- It prevents the wheels from locking and skidding during emergency braking, particularly in low-grip conditions.- It allows braking and changing direction at the same time. This feature is affected by the physical limits and lateral grip of the tyres.- When the ABS is activated, you will feel a slight pulsing of the brake pedal during emergency braking or in low grip conditions. Do not release the pedal but continue to push it to give continuity to the braking action.- The ABS prevents the wheels from locking, but it does not increase the physical limits of grip between the tyres and the road: keep a safe distance from the vehicles ahead and reduce speed before curves.
1773About your VehicleACOMFORTDriving using the driving mode control switch (“Manettino”)The driving mode control switch A on the steering wheel, allows the driver to use the vehicle potential in a quick and easy way.There are three modes available which can be selected according to the grip level (from low to high) and consequently the level of driving assistance required (from high to none).- The COMFORT mode is recommended for everyday driving.If COMFORT mode is selected, it is indicated on the TFT display as shown below:

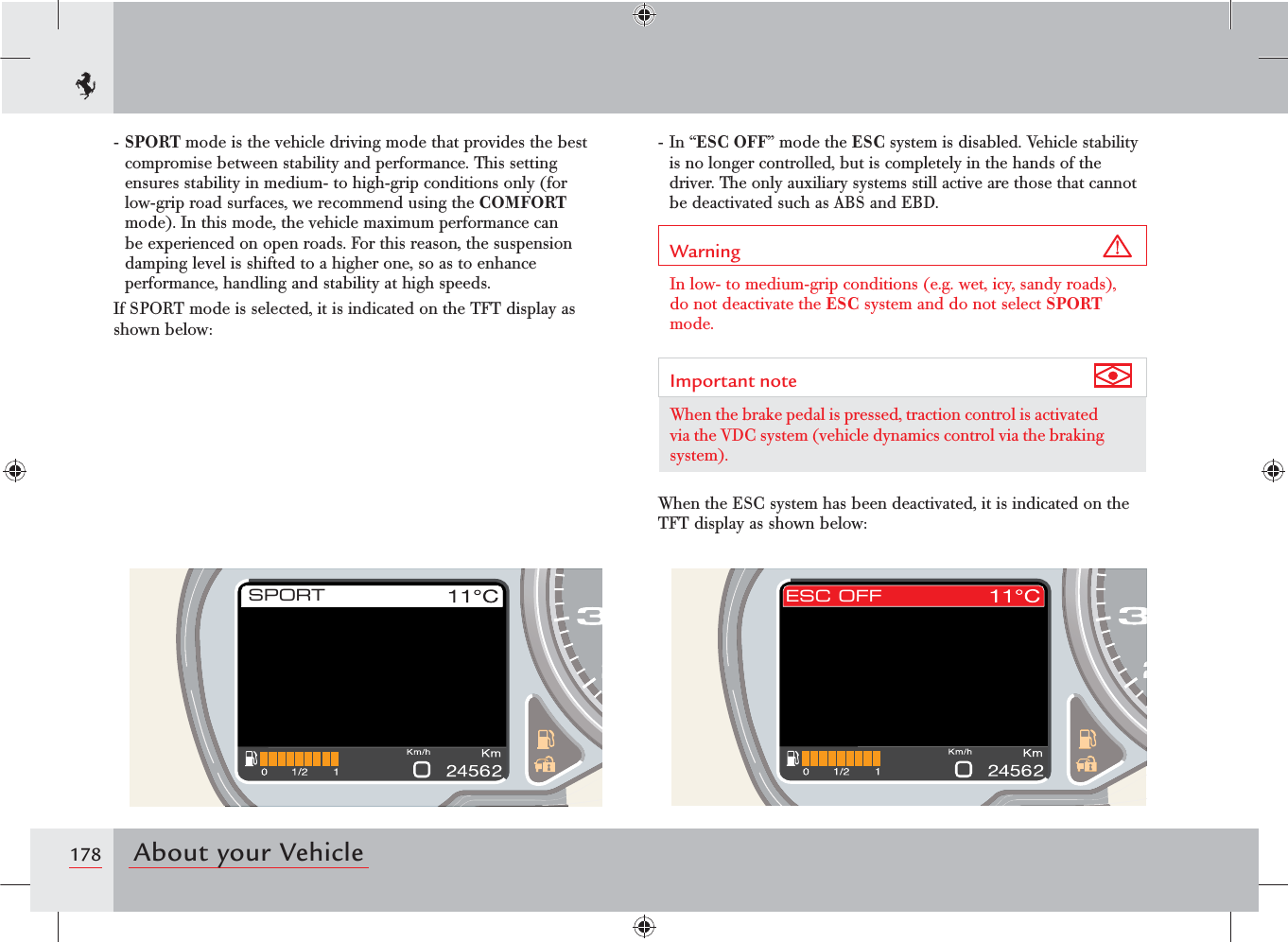

178 About your VehicleSPORT ESC OFF- SPORT mode is the vehicle driving mode that provides the best compromise between stability and performance. This setting ensures stability in medium- to high-grip conditions only (for low-grip road surfaces, we recommend using the COMFORT mode). In this mode, the vehicle maximum performance can be experienced on open roads. For this reason, the suspension damping level is shifted to a higher one, so as to enhance performance, handling and stability at high speeds.If SPORT mode is selected, it is indicated on the TFT display as shown below:- In “ESC OFF” mode the ESC system is disabled. Vehicle stability is no longer controlled, but is completely in the hands of the driver. The only auxiliary systems still active are those that cannot be deactivated such as ABS and EBD.Warning In low- to medium-grip conditions (e.g. wet, icy, sandy roads), do not deactivate the ESC system and do not select SPORT mode.Important note When the brake pedal is pressed, traction control is activated via the VDC system (vehicle dynamics control via the braking system).When the ESC system has been deactivated, it is indicated on the TFT display as shown below:

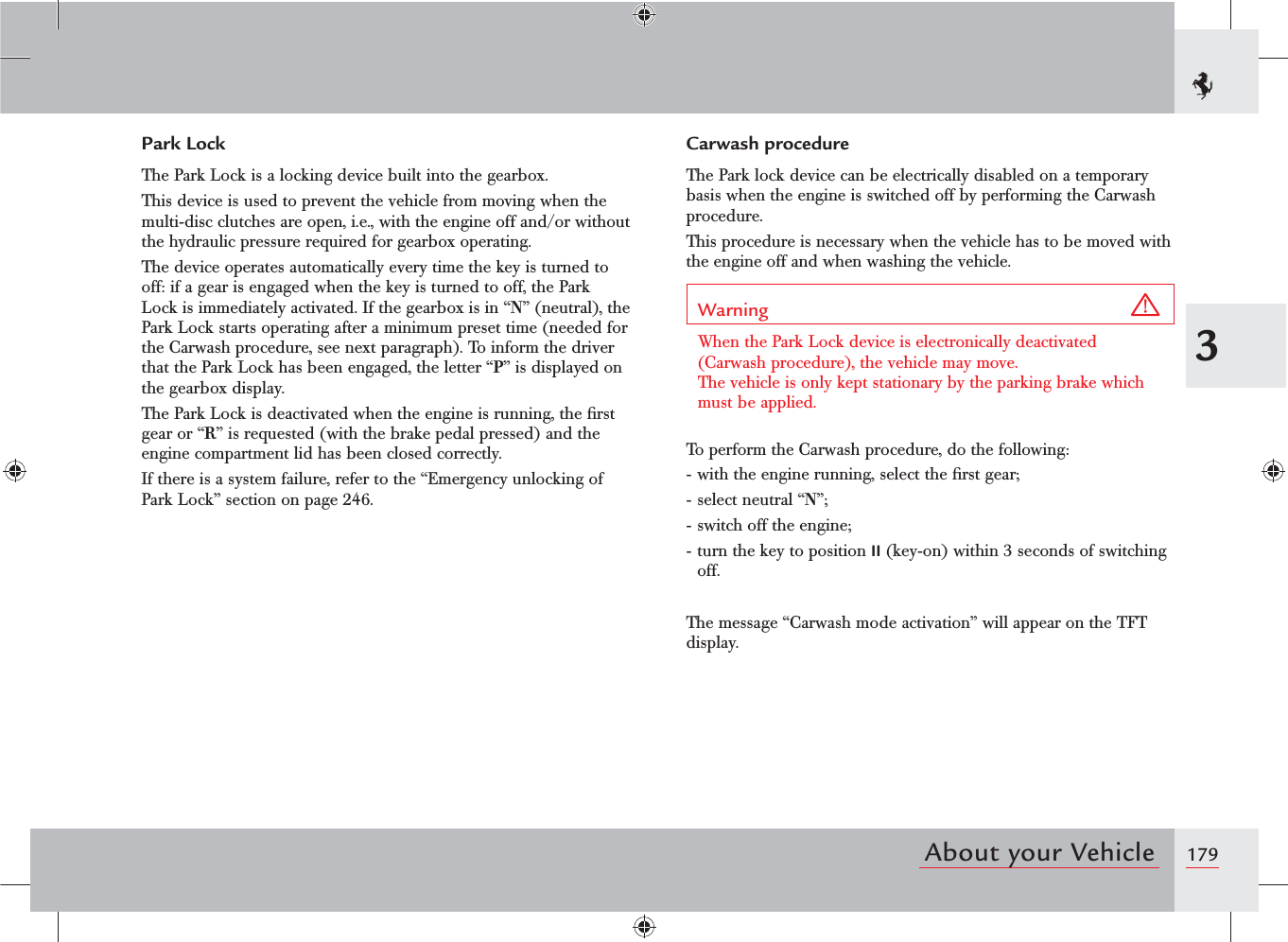

1793About your VehiclePark LockThe Park Lock is a locking device built into the gearbox.This device is used to prevent the vehicle from moving when the multi-disc clutches are open, i.e., with the engine off and/or without the hydraulic pressure required for gearbox operating.The device operates automatically every time the key is turned to off: if a gear is engaged when the key is turned to off, the Park Lock is immediately activated. If the gearbox is in “N” (neutral), the Park Lock starts operating after a minimum preset time (needed for the Carwash procedure, see next paragraph). To inform the driver that the Park Lock has been engaged, the letter “P” is displayed on the gearbox display.The Park Lock is deactivated when the engine is running, the first gear or “R” is requested (with the brake pedal pressed) and the engine compartment lid has been closed correctly.If there is a system failure, refer to the “Emergency unlocking of Park Lock” section on page 246.Carwash procedureThe Park lock device can be electrically disabled on a temporary basis when the engine is switched off by performing the Carwash procedure.This procedure is necessary when the vehicle has to be moved with the engine off and when washing the vehicle.Warning When the Park Lock device is electronically deactivated (Carwash procedure), the vehicle may move. The vehicle is only kept stationary by the parking brake which must be applied.To perform the Carwash procedure, do the following:- with the engine running, select the first gear;- select neutral “N”;- switch off the engine;- turn the key to position II (key-on) within 3 seconds of switching off.The message “Carwash mode activation” will appear on the TFT display.

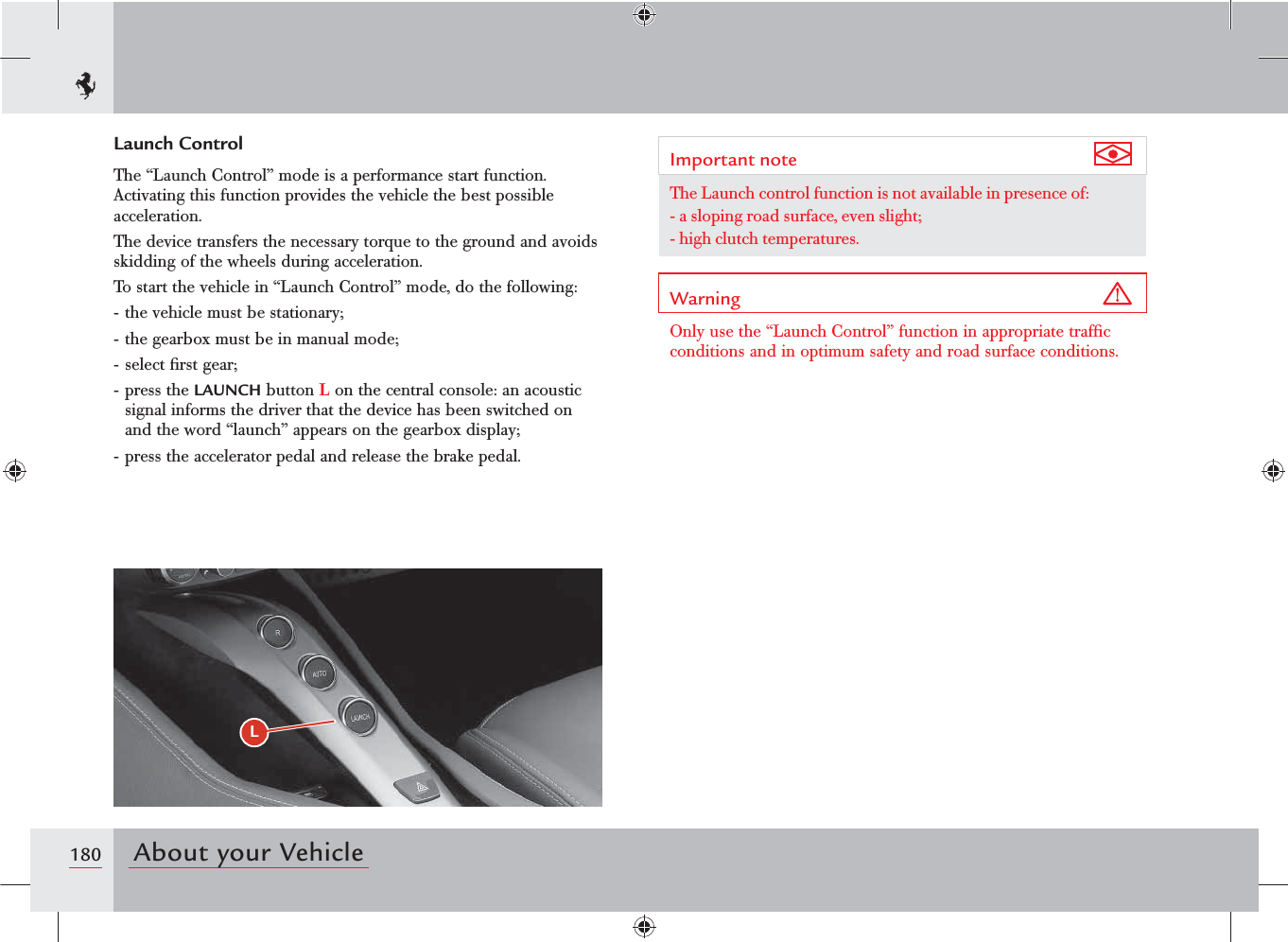

180 About your VehicleLLaunch ControlThe “Launch Control” mode is a performance start function. Activating this function provides the vehicle the best possible acceleration.The device transfers the necessary torque to the ground and avoids skidding of the wheels during acceleration.To start the vehicle in “Launch Control” mode, do the following:- the vehicle must be stationary;- the gearbox must be in manual mode;- select first gear;- press the LAUNCH button L on the central console: an acoustic signal informs the driver that the device has been switched on and the word “launch” appears on the gearbox display;- press the accelerator pedal and release the brake pedal.Important note The Launch control function is not available in presence of:- a sloping road surface, even slight;- high clutch temperatures.Warning Only use the “Launch Control” function in appropriate traffic conditions and in optimum safety and road surface conditions.

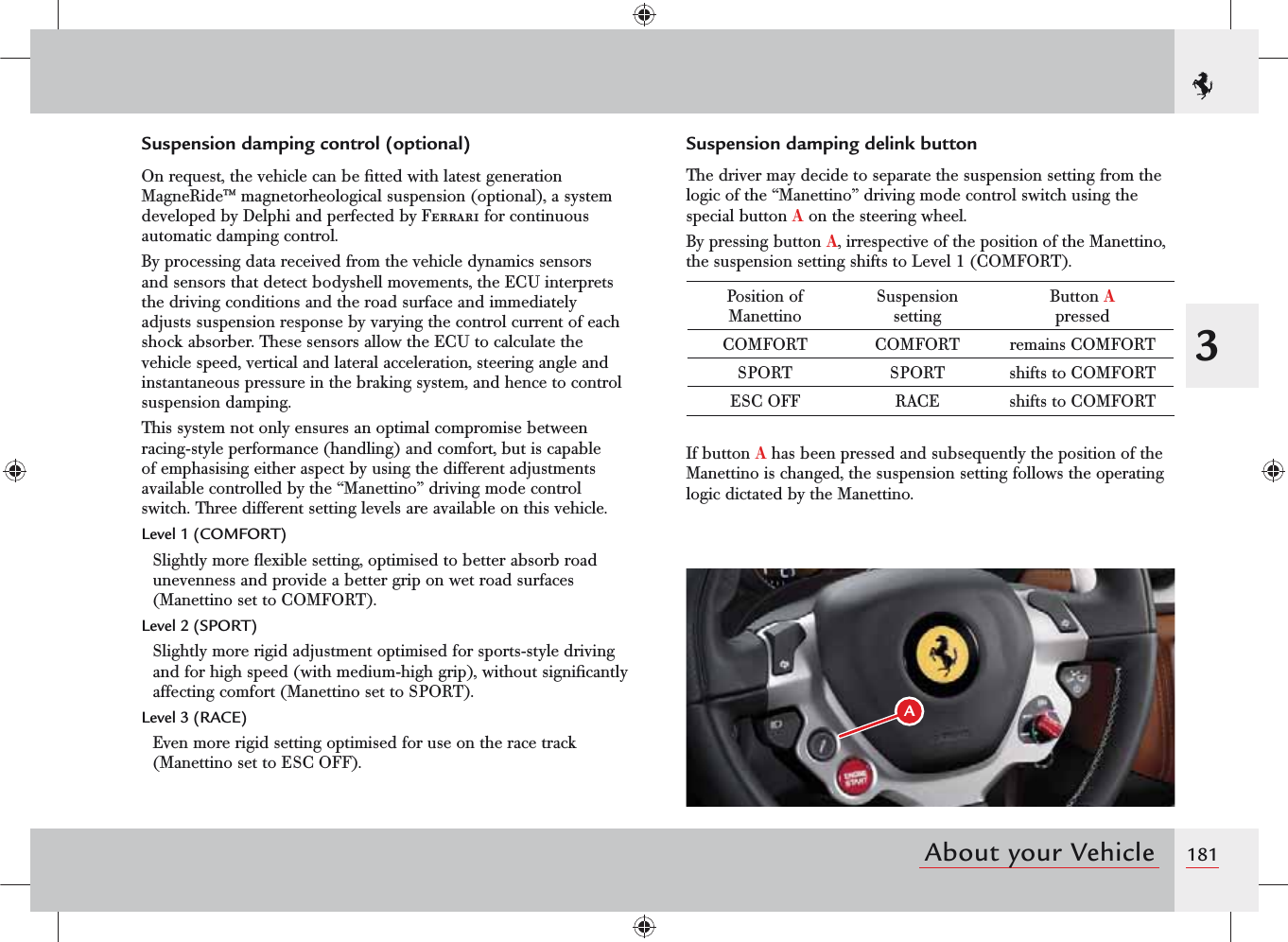

1813About your VehicleSuspension damping control (optional)On request, the vehicle can be fitted with latest generation MagneRide™ magnetorheological suspension (optional), a system developed by Delphi and perfected by Ferrari for continuous automatic damping control.By processing data received from the vehicle dynamics sensors and sensors that detect bodyshell movements, the ECU interprets the driving conditions and the road surface and immediately adjusts suspension response by varying the control current of each shock absorber. These sensors allow the ECU to calculate the vehicle speed, vertical and lateral acceleration, steering angle and instantaneous pressure in the braking system, and hence to control suspension damping.This system not only ensures an optimal compromise between racing-style performance (handling) and comfort, but is capable of emphasising either aspect by using the different adjustments available controlled by the “Manettino” driving mode control switch. Three different setting levels are available on this vehicle.Level 1 (COMFORT)Slightly more flexible setting, optimised to better absorb road unevenness and provide a better grip on wet road surfaces (Manettino set to COMFORT).Level 2 (SPORT)Slightly more rigid adjustment optimised for sports-style driving and for high speed (with medium-high grip), without significantly affecting comfort (Manettino set to SPORT).Level 3 (RACE)Even more rigid setting optimised for use on the race track (Manettino set to ESC OFF).Suspension damping delink buttonThe driver may decide to separate the suspension setting from the logic of the “Manettino” driving mode control switch using the special button A on the steering wheel.By pressing button A, irrespective of the position of the Manettino, the suspension setting shifts to Level 1 (COMFORT).Position of ManettinoSuspension settingButton A pressedCOMFORT COMFORT remains COMFORTSPORT SPORT shifts to COMFORTESC OFF RACE shifts to COMFORTIf button A has been pressed and subsequently the position of the Manettino is changed, the suspension setting follows the operating logic dictated by the Manettino.A

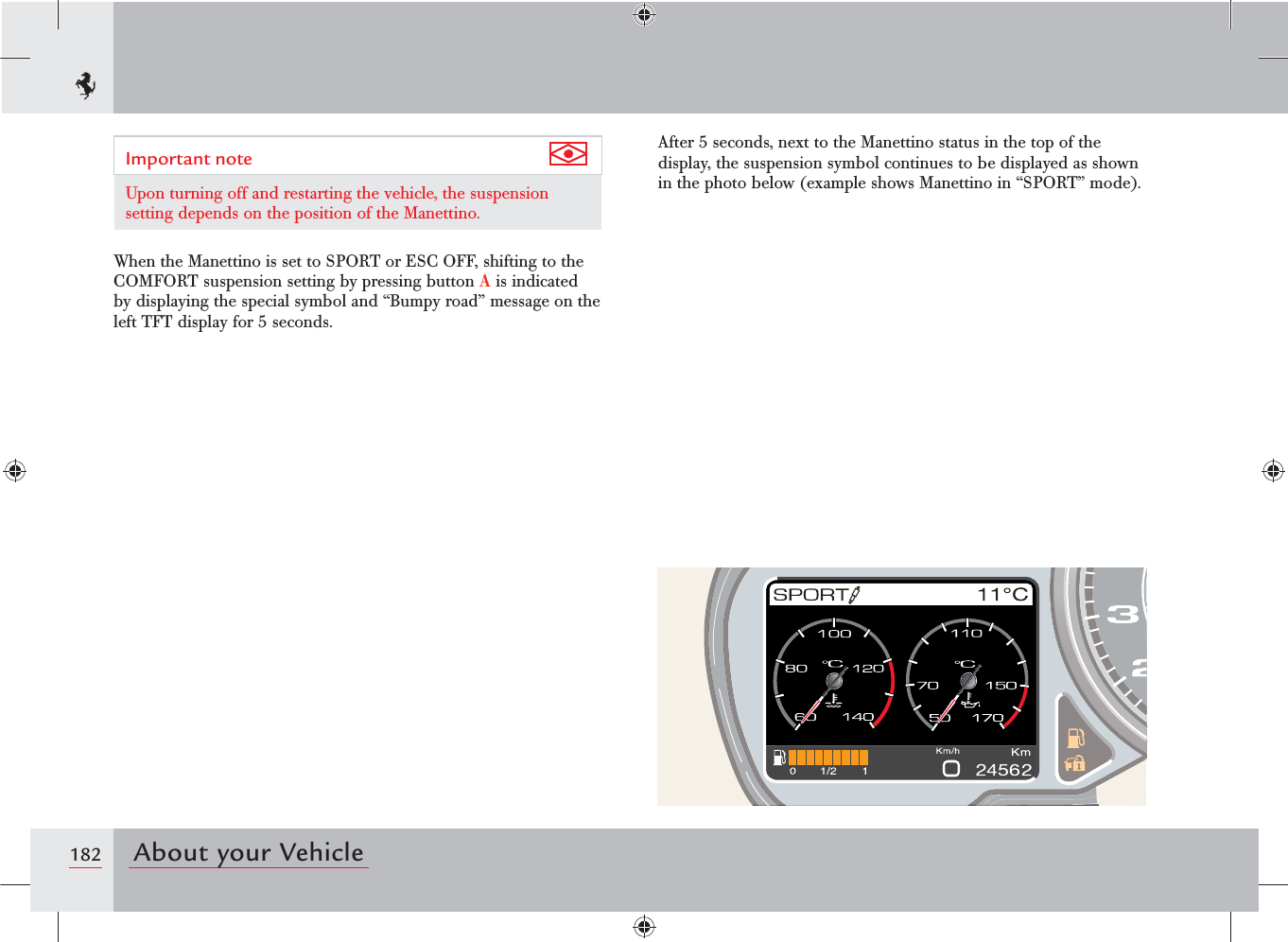

182 About your VehicleImportant note Upon turning off and restarting the vehicle, the suspension setting depends on the position of the Manettino.When the Manettino is set to SPORT or ESC OFF, shifting to the COMFORT suspension setting by pressing button A is indicated by displaying the special symbol and “Bumpy road” message on the left TFT display for 5 seconds.After 5 seconds, next to the Manettino status in the top of the display, the suspension symbol continues to be displayed as shown in the photo below (example shows Manettino in “SPORT” mode).

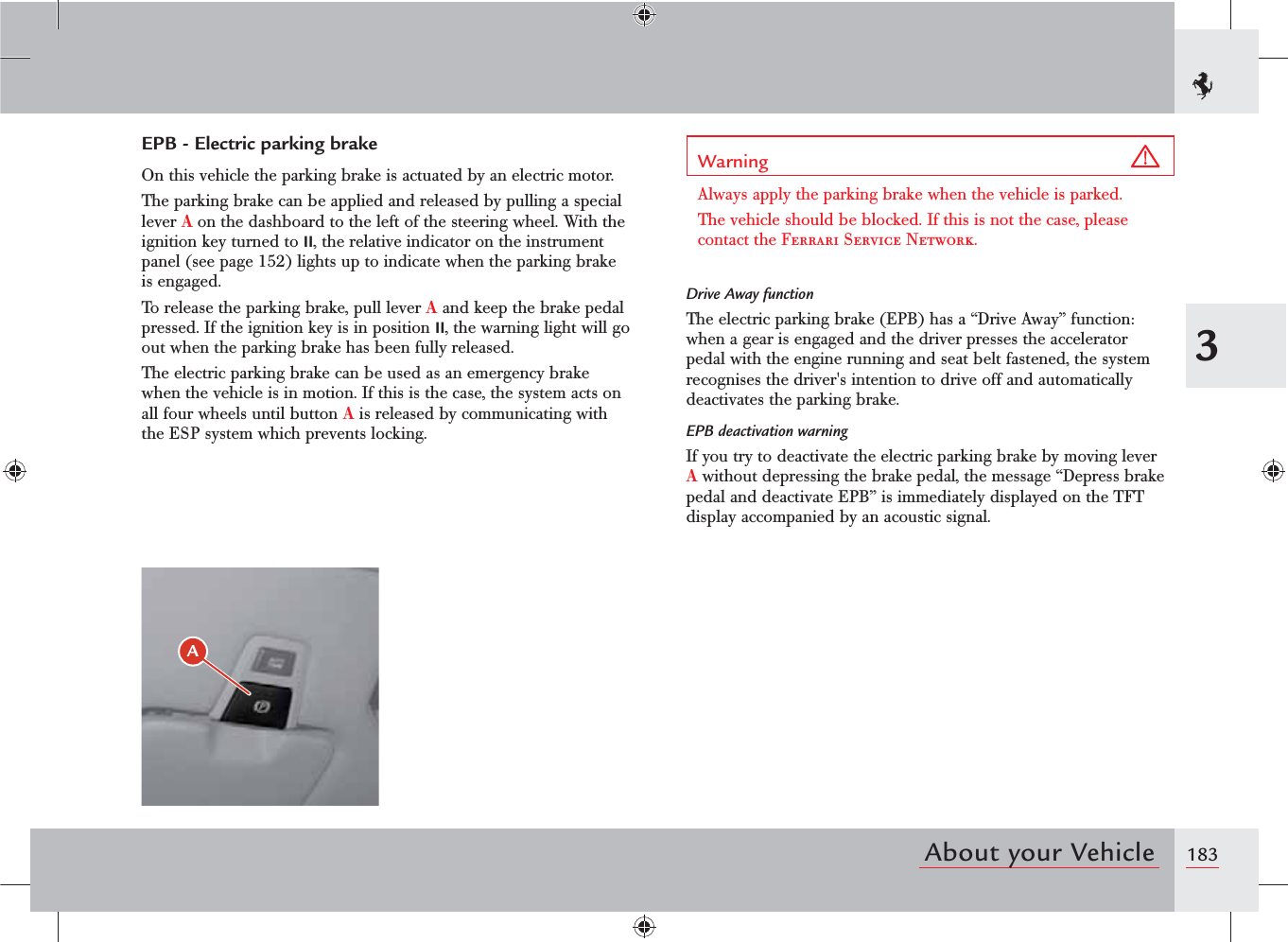

1833About your Vehicle"EPB - Electric parking brakeOn this vehicle the parking brake is actuated by an electric motor.The parking brake can be applied and released by pulling a special lever A on the dashboard to the left of the steering wheel. With the ignition key turned to II, the relative indicator on the instrument panel (see page 152) lights up to indicate when the parking brake is engaged.To release the parking brake, pull lever A and keep the brake pedal pressed. If the ignition key is in position II, the warning light will go out when the parking brake has been fully released.The electric parking brake can be used as an emergency brake when the vehicle is in motion. If this is the case, the system acts on all four wheels until button A is released by communicating with the ESP system which prevents locking.Warning Always apply the parking brake when the vehicle is parked.The vehicle should be blocked. If this is not the case, please contact the Ferrari Service Network.Drive Away functionThe electric parking brake (EPB) has a “Drive Away” function: when a gear is engaged and the driver presses the accelerator pedal with the engine running and seat belt fastened, the system recognises the driver's intention to drive off and automatically deactivates the parking brake.EPB deactivation warningIf you try to deactivate the electric parking brake by moving lever A without depressing the brake pedal, the message “Depress brake pedal and deactivate EPB” is immediately displayed on the TFT display accompanied by an acoustic signal.
184 About your Vehicle#Autopark FunctionThe EPB Autopark function automatically activates the electric parking brake when the engine is switched off. At each Key-on, the Autopark function is always active by default: this means that the driver does not need to apply the parking brake when the engine is switched off.However, the function can be temporarily deactivated before switching off the engine by pressing the AUTO PARK B button: the message “PARK OFF” is displayed on the left TFT display for 5 seconds. If this is the case, the parking brake should be manually applied by pulling lever A once the engine has been switched off. To re-enable automatic EPB engagement at the next key-off, press button B again; the message “PARK ON” is displayed on the left TFT display for 5 seconds.“Automatic Vehicle Holding” AVH functionThe electric parking brake provides optimised release when the vehicle starts up due to its Automatic Vehicle Holding function: once the engine has started, the system keeps the vehicle braked through intervention of the braking system rather than through the parking brake shoes.

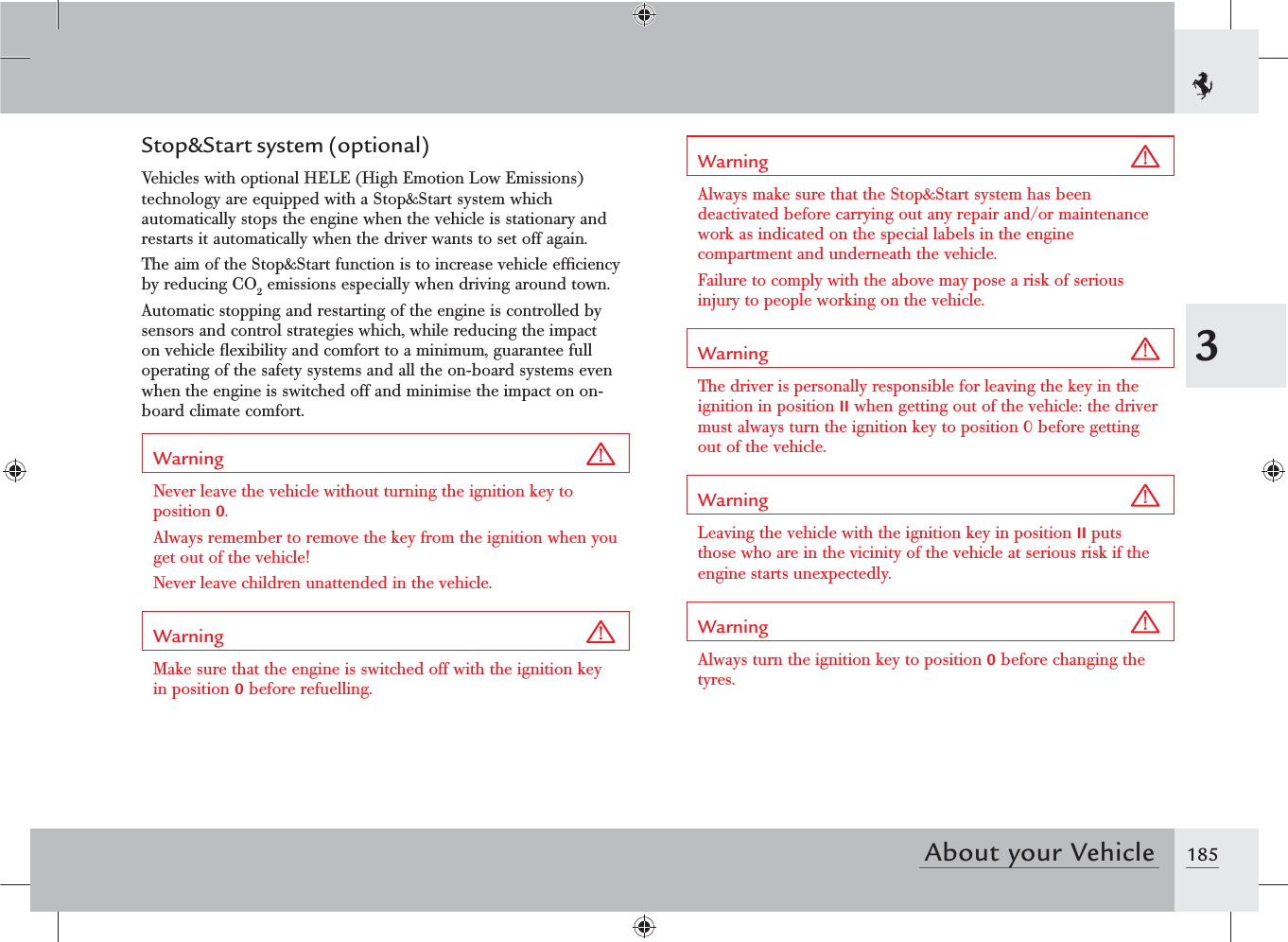

1853About your VehicleStop&Start system (optional)Vehicles with optional HELE (High Emotion Low Emissions) technology are equipped with a Stop&Start system which automatically stops the engine when the vehicle is stationary and restarts it automatically when the driver wants to set off again.The aim of the Stop&Start function is to increase vehicle efficiency by reducing CO2 emissions especially when driving around town.Automatic stopping and restarting of the engine is controlled by sensors and control strategies which, while reducing the impact on vehicle flexibility and comfort to a minimum, guarantee full operating of the safety systems and all the on-board systems even when the engine is switched off and minimise the impact on on-board climate comfort.Warning Never leave the vehicle without turning the ignition key to position 0.Always remember to remove the key from the ignition when you get out of the vehicle!Never leave children unattended in the vehicle.Warning Make sure that the engine is switched off with the ignition key in position 0 before refuelling.Warning Always make sure that the Stop&Start system has been deactivated before carrying out any repair and/or maintenance work as indicated on the special labels in the engine compartment and underneath the vehicle.Failure to comply with the above may pose a risk of serious injury to people working on the vehicle.Warning The driver is personally responsible for leaving the key in the ignition in position II when getting out of the vehicle: the driver must always turn the ignition key to position 0 before getting out of the vehicle.Warning Leaving the vehicle with the ignition key in position II puts those who are in the vicinity of the vehicle at serious risk if the engine starts unexpectedly.Warning Always turn the ignition key to position 0 before changing the tyres.
186 About your VehicleHow the system worksIf activated, the Stop&Start system decides when to switch off the engine and when to restart it according to the driving conditions, the climate comfort on board and the operating status of the vehicle. The system logic does not require drivers to make any change in the way they drive the vehicle.Manual activation and deactivation buttonThe driver can activate/deactivate the Stop&Start system at any time by pressing button A on the roof panel. If the system is activated, pressing button A will deactivate it: the message “Stop&Start OFF” appears for 5 seconds on the TFT display accompanied by a special symbol.Once the system has been deactivated, pressing button A again reactivates the system: the message “Stop&Start ON” appears for 5 seconds on the TFT display accompanied by a special symbol.If the Stop&Start system is activated, the LED on button A comes on whereas if the system is deactivated, the LED goes off.Deactivation of the system by pressing button A while in a stopped vehicle condition (when the engine has been automatically switched off by the Stop&Start function) automatically restarts the engine.AStp trt

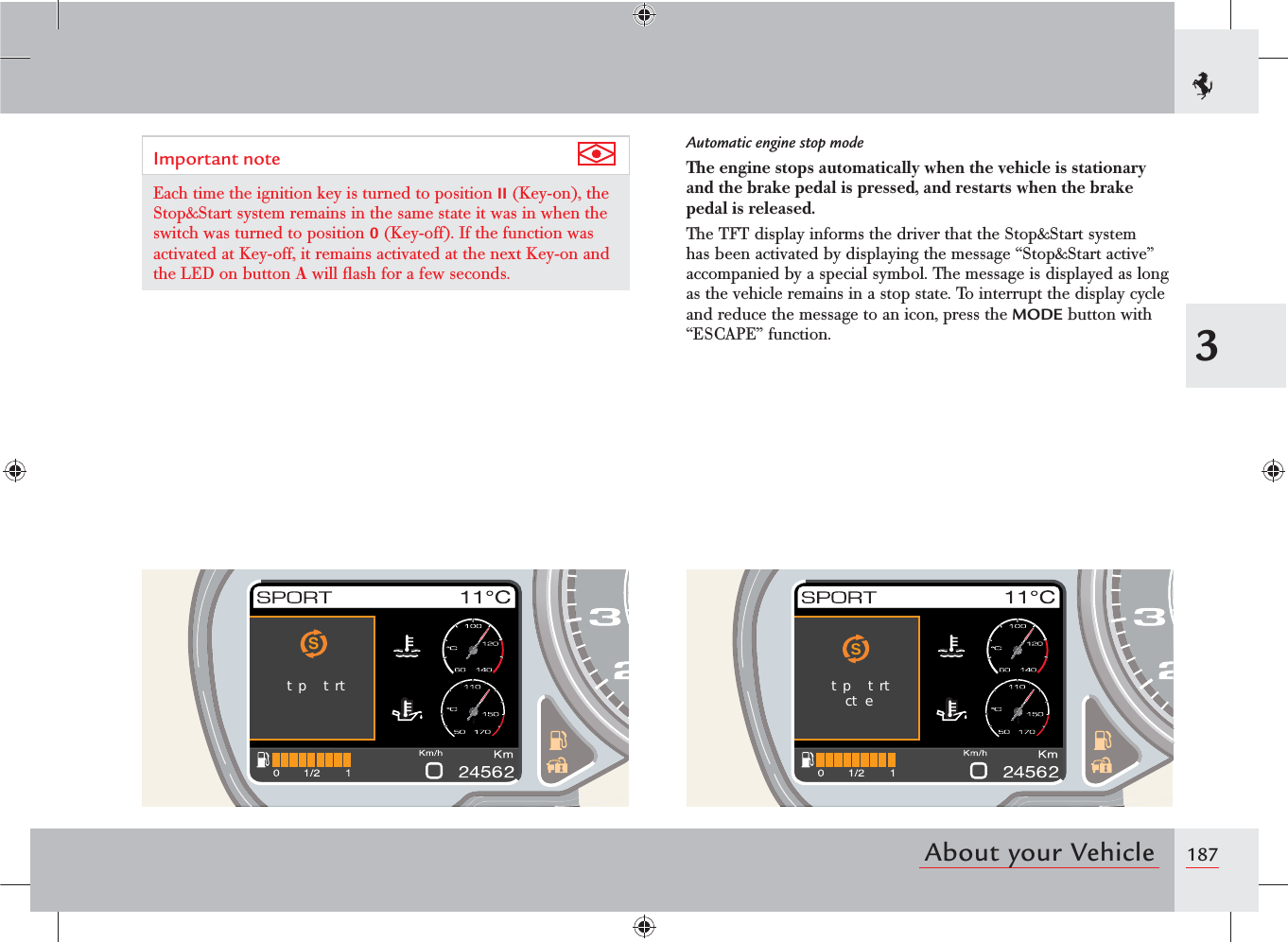

1873About your VehicleStp trtStp trtct eImportant note Each time the ignition key is turned to position II (Key-on), the Stop&Start system remains in the same state it was in when the switch was turned to position 0 (Key-off). If the function was activated at Key-off, it remains activated at the next Key-on and the LED on button A will flash for a few seconds.Automatic engine stop modeThe engine stops automatically when the vehicle is stationary and the brake pedal is pressed, and restarts when the brake pedal is released.The TFT display informs the driver that the Stop&Start system has been activated by displaying the message “Stop&Start active” accompanied by a special symbol. The message is displayed as long as the vehicle remains in a stop state. To interrupt the display cycle and reduce the message to an icon, press the MODE button with “ESCAPE” function.

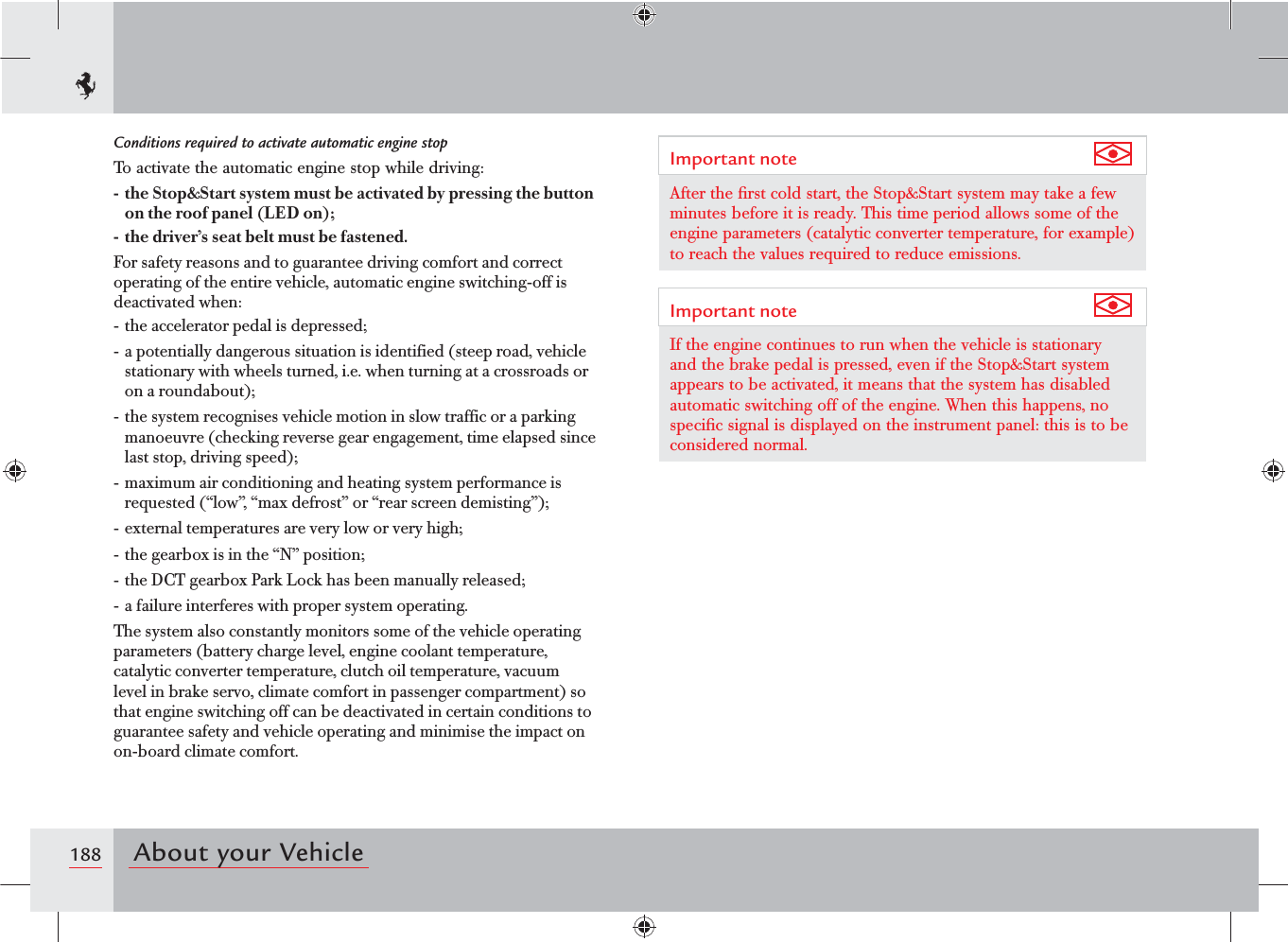

188 About your VehicleConditions required to activate automatic engine stopTo activate the automatic engine stop while driving:- the Stop&Start system must be activated by pressing the button on the roof panel (LED on);- the driver’s seat belt must be fastened.For safety reasons and to guarantee driving comfort and correct operating of the entire vehicle, automatic engine switching-off is deactivated when:- the accelerator pedal is depressed;- a potentially dangerous situation is identified (steep road, vehicle stationary with wheels turned, i.e. when turning at a crossroads or on a roundabout);- the system recognises vehicle motion in slow traffic or a parking manoeuvre (checking reverse gear engagement, time elapsed since last stop, driving speed);- maximum air conditioning and heating system performance is requested (“low”, “max defrost” or “rear screen demisting”);- external temperatures are very low or very high;- the gearbox is in the “N” position;- the DCT gearbox Park Lock has been manually released;- a failure interferes with proper system operating.The system also constantly monitors some of the vehicle operating parameters (battery charge level, engine coolant temperature, catalytic converter temperature, clutch oil temperature, vacuum level in brake servo, climate comfort in passenger compartment) so that engine switching off can be deactivated in certain conditions to guarantee safety and vehicle operating and minimise the impact on on-board climate comfort.Important note After the first cold start, the Stop&Start system may take a few minutes before it is ready. This time period allows some of the engine parameters (catalytic converter temperature, for example) to reach the values required to reduce emissions.Important note If the engine continues to run when the vehicle is stationary and the brake pedal is pressed, even if the Stop&Start system appears to be activated, it means that the system has disabled automatic switching off of the engine. When this happens, no specific signal is displayed on the instrument panel: this is to be considered normal.
1893About your VehicleInformation on automatic restarting of engineWith the Stop&Start system activated in a stopped vehicle condition, the driver can restart the engine by:- releasing the brake pedal;- UP-shifting;- engaging reverse gear;- pressing the accelerator pedal.Warning If the engine is switched off accidentally and not by the Stop&Start system, it must be restarted manually by the driver by pressing the ENGINE START button and reengaging the gear using the shift paddles located behind the steering wheel. This condition is indicated on the TFT display by the message “Press ENGINE START button to restart”, accompanied by an acoustic signal.For safety reasons and to guarantee comfort when the vehicle is stationary and correct operating of the entire vehicle, the Stop&Start system also automatically restarts the engine when:- the ENGINE START button on the steering wheel has been pressed;- the function has been deactivated by pressing the button located on the roof panel;- the driver’s seat belt has been unfastened;- the driver-side door has been opened;- the hard top is being opened or closed;- rear screen demisting has been requested or the air conditioning and heating system set to “low” or “max defrost”.The system also constantly monitors some of the vehicle operating parameters (battery charge level, engine coolant temperature, catalytic converter temperature, clutch oil temperature, vacuum level in brake servo, climate comfort in passenger compartment, vehicle speed) so that the engine can be automatically started in certain conditions to guarantee safety and vehicle operating and minimise the impact on on-board climate comfort.

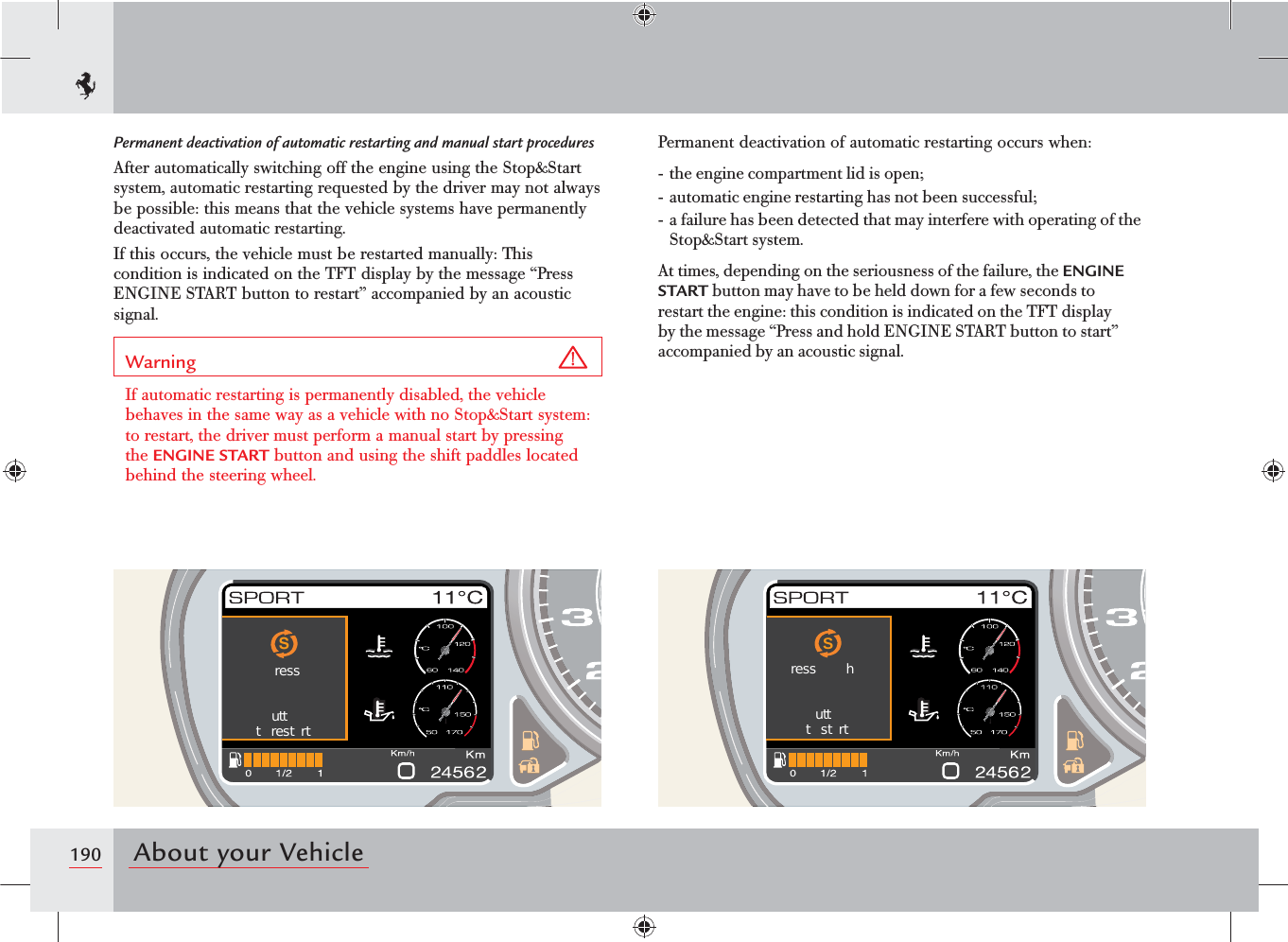

190 About your VehiclePermanent deactivation of automatic restarting and manual start proceduresAfter automatically switching off the engine using the Stop&Start system, automatic restarting requested by the driver may not always be possible: this means that the vehicle systems have permanently deactivated automatic restarting.If this occurs, the vehicle must be restarted manually: This condition is indicated on the TFT display by the message “Press ENGINE START button to restart” accompanied by an acoustic signal.Warning If automatic restarting is permanently disabled, the vehicle behaves in the same way as a vehicle with no Stop&Start system: to restart, the driver must perform a manual start by pressing the ENGINE START button and using the shift paddles located behind the steering wheel.Permanent deactivation of automatic restarting occurs when:- the engine compartment lid is open;- automatic engine restarting has not been successful;- a failure has been detected that may interfere with operating of the Stop&Start system.At times, depending on the seriousness of the failure, the ENGINE START button may have to be held down for a few seconds to restart the engine: this condition is indicated on the TFT display by the message “Press and hold ENGINE START button to start” accompanied by an acoustic signal.Sressuttt rest rtSress huttt strt

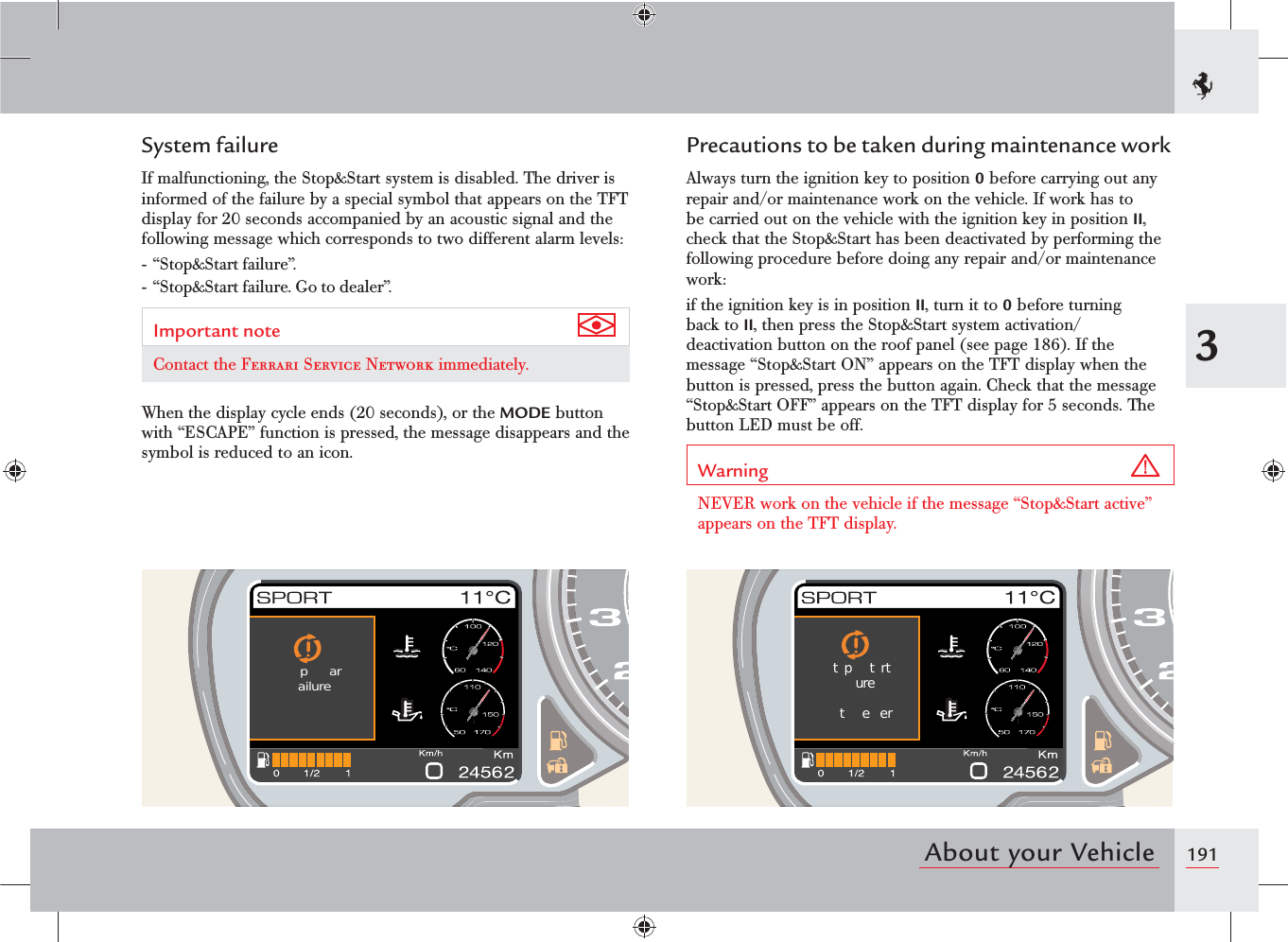

1913About your VehicleSystem failureIf malfunctioning, the Stop&Start system is disabled. The driver is informed of the failure by a special symbol that appears on the TFT display for 20 seconds accompanied by an acoustic signal and the following message which corresponds to two different alarm levels:- “Stop&Start failure”.- “Stop&Start failure. Go to dealer”.Important note Contact the Ferrari Service Network immediately.When the display cycle ends (20 seconds), or the MODE button with “ESCAPE” function is pressed, the message disappears and the symbol is reduced to an icon.Precautions to be taken during maintenance workAlways turn the ignition key to position 0 before carrying out any repair and/or maintenance work on the vehicle. If work has to be carried out on the vehicle with the ignition key in position II, check that the Stop&Start has been deactivated by performing the following procedure before doing any repair and/or maintenance work:if the ignition key is in position II, turn it to 0 before turning back to II, then press the Stop&Start system activation/deactivation button on the roof panel (see page 186). If the message “Stop&Start ON” appears on the TFT display when the button is pressed, press the button again. Check that the message “Stop&Start OFF” appears on the TFT display for 5 seconds. The button LED must be off.Warning NEVER work on the vehicle if the message “Stop&Start active” appears on the TFT display. par ailure tp trt ure t e er

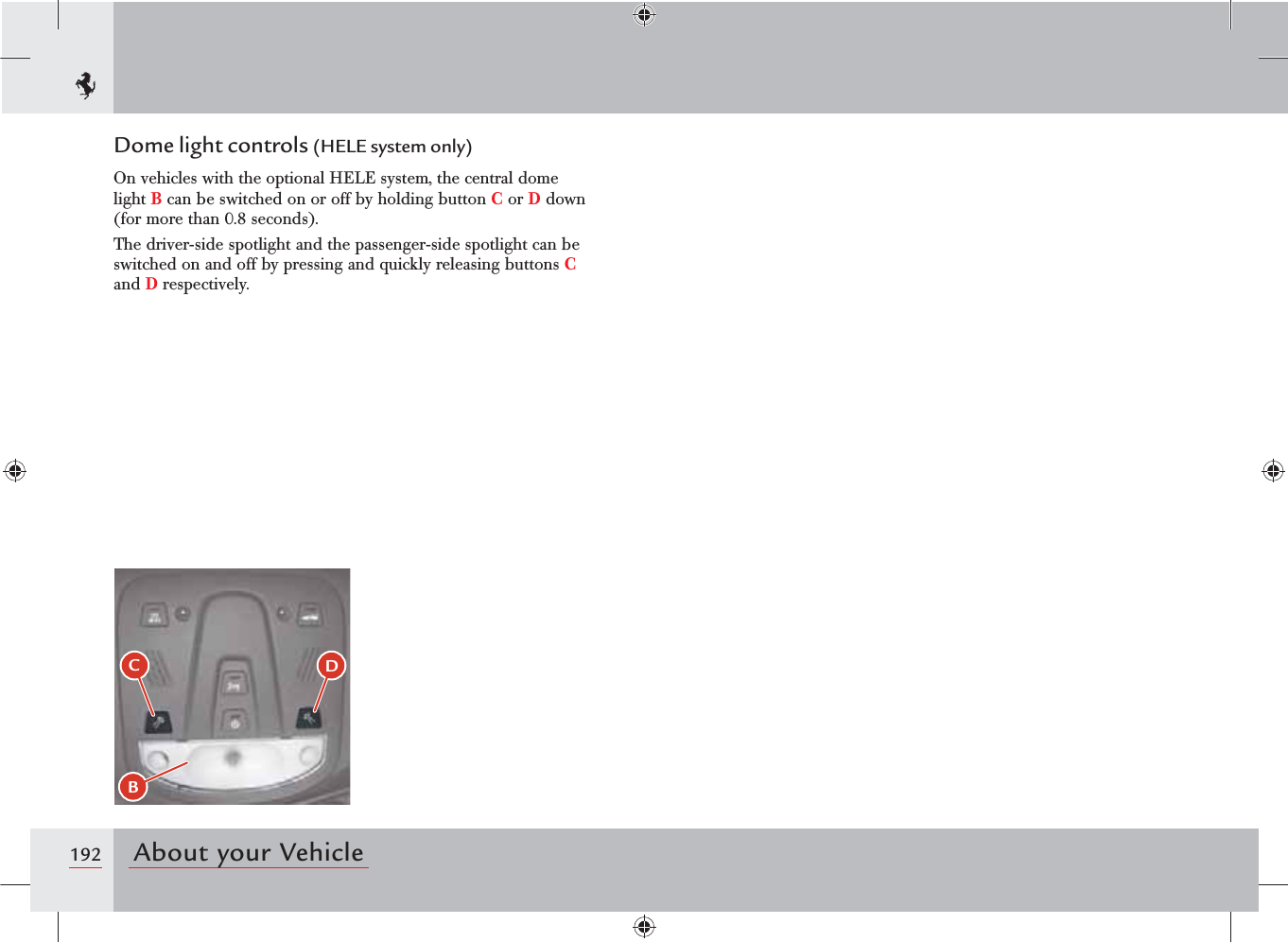

192 About your VehicleDome light controls (HELE system only)On vehicles with the optional HELE system, the central dome light B can be switched on or off by holding button C or D down (for more than 0.8 seconds).The driver-side spotlight and the passenger-side spotlight can be switched on and off by pressing and quickly releasing buttons C and D respectively.BCD
1933About your VehicleD The seat position can be electrically adjusted using the special controls.Three adjustments are possible using control D:- backward/forward adjustment: push the control forwards or backwards;- height adjustment: push the control up or down;- seat inclination (tilting): push the front or rear end of the control up or down to adjust seat inclination.Warning Forward/backward adjustment must take into account the fact that airbag devices are placed in front of the driver and the passenger.Correct adjustment ensures there is adequate space between the airbag and the driver/passenger (see page 58).Seat adjustmentWarning As with all adjustment, seat adjustment must be performed when the vehicle is stationary.Warning Never place your hands under the seat or near its moving parts when adjusting. If you do so, movement of the seat may cause injury to hands or fingers.Correct adjustment is very important for enhanced driving comfort and maximum efficiency of the passive safety systems.

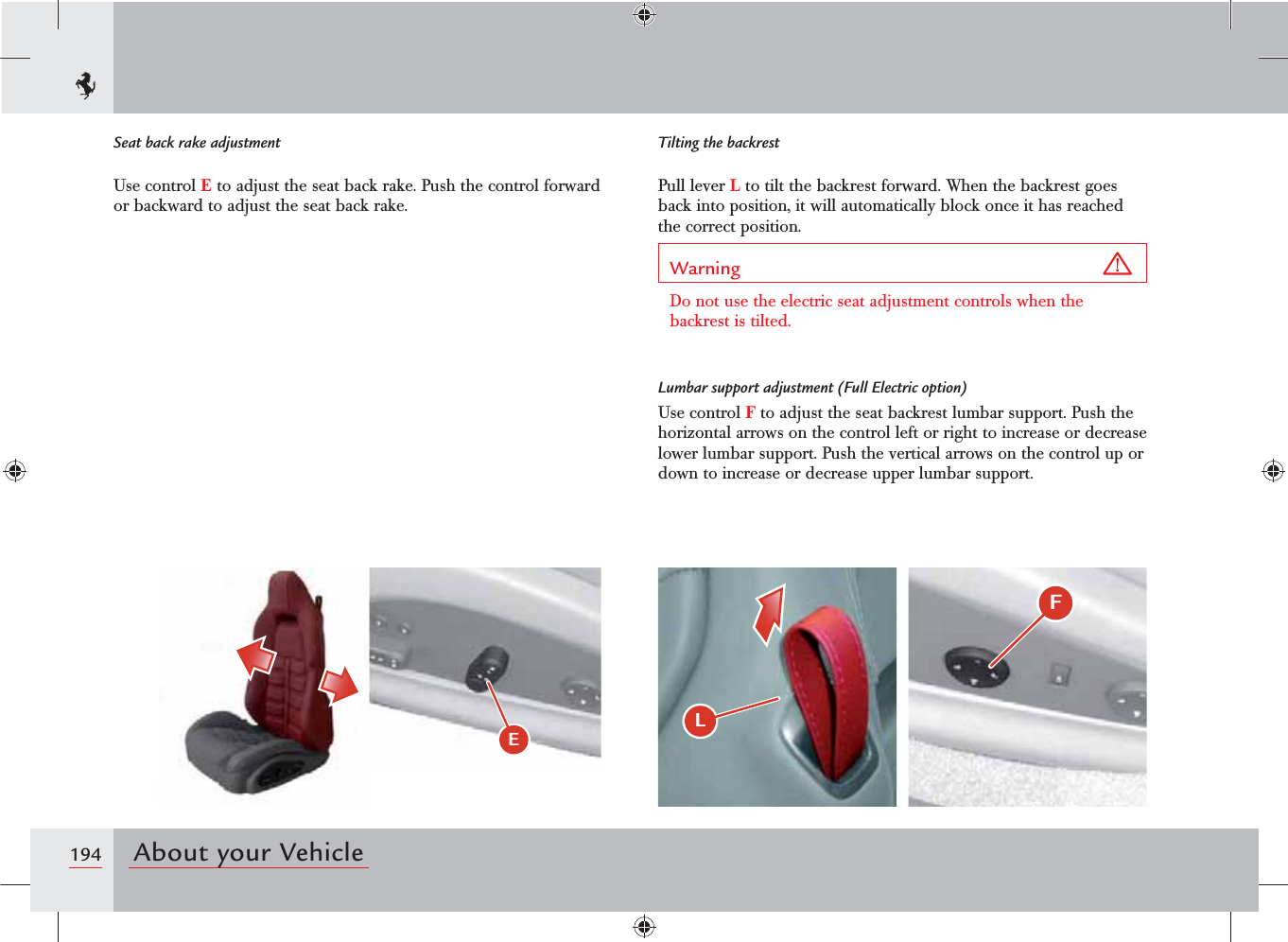

194 About your Vehicle'L E Seat back rake adjustmentUse control E to adjust the seat back rake. Push the control forward or backward to adjust the seat back rake.Tilting the backrestPull lever L to tilt the backrest forward. When the backrest goes back into position, it will automatically block once it has reached the correct position.Warning Do not use the electric seat adjustment controls when the backrest is tilted.Lumbar support adjustment (Full Electric option)Use control F to adjust the seat backrest lumbar support. Push the horizontal arrows on the control left or right to increase or decrease lower lumbar support. Push the vertical arrows on the control up or down to increase or decrease upper lumbar support.

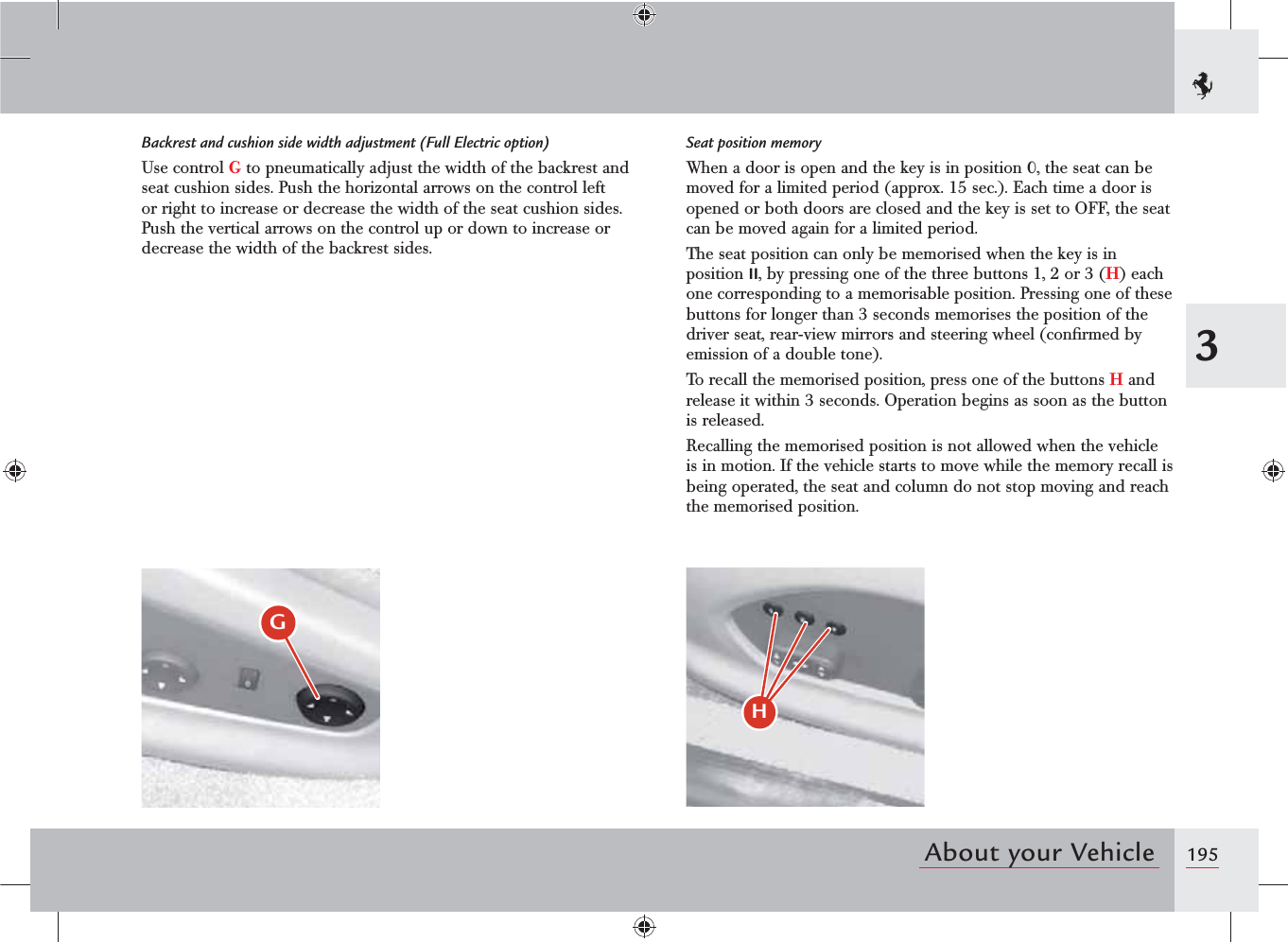

1953About your Vehicle)(Seat position memoryWhen a door is open and the key is in position 0, the seat can be moved for a limited period (approx. 15 sec.). Each time a door is opened or both doors are closed and the key is set to OFF, the seat can be moved again for a limited period.The seat position can only be memorised when the key is in position II, by pressing one of the three buttons 1, 2 or 3 (H) each one corresponding to a memorisable position. Pressing one of these buttons for longer than 3 seconds memorises the position of the driver seat, rear-view mirrors and steering wheel (confirmed by emission of a double tone).To recall the memorised position, press one of the buttons H and release it within 3 seconds. Operation begins as soon as the button is released.Recalling the memorised position is not allowed when the vehicle is in motion. If the vehicle starts to move while the memory recall is being operated, the seat and column do not stop moving and reach the memorised position.Backrest and cushion side width adjustment (Full Electric option)Use control G to pneumatically adjust the width of the backrest and seat cushion sides. Push the horizontal arrows on the control left or right to increase or decrease the width of the seat cushion sides. Push the vertical arrows on the control up or down to increase or decrease the width of the backrest sides.

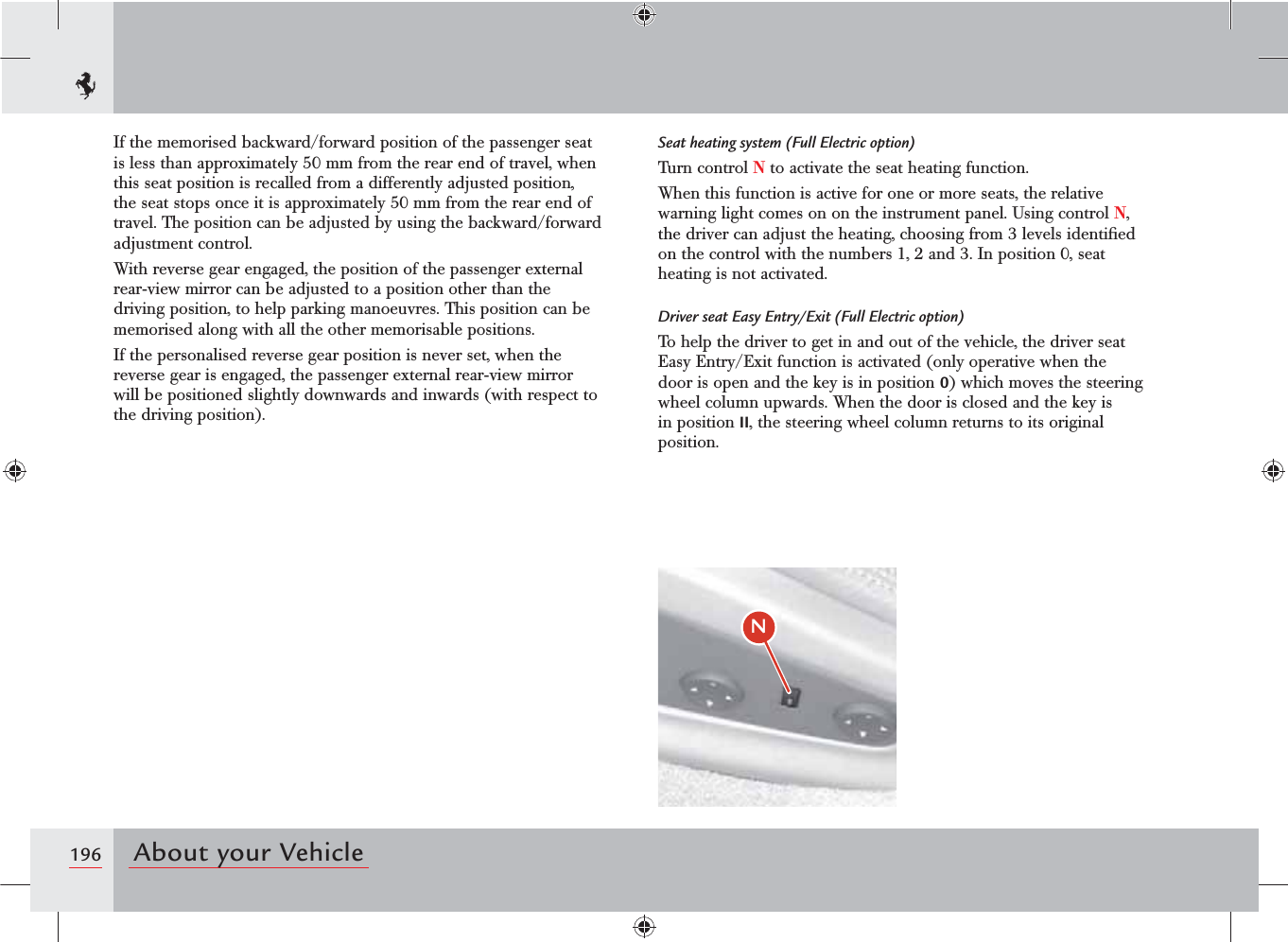

196 About your Vehicle/If the memorised backward/forward position of the passenger seat is less than approximately 50 mm from the rear end of travel, when this seat position is recalled from a differently adjusted position, the seat stops once it is approximately 50 mm from the rear end of travel. The position can be adjusted by using the backward/forward adjustment control. With reverse gear engaged, the position of the passenger external rear-view mirror can be adjusted to a position other than the driving position, to help parking manoeuvres. This position can be memorised along with all the other memorisable positions. If the personalised reverse gear position is never set, when the reverse gear is engaged, the passenger external rear-view mirror will be positioned slightly downwards and inwards (with respect to the driving position).Seat heating system (Full Electric option)Turn control N to activate the seat heating function.When this function is active for one or more seats, the relative warning light comes on on the instrument panel. Using control N, the driver can adjust the heating, choosing from 3 levels identified on the control with the numbers 1, 2 and 3. In position 0, seat heating is not activated.Driver seat Easy Entry/Exit (Full Electric option)To help the driver to get in and out of the vehicle, the driver seat Easy Entry/Exit function is activated (only operative when the door is open and the key is in position 0) which moves the steering wheel column upwards. When the door is closed and the key is in position II, the steering wheel column returns to its original position.

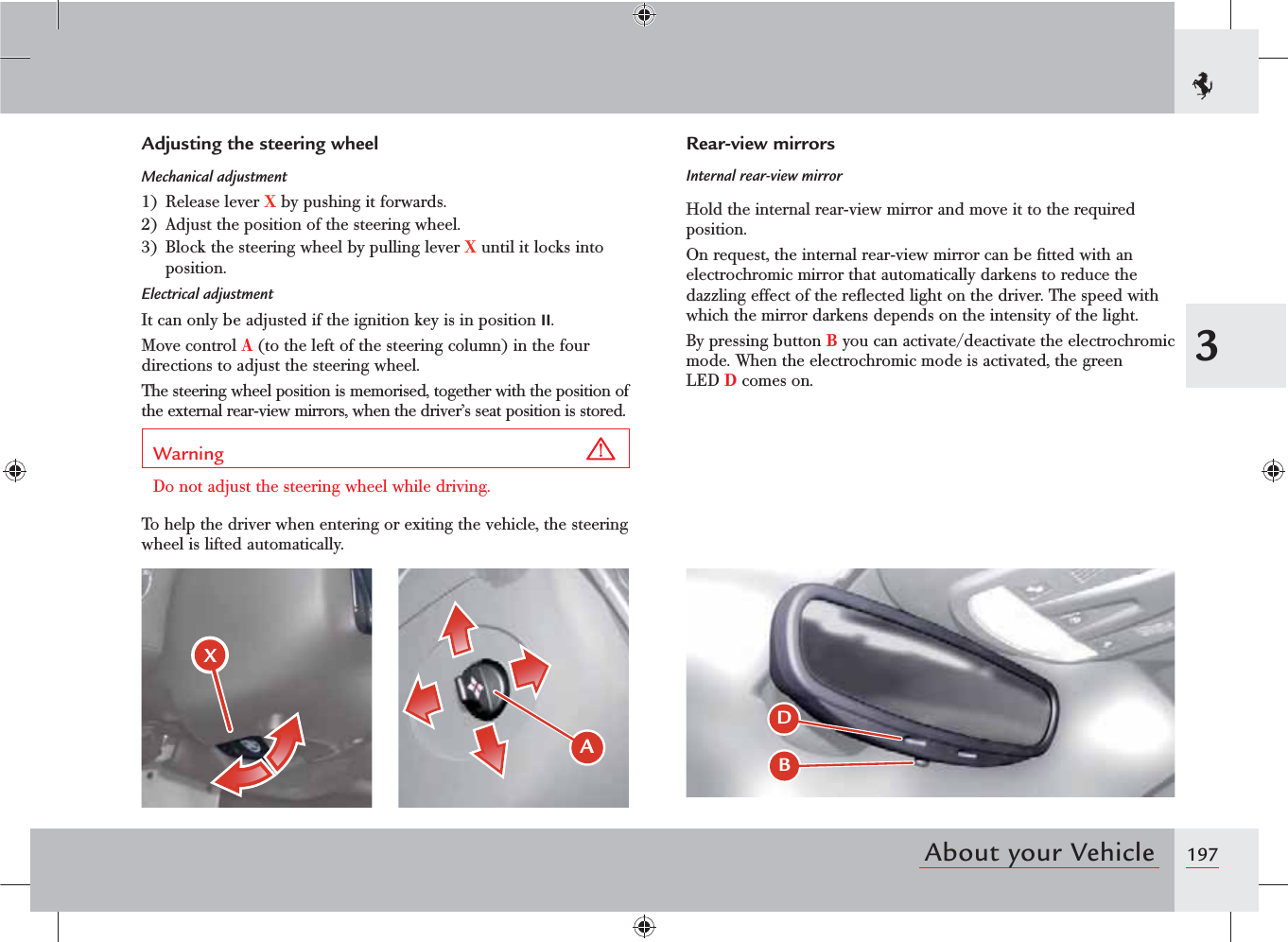

1973About your Vehicle"BDXRear-view mirrorsInternal rear-view mirrorHold the internal rear-view mirror and move it to the required position.On request, the internal rear-view mirror can be fitted with an electrochromic mirror that automatically darkens to reduce the dazzling effect of the reflected light on the driver. The speed with which the mirror darkens depends on the intensity of the light.By pressing button B you can activate/deactivate the electrochromic mode. When the electrochromic mode is activated, the green LED D comes on.Adjusting the steering wheelMechanical adjustment1) Release lever X by pushing it forwards.2) Adjust the position of the steering wheel.3) Block the steering wheel by pulling lever X until it locks into position.Electrical adjustmentIt can only be adjusted if the ignition key is in position II.Move control A (to the left of the steering column) in the four directions to adjust the steering wheel.The steering wheel position is memorised, together with the position of the external rear-view mirrors, when the driver’s seat position is stored.Warning Do not adjust the steering wheel while driving.To help the driver when entering or exiting the vehicle, the steering wheel is lifted automatically.

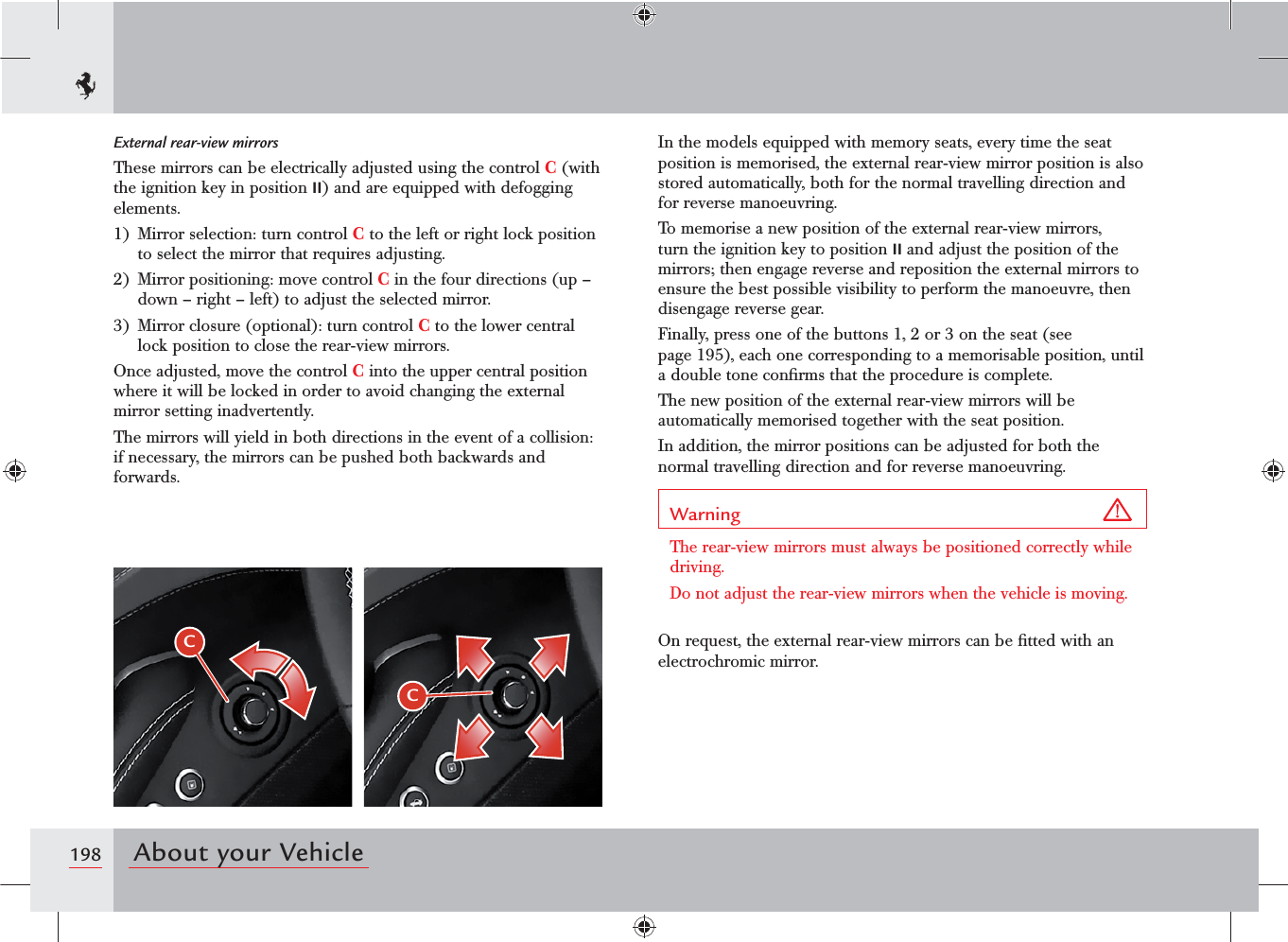

198 About your VehicleCCExternal rear-view mirrorsThese mirrors can be electrically adjusted using the control C (with the ignition key in position II) and are equipped with defogging elements.1) Mirror selection: turn control C to the left or right lock position to select the mirror that requires adjusting.2) Mirror positioning: move control C in the four directions (up – down – right – left) to adjust the selected mirror.3) Mirror closure (optional): turn control C to the lower central lock position to close the rear-view mirrors.Once adjusted, move the control C into the upper central position where it will be locked in order to avoid changing the external mirror setting inadvertently.The mirrors will yield in both directions in the event of a collision: if necessary, the mirrors can be pushed both backwards and forwards.In the models equipped with memory seats, every time the seat position is memorised, the external rear-view mirror position is also stored automatically, both for the normal travelling direction and for reverse manoeuvring.To memorise a new position of the external rear-view mirrors, turn the ignition key to position II and adjust the position of the mirrors; then engage reverse and reposition the external mirrors to ensure the best possible visibility to perform the manoeuvre, then disengage reverse gear.Finally, press one of the buttons 1, 2 or 3 on the seat (see page 195), each one corresponding to a memorisable position, until a double tone confirms that the procedure is complete. The new position of the external rear-view mirrors will be automatically memorised together with the seat position.In addition, the mirror positions can be adjusted for both the normal travelling direction and for reverse manoeuvring.Warning The rear-view mirrors must always be positioned correctly while driving.Do not adjust the rear-view mirrors when the vehicle is moving.On request, the external rear-view mirrors can be fitted with an electrochromic mirror.

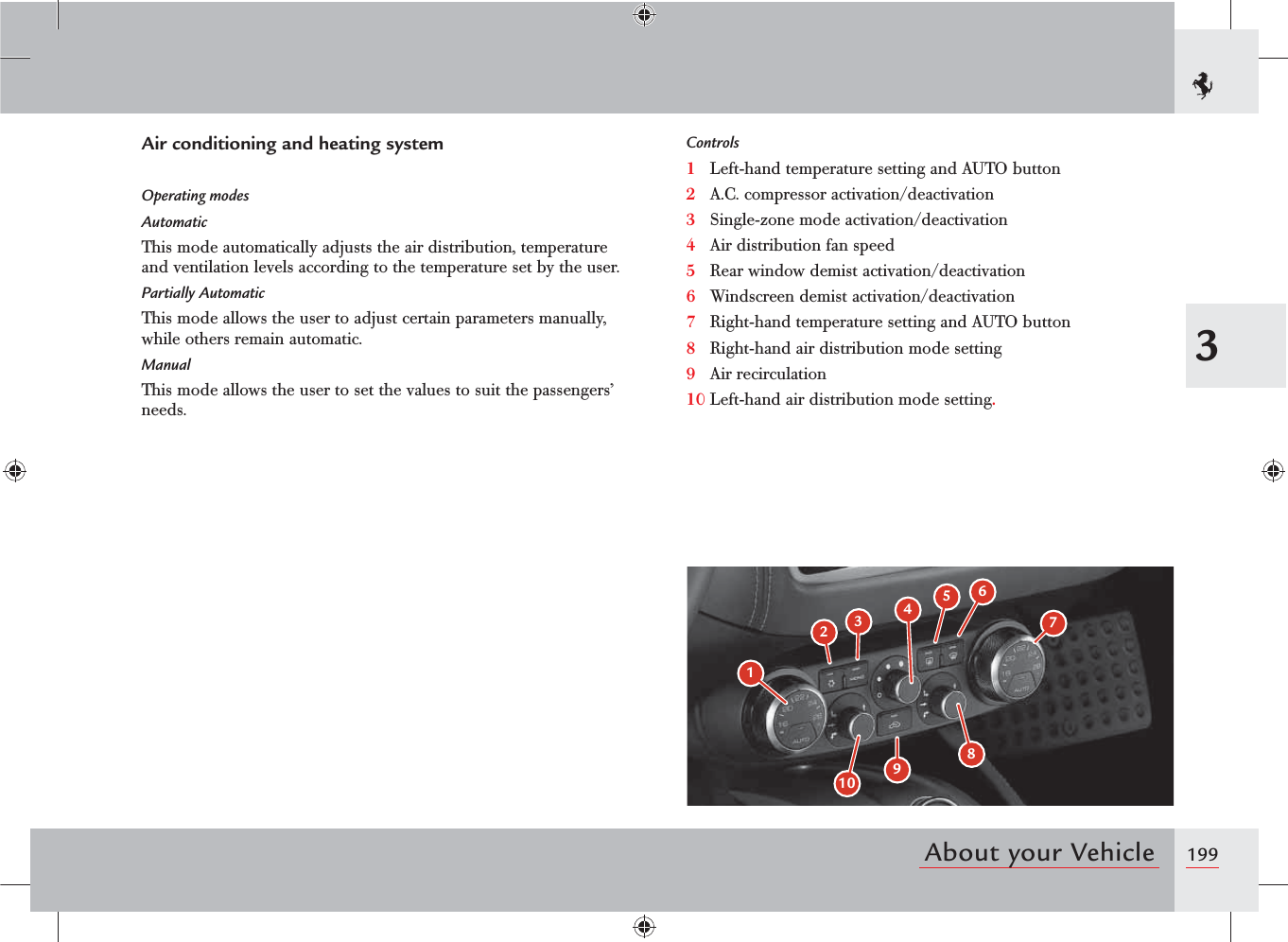

1993About your Vehicle12356410987Controls1 Left-hand temperature setting and AUTO button2 A.C. compressor activation/deactivation3 Single-zone mode activation/deactivation4 Air distribution fan speed5 Rear window demist activation/deactivation6 Windscreen demist activation/deactivation7 Right-hand temperature setting and AUTO button8 Right-hand air distribution mode setting9 Air recirculation10 Left-hand air distribution mode setting.Air conditioning and heating systemOperating modesAutomaticThis mode automatically adjusts the air distribution, temperature and ventilation levels according to the temperature set by the user.Partially AutomaticThis mode allows the user to adjust certain parameters manually, while others remain automatic.ManualThis mode allows the user to set the values to suit the passengers’ needs.

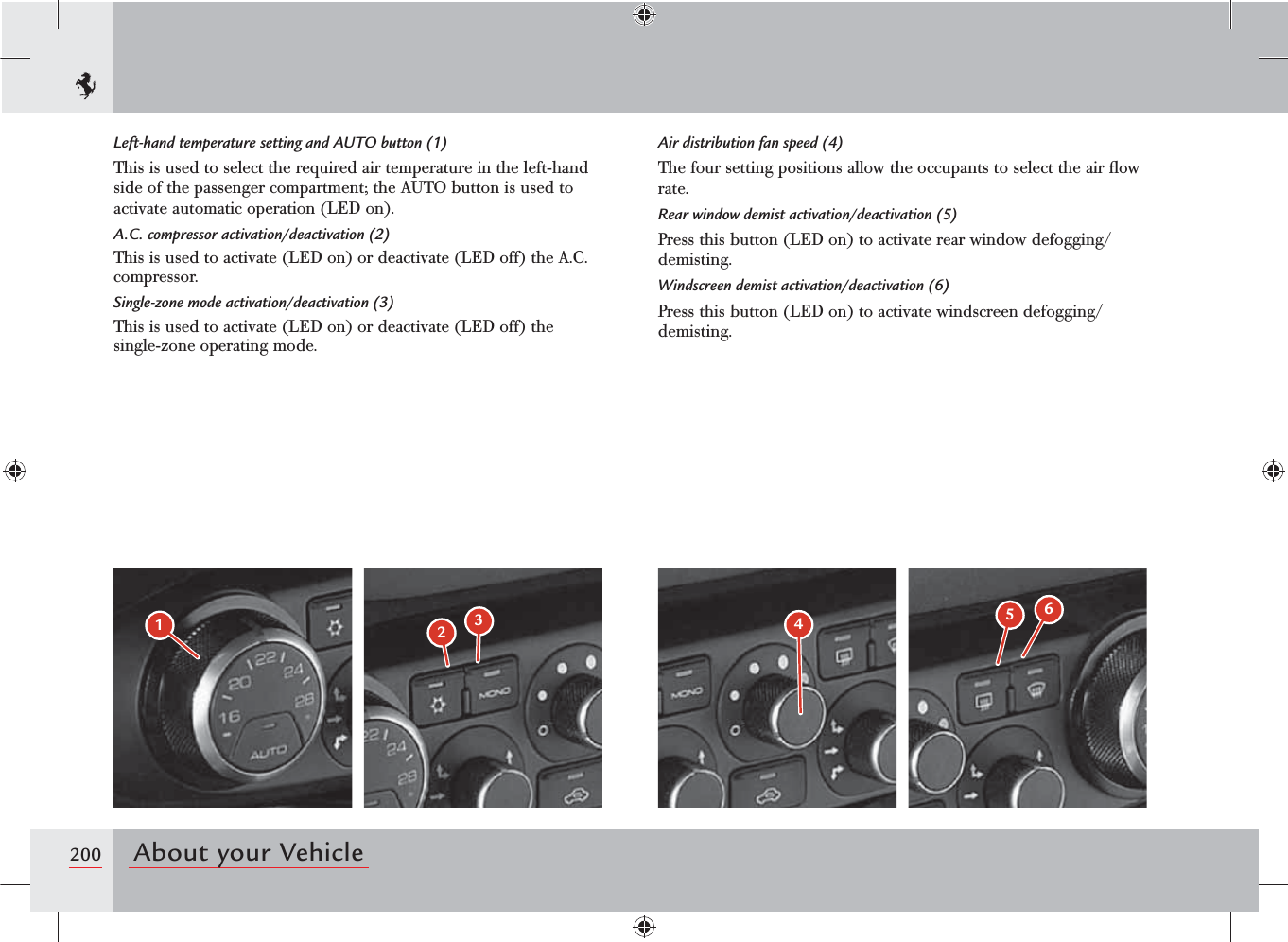

200 About your Vehicle231456Left-hand temperature setting and AUTO button (1)This is used to select the required air temperature in the left-hand side of the passenger compartment; the AUTO button is used to activate automatic operation (LED on).A.C. compressor activation/deactivation (2)This is used to activate (LED on) or deactivate (LED off) the A.C. compressor.Single-zone mode activation/deactivation (3)This is used to activate (LED on) or deactivate (LED off) the single-zone operating mode.Air distribution fan speed (4)The four setting positions allow the occupants to select the air flow rate.Rear window demist activation/deactivation (5)Press this button (LED on) to activate rear window defogging/demisting.Windscreen demist activation/deactivation (6)Press this button (LED on) to activate windscreen defogging/demisting.

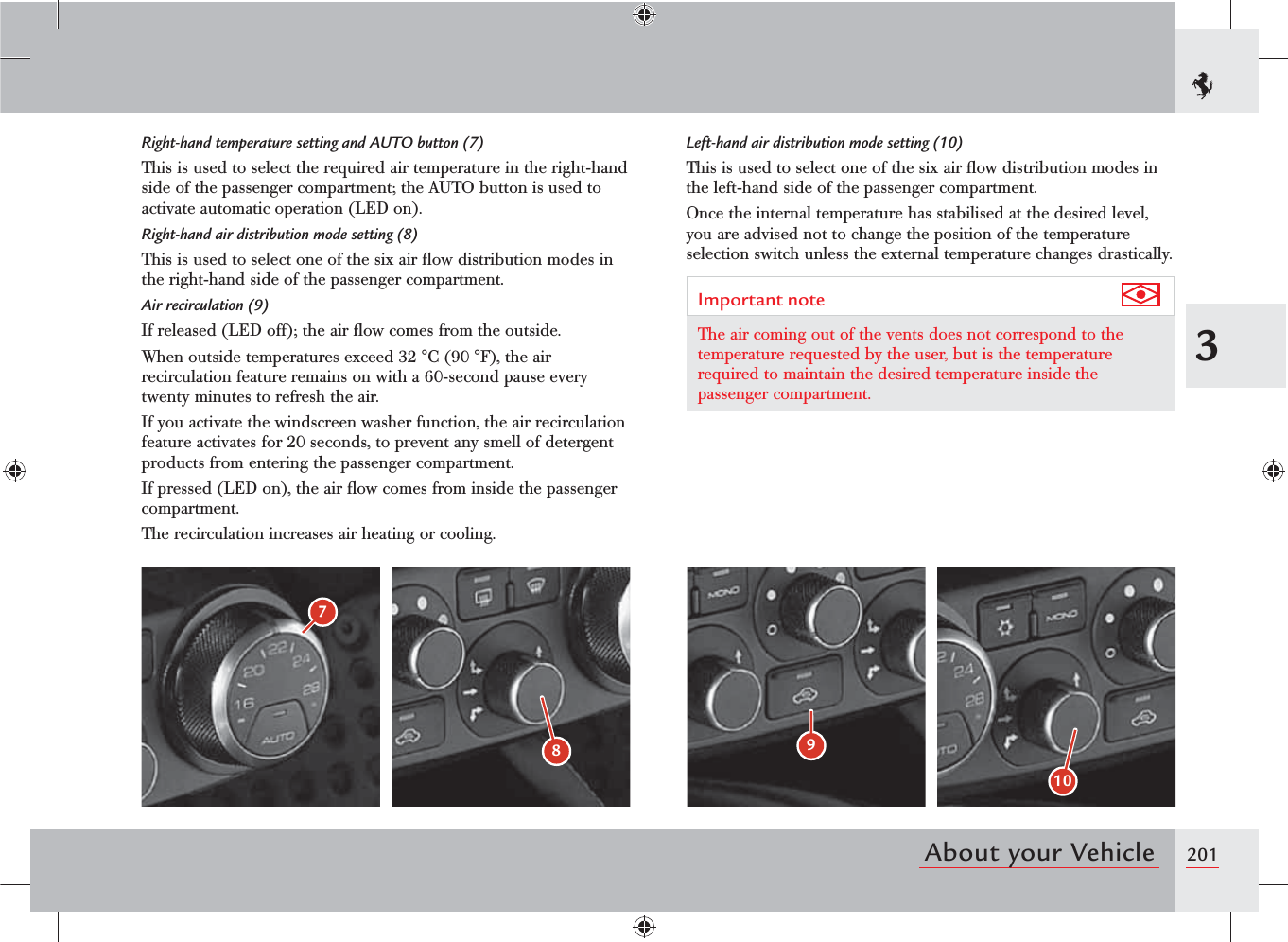

2013About your Vehicle10987Left-hand air distribution mode setting (10)This is used to select one of the six air flow distribution modes in the left-hand side of the passenger compartment.Once the internal temperature has stabilised at the desired level, you are advised not to change the position of the temperature selection switch unless the external temperature changes drastically.Important note The air coming out of the vents does not correspond to the temperature requested by the user, but is the temperature required to maintain the desired temperature inside the passenger compartment.Right-hand temperature setting and AUTO button (7)This is used to select the required air temperature in the right-hand side of the passenger compartment; the AUTO button is used to activate automatic operation (LED on).Right-hand air distribution mode setting (8)This is used to select one of the six air flow distribution modes in the right-hand side of the passenger compartment.Air recirculation (9)If released (LED off); the air flow comes from the outside.When outside temperatures exceed 32 °C (90 °F), the air recirculation feature remains on with a 60-second pause every twenty minutes to refresh the air. If you activate the windscreen washer function, the air recirculation feature activates for 20 seconds, to prevent any smell of detergent products from entering the passenger compartment.If pressed (LED on), the air flow comes from inside the passenger compartment.The recirculation increases air heating or cooling.

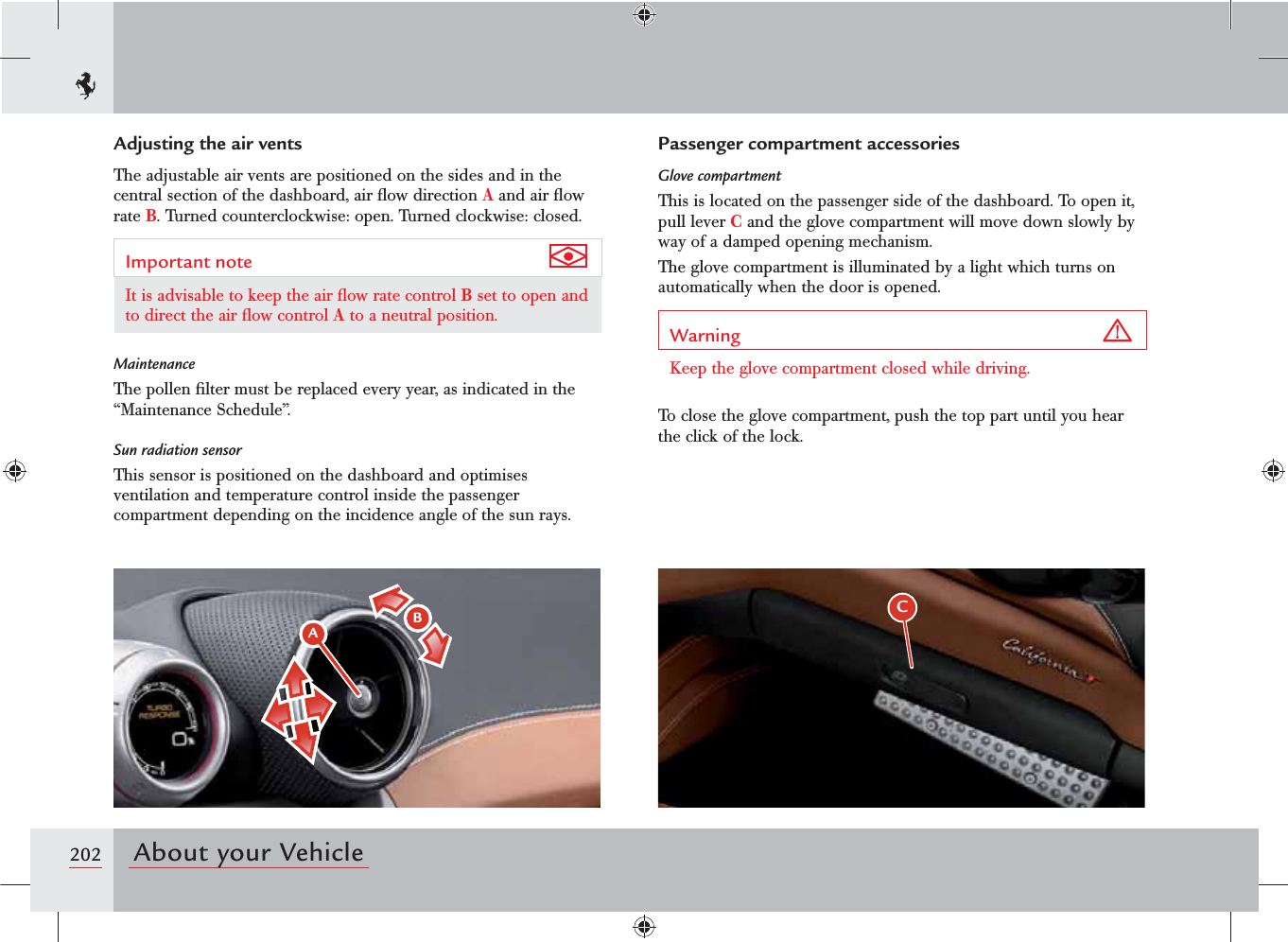

202 About your VehicleC ABPassenger compartment accessoriesGlove compartmentThis is located on the passenger side of the dashboard. To open it, pull lever C and the glove compartment will move down slowly by way of a damped opening mechanism.The glove compartment is illuminated by a light which turns on automatically when the door is opened.Warning Keep the glove compartment closed while driving.To close the glove compartment, push the top part until you hear the click of the lock.Adjusting the air ventsThe adjustable air vents are positioned on the sides and in the central section of the dashboard, air flow direction A and air flow rate B. Turned counterclockwise: open. Turned clockwise: closed.Important note It is advisable to keep the air flow rate control B set to open and to direct the air flow control A to a neutral position.MaintenanceThe pollen filter must be replaced every year, as indicated in the “Maintenance Schedule”.Sun radiation sensorThis sensor is positioned on the dashboard and optimises ventilation and temperature control inside the passenger compartment depending on the incidence angle of the sun rays.

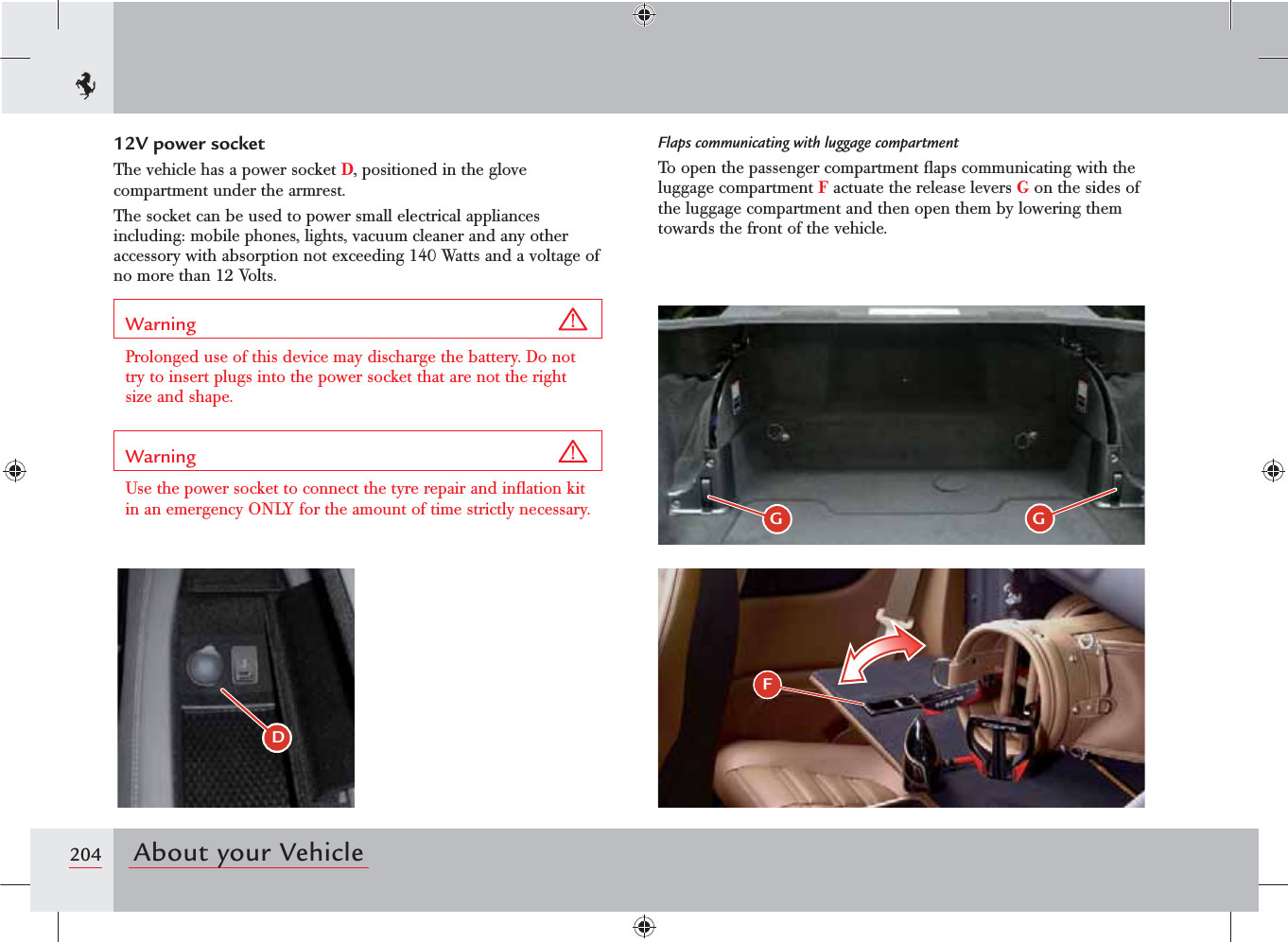

2033About your VehicleOddment storage compartmentsThey are located on the lower part of the doors and on the centre console.Sun visorsThe sun visors can be moved by pulling them down towards the windscreen.There is a mirror on the back of the passenger-side visor.
204 About your VehicleFGGDFlaps communicating with luggage compartmentTo open the passenger compartment flaps communicating with the luggage compartment F actuate the release levers G on the sides of the luggage compartment and then open them by lowering them towards the front of the vehicle.12V power socketThe vehicle has a power socket D, positioned in the glove compartment under the armrest.The socket can be used to power small electrical appliances including: mobile phones, lights, vacuum cleaner and any other accessory with absorption not exceeding 140 Watts and a voltage of no more than 12 Volts.Warning Prolonged use of this device may discharge the battery. Do not try to insert plugs into the power socket that are not the right size and shape.Warning Use the power socket to connect the tyre repair and inflation kit in an emergency ONLY for the amount of time strictly necessary.

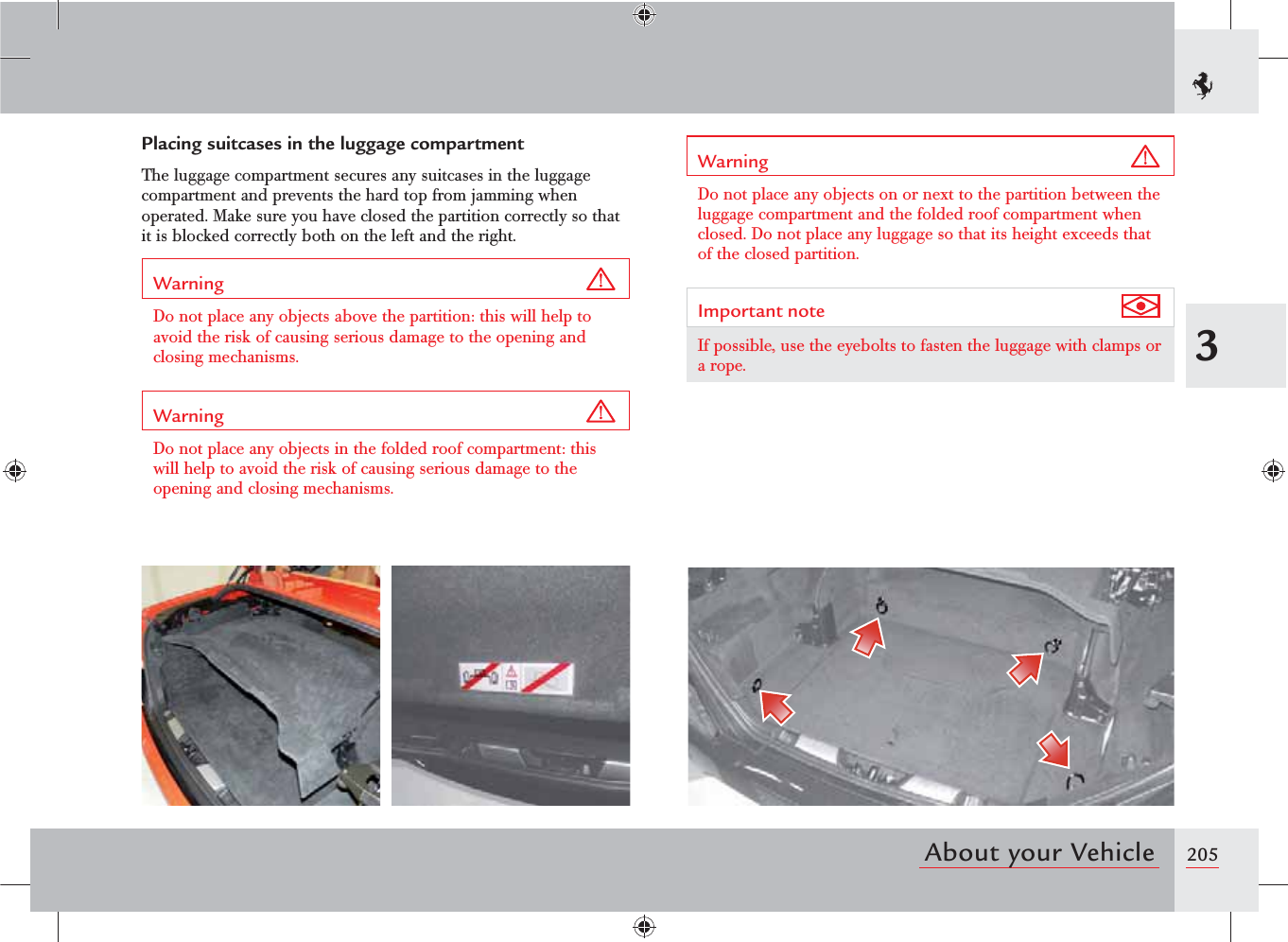

2053About your VehiclePlacing suitcases in the luggage compartmentThe luggage compartment secures any suitcases in the luggage compartment and prevents the hard top from jamming when operated. Make sure you have closed the partition correctly so that it is blocked correctly both on the left and the right.Warning Do not place any objects above the partition: this will help to avoid the risk of causing serious damage to the opening and closing mechanisms.Warning Do not place any objects in the folded roof compartment: this will help to avoid the risk of causing serious damage to the opening and closing mechanisms.Warning Do not place any objects on or next to the partition between the luggage compartment and the folded roof compartment when closed. Do not place any luggage so that its height exceeds that of the closed partition.Important note If possible, use the eyebolts to fasten the luggage with clamps or a rope.

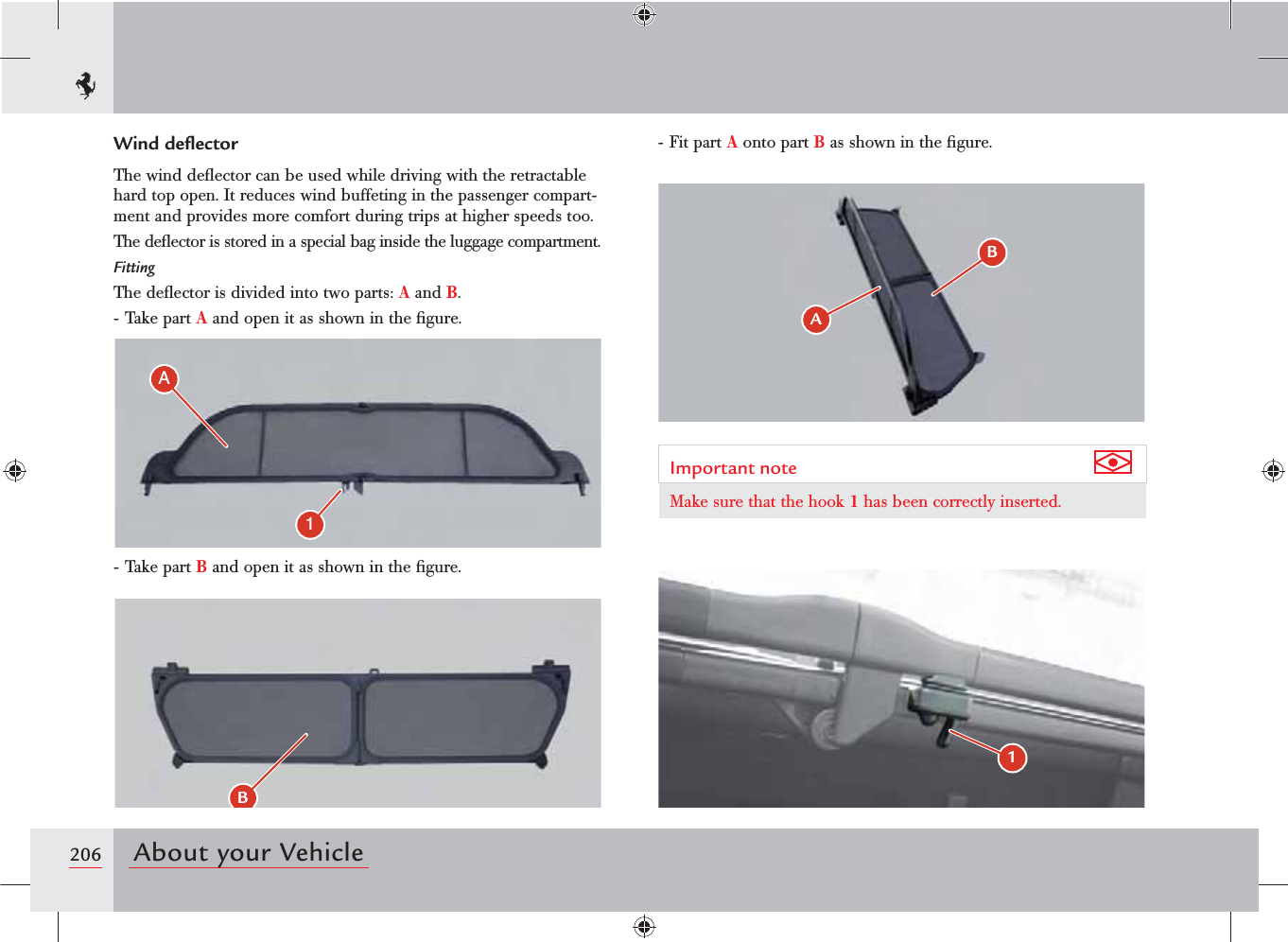

206 About your Vehicle!##"Wind deflectorThe wind deflector can be used while driving with the retractable hard top open. It reduces wind buffeting in the passenger compart-ment and provides more comfort during trips at higher speeds too.The deflector is stored in a special bag inside the luggage compartment.FittingThe deflector is divided into two parts: A and B.- Take part A and open it as shown in the figure.- Fit part A onto part B as shown in the figure.- Take part B and open it as shown in the figure.Important note Make sure that the hook 1 has been correctly inserted.

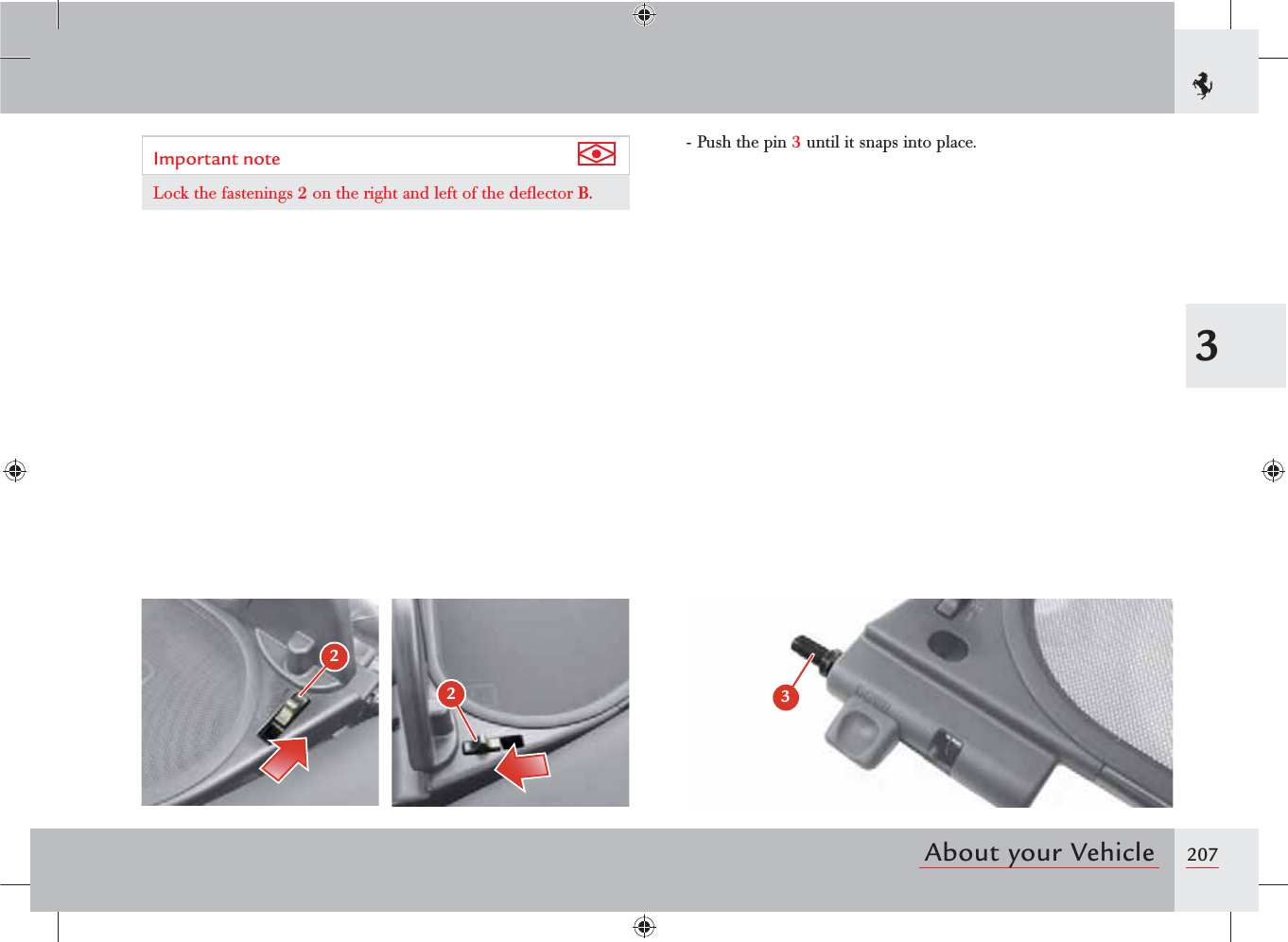

2073About your Vehicle- Push the pin 3 until it snaps into place.Important note Lock the fastenings 2 on the right and left of the deflector B.
208 About your Vehicle- Place the deflector with its supports 4 fitted in the special slots on the left and right of the vehicle and pin 3 in the special hole on the right of the vehicle.Important note Pay attention to the vehicle trim.- Push the other pin 3 into the special hole on the left of the vehicle, until it snaps in place. Warning When the deflector is fitted, if you must move the seat back up to the end of travel, do not tilt the front seats too far back to avoid damaging the deflector.Warning Check that the deflector has been secured correctly!
1. General2. Safety3. About your Vehicle4. Advice for Emergency Situations5. Care of the vehicle6. Glossary7. Table of Contents

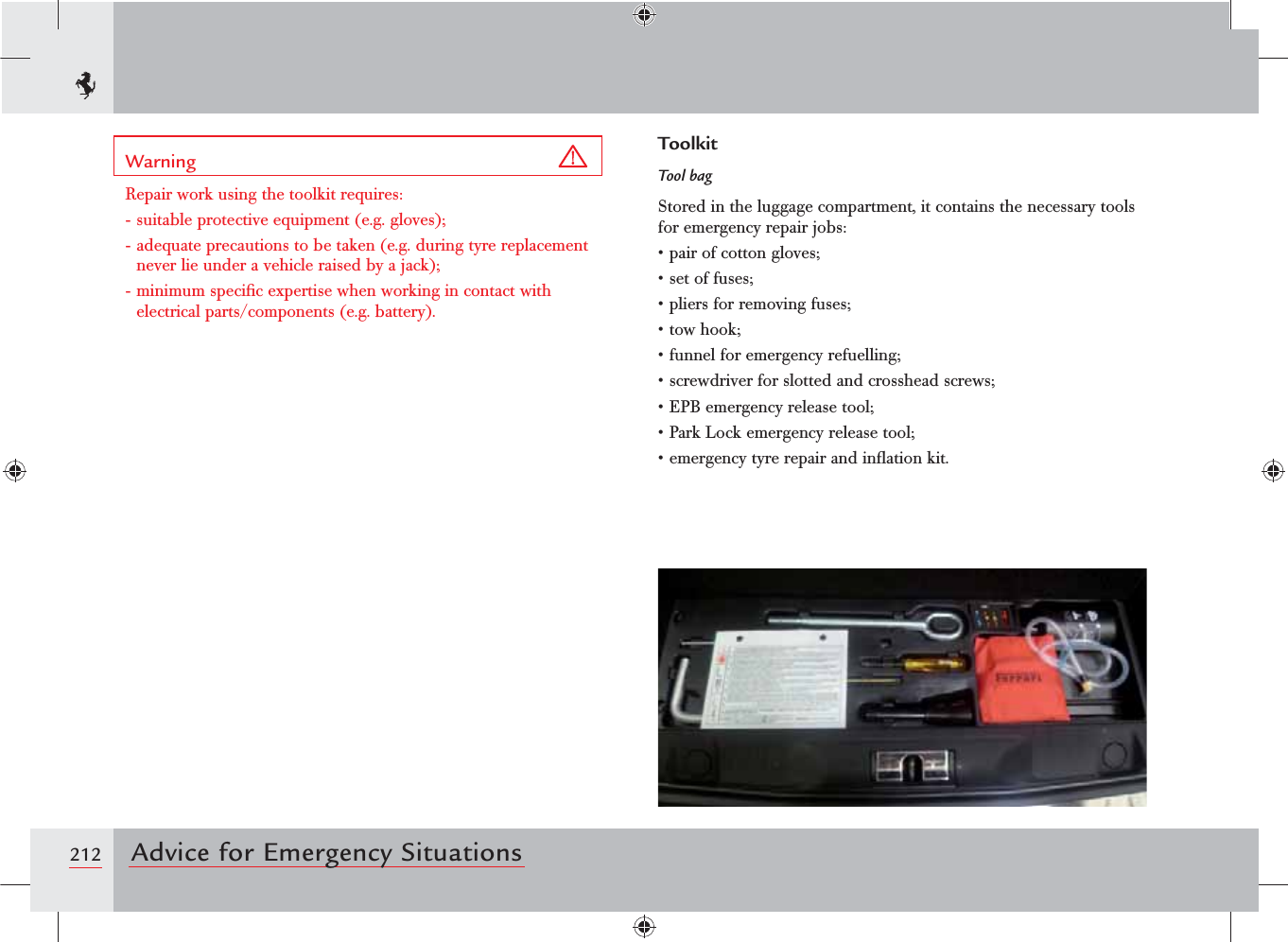

212 Advice for Emergency SituationsWarning Repair work using the toolkit requires:- suitable protective equipment (e.g. gloves);- adequate precautions to be taken (e.g. during tyre replacement never lie under a vehicle raised by a jack);- minimum specific expertise when working in contact with electrical parts/components (e.g. battery).ToolkitTool bagStored in the luggage compartment, it contains the necessary tools for emergency repair jobs:sPAIROFCOTTONGLOVESsSETOFFUSESsPLIERSFORREMOVINGFUSESsTOWHOOKsFUNNELFOREMERGENCYREFUELLINGsSCREWDRIVERFORSLOTTEDANDCROSSHEADSCREWSs%0"EMERGENCYRELEASETOOLs0ARK,OCKEMERGENCYRELEASETOOLsEMERGENCYTYREREPAIRANDINmATIONKIT
2134Advice for Emergency SituationsEmergency tyre repair and inflation kitIn the event of a puncture or low pressure of a tyre, the kit can be used to repair and/or inflate the tyre sufficiently to continue the journey safely.Important note To use the tyre repair and inflation kit correctly, refer to the instruction booklet provided with the kit.Warning Give the instruction booklet supplied with the kit to the personnel that will have to deal with the tyre treated with the repair kit.Warning In the event of a puncture caused by foreign objects, tyres can be repaired with cuts of up to 4 mm in diameter on the tyre tread and shoulder.Warning Punctures cannot be repaired on the sides of the tyre. Do not use the tyre repair kit if the tyre has been damaged after driving with a flat tyre.Warning Damage to the wheel rim that causes air leaks cannot be repaired. Do not remove foreign objects (screws or nails) that have penetrated the tyre.Warning After using the repair kit, the vehicle must be considered in an emergency situation: drive with the greatest care (maximum permissible speed 80 km/h).Warning Apply the sticker where it can easily be seen by the driver to indicate that the tyre has been treated with the tyre repair kit.Drive carefully especially on bends.Avoid sudden accelerations or braking.

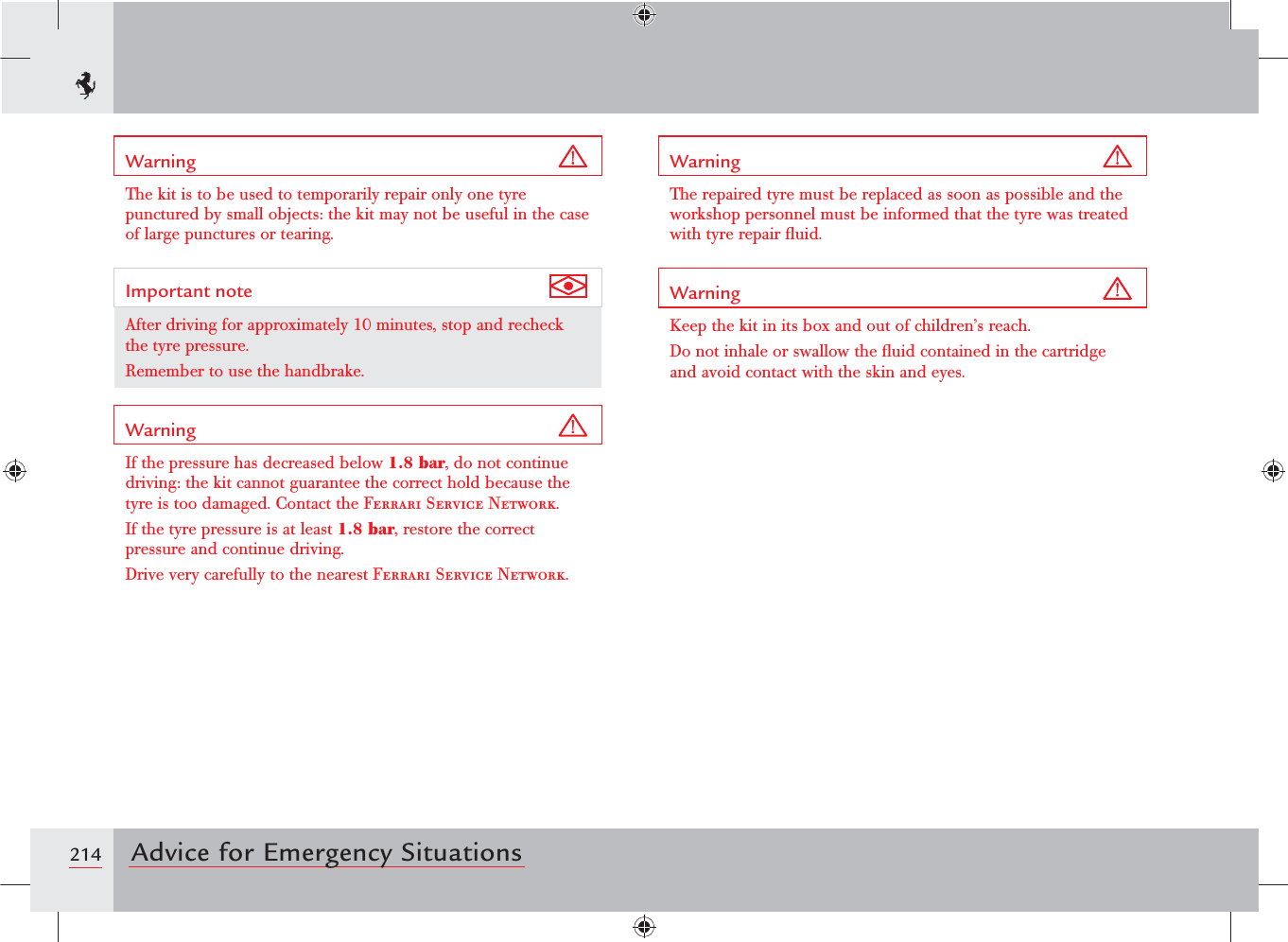

214 Advice for Emergency SituationsWarning The kit is to be used to temporarily repair only one tyre punctured by small objects: the kit may not be useful in the case of large punctures or tearing.Important note After driving for approximately 10 minutes, stop and recheck the tyre pressure. Remember to use the handbrake.Warning If the pressure has decreased below 1.8 bar, do not continue driving: the kit cannot guarantee the correct hold because the tyre is too damaged. Contact the Ferrari Service Network. If the tyre pressure is at least 1.8 bar, restore the correct pressure and continue driving.Drive very carefully to the nearest Ferrari Service Network.Warning The repaired tyre must be replaced as soon as possible and the workshop personnel must be informed that the tyre was treated with tyre repair fluid.Warning Keep the kit in its box and out of children’s reach. Do not inhale or swallow the fluid contained in the cartridge and avoid contact with the skin and eyes.

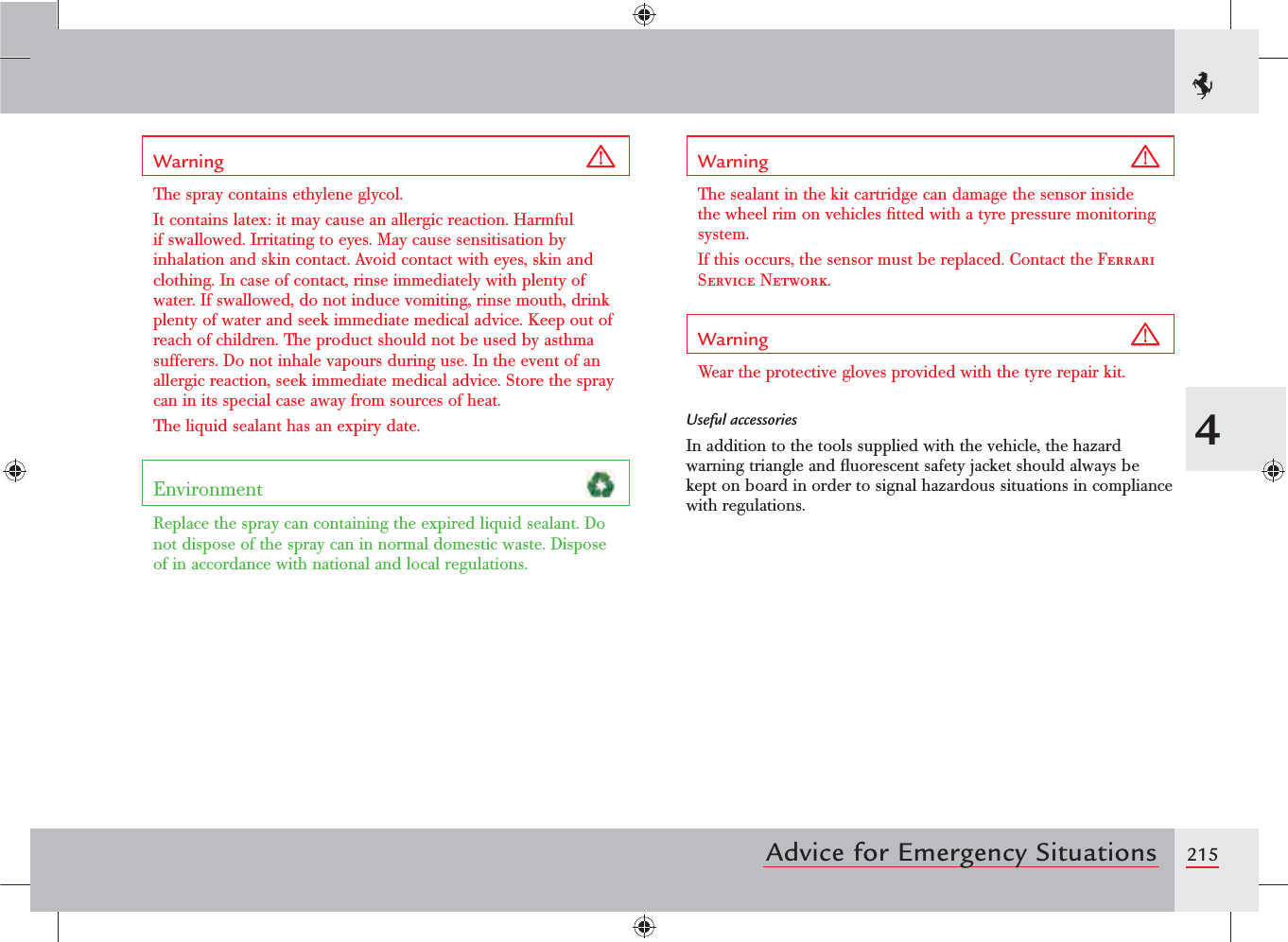

2154Advice for Emergency SituationsWarning The spray contains ethylene glycol. It contains latex: it may cause an allergic reaction. Harmful if swallowed. Irritating to eyes. May cause sensitisation by inhalation and skin contact. Avoid contact with eyes, skin and clothing. In case of contact, rinse immediately with plenty of water. If swallowed, do not induce vomiting, rinse mouth, drink plenty of water and seek immediate medical advice. Keep out of reach of children. The product should not be used by asthma sufferers. Do not inhale vapours during use. In the event of an allergic reaction, seek immediate medical advice. Store the spray can in its special case away from sources of heat. The liquid sealant has an expiry date.Environment Replace the spray can containing the expired liquid sealant. Do not dispose of the spray can in normal domestic waste. Dispose of in accordance with national and local regulations.Warning The sealant in the kit cartridge can damage the sensor inside the wheel rim on vehicles fitted with a tyre pressure monitoring system.If this occurs, the sensor must be replaced. Contact the Ferrari Service Network.Warning Wear the protective gloves provided with the tyre repair kit.Useful accessoriesIn addition to the tools supplied with the vehicle, the hazard warning triangle and fluorescent safety jacket should always be kept on board in order to signal hazardous situations in compliance with regulations.

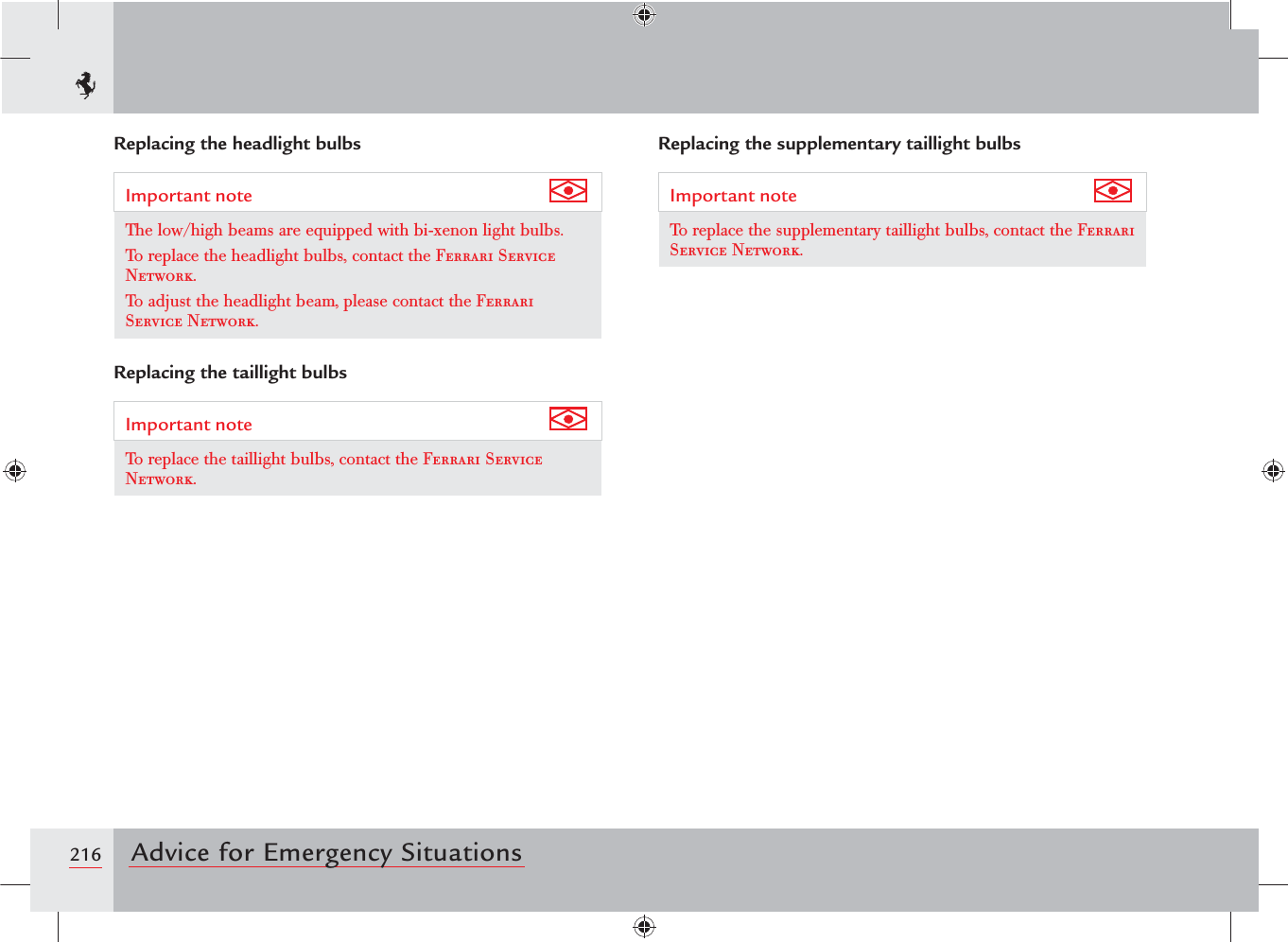

216 Advice for Emergency SituationsReplacing the headlight bulbsImportant note The low/high beams are equipped with bi-xenon light bulbs.To replace the headlight bulbs, contact the Ferrari Service Network.To adjust the headlight beam, please contact the Ferrari Service Network.Replacing the taillight bulbsImportant note To replace the taillight bulbs, contact the Ferrari Service Network.Replacing the supplementary taillight bulbsImportant note To replace the supplementary taillight bulbs, contact the Ferrari Service Network.

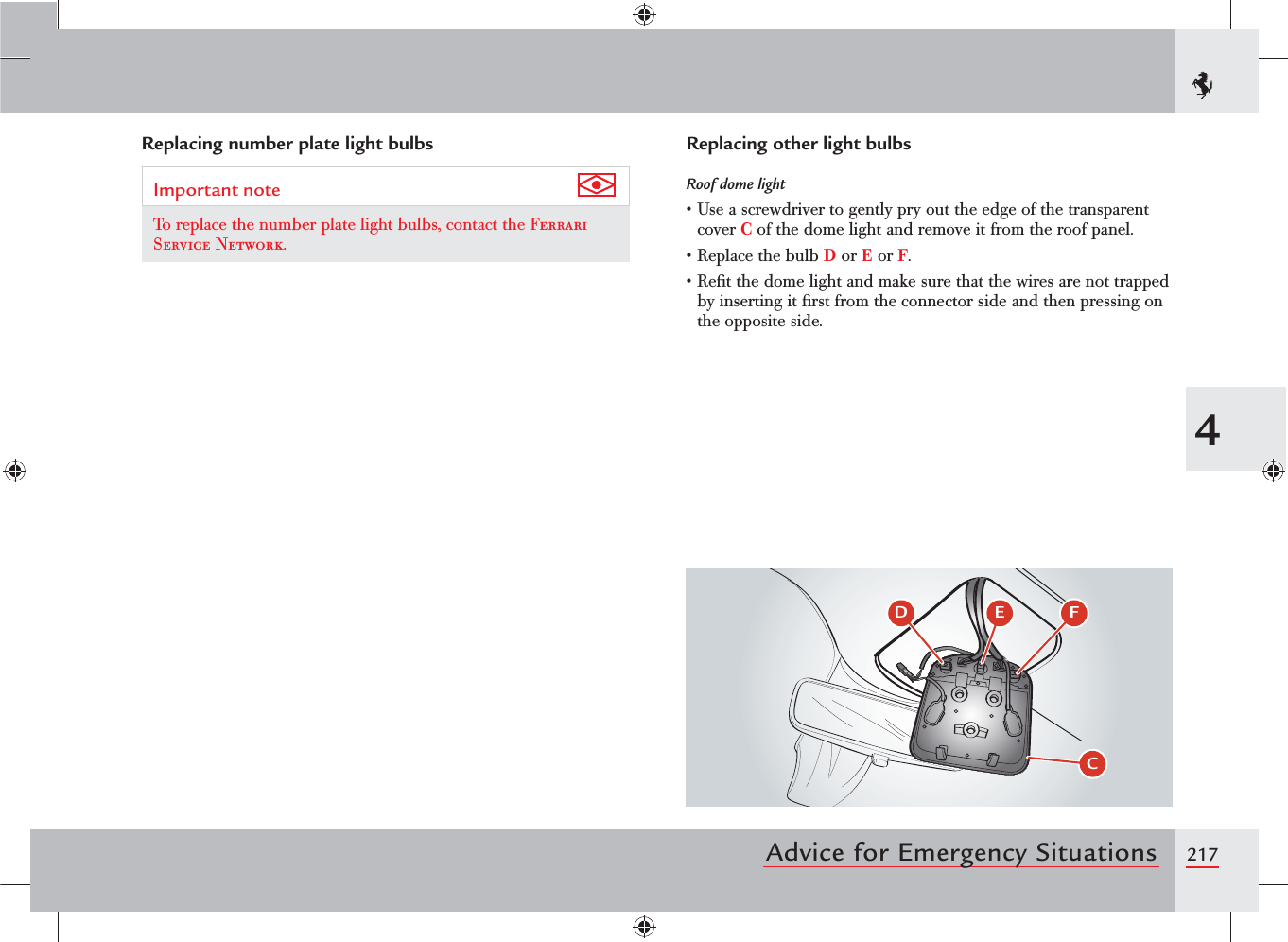

2174Advice for Emergency SituationsReplacing number plate light bulbsImportant note To replace the number plate light bulbs, contact the Ferrari Service Network.Replacing other light bulbsRoof dome lights5SEASCREWDRIVERTOGENTLYPRYOUTTHEEDGEOFTHETRANSPARENTcover C of the dome light and remove it from the roof panel.s2EPLACETHEBULBD or E or F.s2ElTTHEDOMELIGHTANDMAKESURETHATTHEWIRESARENOTTRAPPEDby inserting it first from the connector side and then pressing on the opposite side.% & '$

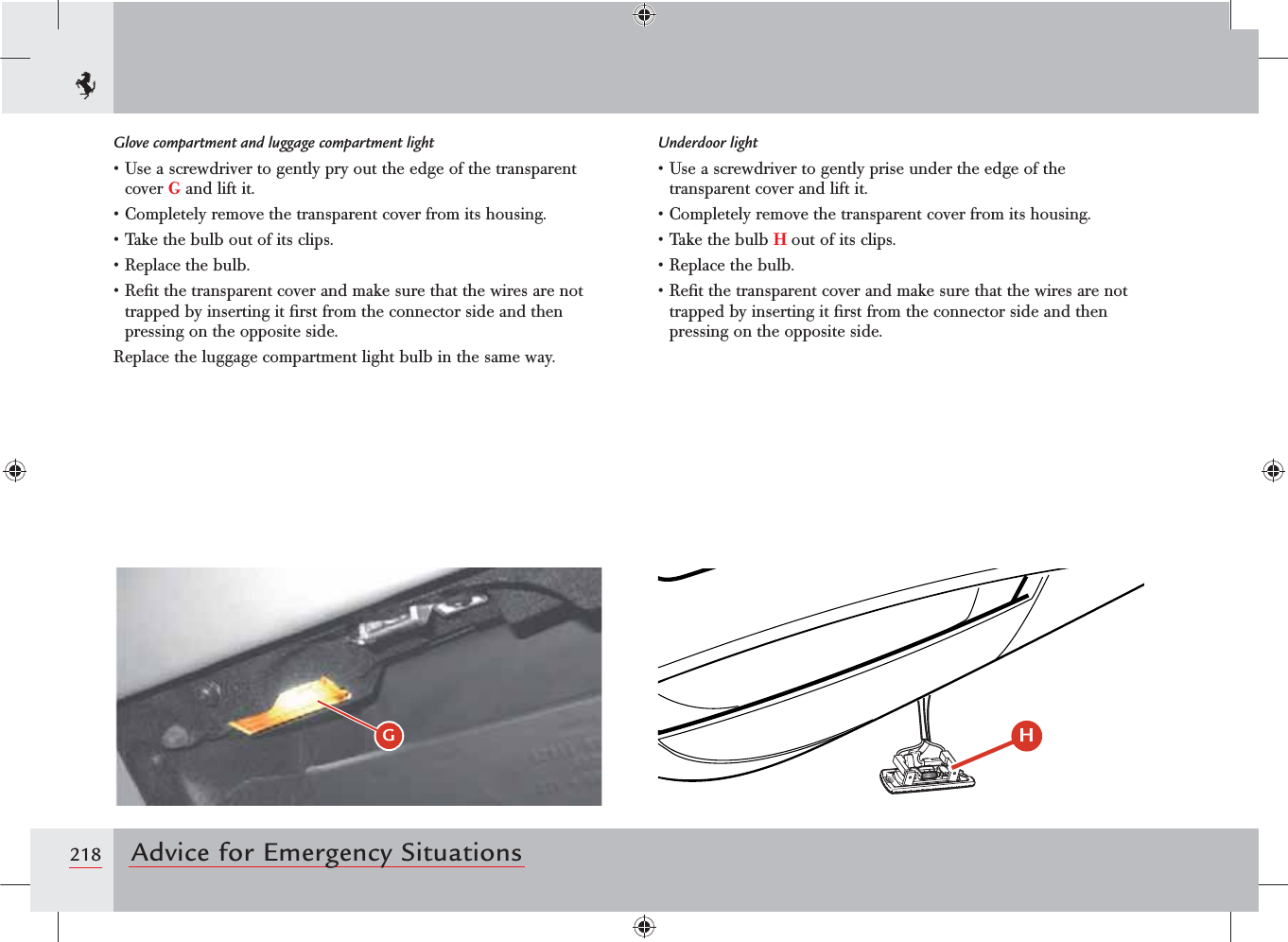

218 Advice for Emergency SituationsGlove compartment and luggage compartment lights5SEASCREWDRIVERTOGENTLYPRYOUTTHEEDGEOFTHETRANSPARENTcover G and lift it.s#OMPLETELYREMOVETHETRANSPARENTCOVERFROMITSHOUSINGs4AKETHEBULBOUTOFITSCLIPSs2EPLACETHEBULBs2ElTTHETRANSPARENTCOVERANDMAKESURETHATTHEWIRESARENOTtrapped by inserting it first from the connector side and then pressing on the opposite side.Replace the luggage compartment light bulb in the same way.Underdoor lights5SEASCREWDRIVERTOGENTLYPRISEUNDERTHEEDGEOFTHEtransparent cover and lift it.s#OMPLETELYREMOVETHETRANSPARENTCOVERFROMITSHOUSINGs4AKETHEBULBH out of its clips.s2EPLACETHEBULBs2ElTTHETRANSPARENTCOVERANDMAKESURETHATTHEWIRESARENOTtrapped by inserting it first from the connector side and then pressing on the opposite side.(H

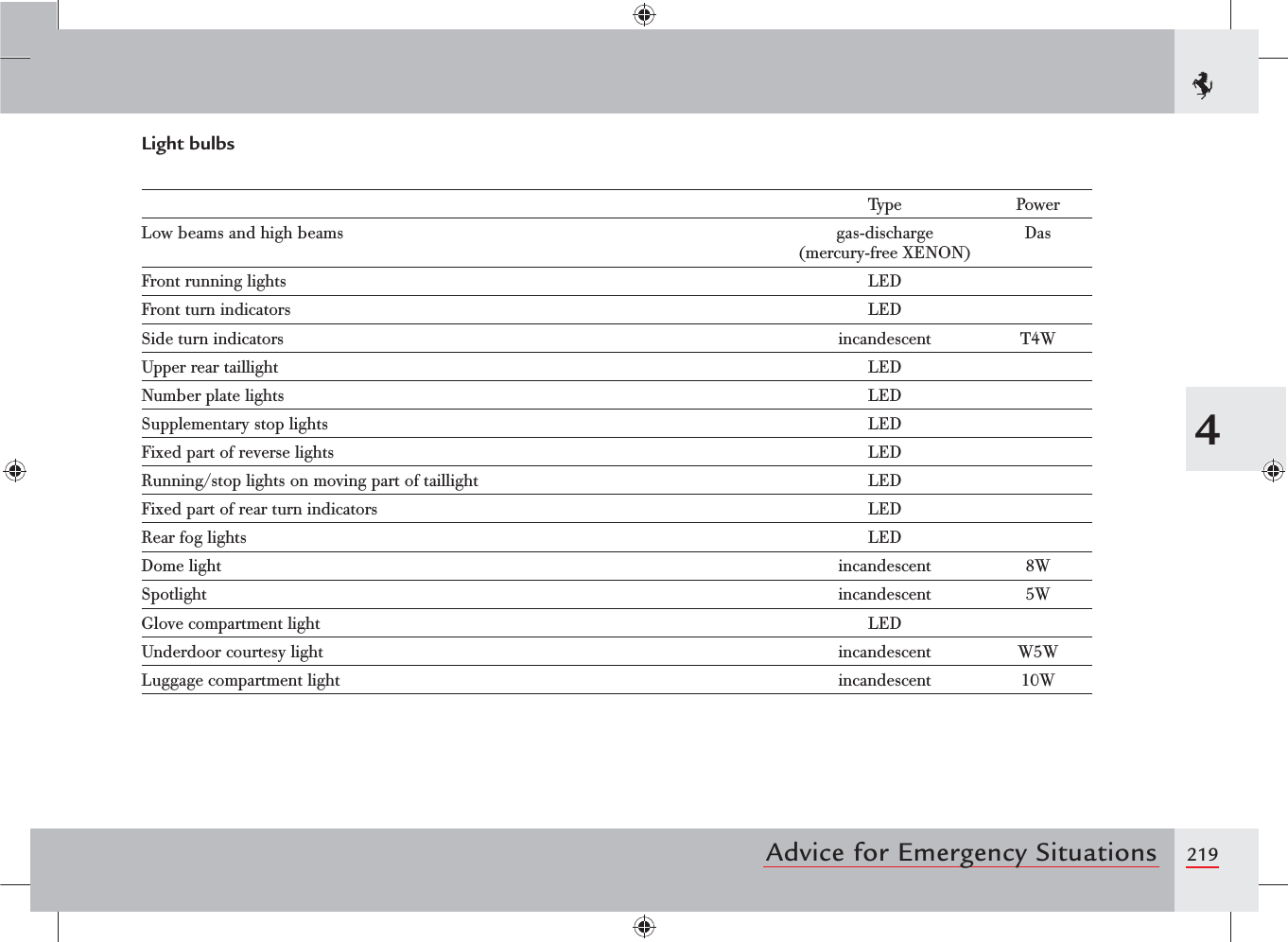

2194Advice for Emergency SituationsLight bulbsType PowerLow beams and high beams gas-discharge (mercury-free XENON)DasFront running lights LEDFront turn indicators LEDSide turn indicators incandescent T4WUpper rear taillight LEDNumber plate lights LEDSupplementary stop lights LEDFixed part of reverse lights LEDRunning/stop lights on moving part of taillight LEDFixed part of rear turn indicators LEDRear fog lights LEDDome light incandescent 8WSpotlight incandescent 5WGlove compartment light LEDUnderdoor courtesy light incandescent W5WLuggage compartment light incandescent 10W

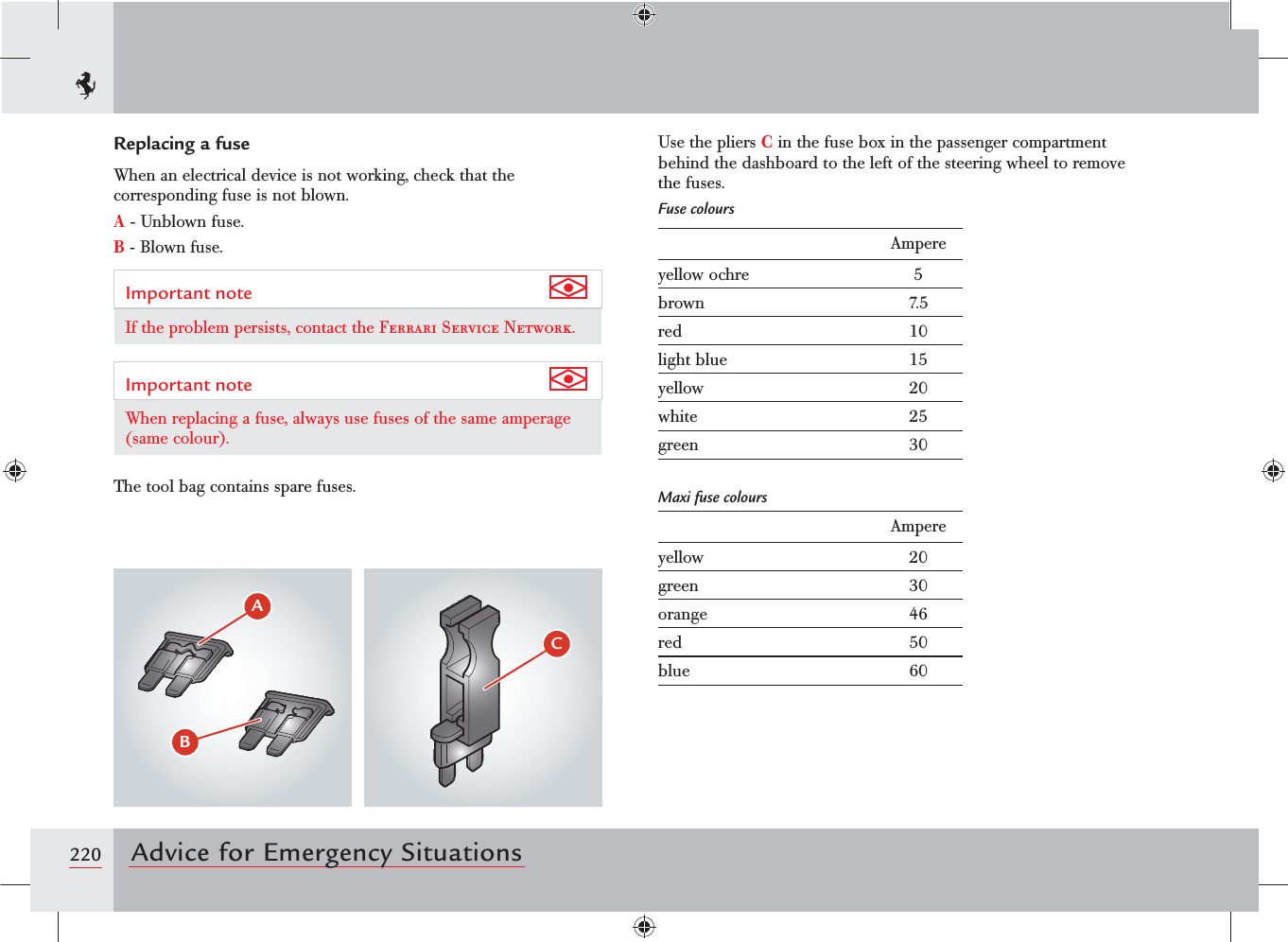

220 Advice for Emergency SituationsReplacing a fuseWhen an electrical device is not working, check that the corresponding fuse is not blown.A - Unblown fuse.B - Blown fuse.Important note If the problem persists, contact the Ferrari Service Network.Important note When replacing a fuse, always use fuses of the same amperage (same colour).The tool bag contains spare fuses.Use the pliers C in the fuse box in the passenger compartment behind the dashboard to the left of the steering wheel to remove the fuses.Fuse coloursAmpereyellow ochre 5brown 7.5red 10light blue 15yellow 20white 25green 30Maxi fuse coloursAmpereyellow 20green 30orange 46red 50blue 60"#$

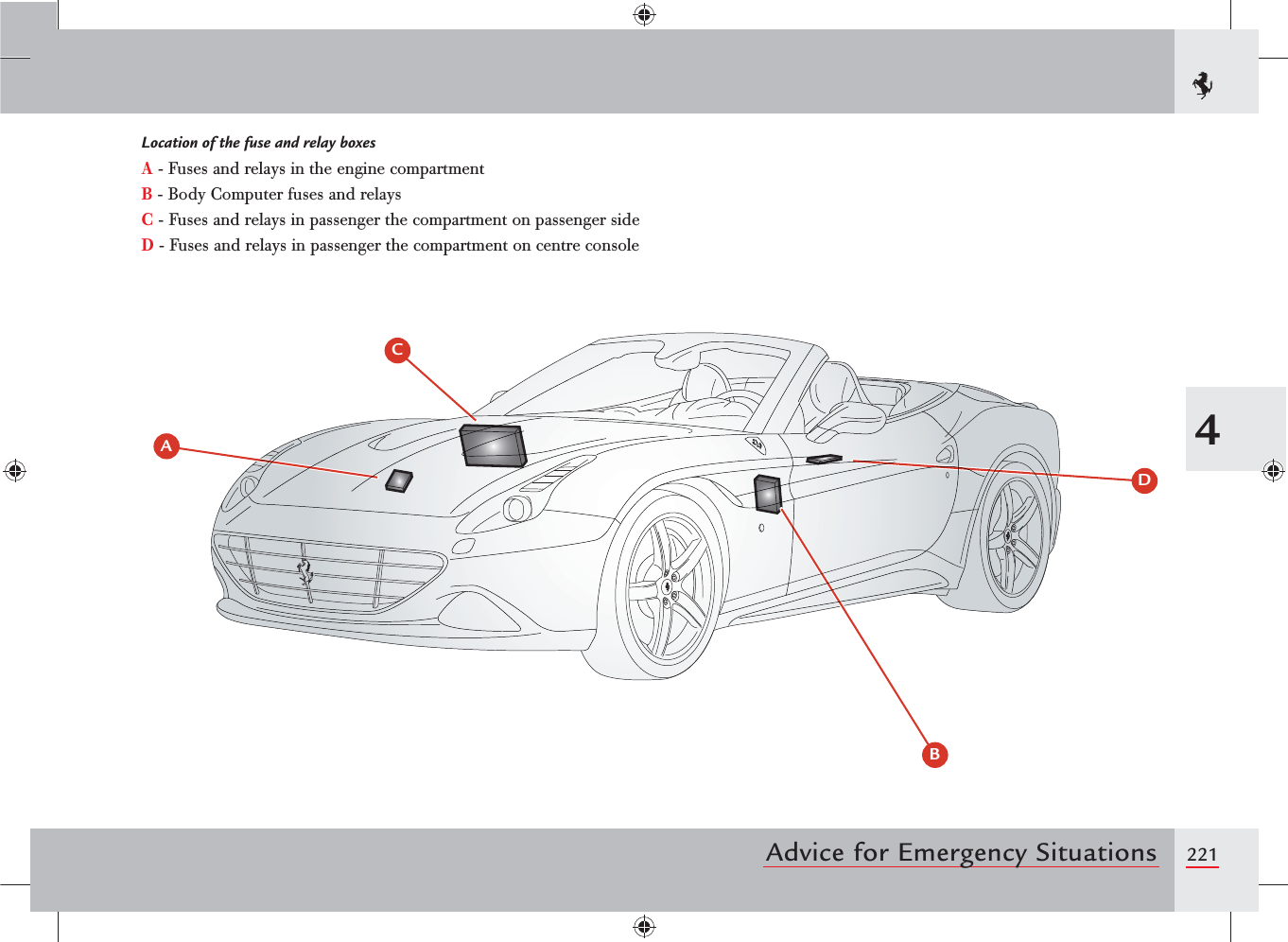

2214Advice for Emergency SituationsLocation of the fuse and relay boxesA - Fuses and relays in the engine compartmentB - Body Computer fuses and relaysC - Fuses and relays in passenger the compartment on passenger sideD - Fuses and relays in passenger the compartment on centre consoleACBD

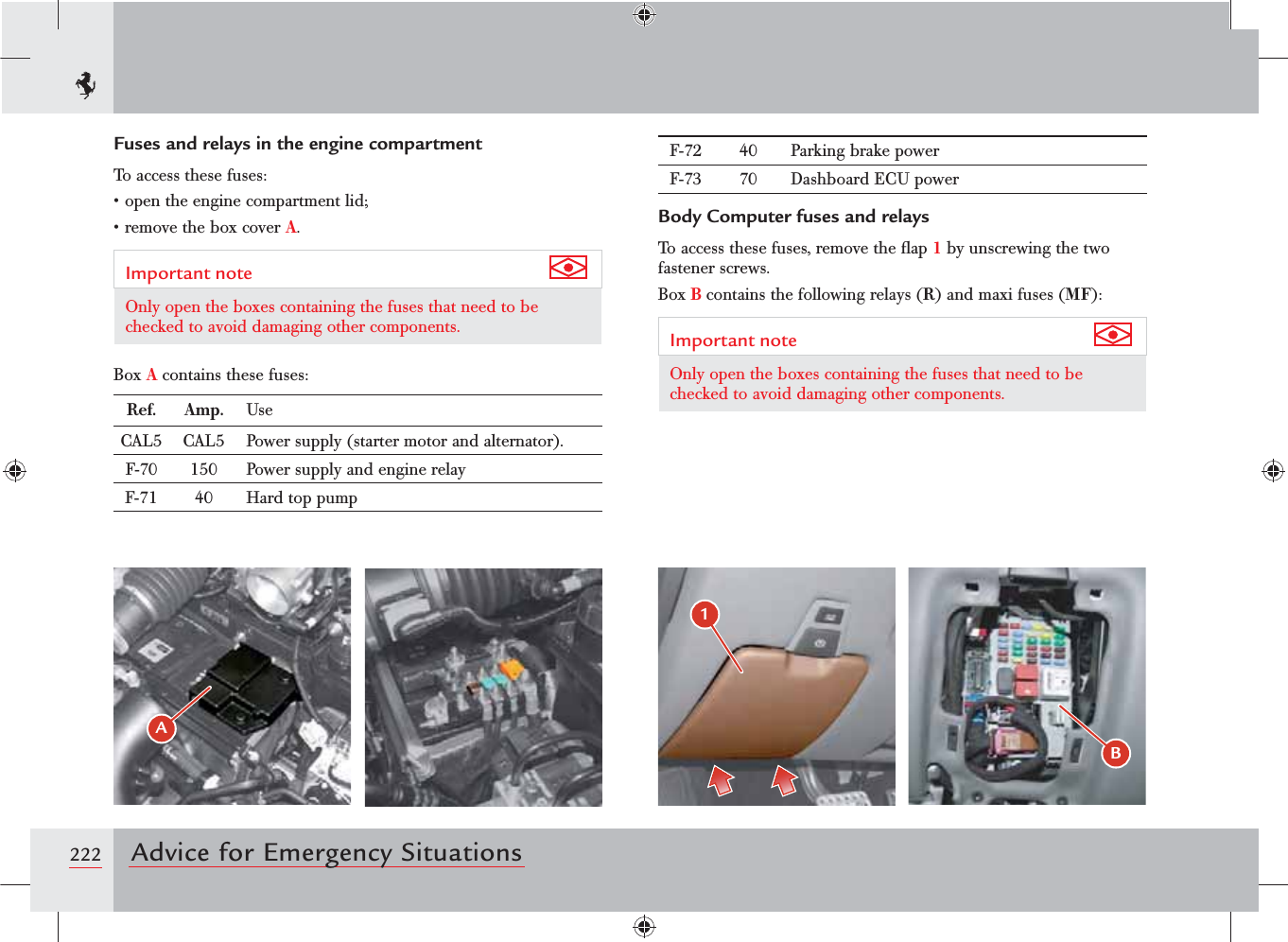

222 Advice for Emergency SituationsF-72 40 Parking brake powerF-73 70 Dashboard ECU powerBody Computer fuses and relaysTo access these fuses, remove the flap 1 by unscrewing the two fastener screws.Box B contains the following relays (R) and maxi fuses (MF):Important note Only open the boxes containing the fuses that need to be checked to avoid damaging other components.Fuses and relays in the engine compartmentTo access these fuses:sOPENTHEENGINECOMPARTMENTLIDsREMOVETHEBOXCOVERA.Important note Only open the boxes containing the fuses that need to be checked to avoid damaging other components.Box A contains these fuses:Ref. Amp. UseCAL5 CAL5 Power supply (starter motor and alternator).F-70 150 Power supply and engine relayF-71 40 Hard top pump"B 

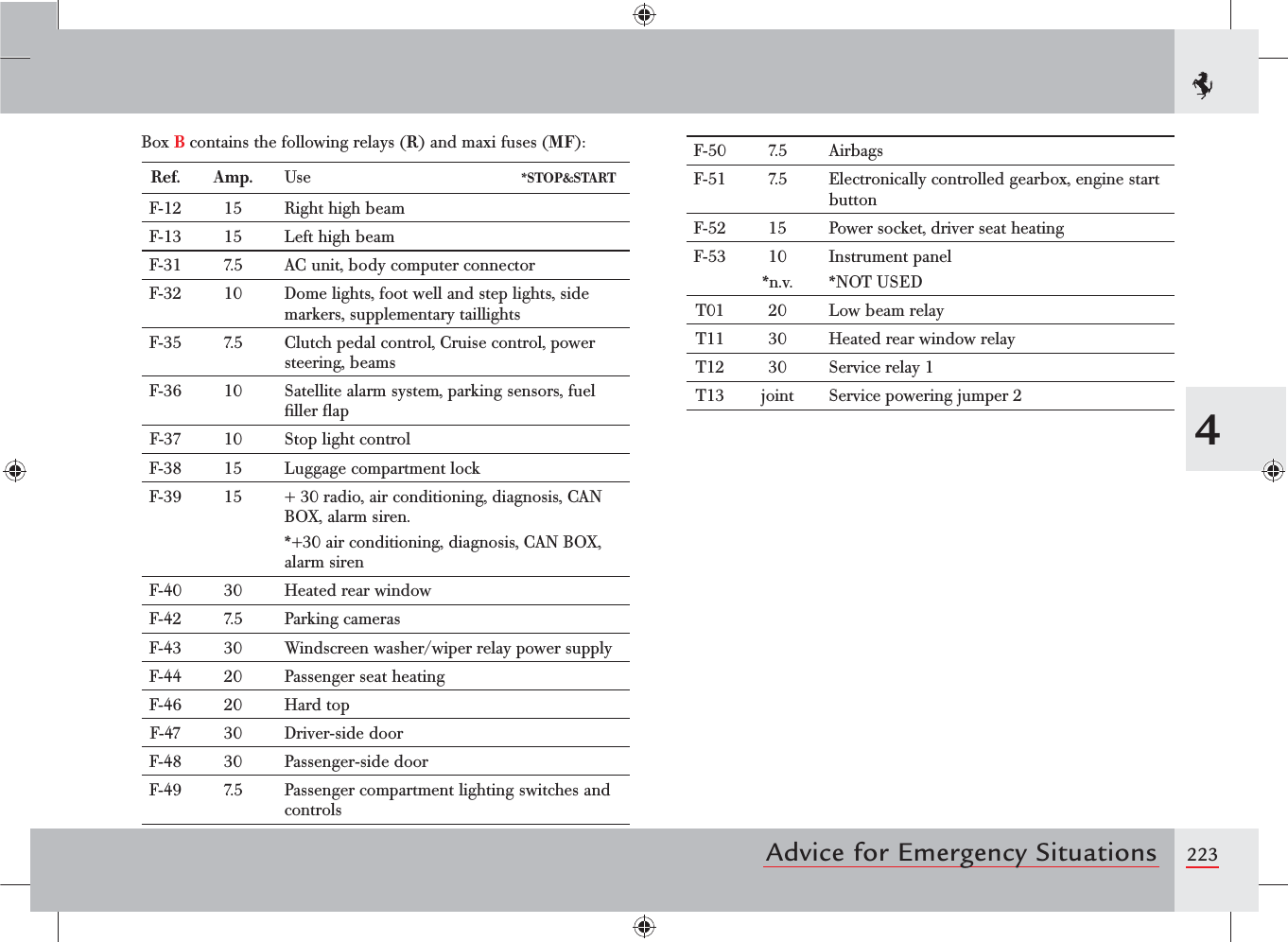

2234Advice for Emergency SituationsBox B contains the following relays (R) and maxi fuses (MF):Ref. Amp. Use *STOP&STARTF-12 15 Right high beamF-13 15 Left high beamF-31 7.5 AC unit, body computer connector F-32 10 Dome lights, foot well and step lights, side markers, supplementary taillightsF-35 7.5 Clutch pedal control, Cruise control, power steering, beamsF-36 10 Satellite alarm system, parking sensors, fuel filler flapF-37 10 Stop light controlF-38 15 Luggage compartment lockF-39 15 + 30 radio, air conditioning, diagnosis, CAN BOX, alarm siren.*+30 air conditioning, diagnosis, CAN BOX, alarm sirenF-40 30 Heated rear windowF-42 7.5 Parking camerasF-43 30 Windscreen washer/wiper relay power supplyF-44 20 Passenger seat heatingF-46 20 Hard topF-47 30 Driver-side doorF-48 30 Passenger-side doorF-49 7.5 Passenger compartment lighting switches and controlsF-50 7.5 AirbagsF-51 7.5 Electronically controlled gearbox, engine start buttonF-52 15 Power socket, driver seat heatingF-53 10*n.v.Instrument panel*NOT USEDT01 20 Low beam relayT11 30 Heated rear window relayT12 30 Service relay 1T13 joint Service powering jumper 2

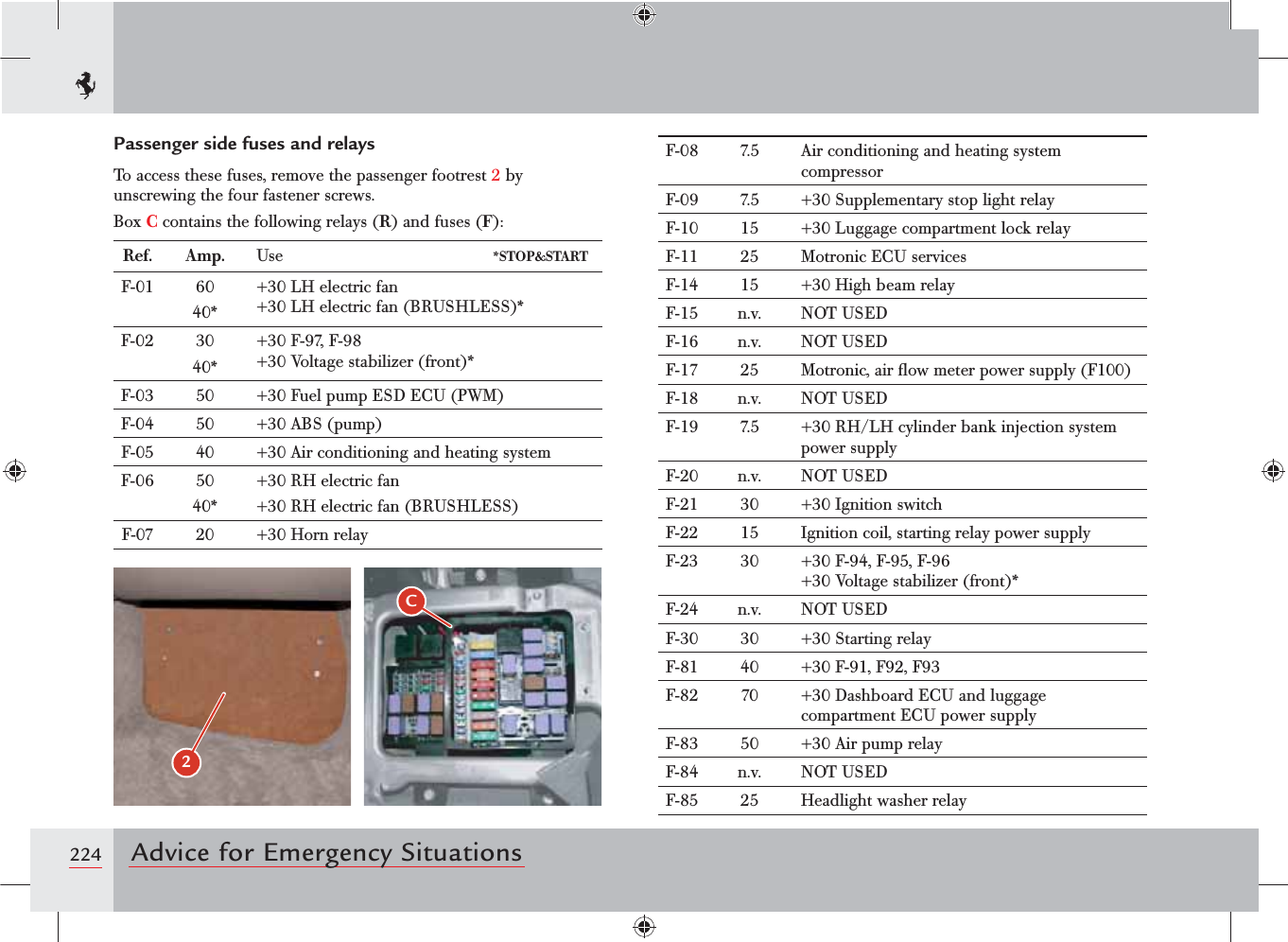

224 Advice for Emergency SituationsPassenger side fuses and relaysTo access these fuses, remove the passenger footrest 2 by unscrewing the four fastener screws.Box C contains the following relays (R) and fuses (F):Ref. Amp. Use *STOP&STARTF-01 6040*+30 LH electric fan +30 LH electric fan (BRUSHLESS)*F-02 3040*+30 F-97, F-98 +30 Voltage stabilizer (front)*F-03 50 +30 Fuel pump ESD ECU (PWM)F-04 50 +30 ABS (pump)F-05 40 +30 Air conditioning and heating systemF-06 5040*+30 RH electric fan+30 RH electric fan (BRUSHLESS)F-07 20 +30 Horn relayF-08 7.5 Air conditioning and heating system compressorF-09 7.5 +30 Supplementary stop light relayF-10 15 +30 Luggage compartment lock relayF-11 25 Motronic ECU servicesF-14 15 +30 High beam relayF-15 n.v. NOT USEDF-16 n.v. NOT USEDF-17 25 Motronic, air flow meter power supply (F100)F-18 n.v. NOT USEDF-19 7.5 +30 RH/LH cylinder bank injection system power supplyF-20 n.v. NOT USEDF-21 30 +30 Ignition switchF-22 15 Ignition coil, starting relay power supplyF-23 30 +30 F-94, F-95, F-96 +30 Voltage stabilizer (front)*F-24 n.v. NOT USEDF-30 30 +30 Starting relayF-81 40 +30 F-91, F92, F93F-82 70 +30 Dashboard ECU and luggage compartment ECU power supplyF-83 50 +30 Air pump relayF-84 n.v. NOT USEDF-85 25 Headlight washer relay$

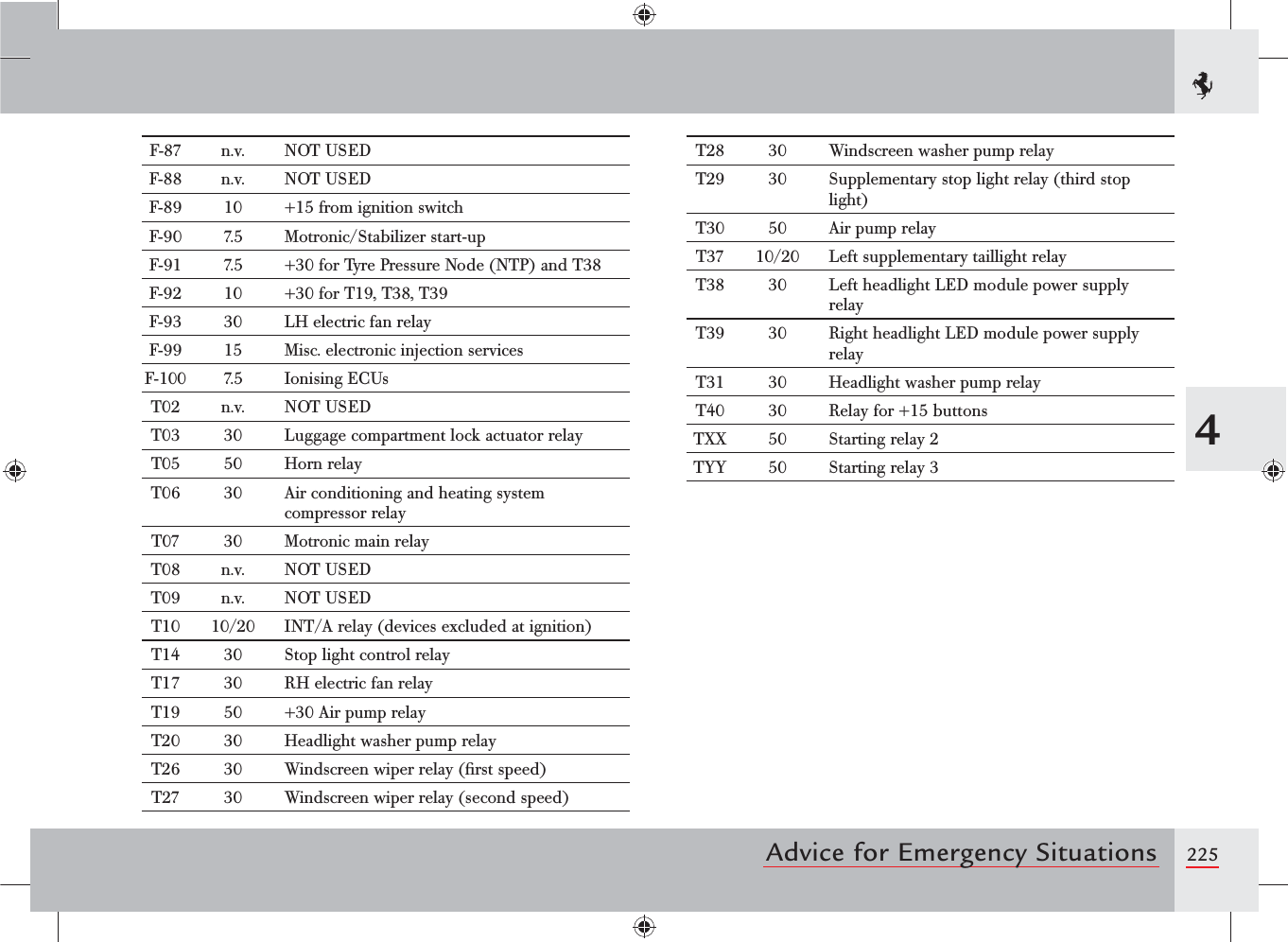

2254Advice for Emergency SituationsF-87 n.v. NOT USEDF-88 n.v. NOT USEDF-89 10 +15 from ignition switchF-90 7.5 Motronic/Stabilizer start-upF-91 7.5 +30 for Tyre Pressure Node (NTP) and T38F-92 10 +30 for T19, T38, T39F-93 30 LH electric fan relay F-99 15 Misc. electronic injection servicesF-100 7.5 Ionising ECUsT02 n.v. NOT USEDT03 30 Luggage compartment lock actuator relayT05 50 Horn relayT06 30 Air conditioning and heating system compressor relayT07 30 Motronic main relayT08 n.v. NOT USEDT09 n.v. NOT USEDT10 10/20 INT/A relay (devices excluded at ignition)T14 30 Stop light control relayT17 30 RH electric fan relay T19 50 +30 Air pump relayT20 30 Headlight washer pump relayT26 30 Windscreen wiper relay (first speed)T27 30 Windscreen wiper relay (second speed)T28 30 Windscreen washer pump relayT29 30 Supplementary stop light relay (third stop light)T30 50 Air pump relayT37 10/20 Left supplementary taillight relayT38 30 Left headlight LED module power supply relayT39 30 Right headlight LED module power supply relayT31 30 Headlight washer pump relayT40 30 Relay for +15 buttonsTXX 50 Starting relay 2TYY 50 Starting relay 3
226 Advice for Emergency SituationsFuses and relays on centre consoleTo access these fuses, remove the cosmetic shield in the pocket change tray on the centre console by unscrewing the socket head screw E. Box D contains the following relays (R) and fuses (F):Ref. Amp. UseF-54 20 +30 HI-FI amplifierF-55 n.v. NOT USEDF-56 30 +30 Driving position (NAG)F-57 7.5 Side Markers 1 (LH front and RH rear)F-58 n.v. NOT USEDF-59 7.5 Reverse lightsF-60 30 +30 Passenger position (NAP)F-61 7.5 +30 Driving position (electronic NAG)F-62 7.5 +30 Passenger position (electronic NAP)F-63 15 +30 Electronically controlled gearbox main relay (NCR)F-64 7.5 Fuel filler flap actuatorF-65 20 Door lock actuatorF-66 7.5 +30 Electronically controlled gearboxF-67 7.5 Side Markers 2 (RH front and LH rear)F-68 n.v. NOT USEDF-69 n.v. NOT USEDF-77 n.v. NOT USEDF-78 15 +30 Battery chargerF-79 n.v. NOT USEDF-80 n.v. NOT USEDT21 50 Side Marker relayT22 30 Reverse light relayT23 30 Fuel filler flap relayT24 10/20 Supplementary taillight switch relayT25 30 Electronically controlled gearbox main relayDE

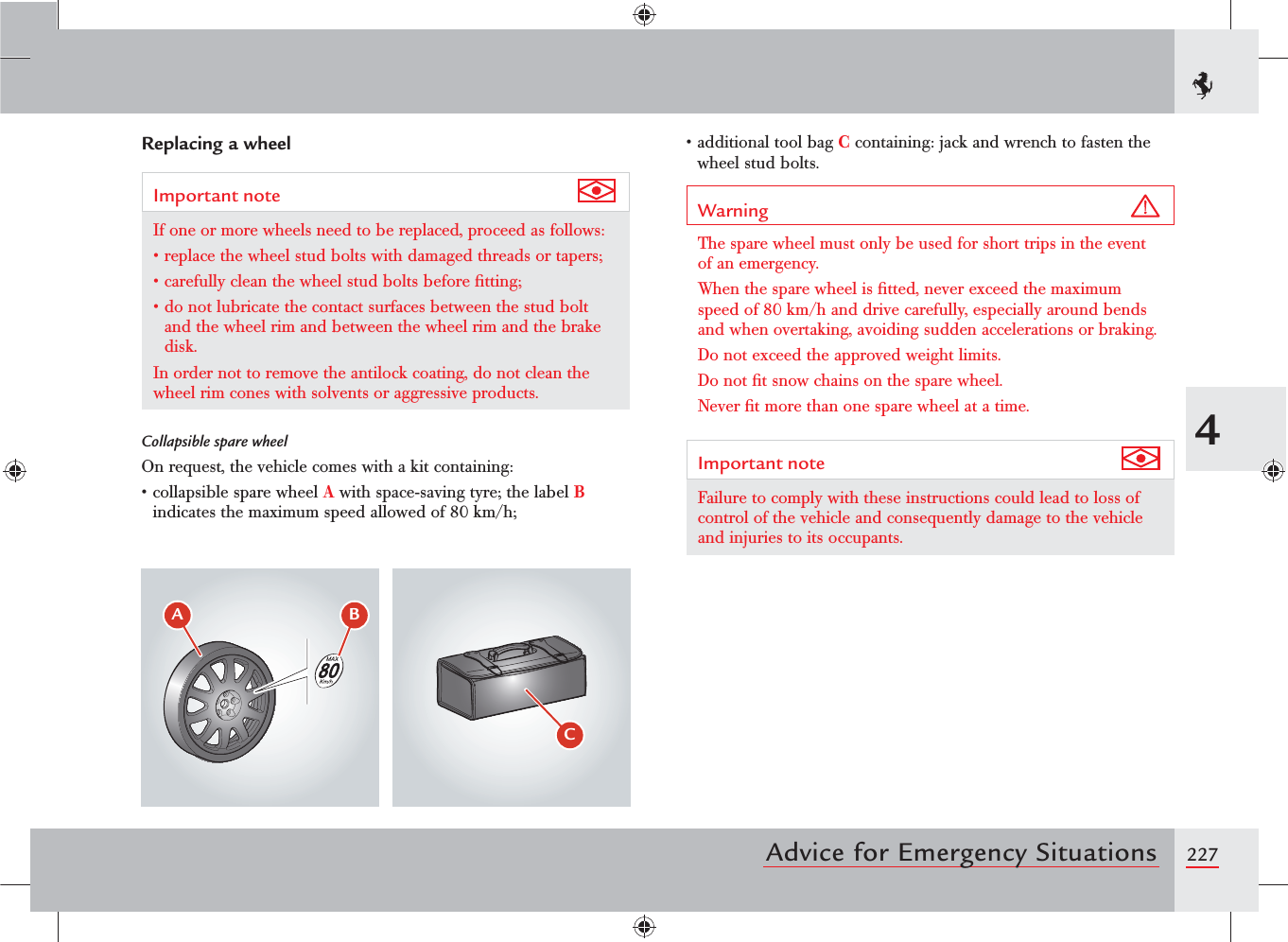

2274Advice for Emergency SituationsReplacing a wheelImportant note If one or more wheels need to be replaced, proceed as follows:sREPLACETHEWHEELSTUDBOLTSWITHDAMAGEDTHREADSORTAPERSsCAREFULLYCLEANTHEWHEELSTUDBOLTSBEFORElTTINGsDONOTLUBRICATETHECONTACTSURFACESBETWEENTHESTUDBOLTand the wheel rim and between the wheel rim and the brake disk.In order not to remove the antilock coating, do not clean the wheel rim cones with solvents or aggressive products.Collapsible spare wheelOn request, the vehicle comes with a kit containing:sCOLLAPSIBLESPAREWHEELA with space-saving tyre; the label B indicates the maximum speed allowed of 80 km/h;sADDITIONALTOOLBAGC containing: jack and wrench to fasten the wheel stud bolts.Warning The spare wheel must only be used for short trips in the event of an emergency.When the spare wheel is fitted, never exceed the maximum speed of 80 km/h and drive carefully, especially around bends and when overtaking, avoiding sudden accelerations or braking.Do not exceed the approved weight limits.Do not fit snow chains on the spare wheel.Never fit more than one spare wheel at a time.Important note Failure to comply with these instructions could lead to loss of control of the vehicle and consequently damage to the vehicle and injuries to its occupants.$" #

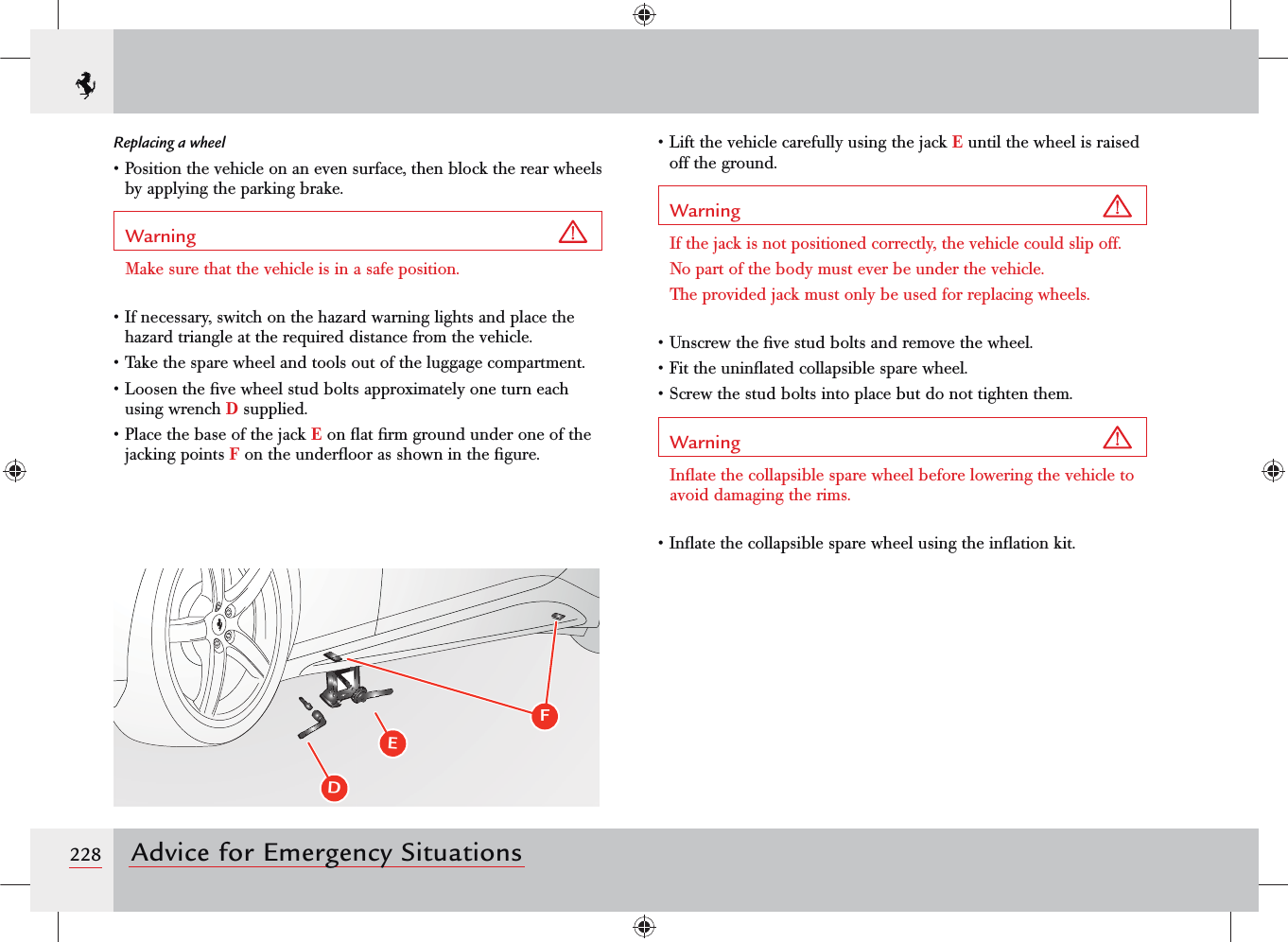

228 Advice for Emergency SituationsReplacing a wheel• Position the vehicle on an even surface, then block the rear wheels by applying the parking brake.Warning Make sure that the vehicle is in a safe position.• If necessary, switch on the hazard warning lights and place the hazard triangle at the required distance from the vehicle.• Take the spare wheel and tools out of the luggage compartment.• Loosen the five wheel stud bolts approximately one turn each using wrench D supplied.• Place the base of the jack E on flat firm ground under one of the jacking points F on the underfloor as shown in the figure.• Lift the vehicle carefully using the jack E until the wheel is raised off the ground.Warning If the jack is not positioned correctly, the vehicle could slip off. No part of the body must ever be under the vehicle.The provided jack must only be used for replacing wheels.• Unscrew the five stud bolts and remove the wheel.• Fit the uninflated collapsible spare wheel.• Screw the stud bolts into place but do not tighten them.Warning Inflate the collapsible spare wheel before lowering the vehicle to avoid damaging the rims.• Inflate the collapsible spare wheel using the inflation kit.DEF

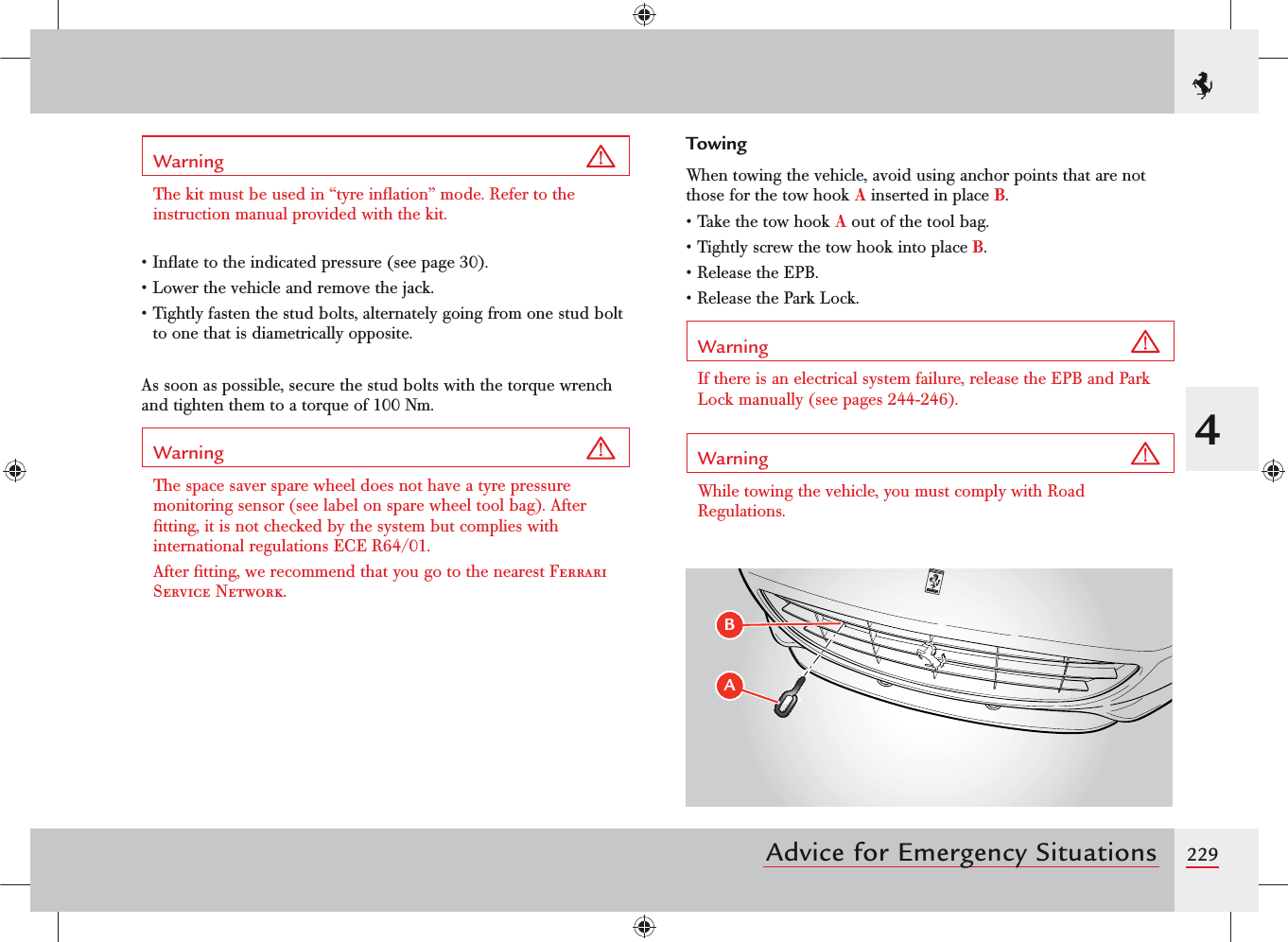

2294Advice for Emergency SituationsWarning The kit must be used in “tyre inflation” mode. Refer to the instruction manual provided with the kit.• Inflate to the indicated pressure (see page 30).• Lower the vehicle and remove the jack.• Tightly fasten the stud bolts, alternately going from one stud bolt to one that is diametrically opposite.As soon as possible, secure the stud bolts with the torque wrench and tighten them to a torque of 100 Nm.Warning The space saver spare wheel does not have a tyre pressure monitoring sensor (see label on spare wheel tool bag). After fitting, it is not checked by the system but complies with international regulations ECE R64/01.After fitting, we recommend that you go to the nearest Ferrari Service Network.TowingWhen towing the vehicle, avoid using anchor points that are not those for the tow hook A inserted in place B.• Take the tow hook A out of the tool bag.• Tightly screw the tow hook into place B.• Release the EPB.• Release the Park Lock.Warning If there is an electrical system failure, release the EPB and Park Lock manually (see pages 244-246).Warning While towing the vehicle, you must comply with Road Regulations."#

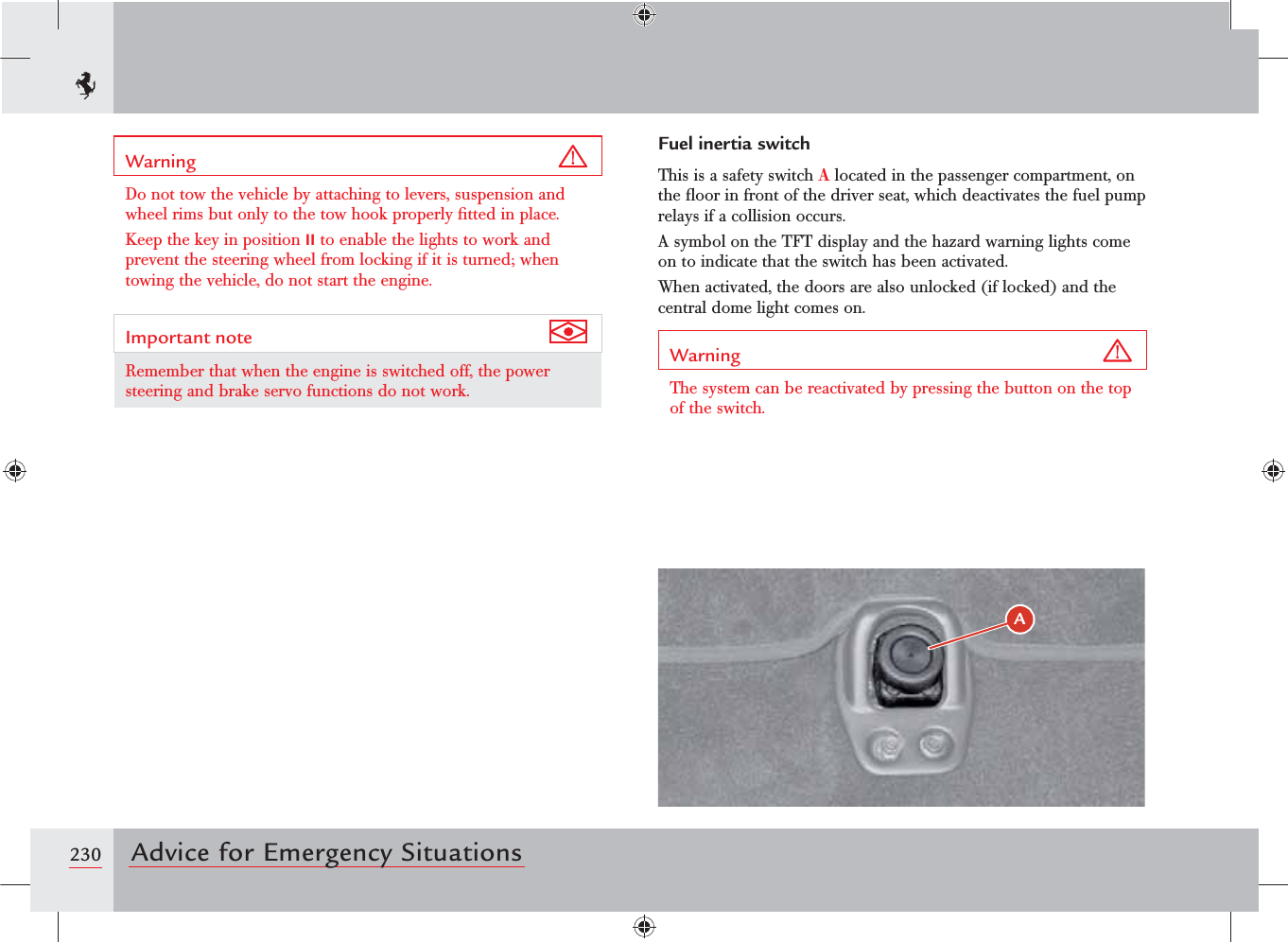

230 Advice for Emergency SituationsWarning Do not tow the vehicle by attaching to levers, suspension and wheel rims but only to the tow hook properly fitted in place.Keep the key in position II to enable the lights to work and prevent the steering wheel from locking if it is turned; when towing the vehicle, do not start the engine.Important note Remember that when the engine is switched off, the power steering and brake servo functions do not work.Fuel inertia switchThis is a safety switch A located in the passenger compartment, on the floor in front of the driver seat, which deactivates the fuel pump relays if a collision occurs.A symbol on the TFT display and the hazard warning lights come on to indicate that the switch has been activated.When activated, the doors are also unlocked (if locked) and the central dome light comes on.Warning The system can be reactivated by pressing the button on the top of the switch."
2314Advice for Emergency SituationsBattery quick releaseIt is on the battery and can be accessed by opening the engine compartment lid and removing the central cosmetic shield. Use the locking lever B to loosen the clamp.Separate the clamp from the battery to disconnect the battery and the electrical system.Warning The battery master switch must only be used if the battery conditioner cannot be connected.Warning Place the clamp so that it does not come into contact with the battery pole or other metal parts of the vehicle.Disconnecting the batteryBefore disconnecting the battery, deactivate the electronic alarm using the remote control.Warning The battery quick release connector may only be used by qualified personnel, should it not be possible to connect the battery conditioner. The battery is in integral component of the vehicle, and required the vehicle itself to be used frequently in order to function correctly. Infrequent vehicle usage may reduce battery performance or result in complete battery failure. Constant usage of the specific battery conditioner provided by Ferrari for each model ensures that the original battery installed in the vehicle is kept charged correctly and in working order Warning Never disconnect the battery from the electrical system when the engine is running. Before disconnecting the battery, lower the side windows by at least 2-3 centimetres to avoid damaging the strips when opening and closing the doors.B

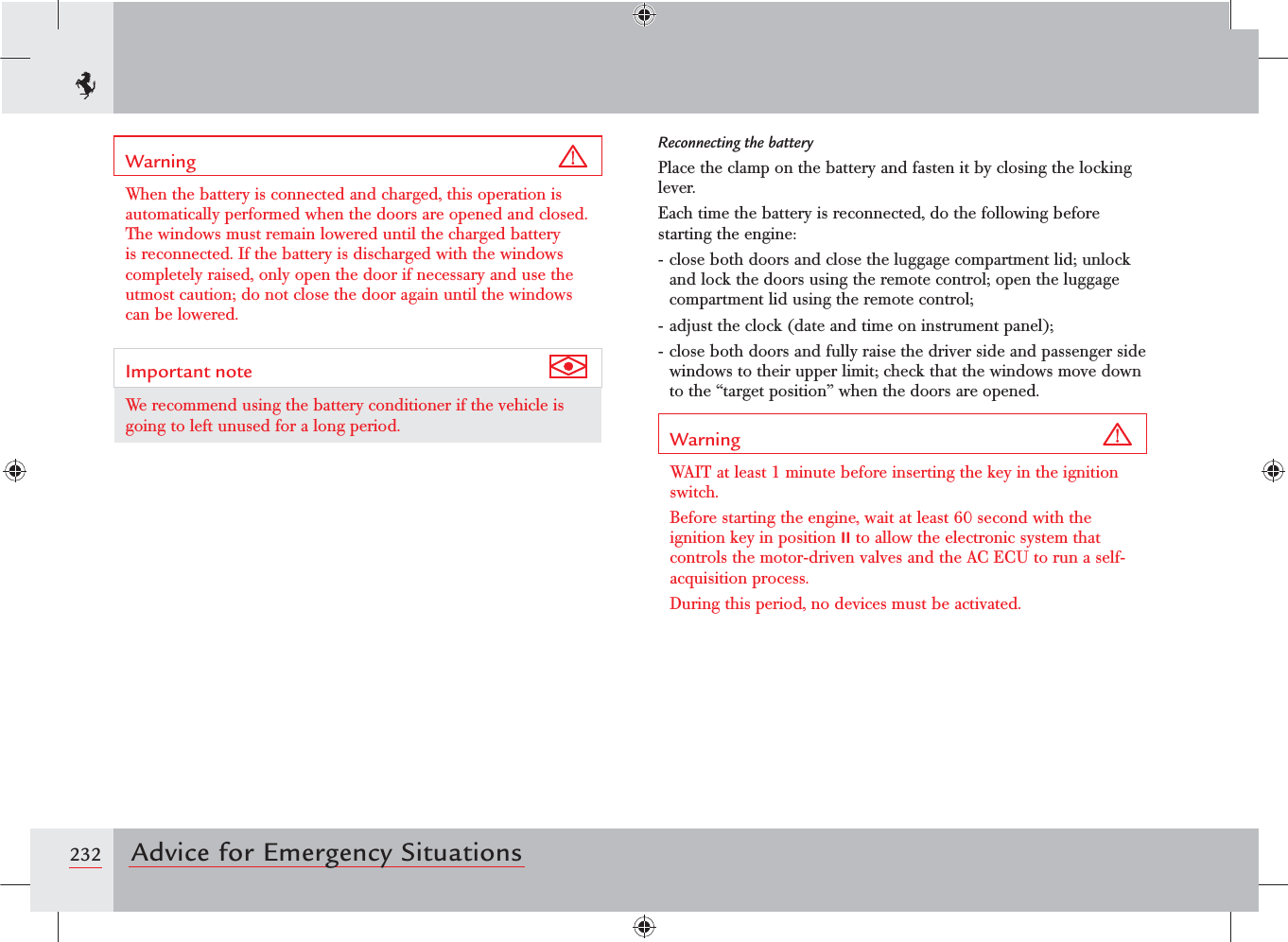

232 Advice for Emergency SituationsWarning When the battery is connected and charged, this operation is automatically performed when the doors are opened and closed. The windows must remain lowered until the charged battery is reconnected. If the battery is discharged with the windows completely raised, only open the door if necessary and use the utmost caution; do not close the door again until the windows can be lowered.Important note We recommend using the battery conditioner if the vehicle is going to left unused for a long period.Reconnecting the batteryPlace the clamp on the battery and fasten it by closing the locking lever.Each time the battery is reconnected, do the following before starting the engine:- close both doors and close the luggage compartment lid; unlock and lock the doors using the remote control; open the luggage compartment lid using the remote control;- adjust the clock (date and time on instrument panel);- close both doors and fully raise the driver side and passenger side windows to their upper limit; check that the windows move down to the “target position” when the doors are opened.Warning WAIT at least 1 minute before inserting the key in the ignition switch.Before starting the engine, wait at least 60 second with the ignition key in position II to allow the electronic system that controls the motor-driven valves and the AC ECU to run a self-acquisition process.During this period, no devices must be activated.

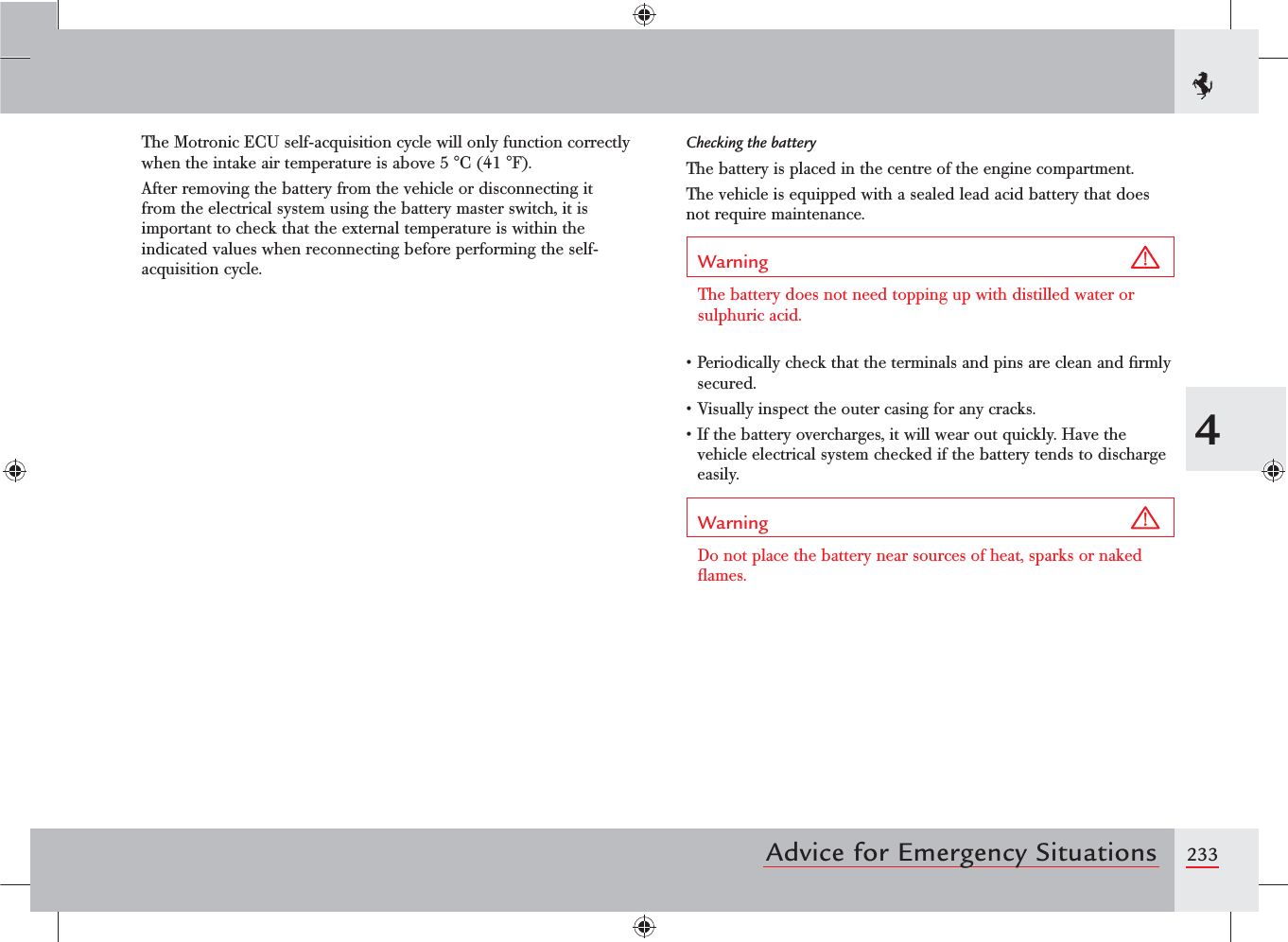

2334Advice for Emergency SituationsThe Motronic ECU self-acquisition cycle will only function correctly when the intake air temperature is above 5 °C (41 °F).After removing the battery from the vehicle or disconnecting it from the electrical system using the battery master switch, it is important to check that the external temperature is within the indicated values when reconnecting before performing the self-acquisition cycle.Checking the batteryThe battery is placed in the centre of the engine compartment.The vehicle is equipped with a sealed lead acid battery that does not require maintenance.Warning The battery does not need topping up with distilled water or sulphuric acid.s0ERIODICALLYCHECKTHATTHETERMINALSANDPINSARECLEANANDlRMLYsecured.s6ISUALLYINSPECTTHEOUTERCASINGFORANYCRACKSs)FTHEBATTERYOVERCHARGESITWILLWEAROUTQUICKLY(AVETHEvehicle electrical system checked if the battery tends to discharge easily.Warning Do not place the battery near sources of heat, sparks or naked flames.
234 Advice for Emergency SituationsEmergency startingIf the battery is flat, you can perform an emergency start by connecting the special jump leads to the battery of another vehicle, a portable jump starter or an external battery.Important note Emergency starting can only be performed with batteries with a nominal voltage of 12 V.Important note For emergency starting, only use leads that do not allow reverse polarity, with sufficient cross-section and insulated clamps.To perform an emergency start, do the following:s!PPLYTHEPARKINGBRAKEs$EACTIVATEALLTHEELECTRICALDEVICESs2EMOVECOVEROFTHEFUSEBOXLOCATEDABOVETHEPOSITIVETERMINALon the right side of the battery.s)FEMERGENCYSTARTINGISPERFORMEDUSINGTHEBATTERYOFANOTHERvehicle, leave the engine on the other vehicle to idle.s5SINGTHEJUMPLEADSCONNECTTHEPOSITIVETERMINALOFTHEBATTERYto the positive terminal of the portable jump starter or external battery going from the battery on your own vehicle.s#ONNECTTHENEGATIVETERMINALOFTHEPORTABLEJUMPSTARTERORexternal battery to an earthing point on your vehicle using the jump lead going from the external battery.s3TARTTHEENGINEs$ISCONNECTTHEJUMPLEADFROMTHEEARTHINGPOINTANDTHENFROMthe positive terminal of the battery on your vehicle.Warning The emergency start procedure must only be performed by a specialised Ferrari Service Network centre.

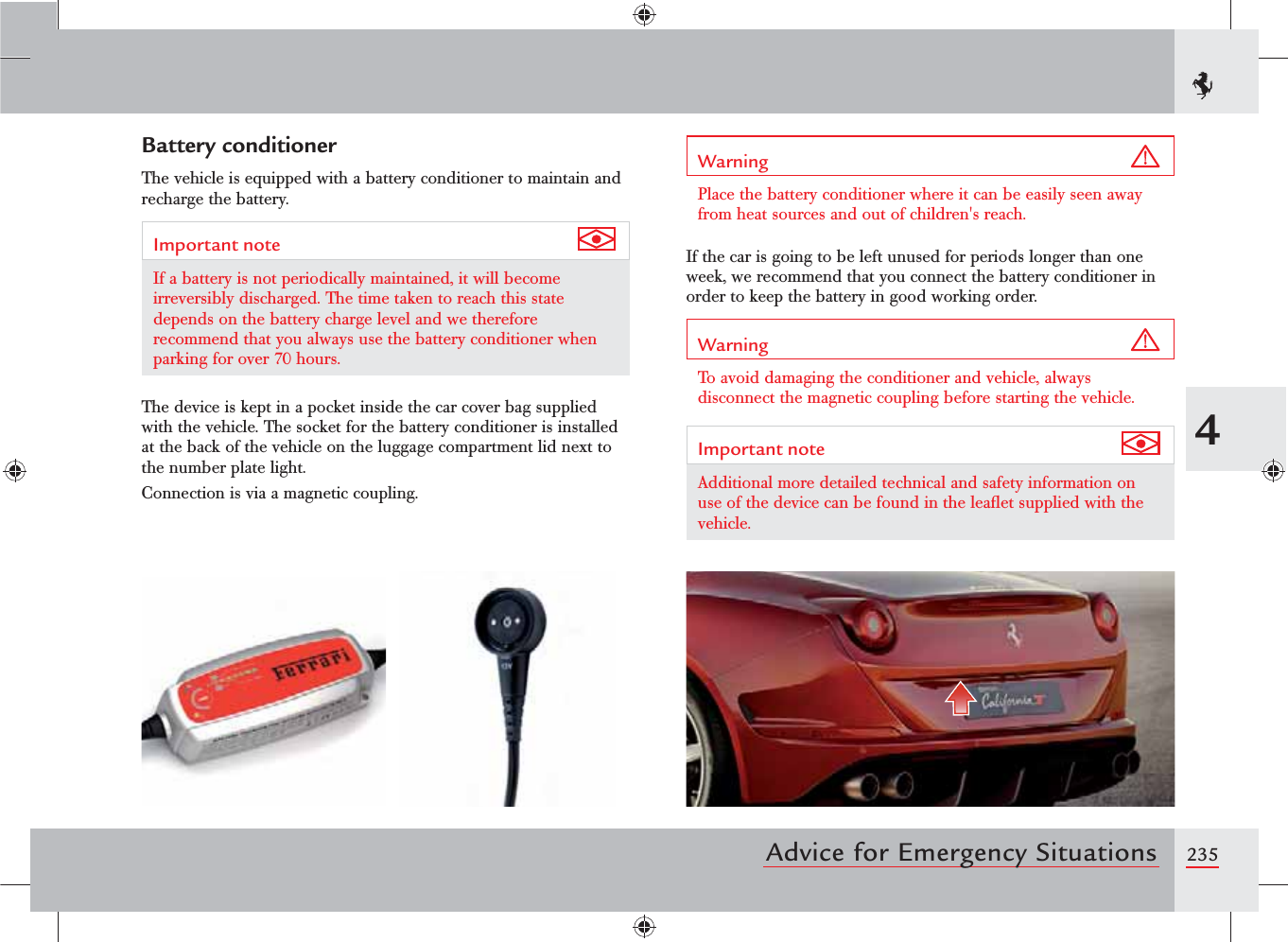

2354Advice for Emergency SituationsBattery conditionerThe vehicle is equipped with a battery conditioner to maintain and recharge the battery. Important note If a battery is not periodically maintained, it will become irreversibly discharged. The time taken to reach this state depends on the battery charge level and we therefore recommend that you always use the battery conditioner when parking for over 70 hours.The device is kept in a pocket inside the car cover bag supplied with the vehicle. The socket for the battery conditioner is installed at the back of the vehicle on the luggage compartment lid next to the number plate light.Connection is via a magnetic coupling.Warning Place the battery conditioner where it can be easily seen away from heat sources and out of children's reach.If the car is going to be left unused for periods longer than one week, we recommend that you connect the battery conditioner in order to keep the battery in good working order.Warning To avoid damaging the conditioner and vehicle, always disconnect the magnetic coupling before starting the vehicle.Important note Additional more detailed technical and safety information on use of the device can be found in the leaflet supplied with the vehicle.

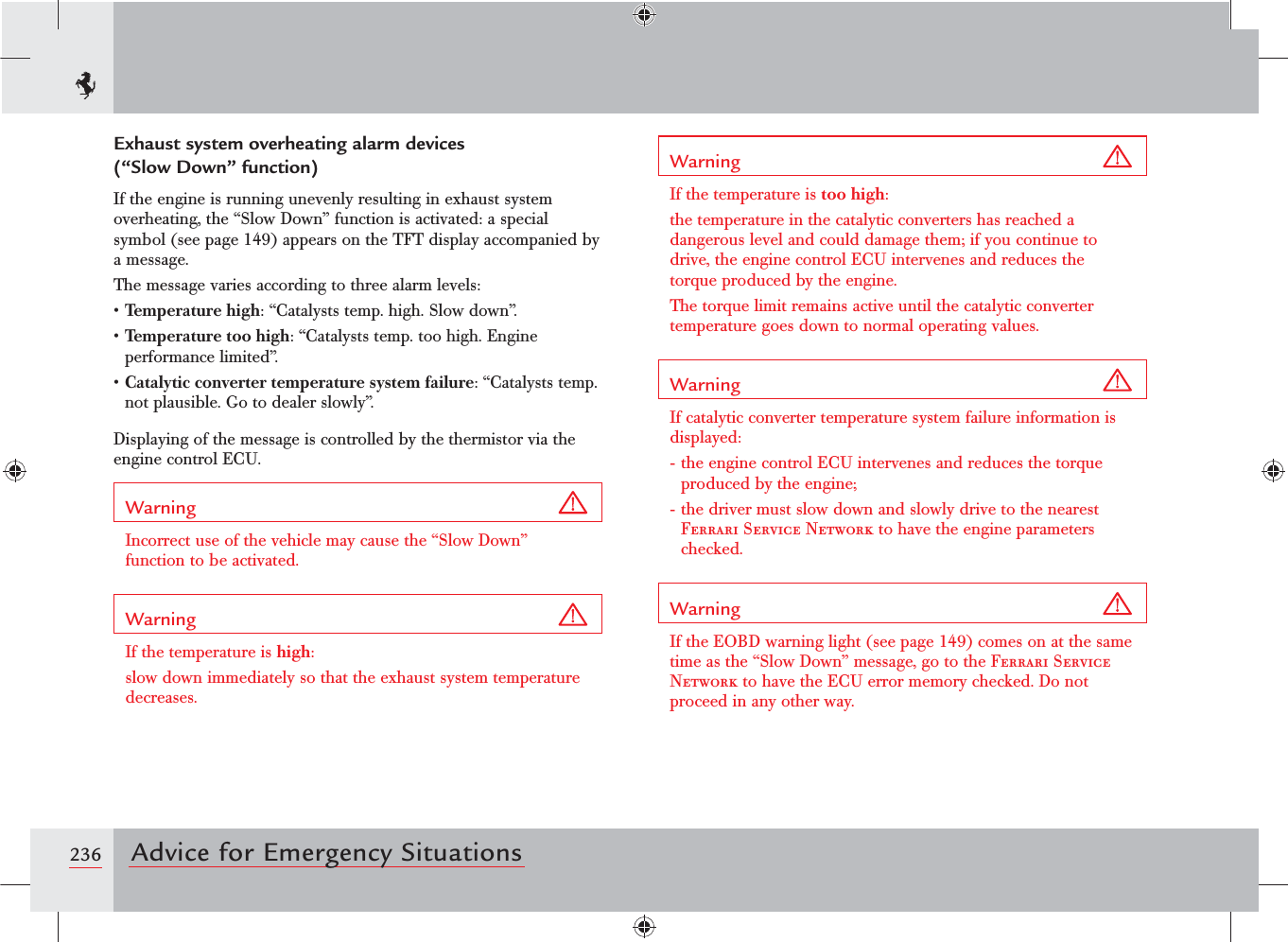

236 Advice for Emergency SituationsExhaust system overheating alarm devices (“Slow Down” function)If the engine is running unevenly resulting in exhaust system overheating, the “Slow Down” function is activated: a special symbol (see page 149) appears on the TFT display accompanied by a message.The message varies according to three alarm levels:sTemperature high: “Catalysts temp. high. Slow down”.sTemperature too high: “Catalysts temp. too high. Engine performance limited”.sCatalytic converter temperature system failure: “Catalysts temp. not plausible. Go to dealer slowly”.Displaying of the message is controlled by the thermistor via the engine control ECU.Warning Incorrect use of the vehicle may cause the “Slow Down” function to be activated.Warning If the temperature is high:slow down immediately so that the exhaust system temperature decreases.Warning If the temperature is too high: the temperature in the catalytic converters has reached a dangerous level and could damage them; if you continue to drive, the engine control ECU intervenes and reduces the torque produced by the engine.The torque limit remains active until the catalytic converter temperature goes down to normal operating values.Warning If catalytic converter temperature system failure information is displayed:- the engine control ECU intervenes and reduces the torque produced by the engine;- the driver must slow down and slowly drive to the nearest Ferrari Service Network to have the engine parameters checked.Warning If the EOBD warning light (see page 149) comes on at the same time as the “Slow Down” message, go to the Ferrari Service Network to have the ECU error memory checked. Do not proceed in any other way.
2374Advice for Emergency SituationsClutch overheat alarm devicesHigh performance use of the vehicle at high engine speeds for prolonged periods and at high ambient temperatures may cause the DCT gearbox clutch to overheat. In this case, the following safety warnings will be displayed on the TFT display, corresponding to two different alarm levels:- The message “Clutch overheated”.- The message “Clutch overheated” accompanied by an audible warning signal.When the message “Clutch overheated” is displayed, the driver may notice a difference in the behaviour of the system during gearshifts and/or during standing starts.Important note Certain high performance actions (such as, but not limited to: “LAUNCH” control start, standing start with wheelspin with Manettino set to ESC OFF, etc.) may be inhibited to prevent excessive overheating of the clutches: the system warns the driver that the action is not permitted, visualising the message “Operation not admissible” on the TFT display.Warning As soon as any of the warnings described above appear on the TFT display, the driver must slow down and continue driving at an engine speed between 2000 and 3000 rpm and minimising gear shift frequency to allow the clutches to cool down as quickly as possible, and maintain these driving conditions until the message “Clutch overheated” is no longer displayed.Engine malfunction alarm devicesIf the “Engine diagnostic system failure” (EOBD) warning light flashes or illuminates permanently while the engine is running, it indicates that the engine or the emission control system may be malfunctioning.The electronic system detects and isolates the error preventing damage to the engine or the production of harmful emissions.Warning When the “engine diagnostic system failure” warning light comes on, engine performance may be considerably reduced.Drive carefully, avoiding sudden acceleration and high speeds.Contact the Ferrari Service Network immediately.C utcherhe te

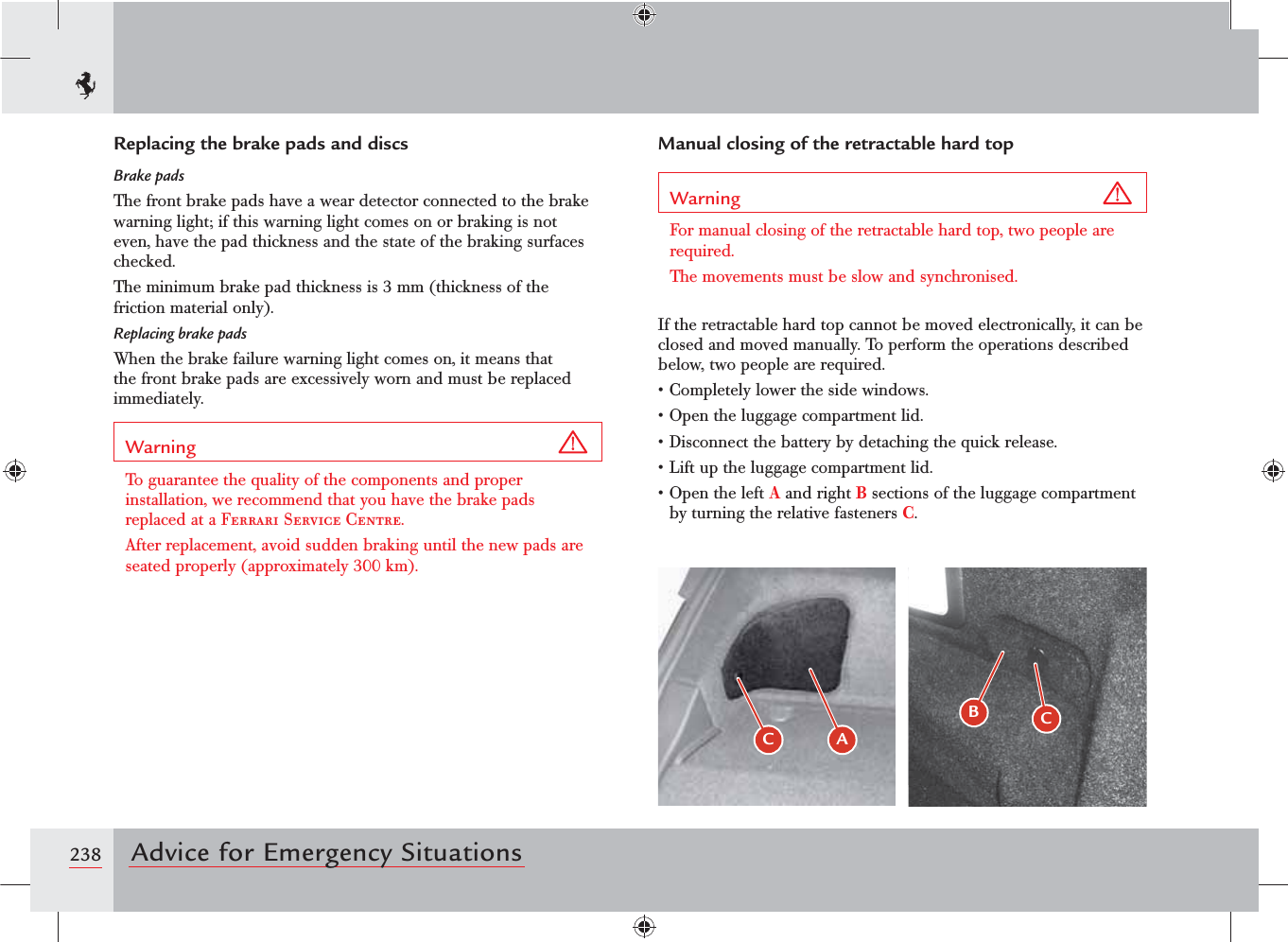

238 Advice for Emergency SituationsManual closing of the retractable hard topWarning For manual closing of the retractable hard top, two people are required.The movements must be slow and synchronised.If the retractable hard top cannot be moved electronically, it can be closed and moved manually. To perform the operations described below, two people are required.s#OMPLETELYLOWERTHESIDEWINDOWSs/PENTHELUGGAGECOMPARTMENTLIDs$ISCONNECTTHEBATTERYBYDETACHINGTHEQUICKRELEASEs,IFTUPTHELUGGAGECOMPARTMENTLIDs/PENTHELEFTA and right B sections of the luggage compartment by turning the relative fasteners C.Replacing the brake pads and discsBrake padsThe front brake pads have a wear detector connected to the brake warning light; if this warning light comes on or braking is not even, have the pad thickness and the state of the braking surfaces checked.The minimum brake pad thickness is 3 mm (thickness of the friction material only).Replacing brake padsWhen the brake failure warning light comes on, it means that the front brake pads are excessively worn and must be replaced immediately.Warning To guarantee the quality of the components and proper installation, we recommend that you have the brake pads replaced at a Ferrari Service Centre.After replacement, avoid sudden braking until the new pads are seated properly (approximately 300 km).$ "BC

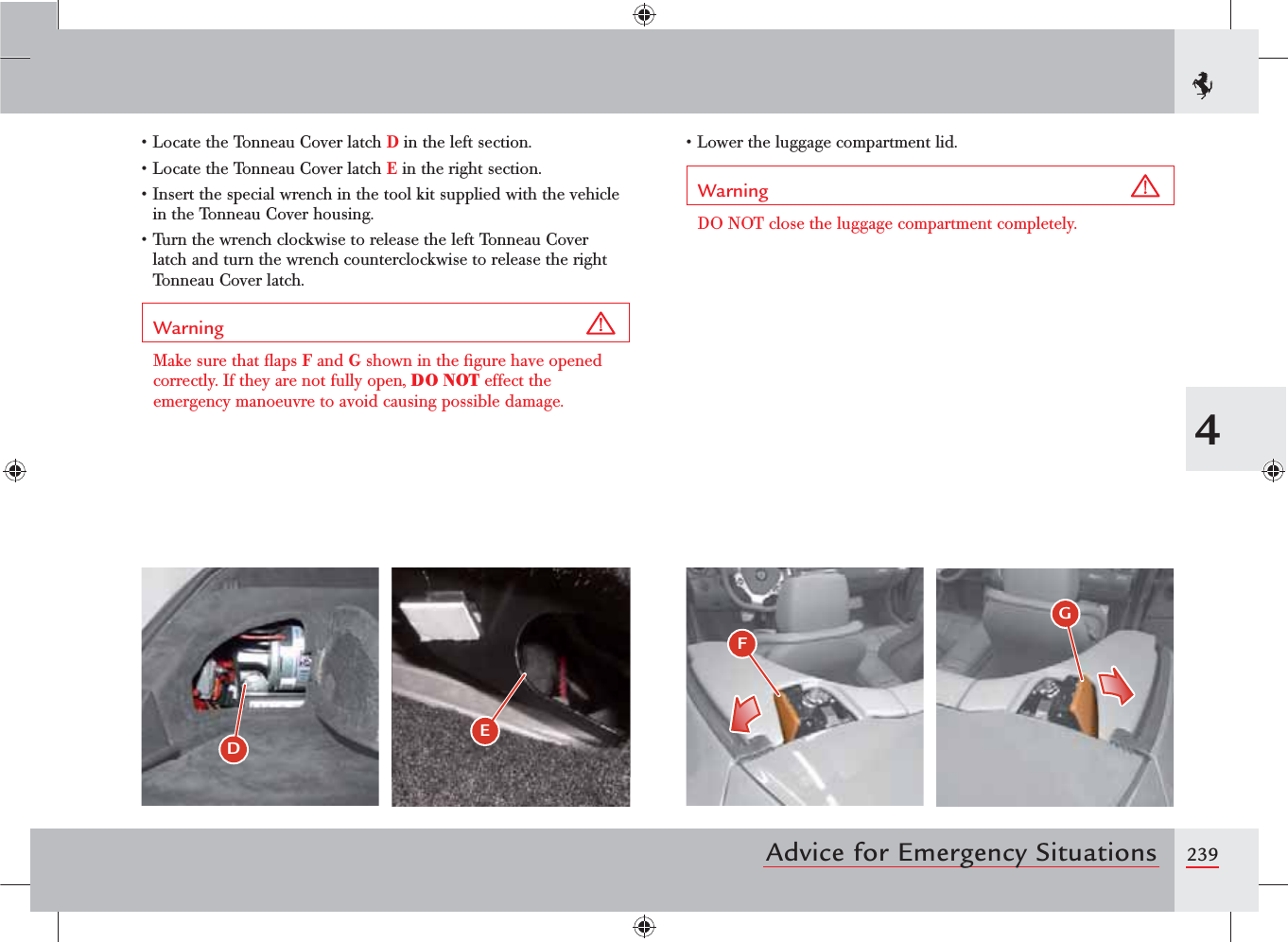

2394Advice for Emergency Situationss,OCATETHE4ONNEAU#OVERLATCHD in the left section.s,OCATETHE4ONNEAU#OVERLATCHE in the right section.s)NSERTTHESPECIALWRENCHINTHETOOLKITSUPPLIEDWITHTHEVEHICLEin the Tonneau Cover housing.s4URNTHEWRENCHCLOCKWISETORELEASETHELEFT4ONNEAU#OVERlatch and turn the wrench counterclockwise to release the right Tonneau Cover latch.Warning Make sure that flaps F and G shown in the figure have opened correctly. If they are not fully open, DO NOT effect the emergency manoeuvre to avoid causing possible damage.s,OWERTHELUGGAGECOMPARTMENTLIDWarning DO NOT close the luggage compartment completely.%E '(

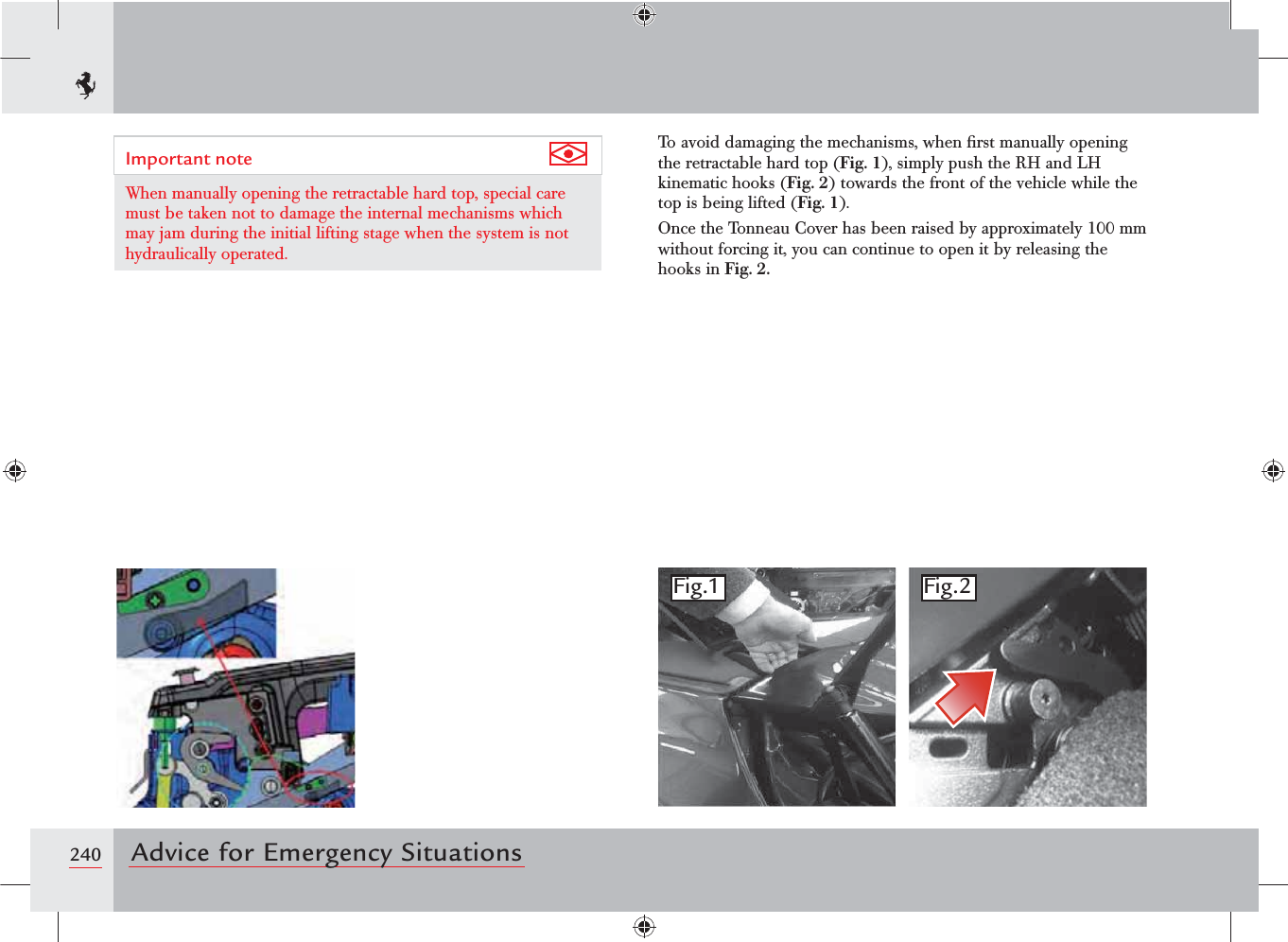

240 Advice for Emergency SituationsImportant note When manually opening the retractable hard top, special care must be taken not to damage the internal mechanisms which may jam during the initial lifting stage when the system is not hydraulically operated.To avoid damaging the mechanisms, when first manually opening the retractable hard top (Fig. 1), simply push the RH and LH kinematic hooks (Fig. 2) towards the front of the vehicle while the top is being lifted (Fig. 1).Once the Tonneau Cover has been raised by approximately 100 mm without forcing it, you can continue to open it by releasing the hooks in Fig. 2.Fig.1 Fig.2

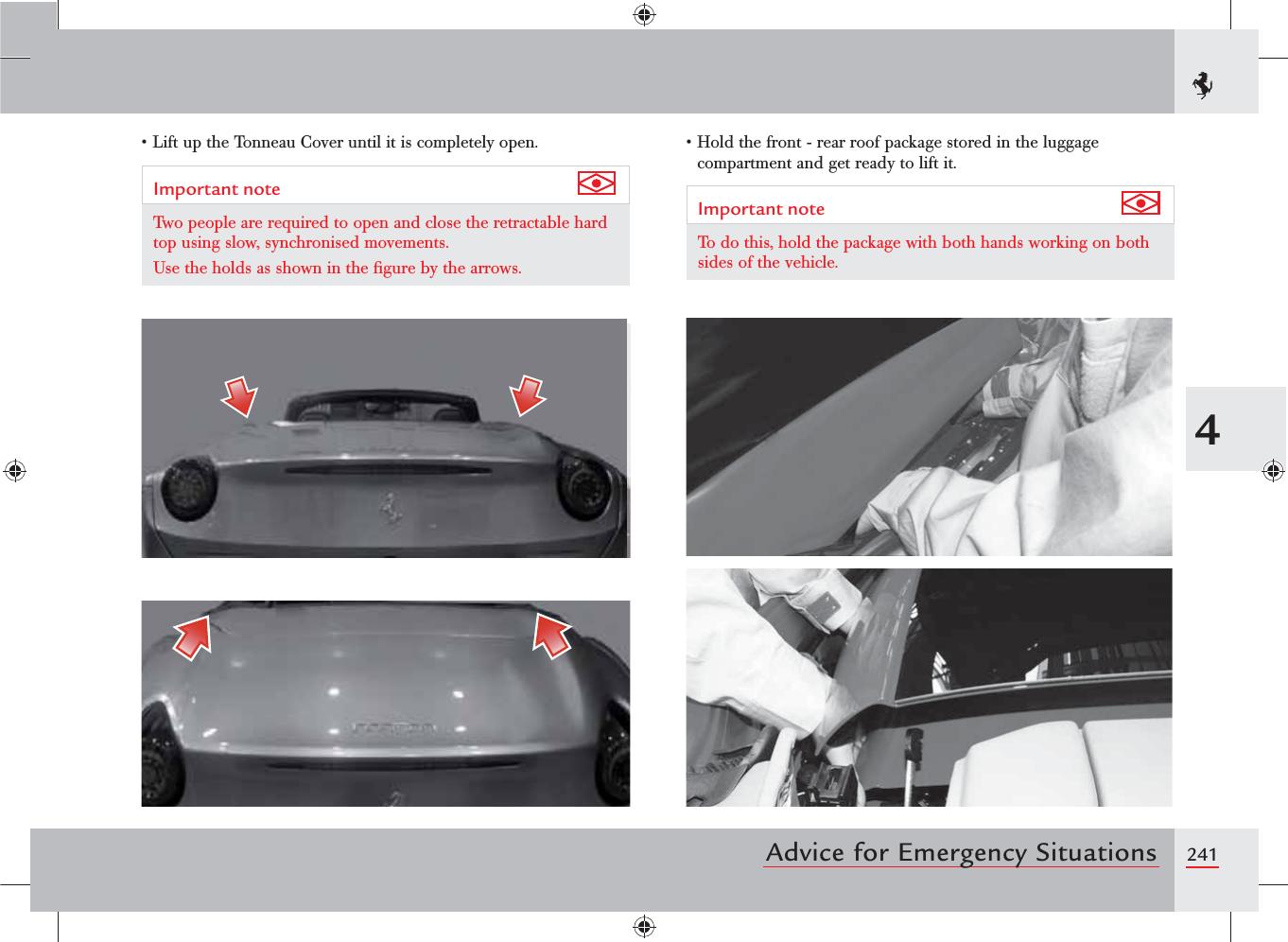

2414Advice for Emergency Situationss,IFTUPTHE4ONNEAU#OVERUNTILITISCOMPLETELYOPENImportant note Two people are required to open and close the retractable hard top using slow, synchronised movements.Use the holds as shown in the figure by the arrows.s(OLDTHEFRONTREARROOFPACKAGESTOREDINTHELUGGAGEcompartment and get ready to lift it.Important note To do this, hold the package with both hands working on both sides of the vehicle.

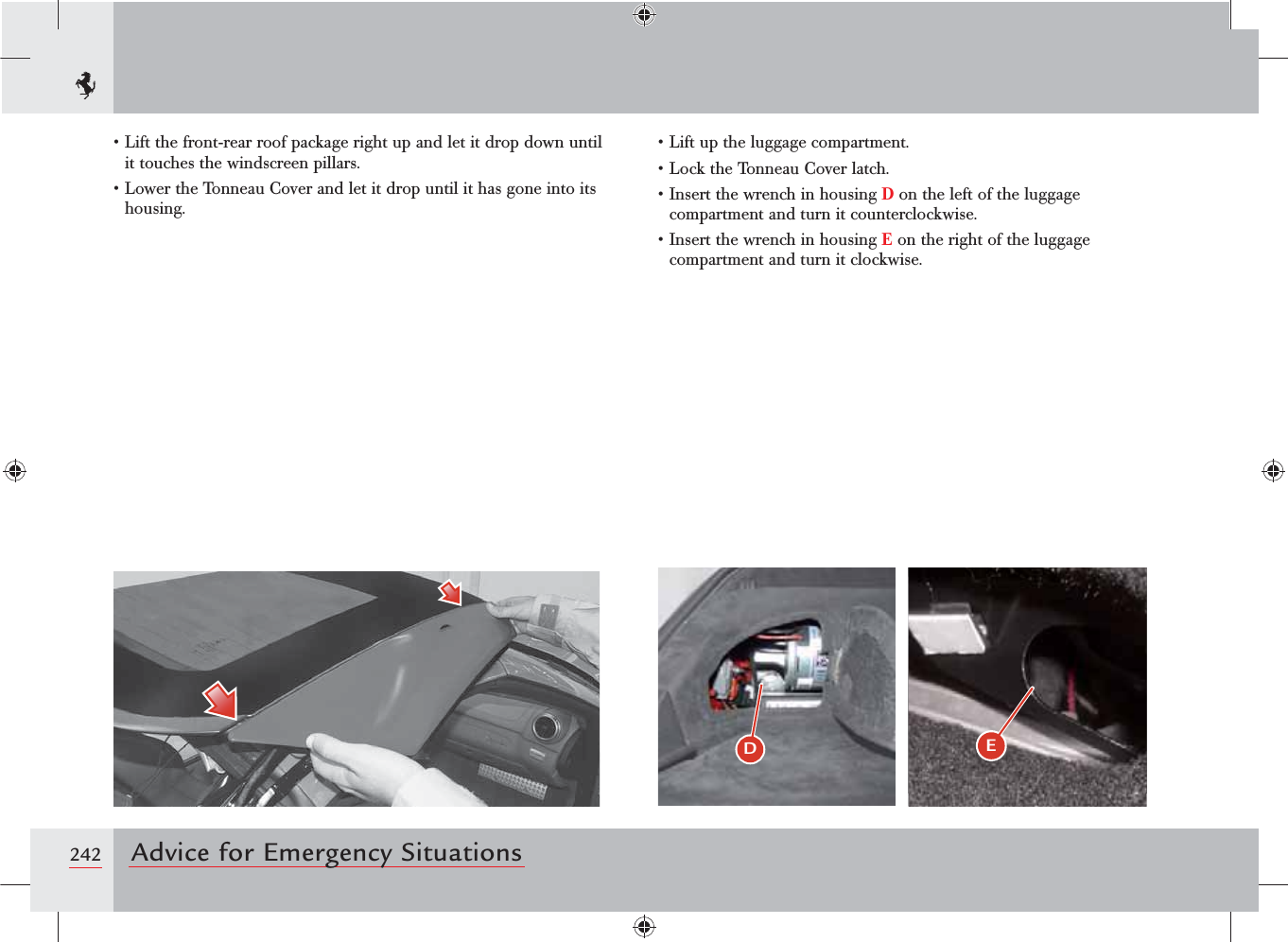

242 Advice for Emergency Situationss,IFTTHEFRONTREARROOFPACKAGERIGHTUPANDLETITDROPDOWNUNTILit touches the windscreen pillars.s,OWERTHE4ONNEAU#OVERANDLETITDROPUNTILITHASGONEINTOITShousing.s,IFTUPTHELUGGAGECOMPARTMENTs,OCKTHE4ONNEAU#OVERLATCHs)NSERTTHEWRENCHINHOUSINGD on the left of the luggage compartment and turn it counterclockwise.s)NSERTTHEWRENCHINHOUSINGE on the right of the luggage compartment and turn it clockwise.%E

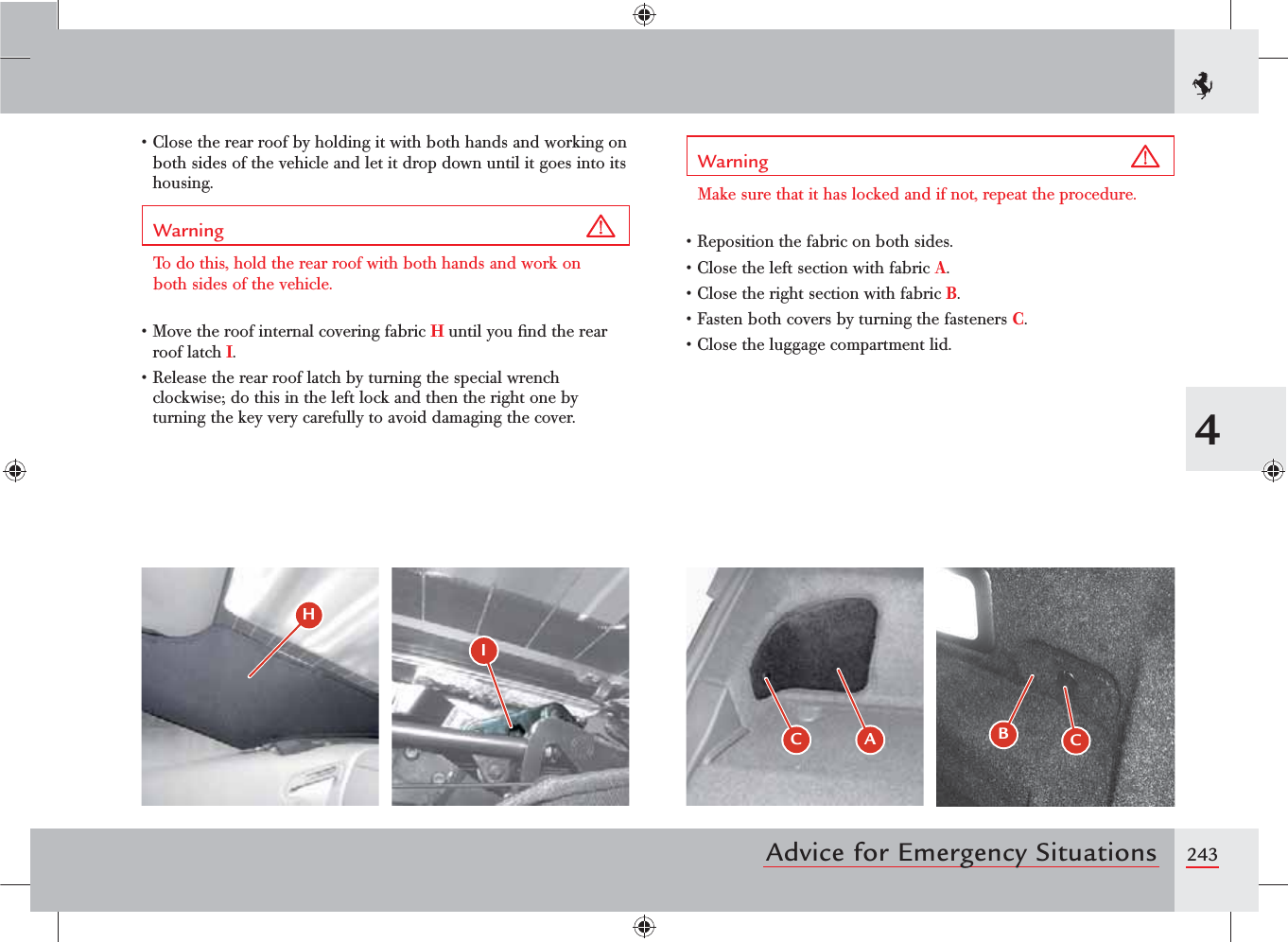

2434Advice for Emergency Situationss#LOSETHEREARROOFBYHOLDINGITWITHBOTHHANDSANDWORKINGONboth sides of the vehicle and let it drop down until it goes into its housing.Warning To do this, hold the rear roof with both hands and work on both sides of the vehicle.s-OVETHEROOFINTERNALCOVERINGFABRICH until you find the rear roof latch I.s2ELEASETHEREARROOFLATCHBYTURNINGTHESPECIALWRENCHclockwise; do this in the left lock and then the right one by turning the key very carefully to avoid damaging the cover.Warning Make sure that it has locked and if not, repeat the procedure.s2EPOSITIONTHEFABRICONBOTHSIDESs#LOSETHELEFTSECTIONWITHFABRICA.s#LOSETHERIGHTSECTIONWITHFABRICB.s&ASTENBOTHCOVERSBYTURNINGTHEFASTENERSC.s#LOSETHELUGGAGECOMPARTMENTLID)*$ "BC

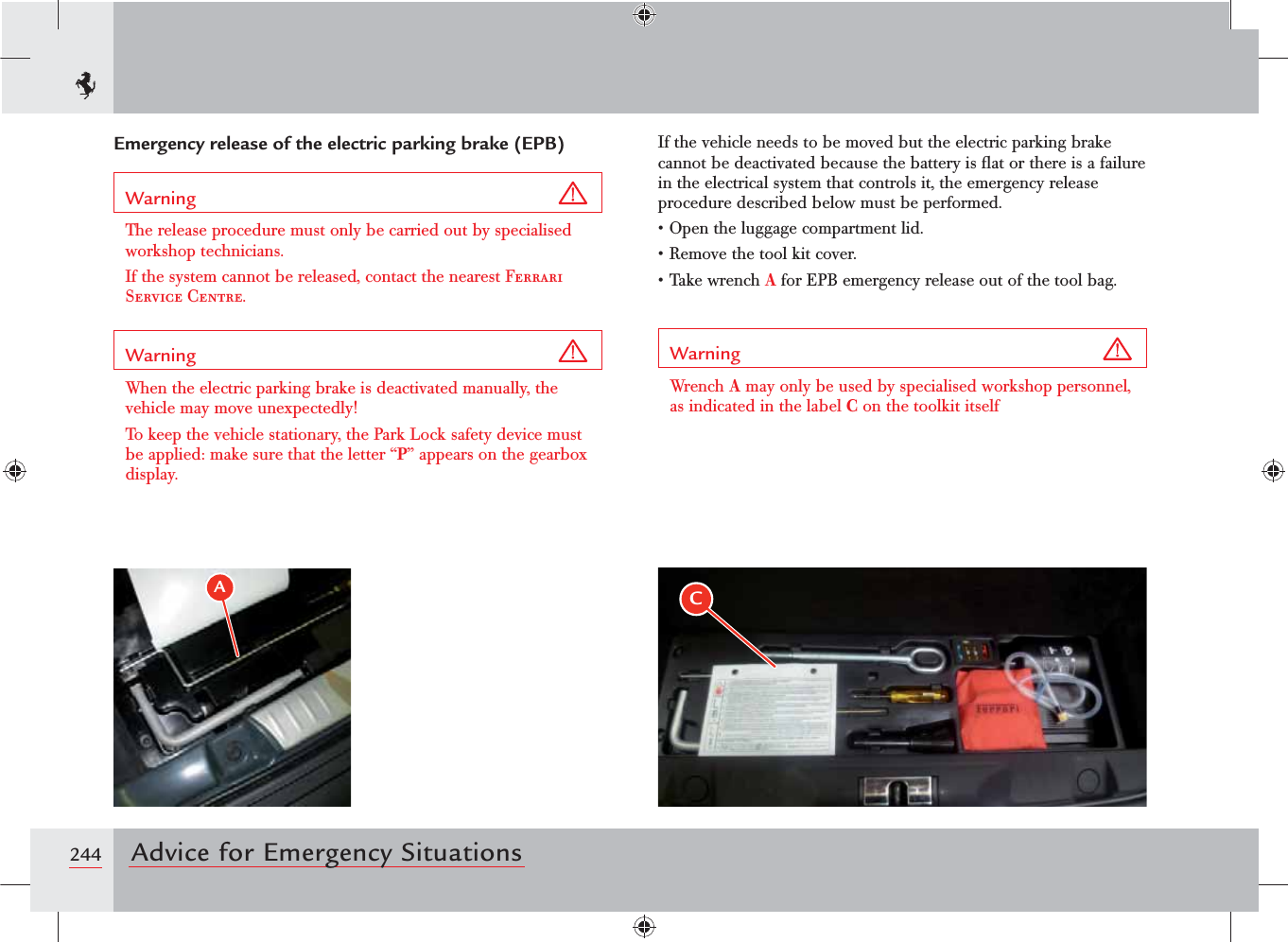

244 Advice for Emergency SituationsEmergency release of the electric parking brake (EPB)Warning The release procedure must only be carried out by specialised workshop technicians.If the system cannot be released, contact the nearest Ferrari Service Centre.Warning When the electric parking brake is deactivated manually, the vehicle may move unexpectedly!To keep the vehicle stationary, the Park Lock safety device must be applied: make sure that the letter “P” appears on the gearbox display.If the vehicle needs to be moved but the electric parking brake cannot be deactivated because the battery is flat or there is a failure in the electrical system that controls it, the emergency release procedure described below must be performed.s/PENTHELUGGAGECOMPARTMENTLIDs2EMOVETHETOOLKITCOVERs4AKEWRENCHA for EPB emergency release out of the tool bag.Warning Wrench A may only be used by specialised workshop personnel, as indicated in the label C on the toolkit itselfAC

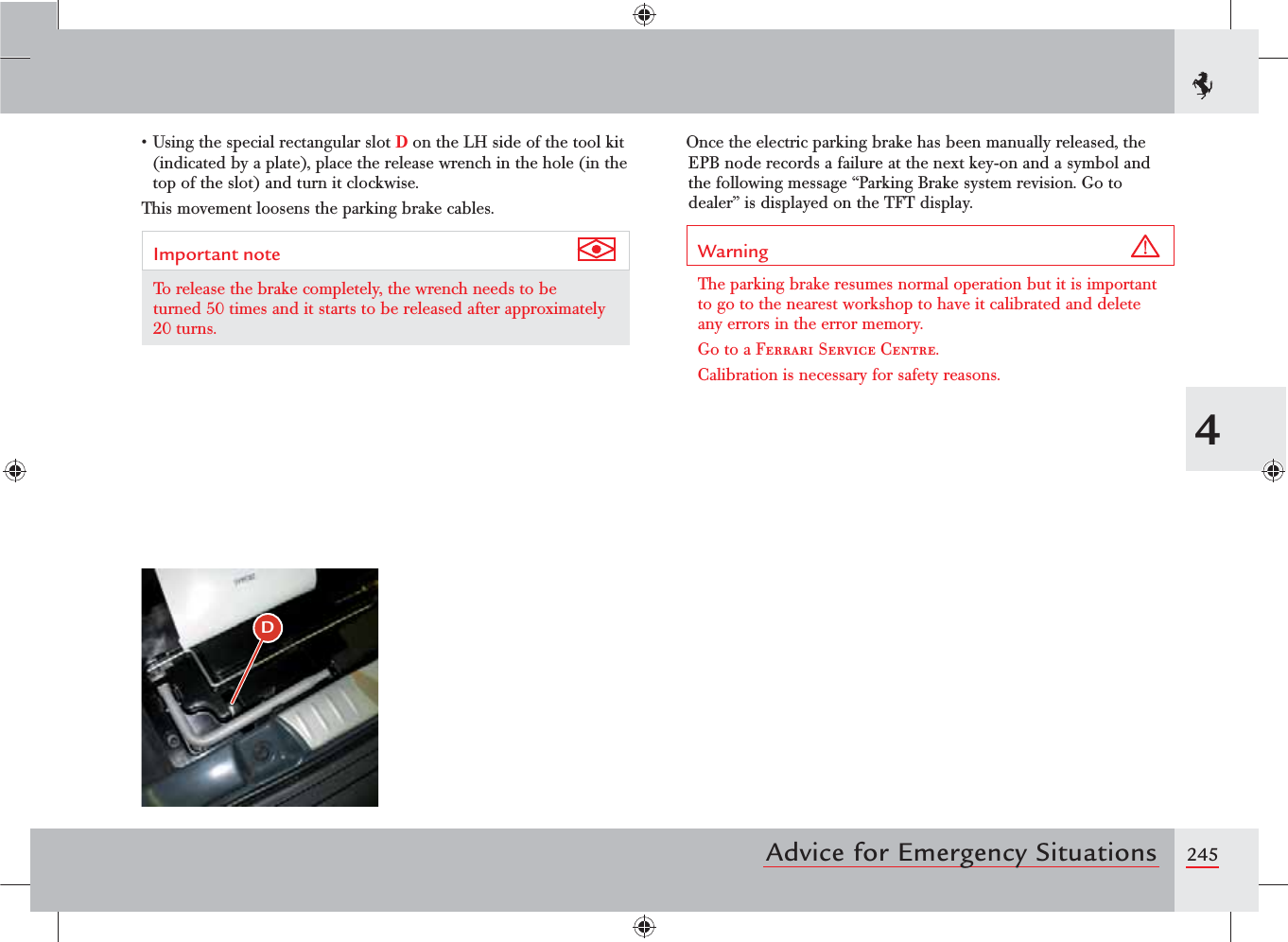

2454Advice for Emergency Situationss5SINGTHESPECIALRECTANGULARSLOTD on the LH side of the tool kit (indicated by a plate), place the release wrench in the hole (in the top of the slot) and turn it clockwise.This movement loosens the parking brake cables.Important note To release the brake completely, the wrench needs to be turned 50 times and it starts to be released after approximately 20 turns.Once the electric parking brake has been manually released, the EPB node records a failure at the next key-on and a symbol and the following message “Parking Brake system revision. Go to dealer” is displayed on the TFT display.Warning The parking brake resumes normal operation but it is important to go to the nearest workshop to have it calibrated and delete any errors in the error memory.Go to a Ferrari Service Centre.Calibration is necessary for safety reasons.D

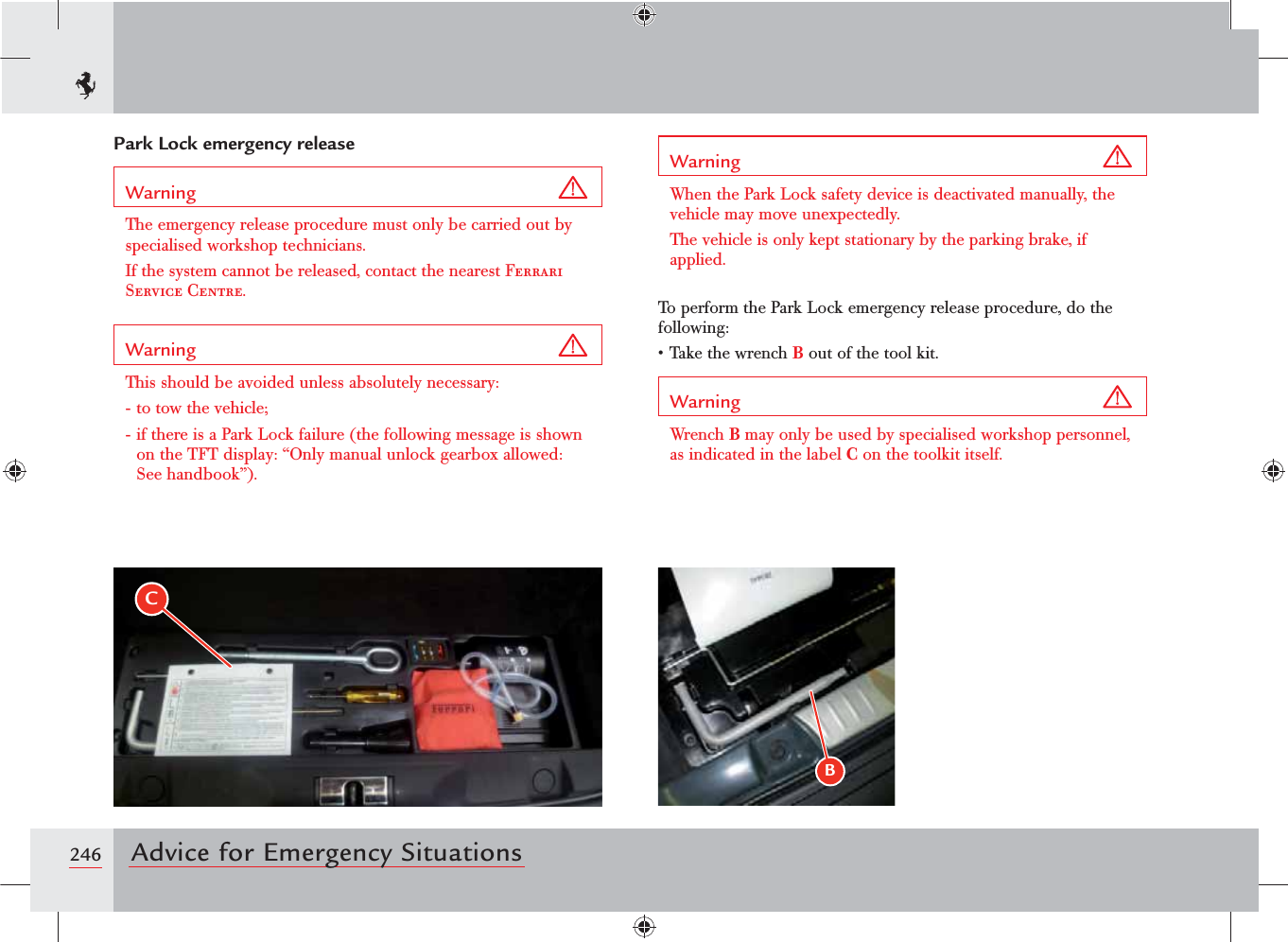

246 Advice for Emergency SituationsPark Lock emergency releaseWarning The emergency release procedure must only be carried out by specialised workshop technicians. If the system cannot be released, contact the nearest Ferrari Service Centre.Warning This should be avoided unless absolutely necessary:- to tow the vehicle;- if there is a Park Lock failure (the following message is shown ONTHE4&4DISPLAYh/NLYMANUALUNLOCKGEARBOXALLOWEDSee handbook”).Warning When the Park Lock safety device is deactivated manually, the vehicle may move unexpectedly.The vehicle is only kept stationary by the parking brake, if applied.To perform the Park Lock emergency release procedure, do the following:s4AKETHEWRENCHB out of the tool kit.Warning Wrench B may only be used by specialised workshop personnel, as indicated in the label C on the toolkit itself.BC

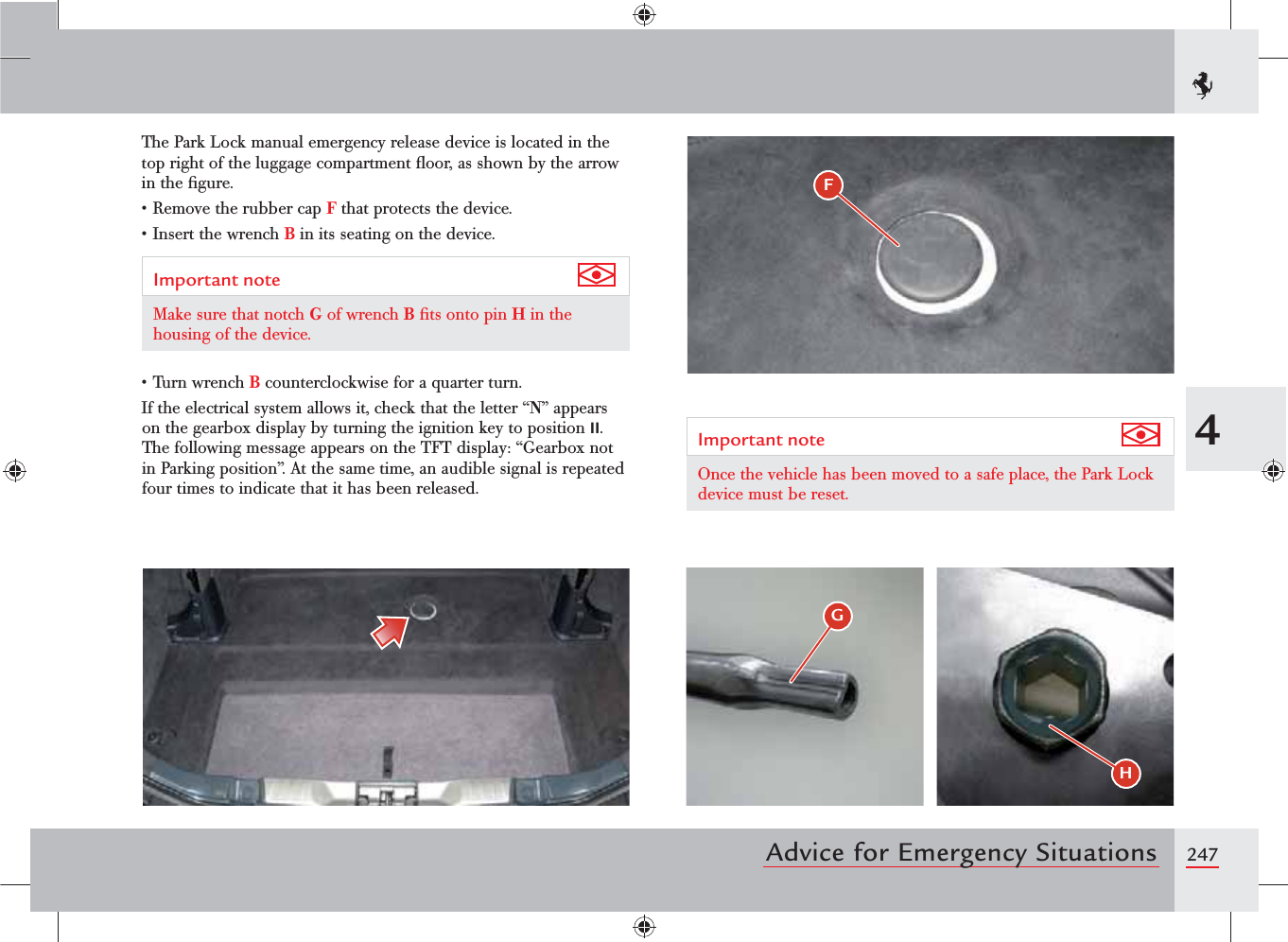

2474Advice for Emergency SituationsThe Park Lock manual emergency release device is located in the top right of the luggage compartment floor, as shown by the arrow in the figure.s2EMOVETHERUBBERCAPF that protects the device.s)NSERTTHEWRENCHB in its seating on the device.Important note Make sure that notch G of wrench B fits onto pin H in the housing of the device.s4URNWRENCHB counterclockwise for a quarter turn.If the electrical system allows it, check that the letter “N” appears on the gearbox display by turning the ignition key to position II. The following message appears on the TFT display: “Gearbox not in Parking position”. At the same time, an audible signal is repeated four times to indicate that it has been released.Important note Once the vehicle has been moved to a safe place, the Park Lock device must be reset.(HF

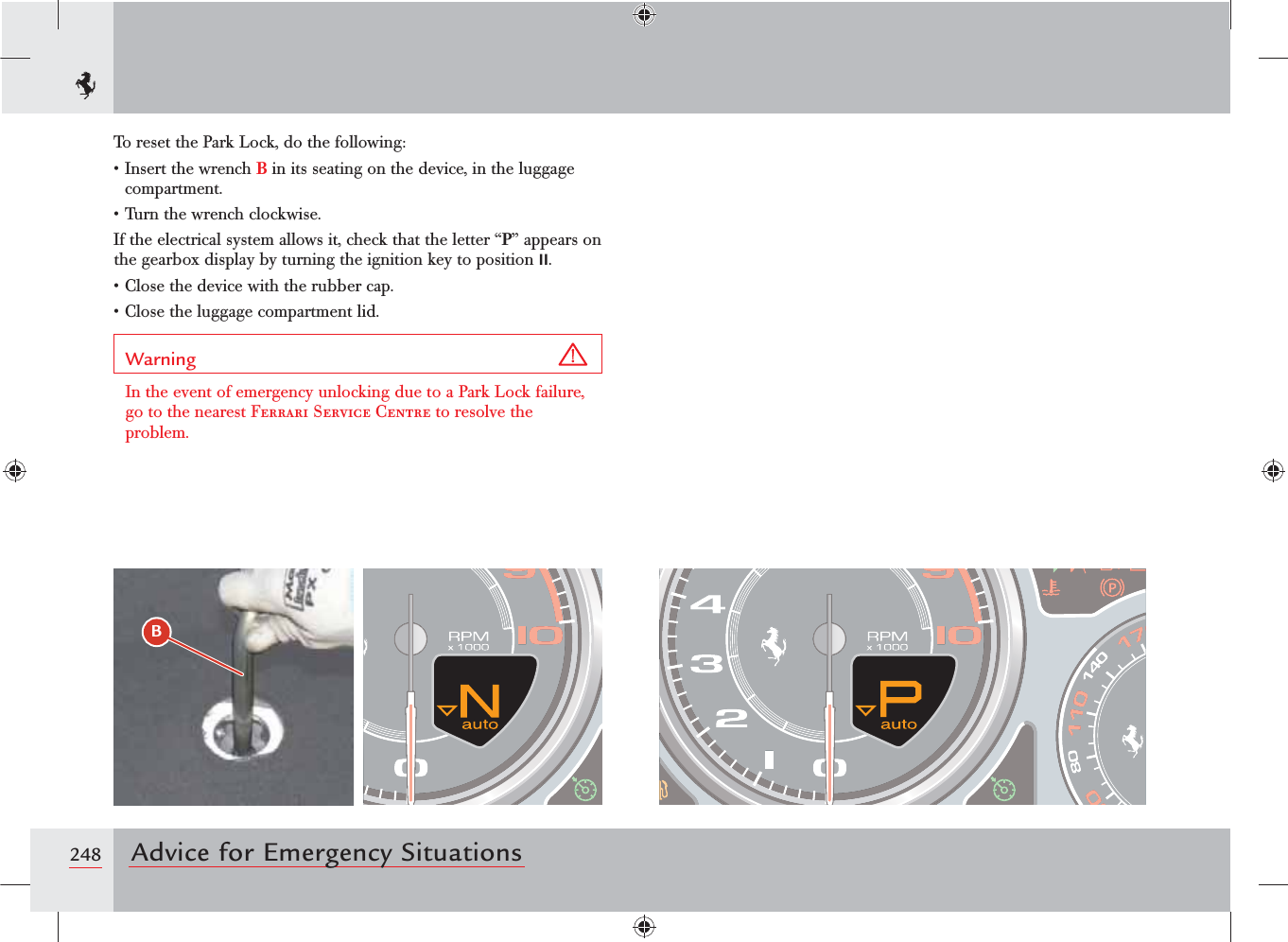

248 Advice for Emergency SituationsTo reset the Park Lock, do the following:s)NSERTTHEWRENCHB in its seating on the device, in the luggage compartment.s4URNTHEWRENCHCLOCKWISEIf the electrical system allows it, check that the letter “P” appears on the gearbox display by turning the ignition key to position II.s#LOSETHEDEVICEWITHTHERUBBERCAPs#LOSETHELUGGAGECOMPARTMENTLIDWarning In the event of emergency unlocking due to a Park Lock failure, go to the nearest Ferrari Service Centre to resolve the problem.B

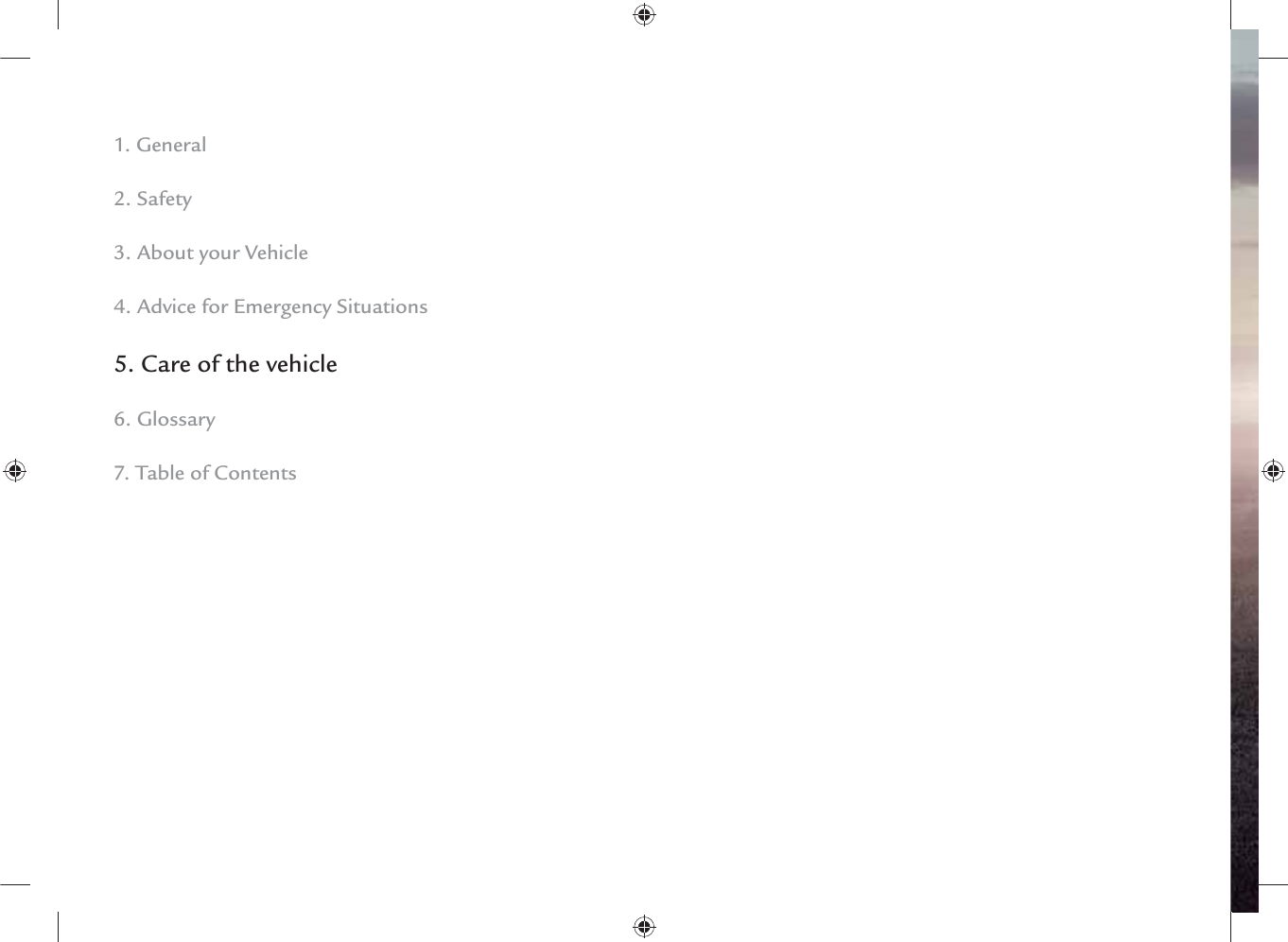

1. General2. Safety3. About your Vehicle4. Advice for Emergency Situations5. Care of the vehicle6. Glossary7. Table of Contents

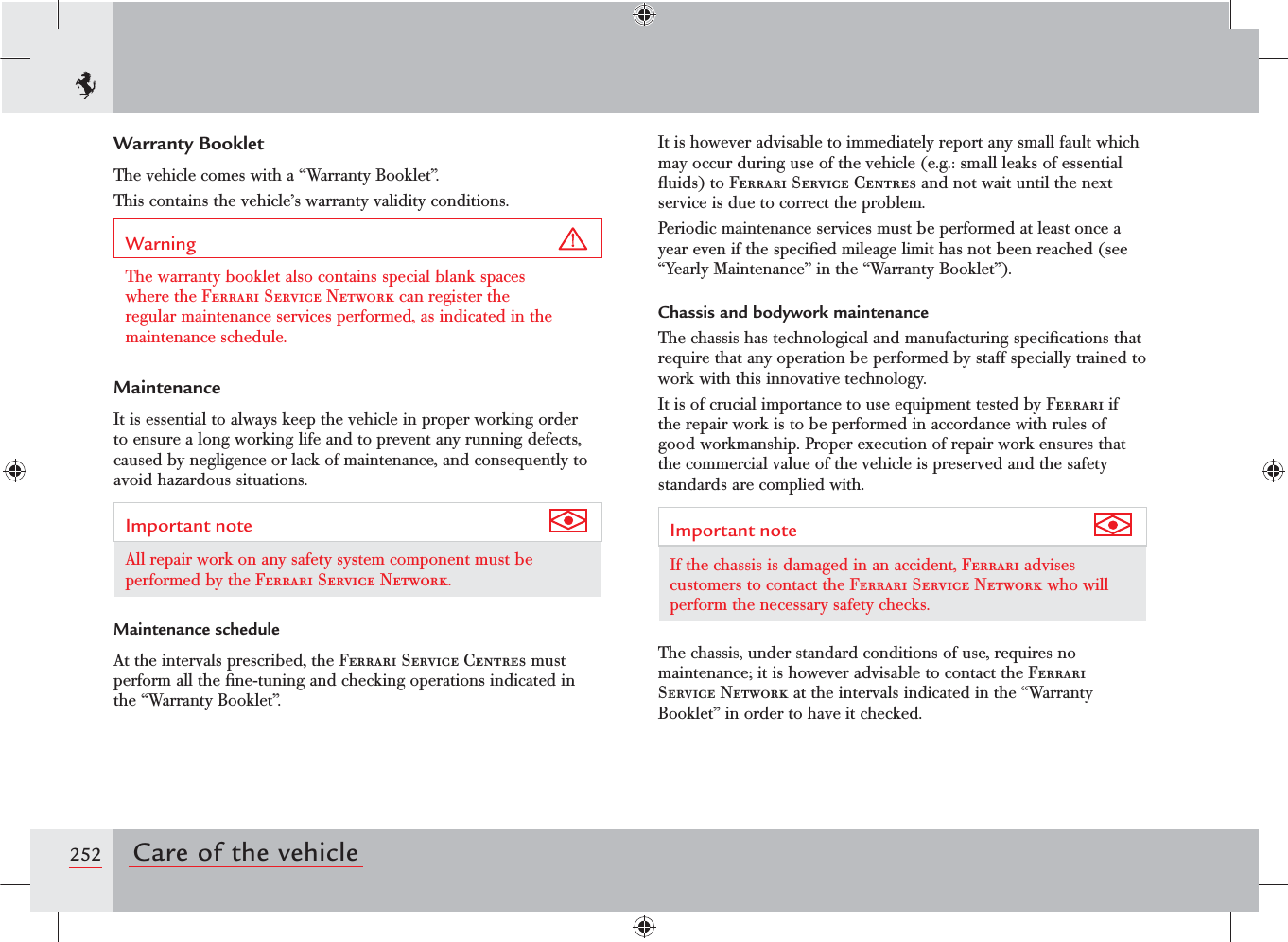

252 Care of the vehicleWarranty BookletThe vehicle comes with a “Warranty Booklet”.This contains the vehicle’s warranty validity conditions.Warning The warranty booklet also contains special blank spaces where the Ferrari Service Network can register the regular maintenance services performed, as indicated in the maintenance schedule.MaintenanceIt is essential to always keep the vehicle in proper working order to ensure a long working life and to prevent any running defects, caused by negligence or lack of maintenance, and consequently to avoid hazardous situations.Important note All repair work on any safety system component must be performed by the Ferrari Service Network.Maintenance scheduleAt the intervals prescribed, the Ferrari Service Centres must perform all the fine-tuning and checking operations indicated in the “Warranty Booklet”.It is however advisable to immediately report any small fault which may occur during use of the vehicle (e.g.: small leaks of essential fluids) to Ferrari Service Centres and not wait until the next service is due to correct the problem.Periodic maintenance services must be performed at least once a year even if the specified mileage limit has not been reached (see “Yearly Maintenance” in the “Warranty Booklet”).Chassis and bodywork maintenanceThe chassis has technological and manufacturing specifications that require that any operation be performed by staff specially trained to work with this innovative technology.It is of crucial importance to use equipment tested by Ferrari if the repair work is to be performed in accordance with rules of good workmanship. Proper execution of repair work ensures that the commercial value of the vehicle is preserved and the safety standards are complied with.Important note If the chassis is damaged in an accident, Ferrari advises customers to contact the Ferrari Service Network who will perform the necessary safety checks.The chassis, under standard conditions of use, requires no maintenance; it is however advisable to contact the Ferrari Service Network at the intervals indicated in the “Warranty Booklet” in order to have it checked.

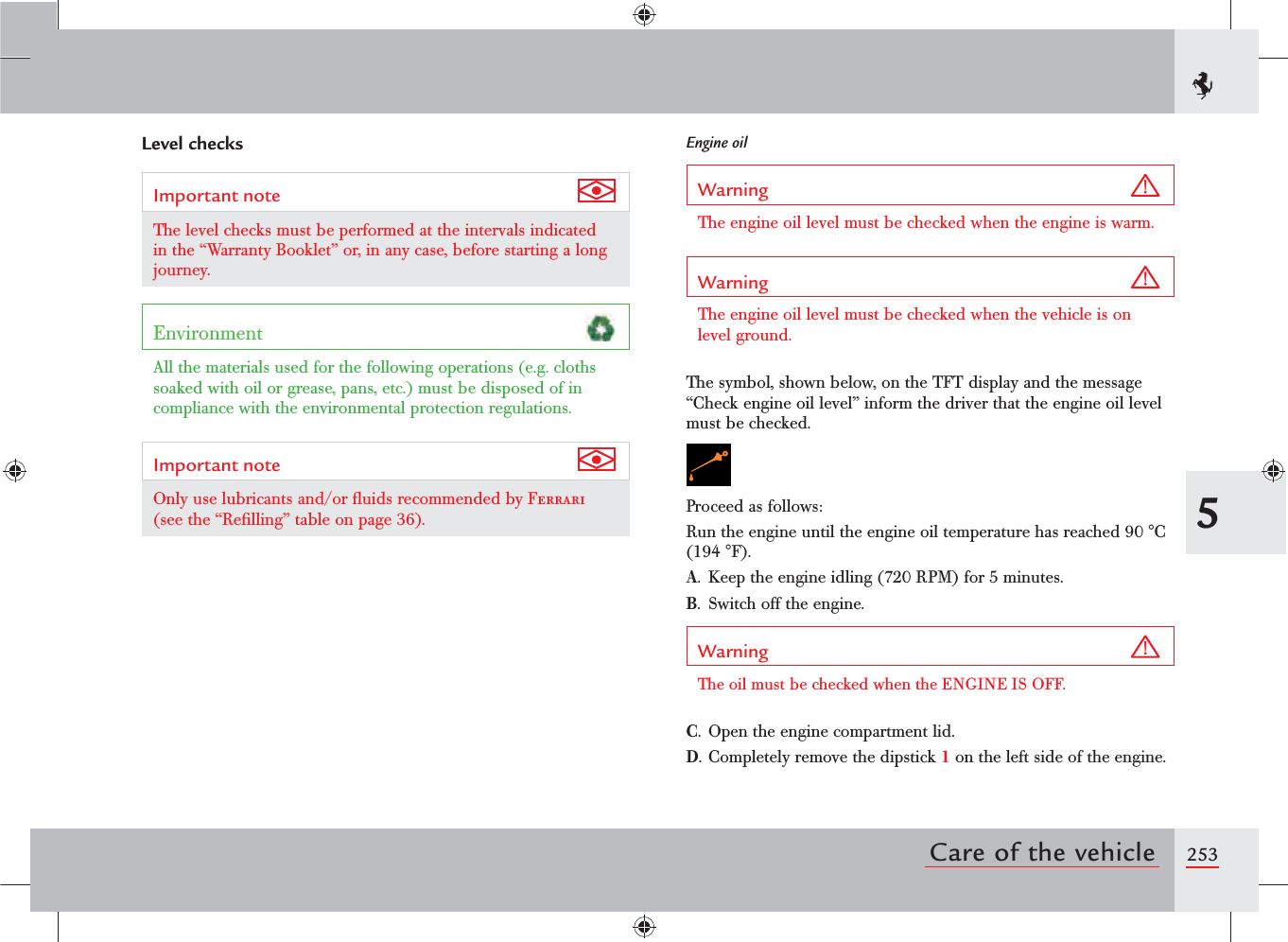

2535Care of the vehicleLevel checksImportant note The level checks must be performed at the intervals indicated in the “Warranty Booklet” or, in any case, before starting a long journey.Environment All the materials used for the following operations (e.g. cloths soaked with oil or grease, pans, etc.) must be disposed of in compliance with the environmental protection regulations.Important note Only use lubricants and/or fluids recommended by Ferrari (see the “Refilling” table on page 36).Engine oilWarning The engine oil level must be checked when the engine is warm.Warning The engine oil level must be checked when the vehicle is on level ground.The symbol, shown below, on the TFT display and the message “Check engine oil level” inform the driver that the engine oil level must be checked.Proceed as follows:Run the engine until the engine oil temperature has reached 90 °C (194 °F).A. Keep the engine idling (720 RPM) for 5 minutes.B. Switch off the engine.Warning The oil must be checked when the ENGINE IS OFF.C. Open the engine compartment lid.D. Completely remove the dipstick 1 on the left side of the engine.

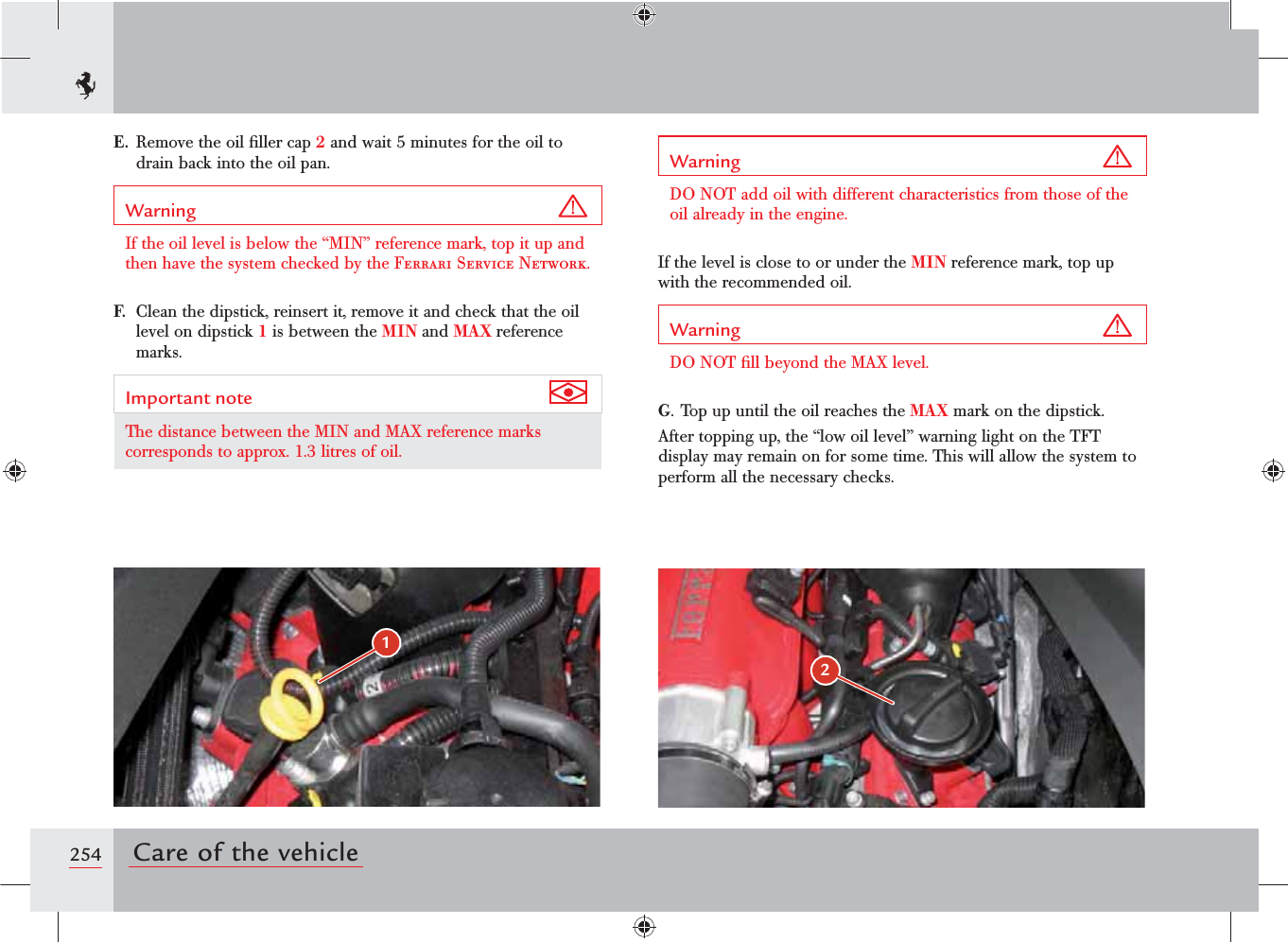

12254 Care of the vehicleE. Remove the oil filler cap 2 and wait 5 minutes for the oil to drain back into the oil pan.Warning If the oil level is below the “MIN” reference mark, top it up and then have the system checked by the Ferrari Service Network.F. Clean the dipstick, reinsert it, remove it and check that the oil level on dipstick 1 is between the MIN and MAX reference marks.Important note The distance between the MIN and MAX reference marks corresponds to approx. 1.3 litres of oil.Warning DO NOT add oil with different characteristics from those of the oil already in the engine.If the level is close to or under the MIN reference mark, top up with the recommended oil.Warning DO NOT fill beyond the MAX level.G. Top up until the oil reaches the MAX mark on the dipstick.After topping up, the “low oil level” warning light on the TFT display may remain on for some time. This will allow the system to perform all the necessary checks.

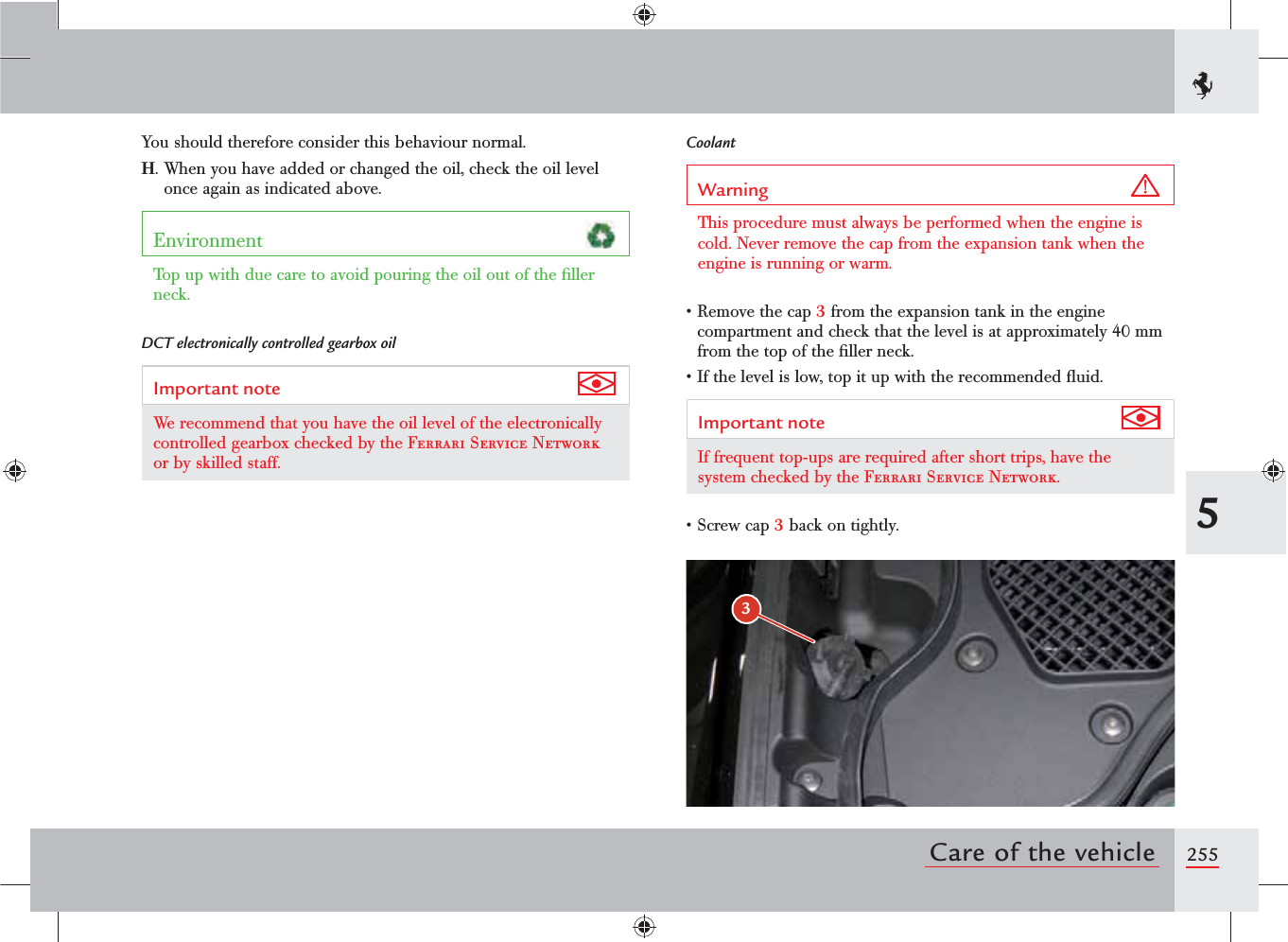

32555Care of the vehicleYou should therefore consider this behaviour normal.H. When you have added or changed the oil, check the oil level once again as indicated above.Environment Top up with due care to avoid pouring the oil out of the filler neck.DCT electronically controlled gearbox oilImportant note We recommend that you have the oil level of the electronically controlled gearbox checked by the Ferrari Service Network or by skilled staff.CoolantWarning This procedure must always be performed when the engine is cold. Never remove the cap from the expansion tank when the engine is running or warm.s2EMOVETHECAP3 from the expansion tank in the engine compartment and check that the level is at approximately 40 mm from the top of the filler neck.s)FTHELEVELISLOWTOPITUPWITHTHERECOMMENDEDmUIDImportant note If frequent top-ups are required after short trips, have the system checked by the Ferrari Service Network.s3CREWCAP3 back on tightly.

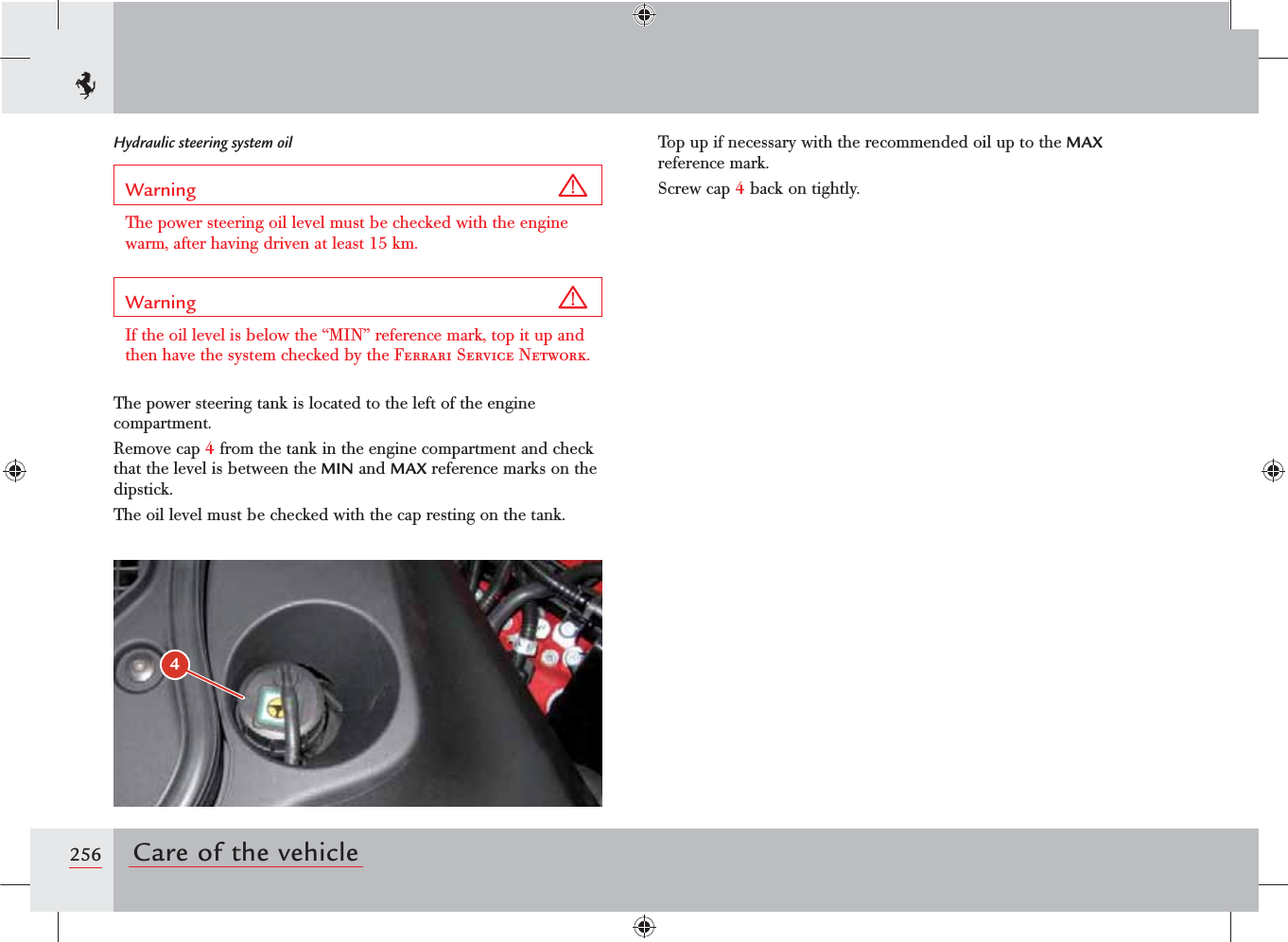

4256 Care of the vehicleHydraulic steering system oilWarning The power steering oil level must be checked with the engine warm, after having driven at least 15 km.Warning If the oil level is below the “MIN” reference mark, top it up and then have the system checked by the Ferrari Service Network.The power steering tank is located to the left of the engine compartment.Remove cap 4 from the tank in the engine compartment and check that the level is between the MIN and MAX reference marks on the dipstick.The oil level must be checked with the cap resting on the tank.Top up if necessary with the recommended oil up to the MAX reference mark.Screw cap 4 back on tightly.

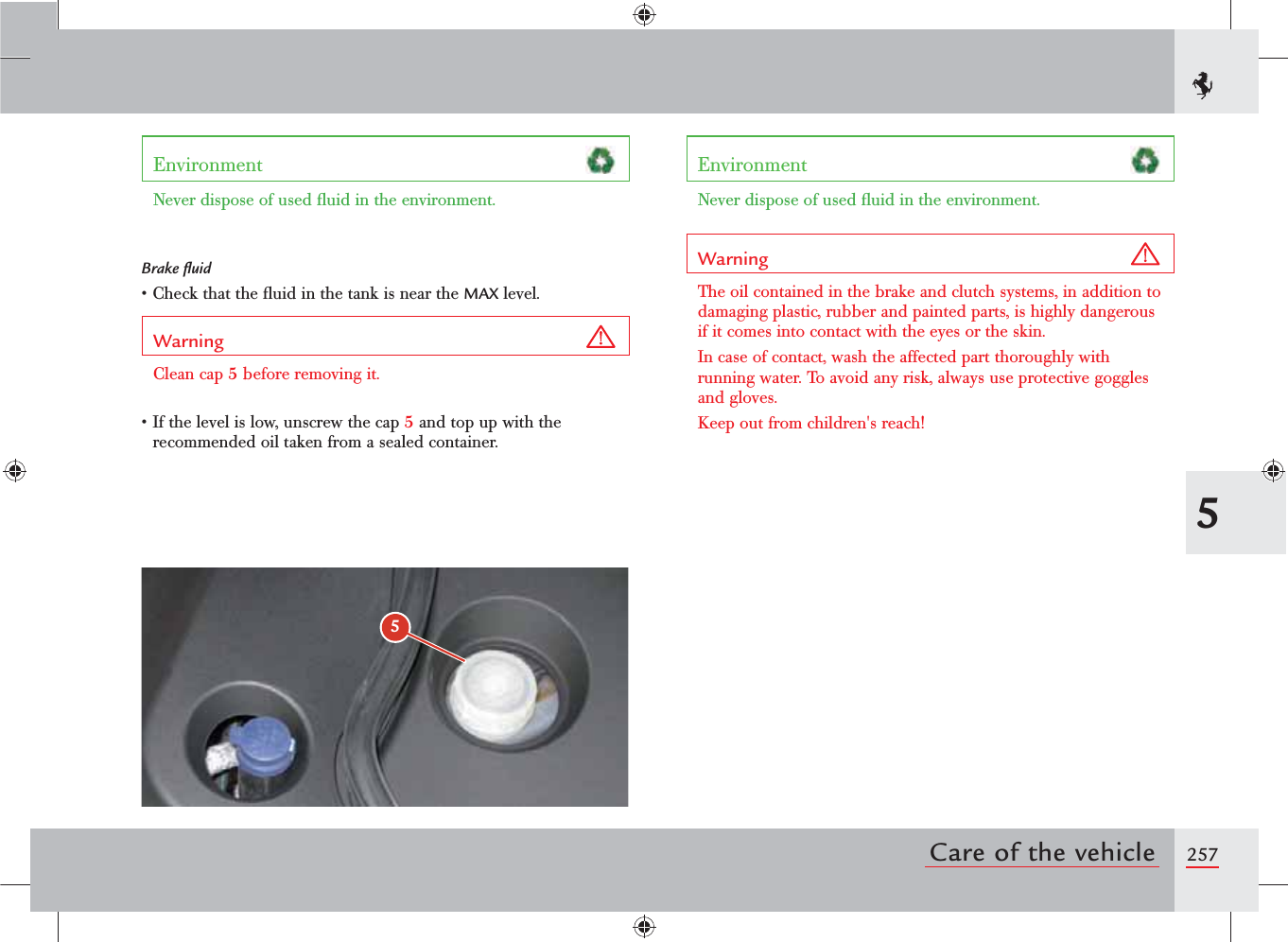

52575Care of the vehicleEnvironment Never dispose of used fluid in the environment.Brake fluids#HECKTHATTHEmUIDINTHETANKISNEARTHEMAX level.Warning Clean cap 5 before removing it.s)FTHELEVELISLOWUNSCREWTHECAP5 and top up with the recommended oil taken from a sealed container.Environment Never dispose of used fluid in the environment.Warning The oil contained in the brake and clutch systems, in addition to damaging plastic, rubber and painted parts, is highly dangerous if it comes into contact with the eyes or the skin.In case of contact, wash the affected part thoroughly with running water. To avoid any risk, always use protective goggles and gloves.Keep out from children's reach!

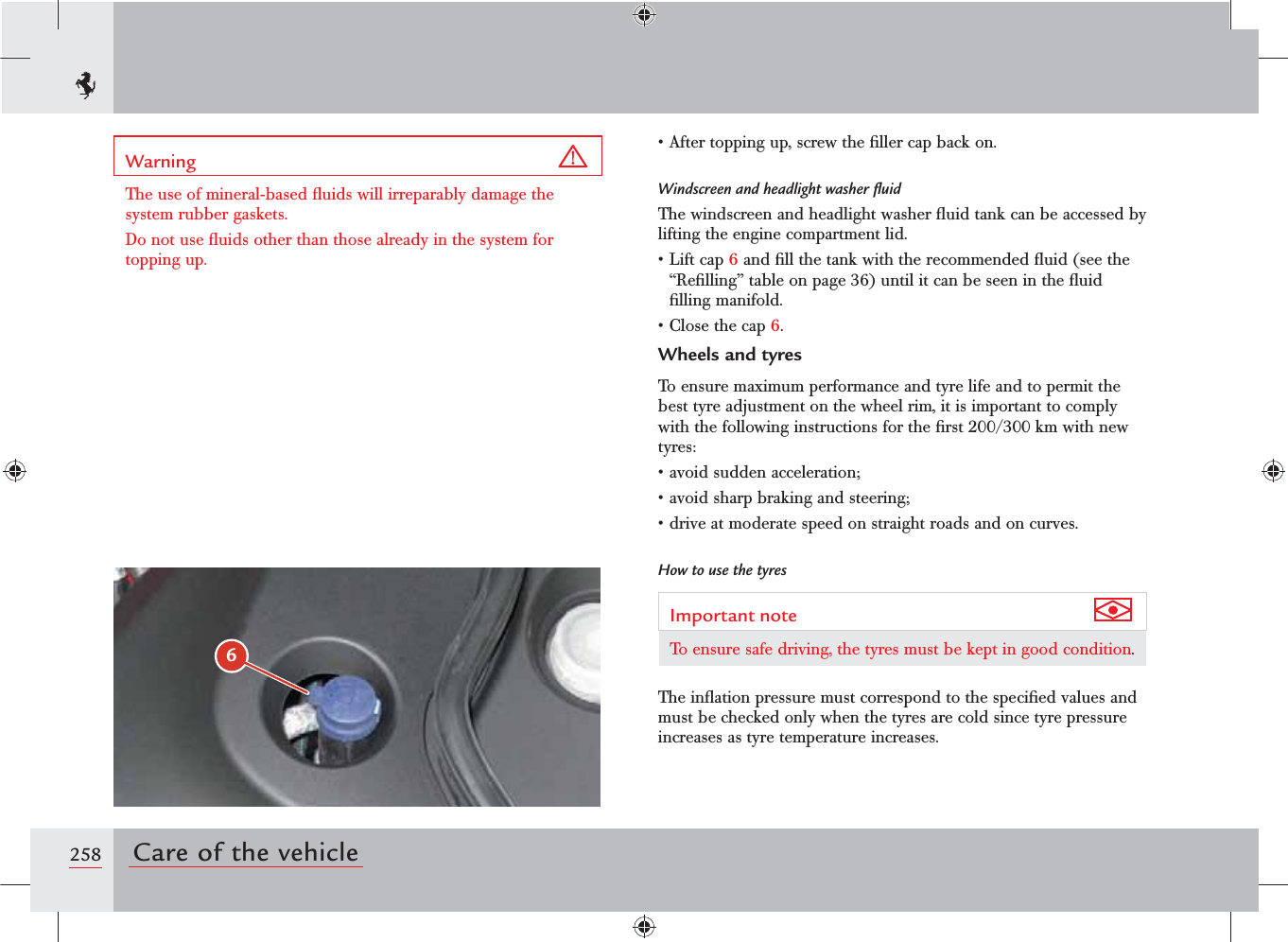

6258 Care of the vehicleWarning The use of mineral-based fluids will irreparably damage the system rubber gaskets.Do not use fluids other than those already in the system for topping up.s!FTERTOPPINGUPSCREWTHElLLERCAPBACKONWindscreen and headlight washer fluidThe windscreen and headlight washer fluid tank can be accessed by lifting the engine compartment lid.s,IFTCAP6 and fill the tank with the recommended fluid (see the “Refilling” table on page 36) until it can be seen in the fluid filling manifold.s#LOSETHECAP6.Wheels and tyresTo ensure maximum performance and tyre life and to permit the best tyre adjustment on the wheel rim, it is important to comply with the following instructions for the first 200/300 km with new tyres:sAVOIDSUDDENACCELERATIONsAVOIDSHARPBRAKINGANDSTEERINGsDRIVEATMODERATESPEEDONSTRAIGHTROADSANDONCURVESHow to use the tyresImportant note To ensure safe driving, the tyres must be kept in good condition.The inflation pressure must correspond to the specified values and must be checked only when the tyres are cold since tyre pressure increases as tyre temperature increases.

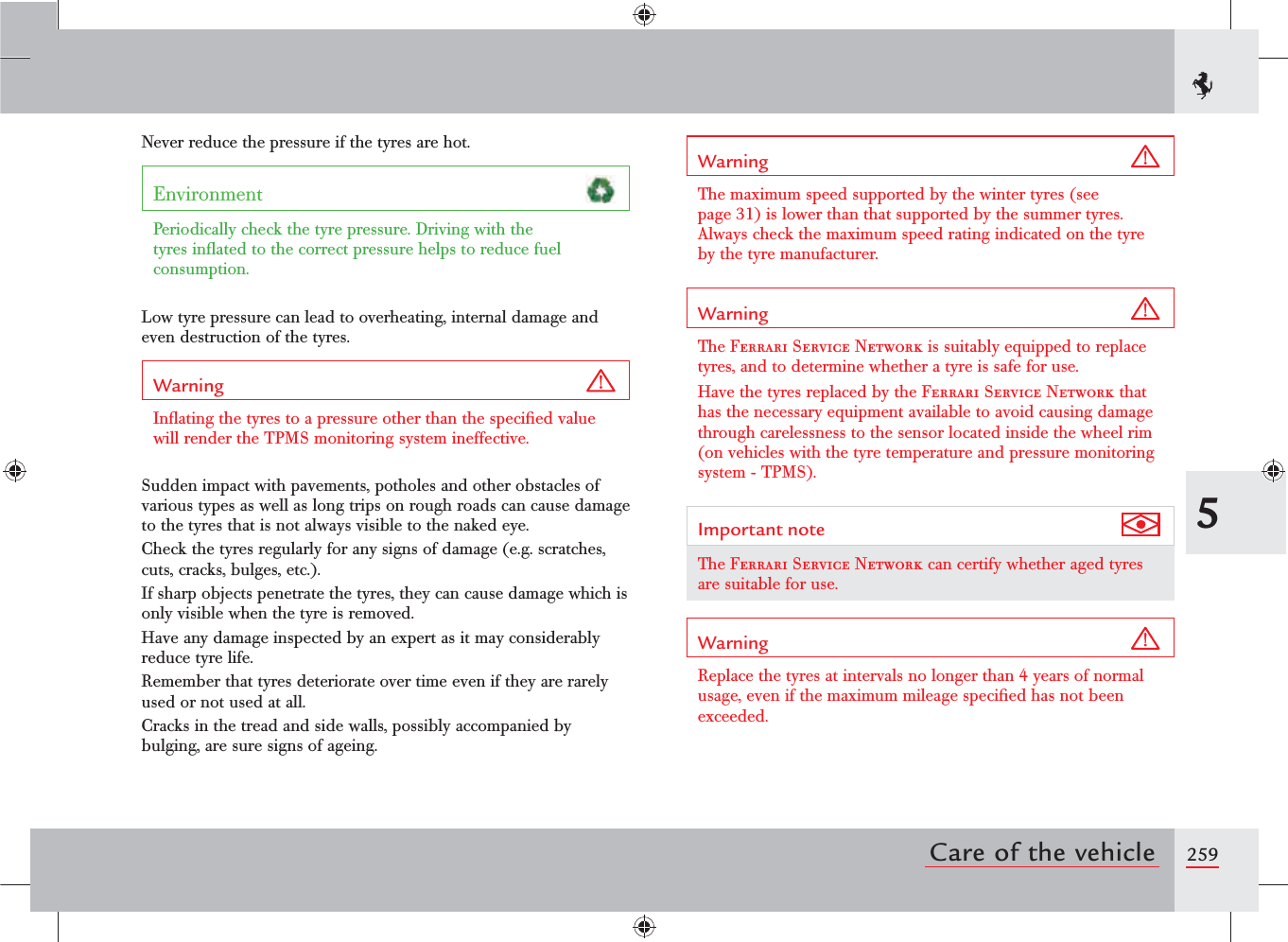

2595Care of the vehicleNever reduce the pressure if the tyres are hot.Environment Periodically check the tyre pressure. Driving with the tyres inflated to the correct pressure helps to reduce fuel consumption.Low tyre pressure can lead to overheating, internal damage and even destruction of the tyres.Warning Inflating the tyres to a pressure other than the specified value will render the TPMS monitoring system ineffective.Sudden impact with pavements, potholes and other obstacles of various types as well as long trips on rough roads can cause damage to the tyres that is not always visible to the naked eye.Check the tyres regularly for any signs of damage (e.g. scratches, cuts, cracks, bulges, etc.).If sharp objects penetrate the tyres, they can cause damage which is only visible when the tyre is removed.Have any damage inspected by an expert as it may considerably reduce tyre life.Remember that tyres deteriorate over time even if they are rarely used or not used at all.Cracks in the tread and side walls, possibly accompanied by bulging, are sure signs of ageing.Warning The maximum speed supported by the winter tyres (see page 31) is lower than that supported by the summer tyres. Always check the maximum speed rating indicated on the tyre by the tyre manufacturer.Warning The Ferrari Service Network is suitably equipped to replace tyres, and to determine whether a tyre is safe for use.Have the tyres replaced by the Ferrari Service Network that has the necessary equipment available to avoid causing damage through carelessness to the sensor located inside the wheel rim (on vehicles with the tyre temperature and pressure monitoring system - TPMS).Important note The Ferrari Service Network can certify whether aged tyres are suitable for use.Warning Replace the tyres at intervals no longer than 4 years of normal usage, even if the maximum mileage specified has not been exceeded.

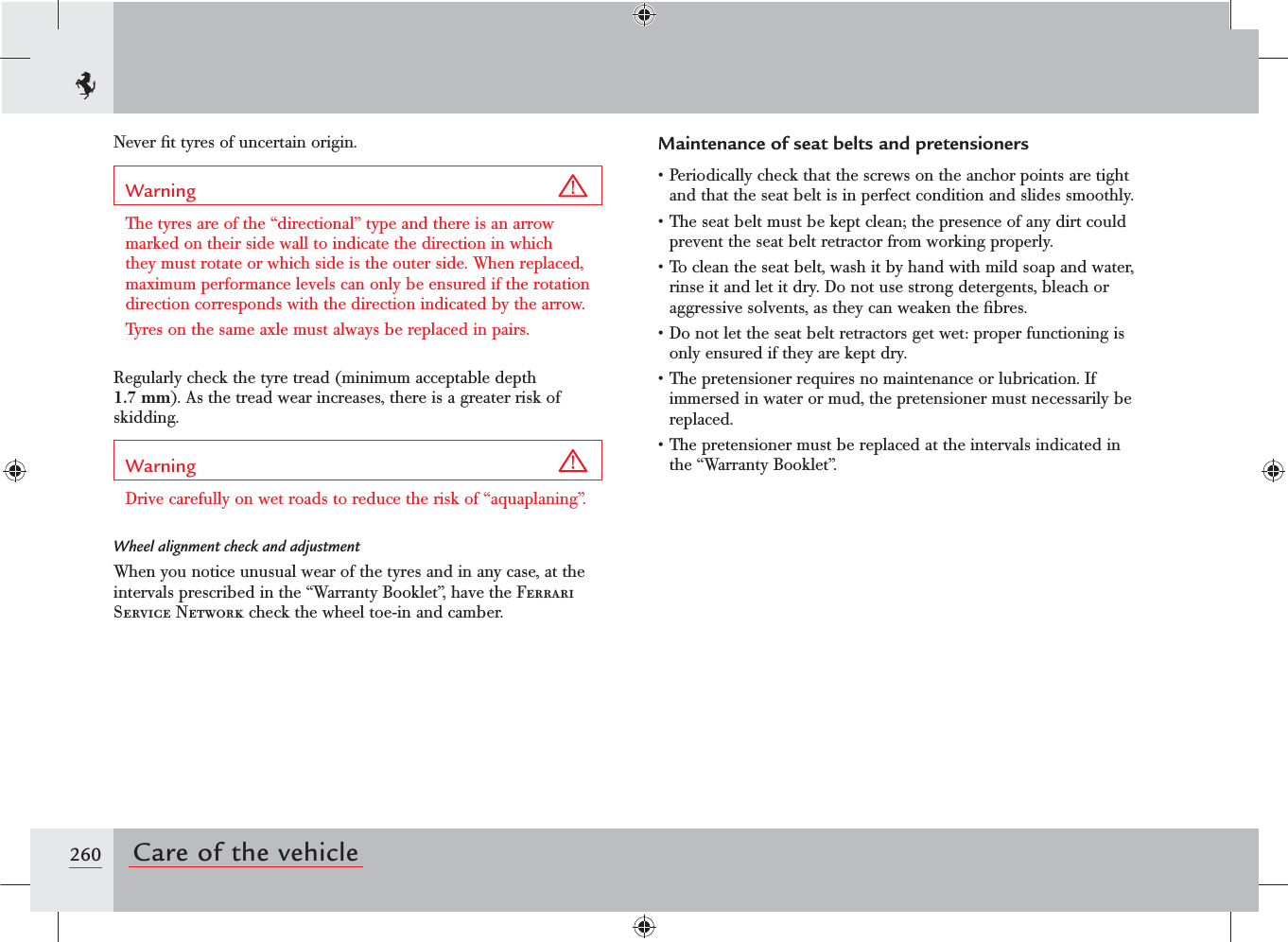

260 Care of the vehicleNever fit tyres of uncertain origin.Warning The tyres are of the “directional” type and there is an arrow marked on their side wall to indicate the direction in which they must rotate or which side is the outer side. When replaced, maximum performance levels can only be ensured if the rotation direction corresponds with the direction indicated by the arrow.Tyres on the same axle must always be replaced in pairs.Regularly check the tyre tread (minimum acceptable depth 1.7 mm). As the tread wear increases, there is a greater risk of skidding.Warning Drive carefully on wet roads to reduce the risk of “aquaplaning”.Wheel alignment check and adjustmentWhen you notice unusual wear of the tyres and in any case, at the intervals prescribed in the “Warranty Booklet”, have the Ferrari Service Network check the wheel toe-in and camber.Maintenance of seat belts and pretensionerss0ERIODICALLYCHECKTHATTHESCREWSONTHEANCHORPOINTSARETIGHTand that the seat belt is in perfect condition and slides smoothly.s4HESEATBELTMUSTBEKEPTCLEANTHEPRESENCEOFANYDIRTCOULDprevent the seat belt retractor from working properly.s4OCLEANTHESEATBELTWASHITBYHANDWITHMILDSOAPANDWATERrinse it and let it dry. Do not use strong detergents, bleach or aggressive solvents, as they can weaken the fibres.s$ONOTLETTHESEATBELTRETRACTORSGETWETPROPERFUNCTIONINGISonly ensured if they are kept dry.s4HEPRETENSIONERREQUIRESNOMAINTENANCEORLUBRICATION)Fimmersed in water or mud, the pretensioner must necessarily be replaced.s4HEPRETENSIONERMUSTBEREPLACEDATTHEINTERVALSINDICATEDINthe “Warranty Booklet”.

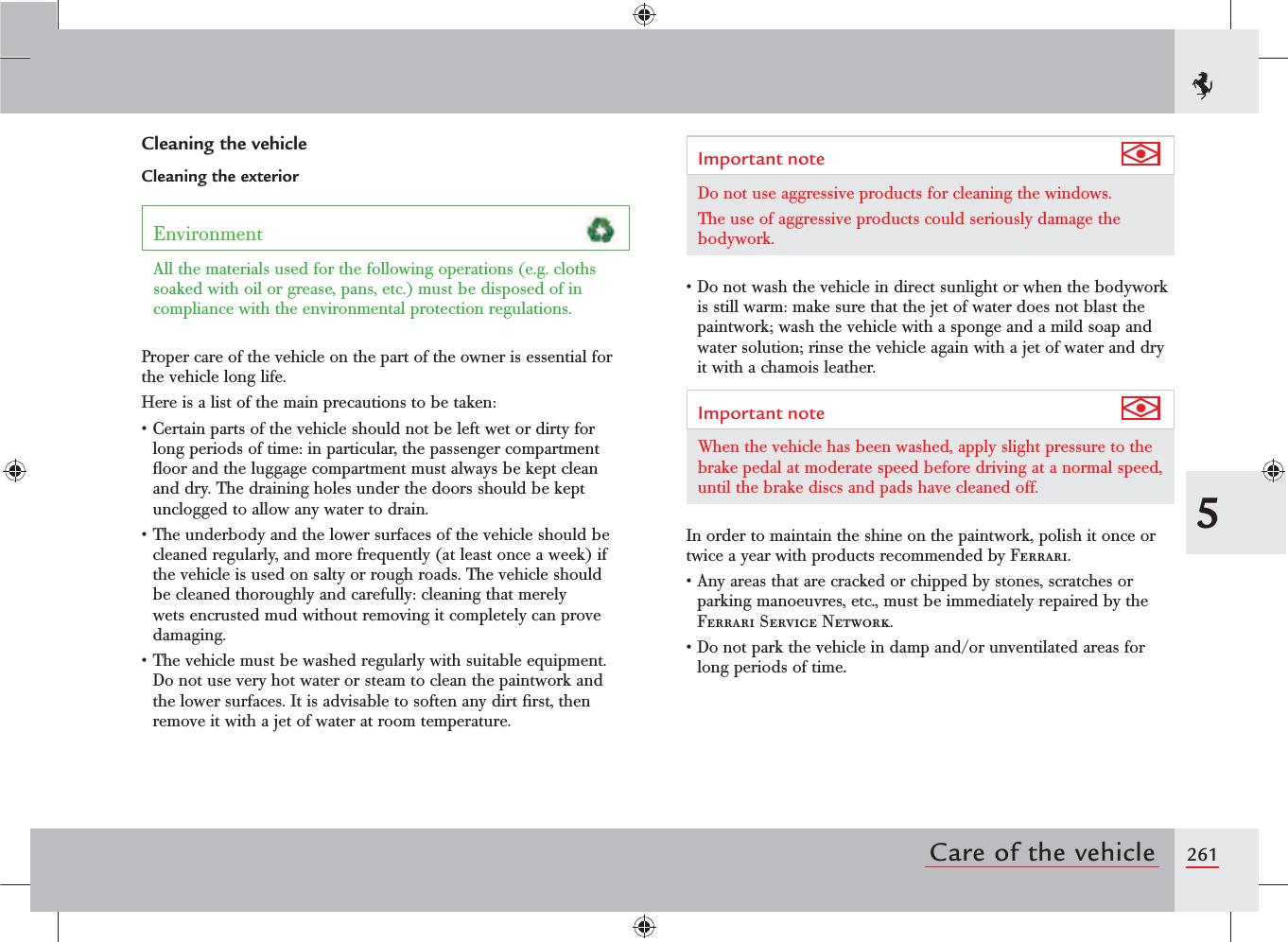

2615Care of the vehicleCleaning the vehicleCleaning the exteriorEnvironment All the materials used for the following operations (e.g. cloths soaked with oil or grease, pans, etc.) must be disposed of in compliance with the environmental protection regulations.Proper care of the vehicle on the part of the owner is essential for the vehicle long life.Here is a list of the main precautions to be taken:s#ERTAINPARTSOFTHEVEHICLESHOULDNOTBELEFTWETORDIRTYFORlong periods of time: in particular, the passenger compartment floor and the luggage compartment must always be kept clean and dry. The draining holes under the doors should be kept unclogged to allow any water to drain.s4HEUNDERBODYANDTHELOWERSURFACESOFTHEVEHICLESHOULDBEcleaned regularly, and more frequently (at least once a week) if the vehicle is used on salty or rough roads. The vehicle should be cleaned thoroughly and carefully: cleaning that merely wets encrusted mud without removing it completely can prove damaging.s4HEVEHICLEMUSTBEWASHEDREGULARLYWITHSUITABLEEQUIPMENTDo not use very hot water or steam to clean the paintwork and the lower surfaces. It is advisable to soften any dirt first, then remove it with a jet of water at room temperature.Important note Do not use aggressive products for cleaning the windows.The use of aggressive products could seriously damage the bodywork.s$ONOTWASHTHEVEHICLEINDIRECTSUNLIGHTORWHENTHEBODYWORKis still warm: make sure that the jet of water does not blast the paintwork; wash the vehicle with a sponge and a mild soap and water solution; rinse the vehicle again with a jet of water and dry it with a chamois leather.Important note When the vehicle has been washed, apply slight pressure to the brake pedal at moderate speed before driving at a normal speed, until the brake discs and pads have cleaned off.In order to maintain the shine on the paintwork, polish it once or twice a year with products recommended by Ferrari.s!NYAREASTHATARECRACKEDORCHIPPEDBYSTONESSCRATCHESORparking manoeuvres, etc., must be immediately repaired by the Ferrari Service Network.s$ONOTPARKTHEVEHICLEINDAMPANDORUNVENTILATEDAREASFORlong periods of time.

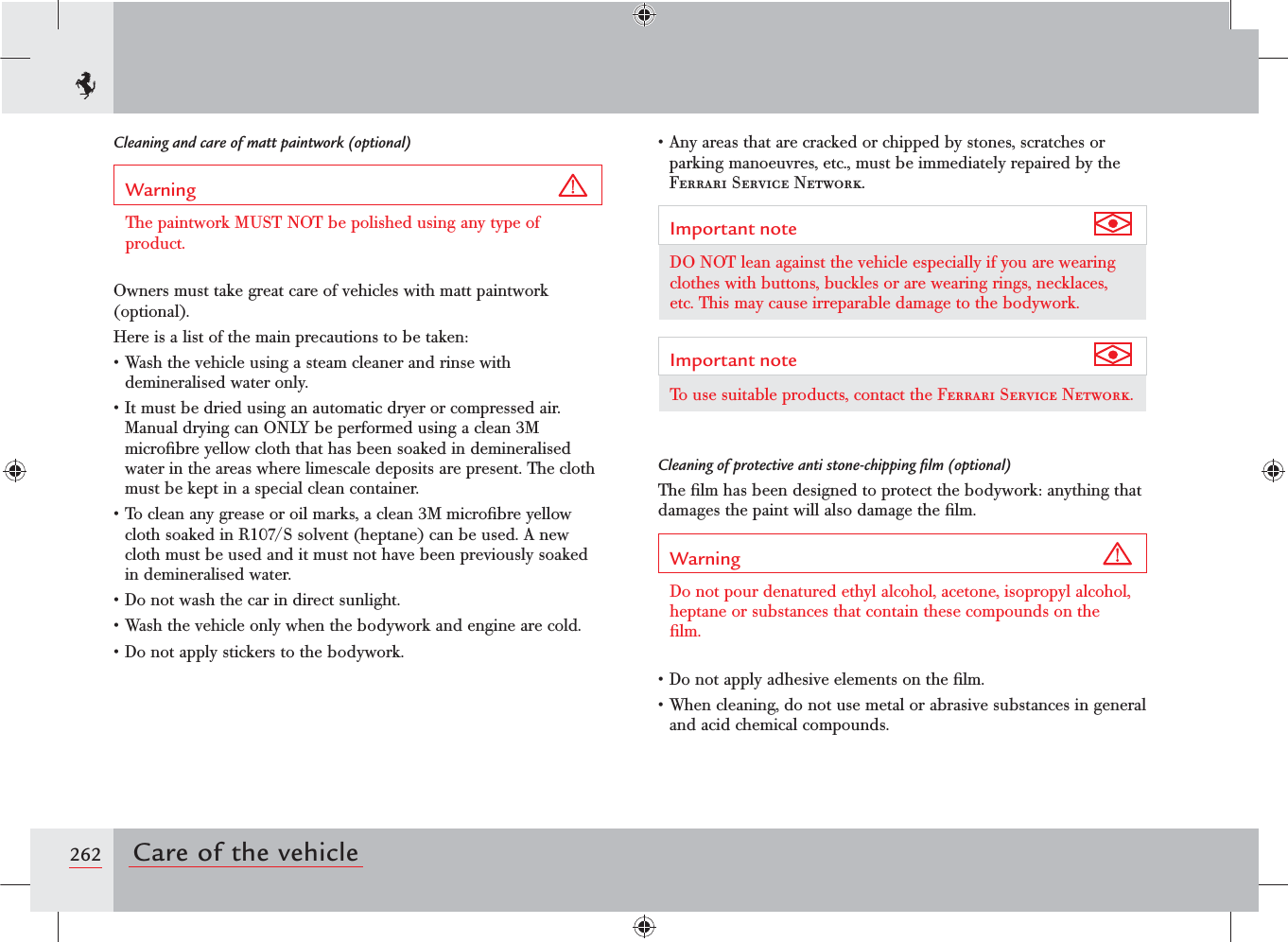

262 Care of the vehicles!NYAREASTHATARECRACKEDORCHIPPEDBYSTONESSCRATCHESORparking manoeuvres, etc., must be immediately repaired by the Ferrari Service Network.Important note DO NOT lean against the vehicle especially if you are wearing clothes with buttons, buckles or are wearing rings, necklaces, etc. This may cause irreparable damage to the bodywork.Important note To use suitable products, contact the Ferrari Service Network.Cleaning of protective anti stone-chipping film (optional)The film has been designed to protect the bodywork: anything that damages the paint will also damage the film.Warning Do not pour denatured ethyl alcohol, acetone, isopropyl alcohol, heptane or substances that contain these compounds on the film.s$ONOTAPPLYADHESIVEELEMENTSONTHElLMs7HENCLEANINGDONOTUSEMETALORABRASIVESUBSTANCESINGENERALand acid chemical compounds.Cleaning and care of matt paintwork (optional)Warning The paintwork MUST NOT be polished using any type of product.Owners must take great care of vehicles with matt paintwork (optional).Here is a list of the main precautions to be taken:s7ASHTHEVEHICLEUSINGASTEAMCLEANERANDRINSEWITHdemineralised water only.s)TMUSTBEDRIEDUSINGANAUTOMATICDRYERORCOMPRESSEDAIRManual drying can ONLY be performed using a clean 3M microfibre yellow cloth that has been soaked in demineralised water in the areas where limescale deposits are present. The cloth must be kept in a special clean container.s4OCLEANANYGREASEOROILMARKSACLEAN-MICROlBREYELLOWcloth soaked in R107/S solvent (heptane) can be used. A new cloth must be used and it must not have been previously soaked in demineralised water.s$ONOTWASHTHECARINDIRECTSUNLIGHTs7ASHTHEVEHICLEONLYWHENTHEBODYWORKANDENGINEARECOLDs$ONOTAPPLYSTICKERSTOTHEBODYWORK

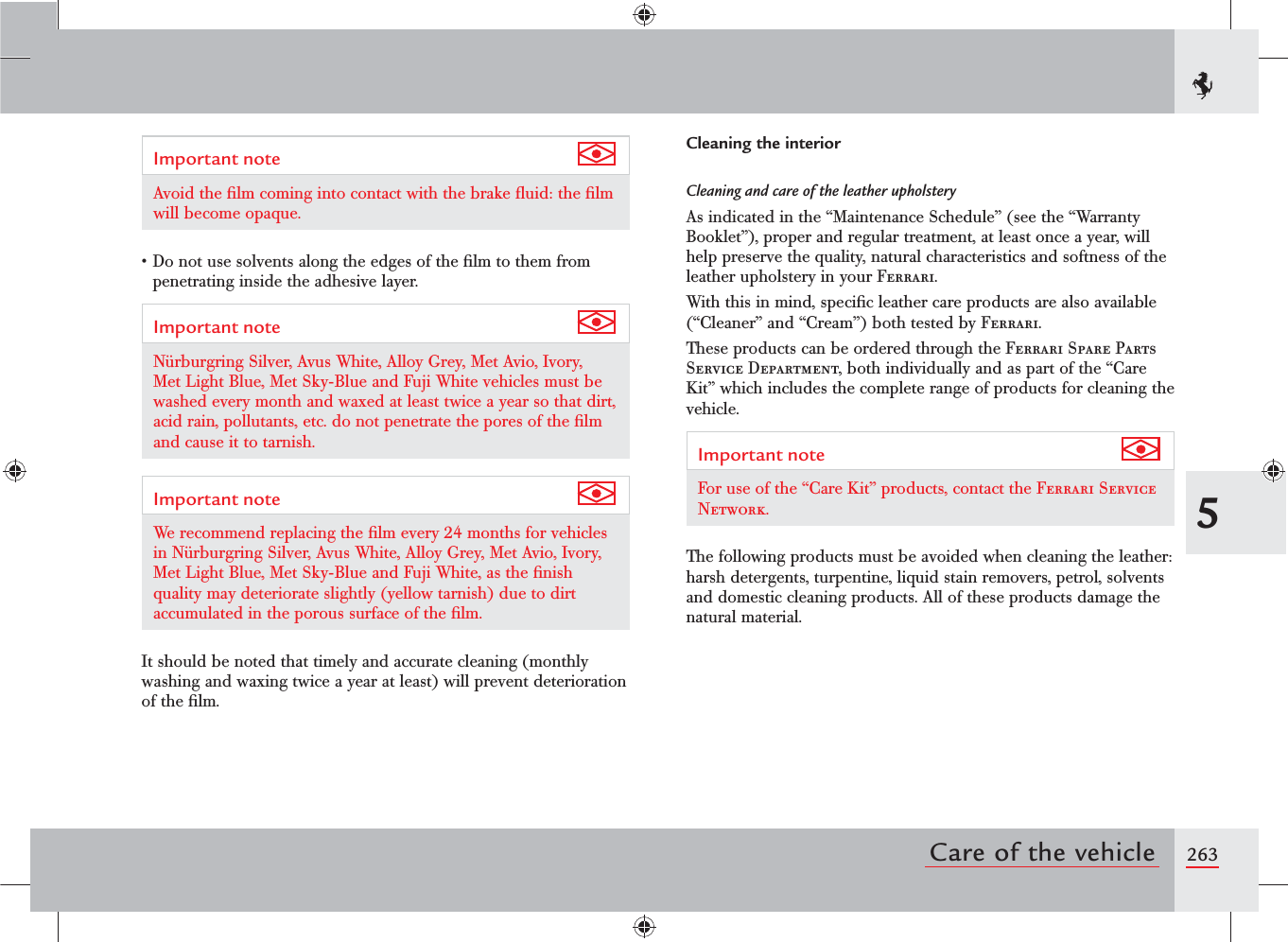

2635Care of the vehicleImportant note Avoid the film coming into contact with the brake fluid: the film will become opaque.s$ONOTUSESOLVENTSALONGTHEEDGESOFTHElLMTOTHEMFROMpenetrating inside the adhesive layer.Important note Nürburgring Silver, Avus White, Alloy Grey, Met Avio, Ivory, Met Light Blue, Met Sky-Blue and Fuji White vehicles must be washed every month and waxed at least twice a year so that dirt, acid rain, pollutants, etc. do not penetrate the pores of the film and cause it to tarnish.Important note We recommend replacing the film every 24 months for vehicles in Nürburgring Silver, Avus White, Alloy Grey, Met Avio, Ivory, Met Light Blue, Met Sky-Blue and Fuji White, as the finish quality may deteriorate slightly (yellow tarnish) due to dirt accumulated in the porous surface of the film.It should be noted that timely and accurate cleaning (monthly washing and waxing twice a year at least) will prevent deterioration of the film.Cleaning the interiorCleaning and care of the leather upholsteryAs indicated in the “Maintenance Schedule” (see the “Warranty Booklet”), proper and regular treatment, at least once a year, will help preserve the quality, natural characteristics and softness of the leather upholstery in your Ferrari.With this in mind, specific leather care products are also available (“Cleaner” and “Cream”) both tested by Ferrari.These products can be ordered through the Ferrari Spare Parts Service Department, both individually and as part of the “Care Kit” which includes the complete range of products for cleaning the vehicle.Important note For use of the “Care Kit” products, contact the Ferrari Service Network.The following products must be avoided when cleaning the leather: harsh detergents, turpentine, liquid stain removers, petrol, solvents and domestic cleaning products. All of these products damage the natural material.
264 Care of the vehicleCleaning and care of the Alcantara® upholsteryWarning Do not use steam cleaners.s#AREFULLYDUSTTHEPARTSTOBECLEANEDs5SEASOFTCLOTHORSPONGEMOISTENEDWITHCLEANWATERs4HOROUGHLYWRINGOUTTHECLOTHANDWIPEITOVERTHEENTIREAlcantara® area making sure you do not overwet it.s2EPEATTHEPROCEDUREs,ETITDRYCOMPLETELYs4ORECONDITIONTHEMATERIALGENTLYUSEABRUSHWITHSOFTBRISTLESIf the vehicle is stored for long periodsIf the vehicle is not used for long periods of time, certain precautions should be taken:sIFPOSSIBLEPARKTHEVEHICLEONALEVELSURFACEINACOVEREDANDwell-ventilated area;sPREVENTTHEVEHICLEFROMMOVINGBYENGAGINGAGEARsBRINGTHETYREPRESSURETOBARANDPERIODICALLYCHANGETHEpoint where the tyres rest on the ground;sCONNECTTHEBATTERYCONDITIONERSEEPAGEsPROTECTTHEVEHICLEWITHABREATHABLEFABRICCOVERANDAVOIDmaterials that prevent any dampness on the bodywork from evaporating.Before using the vehicle again after long periods of inactivity, adjust the tyre pressure to the indicated pressure and check the fluid levels of all the systems.

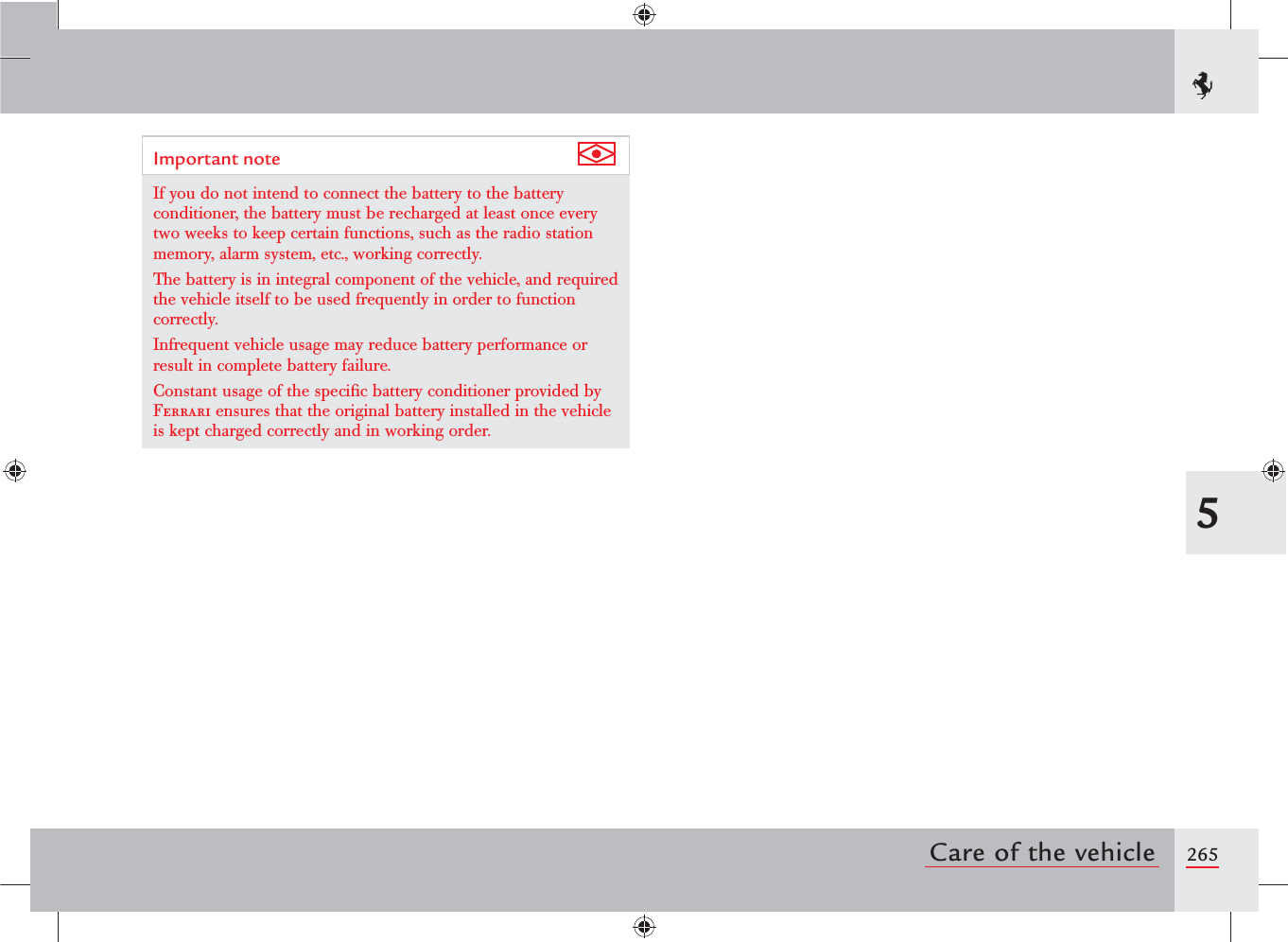

2655Care of the vehicleImportant note If you do not intend to connect the battery to the battery conditioner, the battery must be recharged at least once every two weeks to keep certain functions, such as the radio station memory, alarm system, etc., working correctly. The battery is in integral component of the vehicle, and required the vehicle itself to be used frequently in order to function correctly.Infrequent vehicle usage may reduce battery performance or result in complete battery failure.Constant usage of the specific battery conditioner provided by Ferrari ensures that the original battery installed in the vehicle is kept charged correctly and in working order.

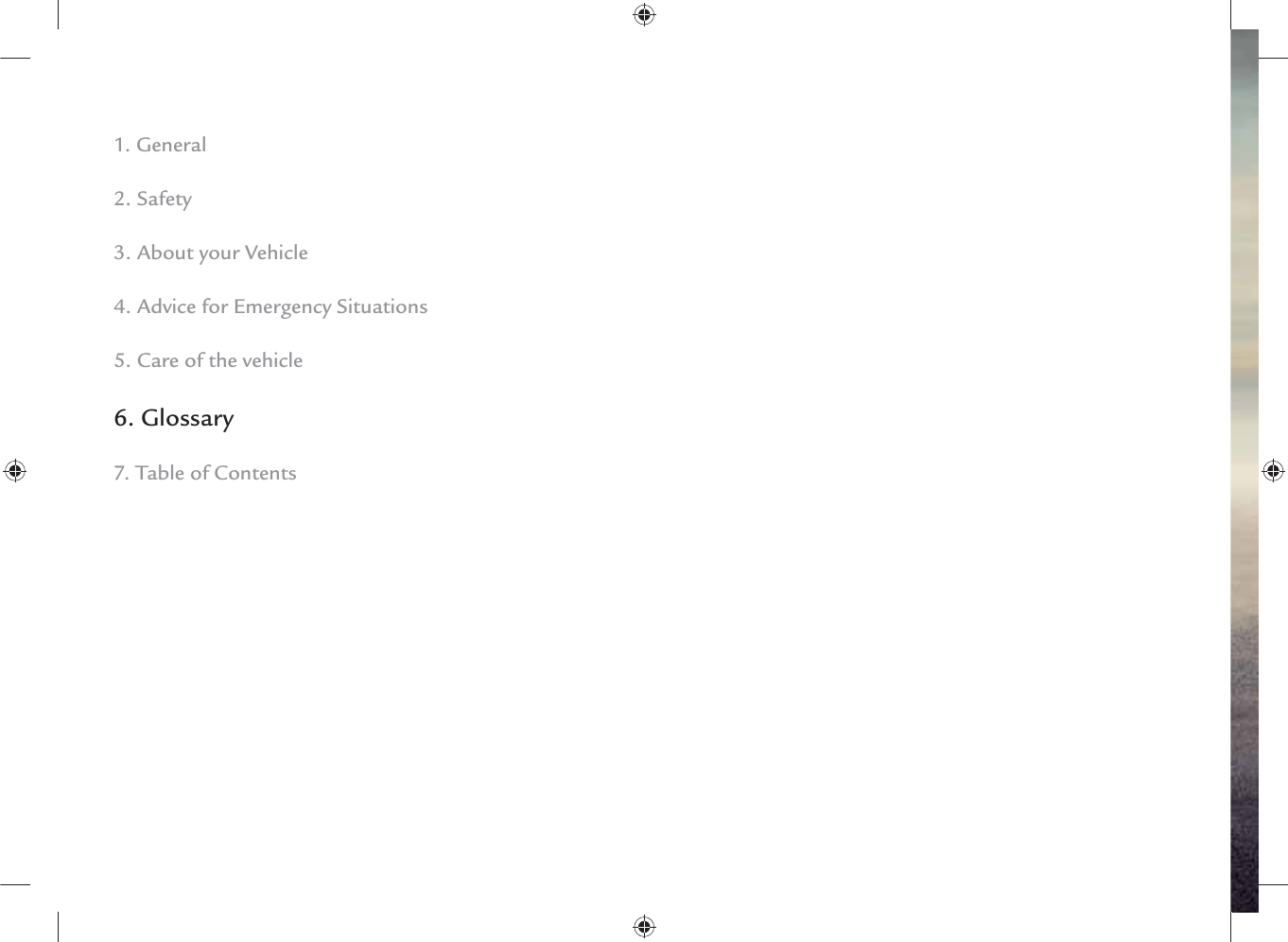

1. General2. Safety3. About your Vehicle4. Advice for Emergency Situations5. Care of the vehicle6. Glossary7. Table of Contents
2696GlossaryAbbreviation MeaningABS (Anti-lock Braking System) The ABS prevents wheel locking when braking so that vehicle handling can be maintained.AC Air conditioning.ASR (Antriebs Schlupf Regelung) Anti-skid regulation during acceleration.Auto easy exit Simplified function gear shifting. To exit “Auto easy exit” mode, simply operate one of the two shift paddles.Autopark Automatic activation of the electric parking brake (EPB) when the engine is switched off. This function can be disabled.AVH Automatic Vehicle Hold Additional function of the electric parking brake (EPB): it allows gradual release of brake shoes/pads when the vehicle starts up. This guarantees an optimised release for the vehicle and is an aid for the driver.DCT Dual Clutch Transmission Each clutch is associated with a part of the gearbox, one is designed for engaging even gears, the other for odd gears.Once a gear has been engaged, the system has already preselected the next one. After reaching the correct RPM, a clutch opens and at the same time the other one closes, so that the traction force is not interrupted.Disposal The procedure laid down in Directive 2000/53/EC and the implementation standard.EBD (Electronic Brake-Force Distribution)Electronically-controlled brake-force distribution.ECU Electronic Control Unit.EPB Electric Parking Brake The system operates by means of an ECU and an electric motor on the rear brake shoes.ESC Stability and Traction Control. It consists of two systems: VDC and F1-Trac.F1-Trac Traction control derived from the technologies used in the racing sector. The system can estimate the maximum available grip in advance by continuously monitoring the relative wheel speed and using an auto-adaptive operating logic. Comparing this information with the vehicle dynamics model stored in the control system, F1-Trac, optimises the vehicle behaviour by controlling engine torque delivery.

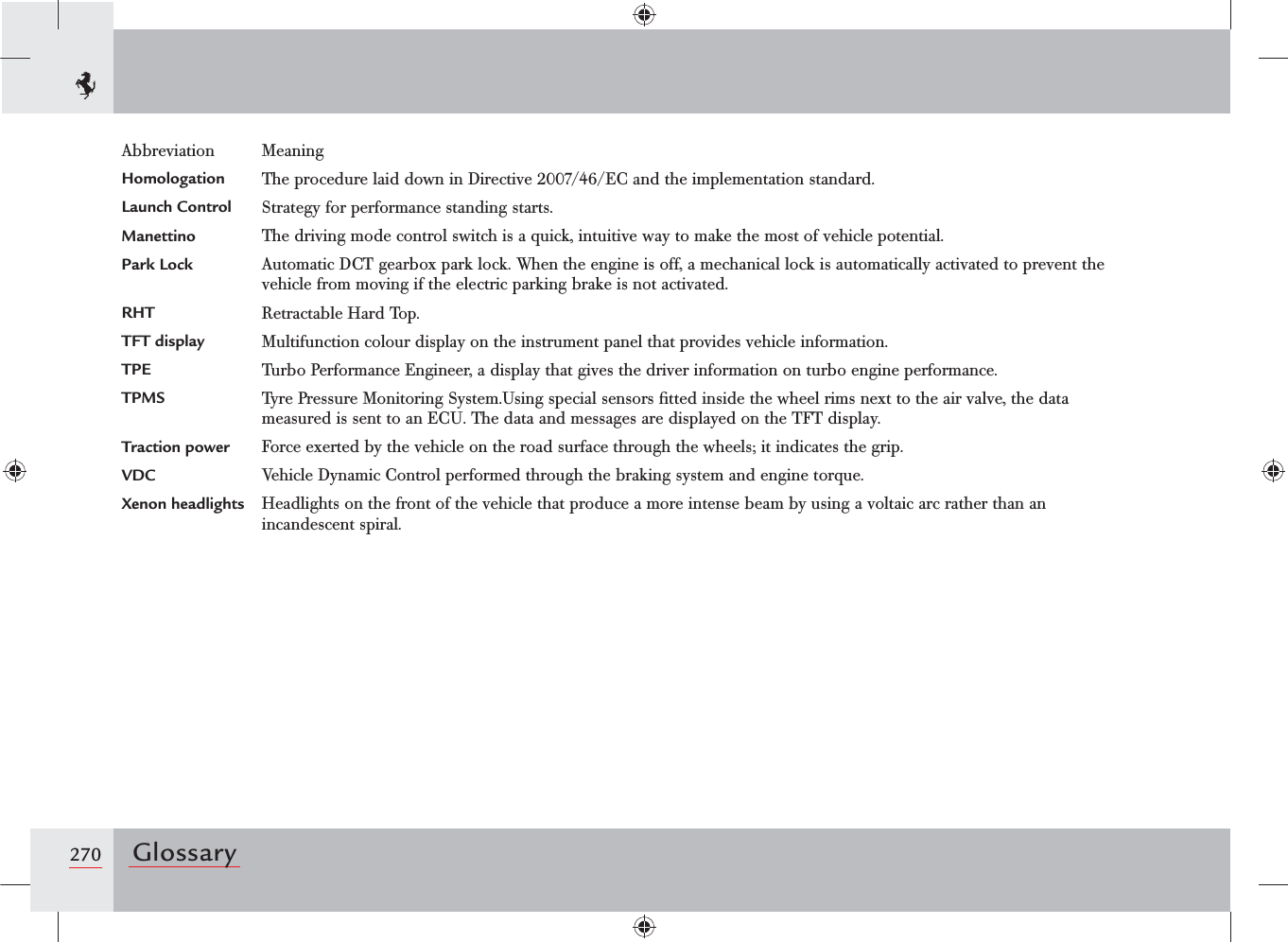

270 GlossaryAbbreviation MeaningHomologation The procedure laid down in Directive 2007/46/EC and the implementation standard.Launch Control Strategy for performance standing starts.Manettino The driving mode control switch is a quick, intuitive way to make the most of vehicle potential.Park Lock Automatic DCT gearbox park lock. When the engine is off, a mechanical lock is automatically activated to prevent the vehicle from moving if the electric parking brake is not activated.RHT Retractable Hard Top.TFT display Multifunction colour display on the instrument panel that provides vehicle information.TPE Turbo Performance Engineer, a display that gives the driver information on turbo engine performance.TPMS Tyre Pressure Monitoring System.Using special sensors fitted inside the wheel rims next to the air valve, the data measured is sent to an ECU. The data and messages are displayed on the TFT display.Traction power Force exerted by the vehicle on the road surface through the wheels; it indicates the grip.VDC Vehicle Dynamic Control performed through the braking system and engine torque.Xenon headlights Headlights on the front of the vehicle that produce a more intense beam by using a voltaic arc rather than an incandescent spiral.
1. General 2. Safety3. About your Vehicle4. Advice for Emergency Situations5. Care of the vehicle6. Glossary7. Table of Contents

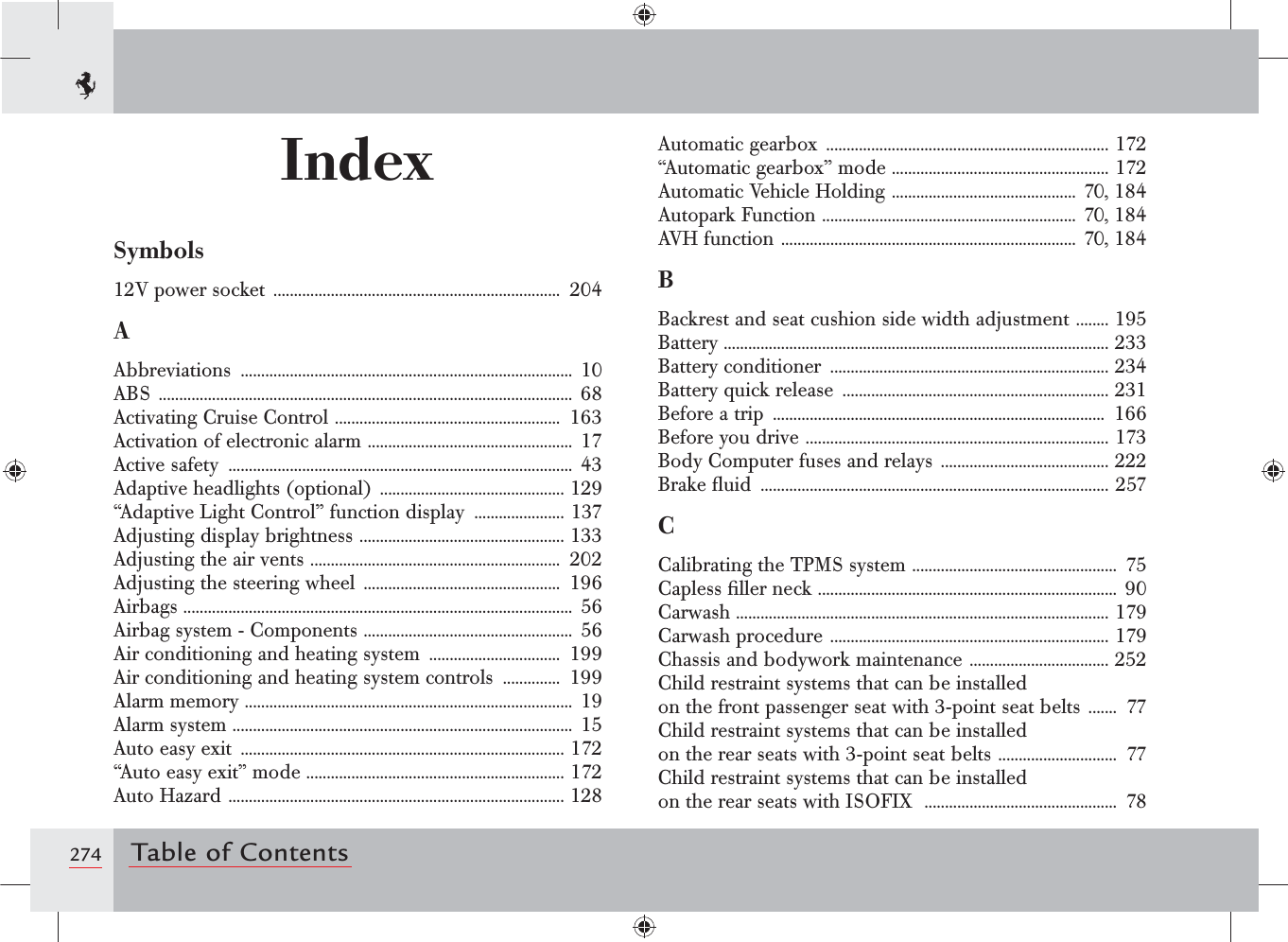

274 Table of ContentsIndexSymbols12V power socket ...................................................................... 204AAbbreviations ................................................................................. 10ABS ..................................................................................................... 68Activating Cruise Control ....................................................... 163Activation of electronic alarm .................................................. 17Active safety .................................................................................... 43Adaptive headlights (optional) ............................................. 129“Adaptive Light Control” function display ...................... 137Adjusting display brightness .................................................. 133Adjusting the air vents ............................................................. 202Adjusting the steering wheel ................................................ 196Airbags ............................................................................................... 56Airbag system - Components ................................................... 56Air conditioning and heating system ................................ 199Air conditioning and heating system controls .............. 199Alarm memory ................................................................................ 19Alarm system ................................................................................... 15Auto easy exit ............................................................................... 172“Auto easy exit” mode ............................................................... 172Auto Hazard .................................................................................. 128Automatic gearbox ..................................................................... 172“Automatic gearbox” mode ..................................................... 172Automatic Vehicle Holding ............................................. 70, 184Autopark Function .............................................................. 70, 184AVH function ........................................................................ 70, 184BBackrest and seat cushion side width adjustment ........ 195Battery .............................................................................................. 233Battery conditioner .................................................................... 234Battery quick release ................................................................. 231Before a trip ................................................................................. 166Before you drive .......................................................................... 173Body Computer fuses and relays ......................................... 222Brake fluid ..................................................................................... 257CCalibrating the TPMS system .................................................. 75Capless filler neck ......................................................................... 90Carwash ........................................................................................... 179Carwash procedure .................................................................... 179Chassis and bodywork maintenance .................................. 252Child restraint systems that can be installed on the front passenger seat with 3-point seat belts ....... 77Child restraint systems that can be installed on the rear seats with 3-point seat belts ............................. 77Child restraint systems that can be installed on the rear seats with ISOFIX ............................................... 78

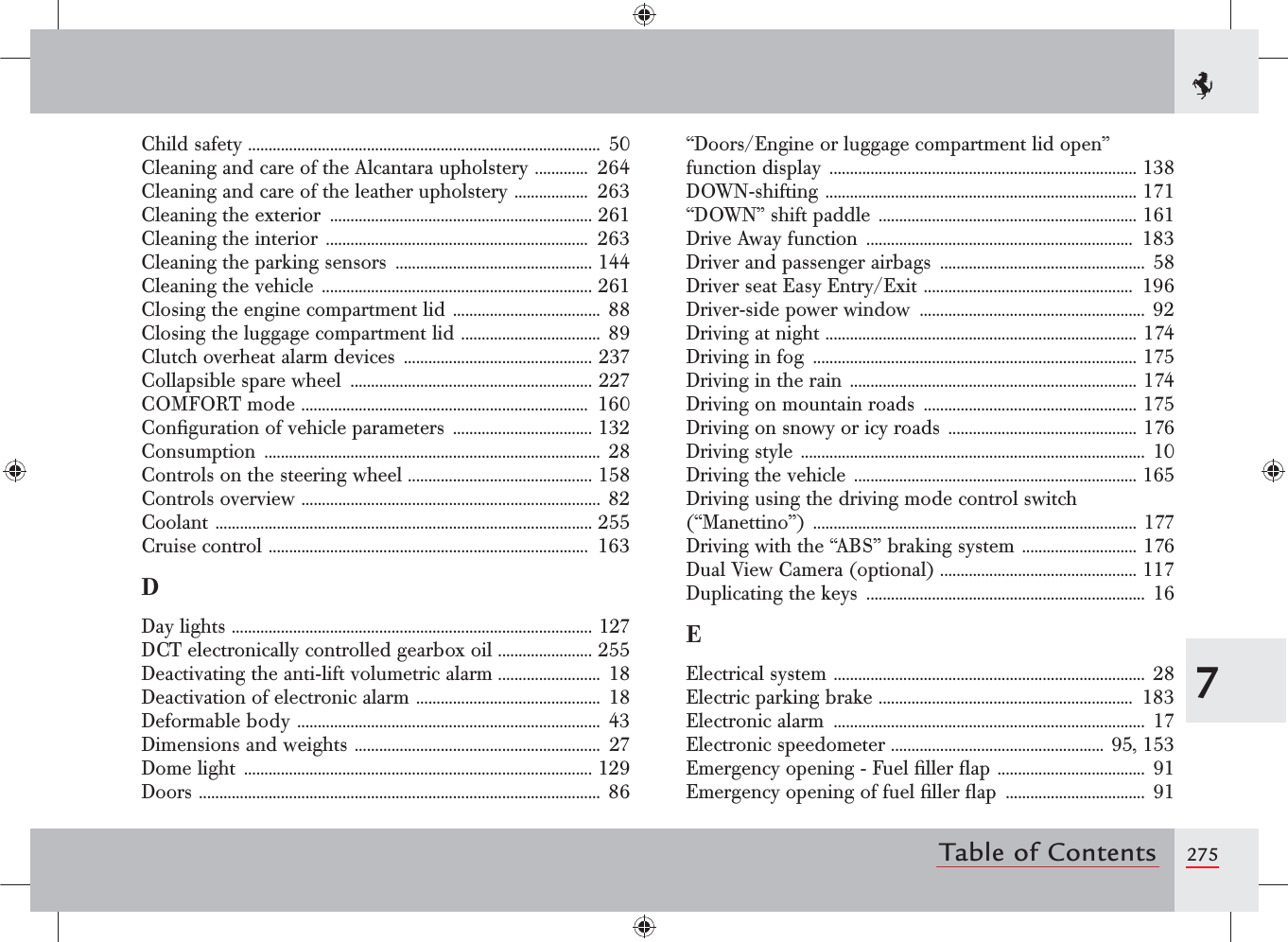

2757Table of ContentsChild safety ...................................................................................... 50Cleaning and care of the Alcantara upholstery ............. 264Cleaning and care of the leather upholstery .................. 263Cleaning the exterior ................................................................ 261Cleaning the interior ................................................................ 263Cleaning the parking sensors ................................................ 144Cleaning the vehicle .................................................................. 261Closing the engine compartment lid .................................... 88Closing the luggage compartment lid .................................. 89Clutch overheat alarm devices .............................................. 237Collapsible spare wheel ........................................................... 227COMFORT mode ...................................................................... 160Configuration of vehicle parameters .................................. 132Consumption .................................................................................. 28Controls on the steering wheel ............................................. 158Controls overview ......................................................................... 82Coolant ............................................................................................ 255Cruise control .............................................................................. 163DDay lights ........................................................................................ 127DCT electronically controlled gearbox oil ....................... 255Deactivating the anti-lift volumetric alarm ......................... 18Deactivation of electronic alarm ............................................. 18Deformable body .......................................................................... 43Dimensions and weights ............................................................ 27Dome light ..................................................................................... 129Doors .................................................................................................. 86“Doors/Engine or luggage compartment lid open” function display ........................................................................... 138DOWN-shifting ............................................................................ 171“DOWN” shift paddle ............................................................... 161Drive Away function ................................................................. 183Driver and passenger airbags .................................................. 58Driver seat Easy Entry/Exit ................................................... 196Driver-side power window ....................................................... 92Driving at night ............................................................................ 174Driving in fog ............................................................................... 175Driving in the rain ...................................................................... 174Driving on mountain roads .................................................... 175Driving on snowy or icy roads .............................................. 176Driving style .................................................................................... 10Driving the vehicle ..................................................................... 165Driving using the driving mode control switch (“Manettino”) ............................................................................... 177Driving with the “ABS” braking system ............................ 176Dual View Camera (optional) ................................................ 117Duplicating the keys .................................................................... 16EElectrical system ............................................................................ 28Electric parking brake .............................................................. 183Electronic alarm ............................................................................ 17Electronic speedometer .................................................... 95, 153Emergency opening - Fuel filler flap .................................... 91Emergency opening of fuel filler flap .................................. 91

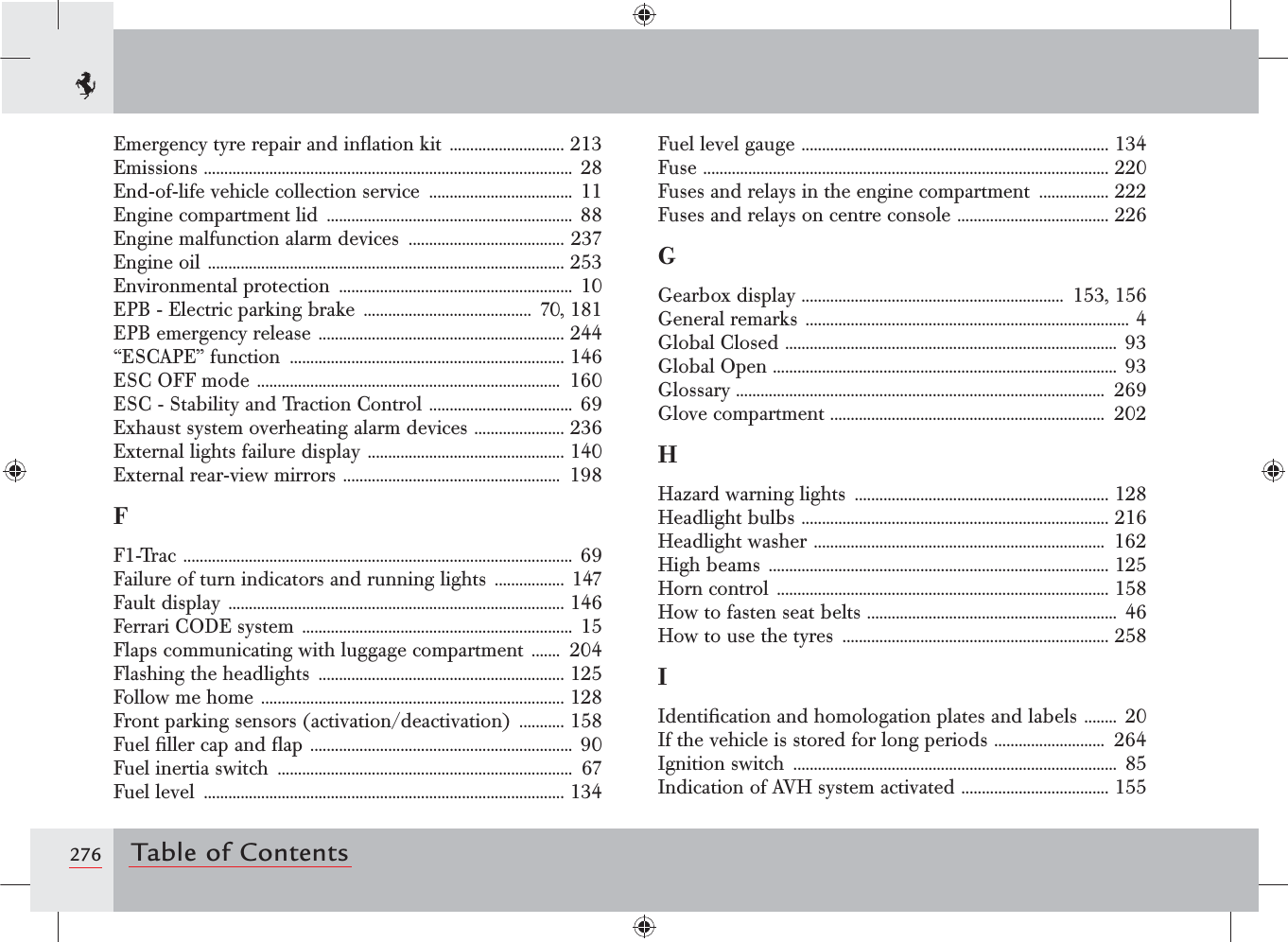

276 Table of ContentsEmergency tyre repair and inflation kit ............................ 213Emissions .......................................................................................... 28End-of-life vehicle collection service ................................... 11Engine compartment lid ............................................................ 88Engine malfunction alarm devices ...................................... 237Engine oil ....................................................................................... 253Environmental protection ......................................................... 10EPB - Electric parking brake ......................................... 70, 181EPB emergency release ............................................................ 244“ESCAPE” function ................................................................... 146ESC OFF mode .......................................................................... 160ESC - Stability and Traction Control ................................... 69Exhaust system overheating alarm devices ...................... 236External lights failure display ................................................ 140External rear-view mirrors ..................................................... 198FF1-Trac ............................................................................................... 69Failure of turn indicators and running lights ................. 147Fault display .................................................................................. 146Ferrari CODE system .................................................................. 15Flaps communicating with luggage compartment ....... 204Flashing the headlights ............................................................ 125Follow me home .......................................................................... 128Front parking sensors (activation/deactivation) ........... 158Fuel filler cap and flap ................................................................ 90Fuel inertia switch ........................................................................ 67Fuel level ........................................................................................ 134Fuel level gauge ........................................................................... 134Fuse ................................................................................................... 220Fuses and relays in the engine compartment ................. 222Fuses and relays on centre console ..................................... 226GGearbox display ................................................................ 153, 156General remarks ............................................................................... 4Global Closed ................................................................................. 93Global Open .................................................................................... 93Glossary .......................................................................................... 269Glove compartment ................................................................... 202HHazard warning lights .............................................................. 128Headlight bulbs ........................................................................... 216Headlight washer ....................................................................... 162High beams ................................................................................... 125Horn control ................................................................................. 158How to fasten seat belts ............................................................. 46How to use the tyres ................................................................. 258IIdentification and homologation plates and labels ........ 20If the vehicle is stored for long periods ........................... 264Ignition switch ............................................................................... 85Indication of AVH system activated .................................... 155

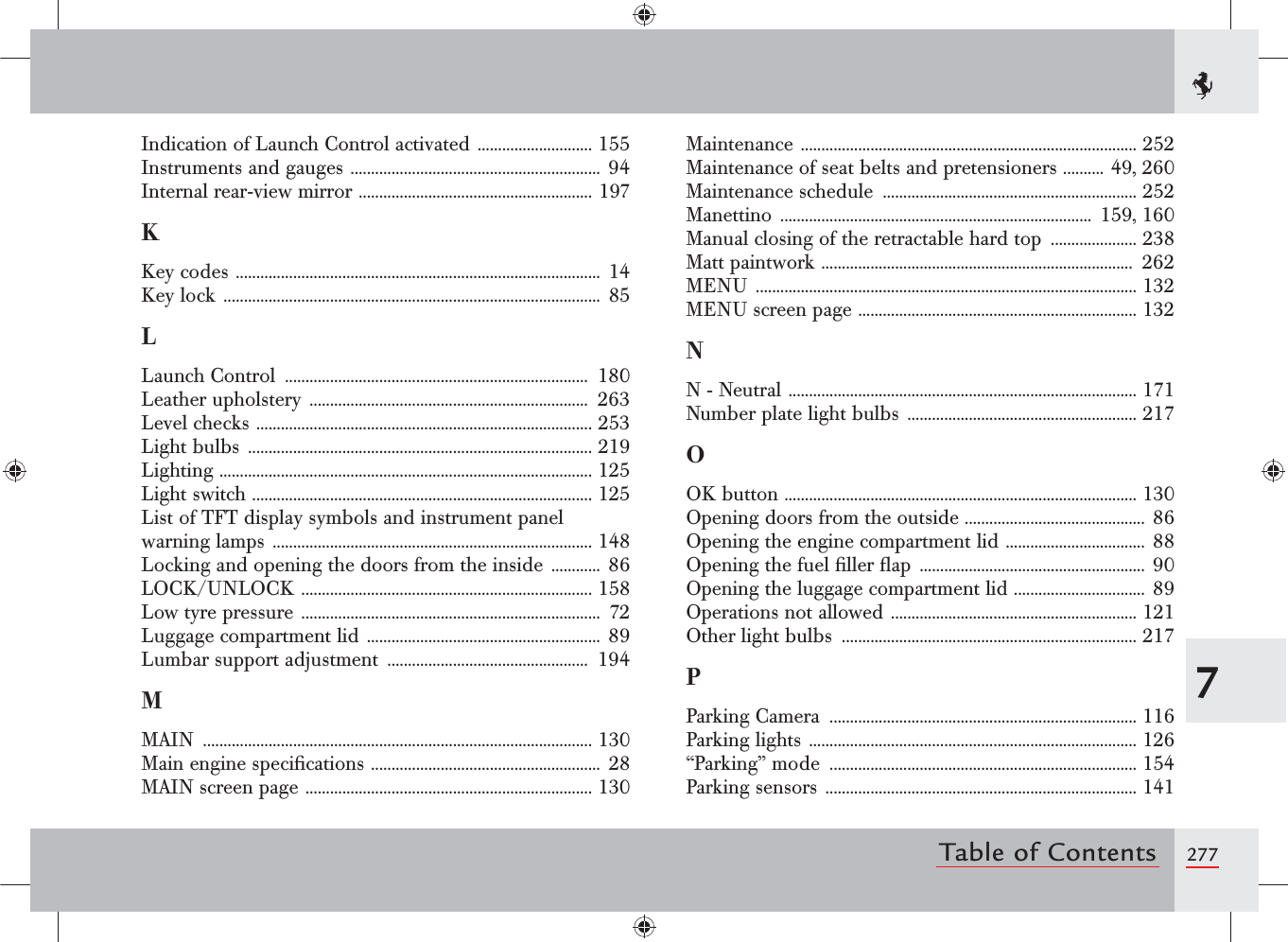

2777Table of ContentsIndication of Launch Control activated ............................ 155Instruments and gauges ............................................................. 94Internal rear-view mirror ......................................................... 197KKey codes ......................................................................................... 14Key lock ............................................................................................ 85LLaunch Control .......................................................................... 180Leather upholstery .................................................................... 263Level checks .................................................................................. 253Light bulbs .................................................................................... 219Lighting ........................................................................................... 125Light switch ................................................................................... 125List of TFT display symbols and instrument panel warning lamps .............................................................................. 148Locking and opening the doors from the inside ............ 86LOCK/UNLOCK ....................................................................... 158Low tyre pressure ......................................................................... 72Luggage compartment lid ......................................................... 89Lumbar support adjustment ................................................. 194MMAIN ............................................................................................... 130Main engine specifications ........................................................ 28MAIN screen page ...................................................................... 130Maintenance .................................................................................. 252Maintenance of seat belts and pretensioners .......... 49, 260Maintenance schedule .............................................................. 252Manettino ............................................................................ 159, 160Manual closing of the retractable hard top ..................... 238Matt paintwork ............................................................................ 262MENU ............................................................................................. 132MENU screen page .................................................................... 132NN - Neutral ..................................................................................... 171Number plate light bulbs ........................................................ 217OOK button ...................................................................................... 130Opening doors from the outside ............................................ 86Opening the engine compartment lid .................................. 88Opening the fuel filler flap ....................................................... 90Opening the luggage compartment lid ................................ 89Operations not allowed ............................................................ 121Other light bulbs ........................................................................ 217PParking Camera ........................................................................... 116Parking lights ................................................................................ 126“Parking” mode ........................................................................... 154Parking sensors ............................................................................ 141

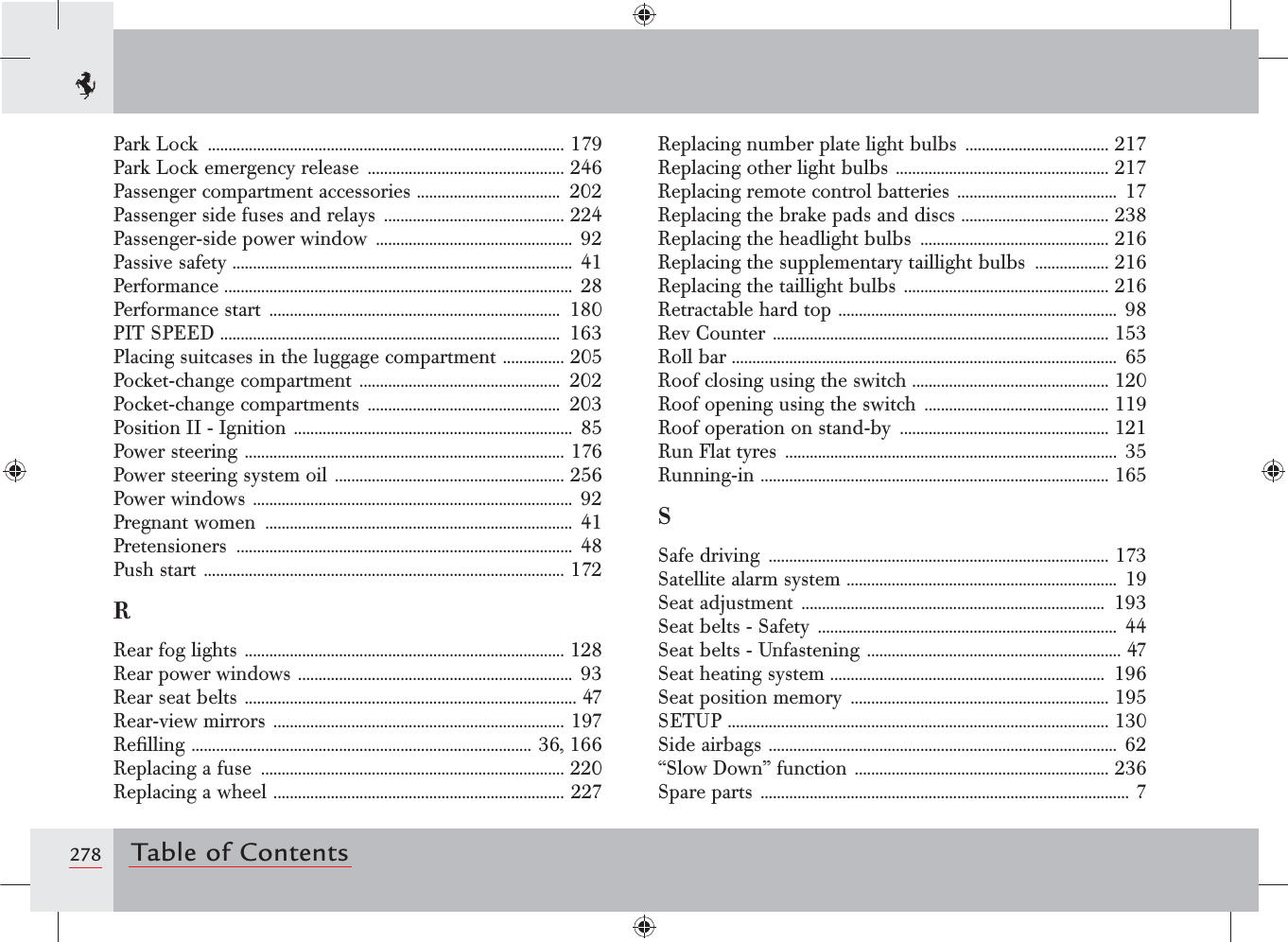

278 Table of ContentsPark Lock ....................................................................................... 179Park Lock emergency release ................................................ 246Passenger compartment accessories ................................... 202Passenger side fuses and relays ............................................ 224Passenger-side power window ................................................ 92Passive safety ................................................................................... 41Performance ..................................................................................... 28Performance start ....................................................................... 180PIT SPEED ................................................................................... 163Placing suitcases in the luggage compartment ............... 205Pocket-change compartment ................................................. 202Pocket-change compartments ............................................... 203Position II - Ignition .................................................................... 85Power steering .............................................................................. 176Power steering system oil ........................................................ 256Power windows .............................................................................. 92Pregnant women ........................................................................... 41Pretensioners .................................................................................. 48Push start ........................................................................................ 172RRear fog lights .............................................................................. 128Rear power windows ................................................................... 93Rear seat belts ................................................................................. 47Rear-view mirrors ....................................................................... 197Refilling ................................................................................... 36, 166Replacing a fuse .......................................................................... 220Replacing a wheel ....................................................................... 227Replacing number plate light bulbs ................................... 217Replacing other light bulbs .................................................... 217Replacing remote control batteries ....................................... 17Replacing the brake pads and discs .................................... 238Replacing the headlight bulbs .............................................. 216Replacing the supplementary taillight bulbs .................. 216Replacing the taillight bulbs .................................................. 216Retractable hard top .................................................................... 98Rev Counter .................................................................................. 153Roll bar .............................................................................................. 65Roof closing using the switch ................................................ 120Roof opening using the switch ............................................. 119Roof operation on stand-by ................................................... 121Run Flat tyres ................................................................................. 35Running-in ..................................................................................... 165SSafe driving ................................................................................... 173Satellite alarm system .................................................................. 19Seat adjustment .......................................................................... 193Seat belts - Safety ......................................................................... 44Seat belts - Unfastening .............................................................. 47Seat heating system ................................................................... 196Seat position memory ............................................................... 195SETUP ............................................................................................. 130Side airbags ..................................................................................... 62“Slow Down” function .............................................................. 236Spare parts .......................................................................................... 7

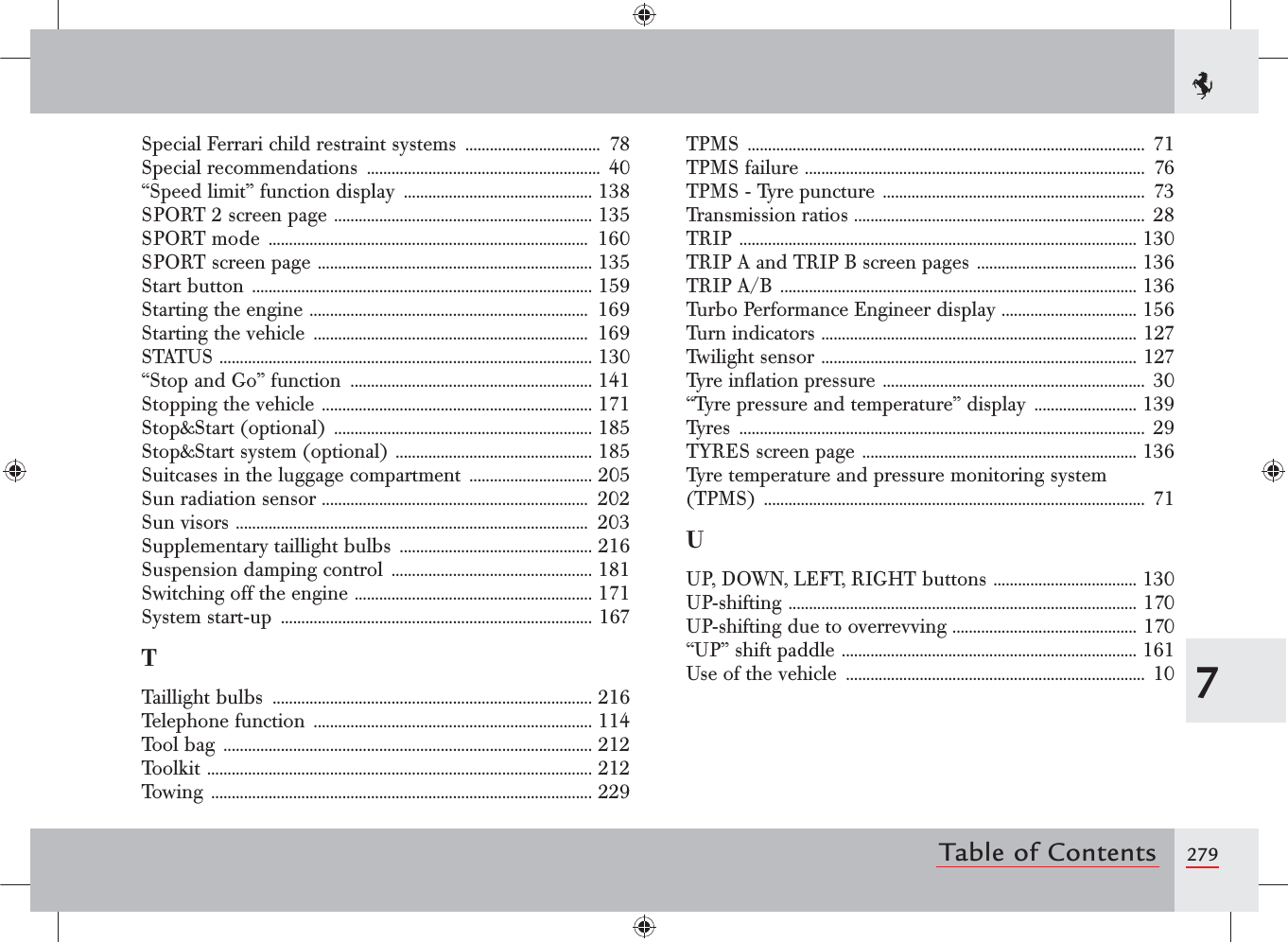

2797Table of ContentsSpecial Ferrari child restraint systems ................................. 78Special recommendations ......................................................... 40“Speed limit” function display .............................................. 138SPORT 2 screen page ............................................................... 135SPORT mode .............................................................................. 160SPORT screen page ................................................................... 135Start button ................................................................................... 159Starting the engine .................................................................... 169Starting the vehicle ................................................................... 169STATUS ........................................................................................... 130“Stop and Go” function ........................................................... 141Stopping the vehicle .................................................................. 171Stop&Start (optional) ............................................................... 185Stop&Start system (optional) ................................................ 185Suitcases in the luggage compartment .............................. 205Sun radiation sensor ................................................................. 202Sun visors ...................................................................................... 203Supplementary taillight bulbs ............................................... 216Suspension damping control ................................................. 181Switching off the engine .......................................................... 171System start-up ............................................................................ 167TTaillight bulbs .............................................................................. 216Telephone function .................................................................... 114Tool bag .......................................................................................... 212Toolkit .............................................................................................. 212Towing ............................................................................................. 229TPMS ................................................................................................. 71TPMS failure ................................................................................... 76TPMS - Tyre puncture ................................................................ 73Transmission ratios ....................................................................... 28TRIP ................................................................................................. 130TRIP A and TRIP B screen pages ....................................... 136TRIP A/B ....................................................................................... 136Turbo Performance Engineer display ................................. 156Turn indicators ............................................................................. 127Twilight sensor ............................................................................. 127Tyre inflation pressure ................................................................ 30“Tyre pressure and temperature” display ......................... 139Tyres ................................................................................................... 29TYRES screen page ................................................................... 136Tyre temperature and pressure monitoring system (TPMS) ............................................................................................. 71UUP, DOWN, LEFT, RIGHT buttons ................................... 130UP-shifting ..................................................................................... 170UP-shifting due to overrevving ............................................. 170“UP” shift paddle ........................................................................ 161Use of the vehicle ......................................................................... 10
280 Table of ContentsVVDA .................................................................................................. 130Vehicle keys ..................................................................................... 14WWarming up the engine ........................................................... 169“Warning: danger of ice” display .......................................... 137Warning lights on the panel ................................................... 148Warning of faulty roof opening and closing ................... 124Warranty Booklet ................................................................... 7, 252Wheel alignment check and adjustment .......................... 260Wheel rims ....................................................................................... 29Wheels and tyres - Use ............................................................. 258While travelling ............................................................................ 173Wind deflector ............................................................................ 206Windscreen and headlight washer fluid ........................... 258Windscreen and headlight washer/wipers ....................... 161Windscreen washer .................................................................... 161

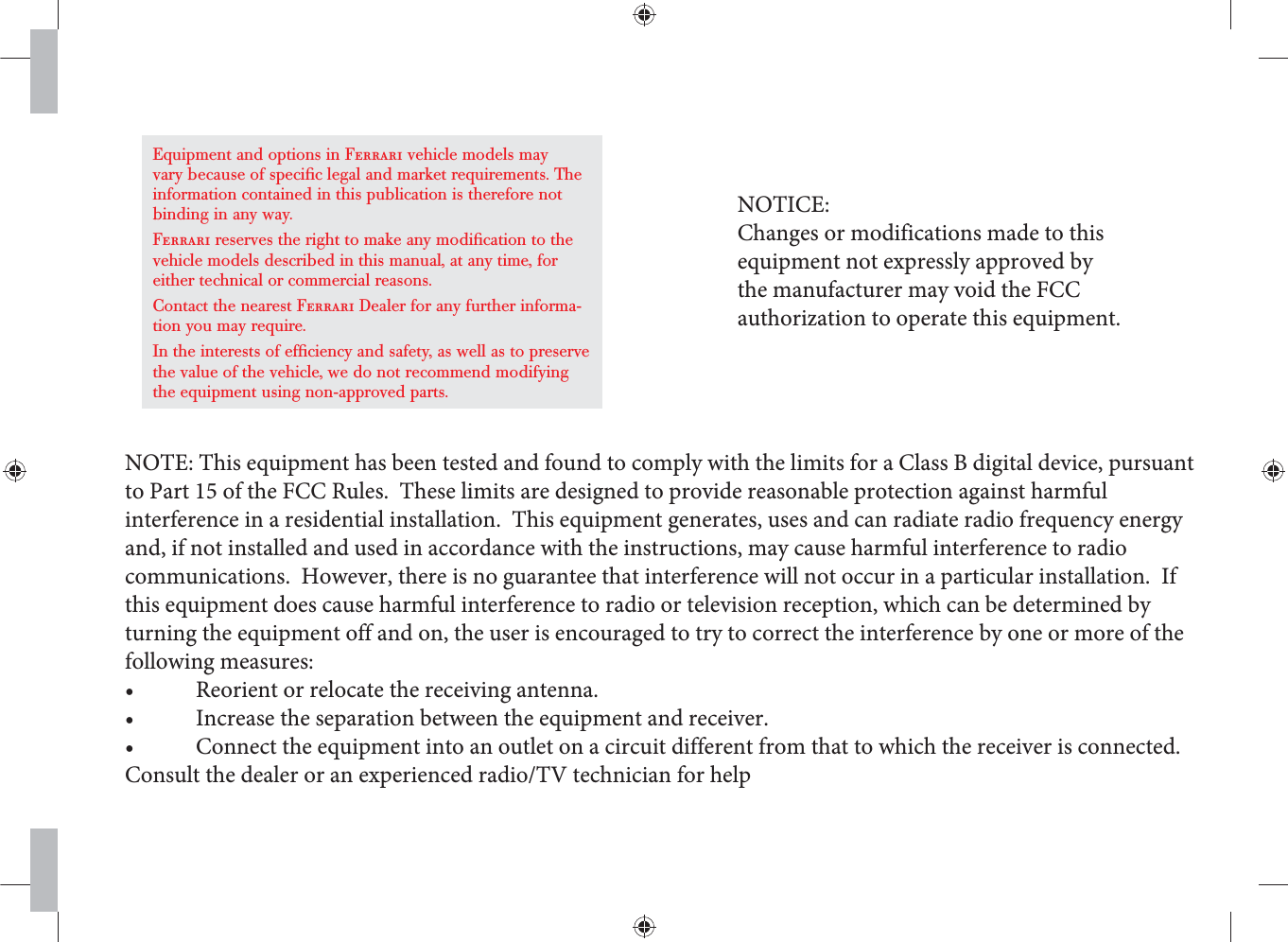

Equipment and options in Ferrari vehicle models may vary because of specific legal and market requirements. The information contained in this publication is therefore not binding in any way. Ferrari reserves the right to make any modification to the vehicle models described in this manual, at any time, for either technical or commercial reasons.Contact the nearest Ferrari Dealer for any further informa-tion you may require.In the interests of efficiency and safety, as well as to preserve the value of the vehicle, we do not recommend modifying the equipment using non-approved parts./05*$&$IBOHFTPSNPEJGJDBUJPOTNBEFUPUIJTFRVJQNFOUOPUFYQSFTTMZBQQSPWFECZUIFNBOVGBDUVSFSNBZWPJEUIF'$$BVUIPSJ[BUJPOUPPQFSBUFUIJTFRVJQNFOU/05&5IJTFRVJQNFOUIBTCFFOUFTUFEBOEGPVOEUPDPNQMZXJUIUIFMJNJUTGPSB$MBTT#EJHJUBMEFWJDFQVSTVBOUUP1BSUPGUIF'$$3VMFT5IFTFMJNJUTBSFEFTJHOFEUPQSPWJEFSFBTPOBCMFQSPUFDUJPOBHBJOTUIBSNGVMJOUFSGFSFODFJOBSFTJEFOUJBMJOTUBMMBUJPO5IJTFRVJQNFOUHFOFSBUFTVTFTBOEDBOSBEJBUFSBEJPGSFRVFODZFOFSHZBOEJGOPUJOTUBMMFEBOEVTFEJOBDDPSEBODFXJUIUIFJOTUSVDUJPOTNBZDBVTFIBSNGVMJOUFSGFSFODFUPSBEJPDPNNVOJDBUJPOT)PXFWFSUIFSFJTOPHVBSBOUFFUIBUJOUFSGFSFODFXJMMOPUPDDVSJOBQBSUJDVMBSJOTUBMMBUJPO*GUIJTFRVJQNFOUEPFTDBVTFIBSNGVMJOUFSGFSFODFUPSBEJPPSUFMFWJTJPOSFDFQUJPOXIJDIDBOCFEFUFSNJOFECZUVSOJOHUIFFRVJQNFOUPGGBOEPOUIFVTFSJTFODPVSBHFEUPUSZUPDPSSFDUUIFJOUFSGFSFODFCZPOFPSNPSFPGUIFGPMMPXJOHNFBTVSFTt 3FPSJFOUPSSFMPDBUFUIFSFDFJWJOHBOUFOOBt *ODSFBTFUIFTFQBSBUJPOCFUXFFOUIFFRVJQNFOUBOESFDFJWFSt $POOFDUUIFFRVJQNFOUJOUPBOPVUMFUPOBDJSDVJUEJGGFSFOUGSPNUIBUUPXIJDIUIFSFDFJWFSJTDPOOFDUFE$POTVMUUIFEFBMFSPSBOFYQFSJFODFESBEJP57UFDIOJDJBOGPSIFMQ
