P 214 – wireless headphone
User Instruction
Version: 1.0
Date: 2011-07-19
Edit: S. Voegele
HBAS Description HBAS PN Daimler PN
HEADPH. MB 2CH. KLEER_TECHN. P214 2115395 A212 870 47 89
HAD Type No.: 9079
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 2/10
Content
1
USER INFORMATION ................................................................................................................ 3
1.1
Purpose ................................................................................................................................... 3
2
MAIN FEATURES ....................................................................................................................... 3
2.1
Product Description ................................................................................................................. 3
3
TECHNICAL CONCEPT ............................................................................................................. 4
3.1
Acoustic ................................................................................................................................... 4
3.2
Application ............................................................................................................................... 4
3.3
Design...................................................................................................................................... 4
3.4
Size Adjustment....................................................................................................................... 4
3.5
Storage .................................................................................................................................... 4
3.6
Battery compartment ............................................................................................................... 4
3.7
Power Supply........................................................................................................................... 5
4
USER INTERFACE..................................................................................................................... 5
4.1
On/Off Button........................................................................................................................... 5
4.2
Source Selection...................................................................................................................... 6
4.3
Volume Control........................................................................................................................ 6
4.4
Status Indication LED .............................................................................................................. 7
4.5
Function and Battery Status .................................................................................................... 7
5
TECHNICAL INFORMATION...................................................................................................... 7
5.1
Mechanical Features ............................................................................................................... 7
5.2
Materials .................................................................................................................................. 7
5.3
Declaration of Conformity to EC regulation R&TTE ................................................................ 8
5.4
FCC statements (North America) ............................................................................................ 9
5.5
Industry Canada (IC) statement............................................................................................... 9
5.6
Environmental information..................................................................................................... 10
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 3/10
1 User Information
1.1 Purpose
This document describes the features, functionality and usage of the P 214 headphone featured by
Kleer technology. It contains and specifies all relevant information about the headphone’s
appearance and the environment it is designated to be used in.
2 Main Features
Lossless digital audio wireless
transmission
Rich sound through 40 mm transducer
Folding mechanism for easy storage
Comfortable through ergonomic fit and
gimbaled earphones
Adjustable from children to adults

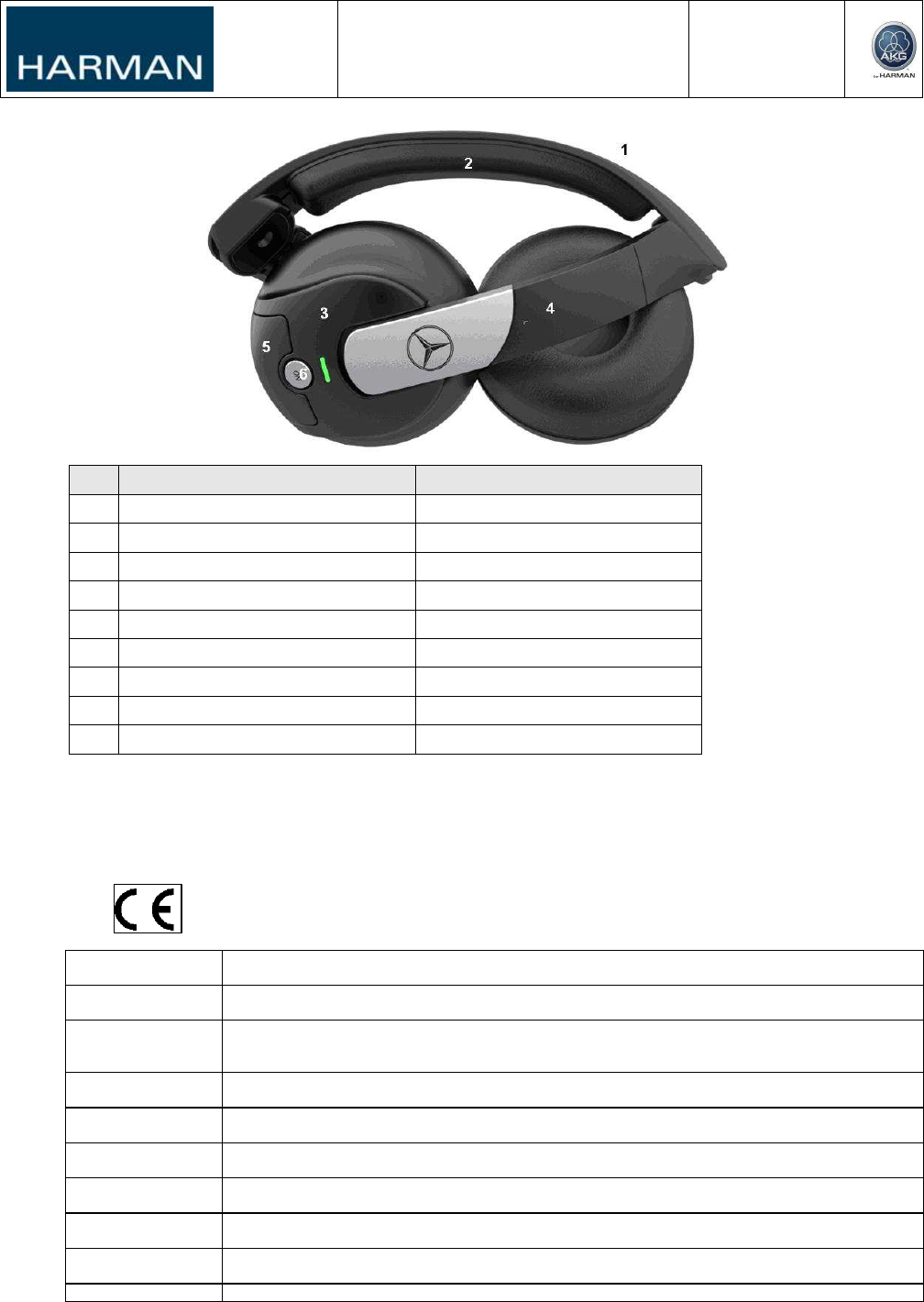

2.1 Product Description
P214 is wireless stereo headphones, featuring Kleer technology for lossless digital audio
transmission and operates in 2.4GHz ISM band. They are designed for individual entertainment in
vehicles and meets the relevant requirements, such as widened operating temperature range, low
battery consumption for longer battery life and low signal latency for lip-sync. The channel switch
provides the facility to select between two different sources.
P214 is powered with two AAA batteries. Both, disposable and rechargeable can be used. An LED
indicates the functional state, but also turns from green to red when the batteries’ voltage reaches
the low level to signalize that they have to be changed soon.
Acoustical characteristic is semi-closed with supra-aural earphones. Sound radiation to the
environment is low, so that other passengers will not be disturbed.
The mechanic design guarantees comfortable wearing constantly for several hours.
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 4/10
3 Technical Concept
3.1 Acoustic
Acoustic characteristic is semi-closed with supra-aural earphones.
Sound radiation to the environment is low, so that other passengers will not be
disturbed. Radiation at comfortable listening level is below car background
noise, based on noise-level of modern cars.
3.2 Application
The headphones will be used in Daimler vehicles with audio/video systems for max. 5 seats and 4
individual stereo audio programs at the same time (= 4 transmitter).
A broadcasting capability of each transmitter up to maximum four receivers is granted.
3.3 Design
P 214 is designed to combine the comfort and acoustical performance of high class headphones
and the requirements for automotive headphones that share a common mechanical and acoustical
basis.
Comfort is provided by ergonomic adjustment features. The head-bow slider covers head sizes
from children to adult. Gimbaled ear cups adjust to individual head-shapes and ear-position.
3.4 Size Adjustment
The headphones are designed for children and adults. Size adjustment is realized through sliders in
the head-bow. The sliding mechanism has several latches to remember the individual position.
3.5 Storage

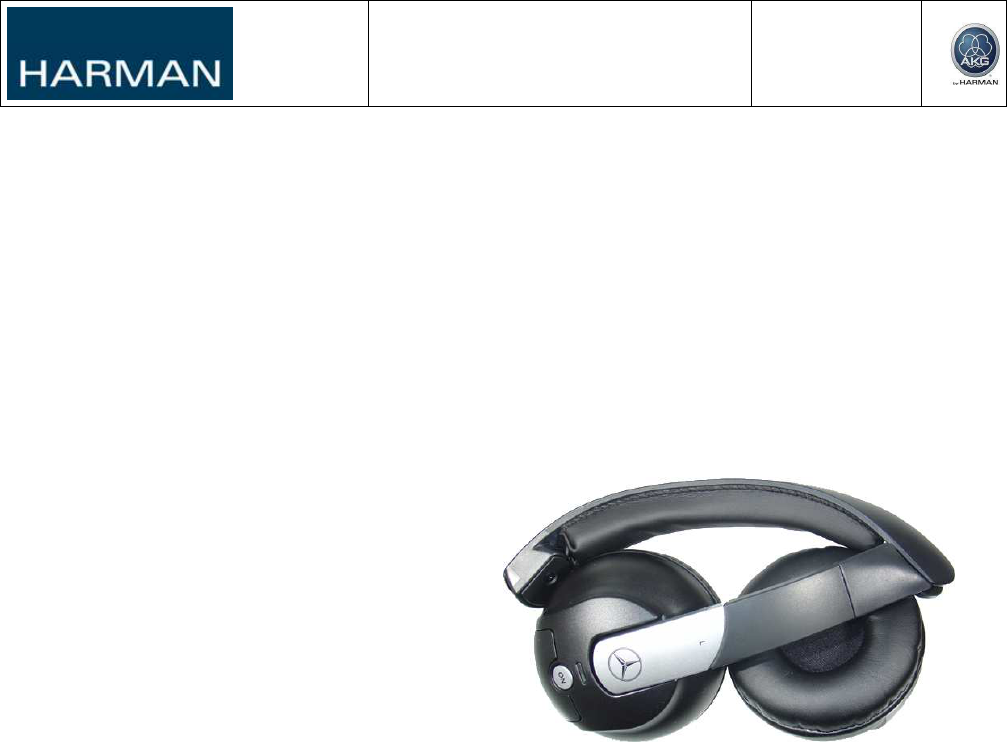

The headphone can be folded for storage purposes.
3.6 Battery compartment
The battery compartment has a child-proof lock that can easily be opened with a coin, credit-card or
something similar.
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 5/10
3.6-1
- to open the battery compartment - flip battery compartment cover upwards. As you do so,
hold the left-hand side of the headphones to prevent the batteries from falling out.
- Remove the discharged batteries from the tray
- Insert the new batteries. Observe the polarity markings on the batteries and battery tray
when doing so.
- To close the battery compartment – press battery compartment cover downwards until it
engages into place. If the batteries have been inserted correctly, the indicator lamp will light
up green when the headphones are switched on.
3.7 Power Supply
The headphone is powered with two AAA batteries*. Both, disposable and rechargeable can be
used. Auto-off-feature ensures that the headphone will turn off after 3 min. of no receiving RF signal
to avoid unintended discharge of batteries.
* Recommended: Energizer EN92 (included in delivery)
At low battery level the power-LED changes from green to red (see also Status Indication LED).
4 User Interface

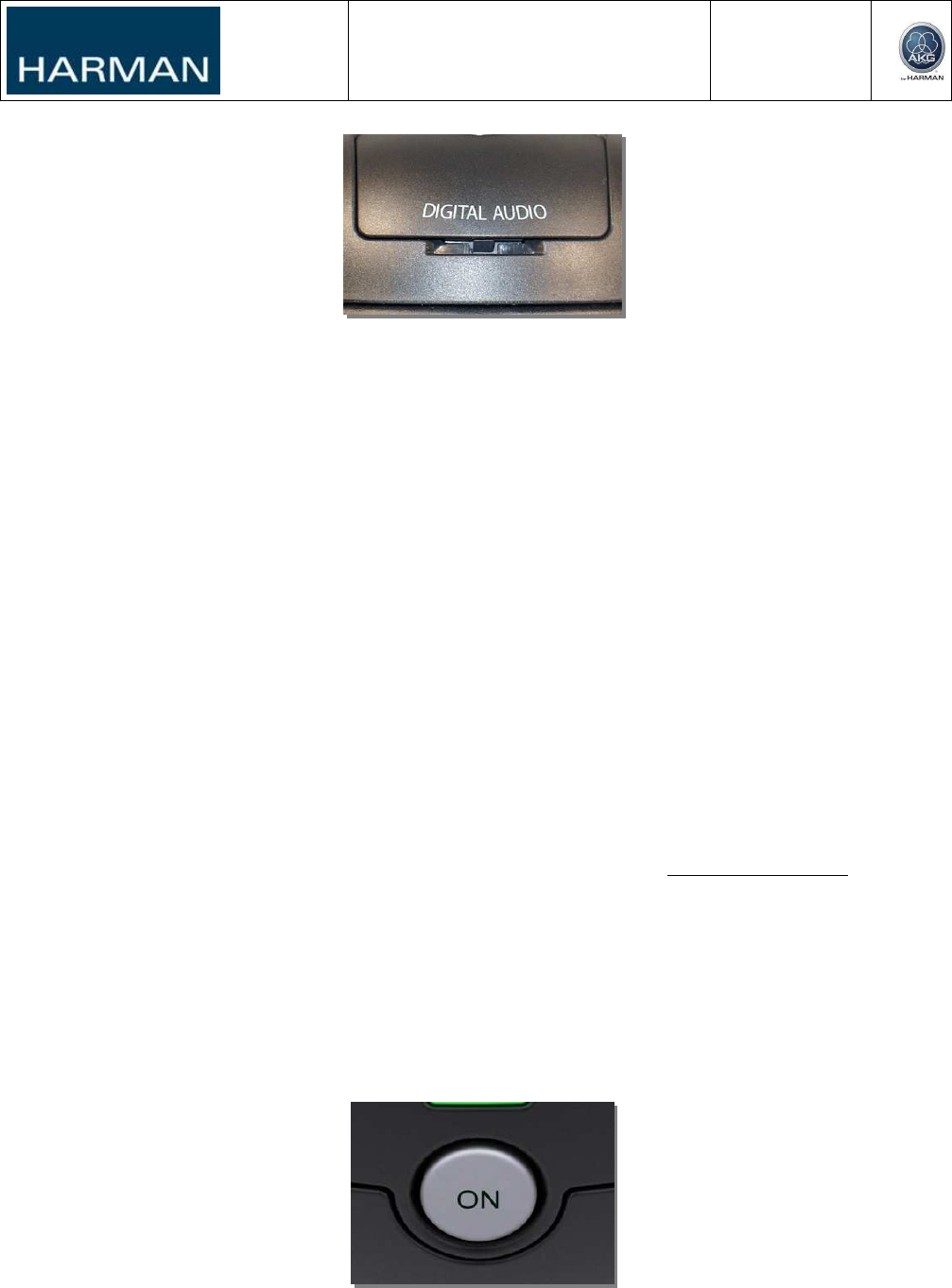

4.1 On/Off Button
The On/Off button is positioned on the left ear cup and toggles between ON and OFF status. The
button is recessed from the surface to avoid unintended operation.
4.1-1
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 6/10
When powered on, the headphone automatically starts in enrollment mode to get connected to the
Source (SRC sound transmitter) selected by the channel switch. If there should be no SRC found to
connect to, the headphone turns off after 3min (≈ Enrollment Time-Out) to save the battery.
4.2 Source Selection

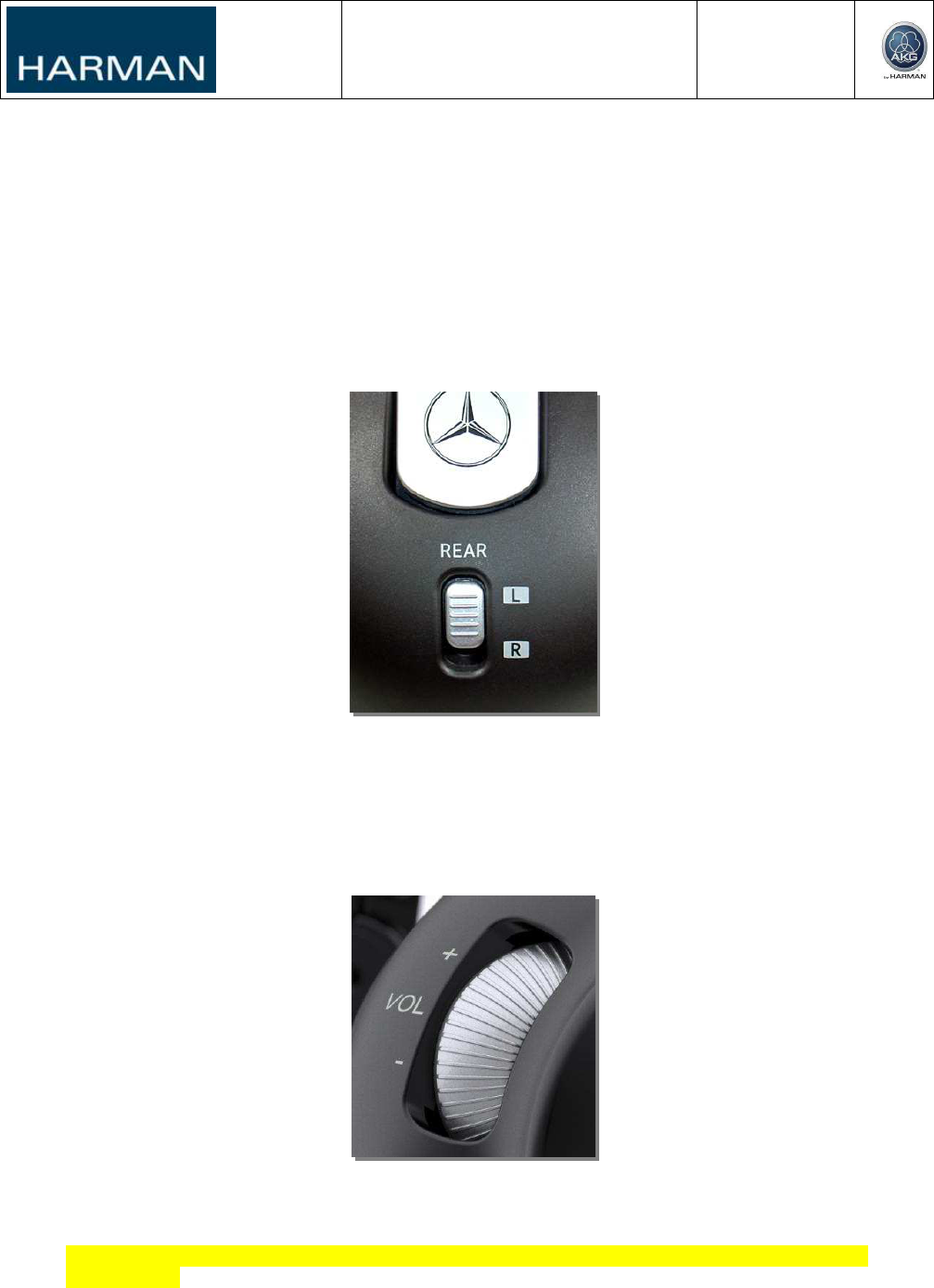

P214 has a sliding switch on the right ear-cup for selecting the SRC, user wants to connect to. The
two available switch positions are marked with “L” for left and “R” for right position on the rear seat.
On switching the source while operating, the connection to the current SRC gets terminated and
another one to the other SRC is established.
4.2-1
4.3 Volume Control
Volume power can be adjusted with an analog rotary potentiometer placed on the right ear-cup.
Before putting on the headphones, make sure that the volume has not been set too high!
4.3-1
NOTE:
“Using headphones at high volume levels, particularly over extended periods of time, may damage
your hearing.”
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 7/10

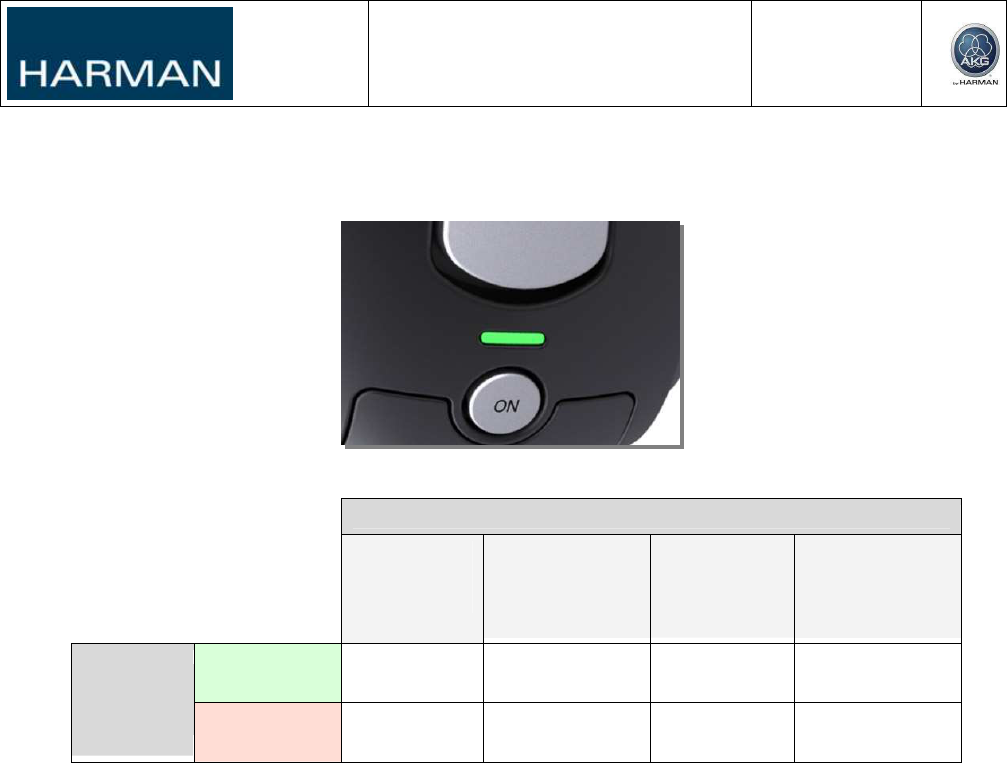

4.4 Status Indication LED
A red/green LED provides the information of the functional status as illustrated in following table.
4.4-1
Functional Status Indication
4.5 Function and Battery
Status
Indication
• Powered
booting
• Powered,
• Enrollment
Mode *
• Powered,
• Connected
• Long Press,
• Association
Mode *
Battery OK
(>2.1V) LED glows
green LED is flashing
at 5Hz LED glows
green LED is flashing
(ON/OFF = 1/5)
Battery
Status
Indication Battery Low
(≤2.1V) LED glows red
LED is flashing
at 5Hz LED glows red
LED is flashing
(ON/OFF = 1/5)
Table
4.4-1 Status indication table
4.4-2
5 Technical Information
5.1 Mechanical Features
• P214 is adjustable in size to fit from children to adults
• Foldable for easy storage
• When placed on the seat, the product will withstand an adult person accidentally sitting on it.
• The headphone features round edges to prevent injury.
• The design of the headphone bears the costumer logo, printed on both ear cups.
5.2 Materials
P214 is in compliance with the latest releases of directives RoHS (2002/95/EC) and
ELV (2000/53/EC), and also the REACH regulation (EC) No. 1907/2006.
Marking of polymer parts acc. to VDA 260 respectively EN ISO 1043.
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 8/10
No. Part Material
1 Bow PBT
2 Bow pad
3 Earcups ABS
4 Outer plug left+right ABS
5 Battery cover ABS
5 Battery door hook PA
5 Battery-contact bridge
6 ON Button ABS
Channel Switch ABS
Table
5.2-1
5.3 Declaration of Conformity to EC regulation R&TTE
Česky [Czech]: HARMAN tímto prohlašuje, že tento P214-Headphone je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]: Undertegnede HARMAN erklærer herved, at følgende udstyr P214-Headphone overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]: Hiermit erklärt HARMAN, dass sich das Gerät P214-Headphone in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]: Käesolevaga kinnitab HARMAN seadme P214-Headphone vastavust direktiivi 1999/5/EÜ põhinõuetele
ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English: Hereby, HARMAN, declares that this P214-Headphone is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]: Por medio de la presente HARMAN declara que el P214-Headphone cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ HARMAN ∆ΗΛΩΝΕΙ ΟΤΙ P214-Headphone ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]: Par la présente HARMAN déclare que l'appareil P214-Headphone est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]: Con la presente HARMAN dichiara che questo P214-Headphone è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]: Ar šo HARMAN deklarē, ka P214-Headphone atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 9/10
citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]: Šiuo HARMAN deklaruoja, kad šis P214-Headphone atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch]: Hierbij verklaart HARMAN dat het toestel P214-Headphone in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]: Hawnhekk, HARMAN, jiddikjara li dan P214-Headphone jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]: Alulírott, HARMAN nyilatkozom, hogy a P214-Headphone megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]: Niniejszym HARMAN oświadcza, że P214-Headphone jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC
Português
[Portuguese]: HARMAN declara que este P214-Headphone está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]: HARMAN izjavlja, da je ta P214-Headphone v skladu z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky [Slovak]: HARMAN týmto vyhlasuje, že P214-Headphone spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]: HARMAN vakuuttaa täten että P214-Headphone tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]: Härmed intygar HARMAN att denna P214-Headphone står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska (Icelandic): Hér með lýsir HARMAN yfir því að P214-Headphone er í samræmi við grunnkröfur og aðrar kröfur, sem
gerðar eru í tilskipun 1999/5/EC
Norsk [Norwegian]: HARMAN erklærer herved at utstyret P214-Headphone er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
5.4 FCC statements (North America)
(§15.19)
"This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation”
and (§15.21)
“CAUTION TO USERS” / “FCC WARNING”
“Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment “
5.5 Industry Canada (IC) statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
User Instruction P 214
P214_UserManual-SV_110720.doc Version 1.0 10/10
5.6 Environmental information
Batteries contain harmful substances. Please don’t throw into household trash. Use environmental
disposal.
