Owner’s Manual

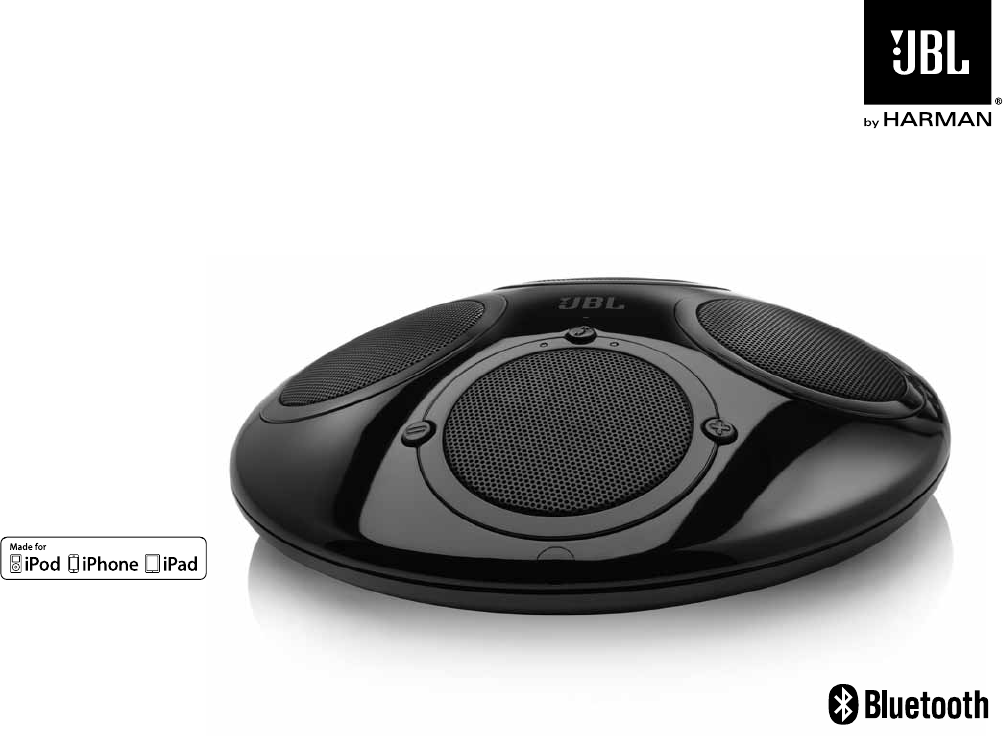

jbl On TOur™ ibT
Bluetooth® Portable Loudspeaker
®
IMpOrTanT safeTy InsTrucTIOns
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such
as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from
the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
warnInG: THE APPARATUS MAY BE STATIC-SENSITIVE IN SOME CIRCUMSTANCES AND MAY HAVE
TO BE RESET AFTER SUFFERING AN ELECTROSTATIC DISCHARGE.
IMpOrTanT nOTe fOr all elecTrOnIc prOducTs: BEFORE INSERTING OR
UNPLUGGING AUDIO CABLES FROM THE SOURCE DEVICE’S HEADPHONES OR LINE-LEVEL OUTPUT
JACKS, IT IS GOOD PRACTICE TO TURN OFF THE DEVICE. THIS WILL PROLONG THE LIFE OF YOUR UNIT,
HELP PROTECT YOUR DEVICE FROM STATIC ELECTRICITY AND AVOID POTENTIAL DAMAGE.
THE LIGHTNING FLASH WITH AN
ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
UNINSULATED “DANGEROUS VOLTAGE”
WITHIN THE PRODUCT’S ENCLOSURE THAT
MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK
TO PERSONS.
CAUTION
THE EXCLAMATION POINT WITHIN
AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING
AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE PRODUCT.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE
THE RISK OF FIRE OR
ELECTRIC SHOCK,
DO NOT EXPOSE THIS
APPARATUS TO RAIN OR
MOISTURE.
SEE MARKING ON BACK OF PRODUCT.
English
fcc statement and WarninG
FCC InFormatIon For Users
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference; and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to
radio or television reception, which can be determined by turning the equipment off and then on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. Industry Canada Statement: This Class
B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
jbl On TOur™ IbT
With no wires to tangle or restrict your movement, and controls
conveniently located on the unit, the JBL On Tour™ iBT loudspeaker
is both the ultimate in portable audio convenience and a paragon of
superior audio quality.
A compact, high-performance Bluetooth® sound center, when paired
with your iPad or other Bluetooth A2DP-enabled audio device,
Bluetooth music phone, iPhone, iPod, MP3 player or any other music
source with an audio jack, the JBL On Tour iBT loudspeaker will provide
clean, powerful sound in a compact, portable design. Accept a phone
call with the included Bluetooth speakerphone feature. Take complete
control of your traveling experience with the JBL On Tour iBT portable
loudspeaker.
The JBL On Tour iBT system is compatible with most Bluetooth-
enabled devices, music players, cell phones and laptops. Enabled with
Bluetooth A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/
Video Remote Control Profile) and HFP (Hands-Free Profile), the system
can stream high-quality sound and serve as a speakerphone. With
the included Apple cable and additional stereo mini jack connection,
you can enjoy high-quality audio via direct connection with a variety
of devices such as iPad, iPhone, iPod, MP3 and CD players, desktop
computers (all platforms), laptops and satellite radio tuners.
Use the included tabletop stand to support your iPad or other
Bluetooth-enabled tablet while you’re streaming to the JBL On Tour iBT.
When you’re ready to go, snap the stand right to the JBL On Tour iBT
unit for easy and convenient transport.
The JBL On Tour iBT portable loudspeaker is a complete two-channel
audio system in one easy-to-place footprint. The JBL On Tour iBT
loudspeaker delivers sound with a powerfully tuned digital audio
path. Its clean and compact digital amplification, coupled with DSP
(digital signal processing) equalization, efficiently provides the four JBL
Odyssey® transducers with cool-running power.
The JBL On Tour iBT system combines many proprietary technologies
to provide the highest-quality sound. It provides astonishing bass and
clear, accurate sound from any direction. The four JBL Odyssey full-
range transducers are driven by powerful neodymium magnets, and
provide accurate sound at all frequencies.
The JBL On Tour iBT system equalization is computer-optimized
to provide a rich, complete soundstage. Proproetary compression
topology ensures clean, accurate sound at high output levels.

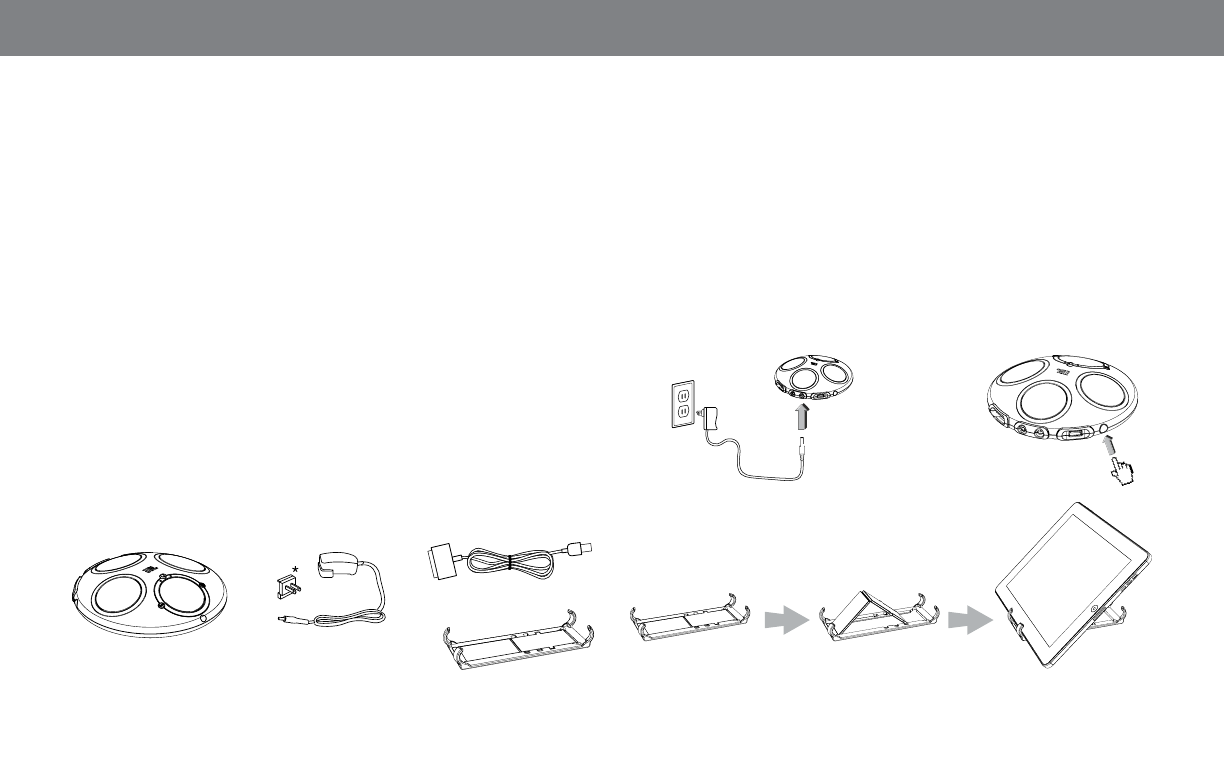

unpackInG
Carefully unpack your speaker system and identify all its components:
JBL On Tour iBT unit Power supply and
outlet adapter*
*Outlet adapter varies by region.
Tabletop stand for
tablet media players
Apple cable
General seTup
Unpack the JBL On Tour iBT system and its power supply.
1. Snap the outlet adapter onto the power supply, plug the power
supply into the “12V DC In” port on the back of the unit and then into
a wall outlet.
2. Turn on the power switch. The Power LED will glow green.
3. To set up the tabletop stand, pull up the center panels as shown
in the illustration and place the tablet player on it. (You can set the
stand in one of three positions.)
1.
3.
2.
Power Switch
English

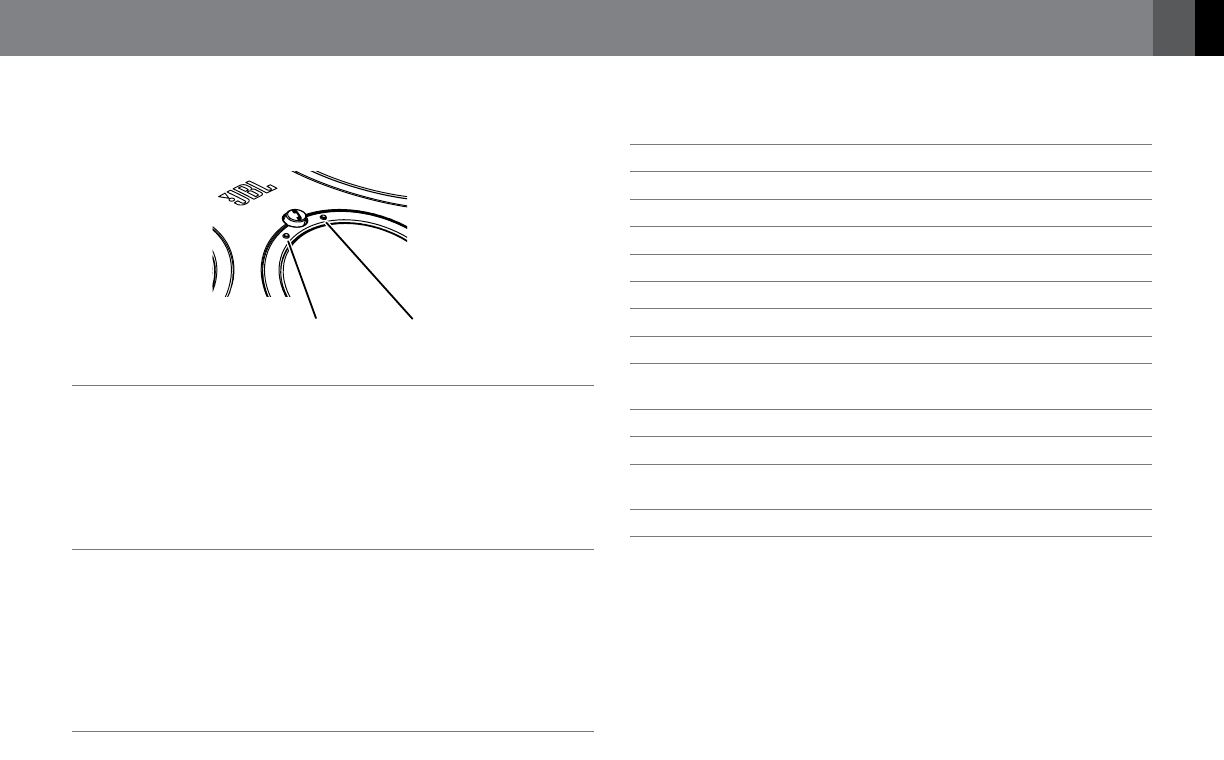

VOluMe cOnTrOls
Volume increase “+”
Volume decrease “–”
Answer/end phone call (MFB) “ ”
Microphone “ ”

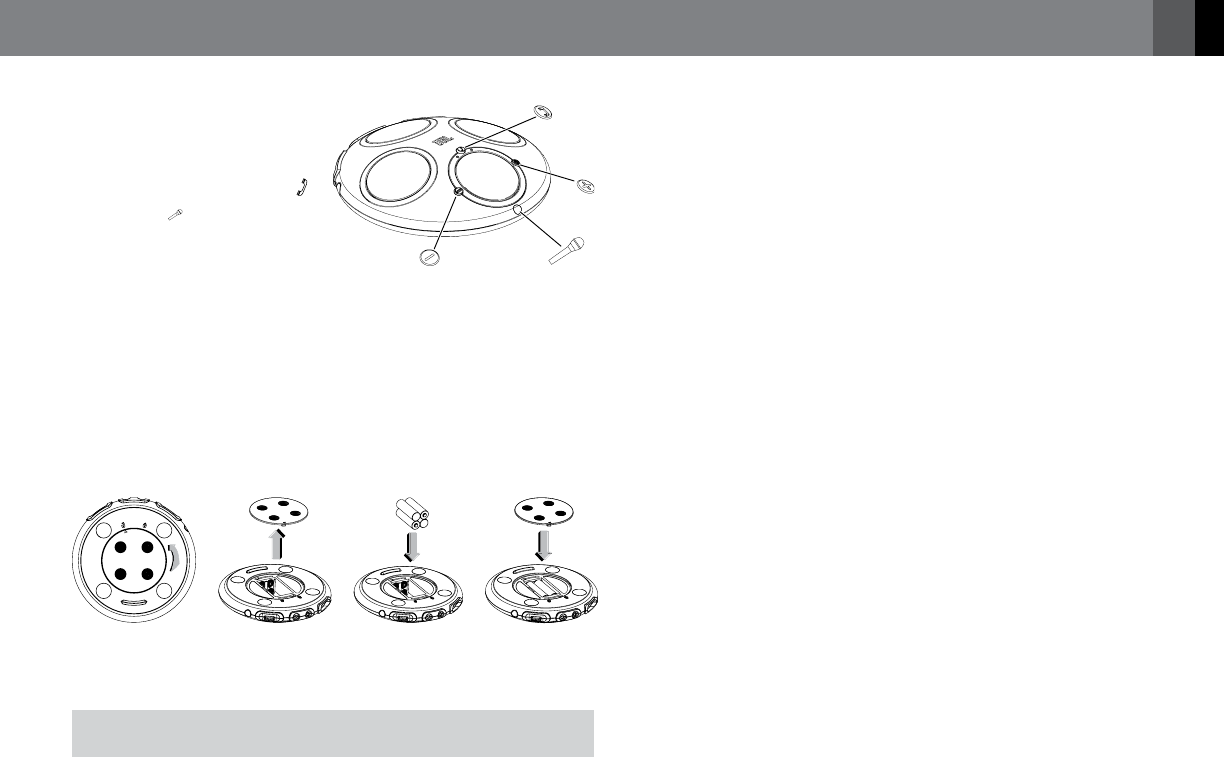

baTTery InsTallaTIOn
1. Rotate the battery compartment cover on the bottom of the JBL
On Tour iBT speaker to the unlocked position; remove the battery
compartment cover.
2. Place (4) fresh AA batteries as shown.
3. Replace the battery compartment cover.
The JBL On Tour iBT will not use battery power when using AC
power.
1. 2. 3.
DO NOT MIX BATTERY TYPES.
DO NOT MIX CHARGED AND PARTIALLY CHARGED BATTERIES.
BATTERIES WILL NOT RECHARGE WHILE IN THE UNIT.
baTTery dIspOsal
Alkaline batteries are considered nonhazardous. Rechargeable batteries
(i.e., nickel cadmium, nickel metal-hydride, lithium and lithiumion)
are considered hazardous household materials and may pose an
unnecessary health and safety risk.
In the European Union and other locations, it is illegal to dispose of any
battery with household trash. All batteries must be disposed of in an
environmentally sound manner. Contact your local waste management
offcials for information regarding the environmentally sound collection,
recycling and disposal of used batteries.
Bluetooth paIrInG
Before you can use your JBL On Tour iBT system with a Bluetooth-
enabled device, you must pair it with that device.
To pair the JBL On Tour iBT with your device:
1. Make sure your JBL On Tour iBT system is turned on. The JBL On
Tour iBT unit automatically goes into Pairing/Discoverable mode,
represented by the Source LED glowing a constant blue.
2. Put your Bluetooth-enabled device in Pairing mode so both devices can
“see” each other. (Refer to the Bluetooth-enabled device’s user’s guide
for directions and details about putting it into Pairing mode.) The JBL On
Tour iBT unit will be represented as “JBL On Tour iBT” on your Bluetooth-
enabled device. The JBL On Tour iBT password is 0000.
3. The JBL On Tour iBT system is successfully paired and ready to use
when the Source LED flashes blue.
Bluetooth pairing between two devices does not have to be repeated
after a successful initial pairing, unless the JBL On Tour iBT system has been
removed from the Bluetooth-enabled device’s Bluetooth device list.
Risk of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

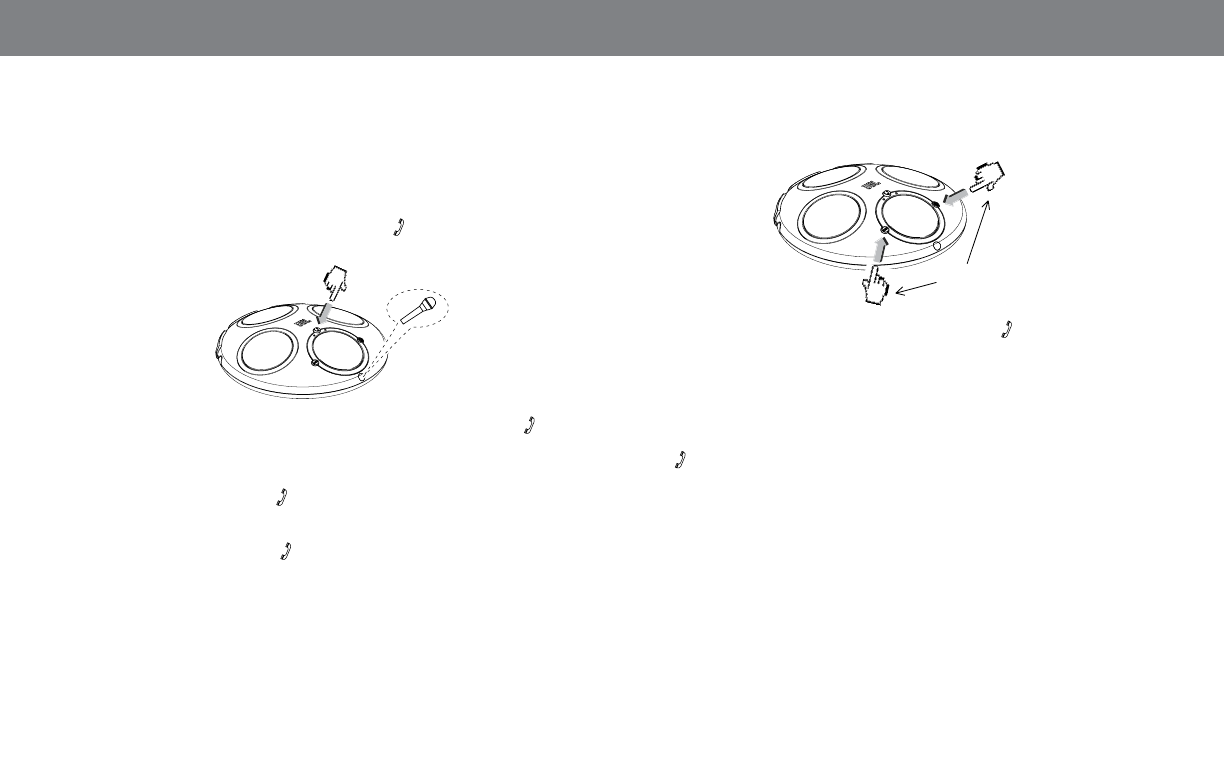

lIsTenInG TO a phOne call frOM a
Bluetooth-enabled deVIce
1. Make sure the JBL On Tour iBT speaker is paired (see Bluetooth
Pairing section, on page 5).
2. When you hear your Bluetooth-enabled device’s ringtone from the
JBL On Tour iBT system, press the MFB “ ” button to answer the
phone call.
• To reject an incoming phone call: Press and hold the MFB “ ”
button on the JBL On Tour iBT unit for two seconds.
• To answer a second incoming phone call while putting the first call
on hold: Press the MFB “ ” button.
• To reject a second incoming phone call while staying on the first call:
Press and hold the MFB “ ” button for two seconds.
• To mute a phone call: Press both Volume buttons on the JBL On
Tour iBT system. To unmute the phone call: Press either Volume
button on the JBL On Tour iBT unit.
Or
3. When the phone call is finished, press the MFB “ ” button to end the
phone call.
MakInG a phOne call frOM a Bluetooth-
enabled deVIce
To make a phone call via voice recognition mode, press and hold the
MFB “ ” button for two seconds.
If the phone does not support voice recognition this action will
redial the last number that was called on the phone.
English
lIsTenInG TO MusIc
There are three ways to listen to music on your JBL On Tour iBT:
• Via Bluetooth technology from a Bluetooth-enabled device.

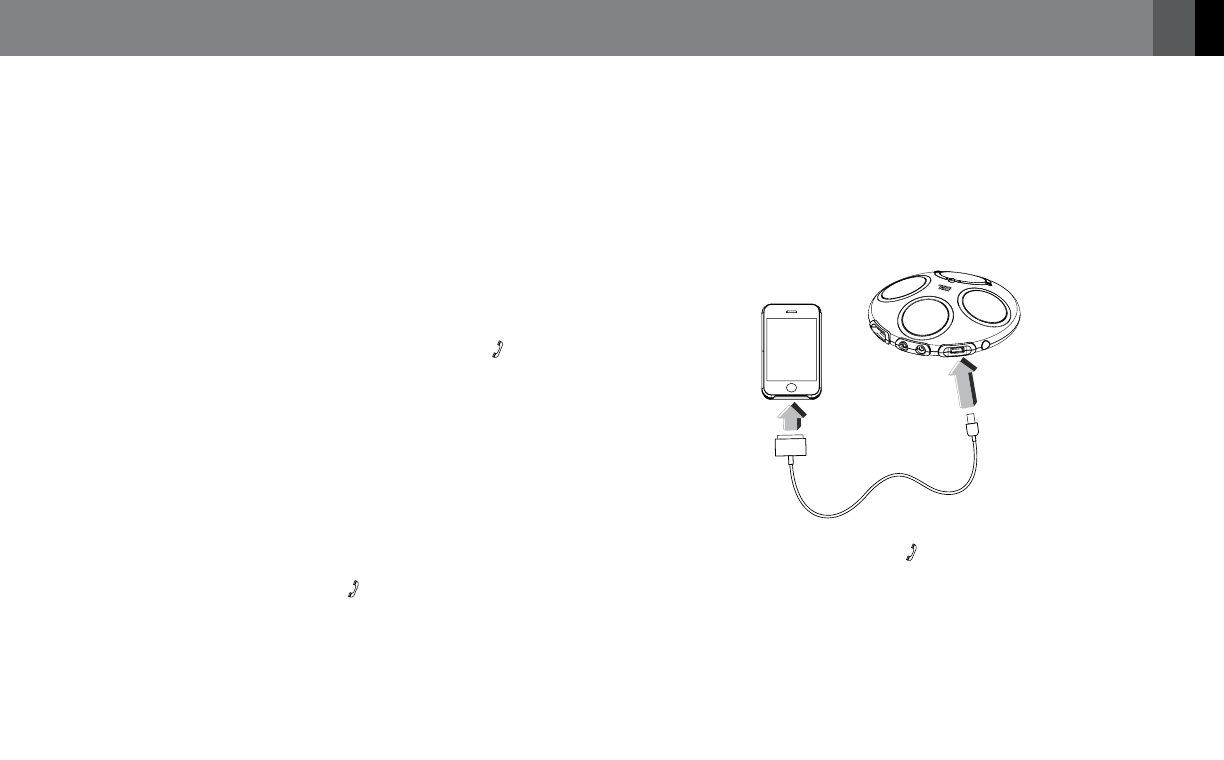

• Using the supplied Apple cable to connect an iPad, iPhone or iPod
device to the JBL On Tour iBT’s USB port.

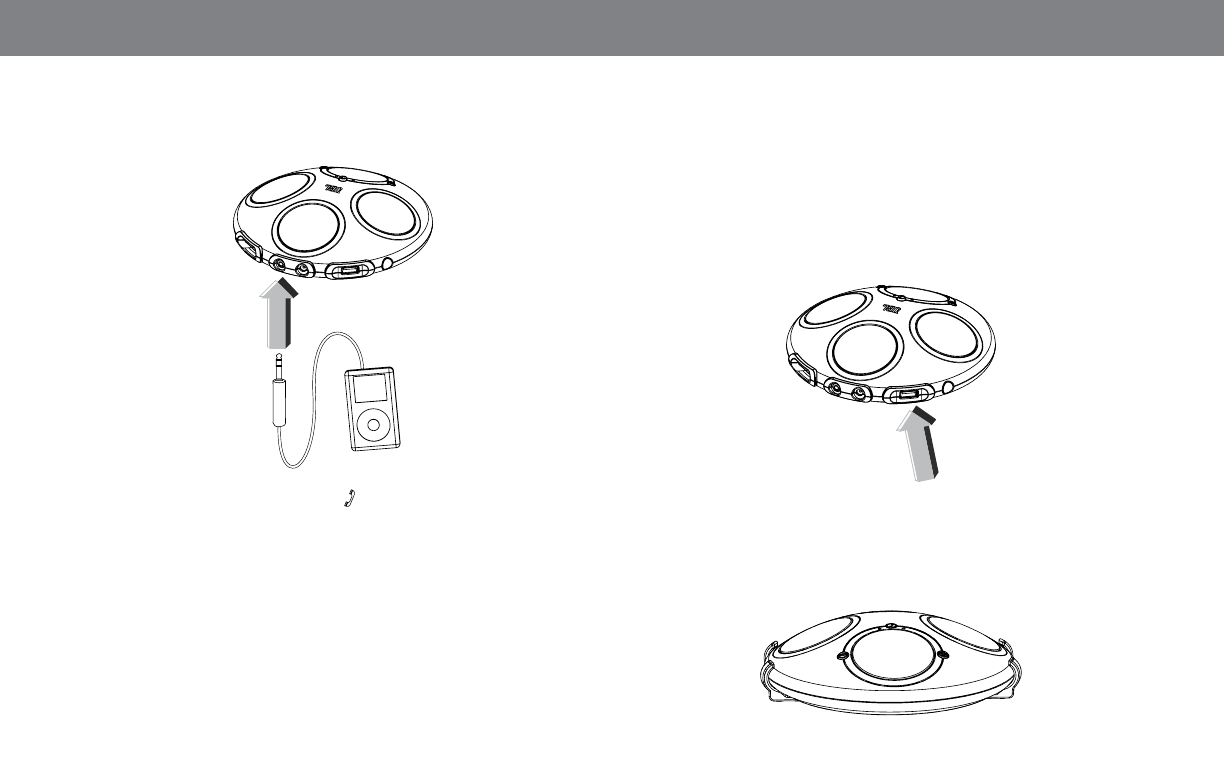

• Using a stereo 3.5mm audio cable (not supplied) to connect an
audio device’s audio or headphone output to the JBL On Tour iBT’s
auxiliary 3.5mm mini jack.
To cycle through the sources, make sure the JBL On Tour iBT is not in
the Bluetooth call mode and momentarily press the MFB “ ” button.
Each press of the button changes to the next source. The source LED
will change color to indicate the active source:
White = Apple cable (USB port)
Blue = Bluetooth (wireless)
Green = Auxiliary 3.5mm mini jack
LISTENING TO MUSIC FROM A BLUETOOTH-ENABLED DEVICE
1. Make sure the JBL On Tour iBT system is paired with your
Bluetooth-enabled device (see Bluetooth Pairing section, on page 5).
2. Press the JBL On Tour iBT’s MFB “ ” button until the Source LED
lights blue constantly. This indicates that the Bluetooth input is
selected.
3. Go to the Bluetooth-enabled device’s music player and play music.
Refer to the Bluetooth-enabled device’s user’s guide for directions
and details about using its music player and transmitting music via
Bluetooth technology.
4. Use the Bluetooth-enabled device to control playback. Adjust the
volume using the “+” and “–” buttons located on the front of the
JBL On Tour iBT unit.
LISTENING TO MUSIC FROM A CONNECTED iPad, iPhone or iPod
DEVICE
1. Plug the supplied Apple cable into the JBL On Tour iBT’s USB port,
and plug your iPad, iPhone or iPod device to the cable’s 30-pin
connector.
2. Press the JBL On Tour iBT’s MFB “ ” button until the Source LED
lights white constantly. This indicates that the Apple cable (USB)
input is selected.
3. Use the iPad, iPhone or iPod device to control playback. Adjust the
volume using the “+” and “–” buttons located on the front of the
JBL On Tour iBT unit.
NOTE: The JBL On Tour iBT will recharge the iPad, iPhone or iPod
device while it is connected.
LISTENING TO MUSIC FROM A CONNECTED AUXILIARY DEVICE
1. Connect the auxiliary device to the JBL On Tour iBT system using a
3.5mm stereo audio cable (not supplied).
2. Press the JBL On Tour iBT’s MFB “ ” button repeatedly until the
Source LED lights Amber. This indicates that the Aux input source is
selected.
3. Control music playback through the auxiliary device. Adjust the
volume using the “+” and “–” buttons located on the front of the
JBL On Tour iBT unit.
charGInG
The JBL On Tour iBT unit’s USB port will charge most mobile phones
and portable music players. An Apple cable is supplied for charging
Apple iPhone, iPod and iPad devices. For other types of devices, use
the charging cable that was supplied with your device. If one was not
provided, contact the device’s manufacturer or an authorized dealer
to obtain one. Mobile phones and portable music players that
require data communication in order to charge will not charge from the
JBL On Tour iBT unit.
Charge Port
carryInG/sTOrInG The TableTOp sTand
You can easily snap the tabletop stand on and off the JBL On Tour iBT
for convenient storage or transport.
English
pOwer and sOurce leds
The Power and Source LED colors change to indicate the state of
JBL On Tour iBT unit.
Power LED
Source LED
led sTaTe IndIcaTIOn
Green, constant JBL On Tour iBT is on, powered
by good batteries or its AC power
supply.
Green, flashing JBL On Tour iBT is in software
upgrade mode.
Amber, flashing Software upgrade failed.
Amber, constant Batteries are low.
White, constant Apple cable (USB) is the active
source.
Blue, constant Bluetooth source is paired and is
the active source.
Blue, flashing JBL On Tour iBT is in Bluetooth
pairing mode.
Green, constant Aux input connector is the active
source.
specIfIcaTIOns
Transducers 4 x JBL Odyssey
Amplifier 2 x 8 watts at 1% THD
Frequency response 100Hz – 20kHz
Signal-to-noise ratio >85dB
Input impedance >10k ohms
Battery size/type AA /alkaline, NiMH
Maximum power consumption 30 watts
Power requirement (USA/Canada) 120 volts, 60Hz AC
Power requirement (Europe/UK) 220 – 230 volts,
50Hz or 60Hz AC
Power requirement (Japan) 100 volts, 50Hz or 60Hz AC
Power requirement (Australia) 240 volts, 50Hz or 60Hz AC
Dimensions (Diameter x H) 6-1/2" x 1-5/8"
(165mm x 41mm)
Weight 0.6kg (1.3 lb)
Features, specifications and appearance are subject to change without notice.
syMpTOM pOssIble prObleM sOluTIOn nOTe
There is no sound from your JBL On Tour
iBT speaker.
There is no power to the unit. Make sure the wall power outlet or power
strip has power; make sure all switches for the
outlet/power strip are on and that all switches
for the speaker system are on.
Is the Power LED glowing green?
If the Power LED is not on, power
is not getting to your JBL On Tour
iBT system.
Try the solutions shown.
The source selection is incorrect. Ensure that the auxiliary cable is properly
connected to an external audio device.
Check that the Source LED is lighted the
proper color. See Power and Source LEDs,
on page 9.
Turn up the volume.
Check the system with a known good source.
Connect the Aux In cable to the headphone
jack on your audio device.
The source device is not capable of sending
music via Bluetooth technology.
Replace the source device with a Bluetooth
wireless technology-enabled source device.
Sound comes from only one side/channel. The audio cable is not seated properly. Make sure the Aux In cable is seated all the
way into the JBL On Tour iBT system.
Make sure the audio cable is a stereo cable.
(A mono cable will only output sound through
one channel.)
TrOubleshOOTInG sOund QualITy
English
syMpTOM pOssIble prObleM sOluTIOn nOTe
There is distortion (static, crackling or
hissing sounds).
The noise may be caused by interference
from a monitor, cell phone or other
transmitting device.
Turn the monitor or other device off to see if
the noise is eliminated.
Move the JBL On Tour iBT cables farther
away from the monitor or other device.
There is too much bass or treble. The JBL On Tour iBT system is being
overdriven by an amplied audio source.
Ensure that the JBL On Tour iBT system is
connected to an appropriate source device.
Make sure that all signal cables are inserted
snugly into their connectors.
The volume level may be too high. Check the volume of the source device. Some
devices will distort the output signal if the
volume is set to maximum.
Check the EQ setting on your source device. We recommend that the source device EQ be
set to Flat or Off.
Your JBL On Tour iBT speaker emits a loud
hum or buzzing noise.
The Aux In cable is not plugged in properly. Check the Aux In cable connection
The speaker experiences radio frequency
interference or picks up a radio station.
The input cable may be picking up
interference.
Wrap up excess input cable in order to make
it as short as possible.
When streaming music using Bluetooth
technology, the sound from the JBL On Tour
iBT speaker lacks stereo quality.
There is a Bluetooth compatibility issue
between the JBL On Tour iBT unit and the
source device.
Ensure that the source device has the latest
software.
Turn both the JBL On Tour iBT unit and the
source device both off and on to reset them.
Some source devices have known
functional issues with the JBL On
Tour iBT system.
TrOubleshOOTInG sOund QualITy (cOnTInued)
TrOubleshOOTInG charGInG
syMpTOM pOssIble prObleM sOluTIOn nOTe
Your iPod device or cell phone will not
charge.
The wrong adapter is being used. Make sure the correct adapter is being used
for your specic iPod or cell phone model.
Some cell phones cannot charge
via USB without software from the
charging system.
TrOubleshOOTInG paIrInG
syMpTOM pOssIble prObleM sOluTIOn nOTe
The audio device does not pair with the JBL
On Tour iBT system.
The audio device is not compatible with
the JBL On Tour iBT system.
Verify compatibility with the manufacturer.
The JBL On Tour iBT system is not
powered on.
Press the Power button on the JBL On Tour
iBT unit.
The blue LED should be constantly
on, indicating that the system is in the
Discoverable mode.
The JBL On Tour iBT system is still paired
to the Bluetooth transceiver.
Disconnect the transceiver from the iPod and
turn the JBL On Tour iBT system power off,
then back on.
The iPod battery is low. Charge the JBL On Tour iBT system by
following the battery charging directions in
this Owner’s Manual.
If the amber LED on the JBL On Tour
iBT unit is on, it is indicating a low
battery.
English
© 2011 HARMAN International Industries, Incorporated. All rights reserved.
JBL and Odyssey are trademarks of HARMAN International Industries, Incorporated, registered in
the United States and/or other countries. JBL On Tour is a trademark of HARMAN International
Industries, Incorporated.
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.,
and any use of such marks by HARMAN International Industries, Incorporated, is under license.
iPhone, iPod and iPad are trademarks of Apple, Inc., registered in the U.S. and other countries.
“Made for iPod,” “Made for iPhone” and “Made for iPad” mean that an electronic accessory
has been designed to connect specifically to iPod, iPhone and iPad, respectively, and has been
certified by the developer to meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory standards. iPod/iPhone/iPad
not included.
Features, specifications and appearance are subject to change without notice.
Part No. 950-0351-001
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
