User manual
N5005
Chances are, the world’s best-selling musicians heard their
most famous tracks played back for the first time through
AKG®studio headphones. Music professionals have relied on
AKG for almost 70 years. Producing some of the most nuanced
and natural-sounding headphones and microphones in the
history of audio, it’s no surprise then that AKG’s achievements
include over 1,400 International patents and a 2010 technical
GRAMMY® award.
AKG exists to tap into the creativity in all of us, and we
engineer our products to deliver sound just as the artist
intended. Every little intricacy is exposed and its true
character revealed. This is pure studio sound, free of
distortion and distraction for a superior listening experience.
An experience that brings a heightened clarity and focus to
the listener. Authentic sound with a mind-clearing effect that
inspires people to go off and create.
HERITAGE
WORLD-CLASS AUDIO SINCE 1947
Building on AKG’s decades of breakthroughs in audio
technology, AKG has combined know-how with premium
materials to create the AKG N5005.

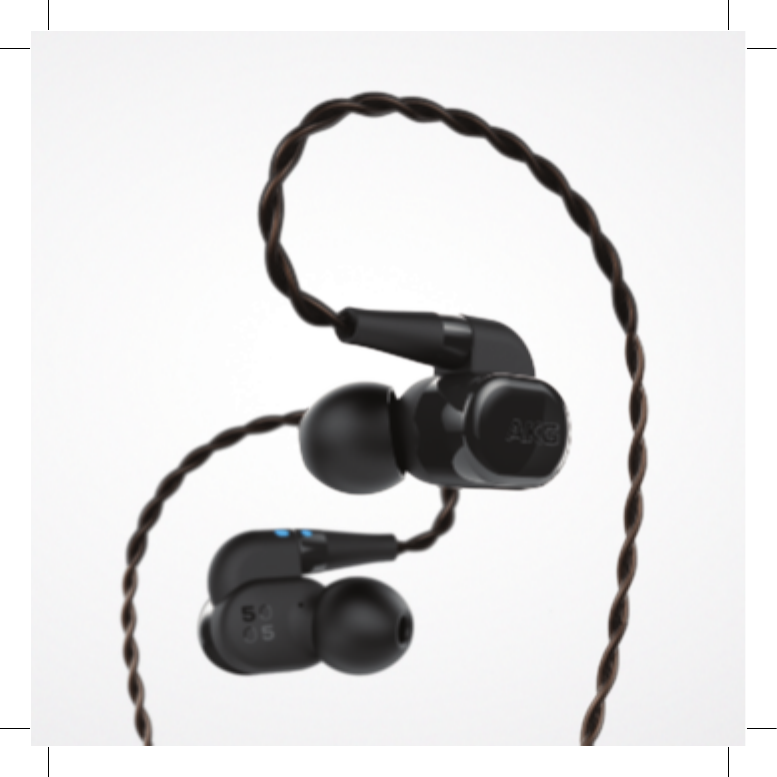

Elegantly crafted in high glossy black ceramics, the AKG
N5005 blend sleek appearance with the most innovative audio
technologies to deliver pure studio sound free of distortion and
distraction.
Be prepared to discover details you didn’t know existed and
to unveil every little subtlety of a sound track. Surrender to a
superior listening experience.
N5005
EXCELLENCE IS IN THE DETAILS
HIGH RESOLUTION AUDIO
SUPPORT
Delivering clear, high fidelity, superior quality sound, enriched
with a warm and not overpowering bass response, the AKG
N5005 in ear headphones are the epitome of pure sound
enjoyment.
Hi-Res certified, the AKG N5005 support playback up to
40 kHz, replicating the sound quality musicians and sound
engineers were working with while conceiving or producing
the music you are listening to.
Allowing you to savor all the subtleties of a soundtrack, the AKG
N5005 put you right in the center of a stage in a live venue, or
in the studio with your favorite musician.
It’s not just about hearing the difference: it’s about feeling the
details.

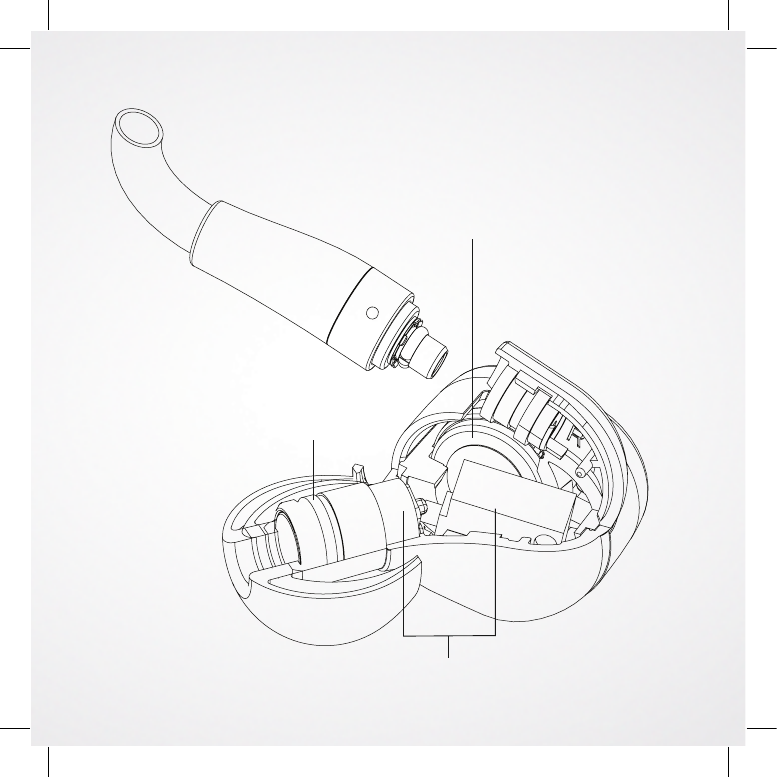

DRIVERS CONFIGURATION
The AKG N5005 headphones set a new benchmark in audio
quality.
By pioneering the combination of one dynamic and four
balanced armature drivers in each earphone, AKG has created
perfectly balanced 5-way earphones – delivering a sound
experience that’s like being center stage at a live concert.
The dynamic driver produces deep bass sound, while allowing
for ultra-low distortion at even the highest sound pressure
levels.
The balanced armature drivers allow for a pure and detailed
sound reproduction, with accurate mids and crystal clear highs.

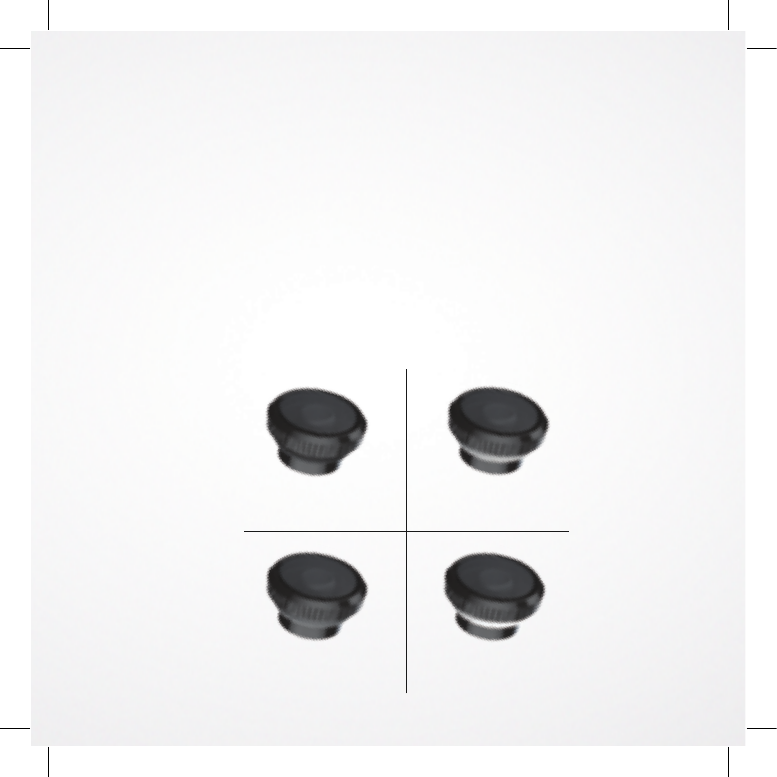

DYNAMIC DRIVER
BALANCED ARMATURE DRIVER
SOUND-TUNING FILTER
HIGH BOOST
WHITE
SEMI-HIGH BOOST
DARK GREY
BASS BOOST
BLACK
REFERENCE SOUND
GREY
SOUND FILTERS
The AKG N5005 headphones provide you with one-of-a-kind
personal sound-tuning capabilities. By changing the sound-
tuning filters, you can adjust for four precise sound-output
preferences directly into your ear. These adjustable, precision-
machined mechanical filters allow for bass, mid, semi-high or
high frequencies to be modulated according to your personal
preference.
Personalize your sound. The Reference sound filter is mounted
by default. Change the sound filter by screwing it onto the
headphone tube.

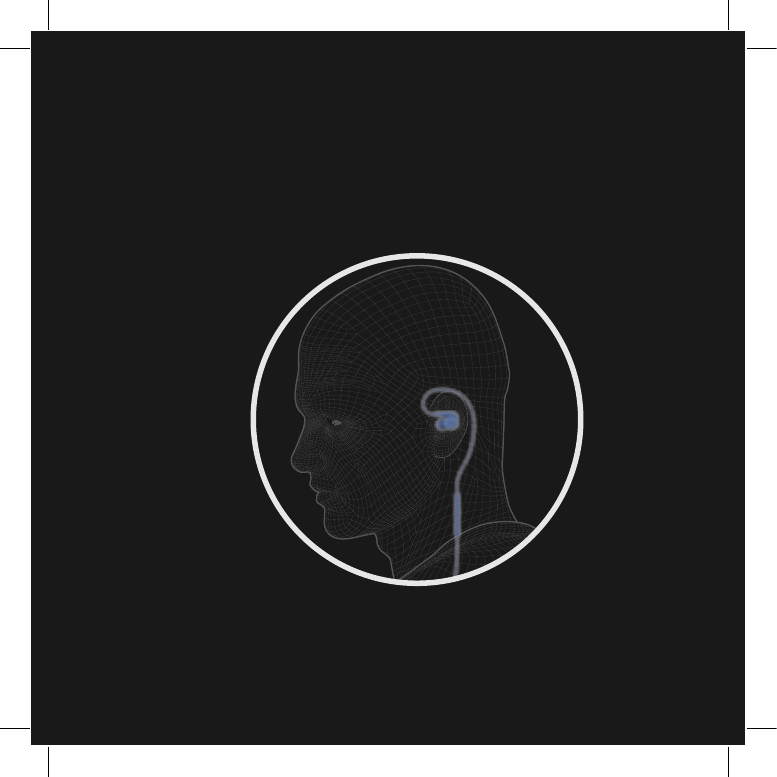

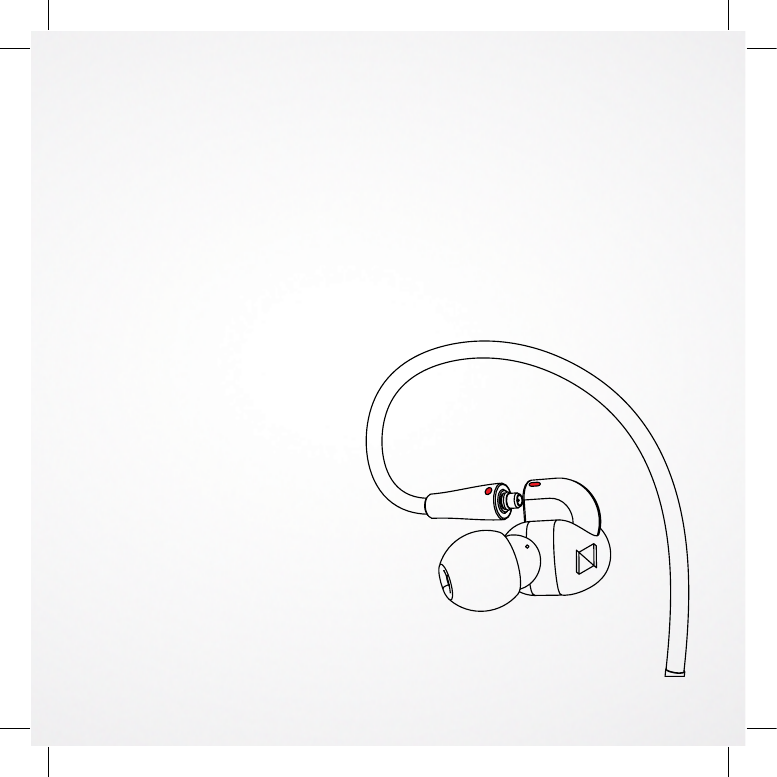

HOW TO WEAR THE
EARPHONES

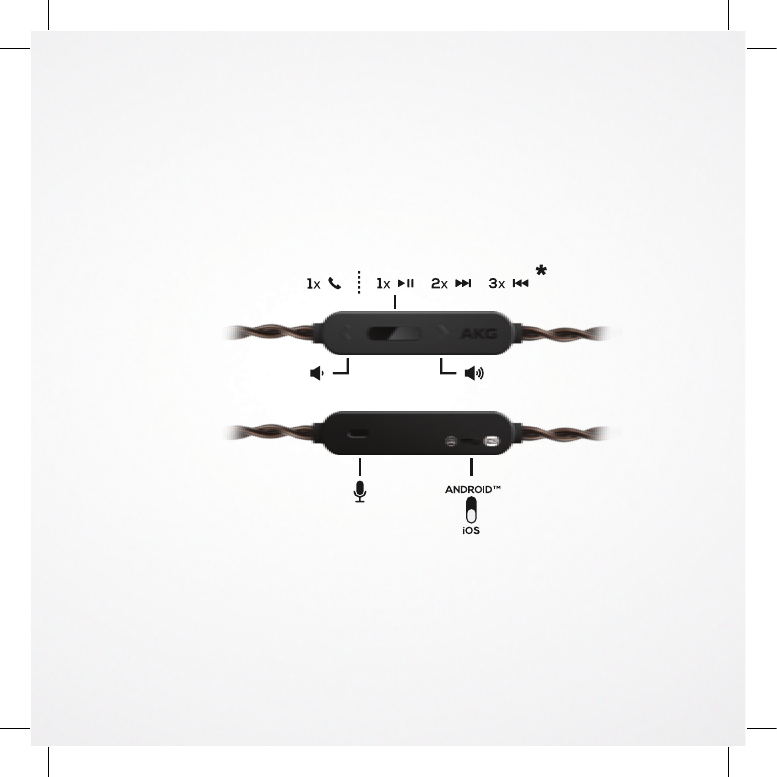

HOWTOUSETHE
MICROPHONE/REMOTE
(1)
*Compatible with popular smartphones, feature phones and
tablets. Functions vary depending on your phone, tablet or
application.
3.5mm Audio Cable

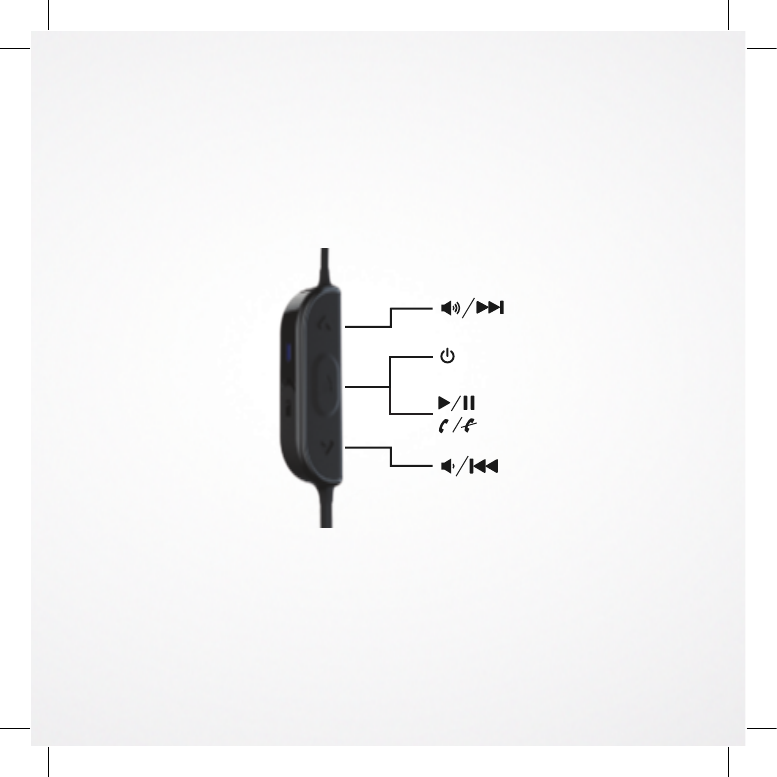

HOWTOUSETHE
MICROPHONE/REMOTE
BT Cable

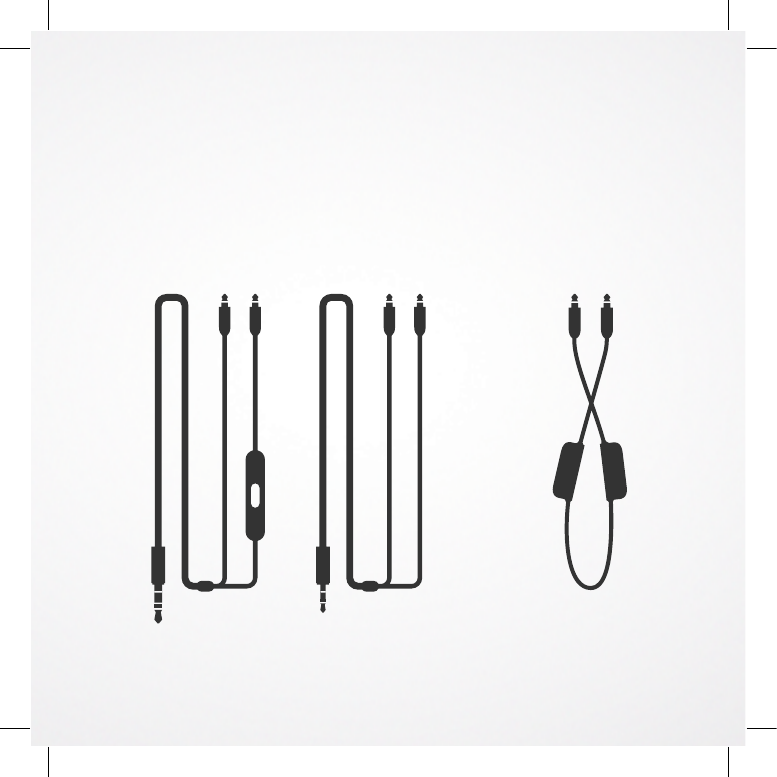

You have been provided with 3 sets of cables.
b. A BT cable (N05BC) for
wireless streaming and
hands free calls.
CABLES – HOW TO CONNECT
(2)
3.5mm Audio
Cable
2.5mm Audio
Balance Cable
a. A 3.5MM cable, a 2.5MM audio
balanced cable (perfect to be used
with a Hi-Res audio player with
2.5mm audio balance output).
BT Cable
CABLES – HOW TO
CONNECT
(3)
1. To replace the cable with a different one, detach it from the
headphones earpieces and connect the new one. Listen for a
click when connecting.
2. Match the L and R markings.
3. For clear cables and earphones, match the color dots
(Red = Right, Blue = Left).
Audible click when
properly connected
R
1. Turn on the headphone
2. If connecting for the first time, the headphone will enter pairing
mode automatically after it is powered on.
3. Connect to bluetooth device
BT CABLE CONNECTION
(4)
Settings Bluetooth
Bluetooth
DEVICES
AKG N05BC
Now Discoverable
Connected
Choose “AKG N05BC” to connect
BT CABLE
If your choice is for convenience, you can use the removable
Bluetooth®cable with microphone (N05BC), which allows to
enjoy the most immersive and wireless experience. Featuring
the latest BT 4.1 Wireless technology, the BT cable is equipped
with built-in microphone with a universal 3-button remote,
offering 8 hours of battery life and speed charge capabilities
(only 15 minutes of recharging provide 1 hour of playtime).

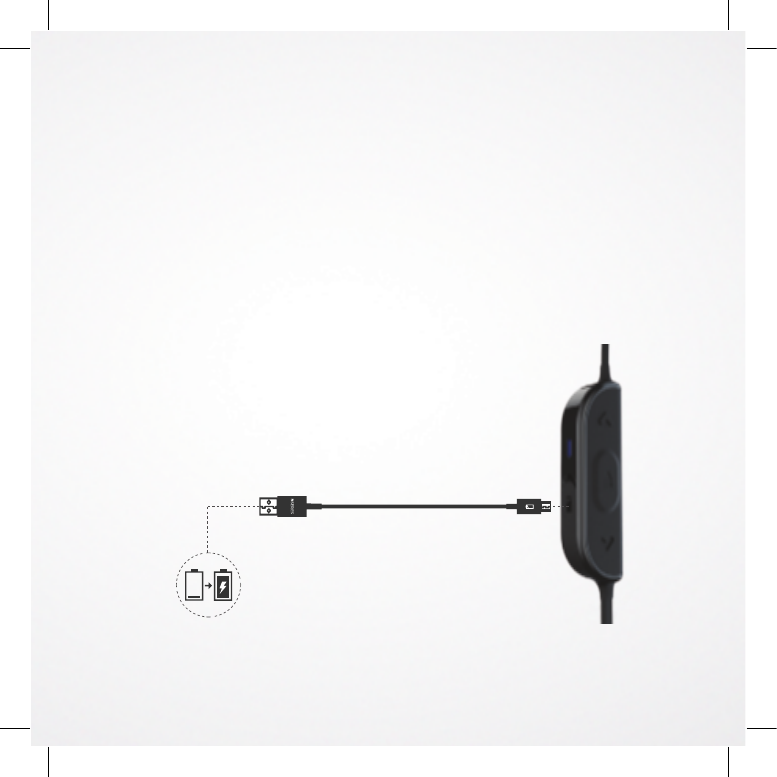

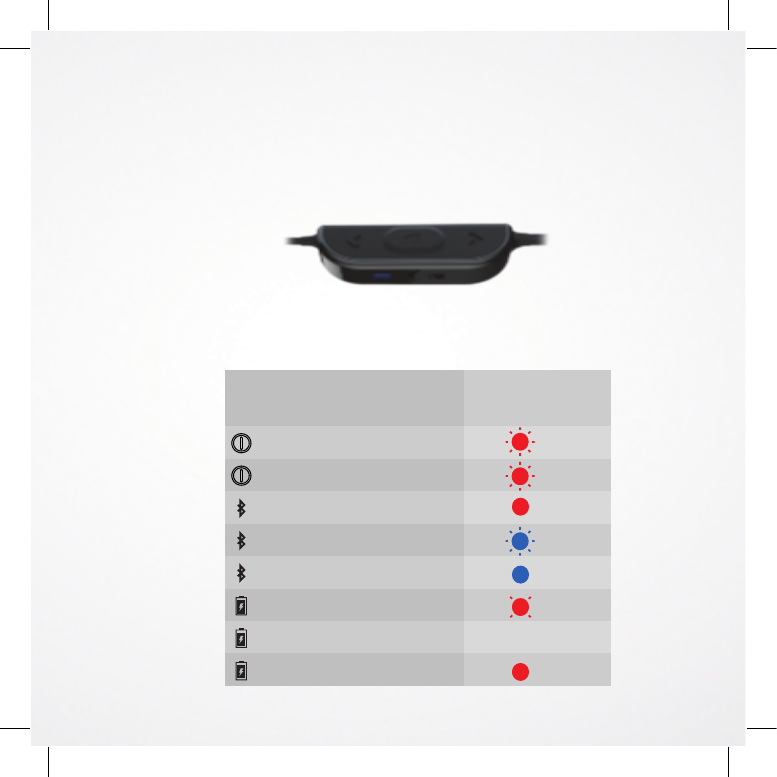

BT CABLE LED BEHAVIOR
(5)
BT Pairing
No BT Connected
BT Connected
On
Fast
Power off
Power on
Headphone mode LED Status
Low battery
Slow
Fast
Fast
Charging Complete
Charging in Progress
On
On
Off

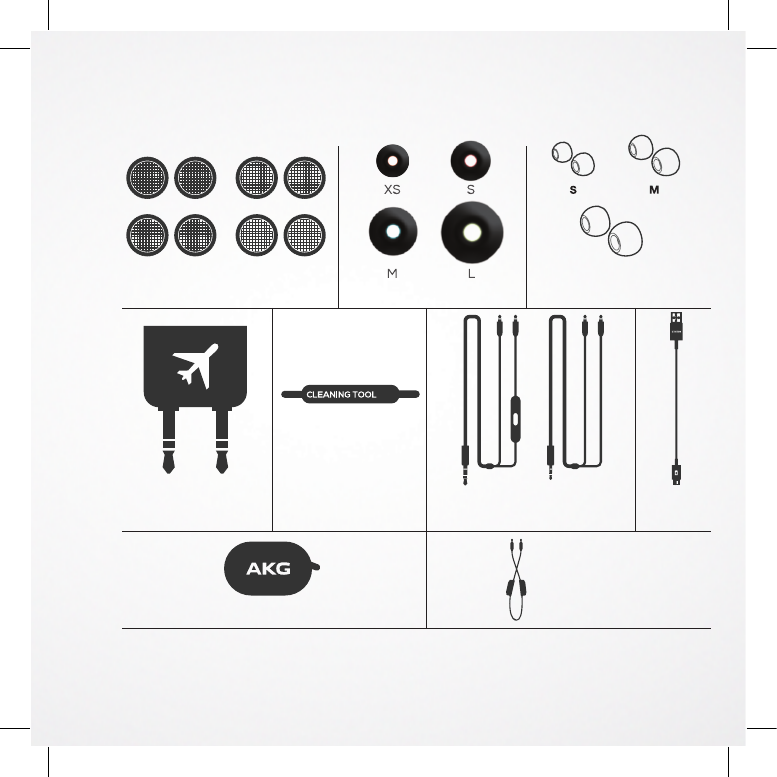

WHAT’S IN THE BOX
EAR TIPS SPINFIT EAR TIPS
4 SOUND-FILTERS
FLIGHT ADAPTER CLEANING TOOL
CLEANING TOOL(6)
You can use the cleaning tool provided to clear any particles in the earphone
nozzle if there are any noticeable changes in sound quality.
DETACHABLE CABLES
1 x REMOTE/MIC, 1 x STRAIGHT
POWER
CABLE
CARRYING CASE
L
BLUETOOTH
CABLE
N05BC
System: Hybrid technology:
4 balanced armature drivers +
1 dynamic driver
Driver size: 9.2mm + Quad
Balance Armature
Dynamic frequency response
range: 10-40kHz
Sensitivity: 116dB SPL/V
Impedance: 18 ohm
Bluetooth transmitted power:0-4dbm
Bluetooth transmitted
modulation: GFSK, π/4 DQPSK,
8DPSK
Bluetooth frequency:
2.402 - 2.480GHz
Bluetooth profiles: A2DP V1.2,
AVRCP V1.4, HFP V1.6, HSP V1.2
Bluetooth version: V4.1
Battery type: Lithium-ion
Polymer rechargeable battery
(120mA/3.7V)
Charging time: <2 hours
Music play time with BT on:
8
hours
Talk time with BT on: 8 hours
Weight (g): 11.4 g
TECH SPECS
