User manual
PORTABLE PA
For: Français, Deutsch, Español, visit www.jblpro.com
USER'S GUIDE
2 3
Contents
Section 1: Important Safety Instructions ......................... 3 - 4
Section 2: Precautions ........................................................... 5
Section 3: Declaration of Conformity .................................. 6
Section 4: Introduction to the EON208P PA System .... 7 - 11
Section 5: System Specications ....................................... 12

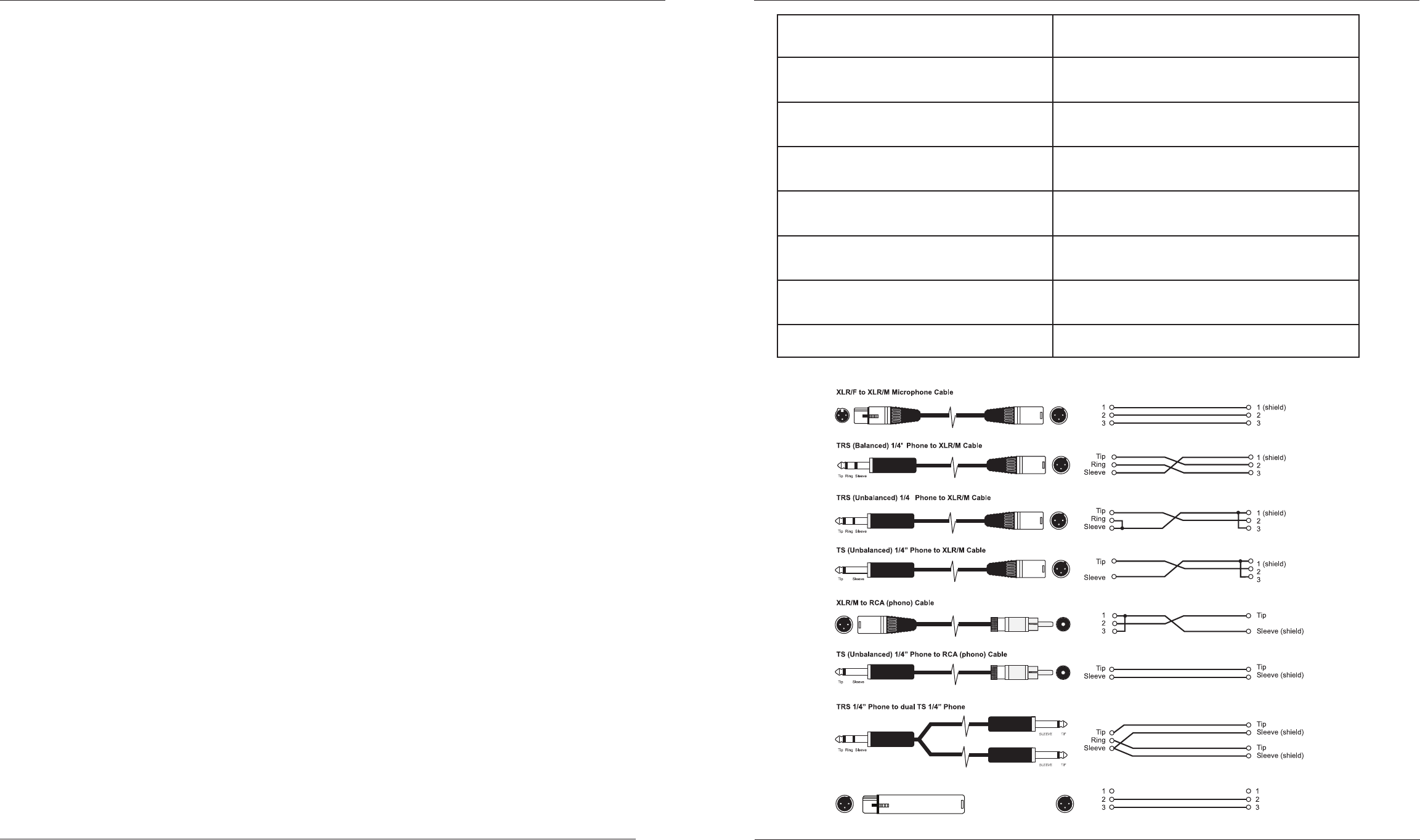

Section 6: Cables and Connectors .................................... 13
Section 7: Contact Information .......................................... 14
Section 8: Warranty Information ......................................... 15
Section 1: Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. Service Instruction in Owner’s Manual: "CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR
USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO."
16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from
the AC receptacle.
17. "WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC – SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE."
18. Do not expose this equipment to dripping or splashing and ensure that no objects lled with liquids, such as
vases, are placed on the equipment.
19. The mains plug of the power supply cord shall remain readily operable.
4 5
Care and Cleaning
EON208P systems may be cleaned with a dry cloth. Do not get moisture into any of the openings in the system.
Ensure that the system is unplugged from the AC outlet before cleaning.
THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR
HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE OR AC INPUT COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Section 2: Precautions
The EON208P PA system covered by this manual is not intended for use in high
moisture environments. Moisture can damage the speaker cone and surround and cause
corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct
moisture. Keep speakers out of extended or intense direct sunlight. The driver suspension
will prematurely dry out and nished surfaces may be degraded by long-term exposure to
intense ultra-violet (UV) light. The EON208P PA system can generate considerable energy.
When placed on a slippery surface such as polished wood or linoleum, the speaker may
move due to its acoustical energy output. Precautions should be taken to assure that the
speaker does not fall off a stage or table on which it is placed.
Stand Mounting Safety Precautions
The EON208P speakers contain a 36 mm receptacle cup to allow mounting on tripod stands or on a pole over
subwoofers. When using stands or poles, be sure to observe the following precautions:
• Check the stand or pole specication to be certain the device is designed to support the weight of the
speaker. Observe all safety precautions specied by the manufacturer.
• Always verify that the stand (or subwoofer/pole) is placed on a at, level and stable surface and
be sure to fully extend the legs of tripod type stands. Position the stand so that the legs do not
present a trip hazard.
• Route cables so that performers, production crew, and audience will not trip and topple the
speakers over.
• Inspect the stand (or pole and associated hardware) before each use and do not use equipment with
worn, damaged or missing parts.
• Do not attempt to place more than one EON208P series speaker on a stand or pole.
• Always be cautious in windy, outdoor conditions. It may be necessary to place additional weight (i.e.
sandbags) on the base of the stand to improve stability. Avoid attaching banners or similar items to
any part of a speaker system. Such attachments could act as a sail and topple the system.
• Unless you are condent that you can handle the weight of the speaker, ask another person to help
you get it onto the tripod stand or pole.
Hearing Damage, Prolonged Exposure to Excessive SPL
The EON208P system is capable of generating sound pressure levels (SPL) sufcient to cause permanent
hearing damage to performers, production crew and audience members. Caution should be taken to avoid
prolonged exposure to SPL in excess of 90 dB.
WATCH FOR THESE SYMBOLS!
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (Servicing) instructions in the literature
accompanying the product.
The lightning ash with the arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence
of un-insulated "Dangerous Voltage" within the products
enclusure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
!
WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
6 7
Section 3: EON208P PA System Declaration of Conformity
This equipment complies with the EMC directive 89/336/EEC
Modied by
92/31/EEC
93/68/EEC
98/13/EEC and LVD 73/23/EEC modied by 93/68/EEC
This product meets safety standards:
EN60065:2002
UL6500 7th Edition: 2003
UL 60065 - STANDARD FOR AUDIO, VIDEO AND SIMILAR ELECTRONIC
APPARATUS - SAFETY EQUIREMENTS - Edition 7 - Revision Date 2007/12/11
CSA C22.2 NO 60065-03 - AUDIO, VIDEO AND SIMILAR ELECTRONIC
APPARATUS – SAFETY REQUIREMENTS - Edition 1 - Revision Date 2006/04/01
IEC 60065 - AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS -- SAFETY
REQUIREMENTS - Edition 7.1 - Issue Date 2005/12/01
And EMC Standards
EN55103-1 (E2)
EN55103-2 (E2)
Section 4: Introduction to the EON208P PA System

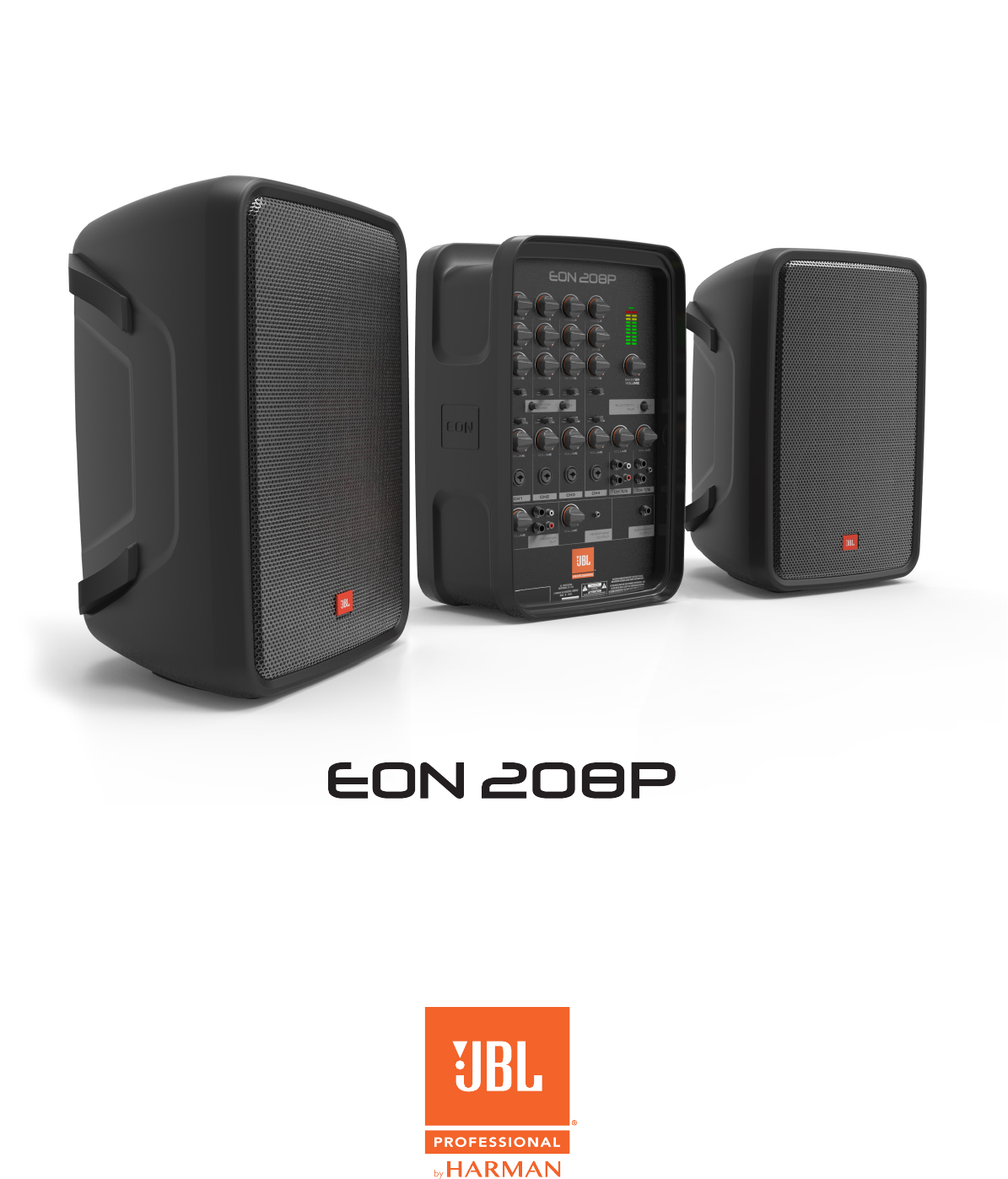

Thank you for choosing the JBL EON208P PA system. The EON208P is a self-contained, portable PA system
featuring multiple input channels with individual tone controls, Bluetooth® audio streaming, reverb and
convenient output routing capabilities that allow the user to integrate the system into any number of audio
environments. And with its lightweight and ergonomic design, the EON208P is perfect for situations where ease
and portability are just as important as quality and exibility.
Included in the EON208P package are:
• 2 JBL professional speakers
• 1 AKG vocal microphone, 1 microphone cable and 1 microphone clamp
• 1 center housing with powered mixer and compartment for storage of speaker cables and microphone
• 1 pair of unshielded speaker cables
• 1 power cable
• User's guide
GETTING STARTED
1. Remove EON208P system from the carton.
2. Detach speakers from center powered mixer section.
3. If you have purchased speaker stands, you can
place the speakers on the stands utilizing the pole
mount adaptor built into the EON208P speaker cabinets.
(1)
Press here
(2)
Slide button
(3)
Lift
8 9

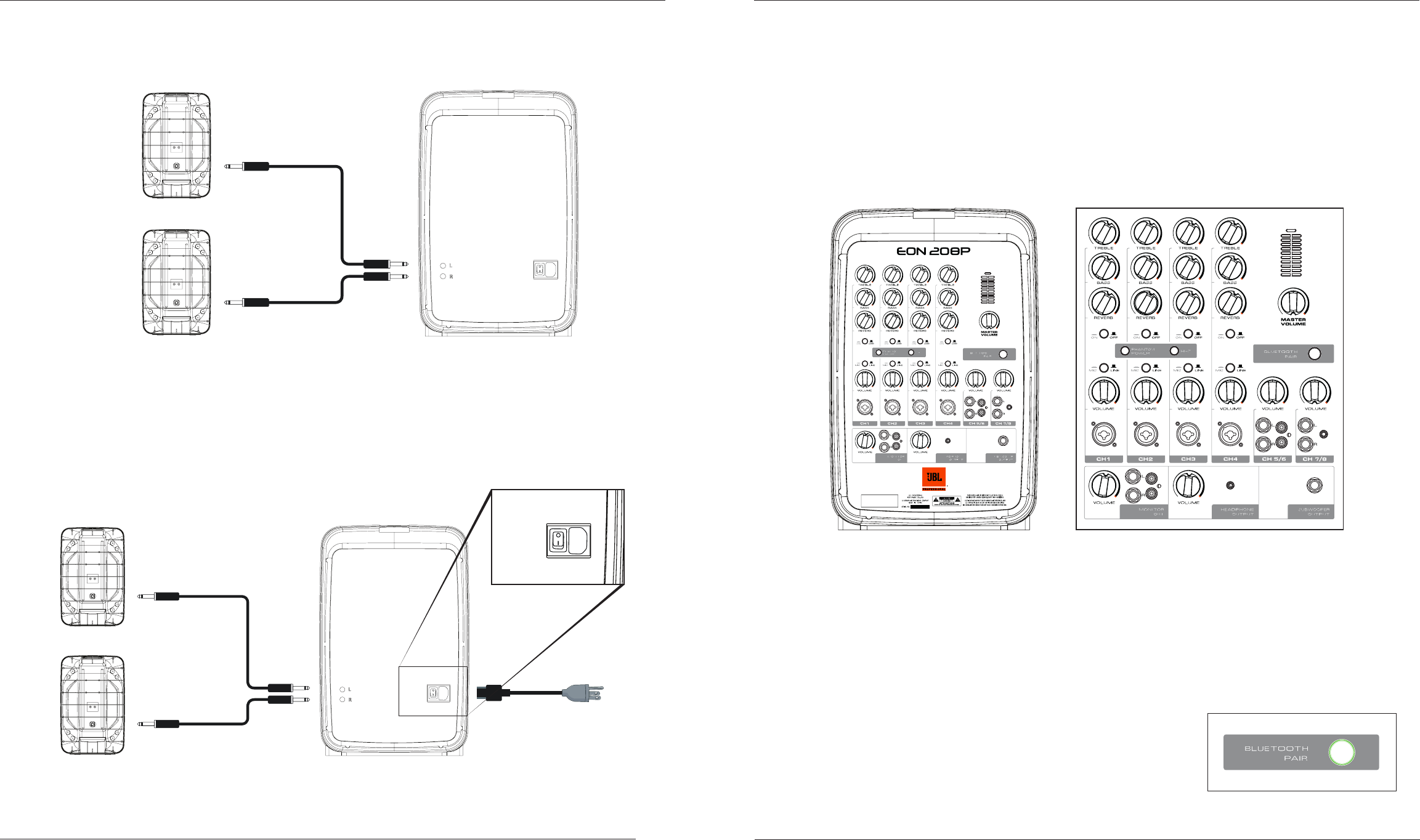

4. Connect the Mixer Module to the Speakers
On the back side of the mixer you will notice two ¼" phone jacks – these are your speaker output jacks.
Take the speaker cables and connect them from these jacks to the jacks on the back of the speakers.
5. Connecting the AC Power Cable
Connect the female end of the power cable to the mixer and plug the male end into the wall socket or
extension cord. Turn the "MASTER VOLUME" control to "0". Now turn the power switch to the "on" position.
You should see the "POWER" indicator illuminated. At this point you are ready to bring in an audio signal
and hear the signal amplied by the system.
To Left speaker
AC power inlet
To Right speaker
Getting Acquainted with the EON208P Powered Mixer
This part of the EON208P system houses the mixing board and power amplier. You will connect all of the
microphones, musical instruments, Bluetooth® audio device, external sound sources (like MP3 or CD players),
in addition to any recording devices or additional speakers like a personal monitor, subwoofer or "Front of
House" feed.
The Basics
The mixing board is actually a very simple device. A "mixing board" brings audio sources "in" (through
the inputs) and routes the signal to the outputs (MASTER VOLUME/SPEAKER OUTPUTS or MONITOR
OUTPUTS). The mixer controls enable the user to affect the tone and/or volume in addition to routing the signal
and adding reverb to individual input sources.
Let's look at the "inputs" rst:
AUDIO INPUTS
All of the inputs will route to the speakers and to the MONITOR OUTPUT SECTION.
MONO MIC/LINE INPUTS
Moving from left to right there are 4 identical input strips comprised of (from top to bottom) a treble control,
bass control, reverb control, reverb on/off button, volume control, mic/line selector and a XLR ¼"
combination connector.
BLUETOOTH INPUT
The EON208P comes equipped with the ability to stream Bluetooth audio.
To connect a Bluetooth device rst press the "Bluetooth Pair" button on the
back of the device. Then select "EON208P" from the source device to
complete the pairing. Once paired, audio can be streamed from the
connected device.
10 11

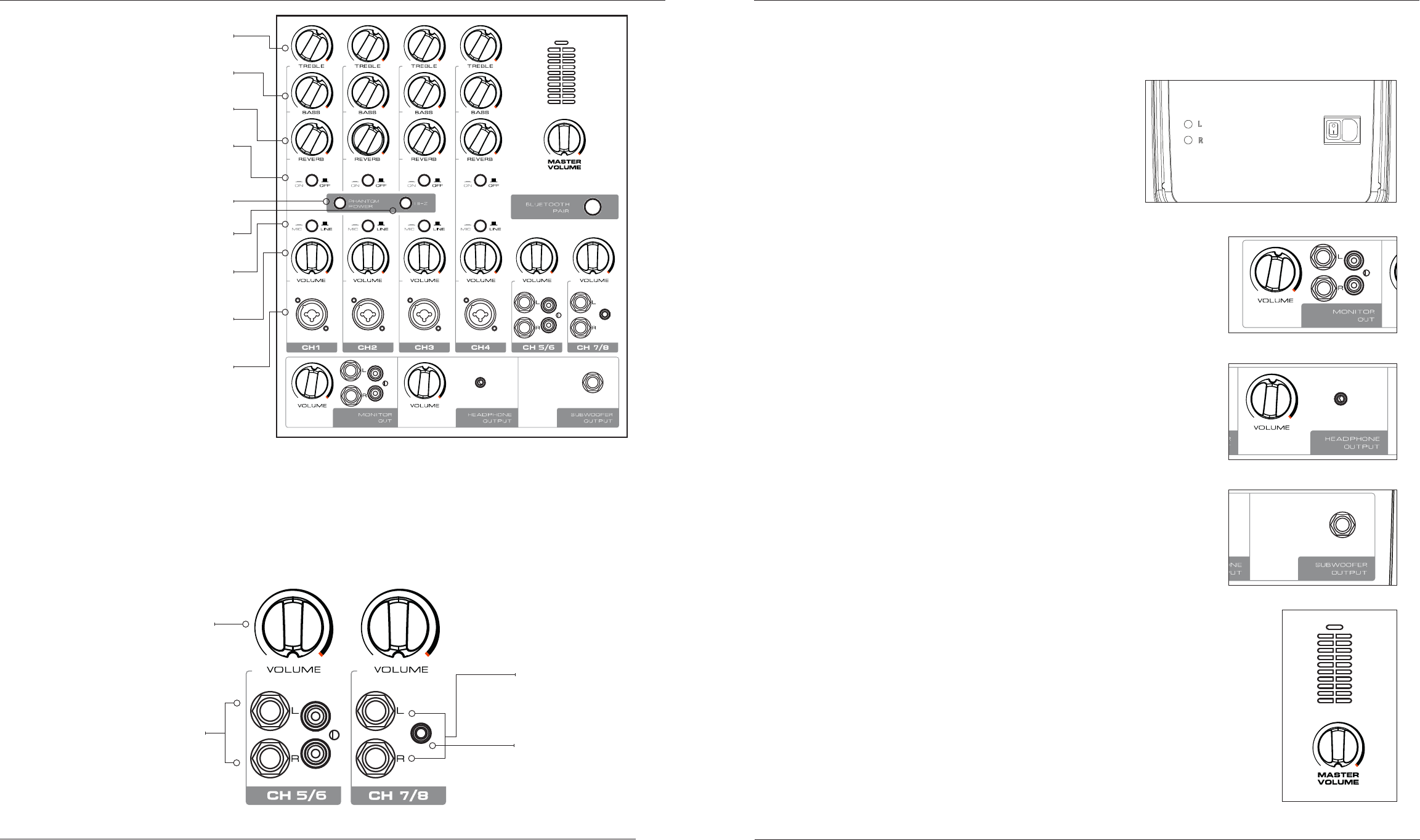

Treble control adjusts the amount of high
frequencies on the particular channel
Bass control adjusts the amount of low
fequencies on the particular channel
Combination 1/4" phone plug and
XLR male input
Effect control adjusts the amount of
effect on the particular channel
Volume Controls for
"STEREO IN 5/6 and 7/8"
Stereo in 1/4" Phone inputs
(use with electronic keyboard,
instrument pre-amp or processor or an
electronic drum machine)
3.5 mm input jack for
"CH 7/8" for use with
personal music players
Channel Volume control adjusts the
gain on the particular channel
Stereo in RCA inputs
(use with MP3 Player,
CD or any consumer
type electronics)
STEREO INPUTS
The EON208P has two stereo inputs and these are used primarily for MP3 or CD players but could be used with
the stereo output of an electronic keyboard, instrument pre-amp or processor, or an electronic drum machine.
The inputs labeled "CH 5/6" offer the option of using ¼" phone plugs or RCA plugs and this channel has a
volume control. The inputs labeled "CH 7/8" offer the option of using ¼" phone plugs or a 3.5 mm stereo input
typically found on personal music players and this channel has a volume control. This is the best way to control
the volume of the unit plugged into this input.
MIC/LINE “SELECTOR” allows you to
select between a microphone (XLR)
input and a line (1/4" phone) input
Reverb On/Off allows you to turn the
effect control on or off for each channel
HI-Z allows for a hi-impedance signal to be
provided for devices on CH3 of the mixer
PHANTOM POWER allows you to turn
on/off phantom power when needed for
condenser microphones on CH1 and CH2
STEREO OUTPUTS: We've brought signals into the mixer now let's send
them somewhere…The EON208P has Left and Right ¼" outputs:
1. LEFT/RIGHT speaker outputs -
These outputs should only be connected to the
EON208P speakers and under no condition should
they be connected to the input of another electronic device.
These outputs carry power and as such could damage the
electronic device. Only use "unshielded" speaker cables
(like the cables provided with your EON208P).
2. MONITOR OUTPUTS
These ¼" or RCA outputs allow you to route the stereo mixer signal
to another destination like a recording device, personal monitor,
subwoofer or to another PA system (Front of House).
3. HEADPHONE OUTPUT
This 3.5 mm output allows for listening to the mix using headphones.
4. SUBWOOFER OUTPUT
This RCA output allows you to connect an additional subwoofer to
the solution where added range is necessary.
MASTER VOLUME and "Limit" LED
Your EON208P is equipped with a "Master Volume" that controls the
overall output volume of the system and a yellow LED that indicates
that you have approached the maximum output. In addition to the
limited LED, signal meters are also displayed for each output channel.
12 13
Section 6: Cables and Connectors
XLR/F to XLR/M Microphone Cable
The standard cable for interconnection of microphone and
line level signal in professional audio systems.
• Microphone to mixer
TRS (balanced) 1/4 inch phone jack to XLR/M For connecting balanced devices with 1/4 inch phone and
maybe used interchangeably.
TRS (unbalanced) 1/4 inch phone jack to XLR/M For connections of instruments with unbalanced outputs
to balanced XLR inputs.
TS (unbalanced) 1/4 inch phone jack to XLR/M This cable is electrically identical to "TRS" (unbalanced)
1/4 inch phone and may be used interchangeably.
XLR/M to RCA (phono) cable Connects consumer audio products and some DJ mixer
outputs to professional audio equipment inputs
TRS 1/4 inch Phone jack to dual 1/4 inch Phone jack Splits a stereo output into separate left/right signals.
TRS 1/4 inch Phone jack to dual 1/4 inch Phone jack
Change to a TRS mini-phone jack to connect to the output
of a portable. MP3/CD – player and computer sound cards
to a mixer.
XLR/F to XLR/M audio ground lift Only with balanced in - and outputs
XLT/F to XLR/M Audio Groud Lift
(no connection)
Section 5: System Specications
EON208P
Main
Features
Proven JBL sound quality
Bluetooth® streaming audio
Ergonomic design with internal cable storage
System System Type: Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output: 121 dB peak
AC input : 100-120 V, 220-240 V 50/60 Hz
Amplier Design: Class D
System Power Rating: 300 W (2x 150 W stereo)
Output Connector: 2 x 1/4" TS (unbalanced) amplier outputs
Mixer Channels: 1-4: XLR/1/4" jack combo connectors;
5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo);
7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power: CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection: CH3 has a Hi-Z selection switch used for guitar signal input
Output Connectors: Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS
jacks (stereo)
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ: Per-channel high- and low-shelf lters; +/- 12dB cut and boost
System Limiter: On-board DSP limiting
Speaker LF Driver: 1x JBL 8" (203mm) woofer
HF Driver: 1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern: 100° horizontal x 60° vertical
Crossover Frequency: 2 kHz
Crossover Type: 2-way passive network, 2nd order lters (12dB cutoff per octave)
Enclosure: Polypropylene
Suspension/Mounting: 36 mm pole socket
Handles: One on top
Grille: Powder-coated perforated steel
Shipping Package
Dimensions (H x W x D):
22.6" x 30.5" x 15.7" (575 mm x 775 mm x 400 mm)
Net Weight of System: 17.6 kg (38.8 lbs)
14 15
Section 7: Contact Information
Mailing Address:
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Shipping Address:
JBL Professional
8500 Balboa Blvd., Dock 15
Northridge, CA 91329
(Do not return product to this address without rst obtaining prior authorization from JBL)
Customer Service:
Monday through Friday
8:00am - 5:00pm
Pacic Coast Time in the U.S.A.
(800) 8JBLPRO (800.852.5776)
www.jblproservice.com
On The World Wide Web:
www.jblpro.com
Professional Contacts, Outside the USA:
Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international
distributors is provided at our U.S.A. website: www.jblpro.com
Product Registration:
Register your product online at www.jblpro.com
Section 8: Warranty Information
The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for
ve years from the date of the rst consumer purchase. JBL ampliers are warranted for three years from the
date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of
original purchase.
Who Is Protected by This Warranty?
Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product
has been purchased in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL
products purchased elsewhere except for purchases by military outlets. Other purchasers should contact the
local JBL distributor for warranty information.); and B.) The original dated bill of sale is presented whenever
warranty service is required.
What Does the JBL Warranty Cover?
Except as specied below, your JBL Warranty covers all defects in material and workmanship. The following
are not covered: Damage caused by accident, misuse, abuse, product modication or neglect; damage
occurring during shipment; damage resulting from failure to follow instructions contained in your Instruction
Manual; damage resulting from the performance of repairs by someone not authorized by JBL; claims based
upon any misrepresentations by the seller; any JBL product on which the serial number has been defaced,
modied or removed.
Who Pays for What?
JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save
the original shipping cartons because a charge will be made if replacement cartons are requested. Payment of
shipping charges is discussed in the next section of this warranty.
How to Obtain Warranty Performance
If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service
Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818-893-8411). We may
direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way,
you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL
product to the factory without prior authorization. If transportation of your JBL product presents any unusual
difculties, please advise us and we may make special arrangements with you. Otherwise, you are responsible
for transporting your product for repair or arranging for its transportation and for payment of any initial shipping
charges. However, we will pay the return shipping charges if repairs are covered by the warranty.
Limitation of Implied Warranties
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
EXCLUSION OF CERTAIN DAMAGES
JBL’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF ANY DEFECTIVE
PRODUCT AND SHALL NOT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT
ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO STATE.
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Part Number: 5001426
