Harman HKADAPTP Streaming wireless adaptor User Manual TR01528 HK ADAPT QSG A V7 LD
Harman International Industries, Inc Streaming wireless adaptor TR01528 HK ADAPT QSG A V7 LD
Harman >
Contents
- 1. Safety Statement and Warning
- 2. User Manual
User Manual
Optical
Out
Optical
In
Ethernet
Full owner's manual
Mode d'emploi complet
Manual del propietario
Manual do usuário completo
Bedienungsanleitung
Manuale di istruzioni completo
Volledige handleiding
Fullstendig brukerveiledning
Täydellinen omistajan ohjekirja
Полное руководство пользователя
Komplett bruksanvisning
Komplet betjeningsvejledning
正式な所有者用のマニュアル
사용자 설명서 전문
完整的用户手册
完整的擁有者手冊
Panduan pengguna keseluruhan
harmankardon.com/HK ADAPT+
Party Mode
>3s
Optical
5.1 System
Front Left Front Right
Surround Left Surround Right
Center
5.1 System
• 1 x Adapt +
• 5 x Omni 10+
Blu-ray player
Optical Wired Subwoofer

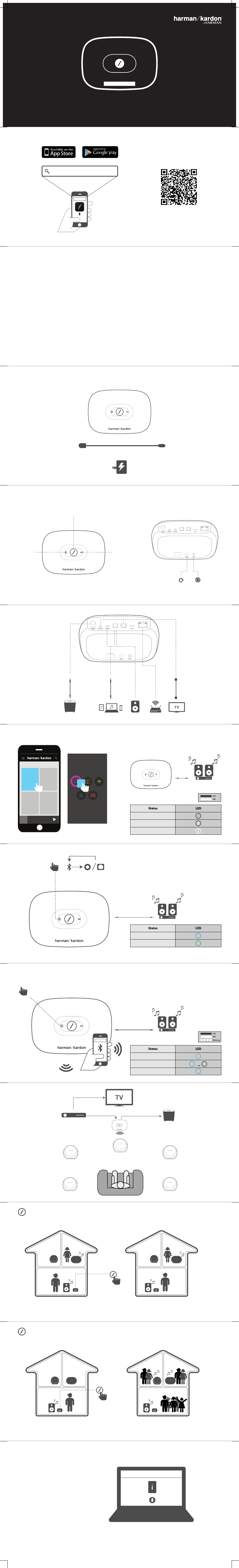

Quick Start Guide
Guide de demarrage rapide
What’s in the box
ADAPT+
Wi-Fi streaming via Harman Kardon Controller app
SONGSALBUMS ARTISTS PLA
Song name
Artist name
Basement
Study
Guest Bedroom
GardenLiving room
Drag to the room you want to play
1s
Wi-Fi streaming
Wi-Fi connected
Auto standby (10 minutes)
Bluetooth AUX-In
Local Source
Bluetooth
AUX-in / Optical
Bluetooth®
>3s
HK Omni Adapt+
Pairing mode
Bluetooth connected
Bluetooth streaming
5s
Multi-room music streaming
Download the Harman Kardon Controller app to setup and
control your Harman Kardon Omni Adapt+.
Téléchargez l'application Harman Kardon Controller pour
configurer et commander votre Harman Kardon Omni Adapt+.
Descargue la aplicación Harman Kardon Controller para
configurar y controlar su Harman Kardon Omni Adapt+.
Baixe o app de controle da Harman Kardon para configurar e
controlar o Harman Kardon Omni Adapt+.
Laden Sie die Harman Kardon Controller-App herunter, um Ihren
Harman Kardon Omni Adapt+ konfigurieren und bedienen zu
können.
Scarica l’app Harman Kardon Controller per impostare e
controllare il tuo Harman Kardon Omni Adapt+.
Download de Harman Kardon Controller app om uw
Harman Kardon Omni Adapt 1.0+ te installeren en te bedienen.
Last ned Harman Kardon Kontroll-appen for å sette opp og
kontrollere Harman Kardon Omni Adapt+.
Lataa Harman Kardon Controller-sovellus, jotta voit määrittää
Harman Kardon Omni Adapt+ -laitteen asetukset ja hallita sitä.
Загрузите приложение Harman Kardon Controller, чтобы
настроить свой продукт Harman Kardon Omni Adapt+ и
управлять им.
Hämta appen Harman Kardon Controller för att ställa in och styra
din Harman Kardon Omni Adapt+.
Hent applikationen Harman Kardon Controller, så du kan
konfigurere og styre din Harman Kardon Omni Adapt+.
Harman Kardon Controller
(ハーマンカードン・コントローラー)アプ を
ダウンロードしてセットアップし、お持ちの
Harman Kardon Omni
Adapt+ (
ハーマンカードン・オムニ10）をコントロールしてください。
Harman Kardon Controller
앱을 다운로드하여
Harman Kardon
Omni Adapt+
을 설정하고 제어합니다.
下载
Harman Kardon Controller 应用以设置和控制您的
Harman Kardon Omni Adapt+
。
下載
Harman Kardon Controller
應用程式以設定並控制您的
Harman Kardon Omni Adapt+
。
Unduh aplikasi Harman Kardon Controller untuk persiapan dan
mengontrol Harman Kardon Omni Adapt+ Anda.
App
Setup video
Harman Kardon Controller|
Harman Kardon Controller
x1
x1
x1
Buttons
RESET WPS
SOURCE PLAY/PAUSE
LINK
Connections
Optical
Out
Optical
In
Ethernet
FR
•Nom de modèle : HK ADAPT+
•Tension de sortie : ≥ 1 Vrms
•Réponse en fréquence : 20 Hz ~ 80 kHz (-3 dB)
•Rapport signal sur bruit : >80 dB
•Connexions d'entrée : Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensions (L x P x H) : 118 mm x 86 mm x 30 mm
•Poids:121g
•Alimentation : 5 VCC, 2,3 A
•Plage de fréquences de l'émetteur Bluetooth® : 2 402 – 2 480 MHz
•
•Modulation de l'émetteur Bluetooth® : GFSK, π/4 DQPSK, 8DPSK
•Plage de fréquences de l'émetteur 2.4G Wi-Fi : 2 412MHz ~ 2472 MHz
(bande ISM 2,4 GHz, USA 11 canaux, Europe 13 canaux)
•
•Modulation 2.4G Wi-Fi : OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•Compatibilité réseau 2.4G Wi-Fi : IEEE 802.11b/g/n
•
•Modulation 5G Wi-Fi : OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•Compatibilité réseau 5G Wi-Fi : IEEE 802.11ac
•Network standby power<3W
EN
•Model Name: HK ADAPT+
•Output voltage:≥1Vrms
•Frequency response: 20Hz~80kHz (-3dB)
•Signal-to-noise ratio: >80dB
•Input connections: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensions (W x D x H): 118mm x 86mm x 30mm
•Weight: 121g
•Power supply: 5VDC, 2.3A
•Bluetooth® transmitter frequency range: 2402 – 2480MHz
•
•Bluetooth® transmitter modulation: GFSK, π /4 DQPSK, 8DPSK
•2.4G Wi-Fi transmitter frequency range: 2412 – 2472MHz (2.4GHz ISM
Band, USA 11 Channels, Europe and others 13 Channels)
•
•2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
•2.4G Wi-Fi network compatibility: IEEE 802.11b/g/n
•
•5G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,16QAM,
64QAM, 256QAM
•5G Wi-Fi network compatibility: IEEE 802.11ac
•Network standby power<3W
PT
•Nome do modelo: HK ADAPT+
•Voltagem de saída: ≥1 Vrms
•Resposta de frequência: 20 Hz~80 kHz (-3 dB)
•Razão sinal-ruído: >80 dB
•Conexões de entrada: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensões (L x P x A): 118 mm x 86 mm x 30 mm
•Peso: 121 g
•Fonte de alimentação: 5 VDC, 2,3 A
•Intervalo de frequência de transmissão Bluetooth®: 2402 – 2480 MHz
•
•Modulação da transmissão Bluetooth®: GFSK, π/4 DQPSK, 8DPSK
•Intervalo de frequência do transmissor Wi-Fi 2,4 G: 2412 – 2472 MHz
(banda ISM 2,4 GHz, 11 canais padrão EUA, Europa e outros 13 canais)
•
•Modulação Wi-Fi 2,4 G: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•Compatibilidade de rede Wi-Fi 2,4 G: IEEE 802.11b/g/n
•
•Modulação Wi-Fi 5 G: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•Compatibilidade de rede Wi-Fi 5 G: IEEE 802.11ac
•Network standby power<3W
ES
•Nombre del modelo: HK ADAPT+
•Tensión de salida: ≥1 Vrms
•Intervalo de frecuencias: 20 Hz ~ 80 kHz (-3 dB)
•Relación señal-ruido: >80 dB
•Conexiones de entrada: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensiones (Ancho x Alto x Profundidad): 118mm x 86mm x 30mm
•Peso: 121 g
•Alimentación: 5 VCC, 2,3 A
•Alcance de frecuencia del transmisor Bluetooth®: 2402 – 2480 MHz
•
•Modulación del transmisor Bluetooth®: GFSK, π/4 DQPSK, 8DPSK
•Intervalo de frecuencias del transmisor Wi-Fi 2.4G: 2412 – 2472 MHz
(Banda ISM 2,4 GHz, 11 canales en USA, 13 canales en Europa y otros)
•
•Modulación Wi-Fi 2.4G: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•Compatibilidad de red Wi-Fi 2.4G: IEEE 802.11b/g/n
•
•Modulación Wi-Fi 5G: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•Compatibilidad de red Wi-Fi 5G: IEEE 802.11ac
•Network standby power<3W
IT
•Nome Modello: HK ADAPT+
•Tensione in uscita: ≥1Vrms
•Risposta in frequenza: 20Hz~80kHz (-3dB)
•Rapporto segnale-rumore: >80dB
•Connessioni in ingresso: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensioni (L x P x A): 118mm x 86mm x 30mm
•Peso: 121g
•Alimentazione: 5VDC, 2.3A
•Gamma di frequenza trasmettitore Bluetooth®: 2402 – 2480MHz
•
•Modulazione trasmettitore Bluetooth®: GFSK, π/4 DQPSK, 8DPSK
•Gamma di frequenza trasmettitore Wi-Fi 2.4G: 2412 – 2472MHz
(Banda 2.4GHz ISM, USA 11 Canali, Europa ed altri 13 Canali)
•
•Modulazione Wi-Fi 2.4G: OFDM, DSSS, DBPSK,DQPSK,CCK,
16QAM, 64QAM
•Compatibilità network Wi-Fi 2.4G: IEEE 802.11b/g/n
•
•Modulazione Wi-Fi 5G: OFDM, DSSS, DBPSK,DQPSK,CCK,
16QAM, 64QAM, 256QAM
•Compatibilità network Wi-Fi 5G: IEEE 802.11ac
•Network standby power<3W
DE
•Modellbezeichnung: HK ADAPT+
•Ausgangsleistung: ≥1Vrms
•Frequenzbereich: 20Hz~80kHz (-3dB)
•Rauschabstand: >80dB
•Eingangsverbindungen: Bluetooth®, Aux-in, WLAN, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Abmessungen (B x T x H): 118mm x 86mm x 30mm
•Gewicht: 121g
•Energieversorgung: 5VDC, 2.3A
•Frequenzbereich für die Bluetooth®-Übertragung: 2402 – 2480MHz
•
•Bluetooth®-Übertragungsmodulation: GFSK, π/4 DQPSK, 8DPSK
•2.4G WLAN-Übertragungsfrequenzbereich: 2412 – 2472MHz
(2.4GHz ISM-Band, USA 11 Kanäle, Europa und andere Länder 13 Kanäle)
•
•2.4G W-Lan-Modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•2.4G WLAN-Netzwerkkompatibilität: IEEE 802.11b/g/n
•
•5G W-Lan-Modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5G WLAN-Netzwerkkompatibilität: IEEE 802.11ac
•Network standby power<3W
NO
•Modellnavn: HK ADAPT+
•Utgangsspenning: ≥1Vrms
•Frekvensrespons: 20 Hz~80 kHz (-3 dB)
•Signal-til-lyd-ratio: >80 dB
•Innganger: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensjoner (L x B x H): 118 mm x 86 mm x 30 mm
•Vekt: 121g
•Strømforsyning: 5 VDC, 2,3 A
•Frekvensområde for Bluetooth®-sender: 2402 – 2480 MHz
•
•Modulasjon for Bluetooth®-sender: GFSK, π/4 DQPSK, 8DPSK
•2,4G WiFi-frekvensområde for sender: 2412 – 2472 MHz
(2,4 GHz ISM-bånd, USA 11 kanaler, Europa og andre 13 kanaler)
•
•2,4 G Wi-Fi-modulasjon: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•2,4 G Wi-Fi-nettverkskompatibilitet: IEEE 802.11 b/g/n
•
•5GWi-F
i-modulasjon: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5 G Wi-Fi-nettverkskompatibilitet: IEEE 802.11 ac
•Network standby power<3W
NL
•Modelnaam: HK ADAPT+
•Uitgangsspanning: ≥1Vrms
•Frequentiebereik: 20Hz~80kHz (-3dB)
•Signaal-ruis-verhouding: >80dB
•Ingangen: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Afmetingen (B x D x H): 118mm x 86mm x 30mm
•Gewicht: 121g
•Voeding: 5VDC, 2.3A
•Bluetooth® zendfrequentiebereik: 2402 – 2480MHz
•
•Bluetooth® zendermodulatie: GFSK, π/4 DQPSK, 8DPSK
•2.4G Wi-Fi zendfrequentiebereik: 2412 – 2472MHz (2.4GHz ISM Band,
USA 11 kanalen, Europa en andere 13 kanalen)
•
•2.4G Wi-Fi modulatie: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•2.4G Wi-Fi netwerk compatibiliteit: IEEE 802.11b/g/n
•
•5G Wi-Fi modulatie: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5G Wi-Fi netwerk compatibiliteit: IEEE 802.11ac
•Network standby power<3W
RU
•Название модели: HK ADAPT+
•Выходное напряжение: ≥1 В (ср.кв.)
•Частотная характеристика: 20 Гц ~ 80 КГц (-3 дБ)
•Отношение "сигнал-шум": >80 дБ
•Входные соединения: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Габариты(ДxШxВ):118ммx86ммx30мм
•Вес: 121 г
•Источник питания: 5 В постоянный ток, 2.3 А
•Частотный диапазон передатчика Bluetooth®: 2402 – 2480 МГц
•
•Модуляция передатчика Bluetooth®: гаусс. част. модул., π/4 относ.
квадрат. фаз. модул., относ. восьмер. фаз. модул.
•Частотный диапазон передатчика 2.4G Wi-Fi: 2412 – 2472 МГц
(2,4 ГГц диапазона ISM, США 11 каналов, Европа и другие страны
13 каналов)
•
•Модуляция 2.4G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•Сетевой стандарт 2.4G Wi-Fi: IEEE 802.11b/g/n
•
•Модуляция 5G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•Сетевой стандарт 5G Wi-Fi: IEEE 802.11ac
•Network standby power<3W
FI
•Mallin nimi: HK ADAPT+
•Lähtöjännite: ≥1Vrms
•Taajuusvaste: 20 Hz ~ 80 kHz (-3 dB)
•Signaali-kohina-suhde: >80 dB
•Tuloliitännät: Bluetooth®, Aux-tulo, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Mitat(LxKxH):118mmx86mmx30mm
•Paino: 121 g
•Virransyöttö: 5 VDC, 2,3 A
•Bluetooth®-lähettimen taajuusalue: 2402 – 2480 MHz
•
•Bluetooth®-lähettimen modulaatio: GFSK, π/4 DQPSK, 8 DPSK
•2,4 G Wi-Fi-lähettimen taajuusalue: 2412 – 2472 MHz (2,4 GHz
ISM-kaista, Yhdysvallat 11 kanavaa, Eurooppa ja muut 13 kanavaa)
•
•2,4 G Wi-Fi-modulaatio: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•2,4 G Wi-Fi-verkon yhteensopivuus: IEEE 802.11b/g/n
•
•5 G Wi-Fi-modulaatio: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5 G Wi-Fi-verkon yhteensopivuus: IEEE 802.11ac
•Network standby power<3W
DA
•Modelnavn: HK ADAPT+
•Udgangsspænding: ≥1 Vrms
•Frekvensområde: 20 Hz ~ 80 kHz (-3 dB)
•Signal til støj-forhold: >80 dB
•Indgangstilslutninger: Bluetooth®, Aux-indgang, Wi-Fi, 10/100 Mbps
Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Mål(BxDxH):118mmx86mmx30mm
•Vægt: 121g
•Strømforsyning: 5 V DC, 2,3 A
•Frekvensområde for Bluetooth®-sender: 2402 – 2480 MHz
•
•Bluetooth®-sendemodulation: GFSK, π/4 DQPSK, 8DPSK
•Frekvensområde for 2,4 G Wi-Fi-sender: 2.412 – 2.472 MHz
(2,4 GHz ISM-bånd, USA:11 kanaler, Europa og andre lande: 13 kanaler)
•2,4 G Wi-Fi-modulation: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
•2,4 G Wi-Fi-netværkskompatibilitet: IEEE 802.11b/g/n
•
•5 G Wi-Fi-modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5 G Wi-Fi-netværkskompatibilitet: IEEE 802.11ac
•Network standby power<3W
SV
•Modellnamn: HK ADAPT+
•Spänning ut: ≥1 Vrms
•Frekvensomfång: 20 Hz~80 kHz (-3 dB)
•Signal-brus-förhållande: >80 dB
•Ingångar: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensioner (B x D x H): 118 x 86 x 30 mm
•Vikt: 121 g
•Strömförsörjning: 5 V DC, 2,3 A
•Bluetooth®-sändarens frekvensomfång: 2 402–2 480 MHz
•
•Bluetooth®-sändarens modulering: GFSK, π/4 DQPSK, 8DPSK
•2,4 G Wi-Fi-sändarens frekvensomfång: 2 412 MHz~2 472 MHz
(2,4 GHz ISM-band, USA 11-kanaler, Europa 13-kanaler)
•
•2,4 G Wi-Fi-modulering: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•2,4 G Wi-Fi nätverkskompatibilitet: IEEE 802.11b/g/n
•
•5 G Wi-Fi-modulering: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•5 G Wi-Fi nätverkskompatibilitet: IEEE 802.11ac
•Network standby power<3W
KO
•모델명: HK ADAPT+
•출력 전압:≥1Vrms
•주파수 응답: 20Hz~80kHz (-3dB)
•신호 대 잡음비:>80dB
•입력 연결:블루투스®, 보조 입력, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•치수(너비 x 깊이 x 높이): 118mm x 86mm x 30mm
•중량: 121g
•전원 공급 장치: 5VDC, 2.3A
•블루투스®송신기 주파수 범위: 2402 ~ 2480MHz
•®
•블루투스®송신기 변조: GFSK, π/4 DQPSK, 8DPSK
•2.4G Wi-Fi 송신기 주파수 범위: 2412 ~ 2472MHz (2.4GHz ISM 밴드,
미국 11 채널,유럽 및 기타 지역 13 채널
•
•2.4G Wi-Fi 변조: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
•2.4G Wi-Fi 네트워크 호환성: IEEE 802.11b/g/n
•5G Wi-Fi 변조: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,
64QAM, 256QAM
•5G Wi-Fi 네트워크 호환성: IEEE 802.11ac
•Network standby power<3W
JP
•モデル名：HK ADAPT+
•出力電圧：1Vrms以下
•周波数特性：20Hz～80kHz (-3dB)
•S/N比：80dB 以下
•入力接続：Bluetooth®、Aux端子、Wi-Fi、
10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•寸法（幅x奥行x高さ）：118mm x 86mm x 30mm
•重量：121g
•電源：5VDC, 2.3A
•Bluetooth®対応トランスミッター周波数帯域：2402～2480MHz
•Bluetooth®対応トランスミッター変調：GFSK、π/4 DQPSK、8DPSK
•2.4G WiFiトランスミッター周波数帯域：2412～2472MHz (2.4GHz ISM
バンド、USA 11チャンネ ル、Europeとその他の地域 13チャンネ ル)
•
•2.4G WiFi変調：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、64QAM
•2.4G WiFiネットワークへの互換性：IEEE 802.11b/g/n
•
•5G WiFi変調：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、
64QAM, 256QAM
•5G WiFiネットワークへの互換性：IEEE 802.11ac
•Network standby power<3W
CHT
•型號名稱：HK ADAPT+
•輸出電壓：≥1Vrms
•頻率回應：20Hz~80kHz (-3dB)
•雜訊比：>80dB
•輸入連接：Bluetooth®、Aux 輸入、Wi-Fi、
10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•尺寸（寬 x 深 x 高）： 118mm x 86mm x 30mm
•重量：121 克
•電源：5VDC，2.3A
•Bluetooth® 發射機頻率範圍：2402 – 2480MHz
•Bluetooth® 發射機調變：GFSK、π/4 DQPSK、8DPSK
•2.4G Wi-Fi 發射機頻率範圍：2412 – 2472MHz（2.4GHz ISM 頻帶、
美國 11 個頻道、歐洲和其他 13 個頻道）
•2.4G Wi-Fi 調變：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、64QAM
•2.4G Wi-Fi 網路相容性：IEEE 802.11b/g/n
•
•5G Wi-Fi 調變：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、
64QAM, 256QAM
•5G Wi-Fi 網路相容性：IEEE 802.11ac
•Network standby power<3W
CHS
•型号名称：HK ADAPT+
•输出功率：≥1Vrms
•频率响应：20Hz~80kHz (-3dB)
•信噪比：>80dB
•输入连接：Bluetooth®、辅助输入、Wi-Fi、10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•尺寸（宽 x 长 x 高）： 118mm x 86mm x 30mm
•重量：121g
•电源：5VDC，2.3A
•Bluetooth® 发射器频率范围：2402 – 2480MHz
•Bluetooth® 发射器调制：GFSK, π/4 DQPSK, 8DPSK
•2.4G Wi-Fi 发射器频率范围：2412 – 2472MHz（2.4GHz ISM 频带，
美国 11 个频道, 欧洲和其他国家/地区 13 个频道）
•2.4G Wi-Fi 调制：OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
•2.4G Wi-Fi 网络兼容性：IEEE 802.11b/g/n
•5G Wi-Fi 调制：OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,
64QAM, 256QAM
•5G Wi-Fi 网络兼容性：IEEE 802.11ac
•Network standby power<3W
ID
•Nama Model: HK ADAPT+
•Output tegangan: ≥1Vrms
•Respons frekuensi: 20Hz~80kHz (-3dB)
•Rasio sinyal-ke-bunyi: >80dB
•Input koneksi: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port
•Output Connections: AUX, Optical, Subwoofer
•Dimensi (W x D x H): 118mm x 86mm x 30mm
•Berat: 121g
•Catu daya: 5VDC, 2.3A
•Rentang frekuensi pemancar Bluetooth®: 2402 – 2480MHz
•Modulasi pemancar Bluetooth®: GFSK, π/4 DQPSK, 8DPSK
•Rentang frekuensi pemancar 2.4G Wi-Fi: 2412 – 2472MHz
(2.4GHz ISM Band, USA 11 Kanal, Eropa dan 13 Kanal lain)
•
•Modulasi 2.4G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
•Kompatibilitas jaringan 2.4G Wi-Fi: IEEE 802.11b/g/n
•
•Modulasi 5G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM, 256QAM
•Kompatibilitas jaringan 5G Wi-Fi: IEEE 802.11ac
•Network standby power<3W
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
This Mark Certifies that this product is compliant with the BLACKFIRE ALLIANCE Standard.
Please refer to WWW.BLACKFIREALLIANCE.COM for more information.
BLACKFIRE RESEARCH™ is a Registered Trademark (No. 3,898,359) of BLACKFIRE RESEARCH CORP.
All rights reserved.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
“Made for iPod,”“Made for iPhone,”and “Made for iPad”mean that an electronic accessory has been designed to connect specifically to iPod, iPhone,
or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect
wireless performance.
AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano, iPod touch, and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad
Air, iPad mini, and Lightning are trademarks of Apple Inc. In Japan,The trademark “iPhone” is used with a license from Aiphone K.K
IC Caution:
User should also be advised that:
(i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and
(iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as
appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Les utilisateurs devraient aussi être avisés que
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à
point, selon le cas.De plus, les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et
que ces radars pourrai ent causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
º Reorient or relocate the receiving antenna.
º Increase the separation between the equipment and receiver.
º Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
º Consult the dealer or an experienced radio/TV technician for help.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No
configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part
15.407 of the FCC rules.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No
configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part
15.407 of the FCC rules.
“FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.”
Use Restriction Attention In France, operation is limited to indoor use within the band 5150-5350 MHz.
해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음
Торговая марка : harman/kardon
Назначение товара : АКТИВНАЯ АКУСТИЧЕСКАЯ СИСТЕМА
Изготовитель : ХАРМАН ИНТЕРНЕШНЛ ИНДАСТРИЗ ИНКОРПОРЕЙТЕД, США, 06901
КОННЕКТИКУТ, г.СТЭМФОРД, АТЛАНТИК СТРИТ 400, ОФИС 1500
Страна происхождения : Китай
Импортер в Россию : OOO “ХАРМАН РУС СиАйЭс“, РОССИЯ, 127018, г.МОСКВА, УЛ. ДВИНЦЕВ, Д.12, КОРПУС 1
Гарантийный период : 1 год
Информация о
сервисных центрах : www.harman.com/ru тел. +7-800-700-0467
Срок службы : 5 лет
Срок хранения : не ограничен
Условия хранения : Cтандартные при нормальных значениях климатических факторов внешней среды
Номер документа
соответствия : Товар сертифицирован
Дата производства : Дата изготовления устройства определяется по двум буквенным обозначениям из второй группы
символов серийного номера изделия, следующих после разделительного знака «-». Кодировка
соответствует порядку букв латинского алфавита, начиная с января 2010 года: 000000-MY0000000,
где «M» - месяц производства (А - январь, B - февраль, C - март и т.д.) и «Y» - год производства
(A - 2010, B - 2011, C - 2012 и т.д.).
TR01528_A
TR & Job No:
Job Description:
Date:
Other:
Developed by
RESTRICTED
DESIGN ADAPTATION / IMAGE / FINAL ART
IMPORTANT NOTE : THE PRINT/PDF IS FOR LAYOUT AND TEXT ILLUSTRATION ONLY. THE COLOURS INDICATED HERE MAY NOT APPEAR SAME IN THE FINAL PROOF. ALTHOUGH
EVERY EFFORT HAS BEEN MADE TO CHECK THE CORRECTION OF LAYOUT AND TEXT. IT IS CLIENT RESPONSIBILITY TO VERIFY BEFORE GIVING THE FINAL APPROVAL.
TR01528_HK_ADAPT+_QSG_A
Version : 7
TR01528
2016-02-23
UK01/MNR2/MNR3/MNR4/EDI5/EDI06/GP07
N/A
EQUITY COLORS:
REPRESENTATION:
LTHCyan LTHMagenta LTHYellow Black
