Harman Accentra Stove Owner S Manual

: Harman Harman-Accentra-Stove-Owner-S-Manual harman-accentra-stove-owner-s-manual harman pdf

Open the PDF directly: View PDF .
Page Count: 6

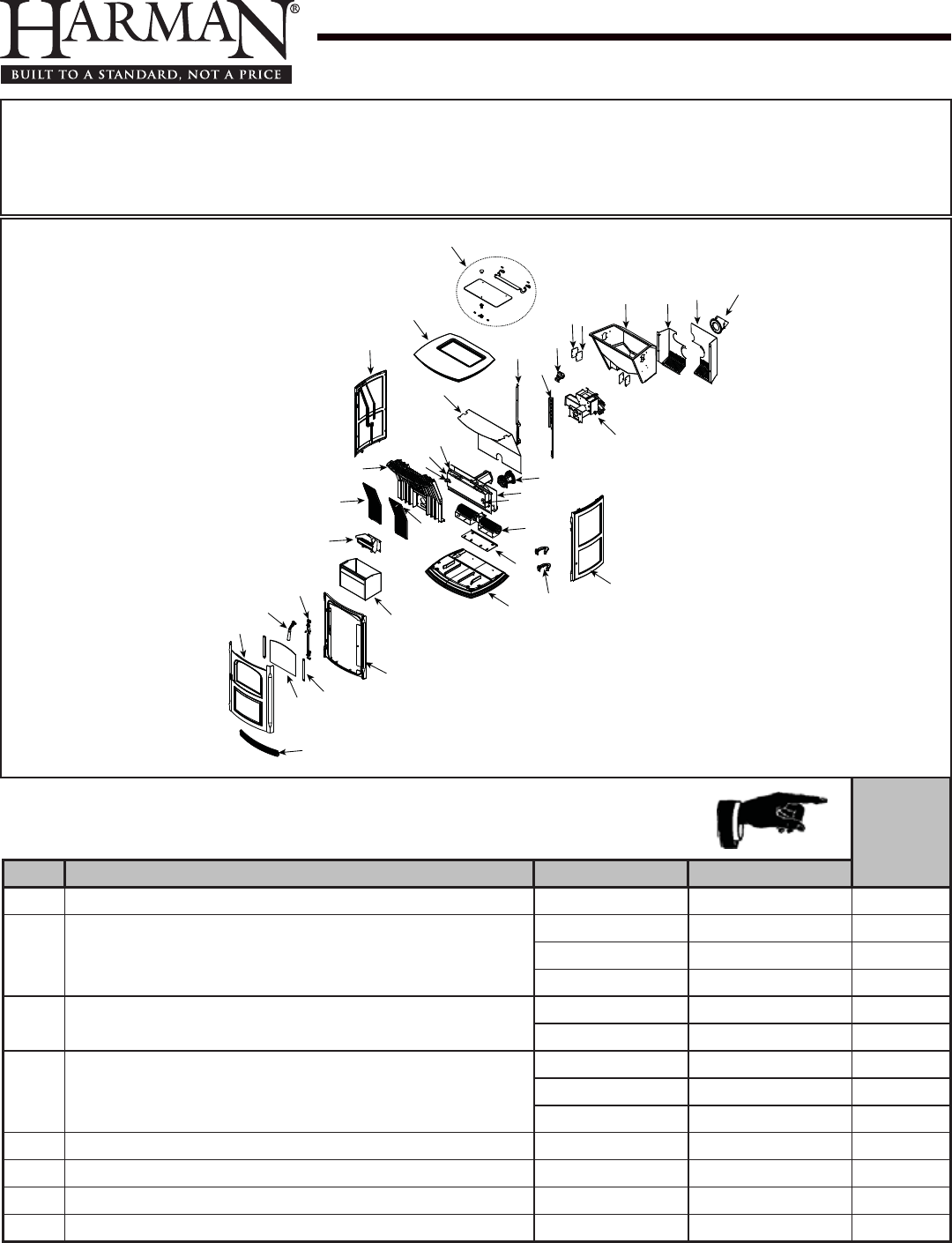

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

1 Flue Tail Pipe 3-00-247237 Y

2 Feeder Shield Right

Pre 008402885 1-10-247142P Y

008402885-008408015 1-10-247554 Y

Post 008408015 1-10-247854 Y

3 Feeder Shield Left Pre 008402885 1-10-247141P Y

Post 008402885 1-10-247553 Y

4 Hopper Assembly

Pre 008400001 1-10-247213A

008400001- 008408015 1-10-247778A

Post 008408015 1-10-247260A Y

Gasket, Hopper Throat 3-44-677185 Y

Gasket, Hopper Top 1-00-375501 Y

Grommet, 3/4" 3-31-960021

Hopper Switch 48" Post 008403501 3-20-232108 Y

Additional service parts on following page. 10/13

1-90-02470-2 (Charcoal) (Ending Manufacturing Date June 2011)

1-90-02470-3 (Goldenfi re) (Ending Manufacturing Date June 2011)

1-90-02470-4 (Metallic Blue) (Ending Manufacturing Date Jan 2010)

1-90-02470-5 (Honey Glo) (Ending Manufacturing Date June 2009)

1-90-02470-1 (Black) (Active)

1-90-02470-14 (Majolica Brown) (10/12 - Active)

1-90-02470-10 (Mojave Red) (Ending Manufacturing Date Jan 2010)

1-90-02470-12 (Forest Green) (Ending Manufacturing Date Jan 2010)

1-90-02470-13 (Black Enamel) (Ending Manufacturing Date Mar 2010)

1-90-02470-15 (Sand Enamel) (Ending Manufacturing Date July 2009

Retired Units

1

2

3

4

5

6

7

8

9

10

11

13

14

15

16

17

18

19

20

21

22

23

24 25 26

27 29

30

31 32

36

37 and 38

33

3435

28

12

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

5 Top Bolt Down Cover Qty 2 req 2-00-247185L

6 Top Bolt Down Cover Gasket Pkg of 2 1-00-07383

7 Differential Switch 3-20-6866 Y

8Z Bracket, Right 2-00-247119B

9 Z Bracket, Left 2-00-247139B

10 Glass Hopper Lid 3-40-247100 Y

Gasket,Glass Hopper Lid Pre 11340 3-44-247300 Y

Post 11340 1-00-375501 Y

Gold Plated Knob (Hopper) 3-43-02000

Brushed Chrome Knob 3-43-02000-8

Hinge Plate Qty 2 req 2-00-06695L

Hopper Ball Spring Plunger (Threaded) Pkg of 3 3-31-5500-3

Hopper Lid Ball Spring Mount Bracket Pre 11340 2-00-247116

Hopper Lid Glass Assembly w/Gasket Pre 11340 1-10-247100 Y

Hopper Hinge Assembly (Qty 2 req) Pre 11340 1-10-247151 Y

Hopper Lid Hinge Post 11340 2-00-06694

Hopper Lid Spring Latch Pre 11340 1-00-247167

Hopper Lid Latch (Set OF 2) Post 11340 1-00-0669697 Y

Push Retainer, 5/16" Pkg of 100 3-31-94807-100

Screw Post 1/4"/ Washers (Hopper Lid) 20 Sets 1-00-129004 Y

11 Cast Top Painted 4-00-247236S

12 Cast Side Plate Left Painted 4-00-247106D

13 Air Jacket Top 2-00-247219B

14 Cast Combustion Housing 4-00-247104

15 Comb Intake Assembly 1-10-247124W Y

16 Comb Manifold Latch Left 2-00-247126-1S

17 Cast Heat Exchanger 4-00-247103

18 Cast Accordion Cover Qty 2 req 3-00-247105 Y

19 Burn Pot Assembly 1-10-08736 Y

Clean out Cover 2 Sets 1-00-06623 Y

Flame Guide 3-00-08534 Y

Igniter 3-20-677200 Y

Pkg of 10 1-00-677200 Y

Igniter Cradle, Holder & Flat Bottom 3 Sets 1-00-06620 Y

Thumb Screw Pkg of 10 3-31-782108-10 Y

Additional service parts on following page.

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

20 Door Latch Assembly

Latch Bar 2-00-247175L

Dowel Pin Retainer 2-00-247187L

Shoulder Screw, 5/16" shldr x 1/4" x 1/4"-20 Thread Alloy Steel Pkg of 5 3-30-1105-5 Y

Dowel Pin 1/4" x 1-1/4" Pkg of 15 3-30-2017-15

21 Door Handle Assembly

Door Handle - Painted 3-00-247112P Y

Door Only Painted 4-00-247109P Y

Majolica Brown 4-00-247109-14S Y

Wooden Handle w/ Hardware 2 Sets 1-00-00247 Y

22 Cast Door w/Rope and Grill 1-10-247109A

Door Rope 1-00-00888 Y

23 Cast Air Grill 3-00-247114

24 Door Glass 3-40-247127 Y

Glass Rope 1-00-2312 Y

25 Glass Retainer Qty 2 req 2-00-247156B

26 Cast Front Frame 4-00-247108C

27 Ash Pan Weldment 1-10-247160 Y

28 Accordion Cover Latch w/Hardware 1-00-247131

29 Cast Base Plate Painted 4-00-247110D

30 Distribution Blower Plate 2-00-247117S

31 Cast Hinge Qty 2 req 4-00-247113

32 Cast Side Plate Right Painted 4-00-247107D

33 Distribution Blower 1-00-29145 Y

Wire Kit (Needed for Bay Motor to EBM) No longer available 1-00-29045

34 Combustion Manifold Latch, Right 2-00-247126-2S

35 Air Jacket BTM Weldment 1-10-247121S

36 Combustion Blower 3-21-08639 Y

Blower Mounting Screws Pkg of 100 1-00-53483212

Combustion Blower Gasket 1-00-07383

Fan Blade, Single Paddle 5" (Comb Blower) 3-20-40985 Y

37 Feeder Assemblies Pre 008400001 Parts diagram on

following pages

38 Post 008400001

Additional service parts on following page.

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

37 Feeder Assembly Pre 008400001 1-10-247677A

37.1 Air Intake Weldment 1-10-247221W

37.2 Feeder Weldment 1-10-677150 Y

37.3 Slide Plate Assembly 1-10-08037 Y

37.4 Pusher Arm Assembly 1-10-247220 Y

37.5 Feed Cover and Gasket 2 Sets 1-00-677152 Y

37.6 Gear Motor, 4 RPM 3-20-08752 Y

37.7 Sprocket Kit 1-00-06626 Y

37.8 Bracket, Gear Motor 1-10-677005 Y

Grommets & Spacers Pkg fo 25 1-00-960026

37.9 3/4 Feeder Tensioner 3-31-00075 Y

37.10 3 1/2" Sprocket 2-00-06626M Y

37.11 Chain - 60 Pin 3-50-06667 Y

37.12 3 1/2" Sprocket w/Hub 1-10-08550W Y

37.13 Cast Cam Block 3-00-00153 Y

37.14 Cam Bearing 3-31-3014 Y

37.15 Bearing Flange w/Hardware 1-00-04035 Y

37.16 Auger Assembly 3-50-00465 Y

37.17 Air Intake Damper Assembly 1-10-06466W

Feeder Air Crossover Kit 1-00-67900 Y

Feeder Repair kit 1-00-677150 Y

Gasket, Feeder, Air Intake Pkg of 6 3-44-72224-6 Y

Pillow Block Pkg of 4 3-31-3614087-4 Y

Pusher Arm, Cast Feeder 1-10-06684

Additional service parts on following page.

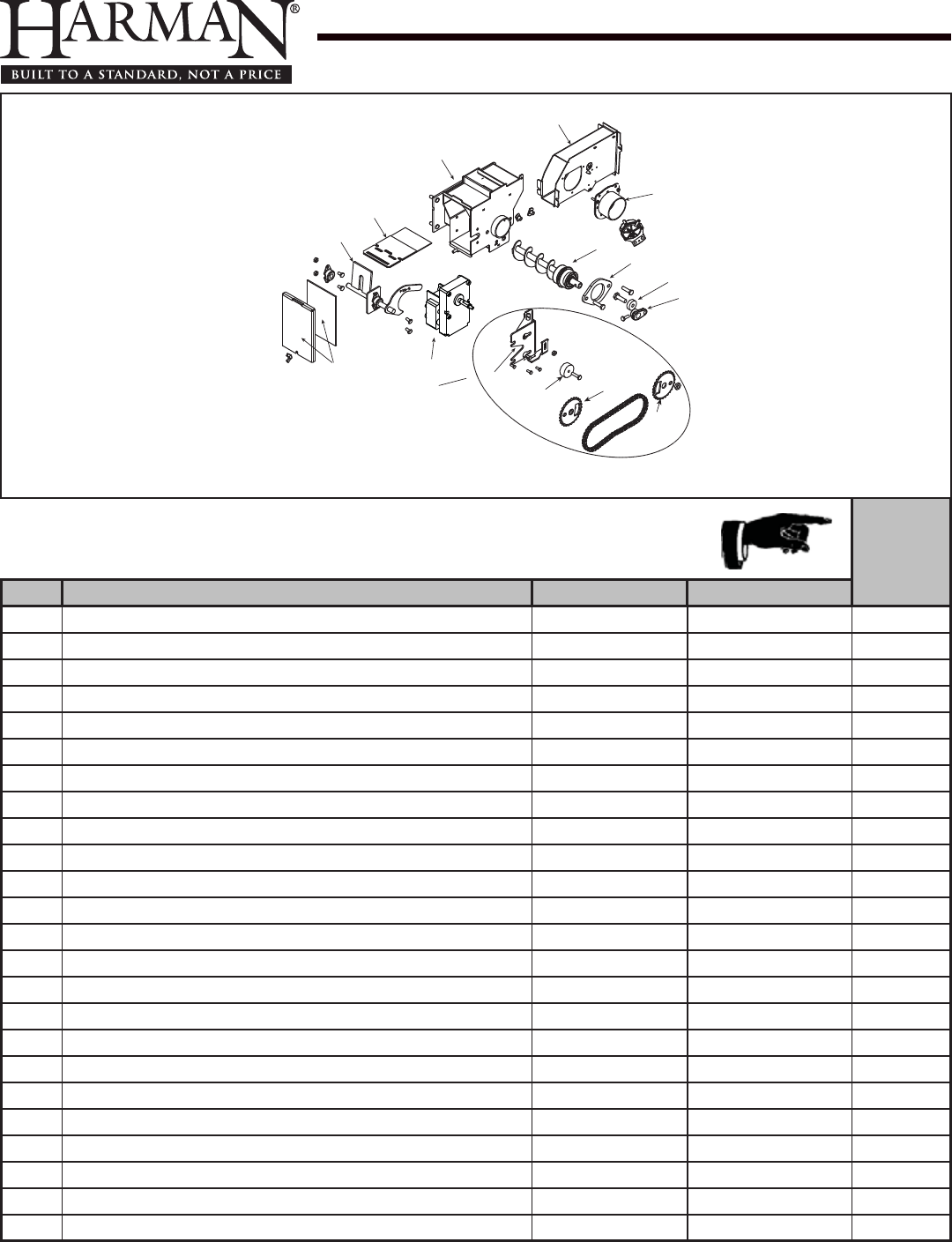

# 37 Pre Serial Number 00840001

Feeder Assembly 37.1

37.2

37.3

37.4

37.5 37.6 37.8

37.7 37.9 37.10

37.11

37.12

37.13

37.14

37.15

37.17

37.16

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

38 Feeder Assembly Post 008400001 1-10-247777A

38.1 Pellet Feeder Gear Motor, 4 RPM 3-20-00677 Y

38.2 UL Feeder Cam Bearing 3-31-3014 Y

38.3 Feeder Air Crossover Kit 1-00-67900 Y

9MM Silicone Tube 5 Ft 1-00-511427 Y

38.4 Pellet Air Intake Assembly 1-10-06810A

38.5 Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y

38.6 UL Feeder Air Intake 1-10-247239

38.7 Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y

38.8 Ultra Feeder Weldment 1-10-724132 Y

38.9 UL Feeder Pusher Arm 1-10-677187W Y

38.10 Fines Defl ector No longer available 2-00-677138-10

38.11 Gasket, UL Feeder Cover 1-00-677122 Y

38.12 Slide Plate Assembly 1-10-677121A Y

38.13 UL Feeder Auger Assembly 3-50-00565 Y

38.14 Bearing Flange w/Hardware 1-00-04035 Y

38.15 UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y

38.16 UL Feeder Cam Block 3-00-677154 Y

Gasket, Hopper Throat 3-44-677185 Y

Hopper Switch FeederFitting Pkg of 2 1-00-142818 Y

Pillow Block Pkg of 4 3-31-3614087-4 Y

Additional service parts on following page.

#38 Post Serial Number 008400001 Feeder Assembly

38.2

38.1

38.3

38.4

38.5

38.6

38.7 38.8

38.9

38.10

38.11

38.12

38.13

38.14

38.15

38.16

Service Parts Accentra-Cast

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number and

serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

Airwash O-rings Pkg of 10 1-00-939639 Y

Arrow Burn Pot Scraper Pkg of 10 2-00-773850-10

Circuit Board w/Knobs & Shafts 1-00-05886 Y

Control Board Plate Assembly 1-10-247157S

Label, Control Board 3-90-247155A

D-Shaped Knob/ Shaft 25 Sets 1-00-015605 Y

Diagnostic Display Module 3-20-05401 Y

DDM Replacement Cable 1-00-05402

Disonnect, Female, 1/4” Pkg of 25 1-00-00959 Y

Distribution Blower Gasket 3-44-247118 Y

Distribution Blower Screen Frame Pre 008402885 2-00-247173B Y

Draft Meter Assembly 1-00-00637

Draft Meter Bolt & Tube 1-00-04004

Flame Guide Bracket 2-00-247435 Y

Fuse 6 AMP Pkg of 5 3-20-49447-5 Y

Gasket, Base and Sides 5 Ft 1-00-37525 Y

Gasket, Burn Pot/ Tailpipe Pkg of 5 1-00-07381 Y

Hopper Muffl er & Fittings 1-00-18186618 Y

Hopper Switch Retrofi t Kit 1-00-232108 Y

Inlet Reduction Ring (Combustion Blower) 1-00-247234

Labels, Caution & Danger 10 Ea 1-00-200408541

Label, Large Caution 3-90-00247

Leg Levelers Pkg of 4 1-00-12302

Power Cord - 8’ 3-20-39685 Y

Rocker Switch Pre 008403501 3-20-07625

Room Sensor 3-20-00906 Y

Silicone Tubing, 1/8” 5 Ft 1-00-5113574 Y

Thermister Probe (ESP Probe) Pre 008401067 3-20-11744 Y

Post 008401067 3-20-00844 Y

Thermostat Extension 3-20-00607 Y

Touch-up paint, Black Pre 008408085 3-42-1990

Post 008408085 3-42-19905

Touch-up Paint, Enamel Majolica Brown 1-00-0014

Wiring Harness 3-20-08727 Y

Hardware Packages

Screw,1/4”-20 x 2 1/2” Phillips Round Head Zinc Pltd Machine Pkg of 25 3-30-6007-25 Y

Screw, 1/4”-20 x 1/4” Alloy Steel Black Oxide Button Head Cap Pkg of 50 3-30-3013-50 Y

Screw, 1/4”-20 x 3/8” Alloy Steel Black Oxide Button Head Cap Pkg of 100 3-30-3014-100 Y

Screw, 5/16” Shldr x 1/4” x 1/4”-20 Thrd Alloy Steel Shoulder Pkg of 5 3-30-1105-5 Y

Washer,5/16” x 3/4” 18-8 Stainless Steel Flat Pkg of 100 3-30-9003-100 Y
