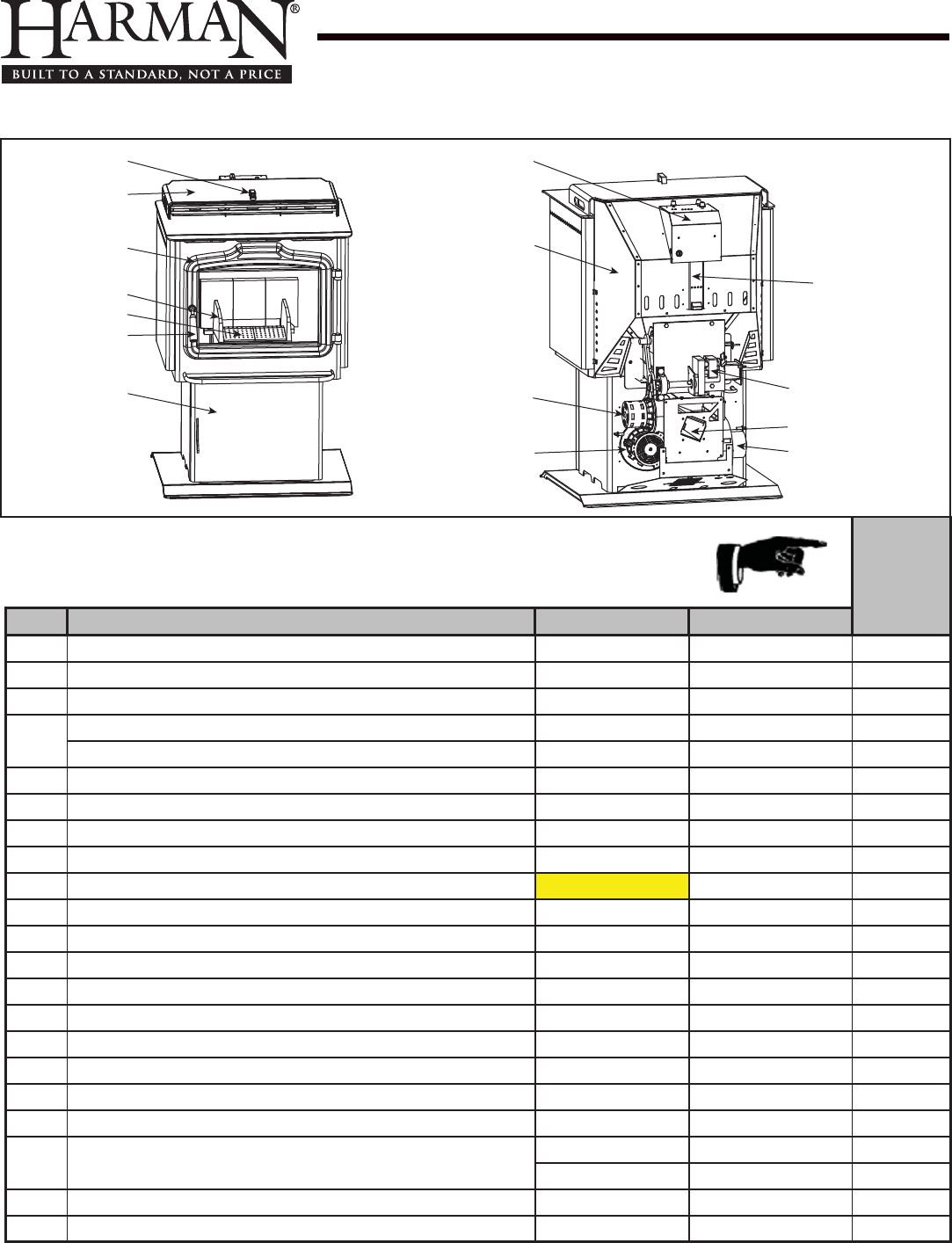

Service Parts DVC-500

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: May 2013

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or

distributor. Hearth and Home Technologies does not sell directly to consumers.

Provide model number and serial number when requesting service parts from your dealer or

distributor.

Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

1 Hopper Lid Swell Latch 3-31-191410 Y

2 Hopper Lid Assembly 1-10-08212A

Lid Catch W/Hardware 1-00-06308

3Door Kit Assembly Classic Black 1-00-08600-1 Y

Door Kit Assembly (Gold) No longer available 1-00-08600-4

Glass, Rect 12-7/16” X 17-5/8” 3-40-08214 Y

4 Grate Holder Assembly 1-10-01000 Y

5 Grate Inserts Qty. 2 Req. 4-00-08307D

6 Wooden Handle with screws 1-00-00122 Y

7 Ash Door Assembly No longer available 1-10-08205A

Ash door Latch Hardware 1-00-38223 Y

8 Control Box Assembly - W/Board & Pressure Switch

Control Box 1-10-06486

Circuit Board w/Knobs & Shafts 1-00-05889 Y

Pressure Switch 1-00-163 Y

9 Hopper Assembly 1-10-08207A

10 Combustion Blower - W/Flange 1-10-70219720 Y

11 Draft Motor 3-21-08639 Y

12 Distribution Blower 3-21-33647 Y

13 Thermister Probe Pre 008065076 3-20-11744 Y

Post 008065076 3-20-00844 Y

14 Feed Motor - 4 rpm 3-20-60906 Y

15 Wiring Harness Assembly 1-10-08683A

Additional service part numbers appear on following page. 10/13

1-90-08600-1 (Black w/Door) - Ending manufacturing date May 2013

1 -70-08600-1 (Black) - Ending manufacturing date June 2011

Direct Vent Coal Stoker

15

14

1

2

9

4

3

6

5

7

8

11 12

13

10

Last SN #008065401

Service Parts DVC-500

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: May 2013

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or

distributor. Hearth and Home Technologies does not sell directly to consumers.

Provide model number and serial number when requesting service parts from your dealer or

distributor.

Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

1/4”-20 x 2 1/2” Phillips Round Head Zinc Pltd Machine Screw Pkg of 25 3-30-6007-25 Y

Ash Lip Trim No longer available 3-43-4722386

Ash Pan 1-10-08177 Y

Ash Shield 2-00-06423B Y

Airwash O-Rings Pkg of 10 1-00-939639 Y

Brass Elbow 3-40-00121

Brick Set 1-00-00382 Y

Combustion Blower Inlet Cover 1-10-08552W

Combustion Blower Seal 3-44-06417 Y

Combustion Inlet Cover Retainer Assembly 1-10-08553S Y

Door (frame only) (Gold) No longer available 1-10-05165

Door (frame only) Cast 4-00-05165

Double Paddle Fan Blade 4-3/4” (old tilt out draft motor) 3-20-502222 Y

Double Paddle Fan Blade 5” (new style draft motor) 3-20-502221 Y

Feeder Assembly 1-10-08197A

Feeder Cam Block Assembly 1-10-00102A Y

Filter, In line for DVC 3-40-35125

Fine Tray 2-00-06387S

Gasket, Flue Pipe Pkg of 3 3-44-06256-3 Y

Gasket, Glass, 1/4” Round 15 Ft 1-00-2312 Y

Gasket, Hinge Seal 2-00-06416 Y

Gasket, Hopper Lid 3-44-06415 Y

Gasket, Round 1/2” (Load Door) 20 Ft 1-00-1086204 Y

Glass Clip Pkg of 4 2-00-05202-4 Y

#10-24 x 3/8” Alloy Steel Black Oxide Button Head Cap Screw Pkg of 100 3-30-3011-100 Y

Gold Air Grill Trim No longer available 3-43-08157

Handle Assembly 1-00-08176 Y

Hercules Grate Cement 12 oz. Tube 3-42-08308

Paw Bolt 4-31-08055 Y

Additional service part numbers appear on following page.

Service Parts DVC-500

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: May 2013

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or

distributor. Hearth and Home Technologies does not sell directly to consumers. Provide

model number and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

Pillow Block Bearing 3-31-06238 Y

Pusher Block, Aluminum 3-50-06438 Y

Pusher Arm Assembly 1-10-08208 Y

Pusher Arm Pillow Block 3-31-324122 Y

Room Sensor 3-20-00906 Y

Silicone foam 1/16” - grey (Feed Cover) 3-44-08551 Y

Silicone Tubing For In Line Filter 1-00-5113574 Y

Silicone, Red Sponge W/PSA (Old Units) 3-44-08215 Y

TCP Probe (Yellow Thermister Probe) Pre 008065076 3-20-08272 Y

Post 008065076 3-20-00844 Y

Termination Trim Collar Qty. 2 Req. 2-00-06326

Tile frame assembly 12 X 6 No longer available 1-00-08617

Tilit Draft Motor No longer available 3-21-42940

Touchup Paint, Black Pre 008065402 3-42-1990

Post 008065402 3-42-19905

Wooden Handle 3-40-00247

Tile Pack

Brushed Stainless Steel Plate 12 X 6 Deer 1-00-06732-2

Ceramic Tile 12 X 6 (No longer available)

Pheasants 3-43-120601

Deer 3-43-120602

Mallards 3-43-120603

Old Mill 3-43-120604

Cottage 3-43-120605

Eagle 3-43-120606

Bridge 3-43-120607

Bear 3-43-120608

Lighthouse 3-43-120609

Trout 3-43-120610

Slate Tile 12 X 6

Floral 3-43-06731-11

Horse Riders 3-43-06731-12

Deer 3-43-06731-2

Lighthouse 3-43-06731-9
