Harman Exception Owner S Manual

: Harman Harman-Exception-Owner-S-Manual harman-exception-owner-s-manual harman pdf

Open the PDF directly: View PDF .
Page Count: 3

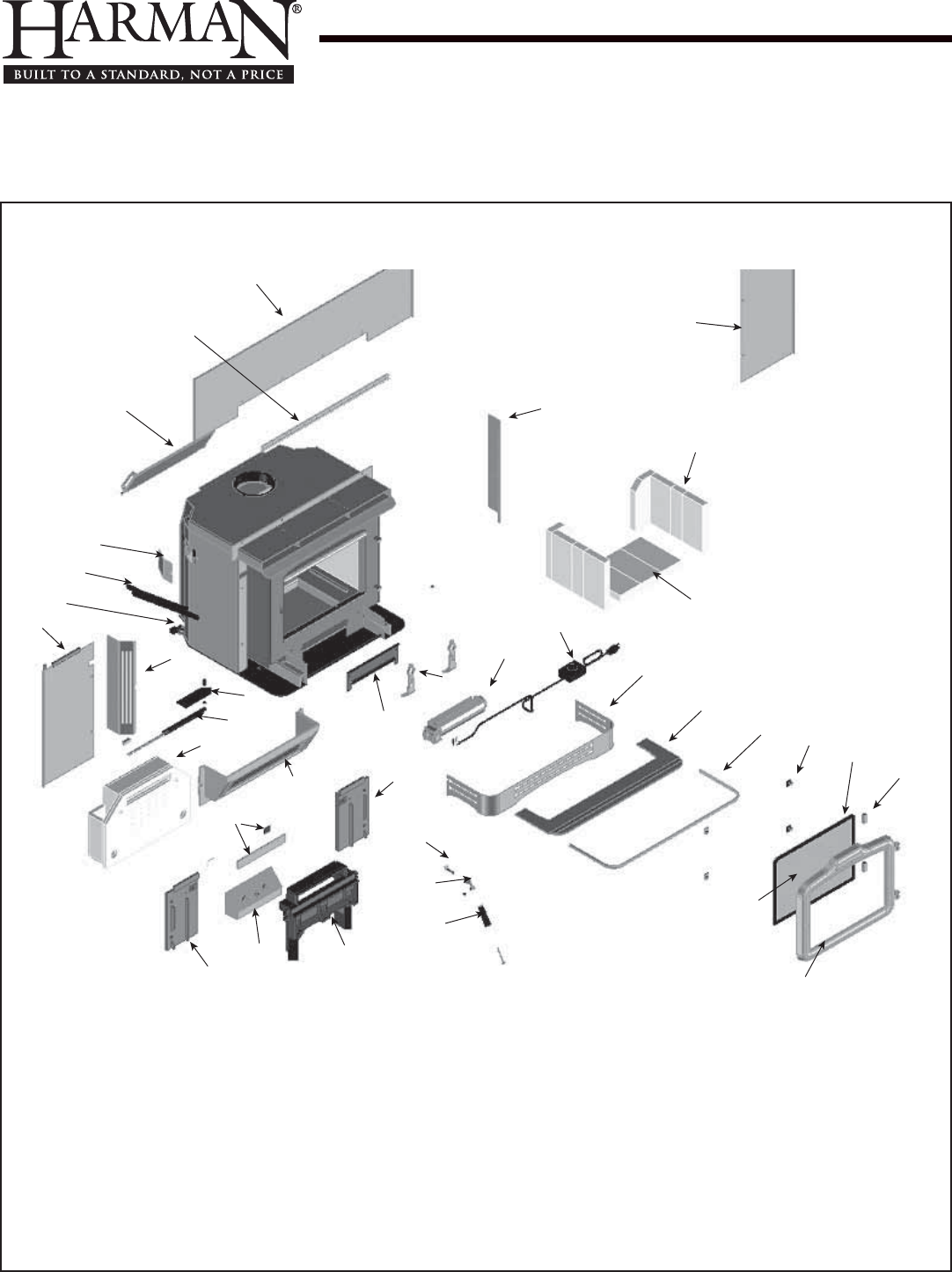

Service Parts Exception (F200)

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Nov 2010

Part number list on following page.

Exception F200 Woodburning Insert

1-70-09102-1 (Black) (Ending manufacturing Date: Nov 2010)

1-70-09102-2 (Charcoal) (Ending manufacturing Date: Nov 2010)

1-70-09102-3 (Goldenfi re) (Ending manufacturing Date: Nov 2010)

1-70-09102-4 (Metallic Blue) (Ending manufacturing Date: Jan 2010),

1

2

4

3

5

6

7

8

12

16

15

17

13

14

9

10

11

18

22

23

24

25

26

27

35

36

28 29 30

31

32

33

34

19

20

21

1-70-09102-5 (Honey Glo) (Ending manufacturing Date: July 2009)

1-70-09102-10 (Mojave Red) (Ending manufacturing Date: Jan 2010)

1-70-09102-12 (Forest Green) (Ending manufacturing Date: Jan 2010)

04/13

Service Parts Exception (F200)

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Nov 2010

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

1 Top Wing 1-10-34126W

2 Air Grill Trim - set 3-43-34119

3 Damper 1-10-08077 Y

Damper Clips 1 Set 1-00-05226 Y

Gasket, Round White 3/8” lD (Damper Plate) 30 Ft 1-00-00888 Y

4 Damper Arm Cover 2-00-34133B

Damper Arm 1-10-08107 Y

Outside Damper Arm 2-00-34117L

5 Damper Link 2-00-34120

6 Wooden knob (damper) Pkg of 3 3-40-05662-3

7 Left Wing 1-10-34124W

8 Cover Left Side 2-00-34127P

9 Airslide 2-00-34113L

10 Air Adjuster 1-10-34112W

11 Ceramic Fiber Afterburner 3-40-05171 Y

12 Damper Frame 1-10-08057

Gasket, Round White 1/4” (Damper Frame) 20 Ft 1-00-108636 Y

13 Afterburner Glass w/Clips 1-00-05181 Y

Steel Afterburner Glass Replacement w/Clips 1-00-08611 Y

14 Plate Assembly Left Side 1-10-08058

15 Ramp Assembly 1-10-08111 Y

16 Afterburner Hood Weldment 1-10-08200 Y

Bolts for Afterburner Hood Pkg of 50 3-30-1126-50 Y

17 Wooden Handle w screws 1-00-00122 Y

18 Brass Elbow 3-40-00121

19 Paw Bolt 4-31-08055 Y

Handle Assembly 1-00-08176 Y

20 Plate Assembly Right Side 1-10-08059

21 Airslide Cover 2-00-34121B

22 Andiron and Extensions w/Hardware 2-00-05222-1 Y

23 Distribution Blower 4-21-02524 Y

24 Power Cord w/VSC 3-20-06652 Y

25 Cover Front Base 2-00-34122P

26 Ash Lip 2-00-34105P

27 Ash Lip Trim 3-43-34001

28 Glass Bolts Pkg of 100 3-30-3011-100 Y

Glass Clips Pkg of 4 2-00-05202 -4 Y

29 Gasket Glass 1/4” 10 Ft 1-00-11862 Y

Additional service part numbers appear on following page.

Service Parts Exception (F200)

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Nov 2010

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

30 Door Pin 3/8 x 1-7/8 Pkg of 4 4-30-00138B Y

31 Glass 3-40-05174 Y

32 Gold Door w/Rope (frame only) No longer available 1-10-05165

Cast Door w/Rope Cast 1-10-08159A

Door Kit Assembly, Gold No longer available 1-00-08000-4

Door Kit Black Classic 1-00-08125-1

Door Gasket 1/2” 20 Ft 1-00-1086204 Y

33 Brick 9” x 4-1/2” x 1-1/4” Set of 7 1-00-900450125 Y

34 Set of Cut Brick 1-00-08119 Y

Brick Insulation Qty 2 req 3-40-05185 Y

35 Cover Right Side 2-00-34128P

36 Right Wing 1-10-34125W

Complete Wing Assembly 1-00-09105-1

Coil Spring handle - Brass 5/16” 3-40-00088

Cozy Screen 3-40-727336

Wing Trim - Center

Center 3-43-00524

Left 3-43-00523

Right 3-43-00525

Ceramic Tile 6 x 12

No longer available 3-43-061202

No longer available 3-43-061203

No longer available 3-43-061204
