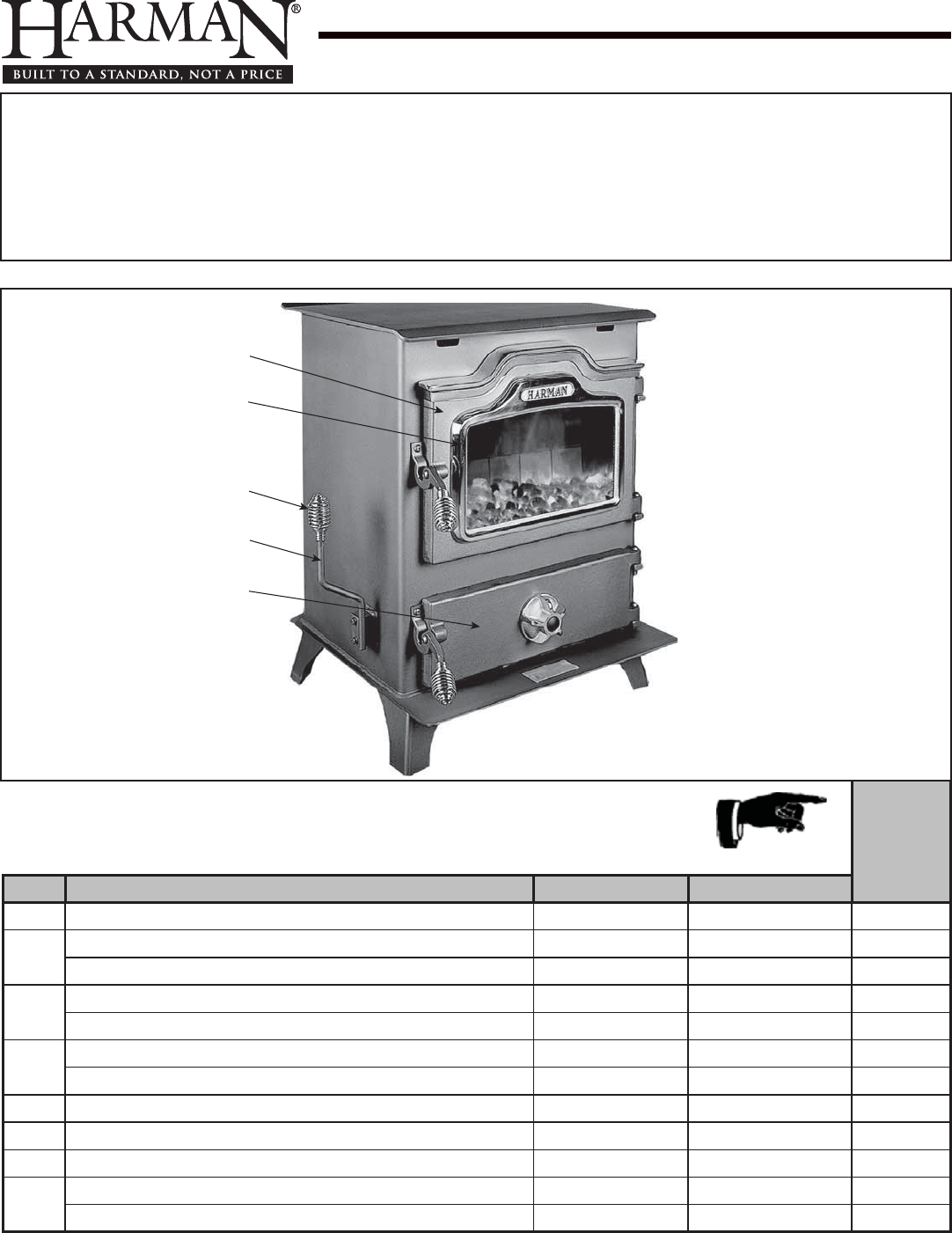

Service Parts Mark III

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or

distributor. Hearth and Home Technologies does not sell directly to consumers. Provide

model number and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

1 Load Door - Roped 1-10-08140A Y

Door Kit Assembly Classic Black 1-00-00141-1 Y

Door Kit Assembly (Gold) No longer available 1-00-00141-4

2Glass Frame Cast 4-00-00037-1

Glass Frame (Gold) No longer available 3-00-00037-4

Rect Glass 4-1/2” X 8-1/2” (Triple Frame) 3-40-450850 Y

Rect Glass 8-1/2” X 14-15/16” 3-40-8501494 Y

3 Spring Handle 1/2” Pkg of 3 3-40-00086-3-3

4 Short Shaker Handle Weldment 1-10-01001 Y

5 Ash Door Cast 4-00-00213D Y

Draft Control Cast 4-00-00109-1

Draft Control (Gold) No longer available 3-00-00109-4

Additional service parts on following page 10/13

Magnafi re Freestanding Coal Stove

1-70-03227-1 (Black) Ending Manufacturing Date: June 2011

1-70-03227-2 (Charcoal) Ending Manufacturing Date: June 2011

1-70-03227-3 (Goldenfi re) Ending Manufacturing Date: June 2011

1-70-03227-4 (Blue) Ending Manufacturing Date: Jan 2010

1-70-03227-5 (Honey Glo) Ending Manufacturing Date: June 2009

1-70-03227-10 (Mojave Red) Ending Manufacturing Date: Jan 2010

1-70-03227-12 (Forest Green) Ending Manufacturing Date: Jan 2010

1

2

3

4

5

1-90-03227-1 (Black w/Door)

1-70-03228-1 (Black) Ending Manufacturing Date: June 2011

1-70-03228-2 (Charcoal) Ending Manufacturing Date: June 2011

1-70-03228-3 (Gold, Ending Manufacturing Date: June 2011

1-70-03228-4 (Blue) Ending Manufacturing Date: Jan 2010

1-70-03228-5 (Honey Glo) Ending Manufacturing Date: July 2009

1-70-03228-10 (Mojave Red) Ending Manufacturing Date: Jan 2010

1-70-03228-12 (Forest Green) Ending Manufacturing Date: Jan 2010

Retired Units

1-90-03228-1 (Black) Ending Manuafcturing Date: Sept 2013

Service Parts Mark III

Beginning Manufacturing Date: N/A

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or

distributor. Hearth and Home Technologies does not sell directly to consumers. Provide

model number and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM DESCRIPTION COMMENTS PART NUMBER

Ash Door, Roped 1-10-08142A

Ash Pan 1-10-00723 Y

Baffl e 2-00-00378B

Blower - 135cfm, 7ft Cord 3-21-13584 Y

Bolt, 1/4-20 x 1/2” Grade 8.2 Zinc SAE Flange Pkg of 50 3-30-2001-50 Y

Brick 9” X 4-1/2” x 1-1/4” Pkg of 7 1-00-900450125 Y

414 Pcs 3-40-900450-414

Brick, Set of cut 1-00-00838 Y

Brick Bracket 2-00-01006

Door Handle Cast 4-00-00042 Y

Door Hinge Qty 4 req 2-00-07203D

Door Latch 4 Sets 1-00-00036 Y

Door Pin 3/8 x 1-7/8 (Ash Pan) Pkg of 4 4-30-00138B Y

Door Pin 3/8 x 2-1/4 (Load Door) Pkg of 4 4-30-00138A Y

Gasket 5/8” Channel (Glass) 5 Ft 1-00-98187 Y

Gasket 1/2” Round Rope (Load Door - Ash Door) 20 Ft 1-00-53500 Y

Gasket Glue, 32 oz 3-42-4583

Grate Holder - Cast Qty 2 req 3-00-00194 Y

Grate Link - Cast 3-00-00204 Y

Hot Water Coil 3-10-49201

Hot Water Coil Hardware 3-10-49000

Load Door Top Cast 4-00-00034-1

Load Door Top (Gold) No longer available 3-00-00034-4

Mag Grate 20” - Cast Qty 3 req 3-00-00211 Y

Mag Leg - Cast 4-00-00044P

Shaker Bar Weldment 1-1/2” 1-10-02015W Y

Shaker Block 2-00-01037-1 Y

Shaker Handle Mount 2-00-01037-2 Y

Side Brick Angle 2-00-01100-1D

Touch up Paint, Aerosol, Black Pre 08461796 3-42-1990

Post 008461796 3-42-19905
