User manual
DUET BT
What’s in the box
DUET BT x 1
Charging cable x 1
Detachable audio cable x 1
Warranty card, QSG, Warning card
x1
x1
x1
x1
DUET BT

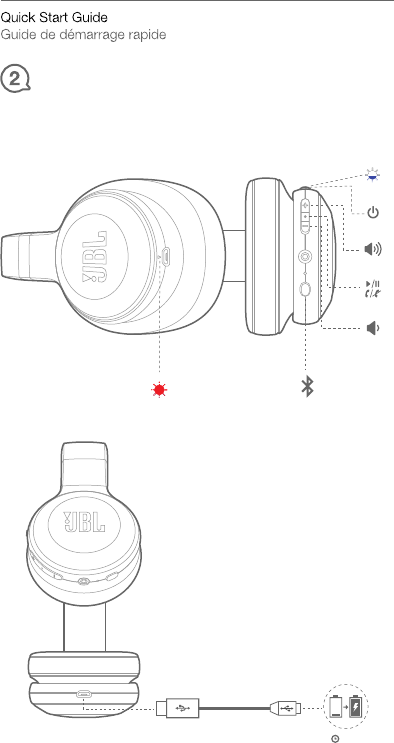

Overview
a. Buttons & LEDs
b. Connections
3hr
DUET BT

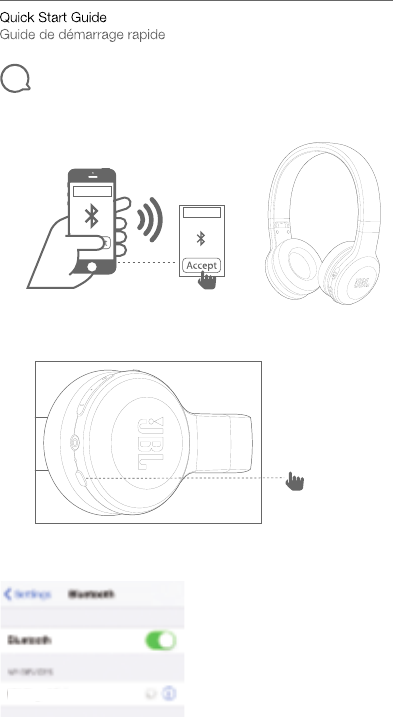

Bluetooth Connection
3
ON (Slide button)
5.0s
a. To turn on the headphone
b. For the first time connection the headphone will enter pair mode
automatically 5 secs after power on
c. Connect via devices
Choose “JBL DUET BT” to connect
JBL DUET BT
DUET BT
Music control
4
Long press volume
up for next track
Long press volume
down for previous track
DUET BT

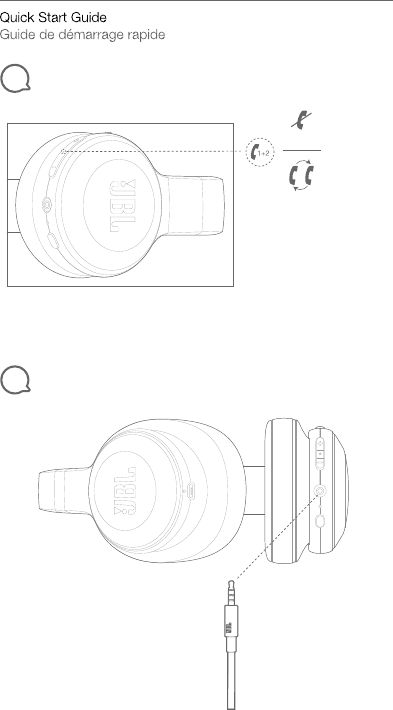

Phone call
Passive listening mode
6
5
12
Press
Long Press
Switch calls
Hang up
current call
and switch to
second call
DUET BT

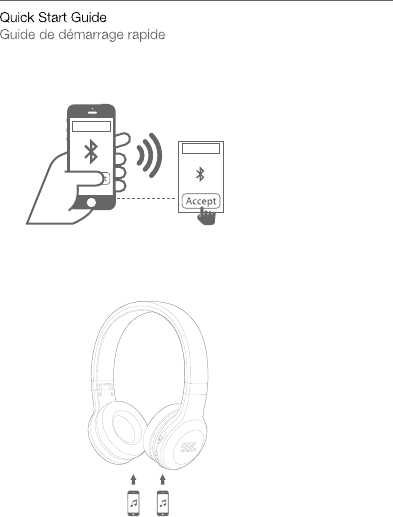

Multi-point Connection
JBL Duet BT
JBL Duet BT
1. Pair and connect the headphone with the 1st device
2. Long press bluetooth button to enter pairing mode
3. Connect the headphone
7
Choose “JBL DUET BT”toconnect
JBL DUET BT
DUET BT
JBL DUET BT
JBL DUET BT
4. Go back to the 1st device and click Connect
5. Max. 2 devices to be connected at the same time
1. 2nd device will be the main source of music and movie.
2. If you want to change the 1st device to be the main source,
stopthemusic/movieon2
nd device, start the music/movie
on the 1st device.
3. If there is phone call from either devices, phone call will take the
1st priority
4. There are maximum 2 devices can be connected at the same time.
DUET BT

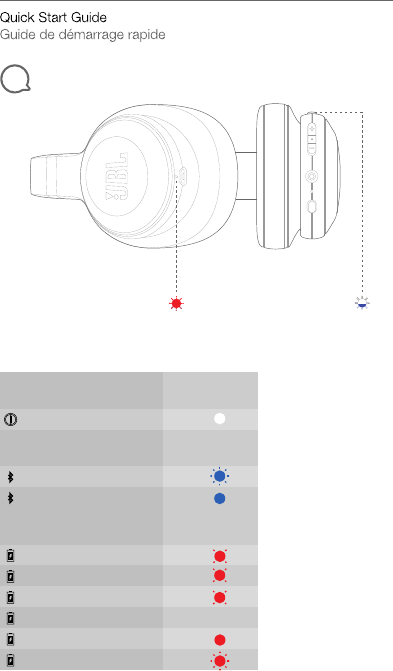

LED behaviour
8
Power on + BT Connected
Power on + BT Pairing
Blue Flash
Bluetooth LED
Yes
OnYes
Fast
Poweron+NoBTConnected
Device mode White Flash
Power / charging
LED
OnYes
Red Flash
Power / charging
LED
Lower battery + No BT Connected
SlowYes
Lower battery + BT Connected
Lower battery + BT Pairing
Charging Complete
N/ANo
SlowYes
SlowYes
Charging in Progress
OnYes
FW Version LED Display*
FastYes
DUET BT
EN
• Driver size: 40mm
• Dynamic frequency response range: 20Hz-20kHz
• SPL @1kHz1mW: 96
• Maximum SPL @1V input: 111
• Microphone sensitivity @1kHz: -42
• Impedance: 32ohm
• Bluetooth transmitted power: 0-4dbm
• Bluetooth transmitted modulation: GFSK
• Bluetooth frequency: 2.402GHz-2.48GHz
• Bluetooth profiles: HFP v1.6, HSP v1.2, A2DP
v1.2, AVRCP v1.4
• Bluetooth version: V4.0
• Battery type: GSP753030
• Charging time: 2hr
• Music play time with BT on: Up to 16hr
• Talk time with BT on: Up to 16hr
• Standby time: 1year
• DimensionWx HxL (mm)
• Weight (g)
